in 30 & 60 AmP

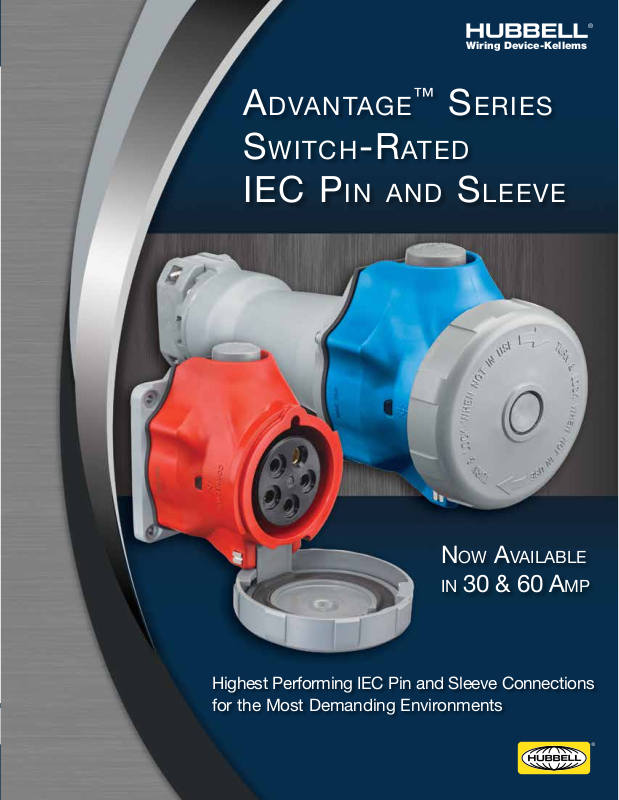

Highest Performing IEC Pin and Sleeve Connections
for the Most Demanding Environments

Hubbell’s Pin and Sleeve connections have always been

PWR

safe – that hasn’t changed. The Advantage™ series
simply has more…

More Advantages

IEC 60309 Singularly Rated Device

Mates with existing installed base of IEC 60309-2 pin and sleeve devices.

Color coded by voltage for easy identication of mating devices.

Superior Water Ingress Protection

UL witnessed IP69k and UL Type 4X and 12. Device is built to

withstand wet and harsh environments.

IP69k

Power Indicating LED Lights

Highly visible and long lasting green LED lights on both sides of

the device provide visual verication of power when connected.

Continuous Ground Engagement

Unswitched feed-through ground pin is rst-to-make and
last-to-break followed by switched neutral and phase contact(s).

Permanent Labelless Markings

Product ratings are laser-marked into the device and will not
wash off for easy permanent identication.

Sleek and Modern Design

The ergonomic device is easy to keep clean making it ideal for

hygienic food processing facilities.

The Advantage™ Series has a UL witnessed IP69k
and 4X,12 environmental rating, two power-indicating
LEDs, continuous ground engagement, labelless laser
markings and a compact and ergonomic design.

Advantage™ Series Switch-Rated
IEC Pin and Sleeve Devices

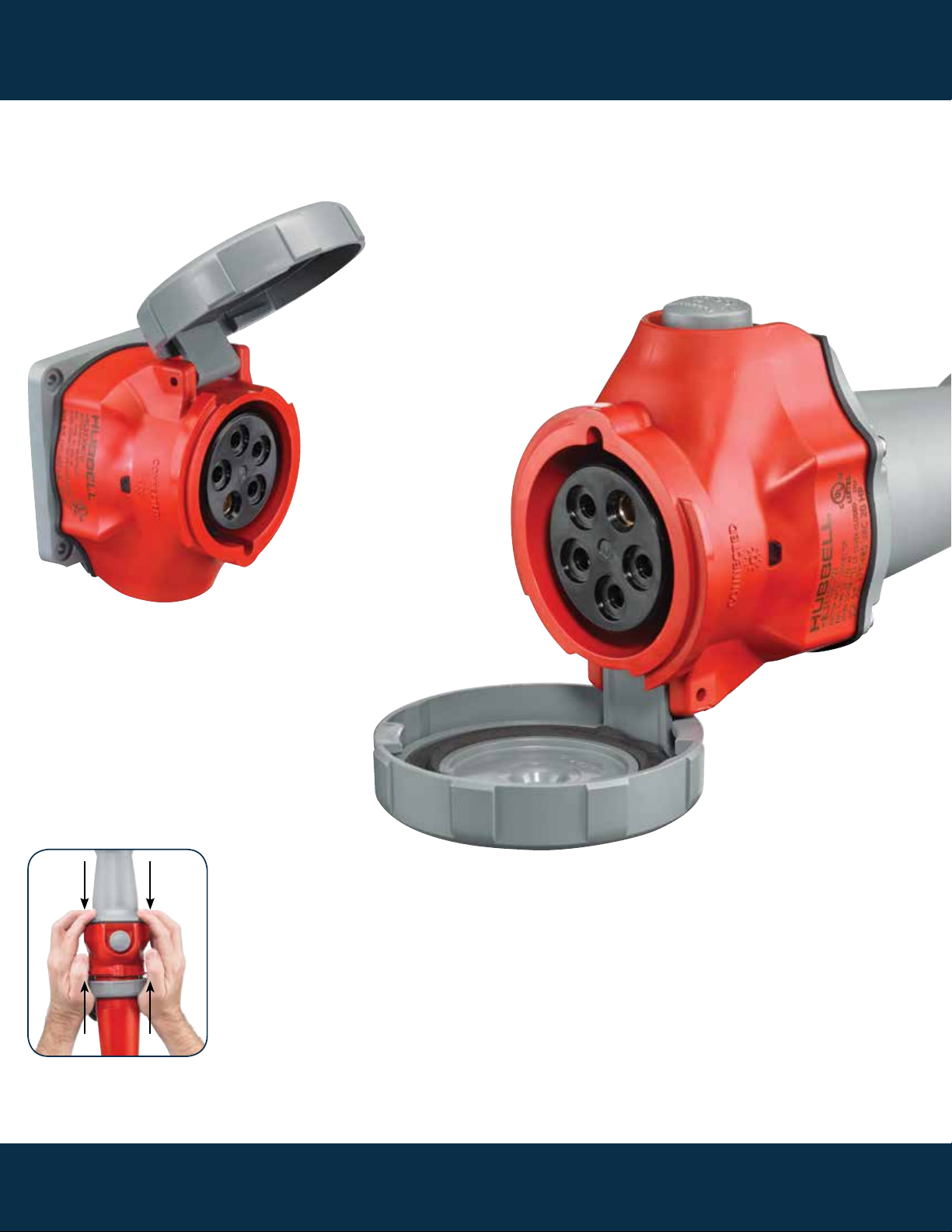

Advantages by Design

Spring-Loaded
Disconnect Button

Oversized for easy actuation
with gloved hands.

Impact Resistant
Cover Arm

Compact and durable
internal swing arm is
fully shrouded protecting
it from damage.

Power Indicating
LED Lights

Provides visual verication

of power when connected.

Ergonomic Design

Hubbell puts the Advantage™
into the palm of your hands
with the easy-to-use leverage
grip design from Hubbell.

Spring-Loaded Cover

Spring-loaded to the open position,
reminding users that the cover must
be secured to ensure maximum
ingress protection.

Wiring Device-Kellems

®

www.hubbell-wiring.com

Advantage™ Series Switch-Rated
IEC Pin and Sleeve Devices

Twist-Lock

Quickly identify and choose a specic Twist-Lock device

and view related products.

Designed to Higher StandardsHubbell’s Latest Motor Disconnect Solutions

Optional Pilot Pin Available on All 60A Devices

Rating Pin and Sleeve Devices

Amp

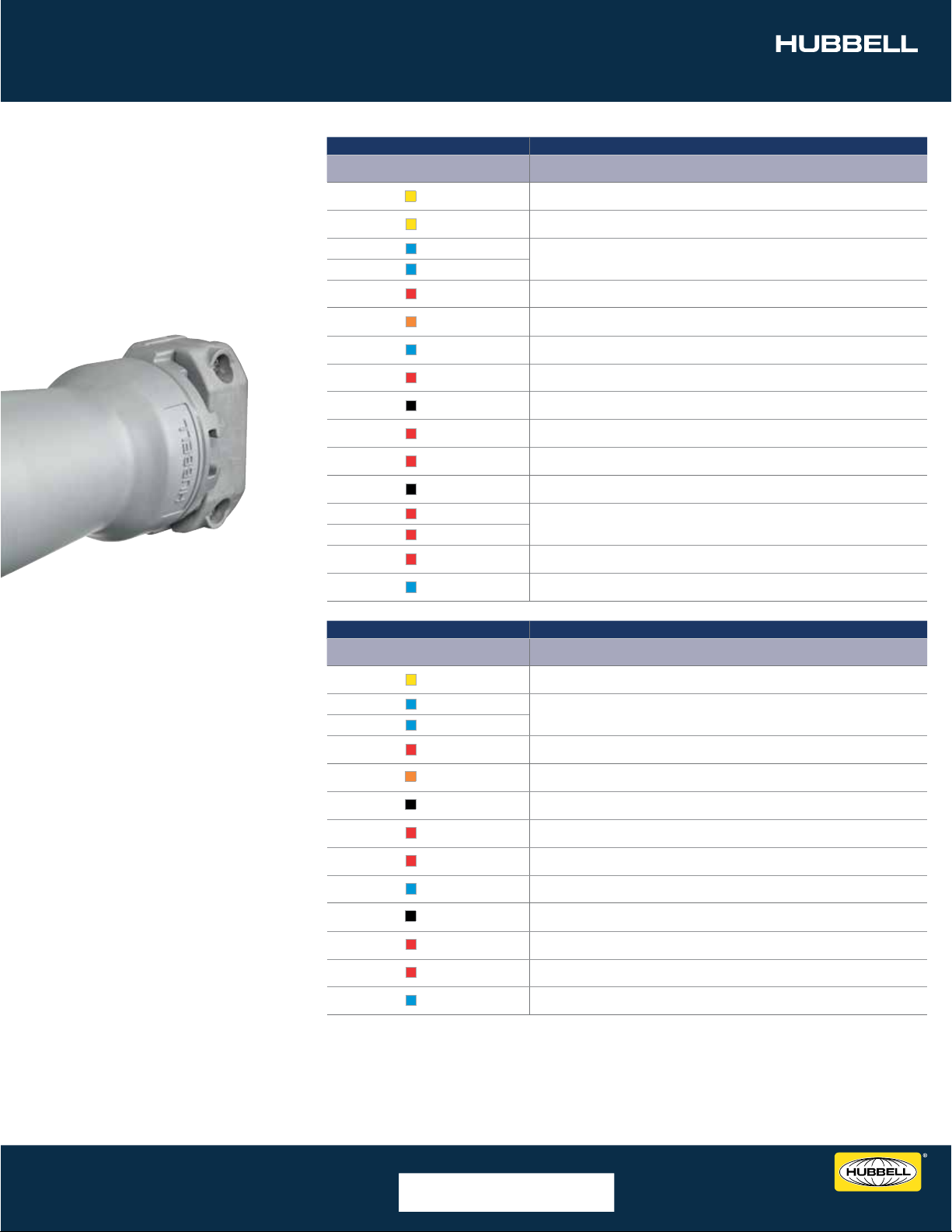

Poles/

Wires AC Voltage

Connector
with Pilot Sleeve

Receptacle
with Pilot Sleeve

Plug
with Pilot Pin

Inlet
with Pilot Pin

60/63 3P 4W

3Ø 250V

HBLS460C9WP* HBLS460R9WP* HBLS460P9WP* HBLS460B9WP*

*Just add a "P" suffix for Pilot pin for 60 amp devices.

Advantage™ Series Switch-Rated
IEC Pin and Sleeve Devices

The 60 Amp Advantage™ Series is the latest addition to one of the most complete lines of disconnects on the market.
Yet another innovative solution - no matter what the environment or application.

The Pilot Pin is smaller than the ground and phase pins and are designed to make after main and break before main breaks.
This pin can be used to communicate with auxiliary devices within your facility. They are “Break before main break” and
by design are the last contact in the sequence to make and rst to break.

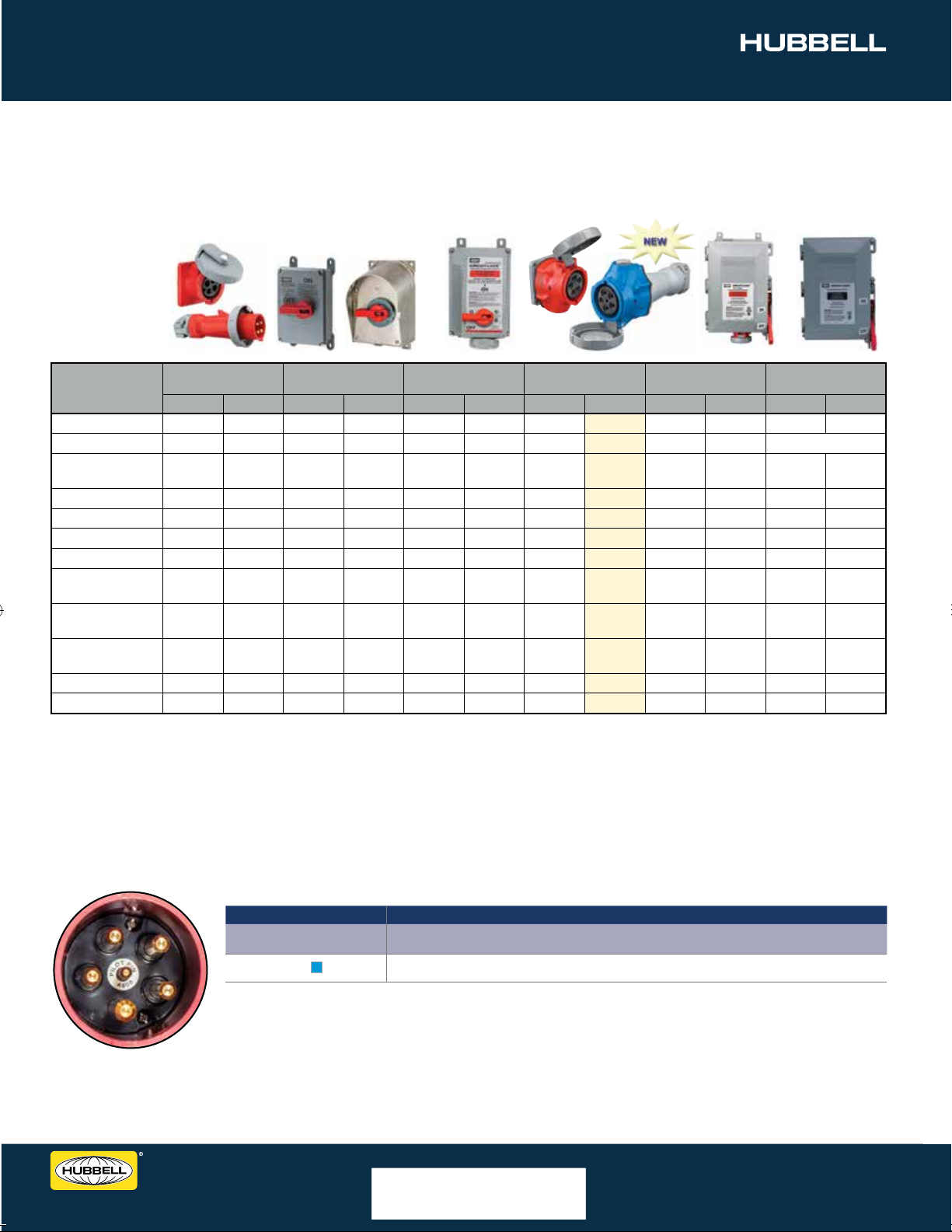

IEC

Pin and Sleeve

Unfused Circuit-Lock®

Disconnects Mechanical Interlock Advantage™ Series

Fused Circuit-Lock®

Disconnects

Fused

Disconnects

30 Amp 60 Amp 30 Amp 60 Amp 30 Amp 60 Amp 30 Amp 60 Amp 30 Amp 60 Amp 30 Amp 60 Amp

UL Category UL16 8 2 U L16 8 2 UL508 60947-4-1 UL508 60947-4-1 UL2682 UL2682 UL98 UL98 UL98 UL98

Circuit Application Branch Branch Branch Branch Branch Branch Branch Branch Branch Branch Branch or Feeder

Supports NFPA 70E
Servicing Practices

Yes Yes Ye s Ye s Yes Yes Yes Yes Yes Yes Ye s Yes

Motor Controller No No Yes Yes Yes Yes No No No No No No

Motor Disconnect Yes Yes Ye s Ye s Yes Yes Ye s Ye s Yes Yes Ye s Ye s

Branch Disconnect No No No No No No Yes Yes Ye s Ye s Yes Yes

SCCR N/A N/A 65kA 65k A 65kA 65kA 100 k A 10 0kA 200kA 200kA 200kA 200kA

H.P. Rating
480V 3Ø

7½ 10 15 50 15 30 20 30 15 30 15 30

Water Ingress IP67 IP67 IP67 IP67 IP67 IP67

Type 4X
& IP69k

Type 4X
& IP69k

IP67 IP67 IP67 IP67

Visual Verication
of Power

No No Yes Yes Yes Yes Ye s Ye s Yes Yes Ye s Ye s

Lockout/Tagout On Plug On Plug Yes Yes Yes Yes On Plug On Plug Ye s Ye s Yes Yes

Auxiliary Contacts No No Yes Yes Yes Yes No Yes Ye s Ye s Yes Yes

Advantage™ Series
