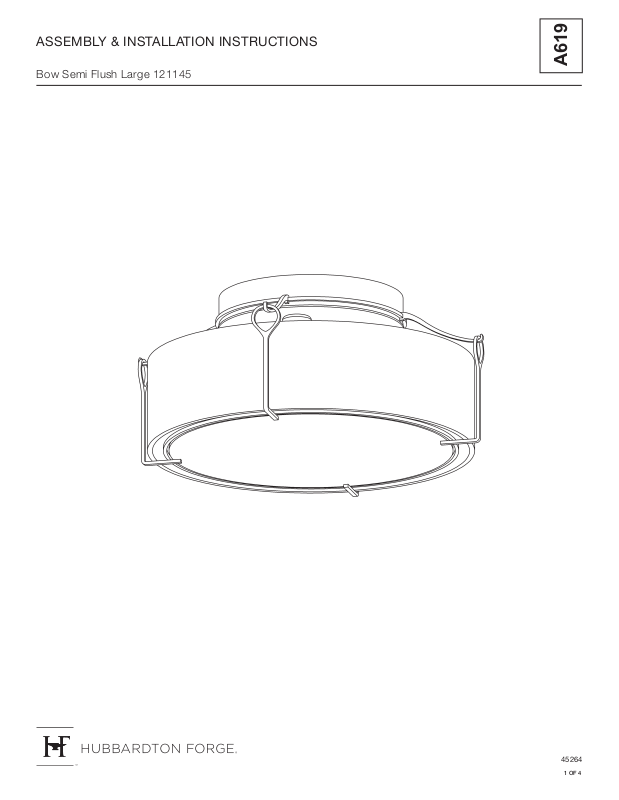

Page 1
ASSEMBLY & INSTALLATION INSTRUCTIONS
Bow Semi Flush Large 121145
A619
45264
1 OF 4
Page 2
ASSEMBLY & INSTALLATION INSTRUCTIONS
Bow Semi Flush Large 121145
Component Parts
A Fixture
B Cap
C Threaded Nipple
D Lock Nut
E Crossbar
F Ground Screw
G Socket (4)
A619
H Glass
I Diuser
J Glass Loop (4)
K Ring
L Hook (4)
45264
2 OF 4
Page 3
ASSEMBLY & INSTALLATION INSTRUCTIONS
Bow Semi Flush Large 121145
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL INJURY OR DEATH AND
PROPERTY DAMAGE. We recommend installation by a licensed electrician. This product must be installed in accordance with
applicable installation code(s), by a person familiar with the construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on xture. Use only recommended bulbs with xture.
Please Note: After installation extra hardware and accessories are possible; our kits are used on multiple products.

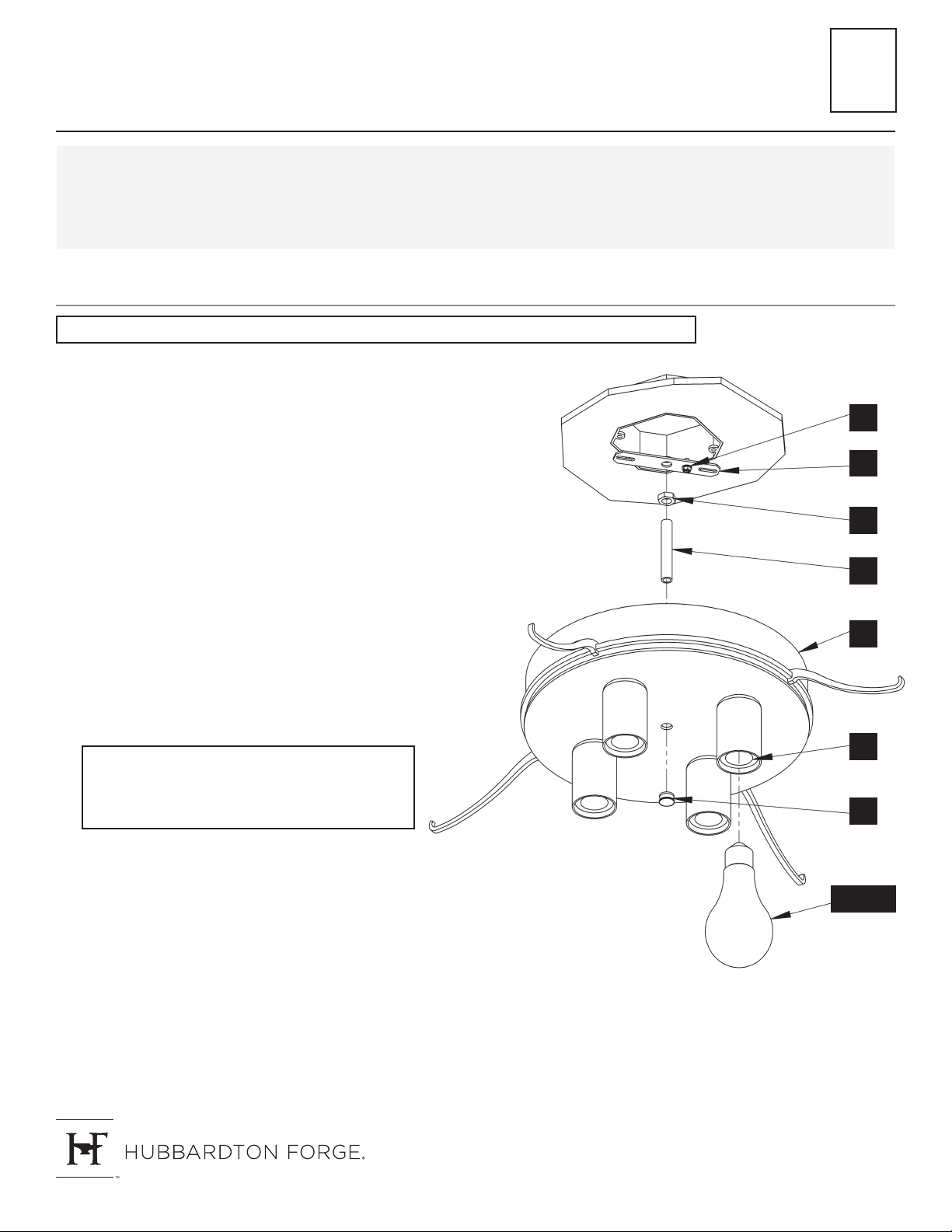

To Install Fixture (Figure 1)
CAUTION: BE SURE POWER IS OFF AT THE MAIN BREAKER BOX PRIOR TO INSTALLATION.
1. Carefully unpack the xture (A) from the carton.
A619
2. Using two machine screws (not provided) attach
crossbar (E) to the electric box.
Note: A new electric box comes with screws.
When replacing a fixture, retain the screws for
use with the new fixture.
3. Thread the nipple (C) into the crossbar (E).
Adjust the nipple to proper length to ensure the
xture will t snugly to the ceiling and secure with
lock nut (D)
4. Attach a pigtail lead to the ground screw (F) on
the crossbar (E).
5. Using suitable wire connectors (not provided),
connect the xture wires to the supply wires,
(white to white, black to black). Connect all
ground wires together.
CAUTION: MAKE SURE WIRE CONNECTORS
ARE TWISTED ON SECURELY, AND NO BARE
WIRE IS EXPOSED.
6. Carefully tuck all wires behind the xture. Place
xture (A) over threaded nipple (C) and tighten
rmly to ceiling using cap (B).
7. Install bulb (not provided) into socket (G).
F
E
D
C
A
G
B
BULB
8. Repeat for remaining bulbs and sockets (G).
9. Complete steps on following page to install glass.
(Figure 1)
45264
3 OF 4
Page 4
ASSEMBLY & INSTALLATION INSTRUCTIONS
Bow Semi Flush Large 121145

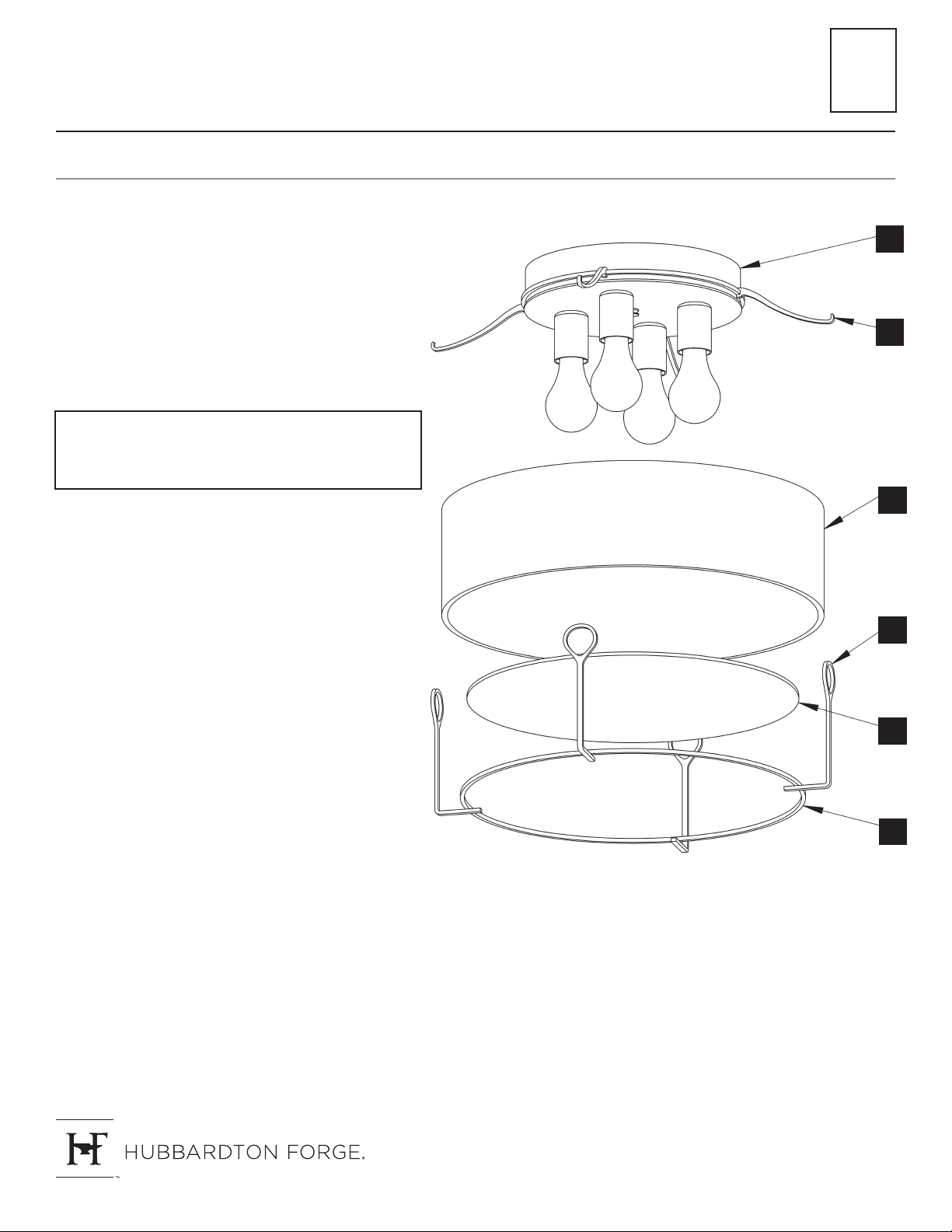

To Complete Install (Figure 2)
1. Locate diuser (I) and glass (H).
A619
2. Carefully slide diuser (I) inside glass loops (J)
until it rests inside ring (K).
3. Carefully slide glass (H) inside glass loops (J) until
it rests around ring (K).
4. Grasp glass/diuser assembly by loops (J).
5. Raise up to xture (A) and place glass loops (J)
onto hooks (L).
CAUTION: BE SURE ALL (4) LOOPS (J) ARE ON
HOOKS (L) BEFORE RELEASING. IT MAY BE NECESSARY TO SLIGHTLY FLEX LOOPS OUTWARD.
6. Center glass (H) and diuser around ring (K).
7. Restore electricity at main breaker.
A
L
H
J
(Figure 2)
If you need further assistance, or nd that you are missing any parts, please contact the dealer from which you
purchased this product. We hope you enjoy your xture!
* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of
this xture.
I
K
45264
4 OF 4
