Assembly and Installation Instructions B111
(Fig
(Fig
2
)
For Direct Wire Wall-Mounted Sconces 30-6012 & 30-6014 Page 1 of 2
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.
To Install Fixture (Figures 1 & 2)
Component Parts
A Black Screw (2)
B Rubber Washer
C Anchor (4)
D Ground
Caution: Be sure power is off at the main breaker box prior
to installation.
E Wall Mounting Bracket
F #10 Screw (4)
G Fixture
H Caulking Lip
1. Carefully unpack fixture from carton.
2. Place wall mounting bracket (E) over electrical box
being sure to hold it plum and level. With a pencil, mark
the location of all mounting holes in the bracket on wall.
Important: Wall mounting bracket must be secured to a
solidly mounted electrical box and/or a framing member
in at least two locations. Do not depend on drywall
anchors alone to support this fixture. If in doubt, contact
a qualified electrician.
Drill 1/4" holes in the locations marked on the wall. For
holes using anchors, place the tapered end of the anchors
(C) into the holes and gently tap them flush to the wall
using a light weight hammer.
3. Using the (4) #10 screws (F), screw the bracket securely
ure 1)
to the wall. Be careful not to over-tighten or strip the
anchors.
4. Move fixture (G) into position. Using suitable wire connectors (not provided), connect the fixture wires to the
supply wires; white to white, black to black, and bare copper or green to bare copper or green using ground (D)
screw with cupped washer.
Caution: Make sure wire connectors are twisted on securely and no bare
wires are exposed.
5. Apply a generous bead of a suitable caulking material to caulking lip (H)
on the fixture (not provided) (Figure 2).
6. Carefully tuck all wires behind the fixture, place fixture firmly against the
wall and fasten to wall mounting bracket (E) with black screw (A) and
rubber washer (B) on top.
nd
7. Install 2
black screw (A) in bottom of fixture attaching to wall mounting
bracket (E).
8. To ensure a water tight seal, apply a thin bead of caulking around entire
perimeter of the fixture.
ure
9. Restore electricity at the main breaker.
10. Install glass per instructions on next page.
(continued)
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735
19773 RevA
Assembly and Installation Instructions B111
(Fig
3
)
(Fig
)
For Direct Wire Wall-Mounted Sconces 30-6012 & 30-6014 Page 2 of 2

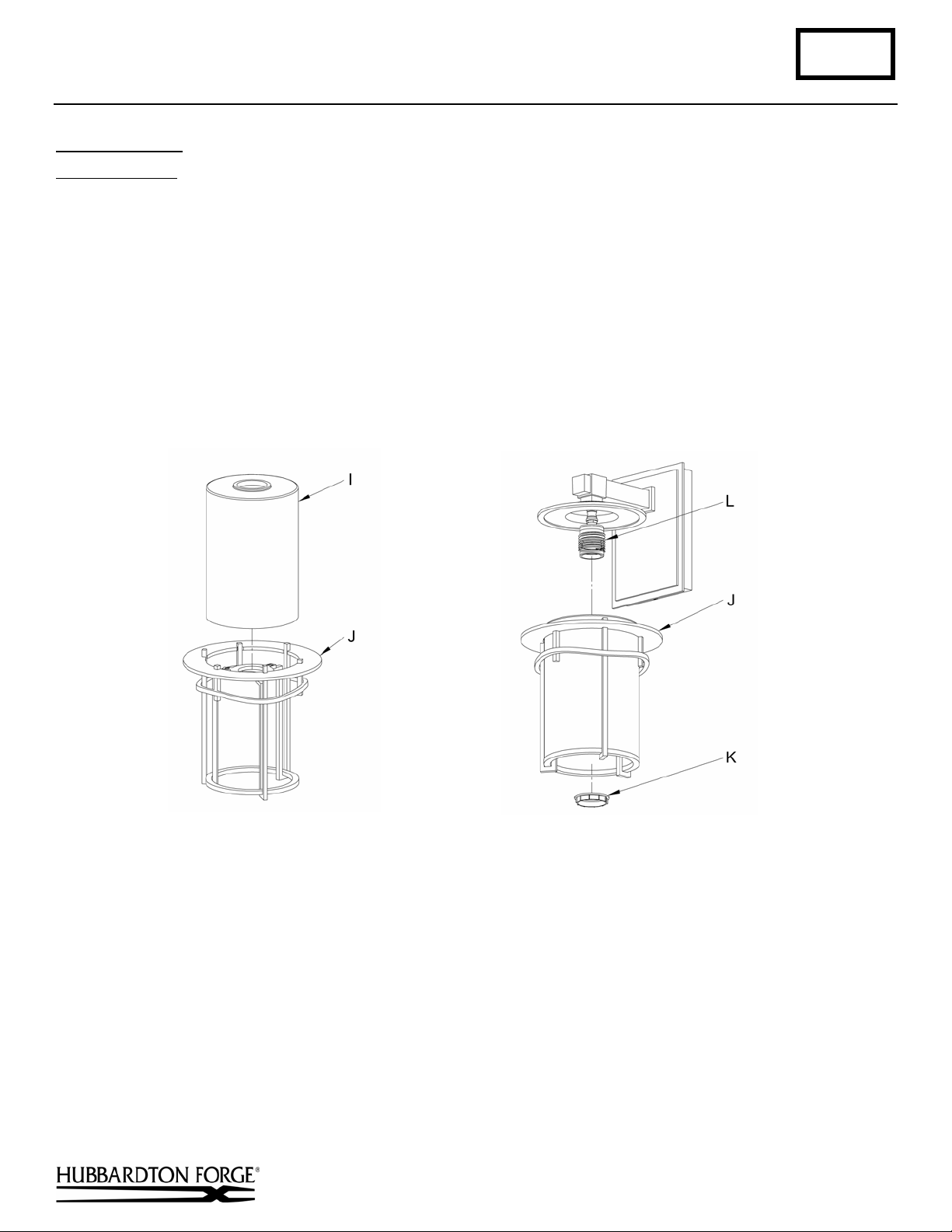

To Install Glass (Figures 3 & 4)
Component Parts
I Glass
J Glass Cage
K Retaining Ring
L Socket
1. Install glass (I) in to glass cage (J).
2. Place glass cage (J) over socket (L).
3. Thread retaining ring (K) on to socket (L) until snug against glass (J).
4. Install light bulb.
ure
If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased
this product. We hope you enjoy your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.
ure 4
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735
19773 RevA
