Installation Instructions B208
For Twilight Sconce 20-4915 Page 1 of 3
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.
Please Note: This fixture is designed to be mounted on a standard wall surface and may not be suitable for all
applications. If installing in a non-wood frame application, we recommend consulting a qualified builder or electrician.
After installation extra hardware and accessories are possible due to our kits are used on multiple products and options.
Prepare for installation (Figures 1)
Component Parts
A Fixture Front
B Thumb Screw (2)
1. Carefully unpack the fixture from the carton.
2. Remove fixture front (A) by loosening thumb screws (B). Assemblies
are shipped together. Slide fixture front (B) up to allow it to slip over
screws (B). Set aside for later use.
To Mount Fixture to Wall
Component Parts
C Fixture Back
D Crossbar
E Threaded Stud (2)
F Knurl Ball (2)
G Ground Screw
H Cupped Washer
Caution: Be sure power is off at the main breaker box prior
to installation.
(Figures 2)
1. Using two machine screws (not provided), fasten the
crossbar (D) to the electric box making sure that fixture
mounting holes are level.
comes with screws. When replacing a fixture, retain the
existing screws for use with the new fixture.
Note: A new electric box
2. Thread studs (E) into the appropriate holes in the
crossbar (D). Adjust the studs to proper length to ensure
the fixture will fit snugly to the wall.
3. Hold the fixture back (C) close to the wall and using
suitable wire connectors, not provided, connect fixture
wires to supply (white to white or ribbed and black to
black or smooth). Ground the crossbar using the green
ground screw (G) and cupped washer (H) to secure a pigtail
lead to the bracket.
Caution: Make sure wire connectors are twisted on securely, and no bare wire is exposed.
(Figure 2)
(Figure 1)
continued)
(
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735
24453
Installation Instructions B208
For Twilight Sconce 20-4915 Page 2 of 3
4. Slide fixture back (C) over threaded studs (E) and push firmly to wall, making sure that no wires are pinched
between fixture back and wall. Fasten with knurl balls (F). Be sure threaded studs (E) are fully seated in the
knurl balls (F).
5. See instructions following to complete installation.
To Install Glass
Component Parts
A Fixture Front
I Glass
J Set Screws (2)
K Glass Brackets (2)
1.
Using provided wrench loosen the two set screws (J)
(Figures 3, 4 & 5)
installed in the fixture front (A) until they are below
the front plate where the glass is to be installed
(Figure 4).
Install glass (I) in fixture front (A) so it rests on the
2.
glass brackets (K).
Using provided wrench install set screws (J) so they
3.
are below the back of fixture front (A) (Figure 5).
(Figure 3)
(Figure 4)
(Figure 5)
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735
(continued)
24453
Installation Instructions B208
For Twilight Sconce 20-4915 Page 3 of 3

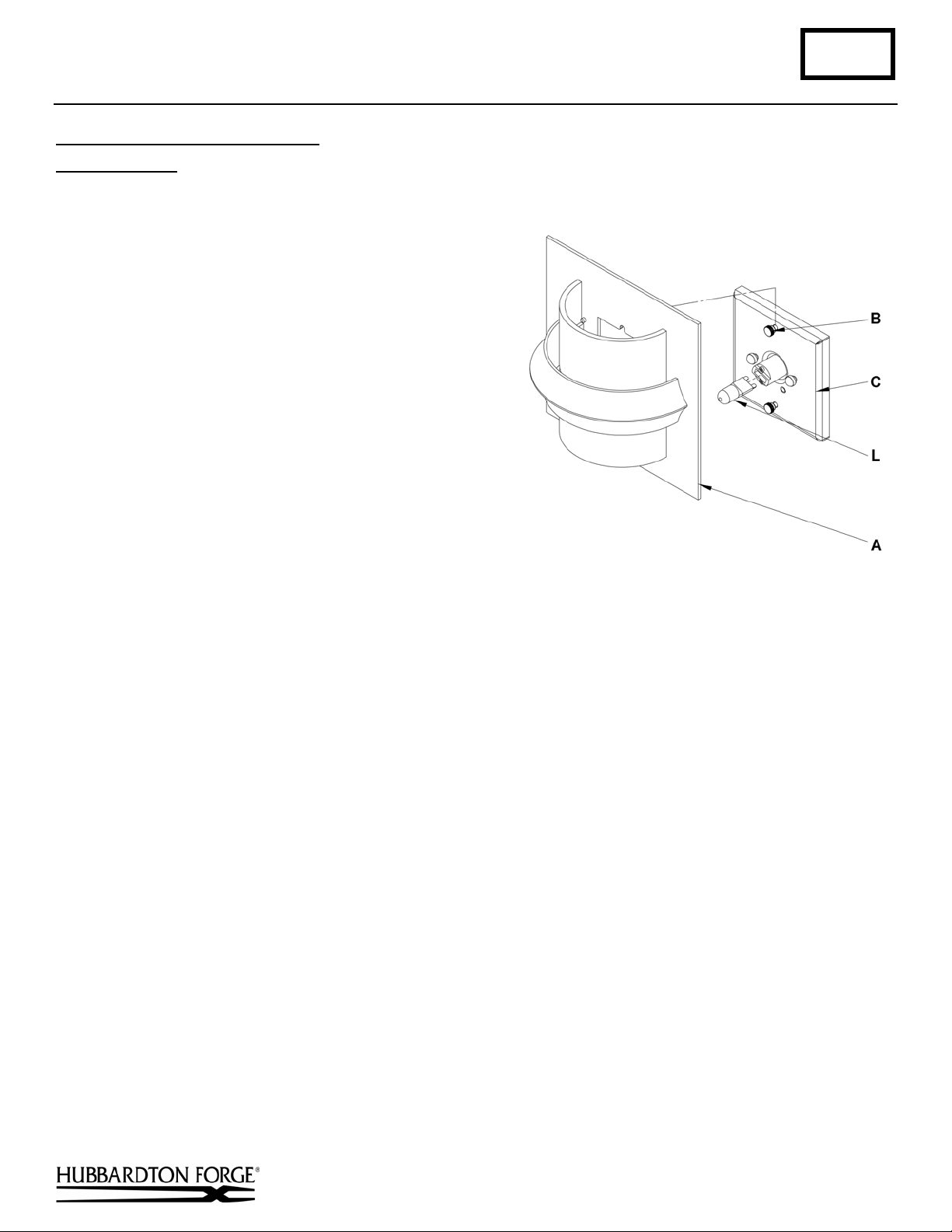

To Install Fixture Front and Bulb (Figure 6)
Component Parts
A Fixture Front
B Thumb Screw (2)
C Fixture Back
L Bulb (included)
1. Install light bulb (L). Be careful not to touch bulb
with bare hands; oil from the hands will
dramatically reduce bulb life.
2. Slip fixture front (A) over thumb screws (B)
aligning slots, lower onto fixture back (C).
3. Tighten thumb screws (B).
4. Restore electricity at the main breaker.
If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased
this product. We hope you enjoy your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.
(Figure 6)
