Installation Instructions A286
For Semi-Flush 12-6615 & 12-6620 Page 1 of 2
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.

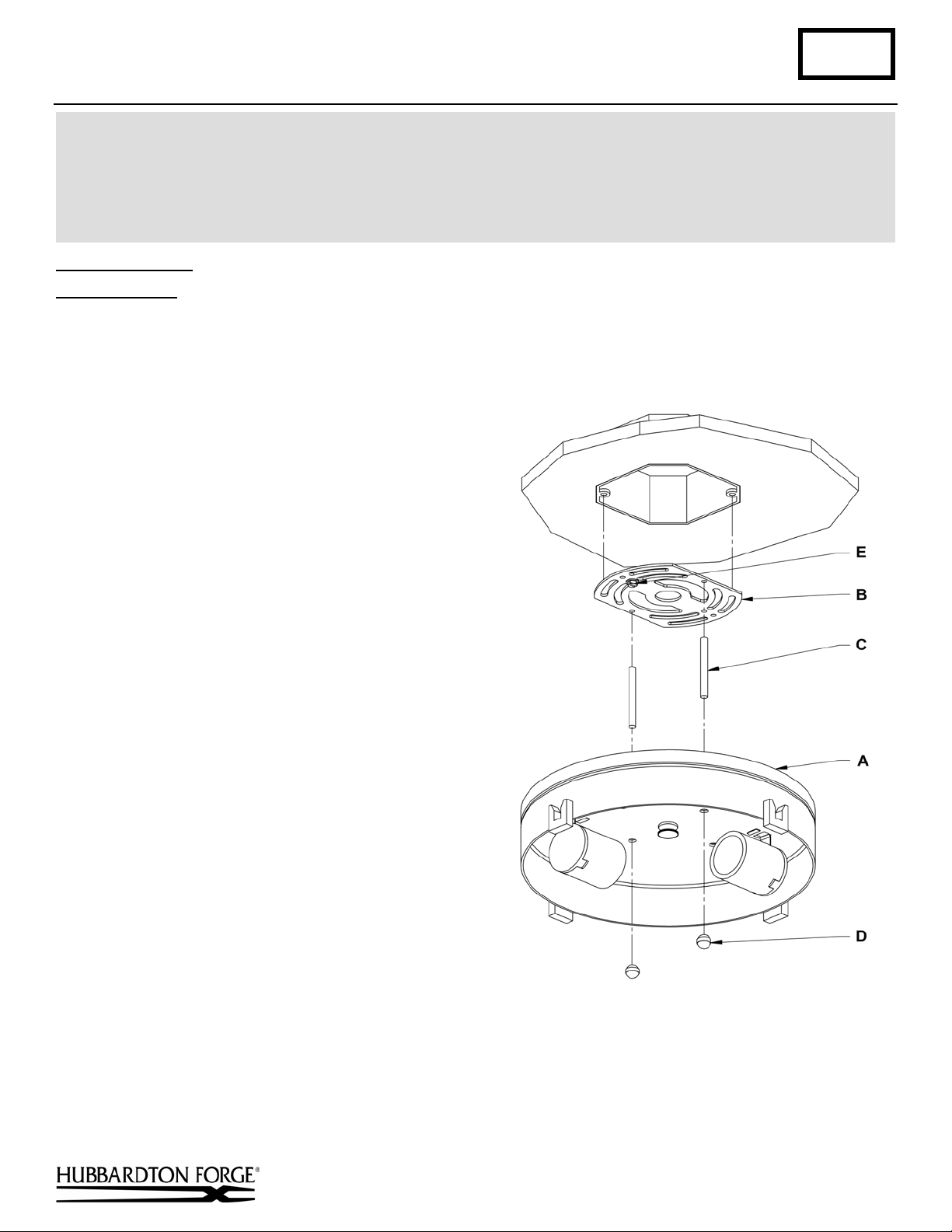

To Install Fixture (Figure 1)
Component Parts
A Canopy
B Cross Bar
C Threaded Stud (2)
D Knurled Balls (2)
E Ground Screw
Caution: Be sure power is off at the main breaker
box prior to installation
1. Thread studs (C) through appropriate holes in
cross bar (B) to match hole centers in canopy
(A). Move ground screw (E) to another
available threaded hole if necessary.
2. Using two machine screws (not provided)
fasten cross bar (B) to the electric box using
outer oval holes to orient fixture to desired
hanging position.
Note: A new electric box comes with screws.
When replacing an existing fixture, retain the
screws for use with the new fixture.
3. Using suitable wire connectors (not provided);
connect fixture wires to supply wires (white to
white and black to black). Run a pigtail lead
from crossbar ground screw (E) to the junction
box and connect all ground wires (Bare copper
or green to bare copper or green).
Caution: Make sure wire connectors are
twisted on securely, and no bare wire is
exposed.
4. Slide fixture canopy (A) over threaded studs
and push firmly to ceiling, making sure that no
wires are pinched between fixture canopy and
ceiling. Fasten with knurled balls (D). Be sure
studs (C) are fully seated in knurled balls (D).
(Figure 1)
This illustration represents a typical
fixture and may not match every style.
(continued)
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735
26769
Installation Instructions A286
For Semi-Flush 12-6615 & 12-6620 Page 2 of 2

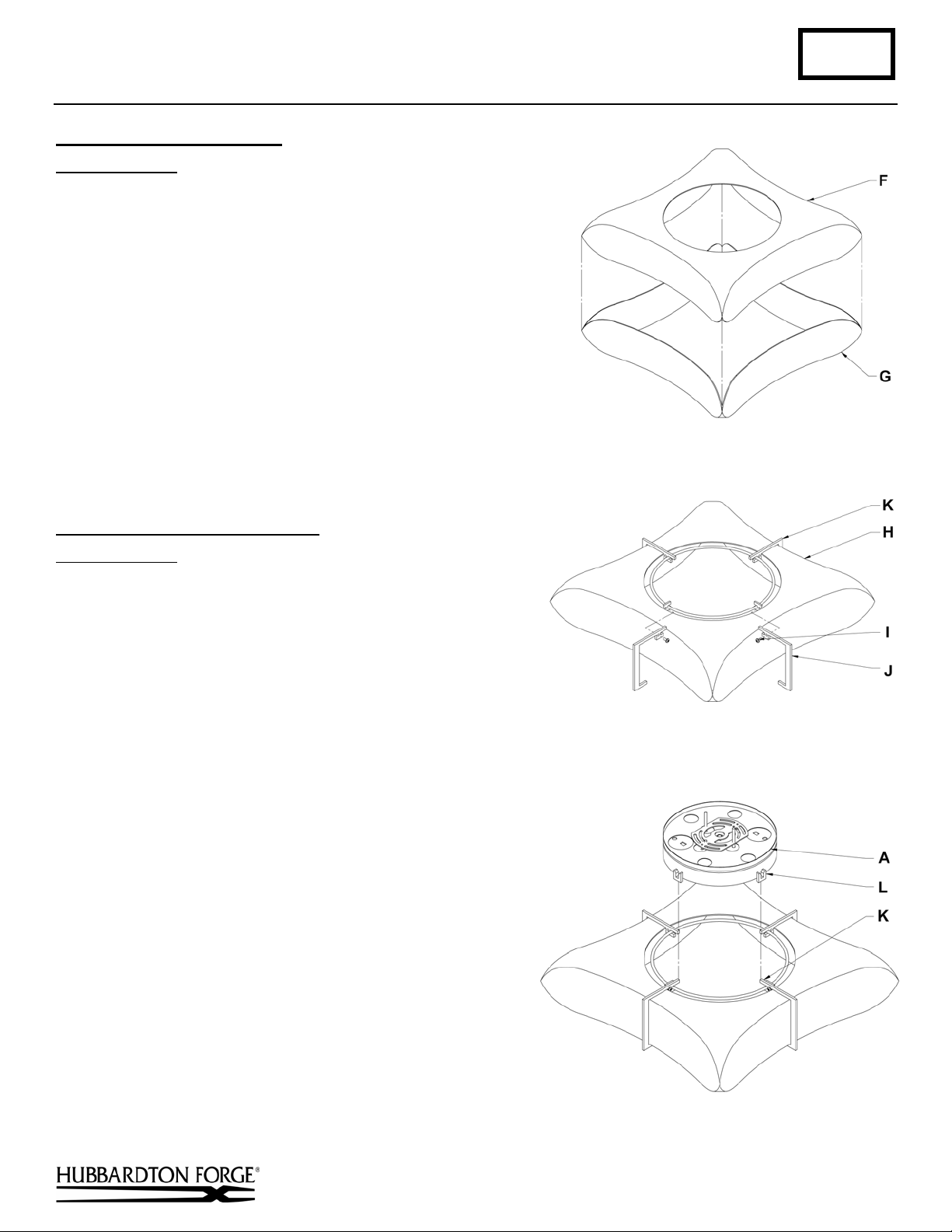

To Assembly Shade & Cage (Figures 2 & 3)
Component Parts
F Shade Panel with Hole
G Shade Panel without Hole
H Shade Assembly
I Pan head screws (2)
J Cage Plate (2)
K Cage Assembly
1. Press shades panel with hole (F) and shade panel without
hole (G) together to make one assembly (H) (Figure 2).
2. Remove pan head screws (I) from cage assembly (K) and
retain for later use. (The cage ships assembled.)
3. Slide shade assembly (H) into cage assembly (K).
4. To complete cage assembly use pan head screw (I) to attach
cage plate (J) to cage assembly (K). Repeat for second cage
plate (J) (Figure 3).
(Figure 2)
To Install Shade/Cage Assembly
Component Parts
A Canopy
K Cage Assembly
L Tabs on Canopy (4)
(Figure 4)
1. Install light bulbs (not Included).
2. Align cage assembly (K) to slip past canopy (A). Slip
cage assembly (K) up over tabs on canopy (L), rotate
cage assembly (K) and lower into tabs on canopy (L).
(Be sure cage assembly is seated in all (4) tabs.)
3. Restore electricity at main breaker.
If you need further assistance, or find that you are missing any
parts, please contact the dealer from which you purchased this
product. We hope you enjoy your fixture!
*
Hubbardton Forge will not be liable for injury or damage caused
by improper installation, lamping or use of this fixture.
(Figure 3)
