Installation Instructions A112
CAUTION: FAILURE TO INSTALL THI S FIXTURE PROPERLY MAY RESULT I N SERIO US PERSO NAL
(Figure 1)
Compass Semi-Flush 12-4550 Page 1 of 2
INJURY OR DEATH AND PROPERTY DAMAGE. We rec o mm e nd installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.
To Install Fixture (Figure 1)
Component Parts
A Crossbar
B Ground Screw
C Threaded Stud (2)
D Fixture
E Knurl Ball (2)
Caution: Be sure power is off at the main breaker box prior to installation
1. Remove tab (H) from glass frame (J) by removing flat
head screw (F). Do not discard tab or flat head screw.
2. Carefully unpack the fixture from the carton.
3. Thread studs (C) through appropriate holes in cross bar
(A) to match hole centers in fixture (D). Move ground
screw (B) to another available threaded hole if necessary.
4. Using two machine screws (not provided) fasten cross bar
(A) to the electric box using outer oval holes to orient
fixture to desired hanging position.
Note: A new electric box comes with screws. When
replacing an existing fixture, retain the screws for use with
the new fixture.
5. Using suitable wire connectors (not provided), connect
fixture wires to supply wires (white to white or ribbed and
black to black or smooth. Connect all ground wires to
green ground screw (B).
Caution: Make sure wire connectors are twisted on
securely, and no bare wire is exposed.
6. Slide fixture (D) over threaded studs and push firmly to
ceiling, making sure that no wires are pinched between
fixture and ceiling. Fasten with knurl balls (E). Be sure
studs (C) are fully seated in the knurl balls (E).
7. Refer to instructions on next page to install glass & bulbs.
8. Restore electricity at main breaker.
(continued)
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735 19836 Rev A

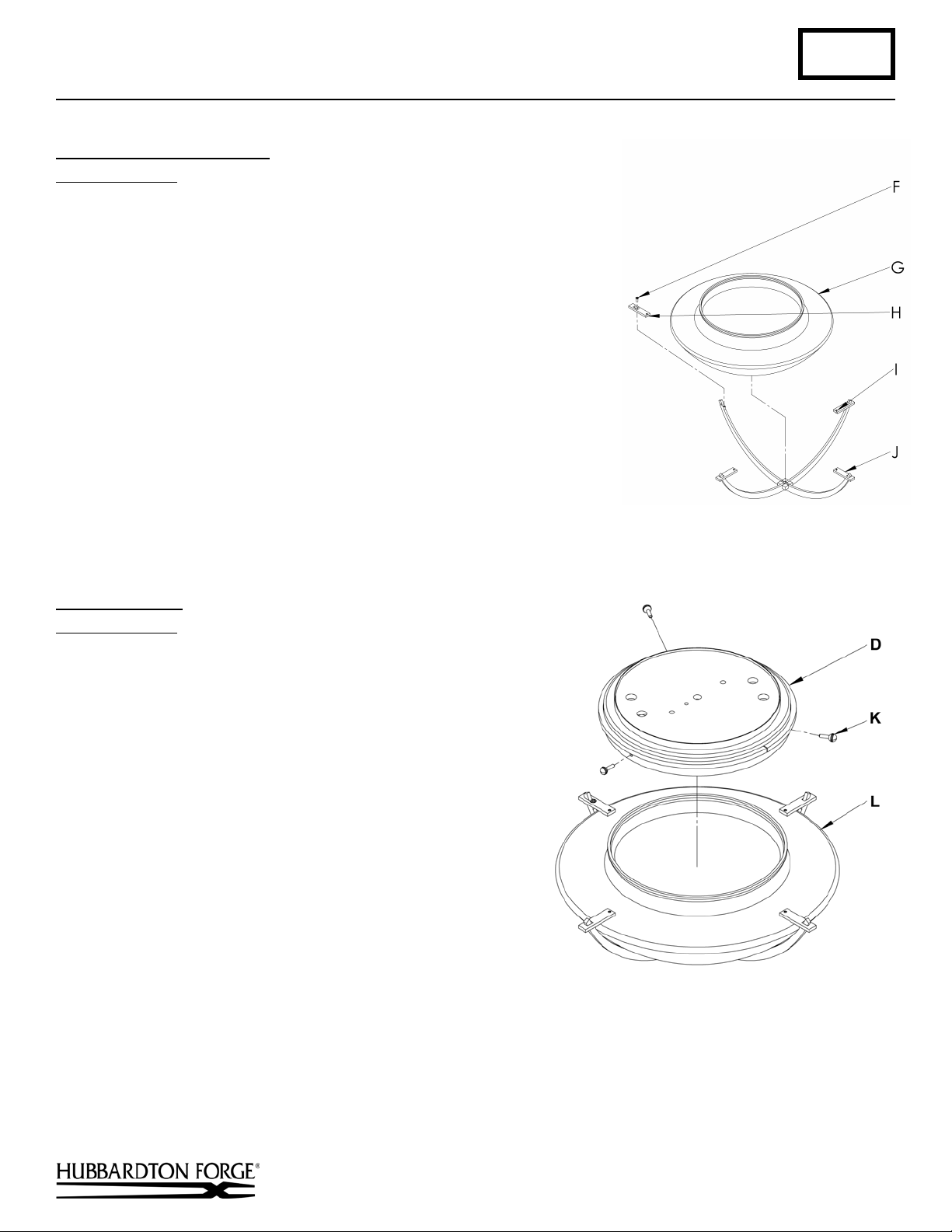

Installation Instructions A112
(Figure 2)
(Figure 3)
Compass Semi-Flush 12-4550 Page 2 of 2
To Assemble Glass Frame (Figure 2)
Component Parts
F Flat Head Screw (1)
G Glass
H Tab (4)
I Nylon Set Screw (4)
J Glass Frame
1. Slip glass (G) in to glass frame (I) so it rests below the three tabs. If
glass is binding on nylon set screws (I) loosen set screws allowing glass
to slip into frame.
2. Install tab (H) oriented with counter sunk side up on to glass frame (J).
3. Install flat head screw (F) to glass frame (J).
4. Tighten (4) nylon set screws (I) until snug against glass (G).
To Install Glass (Figure 3)
Component Parts
D Fixture
K Ball Screws (3)
L Glass Assembly
1. Install light bulbs (not provided).
2. Insert the glass assembly (L) into the fixture (D)
and secure by tightening the three ball screws (K)
against the glass.
If you need further assistance, or find that you are missing any parts,
please contact the dealer from which you purchased this product. We hope you enjoy your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735 19836 Rev A
