Installation Instructions A224
For Plain Semi-Flush 12-4304 Page 1 of 2
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.
Please Note: After installation extra hardware and accessories are possible; our kits are used on multiple products and
options.
To Install Fixture (Figure 1)
Component Parts
A Crossbar
B Ground Screw
C Threaded Stud (2)
D Canopy
E Knurl Balls (2)
Caution: Be sure power is off at the main breaker box prior to installation
1. Carefully unpack the fixture from the carton.
2. Thread studs (C) through appropriate holes in cross
bar (A) to match hole centers in canopy (D). Move
ground screw (B) to another available threaded hole
if necessary.
3. Using two machine screws (not provided) fasten
cross bar (A) to the electric box using outer oval
holes to orient fixture to desired hanging position.
Note: A new electric box comes with screws. When
replacing an existing fixture, retain the screws for
use with the new fixture.
4. Using suitable wire connectors (not provided)
connect fixture wires to supply wires (white to white
or ribbed and black to black or smooth. Connect all
ground wires to green ground screw (B).
Caution: Make sure wire connectors are twisted on
securely, and no bare wire is exposed.
5. Slide fixture canopy (D) over threaded studs and
push firmly to ceiling, making sure that no wires are
pinched between fixture canopy and ceiling. Fasten
with knurl balls (E). Be sure studs (C) are fully
seated in the knurl balls (E).
6. Refer to instructions on next page to install glass &
bulb.
(Figure 1)
(continued)
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 23191
Page 2
Installation Instructions A224
For Plain Semi-Flush 12-4304 Page 2 of 2

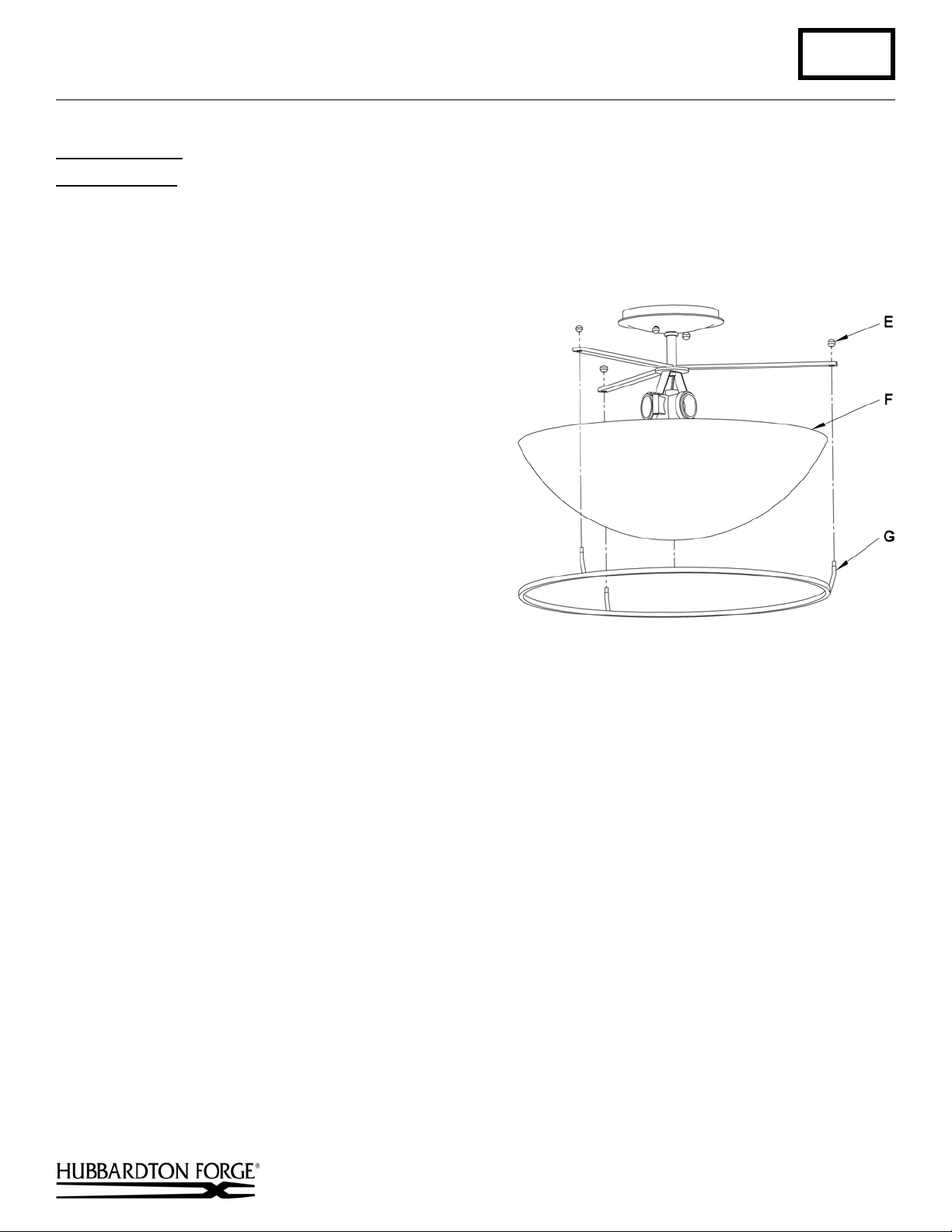

To Install Glass
Component Parts
E Knurl Ball (3)
F Glass
G Ring Assembly
1. Remove the knurl balls (E) from the ring
assembly (G).
2. Install Bulbs.
3. Insert one of the studs on the ring assembly (G)
up through the hole in one of the fixture arms and
secure with a knurl ball (E). This allows the ring
assembly to hang at an angle from the fixture.
4. Place glass (F) into ring assembly (G) and raise it
so the remaining studs are inserted through the
scroll. Securing all studs with knurl balls (E).
5. Restore electricity at main breaker box.
Note: Future bulb changes can be accomplished by
removing one of the knurl balls.
If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased
this product. We hope you enjoy your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.
(Figure 4)
(Figure 2)
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 23191
