Installation Instructions A222
(Fig
For Moonband Semi-Flush 12-4252 & 12-4253 Page 1 of 2
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.
Please Note: After installation extra hardware and accessories are possible; our kits are used on multiple products and
options.
To Install Fixture (Figure 1)
Component Parts
A Crossbar
B Ground Screw
C Threaded Stud (2)
D Canopy
E knurl Balls (2)
Caution: Be sure power is off at the main breaker box prior
to installation
1. Carefully unpack the fixture from the carton.
2. Thread studs (C) through appropriate holes in cross bar
(A) to match hole centers in canopy (D). Move ground
screw (B) to another available threaded hole if
necessary.
3. Using two machine screws (not provided) fasten cross
bar (A) to the electric box using outer oval holes to
orient fixture to desired hanging position.
Note: A new electric box comes with screws. When
replacing an existing fixture, retain the screws for use
with the new fixture.
5. Using suitable wire connectors (not provided) connect
fixture wires to supply wires (white to white or ribbed
and black to black or smooth. Connect all ground wires
to green ground screw (B).
Caution: Make sure wire connectors are twisted on
securely, and no bare wire is exposed.
6. Slide fixture canopy (D) over threaded studs and push
firmly to ceiling, making sure that no wires are pinched
between fixture canopy and ceiling. Fasten with knurl balls
(E). Be sure studs (C) are fully seated in the knurl balls (E).
7. Refer to instructions following to install glass & bulb.
ure 1)
(continued)
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 23181
Page 2
Installation Instructions A222
(Fig
3
)
(Fig
2
)
For Moonband Semi-Flush 12-4252 & 12-4253 Page 2 of 2

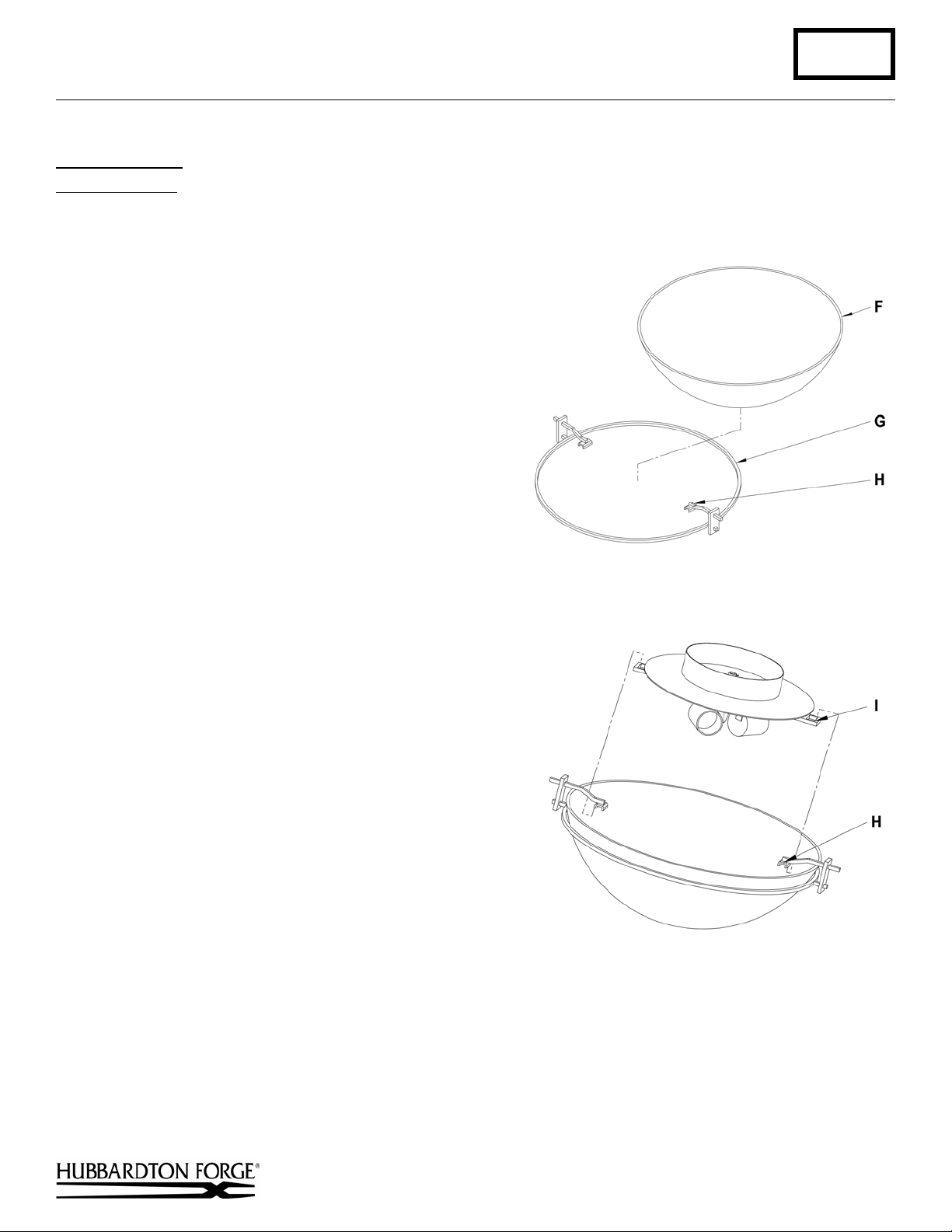

To Install Glass
Component Parts
F Glass
G Ring Assembly
H Support Brackets
I Support Tabs
(Figures 2 & 3)
1. Install light bulb.
2. Angle glass (F) so it clears the support brackets (H)
and place glass into the ring assembly (G).
3. Raise glass (F) and ring assembly (G) until support
brackets clear support tabs (I).
4. Align support brackets (H) and support tabs (I) and
lower until the support brackets (H) rest in the slots
of the support tabs (I).
5. Restore electricity at the main breaker.
ure
ure
If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased
this product. We hope you enjoy your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.
