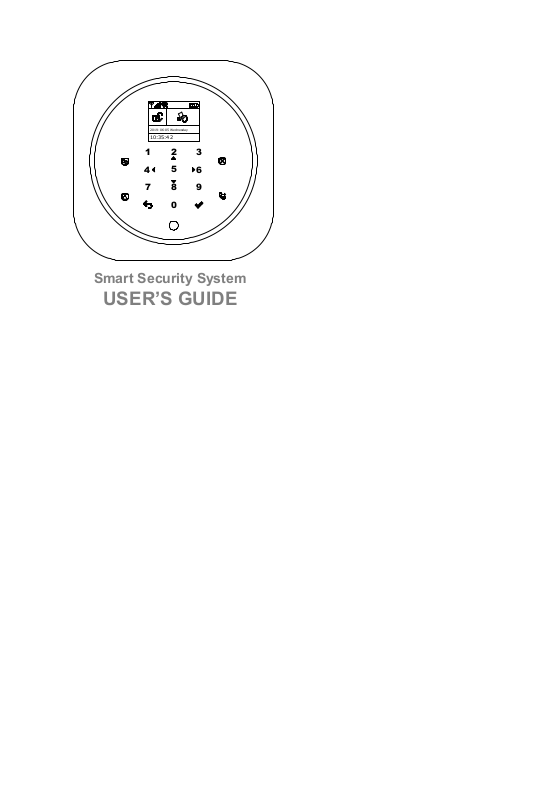

Smart Security System
USER’S GUIDE
CONTENTS
1 DO THIS FIRST
1 Things to be Noted Before Getting Started
1 What You Need
2 IN THE BOX
3 MEET YOUR ALARM SYSTEM
3 How the Alarm System Works
4 Getting to Know Your System
4 Smart Hub
9 Remote Tag
10 RFID Tag
10 Door/Window Sensor
11 PIR Motion Detector
13 PLACEMENT/INSTALLATION
13 Where to Place/Install Smart Hub
13 Where to Place Door/Window Sensor
14 How to Install PIR Motion Detector
15 GETTING STARTED
15 Install the SIM Card
15 Cellular Network Connection
15 How to Set Phone Numbers for SMS and Phone Calls by Panel
16 Exit/Entry Delay
16 How to Record a Voice Message by Panel
17 How to Pair a Remote Tag by Panel
17 How to Pair a Wireless Sensor by Panel
18 How to Pair a RFID Tag by Panel
18 How to Pair a Wireless Siren by Panel
18 How to Pair a Alarm Wireless Switch by Panel
19 APP
19 Download App
20 USING SMART SECURITY SYSTEM
20 The Security Levels
21 How to Arm or Disarm
22 Make a Call on Panel
22 Smart Hub Features
22 RESET TO FACTORY SETTINGS
23 SPECIFICATIONS
DO THIS FIRST.
Things to be Noted Before Getting Started
This guide is for:
Hub cellular model ( Hub 2G model, Hub 4G model )
Hub cellular + Wi-Fi model ( Hub 2G+Wi-Fi model, Hub 4G+Wi-Fi model )
Please check the following conditions for a successful set-up:
If using 4G SIM card, make sure the 2G network of your wireless service provider is still available
in your country. You should purchase the hub with 4G cellular communicator if the 2G network is
unavailable.
The followings are for hub cellular + Wi-Fi model only.
You should select a 2.4GHz Wi-Fi network. The hub does not support the 5GHz Wi-Fi. Select the
5GHz band instead of the 2.4GHz band is the most common mistake when setting up the hub for
the first time.
Your Wi-Fi password must not contain space or other special characters.
Place your hub as close as possible to your router when setting up.
A slow network speed will also affect the performance of your hub. It is recommended to have an
upload speed of at least 2Mbps or faster.
Make sure that the AP isolation setting in your router is disabled.
What You Need
To set up and use Alarm System, you’ll need an iPhone or Android phone, the Smart Security System
app, an unused indoor power outlet, a micro SIM card supporting 2G/GSM(for 2G version) or 4G
network (for 4G version), and a Wi-Fi 802.11 b/g/n(2.4GHz) network connection (Hub cellular + Wi-Fi
only).
1
IN THE BOX.
Door/Window Sensor
Screws x2
Extra Adhesive
Detector Bracket
Wireless Siren (Optional)
Extra Adhesive
2019-06-05 Wednesday
10:35:42
21
5
4
8
7
0
Smart Hub (Panel)
Alarm, display and
keypad.
3
6
9
Remote Tag x2
PIR Motion Detector x1
Senses when someone
walks nearby.
Wireless key to quickly
away-arm, home-arm and
disarm your home, and to
trigger an emergency
alarm.
RFID Tags x2 (Optional)
Key fob to quickly arm
and disarm your home.
Power Adapter
For PIR Motion Detector installation
PIR Motion
x1(x2 optional)
Senses when a door or
window is opened.
For Smart Hub installation
Hub Bracket
Mounting Strips
Sounds when the alarm
goes off.
Bottom Cover
Mounting Strips
For door/window installation
Screws x2
2
MEET YOUR ALARM SYSTEM.
The hub internal siren
The hub sends a push
The hub receives the
Arm the system by the
When an optional
When a Door/Window
The APP lets you know
How the Alarm System Works
2019-06-05 Wednesday
10:35:42
21
5
4 6
7 8
0
3
9
command and enters
“Armed” mode.
remote, RFID tag, the
ARM button of hub
touchscreen or the APP.
sounds at 85dB on-site
what’s happening at home,
anywhere, any time.
2019-06-05 Wednesday
10:35:42
7
Sensor detects a
door/window is being
opened, the sensor sends
a signal to the panel letting
the hub know that there
has been an intrusion.
3
21
54
6
9
8
0
external wireless siren
has been placed there
will be a signal to be sent
to the siren.
notification and text message
to your phone when a sensor
is triggered if you enable the
notification function located
in your app settings. After
that the hub will also make
phone calls to each preset
phone numbers.
3
Getting to Know Your System
and the alarm.
The hub cellular+Wi-Fi model is a dual network system that utilizes both Wi-Fi and
cellular(GSM/4G).
All sensors are wirelessly connected to the hub. In the event of alarm activation, for
example, when a sensor is triggered, a push notification will be sent and an alarm call
will be made automatically to all registered users.
The system can be controlled on-site by the remote tag supplied, or remotely from
anywhere with our free dedicated mobile application.
The system can connect with up to 100 wireless sensors, 10 remote tags and 10 RFID
tags.
Smart Hub
Alarm, display, keypad and the brains of the system
Overview
Display Window
Display system status, time, the alarm’s
information, menus, and more.
Keypad
ARM, ARM STAY,
DISARM and DIAL
buttons. Keypad for
entering passcode,
setting, and more.
Tamper switch
The tamper switch (lever
underneath the bracket)
will trigger an alarm
notification if an attempt
is made to remove the
hub from its installed
location. And the alarm
sounds.
Speaker
For voice prompt
2019-06-05 Wednesday
10:35:42
21
5
4 6
8
7
0
3
9
Tap RFID tag here to
arm and disarm.
Status indicator
Indicates the ARM/DISARM/ARM STAY/ALARM status.
Microphone
For monitoring and
two-way talking.
Backup battery ON/OFF
Push to ON to turn on the
built-in backup battery.
RFID tag reader zone
Regular SIM card slot
Plug in the SIM card here.
Power port (Micro USB)
Plug in the power cable here.
4
Home screen
Arm/Disarm status
Bottom status area
RFID read zone
Your home screen may look different if you use another version of hub
Top status bar
.
for countdown bar,
alarm information
and clock.
2019-06-05 Wednesday
10:35:42
Status bar
The icons in the status bar at the top of the screen shows information about the hub.
What you see What it means
No SIM card inserted or SIM card faulty
Cellular network
Wi-Fi network
(Cellular+Wi-Fi model)
SMS Text message sending
Call Calling
Lock keypad The keypad is locked
Power
Shows that your carrier’s cellular network is
available in case of white bars. More bars means
stronger signal. The bars are gray if not registered
with cellular network.
Shows that the system is connected to a Wi-Fi
source and the signal strength when it is shown in
white. More bars means stronger connection.
Shows that the hub has a Wi-Fi Internet
connection when dot is shown.
AC powered, and the progress bars shows in case
of charging.
Shows the battery level when the system has lost
AC power. The icon is red when the backup
battery power is low.
5
Arm/Disarm status
Here’s the Arm/Home Arm/Disarm status of system.
What you see What it means
System is AWAY ARMED.
System is HOME ARMED.
System is DISARMED.
Alarm information
Display what happened in case of alarm.
Countdown bar
Clock is shown without countdown process.
What you see What happens and what you should do
You now have xx seconds to leave home before the Exit
Please exit
Please disarm
Synchronizing
Delay expires. When Exit Delay is completed, the alarm
system is armed.
You must disarm the system before Entry Delay expires, or an
alarm will go off.
You must active the wireless transmitter before the paring
delay expires.
Quick view of menu features
Your icons may look different if you use another version of hub.
Icon
Item What you can do with it
Menu
Settings
Delay
Exit Delay
Entry Delay
Siren Duration
Switch
Arm Beep
Siren
Arm SMS
Keypad Lock
Backlight
Keypad Tone
Delay Tick
Adjusting Exit Delay
Adjusting Entry Delay
Adjusting Siren Duration(0~65535 minutes, default: 3)
Turn on/off features
Turning arm and disarm beep
Turning alarm continuous siren on or off when an alarm occurs.
(default:on)
Turning SMS notification on or off when the system arms or
disarms (default:off).
Turning touchscreen lock
Turning touchscreen backlight
Turning operation chime on or off(default:on)
Turning exit and entry chime on or off(default:on)
(1)
(0~65535 seconds, default: 40)
(1)
(0~65535 seconds, default: 30)
(2)
on or off(default:on)
(3)
on or off(default:off)
(4)
on or off(default:off)
6
Human Voice
Door/Window
Open Warning
Password
System
User
Language
简体中文
English
Deutsch
РУССКИЙ
Español
Polski
Italiano
Français
Português
Ελληνικά
Românâ
Initialization
Phone
1st Phone
2nd Phone
3rd Phone
4th Phone
5th Phone
Log
Alarm Log
Arm Log
Parts
Remote
Detector
RFID
Add
Delete/Edit
Delete All
Turning Human Voice
Turning warning notification on or off if you leave a window or door
open and arm (default: on).
Changing System Code
Changing User Code
Language Selection
Resetting to factory defaults
(5)
on or off(default:on)
(6)
(4 digits, default: 8888)
(7)
(4 digits, default: 1234)
(8)
(default: English)
(9)
Setting the first Phone Number, dialing on or off and SMS on or off
See 1st phone
See 1st phone
See 1st phone
See 1st phone
Viewing system alarm events
Viewing system arm/disarm events
Paring, deleting/editing, deleting all accessories
Pairing, deleting or deleting all the remote tags
Pairing, editing, deleting or deleting all the wireless sensors
Pairing, deleting or deleting all the RFID tags
Pairing a new remote tag, sensor or RFID tag
Deleting a remote tag or RFID tag from the list
Editing/Deleting a wireless sensor from the list
Deleting all remote tags, sensors or RFID tags
7
Siren Learn
Alarm Socket
Socket Timer
Decoder
Wi-Fi
Smart
Configuration
Unbind
MAC/IP
SoftAP
Configuration
Record
Record
Play
Delete
Duration
Timer
Arm
Timer/Schedul
e
Disarm
Schedule
Zone&Sync
Date&Time
Wi-Fi Sync
2G/4G Sync
Version
Sending a transmission signal to the wireless siren be paired
Pairing a wireless switch that syncing on/off with the siren
Setting a schedule(in 24-hour) for opening/closing wireless switch
automatically
Read the serial number of detector from its transmitting signal.
You can know which wireless accessory were paired in your hub by
this tool.
(Available on hub cellular+Wi-Fi model only)
Connecting your bub to the Wi-Fi network and internet by Smart
Configuration(Requires the mobile APP)
Unbinding the hub link from the server
Getting the MAC and IP addresses of the Wi-Fi module
Connecting your bub to the Wi-Fi network and internet by Soft AP
Configuration(Requires the mobile APP)
Recording voice message and playback
Listening to the recorded message
Deleting the recorded message
Adjusting Record Duration (1-20 seconds is available)
Setting a schedule(in 24-hour) for arming automatically
Setting a schedule(in 24-hour) for disarming automatically
Reserved
Setting the date and time(in 24-hour)
Turning using the Wi-Fi network-provided time on or off
(hub cellular+Wi-Fi model only)
Turning using the cellular network-provided time on or off
Getting the firmware and Serial Number of hub, the firmware and
IMEI of the GSM module, and MAC address of the Wi-Fi module
(hub cellular+Wi-Fi model only)
Here’re some of menus how to use.
Item Caption Description
Your security system has been programmed with delay times
1
Exit/Entry Delay
that allow you to exit the premises after arming, and to disarm
the system upon entry before an alarm occurs. If you leave
home too late when exiting, or disarm too late when arriving
home, it will cause a false alarm. If an false alarm occurs, you
8
should disarm the system immediately.
LED indicator
2
3
4
5
6
7
8
9
Arm Beep
Keypad Lock
Backlight
Human Voice
System
Password
User Password
Language
Initialization
When it is turned on, the external siren will beep when armed or
disarmed.
For additional security,you can require a passcode to unlock the
panel. When it is turned on, if you don’t operate the keypad on
the panel for 30 seconds or so, the home screen locks
automatically.
When it is turned off, if you don’t operate the keypad on the
panel for 30 seconds or so, the home screen backlight turns off
automatically.
When it is turned on, you’ll hear a human voice that tell you what
is done.
Used for keypad unlocking and SMS remote settings.
Used for keypad unlocking, SMS remote tag and alarm text
notification prefixed setting.
Human Voice, Displaying and SMS notification will be in the
selected language. After selecting the desired language, the
panel will reset accordingly.
If the factory default configuration is loaded, any data that has
been already programmed into the system will be changed into
the factory default configuration!
Remote Tag (Wireless Key)
Remote tag to quickly away-arm, stay-arm and disarm your home, and to trigger an
emergency alarm.
Arm button
Use when no one is at home.
The alarm will sound in armed
mode, when a door or window
is opened, or when motion is
detected.
Stay arm button
Use when you’re at home and
want security. The alarm
sounds when a door or
window is opened.
Disarm button
Use when you don’t
want the security from
the system. The alarm
won’t sound in disarmed
model.
SOS button
Use in case of
emergency. The alarm
sounds and sends an
alert notification to
registered users.
9
RFID Tag
RFID tag lets you arm or disarm without entering a password.
Disarm with a tap
Tap and hold RFID tag on the RFID zone of your
panel to arm or disarm when you’re leaving and
coming home.
2019-06-05 Wednesday
10:35:42
21
5
4 6
8
7
0
3
9
Key loop
Attach to your key ring.
Door/Window Sensor
Door/window sensors are set to Stay Arm Active mode in default and are ideal for protecting
entry/exit locations, such as front/back doors and all windows. When the system is armed or home
armed and a sensor is triggered (magnet is separated from the sensor), a push notification including
the sensor name will be sent automatically to the registered users, and the alarm will sound.
LED Indicator
Lights up when door/window is
opened. And blinks in case of
low battery, please replace the
battery soon.
Setting/Panic Button
Press to send a transmission
signal to the hub for pairing or
alarm.
Tamper switch
Tamper switch (small black
lever underneath the bracket)
will trigger an alarm notification
If someone tampers the sensor
and removes it from its
installed location.
Power on/off
Slide it up to ‘ON’ to
power up the sensor.
Top view
Inside view
Open-close magnet
Works with sensor to sense
when a door or window is
opened or closed.
Battery receptacle
Contains one
CR2032 3V lithium
battery.
10
Mounting strips
Attaches sensor and
magnet to a flat surface.
PIR Motion Detector
The motion detector is designed for the usage on interior walls and is set to Out Arm Active Mode in
default. Whenever the sensor detects movement (only while the alarm is armed), a push notification
including the sensor name will be automatically sent to the registered users, and the alarm will sound.
LED Indicator
Blinks for 30 seconds after
detector powers on. Lights up
when there’s motion in the
room. And blinks in case of low
battery, please replace the
battery soon.
Pairing button
Press it to send a
transmission signal for
pairing with your hub.
Detection window
Top view
Bracket
Bottom view
11
Setting jumpers
Power on/off
Slide it up to ON to
power up the detector.
Battery receptacle
Contains three AA 1.5V
battery.
Inside view
Setting Jumpers
Setting the Pulse Counter (PULSE2 & PULSE1 jumpers)
The motion detector is equipped with a programmable pulse counter which can be set to count 1,3 or 5
pulses. Place the pulse count jumpers at the desired setting as shown below.
PART OF INFRARED
SENSITIVE BEAM
ARRAY
PULSE2
PULSE1
PULSE2
PULSE1
PULSE2
PULSE1
OPEN
Crossing one beam
causes detection
Crossing 3 beams
causes detection
Crossing 5 beams
causes detection
CLOSED
1
2
6
5
4
3
FOR FAST CATCH
PERFORMANCE
FOR EXCELLENT
FALSE ALARM
PROTECTION
FOR MAXIMUM
FALSE ALARM
PROTECTION IN
HOSTILE
ENVIRONMENT
Working mode (TEST & NORMAL jumpers)
To save battery power in normal use, if the detector is triggered twice within 3 minutes, it enters
sleeping state immediately. During this period, any movement detected does not generate an alarm.
After no movement within the next 3 minutes, it goes back to working state again.
For effective walk testing, set jumpers as shown on the right.
When walk testing is done, set jumpers to save power as shown on the right .
TEST
NORMAL
TEST
NORMAL
LED jumper
CLOSED enables LED on.
12
PLACEMENT/INSTALLATION TIPS
text message to your phone.
The magnet should be
It should be close to where you come and go.
Where to Place/Install Smart Hub
So it’s easy to access on your way in and out.
2019-06-05 Wednesday
10:35:42
21
3
5
4 6
9
7 8
0
Find a spot with a good Wi-Fi and
cellular signal.
The hub needs a Wi-Fi Internet connection
(hub cellular+Wi-Fi only) and cellular
network so it can send notifications and
Where to Place Door/Window Sensor
On a door On a window 0.6 inches(1.5cm) max
Use an unswitched wall outlet.
Choose an outlet that’s not controlled by
a switch, so you don’t accidentally turn
off the hub. The included bracket helps
keep the hub is plugged in.
aligned with the middle of
sensor and placed within
0.6 inches (1.5cm) of
sensor when the door or
window is closed, as shown
in the image on the left.
13
How to Install PIR Motion Detector
Top view
Mount the bracket with the included
at the former page.
Side view
Mounting height
Motion Detector must be
mounted 79 to 87 inches(2 to
2.2m) above the floor.
screws as shown above. Then place the
motion detector in the bracket. Specify
the right direction of the detection range
of the motion sensor. Test the operation
of the motion detector by putting it into
testing mode which has been described
Detection Area
Side view
Special considerations
Don’t install PIR Motion Detector outdoors, in a garage and on the glass.
PIR Motion Detector can’t detect motion through glass, like if someone’s moving outside a
window.
Don’t install in places where PIR Motion Detector could get wet, like swing-out windows that could
be rained on.
Don’t install PIR Motion Detector within 3 feet (1 meter) of a heat source like an electric heater,
heat vent or fireplace or another source that may produce turbulent air.
Don’t install PIR Motion Detector behind large appliances or furniture that may obstruct its motion
sensors.
14
GETTING STARTED
SIM card is permanently deactivated
Important: A regular SIM card is required
Install the SIM Card
in order to use cellular services when
connecting to cellular networks. The
availability of cellular capabilities
depends on the wireless network.
Cellular Network Connection
If the cellular indicator at the top of home screen turns white, your hub is connected to a cellular
network.
Important: If the gray or is always shown, the hub has not connected to a network.
Make sure the SIM card has been put in the hub when it was off and the security code of the
How to Set Phone Numbers for SMS and Phone Calls by Panel
Up to 5 stored Phone Numbers will receive text messages (SMS) and phone calls in case of triggered
alarms.
The hub will make phone calls to the stored phone numbers successively (up to 2 rounds in turn). If
the phone call is answered and any Keypad Command has been operated by one of these users, it
will stop calling the next phone number; otherwise it will continue to remind users until it is up to 2
rounds.
When the stored phone calls the hub, two-way talk is connected automatically.
Keypad Commands
WHICH BUTTON YOU
PRESS ON PHONE
1
2
3 or 4
WHAT HAPPENS
Arm
Disarm or silence when the alarming is sounding
Two-way talk
Go to Menu>Phone>1st Phone/2nd Phone/3rd Phone/4th Phone/5th Phone to set a phone
.
number
Use ▼ to scroll to and tap ► to enable keypad, then use
digits keypad to enter the Phone Number (up to 18 digits), tap √
to enter.
Use ▼ to scroll to , then tap ► to toggle between ‘off’ and
‘on’. When ‘on’ is selected, the Alarm Call will be actived.
Use ▼ to scroll to , then tap ► to toggle between ‘off’ and
‘on’. When ‘on’ is selected, the Alarm Text Message will be
actived.
Press √ to save your new settings.
1st Phone
10086
on
on
15
Exit / Entry Delay
Entry Delay and Exit Delay are countdowns that allow you to enter and leave your home easily without
causing the alarm to sound.
Exit Delay
Exit Delay allows you to leave your home once you’ve armed the security system. When you place the
system into Away Arm Mode, it makes a countdown tick to let you know that it is preparing to arm.
Once the Exit Delay period ends, the system is armed. To give yourself enough time to exit your home
before the countdown ends, you can adjust the countdown timing from 0(No Exit Delay) to 255
seconds. The default Exit Delay is 40 seconds.
How to change the Exit Delay
Go to Menu>Settings>Delay>Exit Delay and enter to edit the delay value.
Entry Delay
Entry Delay allows you to enter your home and disarm your system while the system is in Away Arm
Mode. When you enter your home while the system is in Away Arm Mode, your hub makes a
countdown tick to let you know that you have a short time until your alarm goes off. When you hear this,
you should disarm your system as soon as possible. You can adjust the countdown timing from 0(No
Entry Delay) to 255 seconds. The default Entry Delay is 30 seconds.
How to change the Entry Delay
Go to Menu>Settings>Delay>Entry Delay and enter to edit the delay value.
How to Record a Voice Message by Panel
Your system can Record/Play/Delete a brief voice message (up to 20 seconds) that can be played
back later. The voice message will be played to the remote when a alarm call is connected.
Go to Menu>Record> and enter.
Select Record.
Ready to record when Recording is shown and the system display will count down the recording
time remaining.
Speak into the panel and the recording automatically stops after the time expires.
The panel plays back the message automatically.
Press √ to save the message.
Go to Menu>Record>Duration to adjust the record time.
Go to Menu>Record>Play to playback the voice message recorded.
Go to Menu>Record>Delete to delete the voice message recorded.
16
How to Pair a Remote Tag by the Panel
Press the panic button
least 1.0 inches(2.5 cm)
Press the pairing button or
Go to Menu>Parts>Remote>Add and enter.
You need to enter a digit from 0 to 9 to designate a unique number
for the remote tag to be paired.
Synchronizing is shown, the hub goes into the paring mode and
count down the pairing time remaining.
Press any button of remote tag to send a transmission signal to the
hub.
As the serial number of remote tag is added to the hub, Leaning OK
will be shown.
The hub will show Device code has been learned if serial number
of remote tag have been paired
Go to Menu>Parts>Remote>Delete to delete the remote tag specified by serial number .
Go to Menu>Parts>Remote>Delete All to delete all the remote tags. Total number of paired remote
tags is shown before deleting.
How to Pair a Wireless Sensor by Panel
(Door/Window Sensor or PIR Motion Detector)
Go to Menu>Parts>Detector>Add and enter.
Scroll to to select the desired Zone Name.
Scroll to to select the desired Zone Mode(Type).
You must assign a Zone Mode to each zone(sensor), which defines
the way in which the system responds to faults in that zone.
Normal: Sensors set to Normal Zone are activated in Arm (full arm)
or STAY Mode (partial arm). We recommend setting door/window
sensor to Normal Zone.
24H: Sensors set to 24H Zone will activate the alarm and sounding
when triggered, regardless of the alarm status (Armed or Disarmed).
Delay: If sensors set to Delay Zone are triggered, the Hub will sound
the alarm after the delay time passed. We recommend setting door
sensors with a delay if they are used as primary entryways.
Home: Sensors set to Home Zone are only activated in Arm (full
arm). If StayArm Mode (partial/home arm) is used, these sensors are
not armed and will not activate the alarm if triggered. We recommend
setting PIR Motion Detectors to Home Zone.
24H mute: The mode is same as 24H but sound.
To be used as doorbell, select Doorbell.
Scroll to and tap ► to enable keypad, use the digits keypad
to enter Zone Number (0-89 are available) which should be
unique if more than one sensor needs to be paired, then tap √ to
to enter.
Select √ , Synchronizing is shown, the panel goes into the
paring mode and count down the pairing time remaining.
Trigger wireless sensor to send a transmission signal to the
panel as shown on the right.
As the serial number of wireless sensor is added to the panel,
Leaning OK will be shown.
The system will show Device code has been learned if serial
number of this wireless sensor has been paired, and Zone
Name/Mode/Number will be refreshed.
.
Set Name/Mode/Number
Door Alarm
24H mute
24h
1
or separate the sensor
from the magnet by at
place the PIR motion
detector in a high position
and then walk within the
detection area to trigger the
PIR alarm once (the
indicator light flashes once)
Go to Menu>Parts>Detector>Edit to edit Zone Name/Zone Mode of selected zone specified by the
zone number, or delete the selected zone.
Go to Menu>Parts>Detector>Delete All to delete all the wireless sensors. Total number of paired
sensors is shown before deleting.
17
How to Pair a RFID Tag by Panel
Go to Menu>Parts>RFID>Add and enter
You need to enter a digit from 0 to 9 to designate a unique number
for the RFID tag to be paired.
Synchronizing is shown, the panel goes into the paring mode
and count down the pairing time remaining.
Tap the RFID Tag on the RFID read zone of your panel.
As the serial number of RFID Tag is added to the hub, Leaning
OK will be shown.
The hub will show Device code has been learned if serial
number of RFID Tag has been learned.
Go to Menu>Parts>RFID>Delete to delete the RFID Tag specified by serial number.
Go to Menu>Parts>RFID>Delete All to delete all the RFID Tags. Total number of paired tags is shown
before deleting.
1
4
7 8
2019-06-0
10:35:
2
5
9
0
How to Pair a Wireless Siren by Panel
Go to Menu>Parts>Siren Learn
Press and hold the SET button of the siren until you hear two
beeps, then the siren goes into the paring mode and the light
ring blinks quickly.
Press √ button on the panel within 6 seconds. The panel
shows Learn Signal Sent and sends a transmission signal
to the siren.
The siren gives four beeps of successful indication.
If you want to unbind the wireless siren with the hub, press and hold the SET button of the siren until
you hear three beeps.
How to Pair a Alarm Wireless Switch by Panel
Go to Menu>Parts>Alarm Socket
Press and hold the button of the switch until it lights up, then the switch
goes into the paring mode.
Tap ◄/▲ to send ON transmission signal to the switch.
Tap ►/▼ to send OFF transmission signal to the switch.
The siren gives three flashes of successful indication.
When a sound alarm occurs, the alarm wireless switch opens until the
system is disarmed or alarm sounder timeout occurs.
If you want to unbind the alarm wireless switch with the hub, press and hold the button of the switch for
about 10 seconds until light is off.
18
APP
Important: The hub does not support the 5GHz Wi-Fi band. If you have a dual-band router
Download App
Scan the QR codes via a smart phone to download and install the application.
YourApp may look different if you purchased the different hub model.
APP for Hub Cellular Model
For hub cellular model, you can arm, stay arm, disarm your system by sending text messages using
the APP. You can also name your accessories, set Phone Number, Change Exit/Entry Delay or
Enable/Disable some features, and more by APP.
APP for Hub Cellular + Wi-Fi Model
Special Tips
After installing the app, the phone will request permission to receive notifications from APP. Forbidden
to receive notifications may result in an application running failure.
Signing Up/In
If you have not registered an account yet, please tap the Sign up on the app and follow the instructions
to create your account first.
If you do not receive an account verification code in your email box during the registration process,
please remember to check your spam/junk folder.
Once you have an account with us, please enter your email address and password to log in.
Adding Device
One account can operate multiple devices in this app.
You can establish a connection between your panel and your smartphone via Wi-Fi.
(5GHz and 2.4GHz) and both the 2.4GHz and 5.0GHz networks are under the same name,
you will need to separate those two bands into different names in your router settings.
Android users may need to disable cellular (mobile) data before proceeding to this step. This
setting is normally found in your smartphone’s settings under Data Usage, or Mobile
Networks.
If you’re unable to find the setting location, we suggest using a search engine with the
following syntax: Disable (Phone Model) cellular data.
Tap the [+] button on home page on your smartphone.
Go to Security & Sensor > Alarm(Wi-Fi) on Search Device page.
Set the panel to Wi-Fi network configuration mode:
Go to Menu>Wi-Fi>Smart Configuration and enter, Airlinking... is shown, the panel goes into
the configuration mode and counts down the time remaining.
Enter the Wi-Fi network password on Add Device page on your smartphone.
APP displays connecting process. This binding process should take about 15 seconds.
You’ll find the device on home page when the network is connected.
Pick the device, now you can control your hub.
19
USING SMART SECURITY SYSTEM.
The Security Levels
Smart Hub has three different security levels you’ll use when you’re home or away. You can easily
switch between them on Smart Hub or with RFID tag, remote tag, or the app.
WHAT
YOU HEAR
Away Arm
Use when no one
is home.
Home Arm
Use when you’re
home and want
security.
Disarm
Use when you don’t
want security.
“Please input
password”
“System
Armed”
“Please input
password”
“System
Armed”
“System
Disarmed”
Away Mode
All sensors in your home
are monitored. This is
useful when you’re going
out and want to be notified
if anything happens
to your home.
WHAT
HAPPENS
The alarm
sounds when a
door or window
opens, or when
there’s motion in
a room.
The alarm
sounds when a
door or window
opens.
The alarm won’t
sound.
WHAT’S
DETECTED
Motion Open
√ √ √
- √ √
- - -
Home Mode
All NORMAL and DELAY
(exterior and perimeter )
sensors are monitored, but
interior sensors are not
monitored. This is useful if
you’re at home but want to be
alerted if anyone tries to break
in through a door or window.
NOTIFICATIONS
and CALLS
Disarmed Mode
No sensors but 24 HOUR
sensors in your home are
monitored. This is useful
when you’re at home and
want the freedom to go in
and out easily.
20
How to Arm and Disarm
You can arm and disarm your home in three ways: entering your passcode on the panel if it is locked
and press Arm/Stay Arm/Disarm icons, tapping RFID Tag on the panel, or using the remote tag, or
app. When you hear the panel’s chime alert, the screen will also show you a countdown so you know
how much time you have before the alarm sounds.
No Rush
With No Rush, you can take the time you leave home or disarm before the alarm sounds. By default,
you have 40 seconds.
To adjust the countdown timing by the panel, go to Menu>Settings>Delay>Exit Delay/Entry Delay.
(see Exit/Entry Delay description on page 16)
2019-06-0
10:35:
7
4 6
7
21
54
8
0
2019-06-05 Wednesday
10:35:42
RFID tag
Tap the tag on the panel to
9
Disarm in case of arm mode.
Arm in case of disarm mode.
Remote tag
Press to away arm.
Press to home arm.
Press to disarm.
Press to trigger an emergency alarm.
Panel
3
21
5
9
8
0
Tap to away arm.
Tap to home arm.
Tap to disarm.
APP
Tap to away arm.
Tap to home arm.
Tap to disarm.
21
Schedule
You can set an arm schedule and a disarm schedule to
arm or disarm the system automatically at a daily time.
Go to Menu>Timer>Arm Timer/Disarm Timer and enter
Scroll to and tap ► to enable keypad, enter the Daily
Arm/Disarm time (in 24-hr) and tap √ to enter.
Scroll to and tap ► toggle to ‘on’ to enable the schedule.
Press √ to save your schedule.
Arm Schedule
20:12
on
Make a Call on Panel
On the home screen, tap , enter the number, then tap √ to dial.
Important: The call will be cancelled if cellular network is not registered, the system is armed or in
voice alarming.
Smart Hub Features
Battery backup
If the building has lost electrical power, Smart Hub includes a backup battery that will last for more
than 6 hours. So even if the power is out, Smart Hub can still detect when an intruder is in your home
and sound the alarm.
The battery icon in the upper-right corner shows the battery level or charging status, this level is just
for reference.
If the backup battery is very low, the battery icon turns red, and for up to 15 minutes before the hub
works well. And Low Battery notifications will be sent to the registered phone numbers.
The battery is fully charged within 8 to 12 hours.
Loss/Restoration of AC power
If the event of AC power loss or restoration, the hub will send you an alert notification to let you know
that.
Tamper detection
If someone tampers with Smart Hub and removes it from the back plate, the hub will send you an alert
notification to let you know that.
RESET TO FACTORY SETTINGS
You have two ways to reset Smart Hub to factory settings.
Go to Menu>Settings>Initialization> and enter, or press the TAMPER switch underneath the bracket
5 times.
Important: You won’t be able to reset if Smart Hub is locked. All the paired accessories and event logs
will be deleted when reset is done.
22
SPECIFICATIONS
Hub
Power Supply: Micro USB 110/220VAC to 5V, 1000mA
Backup Battery: 3.7V, 500mAh Rechargeable Lithium Battery
Consumption: <55mA@normal
Radio Frequency: 433Mhz
GSM: 850/900/1800/1900MHz
Wi-Fi: IEEE802.11b/g/n
Operation Temperature: 0~55℃
Remote
Power Supply: DC 3V (CR2025 Lithium Battery x1)
Standby Current: <5uA
Alarm Current: <15mA
Transmitting Distance: <80m (Open Area and No Interference)
Radio Frequency: 433Mhz
Operation Temperature: 0~55℃
Door/Window Sensor
Power Supply: DC 3V (CR2032 Lithium Battery x1)
Standby Current: <8uA
Alarm Current: <15mA
Transmitting Distance: <80m (Open Area/No Interference)
Radio Frequency: 433Mhz
Operation Temperature: 0~55℃
PIR Motion Sensor
Power Supply: 1.5V AA Battery x3
Standby Current: <15uA
Alarm Current: <25mA
Detection Scope: <12m/110°
Transmitting Distance: <80m (Open Area and No Interference)
Radio Frequency: 433Mhz
Operation Temperature: 0~55℃
RFID Tag
Chip: 4100/4200
Frequency: 125KHz
Read Distance: <2cm
Wireless Siren
Power Supply: Micro USB 110/220VAC to 5V, 1000mA
Backup Battery: 3.7V, 300mAh Rechargeable Lithium Battery
Standby Current: <15mA
Alarm Current: <230mA
Volume: 100dB
Radio Frequency: 433Mhz
Operation Temperature: 0~55℃
23
Loading...
