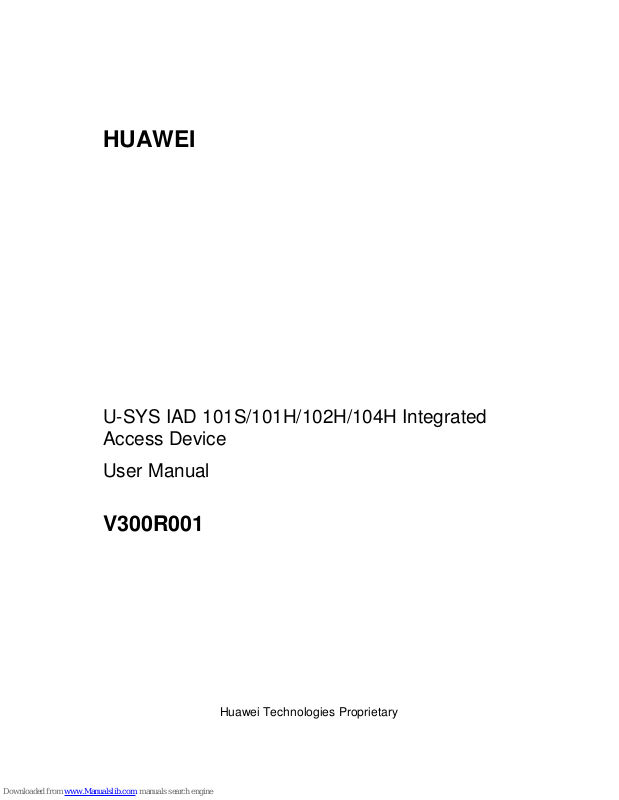

Page 1
Huawei Technologies Proprietary
HUAWEI
U-SYS IAD 101S/101H/102H/104H Integrated
Access Device
User Manual
V300R001
Page 2
Huawei Technologies Proprietary
U-SYS IAD101S/101H/102H/104H Integrated Access Device
User Manual
Manual Version
T2-050157-20050919-C-3.11
Product Version
V300R001
BOM
31014957
Huawei Technologies Co., Ltd. provides customers with
comprehensive technical support and service. Please feel free to
contact our local office or company headquarters.
Huawei Technologies Co., Ltd.
Address: Administration Building, Huawei Technologies Co., Ltd.,
Bantian, Longgang District, Shenzhen, P. R. China
Postal Code: 518129
Website: http://www.huawei.com
Email: support@huawei.com
Page 3
Huawei Technologies Proprietary
Copyright © 2005 Huawei Technologies Co., Ltd.
All Rights Reserved
No part of this manual may be reproduced or transmitted in any form
or by any means without prior written consent of Huawei Technologies
Co., Ltd.
Trademarks
, HUAWEI, U-SYS are trademarks of Huawei Technologies Co.,
Ltd.
All other trademarks and trade names mentioned in this manual are
the property of their respective holders.
Notice
The information in this manual is subject to change without notice.
Every effort has been made in the preparation of this manual to ensure
accuracy of the contents, but all statements, information, and
recommendations in this manual do not constitute the warranty of any
kind, express or implied.
Installation Requirements
Page 4
Huawei Technologies Proprietary
The IAD is used indoors only. Pay attention to the following when
installing and using the IAD.
Environment
Page 5
Huawei Technologies Proprietary
Basic requirements
Before installing and using the IAD, read this manual
carefully.
In case of failure, this equipment must be returned to
HUAWEI Authorized Service Station for Servicing to ensure
compliance with safety requirements.
Maximum ambient temperature around the equipment must
not exceed 40; For safety operation, the equipment should
be connected to telecommunication network only with No.
26 AWG or lager telephone line.
Power supply
The voltage of the power supply shall meet the requirement
of the input voltage of the power adapter.
The equipment only can use the AC/DC adaptor that
provided with the equipment.
In the case of thundering, unplug the power adapter and all
cables.
Page 6
Huawei Technologies Proprietary
If the IAD is not in use for a long time, unplug the power
adapter.
Placement
Place the IAD on a stable table.
Leave over 10 cm distance around the IAD for heat
dissipation.
Do not place heavy objects on the IAD.
Page 7
Huawei Technologies Proprietary
About This Manual
Release Notes
This manual applies to U-SYS IAD101S/101H/102H/104H Integrated
Access Device V300R001.
Organization
The manual introduces functions, data configuration, maintenance
and operation of the IAD101S/101H/102H/104H.
There are six chapters and an appendix in the manual.
Chapter 1 System Overview profiles location of the
IAD101S/101H/102H/104H in the NGN, system structure, and
function features of the IAD101S/101H/102H/104H.
Chapter 2 Device Installation introduces how to install the
IAD101S/101/102/104H and load software.
Chapter 3 Basic Configuration introduces how to use the command
lines and basic configurations of IAD101S/101/102/104H.
Chapter 4 MGCP Configuration introduces how to configure data of
the IAD101S/101/102/104H.
Page 8
Huawei Technologies Proprietary
Chapter 5 Troubleshooting introduces common means of locating
faults so that you can master simple fault-locating methods, and then
gives some examples on faults of the IAD for your reference.
Appendix A Advanced Configuration introduces advanced
configuration, provides default values for some parameters, specifies
the system configuration and collects the terms and acronyms used in
the manual.
Appendix B Default Values introduces the default values IAD
provides.
Appendix C System Configuration introduces the technical
specifications IAD provides.
Appendix D Acroynms and Abbreviations introduce the Acroynms
and Abbreviations.
Intended Audience
The manual is intended for the following readers:
Technicians
Telecom managers
System engineers
Conventions
The manual uses the following conventions:
Page 9
Huawei Technologies Proprietary
I. General conventions
Convention Description
Arial Normal paragraphs are in Arial.
Boldface Headings are in Boldface.
Courier New
Terminal Display is in Courier New.
II. Command conventions
Convention Description
Boldface
The keywords of a command line are in
Boldface.
italic Command arguments are in italic.
[ ]
Items (keywords or arguments) in square
brackets [ ] are optional.
{ x | y | ... }
Alternative items are grouped in braces and
separated by vertical bars. One is selected.
[ x | y | ... ]
Optional alternative items are grouped in
square brackets and separated by vertical
bars. One or none is selected.
{ x | y | ... } *
Alternative items are grouped in braces and
separated by vertical bars. A minimum of one
or a maximum of all can be selected.
[ x | y | ... ] *
Optional alternative items are grouped in
square brackets and separated by vertical
bars. Many or none can be selected.
# A line starting with the # sign is comments.
Page 10
Huawei Technologies Proprietary
III. Mouse operation
Action Description
Select
Press and hold the primary mouse button
(left mouse button by default).
Click
Select and release the primary mouse
button without moving the pointer.
Double click
Press the primary mouse button twice
continuously and quickly without moving the
pointer.
Drag
Press and hold the primary mouse button
and move the pointer to a certain position.
IV. Symbols
Eye-catching symbols are also used in this manual to highlight the
points worthy of special attention during the operation. They are
defined as follows:
Caution, Warning, Danger: Means reader be extremely careful
during the operation.
Note, Comment, Tip, Knowhow, Thought: Means a
complementary description.
Environmental Protection
Page 11
Huawei Technologies Proprietary
This product has been designed to comply with the requirements on
environmental protection. For the proper storage, use and disposal of
this product, national laws and regulations must be observed.
Page 12
User Manual
U-SYS IAD101S/101H/102H/104H Integrated
Access Device Table of Contents
Huawei Technologies Proprietary
