Huawei UPS5000-A-600K-SC, UPS5000-A-800K-SC, UPS5000-A-800K-FC, UPS5000-A-600K-FC User Manual

UPS5000-A-(600 kVA-800 kVA)

User Manual (40 kVA)

Issue

03

Date

2017-10-16

HUAWEI TECHNOLOGIES CO., LTD.

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

i

No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.

All other trademarks and trade names mentioned in this document are the property of their respective holders.

Notice

The purchased products, services and features are stipulated by the contract made between Huawei and the customer. All or part of the products, services and features described in this document may not be within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this document are provided "AS IS" without warranties, guarantees or representations of any kind, either express or implied.

The information in this document is subject to change without notice. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not constitute a warranty of any kind, express or implied.

Huawei Technologies Co., Ltd.

Address:

Huawei Industrial Base Bantian, Longgang Shenzhen 518129 People's Republic of China

Website:

http://www.huawei.com

Email:

support@huawei.com

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

About This Document

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

ii

Purpose

Symbol

Description

Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

Indicates a potentially hazardous situation which, if not avoided, could result in equipment damage, data loss, performance deterioration, or unanticipated results.

This document describes the high-frequency tower-mounted UPS5000-A-(600 kVA-800 kVA) in terms of features, appearance, structure, working principle, technical specifications, installation, operation, and maintenance. UPS is short for uninterruptible power system.

Intended Audience

This document is intended for:

About This Document



Sales engineers



Technical support engineers



System engineers



Hardware installation engineers



Commissioning engineers



Data configuration engineers



Maintenance engineers

Symbol Conventions

The symbols that may be found in this document are defined as follows.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

About This Document

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

iii

Symbol

Description

NOTICE is used to address practices not related to personal injury.

Calls attention to important information, best practices and tips.

NOTE is used to address information not related to personal injury, equipment damage, and environment deterioration.

Change History

Changes between document issues are cumulative. The latest document issue contains all the changes made in earlier issues.

Issue 03 (2017-10-16)

Updated the recommended cable data.

Issue 02 (2016-01-20)

Updated the maximum voltage and current which the monitoring interface card can support, optimized the dual bus scenario, and updated the routine maintenance.

Issue 01 (2015-06-25)

This is the first release.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

1 Safety Precautions

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

1

1.1 General Safety

This section describes safety precautions to consider before installing, maintaining, and operating the UPS.

1 Safety Precautions

Declaration



To minimize the risk of personal injury and damage to equipment, read and follow all the precautions in this document before performing any operation. The "DANGER", "WARNING", "CAUTION", and "NOTICE" statements in this document are only supplemental and do not represent all the safety instructions.



Only trained and qualified personnel are allowed to install, operate, and maintain Huawei equipment.

Follow the precautions and special safety instructions provided by Huawei when operating Huawei products. Huawei will not be liable for any consequences that are caused due to violations regarding general safety regulations and equipment design, production, and usage safety standards.

Huawei does not take responsibilities for the following situations:



Operation under severe environments that are not specified in this document.



Installation or use in environments that are not specified in related international standards.



Unauthorized product changes and software code modification.



Operations not complying with the operation instructions and safety precautions in this document.



Damage caused by extreme natural environments.



Damage caused by using batteries provided by Huawei for non-Huawei UPSs.



Damage caused by using batteries not provided by Huawei.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

1 Safety Precautions

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

2

Power Grid Requirements

A standard UPS can connect to a three-phase, five-wire (L1, L2, L3, N, PE) TT, TN-C, TN-S, and TN-C-S AC power distribution system (IEC60364-1).

Local Laws and Regulations

Equipment operations must comply with local laws and regulations. The safety instructions in this document are only supplemental to local safety regulations.

Personal Requirements

Only Huawei engineers or engineers certified by Huawei are allowed to perform UPS commissioning and maintenance. Otherwise, human injury or equipment damage may occur, and any resulting UPS faults will be beyond warranty scope.

Personnel who plan to install or maintain Huawei equipment must receive thorough training, understand all necessary safety precautions, and master the correct operation methods. Trained and qualified personnel, or personnel certified or authorized by Huawei are:



Allowed to install, operate, and maintain the equipment.



Allowed to remove safety facilities and inspect the equipment.



Allowed to replace or change the devices or components (including software).



Operation personnel must report faults or errors that might cause serious safety issues to related owners.



This product should be installed and used according to the installation and technical, specification requirements found in this manual. Otherwise, the product may be damaged, and the resulting product exceptions or component damage will be beyond the warranty scope.

Grounding Requirements

Devices to be grounded (excluding the energy storage unit) must meet the following requirements:



When installing a device, install the ground cable first. When removing a device, remove the ground cable at the very end.



Do not damage the ground conductor.



Do not operate devices if the ground conductor is not installed. Before operating a device, check the electrical connection of the device to ensure that it is securely grounded.

Personal Safety



Do not operate the product, or handle cables, during thunderstorms.



To avoid electric shocks, do not connect safety extra-low voltage (SELV) circuits to telecommunication network voltage (TNV) circuits.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

1 Safety Precautions

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

3

Device Safety



Before operating a device, wear electrostatic discharge (ESD) clothes, ESD gloves, and an ESD wrist strap. Remove any conductors (such as jewelry or watches) before the operation to avoid electric shocks or burns.



In the case of fire, leave the building or the equipment room immediately, and turn on the fire alarm bell or make an emergency call. Never enter the building on fire in any case.



If the cabinet provides an ESD jack, wear an ESD wrist strap and insert the ground terminal of the ESD wrist strap into the jack.



Ensure all switches are turned to OFF during device installation.



Power on the UPS only after authorized engineers arrive at the site.



If a C2 UPS is used in residential areas, additional measures must be taken to prevent radio frequency interferences.



If the UPS is used for life-supporting medical apparatus and facilities such as lifts where adequate care has to be taken to ensure personal safety, discuss with the manufacturer in advance about the applicability, settings, management, and maintenance of the UPS, which require special considerations during design.



Before operation, ensure that the device is firmly anchored to the floor or other solid objects, such as a wall or an installation rack.



Ensure ventilation vents are unblocked while the system is operating.



Before powering on the device, ensure that all the screws inside it are securely tightened and will not fall off during operation.



After the installation, remove packing materials from the equipment area.



Replace danger signs that have worn out or are unreadable.



A UPS can be used to serve resistive-capacitive loads, resistive loads, and micro-inductive loads. It is recommended that a UPS not be used for pure capacitive loads, pure inductive loads, and half-wave rectification loads. It does not apply to energy feedback loads.



Do not alter the UPS internal structure or installation procedure unless consent from the manufacturer is given.



Never use water to clean electrical components inside or outside the UPS.



Do not drill holes into a cabinet.

1.2 Electrical Safety

High Voltage

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

1 Safety Precautions

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

4



The high voltage power supply provides power for the device operation. Direct or indirect contact with high voltage power sources may result in fatal injury.



Non-standard or incorrect high voltage operations may result in fire and electric shocks.



The personnel who install the AC facility must be qualified to perform high voltage and AC operations.



When selecting, connecting, and routing power cables, ensure compliance with local laws and regulations.



When operating the AC power supply facility, ensure compliance with local laws and regulations.



Before connecting cables to the UPS, ensure that the input power and mains power distribution switches and output power distribution switch are turned off.



Use only dedicated tools during high voltage and AC operations.



If the operation is performed in a damp environment, ensure that the device is dry. When water is found in the rack or the rack is damp, switch off the power supply immediately.

High Leakage Current

Power Cable



Ground a device before powering it on. Otherwise, personal injury or device damage may occur.



If a "high leakage current" tag is attached to the panel of the device, ground the protective ground terminal on the device enclosure before connecting the AC power supply to prevent electric shocks.



The UPS can generate high leakage currents. Using a circuit breaker that has the leakage current protection function is not recommended.

Do not install or remove power cables when the device is on. Transient contact between the core of the power cable and the conductor may generate electric arcs or sparks, which may cause fire or damage eyesight.



Before moving or reconnecting the UPS, disconnect the mains and batteries, open the output power distribution switch, and wait a period of at least 5 minutes after the UPS completely powers off. Otherwise, electric shocks may occur.



Before installing or removing the power cable, open the power switch.



Before connecting a power cable, check that its label is correct.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

1 Safety Precautions

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

5

Fuse

If a fuse needs replacing, ensure the new fuse is of the same type and specifications so that the system runs safely.

Backfeed Protection Dry Contact

The UPS can be configured with a backfeed protection dry contact to work with an external automatic circuit breaker, preventing the voltage from flowing back to input terminals over static bypass circuits. If device installation and maintenance personnel do not need to use backfeed protection, paste labels on the external bypass input circuit breakers informing that the circuit is connected to the UPS. Disconnect the device from the UPS before performing operations on the circuit.

Electrostatic Discharge

Static electricity generated by human bodies may damage the electrostatic-sensitive components on boards, for example, the large-scale integrated (LSI) circuits.



Wear a pair of ESD gloves or a well-grounded ESD wrist strap when touching the device or handling boards or application-specific integrated circuits (ASICs).



When holding a board, hold its edge without touching any components, especially chips.



Package boards with ESD packaging materials before storing or transporting them.

Figure 1-1 shows how to wear an ESD wrist strap.

Figure 1-1 Wearing an ESD wrist strap

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

1 Safety Precautions

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

6

Liquid Prevention



Do not place the product under areas prone to water leakage, such as near air conditioner vents, ventilation vents, or feeder windows of the equipment room. Ensure that there is no condensation inside the product or equipment room. Ensure that no liquid enters the product. Otherwise, short circuits will occur and may result in serious injury or death.



If any liquid is detected inside the product, immediately disconnect the power supply and contact the administrator.

1.3 Operating Environment

The UPS operating environment must meet the requirements for the climate indicator, mechanically active substance indicator, and chemically active substance indicator in ETSI EN 300 019-1 class 3.6.

Do not expose the equipment or perform any operations in an environment with flammable or explosive gas, or smoke.

Any operation on any electrical device in an environment that has flammable air can cause extreme danger. Strictly obey the operating environmental requirements specified in related use manuals when using or storing the device.

Do not use the UPS in the following environments:



Environment containing flammable gases, corrosive gases, abnormal vibrations, and impacts.



Non-confined environment near the ocean (0–3.7 km) and indoor or semi-indoor environment where the temperature and humidity are not controllable, such as a simple equipment room near the ocean, citizen house, garage, corridor, direct ventilation cabinet, house with only the roof, railway station platform, gymnasium, aquarium, and so on.

1.4 Battery Safety

This section describes precautions for operating batteries.

Before operating batteries, carefully read the safety precautions to ensure correct battery handling and connection is performed, and personal safety is managed.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

1 Safety Precautions

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

7



To ensure battery safety and efficient battery management, use the batteries delivered with the UPS. Huawei shall not be responsible for battery damage caused by using non-Huawei batteries for Huawei UPSs.



Ensure lead-acid battery handling is in accordance with local regulations.



Incorrect handling of batteries may cause hazards. When operating batteries, avoid battery short circuits and electrolyte overflow or leakage.



Electrolyte overflow may damage the device by corroding metal parts and circuit boards, and ultimately damaging the circuit boards.



Short circuits caused by incorrect operations may cause serious injuries due to high power of batteries.



Do not reversely connect positive and negative battery terminals.



Use batteries of the specified type. Otherwise, the batteries may be damaged.



Check battery connections periodically to ensure that all screws are securely tightened.



Install or store batteries in clean, cool, and dry environments.



Do not decompose, transform, or damage batteries. Otherwise, battery short circuit, electrolyte leakage, and even personal injury may occur.

Preventative Measures

When installing and maintaining batteries, pay attention to the following points:



Use dedicated insulated tools.



Take measures to protect eyes, such as using eye protection devices.



Avoid skin contact with electrolyte overflow. Wear rubber gloves and protective clothing.



When handling a battery, ensure that its electrodes always point upward. Do not tilt or overturn batteries.



Switch off the power supply during installation and maintenance.

Short Circuit

Battery short circuits may cause personal injury. The high transient current generated by a short circuit may release a surge of power and cause a fire.

To avoid battery short circuits, do not maintain batteries while they are in use.

Harmful Gas

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

1 Safety Precautions

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

8

Do not use unsealed lead-acid batteries. Lead-acid batteries emit flammable gas. Therefore, place and secure lead-acid batteries horizontally to prevent fire or corrosion.

Store lead-acid batteries in a place with good ventilation, and take fire safety precautions.

Battery Temperature

High temperature may result in battery distortion, damage, and electrolyte overflow.



Install or store batteries far away from fire sources and heating devices such as transformers. Never burn batteries.



If the battery temperature exceeds 60°C, check the battery for electrolyte overflow. If electrolyte overflows, handle the leakage immediately.

Electrolyte Leakage

In the case of electrolyte leakage, counteract and absorb the leaking electrolyte immediately.

When moving or handling a battery whose electrolyte leaks, note that the leaking electrolyte may harm human bodies. If the electrolyte leaks, use the following substances to counteract and absorb the leaking electrolyte:



Sodium bicarbonate (baking soda): NaHCO3



Sodium carbonate (soda): Na2CO3

When using substances to counteract and absorb electrolytes, strictly follow the guidelines provided by the battery manufacturer.

If any personnel are exposed to battery electrolyte, wash the exposed area with clean water immediately and seek medical advice if the situation is serious.

1.5 Mechanical Safety

Moving Sharp Objects

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

1 Safety Precautions

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

9

Wear protective gloves when moving sharp objects.

Moving Heavy Objects



Perform operations in accordance with all instructional symbols on the device.



Take caution to avoid injury when moving heavy objects.



When moving or lifting a device, hold the handle or bottom of the device.



When transporting a device using a pallet truck, the forks must be properly positioned to ensure that the device does not topple. No excessive tilt or jolt is allowed during the transportation, and the maximum tolerance of the tilting angle during loading and unloading is 15°. To avoid toppling, secure the device to the pallet truck by using ropes before moving, and assign persons to watch out the device during movement.



Move the cabinet with caution. Any bumping or falling may damage the device.

Handling Fans

Figure 1-2 Tilting angle of a cabinet

Do not insert fingers or boards into the operating fans until the fans are switched off, and have stopped running.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

1 Safety Precautions

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

10

1.6 Laying Out Cables

Binding Signal Cables

Signal cables must be bound separately from strong-current cables and high-voltage cables.

Laying Out Cables

When the temperature is low, a violent strike or vibrations may damage the cable sheathing. To ensure cable safety, comply with the following requirements:



Cables can be laid, or installed, only when the temperature is higher than 0°C (32°F). Handle cables with caution, especially at lower temperatures.



Before laying out cables that have been stored in temperatures lower than 0°C (32°F), move the cables to an environment that is at the requisite ambient temperature. Store them in this environment for at least 24 hours.



Do not drop the cables directly from the vehicle.



As the insulation layer of a cable may age, or be damaged from high temperatures, ensure a sufficient distance between cables and the DC busbars, shunts, and fuses. Cables prepared by the customer should be flame resistant. Cables must not be routed behind the air exhaust vent of the cabinet. The air exhaust vent should not be blocked by any object.

Before connecting a cable, ensure that the cable and cable label to be used meet the actual installation requirements.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

2 Overview

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

11

2.1 Model Description

This document describes the following UPS models:



UPS5000-A-600K-SC



UPS5000-A-800K-SC



UPS5000-A-600K-FC



UPS5000-A-800K-FC

2 Overview

Figure 2-1 shows a UPS model number.

Figure 2-1 Model number

2.2 Working Principles



indicates an input mode.



indicates the energy flow direction.

2.2.1 Conceptual Diagram

The UPS5000-A is an online double-conversion UPS that uses digital signal processing (DSP) technology and features high efficiency and high power density. Figure 2-2 shows a conceptual diagram for the UPS.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

2 Overview

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

12

Figure 2-2 UPS conceptual diagram

2.2.2 Working Modes

2.2.2.1 Normal Mode

When the UPS works in normal mode, the rectifier converts the AC input voltage into the DC voltage, which is then raised to the bus voltage by the power factor correction (PFC) circuit. Then one part of the voltage passes through the DC-DC circuit to charge the battery string, and the other part is converted by the inverter into AC voltage outputs. The two conversions ensure high-precision and high-quality output voltages, protecting loads from interferences such as input harmonics, burrs, and voltage transients. Figure 2-3 shows the conceptual diagram of the UPS working in normal mode.

Figure 2-3 UPS conceptual diagram in normal mode

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

2 Overview

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

13

2.2.2.2 Bypass Mode

If the inverter does not start or is manually shut down after the UPS is powered on, the bypass supplies power to loads. The UPS automatically transfers from normal mode to bypass mode if it detects power unit overtemperature, overload, or other faults that may cause the inverter to shut down. The bypass power supply is not protected by the UPS which means it may be affected by mains outage, and incorrect AC voltage or frequency. Figure 2-4 shows a conceptual diagram of the UPS working in bypass mode.

Figure 2-4 UPS conceptual diagram in bypass mode

2.2.2.3 Battery Mode

If the AC input voltage is not normal, the UPS transfers to battery mode to obtain power from batteries. The inverter then converts the power into AC outputs. Figure 2-5 shows a conceptual diagram of the UPS working in battery mode.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

2 Overview

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

14

Figure 2-5 UPS conceptual diagram in battery mode

2.2.2.4 Maintenance Bypass Mode

The current flows through the maintenance bypass, instead of the power unit or bypass unit. UPS maintenance can be performed in this mode.

Figure 2-6 UPS conceptual diagram in maintenance bypass mode

2.2.2.5 ECO Mode

The economy control operation (ECO) mode is an energy-saving mode, which you can configure on the liquid crystal display (LCD) or web user interface (WebUI). In ECO mode, when the bypass input voltage is within the ECO voltage range, the bypass combined switch turns on, and the bypass supplies power. When the bypass input voltage is beyond the ECO

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

2 Overview

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

15

voltage range, the UPS transfers from bypass mode to normal mode. In bypass mode or normal mode, the rectifier keeps working and charges batteries using a charger. The ECO mode delivers a higher efficiency. Figure 2-7 shows a conceptual diagram of the UPS working in ECO mode.

Figure 2-7 UPS conceptual diagram in ECO mode

2.3 Product Introduction

2.3.1 Appearance

Figure 2-8 and Figure 2-9 show the UPS.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

2 Overview

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

16

Figure 2-8 600 kVA UPS

(1) Power cabinet 1

(2) Power cabinet 2

(3) Anchor baffle plates

(4) Bypass cabinet

(5) Monitor display unit (MDU)

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

2 Overview

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

17

Figure 2-9 800 kVA UPS

(1) Power cabinet 1

(2) Power cabinet 2

(3) Anchor baffle plates

(4) Bypass cabinet 1

(5) Bypass cabinet 2

(6) Monitor display unit (MDU)

2.3.2 Product Structure

Figure 2-10, Figure 2-11, Figure 2-12 and Figure 2-13 show the product structures. Figures

are UPSs with the front doors open.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

2 Overview

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

18

Figure 2-10 Product structure (UPS5000-A-600 kVA in standard configuration)

(1) Power units

(2) Control unit

(3) Optional card slot (behind the filler panel)

(4) Maintenance bypass switch

(5) Bypass unit

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

2 Overview

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

19

Figure 2-11 Product structure (UPS5000-A-600 kVA in full configuration)

(1) Power units

(2) Control unit

(3) Optional card slot (behind the filler panel)

(4) Mains input switch

(5) Output switch

(6) Maintenance bypass switch

(7) Bypass input switch

(8) Bypass unit

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

2 Overview

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

20

Figure 2-12 Product structure (UPS5000-A-800 kVA in standard configuration)

(1) Power units

(2) Control unit

(3) Optional card slot (behind the filler panel)

(4) Maintenance bypass switch

(5) Bypass unit

(1) Power units

(2) Control unit

(3) Optional card slot (behind the filler panel)

Figure 2-13 Product structure (UPS5000-A-800 kVA in full configuration)

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

2 Overview

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

21

(4) Mains input switch

(5) Maintenance bypass switch

(6) Output switch (7) Bypass unit

(8) Bypass input switch

(1) Ground terminal

(2) Parallel port 1

(3) BSC port 1

(4) ECM 1 ready switch

(5) Indicators for ECM 1

(6) Parallel port 2 (7) BSC port 2

(8) ECM 2 ready switch

(9) Indicators for ECM 2

(10) Dry contact card

(11) Dry contacts

(12) MDU port

(13) RS485 port

(14) Fast Ethernet (FE) port

(15) COM2 port

(16) COM1 port

(17) Battery temperature sensor port

(18) Optional card subrack cover

2.3.3 Control Unit

2.3.3.1 Overview

In a standard configuration, the control unit consists of two energy control modules (ECMs), one dry contact card, and one monitoring interface card. The four cards are hot swappable. One subrack is reserved above the dry contact card. A backfeed protection card or dry contact extended card can be inserted into this subrack.

Figure 2-14 Signal panel on the control unit

2.3.3.2 ECM

The control unit consists of two ECMs in active/standby mode. Each ECM provides one bus synchronization controller (BSC) port and one parallel port, as shown in Figure 2-15.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

2 Overview

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

22

Figure 2-15 ECM

Silk Screen

Description

PARALLEL

The PARALLEL port transmits parallel signals.

BSC

This port is used in a dual-bus system to balance output frequencies and phases between UPS systems, ensuring that two buses can switch with each other.

BSC cables are hot-swappable.

Indicator

Color

Status

Description

NORMAL

Green

Steady on

This ECM is the active ECM.

Blinking at 0.5 Hz

This ECM is the standby ECM and it is ready.

Off

This ECM is not ready or the CPLD of this ECM is being upgraded.

Blinking at 4 Hz

The DSP of the ECM is being upgraded or not configured.

ALM

Yellow

Steady on

The ECM has a minor alarm, but it does not need to be replaced.

Off

The ECM has no minor alarm or the DSP of the ECM is being upgraded.

FAULT

Red

Steady on

The ECM has a critical alarm.

Off

The ECM has no critical alarm or the DSP of the ECM is being upgraded.

Table 2-1 Ports on the ECM

For a single UPS, the parallel cable is not needed.

Table 2-2 Indicator description

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

2 Overview

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

23

2.3.3.3 Dry contact card

Silk Screen

Description

Status

Initial Status

BTG

Port for detecting battery grounding faults



Connected: battery grounding fault



Disconnected: no battery grounding fault

Disconnected

0V

Port for signal ground GEN

Port for detecting diesel generator (D.G.) mode



Connected: D.G. mode



Disconnected: non-D.G. mode

Disconnected

0V

Port for signal ground

BCB_OL

Port for detecting the BCB box



Grounded: BCB box connected



Disconnected: BCB box not connected

Grounded

BCB_STA

Port for monitoring the battery switch



Connected: battery switch ON



Disconnected: battery switch OFF

Disconnected BCB_DR

V

Controls battery circuit breaker trip. When the voltage is +12 V, the circuit breaker trips.



0 V: battery switch not tripped



12 V: battery switch tripped

0 V

BCB_0V

Port for signal ground

EPO_NO

Emergency power-off (EPO) port

If the normally open (NO) port is connected to the EPO_12V port, EPO is triggered.

Disconnected

EPO_12V

+12 V

Appearance

Figure 2-16 Dry contact card

Table 2-3 Ports on the dry contact card

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

2 Overview

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

24

Silk Screen

Description

Status

Initial Status

EPO_NC

EPO port

If the normally closed (NC) port is disconnected from the EPO_12V port, EPO is triggered.

Connected EPO_12V

+12 V

SWITCH STATUS_ OUT

Port for monitoring the UPS output circuit breaker



Connected: circuit breaker ON



Disconnected: circuit breaker OFF

Connected

SWITCH STATUS_ 0V

Port for signal ground

SWITCH STATUS_ MT

Port for monitoring the maintenance circuit breaker



Disconnected: circuit breaker ON



Connected: circuit breaker OFF

Disconnected

SWITCH STATUS_ 0V

Port for signal ground

SWITCH STATUS_ BP

Port for monitoring the bypass input circuit breaker



Connected: circuit breaker ON



Disconnected: circuit breaker OFF

Connected

SWITCH STATUS_ 0V

Port for signal ground

SPD

Port for monitoring the input AC surge protective device (SPD)



Connected: SPD enabled



Disconnected: SPD disabled

Connected

0V

Port for signal ground



The dry contact interface card takes effect only after it is set on the monitoring system. Set the unused dry contact signal to the unused status.



Set the EPO port to NO or NC as required.



When multiple UPSs are paralleled, all dry contact signals to be used need to connect to each UPS.



Single cables require dual-insulated twisted cables. If the length of a power cable is within 25–50 m, its cross-sectional area must be 0.5 mm2 to 1.5 mm2.

Functions

The dry contact card allows the UPS to detect and manage the switch status of the battery system (including the external battery switch) and implement remote emergency power-off (EPO).

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

2 Overview

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

25

Specifications

Port

Silk Screen

Description



Hot-swappable



0.5 U high

2.3.3.4 Monitoring interface card



The FE port resembles the RS485 port. Therefore, follow the silk screen when you connect communications cables. If you mistake the RS485 port as the FE port during cable connection, the WebUI and MDU communication fails. If you mistake the FE port as the RS485 port during cable connection, RS485 communication fails.



If MDU communication fails, the "Comm. failure" message is displayed on the LCD, screen switching is disabled, the buzzer buzzes, and the Fault indicator is red. After you rectify the fault, the LCD recovers, and the alarm is cleared.



Dry contact signals take effect after you set them. Set unused dry contact signals to the unused state on the WebUI or LCD.



In a parallel system, ensure that used dry contacts properly connect to each UPS.

The monitoring interface card provides external ports as well as monitoring and control functions for the MDU. The ports include the ambient temperature and humidity sensor port, battery monitoring unit (BMU) port, FE port, battery temperature monitoring port, and network management port. Interworking with the monitoring interface card, the MDU monitors the UPS, configures parameters, delivers commands, reports information, and displays the UPS key information and parameters on the LCD.

Figure 2-17 Monitoring interface card

DO_1 to DO_4 meet the maximum voltage and current requirements of 30 V DC/1 A or 60 V DC/0.5 A.

Table 2-4 Ports on the monitoring interface card

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

2 Overview

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

26

Port

Silk Screen

Description

DO_1

NO

DO_1 is used to output alarms and indicates critical alarms by default. It can be set to indicate minor alarms, bypass mode, battery mode, or low battery voltage.

COM

DO_2

NO

DO_2 is used to output alarms and indicates minor alarms by default. It can be set to indicate critical alarms, bypass mode, battery mode, or low battery voltage.

COM

DO_3

NO

DO_3 is used to output alarms and indicates bypass mode by default. It can be set to indicate critical alarms, minor alarms, battery mode, or low battery voltage.

COM

DO_4

NO

DO_4 is used to output alarms and indicates battery mode by default. It can be set to indicate critical alarms, minor alarms, bypass mode, or low battery voltage.

COM

DB26

MDU

Provides FE, RS485, Inter-Integrated Circuit (I2C), and control area network (CAN) signals.

Battery temper ature sensor port

B_TEMP

Connects to an indoor battery temperature sensor.

Southb ound port 1

COM1

Connects to an ambient temperature and humidity sensor over two wires.

Southb ound port 2

COM2

Connects to a southbound device, such as a BMU. Networ k port

FE

Connects to the network port on a PC.

Northb ound commu nications port

RS485

Connects to a northbound network management device or third-party network management device over two wires.



Signal cables must be double-insulated twisted cables. If the cable length is 25–50 m, the cross-sectional area must be 0.5–1.5 mm2.



RS485 cables and FE cables must be shielded cables.

Figure 2-18 and Figure 2-19 are recommended wiring methods for DO ports.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

2 Overview

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

27

Figure 2-18 Wiring method 1

Description

1

GND

2

N/A

3

RS485-

Figure 2-19 Wiring method 2

Figure 2-20 and Table 2-5 describe the COM1 pin definitions.

Figure 2-20 COM1 pins

Table 2-5 COM1 pin definition

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

2 Overview

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

28

Description

4

RS485+

5

N/A

6

12V_PORT

Description

1

RS485+

2

RS485-

3

N/A

4

RS485+

5

RS485-

6

GND

7

CANH0

8

CANL0

Figure 2-21 and Table 2-6 describe the COM2 pin definitions.

Figure 2-21 COM2 pins

Table 2-6 COM2 pin definition

Figure 2-22 and Table 2-7 describe the RS485 pin definitions.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

2 Overview

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

29

Figure 2-22 RS485 pins

Description

1

RS485_T+

2

RS485_T–

3

N/A

4

RS485_R+

5

RS485_R–

6

GND

7

N/A

8

N/A

Table 2-7 RS485 pin definition

If cables are prepared onsite, follow the three methods below:



Connect pin 1 and pin 2. Pin 1 connects to RS485+ and pin 2 connects to RS485–.



Connect pin 4 and pin 5. Pin 4 connects to RS485+ and pin 5 connects to RS485–.



Connect pins 1, 2, 4, and 5. Twist cables to pin 1 and pin 4 into one cable and then connect it to RS485+. Twist cables to pin 2 and pin 5 into one cable and then connect it to RS485–.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

2 Overview

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

30

2.3.4 MDU

(1) Status indicator

(2) LCD touchscreen

Status

Color

Meaning

On

Red

A critical alarm has been generated, and the buzzer sounds continuously.

Yellow

A minor alarm has been generated, and the buzzer buzzes at 2 Hz.

Appearance

Figure 2-23 MDU

Touch the LCD screen firmly because it is an industrial resistive touchscreen. It is recommended that you use your fingernails for accurate selection and quick response.

Figure 2-24 Touching the LCD

Table 2-8 Status indicator

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

2 Overview

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

31

Status

Color

Meaning

Green

The UPS is running properly or a warning has been generated.

Off

N/A

The MDU is powered off.

No.

Port Name

Description

1

MUS05A (DB26)

Connects to the MDU and monitoring interface card

2

FE

Network port for connecting to the web service and for SNMP networking

3

CAN

Reserved

4

RS485_1

Reserved

5

USB Host

Connects to a USB flash drive, used for upgrading the LCD online and upgrading configurations

6

RST

Restart switch for the MDU

7

SD

Reserved

8

DIP switch

Implements specific functions by using the DIP switch and specific buttons; controls the CAN

The indicator on the LCD panel is yellow when the bypass supplies power in non-ECO mode.

The ports of the LCD screen are located at the side of the LCD screen.

Figure 2-25 LCD screen ports

Table 2-9 Description of LCD screen ports

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

2 Overview

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

32

No.

Port Name

Description

communication build-out resistor in a parallel system

Configuration

Application Scenario

Single UPS

Supplies power to common loads.

N+X parallel system (N represents the number of requisite UPSs connected in parallel, and X represents the number of redundant UPSs.)

Supplies power to important loads in small- and medium-sized data centers. It features high availability and strong transient overload capability.

2 ≤ N+X ≤ 4 (1 ≤ N ≤ 4; 0 ≤ X ≤ 3) For example, in a 3+1 parallel system, three UPSs are requisite and

one UPS is redundant.

Dual-bus system

The dual-bus system is suitable for scenarios where high availability requirements are posed for power supply. The dual-bus system supplies power to important loads in large- and medium-sized equipment rooms and data centers. In addition to advantages of common parallel systems, the dual-bus system also provides outstanding availability and eliminates bottleneck failures, but the configuration of the dual-bus system is complex.

Functions

The monitor display unit (MDU) allows for general UPS operations, parameter setting, viewing of running status and alarms, and so on.

Specifications

Dimensions (H x W x D): 175 mm x 264 mm x 40 mm

2.4 Typical configurations

Table 2-10 Typical UPS configurations

A 1+1 parallel system is a typical configuration. You can set the number of requisite UPSs and redundant ones on the LCD or WebUI.

2.4.1 Single UPS

The UPS5000-A is a high frequency tower-mounted UPS. It uses a unit-level design to handle power functionality, and provides an embedded maintenance bypass switch to ensure maintenance with power on. Figure 2-2 shows the conceptual diagram of a single UPS.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

2 Overview

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

33

2.4.2 N+X Parallel System

In an N+X parallel system, the mains input, bypass input, and AC output terminals between cabinets are connected in parallel. Energy control modules (ECMs) on each UPS are connected over parallel cables. The parallel connections synchronize the UPS outputs to supply power to loads. If one UPS fails, the other UPSs continue supplying power to loads.

Figure 2-26 shows a conceptual diagram of an N+X parallel system.

Figure 2-26 Conceptual diagram of an N+X parallel system

2.4.3 Dual-Bus System

A dual-bus system consists of two independent UPS systems. Each of these UPS systems in turn consists of one or more UPSs connected in parallel. Of the two UPS systems, one is a master system, and the other is a slave system. This design makes the dual-bus system highly reliable and suitable for loads with multiple input terminals. An optional static transfer switch (STS) can be installed to start the bus synchronization controller (BSC). The UPS systems work in normal mode or bypass mode. Figure 2-27 shows a conceptual diagram of a dual-bus system.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

2 Overview

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

34

Figure 2-27 Conceptual diagram of a dual-bus system

Compone nt

Model

Function

Battery circuit breaker (BCB) box

600 kVA



PDU8000-0400DC V8-BXA001



PDU8000-0630DC V8-BXA001



PDU8000-0800DC V8-BXA001

Controls the connection between battery strings and the UPS, and supports overload, short-circuit protection, and remote trip control.

800 kVA



PDU8000-0630DC V8-BXA001



PDU8000-0800DC V8-BXA001

Battery bus bar (BBB) box

600 kVA



PDU8000-1250DC V8-BGA001



PDU8000-2000DC V8-BGA001

Converges the energy of multiple battery strings.

800 kVA

PDU8000-2000DCV8

-BGA001

Antiseismi c kit

N/A

Reinforces the cabinet so that the cabinet meets the requirements of 9 degree seismic fortification intensity.

2.5 Optional Components

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

2 Overview

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

35

Compone nt

Model

Function

Air filter

N/A

Prevents the UPS from dust and ensure normal operations.

IP21 component

N/A

Prevents water from dropping into the cabinet, protecting the cabinet to IP21.

ECM extended subrack

N/A

Install this subrack when the UPS is equipped with a backfeed protection card and dry contact extended card.

Dry contact extended card

N/A

Provides extended monitoring ports: five routes of relay output ports and five routes of input ports.

Backfeed protection card

N/A

Detects mains and bypass backfeed and provides protection.

Battery monitor unit (BMU)

N/A

Monitors battery voltages and temperatures and battery string charge/discharge currents, and communicates with the UPS over Modbus.

Battery grounding failure detector

N/A

Detects current leakage and generates alarms. When equipped with a remote trip switch, the detector protects devices and prevents fire disasters. Detects battery grounding failures and sends alarm signals when the ground leakage current exceeds the specified value.

Ambient temperatur e and humidity sensor

N/A

Collects ambient temperatures and humidity.

Parallel cable

10 m or 15 m

Connects UPSs in parallel.

BSC cable

15 m or 60 m

Transmits bus synchronization signals in a dual-bus system.

If an IP21 component is installed, cables cannot be routed from the top of the cabinet.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

36

3.1 Installation Preparations

Model

Capacity

Weight

UPS5000-A 600 kVA

1274 kg

800 kVA

1695 kg

3.1.1 Site

3.1.1.1 UPS Weight and Size

Ensure that the ground or installation support can bear the weight of the UPS, batteries, and battery racks. The weight of batteries and battery racks depends on site requirements. Table

3-1 lists UPS weight.

3 Installation

Table 3-1 UPS weight

Figure 3-1 and Figure 3-2 show the installation dimensions.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

37

Figure 3-1 600 kVA UPS installation dimensions (unit: mm)

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

38

Figure 3-2 800 kVA UPS installation dimensions (unit: mm)

3.1.1.2 Installation Environment



Do not install the UPS in high temperature, low temperature, or damp environments.



Install the UPS away from water sources, heat sources, and flammable or explosive materials. Keep the UPS away from direct sunlight, dust, volatile gases, corrosive materials, and air dense with salt particles.



Do not install the UPS in environments with conductive metal scraps in the air.



The optimal operating temperatures for valve-regulated lead-acid batteries (VRLA batteries) are 20–30°C. Operating temperatures higher than 30°C shorten the battery lifespan and operating temperatures lower than 20°C reduce the battery backup time.

3.1.1.3 Installation Clearances

Reserve sufficient clearances around the cabinet to facilitate operations and ventilation:



Reserve a clearance of at least 800 mm from the front of the cabinet.



Reserve a clearance of at least 500 mm from the top of the cabinet.



Reserve a clearance of at least 500 mm at the rear of the cabinet. If you need to perform operations at the rear, keep a clearance of at least 800 mm.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

39

Figure 3-3 and Figure 3-4 show installation clearances.

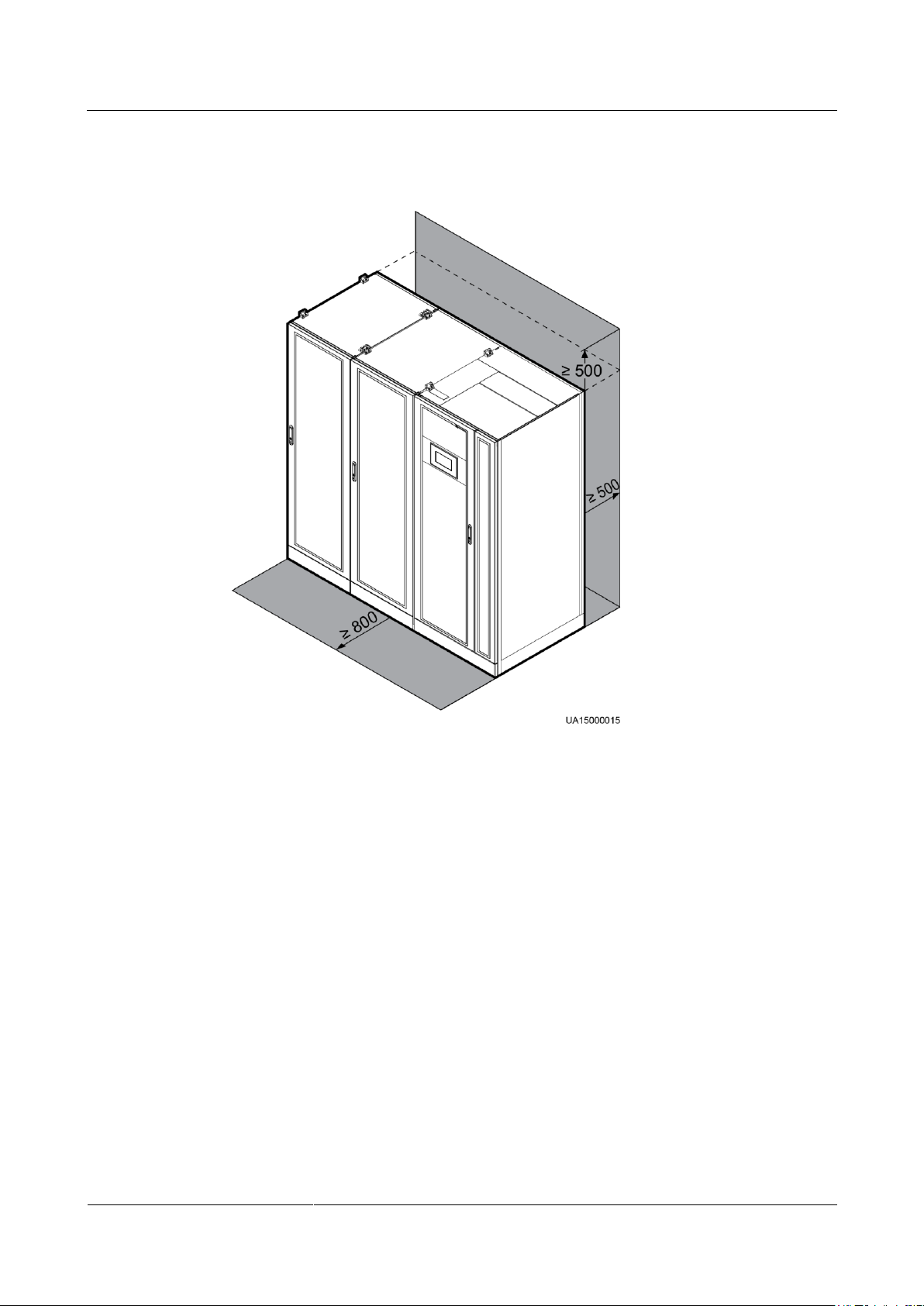

Figure 3-3 600 kVA UPS installation clearances (unit: mm)

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

40

Figure 3-4 800 kVA UPS installation clearances (unit: mm)

Tools and Meters

Electric pallet truck

Manual pallet truck

Ladder

Rubber mallet

3.1.2 Tools and Instruments

Insulate installation tools to prevent electric shocks.

Prepare the following tools and meters indicated in Table 3-2 for installation.

Table 3-2 Tools and meters

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

41

Tools and Meters

Hammer drill and drill bit Φ16

Hand-held electric drill

Alloy hole saw

Heat gun

Diagonal pliers

Crimping tools

Wire stripper

Electric hydraulic pliers

Clamp meter

Multimeter

Cable tie

Level instrument

Polyvinyl chloride (PVC) insulation tape

Cotton cloth

Label

Electrician's knife

Electrostatic discharge (ESD) gloves

Protective gloves

Insulated gloves

Insulation protective shoes

Torque screwdriver

Cable cutter

Brush

Flat-head screwdriver

(2–5 mm)

Phillips screwdriver

Insulated torque

Heat shrink tubing

Insulated adjustable

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

42

Tools and Meters

(M3/M4/M5/M6/M

8)

wrench (M6/M8/M12/M16)

wrench

Item

600 kVA

800 kVA

Mains input connecto r

Mains input current (A)

1055

1407

Recommended cross-sectional area (mm2)

L1

4 x (4 x 185)

4 x (4 x 240)

L2

L3

N

PE

240

Bypass input connecto r

Bypass input current (A)

912

1216

Recommended cross-sectional area (mm2)

L1

4 x (4 x 185)

4 x (4 x 240)

L2

L3 N PE

240

Table 3-2 lists only the common tools for installation and cable connection. For more dedicated tools

required, see the corresponding component manuals. Prepare tools based on site requirements.

3.1.3 Power Cables



The UPS can generate large leakage currents. A circuit breaker that provides leakage current protection is not recommended.



If multiple UPSs are to be connected in parallel, input and output power cables for each UPS should have the same length and specifications.

Table 3-3 lists the recommended cross-sectional areas for power cables.

Table 3-3 Recommended cross-sectional areas for power cables

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

43

Item

600 kVA

800 kVA

Output connecto r

Output current (A)

912

1216

Recommended cross-sectional area (mm2)

U

4 x (4 x 185)

4 x (4 x 240)

V

W

N (If the voltage is non-linear, increase the cross-sectional area of the neutral wire.)

PE

240

Battery input connecto r

Nominal discharge current (480 V current; forty 12 V batteries) (A)

1302

1736

Maximum discharge current (end of discharge current of forty 12 V batteries, namely, 1.67 V/cell discharge current of 192 2 V cells) (A)

1559

2079

Recommended cross-sectional area (mm2)

+

3 x 240

4 x 240

N

3 x 240

4 x 240

-

3 x 240

4 x 240

Ground cable

Recommended cross-sectional area (mm2)

PE

240

1.

When selecting, connecting, and routing power cables, follow local safety regulations and rules.

2.

If external conditions such as cable layout or ambient temperatures change, perform verification in accordance with the IEC-60364-5-52 or local regulations.

3.

The currents listed in Table 3-3 are measured at a rated voltage of 380 V. If the rated voltage is 400 V, multiply the currents by 0.95. If the rated voltage is 415 V, multiply the currents by 0.92.

4.

If primary loads are non-linear loads, increase the cross-sectional areas of neutral wires 1.5–1.7 times.

5.

When the mains input and bypass input share a power source, configure both types of input power cables as mains input power cables. The cables listed in Table 3-3 are used only when the following requirements are met:



Routing mode: Routed over the ladder or bracket in a single layer (the routing mode for DC cables is F in IEC60364-5-52 and the routing mode for AC cables is E in IEC60364-5-52).

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

44

1.

Connector

Connection Mode

Bolt Type

Bolt Hole Diameter

Torque

Mains input connector

Crimped DT terminals

M16

18 mm

120 N•m

Bypass input connector

Crimped DT terminals

M16

18 mm

120 N•m

Battery input connector

Crimped DT terminals

M16

18 mm

120 N•m Output connector

Crimped DT terminals

M16

18 mm

120 N•m

Grounding connector

Crimped DT terminals

M12

-

47 N•m

UPS Capacity

Component

Specificationsa

600 kVA

Mains input circuit breaker

1250 A/3P

Bypass input circuit breaker

1000 A/3P

Output branch circuit breaker

1000 A/3P

800 kVA

Mains input circuit breaker

1600 A/3P

Bypass input circuit breaker

1250 A/3P

Output branch circuit breaker

1250 A/3P Circuit breakers are used in circuits with a short-circuit current of less than 50 kA.

The ambient temperature is 30°C.

2.

The AC voltage loss is less than 3%, and the DC voltage loss is less than 1%.

3.

90°C copper flexible cable.

4.

The length of the AC power cables of a 600 kVA or 800 kVA UPS is no longer than 30 m and DC power cables no longer than 50 m.

When you connect power cables, comply with the tightening torque listed in Table 3-4 to ensure secure connections and prevent safety risks.

Table 3-4 Power cable connector requirements

Table 3-5 Recommended input front-end and output back-end circuit breakers

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

45



The input front-end and output back-end circuit breakers recommended in Table 3-5are for reference only.



If multiple loads are connected, specifications for branch circuit breakers must not exceed the recommended specifications.



The circuit breaker selection principle is to protect loads and cables, and the cascading principle is to realize specific protection.

3.1.4 Unpacking and Checking

Context



Only trained personnel are allowed to move the UPS. Use a pallet truck to transport the UPS box secured to a wooden support to the installation position.



To prevent the UPS from falling over, secure it to an electric pallet truck using ropes before moving it.



To prevent shocks or falls, move the UPS gently. After placing the UPS in the installation position, unpack it and take care to prevent scratches. Keep the UPS steady during unpacking.



If the UPS installation environment is in poor condition and the UPS will be stored for a long time after it is unpacked, wrap the UPS with the original plastic coat to prevent dust.

Procedure

Step 1 Visually inspect the UPS appearance for shipping damage. If any damage is found, report it to

Step 2 Use a pallet truck to move the power cabinet and bypass cabinet near the installation position.

The power cabinet and bypass cabinet are separately delivered. Therefore, perform the following operations for both the power cabinet and bypass cabinet.

the carrier immediately.

To prevent the UPS from falling over during transportation, the pallet is specially designed. If an electric pallet truck is used, insert the forks into the front of the pallet; if a manual pallet truck is used, insert the forks into the left or right side of the pallet, as shown in Figure 3-5.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

46

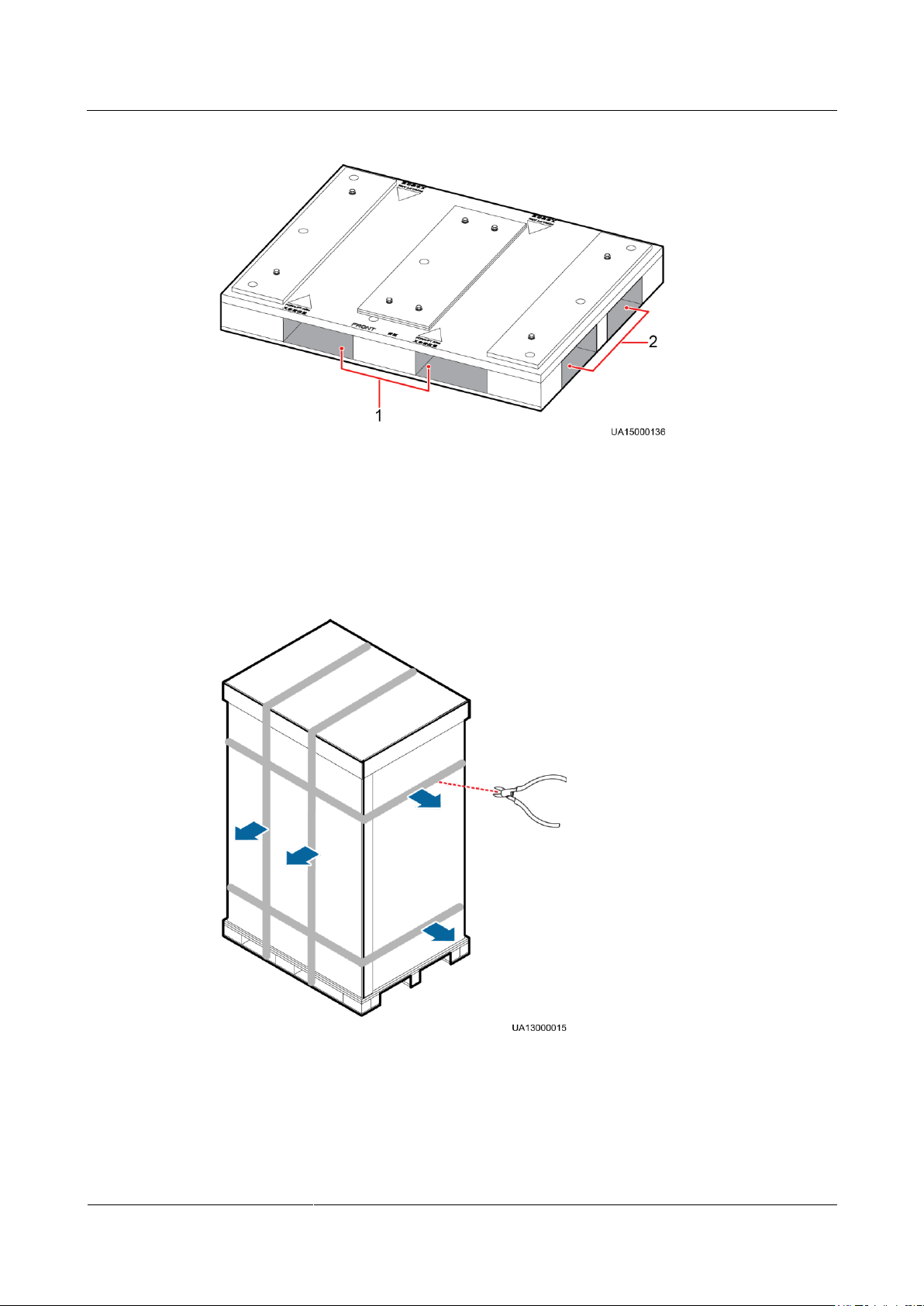

Figure 3-5 Pallet

(1) Place for inserting the forks of an electric pallet truck

(2) Place for inserting the forks of a manual pallet truck

Step 3 Cut off and remove the binding tapes, as shown in Figure 3-6.

Figure 3-6 Removing binding tapes

Step 4 Remove the packing materials and foam, as shown in Figure 3-7.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

47

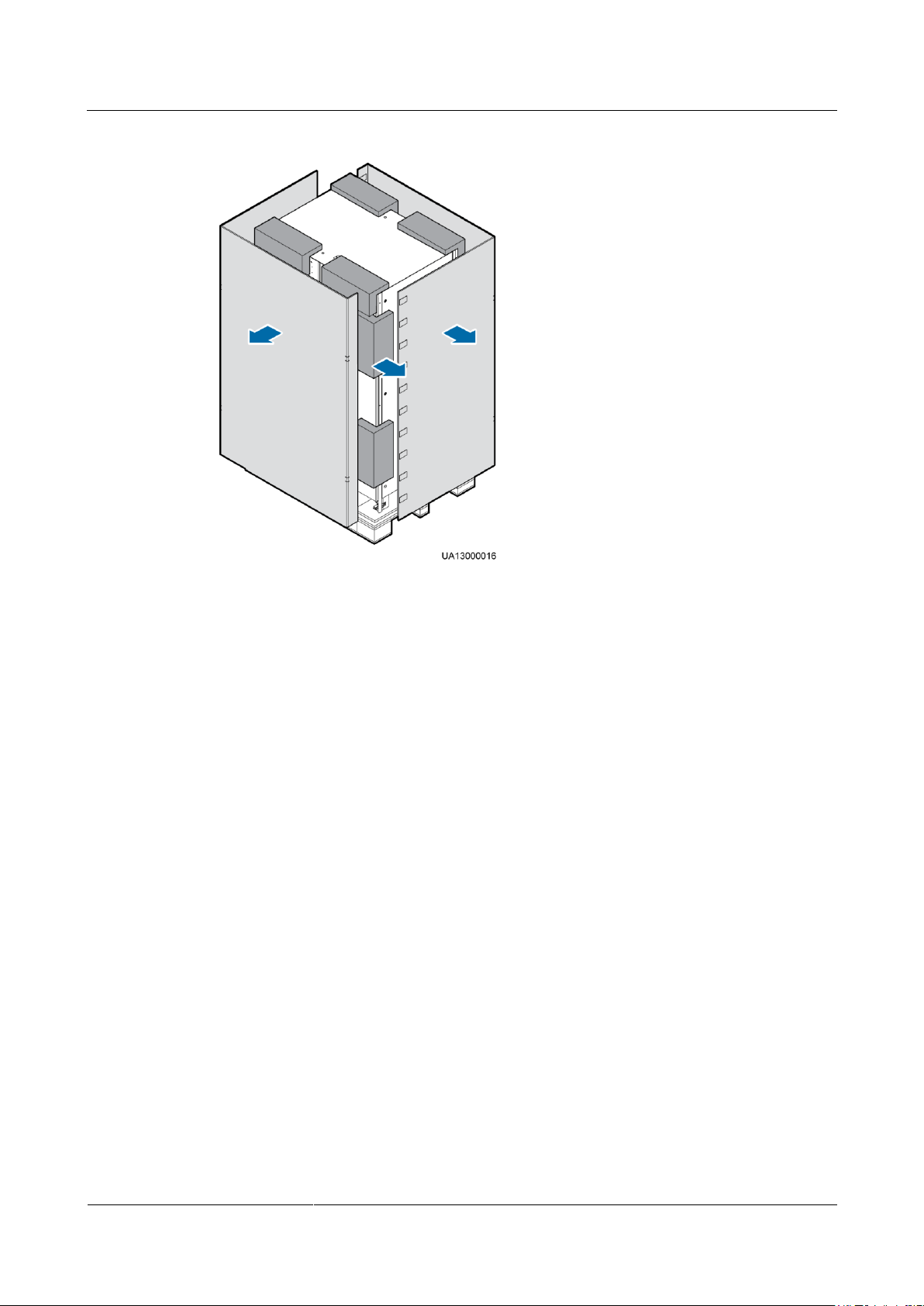

Figure 3-7 Removing the packing materials and foam

Step 5 Remove the plastic bag and take out the fitting box. Store them for future use. Step 6 Check that the UPS is intact.

1. Visually inspect the UPS appearance for shipping damage. If it is damaged, notify the

carrier immediately.

2. Check that the fittings comply with the packing list. If some fittings are missing or do

not comply with the packing list, record the information and contact your local Huawei office immediately.

Step 7 Remove the screws that secure the cabinet and pallet, as shown in Figure 3-8 (using the power

cabinet as an example).

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

48

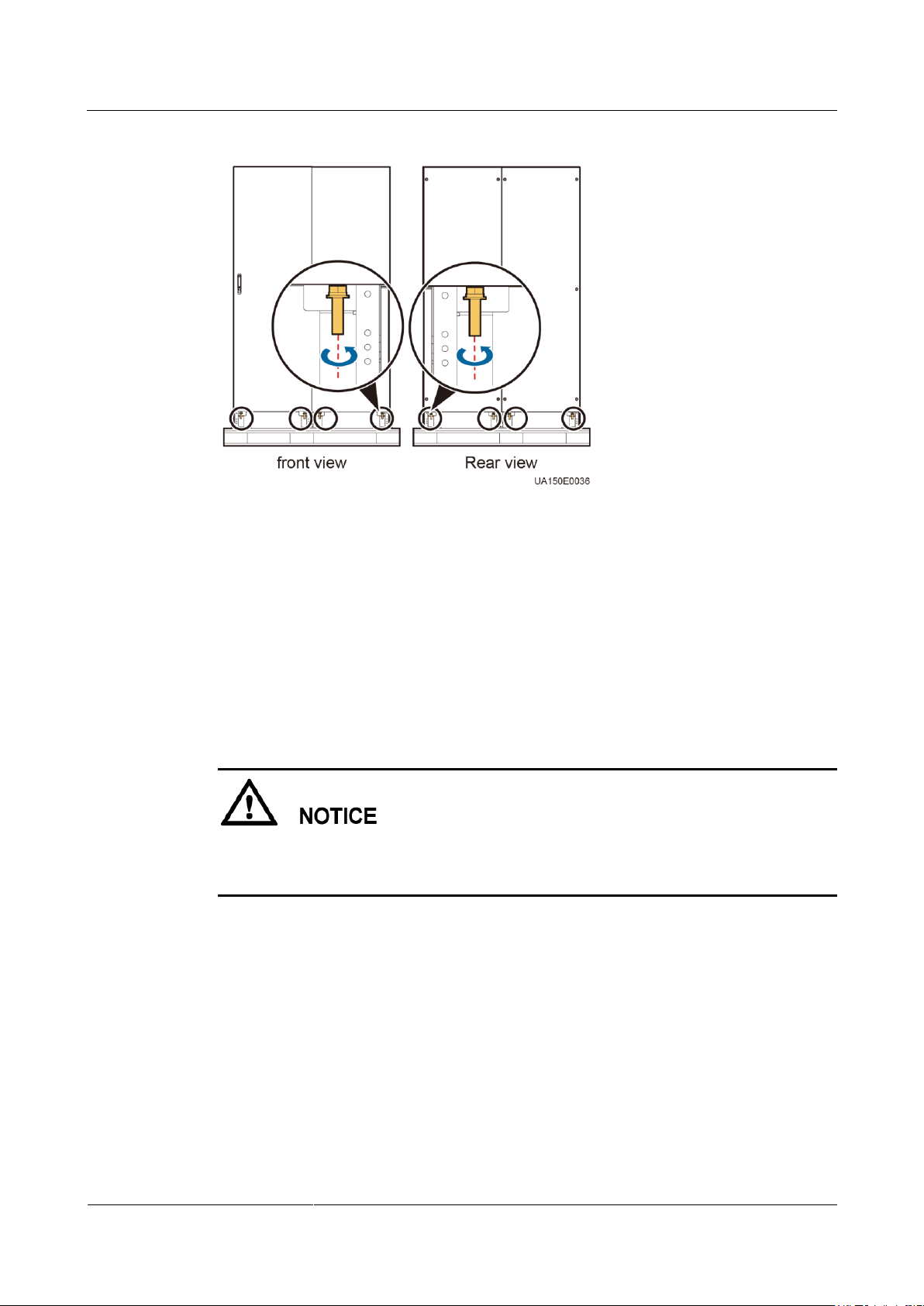

Figure 3-8 Removing screws from the cabinet and pallet

----End

3.2 Single UPS Installation

Context

UPSs in standard configuration and full configuration have the same installation procedures and cable connection modes. This section uses UPSs in full configuration as an example.

When you install the UPS and connect cables, do not step on the front door baffle plate and the door support at the bottom of the cabinet to prevent paint flake-off and deformation, as shown in Figure 3-9. Otherwise, the front door will not be properly closed.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

49

Figure 3-9 Front door baffle plate

3.2.1 Installing the UPS

3.2.1.1 Installing the UPS on the Ground

Determining the UPS Installation Position



Ensure that the installation ground is flat.



The marking-off template is delivered with the UPS and is placed at the top of the UPS.

Step 1 Determine the cabinet installation position on the ground according to cabinet mounting holes

(ground installation) on the marking-off template. Figure 3-10 and Figure 3-11 show the marking-off template. Figure 3-12 and Figure 3-13 show the hole dimensions.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

50

Figure 3-10 600 kVA UPS marking-off template

Figure 3-11 800 kVA UPS marking-off template

Figure 3-12 Mounting hole dimensions for the 600 kVA UPS (unit: mm)

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

51

Figure 3-13 Mounting hole dimensions for the 800 kVA UPS (unit: mm)

(1) M12 bolt

(2) Spring washer

(3) Flat washer

(4) Expansion sleeve

Step 2 Use a hammer drill to drill holes for installing expansion bolts, and install expansion sleeves

in the holes. Figure 3-14 shows expansion bolt composition. Figure 3-15 shows how to install an expansion bolt.

Figure 3-14 Expansion bolt composition

Knock the expansion bolt into the hole until the expansion sleeve completely fits into the hole. The expansion sleeve must be completely buried under the ground to facilitate subsequent installation.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

52

Figure 3-15 Installing an expansion bolt (unit: mm)

Moun ting Fittin gs

Num ber of Fittin gs

Screw Specifications

Number of Bolts (PCS)

Torque (N•m)

Remarks

Botto m connec ting plate

2

M12 x 25

8

26



The fittings are delivered with the UPS and are visible when you open the front door of the bypass cabinet.



The 10 soft connecting copper bars are numbered

Top connec ting plate

2

M6 x 20

8

3

1. Drill holes in the ground by using a hammer drill. The hole depth is 52 mm to 60 mm.

2. Partially tighten the expansion bolt and vertically insert it into the hole. Knock the

expansion bolt using a rubber mallet until the expansion sleeve is fully inserted into the hole.

3. Partially tighten the expansion bolt.

4. Remove the bolt, spring washer, and flat washer.

----End

Combining the Power Cabinet and Bypass Cabinet

The power cabinet and bypass cabinet are separately delivered. Before installing the UPS, combine the power cabinet and bypass cabinet. Before combining the cabinets, check that fittings are complete. Table 3-6 and Table 3-7 list the fittings.

Table 3-6 600 kVA UPS fittings

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

53

Moun ting Fittin gs

Num ber of Fittin gs

Screw Specifications

Number of Bolts (PCS)

Torque (N•m)

Remarks

Soft connec ting copper bar

10

M12 x 45

40

47

48 to 54, 56, 58, and 60.



If you choose to route cables by drilling holes at the top of the cabinet, paste grommet strip to the hole edge to protect cables.

Grom met strip

N/A

Middl e connec ting plate

2

M6 x 20

4

3

Installed on the cabinet before delivery.

Mounti ng Fittings

Number of Fittings

Screw Specificatio ns

Number of Bolts (PCS)

Torque (N•m)

Remarks

Bottom connectin g plate

2

M12 x 25

8

26



The fittings are delivered with the UPS and are visible when you remove the packing material from the bypass cabinet.



The two soft connectin g copper bars are numbered

52.



(Optional) Eight L-shaped

Top connectin g plate

2

M6 x 30

8

3

Soft connectin g copper bar

2

M12 x 45

10

47

(Optional ) L-shaped connectin g copper bar

8

M12 x 45

16

47

Grommet strip

N/A

Table 3-7 800 kVA UPS fittings

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

54

Mounti ng Fittings

Number of Fittings

Screw Specificatio ns

Number of Bolts (PCS)

Torque (N•m)

Remarks

connectin g copper bars, seven of which are numbered 50 and one is numbered

51.



If you choose to route cables by drilling holes at the top of the cabinet, paste grommet strip to the hole edge to protect cables.

Middle connectin g plate

2

M6 x 30

4

3

Installed on the cabinet before delivery.

Step 1 (Optional) Obtain eight L-shaped connecting copper bars from the fittings package, and install

them in the 800 kVA power cabinet from inside to outside, as shown in Figure 3-16.

If the eight L-shaped connecting copper bars have already been installed, skip this step.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

55

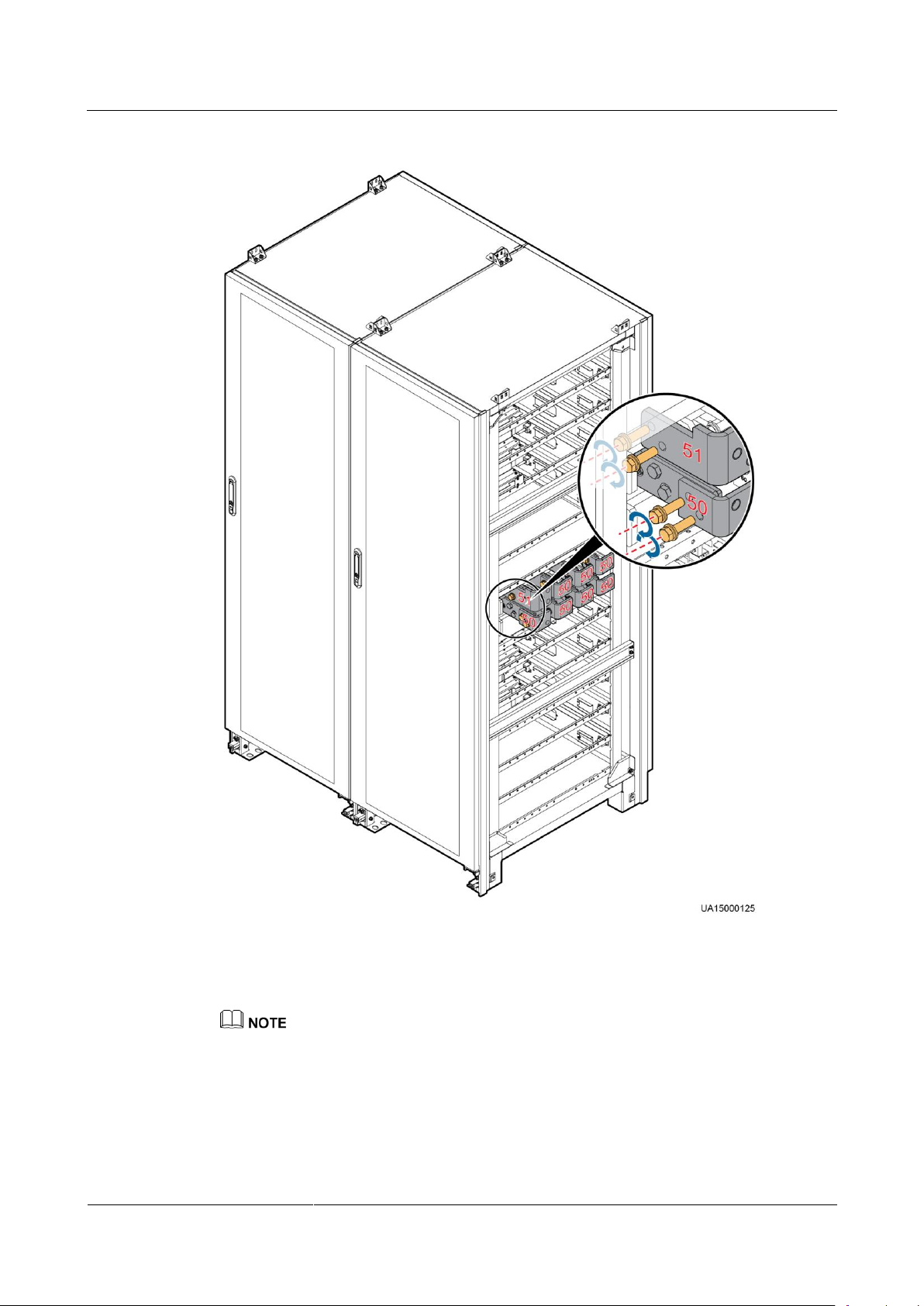

Figure 3-16 Installing eight L-shaped connecting copper bars (800 kVA UPS)

Step 2 Use a pallet truck to move the cabinet to the cabinet to the expansion bolt holes on the ground.

The power cabinet is on the left, and the bypass cabinet is on the right.

When you align the power cabinet with the bypass cabinet, adjust the position of the bypass cabinet by using a pallet truck so that the front doors of the two cabinets are aligned with each other.

Step 3 Install the two bottom connecting plates on power cabinet 1 and its adjacent bypass cabinet.

The method is the same for the 600 kVA UPS and 800 kVA UPS. Figure 3-17 uses the 600 kVA UPS as an example.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

56

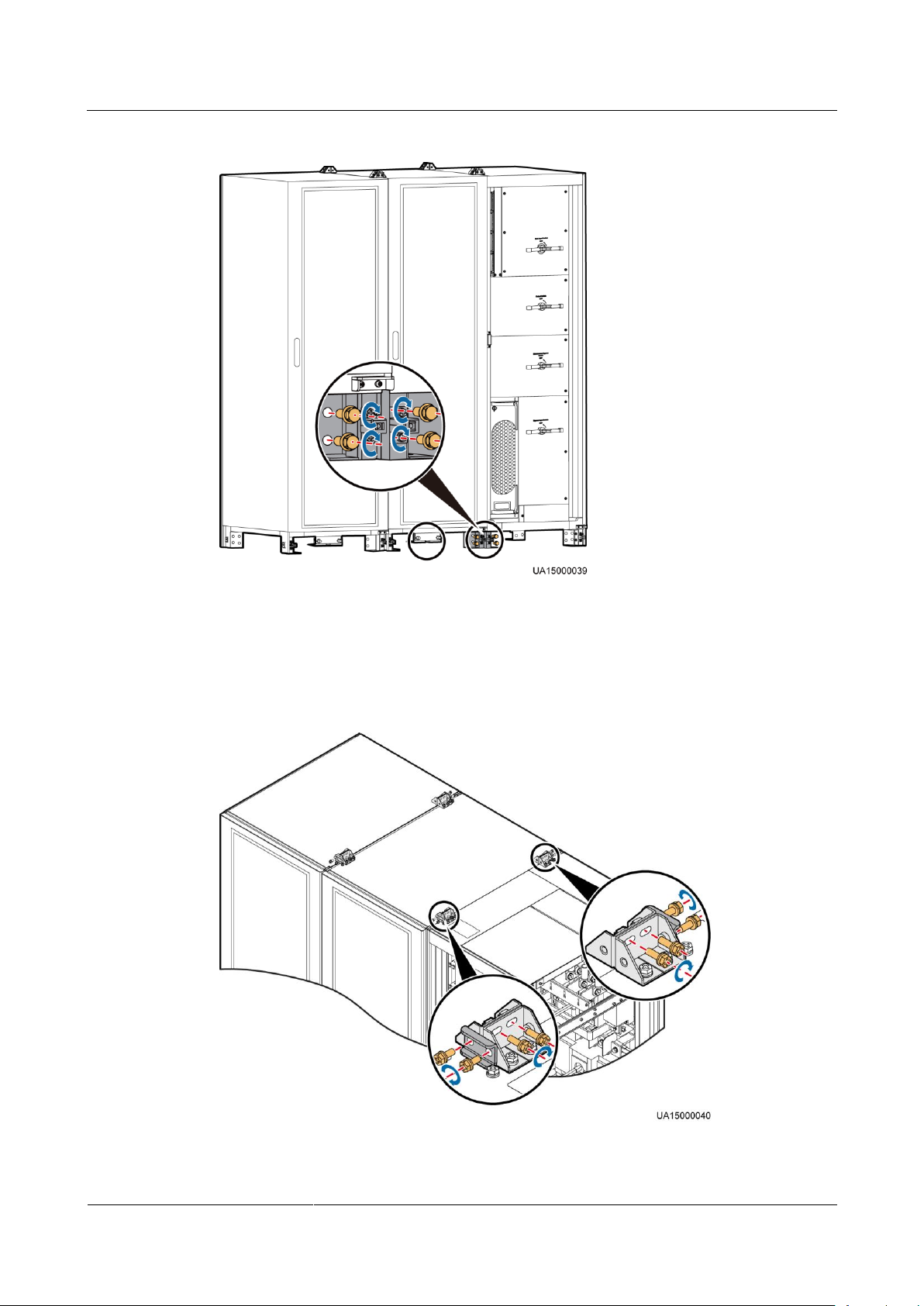

Figure 3-17 Installing bottom connecting plates

Step 4 Install the two top connecting plates on power cabinet 1 and its adjacent bypass cabinet. The

method is the same for the 600 kVA UPS and 800 kVA UPS. Figure 3-18 uses the 600 kVA UPS as an example.

Figure 3-18 Installing top connecting plates

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

57

Step 5 Open the front door of the bypass cabinet, and install the two middle connecting plates on

power cabinet 1 and its adjacent bypass cabinet. Secure the 600 kVA UPS by using M6 x 20 screws, and secure the 800 kVA UPS by using M6 x 30 screws. The method is the same for the 600 kVA UPS and 800 kVA UPS. Figure 3-19 uses the 600 kVA UPS as an example.

After the power cabinet is aligned with the bypass cabinet, secure the connecting plate between the two cabinets by using M6 screws to minimize the gap in between.

Figure 3-19 Installing connecting plates

Step 6 Use M12 x 60 expansion bolts to secure the cabinet to the expansion bolt holes on the ground

and tighten the expansion bolts, as shown in Figure 3-20 (using a power cabinet as an example).

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

58

Figure 3-20 Tightening expansion bolts

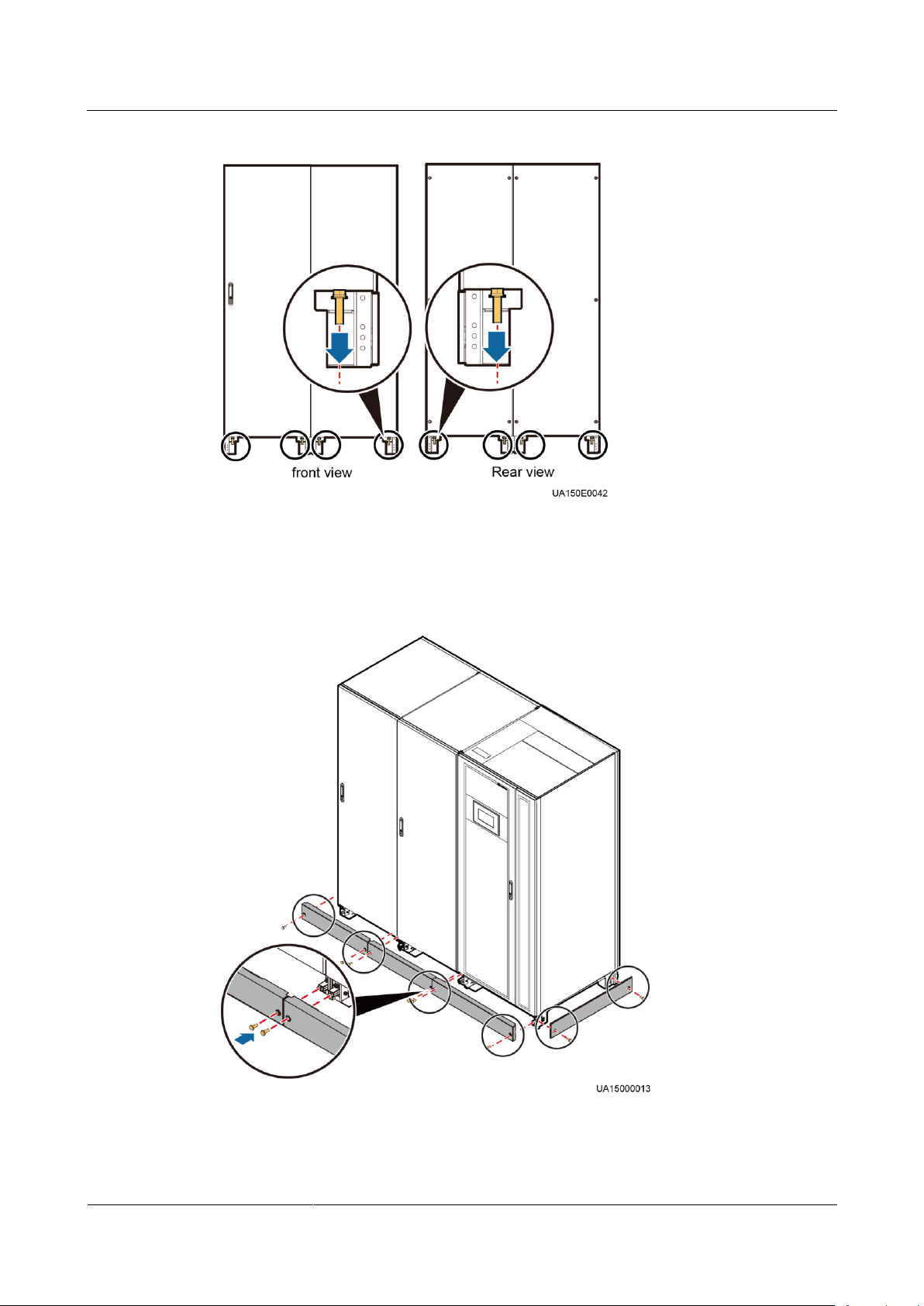

Step 7 Install the front, rear, left, and right anchor baffle plates, as shown in Figure 3-21 (using the

600 kVA UPS as an example).

Figure 3-21 Installing front, rear, left, and right anchor baffle plates

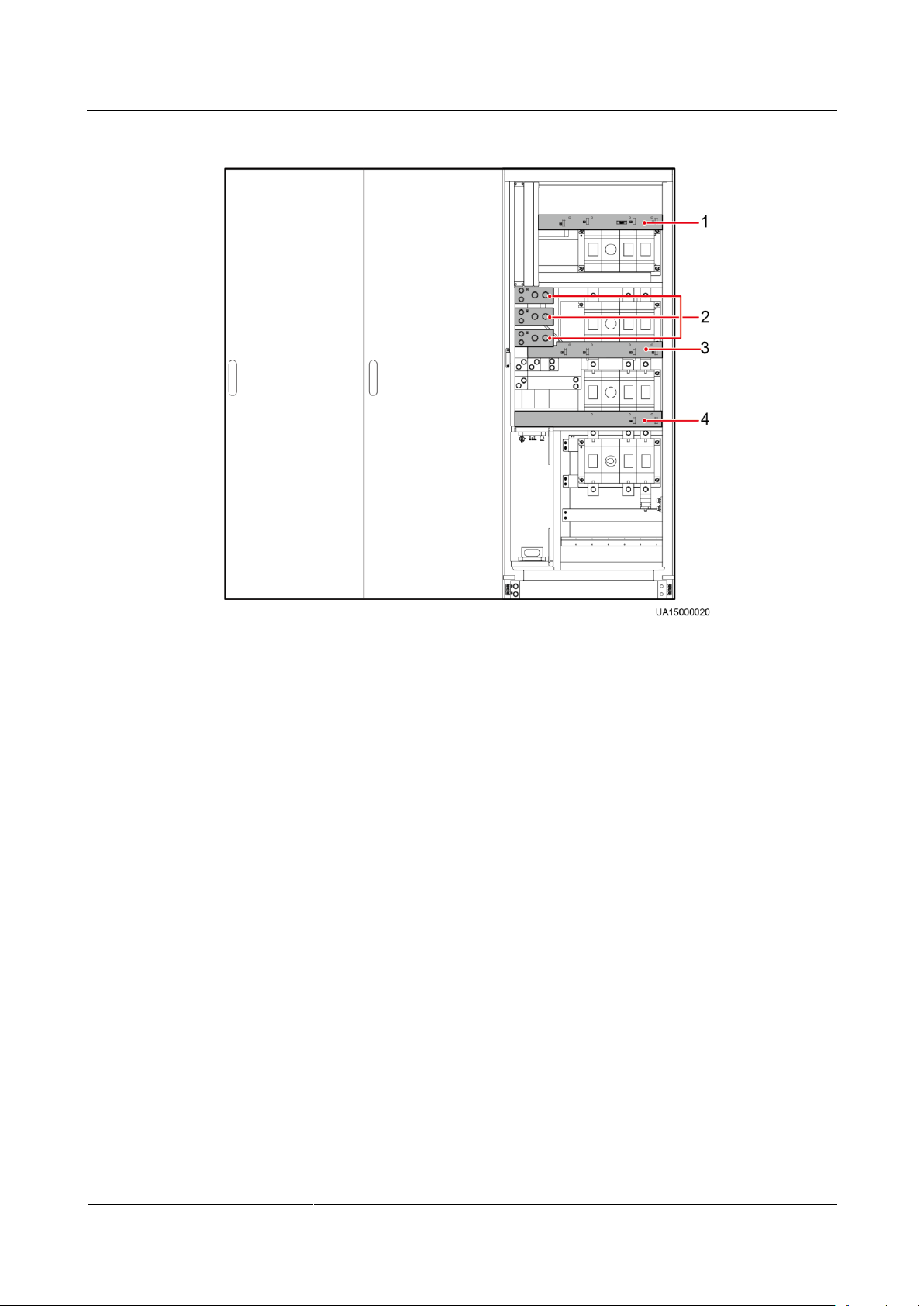

Step 8 Remove the power distribution covers, as shown in Figure 3-22 and Figure 3-23.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

59

The power distribution covers can be removed from the bypass cabinet only when all switches are OFF.

Figure 3-22 Removing power distribution covers from the 600 kVA UPS

Figure 3-23 Removing power distribution covers from the 800 kVA UPS

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

60

Step 9 Remove rear panels from power cabinet 1 and its adjacent bypass cabinet.

Step 10 Remove the switch extension pole.

Figure 3-24 Removing the switch extension pole (800 kVA)



For an 800 kVA model, the switch extension pole in the left bypass cabinet must be removed to facilitate cabinet combination. The switch extension pole in the right bypass cabinet can be removed or reserved, which has no impact.



For a 600 kVA model, removing the switch extension poles or not does not affect cabinet combination or cable connection.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

61

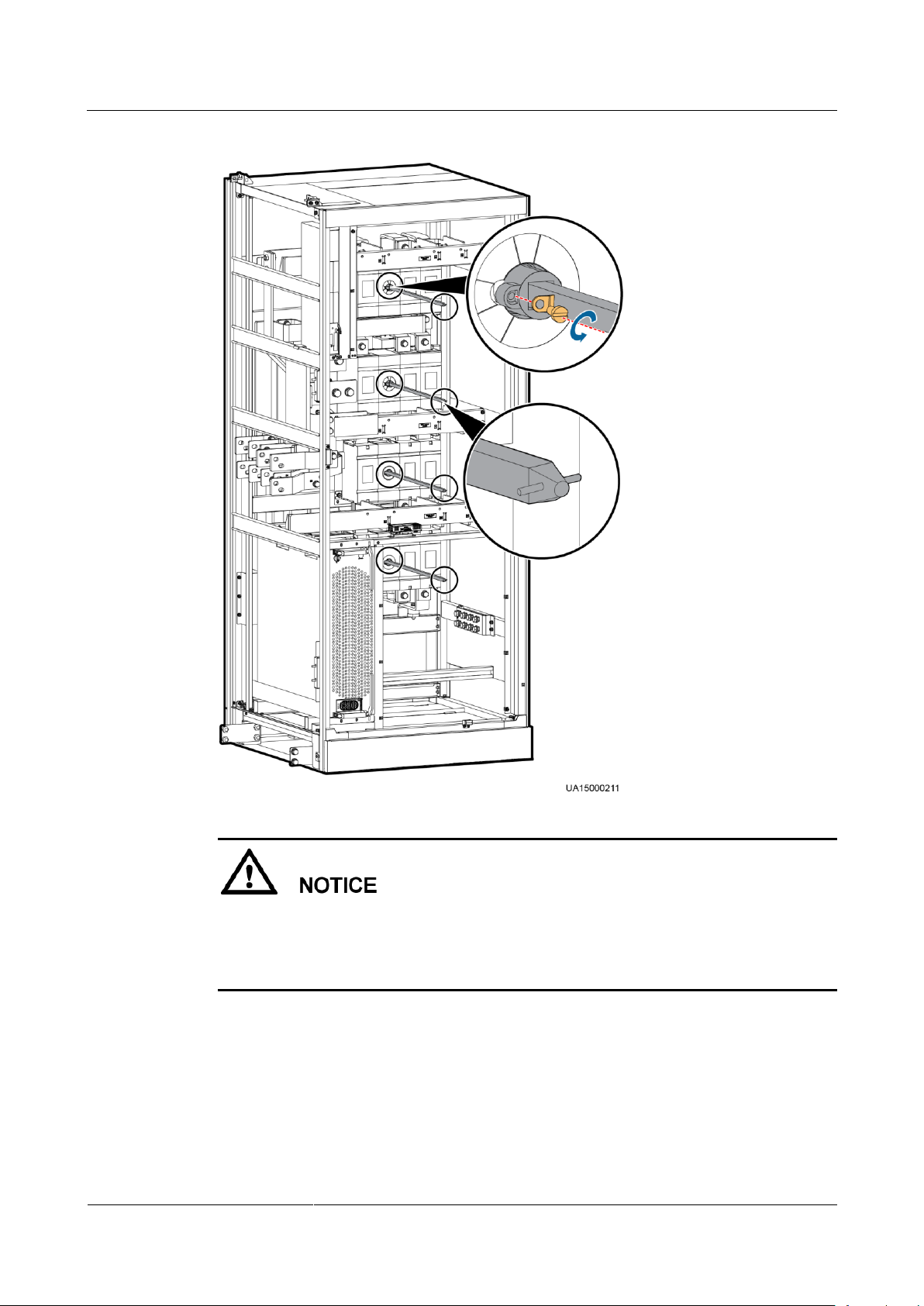

Figure 3-25 Removing the switch extension poles (600 kVA)



The removed screws, washers, and switch extension poles should be kept in good condition and reinstalled after cables are connected.



Keep the dowel leveled, as shown in Figure 3-24 and Figure 3-25. Insert the switch extension pole until it is fully inserted, place the spacer, and tighten the slotted screw.

Step 11 Install soft connecting copper bars between power cabinet 1 and its adjacent bypass cabinet.

The following describes the methods for the 600 kVA UPS and 800 kVA UPS separately.



600kVA UPS a. Remove the battery copper bar assembly, as shown in Figure 3-26.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

62

Figure 3-26 Removing a battery copper bar assembly

b. Install soft copper bars numbered from 48 to 54 from inside outwards. Figure 3-27

shows the soft copper bars.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

63

Figure 3-27 Installing soft copper bars numbered from 48 to 54

c. Reinstall the battery copper bar assembly. d. Remove the filler panel from the power cabinet, and install soft copper bars named

56, 58, and 60, as shown in Figure 3-28.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

64

Figure 3-28 Installing soft copper bars numbered 56, 58, and 60



800kVA UPS a. Cut off the binding tapes between soft copper bar holes numbered 23, 24, 25, 26

and 30.

b. Secure the soft copper bars numbered 23, 24, 25, 26 and 30 by using M12x45

screws, as shown in Figure 3-29.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

65

Figure 3-29 Securing soft copper bars numbered

c. Remove the filler panel from the power cabinet and take out the two soft copper

bars numbered 52 from the fitting bag. Secure them separately to power cabinet 1 and its adjacent bypass cabinet, as shown in Figure 3-30.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

66

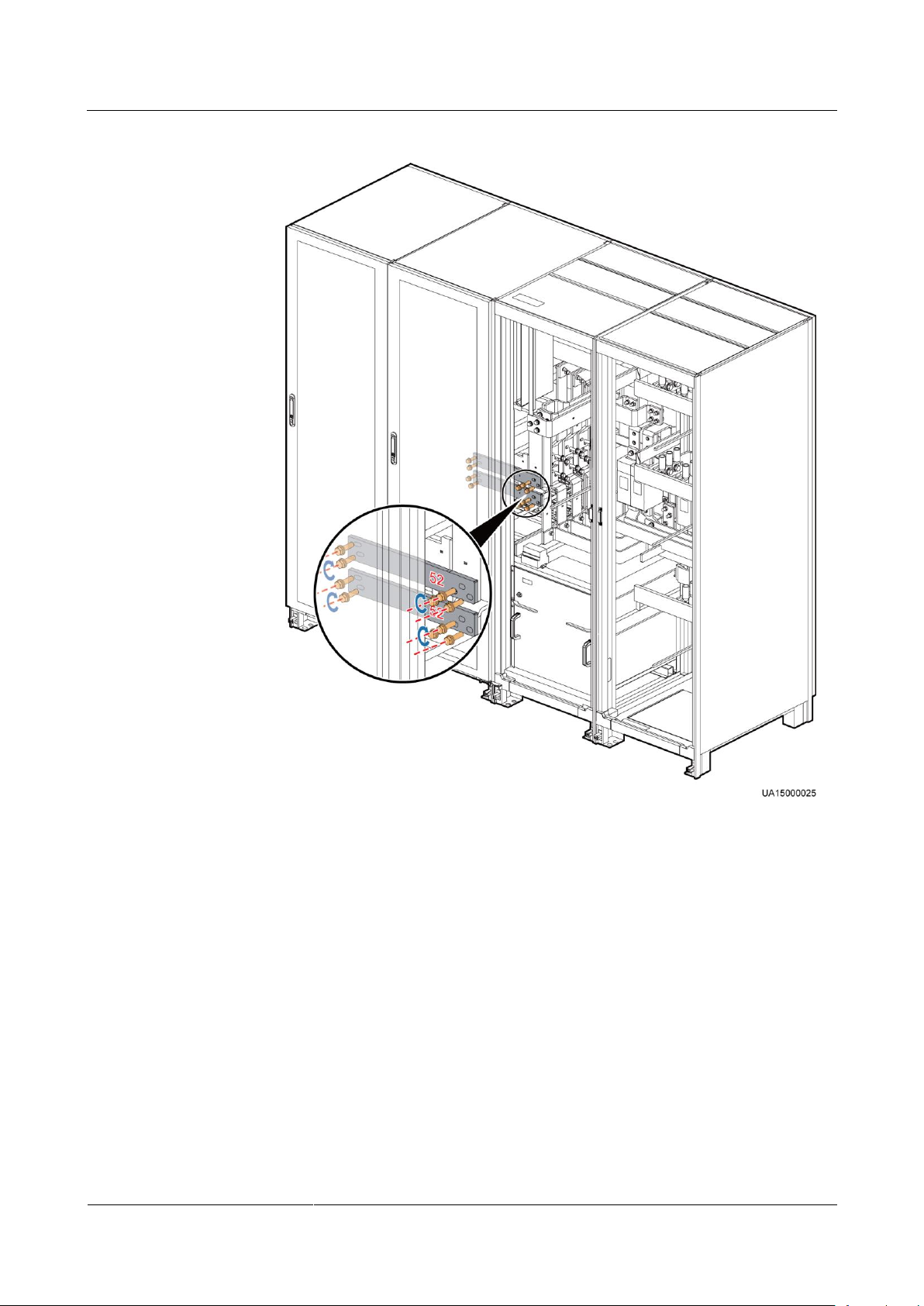

Figure 3-30 Installing soft copper bars numbered 52

Step 12 Insert the cable terminal on the bypass cabinet into the corresponding port on the system

signal interface board in power cabinet 1. The system signal interface board is located at the rear of power cabinet 1, which can be seen if the rear panel is removed.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

67

Bypass Cabinet Cable Name

Bypass Cabinet Cable No.

Silk Screen on the System Signal Interface Board in the Power Cabinet or Cable No.

Quantity

Bypass unit DL37 cable

W301_J21

J21

1

W303_J24

J24

1

ECM 8-pin cable

W305_J22

J22

1

ECM monitoring bus

W307_J25

J25

1



Cut the cable ties binding the cables to be connected in the bypass cabinet. When connecting the cables of the bypass cabinet to power cabinet 1, route the cables from the internal side of the column to the system signal interface board of power cabinet 1 so that the rear panels can be reinstalled on the bypass cabinet and power cabinet 1.



After the cables have been connected, bind the cables to the column of the bypass cabinet and the binding holes on the system signal interface board. Verify that the cables are correctly connected and reinstall the rear panels.

The silk screens on the system signal interface board in power cabinet 1 are shown in Figure

3-31. The mapping between the cables in the bypass cabinet and the ports on the system

signal interface board is listed in Table 3-8. Figure 3-32 and Figure 3-33 show cable connections for combined cabinets.

Figure 3-31 Silk screens on the system signal interface board in power cabinet 1

Table 3-8 Mapping between the cables in the bypass cabinet and the ports on the system signal

interface board in power cabinet 1

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

68

Bypass Cabinet Cable Name

Bypass Cabinet Cable No.

Silk Screen on the System Signal Interface Board in the Power Cabinet or Cable No.

Quantity

CT cable

W309_J26

J26

1

Switch cable



In full configuration:

− 600 kVA:

04091624-06

− 800 kVA:

04091625-06



In standard configuration: SW1310

04091626-23

1

A standard model has only one switch cable (maintenance bypass switch). A full configuration model has three bypass switches (main input switch, maintenance bypass switch, and bypass input switch). The following figures use a full configuration model as an example to describe how to combine cabinets and connect cables.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

69

Figure 3-32 Cable connection for combined cabinets (600 kVA)

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

70

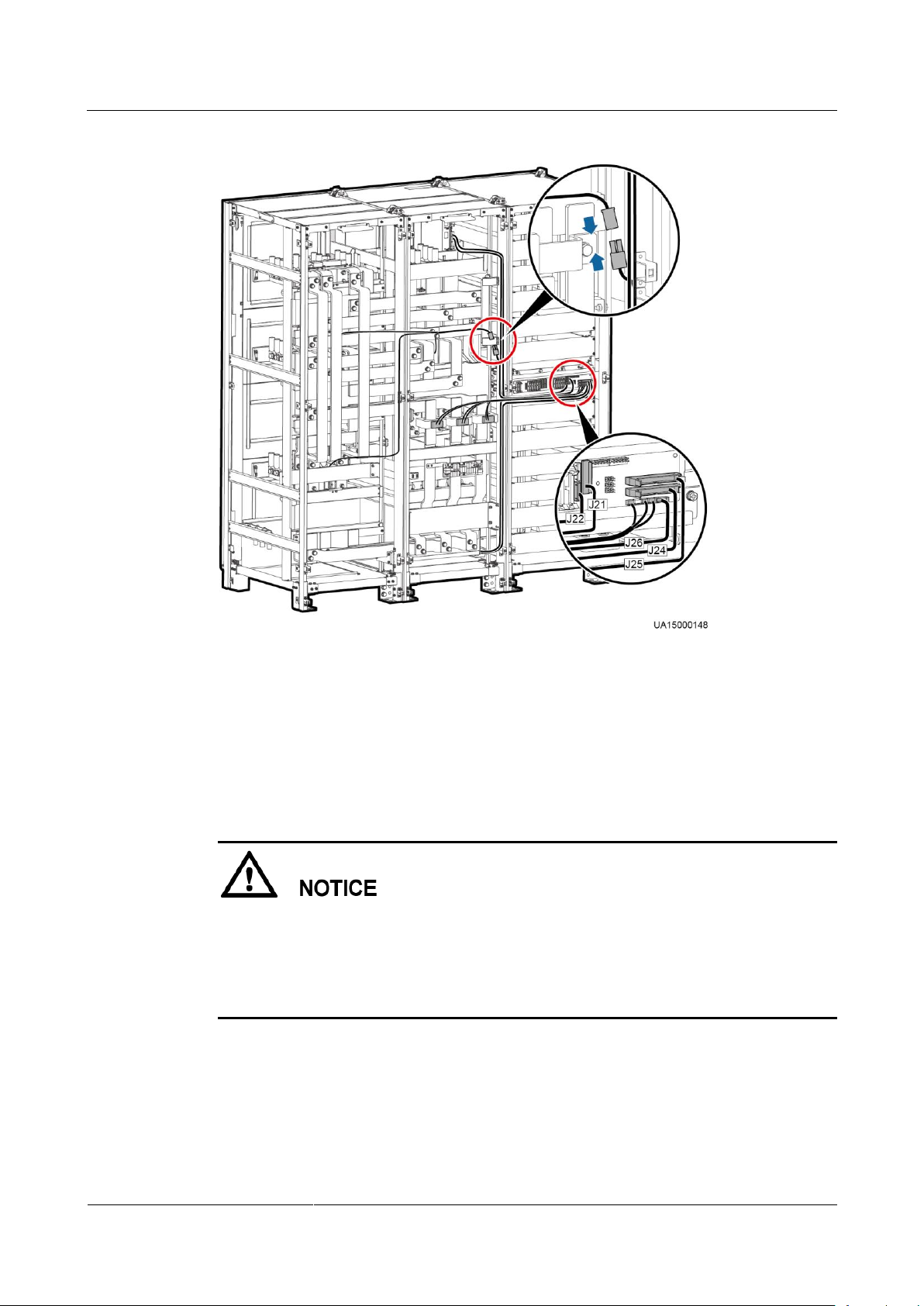

Figure 3-33 Cable connection for combined cabinets (800 kVA)

----End

3.2.1.2 Installing the UPS on Channel Steels

Determining the UPS Installation Position



Channel steels and expansion bolts for securing the channel steels should be purchased by the customer. The recommended channel steel width is 50 mm or more.



Ensure that the spacing between external sides of a channel steel is 800 mm. Secure channel steels to the ground by using expansion bolts.



Keep the channel steel surface flat.

Step 1 Determine the cabinet installation position on channel steels according to cabinet mounting

holes (channel steel installation) on the marking-off template. Figure 3-34 and Figure 3-35 show the dimensions of cabinet base mounting holes.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

71

Figure 3-34 Dimensions of cabinet base mounting holes for the 600 kVA UPS (unit: mm)

(1) Channel steel mounting hole

(2) Channel steel

(3) Column

(4) Base

(1) Channel steel mounting hole

(2) Channel steel

(3) Column

(4) Base

Figure 3-35 Dimensions of cabinet base mounting holes for the 800 kVA UPS (unit: mm)

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

72



It is recommended that the external sides of front and rear channel steels be aligned with the column. The channel steel spacing is 800 mm. The recommended channel steel width is 50 mm or more.



Cabinet mounting holes must be aligned with channel steel mounting holes, and secure the cabinet to channel steels with bolts.

Step 2 Drill cabinet mounting holes in channel steels by using a hammer drill.

----End

Combining the Power Cabinet and Bypass Cabinet

Step 1 The method of combining the power cabinet and bypass cabinet is the same as the method of

combining them on the ground.

----End

Securing the UPS

Step 1 Use M12 x 45 comment bolts to secure the cabinet to the mounting holes in the channel steel

and tighten the bolts.

Step 2 Install the front, rear, left, and right anchor baffle plates.

----End

3.2.2 Installing Batteries

Context



Before installing batteries, read through the battery safety precautions, obtain the delivered battery installation guide, and install batteries as instructed.



Place the batteries in a correct way to prevent vibrations and shocks.



Install the batteries from the lower layer to the upper layer to prevent falling over due to imbalance.

Procedure

Step 1 Install a battery rack and batteries.

For details, see the battery installation guide delivered along with batteries.

----End

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

73

3.2.3 Routing Cables

3.2.3.1 Top Cable Routing

Context



Top cable routing is recommended. Bottom cable routing is applicable only when a cable tray or support is used.



If an IP21 component is installed, cables cannot be routed from the top of the cabinet.



If you choose to route cables through holes, remove the power cable tray cover, spare power cable tray cover and battery cable tray cover and drill holes. After you drill holes, paste grommet strip to the hole edge to protect cables. Reinstall the covers on the cabinet.



After routing cables, use firestop putty to fill in the gap between the cables and the cabinet.

Procedure

Step 1 Open the front door of the bypass cabinet, and remove power distribution covers from the

bypass cabinet.

Step 2 Route power cables.



Connect cables from top to bottom in this sequence: mains input power cables, output power cables, bypass input power cables, and battery input cables.



When you connect each phase wire, tighten screws from inside to outside to secure wires.

1. Remove the power cable tray cover, battery cable tray cover and signal cable tray cover

from the top of the cabinet. Use a hole saw to drill holes in the power cable tray cover, attach grommet strips around the holes to protect cables, and reinstall the power cable tray cover on the cabinet, as shown in Figure 3-36 and Figure 3-37.

The hole size and quantity are for reference only.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

74

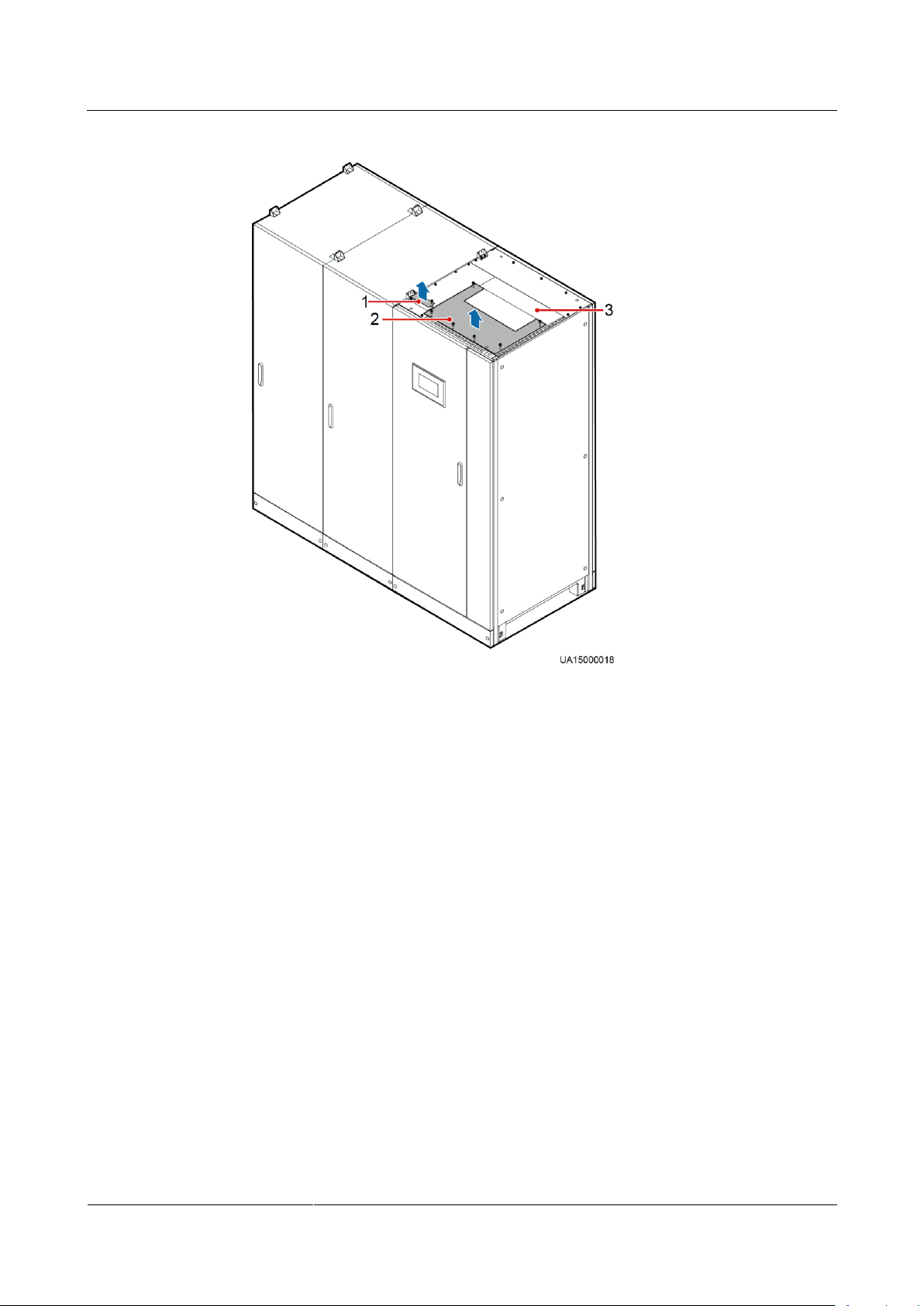

Figure 3-36 Removing cable tray covers from the top of the 600 kVA UPS

(1) Signal cable tray cover

(2) Power cable tray cover

(3) Spare power cable tray cover

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

75

Figure 3-37 Removing cable tray covers from the top of the 800 kVA UPS

(1) Signal cable tray cover

(2) Battery cable tray cover

(3) Power cable tray cover

(4) Spare power cable tray cover

2. (Optional) Remove the 10 screws that secure the beam, as shown in Figure 3-38 and

Figure 3-39.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

76

Figure 3-38 Removing the beam from the 600 kVA UPS

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

77

Figure 3-39 Removing the beam from the 800 kVA UPS

Store the removed screws and beam. Reinstall them after connecting cables.

3. Figure 3-40 and Figure 3-41 show the power cables routed from the top of the cabinet.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

78

Figure 3-40 Routing power cables from the top of the cabinet and binding position (covers

(1) Battery cables

(2) Bypass input power cables

(3) Output power cables

(4) Mains input power cables

removed of 600 kVA UPS)

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

79

Figure 3-41 Routing power cables from the top of the cabinet and binding position (covers

(1) Battery cables

(2) Bypass input power cables

(3) Output power cables

(4) Mains input power cables

removed of the 800 kVA UPS)

Bind signal cables and power cables separately.

Step 3 Route signal cables. Bind signal cables to the cabinet in the shortest route. Figure 3-42 shows

the signal cables routed from the top of the cabinet.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

80

Figure 3-42 Routing signal cables from the top of the cabinet

The number and colors of signal cables in Figure 3-42 are for reference only.

----End

3.2.3.2 Bottom Cable Routing

Prerequisites



If you choose to route cables from the bottom of the cabinet, ensure sufficient space at the bottom of the cabinet.



If you choose to route cables through holes, remove power cable tray covers and drill holes. After you drill holes, paste grommet strip to the hole edge to protect cables. Reinstall the covers on the cabinet.



After routing cables, use firestop putty to fill in the gap between the cables and the cabinet.

Procedure

Step 1 Open the front door of the bypass cabinet, and remove power distribution covers from the

bypass cabinet.

Step 2 Route power cables.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

81

(1) Signal cable tray cover

(2) Power cable tray cover



Connect cables from bottom to top in this sequence: bypass input power cables, output power cables, mains input power cables, and battery input cables.



When you connect each phase wire, tighten screws from inside to outside to secure wires.

1. Remove the power cable tray cover and signal cable tray cover from the bottom of the

cabinet. Use a hole saw to drill holes in the power cable tray cover, attach grommet strips around the holes to protect cables, and reinstall the power cable tray cover on the cabinet, as shown in Figure 3-43 and Figure 3-44.

The hole size and quantity are for reference only.

Figure 3-43 Removing cable tray covers from the bottom of the 600 kVA UPS

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

82

Figure 3-44 Removing cable tray covers from the bottom of the 800 kVA UPS

(1) Signal cable tray cover

(2) Power cable tray cover

2. Figure 3-45 and Figure 3-46 show the power cables routed from the bottom of the

cabinet.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

83

Figure 3-45 Routing power cables from the bottom of the cabinet and binding position (600

(1) Battery cables

(2) Mains input power cables

(3) Output power cables

(4) Bypass input power cables

kVA UPS)

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

84

Figure 3-46 Routing power cables from the bottom of the cabinet and binding position (800

(1) Battery cables

(2) Mains input power cables

(3) Output power cables

(4) Bypass input power cables

kVA UPS)

Step 3 Lay out signal cables. Bind signal cables to the cabinet in the shortest route. Figure 3-47 and

Figure 3-48 show the signal cables routed from the bottom of the cabinet.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

85

Figure 3-47 Routing signal cables from the bottom of the 600 kVA UPS

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

86

Figure 3-48 Routing signal cables from the bottom of the 800 kVA UPS

The number and colors of signal cables in Figure 3-47 and Figure 3-48 are for reference only.

----End

3.2.4 Connecting Ground Cables

Figure 3-49 and Figure 3-50 show the UPS wiring terminals.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

87

Figure 3-49 600 kVA UPS PDU

(1) Mains input wiring terminals

(2) Battery input wiring terminals

(3) Output wiring terminals

(4) Bypass input wiring terminals

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

88

Figure 3-50 800 kVA UPS PDU

(1) Battery input wiring terminals

(2) Mains input wiring terminals

(3) Output wiring terminals

(4) Bypass input wiring terminals

If you do not ground the UPS as required, electromagnetic interference, electric shocks, or fire disasters may occur.



Before cable connections, ensure that all UPS input switches are OFF. Paste warning labels to prevent operation on the switches.



Connect input power cables to the UPS and then to customer equipment.



In the case of top cable routing, the ground cable is routed from the top. Figure 3-51 and

Figure 3-52 show how to route a ground cable from the bottom.

Connect the ground cable to the UPS, as shown in Figure 3-51 and Figure 3-52.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

89

Figure 3-51 Connecting a ground cable to the 600 kVA UPS

Figure 3-52 Connecting a ground cable to the 800 kVA UPS

3.2.5 Connecting AC Input Power Cables

3.2.5.1 Single Mains

After connecting cables, check that a certain clearance is reserved between the internal switch (if any) extension pole and power cables to avoid friction.

Connecting AC input power cables to mains input power distribution terminals 1L1, 1L2, 1L3, and N respectively, as shown in Figure 3-53 and Figure 3-54.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

90

Figure 3-53 AC input power cables connection (600 kVA)

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

91

Figure 3-54 AC input power cables connection (800 kVA)

3.2.5.2 Dual Mains

Procedure

Step 1 Remove the rear cover of the bypass cabinet, as shown in Figure 3-55.

It is recommended that you remove the side panel from the bypass cabinet before connecting cables.

UPS5000-A-(600 kVA-800 kVA) User Manual (40 kVA)

3 Installation

Issue 03 (2017-10-16)

Huawei Proprietary and Confidential

92

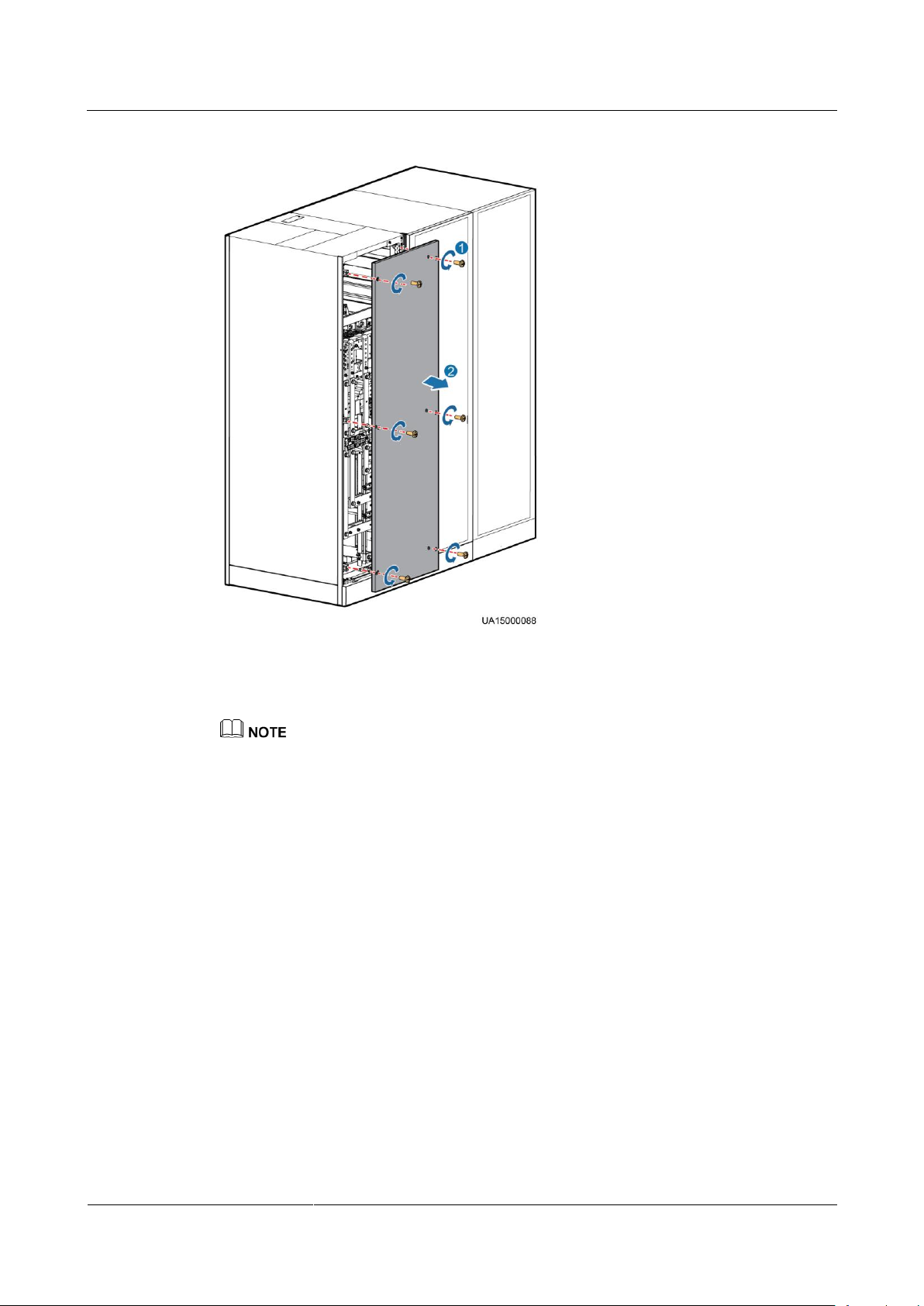

Figure 3-55 Removing the rear cover

Step 2 Remove the connecting copper bars between mains and bypass input terminals, as shown in

Figure 3-56 and Figure 3-57.

Properly keep the removed copper bars and bolts.

Huawei UPS5000-A-600K-SC, UPS5000-A-800K-SC, UPS5000-A-800K-FC, UPS5000-A-600K-FC User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

About This Document

Contents

1 Safety Precautions

1.1 General Safety

1.2 Electrical Safety

1.3 Operating Environment

1.4 Battery Safety

1.5 Mechanical Safety

1.6 Laying Out Cables

2 Overview

2.1 Model Description

2.2 Working Principles

2.2.1 Conceptual Diagram

2.2.2 Working Modes

2.2.2.1 Normal Mode

2.2.2.2 Bypass Mode

2.2.2.3 Battery Mode

2.2.2.4 Maintenance Bypass Mode

2.2.2.5 ECO Mode

2.3 Product Introduction

2.3.1 Appearance

2.3.2 Product Structure

2.3.3 Control Unit

2.3.3.1 Overview

2.3.3.2 ECM

2.3.3.3 Dry contact card

2.3.3.4 Monitoring interface card

2.3.4 MDU

2.4 Typical configurations

2.4.1 Single UPS

2.4.2 N+X Parallel System

2.4.3 Dual-Bus System

2.5 Optional Components

3 Installation

3.1 Installation Preparations

3.1.1 Site

3.1.1.1 UPS Weight and Size

3.1.1.2 Installation Environment

3.1.1.3 Installation Clearances

3.1.2 Tools and Instruments

3.1.3 Power Cables

3.1.4 Unpacking and Checking

3.2 Single UPS Installation

3.2.1 Installing the UPS

3.2.1.1 Installing the UPS on the Ground

3.2.1.2 Installing the UPS on Channel Steels

3.2.2 Installing Batteries

3.2.3 Routing Cables

3.2.3.1 Top Cable Routing

3.2.3.2 Bottom Cable Routing

3.2.4 Connecting Ground Cables

3.2.5 Connecting AC Input Power Cables

3.2.5.1 Single Mains

3.2.5.2 Dual Mains
