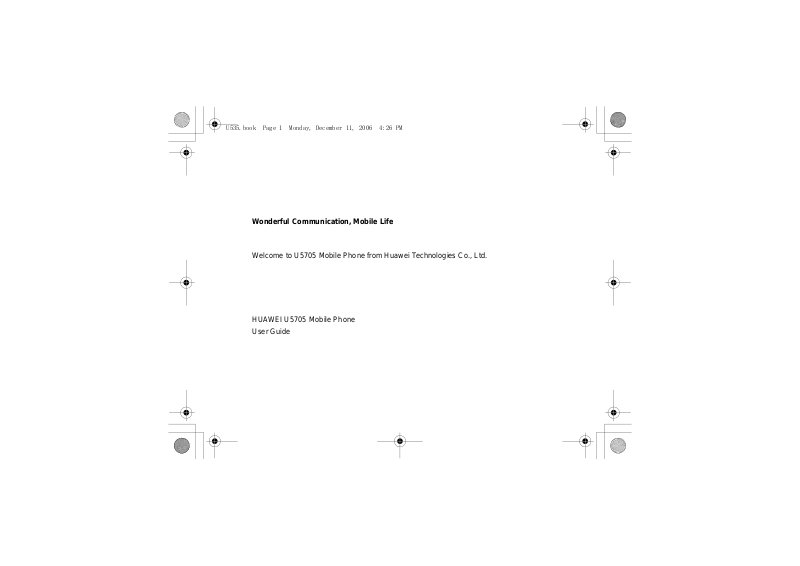

Huawei U5705 User Manual

Wonderful Communication, Mobile Life

Welcome to U5705 Mobile Phone from Huawei Technologies Co., Ltd.

HUAWEI U5705 Mobile Phone

User Guide

Notice

Co., Ltd.

No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd.

Trademarks

and HUAWEI are trademarks of Huawei Technologies Co., Ltd. All other trademarks mentioned in this manual are the properties of their respective holders.

Notice

The information in this manual is subject to change without notice. Every effort has been made in the preparation of this manual to ensure accuracy of the contents, but all statements,

information, and recommendations in this manual do not constitute a warranty of any kind, expressed or implied.

Please read the safety precautions carefully to ensure the correct and safe use of your wireless device. For detailed information, refer to the section “Warnings and Precautions”.

Huawei Technologies Co., Ltd.

Address:

Administration Building, Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, P. R. China

Postal Code: 518129

Website: http://www.huawei.com

Safety Precautions

Please read the safety precautions carefully to ensure the correct and safe use of your wireless device. For detailed information, refer to the section “Warnings and Precautions”.

Do not switch on your phone when it is prohibited to use mobile phones or when the phone may cause interference or danger.

Do not use your phone while driving.

Follow any rules or regulations in hospitals and health care facilities. Switch off your phone near medical apparatus.

Switch off your phone in aircraft. The phone may cause interference to control signals of the aircraft.

Switch off your phone near high-preci- sion electronic devices. The phone may affect the performance of these devices.

Do not attempt to disassemble your phone or its accessories. Only qualified personnel are allowed to service or repair the phone.

Do not place your phone or its accessories in containers with strong electromagnetic field.

Do not place magnetic storage media near your phone. Radiation from the phone may erase the information stored on them.

Do not put your phone in a hightemperature place or use it in a place with flammable gas such as a gas station.

Keep your phone and its accessories away from children. Do not allow children to use your phone without guidance.

Use only approved batteries and chargers to avoid the risk of explosions.

Observe any laws or regulations on the use of wireless device. Respect others’ privacy and legal rights when using your wireless device.

Strictly follow the relevant instructions on 57 of this manual while using the USB cable. Otherwise your phone or PC may be damaged.

Table of Contents
Getting to Know Your Phone 1
Packing List ................................................	1
Your Phone ................................................	2
Getting Started 6
Loading the SIM Card ................................	6
Unloading the SIM Card .............................	7
Charging the Battery ..................................	7
Loading/Removing a Memory Card............	8
Powering On/Off.........................................	9
Call Service 11
Making or Answering Calls.......................	11
Operations During a Voice Call ...............	12
Operations During a Video Call ...............	13
Calls .........................................................	14
Text Input 15
T9® Input Method ....................................	15
Traditional Input Method ..........................	15
"123" Numeric Input Method ....................	16
Symbol Input Method ...............................	16
Input Different Languages ........................	16
Contacts 17
Making Calls from the Contacts ...............	17
Searching for a Contact............................	17
Viewing Contacts in Phone/SIM ...............	17
Other Operations......................................	17
Groups......................................................	18
Messaging 20

Messages.................................................	20
Email ........................................................	22
Broadcast Inbox .......................................	25
Templates ................................................	25

Music 26

Music Library............................................	26
Playlists....................................................	27

Organiser & Tools 28

Alarms......................................................	28
Calendar ..................................................	28
Task .........................................................	29
Memo .......................................................	30
Synchronise .............................................	30
Calculator.................................................	31
Unit Converter..........................................	31
Currency Converter..................................	32
Voice Recorder ........................................	32
World Time...............................................	33
Stopwatch ................................................	33
Timer........................................................	33
Service Dial Number ................................	33

My Files 34

Browser 35

Open homepage ......................................	35
Open new page........................................	35
Bookmarks ...............................................	35
Saved pages ............................................	35
History......................................................	36

Resume ....................................................	36
Settings ....................................................	36

Entertainment 37

Games......................................................	37
Camera.....................................................	37
Music ........................................................	39

Connections 40

Bluetooth® ...............................................	40
USB ..........................................................	42

Settings 45

Phone Settings .........................................	45
Display Settings........................................	46
Message Settings.....................................	47
Call Settings .............................................	47
Video Call ................................................	49
Contacts Settings .....................................	50
JavaTM Settings.......................................	50
Connectivity..............................................	50
Network ...................................................	50
Security ...................................................	50
DRM Setting .............................................	51

Warnings and Precautions 52

Electronic Device......................................	52
Hospital ....................................................	52
Storage Environment................................	53
Children Safety.........................................	53
Operating Environment ............................	54
Cleaning and Maintenance.......................	54

Environmental Protection.........................	55
Emergency Calls......................................	55
Battery......................................................	55
Charger ....................................................	56
Using the USB Cable ...............................	57
Certification Information (SAR) ................	57

Acronyms and Abbreviations 61

Appendix 62

Index 1

1Getting to Know Your Phone

Your phone can operate in virtually all countries, automatically switching between

WCDMA 850/1900 and GSM/GPRS/EDGE 850/ 1800/1900 networks. This allows you to enjoy communication wherever you use your mobile phone.

Note The services supported by your phone should be also supported by the network from where you use the phone. For details, please contact your local network operator.

Packing List

Your phone package box contains the following:

1One U5705 mobile phone

2One travel charger

3One Li-polymer battery

4One User Guide

5One stereo headset (optional)

6One USB data cable (optional)

Phone Your Know to Getting

Your Phone

Camera

Left function key

•Press this key to activate the function indicated at the left of the prompt bar.

•In standby mode, press this key to access the main menu.

OK key

•Press this key to start the selected function in the menu.

•In standby mode, press this key to access the main menu.

Video call key

• In standby mode, press this key to access the calls menu.

•After selecting a phone number, press it to make a video call.

Send key

• Press this key to make or answer a call.

• Press this key to access the Calls screen in standby mode.

Clear key

• In the editing mode, press this key to delete a character before the cursor.

Microphone

Scroll key

•Press this key to scroll through a menu.

•In standby mode,

press the up scroll key to access Quick Menu, press the down scroll key to access Contacts, press the left scroll key to access the New SMS screen, and then press the right scroll key to access My Files.

Right function key

•Press this key to activate the function indicated at the right of the prompt bar on the screen.

•In standby mode, press this key to access

Browser.

Music/Option key

•In standby mode, press this key to access the music menu.

• In an option list, press to tick a checkbox.

Power/End key

•Press this key to end an ongoing call or reject an incoming call.

• Press this key to return to the home screen.

•Press and hold it to power on or power off the phone

Character/Number keys

• Use to enter numbers or characters.

•Press and hold the # key to switch to the silent profile from the current profile.

Front View and Back View

Camera								Back cover
Screen

•To display the relevant

information.

Side View

Camera shortcut key

•Press and hold this key for few seconds to activate the camera in the standby mode..

Charger connector/Cable connector/Headset Jack

Volume keys

Music key

•Press this key to access the Music

screen in the standby mode.

Your Phone

Home Screen

Icon bar

Desktop

To display the operations and the function options.

Prompt bar

To display the operations currently available.

Icon bar

This area displays the phone status. The following table illustrates the icons that may appear on this bar.

Icon Description

The phone is in a call.

Forwarding all incoming voice calls to line 1.

Call line 2 is enabled currently.

Phone Your Know to Getting

Your Phone

Icon					Description
					Forwarding all incoming voice calls to
					line 2.

					You have new text messages.
					You have new text messages.


					You have new multimedia messages.
					You have new multimedia messages.


					You have new PUSH messages.
					You have new PUSH messages.


					You have new emails.
					You have new emails.


					You have new voice mail.
					You have new voice mail.


					Indicates signal strength. The more hori-
					Indicates signal strength. The more hori-
					zontal bars that appear, the stronger the
					zontal bars that appear, the stronger the
					signal.

					The phone is currently in a GSM
					The phone is currently in a GSM
					network.
					network.

					The phone is currently in a WCDMA
					The phone is currently in a WCDMA
					network.

					You are using the roaming service.
					You are using the roaming service.


					Alarm clock is enabled.

Icon			Description
			Bluetooth is enabled.

			The normal profile is activated.
			The normal profile is activated.


			The headset is plugged in.
			The headset is plugged in.


			Your PC connects to the Internet
			Your PC connects to the Internet
			through your phone.
			through your phone.

			Indicates power level of the battery.

Introduction to the Menu

Your phone provides an extensive range of functions. You can use these functions by navigating the following menus: Entertainment, Music, Calls, Browser, Messaging, My Files, Organiser & Tools, Contacts, and Settings.

1In the standby mode, press to display the main menu.

2Press the scroll key to scroll through the menu, and then press to select the desired item.

3If the menu contains further submenus, repeat step 2.

4Use the selected function according to the prompts on the screen.

5Select Back to return to the previous menu. Press to return to the standby mode.

Your Phone

Phone Your Know to Getting

2Getting Started

Loading the SIM Card

Load your SIM card before using your phone. To use the SIM card properly, please read the following instructions carefully.

Note • Keep the SIM card out of the reach of children.

•The SIM card and its metal contacts can be easily damaged by scratching or bending. Ensure care when you carry, load or remove it.

•Always disconnect the charger from the phone before loading or removing the SIM card.

To load the SIM card, do as follows:

1Position the card at the card slot entrance, making sure it is facing the same way as shown in the diagram below, with the notched corner at the down right. Then slide in as shown.

2Fit the battery into the battery slot on back of the phone. Press the battery down until it clicks into place.

3Slide the back cover to the phone.

Unloading the SIM Card

Only unload the SIM card and the battery after powering off your phone. Otherwise, your phone may be damaged.

To unload the SIM card:

1Unload the back cover out of the phone.

2Please unload the battery according to the following picture.

3Press the SIM card with one finger and slide it out of the slot.

Unloading the SIM Card



		2
		2
		Getting

Charging the Battery
Charging the Battery		Started
Before charging the battery, please read the following		Started
precautions carefully.
	• When you charge the battery for the first
Note	• When you charge the battery for the first
	time, please charge it for a minimum of 12
	hours.
	hours.
	• The battery discharges even while not
	being used. If you have not used it for a
	long time, please recharge it first.
	• The charging time depends on the envi-
	ronmental temperature and the age of the
	battery.
	• The battery can be recharged but eventu-
	ally wears out. If the battery lasts for a
	shorter time period than usual after being

Loading/Removing a Memory Card

charged normally, replace it with a battery of the same type.

•Do not strike, throw or cause any kind of violent shock to the battery, otherwise liquid leakage, body damage, overheating, explosion or fire may occur.

•Charge the battery by using the charger supplied with your phone.

Charging with a Cable Charger

Before charging the battery with a cable charger, ensure that the battery has been properly loaded into your phone.

To charge the battery, do as follows:

Insert the plug of the charger into the connector of the phone as shown in the following figure.

Plug in the connector of the charger to a power socket.

Note • When the battery power level is very low, the phone makes alert sounds and displays a prompt. When the battery power level is too low, the phone will power off automatically.

•When the battery is being charged, the charging indicator blinks continuously. When the charging indicator stops blinking, it indicates that the battery is full.

Loading/Removing a Memory Card

The phone supports a memory card (micro-SD) with a capacity up to 2 GB.

1Insert the memory card into the slot, as shown in the following figure.

2To remove a memory card, press the memory card gently. Now the memory card will pop up automatically. Then take it out as shown in the following figure.

Powering On/Off

Powering On

Ensure that the SIM card is in your phone and that the battery has been charged.

Press and hold to power on your phone.

Powering On/Off

Powering Off

Press and hold to power off your phone.

Access Codes

If you have set the phone password and the PIN is ON, you have to enter the corresponding access codes when you power on your phone. For setting and changing the access codes, please refer to "Settings/Security Setup" on page 50.

Phone Password

The phone password is used to protect your phone from unauthorized use. The phone password is preset as 0000 for your phone.

The personal identification number (PIN) code is used to protect your SIM card from unauthorized use. The PIN code is usually provided when you get the SIM card from your service provider. If you have not received a PIN code or if you have forgotten it, contact your service provider.

Started Getting

Powering On/Off

PIN2

Some SIM cards provide a PIN2 code. Some special functions such as the "Fixed Dialer Number" are not available until you enter the PIN2 code. At the same time, your SIM card should support these functions.

PUK

To unlock a locked SIM card, you need to enter the PIN Unblocking Key (PUK) code. The PUK code is usually provided when you get the SIM card from your service provider. If you have not received a PUK code or if you have forgotten it, contact your service provider.

PUK2

Some SIM cards provide a PUK2 code that is used to unlock a locked PIN2 code. The PUK2 code is usually provided when you get the SIM card from your service provider. If you have not received a PUK2 code or if you have forgotten it, contact your service provider.

3Call Service

Making or Answering Calls

Making a Video Call

You can make a video call to other person whose phone also supports video calls.

1Enter or edit a phone number in one of the following ways:

•Enter a phone number through the keypad.

•Select a number from the Calls screen.

•Select a number from the Contacts screen.

2Select Options > Call > Video Call to dial.

3Press to end the video call.

Note To delete a wrong number, press	once
to delete the digit to the left of the cursor.

Making a Voice Call

1Enter or edit a phone number in one of the following ways:

•Enter a phone number through the keypad.

•Select a number from the Calls screen.

• Select a number from the Contacts screen.

2Press to dial.

3Press to end the call.

Making Voice Calls Using SDN

You can make a voice call through speed dialing. For instructions on assigning speed dialing numbers, refer to "Contacts/Other Operations" on page 17.

To make a call by speed dialing number (SDN), press and hold the number key until the phone dials the corresponding phone number.

Answering or Rejecting Calls

You can set the answer mode to Open flip, Any key or Send key. For details, refer to "Settings/Call Settings/Answer Mode".

The following describes how to answer or reject a call in different answer modes:

Operations During a Voice Call

Operation	Description
Answer	• If the answer mode is Open flip, open
a call	the phone.
	• If the answer mode is Any key, press
	any key except .
	• If the answer mode is Send key,
	press .
	• If the headset is in use, press the con-
	trol key on the headset.

Reject	Press	or select Options > Reject.
Reject	Press	or select Options > Reject.
a call
a call

End a call	• If the headset is not in use, you can
	close the phone or press		.
	close the phone or press		.

•If the headset is in use, press the control key of the headset.

	Reply by		To send a predefined message to the
	message caller.
			When the phone is closed and there is no
	Note		When the phone is closed and there is no
			ongoing call, you can press and hold the
			camera key to mute the ringtone of an
			camera key to mute the ringtone of an

incoming call. You can also press and hold the volume keys to reject the call.

You can also set the auto answer mode to Immediate answer, Text message or Recorded voice. For details, refer to “Settings/Call settings/Auto Answer”.

Operations During a Voice Call

Icon Description

: A call is ongoing.

: The call is on hold.

Operations

During a voice call, you can select Options to perform the following operations.

•Hold/Resume: To hold or resume the call during a call.

•End call: To end all calls, the active call, the current call or the on hold call.

•Handfree/Earpiece: To switch between the Handfree and the Earpiece modes during a call.

•Recording started /recording stopped: to record or stop recording the conversation.

•Other Applications: To access he Contacts screen, the Messaging screen, the Calls screen or the

Calendar screen.

•Answer/Reject: Your phone allows you to handle two calls simultaneously. During a call, if there is a new incoming call, select Options > Answer to answer it or select Options > Reject to reject it.

•Swap: To swap between calls during a 3-party call.

•Conference call/Private call: To switch to the conference call during a 3-party call or to talk with a party privately during a conference call.

Operations During a Video Call

Icon Description

Icon	Description
	Press up or down scroll key to adjust the
	brightness.

	Operations During a Video Call
	Operations During a Video Call
Icon		Description
	Press the left or right scroll key to zoom
	in or zoom out.

	Press the volume keys to adjust the vol-
	Press the volume keys to adjust the vol-
	ume.
	ume.

/	Press	to switch between the loud-
	speaker mode and the earpiece mode.

Operations

During a video call, you can press to hold the call and send a preset file to the other party. You can press again to resume the call. Before you use the function, you can preset a file in settings/video call/Send image.

During a video call, you can select Options to perform the following operations.

•Camera: To forbid or allow the video from your side.

•Audio: To forbid or allow the audio from your side.

•External view/Internal view: To switch between the main lens and the assistant lens.

•Picture mode: To switch display.

Service Call

Calls

•Image quality: To set the image quality to best quality or more smooth.

•Play file: To play a media file.

•Handfree/Earpiece: Switch between the loudspeaker mode and the earpiece mode.

•Record: To record a video clip. A recorded video clip is saved to the My Files/Videos directory.

•Other Applications: To access he Contacts screen, the Messaging screen, the Calls screen or the

Calendar screen.

Calls

The recently dialed calls, received calls and missed calls are saved automatically.

Select Calls in the main menu and then press the left/right scroll key to select All calls, Missed,

Received or Dialed . Then select Options for the following options.

•Send message: To send a message or MMS.

•Save number: To save the numbers of the selected record.

•Call: To make a voice call or a video call.

•Display mode: You can select Normal to display all records or select Simple to ignore the duplicated records.

•Delete: To delete the selected record.

•Mark/Unmark: To mark/unmark a record or all records.

•Calls status: To display the information on voice calls, video calls and data services. In the voice call, video call and data page, you can select Reset to clear all records.

4Text Input

You can use the keypad to enter alphanumeric characters and symbols. For example, you can add entries to the contacts, write messages or schedule events on the calendar.

Note While entering text:

•Press to switch between input meth-

ods. Press and hold the key to enable or disable the T9 input mode.

•Press to display the symbols list.

Press and hold the key to set the input language.

•Press to delete the letter before the cursor.

T9® Input Method

With the T9 input method, you can easily and quickly enter words. T9 is a predictive text entry mode. It allows you to easily and quickly enter words. Press the relevant key that corresponds to the desired letter and T9 will offer you candidate words.

Press each key carrying the desired letter once, and then the predictive text scheme will present the can-

didate words composed by the letters you have entered in the drop-down menu.

For example, to enter the word "good" with the T9 input method, follow these steps.

1Press successively the keys , ,, and which "g", "o", "o", and "d" belong to, and the candidate words "good", "home" etc. composed by these letters will be shown in the drop-down menu.

2Use the up/down scroll key to select "good". Then press to enter a space for entering the next word.

Note	Press	repeatedly and you will see "T9
	abc", "T9 Abc" and "T9 ABC" on the upper
	left corner of the screen successively. It indi-
	left corner of the screen successively. It indi-
	cates the words to be entered will be in
	lower case, first letter capitalized or in upper
	case.

Traditional Input Method

When T9 input method is off, you can use the traditional input method for entering alphabetic charac-

"123" Numeric Input Method

ters. Repeatedly press the key that carries the letter to be entered when it appears on the screen.

For example, to enter the word "Hello" with the traditional input method, follow these steps.

Press that carries "h" repeatedly and all letters carried by this key will be displayed successively on the screen. You can scroll through this list and select the character you want. Stop when you see an "h" on the screen.

After entering the first letter, you can directly press another key (except ) to enter the next letter. If the next desired letter is on the same key as the current one, wait until the cursor appears to the right of the current letter and then you can enter the next one.

Enter "e", "l", "l" and "o" in the same way.

Note	Press	repeatedly and you will see "abc",
	"Abc" or "ABC" on the upper left corner of
	the screen successively. It indicates the

	words to be entered will be in lower case,
	first letter capitalized or in upper case.

"123" Numeric Input Method

In a text editing screen, press and hold the character/ number keys to enter corresponding numeric characters.

You can also press successively the key to switch to the "123" numeric input method, and enter corresponding numeric characters by pressing the character/number keys.

Symbol Input Method

You can press to display the symbols list and then select Recent to display recent symbols.

You can also press to input the commonly-used symbols in a text editing screen.

Input Different Languages

In a text editing screen, Press and hold the key to set the language for the text. The selected language will be displayed on the upper right part of the editing screen.

+ 49 hidden pages
