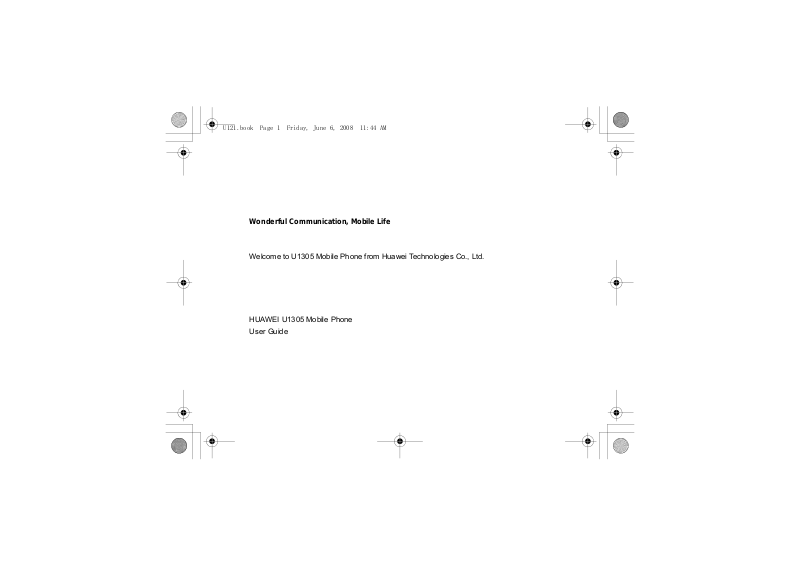

Huawei U1305 User Manual
Wonderful Communication, Mobile Life
Welcome to U130
5 Mobile Phone from Huawei Technologies Co., Ltd.
HUAWEI U1305 Mobile Phone
User Guide
Notice
Copyright © 2008 Huawei Technologies
Co., Ltd.
All Rights Reserved
1 No part of this manual may be reproduced or
transmitted in any form or by any means without
prior written consent of Huawei Technologies
Co., Ltd.
2
Trademarks
3 and HUAWEI are trademarks of Huawei
Technologies Co., Ltd. All other trademarks mentioned in this manual are the properties of their
respective holders.
4
Notice
5 The information in this manual is subject to
change without notice. Every effort has been
made in the preparation of this manual to ensure
accuracy of the contents, but all statements,
information, and recommendations in this manual do not constitute a warranty of any kind,
expressed or implied.
6 Please read the safety precautions carefully to
ensure the correct and safe use of your wireless
device. For detailed information, refer to the
7 section “Warnings and Precautions”.
Huawei Technologies Co., Ltd.
Address:
8 Administration Building, Huawei Technologies
Co., Ltd., Bantian, Longgang District, Shenzhen,
P. R. China
Postal Code: 518129
Website: http://www.huawei.com
Safety Precautions
9 Please read the safety precautions carefully to
ensure the correct and safe use of your wireless
device. For detailed information, refer to the
10 section “Warnings and Precautions”.
Do not switch on your phone when it is
prohibited to use mobile phones or
when the phone may cause interference or danger.
Do not use your phone while driving.
Follow any rules or regulations in
hospitals and health care facilities.
Switch off your phone near medical
apparatus.
Switch off your phone in aircraft. The
phone may cause interference to
control signals of the aircraft.
Switch off your phone near high-precision electronic devices. The phone may
affect the performance of these
devices.
Do not attempt to disassemble your
phone or its accessories. Only qualified
personnel are allowed to service or
repair the phone.
Do not place your phone or its accessories in containers with strong electromagnetic field.
Do not place magnetic storage media
near your phone. Radiation from the
phone may erase the information stored
on them.
Do not put your phone in a hightemperature place or use it in a place
with flammable gas such as a gas
station.
Keep your phone and its accessories
away from children. Do not allow
children to use your phone without
guidance.
Use only approved batteries and
chargers to avoid the risk of explosions.
Observe any laws or regulations on the
use of wireless device. Respect others’
privacy and legal rights when using
your wireless device.
Strictly follow the relevant instructions
on 58 of this manual while using the
USB cable. Otherwise your phone or
PC may be damaged.
1Table of Contents
Table of Contents 1
Getting to Know Your Phone 1
Packing List ................................................1
Your Phone ................................................2
Getting Started 6
Loading the SIM Card ................................6
Unloading the SIM Card .............................7
Charging the Battery ..................................7
Loading/Removing a Memory Card ............8
Powering On/Off .........................................9
Call Service 11
Making or Answering Calls .......................11
Operations During a Voice Call ................12
Operations During a Video Call ...............13
Calls .........................................................14
Text Input 15
T9® Input Method ....................................15
Traditional Input Method .......................... 15
"123" Numeric Input Method ....................16
Symbol Input Method ...............................16
Input Different Languages........................16
Contacts 17
Making Calls from the Contacts ...............17
Searching for a Contact............................ 17
Viewing Contacts in Phone/SIM ...............17
Other Operations ......................................17
Groups......................................................18
Messaging 20
Messages................................................. 20
Email ........................................................ 22
Broadcast Inbox .......................................25
Templates ................................................ 25
Music 26
Music Library............................................ 26
Playlists.................................................... 27
Organiser & Tools 28
Alarms ...................................................... 28
Calendar ..................................................28
Task ......................................................... 29
Memo ....................................................... 30
Synchronise ............................................. 30
Calculator ................................................. 31
Unit converter........................................... 31
Currency converter .................................. 32
Voice recorder.......................................... 32
World Time............................................... 33
Stopwatch ................................................ 33
Timer........................................................ 33
Service dial number ................................. 33
My Files 34
Browser 35
Open homepage ...................................... 35
Open new page........................................ 35
Bookmarks ............................................... 35
1
Saved pages ............................................35
History ......................................................36
Resume ....................................................36
Settings ....................................................36
Entertainment 37
Games...................................................... 37
Camera.....................................................37
Connections 39
Bluetooth ..................................................39
USB ..........................................................41
Settings 46
Phone Settings .........................................46
Display Settings........................................47
Message Settings.....................................47
Call Settings ............................................. 47
Video Call ................................................50
Contacts Settings ..................................... 50
JAVA Settings ..........................................50
Connectivity..............................................51
Network ...................................................51
Security ................................................... 51
DRM Setting .............................................52
Warnings and Precautions 53
Electronic Device...................................... 53
Hospital ....................................................53
Area with Inflammables and Explosives...53
Storage Environment................................54
Children Safety .........................................54
2
Operating Environment ............................ 55
Cleaning and Maintenance ...................... 55
Environmental Protection ......................... 56
Emergency Calls ...................................... 56
Battery...................................................... 56
Charger .................................................... 57
Using the USB Cable ............................... 58
Certification Information (SAR) ................ 58
Acronyms and Abbreviations 62
Appendix 63
Index 1
1Getting to Know Your Phone
Your HUAWEI U1305 phone can operate in virtually
all countries, automatically switching between
WCDMA 2100 and GSM/GPRS/EDGE 850/1800/
1900 networks. This allows you to enjoy communication wherever you use your mobile phone.
The services supported by your phone
Note
should be also supported by the network
from where you use the phone. For details,
please consult your service provider.
Packing List
Your phone package box contains the following:
1 One HUAWEI U1305 mobile phone
2 One travel charger
3 One Li-ion battery
4 One user Guide
5 One headset
6 One USB data cable
1
Your Phone
Your Phone
Scroll key
• Press this key to scroll through a menu.
• To quick access Quick Menu, Contacts, text
message editor and My Files.
Left function key
• To activate the function indicated at the left of
the prompt bar on the screen.
• To access the main menu in standby mode.
Send key
• To make or answer a call.
• To access the Call Log screen in the standby
mode.
Message key
• To quick access Messaging screen in the standby
mode.
• To make a video call.
key
Press and hold it to lock the keypad in t he standby
mode. Then press and it to unlock the keypad.
2
Earpiece
Headset jack
Camera
Right function key
• To activate the function indicated at the right of the
prompt bar on the screen.
• To access Homepage in standby mode.
Power/End key
• To end an ongoing call or reject an incoming call.
• To return to the Home screen.
• Press and hold it to power on or power off the phone.
OK key
• To start the selected function in the menu.
• To access the main menu in standby mode.
Clear key
To delete a character before the cursor in the
editing mode.
key
• Press and hold it to switch to the silent pr ofile from
the current profile.
• To select the check box of the option item.
Microphone
Charger connector/Cable connector
Your Phone
Back View
Camera
Side View
Music key
To quick access
Music screen in the
standby mode.
Strap hole
Speaker
Volume keys
Camera key
• To activate the camera in
the standby mode.
• To activate the voice
recorder during a call.
Home Screen
Icon bar
Desktop
To display the operations and the function
options.
Prompt bar
To display the operations currently available.
◆ Icon bar
This area displays the phone status. The following
table illustrates all the icons that may appear on this
bar.
Icon Description
Indicates signal strength. The more
bars that appear, the stronger the signal.
The phone is currently in a GSM
network.
The phone is currently in a WCDMA
network.
1
Getting to Know Your Phone
3
Your Phone
Icon Description
You are using the roaming service.
Bluetooth is enabled.
Indicates network connection state.
Indicates security connection state of
the network.
The phone is in a call.
Forwarding all incoming voice calls to
line 1.
Call line 2 is enabled currently.
Forwarding all incoming voice calls to
line 2.
Alarm clock is enabled.
You have new text messages.
You have new PUSH messages.
You have new multimedia messages.
You have new voice mail.
4
Icon Description
SD card is inserted.
Ringtone is enabled.
The vibration mode is enabled.
The phone is in mute mode.
The normal profile is activated.
The headset is plugged in.
Your PC connects to the Internet
through your phone.
Indicates power level of the battery.
The keypad is locked.
The background play is activated.
Introduction to the Menu
Your phone provides an extensive range of functions.
You can use these functions by navigating the following menus: Entertainment, Browser, Music, Camera,
Messaging, My Files, Organizer & Tools, Contacts,
Calls, Profiles, Video call and Settings.
1 In the standby mode, press to display the
main menu.
2 Press the scroll key to scroll through the menu,
and then press to select.
3 If the menu contains further submenus, repeat
step 2.
4 Use the selected function according to the
prompts on the screen.
5 Select Back to return to the previous menu.
Press to return to the standby mode.
Your Phone
1
Getting to Know Your Phone
5
2Getting Started
Loading the SIM Card
Load your SIM card before using your phone. To use
the SIM card properly, please read the following
instructions carefully.
• Keep the SIM card out of the reach of chil-
Note
To load the SIM card, do as follows:
1 Position the card at the card slot entrance, mak-
6
dren.
• The SIM card and its metal contacts can
be easily damaged by scratching or bending. Ensure care when you carry, load or
remove it.
• Always disconnect the charger from the
phone before loading or removing the SIM
card.
ing sure it is facing the same way as shown in
the diagram below, with the notched corner at
the top right. Then slide in as shown.
2 Fit the battery into the battery slot on back of the
phone. Press the battery down until it clicks into
place.
3 Slide the back cover to the phone.
Unloading the SIM Card
Only unload the SIM card and the battery after powering off your phone. Otherwise, your phone may be
damaged.
To unload the SIM card:
1 Unload the back cover out of the phone.
2 Please unload the battery according to the fol-
lowing picture.
Unloading the SIM Card
3 Press the SIM card with one finger and slide it
out of the slot.
Charging the Battery
Before charging the battery, please read the following
precautions carefully.
• When you charge the battery for the first
Note
time, please charge it for a minimum of 12
hours.
• The battery discharges even while not
being used. If you have not used it for a
long time, please recharge it first.
• The charging time depends on the environmental temperature and the age of the
battery.
• The battery can be recharged but eventually wears out. If the battery lasts for a
2
Getting Started
7
Loading/Removing a Memory Card
shorter time period than usual after being
charged normally, replace it with a battery
of the same type.
• Do not strike, throw or cause any kind of
violent shock to the battery, otherwise liquid leakage, body damage, overheating,
explosion or fire may occur.
• Charge the battery by using the charger
supplied with your phone.
Charging with a Cable Charger
Before charging the battery with a cable charger,
ensure that the battery has been properly loaded into
your phone.
To charge the battery, do as follows:
1 Insert the plug of the charger into the connector
of the phone as shown in the following figure.
2 Plug in the connector of the charger to a power
socket.
8
• When the battery power level is very low,
Note
the phone makes alert sounds and displays a prompt. When the battery power
level is too low, the phone will power off
automatically.
• When the battery is being charged, the
charging indicator blinks continuously.
When the charging indicator stops blinking, it indicates that the battery is full.
Loading/Removing a Memory Card
The phone supports a memory card (micro-SD) with
a capacity up to 2 GB.
1 Unload the back cover out of the phone.
2 Insert the memory card into the slot, as shown in
the following figure.
3 To remove a memory card, unload the back
cover out of the phone. Then press the memory
card gently. Now the memory card will pop up
automatically. Then take it out as shown in the
following figure.
Powering On/Off
Powering On/Off
Powering On
Ensure that the SIM card is in your phone and that
the battery has been charged.
Press and hold to power on your phone.
Powering Off
Press and hold to power off your phone.
Access Codes
If you have set the phone password and the PIN is
ON, you have to enter the corresponding access
codes when you power on your phone. For setting
and changing the access codes, please refer to "Settings/Security Setup" on page 51.
◆ Phone Password
The phone password is used to protect your phone
from unauthorized use. The phone password is
preset as 0000 for your phone.
2
Getting Started
9
Powering On/Off
◆ PIN
The personal identification number (PIN) code is
used to protect your SIM card from unauthorized use.
The PIN code is usually provided when you get the
SIM card from your service provider. If you have not
received a PIN code or if you have forgotten it, contact your service provider.
◆ PIN2
Some SIM cards provide a PIN2 code. Some special
functions such as the "Fixed Dialer Number" are not
available until you enter the PIN2 code. At the same
time, your SIM card should support these functions.
◆ PUK
To unlock a locked SIM card, you need to enter the
PIN Unblocking Key (PUK) code. The PUK code is
usually provided when you get the SIM card from
your service provider. If you have not received a PUK
code or if you have forgotten it, contact your service
provider.
◆ PUK2
Some SIM cards provide a PUK2 code that is used to
unlock a locked PIN2 code. The PUK2 code is usu-
10
ally provided when you get the SIM card from your
service provider. If you have not received a PUK2
code or if you have forgotten it, contact your service
provider.
3Call Service
Making or Answering Calls
Making a Video Call
You can make a video call to other person whose
phone also supports video calls.
1 Enter or edit a phone number in one of the fol-
lowing ways:
• Enter a phone number through the keypad.
• Select a number from the Calls screen.
• Select a number from the Contacts screen.
2 Press to dial.
3 Press to end the video call.
To delete a wrong number, press once
Note
to delete the digit to the left of the cursor.
Making a Voice Call
1 Enter or edit a phone number in one of the fol-
lowing ways:
• Enter a phone number through the keypad.
• Select a number from the Calls screen.
• Select a number from the Contacts screen.
2 Press to dial.
3 Press to end the call.
Making Voice Calls Using SDN
You can make a voice call through speed dialing. For
instructions on assigning speed dialing numbers,
refer to "Contacts/Other Operations" on page 17.
To make a call by speed dial number (SDN), press
and hold the number key until the phone dials the
corresponding phone number.
Answering or Rejecting Calls
You can set the answer mode to Any key or Send
key. For details, refer to "Settings/Call Settings/
Answer mode".
The following describes how to answer or reject a call
in different answer modes:
11
Operations During a Voice Call
Operation Description
Answer
a call
Reject
a call
End a call
Reply by
message
You can also set the auto answer mode to Immedi-
ate answer, Text message or Recorded voice.
For details, refer to “Settings/Call settings/Auto
answer”.
• If the answer mode is Any key, press
any key. except and .
• If the answer mode is Send key, press
.
• If the headset is in use, press the control key on the headset.
Press or select Options > Reject.
• If the headset is not in use, press .
• If the headset is in use, press the control key of the headset.
Select Options > Reply to send a predefined message to the caller.
12
Operations During a Voice Call
Icon Description
: A call is ongoing.
: The call is on hold.
: There is a new incoming call during a call.
Operations
During a voice call, you can select Options to perform the following operations.
• Hold/Resume: To hold or resume the call during a
call.
• End: To end all calls, the active call, the current
call or the on hold call.
• New Call: To make a 3-party call during a call.
• Handsfree/Earpiece: To switch between the Handsfree and the Earpiece modes during a call.
• Start recording/Stop recording: to record or stop
recording the conversation.
• Other applications: To access the SMS screen, the
Contacts screen, the Call Log screen or Calendar
screen.
• Answer/Reject: Your phone allows you to handle
two calls simultaneously. During a call, if there is a
new incoming call, select Options > Answer to
answer it or select Options > Reject to reject it.
• Swap: To swap between calls during a 3-party call.
• Conference call/Private call: To switch to the conference call during a 3-party call or to talk with a
party privately during a conference call.
• Mute/Unmute:To mute or unmute your voice during
a call.
Operations During a Video Call
Icon Description
Icon Description
Press the up or down scroll key to adjust
the brightness.
Operations During a Video Call
Icon Description
Press the left or right scroll key to zoom
in or zoom out.
Press the volume keys to adjust the volume.
Press to switch between the loud-
/
speaker mode and the earpiece mode.
Operations
During a video call, you can press to hold the
call and send a preset file to the other party. You can
press again to resume the call. Before you use
the function, you can preset a file in Settings/Video
call/Send specific file.
During a video call, you can select Options to perform the following operations.
• Camera: To forbid or allow the video from your side.
• Audio:To forbid or allow the audio from your side.
• External view/Internal view: To switch between the
main lens and the assistant lens.
• Picture mode: To switch display.
13
3
Call Service
Calls
• Image quality: To set the image quality to fine quality or more smooth.
• Play file: To play a media file.
• Handsfree/Earpiece: Switch between the loudspeaker mode and the earpiece mode.
• Record: To record a video clip. A recorded video
clip is saved to the My Files/Videos directory.
• Other applications:To access the Contacts screen,
the Messaging screen, the Calls screen or the
Calendar screen.
Calls
The recently dialed calls, received calls and missed
calls are saved automatically.
Select Calls in the main menu and then press the
left/right scroll key to select All calls , Missed ,
Received or Dialed . Then select Options for
the following options.
• Send message: To send a message.
• Save number: To save the numbers of the selected
record.
14
• Call: To make a voice call or a video call.
• Display mode: You can select Normal to display all
records or select Simple to ignore the duplicated
records.
• Delete: To delete the selected record.
• Mark/Unmark: To mark/unmark a record or all
records.
• Calls status: To display the information on voice
calls, video calls and data services. In the voice
call, video call and data page, you can select Reset
to clear all records.
4Text Input
You can use the keypad to enter alphanumeric characters and symbols. For example, you can add
entries to the contacts, write messages or schedule
events on the calendar.
While entering text:
Note
• Press to switch between input meth-
ods. Press and hold the key to enable
or disable the T9 input mode.
• Press to display the symbols list.
Press and hold the key to set the
input language.
• Press to delete the letter before the
T9® Input Method
With the T9 input method, you can easily and quickly
enter words. T9 is a predictive text entry mode. It
allows you to easily and quickly enter words. Press
the relevant key that corresponds to the desired letter
and T9 will offer you candidate words.
Press each key carrying the desired letter once, and
then the predictive text scheme will present the can-
cursor.
didate words composed by the letters you have
entered in the drop-down menu.
For example, to enter the word "good" with the T9
input method, follow these steps.
1 Press successively the keys , , , and
which "g", "o", "o", and "d" belong to, and
the candidate words "good", "home" etc. composed by these letters will be shown in the dropdown menu.
2 Use the up/down scroll key to select "good".
Then press to enter a space for entering the
next word.
Press repeatedly and you will see "T9
Note
abc", "T9 Abc" and "T9 ABC" on the upper
left corner of the screen successively. It indicates the words to be entered will be in
lower case, first letter capitalized or in upper
case.
Traditional Input Method
When T9 input method is off, you can use the traditional input method for entering alphabetic charac-
15
"123" Numeric Input Method
ters. Repeatedly press the key that carries the letter
to be entered when it appears on the screen.
For example, to enter the word "Hello" with the traditional input method, follow these steps.
1 Press that carries "h" repeatedly and all let-
ters carried by this key will be displayed successively on the screen. You can scroll through this
list and select the character you want. Stop when
you see an "h" on the screen.
2 After entering the first letter, you can directly
press another key (except ) to enter the next
letter. If the next desired letter is on the same
key as the current one, wait until the cursor
appears to the right of the current letter and then
you can enter the next one.
3 Enter "e", "l", "l" and "o" in the same way.
Press repeatedly and you will see
Note
"abc", "Abc" or "ABC" on the upper left corner of the screen successively. It indicates
the words to be entered will be in lower
case, first letter capitalized or in upper case.
16
"123" Numeric Input Method
In a text editing screen, press and hold the character/
number keys to enter corresponding numeric characters.
You can also press successively the key to
switch to the "123" numeric input method, and enter
corresponding numeric characters by pressing the
character/number keys.
Symbol Input Method
You can press to display the symbols list and
then select Recent to display recent symbols.
You can also press to input the commonly-used
symbols in a text editing screen.
Input Different Languages
In a text editing screen, Press and hold the key
to set the language for the text.
Loading...
