Wonderful Communication,
Mobile life.
HUAWEI U1250-9 Mobile Phone
Users Guide
Copyright © 2010 Huawei Technologies Co., Ltd.
All Rights Reserved
No part of this document may be reproduced or transmitted
in any form or by any means without prior written consent
of Huawei Technologies Co., Ltd.
The product described in this manual may include
copyrighted software of Huawei Technologies Co., Ltd
and possible licensors. Customers shall not in any manner
reproduce, distribute, modify, decompile, disassemble,
decrypt, extract, reverse engineer, lease, assign, or
sublicense the said software, unless such restrictions are
prohibited by applicable laws or such actions are approved
by respective copyright holders under licenses.
Trademarks and Permission
, HUAWEI and are trademarks or registered
trademarks of Huawei Technologies Co., Ltd.
Other product, service and company names mentioned are
the property of their respective owners.
Notice
Some features of the product and its accessories
described herein rely on the software installed, capacities
and settings of local network, and may not be activated or
may be limited by local network operators or network
service providers, thus the descriptions herein may not
exactly match the product or its accessories you purchase.
Huawei Technologies Co., Ltd reserves the right to change
or modify any information or specifications contained in this
manual without prior notice or obligation.
NO WARRANTY
THE CONTENTS OF THIS MANUAL ARE PROVIDED “AS
IS”. EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO
WARRANTIES OF ANY KIND, EITHER EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, ARE MADE
IN RELATION TO THE ACCURACY, RELIABILITY OR
CONTENTS OF THIS MANUAL.
TO THE MAXIMUM EXTENT PERMITTED BY
APPLICABLE LAW, IN NO CASE SHALL HUAWEI
TECHNOLO-GIES CO., LTD BE LIABLE FOR ANY
SPECIAL, INCIDENTAL, INDIRECT, OR
CONSEQUENTIAL DAMAGES, OR LOST PROFITS,
BUSINESS, REVENUE, DATA, GOODWILL OR
ANTICIPATED SAVINGS.
Import and Export Regulations
Customers shall comply with all applicable export or
import laws and regulations and will obtain all
necessary governmental permits and licenses in order
to export, re-export or import the product mentioned in this
manual including the software and technical data therein.
Safety Precautions
Do not switch on your phone when it is
prohibited to use mobile phones or when the
phone may cause interference or danger.
Switch off your phone near high-precision
electronic devices. The phone may affect the
performance of these devices.
Do not use your phone while driving.
Do not attempt to disassemble your phone or
its accessories. Only qualified personnel are
allowed to service or repair the phone.
Follow any rules or regulations in hospitals
and health care facilities. Switch off your
phone near medical apparatus.
Do not place your phone or its accessories in
containers with strong electromagnetic field.
Please read the safety precautions carefully to ensure the correct
and safe use of your wireless device. For detailed information, refer
to the section “Warnings and Precautions”.
Switch off your phone in aircraft. The phone
may cause interference to control signals of
the aircraft.
Do not place magnetic storage media near
your phone. Radiation from the phone may
erase the information stored on them.
Do not put your phone in a high- temperature
place or use it in a place with flammable gas
such as a gas station.
Observe any laws or regulations on the use of
wireless device. Respect others’ privacy and
legal rights when using your wireless device.
Keep your phone and its accessories away
from children. Do not allow children to use
your phone without guidance.
Strictly follow the relevant instructions of this
manual while using the USB cable. Otherwise
your phone or PC may be damaged.
Use only approved batteries and chargers to
avoid the risk of explosions.
Contents
1. Introduction
Packing List ................... 1
Your Phone .................... 2
Security ........................ 10
Text Input ..................... 11
2. Customized Settings
Phone Settings ............ 13
Display Settings ........... 13
Network Settings .......... 14
3. Call Function
Managing Contacts ...... 15
Viewing the Call
Records ........................ 16
Making or Ending a
Call ............................... 16
Answering or Rejecting
a Call ............................ 16
4. Message Function
Message ...................... 18
Email ............................ 19
5. Connection Function
Connectivity Settings ... 20
USB .............................. 20
®
Bluetooth
.................... 22
6. Entertainment Function
Music ............................ 26
Camera ........................ 26
Browser ........................ 27
7. Business Function
File Management ......... 29
8. Warnings and
Precautions
Electronic Device ......... 30
Medical Device............. 30
Potentially Explosive
Atmospheres ................ 30
Traffic Security ............. 31
Operating Environment 32
Preventing Hearing
Damage ....................... 33
Safety of Children ........ 33
Accessories .................. 33
Battery and Charger .... 33
Clearing and Maintenance
..................................... 34
Emergency Call............ 35
Certification Information
(SAR) ........................... 36
FCC Statement ............ 36
1. Introduction
Your Phone can operate in many countries in which the
following networks exist, automatically switching between
UMTS 1700/2100 and GSM/GPRS/EDGE
850/900/1800/1900 networks.
NOTE: The services supported by your phone should be
also supported by the network from where you use the
phone. For details, contact your service provider.
Packing List
Your phone package box contains the following:
1. One mobile phone
2. One travel charger
3. One Li-ion battery
4. One Quick Start Guide
5. One USB data cable
6. One wired headset
1
Your Phone
1. Charger
connector/ Cable
connector
2. Headset
Jack
3. Earpiece
4. Left function
key
5. Music key
6. Send key
7. Scroll key
8. Power/End
9. Clear key
Your Phone
Appearance and Keys
2
key
10. Right function
key
11. OK key
12. Volume
keys
Left
function
key
Activate the function indicated at the left
of the prompt bar.
Music key
Access the music menu in standby mode.
Send key
• Make or Answer a call.
• Enter the Calls screen in standby
mode.
Scroll key
• Scroll through a menu.
• Access the corresponding shortcut
menu in standby mode.
Right
function
key
Activate the function indicated at the right
of the prompt bar.
Clear key
Delete a character before the cursor.
3
Your Phone
Your Phone
Power/
End key
• End an ongoing call or reject an
incoming call.
• Return to the standby mode.
• Press and hold it to power on or power
off the phone.
OK key
• Start the selected function in the menu.
• Access the main menu in standby
mode.
SIM Card and Memory Card
Load your SIM card before using your phone. Only unload
the SIM card and the battery after powering off your
phone. To use the SIM card properly, please read the
following instructions carefully.
NOTE:
• Keep the SIM card out of the reach of children.
• The SIM card and its metal contacts can be easily
damaged by scratching or bending. Ensure care when
you carry, load or remove it.
• Always disconnect the charger from the phone before
loading or removing the SIM card.

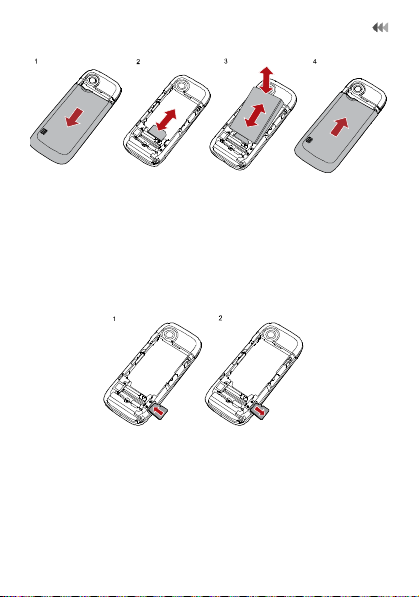

To load or remove the SIM card, please refer to the
following figures.
4
Your Phone
Your phone supports a memory card (microSD) with a
capacity up to 8 GB.
To load or remove the memory card, please refer to the
following figure.
Antenna
The picture shows the antenna area marked in grey.
Please do not touch the antenna unnecessarily.
5
Your Phone
Charging the Battery
NOTE:
• When you charge the battery for the first time, please
charge it for a minimum of 12 hours.
• The battery discharges even while not being used.
If you have not used it for a long time, please
recharge it first.
• Do not strike, throw or cause any kind of violent
shock to the battery, otherwise liquid leakage, body
damage, overheating, fire or explosion may occur.
• The battery can be recharged but eventually wears
out. If the battery lasts for a shorter time period than
usual after being charged normally, replace it with a
battery of the same type.
• Charge the battery by using the charger supplied with
your phone.
Before charging the battery with a cable charger, ensure
that the battery has been properly placed into your phone.

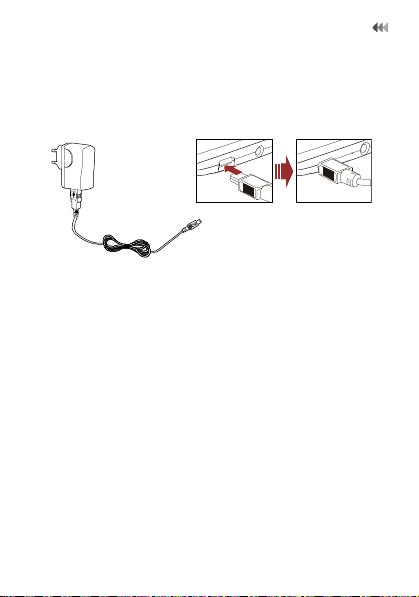

To charge the battery, first plug in the charger connector
to a power socket, and then insert the plug of the cable
6
Your Phone
into the connector of the phone as shown in the following
figure. The figure is for reference only. The actual
appearance is subject to your mobile phone and supplied
accessories.
NOTE:
• The plug of the charger is in trapezium shape.
Reversely inserting the plug may damage the
mobile phone and charger.
• When the battery power level is very low, the phone
makes alert sounds and displays a prompt. When the
battery power level is too low, the phone will power off
automatically.
• When the battery is being charged, the charging
indicator blinks continuously. When the charging
indicator stops blinking, it indicates that the battery
is full.
7
