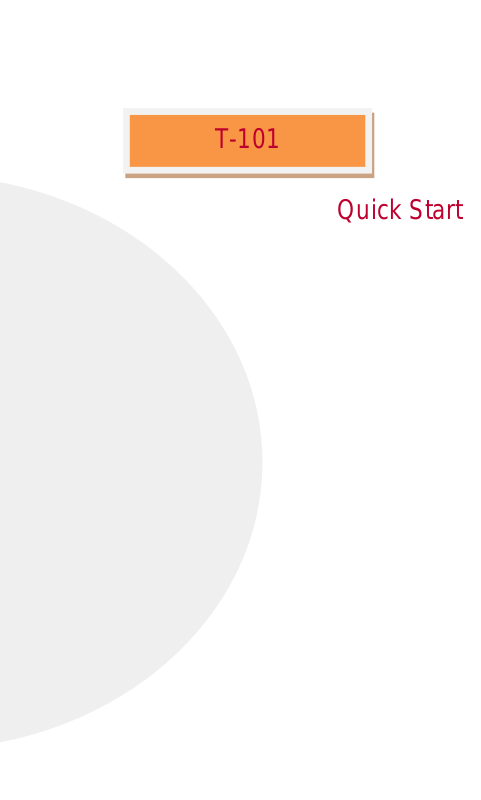

Quick Start

T-101

2

1 T-101 at a glance

1

Front camera

2

LED indicator

3

Microphone

4

Volume keys

5

Power key

6

Headphone jack

7

Rear camera

8

Micro-USB port (with the

charging function)

9

Micro-HDMI port

10

Card slot

11

Speaker

3

2 Installing the Micro-SIM and micro-SD Cards

1. Open the Micro-SIM and microSD card slot cover.

2. Insert the Micro-SIM card into upper slot with its gold contacts

facing down, as indicated in the preceding figure. Push the

card inward until it clicks into place.

T-101 is only compatible with standard Micro-SIM cards, whose

dimensions are 0.76 mm x 12 mm x 15 mm. Inserting a SIM

card with other dimensions will damage your T-101.

3. Insert the microSD card into lower slot with its gold contacts

facing up, as indicated in the preceding figure. Push the card

inward until it clicks into place.

4. Replace the card slot cover.

Do not remove the card slot cover from the tablet.

4

3 Powering On or Off

Powering On

Press and hold the power key until T-101's screen is on.

If T-101 has not been used for a long time or the battery level is

low, you may not be able to power it on immediately after you

start charging the battery. Allow the battery to charge for a few

minutes before attempting to use it.

Powering Off

Press and hold the power key until a dialog box is displayed. Then follow

the onscreen instructions to power off T-101.

4 Locking the Screen

When your T-101 is turned on, press the Power button to lock the

screen.

If your T-101 is idle for a preset period of time, the screen will lock

automatically.

5 Unlocking the Screen

1. Press the Power button to wake up the screen.

2. Drag the lock icon to the icon on the right.
