HUAWEI SUN2000-5KTL-M0 Technical Specification

Download

Page 1

SPD

PV1+

PV1-

PV2+

PV2-

BAT-

BAT+

EMI

Fil t er

Output

Fil t er

EMI

Fil t er

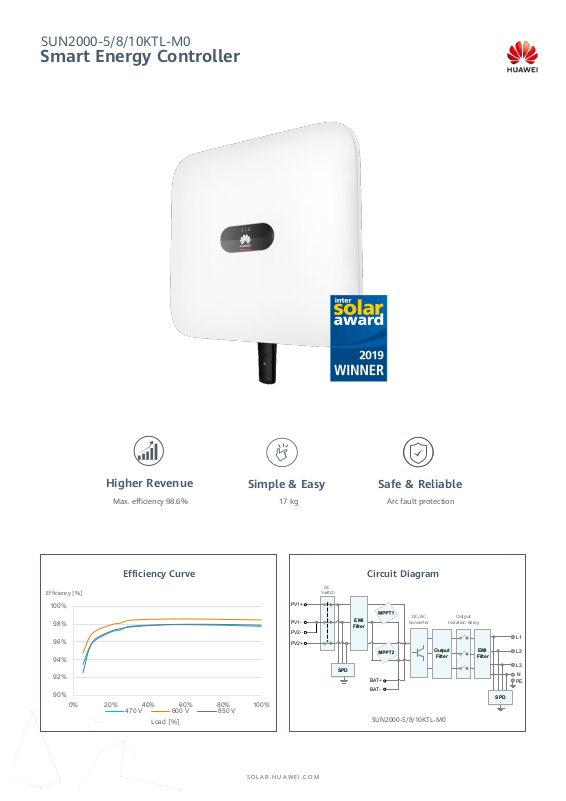

SUN2000-5/8/10KTL-M0

Smart Energy Controller

Higher Revenue

Max. efficiency 98.6%

Efficiency Curve

Efficiency [%]

100%

98%

96%

94%

92%

90%

0% 20% 40% 60% 80% 100%

470 V 600 V 850 V

Load [%]

Simple & Easy

17 kg

SOLAR. HUAWEI. COM

Switch

Safe & Reliable

Arc fault protection

Circuit Diagram

DC/AC

Converter

SUN2000-5/8/10KTL-M0

Output

Isolation Relay

Page 2

SUN2000-5/8/10KTL-M0

Technical Specification

SUN2000-5KTL-M0 SUN2000-8KTL-M0 SUN2000-10KTL-M0

Efficiency

Max. efficiency

European weighted efficiency

98.4% 98.6% 98.6%

97.5% 98.0% 98.1%

Input

Max. input voltage

Operating voltage range

Start-up voltage 200 V

Full power MPPT voltage range

Rated input voltage

Max. input current per MPPT

Max. short-circuit current

Number of MPP trackers 2

Max. number of inputs 2

240 V ~ 850 V 380 V ~ 850 V 470 V ~ 850 V

1,100 V

140 V ~ 980 V

600 V

11 A

15 A

Output

Grid connection

Rated output power

Max. apparent power

Rated output voltage 220 Vac / 380 Vac, 230 Vac / 400 Vac , default 3W / N+PE ; 3W+PE

Rated AC grid frequency 50 Hz / 60 Hz

Max. output current

Adjustable power factor 0.8 leading ... 0.8 lagging

Max. total harmonic distortion ≤ 3 %

5,000 W 8,000 W 10,000 W

5,500 VA 8,800 VA 11,000 VA

8.5 A 13.5 A 16.9 A

Three-phase

Features & Protections

Input-side disconnection device Yes

Anti-Islanding protection Yes

DC reverse polarity protection Yes

Insulation monitoring Yes

DC surge protection Yes, compatible TYPE II protection class according to EN/IEC 61643-11

AC surge protection Yes, compatible TYPE II protection class according to EN/IEC 61643-11

Residual current monitoring Yes

AC overcurrent protection Yes

AC short-circuit protection Yes

AC overvoltage protection Yes

Ripple receiver control Yes

Arc fault protection (AFCI) Yes

General Data

Operating temperature range -25 ~ + 60 °C (-13 °F ~ 140 °F)

Relative operating humidity 0 %RH～100 %RH

Operating altitude 0 - 4,000 m (13,123 ft.)

Cooling Natural convection

Display LED Indicators; Integrated WLAN + FusionSolar App

Communication

Weight (incl. mounting bracket)

Dimension (incl. mounting bracket)

Degree of protection IP65

Night Time Power Consumption < 5.5 W

RS485; WLAN/Ethernet via Smart Dongle-WLAN-FE;

4G / 3G / 2G via Smart Dongle-4G (Optional)

17 kg (37.5 lb)

525 * 470 * 166 mm (20.7 * 18.5 * 6.5 inch)

Standard Compliance (more available upon request)

Safety EN/IEC 62109-1, EN/IEC 62109-2, IEC62116

Grid connection standards

*1 The maximum input voltage i s the upper limit of the DC voltage. Any higher input DC voltage wou ld probably damage inverter. *2 Any DC input voltage beyond the operating voltage r ange may result in inverter improper operating. *

Version No.:01-(20190716)

G98, G99, EN 50438, EN 50549-1. CEI 0-21, VDE-AR-N-4105, AS 4777, C10/11, ABNT, UTE C15-712, RD 1699,

TOR D4, IEC61727, DEWA, MEA(5,10KTL-M0), PEA(5,10KTL-M0)

SOLAR. HUAWEI. COM

Page 3

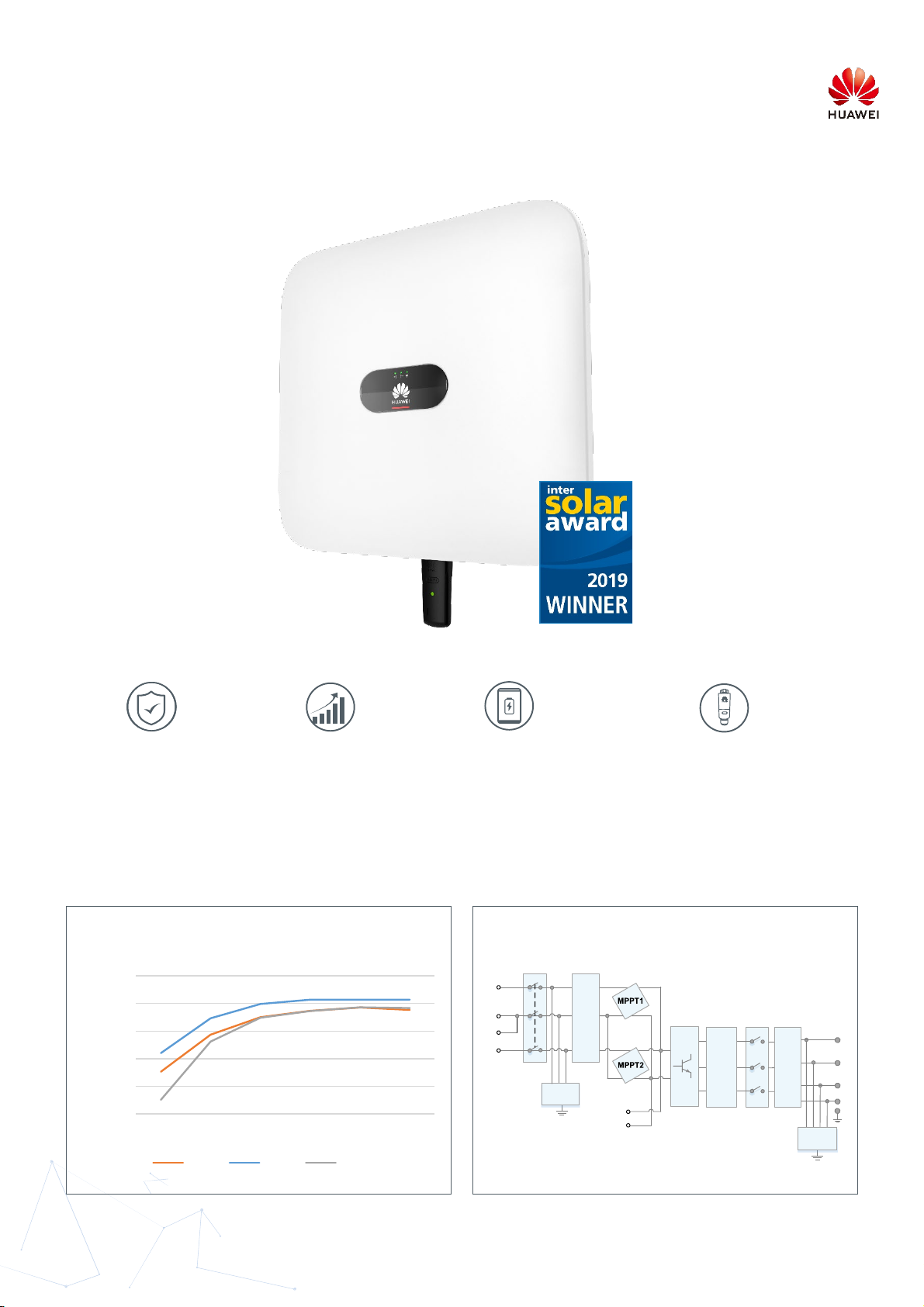

Smart Energy Controller

SPD

PV1+

PV1-

PV2+

PV2-

BAT-

BAT+

EMI

Fil t er

Output

Fil t er

EMI

Fil t er

Active Safety

AI Powered

Higher Yields

Up to 30% More Energy

Active Arcing Protection

Efficiency Curve

Efficiency [%]

100.00%

98.00%

96.00%

94.00%

92.00%

90.00% 5% 10% 20% 30% 50% 100%

*1. Will be compatible with HUAWEI smart string ESS in Q1, 2021

470V 600V 850V

Load [%]

with Optimizer

Battery Ready

Plug & Play battery interface

SOLAR. HUAWEI. COM

Switch

Flexible Communication

Circuit Diagram

SUN2000-5/8/10KTL-M1

WLAN, Fast Ethernet, 4G

Communication Supported

DC/AC

Converter

Output

Isolation Relay

Page 4

Technical Specification

SUN2000

-5KTL-M1

SUN2000

-8KTL-M1

SUN2000-5/8/10KTL-M1

Technical Specification

SUN2000

-10KTL-M1

Max. efficiency European weighted efficiency

98.4% 98.6% 98.6%

97.5% 98.0% 98.1%

Input (PV)

Efficiency

Recommended max. PV power Max. input voltage Operating voltage range Start-up voltage 200 V Rated input voltage Max. input current per MPPT Max. short-circuit current Number of MPP trackers 2 Max. input number per MPP tracker 1

7,500 Wp 12,000 Wp 15,000 Wp

1,100 V

140 V ~ 980 V

600 V

11 A 15 A

Input (DC Battery)

Compatible Battery HUAWEI Smart String ESS 5kWh – 30kWh Operating voltage range 600 V ~ 980 V Max operating current 16A Max charge Power 10,000 W Max discharge Power 5,500 W 8,800 W 10,000 W

Output (On Grid)

Grid connection Rated output power Max. apparent power Rated output voltage 220 Vac / 380 Vac, 230 Vac / 400 Vac, 3W / N+PE Rated AC grid frequency 50 Hz / 60 Hz Max. output current Adjustable power factor 0.8 leading ... 0.8 lagging Max. total harmonic distortion ≤ 3 %

5,000 W 8,000 W 10,000 W

5,500 VA 8,800 VA 11,000 VA

8.5 A 13.5 A 16.9 A

Three-phase

Maximum apparent power 3,300 VA Rated output voltage 220 V / 230 V Maximum output current 15 A Power factor range 0.8 leading ... 0.8 lagging

Features & Protections

Input-side disconnection device Yes Anti-Islanding protection Yes DC reverse polarity protection Yes Insulation monitoring Yes DC surge protection Yes, compatible with TYPE II protection class according to EN/IEC 61643-11 AC surge protection Yes, compatible with TYPE II protection class according to EN/IEC 61643-11 Residual current monitoring Yes AC overcurrent protection Yes AC short-circuit protection Yes AC overvoltage protection Yes Arc fault protection Yes

Output （Backup Power via Backup Box-B1）

Ripple receiver control Yes Integrated PID recovery Battery reverse charging from grid Yes Nighttime Power Consumption < 5.5W

Operating temperature range -25 ~ + 60 °C (-13 °F ~ 140 °F) Relative operating humidity 0 %RH～100 %RH Operating altitude 0 ～ 4,000 m (13,123 ft.) (Derating above 2000 m) Cooling Natural convection Display LED Indicators; Integrated WLAN + FusionSolar App Communication RS485; WLAN/Ethernet via Smart Dongle-WLAN-FE; 4G / 3G / 2G via Smart Dongle-4G (Optional) Weight (incl. mounting bracket) Dimension (incl. mounting bracket) Degree of protection IP65

Yes

General Data

525 x 470 x 146.5 mm (20.7 x 18.5 x 5.8 inch)

17 kg (37.5 lb)

Optimizer Compatibility

DC MBUS compatible optimizer SUN2000-450W-P

Standard Compliance (more available upon request)

Certificate EN/IEC 62109-1, EN/IEC 62109-2, IEC 62116

Grid connection standards

*1 Inverter max input PV power is 20,000 Wp when long strings are designed and fully connected with SUN2000-450W-P power optimizers. *2 The maximum input voltage i s the upper limit of the DC voltage. Any higher input DC voltage would pr obably damage inverter. *3 Any DC i nput voltage beyond the op erating voltage range may result in inverter improper operating. *4 C10 / 11: 10,000 VA *5 SUN2000-3~10KTL-M1 raises potential between PV- and groun d to above zer o through integrated PID recovery function to recover module degradation from PID. Supported module types include: P-type (mono, poly). *6 <10 W when PID recovery function is activated

Version No.:01-(20190716)

G98, G99, EN 50438, CEI 0-21, VDE-AR-N-4105, AS 4777, C10/11, ABNT, UTE C15-712, RD 1699, TOR D4,

NRS 097-2-1, IEC61727, IEC62116, DEWA 2.0

SOLAR. HUAWEI. COM
