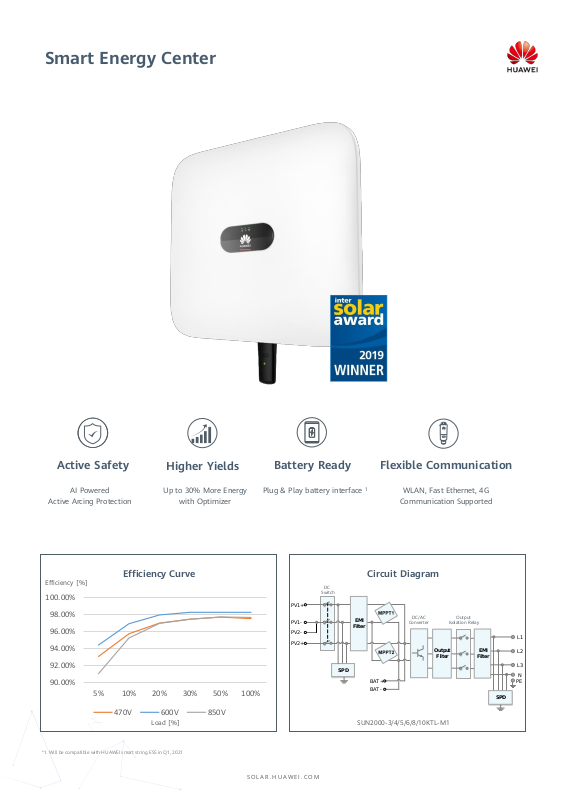

HUAWEI SUN2000-3KTL-M0, SUN2000-4KTL-M0, SUN2000-6KTL-M0, SUN2000-8KTL-M0, SUN2000-10KTL-M0 Datasheet
...
S OL A R . HU A W EI . C OM
Smart Energy Center
Efficiency [%]
Efficiency Curve
SUN2000-3/4/5/6/8/10KTL-M1
Circuit Diagram
Battery Ready
Plug & Play battery interface
1
Load [%]
DC
Switch
DC/AC
Converter
Output
Isolation Relay
SPD
SPD
PV1+
PV1-
PV2+
PV2-
L1
L2
L3
N
PE
BAT-
BAT+
EMI
Filter
Output
Filter
EMI
Filter
AI Powered
Active Arcing Protection
Active Safety
Up to 30% More Energy
with Optimizer
Higher Yields
Flexible Communication
WLAN, Fast Ethernet, 4G
Communication Supported
*1. Will be compatible with HUAWEI smart string ESS in Q1, 2021
90.00%
92.00%
94.00%
96.00%
98.00%
100.00%
5% 10% 20% 30% 50% 100%
470V 600V 850V
SUN2000-3/4/5/6/8/10KTL-M0
712, RD 1699, TOR D4,
Technical Specification
Technical Specification
SUN2000
-3KTL-M0
SUN2000
-4KTL-M0
SUN2000
-5KTL-M0
SUN2000
-6KTL-M0
Efficiency
Max. efficiency
European weighted efficiency
98.2% 98.3% 98.4% 98.6% 98.6% 98.6%
96.7% 97.1% 97.5% 97.7% 98.0% 98.1%
Input
Recommended max. PV power
Max. input voltage
Operating voltage range
Start-up voltage 200 V
Full power MPPT voltage range
Rated input voltage
Max. input current per MPPT
Max. short-circuit current
Number of MPP trackers 2
Max. input number per MPP tracker 1
1
2
6,000 Wp 8,000 Wp 10,000 Wp 12,000 Wp 14,880 Wp 14,880 Wp
1,100 V
140 V ~ 980 V
140 V ~ 850 V 190 V ~ 850 V 240 V ~ 850 V 285 V ~ 850 V 380 V ~ 850 V 470 V ~ 850 V
600 V
11 A
15 A
Output
Grid connection
Rated output power
Max. apparent power
Rated output voltage 220 Vac / 380 Vac, 230 Vac / 400 Vac, 3W / N+PE
Rated AC grid frequency 50 Hz / 60 Hz
Max. output current
Adjustable power factor 0.8 leading ... 0.8 lagging
Max. total harmonic distortion
3,000 W 4,000 W 5,000 W 6,000 W 8,000 W 10,000 W
3,300 VA 4,400 VA 5,500 VA 6,600 VA 8,800 VA 11,000 VA
5.1 A 6.8 A 8.5 A 10.1 A 13.5 A 16.9 A
Three-phase
≤ 3 %
SUN2000
-8KTL-M0
SUN2000
-10KTL-M0
3
Features & Protections
Input-side disconnection device Yes
Anti-Islanding protection Yes
DC reverse polarity protection Yes
Insulation monitoring Yes
DC surge protection Yes, compatible TYPE II protection class according to EN/IEC 61643-11
AC surge protection Yes, compatible TYPE II protection class according to EN/IEC 61643-11
Residual current monitoring Yes
AC overcurrent protection Yes
AC short-circuit protection
AC overvoltage protection Yes
Arc fault protection Yes
Ripple receiver control Yes
DC MBUS to optimizer No
Operating temperature range -25 ~ + 60 °C (-13 °F ~ 140 °F)
Relative operating humidity 0 %RH～100 %RH
Operating altitude 0 - 4,000 m (13,123 ft.) (Derating above 3000 m)
Cooling Natural convection
Display LED Indicators; Integrated WLAN + FusionSolar App
Communication
Weight (incl. mounting bracket)
Dimension (incl. mounting bracket)
Degree of protection IP65
Nighttime Power Consumption < 5.5 W
RS485; WLAN/Ethernet via Smart Dongle-WLAN-FE; 4G / 3G / 2G via Smart Dongle-4G (Optional)
525 x 470 x 166 mm (20.7 x 18.5 x 6.5 inch)
Standard Compliance (more available upon request)
Certificate EN/IEC 62109-1, EN/IEC 62109-2
Grid connection standards
*1 The maximum input voltage i s the upper limit of the DC voltage. Any higher input DC voltage would pr obably damage inverter.
*2 Any DC i nput voltage beyond the op erating voltage range may result in inverter improper operating.
*3 C10 / 11: 10,000 VA
G98, G99, EN 50438, EN50549-1, CEI 0-21, VDE-AR-N-4105, AS 4777, C10/11, ABNT, UTE C15-
IEC61727, IEC62116, DEWA
Yes
General Data
RS485;
17 kg (37.5 lb)
SOLAR.HUAWEI.COM/EU/Version No.:04-(20201006)
