SUN2000-(33KTL-A, 36KTL, 42KTL)

Quick Guide

Issue: 05 Part Number: 31508547 Date: 2018-03-22

Page 2

Overview

1. The information in this document is subject to change without notice. Every effort has been

made in the preparation of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not constitute a warranty of any kind, express or implied.

2. Before device installation, carefully read the SUN2000-(33KTL-A, 36KTL, 42KTL) User Manual to get familiar with product information and safety precautions.

3. Only qualified and trained electrical technicians are allowed to operate the device. Operators should understand the components and functioning of a grid-tied PV power system and be familiar with relevant local standards.

4. Before installing the device, check that deliverables are intact and complete against the packing list. If any damage is found or any component is missing, contact the dealer.

5. Use insulated tools when installing the device. For personal safety, wear insulation gloves and protective shoes.

6. Huawei shall not be liable for any consequence caused by violation of the storage,

transportation, installation, and operation regulations specified in this document and the user

manual.

Ports

Waterproof cable connector is abbreviated as connector in the following text.

(1) PV connection indicator (2) Grid-tied indicator (3) Communication indicator (4) Alarm/Maintenance indicator (5) Maintenance compartment door (6) Host panel

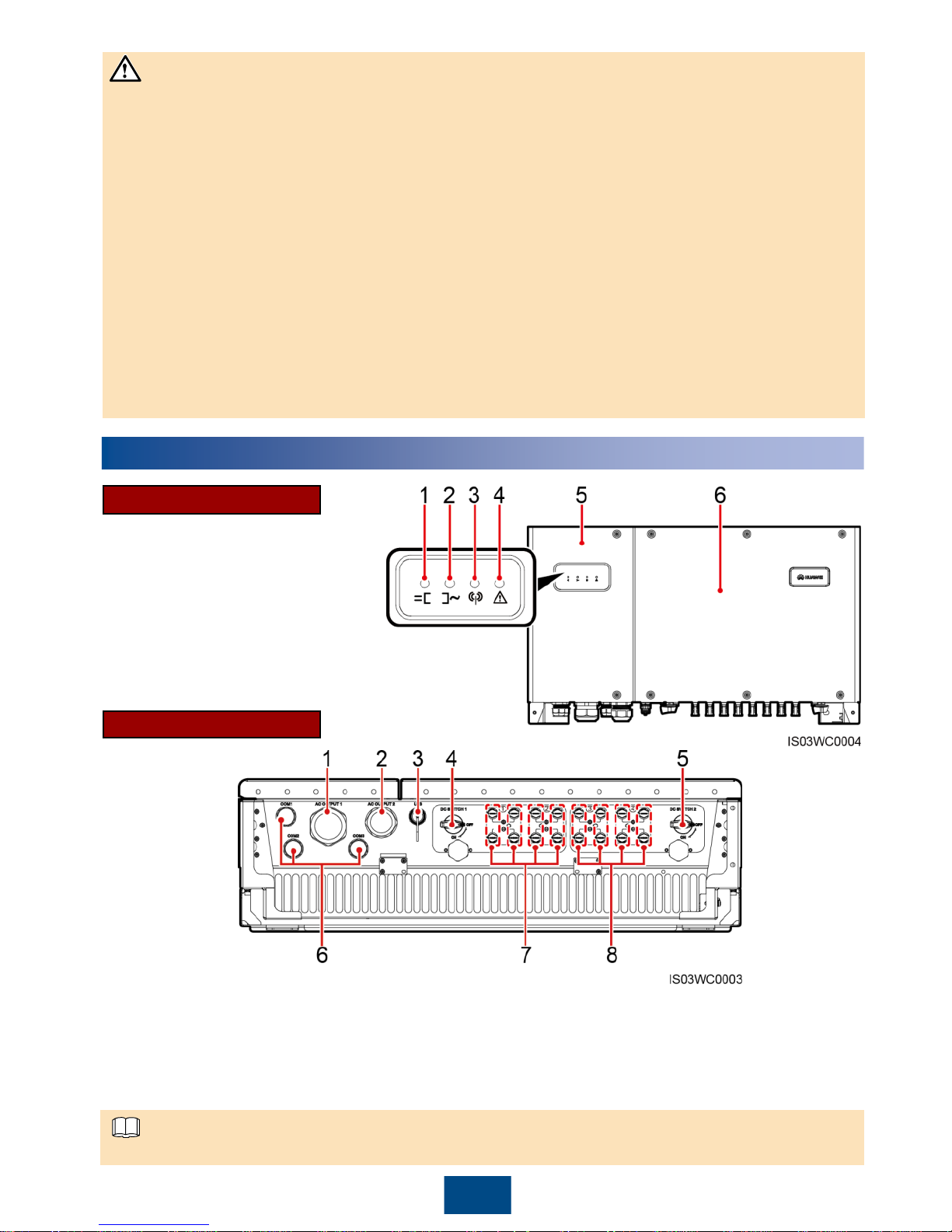

SUN2000 Front View

(1) Waterproof cable connector (AC OUTPUT 1) (3) USB port (USB) (5) DC switch 2 (DC SWITCH 2)

(7) DC input terminal (controlled by DC

SWITCH 1)

(2) Waterproof cable connectors (AC OUTPUT 2) (4) DC switch 1 (DC SWITCH 1) (6) Waterproof cable connectors

(COM1/COM2/COM3)

(8) DC input terminal (controlled by DC SWITCH 2)

NOTE

NOTICE

Page 3

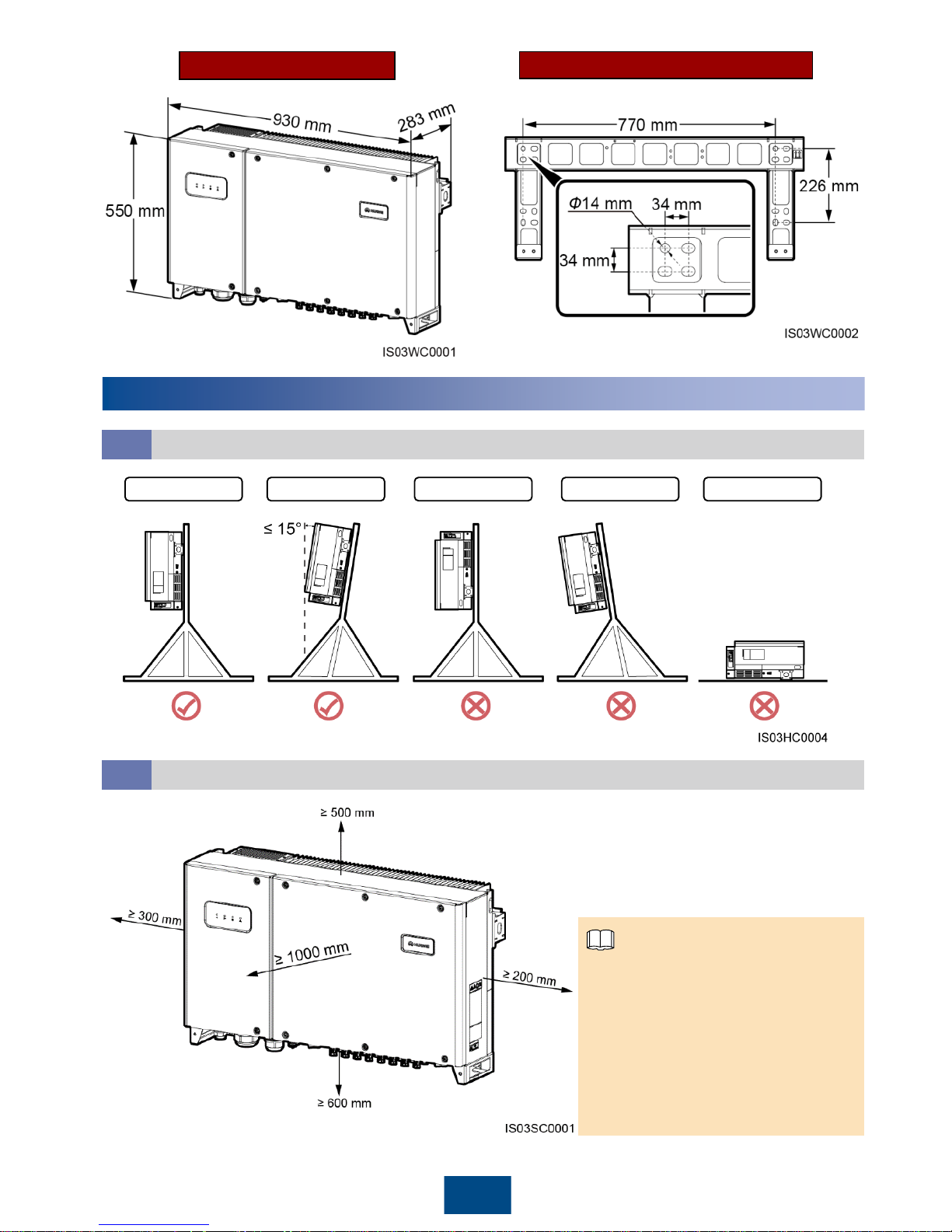

Enclosure dimensions

Mounting bracket dimensions

Installation Requirements

Installation Angle

2.1

Installation Space

2.2

Vertical Backward HorizontalUpside down Forward

For ease of installing the SUN2000 on the mounting bracket, connecting cables to the bottom of the SUN2000, and maintaining the SUN2000 in future, it is recommended that the bottom clearance be greater than or equal

to 600 mm and less than or equal

to 730 mm.

NOTE

Page 4

5. Install the SUN2000 on the mounting bracket.

6. Tighten the security torx screws using a security torx wrench.

1. Remove the security torx wrench from the mounting bracket and set it aside.

2. Mark hole positions.

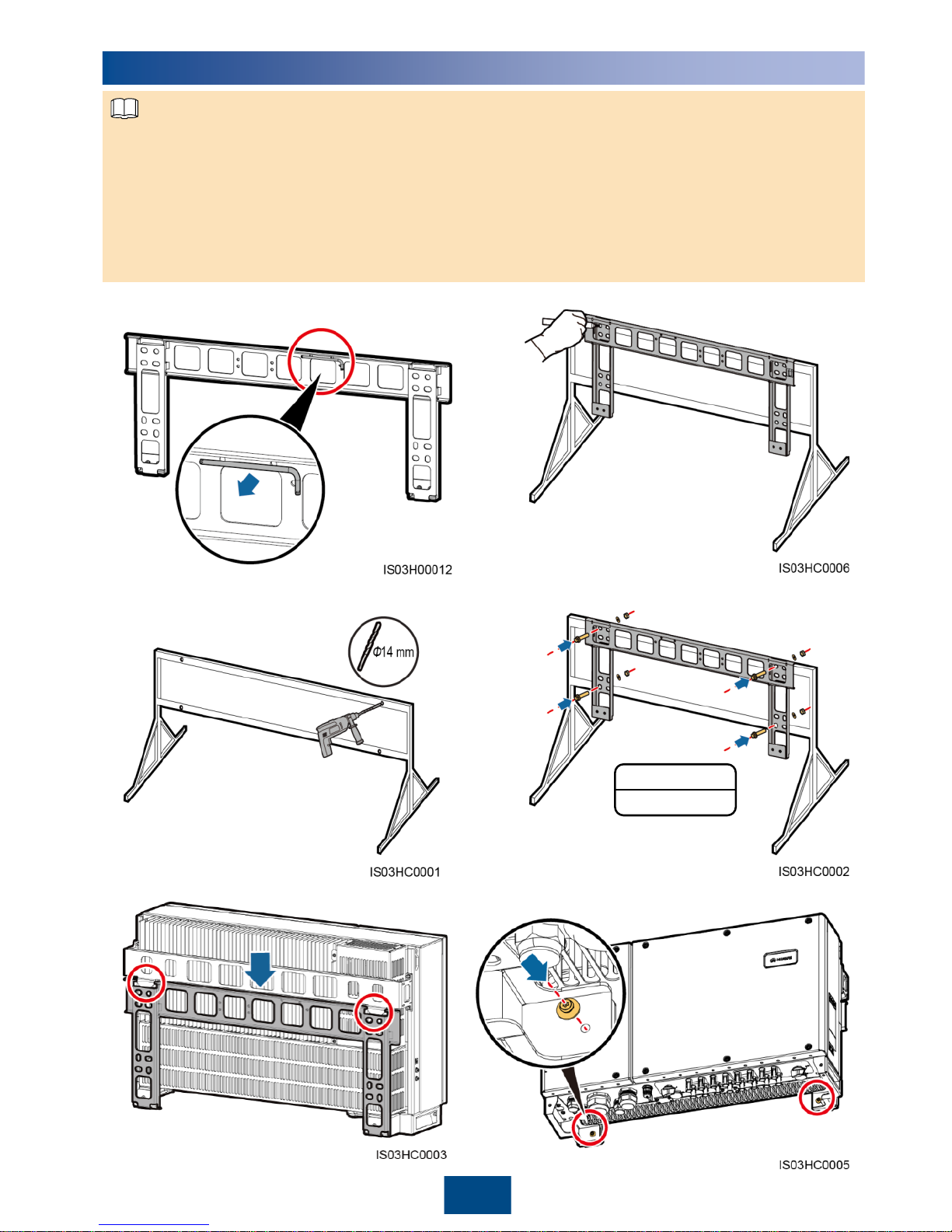

Installing the SUN2000



The SUN2000 mounting bracket has four groups of tapped holes, each group containing four tapped holes. Mark any hole in each group based on site requirements and mark four holes in total. Two round holes are preferred.



The SUN2000 is delivered with M12x40 screw assemblies. If the screw length does not meet the installation requirements, prepare M12 screw assemblies by yourself and use them together with the delivered M12 nuts.



The following describes how to support-mount the SUN2000 as an example. For details about

how to wall-mount the SUN2000, see the SUN2000-(33KTL-A, 36KTL, 42KTL) User Manual.

4. Secure the mounting bracket.3. Drill holes. (You are advised to apply anti-rust

paint on the hole positions for protection.)

M12

45 N·m

NOTE

Page 5

Preparations

4.1

Electrical Connections

No.

Name

Model or Specifications

Quantity

Function

OT terminal

1 PCS

Connects to a ground cable.

OT terminal

3 PCS

Connects to an AC output power cable.

Ground cable

Outdoor copper

-core

cable

with a cross-

sectional area of

16 mm

N/A

Connects to a ground cable.

AC output power

cable

•

Outdoor copper-core

cable with a crosssectional area of 16 mm2 (for the SUN2000-33KTL-A)

•

Outdoor copper-core cable with a crosssectional area of 25 mm2 (for the SUN200036KTL/42KTL)

N/A

Connects to an AC output

power cable.

DC input power cable

PV1

-F/4 mm

N/A

Connects to a DC input power cable.

RS485 communications

cable

Computer cable DJYP2VP2

-22 2x2x1

N/A

Connects to an RS485 communications cable

over a terminal block.

Outdoor shielded network cable CAT 5E

N/A

Connects to an RS485 communications cable over

an RJ45 network

port.

FE communications cable

Outdoor shielded network cable CAT 5E

N/A

Connects to an Ethernet communications cable over an FE network port.

Cable tie

N/A

Based on site requirements

Binds cables.

1. Before connecting cables, ensure that all required OT terminals and cables are prepared. Copper-core cables with copper wiring terminals are recommended. For the requirements on the cables and terminals made of other materials, see the SUN2000-(33KTL-A, 36KTL, 42KTL) User Manual.

2. The SUN2000-42KTL supports the 3W+PE wiring mode.

3. The SUN2000-33KTL-A/36KTL supports 3W+PE and 3W+N+PE wiring modes. Connect the neutral wire if required.

NOTE

Page 6

OT-M6

5 N·m

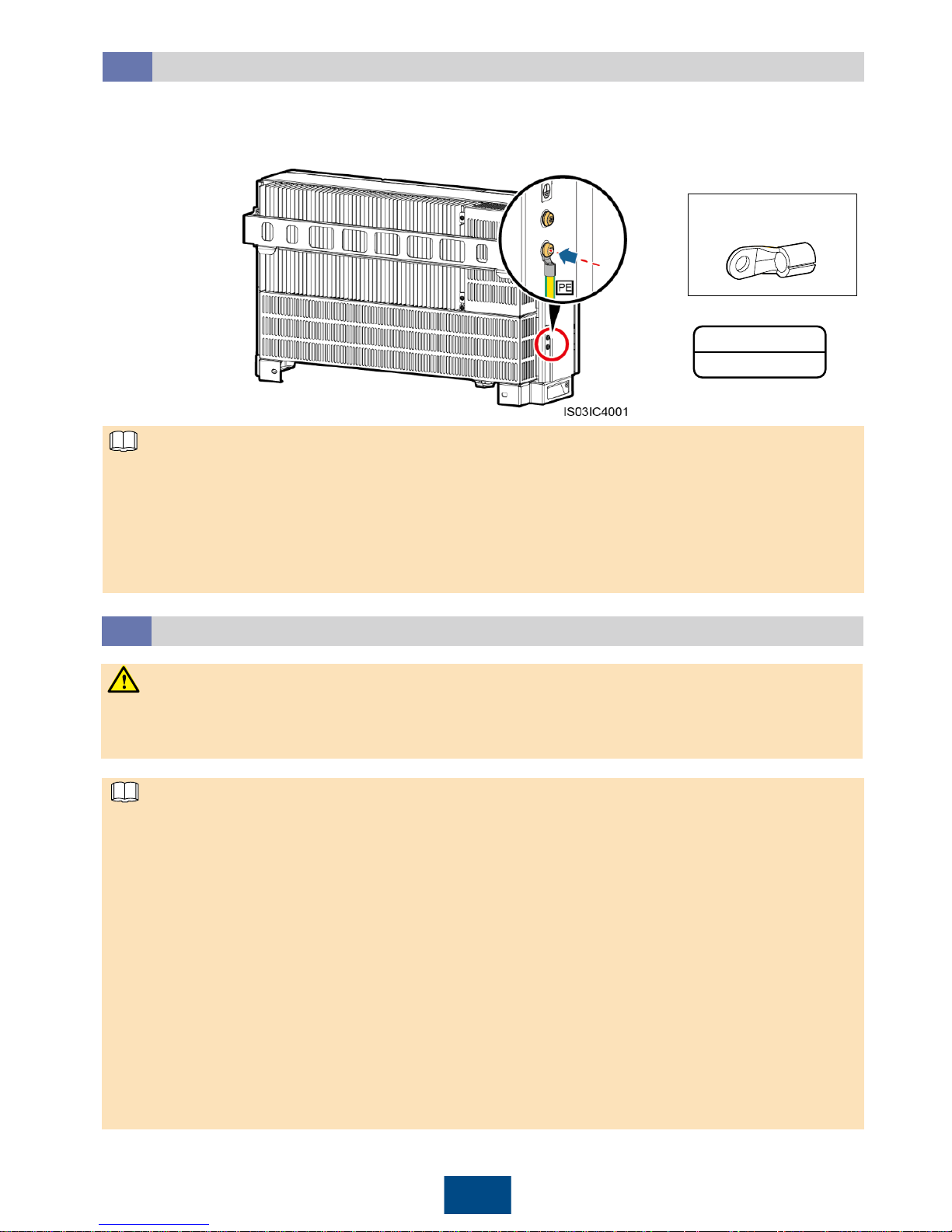

Installing Ground Cables

4.2

Installing AC Output Power Cables

4.3

1. The outdoor copper-core cable with a cross-sectional area of 16 mm2is recommended. The ground cable must be secured.

2. It is recommended that ground cable of the SUN2000 be connected to the nearest ground point.

For a system with multiple SUN2000s connected in parallel, connect the ground points of all

SUN2000s to ensure equipotential connections to ground cables.

3. To enhance the corrosion resistance of the ground terminal, apply silica gel or paint on it after connecting the ground cable.

NOTE

• If you connect a ground cable to the ground point on the enclosure shell, you are recommended to

use a three-core outdoor copper-core cable with a cross-sectional area of 25 mm2as the AC

output power cable for the SUN2000-42KTL.

• If you connect a ground cable to the ground point in the maintenance compartment, you are recommended to use a four-core outdoor copper-core cable with a cross-sectional area of 25 mm

as the AC output power cable for the SUN2000-42KTL.

• If you connect a ground cable to the ground point on the enclosure shell in a scenario without a neutral wire, you are recommended to use a three-core outdoor copper-core cable with a crosssectional area of 16 mm2as the AC output power cable for the SUN2000-33KTL-A and a threecore outdoor copper cable with a cross-sectional area of 25 mm2as the AC output power cable for the SUN2000-36KTL.

• If you connect a ground cable to the ground point in the maintenance compartment in a scenario without a neutral wire, you are recommended to use a four-core outdoor copper-core cable with a cross-sectional area of 16 mm2as the AC output power cable for the SUN2000-33KTL-A and a four-core outdoor copper cable with a cross-sectional area of 25 mm2as the AC output power

cable for the SUN2000-36KTL.

NOTE

1. Never open the host panel of the SUN2000.

2. Before opening the SUN2000 maintenance compartment door, turn off the downstream AC output switch and the two bottom DC switches.

WARNING

• The ground point on the enclosure is preferred to connect to the PE cable for the SUN2000.

• The ground point in the maintenance compartment is mainly used for connecting to the ground

cable included in the multi-core AC power cable. For details, see section 4.3 "Installing AC Output Power Cables."

Page 7

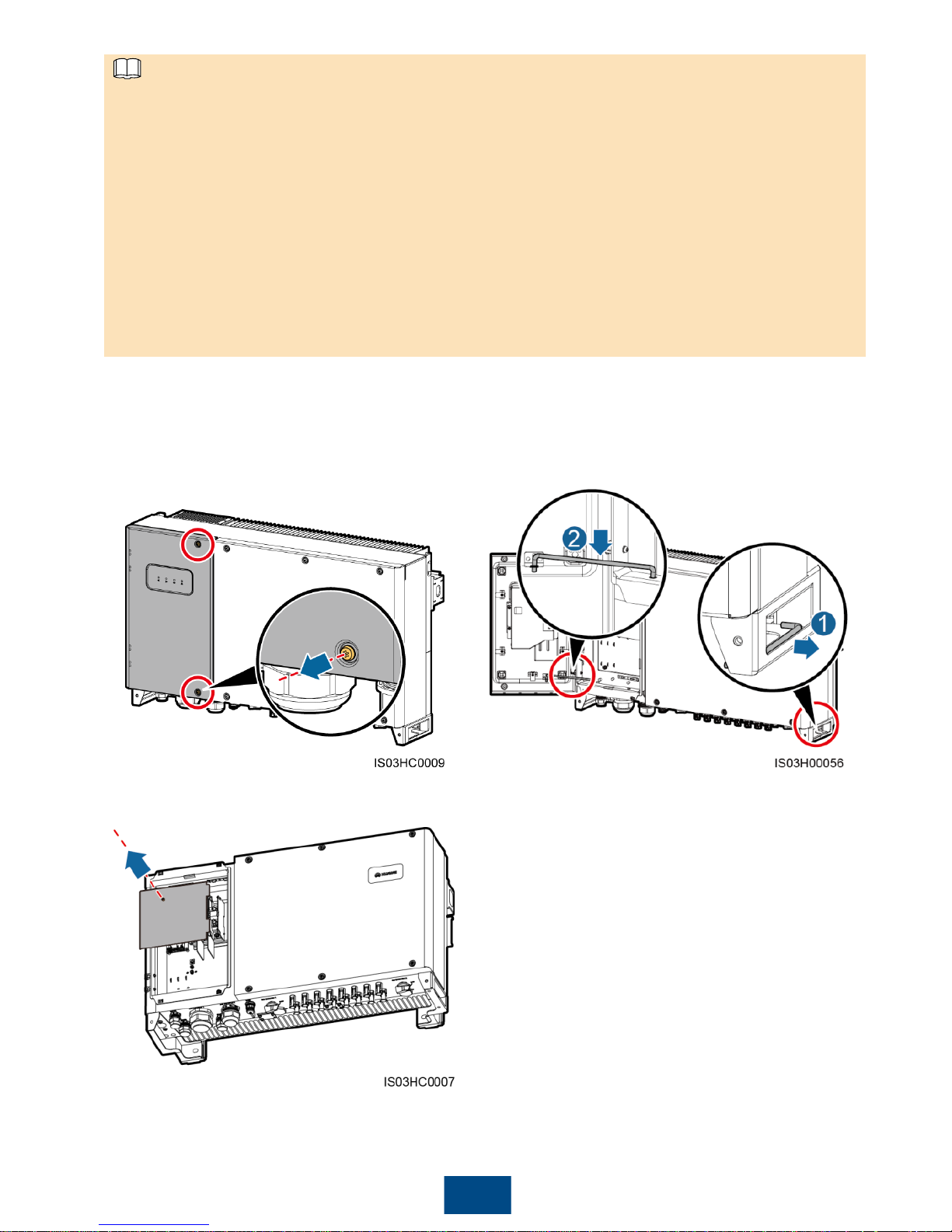

1. Remove the two security torx screws from the maintenance compartment door using a security torx wrench. (Set the two screws aside. Use the idle ground screw on the enclosure shell as the standby screw, and the idle floating nut on the enclosure as the standby floating nut.)

2. Open the maintenance compartment door and adjust the support bar. (The support bar is bound to the enclosure base.)

3. Remove the AC terminal cover.

• If you connect a ground cable to the ground point on the enclosure shell in a scenario with a neutral wire, you are recommended to use a four-core outdoor copper-core cable with a crosssectional area of 16 mm2as the AC output power cable for the SUN2000-33KTL-A and a fourcore outdoor copper cable with a cross-sectional area of 25 mm2as the AC output power cable for the SUN2000-36KTL.

• If you connect a ground cable to the ground point in the maintenance compartment in a

scenario with a neutral wire, you are recommended to use a five-core outdoor copper-core

cable with a cross-sectional area of 16 mm2as the AC output power cable for the SUN200033KTL-A and a five-core outdoor copper cable with a cross-sectional area of 25 mm2as the AC output power cable for the SUN2000-36KTL.

• For more details about cable specifications, see the SUN2000-(33KTL-A, 36KTL, 42KTL) User Manual.

• The AC OUTPUT 1 connector supports the cable with an outer diameter of 18 mm to 44 mm.

NOTE

Page 8

a. Three-core cable (excluding the ground

cable and neutral wire)

c. Four-core cable (excluding the ground

cable but including the neutral wire)

JacketInsulation layerCore wire

b. Four-core cable (including the ground cable

but excluding the neutral wire)

d. Five-core cable (including the ground cable

and neutral wire)

4. Remove the locking cap from the AC OUTPUT 1 connector and then remove the plug.

5. Select an appropriate rubber fitting based on the cable outer diameter. Route the cable through

the locking cap and then the rubber fitting.

• Mismatch between the cable outer diameter and the rubber fitting may degrade the Ingress Protection Rating of the device.

• To avoid damaging the rubber fitting, do not route a cable with a crimped OT terminal directly through the rubber fitting.

• Do not adjust the cable when the locking cap is tightened. Otherwise, the rubber fitting will shift, which affects the Ingress Protection Rating of the device.

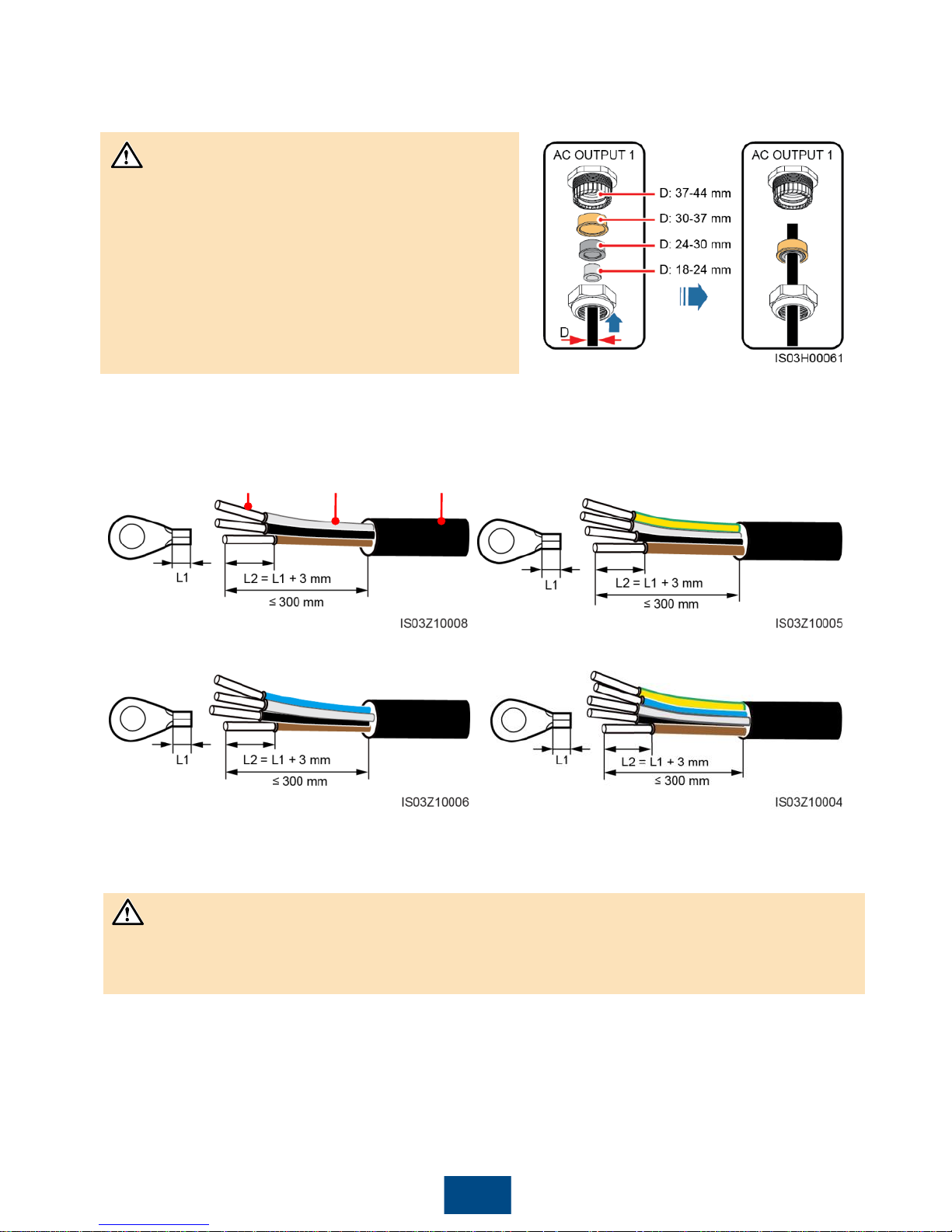

6. Remove an appropriate length of the jacket and insulation layer from the AC output power cable using a wire stripper. (Ensure that the jacket is in the maintenance compartment.)

7. Insert the exposed core wires into the crimping area of the OT terminal and crimp them using hydraulic pliers.

8. Wrap the wire crimping area with heat shrink tubing or PVC insulation tape.

If heat shrink tubing is used, route the AC output power cable through the heat shrink tubing and then crimp the OT terminal. Ensure that the area wrapped by the heat shrink tubing does not exceed the crimping area of the OT terminal.

NOTICE

9. Route the AC output power cable through the AC OUTPUT 1 connector at the bottom of the enclosure.

10.Connect the AC output power cable to the AC terminal block, and then secure the connector using a 13 mm socket wrench with an extension rod. If you connect a ground cable to the ground point in the maintenance compartment, tighten the ground screw using a 10 mm socket wrench with an extension rod.

NOTICE

Page 9

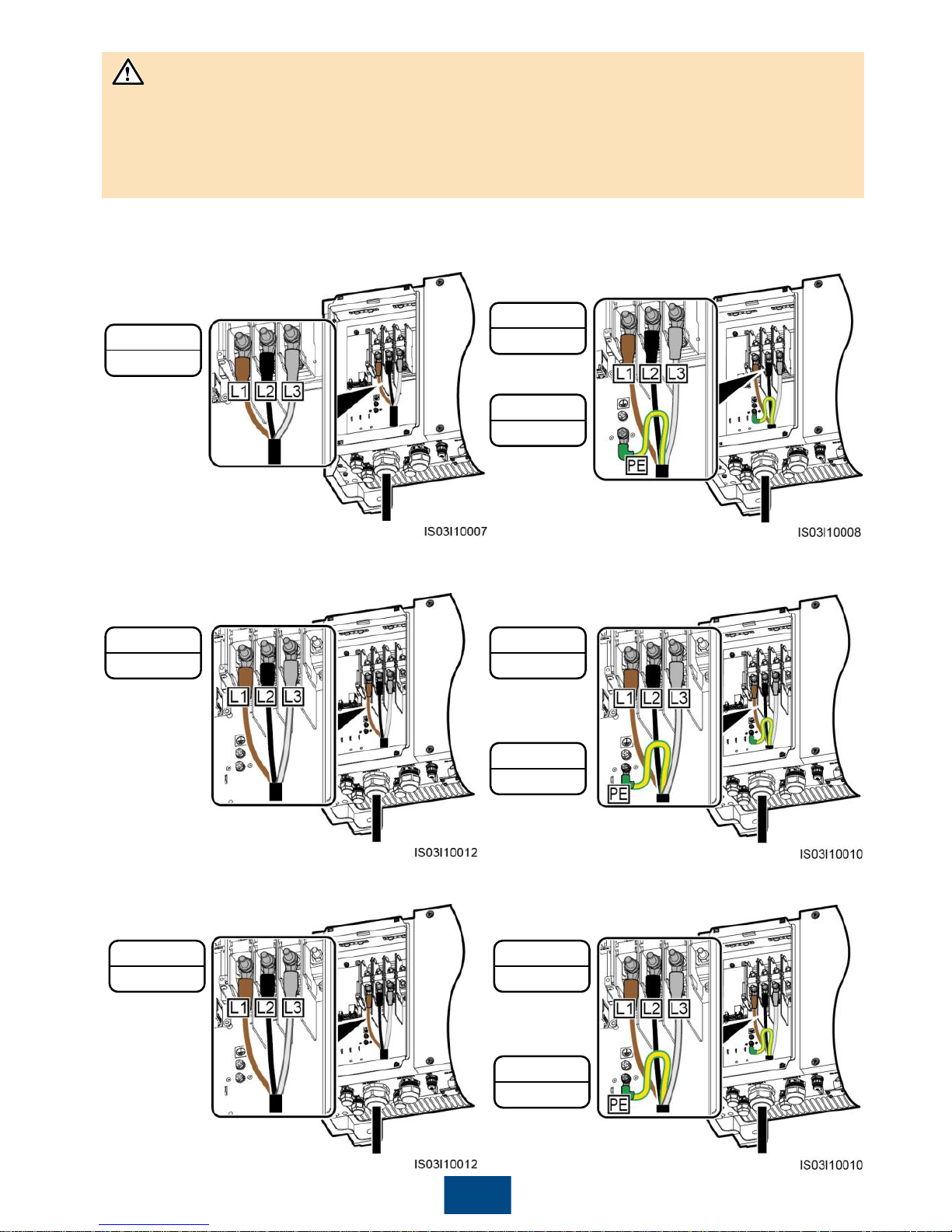

a. 3-pin SUN2000-42KTL

(excluding the ground cable)

b. 3-pin SUN2000-42KTL

(including the ground cable)

8 N·m

5 N·m

c. 4-pin SUN2000-42KTL (excluding the

ground cable and neutral wire)

d. 4-pin SUN2000-42KTL (including the

ground cable but excluding the neutral wire)

8 N·m

5 N·m

e. SUN2000-33KTL-A/36KTL (excluding

the ground cable and neutral wire)

f. SUN2000-33KTL-A/36KTL (including

the ground cable but excluding the neutral wire)

8 N·m

5 N·m

• Ensure that the AC output power cable is connected securely. Otherwise, the SUN2000 may fail

to operate or experience a fault that will damage the terminal block. For example, the SUN2000 may generate heat during operation due to unreliable connection.

• If the SUN2000 is insecurely installed and the AC output power cable bears the pulling force,

ensure that the last cable bearing the force is the PE cable.

NOTICE

Page 10

Installing DC Input Power Cables4.4

g. SUN2000-33KTL-A/36KTL (excluding

the ground cable but including the

neutral wire)

h. SUN2000-33KTL-A/36KTL (including

the ground cable and neutral wire)

8 N·m

5 N·m

11.Use a torque wrench with an open end of 65 mm to tighten the locking cap to a torque of 7.5 N·m, and seal the waterproof connector.

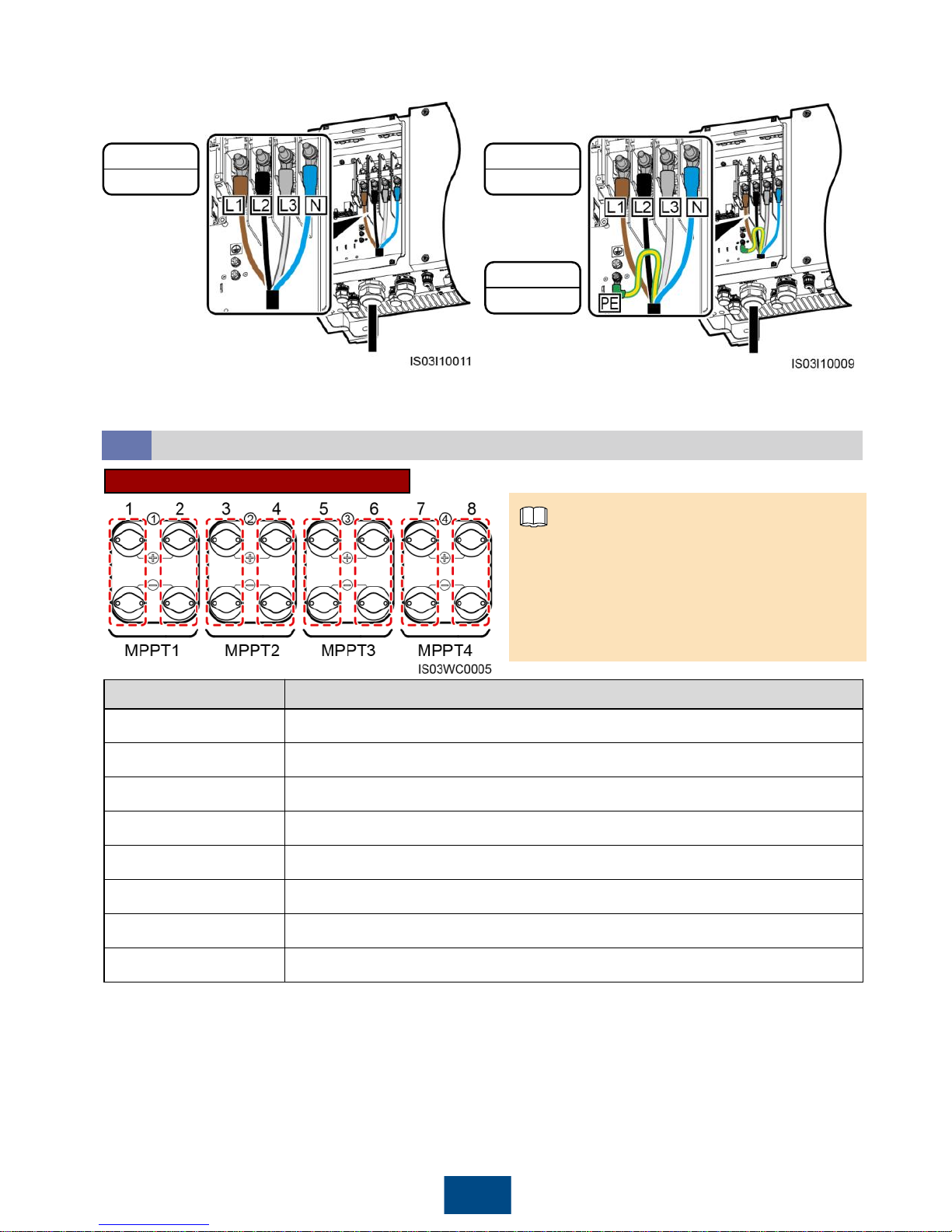

Selecting DC input terminals

Number of Inputs

SUN2000

Connects to any route.

Connects to routes 1 and 5.

Connects to routes 1, 3, and 5.

Connects to routes 1, 3, 5, and 7.

Connects to routes 1, 2, 3, 5, and 7.

Connects to routes 1, 2, 3, 5, 6, and 7.

Connects to routes 1, 2, 3, 4, 5, 6, and 7.

Connects to routes 1, 2, 3, 4, 5, 6, 7, and 8.

The SUN2000 provides two DC switches, namely, DC SWITCH 1 and DC SWITCH 2. DC SWITCH 1 controls the first to fourth routes of DC input terminals, whereas DC SWITCH 2 controls the fifth to eighth routes of DC input terminals.

NOTE

Page 11

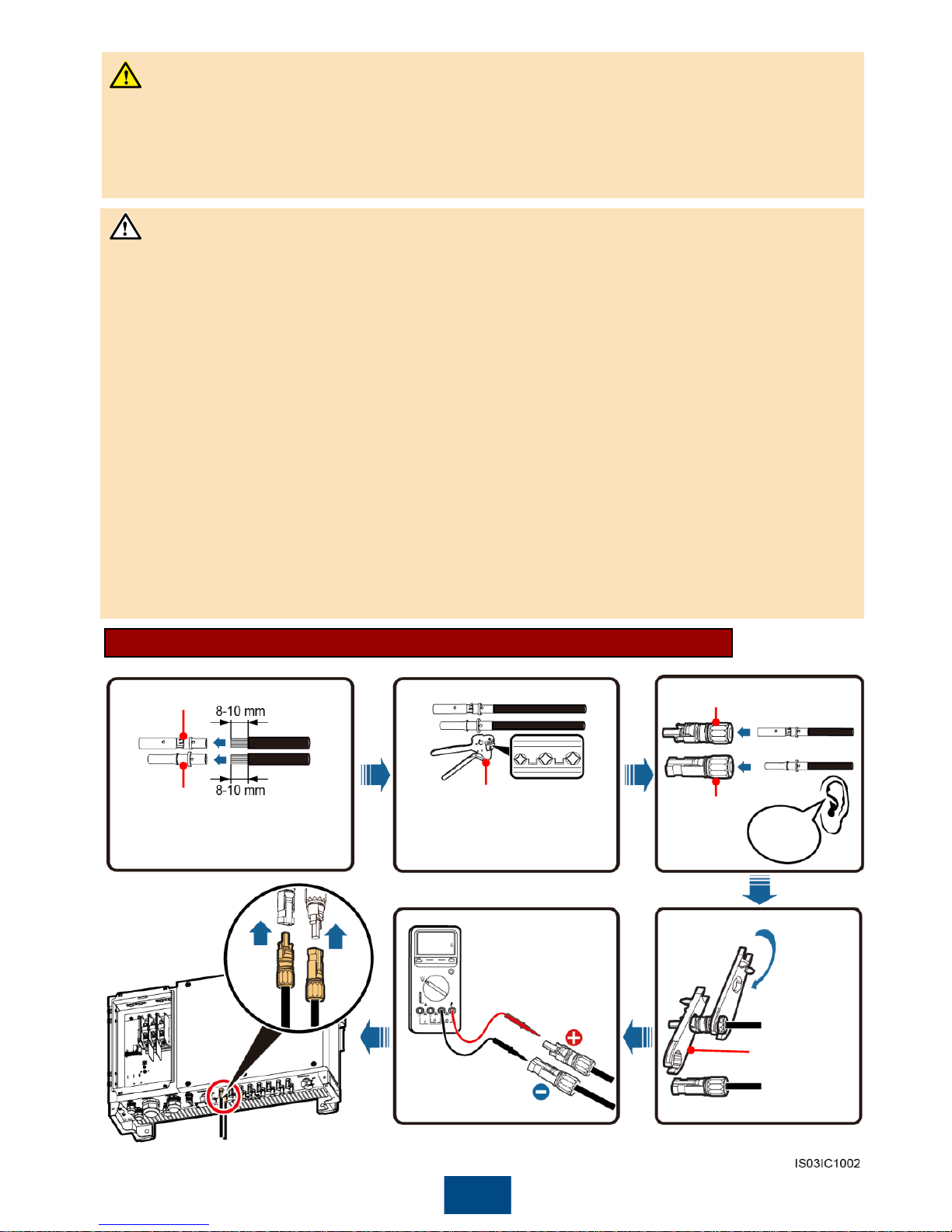

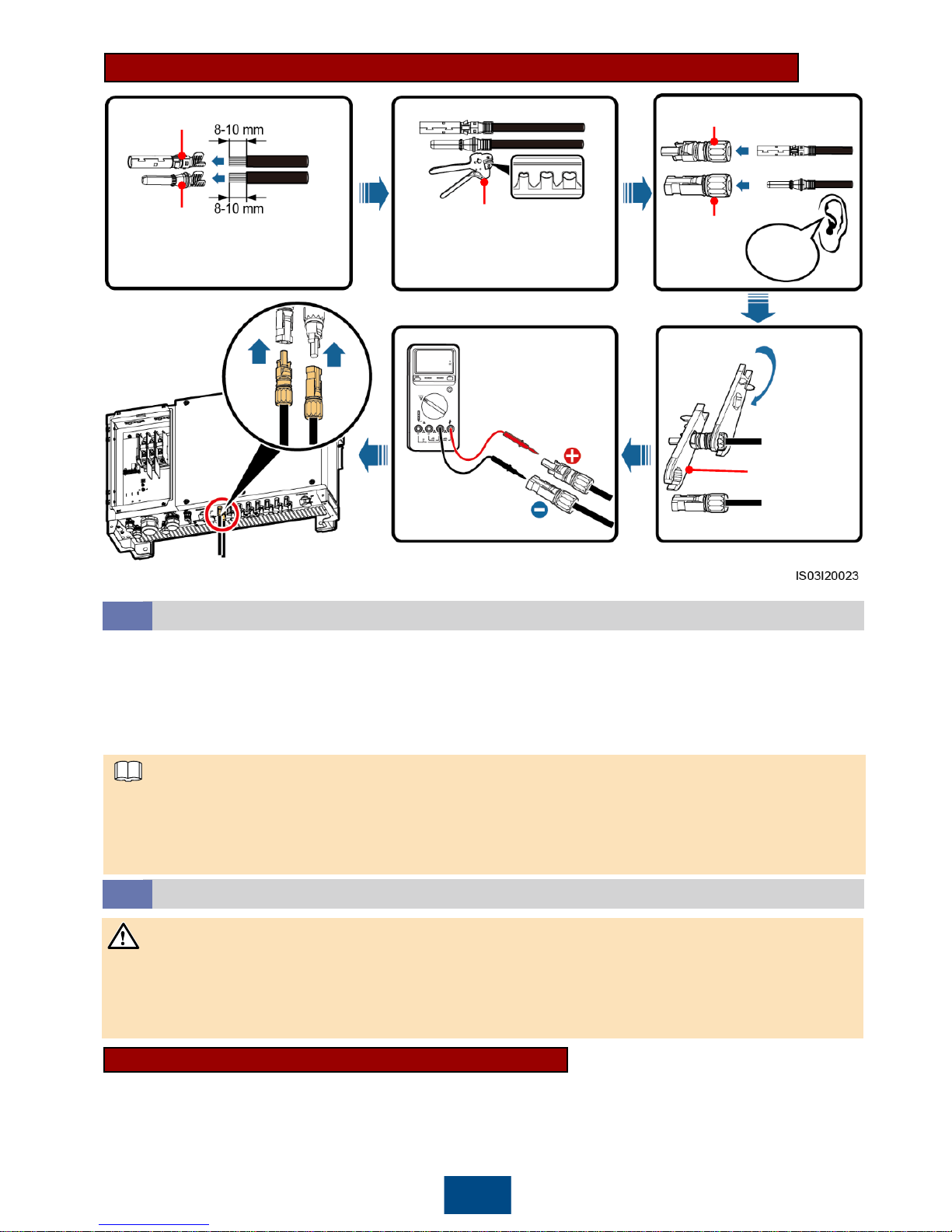

1. Use the positive and negative metal contacts and DC connectors supplied with the SUN2000. Using other models of positive and negative metal contacts and DC connectors may result in serious consequences. The caused device damage is not covered under any warranty or service agreement.

2. The metal contacts supplied with the DC connectors are either cold forming contacts or stamping forming contacts. Crimp the metal cold forming contacts using crimping tool H4TC0001 (Amphenol). Crimp the metal stamping contacts using crimping tool H4TC0002 (Amphenol). Choose the crimping tools that fit the metal contact types. Do not mix up the tools.

3. Before connecting DC input power cables, label the cable polarities to ensure correct cable connections. If the cables are connected incorrectly, the SUN2000 may be damaged.

4. Insert the crimped metal contacts of the positive and negative power cables into the appropriate positive and negative connectors. Then pull back the DC input power cables to ensure that they are connected securely.

5. Connect the positive and negative connectors to the appropriate positive and negative DC input terminals. Then pull back the DC input power cables to ensure that they are connected securely.

6. If the DC input power cable is reversely connected, do not operate the DC switches and positive and negative connectors immediately. Otherwise, the SUN2000 will be damaged. The caused equipment damage is beyond the warranty scope. Wait until the solar irradiance declines at night and the PV string current reduces to below 0.5 A. Then, turn off the two DC switches, remove the positive and negative connectors, and correct the polarity of the DC input power cable.

NOTICE

• Ensure that the PV module output is well insulated to ground.

• Before inserting the positive and negative connectors respectively into the positive and negative

DC input terminals of the SUN2000, check that the DC voltage does not exceed 1100 V DC using a multimeter and that the cables are connected correctly. Otherwise, the SUN2000 will be damaged.

WARNING

Positive connector

Negative

connector

Positive metal contact

Negative metal contact

Recommended: PV cable (PV1-F) with a crosssectional area of 4 mm2.

Ensure that the cable cannot be removed after crimped.

Click

Ensure

that the

locking nut

is secured.

H4TW0001 (Amphenol)

H4TC0001 (Amphenol)

Ensure that cables are connected correctly and that the voltage does not

exceed 1100 V DC.

Installing a DC input power cable (using metal cold forming contacts)

Page 12

Selecting a Communication Mode

4.5

1. You can choose either the PLC or RS485 communication mode for the SUN2000-33KTL-

A/36KTL/42KTL.

2. FE communication is optional for the SUN2000-36KTL. If you need to use the FE communication mode, contact local technical support.

3. If the SUN2000-36KTL adopts FE communication mode, it supports only RS485 and FE communication modes, and does not support PLC communication mode.

Installing RS485 Communications Cables4.6

The DJYP2VP2-22 2x2x1 computer cable or a communications cable with a cross-sectional area of 1 mm2and outer diameter of 14–18 mm is recommended.

1. When routing communications cables, separate communications cables from power cables to

prevent communication from being affected.

2. An RS485 cable can connect to either a terminal block or an RJ45 network port. It is recommended that the RS485 cable connect to a terminal block.

NOTICE

Connecting to a terminal block (recommended)

• If PLC is used, you do not have to connect any cable to the SUN2000, but have to connect AC power cables to the PLC CCO module or SmartLogger2000. For detailed operations, see the PLC CCO01A User Manual or SmartLogger2000 User Manual.

• If RS485 is used, do not connect the PLC CCO module to the AC power cable.

NOTE

Positive connector

Negative

connector

Positive metal contact

Negative metal contact

Recommended: PV cable (PV1-F) with a crosssectional area of 4 mm2.

Ensure that the cable cannot be removed after crimped.

Click

Ensure

that the locking nut is secured.

H4TW0001 (Amphenol)

H4TC0002 (Amphenol)

Ensure that cables are connected correctly and that the voltage does not exceed 1100 V DC.

Installing a DC input power cable (using metal stamping forming contacts)

Page 13

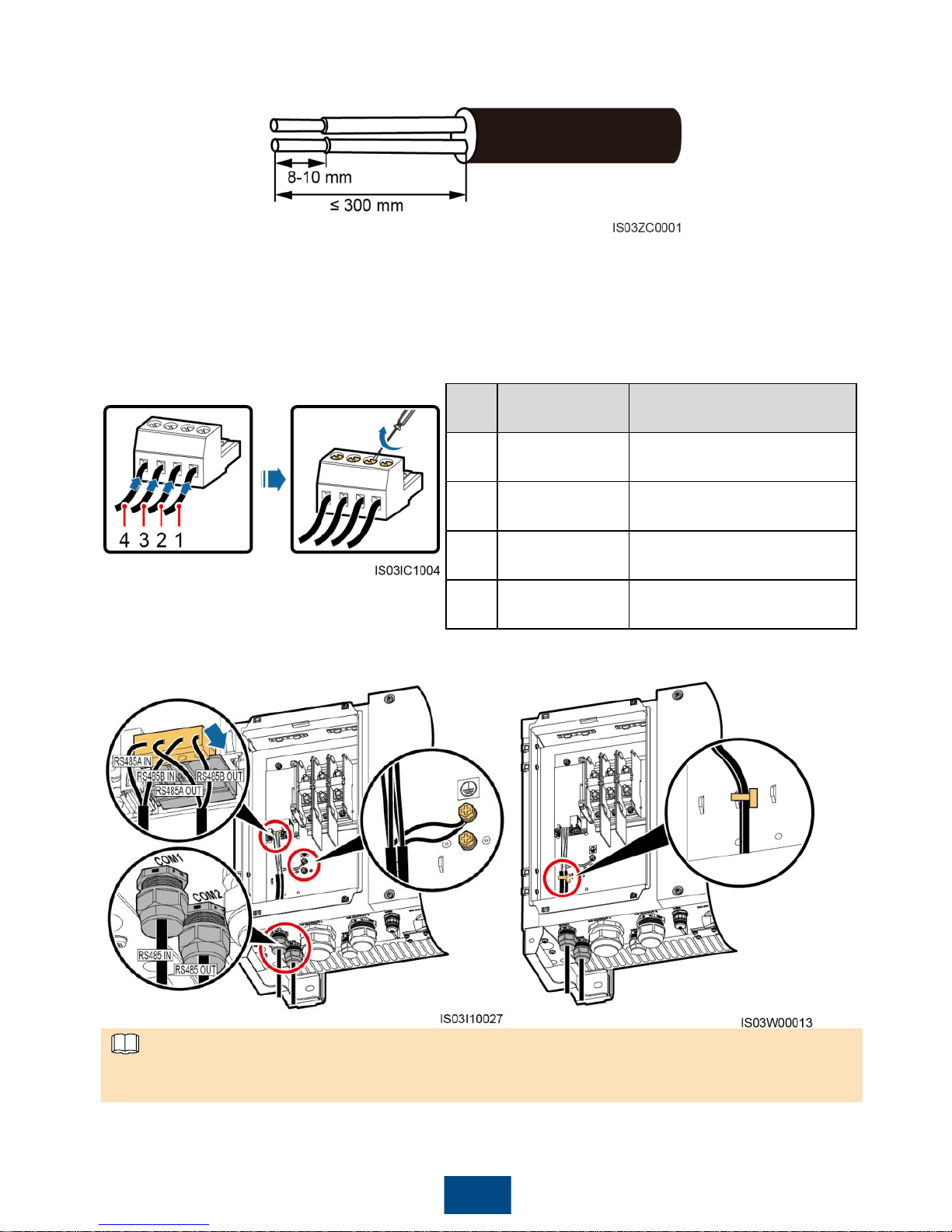

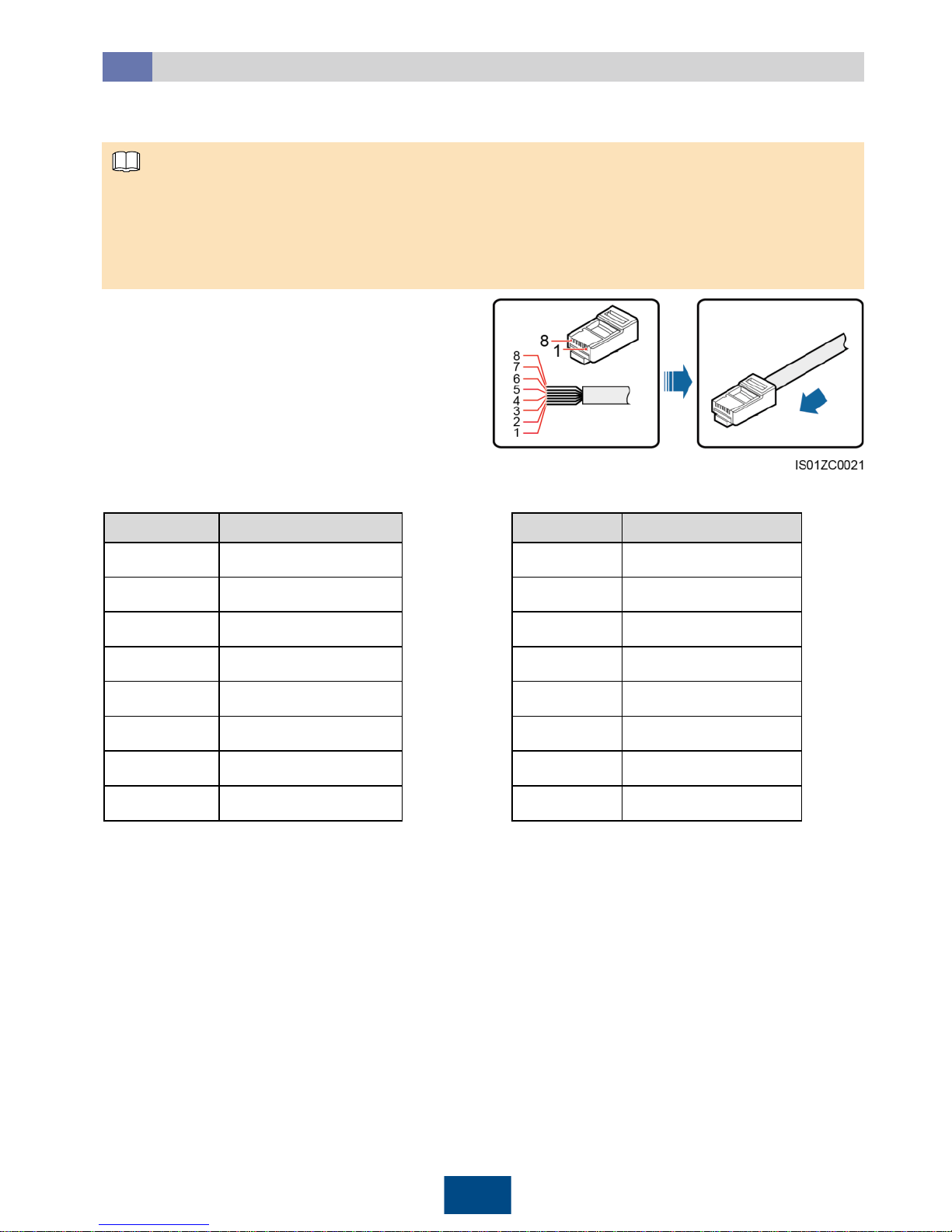

1. Remove an appropriate length of the jacket and core wire insulation layer from the communications cable using a wire stripper.

2. Remove the locking caps from the COM1 and COM2 connectors at the SUN2000 bottom and then remove the plugs from the caps.

3. Route the communications cables through the locking caps, and then the COM1 (RS485 IN) and COM2 (RS485 OUT) connectors at the SUN2000 bottom.

4. Remove the terminal base from the terminal block, and connect the communications cables to the terminal base.

No.

Port Definition

Description

RS485A IN

RS485A, RS485 differential signal +

RS485A OUT

RS485A, RS485 differential signal +

RS485B IN

RS485B, RS485 differential signal

–

RS485B OUT

RS485B, RS485 differential signal

–

5. Install the terminal base on the terminal block,

and connect the shield layer to the ground point.

6. Bind the communications cables.

7. Use a torque wrench with an open end of 33 mm to tighten the locking cap to a torque of 7.5 N·m, and seal the waterproof connector.

When connecting the shielded cables, choose whether to crimp the OT terminal based on site

requirements.

NOTE

Page 14

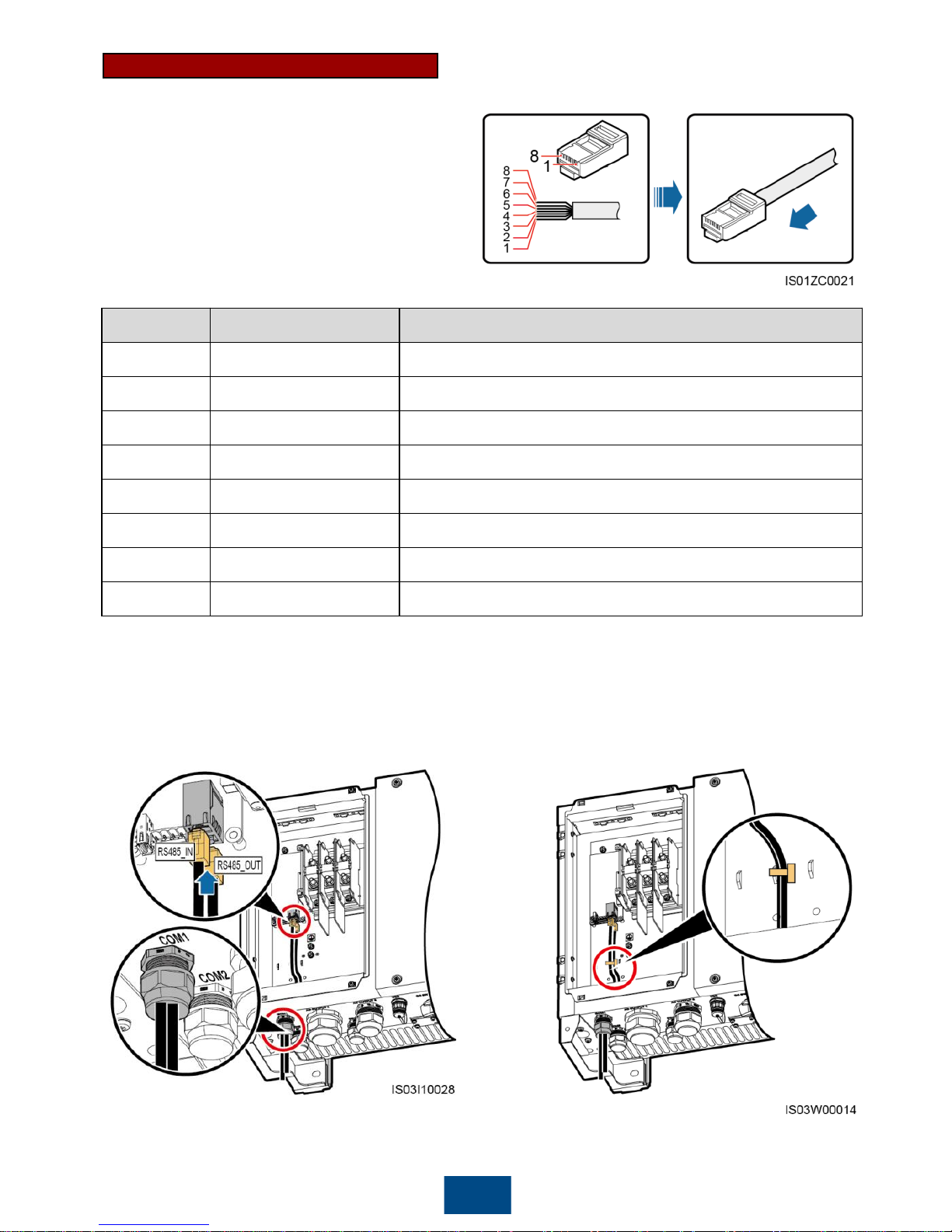

1. Insert the wires of the network cable to the RJ45 connector in sequence.

RJ45 network port connection

You are recommended to use a CAT 5E outdoor shielded network cable with an outer diameter less than 9 mm and internal resistance not greater than 1.5 ohms/10 m, as well as a shielded RJ45 connector.

2. Crimp the RJ45 connector using a crimping tool.

No.

Color

Pin Definition

White

-and-orange

RS485A, RS485 differential signal +

Orange

RS485B, RS485 differential signal

–

White

-and-green

N/A

Blue

RS485A, RS485 differential signal +

White

-and-blue

RS485B, RS485 differential signal

–

Green

N/A

White

-and-brown

N/A

Brown

N/A

5. Insert the RJ45 connector into the RJ45 network port

in the maintenance compartment of the SUN2000.

3. Remove the locking cap from the COM1 connector at the SUN2000 bottom and then remove

the plug from the cap.

4. Route the communications cables through the locking cap and then the COM1 connector at the

SUN2000 bottom.

6. Bind the communications cables.

7. Use a torque wrench with an open end of 33 mm to tighten the locking cap to a torque of 7.5 N·m, and seal the waterproof connector.

Page 15

(Optional) Installing FE Communications Cables

4.7

FE communication is mainly used in distributed rooftop scenarios with a small number of SUN2000s. The SUN2000 can directly connect to the PC over the Ethernet to implement monitoring networking.

1. Insert the wires of the network cable to the RJ45 connector in sequence.

You are recommended to use a CAT 5E outdoor shielded network cable with an outer diameter less than 9 mm and internal resistance not greater than 1.5 ohms/10 m, as well as a

shielded RJ45 connector.

2. Crimp the RJ45 connector using a crimping tool.

1. If FE communication is used, a maximum of ten SUN2000s can be connected. In addition, the NetEco needs to be installed on the PC for monitoring networking.

2. A standard network cable has two wire sequence standards, namely, 568A and 568B. The network cables used in the same PV grid-tied power generation system should comply with the same wire sequence standard.

NOTE

No.

Color

White

-and-green

Green

White

-and-orange

Blue

White

-and-blue

Orange

White

-and-brown

Brown

a. 568A standard b. 568B standard

No.

Color

White

-and-orange

Orange

White

-and-green

Blue

White

-and-blue

Green

White

-and-brown

Brown

3. Remove the locking cap from the COM1 connector at the SUN2000 bottom and then remove

the plug from the cap.

4. Route the communications cables through the locking cap and then the COM1 connector at the SUN2000 bottom.

Page 16

5. Insert the RJ45 connector into the FE network port in the maintenance compartment of the SUN2000.

6. Bind the communications cables.

7. Use a torque wrench with an open end of 33 mm to tighten the locking cap to a torque of 7.5 N·m, and seal the waterproof connector.

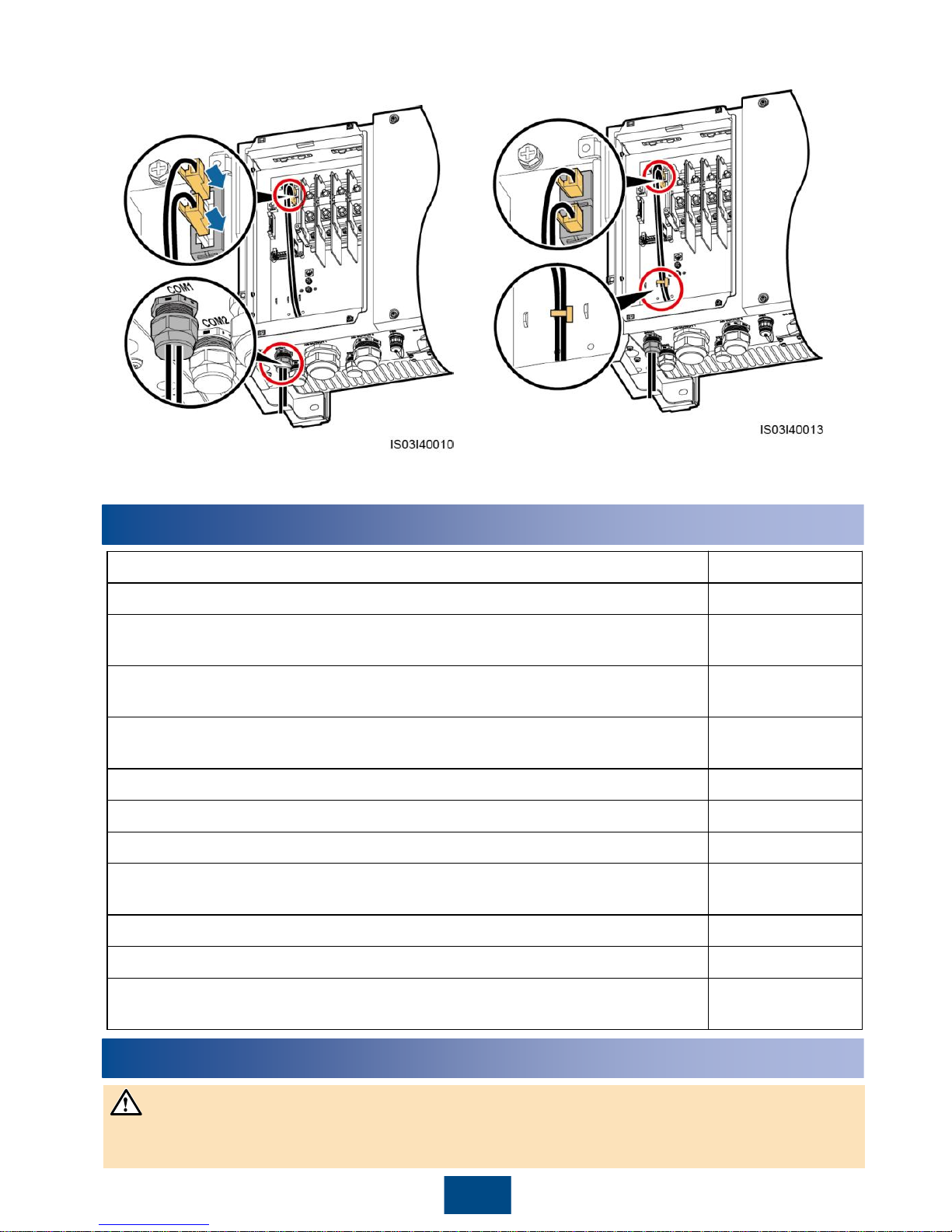

Verifying the Installation

The SUN2000 is installed correctly and securely.

Yes

▢ No ▢ N/A ▢

The DC switches and downstream AC output switch are OFF.

Yes

▢ No ▢ N/A ▢

Ground cables are connected correctly and securely, without open circuits or short circuits.

Yes

▢ No ▢ N/A ▢

4. AC output power cables are connected correctly and securely, without open

circuits or short circuits.

Yes

▢ No ▢ N/A ▢

DC input power cables are connected correctly and securely, without open

circuits or short circuits.

Yes

▢ No ▢ N/A ▢

The communications cables are connected correctly and securely.

Yes

▢ No ▢ N/A ▢

All the connectors in use at the bottom of the enclosure are sealed.

Yes

▢ No ▢ N/A ▢

The AC terminal cover is reinstalled.

Yes

▢ No ▢ N/A ▢

The maintenance compartment door is closed and the door screws are tightened.

Yes

▢ No ▢ N/A ▢

10.

The idle DC input terminals are sealed.

Yes

▢ No ▢ N/A ▢

11.

The idle USB port is plugged with a waterproof plug.

Yes

▢ No ▢ N/A ▢

12.

Idle AC OUTPUT and COM connectors are plugged and the locking caps

are tightened.

Yes

▢ No ▢ N/A ▢

Powering On the System

Before turning on the AC switch between the SUN2000 and the power grid, use a multimeter to check that the AC voltage is within the specified range.

NOTICE

Page 17

1. Turn on the AC switch between the SUN2000 and the power grid.

2. Ensure that the DC switches at the SUN2000 bottom are ON.

3. (Optional) Measure the temperatures at the joints between DC terminals and connectors using a point-test thermometer.

4. Observe the indicators to check the SUN2000 operating status.

To ensure that the DC terminals are in good contact, check the temperatures at the joints between

DC terminals and connectors after the SUN2000 has been running for a period of time. Ensure

that the temperature rise does not exceed 40°C.

NOTE

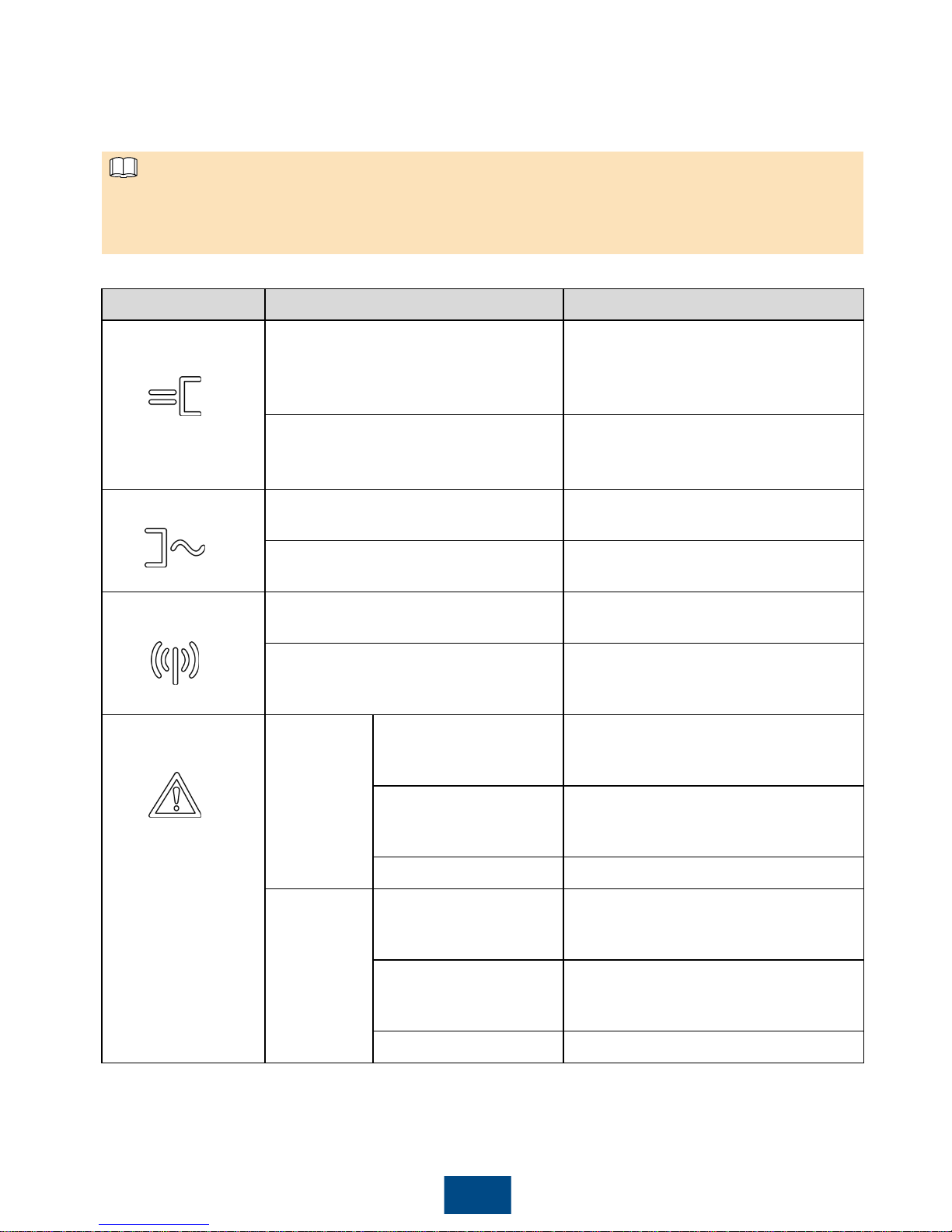

Indicator

Status

Meaning

PV connection indicator

Green on

At least one PV string is properly connected, and the DC input voltage of the corresponding MPPT

circuit is

higher than or equal to 200 V.

Green off

The SUN2000 disconnects from all PV strings, or the DC input voltage of each MPPT

circuit is less than 200 V.

Grid

-tied indicator

Green on

The SUN2000 has connected to the power grid.

Green off

The SUN2000 has not connected to the power grid.

Communications indicator

Blinking green (on for 0.5s and then off for 0.5s)

The SUN2000 receives data over RS485/PLC/FE communication.

Green off

The SUN2000 has not received data

over RS485/PLC/FE communication for 10 seconds.

Alarm/Maintenance indicator

Alarm status

Blinking red at long intervals (on for 1s and then off for 4s).

A warning alarm is generated.

Blinking red at short

intervals (on for 0.5s and then off for 0.5s).

A minor alarm is generated.

Steady red

A major alarm is generated.

Local maintenance

status

Blinking green at long intervals (on for 1s and

then off for 1s)

Local maintenance is in progress.

Blinking green at short intervals (on for 0.125s and then off for 0.125s)

Local maintenance fails.

Steady green

Local maintenance succeeds.

Page 18

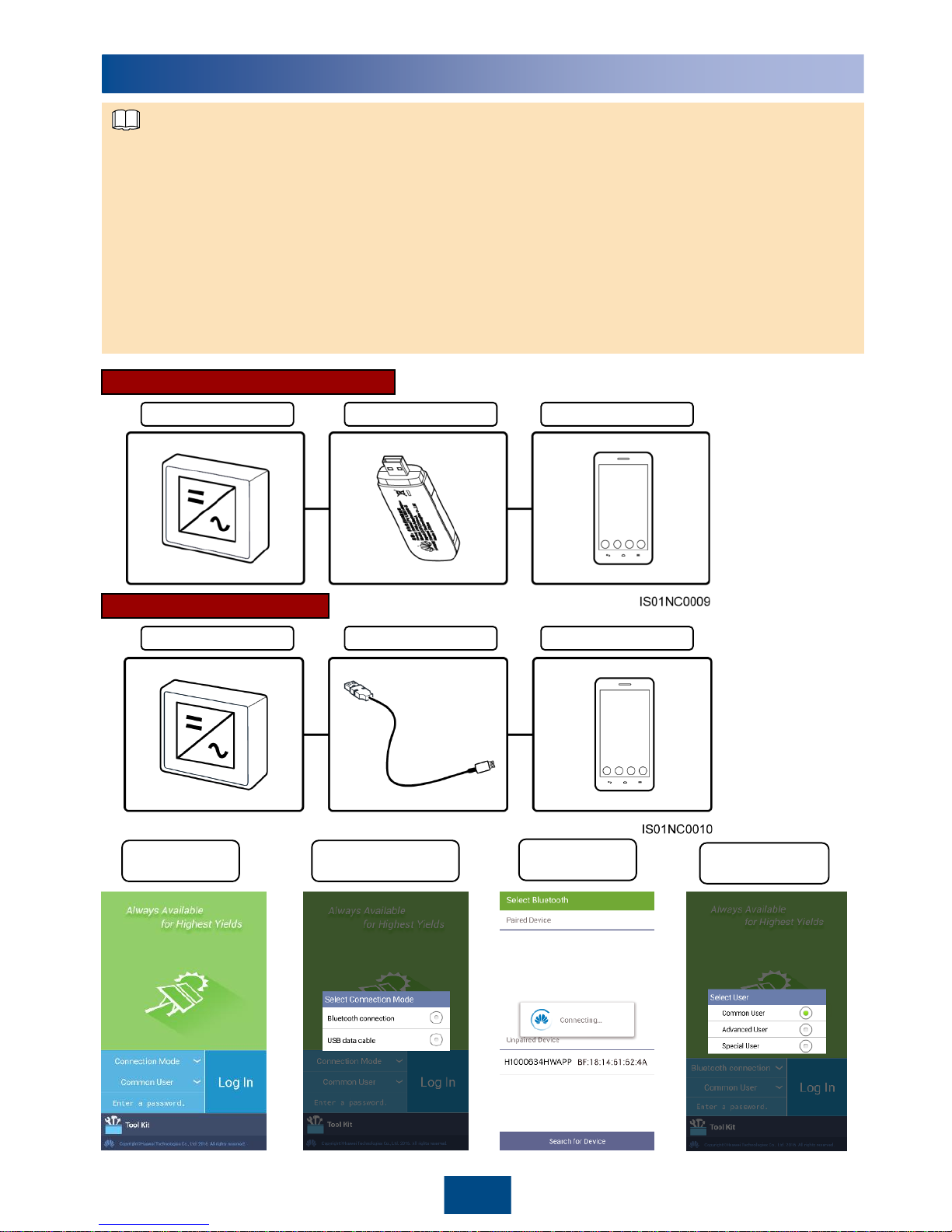

1. The SUN2000 app enables the SUN2000 to communicate with the monitoring system through a USB data cable or Bluetooth for you to query alarms, configure parameters, and perform routine maintenance. The SUN2000 app is a convenient platform for local monitoring and maintenance. The app name is SUN2000.

2. Mobile phone operating system: Android 4.0 or later, iOS 7.0 or later. When the iOS is used, the

app supports only Bluetooth connection.

3. Access the Huawei app store (http://appstore.huawei.com), Google Play (https://play.google.com), or App Store (iOS), search for SUN2000, and download the SUN2000 app installation package.

4. Connect a USB data cable or a Bluetooth module to the USB port of the SUN2000 to implement the communication between the SUN2000 and the app.

SUN2000 App

NOTE

Bluetooth module connection

SUN2000 Bluetooth module Mobile phone

SUN2000 USB data cable Mobile phone

Data cable connection

Select a

connection mode

Connect

Bluetooth

Switch

between users

Page 19

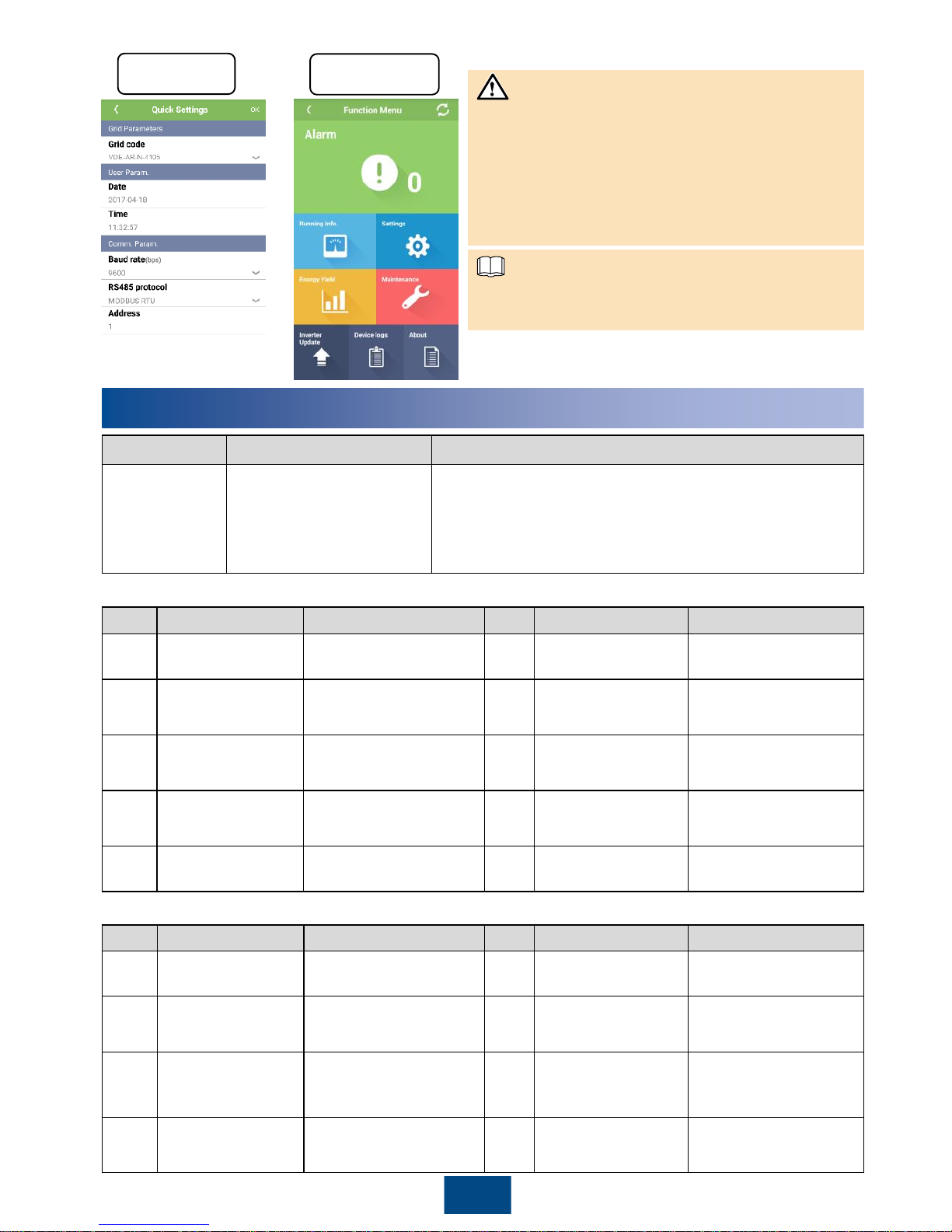

Set the correct grid code based on the application area and scenario of the SUN2000.



The preset password for Common User, Advanced User, and Special User is 00000a.



Use the preset password upon initial login. To

ensure account security, change the

password immediately after login.



The screenshots in this document correspond to app 2.1.20.101 (Android).

NOTICE

NOTE

Function menu

Quick setting

Common Faults and Troubleshooting

Symptom

Possible Cause

Suggestion

String Reverse

The PV string cables are connected reversely during the SUN2000 installation.

Wait until the solar irradiance declines at night and the PV string current reduces to below 0.5 A. Then, turn off the two DC switches, remove the positive and negative connectors, and correct the polarity of the DC input

power cable.

Appendix 1: Power Grid Codes (SUN2000-33KTL-A)

No. Power Grid Code Description No. Power Grid Code Description

1 VDE-AR-N-4105

Germany low-voltage power grid

2 UTE C 15-712-1(A)

France mainland lowvoltage power grid

3 UTE C 15-712-1(B)

France islands 230 V 50 Hz

4 UTE C 15-712-1(C)

France islands 230 V 60 Hz

5 CEI0-21

Italy low-voltage power grid

6 RD1699/661

Spain low-voltage power grid

PO12.3

Spain low-voltage power grid

8 CEI0-16

Italy low-voltage power grid

EN50438-TR

Turkey low-voltage power grid

N/A N/A N/A

Appendix 2: Power Grid Codes (SUN2000-36KTL)

No. Power Grid Code Description No. Power Grid Code Description

1 VDE-AR-N-4105

Germany low-voltage power grid

2 NB/T 32004

China low-voltage power grid

3 UTE C 15-712-1(A)

France mainland lowvoltage power grid

4 UTE C 15-712-1(B)

France islands 230 V 50 Hz

5 UTE C 15-712-1(C)

France islands 230 V 60 Hz

6 BDEW-MV

Germany mediumvoltage power grid (BDEW-MV)

7 G59-England

England 230 V power

grid (I > 16 A)

8 G59-Scotland

Scotland 240 V power

grid (I > 16 A)

Page 20

No. Power Grid Code Description No. Power Grid Code Description

9 CEI0-21

Italy low-voltage power

grid

10 EN50438-CZ

Czech Republic lowvoltage power grid

11 RD1699/661

Spain low-voltage power grid

RD1699/661MV480

Spain mediumvoltage power grid

13 C10/11

Belgium low-voltage power grid

14 AS4777

Australia low-voltage

power grid

15 IEC61727

IEC61727 low-voltage power grid (50 Hz)

16 CEI0-16

Italy low-voltage power grid

17 TAI-MEA

Thailand low-voltage power grid (MEA)

18 TAI-PEA

Thailand low-voltage power grid (PEA)

19 BDEW-MV480

Germany mediumvoltage power grid (BDEW-MV480)

G59-England-

MV480

England 480 V

medium-voltage

power grid (I > 16 A)

21 IEC61727-MV480

IEC61727 mediumvoltage power grid (50 Hz)

UTE C 15-712-1MV480

France mediumvoltage power grid

23 TAI-PEA-MV480

Thailand medium-

voltage power grid (PEA)

24 TAI-MEA-MV480

Thailand medium-

voltage power grid (MEA)

EN50438-DKMV480

Denmark mediumvoltage power grid

EN50438-TRMV480

Turkey mediumvoltage power grid

27 EN50438-TR

Turkey low-voltage power grid

28 C11/C10-MV480

Belgium mediumvoltage power grid

29 Philippines

Philippines low-voltage power grid

PhilippinesMV480

Philippines mediumvoltage power grid

31 EN50438-NL Netherlands power grid

NRS-097-2-1

South Africa lowvoltage power grid

NRS-097-2-1MV480

South Africa mediumvoltage power grid

34 KOREA

South Korea lowvoltage power grid

35 IEC61727-60 Hz

IEC61727 low-voltage

power grid (60 Hz)

IEC61727-60 Hz-

MV480

IEC61727 medium-

voltage power grid (60 Hz)

37 ANRE

Romania low-voltage power grid

38 ANRE-MV480

Romania mediumvoltage power grid

39 PO12.3-MV480

Spain medium-voltage

power grid

EN50438_IE-

MV480

Ireland medium-

voltage power grid (EN50438_IE)

Page 21

No. Power Grid Code Description No. Power Grid Code Description

EN50438_IE

Ireland low-voltage

power grid (EN50438_IE)

42 INDIA

India low-voltage power grid

CEI0-16-MV480

Italy medium-voltage power grid (CEI0-16)

PO12.3

Spain low

-voltage

power grid

CEI0

-21-MV480

Italy medium

-voltage

power grid (CEI0

-21)

Egypt ETEC

Egypt low

-voltage

power grid

Egypt ETEC

MV480

Egypt medium-voltage power grid

CLC/TS50549_IE

Ireland low

-voltage

power grid (CLC/TS50549_IE)

CLC/TS50549_IEMV480

Ireland medium

voltage power grid (CLC/TS50549_IE)

Jordan

Transmission

Jordan low

-voltage

power grid

Jordan

Transmission

MV480

Jordan medium

voltage power grid

NAMIBIA

Namibia power grid

ABNT NBR 16149

Brazil low

-voltage

power grid

54 SA_RPPs

South Africa lowvoltage power grid

55 SA_RPPs-MV480

South Africa mediumvoltage power grid

56 ZAMBIA

Zambia low-voltage power grid

57 Chile

Chile low-voltage

power grid

58 Mexico-MV480

Mexico medium-

voltage power grid

59 Malaysian

Malaysia low-voltage power grid

60 KENYA_ETHIOPIA

Kenya low-voltage and Ethiopia lowvoltage power grid

61 NIGERIA

Nigeria low-voltage power grid

62 NIGERIA-MV480

Nigeria mediumvoltage power grid

63 DUBAI

Dubai low-voltage

power grid

64 DUBAI-MV480

Dubai medium-

voltage power grid

65 Northern Ireland

Northern Ireland lowvoltage power grid

Northern IrelandMV480

Northern Ireland medium-voltage power grid

67 Cameroon

Cameroon lowvoltage power grid

68 Cameroon-MV480

Cameroon mediumvoltage power grid

69 Jordan-Distribution

Jordan power distribution network low-voltage power grid

70 LEBANON

Lebanon low-voltage power grid

JordanTransmission-HV

Jordan high-voltage power grid

72 TUNISIA Tunisia power grid

Page 22

No. Power Grid Code Description No. Power Grid Code Description

73 AUSTRALIA-NER

Australia NER standard power grid

74 SAUDI

Saudi Arabia power grid

75 Israel Israel power grid 76 Chile-PMGD

Chile PMGD project power grid

VDE-ARN4120_HV

VDE4120 standard power grid

VDE-ARN4120_HV480

VDE4120 standard power grid (480 V)

79 Vietnam Vietnam power grid 80 Custom (50 Hz) Reserved

81 Custom (60 Hz) Reserved 82

Custom-MV480 (50 Hz)

Reserved

Custom-MV480 (60 Hz)

Reserved N/A N/A N/A

No. Power Grid Code Description No. Power Grid Code Description

RD1699/661MV480

Spain medium-voltage power grid

2 BDEW-MV480

Germany mediumvoltage power grid (BDEW-MV480)

G59-EnglandMV480

England mediumvoltage (I > 16 A)

4 IEC61727-MV480

IEC61727 medium-

voltage power grid

(50 Hz)

UTE C 15-712-1MV480

France island mediumvoltage power grid

6 TAI-PEA-MV480

Thailand mediumvoltage power grid (PEA)

7 TAI-MEA-MV480

Thailand mediumvoltage power grid (MEA)

EN50438-DKMV480

Denmark mediumvoltage power grid

EN50438-TRMV480

Turkey mediumvoltage power grid

10 C11/C10-MV480

Belgium mediumvoltage power grid

PhilippinesMV480

Philippines mediumvoltage power grid

12 AS4777-MV480

Australia mediumvoltage power grid

13 ANRE-MV480

Romania mediumvoltage power grid

NRS-097-2-1MV480

South Africa mediumvoltage power grid

IEC61727-60 HzMV480

IEC61727 medium-

voltage power grid (60 Hz)

16 PO12.3-MV480

Spain mediumvoltage power grid

EN50438_IEMV480

Ireland mediumvoltage power grid (EN50438_IE)

KOREA-MV480

South Korea medium-voltage power grid

CEI0-16-MV480

Italy medium-voltage power grid (CEI0-16)

20 CEI0-21-MV480

Italy medium-voltage power grid (CEI0-21)

Appendix 3: Power Grid Codes (SUN2000-42KTL)

Page 23

No. Power Grid Code Description No. Power Grid Code Description

Egypt ETECMV480

Egypt medium-voltage power grid

CLC/TS50549_IEMV480

Ireland mediumvoltage power grid (CLC/TS50549_IE)

JordanTransmissionMV480

Jordan mediumvoltage power grid

24 SA_RPPs-MV480

South Africa mediumvoltage power grid

25 ZAMBIA-MV480

Zambia mediumvoltage power grid

26 Chile-MV480

Chile mediumvoltage power grid

27 Mexico-MV480

Mexico mediumvoltage power grid

28 Malaysian-MV480

Malaysia mediumvoltage power grid

KENYA_ETHIOPI

A_MV480

Kenya medium-

voltage and Ethiopia

medium-voltage power grid

30 NIGERIA-MV480

Nigeria medium-

voltage power grid

31 DUBAI-MV480

Dubai medium-voltage power grid

Northern IrelandMV480

Northern Ireland medium-voltage power grid

CameroonMV480

Cameroon mediumvoltage power grid

JordanDistribution-MV480

Jordan power

distribution network medium-voltage power grid

35 NAMIBIA_MV480 Namibia power grid 36 LEBANON-MV480

Lebanon mediumvoltage power grid

JordanTransmissionHV480

Jordan high-voltage power grid

38 TUNISIA-MV480

Tunisia mediumvoltage power grid

AUSTRALIANER-MV480

Australia NER standard power grid

40 SAUDI-MV480

Saudi Arabia power grid

41 Ghana-MV480

Ghana medium-

voltage power grid

42 Israel-MV480 Israel power grid

Chile-PMGDMV480

Chile PMGD project power grid

VDE-ARN4120_HV480

VDE4120 standard power grid (480 V)

45 Vietnam-MV480 Vietnam power grid 46

Custom-MV480 (50 Hz)

Reserved

Custom-MV480 (60 Hz)

Reserved N/A N/A N/A

Grid codes are subject to change. The listed codes are for your reference only.

NOTE

Page 24

Huawei Technologies Co., Ltd.

Huawei Industrial Base, Bantian, Longgang

Shenzhen 518129 People's Republic of China

www.huawei.com
