Page 1
HUAWEI TECHNOLOGIES CO., LTD.
SmartLogger1000
Quick Guide
Issue: 10
Part Number: 31505707
Date: 2017-06-13
Page 2
Copyright © Huawei Technologies Co., Ltd.
2017. All rights reserved.
1
Product Overview
Appearance
1.1
1. The information in this document is subject to change without notice. Every effort has been made
in the preparation of this document to ensure accuracy of the contents. But all statements,
information, and recommendations in this document do not constitute a warranty of any kind,
express or implied.
2. Before you install the device, closely read the SmartLogger1000 User Manual to get familiar with
product information and precautions. In the following text, SmartLogger1000 is abbreviated as
SmartLogger.
3. Install and use the device according to this document and the user manual. Otherwise, the device
may be damaged. Use insulated tools when installing the device.
4. This document uses the typical scenario where the SmartLogger is applied as an example to
describe the operations about installation and cable connection.

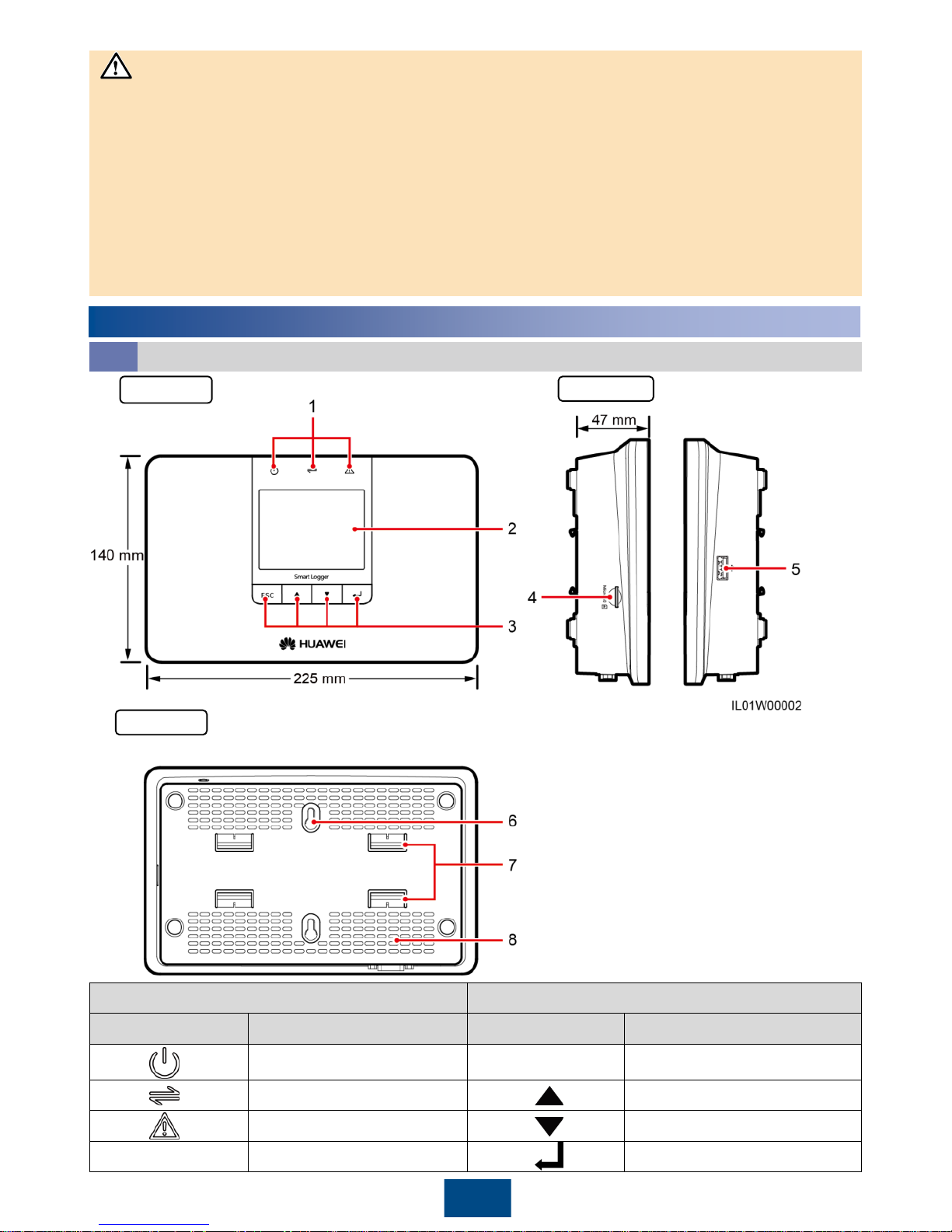

Side view
Front view
Rear view
(1) LED indicators (3) Buttons
Symbol Name Symbol Name
Power indicator ESC Escape
Run indicator Up
Alarm indicator Down
N/A N/A OK
(1) Light emitting diode (LED) indicators
(2) Liquid crystal display (LCD)
(3) Buttons
(4) Secure digital memory card (SD card)
slot
(5) Universal serial bus (USB) port
(6) Wall mounting hole
(7) Guide rail clamps
(8) Air exhaust vents
NOTICE
1
Page 3
2
Port (Silk Screen)
Function Description
POWER Power supply 12 V DC

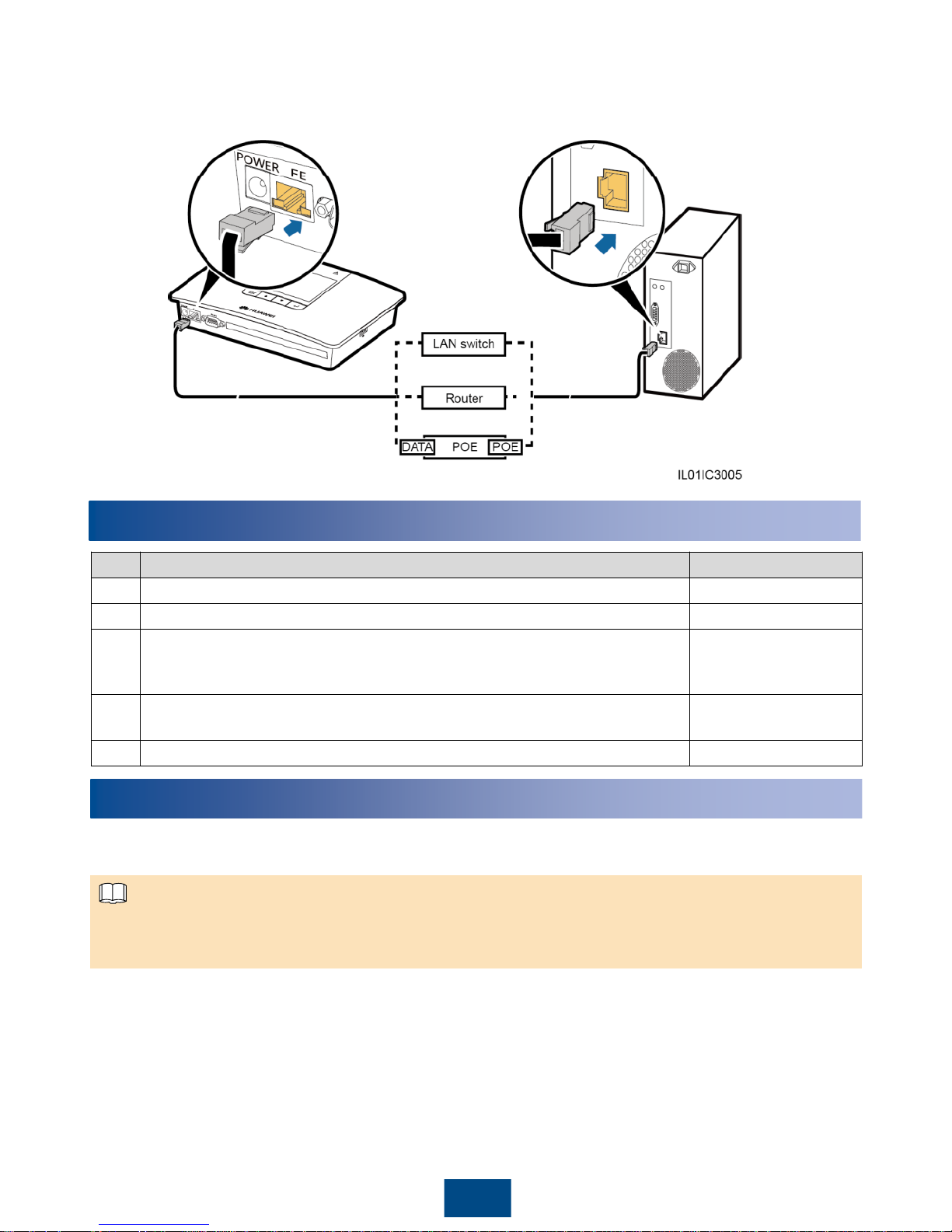

FE Fast Ethernet
Connects to a local area network (LAN) switch, router,
power over Ethernet (PoE) or PC.
RS232 RS232 Connects to an external RS232 device.
AI Analog input 4–20 mA and 0–20 mA current input (active), reserved
DI Digital input Connects to a dry contact input.
DO Digital output Relay output
S0.In
Connects to a pulse
output power meter.
Reserved
CAN CAN Reserved
COM1–COM3 RS485
Supports three RS485 ports that can connect to
devices such as the inverter and environmental
monitoring instrument (EMI).

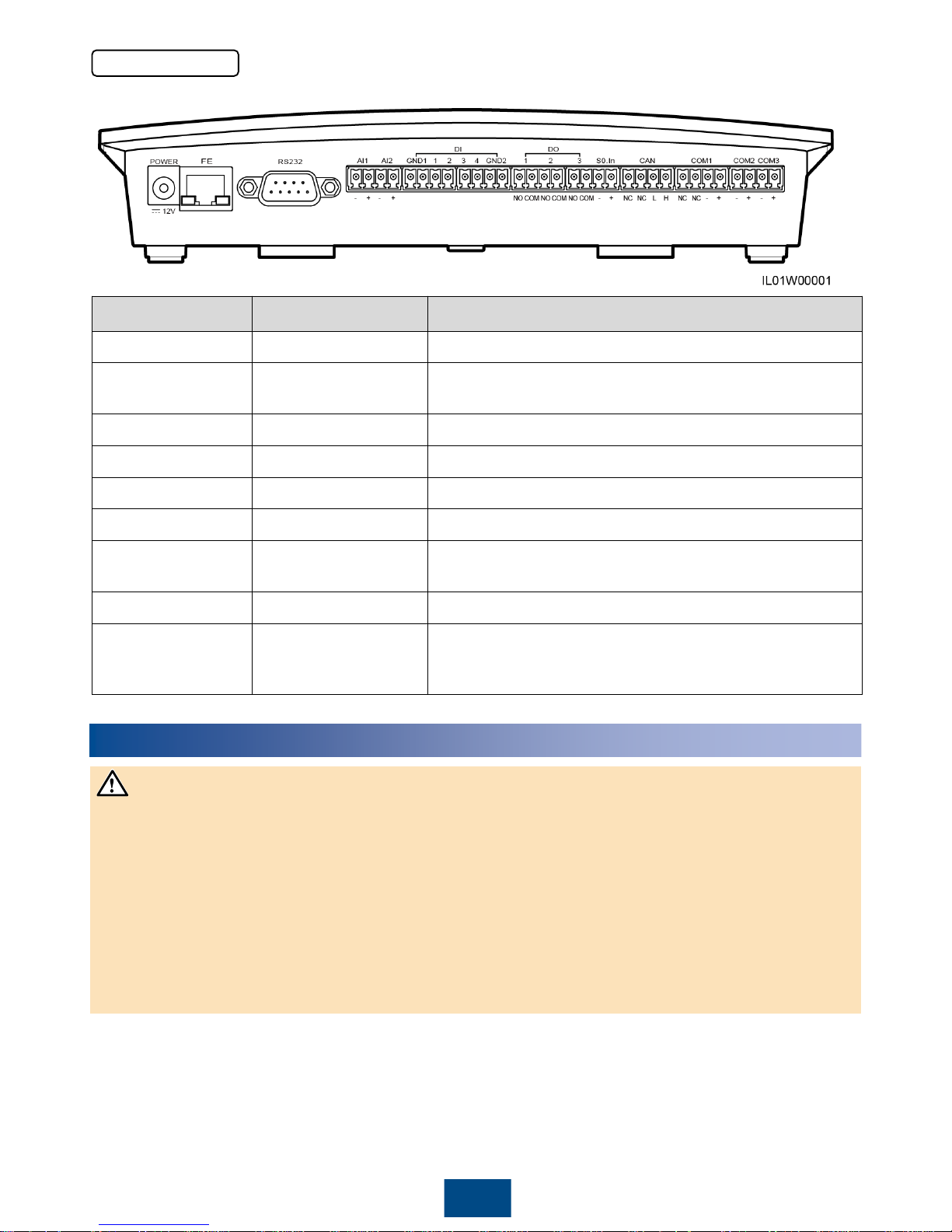

Bottom view
1. If the SmartLogger communicates with an inverter over an AC power cable, the power line
communication (PLC) central controller (CCO) module needs to be connected to the SmartLogger.
In addition, a miniature circuit breaker (MCB) and a knife switch need to be installed between the
PLC CCO module and the busbar to prevent device damage in the case of short circuits.
2. If the SmartLogger communicates with an inverter over an AC power cable, the cable from the
knife switch to the MCB and the cable from the busbar to the knife switch both need to be
prepared by yourself. Recommended cable: three-core armor cable with the operating voltage to
the ground greater than or equal to 600 V and the cross-sectional area of a single core wire being
4 mm2.
3. The network cable delivered with the SmartLogger is 2.2 meters long. Determine the installation
position of each component based on the cable length.
2
Typical Cable Connection Scenarios
NOTICE
Page 4
3

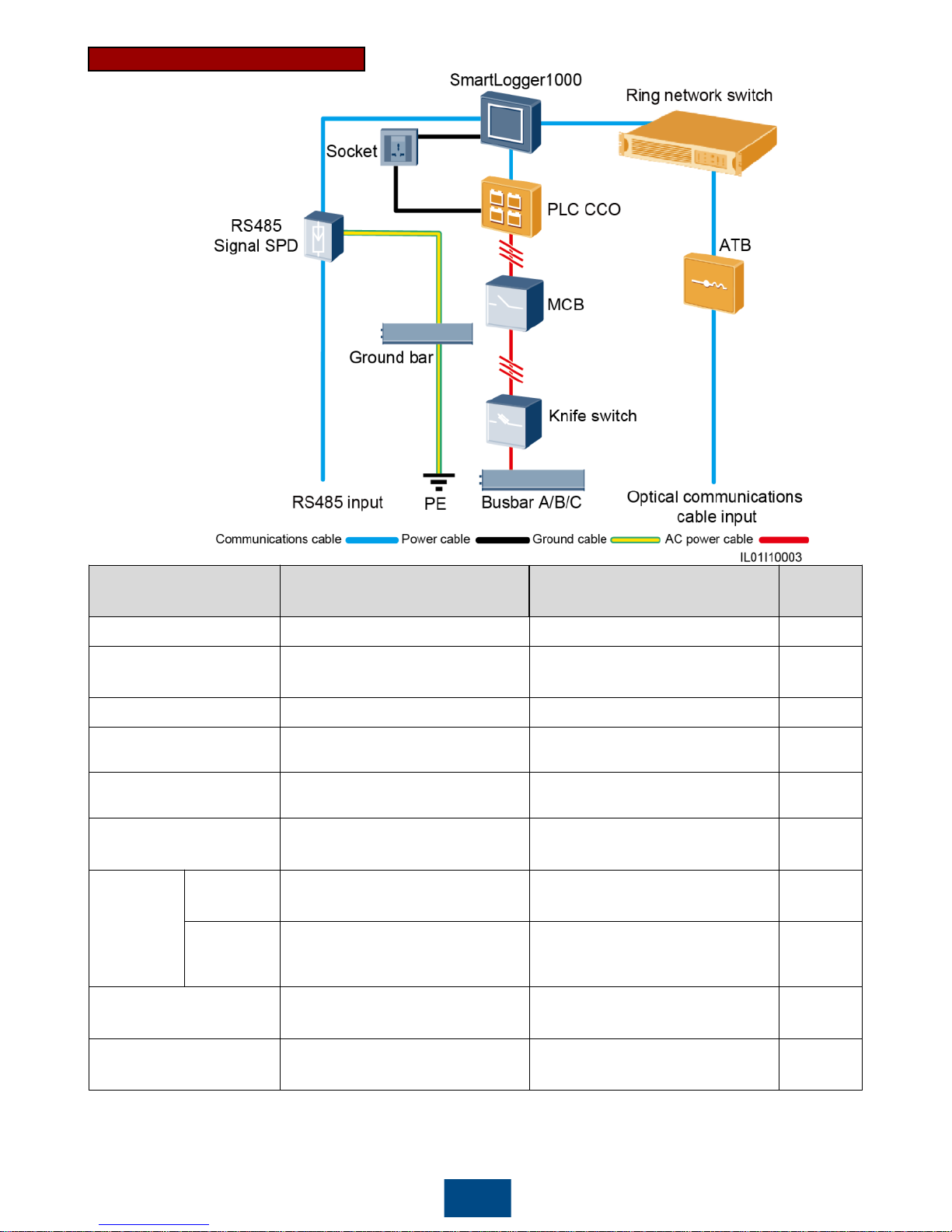

RS485/PLC+Optical Fiber
Component
Recommended Model or
Specifications
Component Source
Quantity
SmartLogger
SmartLogger1000
Can be purchased from Huawei
1 PCS
RS485 signal surge
protective device (SPD)
PowerSA
-5KA-15V
Can be purchased from Huawei
2 PCS
PLC CCO
PLC CCO01A
Can be purchased from Huawei
1 PCS
Ring switch
AR531 or a ring
-network LAN
switch of a local model
Prepared by yourself
1 PCS
Optical module
FTLF1323P1BTR
-HW or an
optical module of a local model
Prepared by yourself
2 PCS
Access terminal box
(ATB)
CT
-GZF2PJ-8, CT-GPH-A-8
, or
an ATB of a local model
Prepared by yourself
1 PCS
Knife
switch
Fuse
Rated voltage ≥ 500 V; rated
current: 6 A
Prepared by yourself
3 PCS
Knife
switch box
Rated voltage ≥ 500 V; rated
current ≥ 6 A; number of poles:
three
Prepared by yourself
1 PCS
MCB
Rated voltage ≥ 500 V; rated
current ≥ 6 A
Prepared by yourself
1 PCS
Socket
Matching with the power
adapter
Prepared by yourself
1 PCS
Page 5
4
Component
Recommended Model or
Specifications
Component Source
Quantity
SmartLogger
SmartLogger1000
Can be purchased from Huawei
1 PCS
RS485 signal
SPD
PowerSA
-5KA-15V
Can be purchased from Huawei
2 PCS
PLC CCO
PLC CCO01A
Can be purchased from Huawei
1 PCS
PoE module
POE35
-54A or POE85-56A
Can be purchased from Huawei
1 PCS
PoE SPD
POE
-2
Can be purchased from Huawei
1 PCS
CPE
EG860V2
-C71
Can be purchased from Huawei
1 PCS
Knife
switch
Fuse
Rated voltage ≥ 500 V; rated current:
6 A
Prepared by yourself
3 PCS
Knife
switch box
Rated voltage ≥ 500 V; rated current ≥
6 A; number of poles: three
Prepared by yourself
1 PCS
MCB
Rated voltage ≥ 500 V; rated current ≥
6 A
Prepared by yourself
1 PCS
Socket
Matching with the power adapter
Prepared by yourself
1 PCS

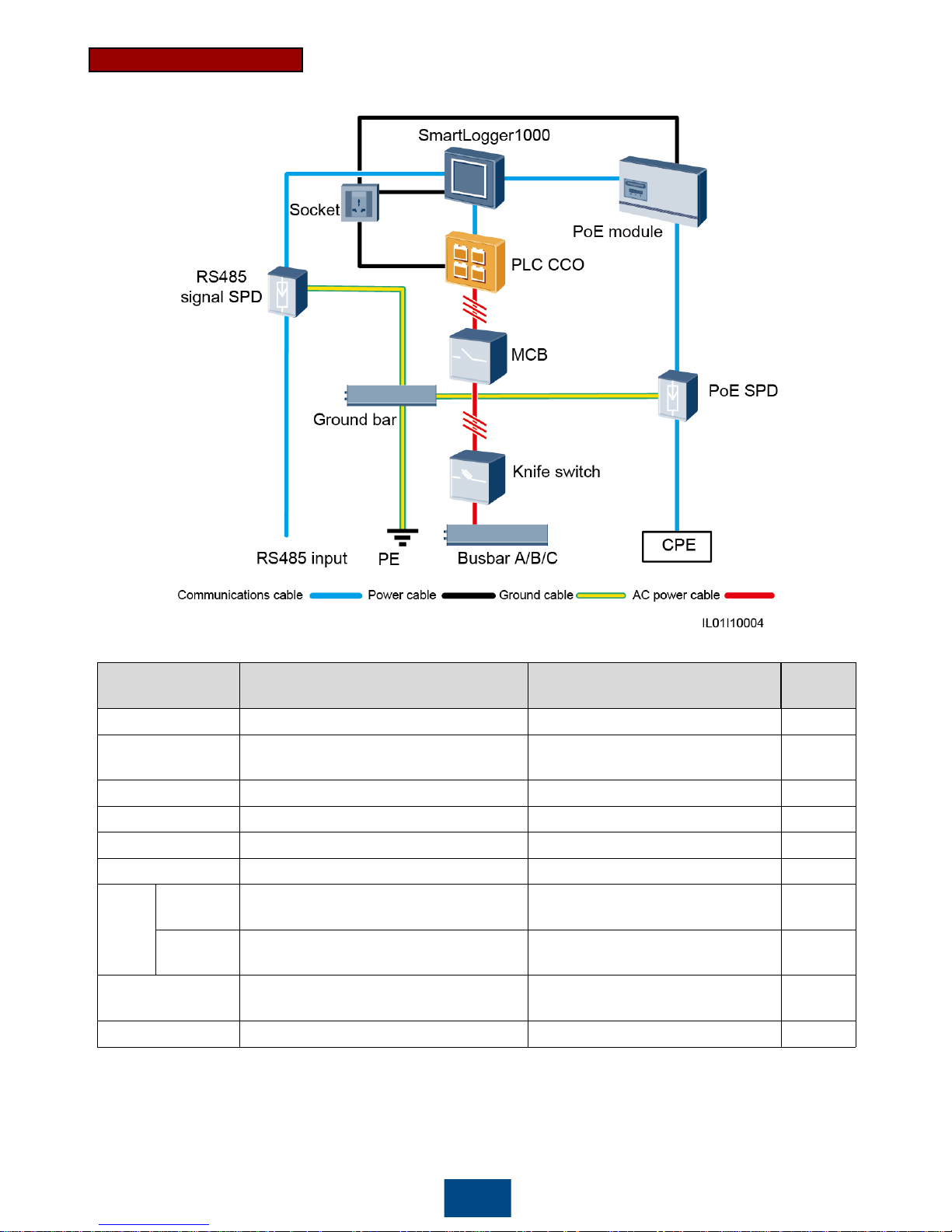

RS485/PLC+LTE
Page 6
5

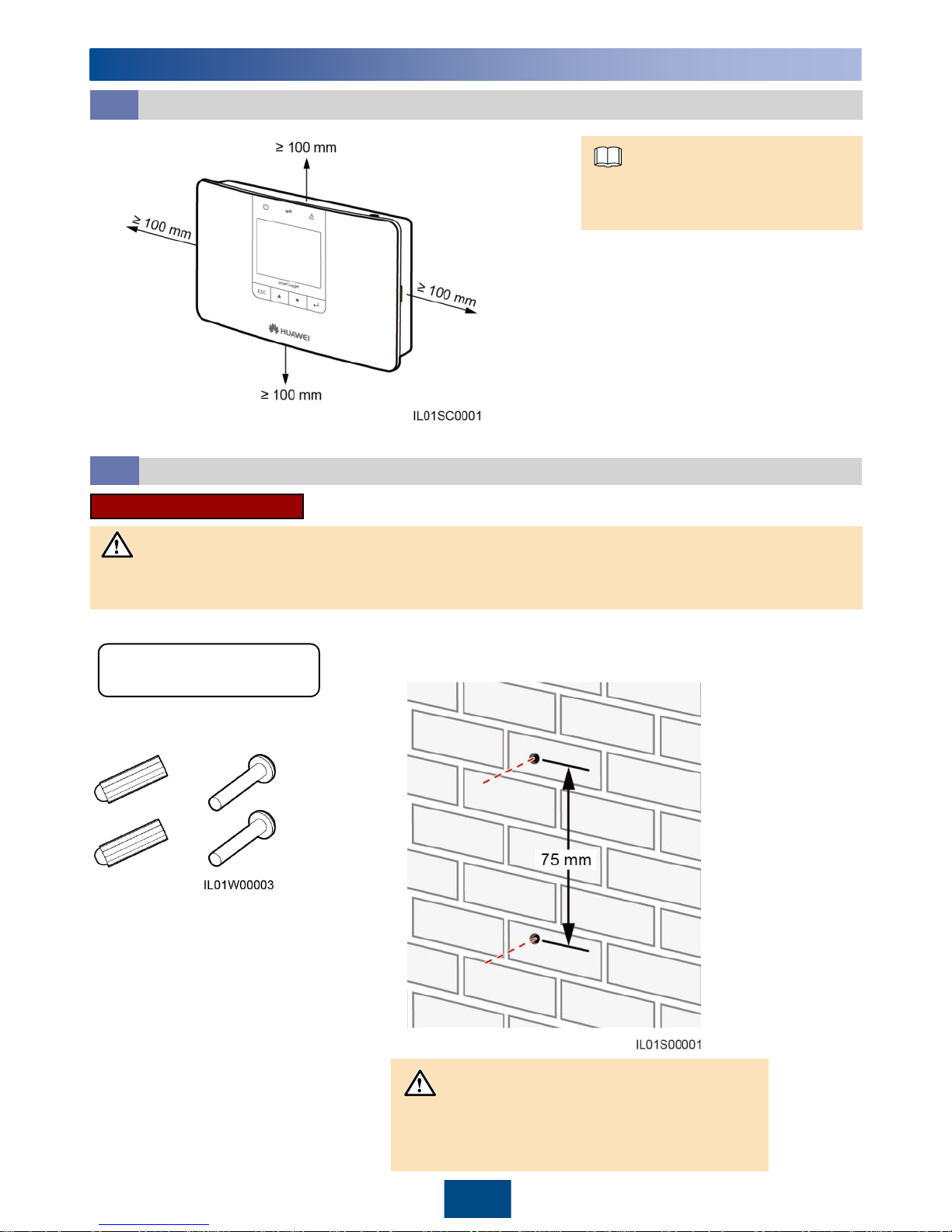

Installation Space
3.1
3
Installing the SmartLogger
Installation Mode
3.2
On a Wall
Install the SmartLogger on a wall that is flat and has the bearing capacity to securely hold the
SmartLogger which weighs 500 g.
Chassis dimensions (W x H x D):
225 mm x 140 mm x 50 mm
1. Determine mounting holes based on the holes positions in
the rear of the SmartLogger, and mark the mounting holes
using a marker.
If you step on a ladder when drilling holes and
installing the SmartLogger at a high position,
exercise caution to avoid falling down.
Fittings used for wall-
mounting the SmartLogger
Bolt
Expansion
sleeve
NOTE
NOTICE
NOTICE
Page 7
6

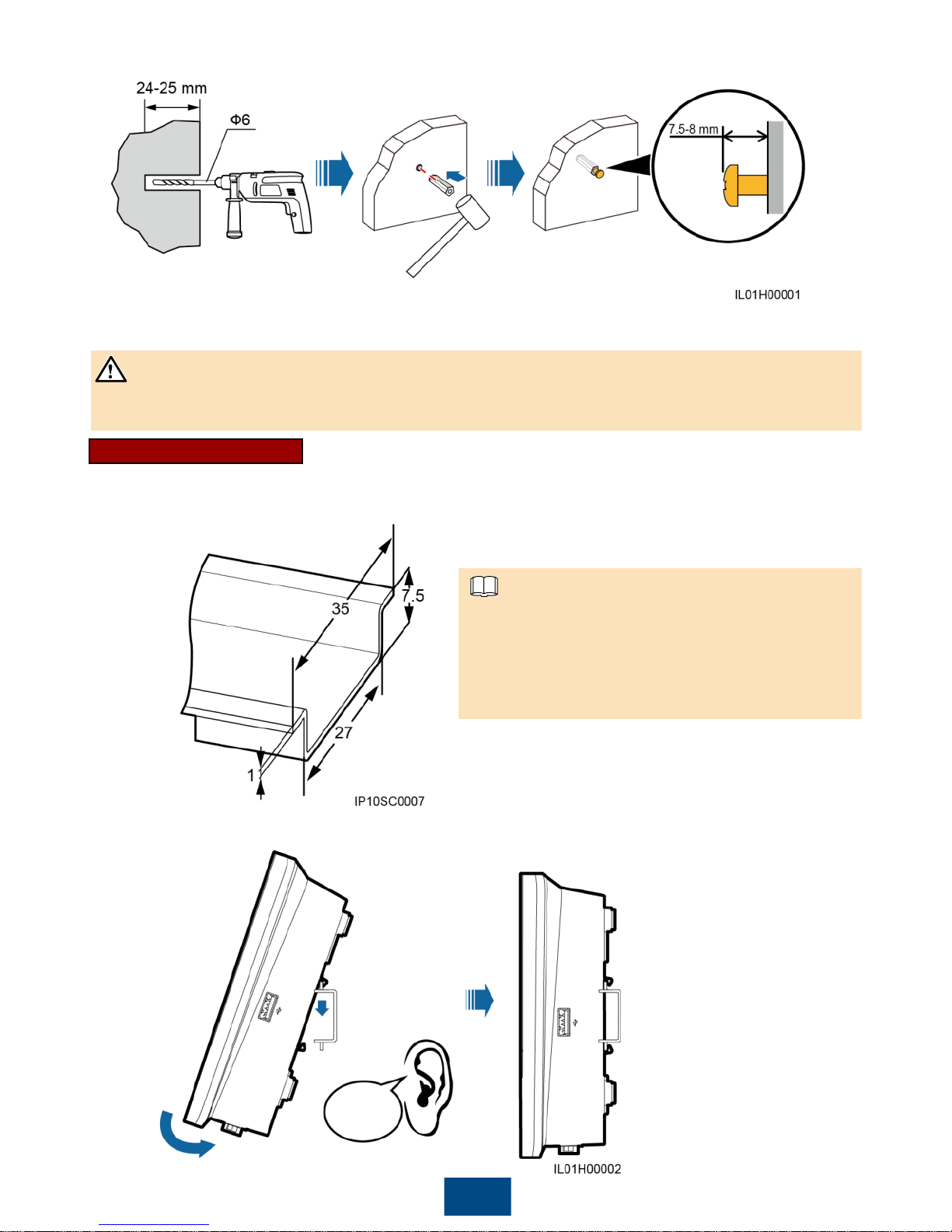

2. Drill holes using a hammer drill and install expansion sleeves and bolts.
3. Mount the SmartLogger to the bolts that have been secured to the wall with the mounting
holes in the rear of the SmartLogger.
When wall-mounting the SmartLogger, ensure that the cable connection area faces downwards for
ease of cable connection and maintenance.
Along a Guide Rail
Huawei does not provide the SmartLogger guide rail. If you choose this installation mode, prepare
a 35 mm standard guide rail by yourself.
1. Secure the guide rail before mounting the
SmartLogger.
2. Verify that the length of the guide rail is
sufficient for securing the SmartLogger. The
recommended length is 250 mm or greater.
Unit: mm
1. Snap the guide rail clamp in the rear of the SmartLogger into the guide rail.
Click
NOTE
NOTICE
Page 8
7
4

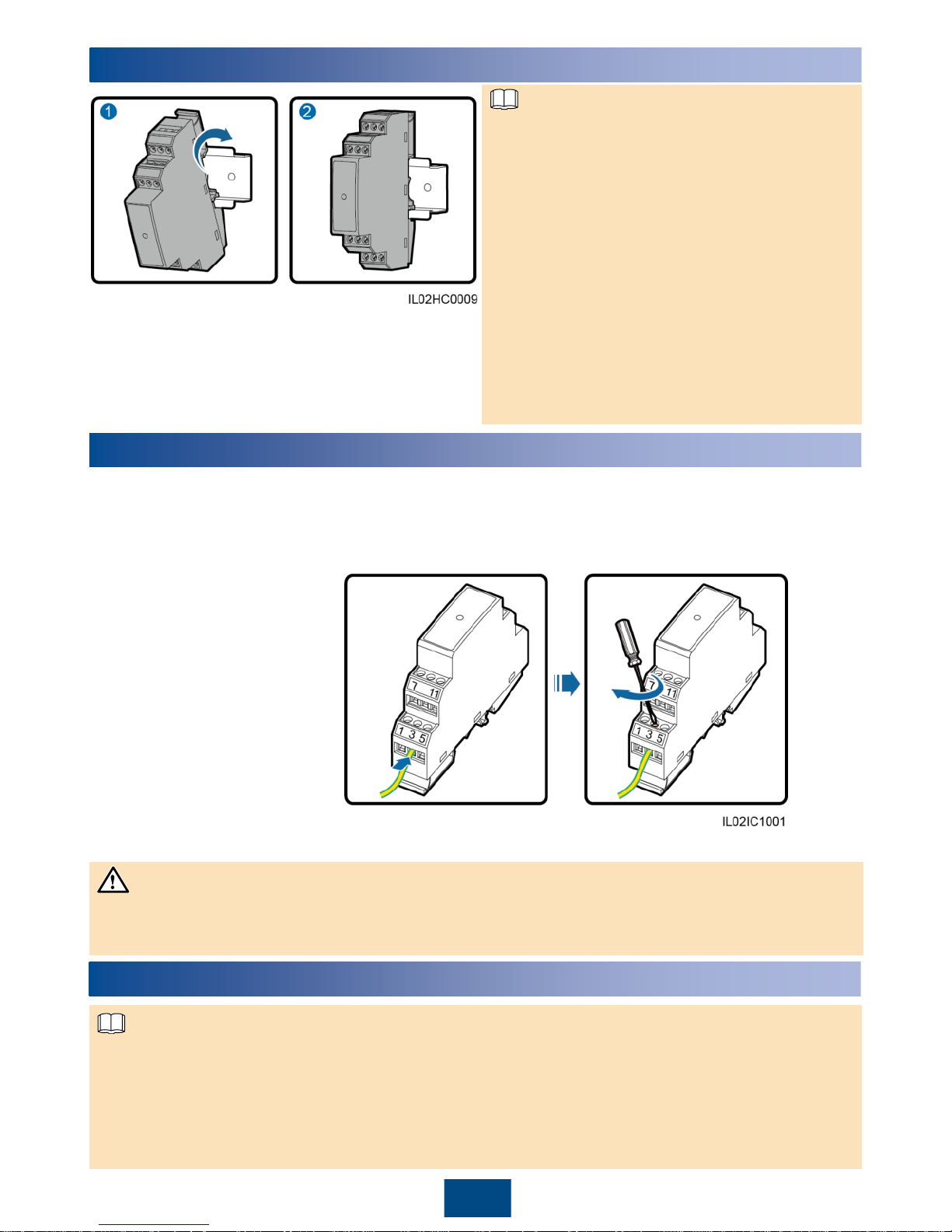

Installing the RS485 Signal SPD
1. The SmartLogger provides three COM ports.
To connect a COM port on the SmartLogger
to a COM port on an outdoor device, you
are recommended to connect an RS485
signal SPD to strengthen the surge
protection capability.
2. Each RS485 signal SPD can connect to two
COM ports. Each SmartLogger can be
configured with a maximum of two RS485
signal SPDs.
3. If the SmartLogger is installed on a guide
rail, the RS485 signal SPD can share the
guide rail with the SmartLogger. In this case,
the recommended guide rail length is 400
mm or greater.
4. Secure the guide rail before mounting the
RS485 signal SPD.
5
Installing the RS485 Signal SPD Ground Cable
An outdoor copper-core cable with a cross-sectional area of 4 mm2or 12 AWG is recommended.
2. Strip a part of the insulation layer from the wire core, and insert the stripped part into port 3
of the RS485 signal SPD.
• Connect the other end of the ground cable to the ground bar.
• To enhance the corrosion resistance of the ground terminal, apply silica gel or paint on it after
connecting the PGND cable.
1. Prepare a ground cable with an appropriate length, and strip 8 mm of the insulation layer
from one end.
3. Tighten the screw on port 3 using a flat-head screwdriver to secure the core wire.
6

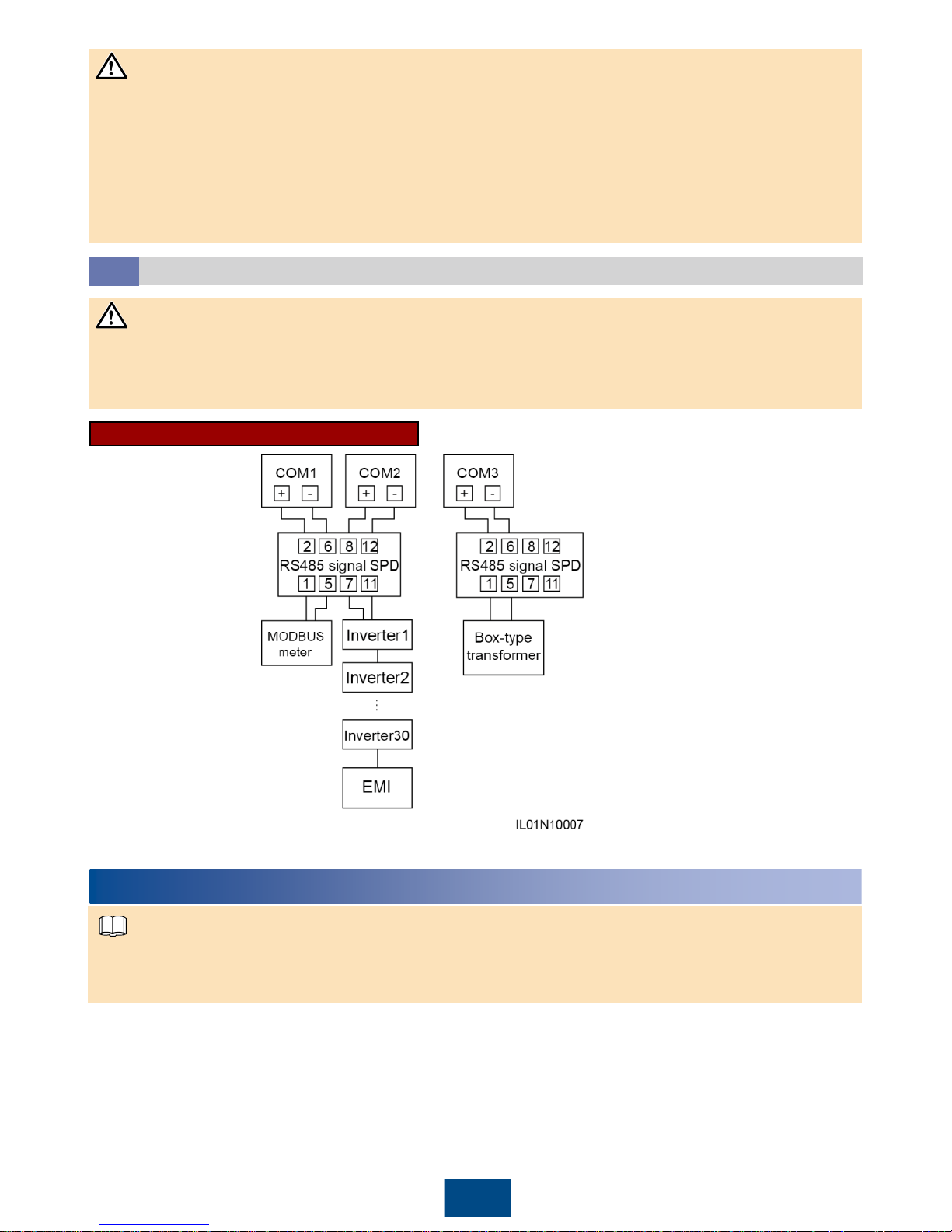

Connecting Cables to COM Ports
1. The SmartLogger can connect to devices such as the inverter and EMI through its COM ports.
2. The SmartLogger provides three COM ports. To connect a COM port on the SmartLogger to a
COM port on an outdoor device, you are recommended to connect an RS485 signal SPD to
strengthen the surge protection capability.
3. Each RS485 signal SPD can connect to two COM ports. Each SmartLogger can be configured
with a maximum of two RS485 signal SPDs.
NOTE
NOTICE
NOTE
Page 9
8

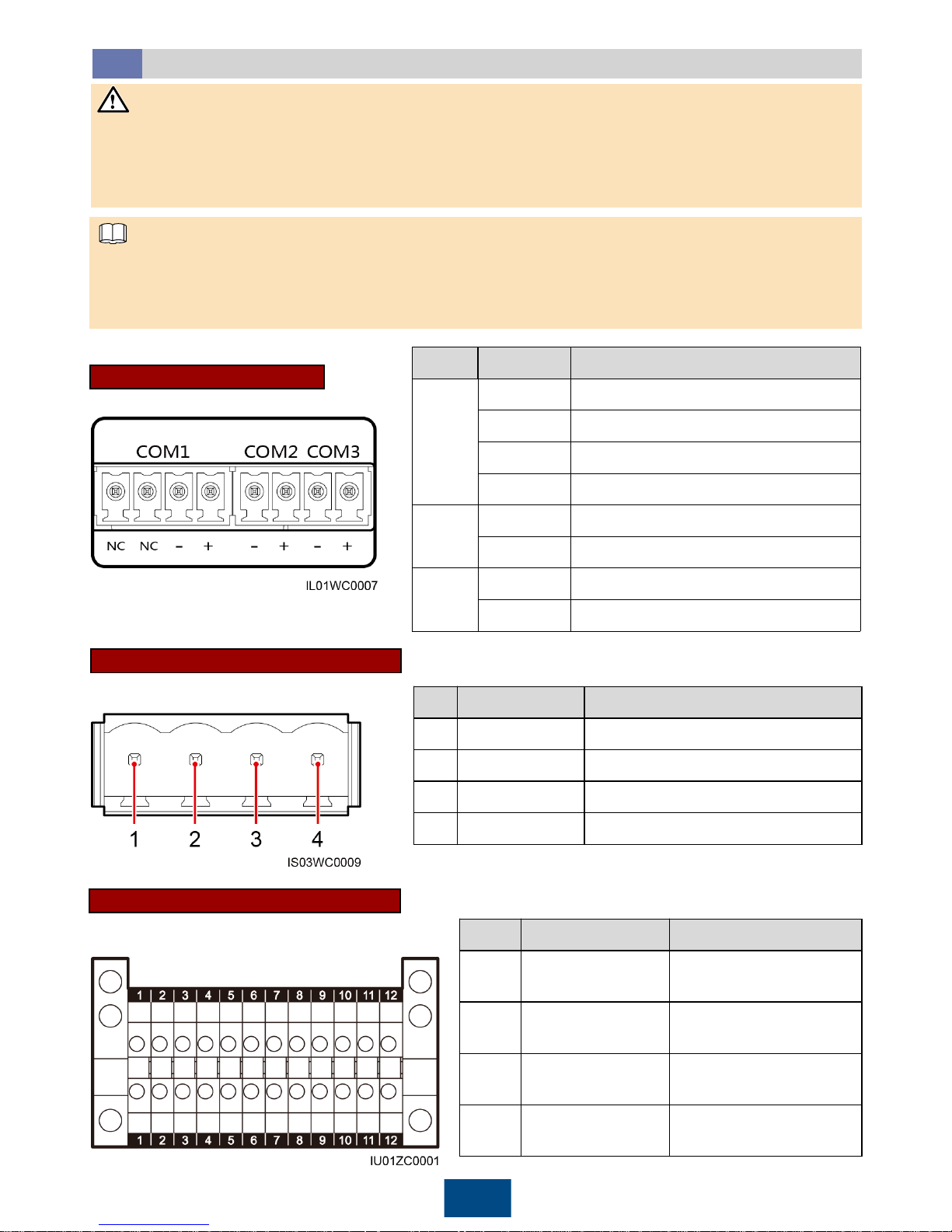

Port Definitions
6.1
COM Port (SmartLogger)
For the definitions of the communications ports on the devices such as the EMI and power meter,
see the documents delivered with the devices. When connecting cables, ensure that RS485+
connects to the COM+ port on the SmartLogger and that RS485– connects to the COM– port on
the SmartLogger.
Port Identifier Function
COM1
NC
Reserved
NC
Reserved
–
RS485B, RS485 differential signal
–
+
RS485A, RS485 differential signal+
COM2
–
RS485B, RS485 differential signal
–
+
RS485A, RS485 differential signal+
COM3
–
RS485B, RS485 differential signal
–
+
RS485A, RS485 differential signal+
No.
Port Definition
Function
1
RS485A IN
RS485A, RS485 differential signal+
2
RS485A OUT
RS485A, RS485 differential signal+
3
RS485B IN
RS485B, RS485 differential signal
–
4
RS485B OUT
RS485B, RS485 differential signal
–
No. Port Definition Function
5 RS485A IN
RS485A, RS485
differential signal+
6 RS485A OUT
RS485A, RS485
differential signal+
7 RS485B IN
RS485B, RS485
differential signal
–
8 RS485B OUT
RS485B, RS485
differential signal
–
NOTICE
For ease of operation, this document describes only the ports that need to be wired.
Terminal block of types 1 and 2 are located in different models of SUN2000s.
The RJ45 network port is located in all models of SUN2000s.
NOTE
Terminal Block Type 1 (SUN2000)
Terminal Block Type 2 (SUN2000)
Page 10
9
1. Protection ports connect to COM ports on the SmartLogger. Port 4 is not connected.
2. Surge ports connect to RS485 ports on other devices. Port 3 is the ground port.
3. Protection ports and surge ports must not be confused.
4. One RS485 signal SPD can protect two COM ports.
5. Protection ports 2 and 6 and surge ports 1 and 5 form an RS485 surge protection port for
protecting one COM port. Protection ports 8 and 12 and surge ports 7 and 11 form another RS485
surge protection port for protecting one more COM port.
RS485 Signal SPD

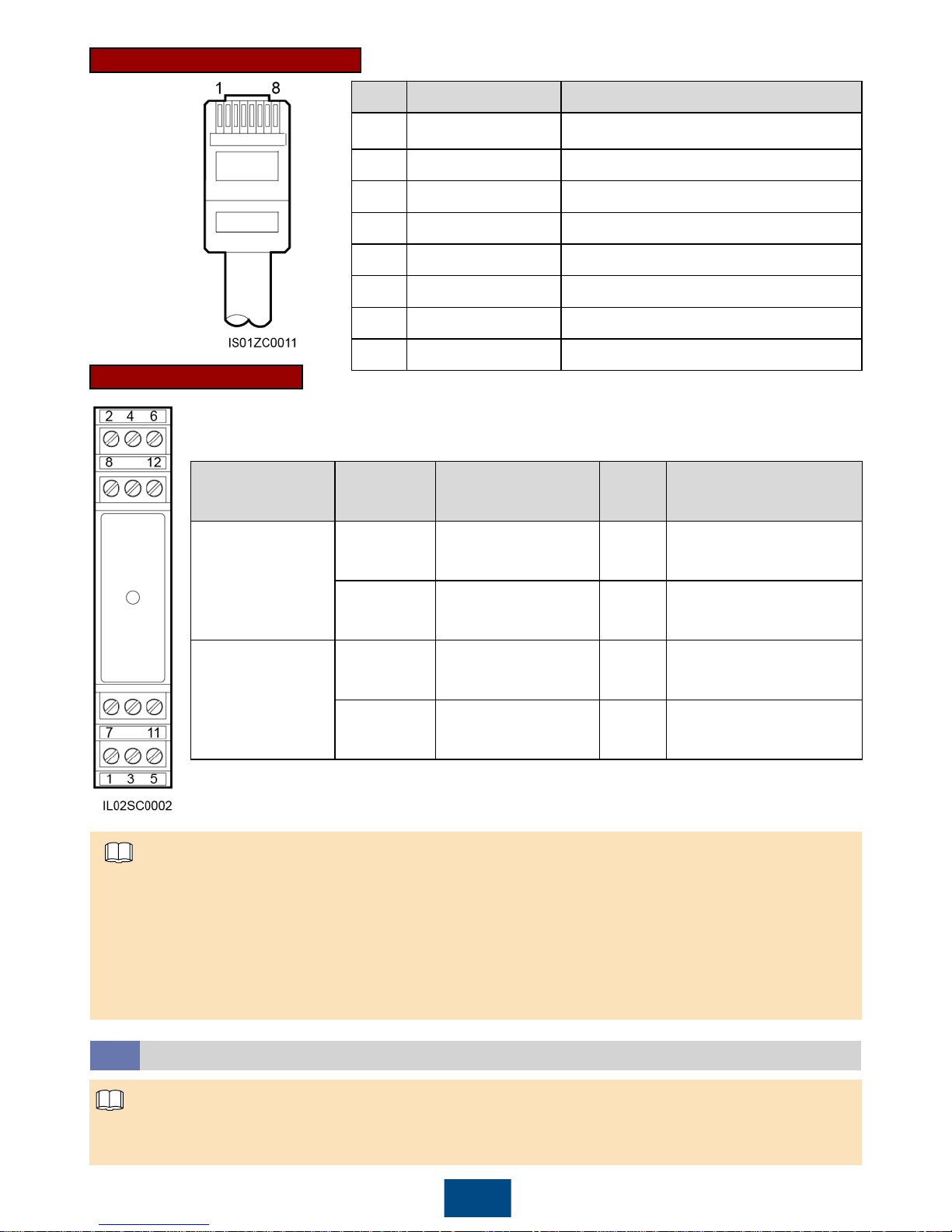

RJ45 Network Port (SUN2000)
No. Color Function
1
White and orange
RS485A, RS485 differential signal+
2
Orange
RS485B, RS485 differential signal
–
3
White and green
N/A
4
Blue
RS485A, RS485 differential signal+
5
White and blue
RS485B, RS485 differential signal
–
6
Green
N/A
7
White and brown
N/A
8
Brown
N/A
RS485 Surge
Protection Port
Protection
Port
Function
Surge
Port
Function
RS485 surge
protection port 1
2
RS485A, RS485
differential signal+
1
RS485A, RS485
differential signal+
6
RS485B, RS485
differential signal
–
5
RS485B, RS485
differential signal
–
RS485 surge
protection port 2
8
RS485A, RS485
differential signal+
7
RS485A, RS485
differential signal+
12
RS485B, RS485
differential signal
–
11
RS485B, RS485
differential signal
–
NOTE
Connecting the RS485 Signal SPD
6.2
The DJYP2VP2-22 2x2x1 computer cable or a communications cable with a conductor crosssectional area of 1 mm2and outer diameter of 14–18 mm is recommended.
NOTE
Page 11
10

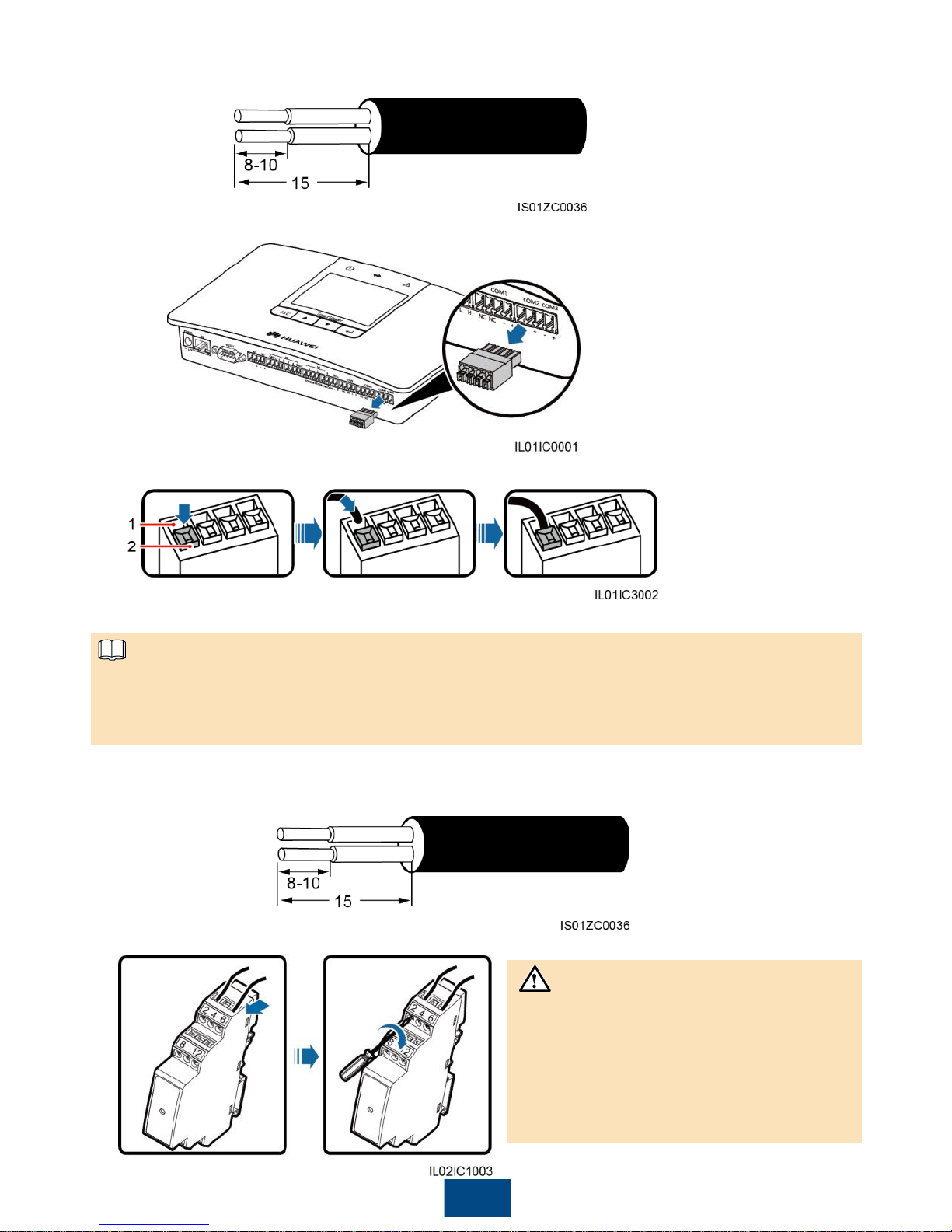

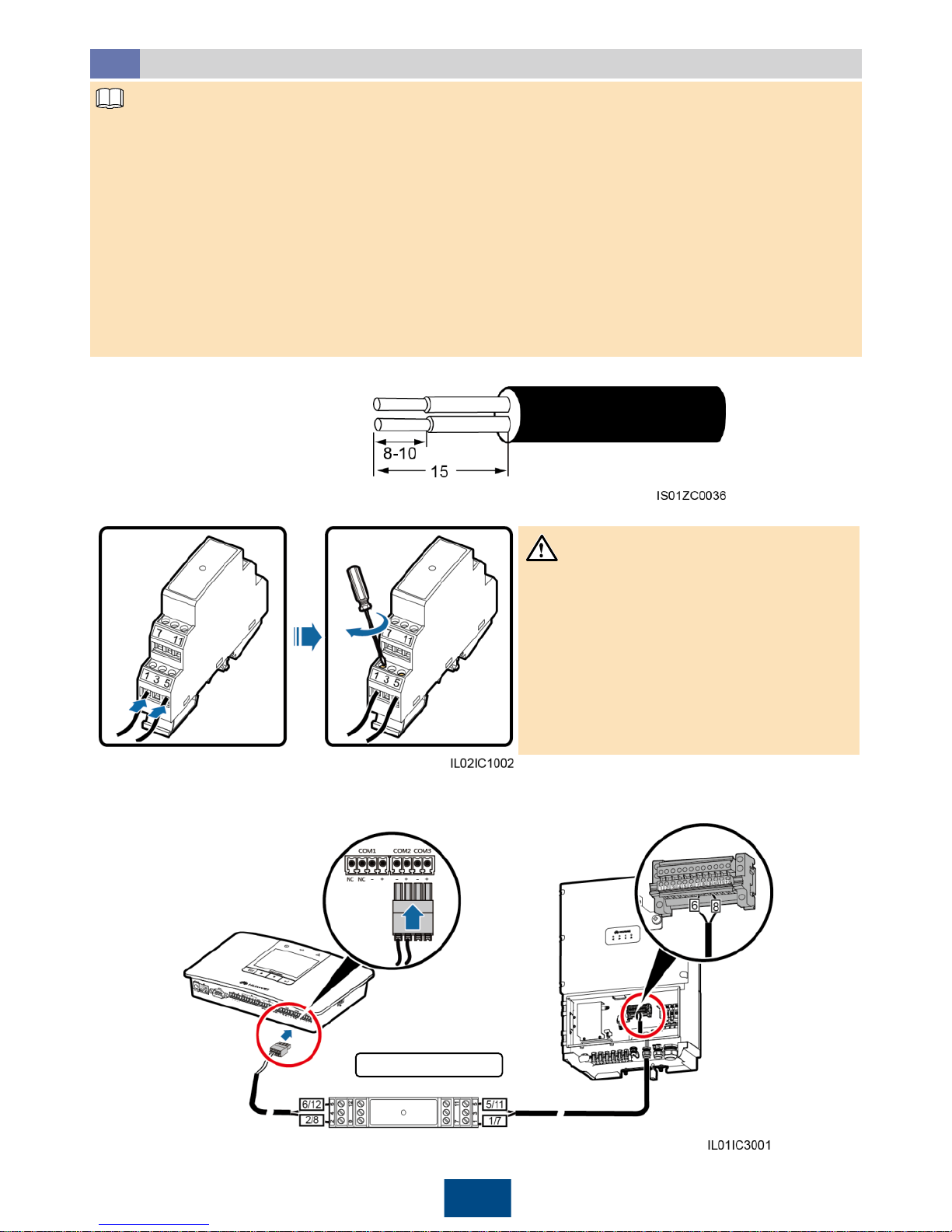

4. Insert the terminal block into the SmartLogger COM port.
5. Remove an appropriate length of the steel armor and insulation layer from the other end of the
cable using a wire stripper.
Unit: mm
6. Connect the cable to the protection port on the RS485 signal SPD.
Verify that the COM+ port on the
SmartLogger connects to protection port 2 or
8 on the RS485 signal SPD, and that the
COM– port on the SmartLogger connects to
protection port 6 or 12 on the RS485 signal
SPD.
1. Press the white contact plate of the corresponding wiring terminal to flip the metal spring inside
the wiring terminal.
2. Insert the uninsulated part of the core wire into the wiring terminal.
3. Release the white contact plate to fasten the core wire.
(1) Wiring terminal (2) White contact plate
3. Connect the cable to the SmartLogger terminal block.
1. Remove an appropriate length of the steel armor and insulation layer from one end of the cable
using a wire stripper.
Unit: mm
2. Remove the terminal block from the SmartLogger COM port.
NOTE
NOTICE
Page 12
11
1. Remove an appropriate length of the steel armor and insulation layer from one end of the cable
using a wire stripper.
1. Verify that the RS485A port on the
inverter connects to surge port 1 or 7
on the RS485 signal SPD, and that
the RS485B port on the inverter
connects to surge port 5 or 11 on the
RS485 signal SPD.
2. After connecting cables, wrap the part
without insulation layer using
insulation tape.
Unit: mm
1. Verify that the RS485 communications cable is not longer than 1000 meters.
2. A terminal block is recommended for connecting cables to the SUN2000. The following uses the
SUN2000-33KTL/40KTL terminal block as an example to describe cable connection.
3. When you connect a terminal block to the SUN2000, you are recommended to use a computer
cable (DJYP2VP2-22 2x2x1) or a communications cable with the conductor cross-sectional area
being 1 mm2and the cable outer diameter in the range of 14 mm to 18 mm.
4. When you connect the RJ45 network port to the SUN2000, you are recommended to use the CAT
5E outdoor shielded network cable.
5. A dual-core shielded cable or outdoor shielded network cable is recommended for connecting the
SUN8000. Only two of the core wires need to be connected.
6. The delivered cables are recommended for connecting to devices such as the EMI, power meter,
and potential induced degradation (PID) module.
Connecting the RS485 Communications Cable
6.3
NOTE
NOTICE
RS485 signal SPD
3. Strip an appropriate length from the other end of the cable and connect the end to the SUN2000
terminal block.
2. Connect the cable to the surge port on the RS485 signal SPD.
Page 13
Recommended Connection Mode
12
Connecting Multiple Devices
6.4
1. A maximum of 80 devices can be connected to one SmartLogger. You are advised to connect
less than 30 devices to each RS485 route.
2. Ensure that the devices connecting to the same COM port comply with the same communications
protocol.
1. The RS485 IN and RS485 OUT ports on the SUN2000 can both connect to the SmartLogger.
This document uses the RS485 OUT port as an example to describe the connection between the
SUN2000 and the SmartLogger.
2. Verify that the COM+ (RS485A) port on the SmartLogger connects to protection port 2 or 8 on the
RS485 signal SPD, and that the COM– (RS485B) port on the SmartLogger connects to protection
port 6 or 12 on the RS485 signal SPD.
3. Verify that surge port 1 or 7 on the RS485 signal SPD connects to terminal 6 (RS485A OUT) on
the SUN2000 terminal block, and that surge port 5 or 11 on the RS485 signal SPD connects to
terminal 8 (RS485B OUT) on the SUN2000 terminal block.
NOTICE
NOTICE
7

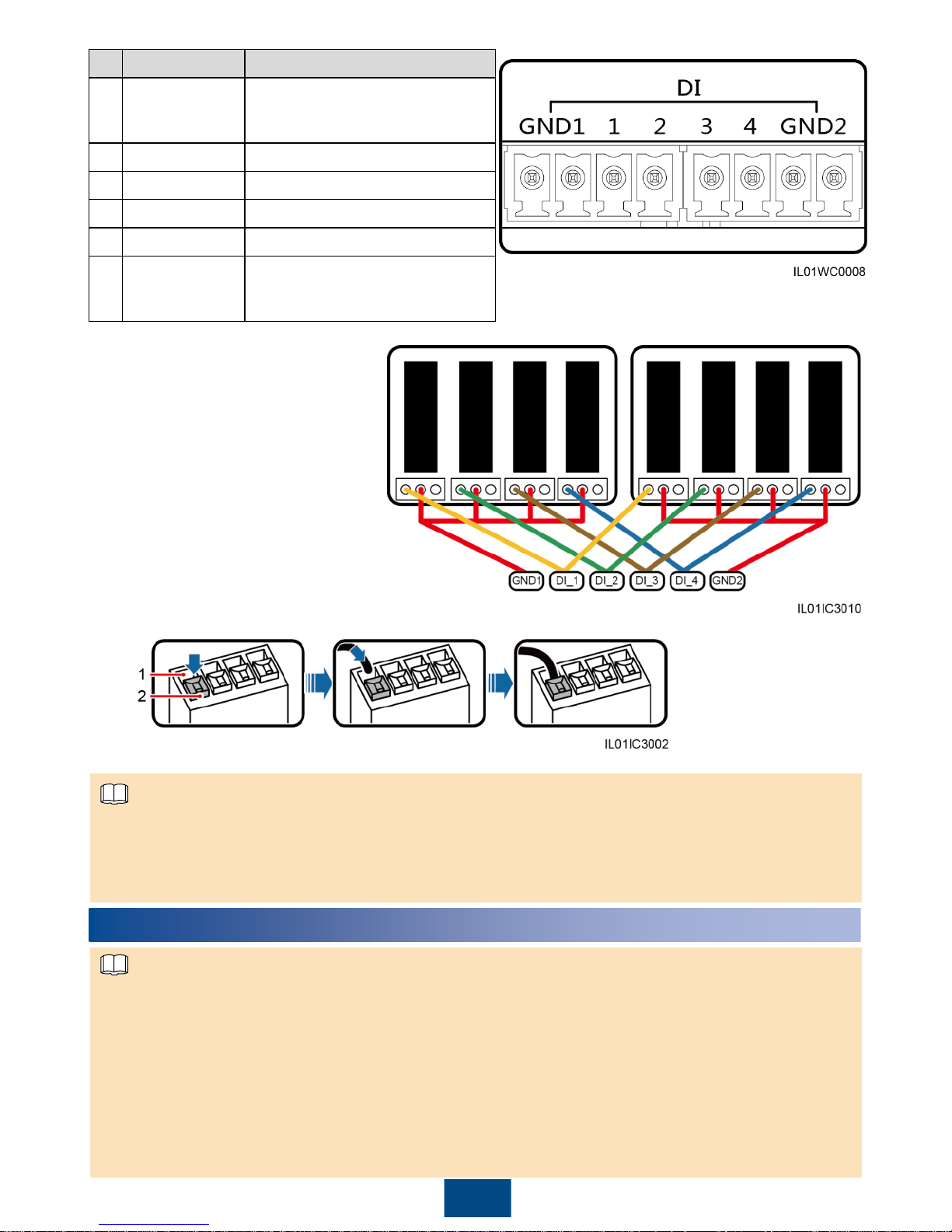

Connecting a Cable to the DI Port
1. In Germany and some other European areas, a ripple control receiver is used to convert power
grid scheduling signals into dry contact signals, in which a dry contact is required.
2. Two-core or multiple-core cables with a cross-sectional area of 1 mm2are recommended.
NOTE
Page 14
13
8
Connecting an Ethernet Network Cable
1. Press the white contact plate of the corresponding wiring terminal to flip the metal spring inside
the wiring terminal.
2. Insert the uninsulated part of the core wire into the wiring terminal.
3. Release the white contact plate to fasten the core wire.
(1) Wiring terminal (2) White contact plate
1. The SmartLogger provides one Ethernet port, through which the SmartLogger can connect to a
third-party device.
2. The SmartLogger can connect to a LAN switch, router, or PoE device, and then to a PC. It can
also directly connect to a PC. Select the connected device based on the actual networking
scenario.
3. If the cable between the SmartLogger and the PC over a PoE device is routed outdoors, connect
a PoE SPD to the PoE device to enhance the surge protection function. Ensure that the Ethernet
network cable length does not exceed 100 meters.
4. Connect the POE port on the PoE device to the PROTECT port on the PoE SPD.
NOTE
NOTE
1. Prepare a cable with an
appropriate length, strip a part of
the insulation layer, and connect
the stripped core wire to the ripple
control receiver.
2. Connect the other end of the cable to the DI port on the SmartLogger.
No.
Port Definition
Function
1
GND1
Dry contact input common
terminal 1, used for active power
derating
for DI1–DI4
2
DI1
DI_1
3
DI2
DI_2
4
DI3
DI_3
5
DI4
DI_4
6
GND2
Dry contact input common
terminal 2, used for reactive
power compensation for DI1–DI4
Page 15
10
System Power-on
1. Insert the output terminal of the power adapter into the POWER port of the SmartLogger.
2. Insert the power cable plug into an AC socket.
14
Log in to the liquid crystal display (LCD) or embedded web user interface (WebUI) of the SmartLogger
to view its running status and device connections. For details, see the SmartLogger1000 User Manual.
No.
Check That
Check Result
1
The SmartLogger is properly installed.
□
Passed □Failed
2
All cables are properly connected, without open circuits or short circuits.
□
Passed □Failed
3
Routing for the power cable and signal cable meets the requirements for
routing strong
-current and weak-current cables and complies with the
cable routing plan.
□
Passed □Failed
4
Cables are bound neatly, and cable ties are secured evenly and
properly in the same direction.
□
Passed □Failed
5
There is no unnecessary adhesive tape or cable tie on cables.
□
Passed □Failed
9
Verifying the Installation
NOTE
1. Connect one end of the delivered network cable to the Ethernet port of a device.
2. Connect the other end of the network cable to the FE port of the SmartLogger.
Page 16
15
The SmartLogger cannot find devices.
12.2
1. Check the RS485 communications cable connection. If the cable is loose, disconnected, or
reversely connected, reconnect and secure it.
2. Check the RS485 communication parameter settings on the SmartLogger and ensure that the baud
rate and communication address are set correctly.
3. Manually add the devices that cannot be detected automatically, such as the EMI and power meter.
4. Ensure that the EMI parameters are set correctly.
5. Set the SUN2000 address to be within the search address range set for the SmartLogger.
6. Contact the vendor or Huawei technical support.
12
FAQ
The SmartLogger cannot be powered on.
12.1
1. Check that the power cable connects to the power adapter.
2. Check that the power cable connects to the AC socket.
3. Replace the power adapter.
4. Contact the vendor or Huawei technical support.
11

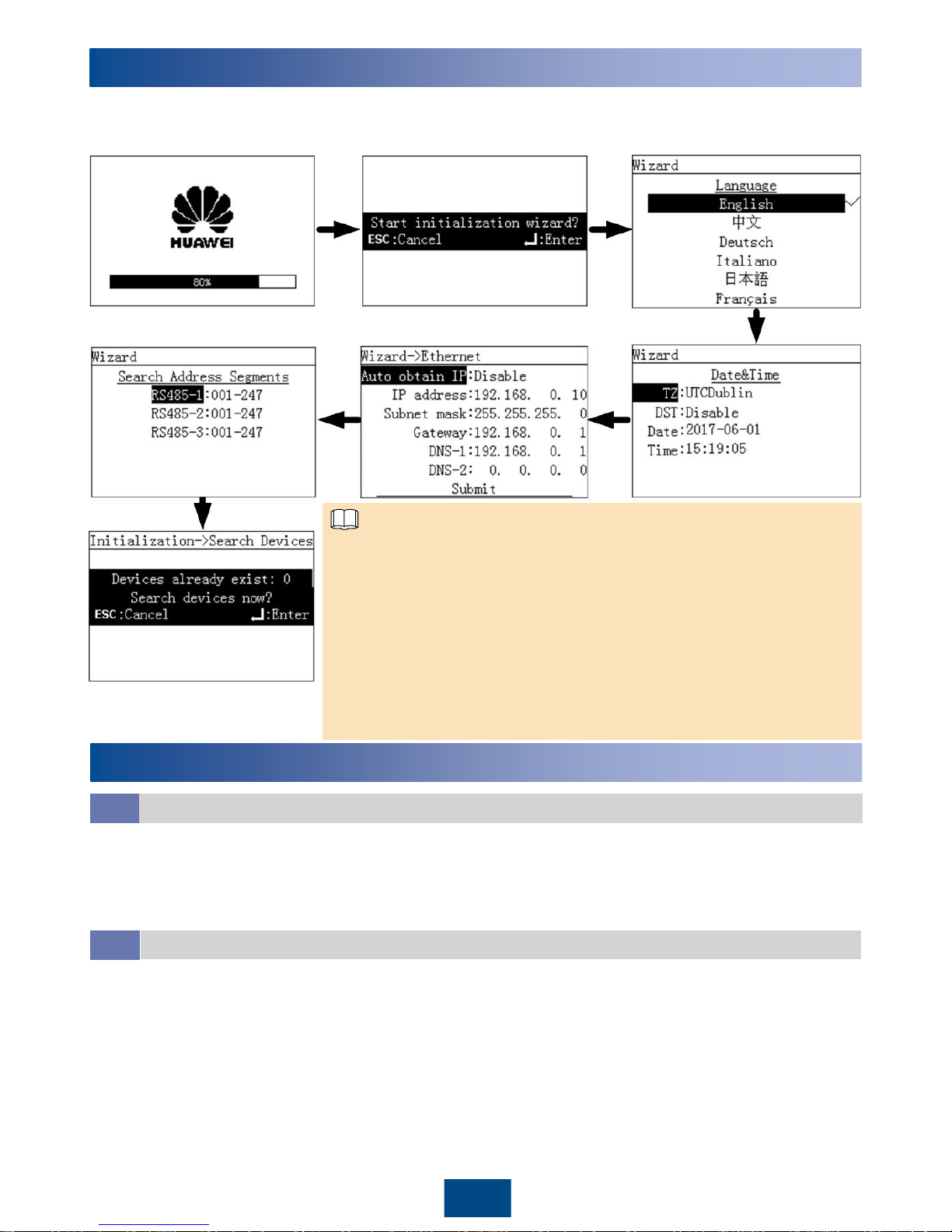

Setting Initialization Parameters
When starting the SmartLogger for the first time, set initialization parameters such as the system
language, system time, the address search scope for the RS485 port, and Ethernet parameters on
the monitoring panel.
1. This document uses the LCD screenshots of SmartLogger
V100R001C00SPC109 as an example.
2. After the date and time are set, the date and time of all the inverters
connecting to the SmartLogger are synchronized. Therefore you
need to ensure that the settings are correct.
3. On the Ethernet screen, set the SmartLogger IP address according
to the rules of the power station and ensure that it differs from any
device IP address.
4. Visiting some menus requires account authentication. Therefore,
change the password immediately after setting initialization
parameters to ensure the security of your account.
NOTE
12
Page 17
16

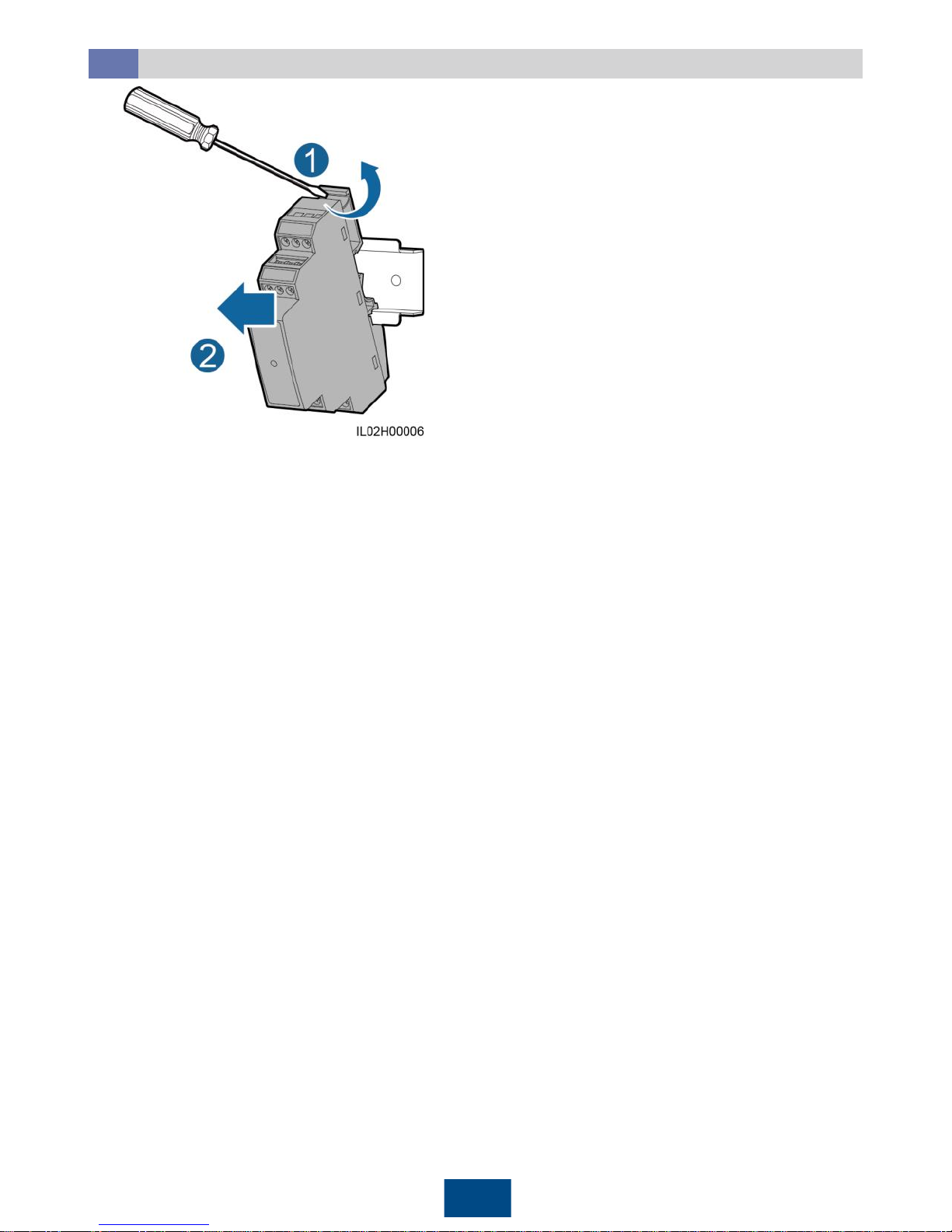

How can I remove the RS485 signal SPD?
12.3
Reshape the slot beside port 1,3, or 5 using a
flat-head screwdriver, and pull the RS485
signal SPD outwards.
12
Page 18
17
Huawei Technologies Co., Ltd.
Huawei Industrial Base, Bantian, Longing,
Shenzhen 518129 People's Republic of China
www.huawei.com
Scan here for more documents:
You can also log in to Huawei technical support website:
Scan here for technical support (carrier):
Google Play Huawei App
Store
http://support.huawei.com
WeChatSupport
Apple Store
Loading...
