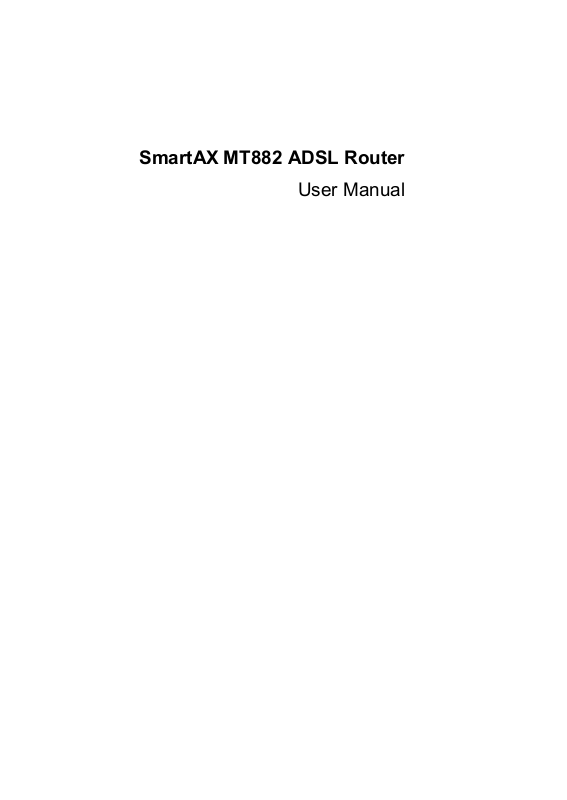

SmartAX MT882 ADSL Router
User Manual
HUAWEI
SmartAX MT882 ADSL Router
User Manual
V200R001
Huawei Technologies Proprietary
SmartAX MT882 ADSL Router
User Manual
Manual Version
Product Version
V2.10
V200R001C01B021
Huawei Technologies Co., Ltd. provides customers with
comprehensive technical support and service. Please feel free to
contact our local office or company headquarters.
Huawei Technologies Co., Ltd.
Addr ess: Administration Building, Huawei Technologies Co., Ltd.,
Bantian, Longgang District, Shenzhen, P. R. China
Postal Code: 518129
Website:
Email: support@huawei.com
http://www.huawei.com
Huawei Technologies Proprietary
Copyright © 2005 Huawei Technologies Co., Ltd.
All Rights Reserved
No part of this manual may be reproduced or transmitted in any form
or by any means without prior written consent of Huawei Technologies
Co., Ltd.
Trademarks
, HUAWEI, SmartAX are trademarks of Huawei Technologies Co.,
Ltd.
All other trademarks and trade names mentioned in this manual are
the property of their respective holders.
Notice
The information in this manual is subject to change without notice.
Every effort has been made in the preparation of this manual to ensure
accuracy of the contents, but all statements, information, and
recommendations in this manual do not constitute the warranty of any
kind, express or implied.
Huawei Technologies Proprietary
About This Manual
Release Notes
The product version corresponds to the manual is SmartAX MT882
ADSL Router V200R001C01B021.
Organization
1 MT882 Overview provides a brief description of MT882 and a
z
list of features.
2 Hardware Installation introduces the hardware installation of
z
MT882.
3 Before Configuring MT882 introduces the preparation
z
procedures before configuring the MT882.
4 Web-based Management describes how to use the embedded
z
Web-based management software to configure the MT882.
5 Service Configuration describes the detailed configuration
z
procedures for 6 applications.
6 Troubleshooting lists several FAQs and trouble-locating
z
methods.
7 Technical Specifications gives the technical specifications of
z
the MT882.
8 Appendix gives the abbreviation list and default factory settings
z
for MT882.
Huawei Technologies Proprietary
Intended Audience
The manual is intended for the following readers:
Marketing staff
z
Installation engineers & technicians
z
Operation & maintenance personnel
z
Conventions
The manual uses the following conventions:
I. General conventions
Convention Description
Arial Normal paragraphs are in Arial.
Boldface Headings are in Boldface.
Courier New
Terminal Display is in Courier New.
II. Symbols
Eye-catching symbols are also used in this manual to highlight the
points worthy of special attention during the operation. They are
defined as follows:
Caution: Means reader be extremely careful during the
operation.
Huawei Technologies Proprietary
Note: Means a complementary description.
Environmental Protection
This product has been designed to comply with the requirements on
environmental protection. For the proper storage, use and disposal of
this product, national laws and regulations must be observed.
Huawei Technologies Proprietary
Table of Contents
1 MT882 Overview............................................................................. 1
1.1 Appearance........................................................................... 1
1.2 Parts of MT882...................................................................... 1
1.2.1 Front Panel ................................................................. 1
1.2.2 Rear Panel.................................................................. 3
1.2.3 External Splitter ..........................................................4
1.3 MT882 Features .................................................................... 4
2 Hardware Installation .................................................................... 6
2.1 Preparations .......................................................................... 6
2.1.1 Checking Computer Configuration .............................6
2.1.2 Collecting ISP Information .......................................... 6
2.2 Fixing of the MT882 ..............................................................7
2.3 Connecting MT882 ................................................................ 7
2.3.1 Installing USB Driver .................................................. 7
2.3.2 Connecting ADSL Line ............................................. 24
2.3.3 Connecting the Computer to the MT882 .................. 24
2.3.4 Connecting Ethernet LAN to the MT882 .................. 25
2.4 Powering On the MT882 ..................................................... 26
3 Before Configuring the MT882 ...................................................27
3.1 When to Configure the MT882............................................ 27
3.2 Configuring IP Settings on Your Computer......................... 28
3.3 Accessing the Web-based Configuration Manager ............28
3.3.1 Checking for Proxy Service ......................................29
3.3.2 Applying the LAN IP Address of MT882................... 29
Huawei Technologies Proprietary
i
3.3.3 Inputting the User Name and Password .................. 29
4 Web-Based Management ............................................................ 31
4.1 Manager Interface Layout ................................................... 31
4.2 System View (Home Page)................................................. 33
4.3 WAN Setting........................................................................ 34
4.3.1 RFC2684 Bridged Connection ................................. 34
4.3.2 RFC2684 Routed Configuration ............................... 38
4.3.3 PPP Configuration .................................................... 40
4.4 DHCP Configuration............................................................ 41
4.5 DNS Configuration ..............................................................43
4.6 NAT Configuration............................................................... 44
4.7 Static Route......................................................................... 46
4.8 LAN Setting ......................................................................... 47
4.9 Virtual Server ...................................................................... 49
4.10 Applications ....................................................................... 51
4.11 Filters ................................................................................ 53
4.11.1 IP Filters ................................................................. 54
4.11.2 MAC Filters ............................................................. 57
4.11.3 URL Blocking .......................................................... 59
4.11.4 Domain Blocking..................................................... 61
4.12 Firewall Rules.................................................................... 62
4.13 RIP ....................................................................................65
4.14 Administrator Setting......................................................... 67
4.15 Time ..................................................................................69
4.16 System Setting .................................................................. 70
4.17 Firmware Upgrade ............................................................ 71
4.18 Log ....................................................................................73
4.18.1 View Log ................................................................. 73
4.18.2 Log Settings............................................................ 74
Huawei Technologies Proprietary
ii
4.18.3 Save ....................................................................... 75
4.19 Diagnostics........................................................................ 75
4.20 Traffic Statistics ................................................................. 77
5 Service Configuration ................................................................. 78
5.1 Preparation for Service Configuration................................. 78
5.2 PPPoE Configuration ..........................................................80
5.3 PPPoA Configuration ..........................................................81
5.4 RFC 2684 Bridged (Pure Bridge) Configuration .................82
5.5 RFC 2684 Bridged (Static IP) Configuration ....................... 83
5.6 RFC 2684 Bridged (DHCP) Configuration .......................... 84
5.7 RFC 2684 Route (IPoA) Configuration ...............................85
6 Troubleshooting Guide ............................................................... 87
6.1 Quick Troubleshooting ........................................................ 87
6.2 FAQs ................................................................................... 88
7 Technical Specifications............................................................. 93
8 Appendix ......................................................................................95
8.1 Factory Default Settings...................................................... 95
8.2 FCC ..................................................................................... 96
8.3 Abbreviations ...................................................................... 99
Huawei Technologies Proprietary
iii
1 MT882 Overview
In this chapter you will learn about the appearance and features
of the MT882.
1.1 Appearance
MT882 provides the small and private network with simple,
secure, and cost-efficient ADSL Internet connection. It enables many
interactive multi-media applications such as video conferencing.
Figure 1-1 shows the appearance of the MT882.
Figure 1-1 Appearance
1.2 Parts of MT882
1.2.1 Front Panel
Place the MT882 in a location where the LED indicators can be
easily viewed.
Huawei Technologies Proprietary
1
The LEDs on the front panel of the MT882 are shown as below:
Figure 1-2 LED indicators on the front panel
The meanings of LEDs are listed as follows:
LED
indicator
Power
ADSL LINK
ADSL ACT
LAN
Status Description
Steady green
light
Steady green
light
Blinking green
light
Steady green or
orange light
Blinking green or
orange light
Steady or
blinking green
light
Steady or
blinking orange
light
The unit is powered on.
A valid ADSL connection.
There is traffic over ADSL line.
A valid LAN connection.
There is traffic over Ethernet.
The speed of data transfer is
10Mbit/s.
The speed of data transfer is
100Mbps.
Huawei Technologies Proprietary
2
LED
Status Description
indicator
Steady green
light
A valid USB connection.
USB
Blinking green
light
There is traffic over USB.
1.2.2 Rear Panel
All cables are connected to the rear panel of MT882.
The ports and switch on the rear panel of MT882 are shown as
below:
Figure 1-3 Rear panel cable and power connections
The meaning of ports and switch are listed as follows:
ADSL: ADSL port, connecting to the splitter
z
USB: USB port, connecting to PC or hub
z
Ethernet: Ethernet port, connecting to PC or hub
z
Reset: press this button for 3 seconds to restore the
z
default setting. This operation will let you lose your
customized setting. Please be careful when using Reset
button.
Huawei Technologies Proprietary
3
Power: power switch
z
9V AC 1A: power input plug
z
Note:
Different adapters are used in according to regions. Make sure your
power adapter is comply with the sign in the rear panel (9V AC 1A or
9V DC 1A).
1.2.3 External Splitter
Using the splitter can reduce disturbance signals in the
telephone line. The MT882 has to use an external splitter, which has
three ports: LINE, PHONE and MODEM.
LINE: connect to the telephone jack
z
PHONE: connect to the telephone
z
MODEM: connect to ADSL modem with RJ-11 telephone
z
line
1.3 MT882 Features
Data rates up to 24 Mbps for downstream and 1.2 Mbps for
z
upstream
Friendly Web-Based graphical user interface for
z
configuration and management
Supporting up to eight simultaneous virtual connections
z
Widest range of DSLAM interoperability
z
Built-in MIBs for SNMP management
z
Huawei Technologies Proprietary
4
Upgradeable firmware through TFTP
z
Easy to install and use
z
Huawei Technologies Proprietary
5
2 Hardware Installation
In this chapter you will learn about the various connections you
need to make in order to use the MT882.
1) Preparations
2) Connecting the MT882
3) Powering on the MT882
2.1 Preparations
2.1.1 Checking Computer Configuration
Item Requirement
OS Web browser, such as IE, is installed.
Web browser
type
Web browser
settings
Microsoft Internet Explorer®5.0 or Netscape
Navigator
®
4.7 or above.
Enable JavaScript
NIC adapter
Ethernet port
Enable TCP/IP
2.1.2 Collecting ISP Information
VPI, VCI
z
Encapsulation type
z
Protocol type
z
Huawei Technologies Proprietary
6
Modulation type
z
User name, password
z
2.2 Fixing of the MT882
TheMT882 can be put in a horizontal or a vertical position as
well as being hung on the wall. Place the MT882 in a location where
the LED indicators can be easily viewed.
2.3 Connecting MT882
2.3.1 Installing USB Driver
You should install the USB driver into your PC before using USB
connection. For different system, the process of USB driver installing
is different. Following is instruction for three systems: Linux, MAC
OS 9/ 10, and Windows:
I. Install USB driver for Linux
1) Firstly start RedHat 8.0, and then select “install all”.
2) Log in under root.
3) #cd /usr/src
#ln –s linux-2.4.18-14 linux
4) Copy original codes to /root/MT882.
5) #cd /root/MT882
# make clean
# make all
Huawei Technologies Proprietary
7
6) Add alias eth1 VKGEther to /etc/modules.conf.
# vi /etc/modules.conf
7) Reboot linux, connect USB cable to ADSL.
8) #cd /root/MT882
# insmod ./VKGEther
9) #ifconfig eth0 down
Huawei Technologies Proprietary
8
ifconfig eth1 192.168.1.3 up
II. Install USB driver for MAC OS X
1. Install MT882 USB Driver for MAC OS X
1) Firstly click on Installer, a screen with welcome
information will be opened, shown as below:
2) Press “Next” button to enter the Authentication screen,
shown as below:
Huawei Technologies Proprietary
9
3) Type in the administrator’s account and password and then
press <OK> button to enter the next screen.
4) Please read the content of License Agreement. If you
agree with the License Agreement, press <Accept> button
to start the installation.
Huawei Technologies Proprietary
10
5) After completed the installation, click to select the option
Restart now, and press <Finish> button. Your computer
will be rebooted.
2. Configure MAC Network
1) Click Apple Menu -> scroll down to select System
Preference -> select Network, the opened screen as
below:
Huawei Technologies Proprietary
11
2) Enter the proper value for each parameter and click on
<Apply Now> button.
3) Start your Web Browser and Key in http://192.168.1.1
the URL/Address field to open up the Login Page for the
user. Key in the username and password and click <OK>
button to enter the Web GUI of MAC OS.
at
Huawei Technologies Proprietary
12
3. Uninstall MT882 USB Driver for MAC
1) Click and select Applications.
Huawei Technologies Proprietary
13
2) Click to select MT882 Modem.
3) Select Uninstall.app.
Huawei Technologies Proprietary
14
4) Press <Next> button to start the uninstalling process.
5) Type in the administrator’s account and password, press
<OK> button.
Huawei Technologies Proprietary
15
6) After the end of uninstalling process, select the option
Restart Now and then click on <Finish> button to reboot
your computer.
III. Install USB driver for Mac OS 9.2
1. Install MT882 USB Driver for MAC OS 9.2
1) Firstly click on Installer.app, a screen with welcome
information will be opened, shown as below:
Huawei Technologies Proprietary
16
2) Press “Next” button to enter the next screen, shown as
below:
3) Please read the content of License Agreement. If you
agree with the License Agreement, press <Accept> button
to start the installation.
Huawei Technologies Proprietary
17
4) After completed the installation, press <Finish> button.
You can enjoy your DSL modem now!
2. Configure MAC Network
1) Click Apple Menu -> scroll down to select System
Preference -> select Network -> select TCP/IP, the
opened screen as below:
Huawei Technologies Proprietary
18
2) Enter the proper value for each parameter and click on
<Options…> button.
3) Start your Web Browser and Key in http://192.168.1.1
the URL/Address field to open up the Login Page for the
user. Key in the username and password and click <OK>
button to enter the Web GUI of MAC OS 9.2.
at
Huawei Technologies Proprietary
19
3. Uninstall MT882 USB Driver for MAC
1) Click to select MT882 Modem.
Huawei Technologies Proprietary
20
2) Select Uninstall.app.
3) Press <Next> button to start uninstalling the process.
Huawei Technologies Proprietary
21
4) If the USB cable is not unplugged when the software is
removed from your computer, the message will be
appeared. Unplug the cable and click <OK> button.
5) After the end of uninstalling process, select the option
Restart Now and then click on <Finish> button to reboot
your computer.
Huawei Technologies Proprietary
22
IV. Install USB driver for Windows
To install the USB driver in Windows system, you must execute
“MT882Driver.exe” contained on the CD-ROM, which is provided
with the modem.
1) Double click “MT882Driver.exe” to open the Setup Wizard
window.
2) Click <Next> button and ready to install.
Huawei Technologies Proprietary
23
During the installation, it doesn’t need any interference from
your side. If you are using Windows XP/2000, a new “Local Area
Connection” will be built for USB port while the installing completed.
2.3.2 Connecting ADSL Line
Simply plug one end of the telephone line into the Modem port
of the splitter and insert the other end into the ADSL port on the rear
panel of the MT882.
Use another telephone line to connect the splitter and the phone
jack on the wall.
2.3.3 Connecting the Computer to the MT882
Use a straight-through cable to connect your PC and the MT882.
You can connect the MT882 directly to a 10/100Base-TX Ethernet
adapter card on your PC with the provided Ethernet cable as shown
in Figure 2-1
Huawei Technologies Proprietary
24
(1) Computer (2) RJ-11 Tel line (3) Phone
(4) RJ-45 Ethernet cable (5) Splitter (6) Phone jack
(7) MT882 (8) RJ-11 Tel Cable
Figure 2-1 cable connection
2.3.4 Connecting Ethernet LAN to the MT882
MT882 may be connected to any 10/100Base-TX Ethernet port.
When connecting the MT882 to any Ethernet device that is capable
of operating at speeds higher than 10Mbps, be sure that the device
has auto-negotiation mode enabled for the connecting port.
Use a cross-over cable to connect the MT882 and the upstream
port of a switch or hub. Be sure that the cable connecting the LAN to
the MT882 does not exceed 100 meters.
Huawei Technologies Proprietary
25
2.4 Powering On the MT882
1) Plug the provided power adapter into a suitable power
source nearby.
2) You will see the Power LED indicator lights up, which
indicates the device is powered on.
3) After a few seconds, observe the LAN LINK indicator.
Make sure the light is steady light, which indicates a valid
connection between the router and your PC.
Huawei Technologies Proprietary
26
3 Before Configuring the MT882
In this chapter you will learn to connect the MT882 to PC. Use
provided straight-through cable when connecting.
(1) Computer (2) RJ-45 Ethernet Cable (3) MT882
Figure 3-1 Connection between a computer and the MT882
3.1 When to Configure the MT882
The factory default settings of MT882 have optimized all
functions, and made it run in most network conditions. Usually, the
default setting values can meet basic requirements of users with
simple network topology, and need no change.
If network condition is changed by the modification of security,
scale, line of communication, protocol and topology, for example, a
Huawei Technologies Proprietary
27
demand of particular VPI and VCI, you need to adjust the default
settings accordingly so as to adapt to the changes.
3.2 Configuring IP Settings on Your
Computer
Follow these steps to configure the IP settings:
1) Understand the default IP settings for the MT882: IP
address (192.168.1.1), subnet mask (255.255.255.0).
2) Make sure your computer has the TCP/IP protocol installed
and enabled.
If you have an Ethernet port on your computer, it probably
z
already has TCP/IP protocol installed.
If you are using Windows XP, the TCP/IP is enabled by
z
default for standard installations.
3) Configure the IP address and subnet mask of your
computer. The computer shall work in the same subnet as
that of the MT882. for example, IP address: 192.168.1.100,
subnet mask: 255.255.255.0.
For computers running non-Windows operating systems,
follow the instructions for your OS to configure the IP setting to
occupy the same subnet as MT882.
3.3 Accessing the Web-based Configuration
Manager
Once your PC’s IP settings allow it to access the Web-Based
configuration manager, you can change the factory default settings
to enable the MT882 to connect to Internet.
Huawei Technologies Proprietary
28
3.3.1 Checking for Proxy Service
If the browser software on the computer is configured to use a
proxy server for Internet access, it is necessary to first disable the
proxy connection.
In Internet Explorer, you can check whether a proxy server is
enabled using the following procedures:
1) In the Explorer window, select ToolsÆÆÆÆInternet Options to
display Internet Options dialog box.
2) In the Internet Options dialog box, click the Connections
tab and click on the LAN Settings.
3) Make sure the “Use proxy server” option is not checked. If
it is checked, click on the checked box to deselect the
option and click OK.
3.3.2 Applying the LAN IP Address of MT882
To access the Web-based configuration manager, launch your
Web browser and enter the LAN IP address of the MT882. For the
first access, the default LAN IP address of the MT882 is used. Type
in “http://” followed by the default IP address, “192.168.1.1” in the
address bar of the browser. The URL in the address bar should read:
http://192.168.1.1
.
3.3.3 Inputting the User Name and Password
A new dialog box appears prompting you to input the user name
and password required to access the Web-based configuration
manager.
Huawei Technologies Proprietary
29
Figure 3-2 Enter user name and password
Use the default user name admin and password admin for first
setup. You can change the password once you have opened the
Web-based configuration manager. The user name and password
allows any computer on the same subnet as the MT882 to access
the Web-based configuration manger. And this password can also be
used to Telnet to the device through the Ethernet or Internet
interfaces. To change this password, see 4 Web-Based
Management.
Note:
Do not confuse the user name and password used to access the
Web-based manager with the ADSL account and password needed
for PPP connections to access your ISP’s network.
Huawei Technologies Proprietary
30
4 Web-Based Management
In this chapter you will learn how to use the Web-based
management software to configure the MT882, which introduces the
significations of parameters and method of setting in the
configuration interface. The order of sectors is listed according to the
functional configuration interfaces.
4.1 Manager Interface Layout
The MT882 initially presents the summary page shown as
below when you first log in.
The left part of the page is wizard column, and you can
z
enter the Web page of configuration or management
through the hyperlink in wizard column.
The right part of the page is the practical domain of
z
configuration and management.
Huawei Technologies Proprietary
31
Figure 4-1 GUI of Web-based configuration manager
Huawei Technologies Proprietary
32
4.2 System View (Home Page)
Figure 4-2 Home Page – System View Display
The System View read-only table on the Home Page displays a
summary of various system settings and functions as described
below.
ADSL Line Status: displays the ADSL State, Data Path,
z
DSP version, Operation Mode, and the status of Upstream
and Downstream of the ADSL line.
Huawei Technologies Proprietary
33
WAN Channel: displays the names and settings for the
z
device WAN interfaces. Multiple software-defined
interfaces may be configured to use the DSL connection.
The PVC number, gateway, IP address, mask, VPI/VCI,
encapsulation and status will be displayed in the WAN
interface.
LAN Channel: displays the names and various settings of
z
LAN interface, which include MAC address, IP address,
Mask, speed, duplex and status.
4.3 WAN Setting
Click the WAN Setting of Home in the wizard column to carry
out the WAN Setting. WAN Setting includes three modes: RFC2684
Bridged, RFC2684 Routed and PPP.
4.3.1 RFC2684 Bridged Connection
Bridged connections include three modes: Pure Bridge, Static
Bridge and DHCP.
PVC: system provides 7 PVCs. Generally you can keep
z
the default value 0. This option is also used to create and
configure new PVCs.
VPI: if you need any modification, please enter the VPI
z
value provided by ISP. See the attached table for all the
VPI default values of PVC.
VCI: if you need any modification, please enter the VCI
z
value provided by ISP. See the attached table for all the
VCI default value of PVC.
Encapsulation: you can select LLC or VC MUX.
z
Huawei Technologies Proprietary
34
I. Pure Bridge
The setting page displayed as below will appear while you
choose Pure Bridged mode. The gray item means it can be
operated without any configuration.
Figure 4-3 RFC2684 Bridged Connection-Application of Pure
Bridge
II. Static IP
The setting page displayed as below will appear while you
select Static IP setting mode. Please fill the corresponding field with
the IP address and network mask provided by ISP. The default
setting of route is “Disabled”, and the Gateway IP address is null.
The recommended setting is to enable default route and enter the
Gateway IP address provided by ISP.
Huawei Technologies Proprietary
35
Figure 4-4 RFC2684 Bridged Connection-application of Static
IP
IP Address and Subnet Mask: enter the IP address and
z
subnet mask provided by ISP for the WAN interface of your
MT882.
Default Gateway: enter the Gateway address provided by
z
ISP.
Default Route: this setting specifying the IP address
z
above is used for default route of LAN. The data will be
sent through WAN interface whenever a client in LAN
accesses the Internet. The default setting of default route is
“Disabled”.
Huawei Technologies Proprietary
36
III. DHCP
The setting page displayed below will appear if you select
DHCP mode, which means you can automatically acquire IP address
from the DHCP sever of ISP.
Figure 4-5 RFC2684 Bridged Connection-application of DHCP
Default Route: this setting will allow you to automatically
z
acquire IP address from the DHCP sever of ISP. The data
will be sent through WAN interface whenever a client LAN
computer accesses the Internet. The default setting of
default route is “Disabled”.
IV. Save
Click the Apply button to save the settings in the RAM.
z
To save these configuration changes permanently, enter
z
the Tools>System Setting page, and then click Save &
Restart button to save new settings.
Huawei Technologies Proprietary
37
4.3.2 RFC2684 Routed Configuration
I. Configuration page
Figure 4-6 RFC2684 Routed (IPoA) Configuration
II. Parameters eaplanation
PVC: the system provides 7 PVCs. Generally you can
z
leave this set at the default value 0. This option is also used
to create and configure new PVCs.
VPI: if you need any modification, please enter the VPI
z
value provided by ISP. See the attached table for all the
VPI default values of PVCs.
VCI: if you need any modification, please enter the VCI
z
value provided by ISP. See the attached table for all the
VCI default values of PVCs.
Encapsulation: you can select the mode LLC or VC MUX.
z
Huawei Technologies Proprietary
38
IP Address and Subnet Mask: enter the IP address and
z
subnet mask provided by ISP for the WAN interface of your
MT882.
Default Route: this setting specified the IP address below
z
is using for default route of LAN. The data will be sent
through WAN interface whenever a client LAN computer
accesses the Internet. The default setting of route is
“Disabled”, and the recommended setting is “Enabled”.
Default Gateway: enter the Gateway address provided by
z
ISP.
III. Save
Click the Apply button to save the settings in the RAM.
z
To save these configuration changes permanently, enter
z
the Tools>System Setting page, and click Save &
Restart button to save new settings.
Huawei Technologies Proprietary
39
4.3.3 PPP Configuration
I. Configuration page
Figure 4-7 PPP configuration
II. Parameter explanation
There are two options for PPP configuration: PPPoA and
PPPoE. The parameters that need to be configured are described as
below:
PVC: the system provides 7 PVCs. Generally you can
z
leave this set at the default value 0. This option is also used
to create and configure new PVCs.
Huawei Technologies Proprietary
40
VPI: if you need any modification, please enter the VPI
z
value provided by ISP. See the attached table for all the
VPI default value of PVC.
VCI: if you need any modification, please enter the VCI
z
value provided by ISP. See the attached table for all the
VCI default value of PVC.
Encapsulation: you can select the mode LLC or VC MUX.
z
Default Route: this setting specified the default IP address
z
of MT882 is using for default route of LAN.
Username and Password: enter the username and
z
password provided by ISP.
Use DNS: it is recommended to keep this option as Enable,
z
indicating that when PPP dial applies for IP and gateway, it
also tries for DNS server IP at the same time. On the other
hand, keep this option as
disable,
indicating that obtaining
DNS server not from PPP dial, and needed to manually
type in the addresses of primary DNS server and
secondary DNS server on the DNS configuration page.
III. Save
Click the Apply button to save the settings in the RAM.
z
To save these configuration changes permanently, enter
z
the Tools>System Setting page, and click Save &
Restart button to save new settings.
4.4 DHCP Configuration
Click the DHCP of Home in the Wizard Column to set the DHCP
configuration. MT882 can be set as DHCP server.
Huawei Technologies Proprietary
41
I. Configuration page
Figure 4-8 DHCP Configuration
II. Parameter explanation
DHCP Server: choose ”Enable” to configure MT882 as
z
DHCP server of LAN. Then the ADSL Router shall provide
IP settings for your PC.
Starting/Ending IP Address: enter the starting and
z
ending IP address that will be provided through DHCP
service.
Lease Time: Select the lease time from the drop-down
z
menu. It will determine how long your PC can use the IP
address provided by DHCP server.
Huawei Technologies Proprietary
42
III. Save
Click the Apply button to save the settings in the RAM. The
z
system will prompt you to reboot the device. The added
DHCP clients will be listed in the DHCP Client Table after
the device has been rebooted.
To save these configuration changes permanently, enter
z
the Tools>System Setting page, and click Save &
Restart button to save new settings.
4.5 DNS Configuration
Click the DNS of Home in the Wizard Column to set the DNS.
Multiple DNS addresses are useful to provide alternatives when one
of the servers is down or encountering heavy traffic. ISPs typically
provide primary and secondary DNS addresses, and may provide
additional addresses.
I. Configuration page
Figure 4-9 DNS Configuration
Huawei Technologies Proprietary
43
II. Save
Click the Apply button to save the settings in the RAM.
z
To save these configuration changes permanently, enter
z
the Tools>System Setting page, and click Save &
Restart button to save new settings.
4.6 NAT Configuration
Network Address Translation (NAT) is a method for disguising
the private IP addresses on your LAN as the public IP address on the
Internet. You define NAT rules that specify exactly how and when to
translate between public and private IP addresses.
Click the NAT of Home in the Wizard Column to set the NAT.
NAT is enabled by default. You can enable or disable NAT by
selecting the Enabled or Disabled option in the configuration page
and applying the settings.
Huawei Technologies Proprietary
44
I. Configuration page
Figure 4-10 NAT Configuration
II. Parameter explanation
The explanation of parameters in the above windows is as
below.
NAT: select it to enable or disable the NAT. By default, it is
z
enabled.
UPNP Setting: select it to enable or disable the UPNP
z
(Universal Play and Plug). By default, it is enabled.
VPN Pass-Trough: select it to enable or disable the VPN
z
Pass-through with PPTP protocol and IPSec protocol. By
default, it is enabled.
III. Save
Click the Apply button to save the settings in the RAM.
z
Huawei Technologies Proprietary
45
To save these configuration changes permanently, enter
z
the Tools>System Setting page, and click Save &
Restart button to save new settings.
4.7 Static Route
Click the Static Route of Home in the Wizard Column to set the
static route for connection. Use Static Routing to specify a route
used for data traffic within your Ethernet LAN or to route data on the
WAN. This is used to specify that all packets destined for a particular
network or subnet using a predetermined gateway.
I. Configuration page
Figure 4-11 Static Route Configuration
II. Parameter explanation
The explanation of parameters in the above windows is as
below.
Huawei Technologies Proprietary
46
Destination IP Address and Subnet Mask: enter the
z
destination IP address and subnet mask provided by ISP
for the WAN interface of your MT882.
Default Gateway: enter the gateway address provided by
z
ISP. The data is forwarded to the destination through the
gateway you set. Or you can choose an Interface Name to
route data traffic.
Interface Name: check this option to select an interface
z
name from the drop-down list to replace the default
gateway. The generation of the interface depends on how
you set the PVCs.
III. Save
Click the Apply button to save the settings in the RAM.
z
To save these configuration changes permanently, enter
z
the Tools>System Setting page, and click Save &
Restart button to save new settings.
4.8 LAN Setting
Click the LAN Setting of Advanced in the Wizard Column to
set the LAN interface. The LAN IP address identifies the LAN port
(eth-0) as a node on your network; that is, its LAN IP address must
be in the same subnet as the computers in your LAN.
You can change the default LAN IP address and Net Mask to
suit for your LAN.
Huawei Technologies Proprietary
47
I. Configuration page
Figure 4-12 LAN Configuration
II. Parameter explanation
IP Address: type in the IP address for the Ethernet LAN
z
interface. The default IP address is 192.168.1.1
Subnet Mask: type in the Subnet Mask for the Ethernet
z
LAN IP interface. The default mask is 255.255.255.0
Local Domain Name: enter the local domain name if it
z
exists.
Note:
The public IP address that ISP assigned is not LAN IP address. The
public IP address identifies the WAN interface that the ADSL router
connects to Internet.
Huawei Technologies Proprietary
48
III. Save
Click the Apply button to save the settings in the RAM.
z
To save these configuration changes permanently, enter
z
the Tools>System Setting page, and click Save &
Restart button to save new settings.
Note:
If you change the IP address, you need login again.
4.9 Virtual Server
Click the Virtual Server of Advanced in the Wizard Column to
set the virtual server. A Virtual Server can allow remote users to
access services to PCs on your LAN such as FTP for file transfers or
SMTP and POP3 for e-mail. The MT882 will accept remote requests
for these services at your Global IP Address (the one assigned to
your account by your ISP), using the specified TCP or UDP protocol
and port number, and then redirect these requests to the server on
your LAN with the Private IP address you specify
Huawei Technologies Proprietary
49
I. Configuration page
Figure 4-13 Virtual Server Configuration
II. Parameter explanation
Status: select it to enable virtual server or not, the default
z
is “Enabled”.
Name: enter the name of the virtual server to be added.
z
Click Clear button to delete the entered server name.
Private IP: enter the IP address of local PC providing the
z
service of virtual server.
Protocol Type: select the protocol to be applied. User can
z
select a protocol from TCP and UDP, or both.
Huawei Technologies Proprietary
50
Private Port: the port of local PC to be applied, providing
z
the service of virtual server
Public Port: the port applied by Internet user to access the
z
LAN
Schedule: select the time period for Internet user to
z
access virtual server.
Note:
In the list, click icon to edit the relative virtual service.
Click icon
to delete the relative virtual service.
III. Save
Click the Apply button to save the settings in the RAM.
z
To save these configuration changes permanently, enter
z
the Tools>System Setting page, and click Save &
Restart button to save new settings.
4.10 Applications
Click the Applications of Advanced in the Wizard Column to
configure the special applications. Some special applications, such
as network game, video conference, net phone, can be operated
pass through the NAT.
Huawei Technologies Proprietary
51
I. Configuration page
Figure 4-14 Special Application Configuration
II. Parameter explanation
Status: select it to enable or disable the applications, the
z
default is “Enabled”.
Name: enter the name of the application to be added. Click
z
Clear button to delete the entered name.
Trigger Port: enter the number of port which is to trigger
z
the special application. The entered port number can be a
single port, or a group of ports.
Trigger Type: select the protocol while the special
z
applications are to be triggered.
Huawei Technologies Proprietary
52
Public Port: The port number of public network, which is
z
used to access the special applications. User can specify a
single port number or a group of port numbers. Using
common to separate multiple port numbers.
Public Type: The protocol that to be applied while to
z
enable the public port for special application.
Note:
In the list, click icon to edit the relative special application.
Click icon
to delete the relative special application.
III. Save
Click the Apply button to save the settings in the RAM.
z
To save these configuration changes permanently, enter
z
the Tools>System Setting page, and click Save &
Restart button to save new settings.
4.11 Filters
Click the Filters of Advanced in the Wizard Column to set the
IP filter. Filters are used to deny or allow LAN computers to access
the Internet. The unit can refuse some computers with the assigned
IP or MAC addresses to access the Internet. Or it also may block
users to access the restricted Web sites.
Huawei Technologies Proprietary
53
4.11.1 IP Filters
Use IP Filters to deny particular LAN IP addresses to access the
Internet. You can deny specific port numbers or all ports for a specific
IP address. The well-known ports are displayed on the "IP filter list".
Please click the edit icon to enable them. You will only need to enter
the LAN IP address of the computer(s) that will be denied to access
Internet.
Huawei Technologies Proprietary
54
I. Configuration page
Figure 4-15 IP Filters Configuration
Huawei Technologies Proprietary
55
II. Parameter explanation
Status: select it to enable or disable IP filter, the default is
z
“Enabled”.
Name: enter a name for the rule, for easier identification
z
later. Click Clear button to delete the entered name.
Action: select “Allow” to permit packets to pass through
z
the MT882 if they meet the criteria of this rule, and “Deny”
to drop packets that do not meet the criteria of this rule.
Source: when LAN is specified in the Interface drop-down
z
menu, this filter will apply to packets that have one of the
specified IP addresses as their source, and are sent from a
PC on your LAN. When WAN is specified in the Interface
drop-down menu, this filter will apply to packets that have
one of the specified IP addresses as their source, and are
sent from a PC on the WAN (Internet). If both are selected,
then this rule will apply to packets that are sent from PCs
on both the WAN and LAN.
Destination: when LAN is specified in the Interface
z
drop-down menu, this filter will apply to packets that have
one of the specified IP addresses as their destination, and
are being sent to a PC on your LAN. When WAN is
specified in the Interface drop-down menu, this filter will
apply to packets that have one of the specified IP
addresses as their destination, and are being sent to a PC
on the WAN (Internet). If both are selected, then this rule
will apply to packets that are being sent to PCs on both the
WAN and your LAN.
Schedule: select the time period for Internet user to
z
access virtual server.
Huawei Technologies Proprietary
56
Note:
In the list, click icon to edit the relative IP filter rule.
III. Save
Click the Apply button to save the settings in the RAM.
z
To save these configuration changes permanently, enter
z
the Tools>System Setting page, and click Save &
Restart button to save new settings.
4.11.2 MAC Filters
This is to deny LAN computers to access the Internet. You can
either manually add a MAC address or select the MAC address from
the list of clients that are currently connected to the unit.
Huawei Technologies Proprietary
57
I. Configuration page
Figure 4-16 MAC Filters Configuration
II. Parameter explanation
Status: select it to enable or disable IP filter, the default is
z
“Enabled”.
Name: enter a name for the rule, for easier identification
z
later. Click Clear button to delete the entered name.
MAC Address: the MAC address of the computer on the
z
LAN side.
DHCP Client: you may read the DHCP client's host name
z
and MAC address listed here. Select the client computer
Huawei Technologies Proprietary
58
which you want to add on the MAC filter list and then click
Apply button. Or you may click Clone to automatically add
computer's MAC address to the MAC Address section
when the system detects the DHCP client automatically.
III. Save
Click the Apply button to save the settings in the RAM.
z
To save these configuration changes permanently, enter
z
the Tools>System Setting page, and click Save &
Restart button to save new settings.
4.11.3 URL Blocking
URL Blocking is used to deny the computers within the LAN
accessing to the specific Web sites. And it is rejected by its Uniform
Resource Locator (URL). A URL is a specially formatted text string
that defines a location on the Internet. If any part of the URL contains
the blocked word, the site will not be accessed and the Web page will
not be displayed as well.
Huawei Technologies Proprietary
59
I. Configuration page
Figure 4-17 URL Blocking Configuration
II. Parameter explanation
Status: select it to enable or disable IP filter, the default is
z
“Enabled”.
URL Address: enter the URL that is to be blocked.
z
III. Save
Click the Apply button to save the settings in the RAM.
z
To save these configuration changes permanently, enter
z
the Tools>System Setting page, and click Save &
Restart button to save new settings.
Huawei Technologies Proprietary
60
4.11.4 Domain Blocking
Domain Blocking is used to deny or allow the computers within
the LAN accessing specific domains on the Internet. That is, it will
deny or allow all requests such as http and ftp to a specific domain.
I. Configuration page
Figure 4-18 Domain Blocking Configuration
II. Parameter explanation
Disabled Domain Blocking: choose to it to disable
z
Domain Blocking.
Huawei Technologies Proprietary
61
Allow: select it for allowing users to access all domains
z
except "Blocked Domains" if you allow the users to access
all domains except the domains on the Blocked Domains
list.
Deny: select it for denying users to access all domains
z
except "Permitted Domains" if you only want the users to
access Permitted Domains.
Domain Name: enter the domain name that is needed to
z
be allowed or denied.
III. Save
Click the Apply button to save the settings in the RAM.
z
To save these configuration changes permanently, enter
z
the Tools>System Setting page, and click Save &
Restart button to save new settings.
4.12 Firewall Rules
Click the Firewall Rules of Advanced in the Wizard Column to
set the rules of firewall. The Firewall enables you to protect the
system against denial of service (DoS) attacks and other types of
malicious accesses to your LAN. You can also specify how to
monitor attempted attacks, and who should be automatically notified.
Huawei Technologies Proprietary
62
I. Configuration page
Figure 4-19 Firewall Configuration
II. Parameter explanation
Blacklist Status: if you want the device to maintain and
z
use a black list, click Enable. Click Disable if you do not
want to maintain a list.
Block Duration: specifies the number of minutes that a
z
computer's IP address will remain on the black list (i.e., all
traffic originating from that computer will be blocked from
passing through any interface on the MT882). For more
information, see Managing the Black List below.
Use Attack Protection: click the Allow button to use the
z
built-in firewall protections that prevent the following
common types of attacks:
Huawei Technologies Proprietary
63
IP Spoofing: sending packets over the WAN interface
z
using an internal LAN IP address as the source
address
Tear Drop: sending packets that contain overlapping
z
fragments
Smurf and Fraggle: sending packets that use the
z
WAN or LAN IP broadcast address as the source
address
Land Attack: sending packets that use the same
z
address as the source and destination address
Ping of Death: illegal IP packet length.
z
Use DoS Protection: click the Allow button to use the
z
following denial of service protections: SYN DoS, ICMP
DoS, Per-host DoS protection
Max TCP Open Handshaking Count: sets the
z
percentage of concurrent IP sessions that can be in the
open state. In ordinary TCP communication, packets are in
the open handshaking state only briefly as a connection is
being initiated; the state changes to active when packets
are being exchanged, or closed when the exchange is
complete. TCP connections in the open handshaking state
can use up the available IP sessions. If the percentage is
exceeded, then the open handshaking sessions will be
closed and replaced with new sessions as they are
initiated.
Max ICMP Count: sets the percentage of concurrent IP
z
sessions that can be used for ICMP messages. If the
percentage is exceeded, then older ICMP IP sessions will
be replaced by new sessions as they are initiated.
Huawei Technologies Proprietary
64
Max Host Count: sets the max number of concurrent IP
z
session that can originate from the computer. This number
should take into account the number of hosts on the LAN.
III. Save
Click the Submit button to save the settings in the RAM.
z
To save these configuration changes permanently, enter
z
the Tools>System Setting page, and then click Save &
Restart button to save new settings.
4.13 RIP
Click the RIP of Advanced in the Wizard Column to set the
rules of firewall. The MT882 supports RIP v1 and RIP v2 used to
share routing tables with other Layer 3 routing devices on your local
network or remote LAN. If your network does not employ another IP
routing device, it will not be necessary to enable RIP.
I. Configuration page
Figure 4-20 RIP Configuration
Huawei Technologies Proprietary
65
RIP can be enabled on any existing WAN or LAN interfaces. It
may be specified to receive RIP requests and reply to them, and it
can be specified to send RIP queries, or to both receive and send
RIP packets. Furthermore, the RIP version can be specified. The
table below lists the parameters that can be specified for the
pull-down RIP menus. Click the Apply button to set up RIP as
specified.
II. Parameter explanation
Interface Name: it shows the interface on which you want
z
to share routing table information with other routing
devices.
RIP 1 Received: select it to enable or disable receiving
z
route information using RIP v1.
RIP 1 send: select it to enable or disable sending route
z
information using RIP v1.
RIP 2 Received: select it to enable or disable receiving
z
route information using RIP v2.
RIP 2 send: select it to enable or disable sending route
z
information using RIP v2.
Send MultiCast: select it to enable or disable sending
z
route information using MultiCast.
III. Save
Click the Submit button to save the settings in the RAM.
z
To save these configuration changes permanently,
z
Tools>System Setting page, and click Save & Restart
button to save new settings.
Huawei Technologies Proprietary
66
4.14 Administrator Setting
Click the Administrator Setting of Tools in the Wizard Column
to set the rules of firewall. Administrator has read/write ability on the
Web page and can make some changes. You can change the Admin
account password here for personal security.
I. Configuration page
Figure 4-21 Administrator Setting
Huawei Technologies Proprietary
67
Note:
It is recommended to keep a record of the new password after
modified.
II. Parameter explanation
Administrator Setting: to change the password used to
z
access the MT882 Web manager, Type the New
Password and Confirm Password to be certain you have
typed it correctly. Click the Apply button to activate the
new password.
Block WAN Ping: pinging public WAN IP addresses is a
z
common method used by hackers to test whether your
WAN IP address is valid. If you want to avoid hackers
testing your WAN IP, click Enabled to activate this
function.
Remote Management: remote Management allows the
z
device to be configured through the WAN (Wide Area
Network) port from the Internet using a Web browser. A
username and password are still required to access the
browser-based management interface.
IP Address - enter the Internet IP address of the
z
computer connected to the MT882. If the IP address is
set to *, this allows all Internet IP addresses to access
the ADSL Router.
Port - the port number is used to access the MT882.
z
Huawei Technologies Proprietary
68
III. Save
Click the Apply button to save the settings in the RAM.
z
To save these configuration changes permanently, enter
z
the Tools>System Setting page, and click Save &
Restart button to save new settings.
4.15 Time
Click the Time of Tools in the Wizard Column to set the system
time. The "system time" is used by the unit to synchronize scheduling
services and system login activities. You will need to set the time
zone corresponding to your location. The time can be set manually or
the device can connect to a Network Time Protocol ( NTP ) server to
retrieve the time.
I. Configuration page
Figure 4-22 System Time Setting
Huawei Technologies Proprietary
69
II. Save
Click the Submit button to save the settings in the RAM.
z
To save these configuration changes permanently, enter
z
the Tools>System Setting page, and click Save &
Restart button to save new settings.
4.16 System Setting
Click the System Setting of Tools in the Wizard Column to
configure the setting of system.
I. Configuration page
Figure 4-23 System Setting
II. Parameter explanation
Save: when clicking on Save, The current system settings
z
can be saved as a file onto the local hard drive. The file will
be saved as adslmodem.cfg.
Huawei Technologies Proprietary
70
Browse and Load: the saved file or any other saved
z
setting file created by device can be uploaded into the unit.
To reload a system setting file, click on Browse to search
the local hard drive for the file to be used, and then click on
Load to start loading the file.
Restore: the device can also be reset back to factory
z
default settings by clicking Restore. Use the restore
feature only if necessary. This will erase previously saved
settings for the unit.
Save & Restart: you can save the new settings to
z
permanent storage by clicking Save & Restart. This will
put into effect any configuration changes that have been
successfully saved to flash memory.
Caution:
Do not reboot the device using the Reset button on the back panel of
the MT882 to activate new changes. This button resets the device
settings to the manufacturer’s default values. Any custom settings
will be lost.
4.17 Firmware Upgrade
Click the hyperlink Firmware Upgrade in the Wizard column to
open the Firmware Upgrade page and update the system software.
Huawei Technologies Proprietary
71
Figure 4-24 Firmware Upgrade
Upgrade File: type in the full path and file name of the firmware
file to be uploaded. Alternatively you may click the Browse button to
search for the file on your system.
When the file names have been entered, click the Upload
button to start loading the firmware file. If the upload is successful, a
message informs you that it was successfully loaded. If the firmware
does not load, an error message informs you to try the upload again.
Check the file names and attempt to upload again. If the file still is not
loaded, reboot the device and try again.
Caution:
Do not power off the MT882 during the firmware upgrade process.
Otherwise, the configuration in the flash could be damaged.
Huawei Technologies Proprietary
72
4.18 Log
Click the Log of Status in the Wizard Column to view the log of
device.
4.18.1 View Log
The log file keeps records of the events and activities occurring
on the device. It can display up to 200 events. The latest activities will
overwrite the outdated ones. You may want to save the log files by
clicking on Log Setting. When the device is rebooted, the logs are
automatically cleared.
I. Configuration page
Figure 4-25 View Log
II. Buttons e]xplanation
First: the first page of the log
z
Last: the last page of the log
z
Previous: ,moves back one log page.
z
Next: moves forward one log page.
z
Clear: clears the logs completely.
z
Log Settings: brings up the page to configure the logs.
z
Huawei Technologies Proprietary
73
4.18.2 Log Settings
Not only does the device display the logs of activities and
events, it can be setup to send these logs to another location. The
logs can be sent through email to a specific email account.
I. Configuration page
Figure 4-26 Log Setting
II. Buttons explanation
Server IP Status: select it to enable or disable sending the
z
logs.
SMTP Server: the address of the SMTP (Simple Mail
z
Transfer Protocol) server that will be used to send the logs.
Log Type: select the type of activities that you want the
z
ADSL Router to keep records.
Huawei Technologies Proprietary
74
4.18.3 Save
Click the Apply button to save the settings in the RAM.
z
To save these configuration changes permanently, enter
z
the Tools>System Setting page, and click Save &
Restart button to save new settings.
4.19 Diagnostics
The diagnostics feature executes a series of test of your system
software and hardware connections. Use this feature when working
with your ISP to troubleshoot problems. Click the Diagnostics of
Status in the Wizard Column to perform the basic diagnostics for
system.
Huawei Technologies Proprietary
75
Figure 4-27 Diagnostics Window
Select the Virtual Circuit and click the Submit button. A
message will appear, informing you whether the loop test succeeded
or failed.
The diagnostics utility will run a series of test to check whether
the device's connections are up and working. This takes only a few
seconds. The program reports whether the test passed or failed. A
test may be skipped if the program determines that no suitable
interface is configured on which to run the test.
Huawei Technologies Proprietary
76
The Ping utility is essentially a tool that is used to see if a
computer is operating and also to see if network connections are
intact. You can enter the host name or IP address of the device you
want to check, and then click the Ping button. The result will be
shown below.
4.20 Traffic Statistics
Click the Traffic Statistics of Status in the Wizard Column to
view the log of device.
Figure 4-28 Traffic Statistics
The device keeps statistic of the data traffic that it handles. You
are able to read the amount of Receive and Transmit packets that
pass through the device on both the WAN (Wide Area Network) ports
and the LAN (Local Area Network) ports. Click the Refresh button to
update the counters and the Reset button to clear the counters. The
traffic counter will reset when the device is rebooted.
Huawei Technologies Proprietary
77
5 Service Configuration
This section describes the configuration for six modes of
SmartAX MT882 ADSL router device for ADSL online service. The
contents include:
Preparation for service configuration
z
PPPoE
z
PPPoA
z
RFC 2684 Bridged (Pure Bridge)
z
RFC 2684 Bridged (Static IP)
z
RFC 2684 Bridged (DHCP)
z
RFC 2684 Routed (IPoA)
z
5.1 Preparation for Service Configuration
Collect the following data firstly to perform the configuration:
Huawei Technologies Proprietary
78
Protocol
types
Preparing
information
Virtual dialup
mode
RFC
2648
PPPoE PPPoA
Bridged
(Pure
Bridge)
Connec
tion
Type
PPPoE
user
name
PPPoE
passwo
rd
Connec
tion
Type
PPPoA
user
name
PPPoA
passwo
rd
Connec
tion
Type
VPI/
VCI
None WAN IP None
VPI/VCI VPI/VCI None
Security
Protocol
Security
Protocol
None
DSL mode
RFC
2684
Bridged
(Static
IP)
Connecti
on Type
VPI/
VCI
Subnet
mask
Default
gateway
RFC
2684
Bridged
(DHCP)
Connec
tion
Type
VPI/
VCI
None
None
RFC
2684
Routed
(IPoA)
Conne
ction
Type
VPI/
VCI
WAN
IP
Subnet
mask
Default
gatewa
y
None None None DNS DNS DNS
Huawei Technologies Proprietary
79
5.2 PPPoE Configuration
Configurations on MT882
Location Parameters Comments
ATM Setting
DNS
DHCP Mode
IP Address
and Network
Mask
PVC
VPI/VCI
Wan Type Select “PPP”.
Connection
type
User name
and Password
Default Route Select “Enable”.
DNS Select “Enable”.
It is recommended to have DNS Relay function
enabled.
It is recommended to have DHCP Server function
enabled.
Configurations on the user PC
It is recommended to set the mode as obtaining
an IP address automatically.
Select any one from the eight
PVCs.
The value shall be provided by
your ISP.
Select “PPPoE”.
The values shall be provided by
your ISP.
DNS
It is recommended to set the mode as obtaining a
DNS server’s IP address automatically.
Huawei Technologies Proprietary
80
5.3 PPPoA Configuration
Configurations on MT882
Location Parameters Comments
PVC
VPI/VCI
Encapsulation
ATM Setting
NAT It is recommended to enable the function of NAT.
DNS
Wan Type Select “PPP”.
Connection
Type
User name
and Password
Default Route Select “Enable”.
DNS Select “Enable”.
Configurations on MT882
It is recommended to have DNS Relay function
enabled.
Select any one from the eight
PVCs.
The value shall be provided by
your ISP.
The value shall be provided by
your ISP. Usually you can keep
the default value: LLC.
Select “PPPoA”.
The values shall be provided by
your ISP.
DHCP Mode
It is recommended to have DHCP Server function
enabled.
Configurations on the user’s PC
Huawei Technologies Proprietary
81
Configurations on MT882
Location Parameters Comments
IP Address
and Network
Mask
DNS
It is recommended to set the mode as obtaining
an IP address automatically.
It is recommended to set the mode as obtaining a
DNS server’s IP address automatically.
5.4 RFC 2684 Bridged (Pure Bridge)
Configuration
Configurations on MT882
Location Parameters Comments
Select any one from the eight
PVCs.
The value shall be provided by
your ISP.
The value shall be provided by
your ISP. Usually you can keep
the default value: LLC.
ATM Setting
PVC
VPI/VCI
Encapsulation
PPPoE
Dial–up
Application
Wan Type Select “RFC2684 Bridged”.
Connection
Type
Configurations on the user PC
Before connecting to the Internet, the user shall
have PPPoE dial–up application installed on the
PC.
Huawei Technologies Proprietary
Select “Pure Bridge”.
82
5.5 RFC 2684 Bridged (Static IP)
Configuration
Configurations on MT882
Location Parameters Comments
PVC
VPI/VCI
Encapsulation
ATM Setting
NAT It is recommended to enable the function of NAT.
DNS
Wan Type Select “RFC2684 Bridged”.
Connection
Type
IP Address
and Subnet
Mast
Default Route Select “Enable”.
Gateway IP
Address
It is recommended to have DNS Relay function
enabled.
And set DNS IP address provided by your ISP.
Select any one from the eight
PVCs.
The value shall be provided by
your ISP.
The value shall be provided by
your ISP. Usually you can keep
the default value: LLC.
Select “Static IP”.
The values shall be provided by
your ISP.
The value shall be provided by
your ISP.
DHCP Mode
It is recommended to have DHCP Server function
enabled.
Huawei Technologies Proprietary
83
Configurations on the user PC
IP Address
and Network
Mask
DNS
It is recommended to set the mode as obtaining an
IP address automatically.
It is recommended to set the mode as obtaining a
DNS server’s IP address automatically.
5.6 RFC 2684 Bridged (DHCP) Configuration
Configurations on MT882
Location Parameters Comments
Select any one from the eight
PVCs.
The value shall be provided by
your ISP.
The value shall be provided by
your ISP. Usually you can keep
the default value: LLC.
ATM Setting
PVC
VPI/VCI
Encapsulation
Wan Type Select “RFC2684 Bridged”.
Connection
Type
Default Route Select “Enable”.
NAT It is recommended to enable the function of NAT.
It is recommended to have DNS Relay function
DNS
enabled.
And set DNS IP address provided by your ISP.
Huawei Technologies Proprietary
Select “DHCP”.
84
Configurations on MT882
Location Parameters Comments
DHCP Mode
IP Address
and Network
Mask
DNS
It is recommended to have DHCP Server function
enabled.
Configurations on the user PC
It is recommended to set the mode as obtaining an
IP address automatically.
It is recommended to set the mode as obtaining a
DNS server’s IP address automatically.
5.7 RFC 2684 Route (IPoA) Configuration
Configurations on MT882
Location Parameters Comments
ATM Setting
PVC
VPI/VCI
Encapsulation
Select any one from the eight
PVCs.
The value shall be provided by
your ISP.
The value shall be provided by
your ISP. Usually you can keep
the default value: LLC.
Wan Type
IP Address
and Subnet
Mast
Huawei Technologies Proprietary
Select “RFC2684 Routed
(IPoA)”.
The values shall be provided by
your ISP.
85
Configurations on MT882
Location Parameters Comments
Default Route Select “Enable”.
Gateway IP
Address
The value shall be provided by
your ISP.
NAT It is recommended to enable the function of NAT.
It is recommended to have DNS Relay function
DNS
enabled.
And set DNS IP address provided by your ISP.
DHCP Mode
It is recommended to have DHCP Server function
enabled.
Configurations on the user PC
IP Address
and network
mask
DNS
It is recommended to set the mode as obtaining an
IP address automatically.
It is recommended to set the mode as obtaining a
DNS server’s IP address automatically.
Note:
For other advanced configurations, please refer to 4 Web-Based
Management
Huawei Technologies Proprietary
86
6 Troubleshooting Guide
6.1 Quick Troubleshooting
Failures Instructions
Power light
is out.
ADSL
LINK light
is out.
LAN LINK
light is out.
1. Ensure power adapter is well connected.
2. Ensure the right power adapter is used.
1. Ensure the ADSL line is well connected.
2. Ensure the telephone line before entering the
house is valid, and try to test with a telephone.
3. Check that there is no junction box before
connecting MT882, which has such components
like capacitors or diodes that could hinder back
high frequency signals.
4. Ensure the MT882 and telephones are
connected in the right way.
1. Ensure you use the right cables from the MT882
to your PC.
2. Ensure the connection is secured.
3. Check if the NIC LED lights up.
4. Ensure your Network Adapter works normally by
examining whether the item of “Networking
Adapters” is labeled with “?” or “!”. If it is, you
may delete it and then click “Refresh” to reinstall.
Otherwise, you may try the NIC in another slot.
As a last resort, you have to replace the NIC.
Huawei Technologies Proprietary
87
Failures Instructions
Take the most common access mode as an example,
in which a dial-up application is installed on the user’s
computer:
1. Ensure that any of the problems above is not the
reason.
You can’t
access the
Internet.
2. Ensure that the dial-up application is correctly
installed and set on your PC.
3. Ensure that you have entered the right user
name and password.
4. Ensure “Use Proxy Server” is set properly for IE,
if the problem still remains even after you have
log into successfully.
5. Try more than one Web sites, in case of some
Web server’s being in failure.
6.2 FAQs
Q: Why can’t my computer access the Internet, even when
the physical links are well connected?
Check first whether the LEDs are in normal status. If they do,
you have to find help to adjust the settings on the MT882.
Q: I forget the username and password when I am to log
into the Web-based Configuration Manager. Or I just can’t
access the Web-based Configuration Manager.
1) Please press reset button on the rear panel for 3 seconds
to restore factory default settings of the MT882
Huawei Technologies Proprietary
88
2) Indicate your NIC IP address to 192.168.1.3
3) Disable Proxy service.
4) Launch your Web browser and type in http://192.168.1.1
5) Use the default user name: admin and password: admin
Q: My configuration is gone after I reboot the MT882.
If you want to keep your settings after rebooting the MT882.
Please go to Web-based Configuration Manager, enter the
Tools>System Setting page, and click Save & Restart button to
save new settings.
Figure 6-1 System Setting
Q: I can’t upgrade with the new firmware.
Please make sure the file that you have downloaded is valid.
Q: Why can’t I access the Internet by using virtual dialing
through Microsoft’s Internet Gateway?
Internet Gateway supports PPPoE itself. No other PPPoE
terminal software shall be installed again.
Huawei Technologies Proprietary
89
Q: Why does my PC fall off line sometimes even with all
LEDs are in normal status?
The following scenarios may cause this problem..
1) Be disconnected by the ISP.
2) Some ISPs will have idle timeout setting to avoid wasting
IP. When the end user connects to the Internet too long
without any packet, the ISP will drop the connection.
Please contact with your ISP about this problem.
3) Some ISPs don’t provide a good quality ADSL signal line.
Therefore, when the ADSL line is unstable, your
connection will be dropped. Try with a telephone and find
the status of your ADSL signal line.
4) If you have contacted the ISP and they promised the
quality of ADSL line, it may be the hardware issue and
please contact your vendor.
Q: When can I use the “Restore Factory Default Setting”
button?
If you changed some setting unconsciously in the Web
Management Interface and you forgot the detailed values that you
modified, please use the “Restore Factory Default Setting” button to
recover the factory default settings.
Q: How many methods can be used to restore the factory
default setting?
Totally two methods: 1) by the reset button on the rear panel of
the device. Push it three times continuously to take the factory
default setting into effect; 2) Select the option Factory Setting
Reboot in the page of Save & Reboot and then click Submit button.
Huawei Technologies Proprietary
90
Loading...
