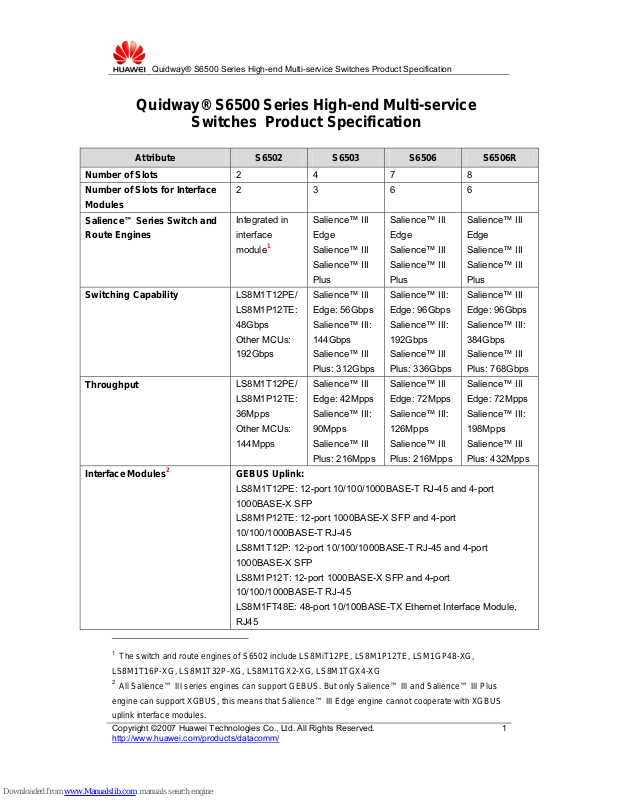

Huawei S6502, S6503, S6506, S6506R Specifications

Quidway® S6500 Series High-end Multi-service Switches Product Specification

http://www.huawei.com/products/datacomm/

1

Quidway® S6500 Series High-end Multi-service

Switches Product Specification

Attribute S6502 S6503 S6506 S6506R

Number of Slots

2 4 7 8

Number of Slots for Interface Modules

2 3 6 6

Salience™ Series Switch and Route Engines

Integrated in

interface

module

1

Salience™ III

Edge

Salience™ III

Plus

Salience™ III

Edge

Salience™ III

Plus

Salience™ III

Edge

Salience™ III

Plus

Switching Capability

LS8M1T12PE/

LS8M1P12TE:

48Gbps

Other MCUs:

192Gbps

Salience™ III

Edge: 56Gbps

Salience™ III:

144Gbps

Salience™ III

Plus: 312Gbps

Salience™ III:

Edge: 96Gbps

Salience™ III:

192Gbps

Salience™ III

Plus: 336Gbps

Salience™ III

Edge: 96Gbps

Salience™ III:

384Gbps

Salience™ III

Plus: 768Gbps

Throughput

LS8M1T12PE/

LS8M1P12TE:

36Mpps

Other MCUs:

144Mpps

Salience™ III

Edge: 42Mpps

Salience™ III:

90Mpps

Salience™ III

Plus: 216Mpps

Salience™ III

Edge: 72Mpps

Salience™ III:

126Mpps

Salience™ III

Plus: 216Mpps

Salience™ III

Edge: 72Mpps

Salience™ III:

198Mpps

Salience™ III

Plus: 432Mpps

Interface Modules2 GEBUS Uplink:

LS8M1T12PE: 12-port 10/100/1000BASE-T RJ-45 and 4-port

1000BASE-X SFP

LS8M1P12TE: 12-port 1000BASE-X SFP and 4-port

10/100/1000BASE-T RJ-45

LS8M1T12P: 12-port 10/100/1000BASE-T RJ-45 and 4-port

1000BASE-X SFP

LS8M1P12T: 12-port 1000BASE-X SFP and 4-port

10/100/1000BASE-T RJ-45

LS8M1FT48E: 48-port 10/100BASE-TX Ethernet Interface Module,

RJ45

1

The switch and route engines of S6502 include LS8MiT12PE, LS8M1P12TE, LSM1GP48-XG,

LS8M1T16P-XG, LS8M1T32P-XG, LS8M1TGX2-XG, LS8M1TGX4-XG

2

All Salience™ III series engines can support GEBUS. But only Salience™ III and Salience™ III Plus

engine can support XGBUS, this means that Salience™ III Edge engine cannot cooperate with XGBUS uplink interface modules.

Quidway® S6500 Series High-end Multi-service Switches Product Specification

http://www.huawei.com/products/datacomm/

2

Attribute S6502 S6503 S6506 S6506R

LS8M1FP48: 48-port 100BASE-FX Ethernet Optical Interface Module,

SFP Req.

LS8M1GT20A: 20-port 10/100/1000BASE-T Ethernet Interface

Module, RJ45

LS8M1GT48: 48-port 10/100/1000BASE-T Enhanced Ethernet

Interface Module, RJ45

LS8M1GP20A: 20-port 1000BASE-X Ethernet Optical Interface

Module, SFP Req.

LS8M1TGX1C: 1-port 10GE Interface Module, Xenpak Req.

LS8M1GT48A-POE: 48-port 10/100/1000BASE-T Ethernet Interface

Module, RJ45 (PoE)

LS8M1FT48F-POE: 48-port 10/100BASE-TX Ethernet Interface

Module, RJ45 (PoE)

LS8M1GT8UE

3

: 8-port 10/100/1000BASE-T Ethernet Interface

Module, RJ45

LS8M1GP8UB: 8-port 10/100/1000BASE-X Ethernet Optical Interface

Module, RJ45

XGBUS Uplink

4

:

LS8M1GP48-XG: 48-port 1000BASE-X Ethernet Optical Interface

Module, SFP Req.

LS8M1T16P-XG: 16-port 10/100/1000BASE-T RJ45 and 8-port

1000BASE-X SFP

LS8M1T32P-XG: 32-port 10/100/1000BASE-T RJ45 and 16-port

1000BASE-X SFP

LS8M1TGX2-XG: 2-port 10GE Interface Module, XFP Req.

LS8M1TGX4-XG: 4-port 10GE Interface Module, XFP Req.

Intelligent Service Module:

LS8M1VSNP: Versatile Network Processing Service Module

3

LS8M1GP8UB and LS8M1GT8UE only work with Salience™ III and Salience™ Edge and cannot be

configured in the last slot of S6506 and S6506R..

4

The interface modules with XGBUS uplink only work with Salience™ III and Salience™ III Plus, they

can only be configured in the last two slot of S6503, S6506, and S6506R when the SRPU is Salience™ III.

5

The Versatile Network Processing (VSNP) Service Interface Module only cooperate with Salience™ III

and Salience™ III Plus engine. But when S6502 Main Control Unit is XGBUS uplink, it can support VSNP Service Interface Module also.

6

At present, EPON OLT modules only support GEBUS uplink, so they can compliant with LS8M1P12TE or LS8M1T12PE on S6502. For S6503, S6506, S6506R, LS8M1PT8GA is only compliant with Salience III or Salience III Edge and should not be installed in the last slot of S6506, S6506R.

Quidway® S6500 Series High-end Multi-service Switches Product Specification

http://www.huawei.com/products/datacomm/

3

Attribute S6502 S6503 S6506 S6506R

(PBR/NAT/NetStream) with XGBUS uplink5

OLT Interface Module

6

:

LS8M1PT8GA: 8-Port Gigabit Passive Optical Line Interface

Module(10km, SFF)

LS8M1PT4GA: 4-Port Gigabit Passive Optical Line Interface

Module(10km, SFF)

Port-based VLAN (802.1Q)

YES(4K)

Protocol-base d VLAN (IP, IPX and etc)

YES

SuperVLAN

YES(up to 64)

SubVLAN

YES (127 SubVLAN per SuperVLAN, totally 1024 SubVLAN per

System)

MAC table number

16K/module, 16K/chassis

IEEE802.3x flow control

YES

IEEE802.1p

YES

IEEE802.3ad link-aggregati on

YES. MAX. 8 ports/link group, MAX. 64 groups

Link-aggregati on across boards

YES7. MAX. 8 ports/link group, MAX. 32 groups

LACP

YES

GVRP/GMRP/ GARP

YES

Port mirroring YES

8

STP

YES

RSTP

YES

MSTP

YES (support 16 instances)

Layer 2 Switching

Broadcast

YES

7

8GT (LS8M1GT8UE), 8GP(LS8M1GP8UB), GE ports on the Salience™ III series engine and all the interface modules with XGBUS uplink support the link aggregation across boards. These ports above can be aggregated together no matter they are GEBUS uplink or XGBUS uplink.

8

8GT(LSM81GT8UE), 8GP(LS8M1GP8UB), GE ports on the Salience™ III series engine and all the interface modules with XGBUS uplink can be mirrored between boards. It can be mirrored between these ports above no matter they are GEBUS uplink or XGBUS uplink.

Quidway® S6500 Series High-end Multi-service Switches Product Specification

http://www.huawei.com/products/datacomm/

4

Attribute S6502 S6503 S6506 S6506R

storm suppression Q-in-Q

YES

Jumbo-frame

YES (support MAX. 9216 bytes)

Middle frame

YES (support MAX. 1600 bytes)

Port auto negotiation

YES

IGMP snooping (v1, v2)

YES

L2 static unicast addresses

YES

LPM (Longest prefix match)

YES

Static route

YES(5K)

RIPv1/v2 OSPF IS-IS BGP

RIPv1/v2: 1K

OSPF: 64K

IS-IS: 64K

BGPv4: 32K

VRRP

YES (14 virtual routers per switch; each virtual router supports 16 IP

addresses)

ARP

YES(8K)

Local ARP proxy

YES

DHCP relay

YES

DHCP server

YES

IGMP (v1, v2)

YES

PIM-DM, PIM-SM

YES

ECMP

4

Switched virtual interfaces

1K

Traceroute

YES

IPX(software switched)

YES

Layer 3 Switching

Multicast groups

YES(1K)

Security 802.1x

2K 3K 4K 4K

Quidway® S6500 Series High-end Multi-service Switches Product Specification

http://www.huawei.com/products/datacomm/

5

Attribute S6502 S6503 S6506 S6506R

Guest VLAN

YES

ACL

3K

SSHv1.5/2.0

YES

RADIUS, HWTACACS

YES

Unicast MAC filter

YES

Per-port QoS configuration

YES

ACL capacity

10-GE: 900 rules/port

GE: 100 rules/port

FE: 200 rules shared by 8 ports

CAR

YES (granularity: 64kbps)

Queues per port

8

QoS

Traffic Classification

Strict Priority Queuing

WRR (Weighted Round Robin) provided through bandwidth

Supports priority queue based on VLAN port, IEEE802.1P

Supports up to 8 FIFO, SP, WRR queues for each port

Remarking of packets based on priority:

• Auto classification

• Selectable prioritization

• DSCP priority

• Type of Service (ToS)

• IEEE 802.1p Class of Service (CoS)

• IP precedence

Local precedence: physical port, source/destination MAC address,

VLAN information, Ethernet type, Layer 3 protocol, source/destination

IP address, datagram type, IP Layer 4 protocol, IP Layer 4 ports Flows

identified through Access Control Lists (ACLs)

Number of IP addresses

32 IP pools and 8,000 IP addresses

NAPT

32 IP pools and 3 IP addresses per pool

Number of ISP

32

NAT

Concurrent connection number

100,000/s

3Gbps (64bytes/packet, ingress PBR)

Throughput

3Gbps (64bytes/packet, egress PBR)

Policy Based Routing (PBR)

Forwarding

4.5Mpps (64bytes/packet, ingress PBR)

Quidway® S6500 Series High-end Multi-service Switches Product Specification

http://www.huawei.com/products/datacomm/

6

Attribute S6502 S6503 S6506 S6506R

rate

4.5Mpps (64bytes/packet, ingress PBR)

Number of stream statistics entry per interface module

300,000

Throughput

3.8Gbps(single direction, 64bytes/packet)

Forwarding rate

5.7Mpps(single direction, 64bytes/packet)

NetStream

Format of output packet

V5/V8/V9

Configuration through CLI Console, Telnet and modem

YES

FTP/TFTP

YES

Other

Provides system logs

Provides user-level alarming

Optional CF card

System Configuration /System Management

Management VLAN

YES

AC power distribution box with two inputs, each with a separate ON/OFF switch

100-120V/220-240V AC; 50-60Hz; 9.0A/5.0A

Power Distribution Box

DC power distribution box

Rated voltage: -48V to -60V DC

Maximum tolerance: -36V to -72V DC

PoE input voltage

-46V to -55V; 55.0A

Operating temperature

0

o

C to 45oC

Operating humidity (non-condensing)

10% to 90%

Quidway® S6500 Series High-end Multi-service Switches Product Specification

http://www.huawei.com/products/datacomm/

7

Attribute S6502 S6503 S6506 S6506R

MTBF (Mean Time Between Failures)

218,000h 185,000h 160,000h 221,000h

MTTR (Mean Time to Repair)

≤1h

Weight (maximum in full configuration)

≤20kg ≤50kg ≤70kg ≤80kg

Maximum power consumption (all slots inserted with boards)

AC: 300W

DC: 300W

AC: 350W

DC: 300W

AC: 650W

DC: 550W

AC: 800W

DC: 700W

Physical dimensions (W×H×D)

436×130.5×400

mm

(17.17×5.14×1

5.75 in.)

436×352.8×480

mm

(17.2×13.9×18.

9 in.)

436×486.2×480

mm

(17.2×19.1×18.

9 in.)

436×530.6×480

mm

(17.2×20.9×18.

9 in.)
