Quidway® S3900 Series Intelligent and Resil ient Switches Product Specification
Copyright ©2007 Huawei Technologies Co., Ltd. All Rights Reserved.
http://www.huawei.com/products/datacomm/
1

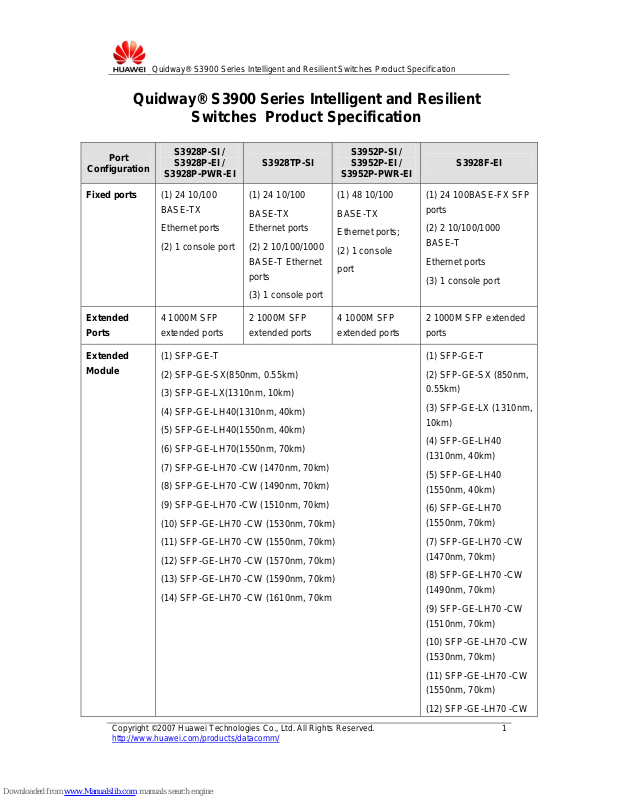

Quidway® S3900 Series Intelligent and Resilient
Switches Product Specification
Port
Configuration
S3928P-SI /
S3928P-EI /
S3928P-PWR-EI
S3928TP-SI
S3952P-SI /
S3952P-EI /
S3952P-PWR-EI
S3928F-EI
Fixed ports
(1) 24 10/100
BASE-TX
Ethernet ports
(2) 1 console port
(1) 24 10/100
BASE-TX
Ethernet ports
(2) 2 10/100/1000
BASE-T Ethernet
ports
(3) 1 console port
(1) 48 10/100
BASE-TX
Ethernet ports;
(2) 1 console
port
(1) 24 100BASE-FX SFP
ports
(2) 2 10/100/1000
BASE-T
Ethernet ports
(3) 1 console port
Extended
Ports
4 1000M SFP
extended ports
2 1000M SFP
extended ports
4 1000M SFP
extended ports
2 1000M SFP extended
ports
Extended
Module
(1) SFP-GE-T
(2) SFP-GE-SX(850nm, 0.55km)
(3) SFP-GE-LX(1310nm, 10km)
(4) SFP-GE-LH40(1310nm, 40km)
(5) SFP-GE-LH40(1550nm, 40km)
(6) SFP-GE-LH70(1550nm, 70km)
(7) SFP-GE-LH70 -CW (1470nm, 70km)
(8) SFP-GE-LH70 -CW (1490nm, 70km)
(9) SFP-GE-LH70 -CW (1510nm, 70km)
(10) SFP-GE-LH70 -CW (1530nm, 70km)
(11) SFP-GE-LH70 -CW (1550nm, 70km)
(12) SFP-GE-LH70 -CW (1570nm, 70km)
(13) SFP-GE-LH70 -CW (1590nm, 70km)
(14) SFP-GE-LH70 -CW (1610nm, 70km
(1) SFP-GE-T
(2) SFP-GE-SX (850nm,
0.55km)
(3) SFP-GE-LX (1310nm,
10km)
(4) SFP-GE-LH40
(1310nm, 40km)
(5) SFP-GE-LH40
(1550nm, 40km)
(6) SFP-GE-LH70
(1550nm, 70km)
(7) SFP-GE-LH70 -CW
(1470nm, 70km)
(8) SFP-GE-LH70 -CW
(1490nm, 70km)
(9) SFP-GE-LH70 -CW
(1510nm, 70km)
(10) SFP-GE-LH70 -CW
(1530nm, 70km)
(11) SFP-GE-LH70 -CW
(1550nm, 70km)
(12) SFP-GE-LH70 -CW
Page 2
Quidway® S3900 Series Intelligent and Resil ient Switches Product Specification
Copyright ©2007 Huawei Technologies Co., Ltd. All Rights Reserved.
http://www.huawei.com/products/datacomm/
2
Port
Configuration
S3928P-SI /
S3928P-EI /
S3928P-PWR-EI
S3928TP-SI
S3952P-SI /
S3952P-EI /
S3952P-PWR-EI
S3928F-EI
(1570nm, 70km)
(13) SFP-GE-LH70 -CW
(1590nm, 70km)
(14) SFP-GE-LH70 -CW
(1610nm, 70km)
(15) SFP-FE-SX
(1310nm, 2km)
(16)SFP-FE-LX
(1310nm, 15km)
(17) SFP-FE-LH40
(1310nm 40km)
(18) SFP-FE-LH80
(1550nm, 80km)
Attribute S3900-SI S3900-EI
Wire speed
L2/L3
switching
Wire speed forwarding on all ports
Switching capacity (28/52 ports): 12.8Gbps/17.6Gbps
Packet forwarding speed (28/52 ports): 9.53Mpps/11.78Mpps
Switching
Fabric
32G bps
Switching
mode
Store and forward
SDRAM
64M
Buffer
32M
Forwarding
Latency
<40µs
Flash
8M 16M
IRF Stack
RMON on IRF
HGMP on IRF
Peer fabric port testing
Page 3
Quidway® S3900 Series Intelligent and Resil ient Switches Product Specification
Copyright ©2007 Huawei Technologies Co., Ltd. All Rights Reserved.
http://www.huawei.com/products/datacomm/
3
Attribute S3900-SI S3900-EI
Support Basic IRF stack (DDM, Dynamic
link aggregation on one device), up to 8
units, stacking bandwidth is 4G bps.
Support Enhanced IRF Stack (DDM、DDR、
DLA through LACP and across devices), up
to 8 units, stacking bandwidth is 4G bps
Peer fabric port testing
PoE
N/A Supported by S3928P-PWR-EI and
S3952P-PWR-EI
S3928P-PWR-EI and S3952P-PWR-EI
support RPS
Support POE profile
Layer 2 switching
MAC Address
Address self-learning
16K MAC addresses
Up to 1k static MAC addresses
VLAN
4K VLANs (IEEE 802.1Q)
Voice VLAN
GVRP(GARP VLAN Registration Protocol)
Support Port-based VLAN
Protocol-based VLAN
Configure VLANs in batch
VLAN Tag Frame Extension
Dynamic link aggregation (DLA) through
Link Aggregation Control Protocol (LACP)
Dynamic link aggregation through LACP
and across devices
Link
Aggregation
Manual link aggregation through command lines
Aggregation of FE/GE ports: Up to 8 FE or 4 GE ports in each aggregation group
Mirroring
Many-to-one port mirroring (multiple monitored ports to one monitor port N:1)
Traffic mirroring
Flow Control
IEEE 802.3x full-duplex flow control
Back pressure flow control for half-duplex
STP/RSTP/
MSTP
IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol instances (MSTP)
Page 4
Quidway® S3900 Series Intelligent and Resil ient Switches Product Specification
Copyright ©2007 Huawei Technologies Co., Ltd. All Rights Reserved.
http://www.huawei.com/products/datacomm/
4
Attribute S3900-SI S3900-EI
QinQ BPDU Tunnel
Broadcast/
Multicast/
Unicast storm
suppression
Port rate ratio(1% granularity) and PPS based on suppression
QinQ
Y, Support VLAN-VPN or double tag
Layer 3 Switching
Static routing
RIP v1, v2 (Routing Information Protocol v1, v2)
RIP equivalent route
IP Routing
1K IP Routes
8K IP Routes
OSPF v2 (Open Shortest Path First)
ECMP (Equal Cost Multi-path Protocol): 3
Paths
256 Multicast groups
IGMP (Internet Group Management Protocol) snooping
IGMP Group Limit on Interface
Adding multicast MAC addresses manually
Multicast source port suppression
MVR(Multicast VLAN Registration)
Multicast
N/A
IGMP v1 and v2
PIM-DM
PIM-SM
MSDP(Multicast Source Discovery
Protocol)
N/A
VRRP (Virtual redundancy routing protocol)
DHCP server
Mirroring remote ports (Support RSPAN)
Network
Protocol
DHCP Snooping (Dynamic Host Configuration Protocol Snooping)
DHCP Relay (Dynamic Host Configuration Protocol Relay)
Page 5
Quidway® S3900 Series Intelligent and Resil ient Switches Product Specification
Copyright ©2007 Huawei Technologies Co., Ltd. All Rights Reserved.
http://www.huawei.com/products/datacomm/
5
Attribute S3900-SI S3900-EI
DHCP Client
DHCP option 60
ARP (Address Resolution Protocol)
NTP (Network Time Protocol)
BOOTP (Bootstrap Protocol)
UDP helper
Convergence
QoS (Quality
of Service)/
ACL (Access
Control List)
Support bi-directional port rate-limiting with the 64kbps granularity
Packet redirection
Eight hardware queues per port
WRED (Weighted Random Early Detect/Discard)
Five scheduling algorithms that can be set based on port and queue at the same time:
• SP (Strict Priority)
• WRR (Weighted Round Robin)
• WFQ (Weighted Fair Queue)
• SP + WRR
• SP + WFQ
Packet tagging based on 802.1p or DSCP preference
L2~L4 Packet filter providing filtering based on source/destination MAC address,
source/destination IP address, port, protocol, VLAN, VLAN range, MAC address range,
or invalid frame
Time-based QoS
QoS profile management, allowing QoS service scheme customization
Flow statistics for ACL rules defined using the deny keyword
Improvements made for the depth-first order of ACL matching
DSCP (differentiated services code point) refined when defining ACL rules
Delivering ACLs in RADIUS
Configuring synchronization for the queue schedule of aggregation ports
Protocol packet priority
Controlling Telnet users
Security
Network
Support Centralized MAC address authentication
Page 6
Quidway® S3900 Series Intelligent and Resil ient Switches Product Specification
Copyright ©2007 Huawei Technologies Co., Ltd. All Rights Reserved.
http://www.huawei.com/products/datacomm/
6
Attribute S3900-SI S3900-EI
Login
Support DUD (disconnect unauthorized device) authentication
Support Port isolation
Support MAC address black hole
Support MAC Address Learning Limit
Prevent unauthorized access to the network by binding of MAC, IP and PORT
Support SSH V2 (Secure Shell)
Support Port security
Support EAD(endpoint admission defense)
802.1x
Support IEEE 802.1x user authentication
Version checking (802.1x supplicant system)
Guest VLAN
Dynamic VLAN
802.1x PEAP/EAP/TLS/TTLS
Performing 802.1x authentication and MAC address-based authentication
simultaneously
802.1x -trusted MAC address
802.1x client checking
AAA&Radius
Separated authentication, authorization, and accounting
Authenticated users need to be authenticated again when the device restarts
Delivering of trunk ports and hybrid ports in Tag VLAN is supported when performing
802.1x authentications
The tag authentication method field is added to RADIUS protocol
HWTACACS
Management/ Maintenance
System
Configuration
and
Management
Support CLI (Command Line Interface) configuration mode
Support Configuration via the console port
Support Local/Remote configuration via Telnet
Support Remote configuration via modem dial-up
Support System configuration with SNMP v1, 2 and 3
Support SNMP Agent logging
Support HGMP V2
Support RMON (Remote Monitoring) v1, 1/2/3/9 groups of MIBs
Page 7
Quidway® S3900 Series Intelligent and Resil ient Switches Product Specification
Copyright ©2007 Huawei Technologies Co., Ltd. All Rights Reserved.
http://www.huawei.com/products/datacomm/
7
Attribute S3900-SI S3900-EI
Support Quidway network management system
Web-based network management
File system
management
and
seven-segme
nt display
Upgrading all the units of a fabric using the App (or BootROM, Web) files of an unit
Setting an App file of a fabric or a unit of a fabric to be the primary/a secondary
configuration file.
Specifying a fabric or an unit of a fabric to use the primary configuration file, a secondary
configuration file, or no configuration file to start.
Performing specific file-related operations for a fabric or a unit of a fabric, such as
deleting files stored in the storage devices of a Ethernet switch, displaying the
information about specified files or directories in the storage devices of a Ethernet switch ,
and clearing the recycle bin.
Customizing the password for entering the BOOT menu.
Configuration files backup/recovery.
Seven-segment display, which indicates the progress of loading software using
FTP/TFTP.
System
Maintenance
and
debugging
Detailed alarm/debug information output
Support Ping and Tracert
Support remote maintenance via Telnet Modems and SSH
Support HWping
Support System log
Hierarchical alarm management and alarm filtering
Support DLDP (Device Link Detection Protocol)
Saving debugging information into Flash
Displaying the information about all enabled types of debugging
Displaying the statistics of MAC addresses of a switch
Configuring Telnet users with specified source IP addresses/source ports
Setting the Daylight Saving Time
Loopback detection on ports
Support VCT(Virtual Cable Test)
Information
center
Exporting switch synchronization information
Setting the format of time stamps to be sent to log hosts
Hardware configuration
Page 8
Quidway® S3900 Series Intelligent and Resil ient Switches Product Specification
Copyright ©2007 Huawei Technologies Co., Ltd. All Rights Reserved.
http://www.huawei.com/products/datacomm/
8
Attribute S3900-SI S3900-EI
Outline
Dimensions
(HxWxD)mm
•: 43.6*440*260 mm
•: 43.6*440*420 mm ( S3928P-PWR-EI / S3952P-PWR-EI )
Weight
• S3928P-SI/ S3928TP-SI/ S3928P-EI/ S3928F-EI: 3.5kg
• S3952P-SI/ S3952P-EI: 4kg
• S3928P-PWR-EI: 5.8kg
• S3952P-PWR-EI: 6.2kg
Input Voltage
The S3900-SI series is AC-powered. The S3900-EI series can be AC-powered and
DC-powered.
AC: 100v ~ 240V AC50/60Hz
DC: -48 ~ -60V DC
Maximum
System
Power
Consumption
40W (S3928P-SI/S3928P-EI/S3928TP-SI)
50W (S3952P-SI/S3952P-EI)
65W (S3928F-EI)
450W (AC input)
• Dissipated power: 150W
• PoE: 300W
430W (DC input)
• Dissipated power: 60W
• PoE: 370W
450W (S3928P-PWR-EI, AC input)
• Dissipated power: 150W
• PoE: 300W
430W (S3928P-PWR-EI, DC input)
• Dissipated power: 60W
• PoE: 370W
465W (S3952P-PWR-EI, AC input)
• Dissipated power: 165W
• PoE: 300W
820W (S3952P-PWR-EI, DC input)
• Dissipated power: 80W
• PoE: 740W
RPS (only EI support)
Page 9
Quidway® S3900 Series Intelligent and Resil ient Switches Product Specification
Copyright ©2007 Huawei Technologies Co., Ltd. All Rights Reserved.
http://www.huawei.com/products/datacomm/
9
Attribute S3900-SI S3900-EI
• RPS1000-A (two PSU slots, with one PSU1500 module and 5 connector ca bles)
MTBF
S3928P-SI: 54.79years (479,960 hours)
S3952P-SI: 34.24years (299,942 hours)
S3928P-EI: 52.51 years (459,987 hours)
S3952P-EI: 34.96 years (306,249 hours)
S3928P-PWR-EI: 41.09 years (359,948 hours)
S3952P-PWR-EI: 22.83 years (199,990 hours)
S3928TP-SI: 52.51 years (459,987 hours)
S3928F-EI: 39.95 years (349,962 hours)
Noise
Parameter
S3928P-SI/EI: 40.1dbA
S3928TP-SI: 40.1dbA
S3952P-SI/EI: 46.5dBA
S3928F-EI: 51.3dBA
S3952P-PWR-EI: 46.3dBA
Environment
Operation temperature: 0°C ~ 45°C
Storage temperature: -40°C ~ 70°C
Operating humidity: 5% to 85% noncondensing
Relative humidity: 10% ~ 90%, noncondensing
Loading...
