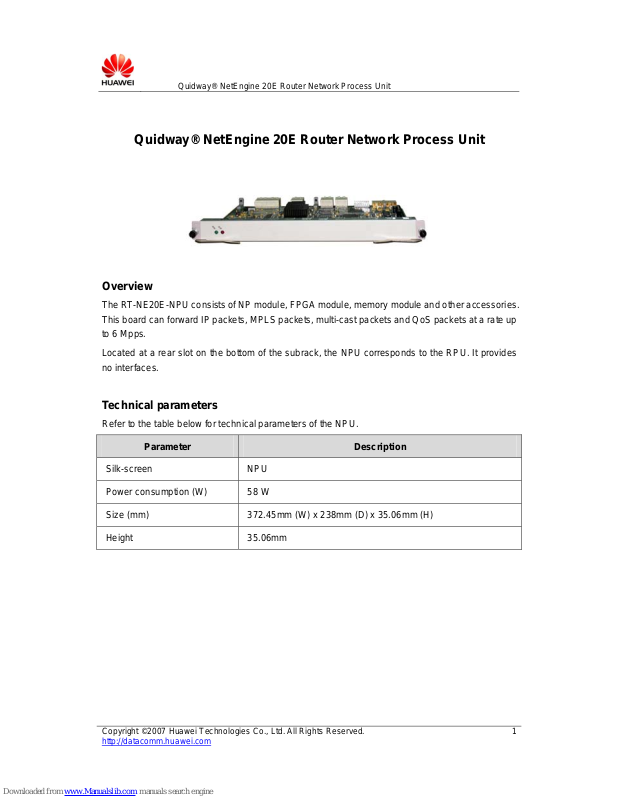

Huawei RT-NE20E-NPU Specifications

Quidway® NetEngine 20E Router Network Process Unit

Copyright ©2007 Huawei Technologies Co., Ltd. All Rights Reserved. 1

http://datacomm.huawei.com

Quidway® NetEngine 20E Router Network Process Unit

Overview

The RT -NE20E-NPU consist s of NP module, FPGA module, memory module and other accessories.
This board can forward IP packet s, MP LS p a cket s, multi-cast p acket s and QoS p acket s at a rate up
to 6 Mpps.

Located at a rear slot on the bottom of the subrack, the NPU corresponds to the RPU. It provides
no interfaces.

Technical parameters

Refer to the table below for technical parameters of the NPU.

Parameter Description

Silk-screen

NPU

Power consumption (W)

58 W

Size (mm)

372.45mm (W) x 238mm (D) x 35.06mm (H)

Height

35.06mm
