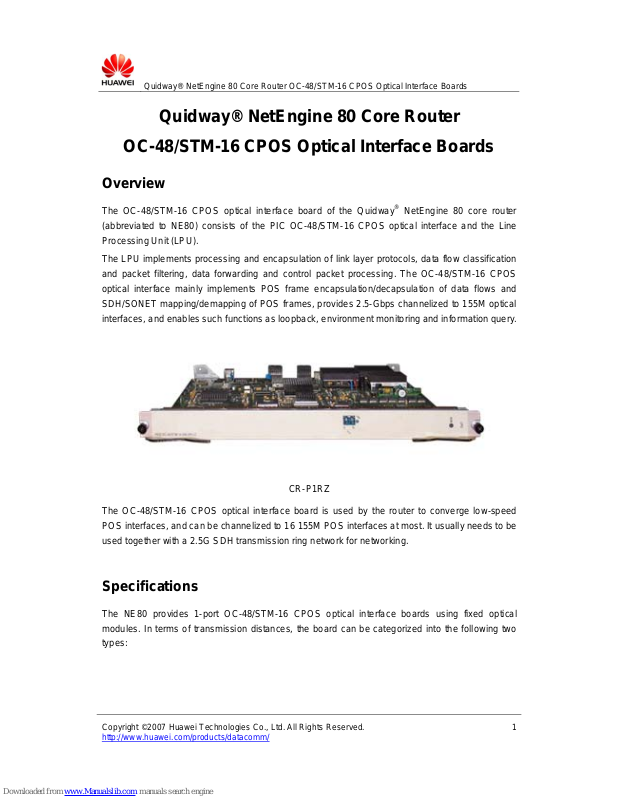

Quidway® NetEngine 80 Core Router OC-48/STM-16 CPOS Optical Interface Boards
Copyright ©2007 Huawei Technologies Co., Ltd. All Rights Reserved.
http://www.huawei.com/products/datacomm/
1
Quidway® NetEngine 80 Core Router
OC-48/STM-16 CPOS Optical Interface Boards
Overview
The OC-48/STM-16 CPOS optical interface board of the Quidway® NetEngine 80 core router
(abbreviated to NE80) consists of the PIC OC-48/STM-16 CPOS optical interface and the Line
Processing Unit (LPU).
The LPU implements processing and encapsulation of link layer protocols, data flow classification
and packet filtering, data forwarding and control packet processing. The OC-48/STM-16 CPOS
optical interface mainly implements POS frame encapsulation/decapsulation of data flows and
SDH/SONET mapping/demapping of POS frames, provides 2.5-Gbps channelized to 155M optical
interfaces, and enables such functions as loopback, environment monitoring an d information query.

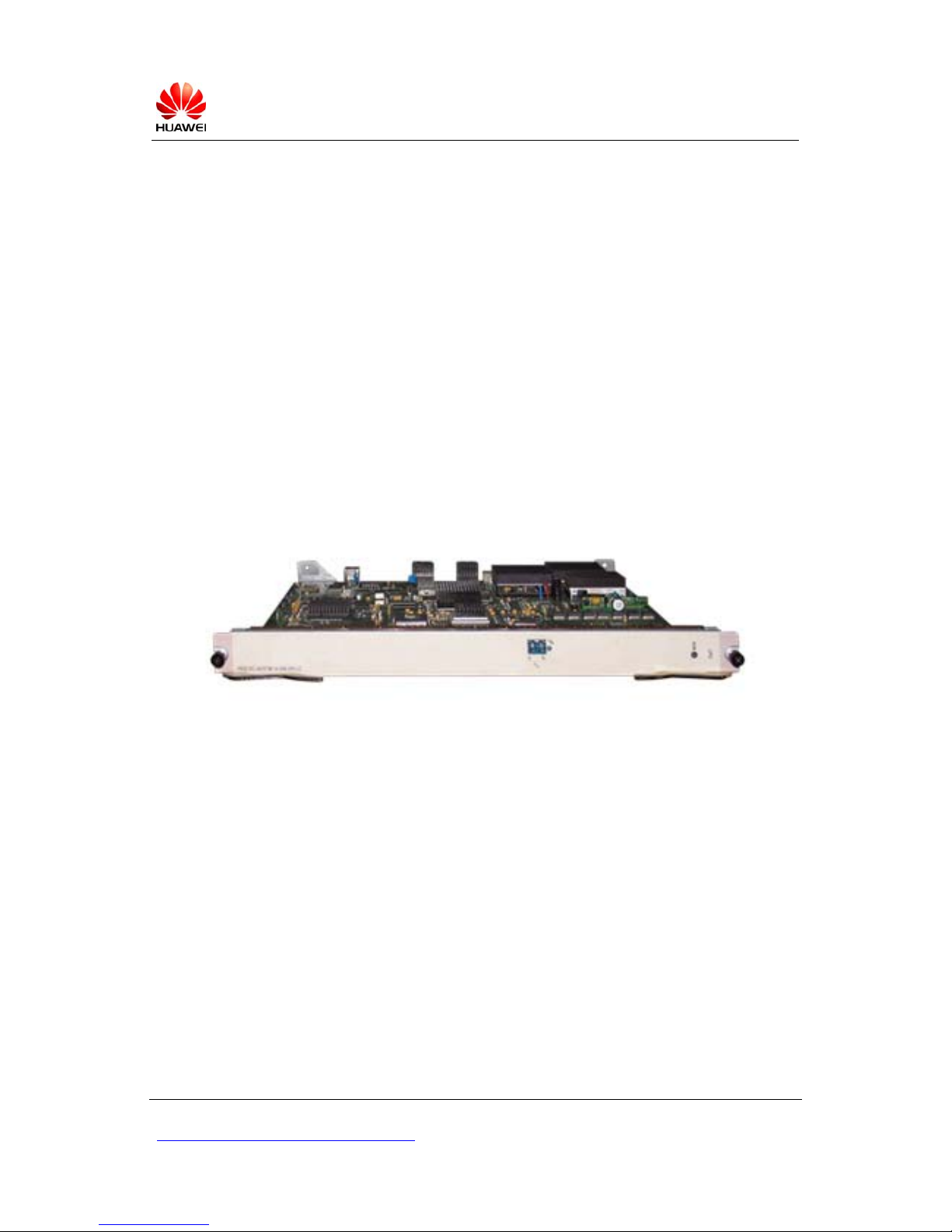

CR-P1RZ
The OC-48/STM-16 CPOS optical interface board is used by the router to converge low-speed
POS interfaces, and can be channelized to 16 155M POS interfaces at most. It usually needs to be
used together with a 2.5G SDH transmission ring network for networking.
Specifications
The NE80 provides 1-port OC-48/STM-16 CPOS optical interface boards using fixed optical
modules. In terms of transmission distances, the board can be categorized into the following two
types:
Page 2
Quidway® NetEngine 80 Core Router OC-48/STM-16 CPOS Optical Interface Boards
Copyright ©2007 Huawei Technologies Co., Ltd. All Rights Reserved.
http://www.huawei.com/products/datacomm/
2
Module name Interface type Description
CR-P1RZ
LC
1-port 2.5G channelized to 155M POS optical interface
board (single-mode): The maximum transmission distance is
2 km, and the center wavelength is 1310 nm.
CR-P1RS LC
1-port 2.5G channelized to 155M POS optical interface
board (single-mode): The maximum transmission distance is
15 km, and the center wavelength is 1310 nm.
