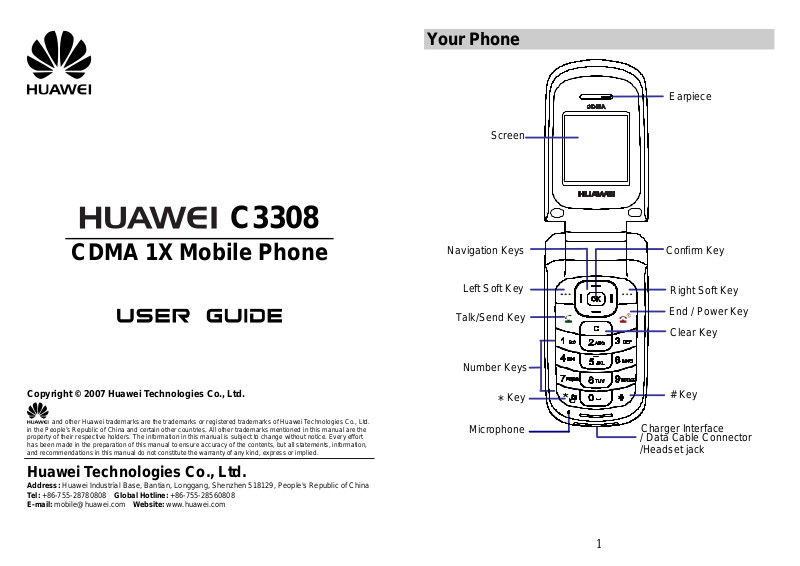

Your Phone
Earpiece
Screen
C3308
CDMA 1X Mobile Phone
Navigation Keys
Left Soft Key
Talk/Send Key
Number Keys
Confirm Key
Right Soft Key
End / Power Key
Clear Key
Copyright © 2007 Huawei Technologies Co., Ltd.
and other Huawei trademarks are the trademarks or registered trademarks of Huawei Technologies Co., Ltd.
in the People’s Republic of China and certain other countries. All other trademarks mentioned in this manual are the
property of their respective holders. The informati on in this manual is subject to change without notice. Every effort
has been made in the preparation of this manual to ensure accuracy of the contents, but all statements, information,
and recommendations in this manual do not constitute the warranty of any kind, express or implied.
Huawei Technologies Co., Ltd.
Address: Huawei Industrial Base, Bantian, Longgang, Shenzhen 518129, People's Republic of China
Tel: +86-755-28780808 Global Hotline: +86-755-28560808
E-mail: mobile@huawei.com Website: www.huawei.com
Key
*
Microphone
Charger Interface
/ Data Cable Connector
/Headset jack
# Key
1
Keys and Functions
Press… To…
z
View All calls in the standby mode.
z
Make a call or answer an incoming call.
z
Power on or off the phone (by pressing and holding it).
z
End a call.
z
Return to the standby mode.
z
OK
Display the Menu interface in the standby mode.
z
Select an item.
z
Perform the function shown on the lower right corner
of the screen.
z
Display Menu in the standby mode.
z
Select the highlighted item.
z
Perform the function shown on the lower right corner
of the screen.
z
View the Contacts in the standby mode.
z
Return to the previous menu.
z
In the standby mode, access Profiles ( ); Brew
Press… To…
z
Enter numbers and letters.
z
Access Voice mail in the standby mode (by pressing
and holding the 1 key).
-
z
Speed-dial a phone number in the standby mode (by
pressing and holding the 2-9 keys).
z
Select a submenu item labeled with the corresponding
number.
z
Enter the *, +, P, T symbols.
z
Activate or deactivate the Meeting profile (by
pressing and holding it).
z
Provide different functions according to the phone
features being used.
z
Enter the # symbol.
z
Provide different functions according to the phone
features being used.
In the editing mode,
z
Delete a letter on the left of the cursor.
z
Clear all the letters at a time (by press and hold it).
(
); Alarms ( ); Messages ( ) or Create
Message (
z
During a call, increase volume
volume
(
) (by pressing and holding it).
.
)
2
Screen Icons
; or decrease the
)
(
Icon Meaning Icon Meaning
Network signal
strength
No network signal
The
My Profile
activated
Message received
is
3
Icon Meaning Icon Meaning
CDMA 1X 2000
network is activated
Domestic roaming
Overseas roaming
Calling…
Voice privacy function
is activated
The
activated
The
activated
The
activated
General
Silence
Outdoor
profile is
profile is
profile is
- -
Memory for messages
full(Icon blinks)
A new voice mail is
received
A new emergent
message is received
Alarm clock on
Battery power level
Open Hands-free
The
activated
Meeting
profile is
Menu Tree
Messages Tools
1 Creat Mess age
2 Inbox
3 Outbox
4Drafts
5Voice Mail
6 T emplates
7
Recipient List
8 My Folder
9 Settings
0 Delete All
Call Log
1 All Calls
2 Missed Calls
3 Received Calls
4 Dialled Calls
5Call Memo
6 Call Duration
Profiles
1
General
2
Silence
3Meeting
4 Outdoor
5My Profile
6My Profile
1
2
Brew
1 Recorder
2Alarms
3 Schedules
4Calculator
5 Stopwatch
6 World Clock
7 Gallery
8X Kid
9 Gul per
Settings
1 Di splay Settings
2 Date & Ti me
3 Call Setti ngs
4 Phone Setti ngs
5 Security Settings
6
Restore Factory
Settings
Consult your s ervice
Provider for more
Information about
This function.
Contacts
1 Search
2
Search By Location
3 Add New
4 Groups
5 Speed Dail
6 My Number
7 Management
Radio
(Options w hen no channel saved)
1 Automatic Turning
2 Manul Turning
3 Fine Turning
4 Set Frequency
(Options w hen some channels saved)
1Switch Off 4Turning
2 Speaker On 5 Delete Channel
3 Start Record 6
Rename Channel
4
5
Installing the Battery
a
Wait until the phone is fully charged.
3.
If
b
4. Disconnect the charger from the AC power socket.
5. Disconnect the travel charger from your phone.
becomes static, the battery is fully charged.
a
b
1.
2.
3.
External Screen
Your phone has an ex ternal screen on the outside of the flip. When
you close the phone, the external screen indicates the following:
z
Time and date
z
Incoming calls and message received
z
Alarm clock on
z
Battery power level
z
Network signal strength
z
Current profile
Charging the Battery
1. Connect the travel charger to the charger interface at the bottom
of your phone.
2. Connect the charger to an AC power socket.
During the charging, the
screen is in an animated status. If the phone is powered off during
icon on the upper right corner of the
Using the Function Menu
To use the function menus, do as follows:
1. In the standby mode, press (Menu).
2. Press , to select the desired function menu.
3. Press (Select)or
OK
to display the selected menu.
Display the submenu in either of the ways:
z
Press to select a submenu and then press (Select) or
OK
to
display the selected submenu.
z
Press the number key corresponding to the serial number of a
submenu to display the submenu.
4. Press (Back)to return to the previous menu or quit the
function menu.
5. Press to return to the standby mode.
Making a Call
1. In the standby mode, enter a phone number.
z
To make an international call, press twice to enter the
international long distance code of "+". Then enter the number to
be dialed, in the format of "country code + region code + phone
number".
charging, the
phone.
icon is displayed on the external screen of the
6
7
b
z
To call a number with an extension, press three times to insert
"P" or press
four times to insert "T" between the phone
number and the extension.
2. Press to dial the number.
3. Press or
(End) to end the call.
Note
z In the standby mode, press to view the All Calls.
Select a record and press
z Select a contact from the Contacts and press to
to dial.
dial.
Answering a Call
When there is an incoming call, press , (Answer),
answer it, press
(Silence) to mute the phone, or press to
reject it.
OK
,to
Phone Lock
The phone lock protects your phone from unauthorized use. The
default phone lock code is "1234". You can change it into any
numeric string of 4 to 8 digits.
If the phone lock is enabled, you need to enter the correct phone lock
code when the phone is powered on.
Changing the Text Input Modes
The indicator of the current text input mode is displayed on the
screen. When no letters are selected in the input field, press
change the input mode. When letters are selected, press
the letters between lowercase and uppercase.
Note
z In the editing mode, press once to delete the letter
on the left of the cursor. Press and hold
to delete
all the letters at a time.
z In the "en" input mode, press to enter a space. In the
"abc" input mode, press
once to enter a space and
to
to change
z If the any key answer function is enabled, press any key (except
or ) to answer an incoming call.
z If the headset auto answer function is activated, and the headset is
connected to the phone, the incoming call is answered
automatically.
Note
If the headset is connected to the phone, you can press the
utton on the headset cable to answer or end a call.
8
twice to enter 0.
z In the "abc" input mode, press repeatedly to
select and enter the commonly-used punctuations. In the
"en" input mode, press
to enter a full stop or
smiley.
9
Entering English(En)
In the "En" input mode, do the following to enter the English letters:
1. Press each desired key once corresponding to the sequence of the
letters. Then the phone displays the commonly-used words
according to the numeric sequence of key presses.
2. Press to scroll to the desired word.
3. Press or
Press
OK
to enter the word.
to enter the word and a space.
Entering English(Abc)
In the "Abc" input mode, press a key labeled the desired letters once
to enter the first letter on the key, twice to enter the second letter on
the key, and so on.
Note
If the letter you want to enter is on the same key as the
previous one, enter the latter only after the cursor appears
Entering Spanish
You can enter Spanish words in the Spanish text input mode.
Traditional Spanish text input and smart Spanish text input are
similar to traditional English text input and smart English input.
For details, see "Entering English(En)" on page10.
Entering Symbols
1. In any input mode, press to display a symbol list;
press
2. Press to scroll to the desired symbol.
3. Press the numeric key to enter the symbol.
twice ,to display a network symbol list.
again or after you press
to move the cursor to the next
space.
Entering Numbers
In the "123" input mode, press a key labeled with the desired
number.
z In the "abc" input mode, press a key continuously or press and
hold it until the desired number appears on the screen.
z In the "en" input mode, press a key and then press until the
desired number appears on the screen or pressing and hold the key
until the desired number appears.
10
11
Warnings and Precautions
Electronic Device
z
Power off your phone near high-precision electronic devices. The phone may
affect the performance of these devices.
z
Such devices include hearing aids, pacemakers, fire alarm systems, automatic
gates, and other automatic-control dev ice s. If you are using an elect ronic
medical device, consult the device manu fac tu rer to con firm whether the radio
wave affects the operation of this device.
z
Pacemaker manufacturers recommend that a minimum separation of 15cm be
maintained between a mobile phone and a pace-maker to avoid potential
interference with the pace-maker. To achieve this use the phone on the
opposite ear to your pacemaker and do not carry it in a breast pocket.
Hospital
Pay attention to the following points in hospitals or health care facilities:
z
Do not take your phone into the operating room (OR), intensive care unit
(ICU), or coronary care unit (CCU).
z
Do not use your phone at places for medical treatment where phone use is
prohibited.
z
When using your phone near someone who is suffering from a heart disease,
turn down the ring tone volume or vibration properly so that it does not affect
the person.
Area with Inflammables and Explosives
In any area with inflammables and explosives, power off your phone and do not
take out, install or charge the batter y, to avoid explosion and fire. Areas with
inflammables and explosives include, but are not limited to:
z
Gas station
z
Area for storing fuels (such as the bunk under the deck of a ship)
z
Device/Vehicle for transporting and storin g fuel s or chem ica l produc ts
z
Area with chemical substances and particles (such as: granule, dust, metal
powder) in the air
z
Area with the sign of "Explosives"
z
Area with the sign of "Power off bi-dire ct ion wire le ss equipm e nt "
z
Area where it is generally suggested to stop the eng ine or a vehicle
Traffic Safety
z
Please observe local laws and regulations on phone use. Do not use your
phone while driving to avoid traffic accident.
z
Secure the phone on its holder. Do not place the phone on the seat or other
places where it can get loose in a sudden stop or collision.
z
Use the phone after the vehicle stops at a safe place.
z
If your phone supports the hands-free function, or the phone can be used with
earphones, or there is any vehicle-mounted equipment with hands-free
function, use them in emergency.
z
Do not place the phone over the air bag or in the air bag outspread area.
Otherwise, the phone may hurt you owing to the strong force when the air bag
inflates.
z
Observe the rules and regulations of airline companies. When boarding or
approaching a plane, power off the phone and take out the battery. In areas
where phone use is prohibited, power off the phone. Otherwise, the radio
signal of the phone may disturb the plane control signals. Power off your
phone before boarding an aircraft.
Storage Environment
z
Do not place magnetic storage media such as magnetic cards and floppy disks
near the phone. Radiation from the phone may erase the information stored on
them.
z
Do not put your phone, battery, or other accessories in containers with strong
magnetic field, such as an induction cooker and a microwave oven. Otherwise,
circuit failure, fire, or explosion may occur.
z
Do not leave your phone, battery, or charger in a very hot or cold place.
Otherwise, malfunction of the products, fire, or explosion may occur.
z
Keep the ambient temperature between 0℃ and 45 while the battery is ℃
being charged. Keep the ambient temperature between –20℃ and 60 for ℃
storing the battery. If the ambient temperature is too low (especially below
0 ) or too high, the capacity and life of the battery will be reduced.℃
z
Do not place sharp metal objects such as pins near the earpiece. The earpiece
may attract these objects and hurt you when you are using the phone.
z
Do not subject your phone, battery, and charger to serious collision or shock.
Otherwise, battery leakage, phone malfunction, overheat, fire, or explosion
may occur.
z
Do not put your phone in the back pocket of your trousers or skirt, to avoid
phone damage while seated.
12
13
Children Safety
z
Put your phone, battery, and charger in places beyond the reach of children.
Do not allow children to use the phone, battery, or charger without guidance.
z
Do not allow children to put the battery in mouth, for electrolyte in the battery
is poisonous.
z
Do not allow children to touch the small fittings. Otherwise, suffocation or
gullet jam can be caused if children swallow the smal l fi tt ings.
Operating Environment
z
The phone, battery, and charger are not water-resistant. Keep them dry.
Protect the phone, battery and charge from water or va por. Do not touch the
phone with a wet hand. Otherwise, short-circuit and malfunction of the
product or electric shock may occur.
z
Do not use the phone in dusty, damp and dirty places or places with magnetic
field. Otherwise, malfunction of the circu it ma y occur.
z
Do not power on or off the phone when it is near your ears to avoid negative
impact on your health.
z
When carrying or using the phone, keep the antenna at least one inch (2.5
centimeters) away from your body, to avoid negative impact on your health
caused by radio frequency leakage.
z
If you feel uncomfortable (such as falling sick or qualm) after playing games
on your phone for a long time, please go to see a doctor immediately.
z
On a thunder stormy day, do not use your phone outdoors or when it is being
charged.
z
Do not touch the antenna when a call is going on. Touching the antenna may
affect call quality and cause the phone to operate with more power. As a result,
the talk time and standby time are shortened.
z
The phone may interfere with nearby TV sets, radios and PCs.
z
In accordance with international standards for radio frequency and radiation,
use phone accessories approved by the manufacturer only.
z
While using the mobile phone, observe the local laws and regulations, and
respect others' privacy and legal rights.
Clearing and Maintenance
z
Before you clean or maintain the phone, power off the phone and disconnect it
from the charger. Otherwise, electric shock or short-circuit of the battery or
charger may occur.
z
Do not use any chemical detergent, powder, or other chemical agent (such as
alcohol and benzene) to clean the phone and the charge. Otherwise, part
damage or a fire can be caused. You can clean the phone and the charger with
a piece of soft antistatic cloth that is a little wet.
z
Do not scratch the shell of the phone. Otherwise, the shed coating may cause
skin allergy. Once it happens, stop using the phone at once and go to see a
doctor.
z
Keep the plug dry when you clean it, to prevent fire.
z
If the phone or any of its fittings does not work, turn to the local authorize
service center for help.
z
Do not dismantle the mobile phone or accessories. Only an authorized service
center is allowed to maintain the mobile phone.
Environment Protection
z
Please observe the local regulations regarding the disposal of your packaging
materials, exhausted battery and old phone and please promote their recycling.
Do not dispose of exhausted battery or old phone in municipal waste or fire.
Otherwise, explosion may occur.
z
This HUAWEI device complies with Dire ctive 2 002/9 5 /E C on the restriction
of the use of certain hazardous substances in electrical and electronic
equipment.
z
: This symbol indicates that the equipment carrying this mark must NOT
be thrown into general waste but should be collected separately and properly
recycled under local regulations.
Emergency Call
You can use your phone for emergency calls. However, connections in all
conditions cannot be guaranteed. You should never rely solely on the phone for
essential communication s.
Battery
z
Use the battery approved by the manufacturer only. Otherwise, explosion may
occur.
z
Do not dispose of the battery in fire. Otherwise, the battery may ignite or
explode.
z
Do not connect two poles of the battery with conductors such as cables,
jewelries or any other metal material. Otherwise, the battery is short-circuited
and it may burn your body.
z
Do not disassemble the battery or solder the battery poles. Otherwise fluid
leakage, overheat, fire, or explosion may occur.
14
15
z
If there is battery leakage, smoke, or strange smell, stop using the battery and
keep it away from open flame to avoid fire or explosion. Then turn to an
authorized maintenance engineer for help.
z
If the battery fluid contacts your skin or cloth, wash with clean water
immediately to avoid irritation to the skin.
z
If the battery fluid gets into eyes, do not rub your eyes. Otherwise, your eyes
can be hurt. Wash with clean water and go to see a doctor immediately.
z
If there is battery deformation, color change or abnormal heating while you
charge or store the battery, take it out immediately and stop using it.
Otherwise, battery leakage, overhea t, exp losion, or fi re may occur.
z
When installing the battery, do not push the battery by force lest battery fluid
leak out or the battery crack.
z
Do not take out the battery when the phone is turned on.
z
If you do not use the battery for a long time, store it in normal temperature
after charging.
Charger
z
Use the charger approved by the phone manufacturer only. Any violation of
this rule may result in fire or malfunction of the charger.
z
Do not short-circuit the charger. Short-circuiting the charger may cause fire or
malfunction of the charger.
z
If the power cord is damaged (for example, the lead is exposed or broken), or
the plug becomes loose, stop using the cable at once. Otherwise, electric
shock, short-circuit of the charger, or fire ma y occur.
z
Keep the charger dry. Once water or other liquid leaks into the char ger,
electrical leakage or other faults may occur.
z
Do not use the charger in a dusty and damp environment. Keep the power
cord away from any heating appliance.
z
Ensure the charger is properly plugged into the power socket properly when
charging the battery. Improper insertion may result in electric shock, fire, or
explosion. To unplug the charger, pull the plug off rather than tear the power
cord.
z
Use the AC power supply defined in the specifications of the charger. An
improper power voltage can cause fire or malfunction of the charger.
z
Do not place any heavy object on the power cord of the charger. Do not
damage, change, or pluck the power cord. Otherwise electric shock or fire
may occur.
z
When you are charging the battery with the charger, do not touch the plug,
power cord or the charger with a wet hand. Otherwise, electric shock can be
caused.
z
Once the liquid such as water leaks into the charger, remove the plug of the
charger from the socket immediately. Otherwise, overheating, fire and other
malfunction may occur.
Certification Information (SAR)
THIS DEVICE MEETS THE GOVERNMENT'S REQUIREMENTS
FOR EXPOSURE TO RADIO FREQUENCY
ELECTROMAGNETIC FIELD.
Your mobile phone is a low-power radio transmitter and receiver. When it is
turned on, it emits low levels of radio frequency energy (also known as radio
waves or radio frequency fields).
Governments around the world have adopted compr eh ensi ve inte rna tiona l safe t y
guidelines, developed by scientific organizations, e.g. ICNIRP (International
Commission on Non-Ionizing Radiation Protection) and IEEE (Institute of
Electrical and Electronics Engineers Inc.), through periodic and thorough
evaluation of scientific studies. These guidelines establish permitted levels of
radio wave exposure for the general population. The levels include a safety
margin designed to assure the safety of all persons, regardless of age and health,
and to account for any variations in measurements.
Specific Absorption Rate (SAR) is the unit of measurement for the amount of
radio frequency energy absorbed by the body when using a mobile phone. The
SAR value is determined at the highest certified power level in laboratory
conditions, but the actual SAR level of the mobile phone while operating can be
well below the value. This is because the mobile phone is designed to use the
minimum power required to reach the network.
All models of Huawei's mobile phone are designed to meet radio frequency
exposure guidelines. Before a phone model is available for sale to the public, it
must be tested and certified to the FCC that it does not exceed the limit
established by the government-adopted requirement for safe exposure. The tests
are performed in positions and locations (that is, at the ear and worn on the body)
as required by the FCC for each model. For body worn operation, this phone has
been tested and meets FCC RF exposure guidelines when the handset is
positioned a minimum of 15 mm from the body with an accessory that contains
no metal part. Use of other accessories may not ensure compliance with FCC RF
exposure guidelines.
The SAR limit adopted by the USA and Can ada is 1.6 wa tts/kilogram (W/kg)
averaged over one gram of tissue. The highest SAR value reported to the FCC and
IC for this device type when tested for use at the ear is 0.502 W/kg, and when
properly worn on the body is 0.381 W/kg.
16
17
The SAR limit adopted by the CNIRP is 2.0W/kg over one gram of tissue. The
value guarantees a safe distance to protect mobile phone users and the difference
caused by measurement errors. Under different test requirements and frequency,
the value varies.
Statement
This equipment has been tested and found to compl y with the lim its fo r a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. Operation is subject to the condition that this device does not cause
harmful interface.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the ins tru ction s, m ay cause harm fu l
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encou rag e d to try to correc t the
interference by one or more of the following measures:
z
Reorient or relocate the receiv ing an ten na.
z
Increase the separation between the equipment and receiver.
z
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
z
Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications made to this equipment not expressly
approved by HUAWEI may void the FCC authorization to operate this
equipment.
Version: V100R001C03_01 Part Number: 31018020
18
Loading...
