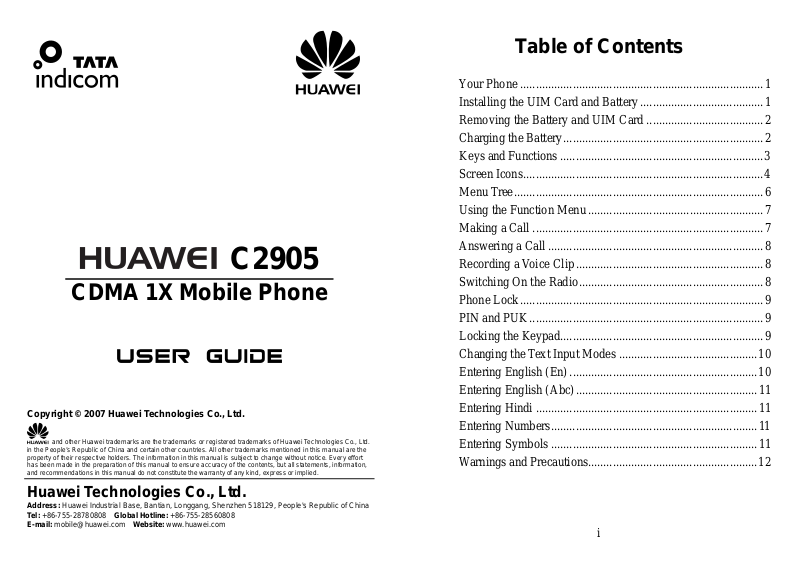

C2905
CDMA 1X Mobile Phone
Copyright © 2007 Huawei Technologies Co., Ltd.
and other Huawei trademarks are the trademarks or registered trademarks of Huawei Technologies Co., Ltd. in the People’s Republic of China and certain other countries. All other trademarks mentioned in this manual are the property of their respective holders. The information in this manual is subject to change without notice. Every effort has been made in the preparation of this manual to ensure accuracy of the contents, but all statements, information, and recommendations in this manual do not constitute the warranty of any kind, express or implied.
Huawei Technologies Co., Ltd.
Address: Huawei Industrial Base, Bantian, Longgang, Shenzhen 518129, People's Republic of China Tel: +86-755-28780808 Global Hotline: +86-755-28560808
E-mail: mobile@huawei.com Website: www.huawei.com
Table of Contents |
|
Your Phone ............................................................................... |
1 |
Installing the UIM Card and Battery ........................................ |
1 |
Removing the Battery and UIM Card ...................................... |
2 |
Charging the Battery................................................................. |
2 |
Keys and Functions .................................................................. |
3 |
Screen Icons.............................................................................. |
4 |
Menu Tree................................................................................. |
6 |
Using the Function Menu ......................................................... |
7 |
Making a Call ........................................................................... |
7 |
Answering a Call ...................................................................... |
8 |
Recording a Voice Clip............................................................. |
8 |
Switching On the Radio............................................................ |
8 |
Phone Lock ............................................................................... |
9 |
PIN and PUK ............................................................................ |
9 |
Locking the Keypad.................................................................. |
9 |
Changing the Text Input Modes ............................................. |
10 |
Entering English (En) ............................................................. |
10 |
Entering English (Abc)........................................................... |
11 |
Entering Hindi ........................................................................ |
11 |
Entering Numbers................................................................... |
11 |
Entering Symbols ................................................................... |
11 |
Warnings and Precautions....................................................... |
12 |
i
Your Phone
Screen
Navigation Keys
Left Soft Key
Talk/Send Key
Number Keys
Headset Jack
Key
Earpiece
Right Soft Key
End/Power Key
OK Key
Charger Interface
Key
Speaker
Installing the UIM Card and Battery
The User Identity Module (UIM) card and the T-SIM card are the same, that is, Subscriber Identity Module.
Make sure that the golden area on the UIM card is facing downwards and the cut-off edge is correctly aligned with the card holder.
a
b
1 |
2 |
3 |
4 |
Removing the Battery and UIM Card
Make sure that your phone is powered off.
1 |
2 |
3 |
4 |
Charging the Battery
1.Connect the charger to the charger interface at the bottom of your phone.
2.Connect the charger to an AC power socket.
3.During the charging, the charging icon is displaying in animation.
4.When the charging icon becomes static, the battery is fully charged. Disconnect the charger from the AC power socket.
1 |
2 |
Keys and Functions
|
Press… |
To… |
|
|
|
zView the call log in the standby mode.
zMake or answer a call.
zPower on or off the phone (by pressing and holding it).
z End a call or reject an incoming call.
zReturn to the standby mode.
zDisplay the TATA Zone interface in the standby
mode.
z Confirm a selection.
Select the option displayed on the lower left corner of the screen.
Select the option displayed on the lower right corner of the screen.
zDisplay the TATA Zone interface (), the
Messages main menu (), the Create Message
interface (by pressing and holding), the Scheduler interface (
), and the Profiles main menu (
) in the standby mode.
zIncrease the volume ( or
) or decrease the volume (
or
) during a call.
3
|
Press… |
To… |
|
|
|
zEnter numbers, letters, and symbols.
zAccess Voice Mail in the standby mode (by pressing and holding the 1 key).
–z Speed-dial phone numbers in the standby mode (by
pressing and holding the 2-9 keys).
zSelect a submenu item labeled the corresponding number.
zEnter the * symbol, + symbol, P character, or T character by pressing it once, twice, three times or four times.
z Enable or disable the Meeting profile (by pressing and holding it).
zProvide different functions according to the phone features being used.
zEnter the # symbol.
zLock the keypad in the standby mode (by pressing
and holding it).
zProvide different functions according to the phone features being used.
Screen Icons
Icon |
Description |
|
|
Indicates the signal strength. The more the bars are, the |
|
|
stronger the signal is. |
|
|
|
|
|
There is no network signal. |
|
|
|
|
|
There is an incoming call, a call is being set up, or your |
|
|
phone is in conversation. |
|
|
|
|
|
4 |
|
|
Icon |
Description |
|
|
|
The keypad is locked. |
|
|
|
|
|
|
|
An alarm clock is set. |
|
|
|
|
|
|
|
The Voice Privacy function is activated during a call. |
|
|
|
|
|
|
|
A new message is received. |
|
|
|
|
|
|
|
The memory for saving messages is full. |
|
|
|
|
|
|
|
An urgent message is received. |
|
|
|
|
|
|
|
A new voice mail is received. |
|
|
|
|
|
|
|
General profile is activated. |
|
|
|
|
|
|
|
Meeting profile is activated. |
|
|
|
|
|
|
|
Silence profile is activated. |
|
|
|
|
|
|
|
Outdoor profile is activated. |
|
|
|
|
|
|
|
My profile 1 or My profile 2 is activated. |
|
|
|
|
|
|
|
The hands free function is activated. |
|
|
|
|
|
|
|
The current network type of the phone is CDMA |
|
|
|
2000-1X. |
|
|
|
|
|
|
|
The phone is in the domestic roaming status. |
|
|
|
|
|
|
|
The phone is in the overseas roaming status. |
|
|
|
|
|
|
|
Indicates the battery power level. The more the bars are, |
|
|
|
the more power of the battery is left. |
|
|
|
|
|
Menu Tree
Contactt ts
1Search
2Search By Location
3Add New
4Groups
5Speed Dial
6My Number
7Management
Messages
1Create Message
2Inbox
3Outbox
4Drafts
5Voice Mail
6Templates
7Recipient List
8My Folder
9Settings
0 Delete All
Call HistorLog y
1All Calls
2Missed Calls
3Received Calls
4Dialled Calls
5Call Memo
6Call Duration
Profiles
1General
2Silence
3Meeting
4Outdoor
5My Profile 1
6My Profile 2
Toolsls
1Recorder
2Alarms
3Scheduler
4Calculator
5Stopwatch
6World Clock
7Gallery
8Gulper
9Minicricket
Settings
1Display Settings
2Date & Time
3Call Settings
4Phone Settings
5Security Settings
6Restore Factory Settings
RadioBre w
(Options when no channel saved)
1Automatic Tuning
2Manual Tuning
3Fine Tuning
4Set Frequency
(Options when some channels saved)
1 Switch Off
2 Speaker On/Off
3 Start Record
4Tuning
5Delete Channel
6Rename Channel
TATA Zone
Sett ing s
1TATA Zone
2SMS Services
5 |
