Huawei ARDCM 1PHT User Manual

ARDCM-1PHT Three-Phase PLC Module
Issue
01
Date
2016-10-10
HUAWEI TECHNOLOGIES CO., LTD.
Issue 01 (2016-10-10)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
i
Copyright © Huawei Technologies Co., Ltd. 2016. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd.
Trademarks and Permissions
and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the property of their respective holders.
Notice
The purchased products, services and features are stipulated by the contract made between Huawei and the customer. All or part of the products, services and features described in this document may not be within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this document are provided "AS IS" without warranties, guarantees or representations of any kind, either express or implied.
The information in this document is subject to change without notice. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not constitute a warranty of any kind, express or implied.
Huawei Technologies Co., Ltd.
Address:
Huawei Industrial Base Bantian, Longgang Shenzhen 518129 People's Republic of China
Website:
http://e.huawei.com
ARDCM-1PHT Three-Phase PLC Module User Manual
About This Document
Issue 01 (2016-10-10)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
ii
Purpose
Symbol
Description
Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
Indicates a potentially hazardous situation which, if not avoided, could result in equipment damage, data loss, performance deterioration, or unanticipated results.
NOTICE is used to address practices not related to personal injury.
Calls attention to important information, best practices and tips.
NOTE is used to address information not related to personal injury, equipment damage, and environment deterioration.
This document describes the technical specifications, functions, and installation methods of the ARDCM-1PHT three-phase PLC module.
Intended Audience
This document is intended for:
Technical support engineers
Maintenance engineers
About This Document
Symbol Conventions
The symbols that may be found in this document are defined as follows.
ARDCM-1PHT Three-Phase PLC Module User Manual
About This Document
Issue 01 (2016-10-10)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
iii
Change History
Changes between document issues are cumulative. The latest document issue contains all the changes made in earlier issues.
Issue 01 (2016-10-10)
This is the first official release.
ARDCM-1PHT Three-Phase PLC Module User Manual
Contents
Issue 01 (2016-10-10)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
iv
Contents
About This Document .................................................................................................................... ii
1 Product Overview ......................................................................................................................... 5
1.1 Application Scenarios ................................................................................................................................................... 5
1.2 Functions ...................................................................................................................................................................... 5
1.3 Appearance ................................................................................................................................................................... 6
1.4 Technical Specifications ............................................................................................................................................... 6
2 Installation Guide ......................................................................................................................... 8
2.1 Packing List .................................................................................................................................................................. 8
2.2 Installation Instructions................................................................................................................................................. 8
2.2.1 Installation Procedure ................................................................................................................................................ 8
2.3 Module Replacement ................................................................................................ .................................................... 9
ARDCM-1PHT Three-Phase PLC Module User Manual
1 Product Overview
Issue 01 (2016-10-10)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
5
1.1 Application Scenarios
The ARDCM-1PHT is the ARDCM’s terminal communication module that is used on a meter to collect data and send collected data to the ARDCM. This module uses power line communication (PLC) technology to upload and download data, implementing remote wireless control.
It is used for intelligent meter reading and applicable to various scenarios that use smart meter systems, such as smart household and smart building.
1 Product Overview
1.2 Functions
The ARDCM-1PHT module provides the following functions:
 
Uses PLC technology to upload information. Enables remote meter reading, which is convenient and time-saving.
ARDCM-1PHT Three-Phase PLC Module User Manual
1 Product Overview
Issue 01 (2016-10-10)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
6

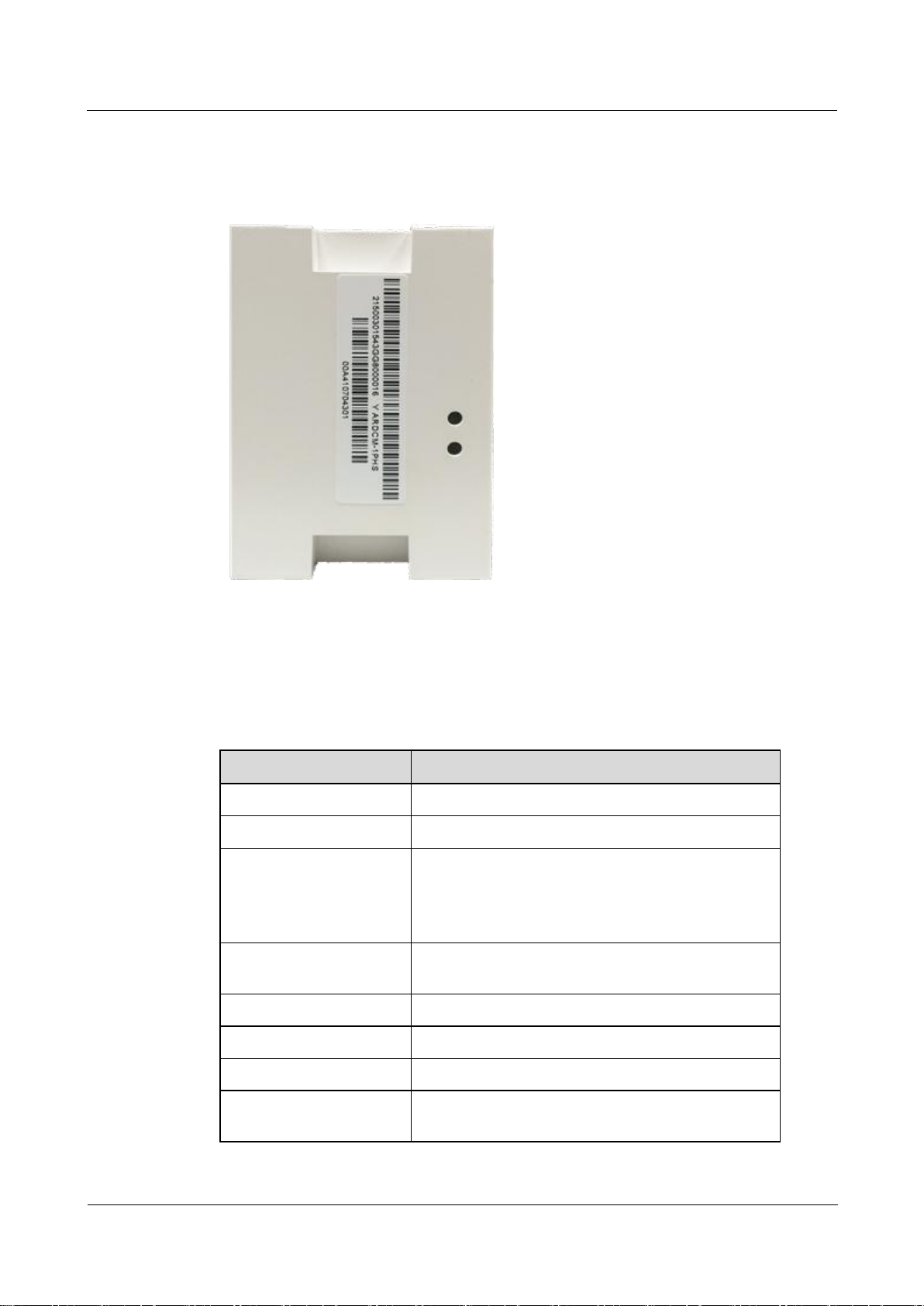

1.3 Appearance
Item
Description
Communication method
PLC
Working frequency
2-12 MHz
External interfaces
High-voltage interface (three-phase meter connector
2) Low-voltage interface (three-phase meter connector
1)
Operating temperature
Long-term operating temperature: -40°C to +70°C (-40°F to +158°F)
Altitude
0-4000 m (0-13123 ft.)
Storage temperature
-40°C to +85°C (-40°F to +185°F )
Power consumption
< 12 W
Dimensions (W x D x H)
89 mm x 59 mm x 12 mm (3.50 in. x 2.32 in. x 0.47 in.)
Figure 1-1 ARDCM-1PHT appearance
1.4 Technical Specifications
Table 1-1 ARDCM-1PHT technical specifications
ARDCM-1PHT Three-Phase PLC Module User Manual
1 Product Overview
Issue 01 (2016-10-10)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
7
Item
Description
Weight
76.7 g (0.17 lb)
ARDCM-1PHT Three-Phase PLC Module User Manual
2 Installation Guide
Issue 01 (2016-10-10)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
8
2.1 Packing List
Item
Accessory
PLC module
None
Integrated assembly (PLC module + shell)
None
DANGER
Open the package and check the product in the package. In the case of any problem, contact the supplier.
Table 2-1 ARDCM-1PHT packing list
2 Installation Guide
2.2 Installation Instructions
The ARDCM-1PHT three-phase PLC module must be used on a three-phase PLC meter. Before installing the module, check whether the meter is the matching type.
Installation and commissioning of the module must be performed by trained personnel. Before the installation, turn off the power.
2.2.1 Installation Procedure
Step 1 Use your fingers to hold the recesses on the PLC module (A and B in the following figure),
with the indicators on the right. Then mount the PLC module to the meter vertically.
ARDCM-1PHT Three-Phase PLC Module User Manual
2 Installation Guide
Issue 01 (2016-10-10)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
9
Figure 2-1 Installing the PLC module
Item
Status
1
The power cables and ground cable are properly connected, meeting power supply requirements.
2
Labels of all cables are correct, clear, and tidy.
3
The PLC module is securely mounted on the meter.
4
There are no other objects on the meter.
Step 2 Check against the following checklist.
----End
2.3 Module Replacement
An ARDCM-1PHT three-phase PLC module can only be replaced with a PLC module of the same model. Before the replacement, check the model of the replacement module. The replacement procedure is similar to the installation procedure.
ARDCM-1PHT Three-Phase PLC Module User Manual
2 Installation Guide
Issue 01 (2016-10-10)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
10
DANGER
Installation and commissioning of the module must be performed by trained personnel. Before the replacement, turn off the power.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the
equipment.
