Huawei 2K3565 User Manual

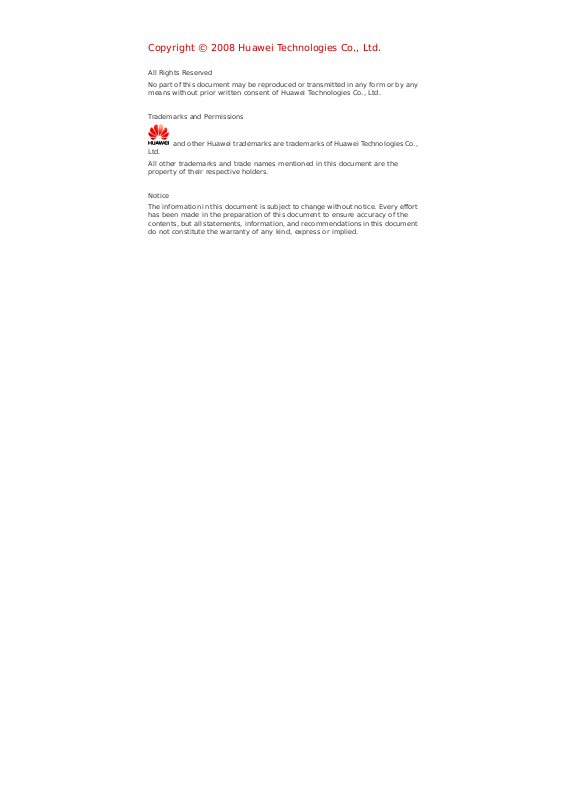

Copyright © 2008 Huawei Technologies Co., Ltd.
All Rights Reserved
No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd.
Trademarks and Permissions
and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the property of their respective holders.
Notice
The information in this document is subject to change without notice. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not constitute the warranty of any kind, express or implied.
Table of Contents |
|
What Is in Your Package ............................................ |
1 |
Getting to Know Your K3565 ...................................... |
2 |
Preparation ............................................................. |
4 |
Installation/Removal Guide ........................................ |
6 |
Safety Information ................................................... |
9 |
Acronyms and Abbreviations ..................................... |
14 |
i
Thank you for choosing K3565 HSDPA USB Stick . With the K3565, you can access the Internet through wireless network at a high speed.
Note: This manual describes the appearance, installation and removal of the K3565. For the operation of the management program, refer to the
User Manual.
What Is in Your Package
The package of your K3565 contains the following items:
nOne K3565
nOne Quick Start
nOne USB cable
1
Getting to Know Your K3565
The following figure shows the appearance of the K3565. It is only for your reference. The actual product may differ.
1
2
3
4
ŒUSB Interface
It connects the K3565 to a computer.
2
•SIM/USIM Card Slot
It is where you insert the subscriber identity module/UMTS subscriber identity module (SIM/USIM) card.
ŽMicro SD Card Slot
It is where you insert the Micro Secure Digital Memory (SD) card
•Indicator
It indicates the status of the K3565.
Colour |
Status |
Meaning |
Green |
Blinking (on for 100ms and |
The K3565 is powered on. |
|
off for 100ms; then on for |
|
|
100ms and off for |
|
|
2700ms) |
|
Green |
Blinking (on for 100ms and |
The K3565 is registered to a |
|
off for 2900ms) |
GSM/GPRS/EDGE network. |
Blue |
Blinking (on for 100ms and |
The K3565 is registered to a UMTS |
|
off for 2900ms) |
network. |
Green |
On |
The K3565 is connected to a GPRS/EDGE |
|
|
network. |
Blue |
On |
The K3565 is connected to a WCDMA |
|
|
network. |
Cyan |
On |
The K3565 is connected to a HSDPA |
|
|
network. |
- |
Off |
The K3565 is removed. |
3
Preparation
Requirements for the Computer
To use the K3565, the computer should meet the following requirements:
nUSB Type A Receptacle, Compatible with USB 2. 0 High Speed.
nWindows 2000 SP4, Windows XP SP2, Windows Vista.
nYour computer’s hardware system should meet or exceed the recommended system requirements for the installed version of OS.
nResolution for the display: 800 × 600 or above.
Getting Your K3565 Ready
nRemove the USIM/SIM card slot from the K3565.
nInsert the USIM/SIM card into the card slot.
nInsert the card slot into the K3565.
4
