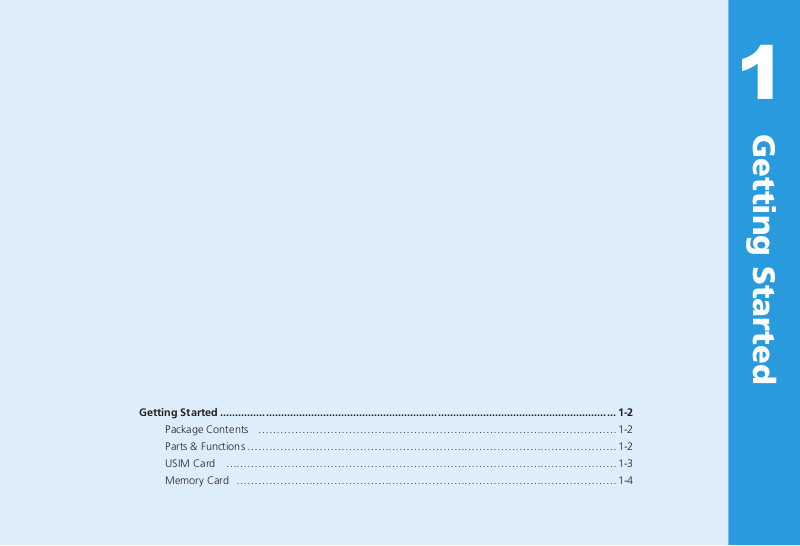

Page 1
Getting Started ................................................................................................................................... 1-2
Package Contents ………………………………………………………………………………………
Parts & Functions …………………………………………………………………………………………
USIM Card ………………………………………………………………………………………………
Memory Card ……………………………………………………………………………………………
1-2
1-2
1-3
1-4
1
Getting Started
Page 2
Getting Started
Package Contents
1
Getting Started
The following items are included in the package.
Please confirm package contents before use.
Contact SoftBank Customer Support, General Information (P.7-3) for missing
items.
005HW
Documentation
Quick Start Guide (Japanese) Warranty
SoftBank 005HW is referred to as ”modem” in this guide.
•
This modem accepts microSD™/microSDHC™ Card (sold separately). Purchase
•
one to use Memory Card functions.
Keep Warranty in a safe place.
•
Parts & Functions
Part Names & Functions
USB Plug: Insert into PC USB port.
a
LED Status Lamp: Indicates modem status.
b
Cover: Remove to access USIM/Memory Card Slot.
c
External Antenna Port: Attach External Antenna* here.
d
Memory Card Slot: Insert Memory Card here.
e
USIM Card Tray: To insert USIM Card.
f
* SoftBank Mobile does not offer nor support External Antenna.
* USB connector can be rotated as shown below.
LED Status Lamp
LED lamp shows communication status.
LED Status Lamp Network Connection Status
•
Modem activating
•
Flashes Red (at same interval)
Flashes Red (short lit and long dark)
USIM Card not inserted
•
USIM Card completely locked
•
USIM Card read error
•
Network searching
•
Network connecting
1-2
Page 3
Lights Red
HUAWEI
005HW
HUAWEI
005HW
(Make sure
notch is bottom
right)
HUAWEI
005HW
HUAWEI
005HW
Flashes Orange (at same interval)
Flashes Blue (short lit and long dark)
Out-of-Range
Waiting for PIN code entry
•
Waiting for PUK code entry
•
Ready (while not communicating/
transmitting and within signal range)
Flashes Blue (at same interval) Dial-up connecting
Lights Blue
Dial-up connection accomplished. Stable
communication status
USIM Card
USIM Card is the property of SoftBank Mobile. The IC chip contains customer
information including phone number. USIM Card must be installed for use. For
details, see USIM Card guide (Japanese). Do not remove USIM Card while in
use; may damage card/device. If USIM Card comes loose, follow steps below:
Close SoftBank HW Utility
a
Remove modem from PC
b
Insert USIM Card
c
Reinsert modem into PC
d
Inserting USIM Card
Remove Cover
a
Insert USIM Card into USIM Card Tray with IC chip down
b
Confirm USIM Card installation and replace Cover
c
Removing USIM Card
Remove Cover
a
Remove USIM Card
b
Replace Cover SIM
c
Take care not to touch or scratch IC chip when handling USIM. Do not use
•
excessive force to insert/remove USIM Card; may cause injury or damage card/
modem.
Do not misplace removed USIM Card.
•
Keep it away from infants to avoid injury (swallowing hazard)/damage.
•
If USIM Card IC chip is dusty, clean with a soft cloth.
•
1
Getting Started
1-3
Page 4
Memory Card
1
Getting Started
005HW accepts microSD/microSDHC Card up to 16GB.
SoftBank Mobile does not guarantee compatibility with any specific software.
Install Memory Card to use Memory Card functions. Do not remove Memory
Card while in use; may cause data loss/malfunction. If Memory Card comes
loose, follow these steps:
Close SoftBank HW Utility
a
Remove modem from PC
b
Insert Memory Card into modem
c
Reinsert modem into PC
d
Inserting Memory Card
Remove Cover
a
Insert Memory Card with contacts up
b
Replace Cover
c
Removing Memory Card
Remove Cover
a
Push Memory Card lightly until it clicks; when it pops out, remove it
b
Replace Cover
c
Do not insert Memory Card with excessive force. May cause damage.
•
Do not misplace a removed Memory Card.
•
1-4
