Huafone HF-802A, HF-803A Quick Start Manual

Model HF-802A

Page 1 of 4 HF-802A (version 2.0)

®

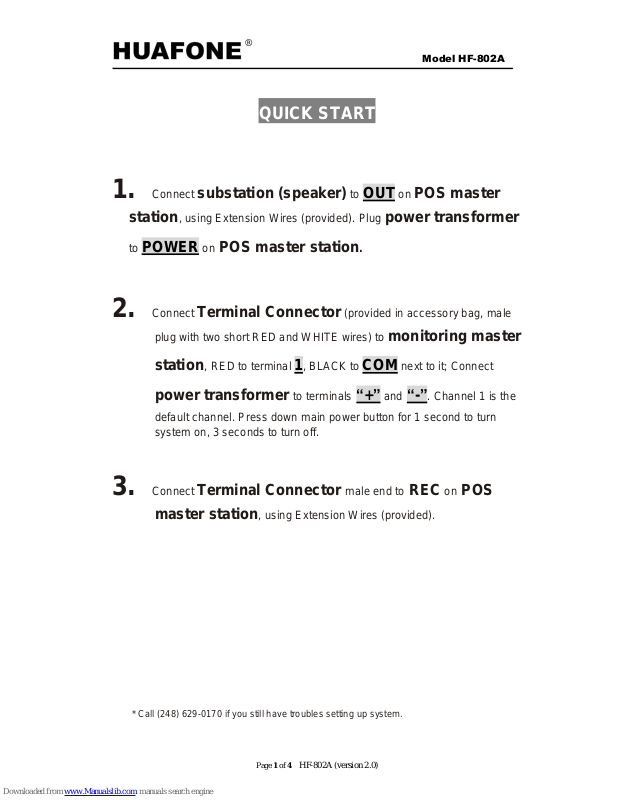

QUICK START

1. Connect substation (speaker) to OUT on POS master

station, using Extension Wires (provided). Plug power transformer

to POWER on POS master station.

2. Connect Terminal Connector (provided in accessory bag, male

plug with two short RED and WHITE wires) to monitoring master

station, RED to terminal 1, BLACK to COM next to it; Connect
power transformer to terminals “+” and “-”. Channel 1 is the

default channel. Press down main power button for 1 second to turn
system on, 3 seconds to turn off.

3. Connect Terminal Connector male end to REC on POS

master station, using Extension Wires (provided).

* Call [phone] if you still have troubles setting up system.

Model HF-802A

Page 2 of 4 HF-802A (version 2.0)

®

INSTALLATION AND OPERATION INSTRUCTION

1.Volume control of substation( VOL)

2.Volume control of master station( VOL)

3.Master station speaker indicator light

4.Substation speaker indicator light

5.Internal MIC switch MIC1

6.External MIC switch MIC2

7.Power switch (Power)

8.Power indicator light

9.Microphone

10.Jack to substation (OUT)

11.Internal MIC jack (MIC.)

12.Record jack(REC.)

13.Power jack (POWER)

Installation

1.Install master station and substation. Plug the
substation wire into the jack 10.

2.Connect the power transformer to an 110V power
source and to the power jack 13.

3.Press the power switch 7 to turn on the power
indicator light 8; the unit is in normal working status.

4.Press internal MIC switch 5 and external MIC switch.
The two green indicator lights will be on. Two-way
duplex communication is now established.

Monitor, Talk-In, Record

1. Connect Monitoring Master Station to jack 12 (REC)
on master station. Talk-in conversation cannot be

(Optional)
