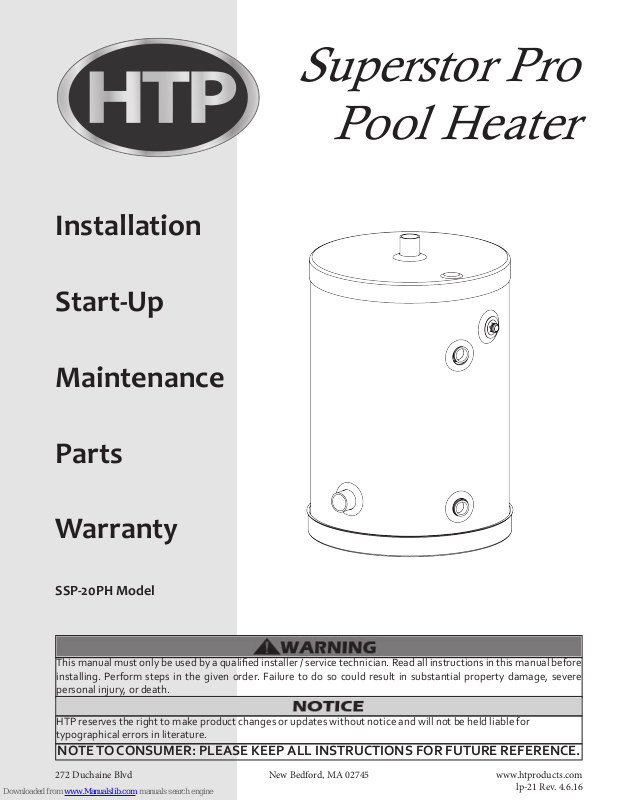

SSP-20PH Model
This manual must only be used by a qualied installer / service technician. Read all instructions in this manual before
installing. Perform steps in the given order. Failure to do so could result in substantial property damage, severe
personal injury, or death.
HTP reserves the right to make product changes or updates without notice and will not be held liable for
typographical errors in literature.
NOTE TO CONSUMER: PLEASE KEEP ALL INSTRUCTIONS FOR FUTURE REFERENCE.
272 Duchaine Blvd New Bedford, MA 02745 www.htproducts.com
lp-21 Rev. 4.6.16
2
The following dened terms are used throughout this manual
to bring attention to the presence of hazards of various risk
levels or to important product information.
DANGER indicates an imminently hazardous situation which,
if not avoided, will result in serious personal injury or death.
WARNING indicates a potentially hazardous situation which, if
not avoided, could result in personal injury or death.
CAUTION indicates a potentially hazardous situation which, if
not avoided, may result in moderate or minor personal injury.
CAUTION used without the safety alert symbol indicates
a potentially hazardous situation which, if not avoided, may
result in property damage.
NOTICE is used to address practices not related to personal
injury.
Foreword
This manual is intended to be used in conjunction with other
literature provided with the pool heater. This includes all related
control information. It is important that this manual, all other
documents included in this system, and additional publications
including the Code for the Installation of Heat Producing
Appliances (latest version), be reviewed in their entirety before
beginning any work.
Installation should be made in accordance with the regulations
of the Authority Having Jurisdiction, local code authorities, and
utility companies which pertain to this type of water heating
equipment.
Authority Having Jurisdiction (AHJ) – The AHJ may be a federal,
state, local government, or individual such as a re chief, re
marshal, chief of a re prevention bureau, labor department
or health department, building ocial or electrical inspector,
or others having statutory authority. In some circumstances,
the property owner or his/her agent assumes the role, and
at government installations, the commanding ocer or
departmental ocial may be the AHJ.
NOTE: HTP, Inc. reserves the right to modify product technical
specications and components without prior notice.
For the Installer
This pool heater must be installed by qualied and licensed
personnel. The installer should be guided by the instructions
furnished with the pool heater, and by local codes and utility
company requirements.
Installations Must Comply With:
Local, state, provincial, and national codes, laws, regulations,
and ordinances.
The latest version of the National Electrical Code, NFPA No. 70.
In Canada, refer to Canadian Electrical Code C22.1.
Table of Contents
Part 1 - General Safety Information 2
A. When Servicing the Pool Heating System 3
B. Heater Water 3
Part 2 - Prepare the Pool Heater 3
Locating the Pool Heater 3
Part 3 - Piping 4
A. Plumbing 4
B. Piping to the Pool Filter 4
C. Piping to the Boiler 4
D. Application 4
Part 4 - Heater Control and Wiring 4
A. Control 4
B. Sensor Installation 4
Part 4 - Sizing the Pool Heater 5
Part 5 - Maintenance 5
Limited Warranty 6
Customer Installation Record Form 8
Part 1 - General Safety Information
This pool heater is intended to be connected to a boiler. Basic
operation requires a boiler with adequate BTU capacity and
a properly sized circulator to transfer the BTUs to the pool
heater.
An optional control is available to monitor pool water
temperature when the pool lter pump is on. This system will
not operate if the boiler or pool lter pump is not operating.
Pool control with sensor and transformer - Part # SP-30
Installer - Read all instructions in this manual before installing.
Perform steps in the given order.
User - This manual is for use only by a qualied heating
installer / service technician. Have this pool heater serviced /
inspected annually by a qualied service technician.
FAILURE TO ADHERE TO THESE GUIDELINES CAN
RESULT IN SUBSTANTIAL PROPERTY DAMAGE, SEVERE
PERSONAL INJURY, OR DEATH.
NOTE: Obey all local codes. Obtain all applicable permits
before installing the water heater.
NOTE: Install all system components and piping in such a
manner that does not reduce the performance of any re
rated assembly.
NOTE: If the pool heater is exposed to the following, do not
operate. Immediately call a qualied service technician.
1. Fire
2. Damage
3. Water
Failure to follow this information could result in property
damage, severe personal injury, or death.
This water heater must be installed upright in the vertical
position as described in this manual. DO NOT attempt to
install this water heater in any other orientation. Doing so
will result in improper water heater operation and property
damage, and could result in serious personal injury or death.
lp-21 Rev. 4.6.16
3
Do not use this pool heater for anything other than its intended
purpose (as described in this manual). Doing so could result in
property damage and WILL VOID product warranty.
High heat sources (sources generating heat 100oF / 37oC or
greater, such as stove pipes, space heaters, etc.) may damage
plastic components of the pool heater or plastic vent pipe
materials. Such damages ARE NOT covered by warranty. It is
recommended to keep a minimum clearance of 8” from high
heat sources. Observe heat source manufacturer instructions,
as well as local, state, provincial, and national codes, laws,
regulations and ordinances when installing this pool heater
and related components near high heat sources.
UNCRATING THE POOL HEATER - Any claims for damage or
shortage in shipment must be led immediately against the
transportation company by the consignee.
A. When Servicing the Pool Heating System
To avoid electric shock, disconnect electrical supply before
performing maintenance.
To avoid severe burns, allow pool heater and associated
equipment to cool before servicing.
B. Heater Water
Do not use petroleum-based cleaning or sealing compounds
in a pool heating system. Gaskets and seals in the system may
be damaged. This can result in substantial property damage.
Do not use “homemade cures” or “patent medicines”. Damage
to the pool heater, substantial property damage, and/or
serious personal injury may result.
Part 2 - Prepare the Pool Heater
Remove all sides of the shipping crate to allow the heater to
be moved into its installation location.
COLD WEATHER HANDLING - If the pool heater has
been stored in a very cold location (BELOW 0oF) before
installation, handle with care until the components come to
room temperature. Failure to do so could result in damage to
the pool heater.
Locating the Pool Heater
If the pool heater is to be located outdoors it must be in a
covered area, protected from the rain and sun.
For winterizing, the pool heater must be completely drained
and have one gallon of non-toxic, food-grade propylene
glycol, FDA rated as GRAS (Generally Recognized As Safe)
pumped into the heat exchanger to prevent freezing.
Choose a location for the pool heater as centralized to the
piping system as possible. Also, locate the pool heater and
domestic water piping where it will not be exposed to freezing
temperatures. All piping should be insulated. Additionally,
place the pool heater so that the drain, controls, and inlets/
outlets are easily accessible.
This water heater must be installed vertical on a level surface.
Ensure the location can support the entire lled weight of the
pool heater. Failure to properly support the pool heater could
result in property damage, severe personal injury, or death.
Figure 1 - Pool Heater Dimensions
Locate the water heater where any leakage from the relief valve,
related piping, tank, or connections will not result in damage
to surrounding areas or lower oors of the building. The water
heater should be located near a oor drain or installed in a drain
pan. Leakage damages ARE NOT covered by warranty.
This water heater must not be located near ammable liquids
such as gasoline, butane, liqueed propane, adhesives, solvents,
paint thinners, etc., as the controls of this water heater could
ignite these vapors and cause an explosion resulting in property
damage, severe personal injury, or death.
NOTE: To save on heating costs and improve energy eciency
keep the distance between the boiler and pool heater to a
minimum to reduce heat loss from excess piping and keep
friction loss at a minimum. Ensure all piping between the boiler
and pool heater is properly insulated to minimize heat loss.
The pool heater may be located some distance from the boiler
provided the circulator meets ow requirements through the
coil. The greater the distance from the pool heater to the boiler
the longer the response will be to a call for hot water.
This pool heater must be installed vertical on a level surface.
Part 3 - Piping
A. Plumbing
It is mandatory that all plumbing be done in accordance with
federal, local, and state plumbing codes and practices. Failure
to properly install the pool heater WILL VOID the warranty. It
is also necessary to use both thread tape and pipe dope on all
mechanical plumbing connections.
lp-21 Rev. 4.6.16
