Mobile Phone Thermal Imager
Instruction Manual
April 18, 2019
Revision number: 1.0
HT-101
HT-201
Overview
The product is connected through mobile phone and is
operated on the mobile phone through “Ht-Xintai” software. It is
very easy to check infrared images and measure surface
temperature of objects. The product may be used for heating
and ventilation air conditioner and building heat difference test,
equipment fault removal, preventive and predictive maintenance, etc.
Use of the product
Download of application software
Scan the following two-dimensional code to download application software “Ht-Xintai” and install it.
Two-dimensional code application software of products
1
2. Connect the mobile phone to open application software of the
product and insert thermal imager into the mobile phone.
The dialogue box pops out when the mobile phone is used to
connect the thermal imager. Check “used for the USB
equipment at default condition”. Click “enter”. When the mobile
phone is connected with thermal imager, photographing,
recording, access to media content and other authorities
request pop out, the users may grant permission.
Please obtain mobile phone authority, click “Allow”
2
Introduction to software interface
Manufacturer LOGO
color palette
Imaging area
Function bar
slide the function bar left and
right to display concealing
function of software.
3
Introduction software function
Media library: Check image and video.
Photographing: Click to make photo.
Video recording: Click to begin recording.
Color palette: May select white hot, black hot,
iron red, rainbow, north pole and lava.
Effect picture of color palette
White hot Black hot Iron red
4

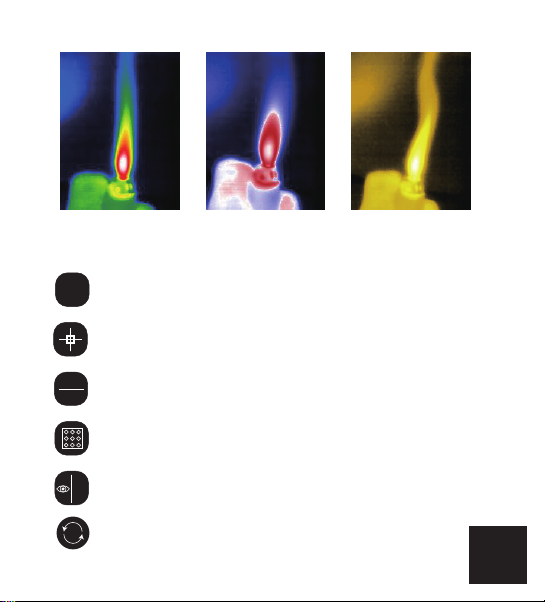

Rainbow north pole lava
Normal mode: Restore to default infrared imagery
Normal
observation mode.
Cursor mode: Display the cursor of the central point,
temperature point of prevision positioning.
max
High/low temperature snap mode: Snap the lowest and
min
Full frame mode: Display multiple temperature data.
Visible light+ Infra-Red Mode: The visible light images
IR
and infrared images are displayed side by side.
highest temperature
5
Fault and solution
If disconnection appears during the work and there is no image
display, the following methods may be adopted.
1. Close “Ht-Xintai” software and open again;
2. Switch off the thermal imager and connect it with mobile
phone again.
3. Check your mobile phone setting, set the mobile phone as
“external power supply”.
Technical parameters
Model
Resolution
Temperature range
Wavelength range
Field angle/focus length
HT-101
220x160 320x240
-40℃ to 330℃
8 – 14μm
27°×35°
-40℃ to 330℃
8 – 14μm
26°×34°
HT-201
6
Image format
Video format
Frame rate
Focusing mode
Detection scope
Detection
definition
Shortest focal
length
Target size
Work temperature
Storage temperature
Plug
Power provision
Weight
: Cover 4 pixels
jpg
mp4
9Hz
Fixed
300m
When one object is found in the field of view,
the image of the object must occupy more
than 1.5 pixel in the directionof critical size.
0.15m
0 ℃ to 40 ℃
-20℃ to 60 ℃
Type-C , micro USB ,
5V（External equipment power supply）
40g
7
Scan QR code to download and install APP
Dongguan Xintai Instrument Co.,Ltd.
Add: Building F, No. 13-16, Hongye Industrial Zone, Tangxia
community, Tangxia Town, Dongguan City
Postcode:523710
Tel:+86-769-82612006
Fax:+86-769-82612005
Website:www.hti-meter.com
https://hti-instrument.com www.xintest.en.alibaba.com
