Htek UC802, UC803P, UC804, UC802P, UC803 User Manual

1

Htek UC8xxSERIES SIP PHONE

Auto Provision User Guide

Nanjing Hanlong Technology Co., Ltd.
0086-25-84658050
www.htek.com
[email protected]

Table of Contents

Table of Contents

1. Introduction ................................................................................................................................................. 1

2. Manage Configuration ................................ ................................................................ ................................ 1

2.1 Obtain configuration files ................................................................................................................ 2

2.2 Obtain phone information .................................................................................................................. 3

2.3 Manage configuration files ................................................................................................................. 3

2.4 How to edit cfg000x.xml file ............................................................................................................... 3

2.5 How to edit cfg$mac file ..................................................................................................................... 3

2.6 How to edit cfgmac.xml file ................................................................................................................ 7

3. Encrypt Configuration Files ......................................................................................................................... 9

3.1 How to encrypt the XML configuration file .......................................................................................... 9

4. Customize Resource Files ........................................................................................................................ 10

4.1 Customize ring tone ......................................................................................................................... 10

4.2 Customize LCD language ................................................................................................................ 10

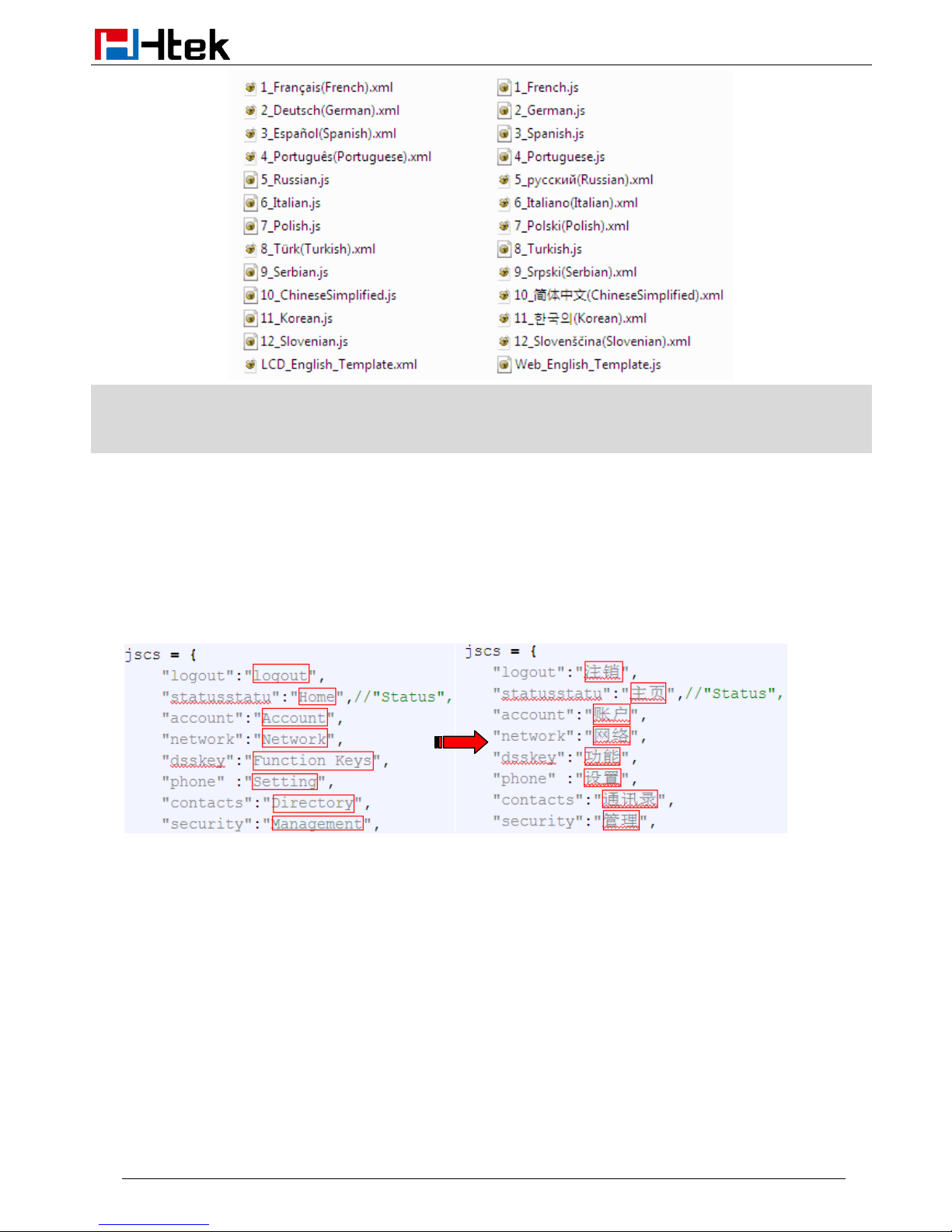

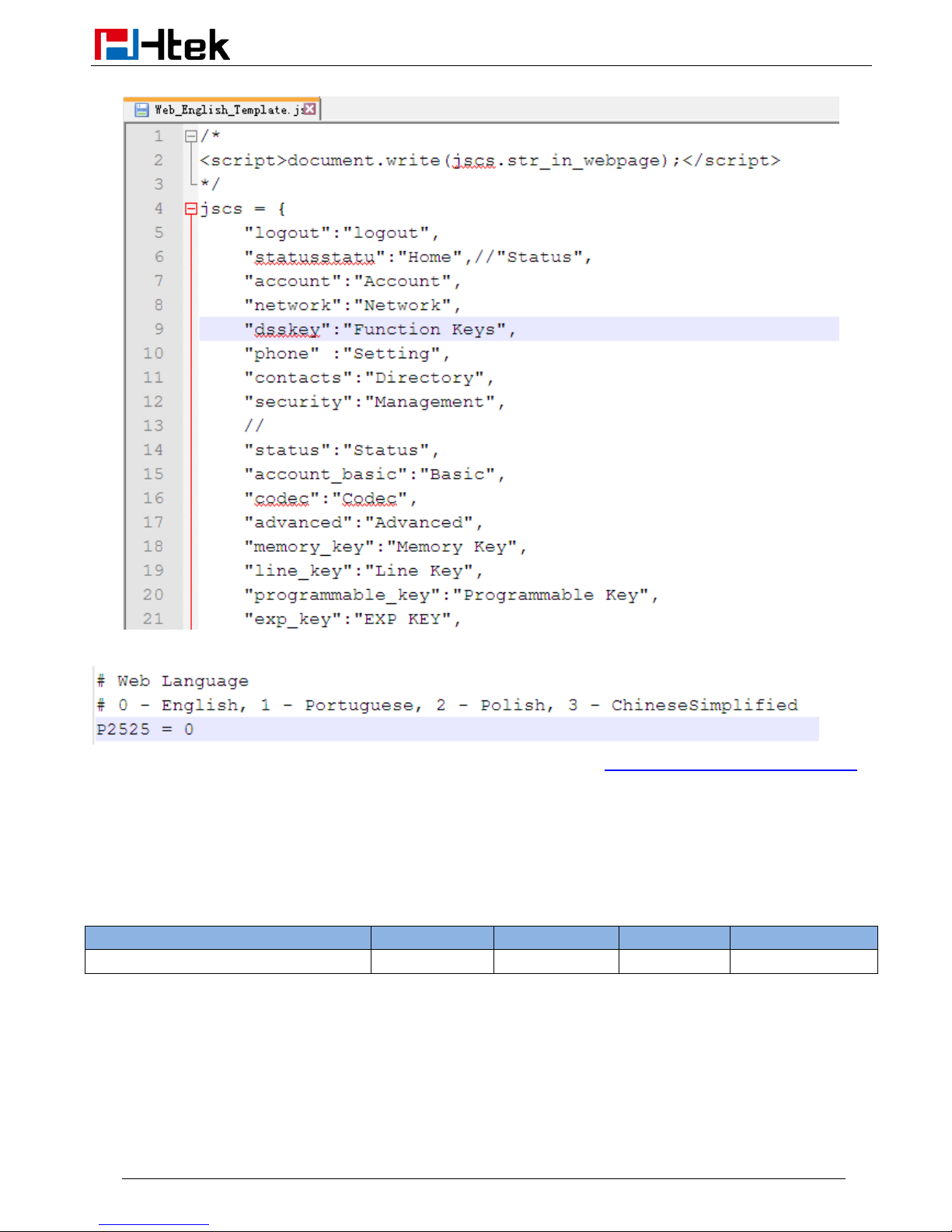

4.3 Customize web language ................................................................................................................ 11

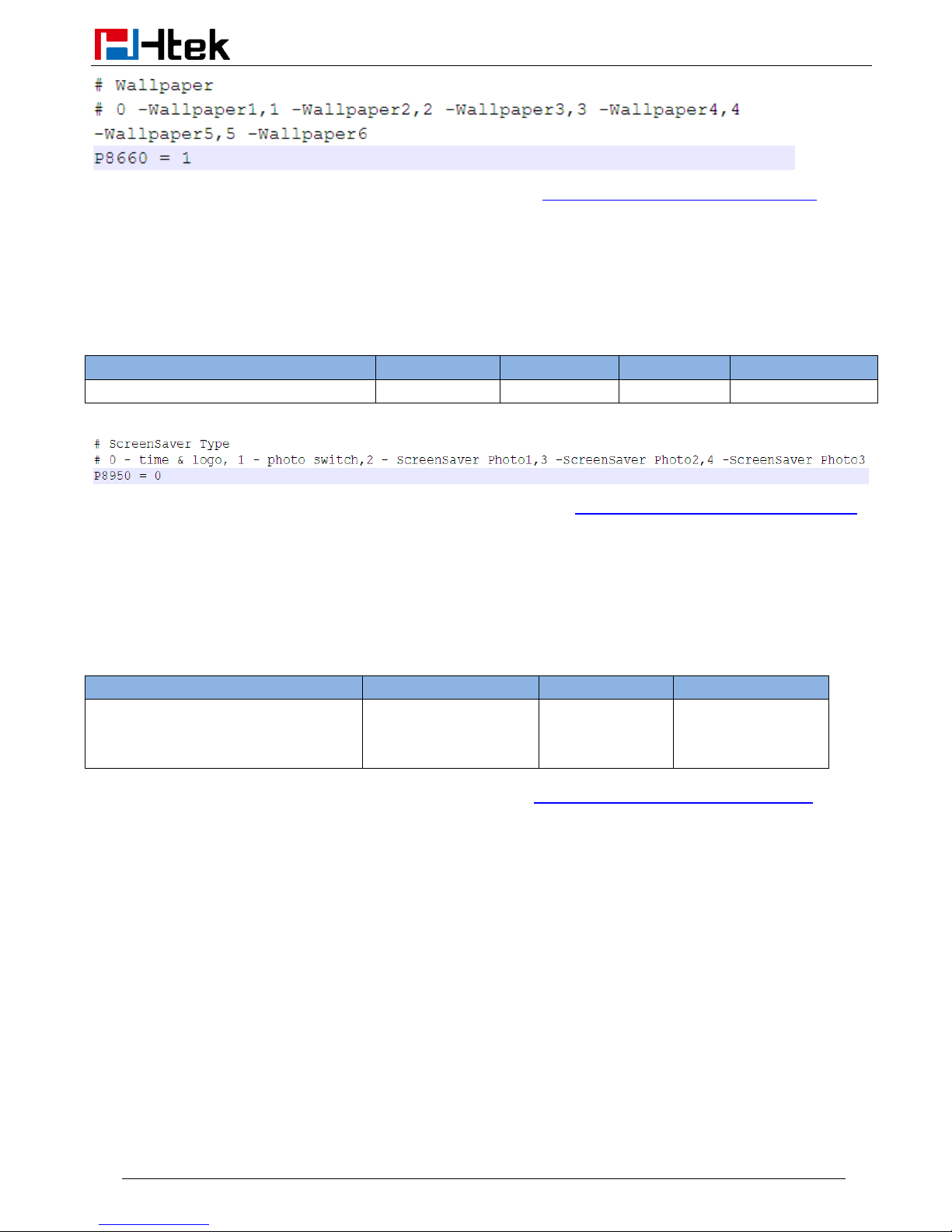

4.4 Customizing wallpaper ..................................................................................................................... 12

4.5 Customizing screensaver ................................................................................................................ 13

4.6 Customizing weblogo ....................................................................................................................... 13

5. Upgrade resource files .............................................................................................................................. 13

5.1 How to configure URL for hlpres.tar ................................................................................................. 13

5.2 How to configure URL for Language.tar ........................................................................................... 14

5.3 How to configure URL for exp_pres.tar ............................................................................................ 14

5.4 How to configure Path for ringx.bin ................................................................ .................................. 14

5.5 How to configure URL for Screensaver ............................................................................................ 14

5.6 How to configure URL for Wallpaper ................................................................................................ 14

Table of Contents

6 Upgrade Firmware ..................................................................................................................................... 15

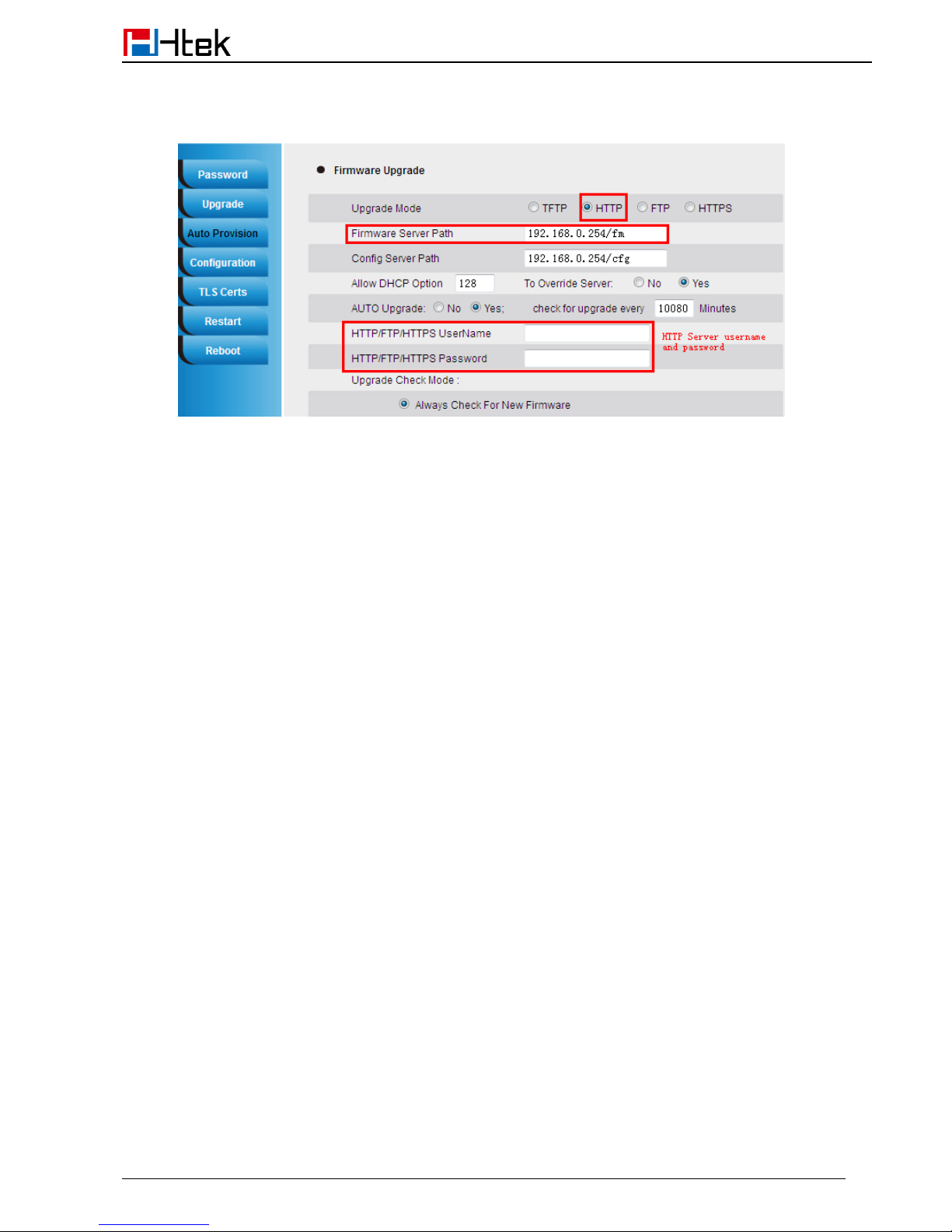

6.1 Configuring HTTP Server ................................................................................................................ 15

6.2 How to Configuring HTTP Server..................................................................................................... 15

7. Obtain Provisioning Server's Address ....................................................................................................... 17

8. Update mode ............................................................................................................................................ 19

9. Download and Verify Configurations ......................................................................................................... 21

9.1 Download configuration files ............................................................................................................ 21

9.2 Resolve and Update configurations ................................................................................................. 21

9.3 Verify configurations ........................................................................................................................ 21

10. Firmware and Configuration File Prefix and Postfix................................................................................. 23

11. Firmware Server and Configuration File Server ...................................................................................... 24

12. Manage Firmware and Download Configuration File ............................................................................... 24

13. Pre_Configuration and Configuration Redirection ................................................................................... 25

14. Automatic Provisioning Within LAN ......................................................................................................... 26

15. Troubleshooting ...................................................................................................................................... 27

16. Glossary ................................................................................................................................................. 28

17. How to Edit cfg000x.xml ......................................................................................................................... 29

18. Generate Configuration File with HLLiteTool and Upgrade the Configuration File via

HTTP/HTTPS/FTP/TFTP .............................................................................................................................. 33

18.1 Generate the configuration file for Htek IP Phones ........................................................................ 33

18.1.1 Select manual mode to generate CFG file ............................................................................... 33

18.1.2 Select File Input mode to generate CFG file ............................................................................ 35

18.2 Upgrade cfgmac file via HTTP/TPFP/FTP/HTTPS ......................................................................... 39

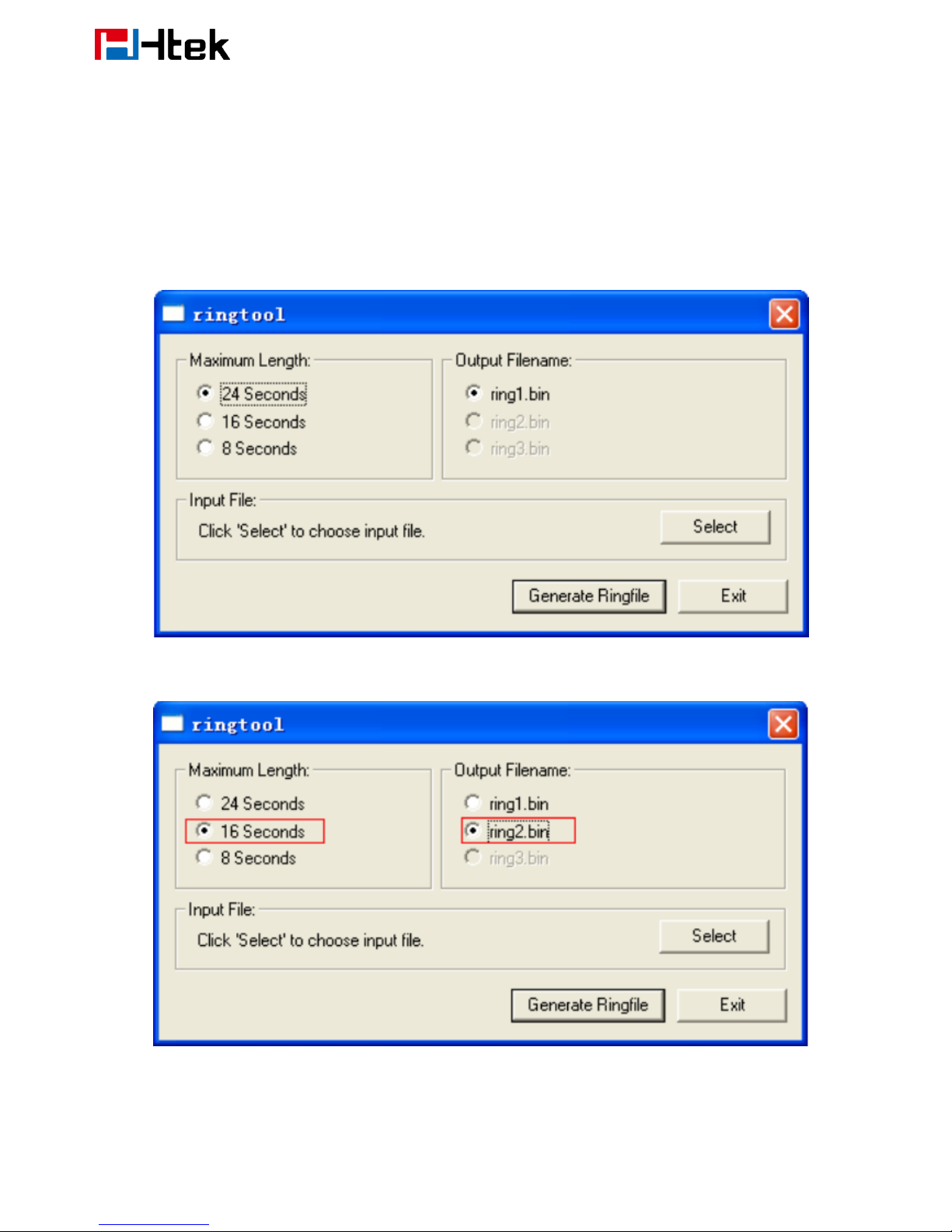

19.Making Ringtone Notes ........................................................................................................................... 42

20.LCD and Web Language custom Guide ................................................................................................... 44

20.1.LCD Language custom guide ........................................................................................................ 44

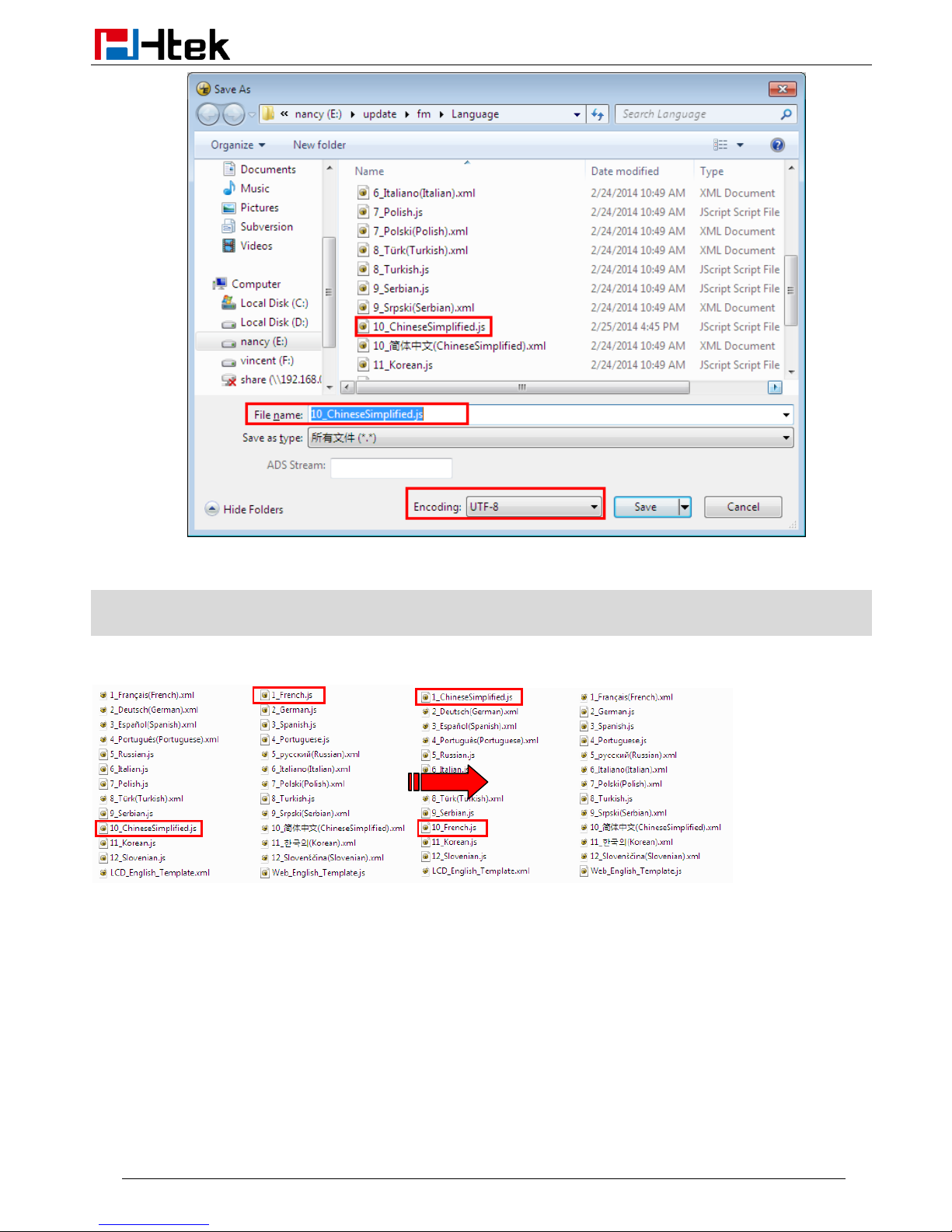

20.2.Web Language custom guide ........................................................................................................ 45

21.LCD and Web GUI custom Guide ............................................................................................................ 47

Table of Contents

21.1 How to custom the wallpaper1-wallpaper6? ................................................................................... 48

21.2 How to custom the screensaver1- screensaver3? ......................................................................... 48

21.3 How to custom the weblogo? ......................................................................................................... 48

21.4 How to customthe eights meuns(.png)in the main menu? .............................................................. 48

21.5 How to customthe ...Icon.png? ...................................................................................................... 48

21.6 How to custom the lcdlogo_color.png? .......................................................................................... 48

21.7 How to customthe lcdlogo_bw.png? .............................................................................................. 48

22.Firmware Upgrade ................................................................................................ ................................... 50

22.1. Upgrade through TFTP ................................................................................................................. 50

22.2. Upgrade through FTP ................................................................................................................... 52

22.3. Upgrade through HTTPS .............................................................................................................. 53

23.Parameter List ......................................................................................................................................... 54

Introduction

1

1.Introduction

Please note:

8xx including all models:
UC802(P)/UC803(P)/UC804(P)/UC806(P)/UC840P/UC842/UC860P/UC862

Htek IP Phone could be plugged directly into an IP network and be used without any manual
configuration.
This guide provides instructions on how to provision Htek IP Phone with the minimum settings. Htek
IP Phone supports FTP, TFTP, HTTP, and HTTPS for auto provisioning and are configured by default
to use the HTTP.
This guide is a basic guidance for provisioning on Htek IP phones, including the models: Htek
UC802(P)/UC803(P)/UC804(P)/UC806(P)/UC840P/UC842/UC860P/UC862

Note:The auto provision just applies to FW 1.0.3.70 or FW after 1.0.3.70. For the latest FW, please
download from our website www.htek.com.

2. Manage Configuration

Htek IP Phone could be configured via Web Interface and via Configuration File that download
through TFTP/FTP/HTTP/HTTPS. All devices support a configuration file in proprietary binary format.
Products like UC8xx, Unicorn3xxxandUnicorn6xxxaccept configuration files in XML format inlegacy
proprietary binary format. The XML provisioning implementation also allows generic XML
configuration file on top of the MAC based configuration file.

When Htek IP Phone boots up or reboots, it will issue a request for these configuration files named
“factory000x.bin” --> “cfg000x.xml” -->”cfgMAC” --> “cfgMAC.xml “, in which “000x” is the Device
Code. Take UC862 For example, the configuration file name should
be factory0000.xml. You can refer to the <<Device Type and file list>>. where “MAC” is
the device Mac address, for example “cfg001fc10608ab”.The configuration file name should be in
lower case. The file “cfgMAC” is a proprietary binary format configuration file that must be generated
by Htek configuration tools.

Device type, Device code and file list:

Device Type

Device Code

Device file

UC862

0000

factory0000.bin/cfg0000.xml

UC842

0001

factory0001.bin/cfg0001.xml

UC860

0002

factory0002.bin/cfg0002.xml

UC840

0003

factory0003.bin/cfg0003.xml

UC806

0004

factory0004.bin/cfg0004.xml

UC804

0005

factory0005.bin/cfg0005.xml

UC803

0006

factory0006.bin/cfg0006.xml

Manage Configuration

2

UC802

0007

factory0007.bin/cfg0007.xml

UC824

0008

factory0008.bin/cfg0008.xml

UC826

0009

factory0009.bin/cfg0009.xml

Process of Htek products are as follows:

factory000x.bin -----used for factory default configuration for ODM/OEM
cfg000x.xml ----- used for update the common configuration which doesn’t include the account
information.
cfg001fc1xxxxxx ---- this file is a private format for each device
cfg001fc1xxxxxx.xml------used for configuration for each device. xml format

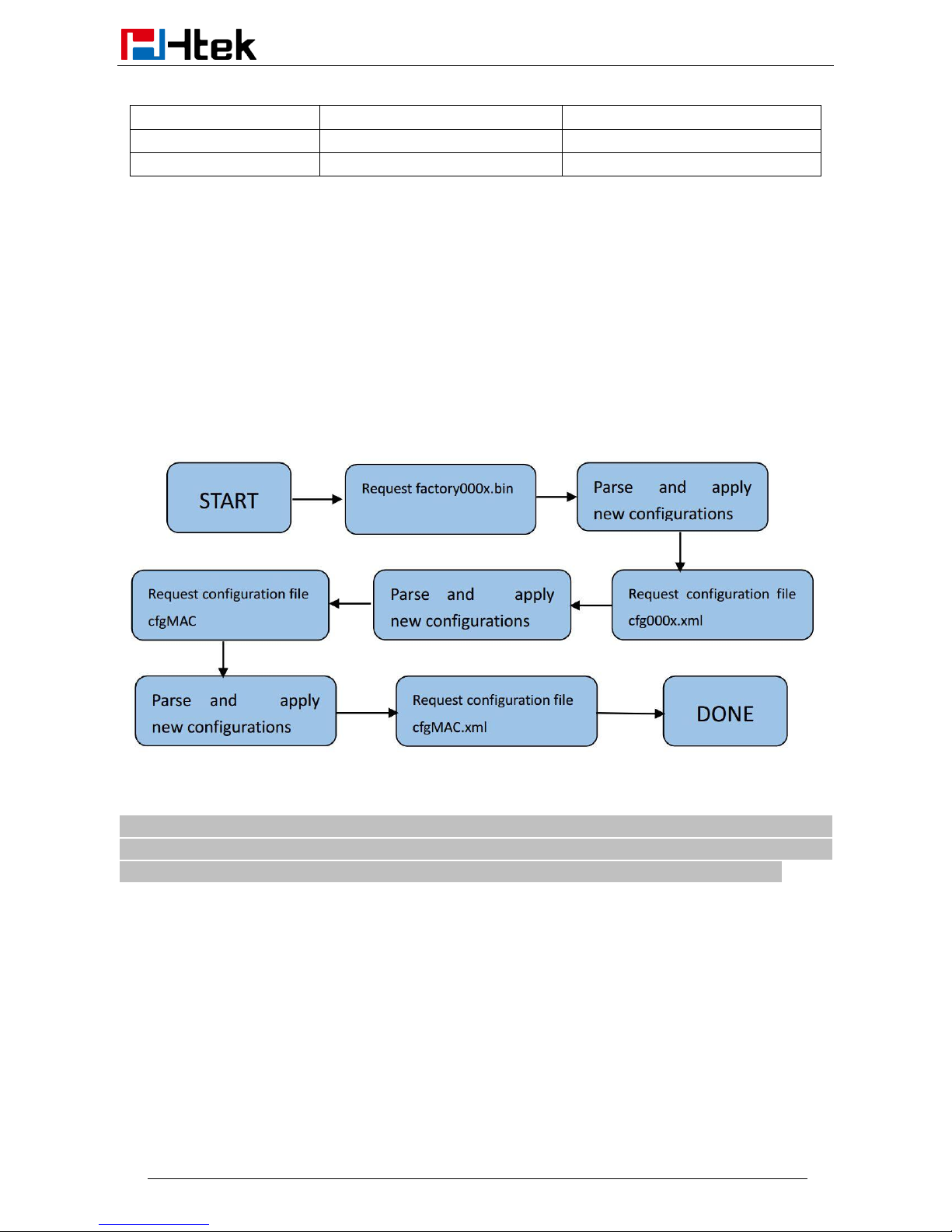

Provisioning Flow Chart:

Picture 1: Provisioning Flow Chart

Note:The provisioning program will apply and reload the settings after downloading the new
configuration files. It means that a provision/re-direction server can redirect the device to a
provisioning server without reboot. It can also be used to send the XML encryption password.

If factory000x.bin file does not successfully download, the provisioning program will download the
cfg000x.xml file, or download the cfgMAC file. If the cfgMAC file does not download successfully, the
provision program will download the cfgMAC.xml file.

2.1 Obtain configuration files

Before provisioning, first you need to obtain the configuration file. There are three CFG template files,
cfg000x.xml, cfg$mac and cfgmac.xml. The cfg000x.xml is a common configuration file which

Manage Configuration

3

doesn’t include the account information. The “mac” only takes effect for a specific phone. The file
name is a12-digit mac address of the phone. For example, if the phone's mac address is
001fc11a0012, the cfg$mac file name must be cfg001fc11a0012; The cfgmac.xml file name must be
cfg001fc11a0012.xml.
The phone will try to download these CFG files from the server during provisioning.
Note: The IP Phones that in FW 1.0.3.70 or FW after 1.0.3.70would only recognize CFG files which
use UTF-8 or ANSI encoding.

2.2 Obtain phone information

Before provisioning, you need the phone information i.e.
the MAC address and the SIP account .
MAC Address: The unique 12-digit serial number of the phone. You can obtain it from the back of
the phone.

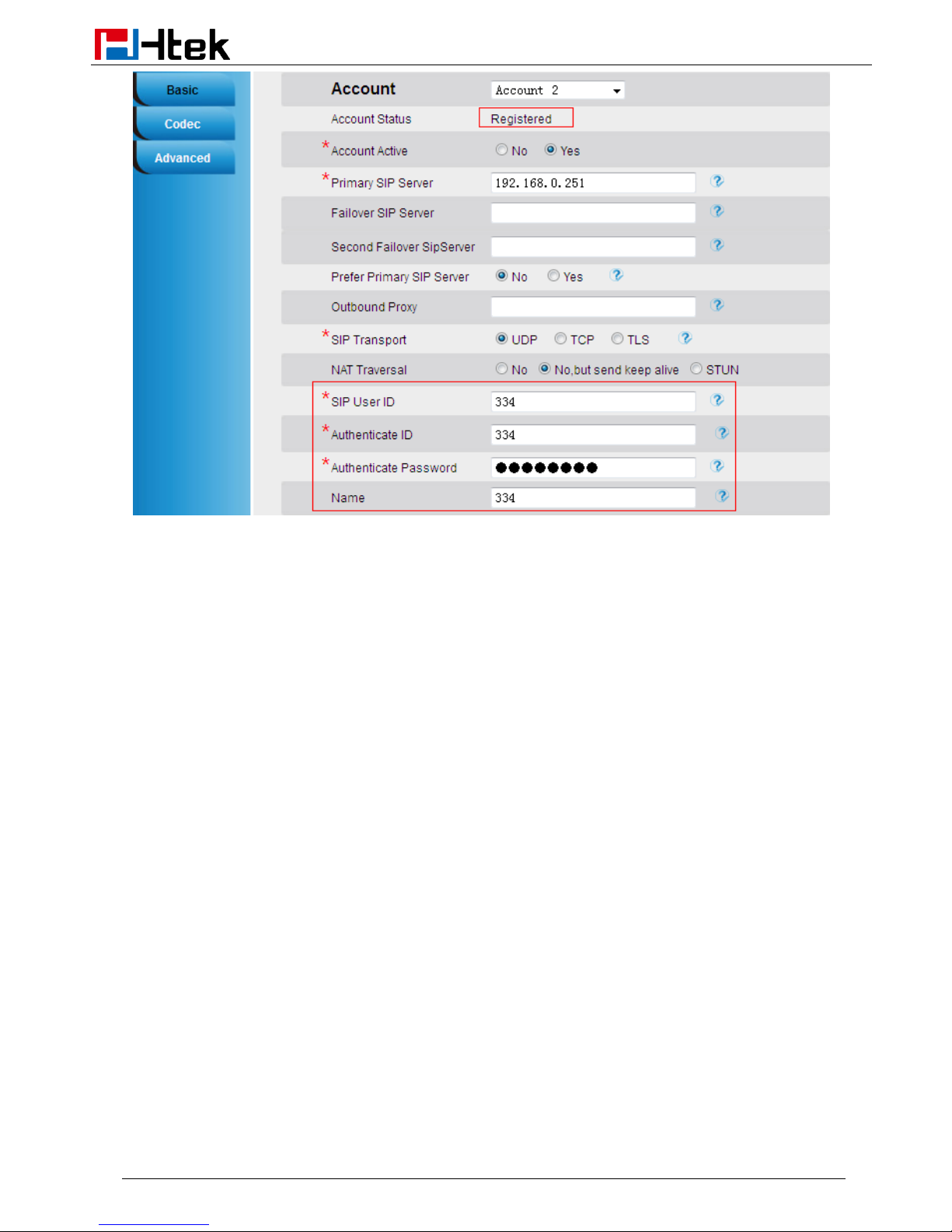

SIP Account Information: It may include SIP credentials, such as the user name, password and the
IP address of the SIP server. Contact your system administrator for SIP account information.

2.3 Manage configuration files

Auto provision enables Htek IP Phone to update automatically via downloading configuration files.
Before provisioning, you may need to edit and customize your configuration file which is composed
of many configuration parameters. A configuration parameter is associated with particular field in the
web configuration page. A parameter consists of a Capital letter P and 2 to 5 digit numeric numbers.
i.e., P2 is associated with “Admin Password” in the Advanced Page. For detailed parameter list,
please refer to <<parameter list>> in page 68.

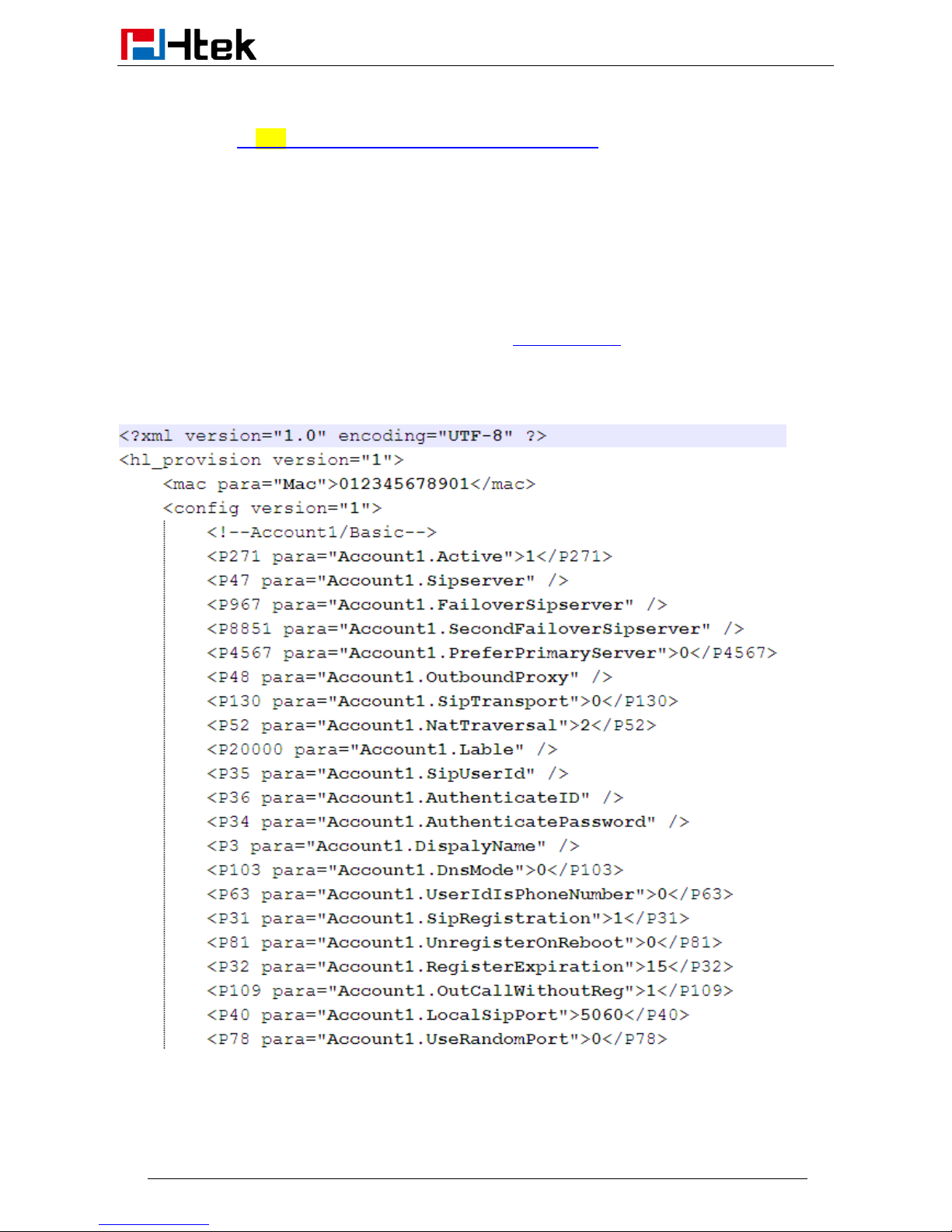

2.4 How to edit cfg000x.xml file

You can customize configuration parameters by editing XML configuration file “cfg000x.xml”, and
different device would use different file name. you can refer to<< How to Edit cfg000x.xml>>in page

40.

2.5 How to edit cfg$mac file

Cfg$mac file is a binary format configuration. It contains configuration parameters which apply to all
phone models.

Manage Configuration

4

The line beginning with “#” is considered to be the annotation, and it’s easy to understand each P
value.
The parameters commonly edited in the cfg$mac file are described as follows:
###############################################################################
#####

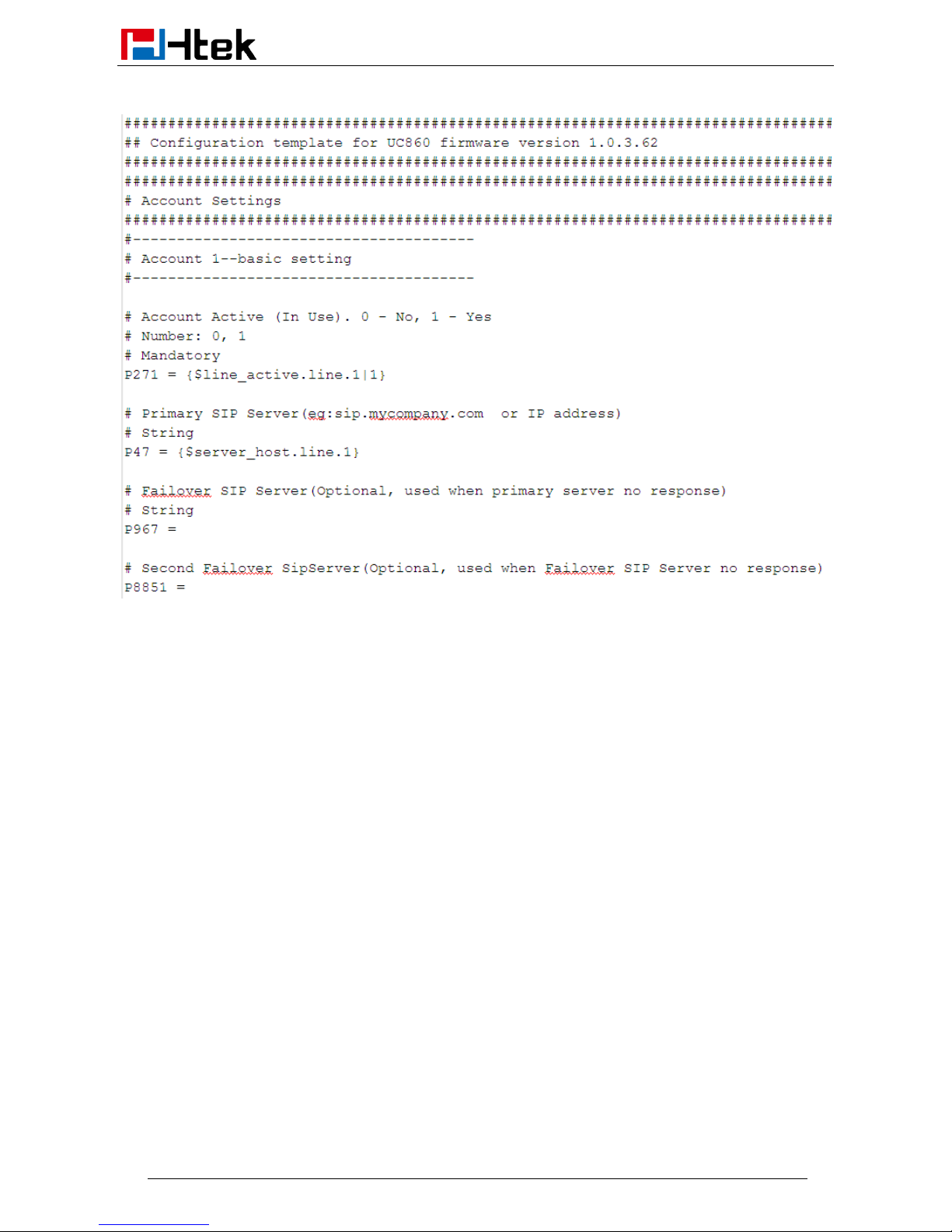

## Configuration template for UC860 firmware version 1.0.3.70
###############################################################################
#####
###############################################################################
#####
# Account Settings
###############################################################################
#####
#--------------------------------------­# Account 1--basic setting
#---------------------------------------

# Account Active (In Use). 0 - No, 1 - Yes
# Number: 0, 1
# Mandatory
P271 = {$line_active.line.1|1}

Manage Configuration

5

# Primary SIP Server(eg:sip.mycompany.com or IP address)
# String
P47 = {$server_host.line.1}

# Failover SIP Server (Optional, used when primary server no response)
# String
P967 =

# Second Failover SipServer (Optional, used when Failover SIP Server no response)
P8851 =

# Prefer Primary SIP Server (Yes-will register to Primary SIP Server if Failover registration expires)
# Prefer Primary SIP Server (In Use). 0 - No, 1 - Yes
# Number: 0, 1
# Mandatory
P4567 = 0

# Outbound Proxy(proxy.myprovider.com, or IP address, if any)
# string
P48 =

# Backup Outbound Proxy (This is Usually Set as IP addr)
P20047 =

# SIP Transport
# 0 - UDP, 1 - TCP, 2 - TLS
P130 = 0

# NAT Traversal. 0 - No, 1 - STUN 2 - No, but send keep alive
#Number: 0-2
# Mandatory
P52 = 2

# SIP User ID
P35 = {$username.line.1}

# Authenticate ID
P36 = {$username.line.1}

# Authenticate password
P34 = {$secret.line.1}

# Name
P3 = {$displayname.line.1}

Manage Configuration

6

# DNS Mode. 0 - A Record, 1 - SRV, 2 - NAPTR/SRV
# Number: 0-2
# Mandatory
P103 = 0

# User ID Is Phone Number.0 - No, 1 - Yes
# Number:0, 1
P63 = 0

# SIP Registration. 0 - No, 1 - Yes
# Number:0, 1
# Mandatory
P31 = 1

# Unregister On Reboot.0 - No, 1 - Yes
# Number:0, 1
# Mandatory
P81 = 1

# Register Expiration (in minutes. default is1 hour, max 45 days)
P32 = 15

# Outgoing Call Without Registration.0 - No, 1 - Yes
# Number:0, 1
# Mandatory
P109 = 1

# Local SIP Port (default 5060)
P40 = 5060

# Use Random Port.0 - No, 1 - Yes
# Number:0, 1
# Mandatory
P78 = 0

# Voice Mail UserID(UserID for voice mail system)
P33 =

# RPort.0 - No, 1 - Yes
P136 = 0

# RFC 2543 Hold.0 - No, 1 - Yes
P1100 = 1

Manage Configuration

7

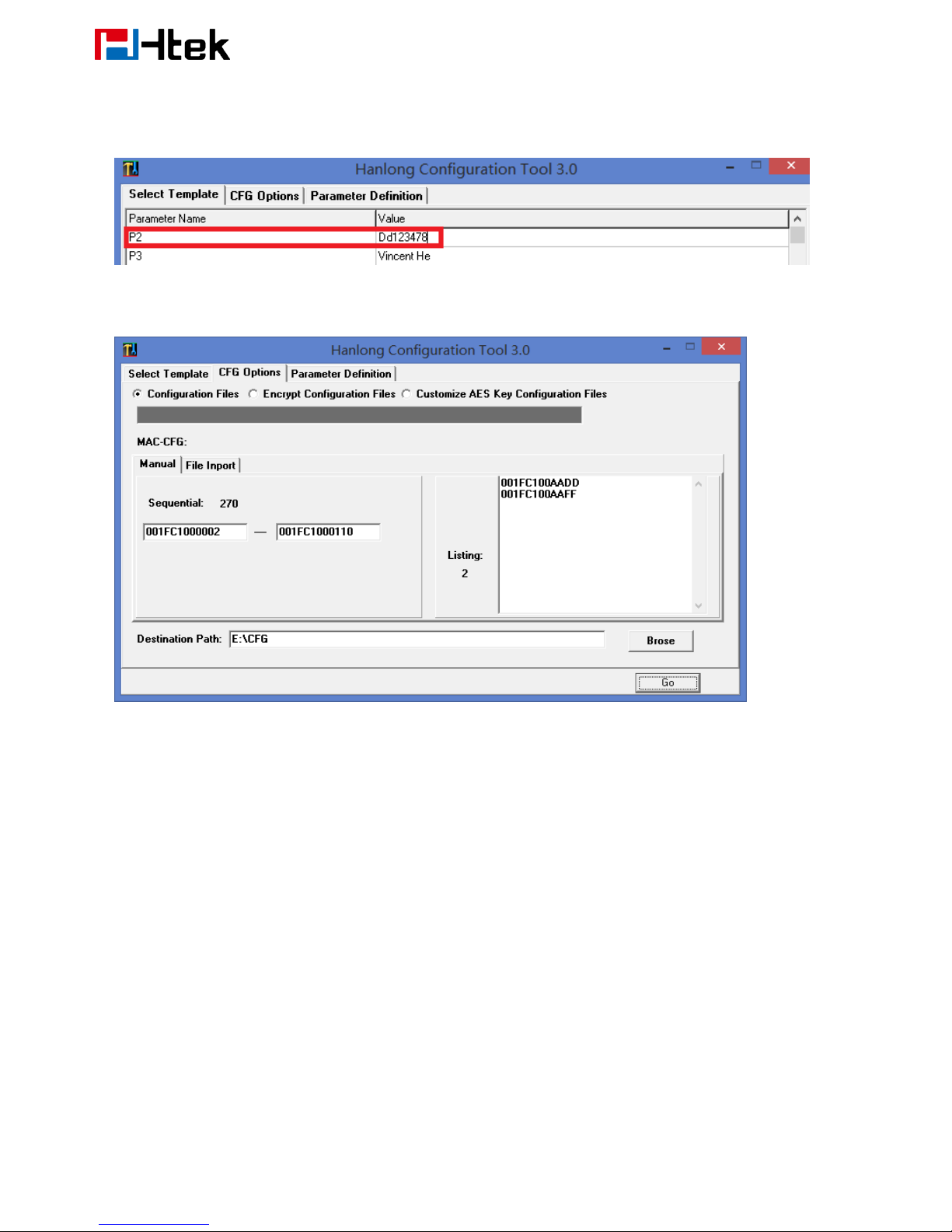

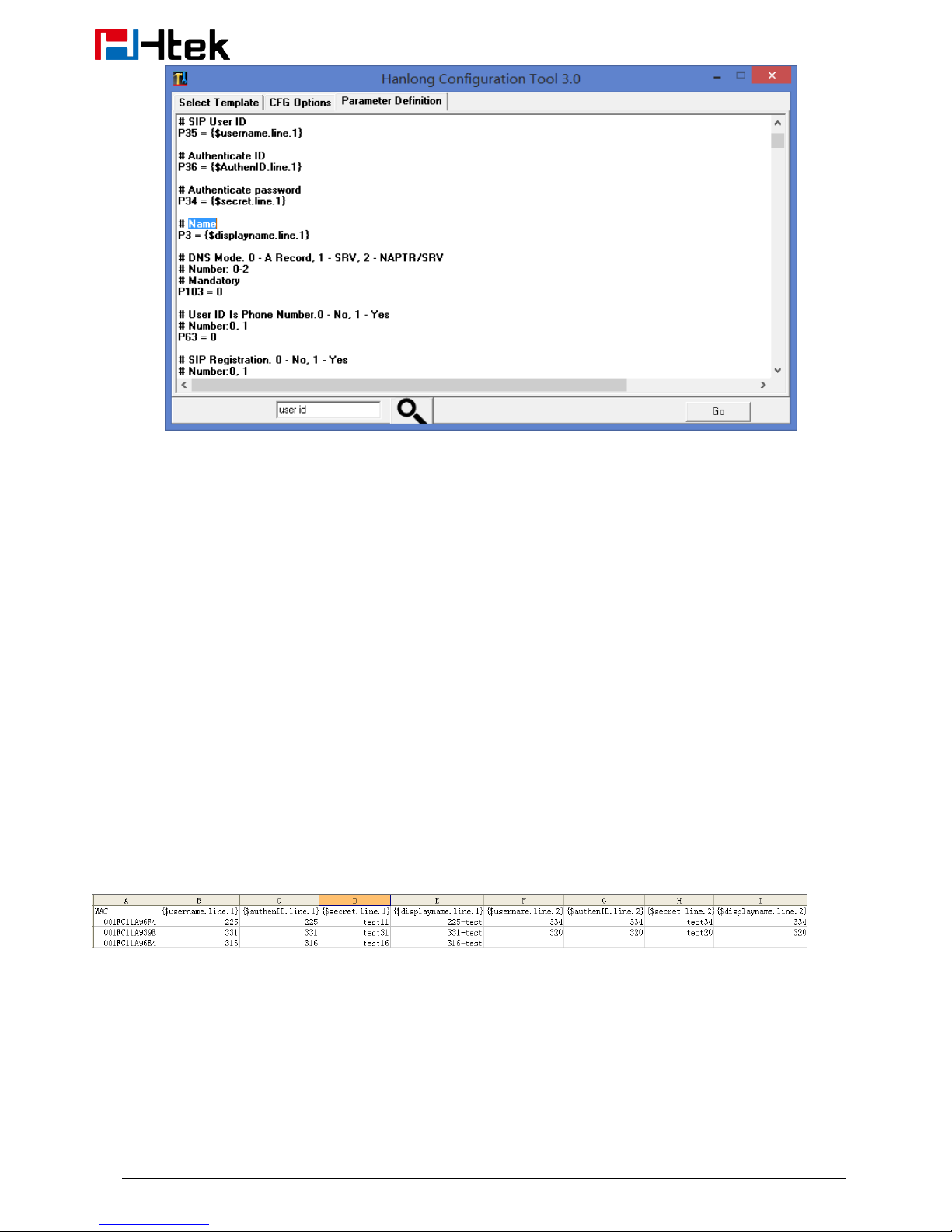

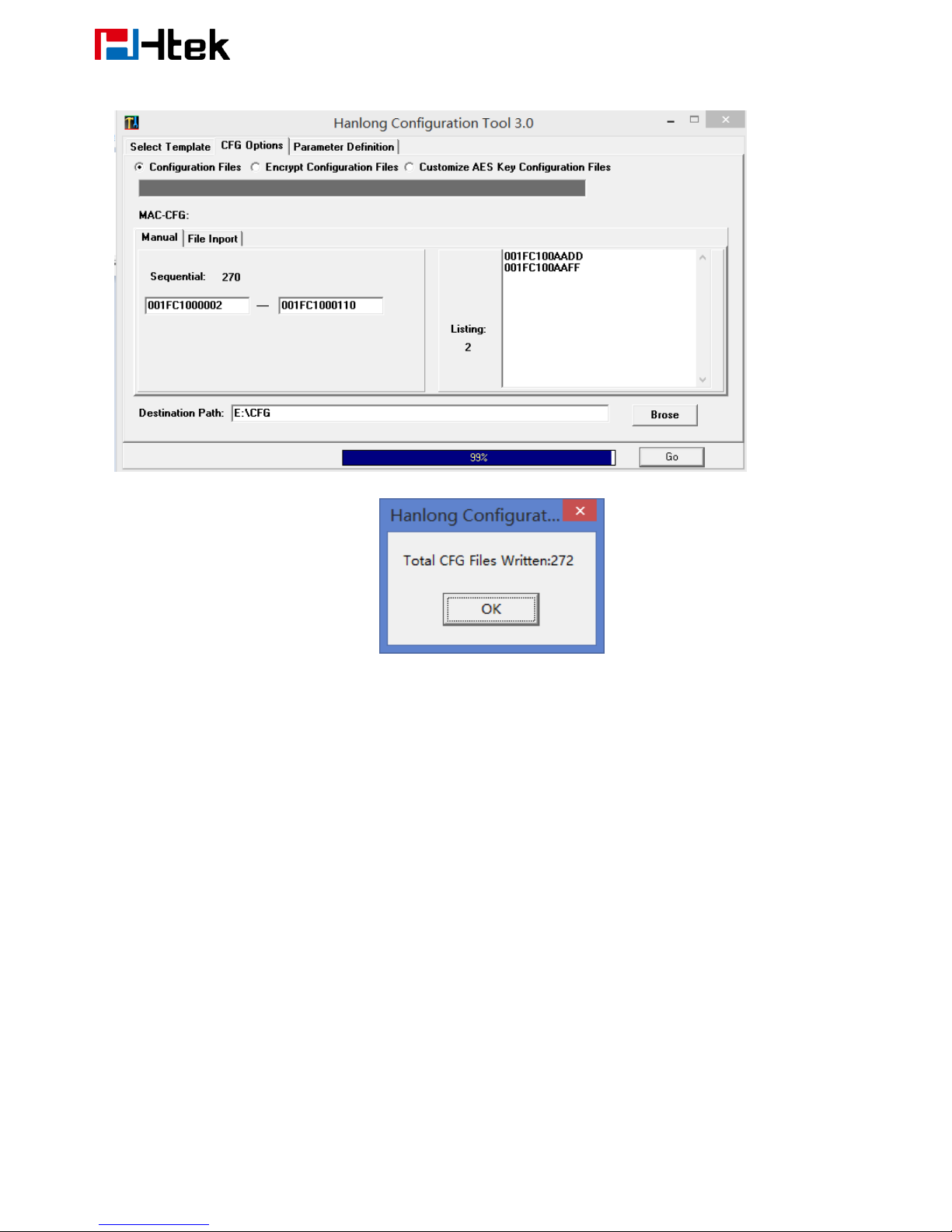

Weoffer free Configuration File generator software in both Linux/Unix and Windows platform.
You can refer to <<Generate Configuration Files with HLLiteTool >> in the page 45.

2.6 How to edit cfgmac.xml file

General XML syntax consists of a list of name-value pairs. P-Value is the element and value of the
elementre presents the value for a particular configuration which P-Value represents corresponding.

Method1:

You need to download cfg.xml file from IP Phone webpage(Management->Configuration->Download
xml file) or download this cfgmac.xml file from website www.htek.com, then change the file name to
cfgmac.xml(mac is IP Phone address), and open the cfgmac.xml, See the below screen shot:

The parameters edited in the cfgmac.xml file are described as follows:

Manage Configuration

8

<?xml version="1.0" encoding="UTF-8" ?>
<hl_provision version="1">
<mac para="Mac">001fc11a0012</mac>
<config version="1">
<!--Account1/Basic-->
<P271 para="Account1.Active"></P271>
<P47 para="Account1.Sipserver"></P47>
<P967 para="Account1.FailoverSipserver"></P967>
<P8851 para="Account1.SecondFailoverSipserver"></P8851>
<P4567 para="Account1.PreferPrimaryServer"></P4567>
<P48 para="Account1.OutboundProxy"></P48>
<P130 para="Account1.SipTransport"></P130>
<P52 para="Account1.NatTraversal"></P52>
<P20000 para="Account1.Lable"></P20000>
<P35 para="Account1.SipUserId"></P35>
<P36 para="Account1.AuthenticateID"></P36>
<P34 para="Account1.AuthenticatePassword"></P34>
<P3 para="Account1.DispalyName"></P3>
<P103 para="Account1.DnsMode"></P103>
<P63 para="Account1.UserIdIsPhoneNumber"></P63>
<P31 para="Account1.SipRegistration"></P31>
<P81 para="Account1.UnregisterOnReboot"></P81>
<P32 para="Account1.RegisterExpiration"></P32>
<P109 para="Account1.OutCallWithoutReg"></P109>
<P40 para="Account1.LocalSipPort"></P40>
<P78 para="Account1.UseRandomPort"></P78>

You can edit the value in <></>field.
For example: The phone’s SIP Server is 192.168.0.100, you need to edit the <P47
para="Account1.Sipserver">192.168.0.100</P47>.

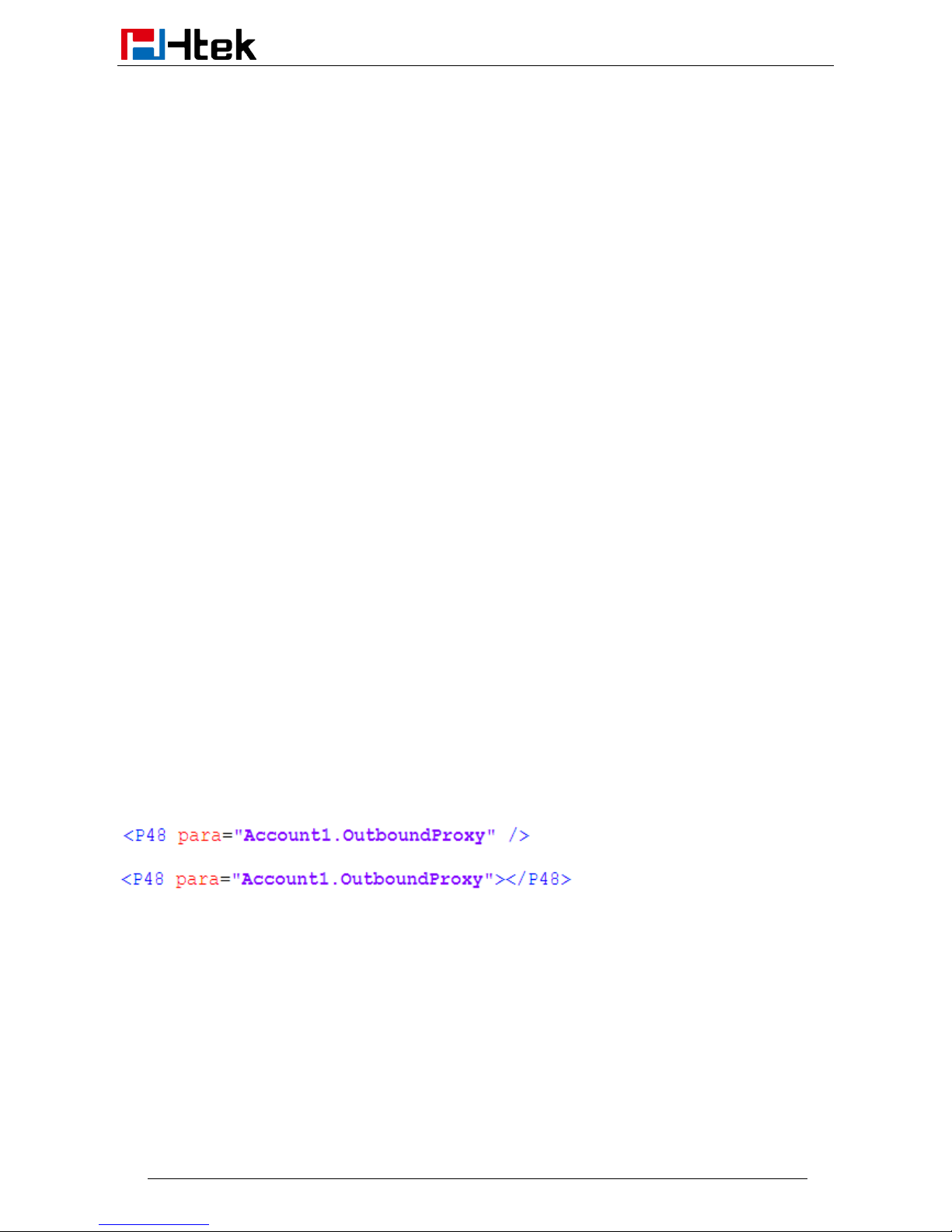

If you want to configure others, for example:

,you need to change it as

, only in this way you can change

the value.

Method 2:

Login phone webpage, configure each item you want (like, account information, programmable keys,
firmware upgrade path...). Management ->Configuration, download XML file, then change the name
to cfgmac.xml.

Encrypt Configuration Files

9

3. Encrypt Configuration Files

Htek Configuration Generator allows user to encrypt the generated configuration file with AES 128-bit
encryption. It allows user to choose not to encrypt the configuration file in Windows version, but it is
recommended to use encryption for security reason.

3.1 How to encrypt the XML configuration file

The XML configuration file could be encrypted in AES-128-CBC algorithm. The encryption password is
defined in P8631 (Management->Auto Provision->Set Common AES Key) of the configuration file.

The Password length is from 1-16, and password must [0-9,A-F]
THE SHAREDIV::IV:0B1E1D000F0B07091D1F04071F1E0407
The OpenSSL command-line to encrypt the file is as follows:
Openssl enc –e –aes-128-cbc –K <password>-iv: 0B1E1D000F0B07091D1F04071F1E0407 –in cfg.xml –out

cfgxxxxxxxxxxxx.xml
When the XML configuration file is encrypted in this method, Phone would only be able to decrypt and parse
the file if user set the XML Config File Password in P8631 of binary configuration file or in the web UI.

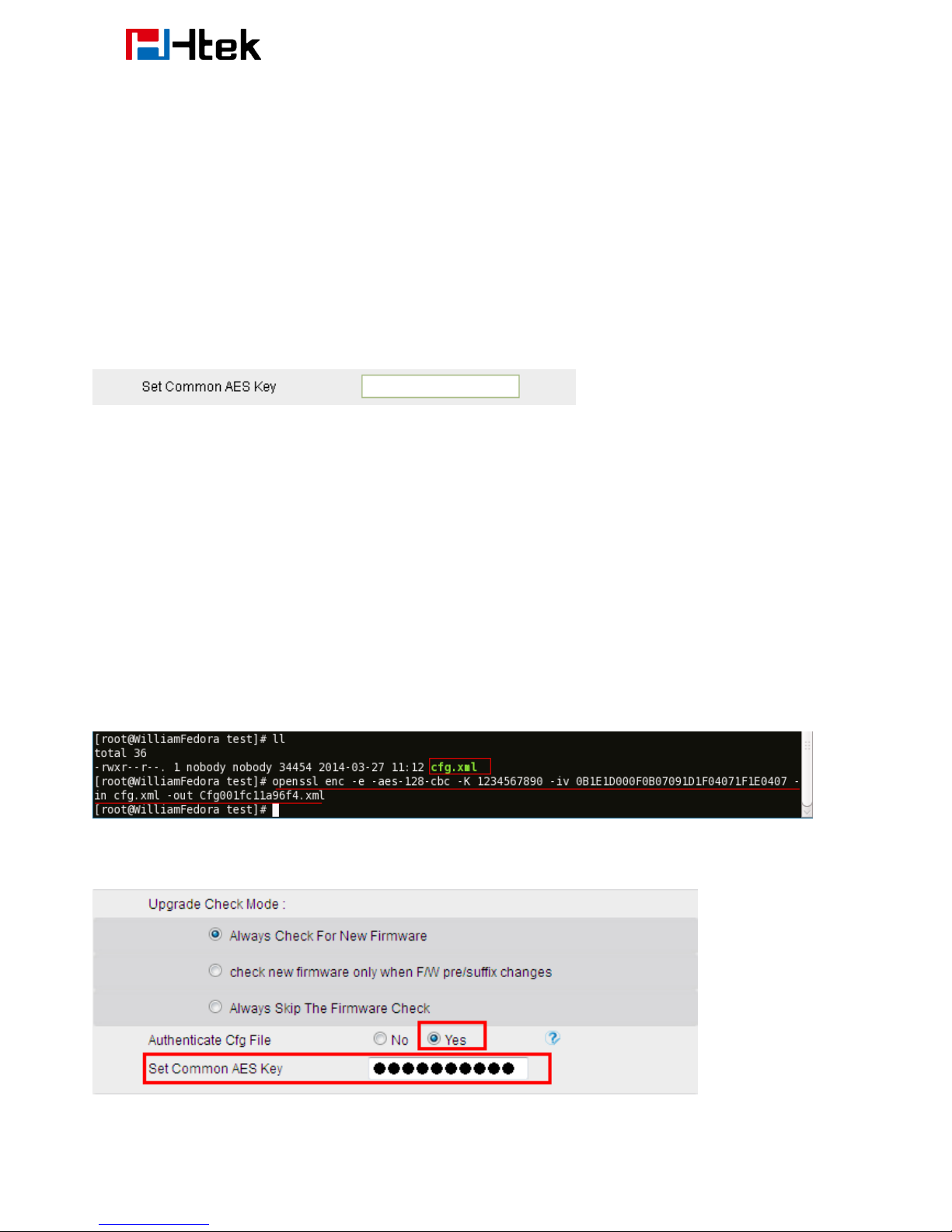

Detailed steps:

Step 1: Login webpage, click ManagementConfiguration, download cfg.xml file, then run, input ”Openssl
enc –e –aes-128-cbc –K<password>-iv: 0B1E1D000F0B07091D1F04071F1E0407 –in cfg.xml –out
Cfgxxxxxxxxxxxx.xml” (xxxxxxxxxxxx is the MAC address)

THE SHARED IV: 0B1E1D000F0B07091D1F04071F1E0407
Step 2: Put the Cfgxxxxxxxxxxxx.xml under upgrade server path
Step 3: You must set the AES Key: ManagementAuto Provision: AES Key:

Customize Resource Files

10

4. Customize Resource Files

Htek IP Phone allows you to customize some resource files, such as the ring tone file, language package file
and the logo files. For how to customize these resource files, the procedure is as follows:

4.1 Customizering tone

Htek IP Phone has several factory-default ring tones (Ring1, Ring2, Ring3). You can customize
Ring4,Ring5,Ring6,Ring7 and Ring8 tone and upload them to the phone via auto provisioning.

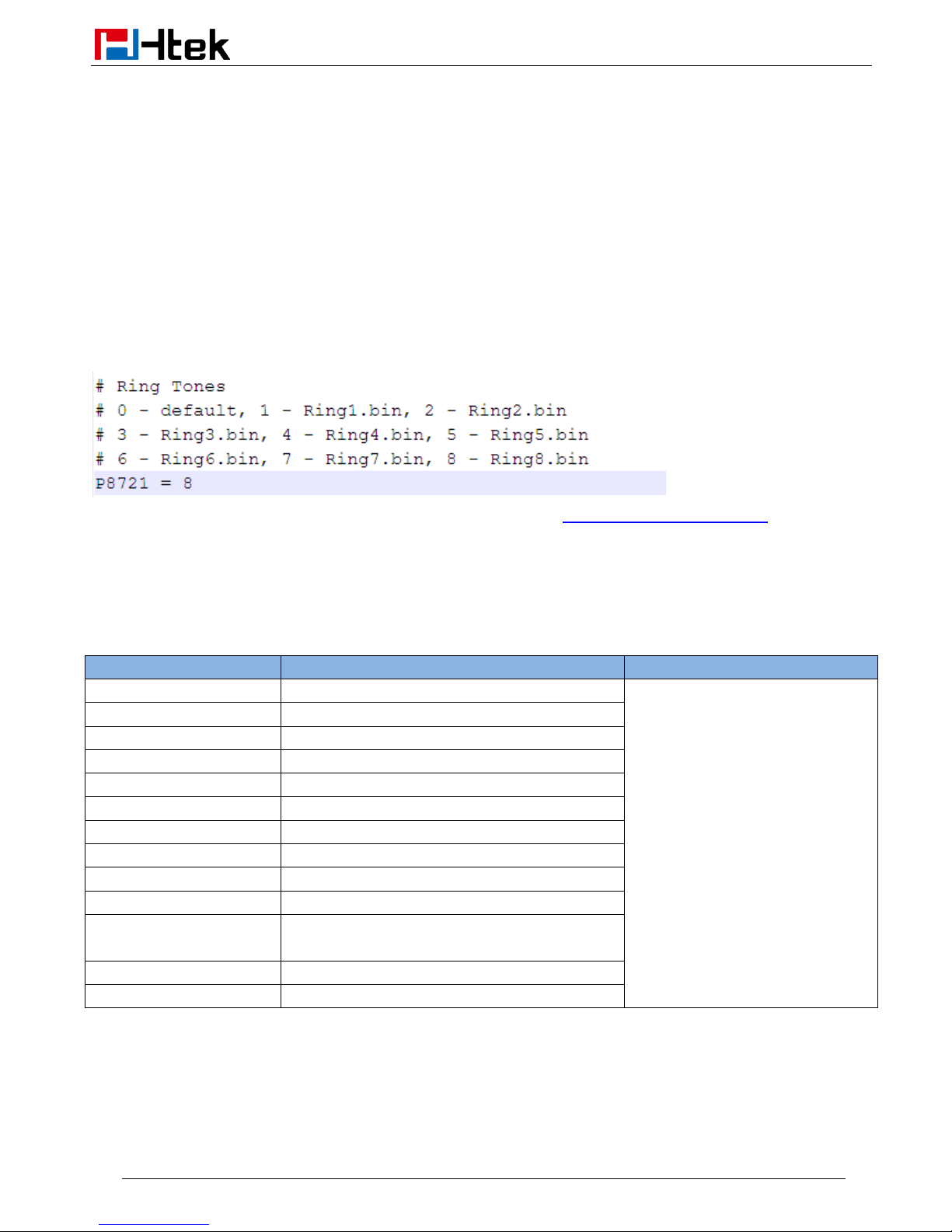

You can change the ring tone configuration parameter to personalized ring tone:
For example:P8721 = 8

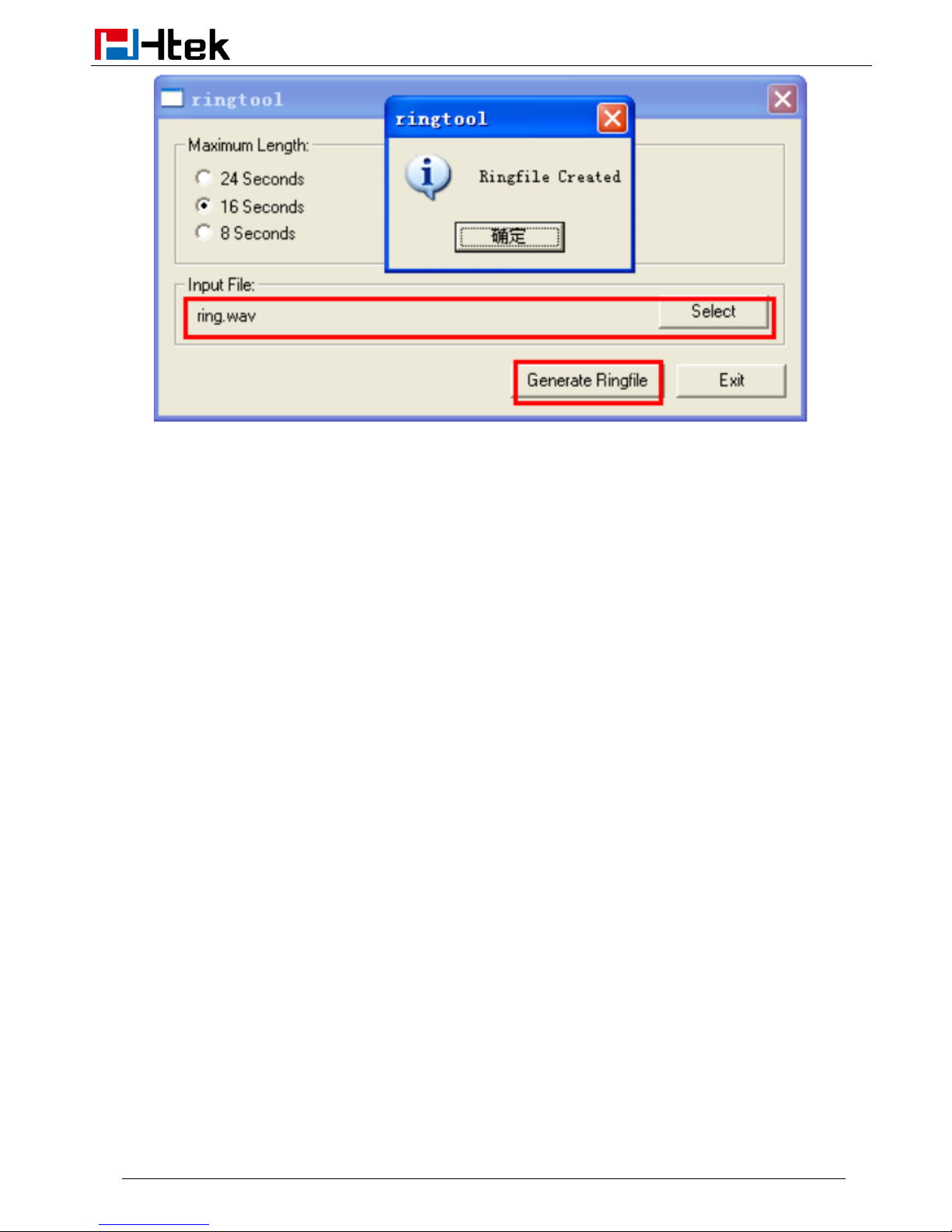

For more information on customizing ring tone file, please refer to <<Making Ringtone Notes>>in page 53.

4.2 Customize LCD language

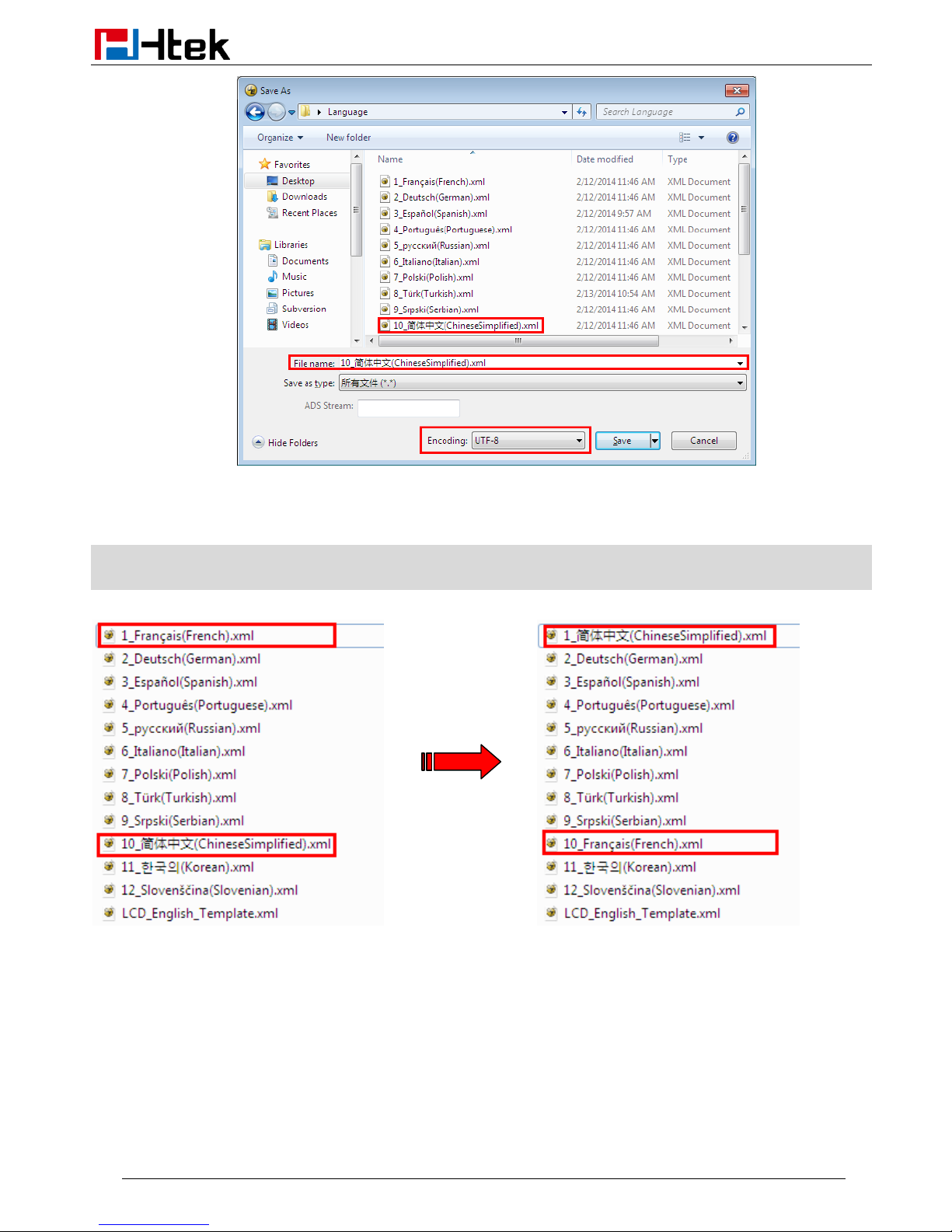

Htek IP Phone supports multiple languages, you can modify the language and add a new language to the
phone. The following table lists all available languages, associated language files and language template files:

Available language

Associated language files

Language template file

English

(Default, can't be customized)

LCD_English_Template.xml

French

1_Français(French).xml

German

2_Deutsch(German).xml

Spanish

3_Español(Spanish).xml

Portuguese

4_Português(Portuguese).xml

Russian

5_русский(Russian).xml

Italian

6_Italiano(Italian).xml

Polish

7_Polski(Polish).xml

Turkish

8_Türk(Turkish).xml

Serbian

9_Srpski(Serbian).xml

Chinese Simplified
10_简体中文(ChineseSimplified).xml
Slovenian

12_Slovenščina(Slovenian).xml

Persian

13_Persian(Farsi).xml

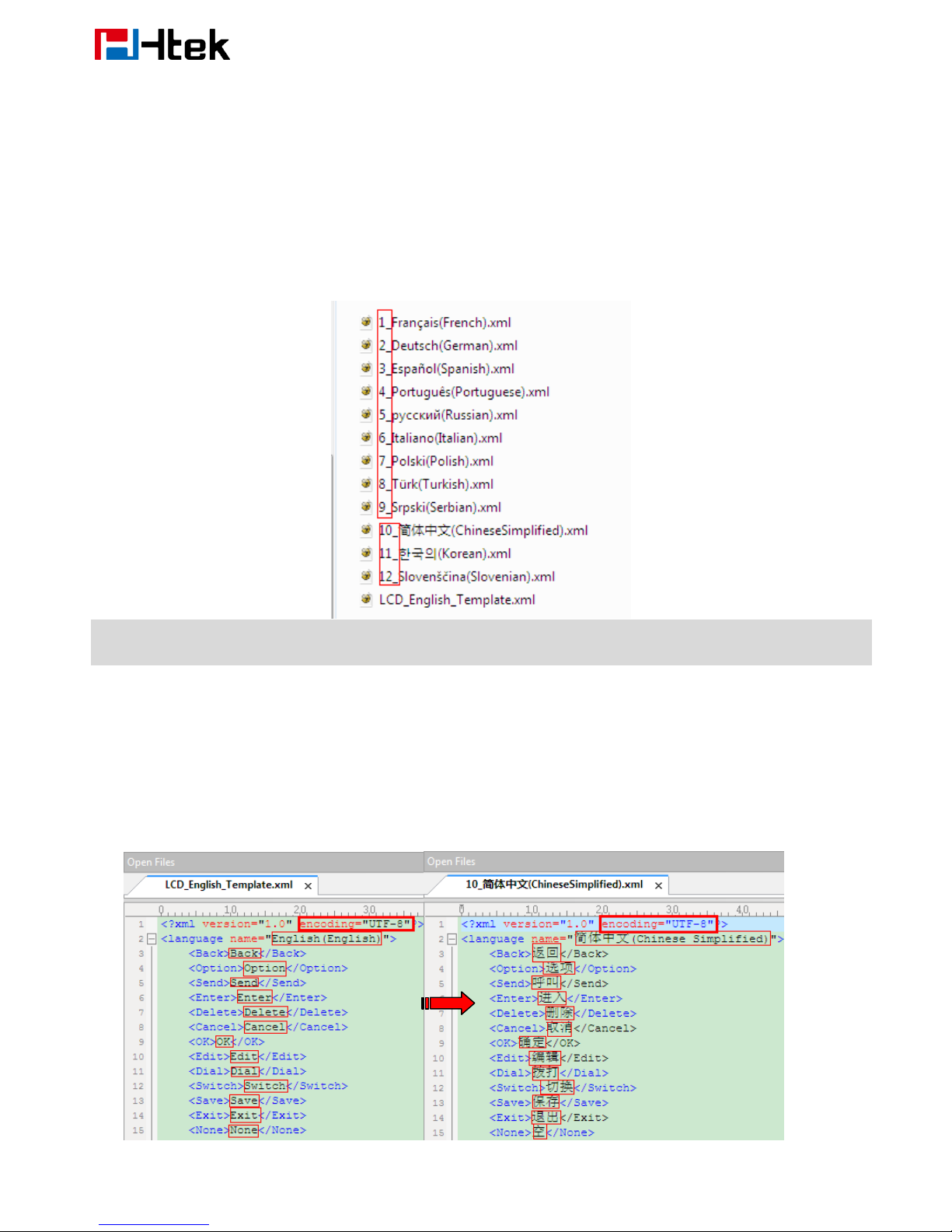

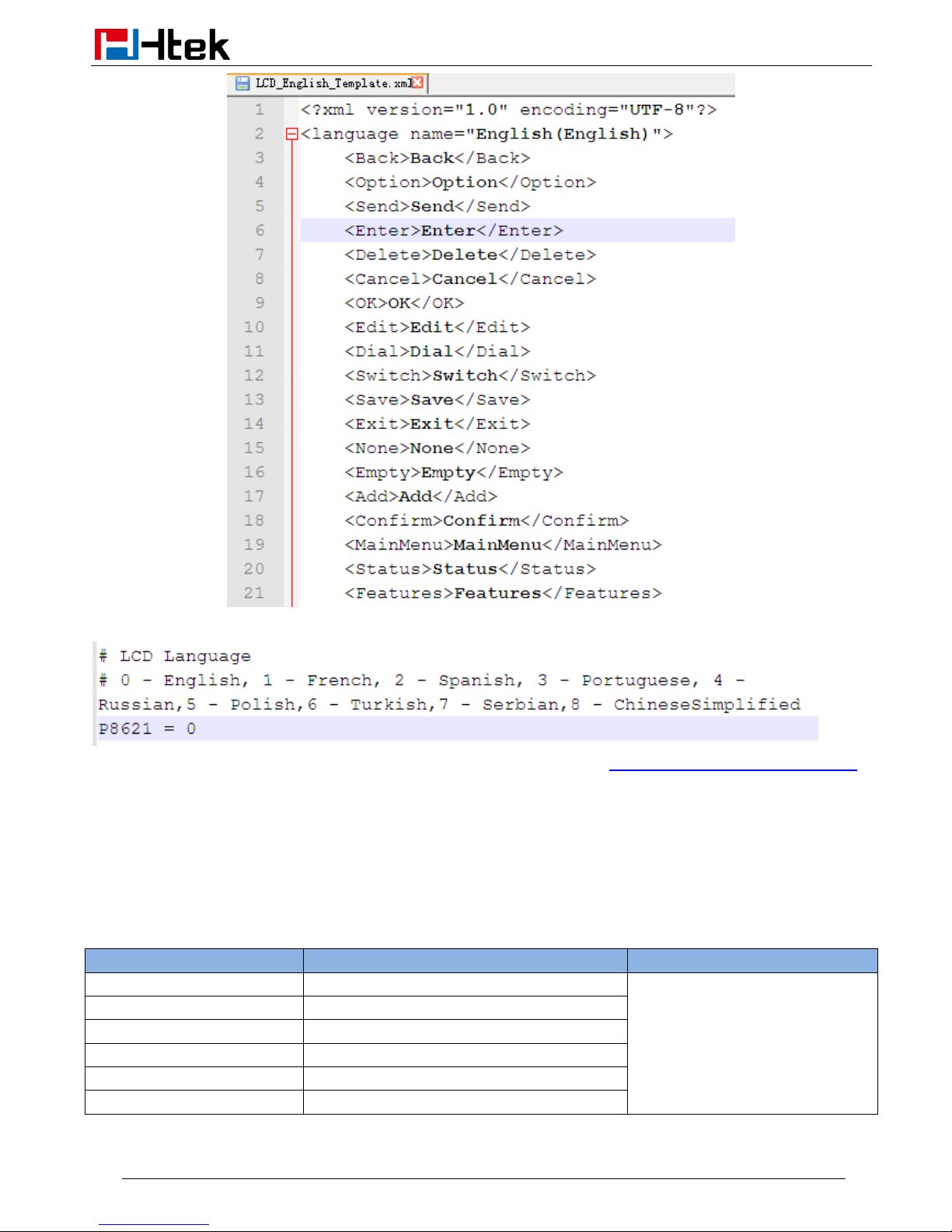

Below picture shows a portion of LCD_English_Template.xml file:

Customize Resource Files

11

English is the default language, you can change configuration parameter to other languages:

For more information on customizing an LCD language, please refer to <<LCD Language custom guide>>in
page 56.

4.3 Customize web language

Htek IP Phone supports multiple language, you can modify the language and add a new language to the

phone’s webpage. The following table lists all available languages, associated language files and language

template file:

Available language

associated language files

language template file

English

(Default, can't be customized)

Web_English_Template.js

German

2_German.js

Portuguese

4_ Portuguese.js

Italian

6_Italian.js

Polish

7_Polish).js

Chinese Simplified

10_ ChineseSimplified.js

Customize Resource Files

12

Below picture shows a portion of Web_English_Template.xml file:

English is the default language, you can change configuration parameter to other languages:

For more information on customizing web language file, please refer to << Web Language custom guide>>in
page 58.

4.4 Customizing wallpaper

You can customize Htek UC840P/UC842/UC860P/UC862 IP phones' wallpaper.
Below table shows wallpaper's format and resolution for UC840P/UC842/UC860P/UC862 IP phones:

Phone model

photo format

resolution

One file size

Photo number

UC840P/UC842/UC860P/UC862

.jpg

480*320

<=2M

<=6

Wallpaper2 is default wallpaper, you can change configuration parameter to other wallpaper:

Customize Resource Files

13

For more information on customizing wallpaper, please refer to <<LCDand Web GUI custom Guide >>in page

60.

4.5 Customizing screensaver

You can customize Htek UC840P/UC842/UC860P/UC862 IP phones' screensaver.
Below table shows wallpaper's format and resolution for UC840P/UC842/UC860P/UC862 IP phones:

Phone model

photo format

resolution

One file size

Photo number

UC840P/UC842/UC860P/UC862

.jpg

480*320

<=2M

<=6

Screensaver default is Off; you can change configuration parameter to activate the Screensaver:

For more information on customizing screensaver, please refer to <<LCDand Web GUI custom Guide >>in
page 61.

4.6 Customizing weblogo

You can customize Htek all phone models' weblogo on webpage.

For more information on customizing weblogo, please refer to << LCDand Web GUI custom Guide >> in page

61.

5. Upgrade resource files

Htek IP phone supports upgrade resource files through URL(support HTTP(s) server). The files contain
hlpres.tar, Language.tar, ring4.bin, ring5.bin, ring6.bin, ring7.bin, ring8.bin, exp_pres.tar, Screensaver and
wallpaper. For how to configure these files URL as follow:

5.1 How to configure URL for hlpres.tar

You can change the hlpres server configuration parameter to locate the file:

Phone model

photo format

resolution

File size

UC840P/UC842/UC860P/UC862/U
C802(P)/UC803(P)/UC804(P)/UC80
6(P)

.jpg

225*93

<=2M

Customize Resource Files

14

P20176=http(s)://192.168.0.254/hlpres.tar

5.2 How to configure URL for Language.tar

You can change the Language server configuration parameter to locate the file:
P20175=http(s)://192.168.0.254/Language.tar

5.3 How to configure URL for exp_pres.tar

You can change the exp_pres server configuration parameter to locate the file:
P20177=http(s)://192.168.0.254/exp_pres.tar

5.4 How to configure Path for ringx.bin

You can change the Ring server configuration Path, and IP Phone will get the files: ring4.bin, ring5.bin,
ring6.bin, ring7.bin, ring8.bin automatically:
P20174=http(s)://192.168.0.254

5.5 How to configure URL for Screensaver

This parameter is only applicable to UC840, UC842, UC860, UC862
You can change the Screensaver server configuration to locate the file:
P20051=http(s)://192.168.0.254/Screensaver.png
Note: 1. screensaver file phone gets from server will cover the screensaver photo1

2. Only support format .png.

5.6 How to configure URL for Wallpaper

You can change the Wallpaper server configuration to locate the file:
P20052=http(s)://192.168.0.254/wallpaper.png
Note: 1. Wallpaper file phone gets from server will cover the wallpaper6

2.Only support format .png.

Upgrade Firmware

15

6. Upgrade Firmware

Version number and support files list:

Note:

When the phone which version is 1.0.3.71 or older upgrade to 1.0.3.73, phone will upgrade img_8xx.bin then
automatically upgrade fw8xx.rom. fw8xx.rom is all-in-one firmware file. After upgrade to the 1.0.3.73 firmware,
in the next time, phone will only need upgrade one file fw8xx.rom.

6.1 Configuring HTTP Server

Htek IP Phone supports using FTP, TFTP, HTTP and HTTPS protocols to obtain the address of provision
server. Default way is HTTP. For how to configure a HTTP server, as follows:
You can download a free HTTP server from http://httpd.apache.org/or use Microsoft IIS web server. Then
setup HTTP server.

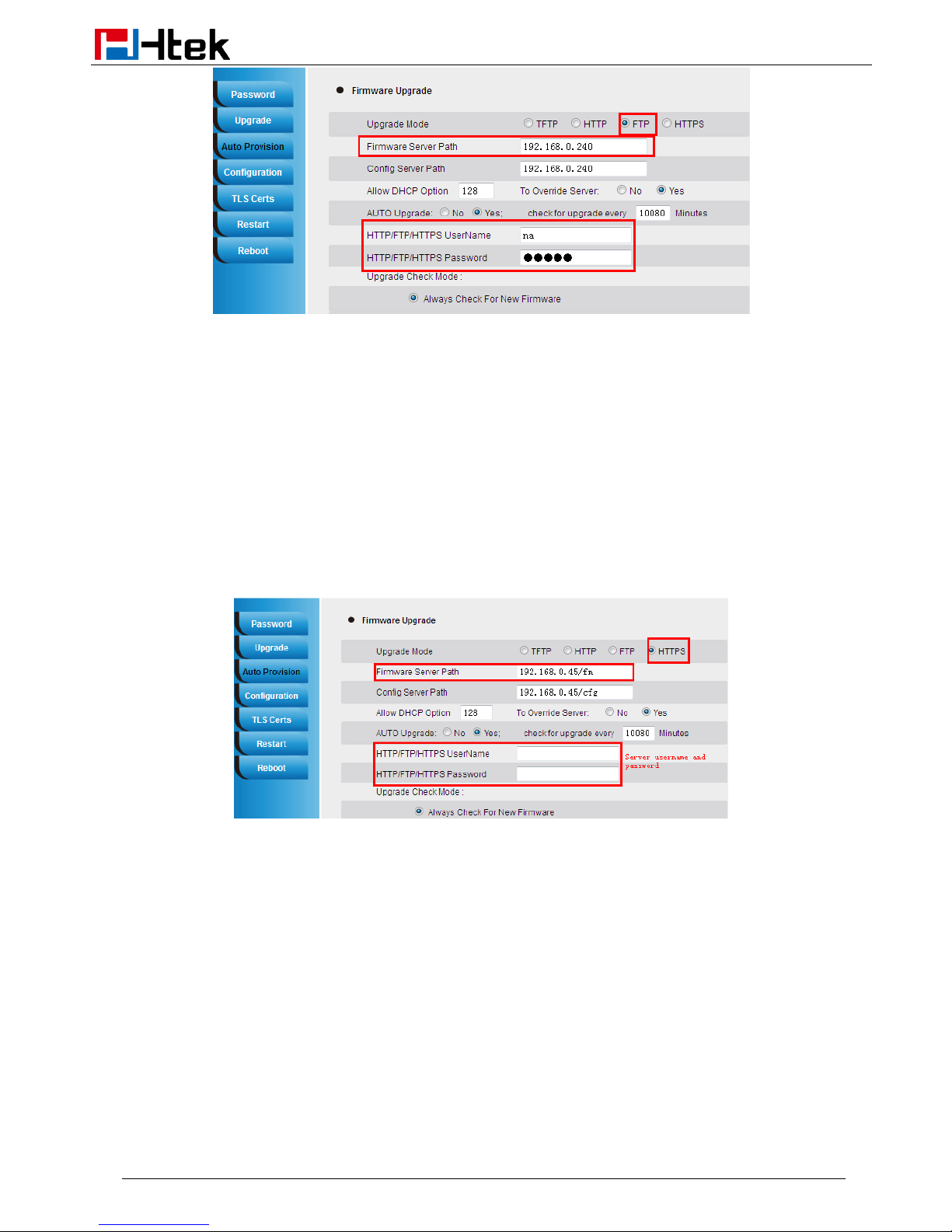

For more information on how to configure TFTP,FTP and HTTPS servers, please refer to Upgrade through

TFTPin page 63,Upgrade through FTPin page 66 and Upgrade through HTTPSin page 67.

6.2 How to Configuring HTTP Server

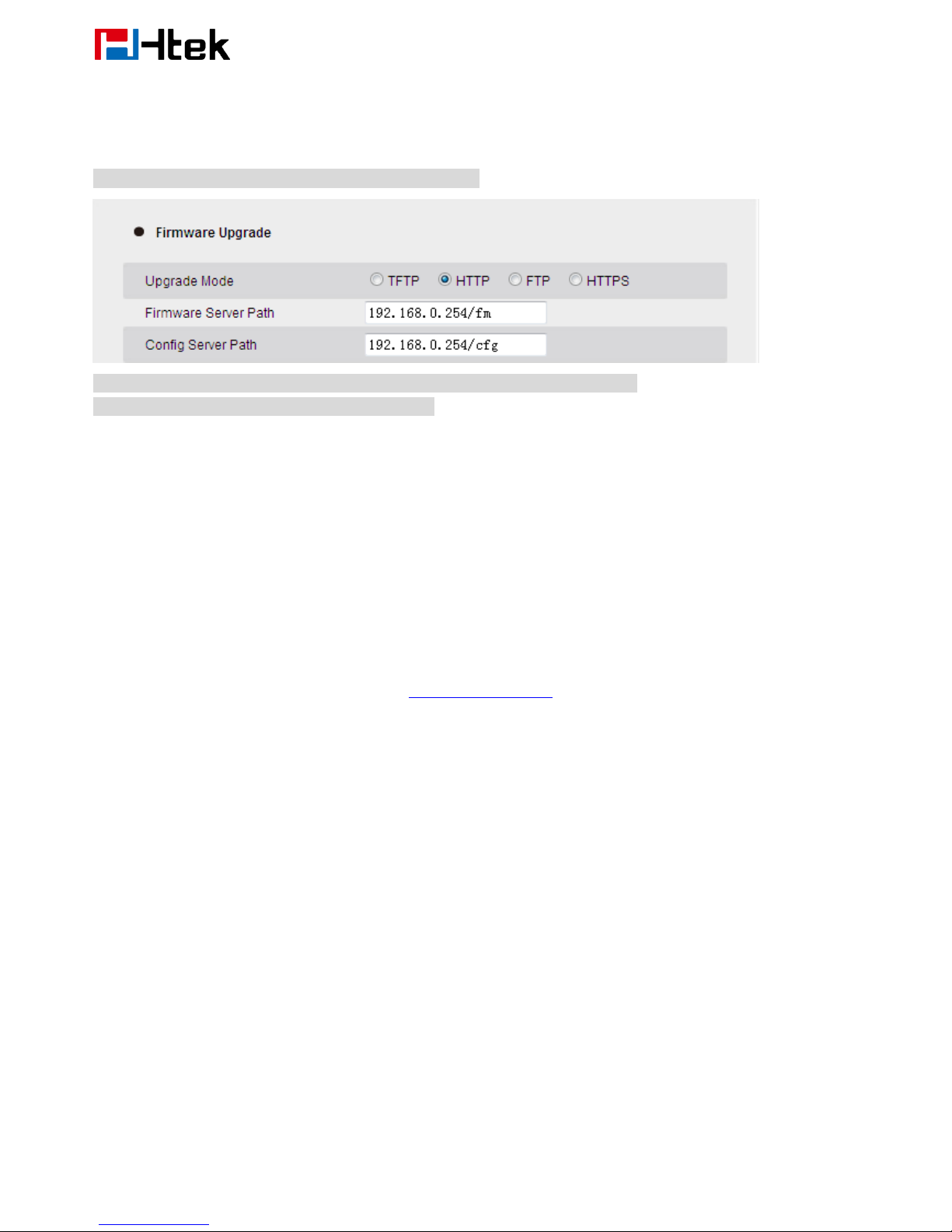

Login webpage, Management”-> “auto provision” ->” Firmware Upgrade”-> “Upgrade Mode” needs to be set
to HTTP. “Firmware Server Path” needs to be set to be a valid URL of a HTTP server, server name can be in

either FQDN or IP address format. Below are examples of some valid URLs.
e.g. firmware.mycompany.com:5688/Htek
e.g. www.mycompany.com:5688/fm/Htek
e.g. 218.2.83.110
Below are Instructions for FW upgrade via HTTP:
(1)You can download a free HTTP server from http://httpd.apache.org/ or use Microsoft IIS web server. Then
setup HTTP server.
(2) Unzip the firmware file and put the files under the root/fm directory of the HTTP server.
(3) Visiting “HTTP:\\192.168.0.254\fm\fw860.rom on localhost by browser” to verify the HTTP Server. If visiting

1.0.3.58-1.0.3.72

1.0.3.73 or later

boot_8xx.bin
img_8xx.bin
hlpres.tar
Language.tar
ring4.bin
ring5.bin
ring6.bin
ring7.bin
ring8.bin

fw8xx.rom

Upgrade Firmware

16

“HTTP: \\192.168.0.254\fm\fw860.rom on another computer is no prompt to download fw860.rom file, please
check the firewall (Suggest to close the firewall).

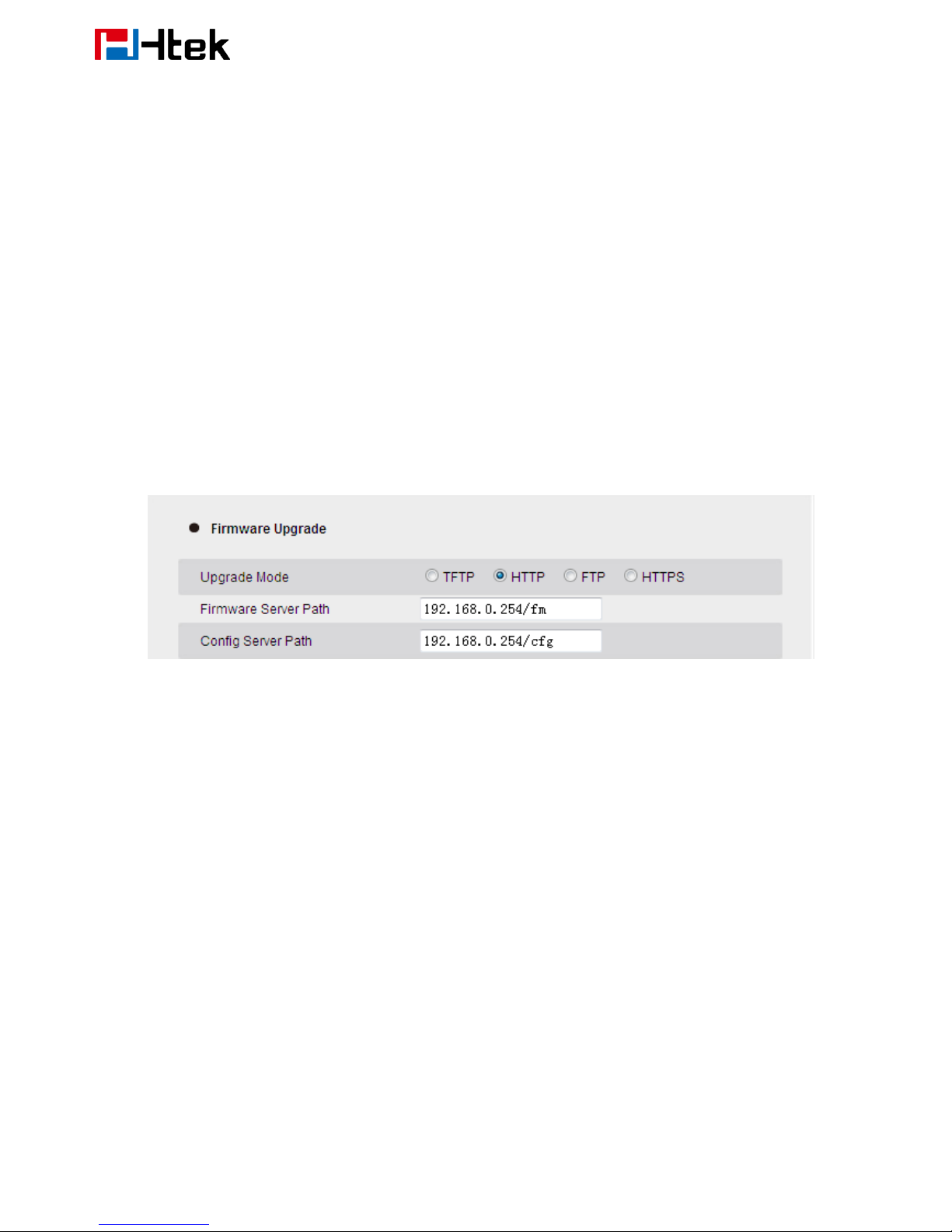

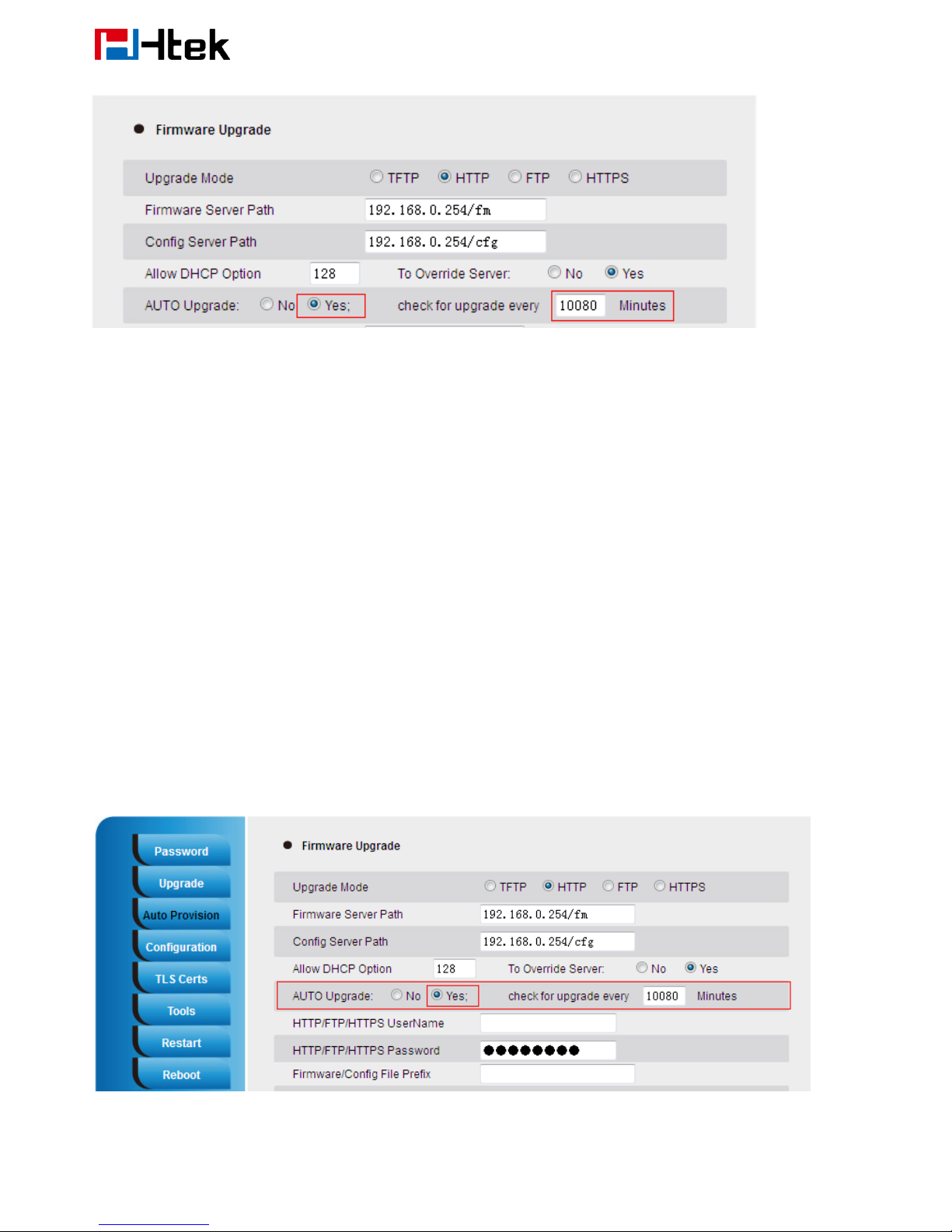

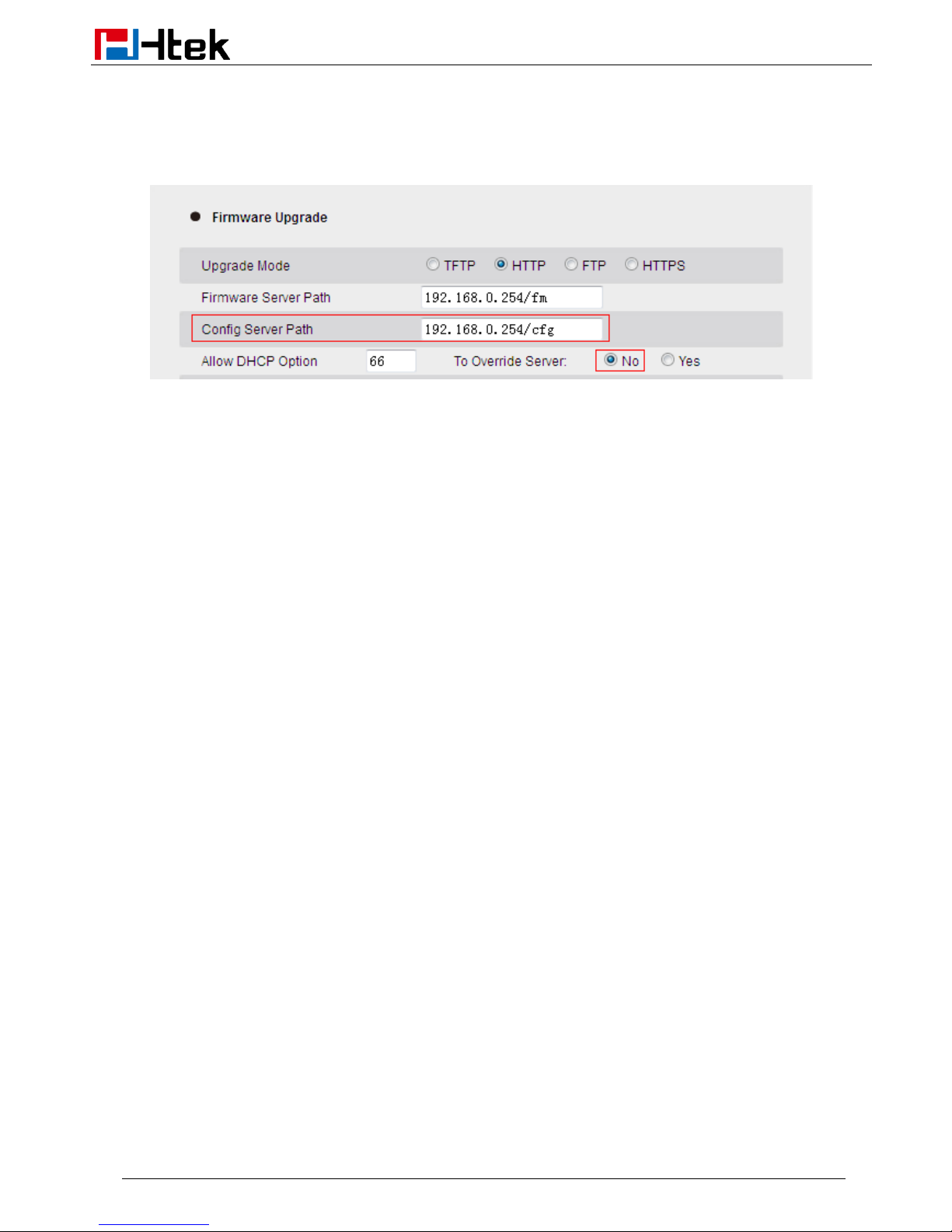

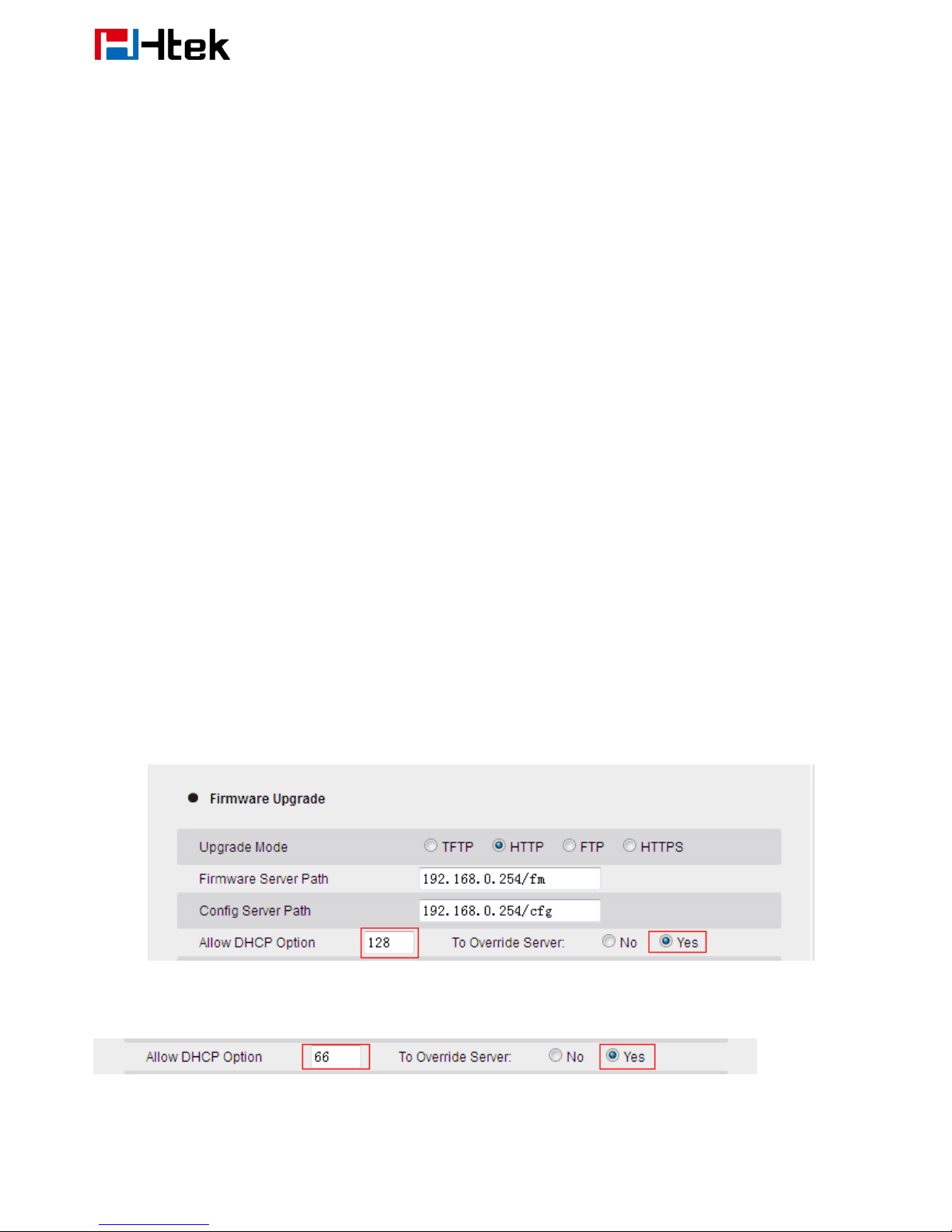

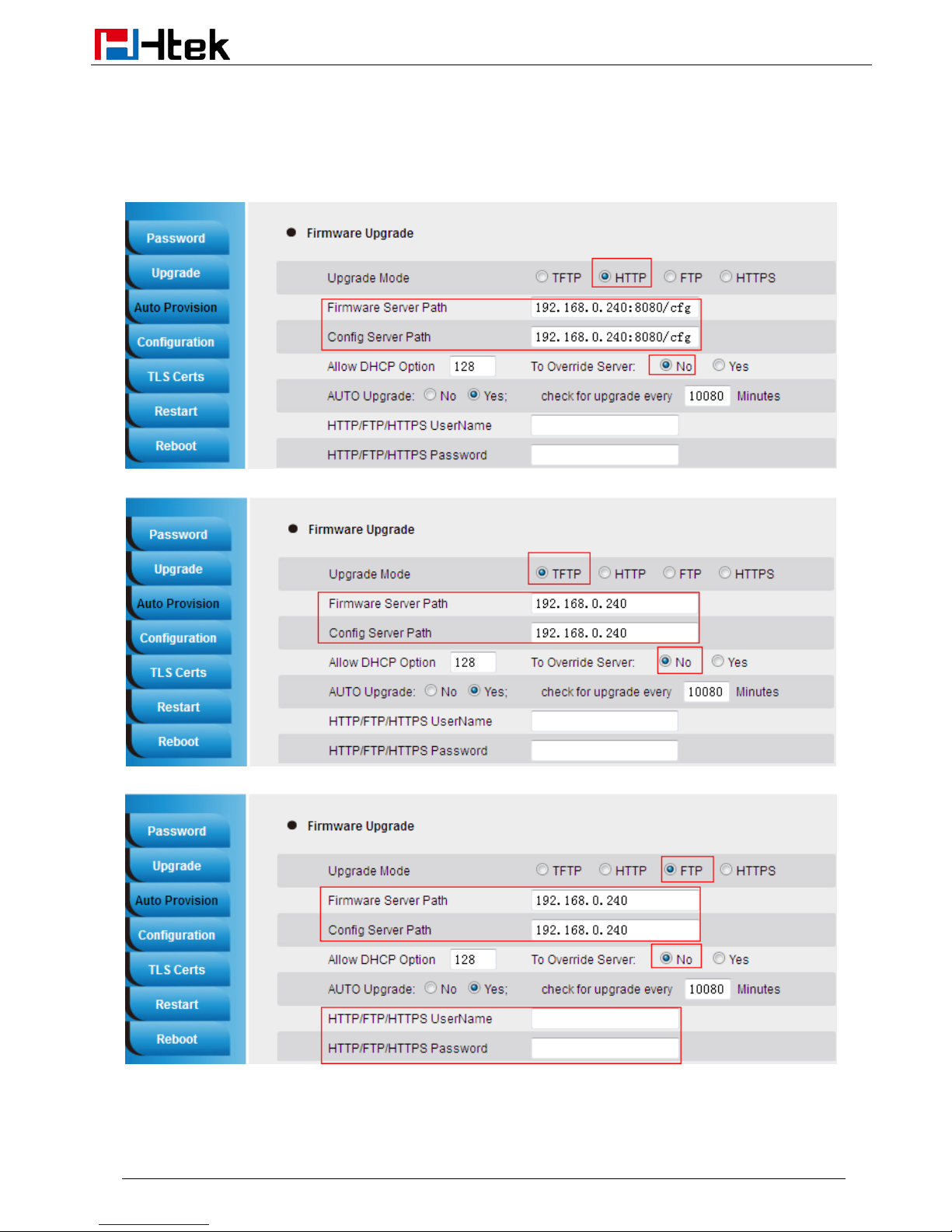

(4) Change the setting of UC8xx (192.168.0.254 is HTTP server):

Click “SaveSet”.
(5) Restart the UC8xx, IP Phone will restart and automatically get firmware files from HTTP server.

NOTES:

(1) We recommend you to use Htek HTTP server, or you can also use your own TFTP/HTTP/FTP/HTTPS
server for upgrade and provisioning procedures.

Obtain Provisioning Server's Address

17

(2) You need to update the settings and restart the IP Phone after “Firmware Server Path” is set. If the

configured firmware server is found and a new code image is available, UC8xx IP Phone will attempt to
retrieve the new image files by downloading them into the UC8xx’s SDRAM. During this stage, the phones
LEDs will blink faster until the checking/downloading process is finished. Upon verification of checksum, the
new code image will be saved into the Flash. If TFTP/HTTP/FTP/HTTPS fails for any reason (e.g.
TFTP/HTTP/FTP/HTTPS server is not responding, there are no code image files available for upgrade, or
checksum test fails, etc.), the phone will stop the TFTP/HTTP/FTP/HTTPS process and simply boot using the
existing code image in the flash.
(3) Firmware upgrade takes 3 to 8 minutes over Internet, or just 1 minute on a LAN. We recommend you to
upgrade the FW in a controlled LAN environment.

7. Obtain Provisioning Server's Address

Htek IP Phone supports to obtain the provisioning server address in below 3 ways:

 Plug and Play (PnP) Server
 DHCP Options
 Phone Flash

The priority of obtaining the provisioning server address: PNP Server (SIP PnP MCAST) --> DHCP Option 128
or 150 or 66 --> Configuration in Flash.

1) The PNP Server feature is enable default.

2) Setting of "DHCP Option 128 or 150 or 66":

Webpage --> Management --> Auto Provision --> Allow DHCP Option (128 or 150 or 66) To Override Server:
No/Yes
If you set “Yes”, the Phone will obtain the provisioning server address from the DHCP Option (128). For
examples:

DHCP option 128 is tftp://192.168.1.240/cfg, the phone will get the configuration file from 192.168.1.240/cfg
throughTFTP protocol.
If the default setting is:

DHCP option 66 is http://192.168.1.240/cfg, the phone will get the configuration file from 192.168.1.240/cfg
through HTTP protocol.

Obtain Provisioning Server's Address

18

Configuration in Flash.

If you set “No”, or don’t set DHCP option 128/66/150 in your DHCP server, the phone will obtain the

provisioning server address from the setting “Config Server Path”.

For examples, when the setting is:

The phone will get the configuration file from 192.168.0.254/cfgthrough HTTP protocol.
Note: You can set the phone to automatically upgrade every certain time:

Update Mode

19

For examples:

The phone will check the configuration file and the firmware every 10080 minutes (7 days). If there are the
new cfg files or the new firmware, the phone will upgrade automatically.

8. Update mode

Update mode sets the desired time for phone to perform the auto provisioning process.
Below is the introduction of the 3 update modes in detail:

 Power On
 Repeatedly
 SIP NOTIFY Message

Power On

Power On mode is set as default. The phone will perform auto provisioning process when it is power on.

Repeatedly

The phone performs auto provisioning process at a regular interval. You can configure the interval for the
Repeatedly mode. The default interval is 10080 minutes.

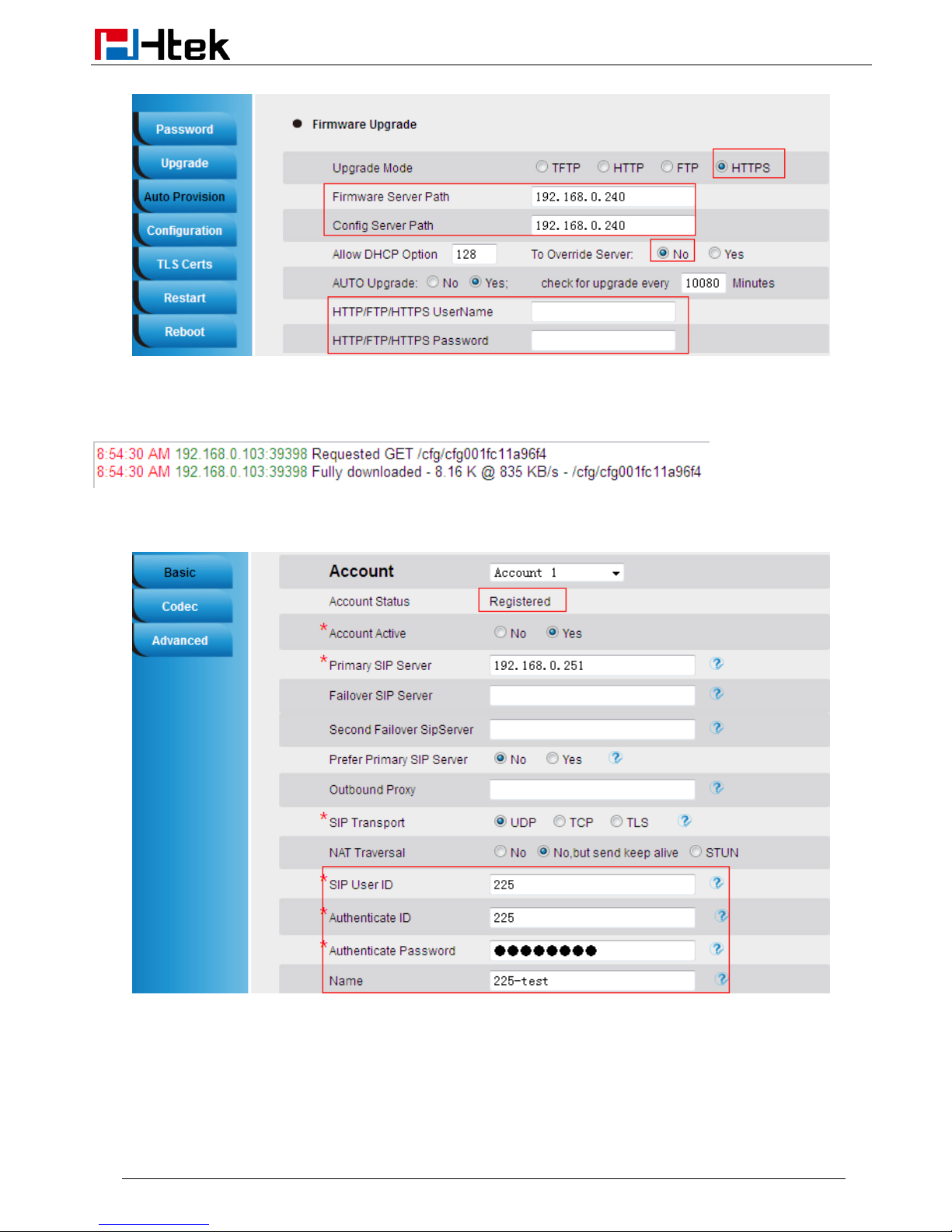

To activate the Repeatedly mode via web user interface:

1.Click the Management->Auto Provision:

2.AUTO Upgrade set Yes：

3.Click the “SaveSet” button to saver the change.

SIP NOTIFY Message

Update Mode

20

The phone will perform auto provisioning process when receiving a SIP NOTIFY message which contains the

header “Event: check-sync”. If the header of the SIP NOTIFY message contains an additional string
“reboot=true”, the phone will reboot immediately and then perform the auto provisioning process. For this

update mode, it requires the server supports.

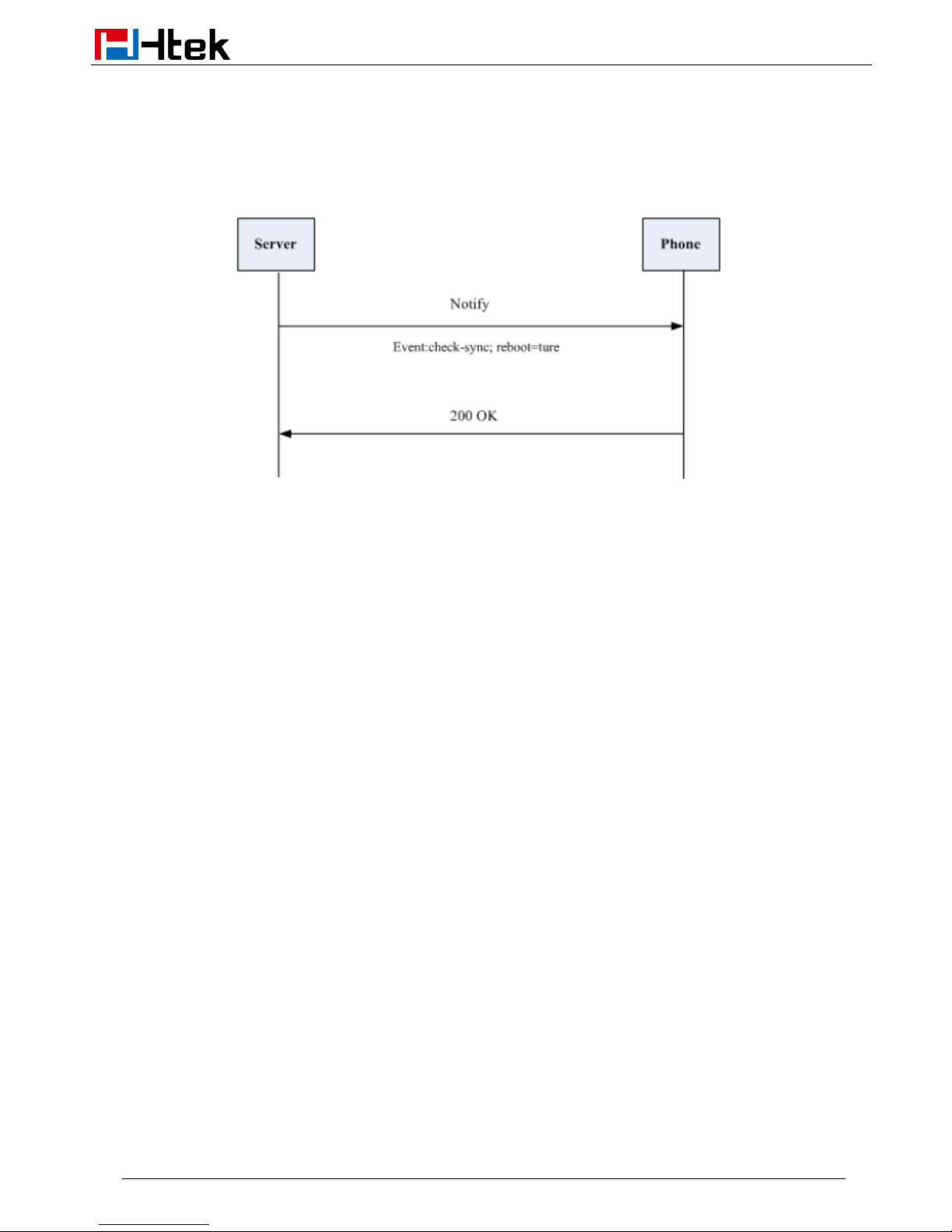

Below picture shows the message flow:

Download and Verify Configurations

21

9. Download and Verify Configurations

9.1 Download configuration files

Once obtaining a provisioning server address in one of the ways introduced above, the phone will connect to
the provisioning server and download configuration files. During the auto provisioning process, the phone will
try to download the common configuration file cfg000x.xml firstly, and then try to download the cfgmac.xml file
from the provisioning server.

9.2 Resolve and Update configurations

The phone will resolve the configuration files after downloading, then updates the configurations to the phone
flash. Generally, the phone will reboot to make the configurations effective after the auto provisioning process
is finished.

9.3 Verify configurations

You can verify the update via phone user interface after auto provisioning, or you can verify it via web user
interface

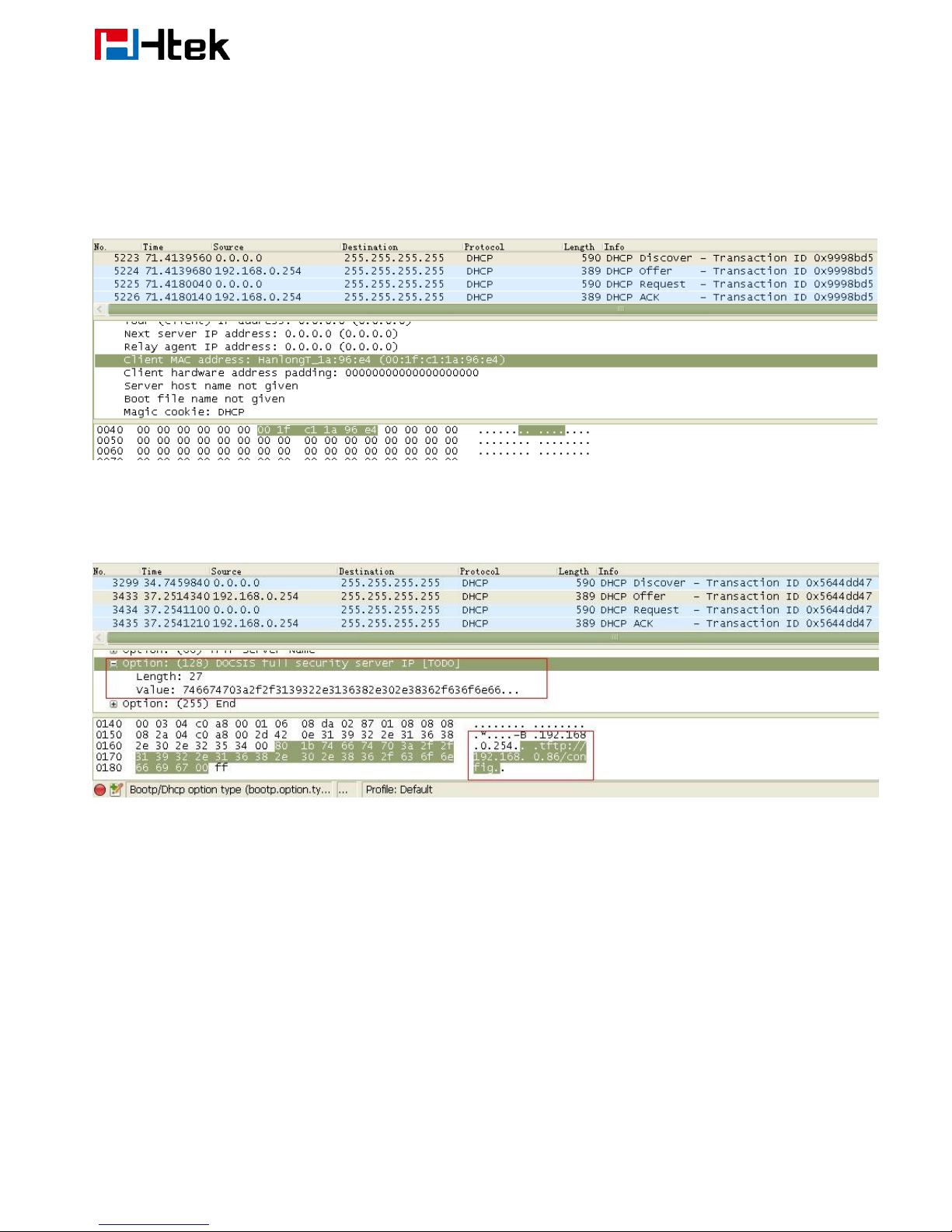

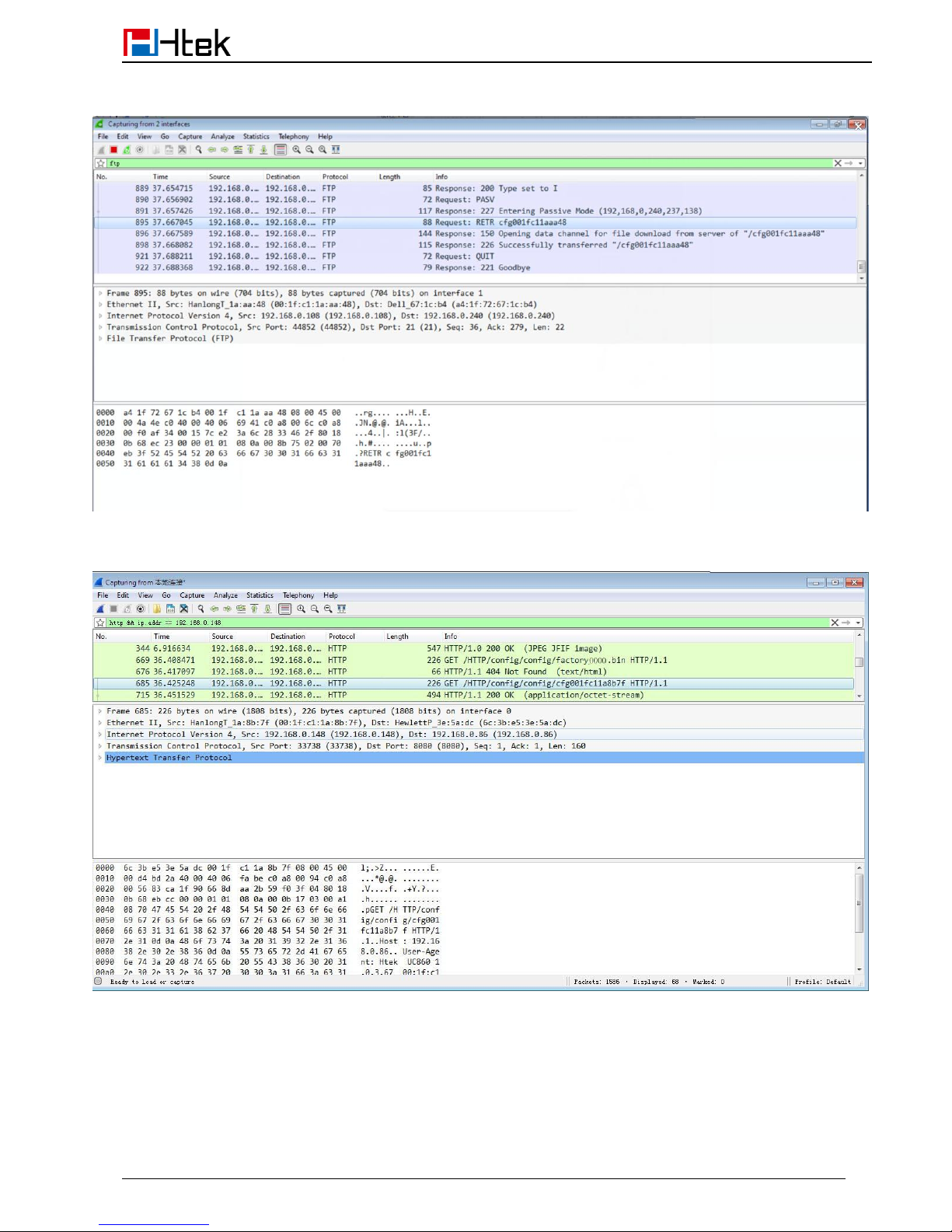

During the auto provisioning process, you can monitor the downloading requests and response messages by
a wireshark tool.
Some examples show as follows:

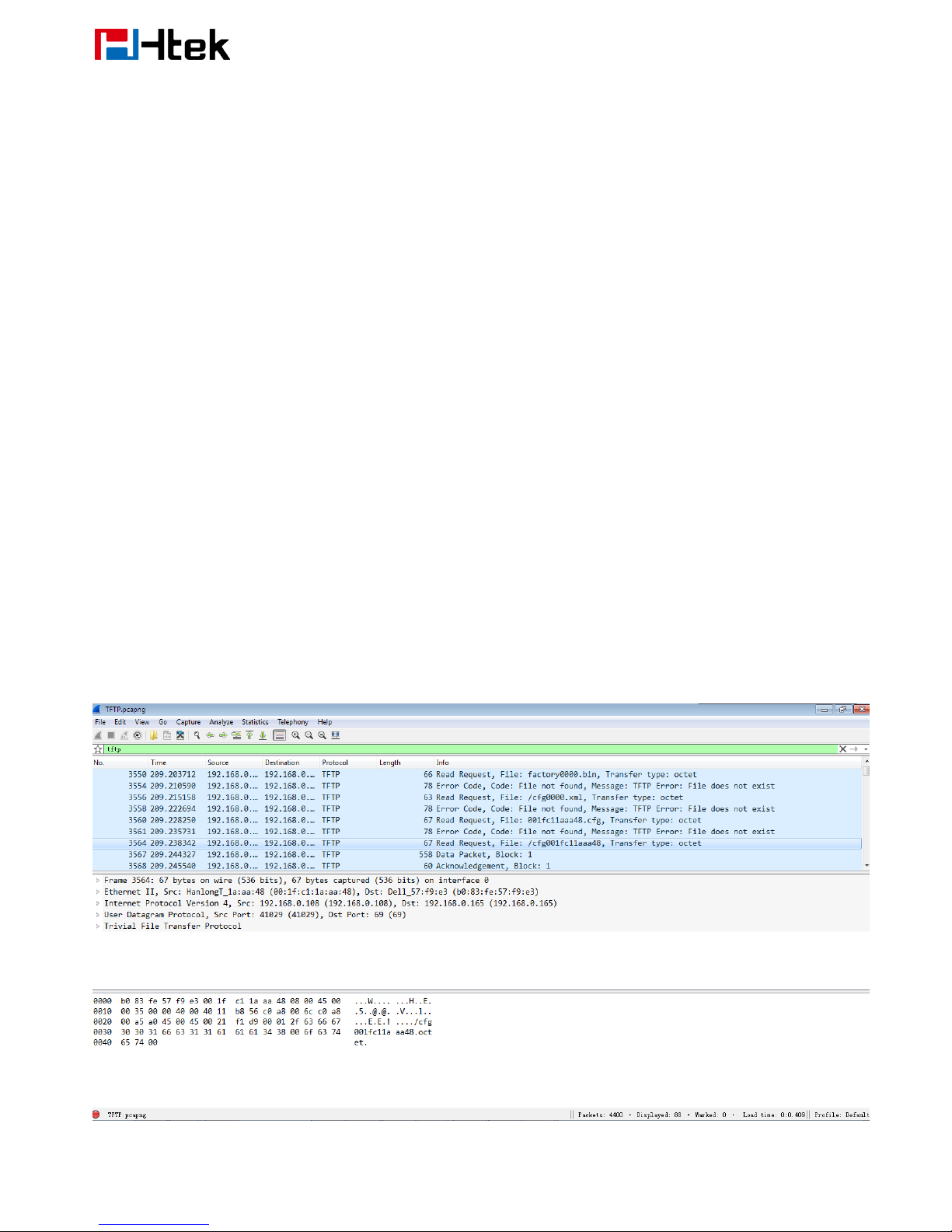

Example1: Htek UC860P IP Phone downloads configuration files from TFTP server.

Download and Verify Configurations

22

Example2: Htek UC860P IP Phone downloads configuration files from FTP server.

Example3: Htek UC860P IP Phone downloads configuration files from HTTP server.

Firmware and Configuration File Prefix and Postfix

23

10. Firmware and Configuration File Prefix and Postfix

Htek IP Phone Support Prefix and Postfix for both firmware and configuration files.
Parameter P232 and P233 are for Prefix and Postfix for Firmware, respectively. Parameter P234 and P235

are for Prefix and Postfix for Configuration file, respectively.
Firmware Prefix and Postfix allows device to download the firmware name with the matching Prefix and
Postfix.
In addition, when Parameter P238 (Check New Firmware only when F/W pre/suffix changes) is set to 1, the
device will only issue the Firmware Upgrade request if there are changes in the firmware Prefix or Postfix.
Below are the firmware BASIC NAMES that are related to UC860P:
If the firmware version is earlier than 1.0.3.73, the firmware BASIC NAMES as follows:

 boot_860.bin
 img_860.bin
 ring4.bin
 ring5.bin
 ring6.bin
 ring7.bin
 ring8.bin
 Language.tar
 hlpres.tar

Service provider can use “hl_” as prefix, and “_1.0.3.70” as postfix, the above files will be changed to:

 hl_boot_860.bin_1.0.3.70
 hl_img_860.bin_1.0.3.70
 hl_ring4.bin_1.0.3.70
 hl_ ring5.bin_1.0.3.70
 hl_ ring6.bin_1.0.3.70
 hl_ ring7.bin_1.0.3.70
 hl_ ring8.bin_1.0.3.70
 hl_ Language.tar _1.0.3.70
 hl_ hlpres.tar _1.0.3.70

Firmware Server and Configuration File Server

24

If the firmware version is 1.0.3.73 or later than 1.0.3.73, the firmware BASIC NAME as follows:

 fw860.rom

Service provider can use “hl_” as prefix, and “_1.0.3.73” as postfix, the above files will be changed to:

 hl_ fw860.rom _1.0.3.73

In this way, all of the firmware with different version could be stored in one single directory, and they could be

differentiated by using prefix or postfix, i.e., all files with a postfix of “_1.0.3.73” belong to the firmware version

1.0.3.73.

Same rule applies to configuration files, i.e., for configuration file named “cfg001fc1001708”, there could be 3

versions: “hl_ cfg001fc1001708_cfg001”, “hl_ cfg001fc1001708_cfg002”, and “hl_ cfg001fc1001708_cfg003”.
The BASIC NAME of the configuration file is “cfg001fc1001708”, but there are 3 different versions, the one

that will be accepted is the one with matching prefix and postfix specified in the current configuration.

11. Firmware Server and Configuration File Server

Beside the Prefix and Postfix for firmware and configuration files, different server paths for firmware upgrade
or Configuration File Server can be specified in different FQDN, i.e.:

The parameters are P192 and P237 for Firmware and Config Server

12. Manage Firmware and Download Configuration File

When parameter P194 (Auto Upgrade) is set to 1, Service Provider can use P193 (Auto Check Interval) to
have the devices periodically check with either Firmware Server or Config Server, whenever they are defined.
This allows the device periodically check if there are any new changes need to be taken on a scheduled time.
By defining different intervals in P193 for different devices, Service Provider can distribute the Firmware or
Configuration File download schedule to reduce the Firmware or Provisioning Server load at any given time.

Pre_Configuration and Configuration Redirection

25

13. Pre_Configuration and Configuration Redirection

Please note:If your phone default setting is as below:

Currently Htek Phone does not support pre_configuration and configutration
Redirection, please refer to section 6 in page24.
For mass deployment, we provide TFTP/HTTP redirection service. By default, all Htek products point to our
provisioning system. When a unit is powered up, it will automatically contact our provisioning server. Our

provisioning server will redirect the unit to customer’s TFTP/FTP/HTTP/HTTPS server. The unit will reboot

and send further provisioning request to ask for configuration file (or firmware file) from customer’s
TFTP/FTP/HTTP/HTTPS server.
Below is the information that we need from service providers for TFTP/HTTP redirection:

1. MAC address range, this should be printed on the carton box

2. Your TFTP/FTP/HTTP/HTTPS server IP address

3. Your company name and address
Here are what service providers should do:

1. Create configuration files for all the devices and put them on your TFTP/HTTP server
Download the latest official release from http://www.htek.com (support/firmware) and put them on your

TFTP/FTP/HTTP/HTTPS server (same directory as above)

2. After we inform you that the devices have been entered into our central provisioning database, please take
out a few devices to test. Upon powering up, they should contact our provisioning server fm. htek.com first,
and then get redirected to your TFTP/FTP/HTTP/HTTPS server and pull out the configuration files and the
firmware files. They will be upgraded to the latest firmware with your configurations.

Automatic Provisioning Within LAN

26

14. Automatic Provisioning Within LAN

Htek products support DHCP Option 66 or 128 or 150 for automatic provisioning within a Local Area Network.
The provisioning server URL is embedded inside standard option 66 or 128 or 150 of DHCP responses.
Htek IP Phones send DHCP DISCOVER with the following information:

DHCP Server can be configured to send the following information in its DHCP OFFER. Please notice that in
this example, an HTTP://URL is provided in the Option 66 “TFTP Server Name” field or Option 128 “TFTP

server IP address” or Option 150 “TFTP server address”. Device will then issue HTTP requests instead of the

traditional TFTP requests to the server. This design makes more flexible in device provisioning.

Troubleshooting

27

15. Troubleshooting

This part provides guidance to help you solve problems you might encounter when deploying phones.
If you require additional information or assistance with the deployment, please contact your system administrator.

When the phone fail to download configuration files.

 Ensure that auto provisioning feature is configured properly.
 Ensure that the provisioning server and network are reachable.
 Ensure that authentication credentials configured on the phone are correct.
 Ensure that configuration files exist on the provisioning server.

When the provisioning server return HTTP 404.

 Ensure that the provisioning server is properly set up.
 Ensure that the access URL is correct.
 Ensure that the requested files exist on the provisioning server.

When the phone display "Network Down".

 Ensure that the Ethernet cable is plugged into the Internet port on the phone and the Ethernet cable is not loose.
 Ensure that the switch or hub in your network is operational.
 Ensure that the configurations of network are properly set in the configuration files.

When permission to upload files to the root directory of the FTP server is denied.

 Ensure that the complete path to the root directory of the FTP server is authorized.
 Check security permissions on the root directory of the FTP server, if necessary, change the permissions.

When the phone doesn’t obtain the IP address from the DHCP server?

 Ensure that settings are correct on the DHCP server.
 Ensure that the phone is configured to obtain the IP address from the DHCP server.

When the phone doesn’t display the Language you chose and its only displaying English on the LCD and the
Web?

 Ensure that the name of the language is correct.
 Ensure that the network is available and the root directory is right for downloading.
 Ensure that the parameters are correctly set in the configuration files.
 Ensure that the language’s Coding format is UTF-8.

Why doesn’t the phone display the wallpaper or ScreenSaver or the weblogo of webpage?

 Ensure that the file format of the wallpaper, ScreenSaver and weblogo is *.jpg.
 Ensure that the size of the wallpaper, ScreenSaver and weblogo file is not larger than t the ones that the phone

supports, or check the hlpres.tar is not larger than 2M

 Ensure that the names of the wallpaper, ScreenSaver and weblogo are correct.
 Ensure that the network is available and the root directory is right for downloading.
 Ensure that the wallpaper, ScreenSaver and weblogo files in the hlpres.tar file.

Why doesn’t the phone update configurations?

 Ensure that the configuration files are different from the last ones.
 Ensure that the phone has downloaded the configuration files.
 Ensure that the parameters are correctly set in the configuration files.

Glossary

28

16. Glossary

MAC Address: A Media Access Control address (MAC address) is a unique identifier assigned to network interfaces for
communications on the physical network segment.
DHCP: Dynamic Host Configuration Protocol (DHCP) is a network configuration protocol for hosts on Internet Protocol (IP)
networks. Computers that are connected to IP networks must be configured before they can communicate with other
hosts.
FTP: File Transfer Protocol (FTP) is a standard network protocol used to transfer files from one host to another host over a
TCP -based network, such as the Internet. It is often used to upload web pages and other documents from a private
development machine to a public web-hosting server.
HTTP: The Hypertext Transfer Protocol (HTTP) is an application protocol for distributed, collaborative, hypermedia
information systems. HTTP is the foundation of data communication for the World Wide Web.
HTTPS: Hypertext Transfer Protocol Secure (HTTPS) is a combination of Hypertext Transfer Protocol (HTTP) with
SSL/TLS protocol. It provides encrypted communication and secure identification of a network web server.
TFTP: Trivial File Transfer Protocol (TFTP) is a simple protocol to transfer files. It has been implemented on top of the User
Datagram Protocol (UDP) using port number 69.

AES:Advanced Encryption Standard (AES) is a specification for the encryption of electronic data.
URL: A uniform resource locator or universal resource locator (URL) is a specific character string that constitutes a

reference to an Internet resource.
XML: Extensible Markup Language (XML) is a markup language that defines a set of rules for encoding documents in a
format that is both human-readable and machine-readable.

How to Edit cfg000x.xml

29

17. How to Edit cfg000x.xml

When Htek device boots up or reboots, it will generate a request for a XML configuration file named

“cfg000x.xml”. It is a common configuration, all Htek device can get this configuration file. Then Htek device
will request for a binary format configuration file named”cfgMAC” and another XML configuration file named
“cfgMAC.xml”, in which “MAC” is the MAC address of the device. Configuration files cfgMAC and cfgMAC.xml

can only be obtained from Htek device which has mac address.

You can customize configuration parameters by editing XML configuration file “cfg000x.xml”, and different

device would use different file name.

Device Type file name

UC862 ------> cfg0000
UC842 ------> cfg0001
UC860 ------> cfg0002
UC840 ------> cfg0003
UC806 ------> cfg0004
UC804 ------> cfg0005
UC803 ------> cfg0006
UC802 ------> cfg0007
UC824 ------> cfg0008

UC826 ------> cfg0009

For example, if you have a Htek device UC862 and you want to configure its memory key 1 as BLF to monitor
extension 1002, you can realize this by following two methods.

1.Create a new XML file and add configuration parameters.

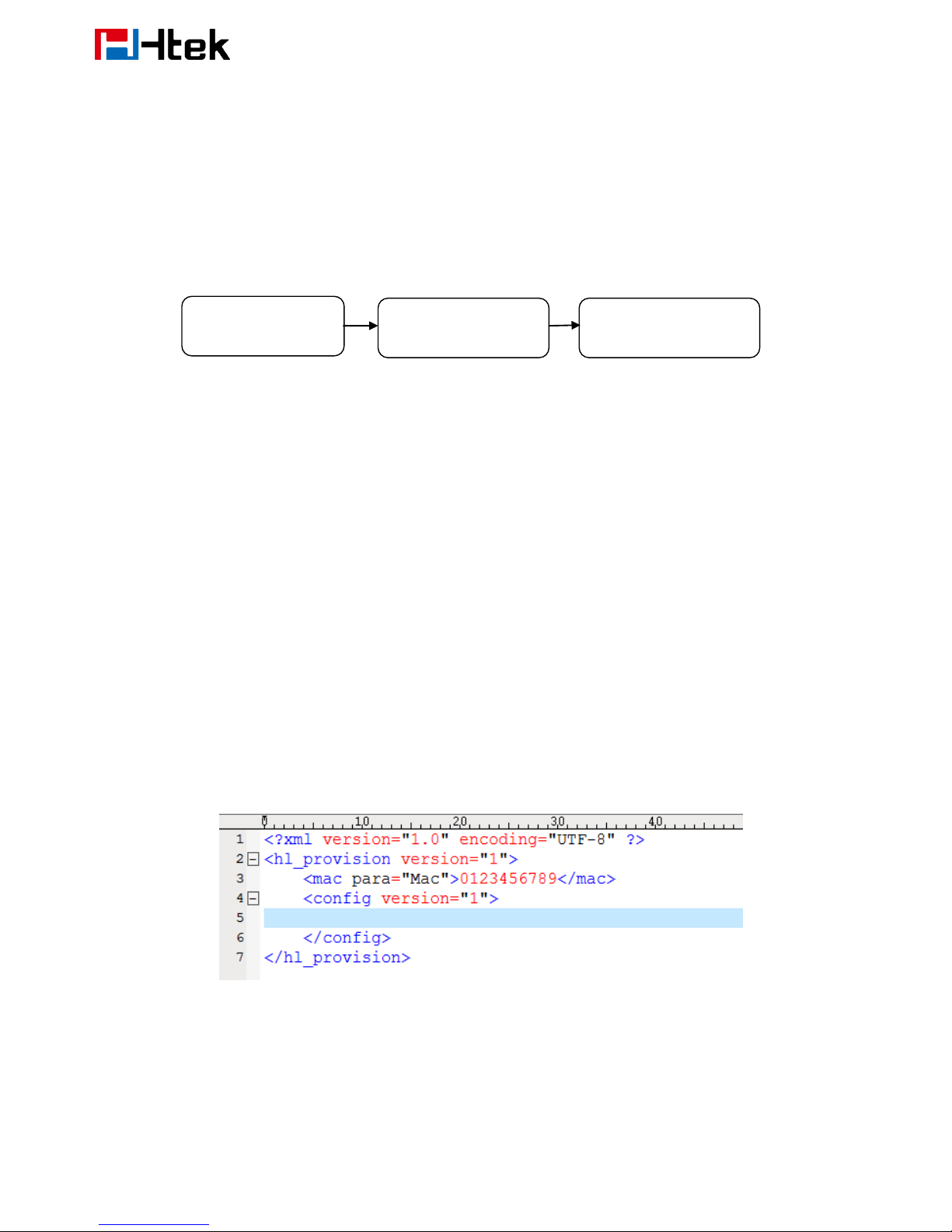

Step 1: Create a new XML file entitle it as cfg0000.xml.If your Htek device is UC860P, you should entitle it as
cfg0002.xml

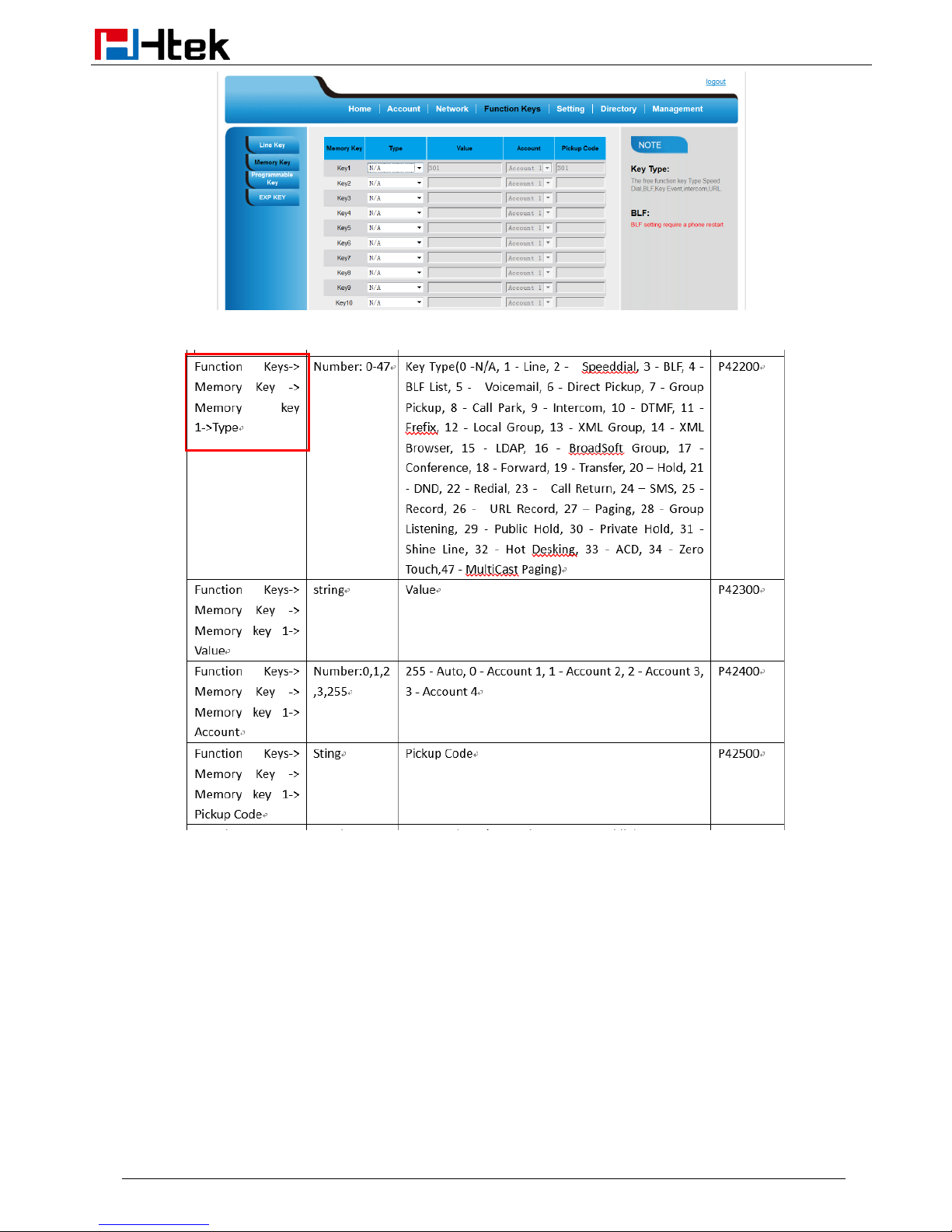

Step 2: Login webpage, find out Web Setting Path of memory key1. Function Keys-Memory Key-Key1

Request
configuration file

Request
configuration file

Request configuration
file

Manage Firmware and Download Configuration File

30

Step 3: Refer to << parameter list >>, you can get detailed description of this parameter.

According to description of parameter, we know parameter P42200 should be 3, parameter P42300 should be
1002 and parameter P42500 should be *20*.

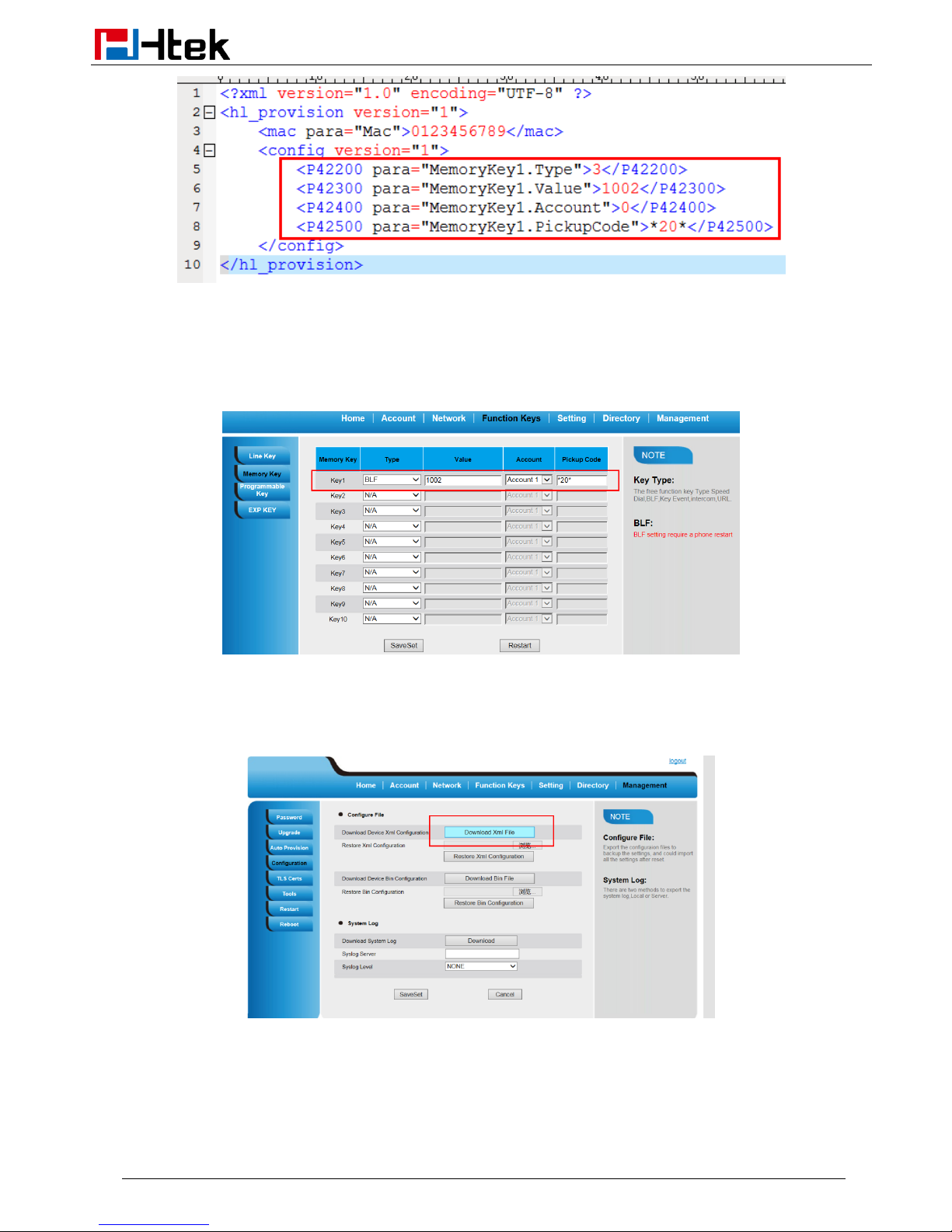

Step 4: Edit cfg0000.xml as follow

Manage Firmware and Download Configuration File

31

Step 5: Put this XML configuration file in your config server path.
Step 6: Restart phone to apply to the settings.

2.Edit relevant parameter in the template file(template.xml)

Step 1:Login webpage, enter Function Keys -> Memory Key
Step 2 : Configure options you want, for example

Step 3: click “saveset” button to save the configuration.
Step 4: Enter Management -> Configuration

Click “Download Xml File” button to download the configuration Xml file. This file include all parameters of this

phone.

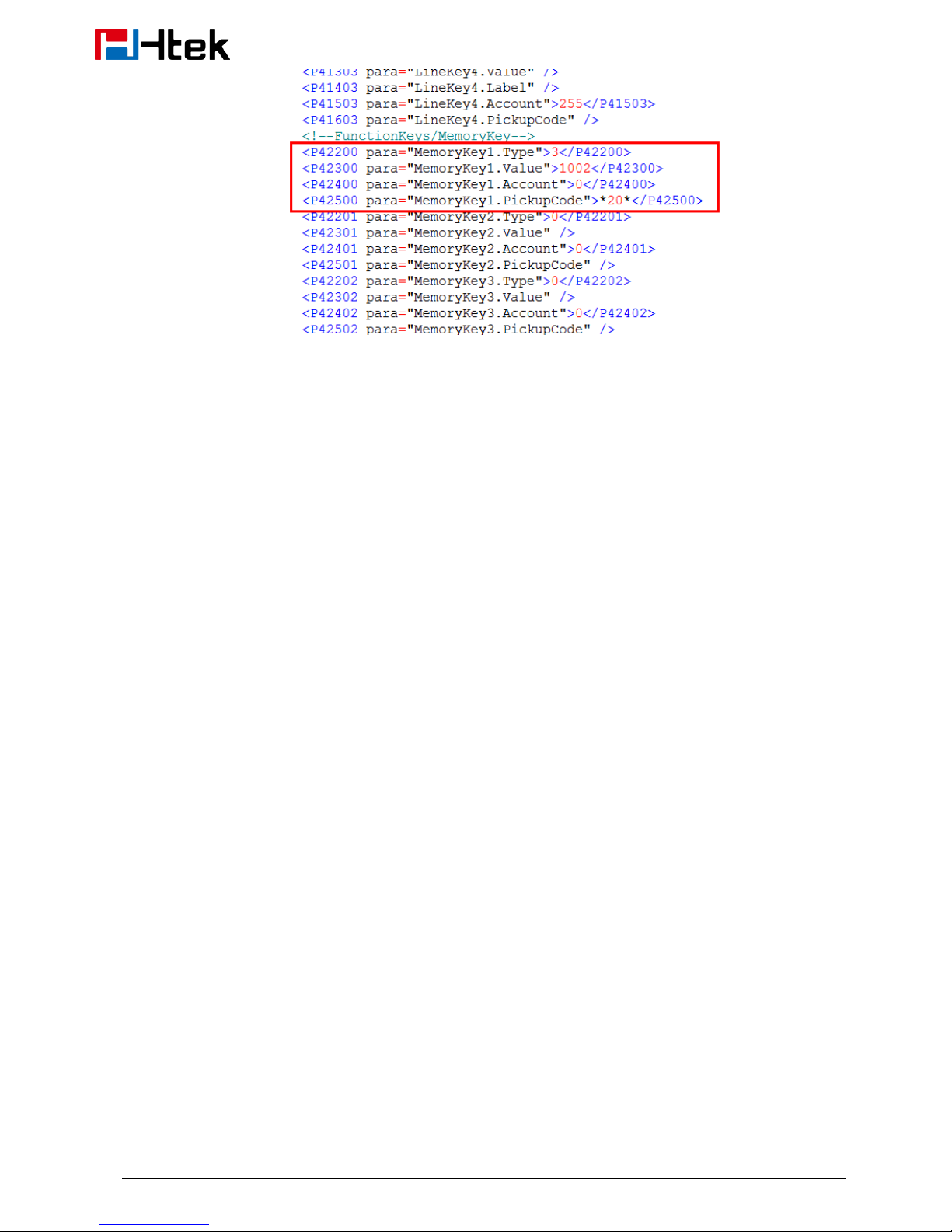

Step 5: Open the Xml file that you downloaded, you can find that the parameter has been changed.

Manage Firmware and Download Configuration File

32

Step 6: Change the xml file’s name to cfg0000.xml.
Step 7: Put this XML configuration file in your config server path.
Step 8: Restart phone to apply to the settings.

Generate Configuration File with HLLite Tool

33

18. Generate Configuration File with HLLiteTool and Upgrade
the Configuration File via HTTP/HTTPS/FTP/TFTP

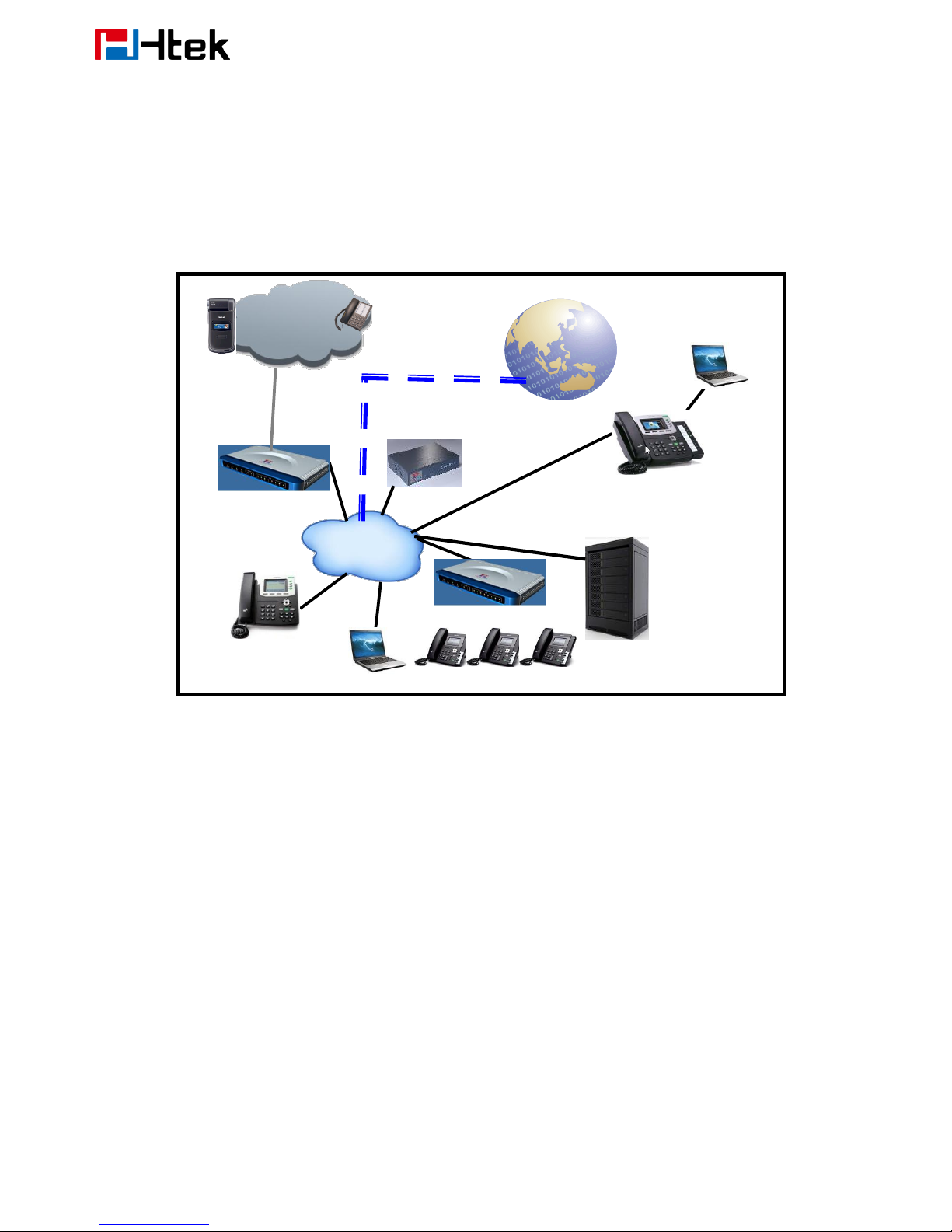

Test environment

Server：

HTTP Server:192.168.0.240
HTTPS Server:192.168.0.240
FTP Server:192.168.0.240
TFTP Server:192.168.0.240

Tool: HLCFGTool.exe

18.1 Generate the configuration file for Htek IP Phones

There are two modes to generate the configuration file

18.1.1Select manual mode to generate CFG file

Generally, it is used to generate the general config file.

IP

Intrane

Unicorn 6008

UC804

Unicorn 6080

2465805

1391389988

324

300301…

24658861--8

UC860

331

Test

LAN

PC

IIn

ntt

eerrn

n

eet

t

HTTP/FTP/T
FTP/HTTPS
Server

Generate Configuration File with HLLite Tool

34

Step 1:Select a template;
Step 2: Modify the value to you want, such as change the web log in password from admin to Dd123478

Step 3: Click the CFG Option Tag, Select the CFG file type;
Step 4: File sequential or listing MAC address, such as bellow:

According to the displayed number, will generate 272(270+2) CFG files. The MAC Address in the Listing are
designated as Mac address.

Step 4: Click the Brose button, select a Destination Path:
Step 5: Click the Go button, application start to generate CFG files.

Generate Configuration File with HLLite Tool

35

Step 6: CFG files Generation finished.

18.1.2 Select File Input mode to generate CFG file

In this way, it can be used to generate basic config, moreover, it also can be used to config account
information.

a. How to make .csv file
Step 1: Define the parameter you want to write into the CFG file. Such as:

Account 1: sip user id;
Authenticate ID;
Authenticate password;
Name
Account 2: sip user id;
Authenticate ID;
Authenticate password;
Name
Step 2: Find the Parameter Names according to parameter refer to parameter definition.

Generate Configuration File with HLLite Tool

36

Account 1: sip user id(P35);
Authenticate ID(P36);
Authenticate password(P34);
Name(P3)
Account 2: sip user id(P735);
Authenticate ID(P736);
Authenticate password(P734);
Name(P703)
Step 3: Define a set of variable to assign value to this parameter name, must use this format {$...}.
About the variable name, you can decide by yourself.
Such as:
P35: {$username.line.1};
P36: {$authenID.line.1};
P34: {$secret.line.1};
P3: {$displayname.line.1};
P735: {$username.line.2};
P736: {$authenID.line.2};
P734: {$secret.line.2};
P703:{$displayname.line.2};

Step 4: Edit the Excel file according to example as bellow.

Note: The first Column must be MAC.
b. How to generate CFG file
Step 1: Select a template;

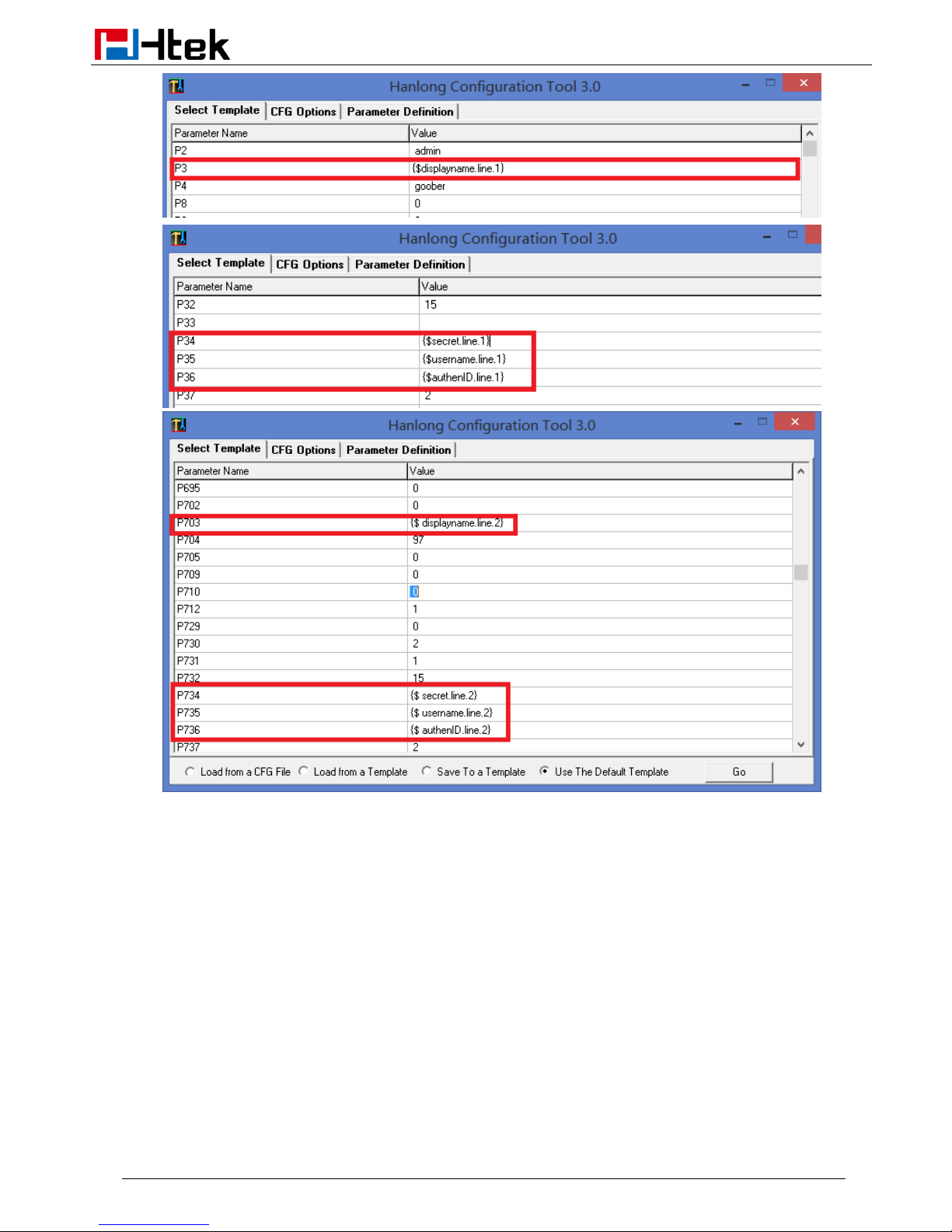

Step2: Modify the value according to the .csv file which you will use, such as sample.csv

Generate Configuration File with HLLite Tool

37

You can select Save To a Template for feature use after editing finished.
Step 3: Click the CFG Option Tag, Select the CFG file type;

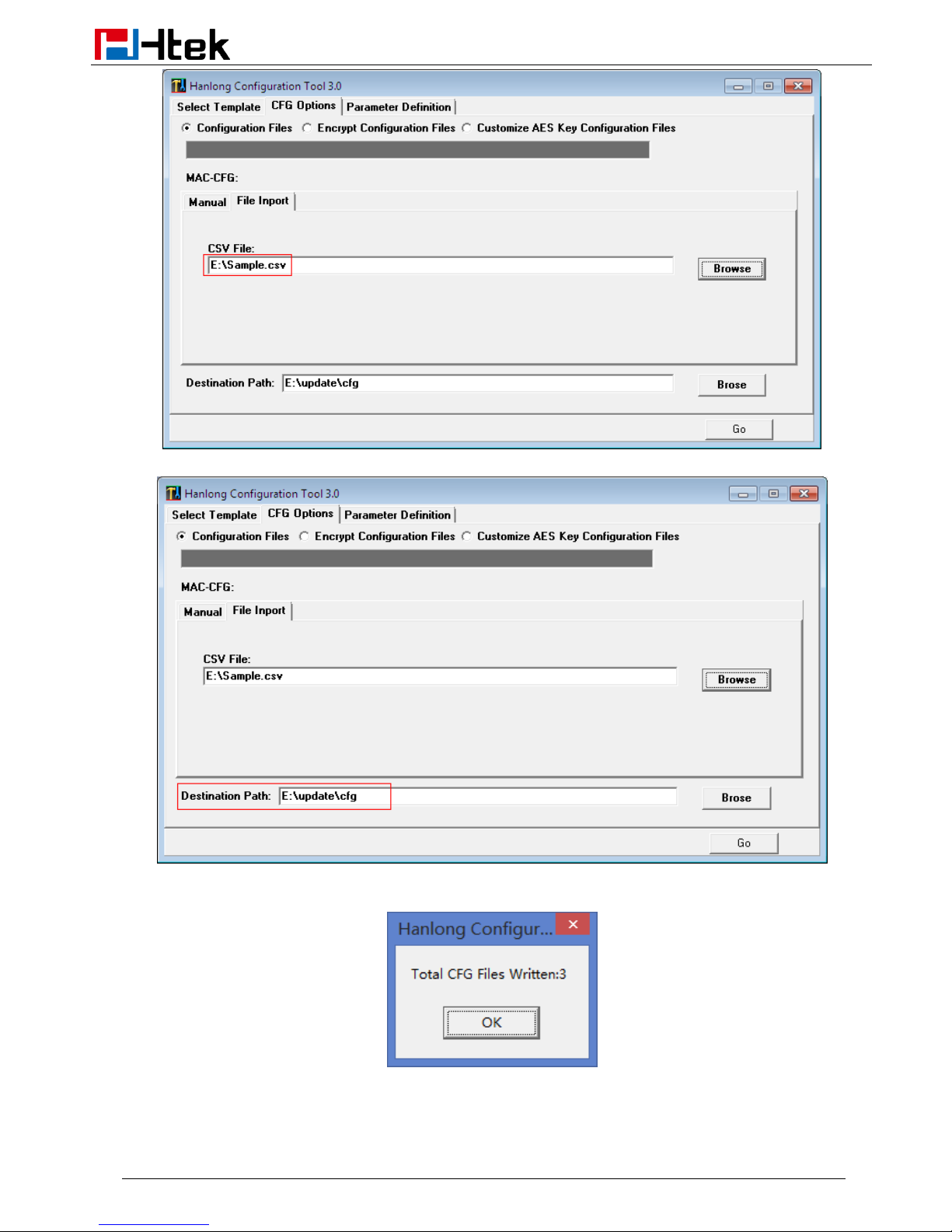

Step 4: Click the File Input Tag, Select the .csv file type, such as sample.csv.

Generate Configuration File with HLLite Tool

38

Step 5: Click the Brose button, select a Destination Path:

Step 6: Click the Go button, application start to generate CFG files.
Step 7: CFG files Generation finished.

Generate Configuration File with HLLite Tool

39

18.2 Upgrade cfgmac file via HTTP/TPFP/FTP/HTTPS

Step 1:Login Htek IP device’s webpage, ManagementAuto Provision：
Via HTTP mode:

Via TFTP mode:

Via FTP mode:

Generate Configuration File with HLLite Tool

40

Via HTTPS mode:

You can select the upgrade Mode what you want.
Step 7: Restart the Htek IP device.
e.g:You can see the request logs on the server:

Test result:

Generate Configuration File with HLLite Tool

41

Making Ringtone Notes

42

19. Making Ringtone Notes

Prepare:

Tool: Ringtool.exe
Ring file format: wav

1. To make ring tone for UC8xx

1.1 Double click Ringtool.exe

1.2 Select the Maximum Length and Output Filename:
For example, 16 seconds, ring 2.bin

1.3 Click Select to Input the desired ring tone file, and then click Generate Ringfile.
Then, you will get Ringfile Created.

Making Ringtone Notes

43

1.4 Now, you get the ring2.bin, also you can rename it as ring5.bin, or other the one you want to replace.

1.5 Upload the ring file by TFTP or HTTP, the ringtone is replaced successfully.

LCD and Web GUI Custom Guide

44

20.LCD and Web Language Customization Guide

20.1. Guide onLCD Language customization.

1) You need to contact us about how to obtain the Language.tar file.

2) Unzip the Language.tar using 7-zip tool.

3) Open the Language folder:

Note:

The file name must be " digital_" at the beginning, the format of the file name is the order of the on the LCD.

1. For example, custom Chinese Language
If your country's language is not exist in the language folder, you can new a xml file with correct naming
format.[e.g. 13_xxx(xxx).xml]
If your country's language in the folder, you can custom directly your language.
Open the LCD_English_Template.xml with UltraEdit Translate English into Chinese (Can't leave out any

items, otherwise the upgrade failed) save as 10_简体中文(ChineseSimplified).xml in Language folder

(Coding format is UTF-8)

LCD and Web GUI Custom Guide

45

 Select the Language folder Compress Language.tar package using 7-zip tool and Cover the
originalDelete the Language folder

Note:

If you use UltraEdit, it can generate .xml.bak file after saved .so you need to delete .xml.bak file.
If you want to put your language on the front of other languages, you can also rename the file, for example:

20.2.Web Language custom guide

1) You need to contact us about how to obtain the Language.tar file

2) Unzip the Language.tar using 7-zip tool.

3) Open the Language folder:

LCD and Web GUI Custom Guide

46

Note:

The file name must be " digital_letter" at the beginning, the format of the file name is the order of the on the
Web.

4. For example custom Chinese Language
If your country's language is not existing in the language folder, you can upload a new xml file with correct
naming format. [e.g 13_xxx.js]
If your country's language in the folder, you can custom directly your language reference
Web_English_Template.js.
Open the Web_English_Template.js with UltraEdit Translate English into Chinese (Can't leave out any

items, otherwise the upgrade failed) save as 10_ChineseSimplified.js in Language folder (Coding format is

UTF-8)

LCD and Web GUI Custom Guide

47

 Select the Language folder Compress Language.tar package using 7-zip tool and Cover the
originalDelete the Language folder

Note:

If you use UltraEdit, it can generate.xml.bak file after saved .so you need to delete.xml.bak file.

If you want to put your language on the front of other languages, you can also rename the file, for example:

When you finished the Language.tar, you must send the Language.tar package to us, then we provide the
firmware to you.

21.LCDand Web GUI custom Guide

Unzip the hlpres.tar package (Need to contact us to obtain the hlpres.tar package)

You can replace some file in the hlpres to finish the customization of 1.1 to 1.7

LCD and Web GUI Custom Guide

48

21.1 How to custom the wallpaper1-wallpaper6?

Open hlpres folderyou can custom thewallpaper4.jpg-wallpaper6.jpg (dimension:480*320 size: through
Photoshop tools make the size smallerSelect the hlpres folderCompress hlpres.tar package

21.2 How to custom the screensaver1- screensaver3?

Open hlpres folderyou can custom the screensaver1.jpg-screensaver3.jpg (dimension:480*320 size:
through Photoshop tools make the size smaller) Select the hlpres folderCompress hlpres.tar package

21.3 How to custom the weblogo?

Open hlpres folderyou can custom the weblogo.jpg (dimension:225*93 size: through Photoshop tools make
the size smaller) Select the hlpres folderCompress hlpres.tar package

21.4 How to customthe eights meuns(.png)in the main menu?

Open hlpres folderyou can custom the.png (dimension:65*65size: through Photoshop tools make the size
smaller) Select the hlpres folderCompress hlpres.tar package

21.5 How to customthe ...Icon.png?

Open hlpres folderyou can custom the ...Icon.png (dimension:65*65size: through Photoshop tools make the
size smaller) Select the hlpres folderCompress hlpres.tar package

21.6 How to custom the lcdlogo_color.png?

This logo is only applicable to UC840, UC842, UC860, UC862.
Open hlpres folderyou can custom the lcdlogo_color.png (dimension:400*42size: through Photoshop tools
make the size smaller) Select the hlpres folderCompress hlpres.tar package.
Enter MenuDisplayScreensaver Time-out:1min; Screensaver Type: Time & LogoSave, this logo
displays correctly.

21.7 How to customize the lcdlogo_bw.png?

This logo is only applicable to UC802, UC803, UC804, UC806
Open hlpres folderyou can custom the lcdlogo_bw.png (dimension:100*11 size: through Photoshop tools
make the size smaller) Select the hlpres folderCompress hlpres.tar package.
Enter MenuDisplay->Screensaver Time-out:1min; Screensaver Type: Time & LogoSave, this logo display
correctly.

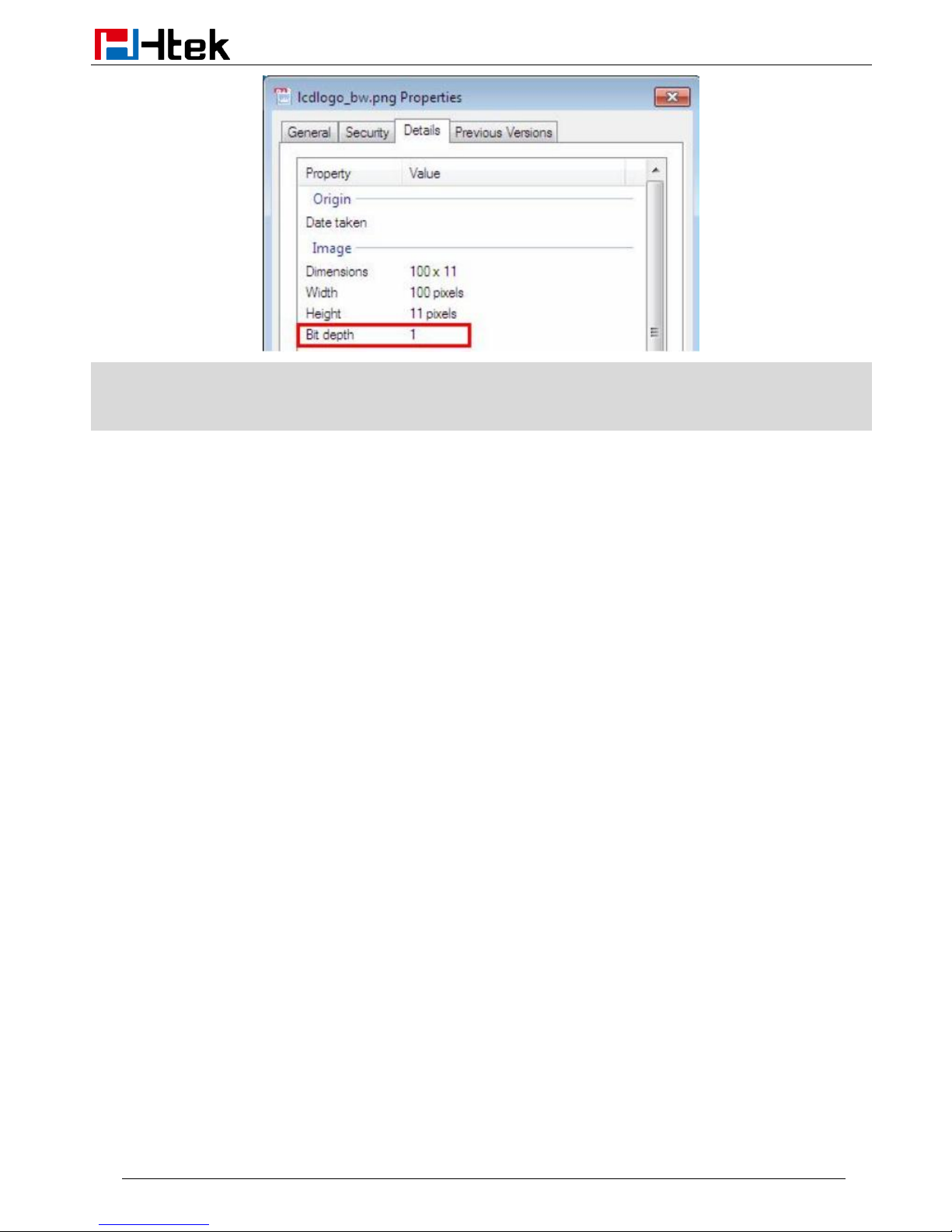

The lcdlogo_bw.png’s property must be the following standard:

LCD and Web GUI Custom Guide

49

Note:

The photo’s name and format must be the same as before;
The size of hlpres file is not more than 2M.

When you finished the hlpres.tar, you must send the hlpres.tar package to us,then we provide the firmware to
you.

Firmware Upgrade

50

22.Firmware Upgrade

Please note: If the firmware version is 1.0.3.73 or later than 1.0.3.73,you must put the upgrade files(include

fw8xx.rom,img_8xx.bin ) into the server path. Later than 1.0.3.73 version upgrade steps and earlier than

1.0.3.73 version is the same.

22.1. Upgrade through TFTP

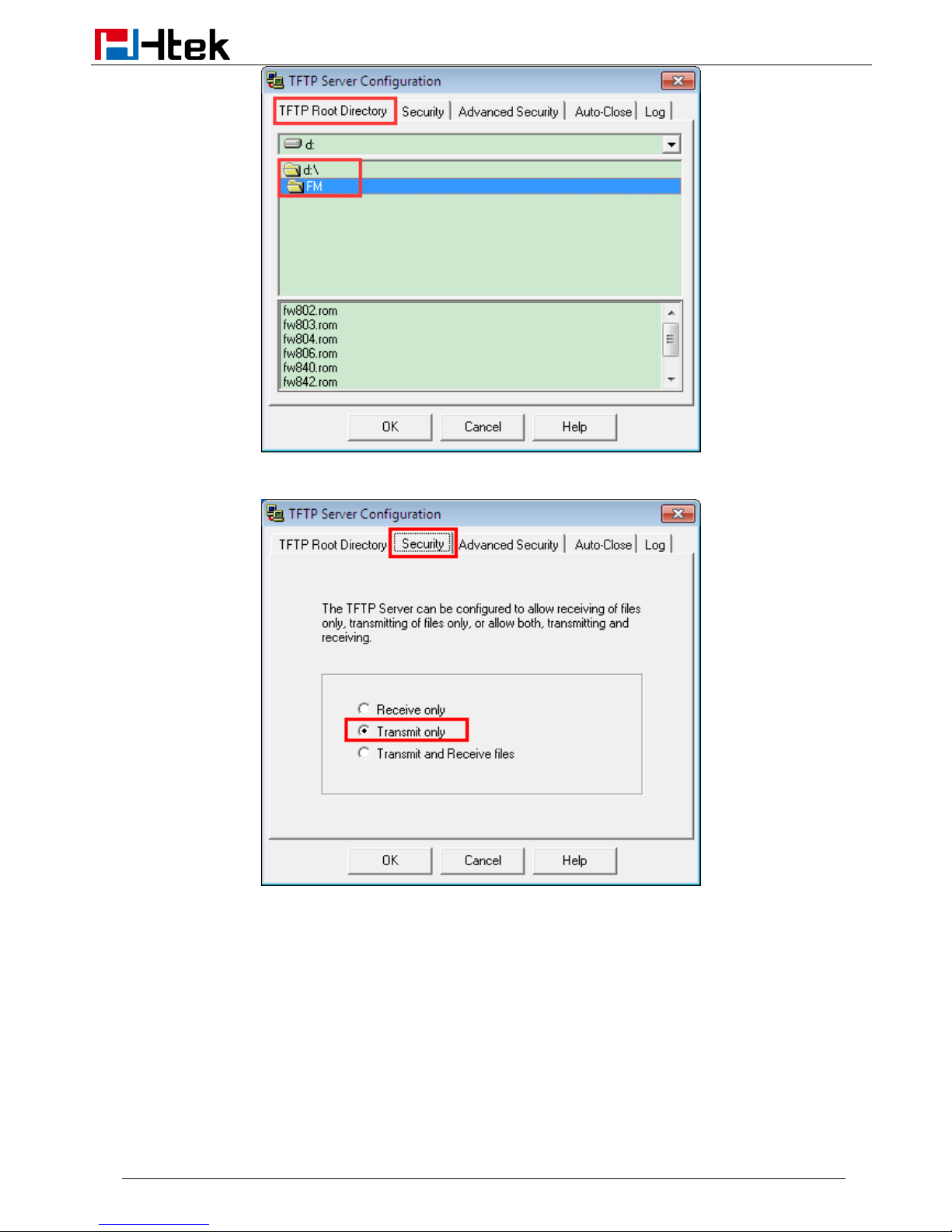

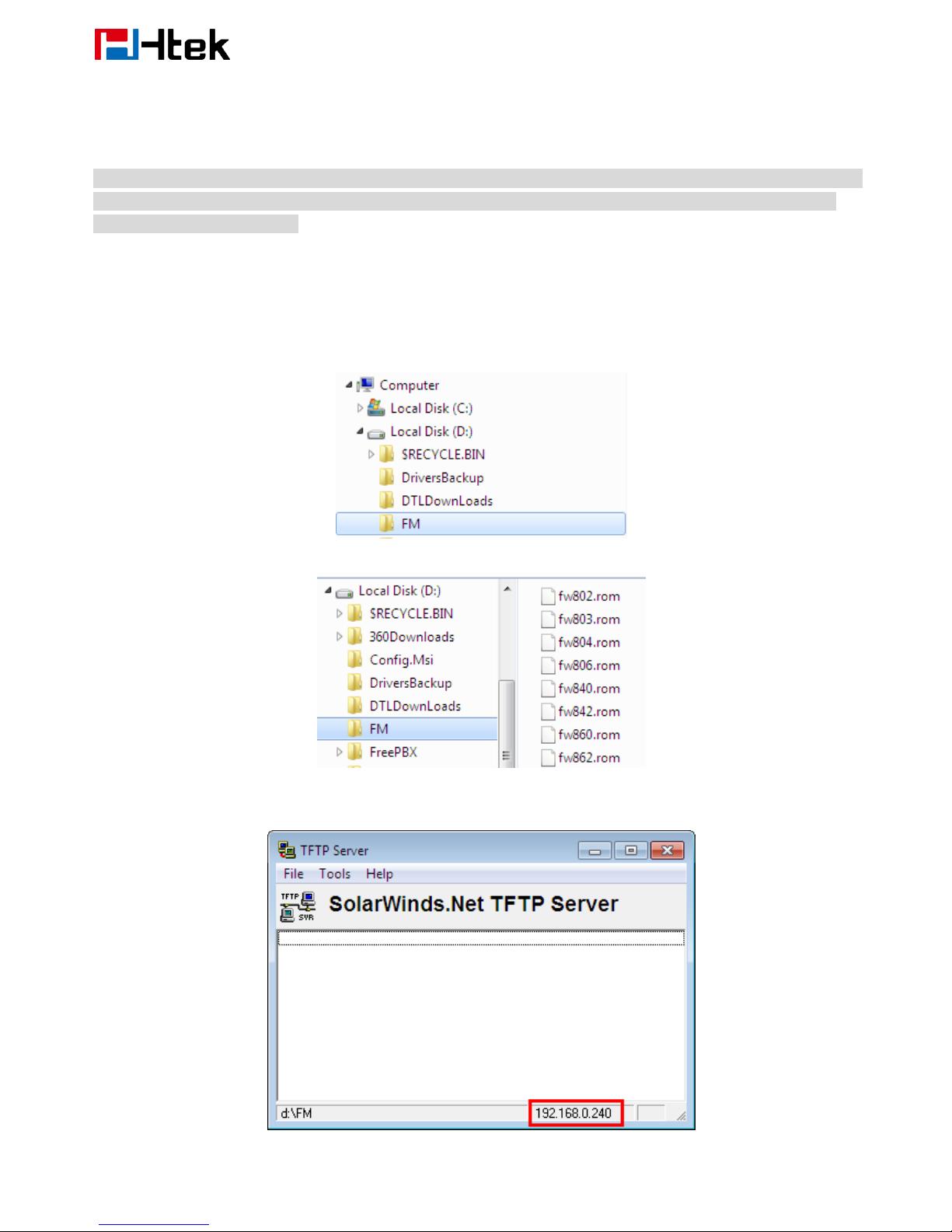

1) We recommend that you can install a TFTP Server (e.g. SolarWinds-TFTP-Server.exe)

2) Make a new directory, such as D:\FM

3) Unzip the firmware file and put all of them under the directory D:\FM

4) The PC running the TFTP server and the UC8xx products should be in the same LAN segment.

5) Set TFTP Root Directory to D:\FM

TFTP SERVER  File  Configure

Firmware Upgrade

51

6) Go to File -> Configure -> Security to change the TFTP server's default setting from "Receive Only" to
"Transmit Only" for the firmware upgrade.

1) Start the TFTP server, Configure the Firmware Server Path with the IP address(192.168.0.240 is TFTP
server) in the UC8xx’s web configuration page.

Firmware Upgrade

52

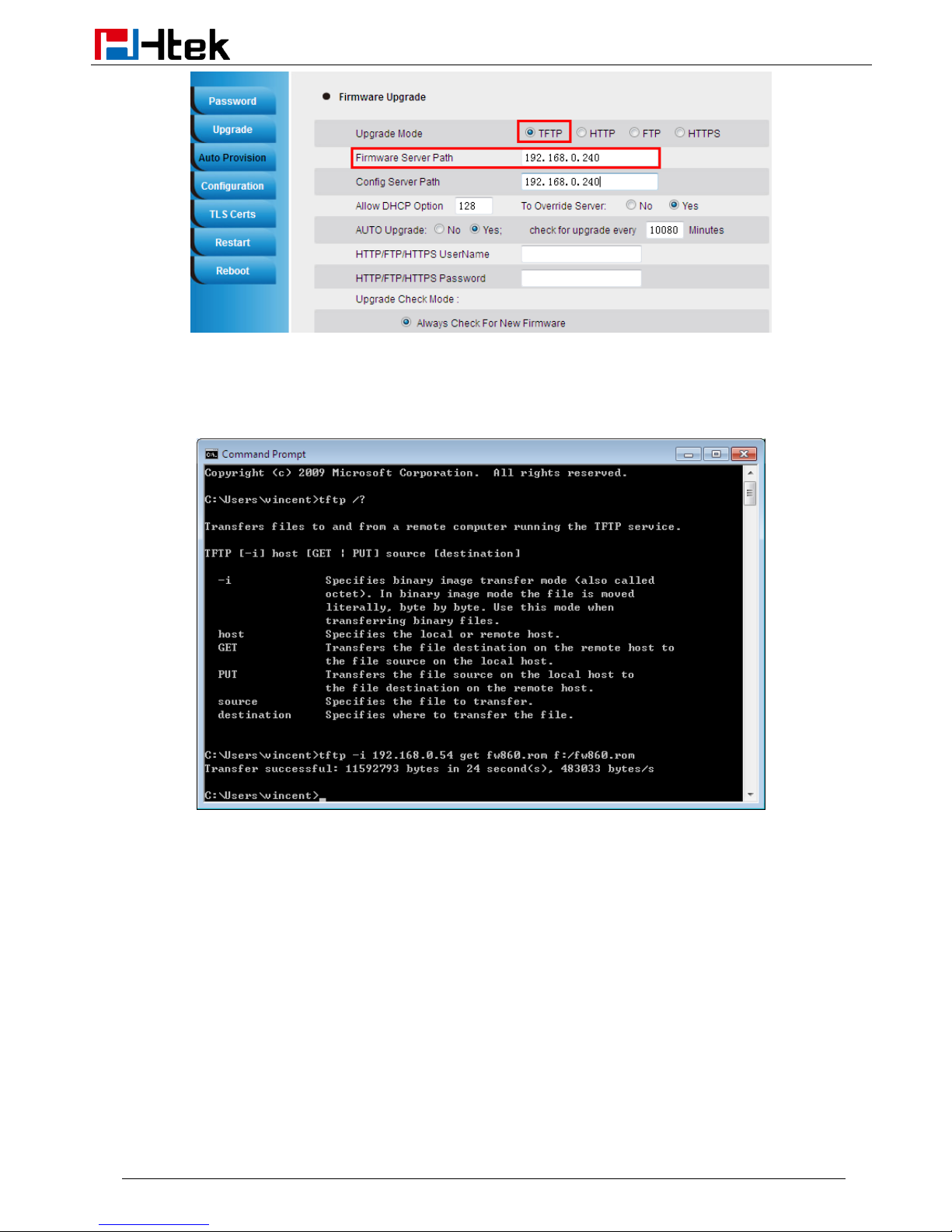

2) SaveSet the change and restart the IP Phone.

3) You can test your TFTP server by another PC which is in the same LAN segment.

For examples, in PC which IP address is 192.168.0.126, type command:

TFTP -i 192.168.0.240 GET fw860.rom f:/fw860.rom

If your TFTP server is OK, something like “Transfer successful:” will be printed in command windows.

22.2. Upgrade through FTP

1) Setup a FTP Server (e.g FileZilia Server).

2) Unzip the firmware file and put all of them under the root/fm directory of the FTP Server.

3) Configure the FTP Server.

4) Visiting Ftp:\\192.168.0.240\fw860.rom on localhost by browser, enter username and password, you will

view upgrade file. If visiting Ftp:\\192.168.0.240\fw860.rom on another computer is no prompt to download
fw860.rom file, please check the firewall (Suggest close the firewall).

5) Configure the Firmware Server Path in the IP Phone’s web configuration page. (192.168.0.240 is FTP

server)

Firmware Upgrade

53

6) Click the SaveSet and then click Restart in the webpage.

22.3. Upgrade through HTTPS

1) Installing and configuring an Apache HTTPS Server in local computer.

2) Unzip the firmware file and put all of them under the root/fm directory of the HTTPS Server.

3) Visiting “HTTPS:\\192.168.0.45\fm\fw860.rom on localhost by browser” to verify the HTTPS Server. If

visiting “HTTPS:\\192.168.0.45\fm\fw860.rom on another computer is not prompted to download
fw860.rom file, please check the firewall (Suggest close the firewall).

4) Configure the Firmware Server Path in the IP Phone’s web configuration page. (192.168.0.254 is HTTPS

server)

5) Click the SaveSet and then click Restart in the webpage.

Parameter List

54

23.Parameter List

Web Setting Path

Permitted
Values

Descriptions

Parameter

Account(1)->basic->Acc
ount Active

Number: 0, 1

Account Active (In Use). 0 - No, 1 - Yes

P271

Account(1)->basic->Prim
ary SIP Sserver

PrimarySIP
Server(eg:sip
.mycompany.
comorIP
address)

It configures the primary SIP server when
the network is locallan 、remotestun or
SBC.

P47

Account(1)->basic->Fail
over SIP Server

String

Failover SIP Server(Optional, used when
primary server no response)

P967

Account(1)->basic->Sec
ond Failover SIP Server

String

Second Failover SipServer(Optional, used
when Failover SIP Server no response)

P8851

Account(1)->basic->Pref
er Primary SIP Sserver

Number: 0, 1

Prefer Primary SIP Server (In Use). 0 - No,
1 - Yes

P4567

Account(1)->basic->Out
bound Proxy

string

Outbound Proxy(proxy.myprovider.com, or
IP address, if any)

P48

Account(1)->basic->Bac
kup Outbound Proxy

Sting

Backup Outbound Proxy (This is Usually
Set as IP address)

P20047

Account(1)->basic->SIP
Transport

Number: 0-2

0 - UDP, 1 - TCP, 2 - TLS

P130

Account(1)->basic->NAT
Traversal

Number: 0-2

0 - No, 1 - STUN 2 - No, but send keep
alive

P52

Account(1)->basic->Lab
el

String

The name showing on the LCD of current
device

P20000
Account(1)->basic->SIP
User ID

string

the user part of an SIP address

P35

Account(1)->basic->Auth
enticate ID

String

can be identical to or different from SIP
User ID

P36

Account(1)->basic->
Authenticate Password

String

purposely not displayed for security
protection

P34

Account(1)->basic->
Name

String

The Local phone name showing on the
other phone when calling

P3

Account(1)->basic->DN
S Mode

Number: 0-2

DNS Mode (0 - A Record, 1 - SRV, 2 ­NAPTR/SRV)

P103

Account(1)->basic->Use
r ID Is Phone Number

Number:0, 1

User ID Is Phone Number.0 - No, 1 - Yes

P63

Account(1)->basic->SIP
Registration

Number:0, 1

SIP Registration. 0 - No, 1 - Yes

P31

Account(1)->basic->
Unregister On Reboot

Number:0, 1

Unregister On Reboot.0 - No, 1 - Yes

P81

Account(1)->basic->
Register Expiration

number

Register Expiration (in minutes. default 1
hour, max 45 days)

P32

Parameter List

55

Account(1)->basic->
OutgoingCallWithout
Registration

Number:0, 1

OutgoingCallWithout Registration.0 - No, 1

- Yes

P109
Account(1)->basic->
Local SIP Port

number

Local SIP Port (default 5060)

P40

Account(1)->basic-> Use
Random Port

Number:0, 1

Use Random Port.0 - No, 1 - Yes

P78

Account(1)->basic->
Voice Mail UserID

String

Voice Mail User ID(User ID for voice mail
system)

P33

Account(1)->basic->
RPort

Number:0, 1

Enable/Disable RPort.0 - No, 1 - Yes

P136

Account(1)->basic->
RFC 2543 Hold

Number:0, 1

RFC 2543 Hold.0 - No, 1 - Yes

P1100

Account(1)->Codec->
Preferred Vocoder In
listed order

Number: 0,
2, 4, 8, 9, 18

Preferred Vocoder in listed order. choice 1.
0 - PCMU, 2 - G.726-32, 4 - G.723.1, 8 ­PCMA, 9 - G.722, 18 - G.729A/B.

P57

Account(1)->Codec->
Preferred Vocoder In
listed order

Number: 0,
2, 4, 8, 9, 18

Preferred Vocoder in listed order. choice 2.
0 - PCMU, 2 - G.726-32, 4 - G.723.1, 8 ­PCMA, 9 - G.722, 18 - G.729A/B.

P58

Account(1)->Codec->
Preferred Vocoder In
listed order

Number: 0,
2, 4, 8, 9, 18

Preferred Vocoder in listed order. choice 3.
0 - PCMU, 2 - G.726-32, 4 - G.723.1, 8 ­PCMA, 9 - G.722, 18 - G.729A/B.

P59

Account(1)->Codec->
Preferred Vocoder In
listed order

Number: 0,
2, 4, 8, 9, 18

Preferred Vocoder in listed order. choice 4.
0 - PCMU, 2 - G.726-32, 4 - G.723.1, 8 ­PCMA, 9 - G.722, 18 - G.729A/B.

P60

Account(1)->Codec->
Preferred Vocoder In
listed order

Number: 0,
2, 4, 8, 9, 18

Preferred Vocoder in listed order. choice 5.
0 - PCMU, 2 - G.726-32, 4 - G.723.1, 8 ­PCMA, 9 - G.722, 18 - G.729A/B.

P61

Account(1)->Codec->
Preferred Vocoder In
listed order

Number: 0,
2, 4, 8, 9, 18

Preferred Vocoder in listed order. choice 6.
0 - PCMU, 2 - G.726-32, 4 - G.723.1, 8 ­PCMA, 9 - G.722, 18 - G.729A/B.

P62

Account(1)->Codec->
Voice Frames Per TX

Number

up to 10/20/30/40/50/60 for G711/G726/G
723/other codecs respectively

P37
Account(1)->Codec->
G723 Rate

Number:0, 1

G723 Rate (0 - 6.3kbps encoding rate, 1 -

5.3kbps encoding rate)

P49

Account(1)->Codec->
iLBC mode

Number:0,1

iLBC mode.0 - 20ms mode,1 - 30ms mode

P394

Account(1)->Codec->
iLBC Payload Type

Number:96
to 127

iLBC Payload Type (from 96 to 127, default
is 97)

P390

Account(1)->Advanced­> DTMF Payload Type

Number ：
96-127

DTMF Payload Type，default is 97

P79
Account (1)-> Advanced

-> DTMF IN Audio

Number:0, 1

DTMF IN Audio.0 - no, 1 - yes

P850

Parameter List

56

Account-> Advanced ->
DTMF Via RFC2833

Number:0, 1

DTMF Via RFC2833.0 - no, 1 - yes

P851

Account (1)-> Advanced

-> DTMF Via SIP INFO

Number:0, 1

DTMF Via SIP INFO.0 - no, 1 - yes

P852

Account (1)-> Advanced

-> Send Flash Event

Number:0, 1

Send Flash Event.0 - no, 1 - yes

P74

Account (1)-> Advanced

-> Enable Call Features

Number:0, 1

Enable Call Features.0 - no, 1 - yes

P191

Account (1)-> Advanced

-> Proxy Require

string

Proxy Require

P197

Account (1)-> Advanced

->Use NAT IP

String

Used in SIP/SDP message if specified

P101

Account (1)-> Advanced

-> SRTP Mode

Number 0-2

SRTP Mode 0 = Disabled, 1 = Enabled but
not forced, 2 = Enabled and forced

P183

Account (1)-> Advanced

-> VAD

Number:0, 1

VAD.0 - no, 1 - yes

P50

Account (1)-> Advanced

-> Symmetric RTP

Number:0, 1

Symmetric RTP.0 - no, 1 - yes

P291

Account (1)-> Advanced

-> Jitter Buffer Type

Number:0, 1

Jitter Buffer Type.0 - fixed, 1 - adaptive

P133

Account (1)-> Advanced

-> Jitter Buffer Length

Number 0-2

Jitter Buffer Length.0 - low, 1 - medium, 2 ­high

P132

Account (1)-> Advanced

-> Account Ring Tone

Number
0,1,2,3,4,5,6,
7,8

Account Ring Tone (0 - default, 1 ­Ring1.bin, 2 - Ring2.bin, 3 - Ring3.bin, 4 ­Ring4.bin, 5 - Ring5.bin, 6 - Ring6.bin, 7 ­Ring7.bin, 8 - Ring8.bin)

P104

Account (1)-> Advanced

-> Ring Timeout

Number10 ­300

Ring Timeout (10-300 seconds, default is

60 seconds)

P185

Account (1)-> Advanced

->Use # As Dial Key

Number: 0, 1

Use # As Dial Key.0 - no, 1 - yes

P72

Account (1)-> Advanced

-> Dial Plan

string

Dial plan (dial plan prefix string)

P4200

Account (1)-> Advanced

-> Subscribe for MWI

Number: 0, 1

Subscribe for MWI.0 - no, do not send
SUBSCRIBE for Message Waiting
Indication, 1 - yes, send periodical
SUBBSCRIBE for, Message Waiting
indication

P99

Account (1)-> Advanced

-> Send Anonymous

Number: 0, 1

Send Anonymous,0 – no,1 – yes

P65

Account (1)-> Advanced

-> Anonymous Call
Rejection

Number: 0, 1

Anonymous Call Rejection.0 - no, 1 - yes

P129
Account (1)-> Advanced

-> Check SIP User ID

Number: 0, 1

Check SIP User ID.0 - no, 1 - yes

P258
Account (1)-> Advanced

Number: 0, 1

Auto Answer.0 - no, 1 - yes

P90

Parameter List

57

-> Auto Answer

Account (1)-> Advanced

-> Allow Auto Answer by
Call-Info

Number: 0, 1

Allow Auto Answer by Call-Info.0 - no, 1 ­yes

P298

Account (1)-> Advanced

-> Turn off Speaker on
remote disconnect

Number: 0, 1

Turn off Speaker on remote disconnect.0 ­no, 1 - yes

P299
Account (1)-> Advanced

-> Session Expiration

Number

Session Expiration (default is 180
seconds)

P260

Account (1)-> Advanced

-> Min-SE

Number

Min-Session-Expiration (default and
minimum is 90 seconds)

P261

Account (1)-> Advanced

-> Caller Request Timer

Number

Caller Request Timer (Request for timer
when making outbound calls) 0 - No, 1 ­Yes

P262

Account (1)-> Advanced

->Callee Request Timer

Number: 0, 1

Callee Request Timer (when caller
supports timer but did not request one) 0 ­No, 1 - Yes

P263
Account (1)-> Advanced

-> Force Timer

Number: 0, 1

Force Timer (use timer even when remote
party does not support) 0 - No, 1 - Yes

P264

Account (1)-> Advanced

->UAC Specify
Refresher

Number: 0-2

UAC Specify Refresher. 1 - UAC, 2 - UAS,
0 - omit(Recommended)

P266

Account (1)-> Advanced

-> UAS Specify
Refresher

Number: 1, 2

UAS Specify Refresher. 1 - UAC, 2 - UAS
(When UAC did not)

P267
Account (1)-> Advanced

-> Force INVITE

Number: 0, 1

Force INVITE (Always refresh with INVITE
instead of UPDATE) 0 - No, 1 - Yes

P265

Account (1)-> Advanced

-> Hook Flash Timing->
Minimum

Number

Minimum Hook Flash Timing

P251

Account (1)-> Advanced

-> Hook Flash Timing->
Maximum

Number

MaximumHook Flash Timing

P252
Account (1)-> Advanced

-> Special Feature

Number 100,
104, 106

100 - Standard, 104 - World Call, 106 ­NETHID

P198

Account (1)-> Advanced

-> Share Line

Number: 0-2

Share Line. 0 - Disable, 1 - Broadsoft, 2 ­BLA

P8771

Account (1)-> Advanced

-> SIP Server Type

Number: 0, 1

SIP Server Type. 0 - Default, 1 - BroadSoft

P8791

Account (1)-> Advanced

-> 100 reliable
retransmissions

Number: 0, 1

Disable/Enable 100 reliable
retransmission.
0:Disable, 1: Enable

P8811
Account (1)-> Advanced

-> Early-Session

Number: 0, 1

Disable/Enable Early-Session. 0 - Disable,
1 - Enable

P8841
Account (1)-> Advanced

Number: 0-2

Refuse-Return-Code. 0 -BUSY-486, 1 -

P8845

Parameter List

58

-> Refuse-Return-Code

NOT-FOUND-404, 2 - REFUSE-603

Account (1)-> Advanced

->Direct Call Pickup
Code

string

Direct Call Pickup Code

P4705

Account (1)->
Advanced->Group Call
Pickup Code

string

Group Call Pickup Code

P4706
Account (1)-> Advanced

->

Number: 0, 1

Feature Key Sync. 0 - Disable, 1 - Enable

P8633

Account (1)-> Advanced

-> SIP Send Mac

Number: 0, 1

SIP Send Mac.0 - Disable,1 - Enable

P20053

Account(2)->basic->Acc
ount Active

Number: 0, 1

Account Active (In Use). 0 - No, 1 - Yes

P401

Account(2)->basic->Prim
ary SIP Sserver

PrimarySIP
Server(eg:sip
.mycompany.
comorIP
address)

It configures the primary SIP server when
the network is locallan 、remotestun or
SBC.

P747

Account(2)->basic->Fail
over SIP Server

String

Failover SIP Server (Optional, used when
primary server no response)

P987

Account(2)->basic->Sec
ond Failover SIP Server

String

Second Failover SipServer(Optional, used
when Failover SIP Server no response)

P8852

Account(2)->basic->Pref
er Primary SIP Sserver

Number: 0, 1

Prefer Primary SIP Server (In Use). 0 - No,
1 - Yes

P4568

Account(2)->basic->Out
bound Proxy

string

Outbound Proxy(proxy.myprovider.com, or
IP address, if any)

P748

Account(2)->basic->Bac
kup Outbound Proxy

string

Backup Outbound Proxy (This is Usually
Set as IP addr)

P20048

Account(2)->basic->SIP
Transport

Number: 0-2

0 - UDP, 1 - TCP, 2 - TLS

P830

Account(2)->basic->NAT
Traversal

Number: 0-2

0 - No, 1 - STUN 2 - No, but send keep
alive

P730

Account(2)->basic->Lab
el

String

The name showing on the LCD of current
device

P20001
Account(2)->basic->SIP
User ID

string

the user part of an SIP address

P735

Account(2)->basic->Auth
enticate ID

String

can be identical to or different from SIP
User ID

P736

Account(2)->basic->
Authenticate Password

String

purposely not displayed for security
protection

P734

Account(2)->basic->
Name

String

The Local phone name showing on the
other phone when calling

P703

Account(2)->basic->DN
S Mode

Number: 0-2

DNS Mode (0 - A Record, 1 - SRV, 2 ­NAPTR/SRV)

P702

Parameter List

59

Account(2)->basic->Use
r ID Is Phone Number

Number:0, 1

User ID Is Phone Number.0 - No, 1 - Yes

P763

Account(2)->basic->SIP
Registration

Number:0, 1

SIP Registration. 0 - No, 1 - Yes

P731

Account(2)->basic->
Unregister On Reboot

Number:0, 1

Unregister On Reboot.0 - No, 1 - Yes

P752

Account(2)->basic->
Register Expiration

number

Register Expiration (in minutes. default 1
hour, max 45 days)

P732

Account(2)->basic->Out

Number:0, 1

OutgoingCallWithout Registration.0 - No, 1

- Yes

P813

Account(2)->basic->
Local SIP Port

number

Local SIP Port (default 5060)

P740

Account(2)->basic-> Use
Random Port

Number:0, 1

Use Random Port.0 - No, 1 - Yes

P778

Account(2)->basic->
Voice Mail UserID

number

Voice Mail User ID (User ID for voice mail
system)

P426

Account(2)->basic->
RPort

Number:0, 1

Enable/Disable RPort.0 - No, 1 - Yes

P137

Account(2)->basic->
RFC 2543 Hold

Number:0, 1

RFC 2543 Hold.0 - No, 1 - Yes

P1101

Account(2)->Codec->
Preferred Vocoder in
listed order

Number: 0,
2, 4, 8, 9, 18

Preferred Vocoder in listed order. choice 1.
0 - PCMU, 2 - G.726-32, 4 - G.723.1, 8 ­PCMA, 9 - G.722, 18 - G.729A/B.

P757

Account(2)->Codec->
Preferred Vocoder in
listed order

Number: 0,
2, 4, 8, 9, 18

Preferred Vocoder in listed order. choice 2.
0 - PCMU, 2 - G.726-32, 4 - G.723.1, 8 ­PCMA, 9 - G.722, 18 - G.729A/B.

P758

Account(2)->Codec->
Preferred Vocoder in
listed order

Number: 0,
2, 4, 8, 9, 18

Preferred Vocoder in listed order. choice 3.
0 - PCMU, 2 - G.726-32, 4 - G.723.1, 8 ­PCMA, 9 - G.722, 18 - G.729A/B.

P759

Account(2)->Codec->
Preferred Vocoder in
listed order

Number: 0,
2, 4, 8, 9, 18

Preferred Vocoder in listed order. choice 4.
0 - PCMU, 2 - G.726-32, 4 - G.723.1, 8 ­PCMA, 9 - G.722, 18 - G.729A/B.

P760

Account(2)->Codec->
Preferred Vocoder in
listed order

Number: 0,
2, 4, 8, 9, 18

Preferred Vocoder in listed order. choice 5.
0 - PCMU, 2 - G.726-32, 4 - G.723.1, 8 ­PCMA, 9 - G.722, 18 - G.729A/B.

P761

Account(2)->Codec->
Preferred Vocoder In
listed order

Number: 0,
2, 4, 8, 9, 18

Preferred Vocoder in listed order. choice 6.
0 - PCMU, 2 - G.726-32, 4 - G.723.1, 8 ­PCMA, 9 - G.722, 18 - G.729A/B.

P762

Account(2)->Codec->
Voice Frames Per TX

Number

up to 10/20/30/40/50/60 for G711/G726/G
723/other codecs respectively

P737
Account(2)->Codec->
G723 Rate

Number:0, 1

G723 Rate (0 - 6.3kbps encoding rate, 1 -

5.3kbps encoding rate)

P749

Account(2)->Codec->
iLBC mode

Number:0, 1

iLBC mode.0 - 20ms mode,1 - 30ms mode

P395

Parameter List

60

Account(2)->Codec->
iLBC Payload Type

Number: 96

to 127

iLBC Payload Type (from 96 to 127, default
is 97)

P391

Account(2)->Advanced­> DTMF Payload Type

Number:96-1
28

DTMF Payload Type，default is 97

P779

Account (2)-> Advanced

-> DTMF IN Audio

Number:0, 1

DTMF IN Audio.0 - no, 1 - yes

P860

Account (2)-> Advanced

-> DTMF Via RFC2833

Number:0, 1

DTMF Via RFC2833.0 - no, 1 - yes

P861

Account (2)-> Advanced

-> DTMF Via SIP INFO

Number:0, 1

DTMF Via SIP INFO.0 - no, 1 - yes

P862

Account (2)-> Advanced

-> Send Flash Event

Number:0, 1

Send Flash Event.0 - no, 1 - yes

P774

Account (2)-> Advanced

-> Enable Call Features

Number:0, 1

Enable Call Features.0 - no, 1 - yes

P751

Account (2)-> Advanced

-> Proxy Require

string

Proxy Require

P792

Account (2)-> Advanced

->

Use NAT IP

used in SIP/SDP message if specified

P866

Account (2)-> Advanced

-> SRTP Mode

Number 0-2

SRTP Mode 0 = Disabled, 1 = Enabled but
not forced, 2 = Enabled and forced

P443

Account (2)-> Advanced

-> VAD

Number:0, 1

VAD.0 - no, 1 - yes

P750

Account (2)-> Advanced

-> Symmetric RTP

Number:0, 1

Symmetric RTP.0 - no, 1 - yes

P460

Account (2)-> Advanced

->

Number:0, 1

Jitter Buffer Type.0 - fixed, 1 - adaptive

P831

Account (2)-> Advanced

-> Jitter Buffer Length

Number 0-2

Jitter Buffer Length.0 - low, 1 - medium, 2 ­high

P832

Account (2)-> Advanced

-> Account Ring Tone

Number
0,1,2,3,4,5,6,
7,8

Account Ring Tone (0 - default, 1 ­Ring1.bin, 2 - Ring2.bin, 3 - Ring3.bin, 4 ­Ring4.bin, 5 - Ring5.bin, 6 - Ring6.bin, 7 ­Ring7.bin, 8 - Ring8.bin)

P423

Account (2)-> Advanced

-> Ring Timeout

Number10 ­300

Ring Timeout (10-300 seconds, default is

60 seconds)

P816

Account (2)-> Advanced

-> Use # As Dial Key

Number: 0, 1

Use # As Dial Key.0 - no, 1 - yes

P772

Account (2)-> Advanced

-> Dial Plan

string

Dial plan (dial plan prefix string)

P4201

Account (2)-> Advanced

-> Subscribe for MWI

Number: 0, 1

Subscribe for MWI.0 - no, do not send
SUBSCRIBE for Message Waiting
Indication, 1 - yes, send periodical
SUBBSCRIBE for, Message Waiting
indication

P709

Account (2)-> Advanced

-> Send Anonymous

Number: 0, 1

Send Anonymous,0 – no,1 – yes

P421

Parameter List

61

Account (2)-> Advanced

-> Anonymous Call
Rejection

Number: 0, 1

Anonymous Call Rejection.0 - no, 1 - yes

P446
Account (2)-> Advanced

-> Check SIP User ID

Number: 0, 1

Check SIP User ID.0 - no, 1 - yes

P458

Account (2)-> Advanced

-> Auto Answer

Number: 0, 1

Auto Answer.0 - no, 1 - yes

P425

Account (2)-> Advanced

-> Allow Auto Answer by
Call-Info

Number: 0, 1

Allow Auto Answer By Call-Info.0 - no, 1 ­yes

P438

Account (2)-> Advanced

-> Turn off Speaker on
remote disconnect

Number: 0, 1

Turn off Speaker on remote disconnect.0 –
no, 1 – yes

P439
Account (2)-> Advanced

-> Session Expiration

Number

Session Expiration (default is 180
seconds)

P434

Account (2)-> Advanced

-> Min-SE

Number

Min-Session-Expiration (default and
minimum is 90 seconds)

P427

Account (2)-> Advanced

-> Caller Request Timer

Number

Caller Request Timer (Request for timer
when making outbound calls) 0 - No, 1 ­Yes

P428

Account (2)-> Advanced

->Callee Request Timer

Number: 0, 1

Callee Request Timer (when caller
supports timer but did not request one) 0 ­No, 1 - Yes

P429
Account (2)-> Advanced

-> Force Timer

Number: 0, 1

Force Timer (use timer even when remote
party does not support) 0 - No, 1 - Yes

P430

Account (2) -> Advanced

->UAC Specify
Refresher

Number: 0-2

UAC Specify Refresher. 1 - UAC, 2 - UAS,
0 - omit(Recommended)

P432

Account (2)-> Advanced

-> UAS Specify
Refresher

Number: 1, 2

UAS Specify Refresher. 1 - UAC, 2 - UAS
(When UAC did not)

P433
Account (2)-> Advanced

-> Force INVITE

Number: 0, 1

Force INVITE (Always refresh with INVITE
instead of UPDATE) 0 - No, 1 - Yes

P431

Account (2)-> Advanced

-> Hook Flash Timing->
Minimum

Number

Minimum Hook Flash Timing

P811

Account (2)-> Advanced

-> Hook Flash Timing->
Maximum

Number

Maximum Hook Flash Timing

P812
Account (2)-> Advanced

-> Special Feature

Number 100,
104, 106

100 - Standard, 104 - World Call, 106 ­NETHID

P767

Account (2)-> Advanced

-> Eventlist BLF URL

String

Eventlist BLF URL

P444

Account (2)-> Advanced

-> Share Line

Number: 0-2

Share Line. 0 - Disable, 1 - Broadsoft, 2 ­BLA

P8772

Parameter List

62

Account (2)-> Advanced

-> SIP Server Type

Number: 0, 1

SIP Server Type. 0 - Default, 1 - BroadSoft

P8792

Account (2)-> Advanced

-> 100 reliable
retransmissions

Number: 0, 1

100 reliable retransmissions. 0 - Disable, 1

- Enable

P8812
Account (2)-> Advanced

-> Early-Session

Number: 0, 1

Early-Session. 0 - Disable, 1 - Enable

P8842

Account (2)-> Advanced

-> Refuse-Return-Code

Number: 0-2

Refuse-Return-Code. 0 -BUSY-486, 1 ­NOT-FOUND-404, 2 - REFUSE-603

P8846

Account (2)->
Advanced->Direct Call
Pickup Code

string

Direct Call Pickup Code

P4715

Account (2)-> Advanced

->Group Call Pickup
Code

string

Group Call Pickup Code

P4716
Account (2)-> Advanced

-> Feature Key Sync

Number: 0, 1

Feature Key Sync. 0 - Disable, 1 - Enable

P8634

Account (2)-> Advanced

-> SIP Send Mac

Number: 0, 1

SIP Send Mac.0 - Disable,1 - Enable

P20054

Account(3)->basic->Acc
ount Active

Number: 0, 1

Account Active (In Use). 0 - No, 1 - Yes

P501

Account(3)->basic->Prim
ary SIP Sserver

PrimarySIP
Server(eg:sip
.mycompany.
comorIP
address)

It configures the primary SIP server when
the network is locallan 、remotestun or
SBC.

P502

Account(3)->basic->Fail
over SIP Server

String

Failover SIP Server(Optional, used when
primary server no response)

P988

Account(3)->basic->Sec
ond Failover SIP Server

String

Second Failover SipServer(Optional, used
when Failover SIP Server no response)

P8853

Account(3)->basic->Pref
er Primary SIP Sserver

Number: 0, 1

Prefer Primary SIP Server (In Use). 0 - No,
1 - Yes

P4569

Account(3)->basic->Out
bound Proxy

string

Outbound Proxy(proxy.myprovider.com, or
IP address, if any)

P503

Account(3)->basic->Bac
kup Outbound Proxy

string

Backup Outbound Proxy (This is Usually
Set as IP address)

P20049

Account(3)->basic->SIP
Transport

Number: 0-2

0 - UDP, 1 - TCP, 2 - TLS

P930

Account(3)->basic->NAT
Traversal

Number: 0-2

0 - No, 1 - STUN 2 - No, but send keep
alive

P514

Account(3)->basic->Lab
el

String

The name showing on the LCD of current
device

P20002
Account(3)->basic->SIP
User ID

string

the user part of an SIP address

P504

Parameter List

63

Account(3)->basic->Auth
enticate ID

String

can be identical to or different from SIP
User ID

P505

Account(3)->basic->
Authenticate Password

String

purposely not displayed for
securityprotection

P506

Account(3)->basic->Na
me

String

The Local phone name showing on the
other phone when calling

P507

Account(3)->basic->DN
S Mode

Number: 0-2

DNS Mode (0 - A Record, 1 - SRV, 2 ­NAPTR/SRV)

P508

Account(3)->basic->Use
r ID Is Phone Number

Number:0, 1

User ID Is Phone Number.0 - No, 1 - Yes

P509

Account(3)->basic->SIP
Registration

Number:0, 1

SIP Registration. 0 - No, 1 - Yes

P510

Account(3)->basic->
Unregister On Reboot

Number:0, 1

Unregister On Reboot.0 - No, 1 - Yes

P511

Account(3)->basic->
Register Expiration

number

Register Expiration (in minutes. default 1
hour, max 45 days)

P512

Account(3)->basic->Out

Number:0, 1

OutgoingCallWithout Registration.0 - No, 1

- Yes

P913

Account(3)->basic->
Local SIP Port

number

Local SIP Port (default 5060)

P513

Account(3)->basic-> Use
Random Port

Number:0, 1

Use Random Port.0 - No, 1 - Yes

P578

Account(3)->basic->
Voice Mail UserID

number

Voice Mail User ID(User ID for voice mail
system)

P526

Account(3)->basic->
RPort

Number:0, 1

Enable/Disable RPort.0 - No, 1 - Yes

P138

Account(3)->basic->
RFC 2543 Hold

Number:0, 1

RFC 2543 Hold.0 - No, 1 - Yes

P1102

Account(3)->Codec->
Preferred Vocoder in
listed order

Number: 0,
2, 4, 8, 9, 18

Preferred Vocoder in listed order. choice 1.
0 - PCMU, 2 - G.726-32, 4 - G.723.1, 8 ­PCMA, 9 - G.722, 18 - G.729A/B.

P551

Account(3)->Codec->
Preferred Vocoder in
listed order

Number: 0,
2, 4, 8, 9, 18

Preferred Vocoder in listed order. choice 2.
0 - PCMU, 2 - G.726-32, 4 - G.723.1, 8 ­PCMA, 9 - G.722, 18 - G.729A/B.

P552

Account(3)->Codec->
Preferred Vocoder in
listed order

Number: 0,
2, 4, 8, 9, 18

Preferred Vocoder in listed order. choice 3.
0 - PCMU, 2 - G.726-32, 4 - G.723.1, 8 ­PCMA, 9 - G.722, 18 - G.729A/B.

P553

Account(3)->Codec->
Preferred Vocoder in
listed order

Number: 0,
2, 4, 8, 9, 18

Preferred Vocoder in listed order. choice 4.
0 - PCMU, 2 - G.726-32, 4 - G.723.1, 8 ­PCMA, 9 - G.722, 18 - G.729A/B.

P554

Account(3)->Codec->
Preferred Vocoder in
listed order

Number: 0,
2, 4, 8, 9, 18

Preferred Vocoder in listed order. choice 5.
0 - PCMU, 2 - G.726-32, 4 - G.723.1, 8 ­PCMA, 9 - G.722, 18 - G.729A/B.

P555
Account(3)->Codec->
Preferred Vocoder in

Number: 0,
2, 4, 8, 9, 18

Preferred Vocoder in listed order. choice 6.
0 - PCMU, 2 - G.726-32, 4 - G.723.1, 8 -

P556

Parameter List

64

listed order

PCMA, 9 - G.722, 18 - G.729A/B.

Account(3)->Codec->
Voice Frames Per TX

Number

up to 10/20/30/40/50/60 for G711/G726/G
723/other codecs respectively

P737
Account(3)->Codec->
G723 Rate

Number:0, 1

G723 Rate (0 - 6.3kbps encoding rate, 1 -

5.3kbps encoding rate)

P559

Account(3)->Codec->
iLBC mode

Number:0, 1

iLBC mode.0 - 20ms mode,1 - 30ms mode

P396

Account(3)->Codec->
iLBC Payload Type

Number: 96

to 127

iLBC Payload Type (from 96 to 127, default
is 97)

P392

Account(3)->Advanced­> DTMF Payload Type

Number ：
96-127

DTMF Payload Type，default is 97

P579
Account (3)-> Advanced

-> DTMF IN Audio

Number:0, 1

DTMF IN Audio.0 - no, 1 - yes

P1650

Account (3)-> Advanced

-> DTMF Via RFC2833

Number:0, 1

DTMF Via RFC2833.0 - no, 1 - yes

P1651

Account (3)-> Advanced

-> DTMF Via SIP INFO

Number:0, 1

DTMF Via SIP INFO.0 - no, 1 - yes

P1652

Account (3)-> Advanced

-> Send Flash Event

Number:0, 1

Send Flash Event.0 - no, 1 - yes

Account (3)-> Advanced

-> Enable Call Features

Number:0, 1

Enable Call Features.0 - no, 1 - yes

P1891

Account (3)-> Advanced

-> Use NAT IP

String

Use NAT IP (use in SIP/SDP message if
specified)

P566

Account (3)-> Advanced

-> Proxy Require

string

Proxy Require

P518

Account (3)-> Advanced

-> SRTP Mode

Number 0-2

SRTP Mode 0 = Disabled, 1 = Enabled but
not forced, 2 = Enabled and forced

P543

Account (3)-> Advanced

-> VAD

Number:0, 1

VAD.0 - no, 1 - yes

P550

Account (3)-> Advanced

-> Symmetric RTP

Number:0, 1

Symmetric RTP.0 - no, 1 - yes

P591

Account (3)-> Advanced

->Jitter Buffer Type

Number:0, 1

Jitter Buffer Type.0 - fixed, 1 - adaptive

P1133

Account (3)-> Advanced

-> Jitter Buffer Length

Number 0-2

Jitter Buffer Length.0 - low, 1 - medium, 2 ­high

P1132

Account (3)-> Advanced

-> Account Ring Tone

Number
0,1,2,3,4,5,6,
7,8

Account Ring Tone (0 - default, 1 ­Ring1.bin, 2 - Ring2.bin, 3 - Ring3.bin, 4 ­Ring4.bin, 5 - Ring5.bin, 6 - Ring6.bin, 7 ­Ring7.bin, 8 - Ring8.bin)

P523

Account (3)-> Advanced

-> Ring Timeout

Number10 ­300

Ring Timeout (10-300 seconds, default is

60 seconds)

P1885

Parameter List

65

Account (3)-> Advanced

-> Use # As Dial Key

Number: 0, 1

Use # As Dial Key.0 - no, 1 - yes

P1672

Account (3)-> Advanced

-> Dial Plan

string

Dial plan (dial plan prefix string)

P4202

Account (3)-> Advanced

-> Subscribe for MWI

Number: 0, 1

Subscribe for MWI.0 - no,do not send
SUBSCRIBE for Message Waiting
Indication, 1 - yes,send periodical
SUBBSCRIBE for ,Message Waiting
indication

P515

Account (3)-> Advanced

-> Send Anonymous

Number: 0, 1

Send Anonymous,0 – no,1 – yes

P521

Account (3)-> Advanced

-> Anonymous Call
Rejection

Number: 0, 1

Anonymous Call Rejection.0 - no, 1 - yes

P1846
Account (3)-> Advanced

-> Check SIP User ID

Number: 0, 1

Check SIP User ID.0 - no, 1 - yes

P567

Account (3)-> Advanced

-> Auto Answer

Number: 0, 1

Auto Answer.0 - no, 1 - yes

P525

Account (3)-> Advanced

-> Allow Auto Answer by
Call-Info

Number: 0, 1

Allow Auto Answer by Call-Info.0 - no, 1 ­yes

P538

Account (3)-> Advanced

-> Turn off Speaker on
remote disconnect

Number: 0, 1

Turn off Speaker on remote disconnect.0 –
no, 1 – yes

P539
Account (3)-> Advanced

-> Session Expiration

Number

Session Expiration (default is 180
seconds)

P534

Account (3)-> Advanced

->Min-SE

Number

Min-Session-Expiration (default and
minimum is 90 seconds)

P527

Account (3)-> Advanced

-> Caller Request Timer

Number

Caller Request Timer (Request for timer
when making outbound calls) 0 - No, 1 ­Yes

P528

Account (3)-> Advanced

->Callee Request Timer

Number: 0, 1

Callee Request Timer (when caller
supports timer but did not request one) 0 ­No, 1 - Yes

P529
Account (3)-> Advanced

-> Force Timer

Number: 0, 1

Force Timer (use timer even when remote
party does not support) 0 - No, 1 - Yes

P530

Account (3) -> Advanced

->UAC Specify
Refresher

Number: 0-2

UAC Specify Refresher. 1 - UAC, 2 - UAS,
0 - omit(Recommended)

P532

Account (3)-> Advanced

-> UAS Specify
Refresher

Number: 1, 2

UAS Specify Refresher. 1 - UAC, 2 - UAS
(When UAC did not)

P533
Account (3)-> Advanced

-> Force INVITE

Number: 0, 1

Force INVITE (Always refresh with INVITE
instead of UPDATE) 0 - No, 1 - Yes

P531
Account (3)-> Advanced

Number

Minimum Hook Flash Timing

P1811

Parameter List

66

-> Hook Flash Timing->
Minimum

Account (3)-> Advanced

-> Hook Flash Timing->
Maximum

Number

Maximum Hook Flash Timing

P1812
Account (3)-> Advanced

-> Special Feature

Number 100,
104, 106

100 - Standard, 104 - World Call, 106 ­NETHID

P524

Account (3)-> Advanced

->

P544

Account (3)-> Advanced

-> Share Line

Number: 0-2

Share Line. 0 - Disable, 1 - Broadsoft, 2 ­BLA

P8773

Account (3)-> Advanced

-> SIP Server Type

Number: 0, 1

SIP Server Type. 0 - Default, 1 - BroadSoft

P8793

Account (3)-> Advanced

-> 100 reliable
retransmissions

Number: 0, 1

100 reliable retransmissions. 0 - Disable, 1

- Enable

P8813
Account (3)-> Advanced

-> Early-Session

Number: 0, 1

Early-Session. 0 - Disable, 1 - Enable

P8843

Account (3)-> Advanced

-> Refuse-Return-Code

Number: 0-2

Refuse-Return-Code. 0 -BUSY-486, 1 ­NOT-FOUND-404, 2 - REFUSE-603

P8847

Account (3)-> Advanced

->Direct Call Pickup
Code

string

Direct Call Pickup Code

P4725

Account (3)-> Advanced

->Group Call Pickup
Code

string

Group Call Pickup Code

P4726
Account (3)-> Advanced

-> Feature Key Sync

Number: 0, 1

Feature Key Sync. 0 - Disable, 1 - Enable

P8635

Account (3)-> Advanced

-> SIP Send Mac

Number: 0, 1

SIP Send Mac.0 - Disable,1 - Enable

P20055

Account(4)->basic->Acc
ount Active

Number: 0, 1

Account Active (In Use). 0 - No, 1 - Yes

P601

Account(4)->basic->Prim
ary SIP Sserver

PrimarySIP
Server(eg:sip
.mycompany.
comorIP
address)

It configures the primary SIP server when
the network is locallan 、remotestun or
SBC.

P602

Account(4)->basic->Fail
over SIP Server

String

Failover SIP Server (Optional, used when
primary server no response)

P989

Account(4)->basic->Sec
ond Failover SIP Server

String

Second Failover SipServer(Optional, used
when Failover SIP Server no response)

P8854

Account(4)->basic->Pref
er Primary SIP Sserver

Number: 0, 1

Prefer Primary SIP Server (In Use). 0 - No,
1 - Yes

P4570

Account(4)->basic->Out
bound Proxy

string

Outbound Proxy(proxy.myprovider.com, or
IP address, if any)

P603

Parameter List

67

Account(4)->basic->Bac
kup Outbound Proxy

string

Backup Outbound Proxy (This is Usually
Set as IP address)

P20050

Account(4)->basic->SIP
Transport

Number: 0-2

0 - UDP, 1 - TCP, 2 - TLS

P1030

Account(4)->basic->NAT
Traversal

Number: 0-2

0 - No, 1 - STUN 2 - No, but send keep
alive

P614

Account(4)->basic->Lab
el

String

The name showing on the LCD of current
device

P20002
Account(4)->basic->SIP
User ID

string

the user part of an SIP address

P604

Account(4)->basic->Auth
enticate ID

String

can be identical to or different from SIP
User ID

P605

Account(4)->basic->
Authenticate Password

String

purposely not displayed for security
protection

P606

Account(4)->basic->
Name

String

The Local phone name showing on the
other phone when calling

P607

Account(4)->basic->DN
S Mode

Number: 0-2

DNS Mode (0 - A Record, 1 - SRV, 2 ­NAPTR/SRV)

P608

Account(4)->basic->Use
r ID Is Phone Number

Number:0, 1

User ID Is Phone Number.0 - No, 1 - Yes

P609

Account(4)->basic->SIP
Registration

Number:0, 1

SIP Registration. 0 - No, 1 - Yes

P610

Account(4)->basic->
Unregister On Reboot

Number:0, 1

Unregister On Reboot.0 - No, 1 - Yes

P611

Account(4)->basic->
Register Expiration

number

Register Expiration (in minutes. default 1
hour, max 45 days)

P612

Account(4)->basic->Out

Number:0, 1

OutgoingCallWithout Registration.0 - No, 1

- Yes

P1013

Account(4)->basic->
Local SIP Port

number

Local SIP Port (default 5060)

P613

Account(4)->basic-> Use
Random Port

Number:0, 1

Use Random Port.0 - No, 1 - Yes

P678

Account(4)->basic->
Voice Mail UserID

number

Voice Mail User ID(User ID for voice mail
system)

P626

Account(4)->basic->
RPort

Number:0, 1

Enable/Disable RPort.0 - No, 1 - Yes

P139

Account(4)->basic->
RFC 2543 Hold

Number:0, 1

RFC 2543 Hold.0 - No, 1 - Yes

P1103

Account(4)->Codec->
Preferred Vocoder in
listed order

Number: 0,
2, 4, 8, 9, 18

Preferred Vocoder in listed order. choice 1.
0 - PCMU, 2 - G.726-32, 4 - G.723.1, 8 ­PCMA, 9 - G.722, 18 - G.729A/B.

P651

Account(4)->Codec->
Preferred Vocoder in
listed order

Number: 0,
2, 4, 8, 9, 18

Preferred Vocoder in listed order. choice 2.
0 - PCMU, 2 - G.726-32, 4 - G.723.1, 8 ­PCMA, 9 - G.722, 18 - G.729A/B.

P652

Parameter List

68

Account(4)->Codec->
Preferred Vocoder in
listed order

Number: 0,
2, 4, 8, 9, 18

Preferred Vocoder in listed order. choice 3.
0 - PCMU, 2 - G.726-32, 4 - G.723.1, 8 ­PCMA, 9 - G.722, 18 - G.729A/B.

P653

Account(4)->Codec->
Preferred Vocoder in
listed order

Number: 0,
2, 4, 8, 9, 18

Preferred Vocoder in listed order. choice 4.
0 - PCMU, 2 - G.726-32, 4 - G.723.1, 8 ­PCMA, 9 - G.722, 18 - G.729A/B.

P654

Account(4)->Codec->
Preferred Vocoder in
listed order

Number: 0,
2, 4, 8, 9, 18

Preferred Vocoder in listed order. choice 5.
0 - PCMU, 2 - G.726-32, 4 - G.723.1, 8 ­PCMA, 9 - G.722, 18 - G.729A/B.

P655

Account(4)->Codec->
Preferred Vocoder in
listed order

Number: 0,
2, 4, 8, 9, 18

Preferred Vocoder in listed order. choice 6.
0 - PCMU, 2 - G.726-32, 4 - G.723.1, 8 ­PCMA, 9 - G.722, 18 - G.729A/B.

P656

Account(4)->Codec->
Voice Frames Per TX

Number

up to 10/20/30/40/50/60 for G711/G726/G
723/other codecs respectively

P637
Account(4)->Codec->
G723 Rate

Number:0, 1

G723 Rate (0 - 6.3kbps encoding rate, 1 -

5.3kbps encoding rate)

P659

Account(4)->Codec->
iLBC mode

Number:0, 1

iLBC mode.0 - 20ms mode,1 - 30ms mode

P397

Account(4)->Codec->
iLBC Payload Type

Number: 96

to 127

iLBC Payload Type (from 96 to 127, default
is 97)

P393

Account(4)->Advanced­> DTMF Payload Type

number
DTMF Payload Type，default is 97

P679

Account (4)-> Advanced

-> DTMF IN Audio

Number:0, 1

DTMF IN Audio.0 - no, 1 - yes

P1660

Account (4)-> Advanced

-> DTMF Via RFC2833

Number:0, 1

DTMF Via RFC2833.0 - no, 1 - yes

P1661

Account (4)-> Advanced

-> DTMF Via SIP INFO

Number:0, 1

DTMF Via SIP INFO.0 - no, 1 - yes

P1662

Account (4)-> Advanced

-> Send Flash Event

Number:0, 1

Send Flash Event.0 - no, 1 - yes

Account (4)-> Advanced

-> Enable Call Features

Number:0, 1

Enable Call Features.0 - no, 1 - yes

Account (4)-> Advanced

->Proxy Require

string

Proxy Require

P618

Account (4)-> Advanced

-> Use NAT IP

String

Used in SIP/SDP message if specified

P866

Account (4)-> Advanced

-> SRTP Mode

Number 0-2

SRTP Mode 0 = Disabled, 1 = Enabled but
not forced, 2 = Enabled and forced

P643

Account (4)-> Advanced

-> VAD

Number:0, 1

VAD.0 - no, 1 - yes

P695

Account (4)-> Advanced

-> Symmetric RTP

Number:0, 1

Symmetric RTP.0 - no, 1 - yes

P691

Account (4)-> Advanced

->Jitter Buffer Type

Number:0, 1

Jitter Buffer Type.0 - fixed, 1 - adaptive

P1233

Parameter List

69

Account (4)-> Advanced

-> Jitter Buffer Length

Number 0-2

Jitter Buffer Length.0 - low, 1 - medium, 2 ­high

P1232

Account (4)-> Advanced

-> Account Ring Tone

Number
0,1,2,3,4,5,6,
7,8

Account Ring Tone (0 - default, 1 ­Ring1.bin, 2 - Ring2.bin, 3 - Ring3.bin, 4 ­Ring4.bin, 5 - Ring5.bin, 6 - Ring6.bin, 7 ­Ring7.bin, 8 - Ring8.bin)

P623

Account (4)-> Advanced

-> Ring Timeout

Number10 ­300

Ring Timeout (10-300 seconds , default is

60 seconds)

P1886

Account (4)-> Advanced

-> Use # As Dial Key

Number: 0, 1

Use # As Dial Key.0 - no, 1 - yes

P1772

Account (4)-> Advanced

-> Dial Plan

string

Dial plan (dial plan prefix string)

P4203

Account (4)-> Advanced

-> Subscribe for MWI

Number: 0, 1

Subscribe for MWI.0 - no, do not send
SUBSCRIBE for Message Waiting
Indication, 1 - yes, send periodical
SUBBSCRIBE for, Message Waiting
indication

P615

Account (4)-> Advanced

-> Send Anonymous

Number: 0, 1

Send Anonymous,0 – no,1 – yes

P621

Account (4)-> Advanced

-> Anonymous Call
Rejection

Number: 0, 1

Anonymous Call Rejection.0 - no, 1 - yes

P1946
Account (4)-> Advanced

-> Check SIP User ID

Number: 0, 1

Check SIP User ID.0 - no, 1 - yes

P667

Account (4)-> Advanced

-> Auto Answer

Number: 0, 1

Auto Answer.0 - no, 1 - yes

P625

Account (4)-> Advanced

-> Allow Auto Answer by
Call-Info

Number: 0, 1

Allow Auto Answer By Call-Info.0 - no, 1 ­yes

P638

Account (4)-> Advanced

-> Turn off Speaker on
remote disconnect

Number: 0, 1

Turn off Speaker on remote disconnect.0 –
no, 1 – yes

P639
Account (4)-> Advanced

-> Session Expiration

Number

Session Expiration (default is 180
seconds)

P634

Account (4)-> Advanced

-> Min-SE

Number

Min-Session-Expiration (default and
minimum is 90 seconds)

P627

Account (4)-> Advanced

-> Caller Request Timer

Number

Caller Request Timer (Request for timer
when making outbound calls) 0 - No, 1 ­Yes

P628

Account (4)-> Advanced

->Callee Request Timer

Number: 0, 1

Callee Request Timer (when caller
supports timer but did not request one) 0 ­No, 1 - Yes

P629
Account (4)-> Advanced

-> Force Timer

Number: 0, 1

Force Timer (use timer even when remote
party does not support) 0 - No, 1 - Yes

P630
Account (4) -> Advanced

Number: 0-2

UAC Specify Refresher. 1 - UAC, 2 - UAS,

P632

Parameter List

70

->UAC Specify
Refresher

0 - omit(Recommended)

Account (4)-> Advanced

-> UAS Specify
Refresher

Number: 1, 2

UAS Specify Refresher. 1 - UAC, 2 - UAS
(When UAC did not)

P633
Account (4)-> Advanced

-> Force INVITE

Number: 0, 1

Force INVITE (Always refresh with INVITE
instead of UPDATE) 0 - No, 1 - Yes

P631

Account (4)-> Advanced

-> Hook Flash Timing->
Minimum

Number

Minimum Hook Flash Timing

P1911

Account (4)-> Advanced

-> Hook Flash Timing->
Maximum

Number

Maximum Hook Flash Timing

P1912
Account (4)-> Advanced

-> Special Feature

Number 100,
104, 106

100 - Standard, 104 - World Call, 106 ­NETHID

P624

Account (4)-> Advanced

->Eventlist BLF URL

String

Eventlist BLF URL

P644

Account (4)-> Advanced

-> Share Line

Number: 0-2

Share Line. 0 - Disable, 1 - Broadsoft, 2 ­BLA

P8774

Account (4)-> Advanced

-> SIP Server Type

Number: 0, 1

SIP Server Type. 0 - Default, 1 - BroadSoft

P8794

Account (4)-> Advanced

-> 100 reliable
retransmissions

Number: 0, 1

100 reliable retransmissions. 0 - Disable, 1

- Enable

P8814
Account (4)-> Advanced

-> Early-Session

Number: 0, 1

Early-Session. 0 - Disable, 1 - Enable

P8844

Account (4)-> Advanced

-> Refuse-Return-Code

Number: 0-2

Refuse-Return-Code. 0 -BUSY-486, 1 ­NOT-FOUND-404, 2 - REFUSE-603

P8848

Account (4)-> Advanced

->Direct Call Pickup
Code

string

Direct Call Pickup Code

P4735

Account (4)-> Advanced

->Group Call Pickup
Code

string

Group Call Pickup Code

P4736
Account (4)-> Advanced

-> Feature Key Sync

Number: 0, 1

Feature Key Sync. 0 - Disable, 1 - Enable

P8656

Account (4)-> Advanced

-> SIP Send Mac

Number: 0, 1

SIP Send Mac.0 - Disable,1 - Enable

P20056

Account(5)->basic->Acc
ount Active

Number: 0, 1

Account Active (In Use). 0 - No, 1 - Yes

P20360

Account(5)->basic->Prim
ary SIP Sserver

PrimarySIP
Server(eg:sip
.mycompany.
comorIP
address)

It configures the primary SIP server when
the network is locallan 、remotestun or
SBC.

P20362

Parameter List

71

Account(5)->basic->Fail
over SIP Server

String

Failover SIP Server (Optional, used when
primary server no response)

P20364

Account(5)->basic->Sec
ond Failover SIP Server

String

Second Failover SipServer(Optional, used
when Failover SIP Server no response)

P20366

Account(5)->basic->Pref
er Primary SIP Sserver

Number: 0, 1

Prefer Primary SIP Server (In Use). 0 - No,
1 - Yes

P20368

Account(5)->basic->Out
bound Proxy

string

Outbound Proxy(proxy.myprovider.com, or
IP address, if any)

P20370

Account(5)->basic->Bac
kup Outbound Proxy

Sting

Backup Outbound Proxy (This is Usually
Set as IP address)

P20372

Account(5)->basic->SIP
Transport

Number: 0-2

0 - UDP, 1 - TCP, 2 - TLS

P20374

Account(5)->basic->NAT
Traversal

Number: 0-2

0 - No, 1 - STUN 2 - No, but send keep
alive

P20376

Account(5)->basic->Lab
el

string

Label

P20378

Account(5)->basic->SIP
User ID

string

Displayname.line.1

P1704

Account(5)->basic->Auth
enticate ID

String

Authenticate ID

P1705

Account(5)->basic->
Authenticate Password

String

Authenticate Password

P1706

Account(5)->basic->
Name

String

Name

P1707

Account(5)->basic->DN
S Mode

Number: 0-2

DNS Mode (0 - A Record, 1 - SRV, 2 ­NAPTR/SRV)

P20380

Account(5)->basic->Use
r ID Is Phone Number

Number:0, 1

User ID Is Phone Number.0 - No, 1 – Yes.
If you enable this option. The SIP message

send by IPphone will contain “user =

phone”.

P20382

Account(5)->basic->SIP
Registration

Number:0, 1

SIP Registration. 0 - No, 1 - Yes

P20384

Account(5)->basic->
Unregister On Reboot

Number:0, 1

Unregister On Reboot.0 - No, 1 - Yes

P20386

Account(5)->basic->
Register Expiration

number

Register Expiration (in minutes. default 1
hour, max 45 days)

P20388

Account(5)->basic->Out
OutgoingCallWithout
Registration

Number:0, 1

OutgoingCallWithout Registration.0 - No, 1

- Yes

P1113
Account(5)->basic->
Local SIP Port

number

Local SIP Port (default 5060)

P1713

Account(5)->basic-> Use
Random Port

Number:0, 1

Use Random Port.0 - No, 1 - Yes

P20390

Account(5)->basic->
Voice Mail UserID

number

Voice Mail User ID (User ID for voice mail
system)

P1726

Parameter List

72

Account(5)->basic->
RPort

Number:0, 1

RPort.0 - No, 1 - Yes

P140

Account(5)->basic->
RFC 2543 Hold

Number:0, 1

RFC 2543 Hold.0 - No, 1 - Yes

P1104

Account(5)->Codec->
Preferred Vocoder in
listed order

Number: 0,
2, 4, 8, 9, 18

Preferred Vocoder in listed order. choice 1.
0 - PCMU, 2 - G.726-32, 4 - G.723.1, 8 ­PCMA, 9 - G.722, 18 - G.729A/B.

P20392

Account(5)->Codec->
Preferred Vocoder in
listed order

Number: 0,
2, 4, 8, 9, 18

Preferred Vocoder in listed order. choice 2.
0 - PCMU, 2 - G.726-32, 4 - G.723.1, 8 ­PCMA, 9 - G.722, 18 - G.729A/B.

P20394

Account(5)->Codec->
Preferred Vocoder in
listed order

Number: 0,
2, 4, 8, 9, 18

Preferred Vocoder in listed order. choice 3.
0 - PCMU, 2 - G.726-32, 4 - G.723.1, 8 ­PCMA, 9 - G.722, 18 - G.729A/B.

P20396

Account(5)->Codec->
Preferred Vocoder in
listed order

Number: 0,
2, 4, 8, 9, 18

Preferred Vocoder in listed order. choice 4.
0 - PCMU, 2 - G.726-32, 4 - G.723.1, 8 ­PCMA, 9 - G.722, 18 - G.729A/B.

P20398

Account(5)->Codec->
Preferred Vocoder in
listed order

Number: 0,
2, 4, 8, 9, 18

Preferred Vocoder in listed order. choice 5.
0 - PCMU, 2 - G.726-32, 4 - G.723.1, 8 ­PCMA, 9 - G.722, 18 - G.729A/B.

P20400

Account(5)->Codec->
Preferred Vocoder in
listed order

Number: 0,
2, 4, 8, 9, 18

Preferred Vocoder in listed order. choice 6.
0 - PCMU, 2 - G.726-32, 4 - G.723.1, 8 ­PCMA, 9 - G.722, 18 - G.729A/B.

P20402

Account(5)->Codec->
Voice Frames Per TX

Number

up to 10/20/30/40/50/60 for G711/G726/G
723/other codecs respectively

P20408
Account(5)->Codec->
G723 Rate

Number:0, 1

G723 Rate (0 - 6.3kbps encoding rate, 1 -

5.3kbps encoding rate)

P20410

Account(5)->Codec->
iLBC mode

Number:0,1

iLBC mode.0 - 20ms mode,1 - 30ms mode

P20412

Account(5)->Codec->
iLBC Payload Type

Number:96
to 127

iLBC Payload Type (from 96 to 127, default
is 97)

P20414

Account(5)->Advanced­> DTMF Payload Type

Number ：
96-127

DTMF Payload Type，default is 97

P20416
Account (5)-> Advanced

-> DTMF IN Audio

Number:0, 1

DTMF IN Audio.0 - no, 1 - yes

P20418

Account-> Advanced ->
DTMF Via RFC2833

Number:0, 1

DTMF Via RFC2833.0 - no, 1 - yes

P20420

Account (5)-> Advanced

-> DTMF Via SIP INFO

Number:0, 1

DTMF Via SIP INFO.0 - no, 1 - yes

P20422

Account (5)-> Advanced

-> Send Flash Event

Number:0, 1

Send Flash Event.0 - no, 1 - yes

P20424

Account (5)-> Advanced

-> Enable Call Features

Number:0, 1

Enable Call Features.0 - no, 1 - yes

P20426
Account (5)-> Advanced

string

P20428

Parameter List

73

-> Proxy Require

Account (5)-> Advanced

->Use NAT IP

String

Used in SIP/SDP message if specified

P20430

Account (5)-> Advanced

-> SRTP Mode

Number 0-2

SRTP Mode 0 = Disabled, 1 = Enabled but
not forced, 2 = Enabled and forced

P20432

Account (5)-> Advanced

-> VAD

Number:0, 1

VAD.0 - no, 1 – yes. If you enable this
option. When on a call, if the phones find
that you are not speaking, it will send CNG
packet but not voice packet.

P20434

Account (5)-> Advanced

-> Symmetric RTP

Number:0, 1

Symmetric RTP.0 - no, 1 - yes

P20436

Account (5)-> Advanced

-> Jitter Buffer Type

Number:0, 1

Jitter Buffer Type.0 - fixed, 1 - adaptive

P20438

Account (5)-> Advanced

-> Jitter Buffer Length

Number 0-2

Jitter Buffer Length.0 - low, 1 - medium, 2 ­high

P20440

Account (5)-> Advanced

-> Account Ring Tone

Number
0,1,2,3,4,5,6,
7,8

Account Ring Tone (0 - default, 1 ­Ring1.bin, 2 - Ring2.bin, 3 - Ring3.bin, 4 ­Ring4.bin, 5 - Ring5.bin, 6 - Ring6.bin, 7 ­Ring7.bin, 8 - Ring8.bin)

P1723

Account (5)-> Advanced

-> Ring Timeout

Number10 ­300

Ring Timeout (10-300 seconds, default is

60 seconds)

P20442

Account (5)-> Advanced

-> Use # As Dial Key

Number: 0, 1

Use # As Dial Key.0 - no, 1 - yes

P20444

Account (5)-> Advanced

-> Dial Plan

string

Dial plan (dial plan prefix string)

P4204/420
5

Account (5)-> Advanced

-> Subscribe for MWI

Number: 0, 1

Subscribe for MWI.0 - no,do not send
SUBSCRIBE for Message Waiting
Indication, 1 - yes,send periodical
SUBBSCRIBE for ,Message Waiting
indication

P1715/181
5

Account (5)-> Advanced

-> Send Anonymous

Number: 0, 1

Send Anonymous,0 – no,1 – yes

P1721/182
1

Account (5)-> Advanced

-> Anonymous Call
Rejection

Number: 0, 1

Anonymous Call Rejection.0 - no, 1 - yes

P20446
Account (5)-> Advanced

-> Check SIP User ID

Number: 0, 1

Check SIP User ID.0 - no, 1 - yes

P1767

Account (5)-> Advanced

-> Auto Answer

Number: 0, 1

Auto Answer.0 - no, 1 - yes

P1725

Account (5)-> Advanced

-> Allow Auto Answer by
Call-Info

Number: 0, 1

Allow Auto Answer by Call-Info.0 - no, 1 ­yes

P1738

Account (5)-> Advanced

-> Turn off Speaker on
remote disconnect

Number: 0, 1

Turn off Speaker on remote disconnect.0 ­no, 1 - yes

P1739

Parameter List

74

Account (5)-> Advanced

->Session Expiration

Number

Session Expiration (default is 180
seconds)

P1734

Account (5)-> Advanced

-> Min-SE

Number

Min-Session-Expiration (default and
minimum is 90 seconds)

P1727

Account (5)-> Advanced

-> Caller Request Timer

Number

Caller Request Timer (Request for timer
when making outbound calls) 0 - No, 1 ­Yes

P1728

Account (5)-> Advanced

->Callee Request Timer

Number: 0, 1

Callee Request Timer (when caller
supports timer but did not request one) 0 ­No, 1 - Yes

P1729
Account (5)-> Advanced

-> Force Timer

Number: 0, 1

Force Timer (use timer even when remote
party does not support) 0 - No, 1 - Yes

P1730

Account (5)-> Advanced

->UAC Specify
Refresher

Number: 0-2

UAC Specify Refresher. 1 - UAC, 2 - UAS,
0 - omit(Recommended)

P1732

Account (5)-> Advanced

-> UAS Specify
Refresher

Number: 1, 2

UAS Specify Refresher. 1 - UAC, 2 - UAS
(When UAC did not)

P1733
Account (5)-> Advanced

-> Force INVITE

Number: 0, 1

Force INVITE (Always refresh with INVITE
instead of UPDATE) 0 - No, 1 - Yes

P1731

Account (5)-> Advanced

-> Hook Flash Timing->
Minimum

Number

Minimum Hook Flash Timing

P20448

Account (5)-> Advanced

-> Hook Flash
Timing->Maximum

Number

MaximumHook Flash Timing

P20450
Account (5)-> Advanced

-> Special Feature

Number 100,
104, 106

100 - Standard, 104 - World Call, 106 ­NETHID

P20452

Account (5)-> Advanced

-> Share Line

Number: 0-2

Share Line. 0 - Disable, 1 - Broadsoft, 2 ­BLA

P20454

Account (5)-> Advanced

-> SIP Server Type

Number: 0, 1

SIP Server Type. 0 - Default, 1 - BroadSoft

P20456

Account (5)-> Advanced

-> 100 reliable
retransmissions

Number: 0, 1

100 reliable retransmissions. 0 - Disable, 1

- Enable

P20458
Account (5)->Advanced

-> Early-Session

Number: 0, 1

Early-Session. 0 - Disable, 1 - Enable

P20460

Account (5)-> Advanced

-> Refuse-Return-Code

Number: 0-2

Refuse-Return-Code. 0 -BUSY-486, 1 ­NOT-FOUND-404, 2 - REFUSE-603

P20462

Account (5)-> Advanced

->Direct Call Pickup
Code

string

Direct Call Pickup Codexxxxxx

P20464

Account (5)-> Advanced

->Group Call Pickup
Code

string

Group Call Pickup Codexxxxxx

P20466

Parameter List

75

Account (5)-> Advanced

-> Feature Key Sync

Number: 0, 1

Feature Key Sync. 0 - Disable, 1 – Enable.
It defines whether to enable Broad soft,
DND&FWD synchronization or not.0
stands for Disabled, 1 stands for Enabled.

P20468

Account (5)-> Advanced

-> SIP Send Mac

Number: 0, 1

SIP Send Mac.0 - Disable,1 – Enable. If
you enable this option. When the phone
sends INVITE message which carry MAC
head. And MAC address of the phone is in
the MAC head.

P20474

Account(6)->basic->Acc
ount Active

Number: 0, 1

Account Active (In Use). 0 - No, 1 - Yes

P20361

Account(6)->basic->Prim
ary SIP Sserver

PrimarySIP
Server(eg:sip
.mycompany.
comorIP
address)

It configures the primary SIP server when
the network is locallan 、remotestun or
SBC.

P20363

Account(6)->basic->Fail
over SIP Server

String

Failover SIP Server (Optional, used when
primary server no response)

P20365

Account(6)->basic->Sec
ond Failover SIP Server

String

Second Failover Sip Server(Optional, used
when Failover SIP Server no response)

P20367

Account(6)->basic->Pref
er Primary SIP Sserver

Number: 0, 1

Prefer Primary SIP Server (In Use). 0 - No,
1 - Yes

P20369

Account(6)->basic->Out
bound Proxy

string

Outbound Proxy(proxy.myprovider.com, or
IP address, if any)

P20371

Account(6)->basic->Bac
kup Outbound Proxy

Sting

Backup Outbound Proxy (This is Usually
Set as IP address)

P20373

Account(6)->basic->SIP
Transport

Number: 0-2

0 - UDP, 1 - TCP, 2 - TLS

P20375

Account(6)->basic->NAT
Traversal

Number: 0-2

0 - No, 1 - STUN 2 - No, but send keep
alive

P20377

Account(6)->basic->Lab
el

string

Label

P20379

Account(6)->basic->SIP
User ID

string

Displayname.line.1

P1804

Account(6)->basic->Auth
enticate ID

String

Authenticate ID

P1805

Account(6)->basic->
Authenticate Password

String

Authenticate Password

P1806

Account(6)->basic->
Name

String

Name

P1807

Account(6)->basic->DN
S Mode

Number: 0-2

DNS Mode (0 - A Record, 1 - SRV, 2 ­NAPTR/SRV)

P20381

Account(6)->basic->Use
r ID Is Phone Number

Number:0, 1

User ID Is Phone Number.0 - No, 1 – Yes.
If you enable this option. The SIP message

P20383

Parameter List

76

send by IPphone will contain “user =

phone”.

Account(6)->basic->SIP
Registration

Number:0, 1

SIP Registration. 0 - No, 1 - Yes

P20385

Account(6)->basic->
Unregister On Reboot

Number:0, 1

Unregister On Reboot.0 - No, 1 - Yes

P20387

Account(6)->basic->
Register Expiration

number

Register Expiration (in minutes. default 1
hour, max 45 days)

P20389

Account(6)->basic->Out
OutgoingCallWithout
Registration

Number:0, 1

OutgoingCallWithout Registration.0 - No, 1

- Yes

P1213
Account(6)->basic->
Local SIP Port

number

Local SIP Port (default 5060)

P1813

Account(6)->basic->Use
Random Port

Number:0, 1

Use Random Port.0 - No, 1 - Yes

P20391

Account(6)->basic->
Voice Mail UserID

number

Voice Mail User ID(User ID for voice mail
system)

P1826

Account(6)->basic->
RPort

Number:0, 1

RPort.0 - No, 1 - Yes

P141

Account(6)->basic->
RFC 2543 Hold

Number:0, 1

RFC 2543 Hold.0 - No, 1 - Yes

P1105

Account(6)->Codec->
Preferred Vocoder in
listed order

Number: 0,
2, 4, 8, 9, 18

Preferred Vocoder in listed order. choice 1.
0 - PCMU, 2 - G.726-32, 4 - G.723.1, 8 ­PCMA, 9 - G.722, 18 - G.729A/B.

P20393

Account(6)->Codec->
Preferred Vocoder in
listed order

Number: 0,
2, 4, 8, 9, 18

Preferred Vocoder in listed order. choice 2.
0 - PCMU, 2 - G.726-32, 4 - G.723.1, 8 ­PCMA, 9 - G.722, 18 - G.729A/B.

P20395

Account(6)->Codec->
Preferred Vocoder in
listed order

Number: 0,
2, 4, 8, 9, 18

Preferred Vocoder in listed order. choice 3.
0 - PCMU, 2 - G.726-32, 4 - G.723.1, 8 ­PCMA, 9 - G.722, 18 - G.729A/B.

P20397

Account(6)->Codec->
Preferred Vocoder in
listed order

Number: 0,
2, 4, 8, 9, 18

Preferred Vocoder in listed order. choice 4.
0 - PCMU, 2 - G.726-32, 4 - G.723.1, 8 ­PCMA, 9 - G.722, 18 - G.729A/B.

P20399

Account(6)->Codec->
Preferred Vocoder in
listed order

Number: 0,
2, 4, 8, 9, 18

Preferred Vocoder in listed order. choice 5.
0 - PCMU, 2 - G.726-32, 4 - G.723.1, 8 ­PCMA, 9 - G.722, 18 - G.729A/B.

P20401

Account(6)->Codec->
Preferred Vocoder in
listed order

Number: 0,
2, 4, 8, 9, 18

Preferred Vocoder in listed order. choice 6.
0 - PCMU, 2 - G.726-32, 4 - G.723.1, 8 ­PCMA, 9 - G.722, 18 - G.729A/B.

P20403

Account(6)->Codec->
Voice Frames Per TX

Number

up to 10/20/30/40/50/60 for G711/G726/G
723/other codecs respectively

P20409
Account(6)->Codec->
G723 Rate

Number:0, 1

G723 Rate (0 - 6.3kbps encoding rate, 1 -

5.3kbps encoding rate)

P20411
Account(6)->Codec->

Number:0,1

iLBC mode.0 - 20ms mode,1 - 30ms mode

P20413

Parameter List

77

iLBC mode

Account(6)->Codec->
iLBC Payload Type

Number:96
to 127

iLBC Payload Type (from 96 to 127, default
is 97)

P20415

Account(6)->Advanced­> DTMF Payload Type

Number ：
96-127

DTMF Payload Type，default is 97

P20417
Account (6)-> Advanced

-> DTMF IN Audio

Number:0, 1

DTMF IN Audio.0 - no, 1 - yes

P20419

Account-> Advanced ->
DTMF Via RFC2833

Number:0, 1

DTMF Via RFC2833.0 - no, 1 - yes

P20421

Account (6)-> Advanced

->DTMF Via SIP INFO

Number:0, 1

DTMF Via SIP INFO.0 - no, 1 - yes

P20423

Account (6)-> Advanced

-> Send Flash Event

Number:0, 1

Send Flash Event.0 - no, 1 - yes

P20425

Account (6)-> Advanced

-> Enable Call Features

Number:0, 1

Enable Call Features.0 - no, 1 - yes

P20427

Account (6)-> Advanced

-> Proxy Require

string

P20429

Account (6)-> Advanced

->Use NAT IP

String

Used in SIP/SDP message if specified

P20431

Account (6)-> Advanced

-> SRTP Mode

Number 0-2

SRTP Mode 0 = Disabled, 1 = Enabled but
not forced, 2 = Enabled and forced

P20433

Account (6)-> Advanced

-> VAD

Number:0, 1

VAD.0 - no, 1 – yes. If you enable this
option. When on a call, if the phones find
that you are not speaking, it will send CNG
packet but not voice packet.

P20435

Account (6)-> Advanced

-> Symmetric RTP

Number:0, 1

Symmetric RTP.0 - no, 1 - yes

P20437

Account (6)-> Advanced

-> Jitter Buffer Type

Number:0, 1

Jitter Buffer Type.0 - fixed, 1 - adaptive

P20439

Account (6)-> Advanced

-> Jitter Buffer Length

Number 0-2

Jitter Buffer Length.0 - low, 1 - medium, 2 ­high

P20441

Account (6)-> Advanced

-> Account Ring Tone

Number
0,1,2,3,4,5,6,
7,8

Account Ring Tone (0 - default, 1 ­Ring1.bin, 2 - Ring2.bin, 3 - Ring3.bin, 4 ­Ring4.bin, 5 - Ring5.bin, 6 - Ring6.bin, 7 ­Ring7.bin, 8 - Ring8.bin)

P1723

Account (6)-> Advanced

-> Ring Timeout

Number10 ­300

Ring Timeout (10-300 seconds , default is

60 seconds)

P20443

Account (6)-> Advanced

-> Use # As Dial Key

Number: 0, 1

Use # As Dial Key.0 - no, 1 - yes

P20445

Account (6)-> Advanced

-> Dial Plan

string

Dial plan (dial plan prefix string)

P4205

Account (6)-> Advanced

-> Subscribe for MWI

Number: 0, 1

Subscribe for MWI.0 - no, do not send
SUBSCRIBE for Message Waiting
Indication, 1 - yes, send periodical

P1815

Parameter List

78

SUBBSCRIBE for ,Message Waiting
indication

Account (6)-> Advanced

-> Send Anonymous

Number: 0, 1

Send Anonymous,0 – no,1 – yes

P1821

Account (6)-> Advanced

-> Anonymous Call
Rejection

Number: 0, 1

Anonymous Call Rejection.0 - no, 1 - yes

P20447
Account (6)-> Advanced

-> Check SIP User ID

Number: 0, 1

Check SIP User ID.0 - no, 1 - yes

P1867

Account (6)-> Advanced

-> Auto Answer

Number: 0, 1

Auto Answer.0 - no, 1 - yes

P1825

Account (6)-> Advanced

-> Allow Auto Answer by
Call-Info

Number: 0, 1

Allow Auto Answer by Call-Info.0 - no, 1 ­yes

P1838

Account (6)-> Advanced

-> Turn off Speaker on
remote disconnect

Number: 0, 1

Turn off Speaker on remote disconnect.0 ­no, 1 - yes

P1839
Account (6)-> Advanced

->Session Expiration

Number

Session Expiration (default is 180
seconds)

P1834

Account (6)-> Advanced

-> Min-SE

Number

Min-Session-Expiration (default and
minimum is 90 seconds)

P1827

Account (6)-> Advanced

-> Caller Request Timer

Number

Caller Request Timer (Request for timer
when making outbound calls) 0 - No, 1 ­Yes

P1828

Account (6)-> Advanced

->Callee Request Timer

Number: 0, 1

Callee Request Timer (when caller
supports timer but did not request one) 0 ­No, 1 - Yes

P1829
Account (6)-> Advanced

-> Force Timer

Number: 0, 1

Force Timer (use timer even when remote
party does not support) 0 - No, 1 - Yes

P1830

Account (6)-> Advanced

->UAC Specify
Refresher

Number: 0-2

UAC Specify Refresher. 1 - UAC, 2 - UAS,
0 - omit(Recommended)

P1832

Account (6)-> Advanced

-> UAS Specify
Refresher

Number: 1, 2

UAS Specify Refresher. 1 - UAC, 2 - UAS
(When UAC did not)

P1833
Account (6)-> Advanced

-> Force INVITE

Number: 0, 1

Force INVITE (Always refresh with INVITE
instead of UPDATE) 0 - No, 1 - Yes

P1831

Account (6)-> Advanced

-> Hook Flash Timing->
Minimum

Number

Minimum Hook Flash Timing

P20449

Account (6)-> Advanced

-> Hook Flash Timing->
Maximum

Number

Maximum Hook Flash Timing

P20451
Account (6)-> Advanced

-> Special Feature

Number 100,
104, 106

100 - Standard, 104 - World Call, 106 ­NETHID

P20453

Parameter List

79

Account (6)-> Advanced

-> Share Line

Number: 0-2

Share Line. 0 - Disable, 1 - Broadsoft, 2 ­BLA

P20455

Account (6)-> Advanced

-> SIP Server Type

Number: 0, 1

SIP Server Type. 0 - Default, 1 - BroadSoft

P20457

Account (6)-> Advanced

-> 100 reliable
retransmissions

Number: 0, 1

100 reliable retransmissions. 0 - Disable, 1

- Enable

P20459
Account (6)->Advanced

-> Early-Session

Number: 0, 1

Early-Session. 0 - Disable, 1 - Enable

P20461

Account (6)-> Advanced

-> Refuse-Return-Code

Number: 0-2

Refuse-Return-Code. 0 -BUSY-486, 1 ­NOT-FOUND-404, 2 - REFUSE-603

P20463

Account (6)-> Advanced

->Direct Call Pickup
Code

string

Direct Call Pickup Codexxxxxx

P20465

Account (6)-> Advanced

->Group Call Pickup
Code

string

Group Call Pickup Codexxxxxx

P20467

Account (6)-> Advanced

-> Feature Key Sync

Number: 0, 1

Feature Key Sync. 0 - Disable, 1 – Enable.
It defines whether to enable Broad soft,
DND&FWD synchronization or not.0
stands for Disabled, 1 stands for Enabled.

P20469

Account (6)-> Advanced

-> SIP Send Mac

Number: 0, 1

SIP Send Mac.0 - Disable,1 – Enable. If
you enable this option. When the phone
sends INVITE message which carry MAC
head. And MAC address of the phone is in
the MAC head.

P20475

Network->Basic->
WAN->DHCP/Static IP
Address/PPPoE

Number: 0-2

WAN. 0 - DHCP, 1 - Static IP Address, 2 ­PPPoE

P8

Network->Basic->
WAN->DHCP->DHCP
HostName

String

DHCP HostName, DHCP option 12. Max
length allowed is 64 characters. Default
value is 0.

P146
Network->Basic->WAN­>DHCP ->DHCP Domin

String

DHCP Domin
P147

Network->Basic->WAN­>DHCP -> DHCP Vendor
Class ID

String

DHCP Vendor Class ID, DHCP option 60.
Max length allowed is 64 characters.

P148

Network->Basic->WAN­>DHCP -> DHCP User
Class

String

DHCP 43 vendor specific information

P149

Network->Basic->WAN­>Static IP Address->IP
Address

Number

IP address

P9/P10/P1
1/P12
Network->Basic->WAN-

Number

Subnet Mask

P13/P14/P

Parameter List

80

>Static IP Address->
Subnet Mask

15/P16

Network->Basic->WAN­>Static IP Address->
Default Gateway

Number

Default Gateway

P17/P18/P
19/P20

Network->Basic->WAN­>Static IP Address->
Primary DNS

Number

Primary DNS

P21/P22/P
23/P24

Network->Basic->WAN­>Static IP Address->
Secondary DNS

Number

Secondary DNS

P25/P26/P
27/P28

Network->Basic->WAN­>PPPoE-> PPPoE
account ID

String

PPPoE account ID

P82

Network->Basic->WAN­>PPPoE-> PPPoE
password

String

PPPoE password

P83

Network->Basic->WAN­>PPPoE-> PPPoE
Service Name

String

PPPoE Service Name

P269

Network->Basic->WAN­>PPPoE->Preferred
DNS Server

Number

Preferred DNS Server

P92/P93/P
94/P95

Network->Basic->WAN­>PPPoE-> Reply to
ICMP

Number:0 ,1

Reply toICMP (0 - no, 1 – yes)

P189

Network->Basic->WAN­>PPPoE-> WAN Http
Access

Number:0 ,1

WAN Http Access (0 - no, 1 – yes)

P190

Network->Basic->PC
Port-> As Bridge/ as
Router/ Connect to
Expansion Module

Number:0-2

PC Port (1 - As Bridge, 0 - as Router, 2 ­Connect to Expansion Module)

P231

Network->Basic->PC
Port-> IP Address

String

IP Address of PC Port

P111

Network->Basic->PC
Port-> Subnet Mask

String

Subnet Mask of PC Port

P110

Network->Basic->PC
Port-> IP Lease Time

Number

IP Lease Time

P112

Network->Basic->PC
Port-> DHCP Server

Number:0 ,1

DHCP Server (0 - Disable, 1 - Enable)

P8639

Port->Port Map->WAN
Port

Number

WAN Port

P150-P157

Network->Basic->PC

string

LAN IP

P158-P165

Parameter List

81

Port->Port Map-> LAN IP

Network->Basic->PC
Port->Port Map-> LAN
Port

Numbrt

LAN Port

P166-P173

Network->Basic->PC
Port->Port Map->
Protocol

Number:0-2

Protocol (0 - UDP, 1 - TCP ,2 - TCP/UDP)

P174-P181
Network->Advanced->LL
DP->active

Number:0 ,1

Active (0 - Disable, 1 - Enable)

P5438

Network->Advanced->LL
DP-> Packed Interval

number

Packed Interval

P5439

Network->Advanced->Q
os Set-> Layer 3 QoS

Number:
0-63

Layer 3 QoS (Diff-Serv or Precedence
value)

P38

Network->Advanced->Q
os Set-> Layer 2 QoS.

802.1Q/VLAN Tag

Number:0-40
94

Layer 2 QoS. 802.1Q/VLAN Tag (VLAN
classification for RTP)

P51

Network->Advanced->Q
os Set-> Layer 2 QoS.

802.1p priority value

Number: 0-7

Layer 2 QoS. 802.1p priority value (0 - 7).

P87
Network->Advanced->Q
os Set-> Data VLAN Tag

Number

Data VLAN Tag (vaild only when Bridge
mode)

P229

Network->Advanced->
NTP Server-> URL or IP
address

String

URL or IP address of NTP Server

P30
Network->Advanced->V
PN

Number

Active (0 - no, 1 - yes)

P8629

Network->Advanced->
DHCP VLAN-> Active

Number:0,1

Active (0 - no, 1 - yes)

P8684

Network->Advanced->W
eb Server-> FTTP Port

Number

HTTP Port

P901

Network->Advanced->
Web Server-> FTTPS
Port

Number

HTTPS Port

P8724
Network->Advanced->
Web Server->Type

Number:0-3

Type (0 - Disable, 1 - HTTP&HTTPS, 2 ­HTTP Only, 3 - HTTPS Only)

P8725

Network->Advanced->

802.1X-> 802.1X Mode

Number:0,1

802.1X Mode (# 0 - Disable, 1 - EAP-MD5)

P8626

Network->Advanced->

802.1X-> Identity

Number

Identity

P8627

Network->Advanced->

802.1X-> MD5 Password

string

MD5 Password

P8628

Network->Advanced->
Local RTP Port-> Max
Rtp Port

Number

Max Rtp Port (default is 5104)

P739

Network->Advanced->

Number

Min Rtp Port (default is 5004)

P39

Parameter List

82

Local RTP Port-> Min
Rtp Port

Network->Advanced->Ot
hers-> STUN Server

String

STUN Server (url or ip:port)

P76

Network->Advanced->Ot
hers-> Keep-active
Interval

Number

Keep-ative Interval (seconds default:20)

P84

Function Keys-> Line
Key-> Line key 1->Type

Number:
0-47

Key Type(0 -N/A, 1 - Line, 2 - Speed dial,
3 - BLF, 4 - BLF List, 5 - Voicemail, 6 ­Direct Pickup, 7 - Group Pickup, 8 - Call
Park, 9 - Intercom, 10 - DTMF, 11 - Frefix,
12 - Local Group, 13 - XML Group, 14 ­XML Browser, 15 - LDAP, 16 - BroadSoft
Group, 17 - Conference, 18 - Forward, 19 ­Transfer, 20 – Hold, 21 - DND, 22 - Redial,
23 - Call Return, 24 – SMS, 25 - Record,
26 - URL Record, 27 – Paging, 28 ­Group Listening, 29 - Public Hold, 30 ­Private Hold, 31 - Shine Line, 32 - Hot
Desking, 33 - ACD, 34 - Zero Touch,47 ­MultiCast Paging)

P41200

Function Keys-> Line
Key-> Line key 1-> Value

string

Value

P41300

Function Keys-> Line
Key-> Line key 1->

Label

String

Label

P41400
Function Keys-> Line
Key-> Line key 1->
Account

Number:0,1,
2,3,255

255 - Auto, 0 - Account 1, 1 - Account 2, 2 ­Account 3, 3 - Account 4

P41500

Function Keys-> Line
Key-> Line key 1->
Pickup Code

Sting

Pickup Code

P41600

Function Keys-> Line
Key-> Line key 2->Type

Number:
0-47

Key Type(0 -N/A, 1 - Line, 2 - Speed dial,
3 - BLF, 4 - BLF List, 5 - Voicemail, 6 ­Direct Pickup, 7 - Group Pickup, 8 - Call
Park, 9 - Intercom, 10 - DTMF, 11 - Frefix,
12 - Local Group, 13 - XML Group, 14 ­XML Browser, 15 - LDAP, 16 - BroadSoft
Group, 17 - Conference, 18 - Forward, 19 ­Transfer, 20 – Hold, 21 - DND, 22 - Redial,
23 - Call Return, 24 – SMS, 25 - Record,
26 - URL Record, 27 – Paging, 28 ­Group Listening, 29 - Public Hold, 30 ­Private Hold, 31 - Shine Line, 32 - Hot

P41201

Parameter List

83

Desking, 33 - ACD, 34 - Zero Touch,47 ­MultiCast Paging)

Function Keys-> Line
Key-> Line key 2-> Value

string

Value

P41301

Function Keys-> Line
Key-> Line key 2-> Label

String

Label

P41401

Function Keys-> Line
Key-> Line key 2->
Account

Number:0,1,
2,3,255

255 - Auto, 0 - Account 1, 1 - Account 2, 2 ­Account 3, 3 - Account 4

P41501

Function Keys-> Line
Key-> Line key 2->
Pickup Code

Sting

Pickup Code

P41601

Function Keys-> Line
Key-> Line key 3->Type

Number:
0-47

Key Type(0 -N/A, 1 - Line, 2 - Speeddial,
3 - BLF, 4 - BLF List, 5 - Voicemail, 6 ­Direct Pickup, 7 - Group Pickup, 8 - Call
Park, 9 - Intercom, 10 - DTMF, 11 - Frefix,
12 - Local Group, 13 - XML Group, 14 ­XML Browser, 15 - LDAP, 16 - BroadSoft
Group, 17 - Conference, 18 - Forward, 19 ­Transfer, 20 – Hold, 21 - DND, 22 - Redial,
23 - Call Return, 24 – SMS, 25 - Record,
26 - URL Record, 27 – Paging, 28 ­Group Listening, 29 - Public Hold, 30 ­Private Hold, 31 - Shine Line, 32 - Hot
Desking, 33 - ACD, 34 - Zero Touch,47 ­MultiCast Paging)

P41202

Function Keys-> Line
Key-> Line key 3-> Value

string

Value

P41302

Function Keys-> Line
Key-> Line key 3-> Label

String

Label

P41402

Function Keys-> Line
Key-> Line key 3->
Account

Number:0,1,
2,3,255

255 - Auto, 0 - Account 1, 1 - Account 2, 2 ­Account 3, 3 - Account 4

P41502

Function Keys-> Line
Key-> Line key 3->
Pickup Code

Sting

Pickup Code

P41602

Function Keys-> Line
Key-> Line key 1->Type

Number:
0-47

Key Type(0 -N/A, 1 - Line, 2 - Speeddial,
3 - BLF, 4 - BLF List, 5 - Voicemail, 6 ­Direct Pickup, 7 - Group Pickup, 8 - Call
Park, 9 - Intercom, 10 - DTMF, 11 - Frefix,
12 - Local Group, 13 - XML Group, 14 ­XML Browser, 15 - LDAP, 16 - BroadSoft
Group, 17 - Conference, 18 - Forward, 19 ­Transfer, 20 – Hold, 21 - DND, 22 - Redial,
23 - Call Return, 24 – SMS, 25 - Record,

P41203

Parameter List

84

26 - URL Record, 27 – Paging, 28 ­Group Listening, 29 - Public Hold, 30 ­Private Hold, 31 - Shine Line, 32 - Hot
Desking, 33 - ACD, 34 - Zero Touch,47 ­MultiCast Paging)

Function Keys-> Line
Key-> Line key 4-> Value

string

Value

P41303

Function Keys-> Line
Key-> Line key 4-> Label

String

Label

P41403

Function Keys-> Line
Key-> Line key 4->
Account

Number:0,1,
2,3,255

255 - Auto, 0 - Account 1, 1 - Account 2, 2 ­Account 3, 3 - Account 4

P41503

Function Keys-> Line
Key-> Line key 4->
Pickup Code

Sting

Pickup Code

P41603

Function Keys-> Line
Key-> Line key 5->Type

Number:
0-47

Key Type(0 -N/A, 1 - Line, 2 - Speed dial,
3 - BLF, 4 - BLF List, 5 - Voicemail, 6 ­Direct Pickup, 7 - Group Pickup, 8 - Call
Park, 9 - Intercom, 10 - DTMF, 11 - Frefix,
12 - Local Group, 13 - XML Group, 14 ­XML Browser, 15 - LDAP, 16 - BroadSoft
Group, 17 - Conference, 18 - Forward, 19 ­Transfer, 20 – Hold, 21 - DND, 22 - Redial,
23 - Call Return, 24 – SMS, 25 - Record,
26 - URL Record, 27 – Paging, 28 ­Group Listening, 29 - Public Hold, 30 ­Private Hold, 31 - Shine Line, 32 - Hot
Desking, 33 - ACD, 34 - Zero Touch,47 ­MultiCast Paging)

P20200

Function Keys-> Line
Key-> Line key 5-> Value

string

Value

P20201

Function Keys-> Line
Key-> Line key 5-> Label

String

Label

P20202

Function Keys-> Line
Key-> Line key 5->
Account

Number:0,1,
2,3,255

255 - Auto, 0 - Account 1, 1 - Account 2, 2 ­Account 3, 3 - Account 4

P20203
Function Keys-> Line
Key-> Line key 5->Exten

Sting

Pickup Code

P20204

Function Keys-> Line
Key-> Line key 6->Type

Number:
0-47

Key Type(0 -N/A, 1 - Line, 2 - Speed dial,
3 - BLF, 4 - BLF List, 5 - Voicemail, 6 ­Direct Pickup, 7 - Group Pickup, 8 - Call
Park, 9 - Intercom, 10 - DTMF, 11 - Frefix,
12 - Local Group, 13 - XML Group, 14 ­XML Browser, 15 - LDAP, 16 - BroadSoft
Group, 17 - Conference, 18 - Forward, 19 -

P20205

Parameter List

85

Transfer, 20 – Hold, 21 - DND, 22 - Redial,
23 - Call Return, 24 – SMS, 25 - Record,
26 - URL Record, 27 – Paging, 28 ­Group Listening, 29 - Public Hold, 30 ­Private Hold, 31 - Shine Line, 32 - Hot
Desking, 33 - ACD, 34 - Zero Touch,47 ­MultiCast Paging)

Function Keys-> Line
Key-> Line key 6-> Value

string

Value

P20206

Function Keys-> Line
Key-> Line key 6-> Label

String

Label

P20207

Function Keys-> Line
Key-> Line key 6->
Account

Number:0,1,
2,3,255

255 - Auto, 0 - Account 1, 1 - Account 2, 2 ­Account 3, 3 - Account 4

P20208
Function Keys->Line
Key-> Line key 6->Exten

Sting

Pickup Code

P20209

Function Keys-> Line
Key-> Line key 7->Type

Number:
0-47

Key Type(0 -N/A, 1 - Line, 2 - Speeddial,
3 - BLF, 4 - BLF List, 5 - Voicemail, 6 ­Direct Pickup, 7 - Group Pickup, 8 - Call
Park, 9 - Intercom, 10 - DTMF, 11 - Frefix,
12 - Local Group, 13 - XML Group, 14 ­XML Browser, 15 - LDAP, 16 - BroadSoft
Group, 17 - Conference, 18 - Forward, 19 ­Transfer, 20 – Hold, 21 - DND, 22 - Redial,
23 - Call Return, 24 – SMS, 25 - Record,
26 - URL Record, 27 – Paging, 28 ­Group Listening, 29 - Public Hold, 30 ­Private Hold, 31 - Shine Line, 32 - Hot
Desking, 33 - ACD, 34 - Zero Touch,47 ­MultiCast Paging)

P20210

Function Keys-> Line
Key-> Line key 7-> Value

string

Value

P20211

Function Keys-> Line
Key-> Line key 7-> Label

String

Label

P20212

Function Keys-> Line
Key-> Line key 7->
Account

Number:0,1,
2,3,255

255 - Auto, 0 - Account 1, 1 - Account 2, 2 ­Account 3, 3 - Account 4

P202013
Function Keys-> Line
Key-> Line key 7->Exten

Sting

Pickup Code

P20214

Function Keys-> Line
Key-> Line key 8->Type

Number:
0-47

Key Type(0 -N/A, 1 - Line, 2 - Speeddial,
3 - BLF, 4 - BLF List, 5 - Voicemail, 6 ­Direct Pickup, 7 - Group Pickup, 8 - Call
Park, 9 - Intercom, 10 - DTMF, 11 - Frefix,
12 - Local Group, 13 - XML Group, 14 ­XML Browser, 15 - LDAP, 16 - BroadSoft

P20215

Parameter List

86

Group, 17 - Conference, 18 - Forward, 19 ­Transfer, 20 – Hold, 21 - DND, 22 - Redial,
23 - Call Return, 24 – SMS, 25 - Record,
26 - URL Record, 27 – Paging, 28 ­Group Listening, 29 - Public Hold, 30 ­Private Hold, 31 - Shine Line, 32 - Hot
Desking, 33 - ACD, 34 - Zero Touch,47 ­MultiCast Paging)

Function Keys-> Line
Key-> Line key 8-> Value

string

Value

P20216

Function Keys-> Line
Key-> Line key 8-> Label

String

Label

P20217

Function Keys-> Line
Key-> Line key 8->
Account

Number:0,1,
2,3,255

255 - Auto, 0 - Account 1, 1 - Account 2, 2 ­Account 3, 3 - Account 4

P20218
Function Keys-> Line
Key-> Line key 8->Exten

Sting

Pickup Code

P20219

Function Keys-> Line
Key-> Line key 9->Type

Number:
0-47

Key Type(0 -N/A, 1 - Line, 2 - Speeddial,
3 - BLF, 4 - BLF List, 5 - Voicemail, 6 ­Direct Pickup, 7 - Group Pickup, 8 - Call
Park, 9 - Intercom, 10 - DTMF, 11 - Frefix,
12 - Local Group, 13 - XML Group, 14 ­XML Browser, 15 - LDAP, 16 - BroadSoft
Group, 17 - Conference, 18 - Forward, 19 ­Transfer, 20 – Hold, 21 - DND, 22 - Redial,
23 - Call Return, 24 – SMS, 25 - Record,
26 - URL Record, 27 – Paging, 28 ­Group Listening, 29 - Public Hold, 30 ­Private Hold, 31 - Shine Line, 32 - Hot
Desking, 33 - ACD, 34 - Zero Touch,47 ­MultiCast Paging)

P20220

Function Keys-> Line
Key-> Line key 9-> Value

string

Value

P20221

Function Keys-> Line
Key-> Line key 9-> Label

String

Label

P20222

Function Keys-> Line
Key-> Line key 9->
Account

Number:0,1,
2,3,255

255 - Auto, 0 - Account 1, 1 - Account 2, 2 ­Account 3, 3 - Account 4

P20223
Function Keys-> Line
Key-> Line key 9->Exten

Sting

Pickup Code

P20224

Function Keys-> Line
Key-> Line key 10->Type

Number:
0-47

Key Type(0 -N/A, 1 - Line, 2 - Speeddial,
3 - BLF, 4 - BLF List, 5 - Voicemail, 6 ­Direct Pickup, 7 - Group Pickup, 8 - Call
Park, 9 - Intercom, 10 - DTMF, 11 - Frefix,
12 - Local Group, 13 - XML Group, 14 -

P20225

Parameter List

87

XML Browser, 15 - LDAP, 16 - BroadSoft
Group, 17 - Conference, 18 - Forward, 19 ­Transfer, 20 – Hold, 21 - DND, 22 - Redial,
23 - Call Return, 24 – SMS, 25 - Record,
26 - URL Record, 27 – Paging, 28 ­Group Listening, 29 - Public Hold, 30 ­Private Hold, 31 - Shine Line, 32 - Hot
Desking, 33 - ACD, 34 - Zero Touch,47 ­MultiCast Paging)

Function Keys-> Line
Key-> Line key 10->
Value

string

Value

P20226

Function Keys-> Line
Key-> Line key 10->
Label

String

Label

P20227

Function Keys-> Line
Key-> Line key 10->
Account

Number:0,1,
2,3,255

255 - Auto, 0 - Account 1, 1 - Account 2, 2 ­Account 3, 3 - Account 4

P20228

Function Keys-> Line
Key-> Line key
10->Exten

Sting

Pickup Code

P20229

Function Keys-> Line
Key-> Line key 11->Type

Number:
0-47

Key Type(0 -N/A, 1 - Line, 2 - Speeddial,
3 - BLF, 4 - BLF List, 5 - Voicemail, 6 ­Direct Pickup, 7 - Group Pickup, 8 - Call
Park, 9 - Intercom, 10 - DTMF, 11 - Frefix,
12 - Local Group, 13 - XML Group, 14 ­XML Browser, 15 - LDAP, 16 - BroadSoft
Group, 17 - Conference, 18 - Forward, 19 ­Transfer, 20 – Hold, 21 - DND, 22 - Redial,
23 - Call Return, 24 – SMS, 25 - Record,
26 - URL Record, 27 – Paging, 28 ­Group Listening, 29 - Public Hold, 30 ­Private Hold, 31 - Shine Line, 32 - Hot
Desking, 33 - ACD, 34 - Zero Touch,47 ­MultiCast Paging)

P20230

Function Keys-> Line
Key-> Line key 11->
Value

string

Value

P20231

Function Keys-> Line
Key-> Line key 11->
Label

String

Label

P20232

Function Keys-> Line
Key-> Line key 11->
Account

Number:0,1,
2,3,255

255 - Auto, 0 - Account 1, 1 - Account 2, 2 ­Account 3, 3 - Account 4

P20233

Function Keys-> Line

Sting

Pickup Code

P20234

Parameter List

88

Key-> Line key
11->Exten

Function Keys-> Line
Key-> Line key 12->Type

Number:
0-47

Key Type(0 -N/A, 1 - Line, 2 - Speeddial,
3 - BLF, 4 - BLF List, 5 - Voicemail, 6 ­Direct Pickup, 7 - Group Pickup, 8 - Call
Park, 9 - Intercom, 10 - DTMF, 11 - Frefix,
12 - Local Group, 13 - XML Group, 14 ­XML Browser, 15 - LDAP, 16 - BroadSoft
Group, 17 - Conference, 18 - Forward, 19 ­Transfer, 20 – Hold, 21 - DND, 22 - Redial,
23 - Call Return, 24 – SMS, 25 - Record,
26 - URL Record, 27 – Paging, 28 ­Group Listening, 29 - Public Hold, 30 ­Private Hold, 31 - Shine Line, 32 - Hot
Desking, 33 - ACD, 34 - Zero Touch,47 ­MultiCast Paging)

P20235

Function Keys-> Line
Key-> Line key 12->
Value

string

Value

P20236

Function Keys->Line
Key-> Line key 12->
Label

String

Label

P20237

Function Keys-> Line
Key-> Line key 12->
Account

Number:0,1,
2,3,255

255 - Auto, 0 - Account 1, 1 - Account 2, 2 ­Account 3, 3 - Account 4

P20238

Function Keys-> Line
Key-> Line key
12->Exten

Sting

Pickup Code

P20239

Function Keys-> Line
Key-> Line key 13->Type

Number:
0-47

Key Type(0 -N/A, 1 - Line, 2 - Speeddial,
3 - BLF, 4 - BLF List, 5 - Voicemail, 6 ­Direct Pickup, 7 - Group Pickup, 8 - Call
Park, 9 - Intercom, 10 - DTMF, 11 - Frefix,
12 - Local Group, 13 - XML Group, 14 ­XML Browser, 15 - LDAP, 16 - BroadSoft
Group, 17 - Conference, 18 - Forward, 19 ­Transfer, 20 – Hold, 21 - DND, 22 - Redial,
23 - Call Return, 24 – SMS, 25 - Record,
26 - URL Record, 27 – Paging, 28 ­Group Listening, 29 - Public Hold, 30 ­Private Hold, 31 - Shine Line, 32 - Hot
Desking, 33 - ACD, 34 - Zero Touch,47 ­MultiCast Paging)

P20240

Function Keys-> Line
Key-> Line key 13->
Value

string

Value

P20241

Parameter List

89

Function Keys-> Line
Key-> Line key 13->
Label

String

Label

P20242

Function Keys-> Line
Key-> Line key 13->
Account

Number:0,1,
2,3,255

255 - Auto, 0 - Account 1, 1 - Account 2, 2 ­Account 3, 3 - Account 4

P20243

Function Keys-> Line
Key-> Line key
13->Exten

Sting

Pickup Code

P20244

Function Keys-> Line
Key-> Line key 14->Type

Number:
0-47

Key Type(0 -N/A, 1 - Line, 2 - Speeddial,
3 - BLF, 4 - BLF List, 5 - Voicemail, 6 ­Direct Pickup, 7 - Group Pickup, 8 - Call
Park, 9 - Intercom, 10 - DTMF, 11 - Frefix,
12 - Local Group, 13 - XML Group, 14 ­XML Browser, 15 - LDAP, 16 - BroadSoft
Group, 17 - Conference, 18 - Forward, 19 ­Transfer, 20 – Hold, 21 - DND, 22 - Redial,
23 - Call Return, 24 – SMS, 25 - Record,
26 - URL Record, 27 – Paging, 28 ­Group Listening, 29 - Public Hold, 30 ­Private Hold, 31 - Shine Line, 32 - Hot
Desking, 33 - ACD, 34 - Zero Touch,47 ­MultiCast Paging)

P20245

Function Keys-> Line
Key-> Line key 14->
Value

string

Value

P20246

Function Keys-> Line
Key-> Line key 14->
Label

String

Label

P20247

Function Keys-> Line
Key-> Line key 14->
Account

Number:0,1,
2,3,255

255 - Auto, 0 - Account 1, 1 - Account 2, 2 ­Account 3, 3 - Account 4

P20248

Function Keys-> Line
Key-> Line key
14->Exten

Sting

Pickup Code

P20249

Function Keys-> Line
Key-> Line key 15->Type

Number:
0-47

Key Type(0 -N/A, 1 - Line, 2 - Speeddial,
3 - BLF, 4 - BLF List, 5 - Voicemail, 6 ­Direct Pickup, 7 - Group Pickup, 8 - Call
Park, 9 - Intercom, 10 - DTMF, 11 - Frefix,
12 - Local Group, 13 - XML Group, 14 ­XML Browser, 15 - LDAP, 16 - BroadSoft
Group, 17 - Conference, 18 - Forward, 19 ­Transfer, 20 – Hold, 21 - DND, 22 - Redial,
23 - Call Return, 24 – SMS, 25 - Record,
26 - URL Record, 27 – Paging, 28 -

P20250

Parameter List

90

Group Listening, 29 - Public Hold, 30 ­Private Hold, 31 - Shine Line, 32 - Hot
Desking, 33 - ACD, 34 - Zero Touch,47 ­MultiCast Paging)

Function Keys-> Line
Key-> Line key 15->
Value

string

Value

P20251

Function Keys-> Line
Key-> Line key 15->
Label

String

Label

P20252

Function Keys-> Line
Key-> Line key 15->
Account

Number:0,1,
2,3,255

255 - Auto, 0 - Account 1, 1 - Account 2, 2 ­Account 3, 3 - Account 4

P20253

Function Keys-> Line
Key-> Line key
15->Exten

Sting

Pickup Code

P20254

Function Keys-> Line
Key-> Line key 16->Type

Number:
0-47

Key Type(0 -N/A, 1 - Line, 2 - Speeddial,
3 - BLF, 4 - BLF List, 5 - Voicemail, 6 ­Direct Pickup, 7 - Group Pickup, 8 - Call
Park, 9 - Intercom, 10 - DTMF, 11 - Frefix,
12 - Local Group, 13 - XML Group, 14 ­XML Browser, 15 - LDAP, 16 - BroadSoft
Group, 17 - Conference, 18 - Forward, 19 ­Transfer, 20 – Hold, 21 - DND, 22 - Redial,
23 - Call Return, 24 – SMS, 25 - Record,
26 - URL Record, 27 – Paging, 28 ­Group Listening, 29 - Public Hold, 30 ­Private Hold, 31 - Shine Line, 32 - Hot
Desking, 33 - ACD, 34 - Zero Touch,47 ­MultiCast Paging)

P20255

Function Keys-> Line
Key-> Line key 16->
Value

string

Value

P20256

Function Keys-> Line
Key-> Line key 16->
Label

String

Label

P20257

Function Keys-> Line
Key-> Line key 16->
Account

Number:0,1,
2,3,255

255 - Auto, 0 - Account 1, 1 - Account 2, 2 ­Account 3, 3 - Account 4

P20258

Function Keys-> Line
Key-> Line key
16->Exten

Sting

Pickup Code

P20259

Function Keys-> Line
Key-> Line key 17->Type

Number:
0-47

Key Type(0 -N/A, 1 - Line, 2 - Speeddial,
3 - BLF, 4 - BLF List, 5 - Voicemail, 6 ­Direct Pickup, 7 - Group Pickup, 8 - Call

P20260

Parameter List

91

Park, 9 - Intercom, 10 - DTMF, 11 - Frefix,
12 - Local Group, 13 - XML Group, 14 ­XML Browser, 15 - LDAP, 16 - BroadSoft
Group, 17 - Conference, 18 - Forward, 19 ­Transfer, 20 – Hold, 21 - DND, 22 - Redial,
23 - Call Return, 24 – SMS, 25 - Record,
26 - URL Record, 27 – Paging, 28 ­Group Listening, 29 - Public Hold, 30 ­Private Hold, 31 - Shine Line, 32 - Hot
Desking, 33 - ACD, 34 - Zero Touch,47 ­MultiCast Paging)

Function Keys-> Line
Key-> Line key 17->
Value

string

Value

P20261

Function Keys-> Line
Key-> Line key 17->
Label

String

Label

P20262

Function Keys-> Line
Key-> Line key 17->
Account

Number:0,1,
2,3,255

255 - Auto, 0 - Account 1, 1 - Account 2, 2 ­Account 3, 3 - Account 4

P20263

Function Keys-> Line
Key-> Line key
17->Exten

Sting

Pickup Code

P20264

Function Keys-> Line
Key-> Line key 18->Type

Number:
0-47

Key Type(0 -N/A, 1 - Line, 2 - Speeddial,
3 - BLF, 4 - BLF List, 5 - Voicemail, 6 ­Direct Pickup, 7 - Group Pickup, 8 - Call
Park, 9 - Intercom, 10 - DTMF, 11 - Frefix,
12 - Local Group, 13 - XML Group, 14 ­XML Browser, 15 - LDAP, 16 - BroadSoft
Group, 17 - Conference, 18 - Forward, 19 ­Transfer, 20 – Hold, 21 - DND, 22 - Redial,
23 - Call Return, 24 – SMS, 25 - Record,
26 - URL Record, 27 – Paging, 28 ­Group Listening, 29 - Public Hold, 30 ­Private Hold, 31 - Shine Line, 32 - Hot
Desking, 33 - ACD, 34 - Zero Touch,47 ­MultiCast Paging)

P20265

Function Keys-> Line
Key-> Line key 18->
Value

string

Value

P20266

Function Keys-> Line
Key-> Line key 18->
Label

String

Label

P20267
Function Keys-> Line
Key-> Line key 18->

Number:0,1,
2,3,255

255 - Auto, 0 - Account 1, 1 - Account 2, 2 ­Account 3, 3 - Account 4

P20268

Parameter List

92

Account

Function Keys-> Line
Key-> Line key
18->Exten

Sting

Pickup Code

P20269

Function Keys-> Line
Key-> Line key 19->Type

Number:
0-47

Key Type(0 -N/A, 1 - Line, 2 - Speeddial,
3 - BLF, 4 - BLF List, 5 - Voicemail, 6 ­Direct Pickup, 7 - Group Pickup, 8 - Call
Park, 9 - Intercom, 10 - DTMF, 11 - Frefix,
12 - Local Group, 13 - XML Group, 14 ­XML Browser, 15 - LDAP, 16 - BroadSoft
Group, 17 - Conference, 18 - Forward, 19 ­Transfer, 20 – Hold, 21 - DND, 22 - Redial,
23 - Call Return, 24 – SMS, 25 - Record,
26 - URL Record, 27 – Paging, 28 ­Group Listening, 29 - Public Hold, 30 ­Private Hold, 31 - Shine Line, 32 - Hot
Desking, 33 - ACD, 34 - Zero Touch,47 ­MultiCast Paging)

P20270

Function Keys-> Line
Key-> Line key 19->
Value

string

Value

P20271

Function Keys-> Line
Key-> Line key 19->
Label

String

Label

P20272

Function Keys-> Line
Key-> Line key 19->
Account

Number:0,1,
2,3,255

255 - Auto, 0 - Account 1, 1 - Account 2, 2 ­Account 3, 3 - Account 4

P20273

Function Keys-> Line
Key-> Line key
19->Exten

Sting

Pickup Code

P20274

Function Keys-> Line
Key-> Line key 20->Type

Number:
0-47

Key Type(0 -N/A, 1 - Line, 2 - Speeddial,
3 - BLF, 4 - BLF List, 5 - Voicemail, 6 ­Direct Pickup, 7 - Group Pickup, 8 - Call
Park, 9 - Intercom, 10 - DTMF, 11 - Frefix,
12 - Local Group, 13 - XML Group, 14 ­XML Browser, 15 - LDAP, 16 - BroadSoft
Group, 17 - Conference, 18 - Forward, 19 ­Transfer, 20 – Hold, 21 - DND, 22 - Redial,
23 - Call Return, 24 – SMS, 25 - Record,
26 - URL Record, 27 – Paging, 28 ­Group Listening, 29 - Public Hold, 30 ­Private Hold, 31 - Shine Line, 32 - Hot
Desking, 33 - ACD, 34 - Zero Touch,47 ­MultiCast Paging)

P20275

Function Keys-> Line

string

Value

P20276

Parameter List

93

Key-> Line key 20->
Value

Function Keys-> Line
Key-> Line key 20->
Label

String

Label

P20277

Function Keys-> Line
Key-> Line key 20->
Account

Number:0,1,
2,3,255

255 - Auto, 0 - Account 1, 1 - Account 2, 2 ­Account 3, 3 - Account 4

P20278

Function Keys-> Line
Key-> Line key
20->Exten

Sting

Pickup Code

P20279

Function Keys-> Line
Key-> Line key 21->Type

Number:
0-47

Key Type(0 -N/A, 1 - Line, 2 - Speeddial,
3 - BLF, 4 - BLF List, 5 - Voicemail, 6 ­Direct Pickup, 7 - Group Pickup, 8 - Call
Park, 9 - Intercom, 10 - DTMF, 11 - Frefix,
12 - Local Group, 13 - XML Group, 14 ­XML Browser, 15 - LDAP, 16 - BroadSoft
Group, 17 - Conference, 18 - Forward, 19 ­Transfer, 20 – Hold, 21 - DND, 22 - Redial,
23 - Call Return, 24 – SMS, 25 - Record,
26 - URL Record, 27 – Paging, 28 ­Group Listening, 29 - Public Hold, 30 ­Private Hold, 31 - Shine Line, 32 - Hot
Desking, 33 - ACD, 34 - Zero Touch,47 ­MultiCast Paging)

P20280

Function Keys-> Line
Key-> Line key 21->
Value

string

Value

P20281

Function Keys-> Line
Key-> Line key 21->
Label

String

Label

P20282

Function Keys-> Line
Key-> Line key 21->
Account

Number:0,1,
2,3,255

255 - Auto, 0 - Account 1, 1 - Account 2, 2 ­Account 3, 3 - Account 4

P20283

Function Keys-> Line
Key-> Line key
21->Exten

Sting

Pickup Code

P20284

Function Keys-> Line
Key-> Line key 22->Type

Number:
0-47

Key Type(0 -N/A, 1 - Line, 2 - Speeddial,
3 - BLF, 4 - BLF List, 5 - Voicemail, 6 ­Direct Pickup, 7 - Group Pickup, 8 - Call
Park, 9 - Intercom, 10 - DTMF, 11 - Frefix,
12 - Local Group, 13 - XML Group, 14 ­XML Browser, 15 - LDAP, 16 - BroadSoft
Group, 17 - Conference, 18 - Forward, 19 ­Transfer, 20 – Hold, 21 - DND, 22 - Redial,

P20285

Parameter List

94

23 - Call Return, 24 – SMS, 25 - Record,
26 - URL Record, 27 – Paging, 28 ­Group Listening, 29 - Public Hold, 30 ­Private Hold, 31 - Shine Line, 32 - Hot
Desking, 33 - ACD, 34 - Zero Touch,47 ­MultiCast Paging)

Function Keys-> Line
Key-> Line key 22->
Value

string

Value

P20286

Function Keys-> Line
Key-> Line key 22->
Label

String

Label

P20287

Function Keys-> Line
Key-> Line key 22->
Account

Number:0,1,
2,3,255

255 - Auto, 0 - Account 1, 1 - Account 2, 2 ­Account 3, 3 - Account 4

P20288

Function Keys-> Line
Key-> Line key
22->Exten

Sting

Pickup Code

P20289

Function Keys-> Line
Key-> Line key 23->Type

Number:
0-47

Key Type(0 -N/A, 1 - Line, 2 - Speeddial,
3 - BLF, 4 - BLF List, 5 - Voicemail, 6 ­Direct Pickup, 7 - Group Pickup, 8 - Call
Park, 9 - Intercom, 10 - DTMF, 11 - Frefix,
12 - Local Group, 13 - XML Group, 14 ­XML Browser, 15 - LDAP, 16 - BroadSoft
Group, 17 - Conference, 18 - Forward, 19 ­Transfer, 20 – Hold, 21 - DND, 22 - Redial,
23 - Call Return, 24 – SMS, 25 - Record,
26 - URL Record, 27 – Paging, 28 ­Group Listening, 29 - Public Hold, 30 ­Private Hold, 31 - Shine Line, 32 - Hot
Desking, 33 - ACD, 34 - Zero Touch,47 ­MultiCast Paging)

P20290

Function Keys-> Line
Key-> Line key 23->
Value

string

Value

P20291

Function Keys-> Line
Key-> Line key 23->
Label

String

Label

P20292

Function Keys-> Line
Key-> Line key 23->
Account

Number:0,1,
2,3,255

255 - Auto, 0 - Account 1, 1 - Account 2, 2 ­Account 3, 3 - Account 4

P20293

Function Keys-> Line
Key-> Line key
23->Exten

Sting

Pickup Code

P20294

Function Keys-> Line

Number:

Key Type(0 -N/A, 1 - Line, 2 - Speeddial,

P20295

Parameter List

95

Key-> Line key 24->Type

0-47

3 - BLF, 4 - BLF List, 5 - Voicemail, 6 ­Direct Pickup, 7 - Group Pickup, 8 - Call
Park, 9 - Intercom, 10 - DTMF, 11 - Frefix,
12 - Local Group, 13 - XML Group, 14 ­XML Browser, 15 - LDAP, 16 - BroadSoft
Group, 17 - Conference, 18 - Forward, 19 ­Transfer, 20 – Hold, 21 - DND, 22 - Redial,
23 - Call Return, 24 – SMS, 25 - Record,
26 - URL Record, 27 – Paging, 28 ­Group Listening, 29 - Public Hold, 30 ­Private Hold, 31 - Shine Line, 32 - Hot
Desking, 33 - ACD, 34 - Zero Touch,47 ­MultiCast Paging)

Function Keys-> Line
Key-> Line key 24->
Value

string

Value

P20296

Function Keys-> Line
Key-> Line key 24->
Label

String

Label

P20297

Function Keys-> Line
Key-> Line key 24->
Account

Number:0,1,
2,3,255

255 - Auto, 0 - Account 1, 1 - Account 2, 2 ­Account 3, 3 - Account 4

P20298

Function Keys-> Line
Key-> Line key
24->Exten

Sting

Pickup Code

P20299

Function Keys-> Line
Key-> Line key 25->Type

Number:
0-47

Key Type(0 -N/A, 1 - Line, 2 - Speeddial,
3 - BLF, 4 - BLF List, 5 - Voicemail, 6 ­Direct Pickup, 7 - Group Pickup, 8 - Call
Park, 9 - Intercom, 10 - DTMF, 11 - Frefix,
12 - Local Group, 13 - XML Group, 14 ­XML Browser, 15 - LDAP, 16 - BroadSoft
Group, 17 - Conference, 18 - Forward, 19 ­Transfer, 20 – Hold, 21 - DND, 22 - Redial,
23 - Call Return, 24 – SMS, 25 - Record,
26 - URL Record, 27 – Paging, 28 ­Group Listening, 29 - Public Hold, 30 ­Private Hold, 31 - Shine Line, 32 - Hot
Desking, 33 - ACD, 34 - Zero Touch,47 ­MultiCast Paging)

P20300

Function Keys-> Line
Key-> Line key 25->
Value

string

Value

P20301

Function Keys-> Line
Key-> Line key 25->
Label

String

Label

P20302

Parameter List

96

Function Keys-> Line
Key-> Line key 25->
Account

Number:0,1,
2,3,255

255 - Auto, 0 - Account 1, 1 - Account 2, 2 ­Account 3, 3 - Account 4

P20303

Function Keys-> Line
Key-> Line key
25->Exten

Sting

Pickup Code

P20304

Function Keys->Line
Key-> Line key 26->Type

Number:
0-47

Key Type(0 -N/A, 1 - Line, 2 - Speeddial,
3 - BLF, 4 - BLF List, 5 - Voicemail, 6 ­Direct Pickup, 7 - Group Pickup, 8 - Call
Park, 9 - Intercom, 10 - DTMF, 11 - Frefix,
12 - Local Group, 13 - XML Group, 14 ­XML Browser, 15 - LDAP, 16 - BroadSoft
Group, 17 - Conference, 18 - Forward, 19 ­Transfer, 20 – Hold, 21 - DND, 22 - Redial,
23 - Call Return, 24 – SMS, 25 - Record,
26 - URL Record, 27 – Paging, 28 ­Group Listening, 29 - Public Hold, 30 ­Private Hold, 31 - Shine Line, 32 - Hot
Desking, 33 - ACD, 34 - Zero Touch,47 ­MultiCast Paging)

P20305

Function Keys-> Line
Key-> Line key 26->
Value

string

Value

P20306

Function Keys-> Line
Key-> Line key 26->
Label

String

Label

P20307

Function Keys-> Line
Key-> Line key 26->
Account

Number:0,1,
2,3,255

255 - Auto, 0 - Account 1, 1 - Account 2, 2 ­Account 3, 3 - Account 4

P20308

Function Keys-> Line
Key-> Line key
26->Exten

Sting

Pickup Code

P20309

Function Keys-> Line
Key-> Line key 27->Type

Number:
0-47

Key Type(0 -N/A, 1 - Line, 2 - Speeddial,
3 - BLF, 4 - BLF List, 5 - Voicemail, 6 ­Direct Pickup, 7 - Group Pickup, 8 - Call
Park, 9 - Intercom, 10 - DTMF, 11 - Frefix,
12 - Local Group, 13 - XML Group, 14 ­XML Browser, 15 - LDAP, 16 - BroadSoft
Group, 17 - Conference, 18 - Forward, 19 ­Transfer, 20 – Hold, 21 - DND, 22 - Redial,
23 - Call Return, 24 – SMS, 25 - Record,
26 - URL Record, 27 – Paging, 28 ­Group Listening, 29 - Public Hold, 30 ­Private Hold, 31 - Shine Line, 32 - Hot
Desking, 33 - ACD, 34 - Zero Touch,47 -

P20310
