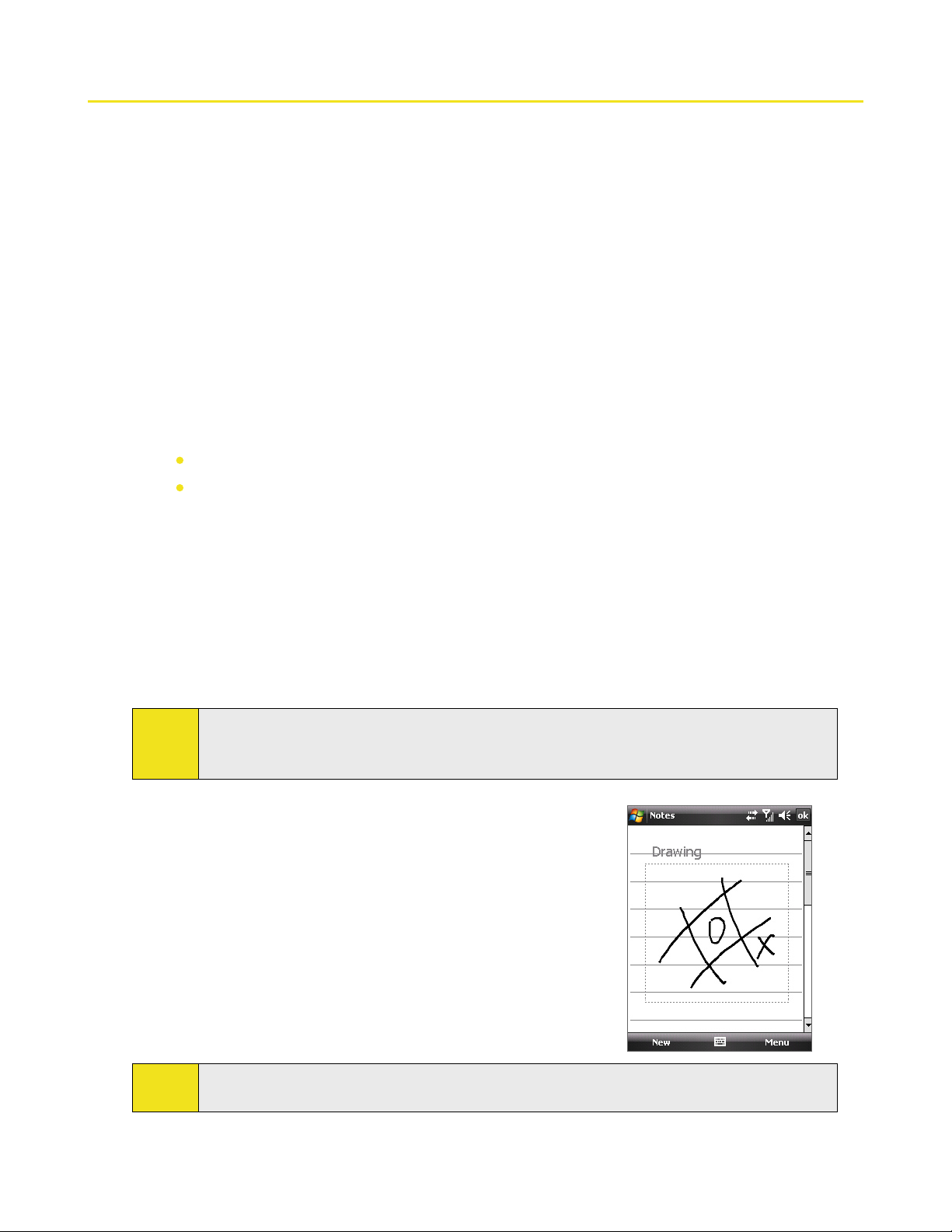

2.8 Using Notes to Draw, Write, and Record Voice Notes ............................................................................ 36

2.9 Searching Information ................................................................................................................................... 37

Section 3

Using Phone Features .............................................................................................. 39

3.1 Using the Phone .............................................................................................................................................. 40

3.2 Making a Call .................................................................................................................................................... 41

3.3 Receiving a Call ................................................................................................................................................43

3.4 Smart Dialing ................................................................................................................................................... 45

3.5 Using Call Forwarding .................................................................................................................................... 47

3.6 Phone Settings ................................................................................................................................................. 48

3.7 Setting Additional Service Options ............................................................................................................. 49

3.8 Voice and Data Roaming ............................................................................................................................... 50

Section 4

Setting Up Your Device ............................................................................................ 51

4.1 Basic Settings ................................................................................................................................................... 52

4.2 Personalizing the Today Screen .................................................................................................................... 54

4.3 Protecting Your Device ...................................................................................................................................56

Section 5

Synchronizing Information With Your Computer ...................................................57

5.1 About Synchronization ..................................................................................................................................58

5.2 Setting Up Windows Mobile® Device Center on Windows Vista® ...................................................... 59

5.3 Setting Up ActiveSync® on Windows XP® ................................................................................................. 60

5.4 Synchronizing With Your Computer ........................................................................................................... 61

5.5 Synchronizing via Bluetooth ......................................................................................................................... 63

5.6 Synchronizing Music and Videos ................................................................................................................. 64

Section 6

Organizing Contacts, Appointments, Tasks, and Other Information .................... 65

6.1 Contacts ............................................................................................................................................................. 66

6.2 Calendar ............................................................................................................................................................. 68

6.3 Tasks .................................................................................................................................................................... 70

6.4 Notes .................................................................................................................................................................. 72

6.5 Voice Recorder .................................................................................................................................................. 74

Section 7

Exchanging Messages ..............................................................................................75

7.1 Messaging ......................................................................................................................................................... 76

7.2 Text Messages ..................................................................................................................................................77

7.3 Setting Up Email Accounts ............................................................................................................................ 79

7.4 Using Email ....................................................................................................................................................... 81

Section 8

Working With Company Email and Meeting Appointments ................................. 87

8.1 Synchronizing Your Device with the Exchange Server ........................................................................... 88

Working With Company Email .......................................................................................................................... 90

8.2

8.3 Managing Meeting Requests ....................................................................................................................... 94

8.4 Finding Contacts in the Company Directory ............................................................................................. 95

8.5 Email Security ................................................................................................................................................... 96

Section 9

Working With Documents and Files ....................................................................... 99

9.1 Microsoft® Ofﬁce Mobile .............................................................................................................................100

9.2 Adobe Reader LE ............................................................................................................................................101

9.3 Copying and Managing Files ......................................................................................................................103

9.4 Using ZIP .......................................................................................................................................................... 105

Section 10

Getting Connected .................................................................................................107

10.1 Comm Manager ............................................................................................................................................ 108

10.2 Connecting to the Internet ........................................................................................................................109

10.3 Internet Explorer Mobile ............................................................................................................................110

10.4 Windows Live™ ............................................................................................................................................. 112

10.5 Using Bluetooth ............................................................................................................................................116

10.6 Using Your Device as a Modem (Internet Sharing) ..............................................................................120

Section 11

Experiencing Multimedia ......................................................................................123

11.1 Using the Built-in Camera ..........................................................................................................................124

11.2 Camera Album ..............................................................................................................................................130

11.3 Using Pictures & Videos ..............................................................................................................................133

11.4 Using Windows Media Player ...................................................................................................................137

Section 12

Managing Your Device ........................................................................................... 141

12.1 Adding and Removing Programs ..............................................................................................................142

12.2 Using Task Manager ..................................................................................................................................... 143

12.3 Resetting Your Device .................................................................................................................................. 145

12.4 Managing Memory ...................................................................................................................................... 146

12.5 Windows Update .......................................................................................................................................... 147

12.6 Battery-saving Tips ....................................................................................................................................... 148

Section 13

Using Other Applications .......................................................................................149

13.1 Using Java ....................................................................................................................................................... 150

13.2 Using Voice Speed Dial � 153

Appendix ................................................................................................................155

A.1 Speciﬁcations .................................................................................................................................................156

A.2 Regulatory Notices ........................................................................................................................................ 158

A.3 Additional Safety Information ...................................................................................................................165

................................................................................................................................

Index .......................................................................................................................169

Section 1

Getting Started

In This Section

1.1 Setting Up Service

1.2 Your Device

1.3 Battery Information

1.4 Starting Up

1.5 The Today Screen

1.6 TouchFLO™

1.7 Programs

1.8 Settings

1.1 Setting Up Service

Setting up service on your new smart device is quick and easy. This section walks you through the necessary

steps to set up your device's phone, set up your voicemail, establish passwords, and contact Sprint for assistance with your Sprint service.

Setting Up Your Voicemail

All unanswered calls to your device are automatically transferred to your voicemail, even if your phone is in use or turned off. Therefore, you will want to set up your voicemail and personal greeting as soon as your device's phone is activated.

To set up your voicemail:

1. Access the Phone screen by pressing the Talk Key.

ess and hold the 1 key on the Phone screen.

2. Pr

ollow the system prompts to:

3. F

Create your passcode.

Record your greeting.

Record your name announcement.

Choose whether to activate One-Touch Message Access (a feature that lets you access messages

simply by pressing and holding the 1 key, bypassing the need for you to enter your passcode).

Talk Key

Note:

If you are concerned about unauthorized access to your voicemail account, Sprint recommends you enable your voicemail passcode.

Sprint Account Passwords

As a Sprint customer, you enjoy unlimited access to your personal account information, your voicemail account, and your Sprint Vision® account. To ensure that no one else has access to your information, you will need to create passwords to protect your privacy.

Account Password

If you are the account owner, you’ll have an account password to sign on to www.sprint.com and to use when calling Sprint Customer Service. Your default account password is the last four digits of your Social Security number. If you are not the account owner (if someone else pays for your Sprint service), you can get a subaccount password at www.sprint.com.

Voicemail Password

You’ll create your voicemail password (or passcode) when you set up your voicemail. See “Setting Up Your Voicep mail” for more information on your voicemail password.

Sprint Vision Password

With your device and Sprint Vision service, you can set up a Sprint Vision password. This optional password may be used to authorize purchase of Premium Services content and to protect personal information on multi-phone accounts.

For more information or to change your passwords, sign on to www.sprint.com or call Sprint Customer Service at 1-888-211-4727.

2 Section 1: Getting Started

Getting Help

Visit www.sprint.com

You can go online to:

Access your account information. Check your minutes used (depending on your Sprint service plan). View and pay your bill. Enroll in Sprint online billing and automatic payment. Purchase accessories. Shop for the latest Sprint phones. View available Sprint service plans and options. Learn more about Sprint Power Vision and other great products like Sprint TVSM, the Sprint Music

StoreSM, Sprint Picture Mail, games, ringers, screen savers, and more.

Reaching Sprint Customer Service

You can reach Sprint Customer Service many different ways:

From the Phone screen, dial and then press the Talk Key. Sign on to your account at www.sprint.com. Call us toll-free at 1-888-211-4727 (Consumer customers) or 1-888-788-4727 (Business customers). Write to us at Sprint Customer Service, P.O. Box 8077, London, KY 40742.

Automated Billing Information

For your convenience, your phone gives you access to billing information on your Sprint account. This information includes balance due, payment received, invoicing cycle, and the number of minutes used since your last invoicing cycle.

To access automated billing information:



From the Phone screen, dial and then press the Talk Key.

Note:

This service may not be available in all Afﬁliate areas.

Sprint 411

You have access to a variety of services and information through Sprint 411, including residential, business, and government listings; assistance with local or long-distance calls; movie listings; and hotel, restaurant, shopping, and major local event information. There is a per-call charge and you will be billed for airtime.

To call Sprint 411:



From the Phone screen, dial and then press the Talk Key.

Sprint Operator Services

Sprint Operator Services provides assistance when placing collect calls or when placing calls billed to a local telephone calling card or third party.

To access Sprint Operator Services:



From the Phone screen, dial and then press the Talk Key.

For more information or to see the latest in products and services, visit us online at www.sprint.com.

Section 1: Getting Started 3

1.2 Your Device

Front and Back Components

Earpiece

Listen to a phone call fr

om here.

Touch Screen

TALK

Press to answer an incoming call or dial a number.

Notification LEDs

Left LED: Shows green and amber lights for

standby, message, and network status as well as for notification and battery charging status.

Right LED: Shows a flashing blue light when the

Bluetooth s ready to transmit Bluetooth radio signal, or an amber light for GPS status.

END

Press to end a call or to return to the Today screen.

Navigation Control/ENTER Button

Press this multi-directional control up, down, left, or right to move through menus and program instructions. Carry out the selection by pressing the center button.

ystem is powered up and

Self-portrait Mirror

Use it when taking self-portrait shots.

over

Back C

Slide the back cover upward to remove it.

4 Section 1: Getting Started

Speaker

2 Megapixel Camera

See Section 11 for details.

Top Components

POWER

Press to turn off the display temporarily. To turn off the power, press and hold for about five seconds. For more information, see “Starting Up” in this section.

Left and Right Components

Volume Slider

• Slide up or down to adjust the speaker volume.

• During a call, slide up or down to adjust the earpiece volume.

Stylus

Storage Card Slot Cover

Remove the back cover and then pry open the slot cover to install the microSD card for storing data.

Lanyard/Strap holder

Bottom Components

Microphone

CAMERA

Press to activate the Camera. See Section 11 for details.

RESET

With the stylus, press the RESET button to soft reset your device.

Sync Connector/Earphone Jack

Connect the supplied AC phone charger to charge the battery or the USB Sync cable to synchronize data with your PC. You can also connect the provided 2.5mm headset adapter to allow the AC phone charger and stereo headset to be connected to your device at the same time.

Section 1: Getting Started 5

Accessories

Screen

Protector

6 7

1 AC Phone Charger Recharges the battery. 2 USB Sync Cable Connects your device to a PC and synchronizes data.

3 Mini-USB Stereo

Headset

4 Battery Rechargeable Lithium-ion battery, 1100 mAh. 5 microSD™ card Provides 512 MB of storage space.

6 Two Mini USB

Adapter

7 2.5mm Headset

Adapter

8 Pouch Comes with belt clip. Store your device in the pouch to keep it from dust and

9 Stylus An extra stylus pen is provided.

10 LCD Screen Protector Protects the touch screen from scratches and abrasions.

Provides a volume control slider and a Send/End button. Press the Send/End button to pick up a call or put a call on hold; press and hold the button to end the call.

Lets you connect the supplied AC phone charger and mini-USB stereo headset to your device at the same time.

Lets you connect the supplied AC phone charger and a standard 2.5mm stereo headset to your device at the same time.

scratches.

6 Section 1: Getting Started

Using the Two Mini USB Adapter and 2.5mm Headset Adapter

To be able to charge the battery on your device using the AC phone charger and at the same time connect a wired stereo headset for hands-free phone conversation or for listening to audio media, you can use the splitter adapters that are supplied with your device.

To connect the AC phone charger and the supplied mini-USB stereo headset:

Use the two mini USB adapter for the connection.

1. Connect one end of the two mini USB

adapter to the sync connector at the bottom of your device.

2. Connect the supplied mini-USB stereo

headset to the audio connector of the two mini USB adapter.

3. Connect the AC phone charger to the

power connector of the two mini USB adapter.

Audio connector for connecting the mini-USB ster

eo headset

Power connector for connecting the AC phone charger

Connect to the device’s sync connector

To connect the AC phone charger and a standard 2.5mm stereo headset:

Use the 2.5mm headset adapter for the connection.

1. Connect one end of the 2.5mm headset adapter to the sync connector at the bottom of your device.

2. Connect a standard 2.5mm stereo headset to the audio jack of the 2.5mm headset adapter.

3. Connect the AC phone charger to the power connector (5-pin) of the 2.5mm headset adapter.

Connect to the device’s sync connector

Audio jack for connecting a 2.5mm stereo headset

Power connector for connecting the AC phone charger

Section 1: Getting Started 7

Installing the microSD card

1. Remove the back cover.

2. Use your thumb or ﬁnger to pry open the cover that houses the storage card slot. To open the slot cover

more easily, pry it open from both ends.

storage card slot

Slot cover

3. Flip your device so that the touch screen faces upward.

4. Hold open the slot cover with one hand.

5. Insert the microSD card into the storage card slot with the gold contacts facing down.

storage card

6. Close the slot cover.

7. Replace the back cover.

Note:

To remove the storage card, press the card to pop it out of the slot.

8 Section 1: Getting Started

1.3 Battery Information

Your device comes with a rechargeable Li-Ion battery. Use only manufacturer-speciﬁed original batteries and accessories with your device. Battery performance depends on many factors, including network conﬁguration, signal strength, the temperature of the environment in which you operate your device, the features and settings you select and use, items attached to your device’s connecting ports, and your voice, data, and other program usage patterns.

Battery life estimates (approximations):

Standby time: Up to 250 hours.

Talk time: Up to 3.5 hours.

Media playback time: Up to 8 hours for WMV (video); up to 12 hours for WMA (audio).

Warning: To reduce risk of ﬁre or burns, do not disassemble, crush, or puncture the battery; short external contacts; heat above 60 water. Replace only with manufacturer-speciﬁed batteries. Recycle or dispose of used batteries according to the local regulations.

C (140oF); or dispose of in ﬁre or

Installing and Charging the Battery

New batteries are shipped partially charged. Before you start using your device, you need to install and charge the battery.

To remove the back cover:

Before installing the battery or storage card, you have to remove the back cover.

1. Make sure your device is turned off.

2. Slide the back cover upward as shown in the following illustration.

To install the battery:

1. Install the battery by inserting it with its exposed copper part aligned with the protruding copper

conductor on the right side of the battery compartment. Insert the right side of the battery ﬁrst, then gently push the battery into place.

2. Replace the back cover.

Section 1: Getting Started 9

To remove the battery:

1. Make sure your device is turned off.

2. Remove the back cover.

3. To remove the battery, lift it up from the lower-left end of the battery.

To charge the battery:

Some batteries perform best after several full charge and discharge cycles. The time needed to fully charge the battery is less than four hours. You can charge the battery in one of the following ways:

Connect your device directly to an electrical outlet using the AC phone charger.

Plug the sync cable to the USB port on your PC and to the sync connector on your device.

Notes:

Do not remove the battery from the device while you are charging it using the AC phone charger.

As a safety precaution, the battery stops charging when it overheats.

Low Battery

When the low-battery warning appears, do the following:

Immediately save your current data.

Immediately charge the battery by using the AC phone

charger.

Synchronize with your PC (see Section 5).

Turn off your device.

To check the battery power:



Tap Start > Settings > System tab > Power.

Power information

10 Section 1: Getting Started

1.4 Starting Up

Turning Your Device On and Off

To turn on your device, press and hold the Power Key at the top left of the device. When you turn on your device for the ﬁrst time, a Quick Start Wizard will guide you through the calibration process and the setup of regional settings, date and time, and password. For more information about touch screen calibration, see “Calibrating the Device.” For information about setting up the device password, see “Protecting Your Device” in Section 4.

To turn off your device, press and hold the Power Key for a few seconds. A message will then be displayed, prompting you whether to turn off the device completely.

Switching to Sleep Mode

Quickly pressing the Power Key turns off the display temporarily and switches your device to sleep mode. Sleep mode suspends your device to a low power state while the display is off in order to save battery power.

Your device also automatically goes into sleep mode when you leave the device idle after a certain amount of time.

To specify the timeout period before your device goes into sleep mode:

1. Tap Start > Settings > System tab > Power > Advanced tab.

2. Under On battery power, make sure the Turn off device if not used for check box is selected.

3. Select the battery timeout period, and then tap OK.

You will still be able to receive messages and calls while your device is in sleep mode. Pressing the Power Key again or new incoming calls or messages will wake up your device.

Calibrating the Device

Calibrating the device screen involves tapping the center of a cross with the stylus as it moves around the screen. This process ensures that when you tap the screen with your stylus, the tapped item is activated.

If your device does not accurately respond to screen taps, please follow these steps to recalibrate it:

1. Tap Start > Settings > System tab > Screen.

2. On the General tab, tap Align Screen, and follow the instructions on the screen.

Key Lock

It is possible to lock the buttons on the device, so that the applications may not be accidentally launched. Once you enable this feature, only the Power Key can turn on your device.

To lock buttons:



Tap the Lock icon ( ) on the Launch tab of HTC Home. (See “HTC Home” for details.)

To unlock buttons:



Tap Unlock twice on the Today screen.

Note:

To change the Key Lock settings, tap Start > Settings > System tab > Key Lock.

The Key Lock feature does not disable the phone function of your device. When you enable this feature, you still can use the buttons on the device to receive or reject an incoming call.

Section 1: Getting Started 11

Managing Screen Settings

The device’s display has Portrait and Landscape screen orientation modes. To change the orientation, tap Start > Settings > System tab > Screen, and select the orientation you want.

To smooth the edges of screen fonts for many programs, on the ClearType tab, select the Enable ClearType

check box.

To increase the readability or to see more content on the screen, on the Text Size tab, adjust the text size

by moving the slider.

Tip:

To quickly change the screen orientation, you can also tap the Rotate Screen icon in HTC Home’s Launcher. See “HTC Home” later in this section for details.

12 Section 1: Getting Started

1.5 The Today Screen

The Today screen displays important information, such as upcoming appointments and status indicators. You can tap a section on the screen to open the associated program.

Connection status

Notification

Open Start Menu.

HTC Home (See “HTC Home” in this section for details.)

Your upcoming appointments.

Signal strength

Adjust volume

Battery status

Open Quick Menu (See “Quick Menu” in this sec

tion for details.)

To access the Today screen, tap Start > Today.

To customize the Today screen display, including the background image, tap Start > Settings > Personal tab >

Today.

Note:

For more information about customizing the Today screen, see Section 4.

Indicators

The following are some of the status icons that you may see on your device.

Icons that appear in this area

Vibration mode.

Sound on.

Sound off.

Icons that appear in this area

There are more notifications. Tap the icon to view all.

New email or text messages.

New voicemail. New instant message from

Live Messenger.

Missed call.

Speakerphone on.

Roaming.

Alarm.

Bluetooth stereo headset detected.

ActiveSync notification.

Synchronization error.

Icons that appear in this area

1xRTT available.

EVDO available.

Connection is active.

Connection is not active.

Synchronization in progress.

Icons that appear in this area

Battery charging.

Battery full.

Battery very low.

Icons that appear in this area

Data connection is active but idle.

Data connection is active and transmitting data.

Maximum signal strength.

No signal.

Phone is turned off.

No phone service.

Searching for phone service.

Voice call in progress.

Section 1: Getting Started 13

The Start Menu

The Start menu, located at the top left corner of the Today screen, displays a list of programs. It lets you close a screen and switch from one program to another. You can start a program by scrolling through the programs list and then pressing the ENTER button, or by tapping a program with the stylus.

Open a recently used program. Switch to the Today screen.

Open a program. (The items displayed in the Start menu can be customized by tapping

Start > Settings > Personal tab > Menus.)

Access more programs. View and change settings.

View Help information for the current screen.

The Quick Menu

The Quick Menu, located at the top right corner of the Today screen, shows the currently running programs. You can quickly switch between running programs and stop programs when you do not need to use them.

Tap this button to open the Quick Menu. Stop all currently running programs.

Customize Task Manager settings. (See “Using Task Manager” in Section 12.)

Display the percentage of memory in use.

Tap this icon to view more information

about memory usage.

• To switch to a running program, tap the program name.

• To stop running a program, tap

HTC Home

HTC Home is a Today screen plug-in that gives you up-to-date local

information at a glance, such as time, day, and weather information, and shows new messages and missed calls. It also has a customizable launcher where you can add your favorite applications for one-touch access.

HTC Home has four components: Home, Weather, Launcher, and Sound. At the bottom of HTC Home, there is a toolbar that allows you

witch between these components.

to s

To switch between the different components of HTC Home:



Touch the tabs in the toolbar using your ﬁnger.

—or—



Tap the tabs in the toolbar using the stylus.

Home Weather Launcher

Sound

—or—



Use the Navigation Control. If the toolbar is not selected, press the Navigation Control up/down ﬁrst

to select the toolbar. Press the Navigation Control left or right to select a tab and then press the ENTER button.

14 Section 1: Getting Started

The Home tab

Home displays the current day, date and local time. When you have new incoming messages and calls, it

shows you the number of new email and text messages, and missed calls. If you have set up the alarm, it also shows the Alarm icon.

Time display. Touch this display area when you want to change the date or time, or to enable the alarm.

Number of new email messages. Touch this icon to view your email messages.

Number of new text messages. T

ouch this icon to view your text messages.

Current day and date Alarm icon

Number of missed calls. Touch this icon to view the Call History.

The Weather tab

Weather shows you the current weather as well as weather information for the next four days of the week.

The ﬁrst time you use this feature, you need to select your city ﬁrst to get local weather information.

1. Selec

2. T

3. On the Selec

t the Weather tab (1).

ouch the area that shows Select your city here.

t City screen, browse through the list of cities and

choose your city (2).

ap Select (3).

4. T

After selecting your city, your device automatically connects to the Internet via the data connection and downloads weather information for the current day and the next four days of the week. The current temperature, the highest and lowest temperatures, and a visual indicator of the climate (showing if it’s a cloudy or rainy day, etc.) will be displayed on the Weather screen.

Shows the time that has passed since the last download of weather information. Touch here to download the latest weather data.

Touch this area to view weather information of the next four days of the week.

Touch this area if you want to select another city.

Current day’s weather

Touch this area to return to the current day’s weather.

Four-day forecast

Section 1: Getting Started 15

If you have not connected to the Internet and downloaded weather information for ﬁve days, the

Note:

following error message will be displayed: “Unable to retrieve data for selected city. Select here to retry.” Use the data connection to connect your device to the Internet, and then touch the area that shows the error message to download weather data.

To customize the weather settings:

ouch the area that shows the city name.

1. T

2. On the Selec

3. Enable or disable the f

t City screen, select Menu > Weather Options.

ollowing options:

Download weather data automatically. When this check box is

selected, weather information will automatically be downloaded from the AccuWeather Web site whenever you select the Weather tab, if the data has not been updated within the last three hours. Weather data will also be downloaded every time an ActiveSync connection occurs (through over-the-air or USB connection).

Clear this check box if you prefer to manually download weather

information.

Download when roaming. Select this check box only if you want to allow automatic download of

weather data when you’re roaming. This may incur additional costs.

Temperature Scale. Choose whether to display temperature in Celsius or Fahrenheit.

Note:

To check for more detailed weather information on the AccuWeather Web site, select Menu > About Weather on the Select City screen and then touch the link that shows AccuWeather.com. Internet

Explorer Mobile then opens and brings you to the AccuWeather Web site.

The Launcher tab

Launcher allows you to add quick shortcuts to your favorite programs and settings for one-touch access.

Quick settings such as Adjust Backlight, Rotate Screen, Lock Device, and a few program shortcuts are added by default. They can be replaced with your preferred settings and programs.

Touch a shortcut to remove it.

Touch a quick shortcut to open the associated program or apply the associated setting.

Note:

To replace a shortcut, you need to delete it ﬁrst and then add a shortcut to your favorite program or setting.

Touch an empty slot to add a shortcut to a setting or your favorite program.

Remove shortcuts.

Return

16 Section 1: Getting Started

The Sound tab

Sound lets you quickly set the device volume and change the ring tone of your device.

Silent Vibrate

Normal

Tap to change the ring tone.

Automatic

Tap the sound mode icon to set the device to Normal, Silent, Vibrate, or Automatic mode.

Touch the Ringtone area to open the phone sound settings to change the ring tone.

Note:

Tap the Automatic icon to set the device volume to Automatic mode. If Automatic is selected, the device will vibrate during a scheduled event in your calendar; if there are no scheduled events in your calendar, the device will use the Normal mode setting.

Section 1: Getting Started 17

1.6 TouchFLO™

TouchFLO™ is a special feature that gives you a better touch screen experience on your device. With TouchFLO, you

can simply use your ﬁnger to scroll and pan the screen.

TouchFLO also features Touch Cube, where you can launch messaging programs, Internet Explorer® Mobile, and more. You can also add your favorite contacts, play music, and access your pictures and videos.

Note:

Touch Cube is displayed in portrait view only. To be able to open Touch Cube, make sure your display is set to portrait mode.

Touch Cube

To open Touch Cube:



Slide your ﬁnger upward, starting from the logo at the bottom

of the touch screen.

To close Touch Cube:



To close Touch Cube and return to the screen before opening

Touch Cube, slide your ﬁnger downward on the touch screen.

To navigate Touch Cube:



Touch Cube is a three-dimensional cubic user interface. To ﬂip the interface from one side to another,

slide your ﬁnger left or right on the touch screen.

18 Section 1: Getting Started

Touch Cube screens

There are three sides to the Touch Cube interface:

On the ﬁrst side of the interface, you can add up to nine favorite contacts. If you make calls or send

messages to certain people frequently, you can add them as favorite contacts for quicker access.

Selec

t a contact to access the contact card and make a phone call or send messages.

Select an empty slot to add a favorite contact.

When y

ou add a favorite contact and there is no photo associated with that contact, the contact’s first name (or last name) will be displayed.

Notes:

Open the Phone program. (See Section 3 for details.)

Open Call History. (See Section 3 for details.)

Select a favorite contact to remove it.

Return to your list of favorite contacts.

You should already have contacts created or synchronized on your device before you can add them as favorite contacts.

For more information about creating contacts, see Section 6.

For more information about synchronizing your device with a PC, see Section 5. For information about synchronizing your device with the Exchange Server, see Section 8.

Delete f

Open Contacts. (See Section 6 for details)

avorite contacts.

The second side of the interface provides quick shortcuts to your email messages, text messages, the

online store, and other applications. Simply touch the icons on the screen to open the corresponding program.

Section 1: Getting Started 19

On the third side of the interface, you can play back music and access the images and video ﬁles on

your device.

Open the Java application and access the online music store to download your favorite music.

Open the Sprint TV to watch the TV shows on your device.

Open the On Demand application to provide personalized content service on your device.

Finger-scrolling and ﬁnger-panning

With TouchFLO, you can use ﬁnger-scrolling and ﬁnger-panning when viewing content that cannot be ﬁt entirely on the screen, such as Web pages, documents, and messages. Finger-scrolling can also be used to scroll up and down lists such as the contacts list, ﬁle list, message list, and calendar appointments list.

Note:

Finger-scrolling and ﬁnger-panning work in both portrait and landscape modes.

To use ﬁnger-scrolling:



Slide your ﬁnger downward to scroll up the screen.



Slide your ﬁnger upward to scroll down the screen.



To scroll towards the left, slide your ﬁnger to the right.



To scroll towards the right, slide your ﬁnger to the left.



While the screen is scrolling, you can stop the scrolling by pressing your ﬁnger on the touch screen.

When finger-scrolling up and down, slide anywhere within this area.

Note:

Scrollbars shown on the screen indicate that there is more content that does not ﬁt on the screen. You can ﬁnger-scroll up and down only when there’s a vertical scrollbar shown on the screen. Likewise, you can ﬁnger-scroll left and right only when there’s a horizontal scrollbar.

20 Section 1: Getting Started

To use ﬁnger-panning:



To pan downward, touch and hold on the touch screen and then drag your ﬁnger upward.



To pan upward, touch and hold on the touch screen and then drag your ﬁnger downward.



To pan towards the right, touch and hold on the touch screen and then drag your ﬁnger to the left.



To pan towards the left, touch and hold on the touch screen and then drag your ﬁnger to the right.



You can also pan diagonally.

Note:

Scrollbars shown on the screen indicate that there is more content that does not ﬁt on the screen. You can use ﬁnger-panning only when there are scrollbars shown on the screen.

To continuously pan:

1. Drag your ﬁnger towards a boundary and hold. The Web page, document, or message that you are

viewing then continuously pans.

2. Release your ﬁnger to stop panning.

Vertical boundary

Horizontal boundary

Enhanced features

TouchFLO provides enhanced features when you use Email and Contacts applications on the device.

To navigate to the previous or next email message in Outlook:

When you open Outlook to check your email messages, TouchFLO enables you to navigate through the information easily by sliding your ﬁnger left or right on the touch screen.



Slide your ﬁnger to the right to navigate to the previous email message.

—or—



Slide your ﬁnger to the left to navigate to the next email message.

Section 1: Getting Started 21

Tip:

If you slide to the right and you are on the ﬁrst email message, or slide to the left and you are on the last email message, you will be returned to the email list screen.

Random Accessing Contacts:

When you open the Contacts list, the Random Access bar allows you to quickly scroll through the list.

Random Access bar

On the Random Access bar, tap a letter or scroll to a letter to contacts beginning with that letter.

TouchFLO settings

You can enable or mute the ﬁnger-scrolling and ﬁnger-panning sound. Tap Start > Settings > System tab > TouchFLO and then select or clear the Enable sound when ﬁnger scrolling and panning check box.

22 Section 1: Getting Started

1.7 Programs

The following are some of the icons for the programs that are already installed on your device.

Programs in the Start Menu

Icon Description

Office Mobile Use the complete suite of Microsoft® Office applications for your mobile device.

Contacts Keep track of your friends and colleagues.

Internet Explorer Mobile Browse Web and WAP sites as well as download new programs and files from the

Internet.

Notes Create handwritten or typed notes, drawings, and voice recordings.

Phone Make and receive calls, switch between calls, and set up conference calling.

Software Store Launch the Web browser and connect to the Sprint Mobile Software Store automatically.

Excel Mobile Create new workbooks or view and edit Microsoft® Office Excel® workbooks.

OneNote Mobile Create OneNote files on your device and then synchronize them with your PC. PowerPoint Mobile View Microsoft® Office PowerPoint® slides and presentations.

Word Mobile Create, view, and edit Microsoft® Office Word documents.

Help See Help topics for the current screen or program.

Programs screen

Icon Description

Games Play two pre-installed games: Bubble Breaker and Solitaire.

ActiveSync Synchronize information between your device and a PC or the Exchange Server.

Adobe Reader LE View PDF (Portable Document Format) files on your device.

Bluetooth Explorer Search for other Bluetooth devices that have file sharing enabled and access their

Bluetooth shared folder.

Calculator Perform basic arithmetic and calculations, such as addition, subtraction, multiplication, and division.

Calendar Keep track of your appointments and create meeting requests.

Camera Album View your photos and videos.

Camera Take photos or shoot video clips with accompanying audio.

File Explorer Organize and manage files on your device.

Get On Demand Provide personalized content service (news, sports, weather, etc.) on your device.

Getting Started Provide a list of “how to’s” that you can reference to learn basic features and settings of your

device. Tap one of the items onscreen to learn how to do the task.

Instant Messaging Chat with your on-line friends and colleagues in real time.

Section 1: Getting Started 23

Icon Description

Internet Sharing Connect your computer to the Internet using your device’s data connection.

Java Download and install Java applications, such as games and tools, to your device.

Live Search Search for a location’s address and find it on a map. You can also check for directions and traffic

conditions.

Messaging Send and receive email and text messages.

Messenger Use the mobile version of Windows Live Messenger to send and receive instant messages on your

device.

Mobile Email Access multiple email accounts including Yahoo!, AOL, Windows Live, and more.

Music Go online to access the Sprint Music Store and download your favorite music.

Pictures & Videos View, organize, and sort pictures, animated GIFs, and video files on your device or a storage

card.

Search Search contacts, data, and other information on your device.

Tasks Keep track of your tasks.

Voice Recorder Record your voice, play it back, and then send it via email, MMS, or Bluetooth. You can also set

the recorded voice as your ring tone.

Voice Speed Dial Record voice tags so that you can dial a phone number or launch programs simply by speaking.

Windows Live Use the mobile version of Windows Live™ to find information on the Web. You can also sign into

your Windows Live account and access your Live Mail messages and send and receive instant messages in Live Messenger.

Windows Media Player Mobile Play back audio and video files.

ZIP Save memory and free up storage space on your device by compressing files in standard ZIP format.
