Quick Start Guide
Please Read Before Proceeding
THE BATTERY IS NOT CHARGED WHEN YOU TAKE IT OUT OF THE BOX.
DO NOT REMOVE THE BATTERY PACK WHEN THE DEVICE IS CHARGING.
YOUR WARRANTY IS INVALIDATED IF YOU OPEN OR TAMPER WITH THE DEVICE’S
OUTER CASING.
PRIVACY RESTRICTIONS
Some countries require full disclosure of recorded telephone conversations, and
stipulate that you must inform the person with whom you are speaking that the
conversation is being recorded. Always obey the relevant laws and regulations of your
country when using the recording feature of your PDA Phone.
Disclaimers
THE WEATHER INFORMATION, DATA AND DOCUMENTATION ARE PROVIDED “AS
IS” AND WITHOUT WARRANTY OR TECHNICAL SUPPORT OF ANY KIND FROM
HTC. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, HTC AND ITS
AFFILIATES expressly disclaim any and all representations and warranties, express
or implied, arising by law or otherwise, regarding the Weather Information, Data,
Documentation, or any other Products and services, including without limitation
any express or implied warranty of merchantability, express or implied warranty of
fitness for a particular purpose, non-infringement, quality, accuracy, completeness,
effectiveness, reliability, usefulness, that the Weather Information, Data and/or
Documentation will be error-free, or implied warranties arising from course of dealing
or course of performance.
Without limiting the foregoing, it is further understood that HTC and its Providers
are not responsible for Your use or misuse of the Weather Information, Data and/or
Documentation or the results from such use. HTC and its Providers make no express
or implied warranties, guarantees or affirmations that weather information will
occur or has occurred as the reports, forecasts, data, or information state, represent
or depict and it shall have no responsibility or liability whatsoever to any person or
entity, parties and non-parties alike, for any inconsistency, inaccuracy, or omission
for weather or events predicted or depicted, reported, occurring or occurred.
WITHOUT LIMITING THE GENERALITY OF THE FOREGOING, YOU ACKNOWLEDGE
THAT THE WEATHER INFORMATION, DATA AND/OR DOCUMENTATION MAY
INCLUDE INACCURACIES AND YOU WILL USE COMMON SENSE AND FOLLOW
STANDARD SAFETY PRECAUTIONS IN CONNECTION WITH THE USE OF THE WEATHER
INFORMATION, DATA OR DOCUMENTATION.
Limitation of Damages
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL
HTC OR ITS PROVIDERS BE LIABLE TO USER OR ANY THIRD PARTY FOR ANY INDIRECT,
SPECIAL, CONSEQUENTIAL, INCIDENTAL OR PUNITIVE DAMAGES OF ANY KIND, IN
CONTRACT OR TORT, INCLUDING, BUT NOT LIMITED TO, INJURY, LOSS OF REVENUE,
LOSS OF GOODWILL, LOSS OF BUSINESS OPPORTUNITY, LOSS OF DATA, AND/OR LOSS
OF PROFITS ARISING OUT OF, OR RELATED TO, IN ANY MANNER, OR THE DELIVERY,
PERFORMANCE OR NONPERFORMANCE OF OBLIGATIONS, OR USE OF THE WEATHER
INFORMATION, DATA OR DOCUMENTATION HEREUNDER REGARDLESS OF THE
FORESEEABILITY THEREOF.
Table of Contents
Contents
1. Welcome to the Touch Diamond Quick Start Guide ..................6
2. Inside the Box ..........................................................................................6
3. Getting to Know the Touch Phone ...................................................7
4. Installing Battery .....................................................................................8
5. Charging the Battery .............................................................................8
6. Starting Up ................................................................................................9
7. The Home Screen ...................................................................................9
8. Single Hand Operation ...................................................................... 10
9. Make Your First Call ............................................................................. 11
10. Entering Information ....................................................................... 11
11. Add Contacts to Your Device ........................................................ 12
12. Send a Text Message ........................................................................ 12
13. Set Up Wi-Fi ......................................................................................... 13
14. Set Up an Internet E-mail Account ............................................. 13
15. Mobile Internet .................................................................................. 15
16. Changing Phone Settings .............................................................. 17
17. Bluetooth ............................................................................................. 18
18. Keeping Track of Appointments .................................................. 20
19. Keeping Track of Things to Do ...................................................... 20
20. Taking Photos and Shooting Videos .......................................... 21
Table of Contents
21. Viewing Photo and Videos ............................................................. 22
22. Synchronizing Your Device with Your PC ................................. 23
23. Copying Files to Your Device......................................................... 25
24. Synchronizing Music Files ............................................................. 26
25. Listening to Music on Your Device .............................................. 27
26. Resetting Your Device ..................................................................... 28
6 Quick Start Guide
1. Welcome to the Touch Diamond Quick Start Guide
Congratulations on your purchase of the Touch Diamond device. This
Quick Start Guide will help you get started with your Windows Mobile® 6.1
Professional powered Touch Phone.
We’ve arranged this Quick Start Guide in a way that it starts from when you open
the box and then it walks you through the features we feel that you want to
know or use right away when you turn on your device for the first time.
For a more complete guide in using your device, please refer to the User
Manual PDF that we have included in the Getting Started Disc that came with
the device. The Getting Started Disc also includes some programs that you can
install on your device.
2. Inside the Box
You should find the following items inside the box.
The Touch
•
Diamond Phone
Battery
•
Extra Stylus
•
AC Adapter
•
Wired stereo headset
•
USB sync cable
•
Multifunction audio
•
cable
Pouch
•
Screen protector
•
Read First Poster and
•
Quick Start Guide
Getting Started Disc
•
3. Getting to Know the Touch Phone
Earpiece
Touch Screen
BACK
Navigation
Control
HOME
TALK/SEND
END
POWER
Quick Start Guide 7
3.2 Megapixel
Camera
Back Cover
VOLUME UP
VOLUME DOWN
Strap Holder
Stylus
Speaker
Microphone
Sync Connector/
Earphone Jack
8 Quick Start Guide
4. Installing Battery
Make sure your device is turned off before installing the battery. You also need
to remove the back cover before you can install these components.
To remove the back cover
1. Make sure your device is turned off.
Hold the device with both hands and the front
2.
panel facing down.
Push the back cover up with your thumb until it
3.
disengages from the device and then slide it up
to remove.
To install the battery
1. Align the battery’s exposed copper contacts
with the battery connectors inside the battery
compartment.
Insert the contact’s side of the battery first and
2.
then gently push the battery into place.
Replace the back cover.
3.
5. Charging the Battery
New batteries are shipped partially charged. Before you start using your device,
it is recommended that you install and charge the battery.
To charge the battery
1. Connect the USB connector of the AC adapter to the sync connector on your
device.
Plug in the AC adapter to an electrical outlet to start charging the battery.
2.
The battery is fully charged after about 3 hours of charging.
Quick Start Guide 9
6. Starting Up
After installing the battery and charging the battery, you can now power on and
start using your device.
To turn on the power
1. Press and hold the POWER button for a few seconds.
A Quick Start Wizard guides you through the calibration of the screen and the
2.
setup of regional settings, date and time, and password. Follow the onscreen
instructions to finish the Quick Start Wizard. After the Quick Start Wizard
finishes, the device installs customization settings, then restarts.
Note After the device restarts, you may be prompted to set up an e-mail account.
7. The Home Screen
After the device restarts from configuring your data
connections, you are taken to the Home screen. The
Home screen of the device is the TouchFLO™ 3D Home
screen which allows finger-touch access to the most
important functions such as contacts, text messages,
e-mail, Internet, and more.
For more information about TouchFLO 3D, please refer
to the TouchFLO 3D Guide and User Manual.
10 Quick Start Guide
8. Single Hand Operation
One hand, one touch makes it easy and quick to accomplish tasks on your
device.
Scroll through the
tabs on the Home
screen by touching
and then dragging
it.
Finger-friendly
keyboard makes
one-hand typing
fast. Press and hold
the key to enter the
character above
the letter.
Easily dial numbers
with the large
phone keypad
buttons.
Quickly browse
through your
photos by flicking
your finger up
or down on the
screen.
Quick Start Guide 11
9. Make Your First Call
1. On the Home screen, tap Phone.
2. Tap the keys on the keypad to enter the phone number.
Tip If you tapped a wrong number, tap to erase each
subsequent digit of a number. To erase the entire
number, tap and hold .
3. Press the TALK/SEND button to place the call.
Tip When in a call, use the VOLUME UP/DOWN buttons on the
side of the device to adjust the phone volume.
10. Entering Information
When you need to enter text, choose one of the available onscreen input
methods. Here are some examples of onscreen input methods.
Tap to choose another onscreen input method.
Full QWERTY Compact QWERTY Phone Keypad
To enter characters, simply tap on the keys on the keyboard. Depending on the
keyboard layout selected, you may need to tap the same key more than once to
get to the character that you want to enter.
Tip When using T9 mode, tap SPACE to enter the first word in the predicted word list.
For information about the available onscreen input methods and how to use
them, see Chapter 4 of the User Manual.
12 Quick Start Guide
11. Add Contacts to Your Device
Save the contact information of the people you stay in touch with on your
device.
To add a contact to your device
1. On the Home screen, slide to the People tab and
then tap All People.
Tap New > Outlook Contact.
2.
Enter the contact information and then tap OK.
3.
12. Send a Text Message
Create and send SMS messages from your device.
On the Home screen, slide to the Messages tab and tap .
1.
In To, enter the mobile phone number of the person you want to send the
2.
message to.
Tip You can also tap To to select a contact from your Contacts list.
3. Type your message and then tap Send.
Quick Start Guide 13
13. Set Up Wi-Fi
Connect to a Wi-Fi hotspot to browse the Internet.
To connect to an open Wi-Fi network
1. On the Home screen, slide to the Settings tab.
On the Settings screen, tap Communications > Wi-Fi to turn on Wi-Fi.
2.
3. The network names of the detected wireless networks
are displayed on a pop-up message window. Tap the
open (unsecured) wireless network, then tap OK.
To learn how to connect to a secured network, please refer to Chapter 8 of the
User Manual.
14. Set Up an Internet E-mail Account
Set up your personal e-mail account such as Gmail or Yahoo! on your device.
On the Home screen, slide to the Mail tab and tap New Account.
1.
Enter the E-mail Address and Password of your personal e-mail account and
2.
select the Save password checkbox. Tap Next.
After the device finds the settings for the e-mail account, tap Next.
3.
Settings for the e-mail account
are found in the device.
Settings for the e-mail account
are NOT found in the device.
14 Quick Start Guide
Note If the settings are not found in the device, the device needs to connect to the
4. Enter Your name and the Account display name and then tap Next.
Note The Account display name is the name you will see on the Mail tab on the
5. Select how often you want the device to check for new messages on the
server in Automatic Send/Receive and then tap Finish.
Choose whether or not to download messages from the e-mail account.
6.
To send e-mail using the Internet e-mail account
1. On the Mail tab of the Home screen, tap the icon ( )
of the Internet e-mail account you have just set up.
Tap .
2.
Enter the e-mail address of the person you want to
3.
e-mail in To and enter a Subject.
Type your e-mail and then tap Send.
4.
Internet to try to retrieve the settings.
Home screen.
Quick Start Guide 15
15. Mobile Internet
Take advantage of hi-speed internet connection and improved browser features
to experience desktop-like Web surfing on your device.
To open Opera Mobile and browse the Web
1. On the Home screen, slide to the Internet tab and then tap Browser.
On the Opera Mobile screen, tap the address bar.
2.
Enter the URL address and tap .
3.
Use finger gestures to browse the Web page. For more details on how to use
Opera Mobile, refer to Chapter 8 of the User Manual.
To automatically rotate the screen
The screen orientation automatically adjusts to the way you hold the device.
Turn your device
sideways to browse the
Web in landscape mode.
To zoom in on a Web page
Double-tap the area of the screen you want to zoom in to.
Double-tap
to zoom in.
While zoomed in,
double-tap the
screen to zoom out.
16 Quick Start Guide
To pan the Web page
Scroll the page by simply dragging your finger on
the screen.
Automatic text wrapping
When you zoom in on a Web page, the Web page text automatically wraps to fit
the screen.
Watch YouTube™ videos
Watch YouTube videos on your device. View, bookmark,
view recent videos, or search for videos by simply touching
the buttons at the bottom of the screen.
16. Changing Phone Settings
Customize your phone settings to suit your personal preferences.
To change the ringtone
1. On the Home screen, slide to the Settings tab and then tap Sound.
On the Sound screen, scroll down to Ringtone and tap it.
2.
On the Ringtones screen, tap the ringtone you want to use and tap Done.
3.

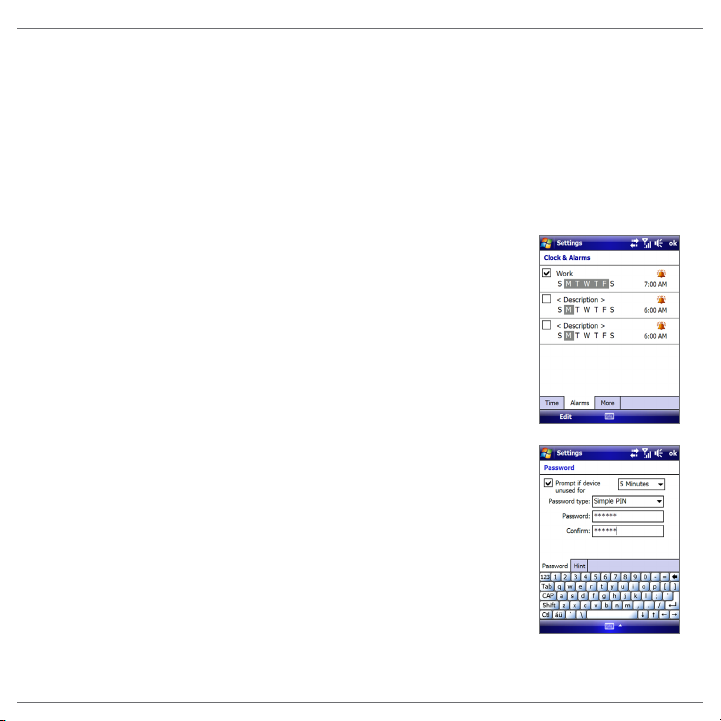

To set an alarm
1. On the Home screen, slide to the Settings tab and
then tap All Settings.
On the Systems tab, tap Clock & Alarms.
2.
On the Alarms tab, select a checkbox and change the
3.
Description.
Tap the days you want the alarm to sound and then
4.
tap OK.
To enable device lock
Enabling device lock requires you to enter a password to
unlock the device after it has been left idle for a set period
of time.
1. On the Home screen, slide to the Settings tab and then
tap All Settings.
2. On the Personal tab, tap Lock.
3. Select the Prompt if device unused for check box and
enter the time you want.
4. Select the Password type.
5. Enter and confirm the password and then tap OK.
Quick Start Guide 17
18 Quick Start Guide
To change battery and backlight settings
Conserver battery power by adjusting the battery and backlight settings.
On the Home screen, slide to the Settings tab and then tap All Settings.
1.
On the System tab, tap Power.
2.
On the Backlight tab, set the brightness of the backlight by dragging
3.
battery power and external power sliders.
On the Advanced tab, set when you want the backlight and device to turn
4.
off when using battery and external power. Tap OK.
Note Turn off device only turns off the screen. The device is still “on.”
17. Bluetooth
Pair your device with other Bluetooth-enabled devices or a Bluetooth headset if
you have one.
To pair your device with a Bluetooth device
1. On the Home screen, slide to the Settings tab and then tap Menu >
Bluetooth Devices > Devices tab.
Tap Add new device. Your device displays the names of other Bluetooth
2.
devices within range.
Tap the device name in the box, then tap Next.
3.
Specify a passcode to establish a secure connection. The passcode can be 1
4.
up to 16 characters.
Tap Next.
5.
Wait for the paired device to accept the partnership. The receiving party
6.
needs to enter the same passcode that you specified.
Quick Start Guide 19
7. The name of the paired device is then displayed. You may edit and enter a
new name for that device.
Select the check boxes of services that you want to use from the paired
8.
device, then tap Finish.
To pair your device with a Bluetooth headset
1. Make sure that both your device and the Bluetooth headset are turned
on and within close range, and that the headset is visible. Refer to the
manufacturer’s documentation to find out how to set the headset in visible
mode.
On the Home screen, slide to the Settings tab and then tap Menu >
2.
Bluetooth Devices > Devices tab > Add new device.
Tap the name of the Bluetooth headset, then tap Next. The device will
3.
automatically pair the device with the Bluetooth headset.
Windows Mobile will automatically try one of the preconfigured passcodes (0000,
1111, 8888, 1234) to pair the Bluetooth headset with the device. If this fails, you
have to enter the passcode delivered with your headset manually.
For more information about Bluetooth, refer to Chapter 9 of the User Manual.
20 Quick Start Guide
18. Keeping Track of Appointments
Use Calendar to help remind you of your upcoming appointments.
To enter an appointment into your device
1. On the Home screen Home tab, tap Calendar.
2. On the Calendar screen, tap Menu > New
Appointment.
Use the onscreen keyboard to enter the appointment
3.
details.
After entering the appointment details, tap OK.
4.
The appointment will show on the Home tab of the Home screen.
19. Keeping Track of Things to Do
Use Tasks to help you remember things that you have to do.
To create a to-do list
1. Tap Start > Programs > Tasks.
On the Tasks screen, tap Tap here to add a new task
2.
and then enter the task name.
Tap the ENTER button on the onscreen keyboard.
3.
Tip You can also tap outside the field to enter the task.
Refer to Chapter 12 of the User Manual to learn more
about the advanced features of Tasks.
Quick Start Guide 21
20. Taking Photos and Shooting Videos
Use the 3.2 megapixel camera of the device to take photos and shoot videos.
To take a photo
1. On the Home screen, slide to the Photos and
Videos tab and then tap the camera icon ( ).
The screen orientation automatically switches
to landscape mode when you open the Camera
program.
Aim the device at the subject.
2.
Press ENTER on the Navigation Control. This
3.
activates the auto-focus feature of the camera.
When focus is set, the camera automatically
takes the shot.
To shoot video
1. On the Home screen, slide to the Photos and
Videos tab and then tap the video icon ( ).
The screen orientation automatically switches
to landscape mode when you open the Camera
program.
Aim the device at the subject.
2.
3.
Press ENTER on the Navigation Control. This activates the auto-focus feature
of the camera. When focus is set, the camera automatically starts capturing
video. Press ENTER again to stop recording video.
To learn more about the other capture modes and functions of the Camera, refer
to Chapter 11 of the User Manual.
Auto-focus indicator
22 Quick Start Guide
21. Viewing Photo and Videos
Use Album to browse photos and play back video.
Note Album can only display files in the BMP, GIF, PNG, JPG, Animated GIF, 3GP, MP4, and
WMV formats.
To view photos
1. On the Home screen, slide to the Photos and Videos tab and tap Album.
Tap an image to view it in full screen mode.
2.
Use finger gestures to go to the next/previous image or to zoom in/out.
3.
Go to next or
previous image.
Slide your finger
clockwise on an
area to zoom in on
that area.
To rotate the image
While viewing images, you can automatically
rotate the image by simply turning your device
sideways.
Slide your
finger counterclockwise to
zoom out.
Quick Start Guide 23
To playback video
Tap the screen to show the
playback controls.
1. On the Home screen, slide to the Photos and Videos tab and tap Album.
Tap the video you want to playback.
2.
For more information about Album, refer to Chapter 11 of the User Manual.
22. Synchronizing Your Device with Your PC
Synchronize information and files between your PC and device.
Note You can refer to Chapter 5 of the User Manual to know which information and files
you can synchronize.
Set up synchronization software on your PC
Depending on the Operating System of your PC, you will need either Microsoft
ActiveSync® 4.5 (or later) or Windows Mobile® Device Center to synchronize your
device with your PC.
To synchronize your device with a Windows XP PC
1. Install ActiveSync 4.5 on your PC from the Getting Started Disc.
Connect your device to your PC using the supplied USB cable. The
2.
Synchronization Setup Wizard automatically starts and guides you to create a
synchronization partnership. Click Next.
24 Quick Start Guide
3. Clear the Synchronize directly with a server running Microsoft Exchange
check box and click Next.
Select the information types you want to synchronize and then click Next.
4.
Select whether or not to allow wireless data connections on your device
5.
while it is connected to the PC. Click Next.
Click Finish.
6.
To synchronize your device with a Windows Vista PC
1. Connect your device to your PC using the supplied USB cable. Windows
Mobile Device Center will open. On the screen, click Set up your device.
Select the information you want to synchronize and click Next.
2.
Enter the name for your device and then click Set Up.
3.
For more information about synchronization, refer to Chapter 5 of the User
Manual.
Quick Start Guide 25
23. Copying Files to Your Device
Your device comes with a built-in 4GB internal storage that you can use to store
files.
To copy files from the PC to the device’s internal storage
1. Connect your device to your PC using the supplied USB cable.
Click File Management > Browse the contents of your device in Windows
3.
Mobile Device Center or click Explore in ActiveSync on your PC. This opens
Windows Explorer on your PC and displays the contents of your device.
Browse the folders on your PC, right-click the file you want to copy and then
3.
click Copy.
Go to My Windows-Based Mobile Device > Internal Storage and then
4.
right-click on the screen and click Paste.
When you want to copy media files such as music and videos to your device
from your PC, it is recommended that you use Windows Media Player to copy the
media files.
26 Quick Start Guide
24. Synchronizing Music Files
Synchronize music files on your PC and the internal storage of the device so you
can listen to them while on the go.
On your computer, open Windows Media® Player and then connect your
1.
device to your computer.
On the Device Setup dialog box, enter a name for your device and click
2.
Finish.
Click Stop Sync and then on the left panel of Windows Media® Player, right-
3.
click the name of your device and click Set Up Sync.
Select the music playlist(s) that you want to sync between your computer
4.
and the internal storage and then click Add.
Click Finish.
5.
Quick Start Guide 27
25. Listening to Music on Your Device
After synchronizing music files to your device, you can use the Music tab on the
Home screen to play back music on your device.
To listen to music
1. On the Home screen, slide to the Music tab and then tap Library.
Slide to the All Songs tab and then tap the song you want to playback. The
2.
song starts to playback.
Touch and hold on this
bar to display the Jog bar:
Drag right or left on the
Jog bar to move forward or
backward in the music.
For more information about the Music tab, refer to the TouchFLO 3D Guide and
User Manual.
28 Quick Start Guide
26. Resetting Your Device
If you experience some sluggishness with your device, you can perform a reset
to shut down all programs and restart your device.

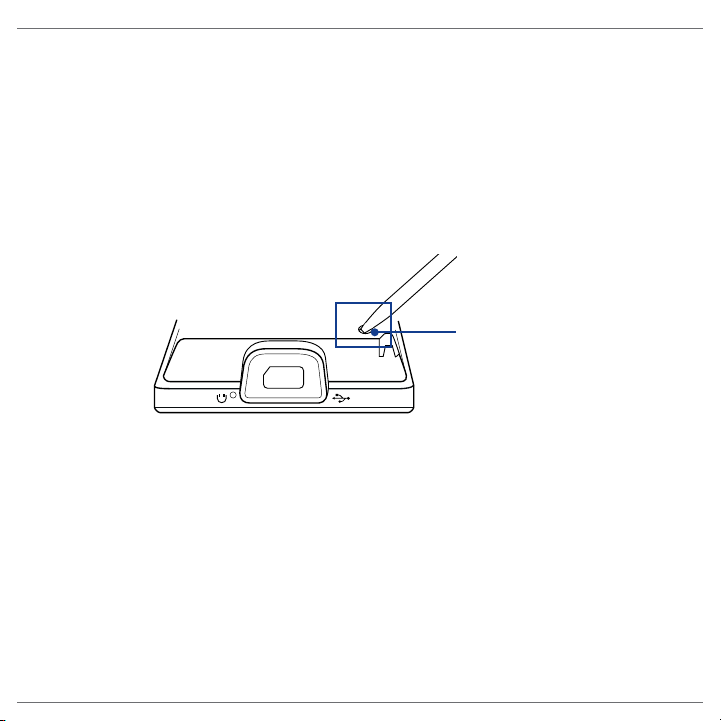

To perform a soft reset
1. Pull out the stylus.
Remove the back cover.
2.
Use the stylus to press the RESET button located at the opening of the stylus
3.
compartment. Your device restarts and displays the Home screen.
You can also perform a hard reset. After a hard reset, the device is restored to its
default settings—the way it was when you first purchased it and turned it on.
Only Windows Mobile® software and other pre-installed programs will remain.
To learn how to perform a hard reset, please refer to Chapter 13 of the User
Manual.
RESET button
Warranty
12 MONTH LIMITED WARRANTY
UTStarcom Personal Communications (the Company) warrants to the original retail
purchaser of this UTStarcom handheld portable cellular telephone, that should
this product or any part thereof during normal consumer usage and conditions, be
proven defective in material or workmanship that results in product failure within
the first twelve (12) month period from the date of purchase, such defect(s) will be
repaired or replaced (with new or rebuilt parts) at the Company’s option, without
charge for parts or labor directly related to the defect(s).
The antenna, keypad, display, rechargeable battery and battery charger, if included,
are similarly warranted for twelve (12) months from date of purchase.
This Warranty extends only to consumers who purchase the product in the United
States or Canada and it is not transferable or assignable.
This Warranty does not apply to:
(a) Product subjected to abnormal use or conditions, accident, mishandling, neglect,
unauthorized alteration, misuse, improper installation or repair or improper
storage;
(b) Product whose mechanical serial number or electronic serial number has been
removed, altered or defaced;
(c) Damage from exposure to moisture, humidity, excessive temperatures or extreme
environmental conditions;
(d) Damage resulting from connection to, or use of any accessory or other product
not approved or authorized by the Company;
(e) Defects in appearance, cosmetic, decorative or structural items such as framing
and non-operative parts;
(f) Product damaged from external causes such as fire, flooding, dirt, sand, weather
conditions, battery leakage, blown fuse, theft or improper usage of any electrical
source.
The Company disclaims liability for removal or reinstallation of the product,
for geographic coverage, for inadequate signal reception by the antenna or for
communications range or operation of the cellular system as a whole.
When sending your wireless device to UTStarcom Personal Communications for repair
or service, please note that any personal data or software stored on the device may
be inadvertently erased or altered. Therefore, we strongly recommend you make a
back up copy of all data and software contained on your device before submitting it
for repair or service. This includes all contact lists, downloads (i.e. third-party software
applications, ringtones, games and graphics) and any other data added to your
device. In addition, if your wireless device utilizes a SIM or Multimedia card, please
remove the card before submitting the device and store for later use when your
device is returned, UTStarcom Personal Communications is not responsible for and
does not guarantee restoration of any third-party software, personal information or
memory data contained in, stored on, or integrated with any wireless device, whether
under warranty or not, returned to UTStarcom Personal Communications for repair or
service.
To obtain repairs or replacement within the terms of this Warranty, the product
should be delivered with proof of Warranty coverage (e.g. dated bill of sale), the
consumer’s return address, daytime phone number and/or fax number and complete
description of the problem, transportation prepaid, to the Company at the address
shown below or to the place of purchase for repair or replacement processing. In
addition, for reference to an authorized Warranty station in your area, you may
telephone in the United States (800) 229-1235, and in Canada (800) 465-9672 (in
Ontario call 416-695-3060).
THE EXTENT OF THE COMPANY’S LIABILITY UNDER THIS WARRANTY IS LIMITED TO
THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE
COMPANY’S LAIBILITY EXCEED THE PURCHASE PRICE PAID BY PURCHASER FOR THE
PRODUCT.
ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO
THE DURATION OF THIS WRITTEN WARRANTY. ANY ACTION FOR BREACH OF ANY
WARRANTY MUST BE BROUGHT WITHIN A PERIOD OF 18 MONTHS FROM DATE OF
ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR AN SPECIAL
CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER
WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER. THE COMPANY SHALL NOT BE
LIABLE FOR THE DELAY IN RENDERING SERVICE UNDER THIS WARRANTY OR LOSS OF
USE DURING THE TIME THE PRODUCT IS BEING REPAIRED OR REPLACED.
No person or representative is authorized to assume for the Company any liability
other than expressed herein in
connection with the sale of this product.
Some states or provinces do not allow limitations on how long an implied warranty
lasts or the exclusion or limitation
of incidental or consequential damage so the above limitation or exclusions may not
apply to you. This Warranty gives
you specific legal rights, and you may also have other rights, which vary from state to
state or province to province.
IN USA: UTStarcom Personal Communications
555 Wireless Blvd.
Hauppauge, NY 11788
(800) 229-1235
IN CANADA: UTStarcom Personal Communications
5535 Eglinton Avenue West
Suite# 234
Toronto, ON M9C 5K5
(800) 465-9672
Important Health Information and Safety Precautions
When using this product, the safety precautions below must be taken to avoid
possible legal liabilities and damages.
Retain and follow all product safety and operating instructions. Observe all warnings
in the operating instructions on the product.
To reduce the risk of bodily injury, electric shock, fire, and damage to the equipment,
observe the following precautions.
ELECTRICAL SAFETY
This product is intended for use when supplied with power from the designated
battery or power supply unit. Other usage may be dangerous and will invalidate any
approval given to this product.
SAFETY PRECAUTIONS FOR PROPER GROUNDING INSTALLATION
CAUTION: Connecting to an improperly grounded equipment can result in an electric
shock to your device.
This product equipped with a USB Cable for connecting with desktop or notebook
computer. Be sure your computer is properly grounded (earthed) before connecting
this product to the computer. The power supply cord of a desktop or notebook
computer has an equipment-grounding conductor and a grounding plug. The plug
must be plugged into an appropriate outlet which is properly installed and grounded
in accordance with all local codes and ordinances.
SAFETY PRECAUTIONS FOR POWER SUPPLY UNIT
Use the correct external power source
•
A product should be operated only from the type of power source indicated
on the electrical ratings label. If you are not sure of the type of power source
required, consult your authorized service provider or local power company. For a
product that operates from battery power or other sources, refer to the operating
instructions that are included with the product.
Handle battery packs carefully
•
This product contains a Li-ion battery. There is a risk of fire and burns if the battery
pack is handled improperly. Do not attempt to open or service the battery pack.
Do not disassemble, crush, puncture, short external contacts or circuits, dispose
of in fire or water, or expose a battery pack to temperatures higher than 60˚C
(140˚F).
WARNING: Danger of explosion if battery is incorrectly replaced. To
reduce risk of fire or burns, do not disassemble, crush, puncture, short
external contacts, expose to temperature above 60° C (140° F), or
dispose of in fire or water. Replace only with specified batteries. Recycle
or dispose of used batteries according to the local regulations or
reference guide supplied with your product.
Take extra precautions
•
Keep the battery or device dry and away from water or any liquid as it may
•
cause a short circuit.
Keep metal objects away so they don’t come in contact with the battery or its
•
connectors as it may lead to short circuit during operation.
Do not use a battery that appears damaged, deformed, or discolored, or the
•
one that has any rust on its casing, overheats, or emits a foul odor.
Always keep the battery out of the reach of babies and small children, to avoid
•
swallowing of the battery. Consult the doctor immediately if the battery is
swallowed.
If the battery leaks:
•
Do not allow the leaking fluid to come in contact with skin or clothing. If
•
already in contact, flush the affected area immediately with clean water and
seek medical advice.
Do not allow the leaking fluid to come in contact with eyes. If already in
•
contact, DO NOT rub; rinse with clean water immediately and seek medical
advice.
Take extra precautions to keep a leaking battery away from fire as there is a
•
danger of ignition or explosion.
SAFETY PRECAUTIONS FOR DIRECT SUNLIGHT
Keep this product away from excessive moisture and extreme temperatures. Do not
leave the product or its battery inside a vehicle or in places where the temperature
may exceed 60°C (140°F), such as on a car dashboard, window sill, or behind a glass
that is exposed to direct sunlight or strong ultraviolet light for extended periods of
time. This may damage the product, overheat the battery, or pose a risk to the vehicle.
PREVENTION OF HEARING LOSS
CAUTION: Permanent hearing loss may occur if earphones or headphones
are used at high volume for prolonged periods of time.
SAFETY IN AIRCRAFT
Due to the possible interference caused by this product to an aircraft’s navigation
system and its communications network, using this device’s phone function on board
an airplane is against the law in most countries. If you want to use this device when
on board an aircraft, remember to turn off your phone by switching to Airplane Mode.
ENVIRONMENT RESTRICTIONS
Do not use this product in gas stations, fuel depots, chemical plants or where blasting
operations are in progress, or in potentially explosive atmospheres such as fuelling
areas, fuel storehouses, below deck on boats, chemical plants, fuel or chemical
transfer or storage facilities, and areas where the air contains chemicals or particles,
such as grain, dust, or metal powders. Please be aware that sparks in such areas could
cause an explosion or fire resulting in bodily injury or even death.
EXPLOSIVE ATMOSPHERES
When in any area with a potentially explosive atmosphere or where flammable
materials exist, the product should be turned off and the user should obey all signs
and instructions. Sparks in such areas could cause an explosion or fire resulting in
bodily injury or even death. Users are advised not to use the equipment at refueling
points such as service or gas stations, and are reminded of the need to observe
restrictions on the use of radio equipment in fuel depots, chemical plants, or where
blasting operations are in progress. Areas with a potentially explosive atmosphere
are often, but not always, clearly marked. These include fueling areas, below deck on
boats, fuel or chemical transfer or storage facilities, and areas where the air contains
chemicals or particles, such as grain, dust, or metal powders.
ROAD SAFETY
Vehicle drivers in motion are not permitted to use telephony services with handheld
devices, except in the case of emergency. In some countries, using hands-free devices
as an alternative is allowed.
SAFETY PRECAUTIONS FOR RF EXPOSURE
Avoid using your phone near metal structures (for example, the steel frame of a
•
building).
Avoid using your phone near strong electromagnetic sources, such as microwave
•
ovens, sound speakers, TV and radio.
Use only original manufacturer-approved accessories, or accessories that do not
•
contain any metal.
Use of non-original manufacturer-approved accessories may violate your local RF
•
exposure guidelines and should be avoided.
INTERFERENCE WITH MEDICAL EQUIPMENT FUNCTIONS
This product may cause medical equipment to malfunction. The use of this
device is forbidden in most hospitals and medical clinics.
If you use any other personal medical device, consult the manufacturer of your device
to determine if they are adequately shielded from external RF energy. Your physician
may be able to assist you in obtaining this information.
Turn your phone OFF in health care facilities when any regulations posted in these
areas instruct you to do so. Hospitals or health care facilities may be using equipment
that could be sensitive to external RF energy.
HEARING AIDS
Some digital wireless phones may interfere with some hearing aids. In the event of
such interference, you may want to consult your service provider, or call the customer
service line to discuss alternatives.
NONIONIZING RADIATION
Your device has an internal antenna. This product should be operated in its normaluse position to ensure the radiative performance and safety of the interference.
As with other mobile radio transmitting equipment, users are advised that for
satisfactory operation of the equipment and for the safety of personnel, it is
recommended that no part of the human body be allowed to come too close to the
antenna during operation of the equipment.
Use only the supplied integral antenna. Use of unauthorized or modified antennas
may impair call quality and damage the phone, causing loss of performance and SAR
levels exceeding the recommended limits as well as result in non-compliance with
local regulatory requirements in your country.
To assure optimal phone performance and ensure human exposure to RF energy is
within the guidelines set forth in the relevant standards, always use your device only
in its normal-use position. Contact with the antenna area may impair call quality and
cause your device to operate at a higher power level than needed. Avoiding contact
with the antenna area when the phone is IN USE optimizes the antenna performance
and the battery life.
Antenna location
General Precautions
Avoid applying excessive pressure to the device
•
Do not apply excessive pressure on the screen and the device to prevent
damaging them and remove the device from your pants’ pocket before sitting
down. It is also recommended that you store the device in a protective case
and only use the device stylus or your finger when interacting with the touch
screen. Cracked display screens due to improper handling are not covered by the
warranty.
Heed service markings
•
Except as explained elsewhere in the Operating or Service documentation, do not
service any product yourself. Service needed on components inside the device
should be done by an authorized service technician or provider.
Damage requiring service
•
Unplug the product from the electrical outlet and refer servicing to an authorized
service technician or provider under the following conditions:
Liquid has been spilled or an object has fallen into the product.
•
The product has been exposed to rain or water.
•
The product has been dropped or damaged.
•
There are noticeable signs of overheating.
•
The product does not operate normally when you follow the operating
•
instructions.
Avoid hot areas
•
The product should be placed away from heat sources such as radiators, heat
registers, stoves, or other products (including amplifiers) that produce heat.
Avoid wet areas
•
Never use the product in a wet location.
Avoid using your device after a dramatic change in temperature
•
When you move your device between environments with very different
temperature and/or humidity ranges, condensation may form on or within the
device. To avoid damaging the device, allow sufficient time for the moisture to
evaporate before using the device.
NOTICE: When taking the device from low-temperature conditions into a warmer
Avoid pushing objects into product
•
environment or from high-temperature conditions into a cooler environment,
allow the device to acclimate to room temperature before turning on power.
Never push objects of any kind into cabinet slots or other openings in the
product. Slots and openings are provided for ventilation. These openings must
not be blocked or covered.
Mounting accessories
•
Do not use the product on an unstable table, cart, stand, tripod, or bracket. Any
mounting of the product should follow the manufacturer’s instructions, and
should use a mounting accessory recommended by the manufacturer.
Avoid unstable mounting
•
Do not place the product with an unstable base.
•
Use product with approved equipment
This product should be used only with personal computers and options identified
as suitable for use with your equipment.
•
Adjust the volume
Turn down the volume before using headphones or other audio devices.
Cleaning
•
Unplug the product from the wall outlet before cleaning. Do not use liquid
cleaners or aerosol cleaners. Use a damp cloth for cleaning, but NEVER use water
to clean the LCD screen.
•
For magnetic devices
Please avoid putting any media that contains magnets, e.g. magnetic
card, credit cards, bank cards, audio/video tape or magnetic memory
devices, directly on the device or stylus without any distance.
It is highly recommended to put the media containing magnets in a
security distance of at least 5 cm. If you carry your wallet or billfold
which contains magnetic cards next to the device or its stylus,
information stored on these cards could be destroyed.
Please make sure that there is an adequate distance between the
device or its stylus and other magnetic sensitive devices, e.g., a
mechanical watch or measure instruments.
For pacemakers
•
The functionality of pacemakers can be interfered by the device and its
stylus. Always keep the device and its stylus in a fair distance to your
pacemaker, which at least will be 5 cm. In any case, please do not carry
the device and/or its stylus in the front pockets of your shirt or coat.
For information about other medical active implants, please contact
the producer or a doctor to ensure such active implants will not be
interfered by magnetic field.
Regulatory Agency Identifications
For regulatory identification purposes, your product is assigned a model number of
DIAM500.
To ensure continued reliable and safe operation of your device, use only the
accessories listed below with your DIAM500.
The Battery Pack has been assigned a model number of DIAM171.
Note This product is intended for use with a certified Class 2 Limited Power Source, rated 5
Volts DC, maximum 1 Amp power supply unit.
Telecommunications & Internet Association (TIA) safety
information
Pacemakers
•
The Health Industry Manufacturers Association recommends that a minimum
separation of six inches be maintained between a handheld wireless phone
and a pacemaker to avoid potential interference with the pacemaker. These
recommendations are consistent with the independent research by and
recommendations of Wireless Technology Research. Persons with pacemakers:
Should ALWAYS keep the phone more than six inches from their pacemaker
•
when the phone is turned ON.
Should not carry the phone in a breast pocket.
•
Should use the ear opposite the pacemaker to minimize the potential for
•
interference. If you have any reason to suspect that interference is taking place,
turn the phone OFF immediately.
Hearing Aids
•
Some digital wireless phones may interfere with some hearing aids. In the event
of such interference, you may want to consult your service provider, or call the
customer service line to discuss alternatives.
Other Medical Devices
•
If you use any other personal medical device, consult the manufacturer of your
device to determine if they are adequately shielded from external RF energy. Your
physician may be able to assist you in obtaining this information.
Turn the phone OFF in health care facilities when any regulations posted in
these areas instruct you to do so. Hospitals or health care facilities may be using
equipment that could be sensitive to external RF energy.
WEEE Notice
The Directive on Waste Electrical and Electronic Equipment (WEEE), which entered
into force as European law on 13th February 2003, resulted in a major change in the
treatment of electrical equipment at end-of-life.
The purpose of this Directive is, as a first priority, the prevention of WEEE, and in
addition, to promote the reuse, recycling and other forms of recovery of such wastes
so as to reduce disposal.
The WEEE logo (shown at the left) on the product or on its box indicates
that this product must not be disposed of or dumped with your other
household waste. You are liable to dispose of all your electronic or
electrical waste equipment by relocating over to the specified collection
point for recycling of such hazardous waste. Isolated collection and proper
recovery of your electronic and electrical waste equipment at the time
of disposal will allow us to help conserving natural resources. Moreover,
proper recycling of the electronic and electrical waste equipment will
ensure safety of human health and environment. For more information
about electronic and electrical waste equipment disposal, recovery, and
collection points, please contact your local city center, household waste
disposal service, shop from where you purchased the equipment, or
manufacturer of the equipment.
RoHS Compliance
This product is in compliance with Directive 2002/95/EC of the European Parliament
and of the Council of 27 January 2003, on the restriction of the use of certain
hazardous substances in electrical and electronic equipment (RoHS) and its
amendments.
Loading...
