Description:
This small, handy potter‘s wheel is well suited for hobby potters ad
beginners!
A small, handy pottery wheel for school, courses, hobby and begin-
ners.
Their low weight it is easy to transport. Maintenance-free and easy to
clean.
Delivery: potter‘s wheel Junior VS, inkl. Ø 240 mm wheelhead, foot
pedal, removable splash pan
Not included in delivery: Height measurement (optional)
HSL Töpferscheiben · Johannes-Diakonie Mosbach • Schwarzacher Werkstätten · Schwanheimer Straße 23 · D-74869 Schwarzach
3
Page 4
1. Technical Data:
The machine is intended for the manual production of rotationally
symmetrical articles from damp ceramic mixtures.
Machine description:
Pottery wheel HSL JUNIOR VS
Manufacturer: Johannes-Diakonie Mosbach
Schwarzacher Werkstätten
Schwanheimer Straße 23
Germany 74869 Schwarzach
phone: +49 06262 22-402,
fax: +49 6262 22-551
www.hsl-toepferscheiben.de
Dimension: 150 mm height / Ø 415 mm
Weight: approx. 9,3 Kg
Voltage: 230 V, 50 Hz
Main Switch: with built-in preprotection fuse 2A MT
Motor / Drive: NIDEC motor 150 Watt quiet mainenance free
Wheelhead speed: smooth adjustment up to 200 rpm
Frame: powder coated metal frame with 4 rubber feet, easy
to clean and handle, separate cable, lit on and off
switch
Splash pan: polystyrene, easy to move and clean
Noise emission details:
LpArbpl < 70 dB (A)
Centring: max. 5 kg
Warranty: 2 years
DGUV-Test: RCI 18004 BG-checked safety (German statutory
accident insurance)
Operating instruction HSL-JUNIOR VS Stand: 4/2019
Page 5
2. Assembly and Use:
Before assembling and using your new HSL JUNIOR VS potter’s wheel,
please read the instruction for use and the manufacturer’s recommendations and advice. Retain the instructions for use.
When unpacking, check that all necessary pieces have been supplied.
● Box contents are:
– 1 potter‘s wheel with wheel head and splash pan
– 1 power plug
– 1 foot pedal
– 1 rubber stopper for the splash pan outlet
● Place the potter’s wheel on a smooth, level surface so that the
rubber suction pads can grip.
● Before connecting the power plug, check that main switch and
foot pedal are on position “0”
● It connects to the power supply with a 230 volt plug.
● Insert the foot pedal into its power socket.
● To alter the wheelhead speed press the foot pedal as required. The
foot pedal remains in position to continue the wheelhead speed
after your foot is removed.
● The splash pan should be pressed down before use as otherwise
you will hear grinding noises.
HSL Töpferscheiben · Johannes-Diakonie Mosbach • Schwarzacher Werkstätten · Schwanheimer Straße 23 · D-74869 Schwarzach
Page 6
3. Maintenance and Cleaning:
The potter’s wheel is completely maintenance free.
● Disconnect the power plug before cleaning.
● Only clean with water or soapy water – do not use solvents such
as a nitro diluter. Marks on the stainless steel front plate can be
removed with an oily cloth.
● The plate can be taken off for cleaning by removing the central
screw. After that the splash pan can be removed.
● When fitting the plate, please make sure that no soiling, e.g. clay
residue, has collected on the ball bearing and the motor shaft.
If this is the case, remove the residue and grease the area with
Vaseline or acid-free grease. Pay attention to the correct position
of groove (hole of the wheelhead) and driving pins (motor shaft).
● After fitting the plate, only tighten the central screw on the plate
lightly!
● The potters wheel should only be reconnected and put into opera-
tion after reinstallation of the splash pan and the plate.
● The splash pan should be pressed down before use as otherwise
you will hear grinding noises.
Operating instruction HSL-JUNIOR VS Stand: 4/2019
Page 7
4. Faults and Repairs
If a fault occurs, go through the following checklist.
● Is the power plug connected properly?
● Is the main switch in position I?
● Does the main switch glow?
● Check the built-in preprotection fuse 2A MT (You can find one
spare in the switch.)
If it is not possible to resolve the problem, please contact the
manufacturer.
If a return is required, the manufacturer must be notified in
advance. You are advised to use the original packaging.
This is necessary to ensure a rapid processing of complaints and to
ensure that the manufacturer will take over the shipping costs.
Please use the Repair advice note which you can download on our
website.
If it is determined that repair is necessary outside the warranty, we
will provide you with the cheapest possibilites.
Work on electrical machines and components are only to be
carried out by qualified electricians.
HSL Töpferscheiben · Johannes-Diakonie Mosbach • Schwarzacher Werkstätten · Schwanheimer Straße 23 · D-74869 Schwarzach
Page 8
5. Safety and warnings
● Work on electrical machines and components are only to be
carried out by qualified electricians.
● Before starting to clean, remove the power plug.
● The potter’s wheel must not be used without the splash pan.
● The plate and motor will heat up when used permanently.
● Please make sure that:
– foot pedal does not get wet
– the water in the splash pan only reaches a level which it cannot
run under the wheel and enter the mechanism.
– the splash pan is pressed down before use as otherwise you will
hear grinding noises
● The potter‘s wheel should only be reconnected and put into opera-
tion after installation of the splash pan guard and the plate.
The purchased pottery wheel is exclusively for pottery and working
with clay! Do not misuse.
Misuse will lead to expiration of your warranty claim.
You can find all warnings and danger indications on our website:
www.hsl-toepferscheiben.de
8
Betriebsanleitung HSL-JUNIOR VS Stand: 4/2019
Page 9
EC Declaration of Conformity
Manufacturer: Schwarzacher Werkstätten
Schwanheimer Straße 23
74869 Schwarzach
Germany
Product: Pottery wheel HSL JUNIOR VS
Pottery wheel HSL PROFI T-45
Pottery wheel HSL PROFI S-45
Type designation:
The designated product is in conformity with the European Directive 2004/108/EC on
the approximation of the laws of the Member States relating to electromagnetic
compatibility and the European Directive 2006/95/EC on the harmonization of the
laws of Member States relating to electrical equipment designed for use within certain
voltage limits.
Full compliance with standards listed below proves the conformity of the designated
Product with the provisions of the EC Directives
Related harmonized standards:
EN ISO 12100:2010 Safety of machinery - General principles for design, risk assessment
and risk reduction
EN 60204-1 Safety of machinery - Electrical equipment of machines - Part 1:
General requirements
Schwarzach dated 16.10.2018
________________ __________________________
Michael Werner, Manager of Schwarzacher Werkstätten
For download on our website:
Declaration of the Manufacturer (frequency converter)
Declaration of the Manufacturer (worm gear)
HSL Töpferscheiben · Johannes-Diakonie Mosbach • Schwarzacher Werkstätten · Schwanheimer Straße 23 · D-74869 Schwarzach
9
Page 10

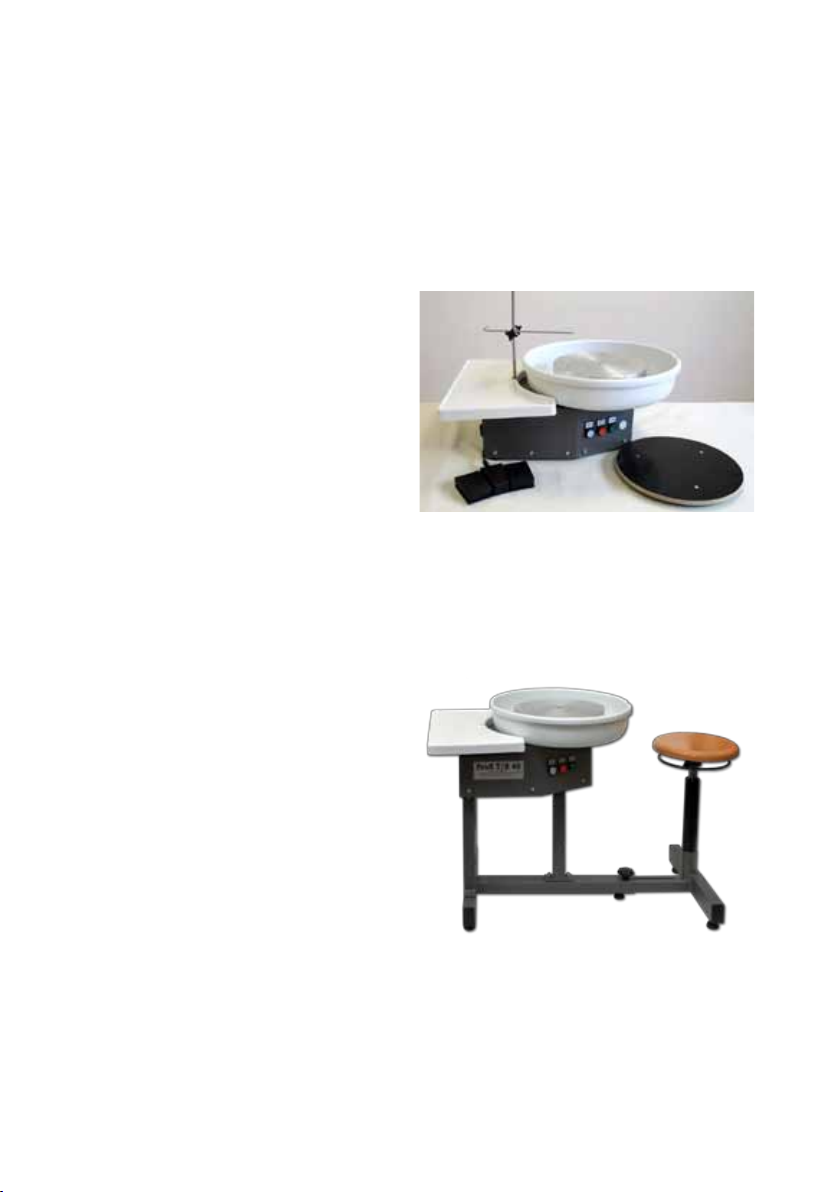

Our other products:
