Motherboard User’s Guide

This publication, including photographs, illustrations and software,
is under the protection of international copyright laws, with all
rights reserved. Neither this manual, nor any of the material
contained herein, may be reproduced without the express written
consent of the manufacturer.

The information in this document is subject to change without
notice. The manufacturer makes no representations or warranties
with respect to the contents hereof and specifically disclaims any
implied warranties of merchantability or fitness for any particular
purpose. Further, the manufacturer reserves the right to revise
this publication and to make changes from time to time in the
content hereof without obligation of the manufacturer to notify
any person of such revision or changes.

Trademarks

IBM, VGA, and PS/2 are registered trademarks of International
Business Machines.

AMD, Athlon 64, Sempron are registered trademarks of
Advanced Micro Devices Inc.

Microsoft, MS-DOS and Windows 98/ME/NT/2000/XP are
registered trademarks of Microsoft Corporation.
AMI is a registered trademark of American Megatrends Inc.
Other names used in this publication may be trademarks and are
acknowledged.

Copyright © 2004

All Rights Reserved

W32 Series, V1.0B

S755/November 2004

i

Motherboard User’s Guide

Table of Contents

Trademark ...................................................................................I

Static Electricity Precautions ............................................................ III

Pre-Installation Inspection ................................................................ III

Features & Checklist Translations ........................................V

Chapter 1: Introduction............................................................ 1

Key Features ........................................................................................2

Package Contents ................................................................................6

Chapter 2: Motherboard Installation ..................................... 7

Motherboard Components ................................................................... 8

I/O Ports ...............................................................................................9

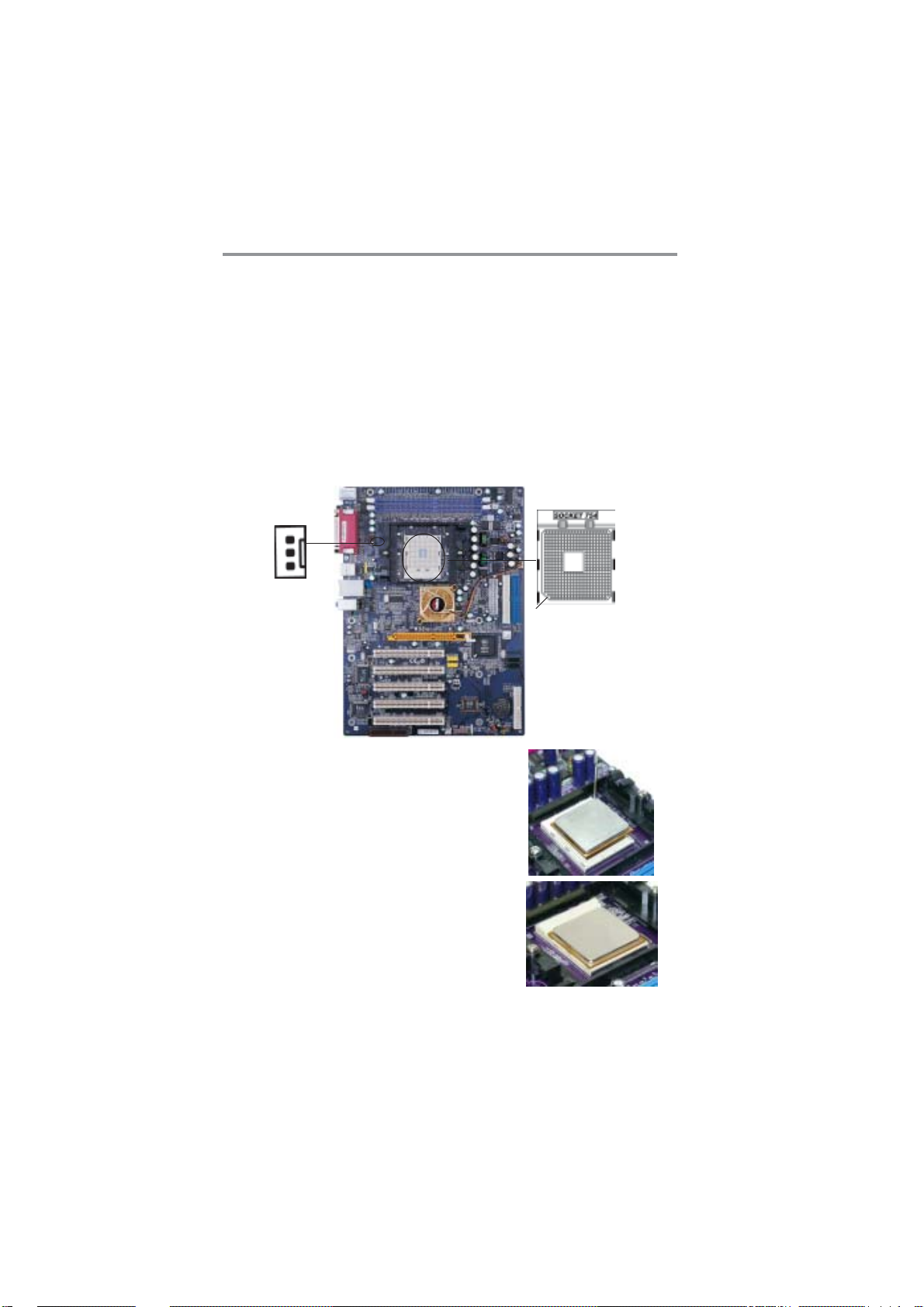

Installing the Processor .....................................................................10

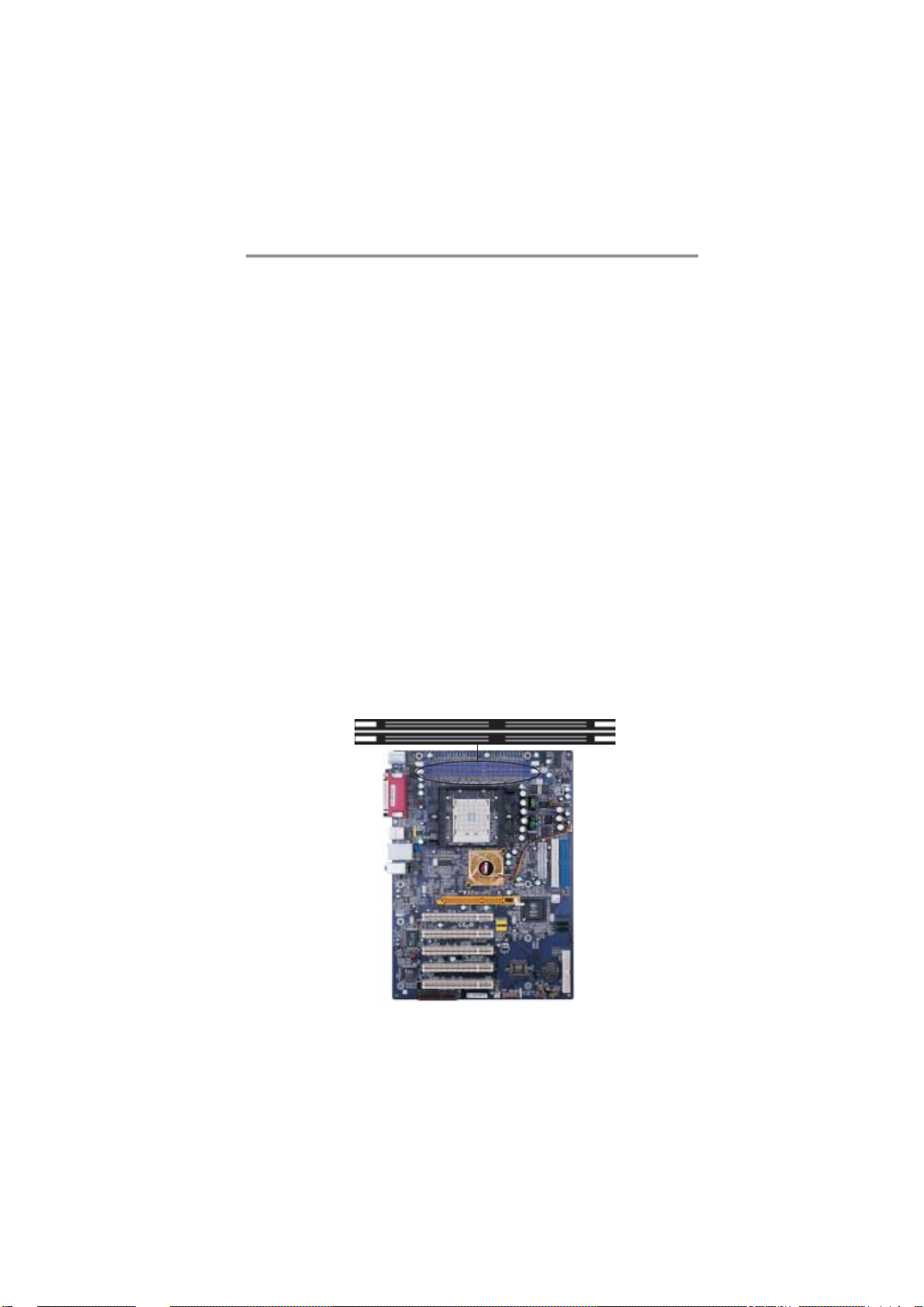

Installing Memory Modules ............................................................... 11

Jumper Settings .................................................................................. 1 4

Install the Motherboard ..................................................................... 15

Connecting Optional Devices ............................................................ 1 7

Install Other Devices..........................................................................19

Expansion Slots ..................................................................................22

Chapter 3: BIOS Setup Utility ............................................... 2 4

Introduction ....................................................................................... 24

Running the Setup Utility ........................... …………………………...25

Standard CMOS Setup Page .............................................................26

Advanced Setup Page ........................................................................ 27

Features Setup Page ..........................................................................2 9

Power Management Setup Page........................................................3 1

PCI / Plug and Play Setup Page........................................................3 3

BIOS Security Features Setup Page ..................................................34

CPU PnP Setup Page ......................................................................... 35

Hardware Monitor Page....................................................................3 6

Load Optimal Defaults .......................................................................37

Save Changes and Exit ...................................................................... 37

Discard Changes and Exit .................................................................3 7

Chapter 4: Software & Applications ..................................... 3 8

Introduction ....................................................................................... 38

Installing Support Software ............................................................... 3 9

Bundled Software Installation ........................................................... 41

ii

Motherboard User’s Guide

Static Electricity Precautions

Static electricity could damage components on this motherboard.
T ake the following precautions while unpacking this motherboard
and installing it in a system.

1. Don’t take this motherboard and components out of their
original static-proof package until you are ready to install
them.

2. While installing, please wear a grounded wrist strap if
possible. If you don’t have a wrist strap, discharge static
electricity by touching the bare metal of the system chassis.

3. Carefully hold this motherboard by its edges. Do not touch
those components unless it is absolutely necessary. Put this
motherboard on the top of static-protection package with
component side facing up while installing.

Pre-Installation Inspection

1. Inspect this motherboard whether there are any damages to
components and connectors on the board.

2. If you suspect this motherboard has been damaged, do not
connect power to the system. Contact your motherboard
vendor about those damages.

iii

Motherboard User’s Guide

Notice:

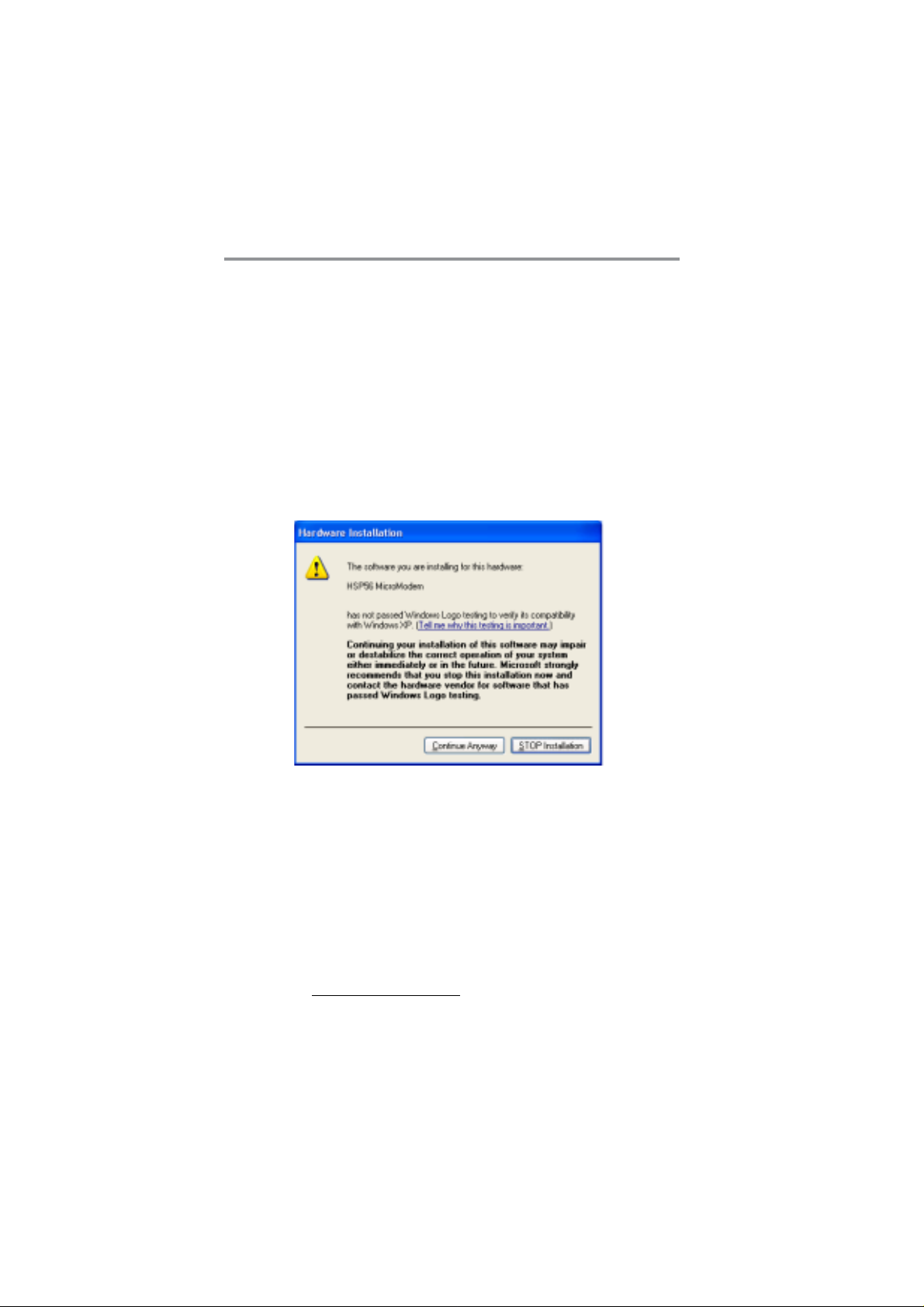

1. Owing to Microsoft’s certifying schedule is various to every
supplier, we might have some drivers not certified yet by
Microsoft. Therefore, it might happen under Windows XP that
a dialogue box (shown as below) pop out warning you this
software has not passed Windows Logo testing to verify its
compatibility with Windows XP. Please rest assured that our
RD department has already tested and verified these drivers.
Just click the “Continue Anyway” button and go ahead the
installation.

2. USB 2.0 Driver Limitations:
2-1 The USB 2.0 driver only supports Windows XP and
Windows 2000.
2-2 If you connect a USB 2.0 hub to the root hub, plugging

USB devices into this hub, the system might not
successfully execute certain USB devices’ connection

because it could not recognize these devices.
Currently, we are working on such limitations’ solution. As soon
as the solution is done, the updated USB drive will be released to
our website:

www.pcchips.com.tw for your downloading.

iv

Motherboard User’s Guide

Traduction des Caractéristiques & Liste de contrôle

Liste de contrôle

Le coffret de votre carte mère contient les éléments suivants:

• La carte mère

• Le Manuel utilisateur

• Un câble plat pour lecteur de disquette (optionnel)

• Une câble plat pour lecteur IDE

• CD de support de logiciels

Caractéristiques
Prise en charge du Processeur Socket-754

• Supporte le Processeur AMD Athlon 64/Sempron avec la Technologie
HyperTransportTM

• Supporte un Bus Avant allant jusqu’à 800 MHz

La technologie HyperTransport
communication entre les circuits intégrés dans les ordinateurs jusqu’à 48 fois
plus vite, aide à réduire le nombre de bus dans un système et réduire les goulots
d’étranglement du système.

Chipset

Ce chipset comporte SiS755 Northbridge et SiS964 Southbridge conformément
à une architecture novatrice et dimensionnable avec une abilité et des perfor
mances prouvées.

• Prend en charge les CPU AMD Athlon 64/Sempron jusqu’à 800MHz

• Prend en 400/333/266/200 MHz et comporte deux emplacements 184 broches
2,5V non tamponnés

• Conformité avec AGP v3.0 universel

• Supporte l’interface AGP 8X/4X avec Fast Write Transaction

• Conforme aux Spécications PCI 2.3

• Prend en charge les registres de conguration de gestion d’alimentation

PCI de prise en charge du contrôleur de coupure d’alimentation ACPI

TM

est conçue pour augmenter la vitesse de

-

Support de Mémoire

• Comporte deux emplacements 184 broches 2,5V non tamponnés

• Prend en charge les modules de mémoire DDR 400/333/266/200MHz

• Chaque logement prend en charge jusqu’à 1Go avec une capacité maximum
totale de 2Go

Logements d’Extension

• Un logement CNR (Interface AC’ 97 seulement)

• Un logement 8X AGP (prise en charge de 1.5V uniquement)

• Cinq logements PCI 32 bits

Canaux IDE internes

• Deux Connecteurs IDE

• Supporte quatre canaux IDE

• Supporte maîtrise de bus Ultra DMA IDE avec vitesse de transfert de 133/100/
66/33 Mo/sec

v

Motherboard User’s Guide

vii

Motherboard User’s Guide

ATA Série

• Deux ATA Série connecteurs

• Prend en charge deux disques durs SATA

• Ultra DMA 150

AC’ 97 Codec

• 6 canaux et conforme aux Spéc. Intel AC’ 97 (REV. 2.3), respectant les
exigences de Microsoft PC2001

• Gestion d’alimentation avancée et capacités d’économie d’énergie.

• Fonction de ligne d’entrée stéréo partagée avec la sortie Contour.

• Entrée de CD Audio analogique pseudo différentielle de haute qualité.

• Support d’Entrée S/PDIF : L’entrée S/PDIF est dotée du support des

fonctionnalités d’interruption, auto-verrouillage, anti-bruit, et anti-distorsion.

• Technologie logicielle complémentaire de valeur. Supporte la plupart des

standards de l’industrie de son 3D PC et support de fonction de karaoké
unique qui comprend l’écho microphone, décalage de touche, et annulation
vocale.

Ports E/S Internes

La carte mère possède un jeu complet de ports d’E/S et de connecteurs:

• Deux ports PS/2 pour souris et clavier

• Un port série

• Un port parallèle

• Huit ports USB 2.0 (quatre ports fond de panier, connecteurs USB internes

USB3/4 offrant quatre ports supplémentaires)

• Prises audio pour microphone, ligne d’entrée et ligne de sortie

• Un port LAN (optionnel)

LAN Ethernet intégré (optionnel)

• LAN Gigabit Interne:

- Emetteur-récepteur intégré 10/100/1000

- Auto Négotiation avec capacité de page Suivante

- Supporte le contrôle de ux en Full Duplex (IEEE 802.3x), et marquage

VLAN IEEE 802.1Q

- Entièrement conforme à IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

• Onboard 10/100Mbps Ethernet LAN:

- Fonctionnement 10 Mb/s et 100 Mb/s

- Fast Ethernet MAC intégré, puce physique, et émetteur-récepteur sur

une seule puce

- Supporte l’auto-négociation N-way en 10Mb/s et 100Mb/s

- Supporte la gestion d’alimentation ACPI

- Contrôle de Flux en Full Duplex (IEEE 802.3x) et capacité Half/Full duplex

USB 2.0

• Conforme aux Spécications de Bus Série Universel Révision 2.0

• Conforme aux Spécications d’interface de Contrôleur d’Hôte Amélioré de

Intel Révision 0.95

• Conforme aux Spécications d’Interface de Contrôleur d’Hôte Universel

Révision 1.1

vi

Motherboard User’s Guide

• Le périphérique multifonction PCI consiste en deux noyaux de Contrôleur
d’Hôtes UHCI pour signalisation pleine/faible vitesse et un noyau de Con­trôleur d’Hôtes EHCI pour signalisation haute vitesse

• Le hub racine consiste en 4 ports de face en aval avec émetteurs-récepteurs
de couche physique intégrés partagés par le Contrôleur d’Hôte UHCI et EHCI

• Support des Spécications d’Interface de Gestion d’Alimentation de Bus PCI
version 1.1

• Support hérité pour tous les ports face à l’aval.

Remarque: Certaines spécications matérielles et éléments de logiciels
peuvent être modiés sans avertissement.

vii

Motherboard User’s Guide

Funktionen & Checkliste

Checkliste

Die Verpackung Ihres Motherboards enthält folgende Teile:

• Motherboard

• Handbuch

• Bandkabel für Floppylaufwerke (optional)

• Bandkabel für IDE-Laufwerke

• Software -CD

Ausstattung

Unterstütz Socket-754-Prozessoren

• Unterstützung für AMD Athlon 64/Sempron mit HyperTransport

gie

• Unterstützung von bis zu 800 MHz Front-Side Bus

Die HyperTransport

TM

Technologie wurde entworfen, um die Kommunikation­sgeschwindgkeit zwischen den in Computern integrierten Schaltkreisen bis zu
48mal zu erhöhen; hilft die Bus-Anzahl eines Systems und die Verkleinerung des
Systems zu reduzieren..

Chipsatz
Dieser Chipsatz besteht aus einer SiS755 Northbridge und SiS964 South-

bridge. Die Chipsatzarchitektur ist in einem innovativen und skalierbaren Design

gehalten und verspricht sowohl Zuverlässigkeit als auch Leistungsstärke.

• Unterstützt AMD Athlon 64/Sempron-CPUs von bis zu 800MHz

• Unterstützt 400/333/266/200 MHz und besitzt zwei ungepufferte 2,5V 184-pol.
Steckplätze

• In Übereinstimmung der AGP v3.0-Universalrichtlinien

• Unterstützt AGP 8X/4X-Interface mit Fast Write-Abwicklung

• In Übereinstimmung mit den PCI 2.3-Spezikationen

• Unterstützt das Einstellungsverzeichnis des PCI-Stromzufuhrbetriebs des Aus­schaltungscontrollers ACPI

Speicherunterstützung

• Besitzt zwei ungepufferte 2,5V 184-pol. Steckplätze

• Unterstützt 400/333/266/200 MHz DDR Speichermodule

• Jede Steckplatz unterstützt bis zu 1GB mit einer maximalen Kapazität von
2GB

Erweiterungssteckplätze

• Ein CNR-Steckplatz (nur AC’ 97-Schnittstelle)

• Ein 8X AGP-Steckplatz (unterstützt nur 1.5V AGP Interface)

• Fünf 32-Bit PCI-Steckplätze

TM

Technolo-

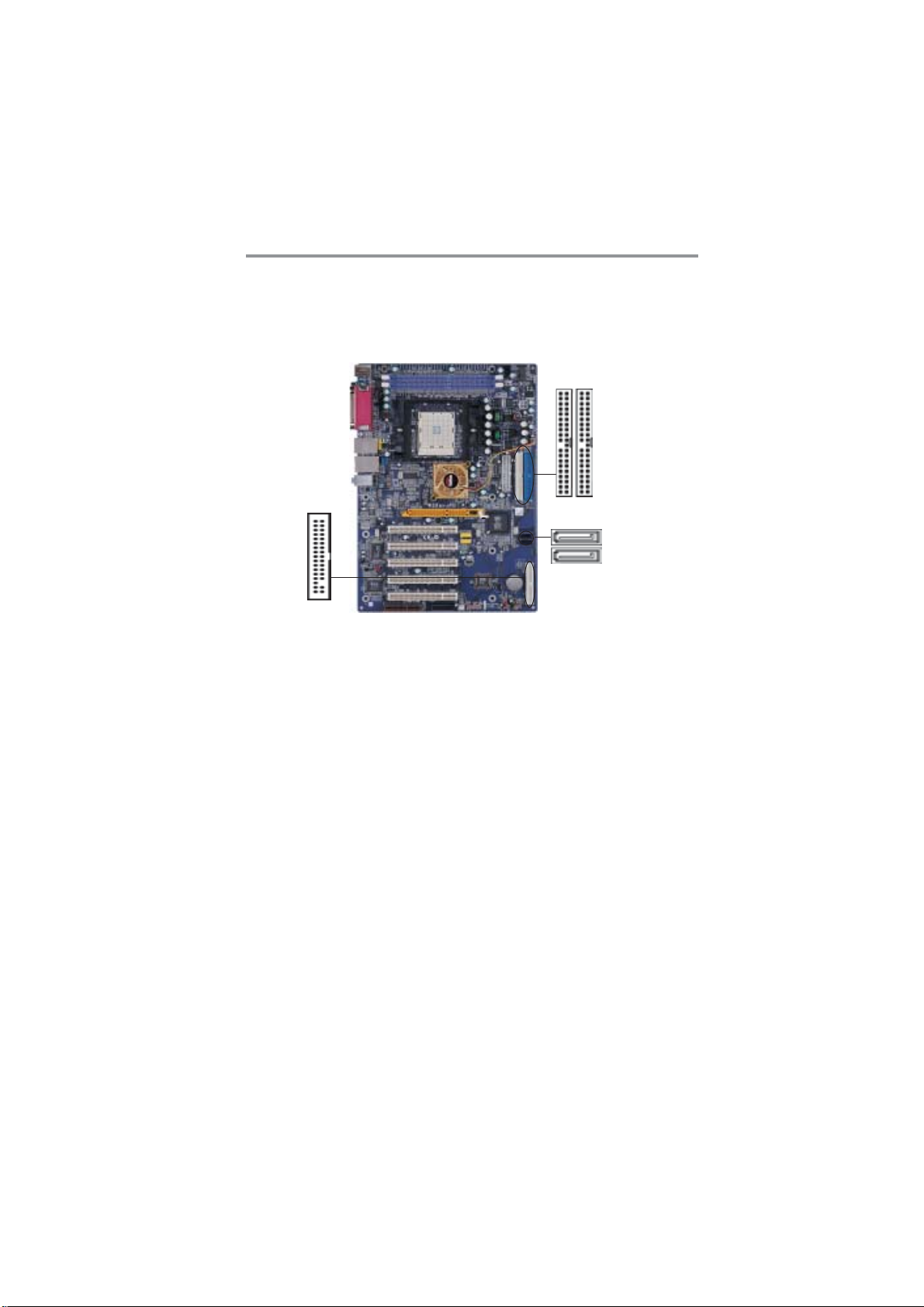

Onboard IDE-Kanäle

• Zwei IDE-Header

• Unterstützt vier IDE-Kanäle

• Unterstützung für IDE Ultra DMA-Busmastering mit Transferraten von 133/
100/66/33 MB/Sek

viii

Motherboard User’s Guide

vii

Motherboard User’s Guide

Serial ATA

• Zwei Serial ATA Anschlüsse

• Unterstützt zwei SATA-Festplatten

• Ultra DMA 150

AC’ 97 Codec

• 6 Kanäle und in Übereinstimmung mit den Spezif. von IntelAC’ 97 (REV. 2.3),
gemäß den Richtlinien von MicrosoftPC2001

• Fortgeschrittener Stromzuführungsbetrieb und Stromsparfähigkeiten.

• Stereo “Line-in-Funktion” geteilt mit “Surround out”.

• Hochqualitäts pseudo-unterschiedlicher Analog-CD-Audio-Eingang.

• S/PDIF Input-Unterstützung: Der S/PDIF Input kennzeichnet sich durch die
Unterstützung seiner Abschaltungs-, Autoblockierungs-, Anti-Geräuschs-,
und Anti-Störungsfunktionen.

• Wertvolle zusätzliche Software-Technologie: Unterstützt die meisten
Industrienormen des PC-3D-Tons und die einzigartige Karaoke-Funktion
kennzeichnet sich durch das Mikrofonecho, dem Tastenwechsel und der
Stimmunterbrechung.

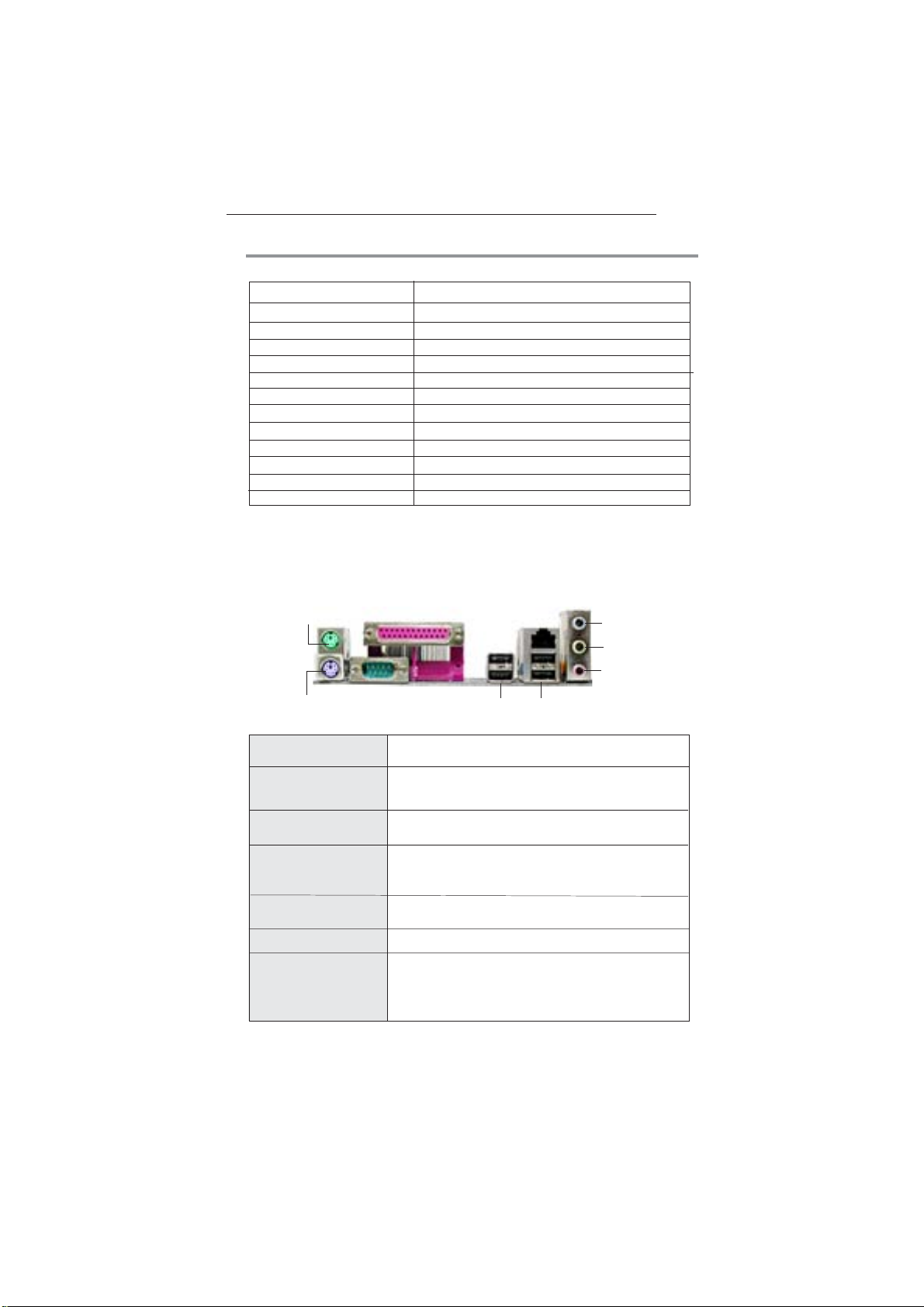

Onboard I/O Ports

Das Motherboard verfügt über einen kompletten Satz von I/O-Schnittstellen und
Anschlüssen:

• Zwei PS/2-Steckplätze für Maus und Tastatur

• Ein serieller Steckplatz

• Ein paralleler Steckplatz

• Acht USB2.0-Ports (vier Ports auf der Rückseite; die Onboard-USB-Header
USB3/4 bieten vier zusätzliche USB-Ports).

• Audioanschlüsse für Mikrofon, line-in und line-out

• Ein LAN Steckplatz (optional)

IIntegriertes Ethernet LAN (optional)

• Onboard Gigabit LAN:

- Integrierter 10/100/1000 Transceiver

- Selbstverhandlung mit “Next page”- (nächste Seite) Kapazität

- Unterstützt eine Full Duplex Flußkontrolle (IEEE 802.3x), und IEEE

802.1Q

VLAN-Markierung

- In Übereinstimmung mit IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

• Onboard 10/100Mbps Ethernet LAN:

- 10 Mb/s und 100 Mb/s Betrieb

- Integrierter Fast Ethernet MAC, physikalischer Chip und Transceiver in
einem einzigen Chip

- Unterstützt 10Mb/s und 100Mb/s N-way Auto-Verhandlung

- Unterstüzt ACPI Versorgungs-Betriebssystem

- Fließende Full Duplex Kontrolle (IEEE 802.3x) und halbe/Full duplex

Kapazität

USB2.0

• Entspricht Universal Serial Bus-Spezikation, Revision 2.0

• Entspricht Intels Enhanced Host Controller Interface-Spezikation, Revision

ix

Motherboard User’s Guide

0.95

• Entspricht Universal Host Controller Interface -Spezikation Revision 1.1

• PCI-Multifunktionsgerät besteht aus zwei UHCI Host

Controller-Kernen für Signalübertragung bei voller und niedriger Geschwind­igkeit sowie einem EHCI Host Controller-Kern für Hochgeschwindigkeits- Sig­nalübertragung

• Root Hub besteht aus 4 Downstream-Ports mit integrierten Physical Layer-

Überträgern für gemeinsame Nutzung durch UHCI und EHCI Host Controller

• Unterstützt PCI-Bus Power Management Interface , Spezikation Release 1.1

• Legacy-Unterstützung für alle Downstream-Ports

Hinweis:Bestimmte Hardwarespezikationen und Teile der
softwareausstattung können ohne weitere Ankündigung

x

Motherboard User’s Guide

Traduzione Funzioni e Lista

Lista

L’imballo della scheda madre é composto da:

• La scheda madre

• Il manuale

• Una piattina per il collegamento dei drive (opzionale)

• Una piattina IDE

• Il CD con il Software di supporto

Caratteristiche

Dotata di Socket 754 per Processori

• Supporta AMD Athlon 64/Sempron con Tecnologia HyperTransport

• Supporta no a 800 MHz Front-Side Bus

La tecnologia HyperTransport

TM

è stato create con l’intento di aumentare no a 48
volte la velocità di comunicazione tra i circuiti integrati, diminuendo così il numero
di bus necessari per il funzionamento del computer ed i colli di bottiglia.

Chipset

In accordo ad una archittettura scabile e innovative sono presenti nel chipset il
Northbridge SiS755 e Southbridge SiS964.

• Supporto dei processori AMD Athlon 64/Sempron con velocità massima pari a
800MHz

• Supporto 400/333/266/200 MHz ed accomoda due alloggiamenti Unbuffered
2,5V a 184 pin

• Conforme alle speciche dello standard universal AGP v3.0

• Supporta l’interfaccia AGP 8X/4X con Funzione Transizione Fast Write

• Conforme alle speciche dello standard PCI 2.3

• Supporto dei risparmio energia PCI riguardante il ACPI power down

Memoria Supporta

• Accomoda due alloggiamenti Unbuffered 2,5V a 184 pin

• Supporto moduli memoria DDR 400/333/266/200

• Ogni slot supporta no ad 1GB per un totale di 2GB

Slot di espansione

• Una slot CNR (solo per interfaccia AC’ 97)

• Una slot AGP 8X (supporta solo l’interfaccia 1.5V AGP)

• Cinque slot PCI a 32 bit

Canali IDE Integrati

• Due connettori IDE

• Supporto quattro canali IDE

• Supporto per le modalità Bus Mastering e Ultra DMA ATA 133/100/66/33 MB/
sec

TM

xi

Motherboard User’s Guide

vii

Motherboard User’s Guide

ATA Seriale

• Due connettori Serial ATA

• Supporto di due dischi rigidi SATA

• Ultra DMA 150

AC’ 97 Codec

• 6 canali conforme alle speciche dello standard Intel



AC’ 97 (REV. 2.3),

rispettando inoltre i requisiti Microsoft PC2001

• Supporto delle funzionalità relative alla Gestione avanzata del Risparmio En-

ergia.

• Input pseudo analogico CD Audio ad alta qualità.

• High quality pseudo-differential analog CD Audio input.

• Supporto Input S/PDIF, dotato delle funzionalità arresto, auto lock, anti rumore

e distorsione.

• Tecnologie aggiuntive di grande valore: Supporto garantito dei maggiori standard

industriali relative al sonoro PC 3D, incredibile funzione karaoke con supporto
dell’eco sull’ingresso microfono, key shifting e cancellazione dellavoce.

Onboard I/O Porte

La scheda madre è dotata da una serie completa di porte e connettori I/O:

• Due porte PS/2 per tastiera e mouse

• Una porta seriale

• Una porta parallela

• Quantità otto porte USB2.0 (Quattro presenti nella parte posteriore, connettori

USB integrati nella scheda madre per l’aggiunta di altre 4 porte USB3/4)

• Jack audio per microfono, ingresso linea e uscita linea

• Una porta LAN (opzionale)

Built-In Ethernet LAN (opzionale)

• LAN Gigabit integrata:

- Transceiver 10/100/1000 Integrato

- Negoziazione automatica con capacità Next page

- Controllo usso dati Full Duplex (IEEE 802.3x) e tagging VLAN IEEE

802.1Q

- Supporto degli standard IEEE 802.3, IEEE 802.3u e IEEE 802.3ab

• Onboard 10/100Mbps Ethernet LAN:

- Operazioni 10 Mb/s a 100 Mb/s

- Fast Ethernet MAC integrata, chip sico e transceiver nello stesso chip

- Supporto della negoziazione automatica N-way a 10Mb/s e 100Mb/s

- Supporto di gestione del consumo energetico ACPI

- Controllo di usso Full Duplex (IEEE 802.3x) e Half/Full

USB 2.0

• Conforme alle speciche Universal Serial Bus 2.0

• Conforme alle speciche Intel Enhanced Host Controller revisione 0.95

• Root hub consists 4 downstream facing ports with integrated physical layer

• Il porto hub di base consiste di 4 porte downstream con ricetrasmittenti
i ntegrati nel layer sico condivisi dalla scheda di controllo interfaccia UHCI e
EHCI

• Supporto per interfaccia risparmio energia bus PCI speciche release 1.1

xii

Motherboard User’s Guide

• Conforme alle speciche Universal Host Controller Interface revisione 1.1

• Il dispositivo PCI multifunzione consiste di due schede di controllo UHCI per
lat rasmissione segnali pieno/basso e una scheda di controllo EHCI per la
trasmissione segnali ad alta velocità.

• Supporto per tutte le porte downstream precedenti

Nota: Alcune speciche hardware ed elementi software sono soggetti
a variazioni senza preavviso.

xiii

Motherboard User’s Guide

Traducción de Características & Lista

LISTA DE VERIFICACIÓN

El paquete de su placa principal contiene los sigtes. ítems:

• La placa principal

• El Manual del Usuario

• Un cable cinta para el lector de disquete (optativo)

• Un cable cinta para el lector IDE

• CD de Software de soporte

Características
Soporte de Procesador Socket-754

• Soporta Procesador de AMD Athlon 64/Sempron con la Tecnología

HyperTransport

• Soporta hasta Bus de Lado Frontal de 800 MHz

La tecnologí a HyperTransport
comunicación entre los circuitos integrados en los ordenadores hasta 48 veces
más veloz, ayuda a reducir la cantidad de buses en un sistema y el achicamiento
del sistema.

Chipset

Hay SiS755 Northbridge y SiS964 Southbridge en este chipset en confomidad
con una arquitectura innovadora y escalable con abilidad y rendimiento compro
bados.

• Soporta CPUs de AMD Athlon 64/Sempron hasta 800MHz

• Admite DDR a 400/333/266/200 MHz y acomoda dos ranuras de 184 contac­tos de 2.5V sin memoria intermedia

• Conformidad con AGP v3.0

• Soporta la interfaz AGP 8X/4X c/ Transacción de Escritura Rápida

• Conformidad de la especicación PCI 2.3

• Soporta los registros de conguración de administración de suministro PCI del
controlador de apagado ACPI en soporte.

Soporte de Memoria

• Acomoda dos ranuras de 184 contactos de 2.5V sin memoria intermedia

• Admite módulos de memoria DDR a 400/333/266/200 MHz

• Cada ranura soporta hasta 1GB con un total de capacidad máxima de 2GB

Ranuras de Expansión

• Una ranura CNR (Interfaz AC’ 97 solamente)

• Una ranura 8X AGP (soporta interfaz 1.5V AGP solamente)

• Cinco ranuras 32-bit PCI

Canales IDE abordo

• Dos conectores IDE

• Soporta cuatro Canales IDE

• Soporta mastering de bus IDE Ultra DMA con índices de transferencia de
133/100/66/33 MB/seg

TM

TM

está diseñado para aumentar la velocidad de

-

xiv

Motherboard User’s Guide

vii

Motherboard User’s Guide

ATA Serial

• Dos conectores Serial ATA

• Soporta dos unidades rígidas SATA

• Ultra DMA 150

AC’ 97 Codec

• 6 canales y conformidad de la Espec. Intel



AC’ 97 (REV. 2.3), satisface los

requisitos de MicrosoftPC2001

• Administración de suministro avanzada y capacidades de ahorro de energía.

• La función Stereo Line-in compartida con Surround out.

• Entrada de Audio CD analógica seudodiferencial de alta calidad.

• Soporte de Entrada S/PDIF: la Entrada S/PDIF se caracteriza por el soporte

de las funcionalidades de interrupción, autobloqueo, antiruido y antidistorción.

• Valiosa tecnología de software adicional: Soporta la mayoría de las normas

industriales del sonido PC 3D y la función Karaoke se caracteriza por el eco
de micrófono, cambio a teclas y cancelación vocal.

Puertos I/O Abordos

La placa principal tiene un juego completo de puertos I/O y conectores:

• Dos puertos PS/2 para ratón y teclado

• Un puerto serial

• Un puerto paralelo

• Ocho puertos USB2.0 (cuatro puertos de panel trasero, conectores USB

abordo USB3/4 que provee cuatro puertos extras

• Clavijas de sonido para micrófono, entrada y salida de línea

• Un puerto LAN (optativo)

Ethernet LAN Incorporado (optativo)

• Gigabit LAN Abordo:

- Transreceptor 10/100/1000 integrado

- Auto-Negociación con capacidad Next page(Próxima página)

- Soporta control de ujo Full Duplex (IEEE 802.3x), y marcación IEEE

802.1Q VLAN

- Conformidad total con IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

• Onboard 10/100Mbps Ethernet LAN:

- Operación 10 Mb/s y 100 Mb/s

- Fast Ethernet MAC integrado, chip fìsico, y transceptor en un solo
chip

- Soporta N-way auto-negociación 10Mb/s y 100Mb/s

- Soporta administración de suministro ACPI

- Control de Flujo Full Duplex (IEEE 802.3x) y capacidad Medio/Full

duplex

USB2.0

• Conforme con la Especicación de Bus Serial Universal Revisión 2.0

• Conforme con Controlador Antrión Reforzado de Intel
Interface Specication Revision 0.95

• Conforme con la Especicación de Interfaz de Controlador Antrión Universal
Revisión 1.1

xv

Motherboard User’s Guide

• Dispositivo PCI multi-función se consiste de dos centros de Controlador
Antrión UHCI para señalización de velocidad completa/baja y un centro de
Controlador Antrión EHCI para señalización de alta velocidaa

• Root hub consiste de 4 puertos que miran hacia abajo con transceptores de
capa física integrado compartido por Controlador Antrión UHCI y EHCI

• Soporta Especicación de Interfaz de Administración de Energía de BUS PCI
versión 1.1

• Soporte de legado para todos los puetos que miran hacia abajo

Nota: Algunas especicaciones de hardware e ítems de software son
sujetos a cambio sin aviso previo .

xvi

Motherboard User’s Guide

Tradução da Lista & Características

Lista de vericação

A embalagem da sua placa principal contém os seguintes itens:

• A placa principal

• O Manual do Utilizador

• Um cabo para a unidade de disquetes (opcional)

• Um cabo para a unidade IDE

• CD de suporte para o software

Características
Suporte do Processador Socket-754

• Suporta Processador AMD Athlon 64/Sempron com Tecnologia

HyperTransport

• Suporta até 800 MHz Front-Side Bus

A tecnologia HyperTransport
comunicaç ã oentre circuitos integrados em computadores até 48 vezes, o que
ajuda a reduzir o número de dispositivos tipo bus ligados ao sistema e a reduzir
os engarrafamentos no sistema.

Chipset

Conta com SiS755 Northbridge e SiS964 Southbridge neste chipset, de acordo
com uma arquitectura inovadora e escalável com um nível de conança e desem
penho comprovado.

• Suporta CPUs AMD Athlon 64/Sempron até 800MHz

• Suporta de 400/333/266/200 MHz e acomoda dois slots de 184 pinos de 2,5
V, sem buffe

• Cumpre a norma universal AGP v3.0

• Suporta AGP 8X/4X Interface com Transação de Escrita Rápida

• Cumpre a especicação PCI 2.3

• Suporta registos de conguração da gestão da corrente PCI provindos do
controlador de corte da corrente ACPI

TM

TM

foi concebida para aumentar a velocidade de

-

Suporte de memória

• Acomoda dois slots de 184 pinos de 2,5 V, sem buffer

• Suporta módulos de menória DDR de 400/333/266/200MHz

• Cada entrada suporta até 1GB tendo uma capacidade máxima total de 2GB

Slots de expansão

• Um slot CNR (Apenas para a interface AC’ 97)

• Um slot AGP 8X (suporta apenas 1.5V AGP)

• Cinco slots PCI de 32 bit

Canais IDE na placa

• Dois conectores IDE

• Supporta quatro canais IDE

• Suporta IDE Ultra DMA bus mastering com razão de transferência de 133/
100/66/33 MB/seg

xvii

Motherboard User’s Guide

vii

Motherboard User’s Guide

Série ATA

• Dois conectores Série ATA

• Suporta dois discos rígidos SATA

• Ultra DMA 150

AC’ 97 Codec

• Spec de 6 canais e de acordo com a norma Intel



AC’ 97 (REV. 2.3), de

acordo com os requisitos MicrosoftPC2001

• Capacidades de gestão avançada da corrente e de poupança de energia.

• Função da entrada de stereo partilhada com a saída do som Surround.

• Entrada de áudio analógica com pseudo-diferencial para CD de alta quali-

dade.

• Suporte da entrada S/PDIF: A entrada S/PDIF encontra-se presente com

suporte das funções de interrupção, anti-ruído, e anti-distorção.

• Tecnologia de software de actualização valiosa: Suporta a maior parte dos

padrões da indústria de som 3D para PC e possui um suporte único para a
função de karaoke que possui um eco do microfone, mudança de teclas, e
cancelamento vocal.

Portas I/O na placa

A placa principal possui um conjunto completo de portas e conectores I/O:

• Duas portas PS/2 para o rato e teclado

• Uma porta série

• Uma porta paralela

• Oito portes USB2.0 (quatro portes traseiros, conectores USB embutidos

USB3/4 fornecendo quatro portes extras

• Jacks audio para microfone, line-in e line-out

• Uma porta LAN (opcional)

Ethernet LAN Integrada (opcional)

• LAN Onboard Gigabit:

- ransreceptor integrado 10/100/1000

- Auto-Negociação com capacidade Next page (Próxima página)

- Suporta controle de uxo Full Duplex (IEEE 802.3x), e alongamento IEEE

802.1Q VLAN

- Totalmente complacente com IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

• Onboard 10/100Mbps Ethernet LAN:

- Operação 10 Mb/s e 100 Mb/s

- Fast Ethernet MAC integrado, chipe físico e transreceptor em um único
chipe

- Suporta auto-negociação N-way de 10Mb/s e 100Mb/s

- Suporta gerenciamento de força ACPI

-Controle de Fluxo Duplex Completo (IEEE 802.3x) e capacidade duplex
Half/Full (Parcial/Total)

USB 2.0

• Compatível com Universal Serial Bus Revisão 2.0 da especicação

• Compatível com controlador Enhanced Host da Intel Revisão 0.95 da especi­cação da interface

xviii

Motherboard User’s Guide

• Compatível com controlador Universal Host Revisão 1.1 da especicação da
Interface

• O dispositivo PCI muli-funções consiste em dois núcleos de Controlador UHCI
Host Controller para sinalização de velocidade total/baixa em um núcleo de
Controlador EHCI Host para sinalização de alta velocidade

• O núcleo de raiz consiste em 4 portas de protecção a jusante com transre­ceptores de camadas físicas integrados partilhados pelos controladores Host
UHCI e EHCI

• Suporte de gestão de energia PCI-Bus Revisão 1.1 da especicação da inter­face

• Suporte para todas as portas de protecção a jusante

Nota: As especicações de alguns artigos de hardware e software
encontram-se sujeitos a alterações sem aviso prévio.

xix

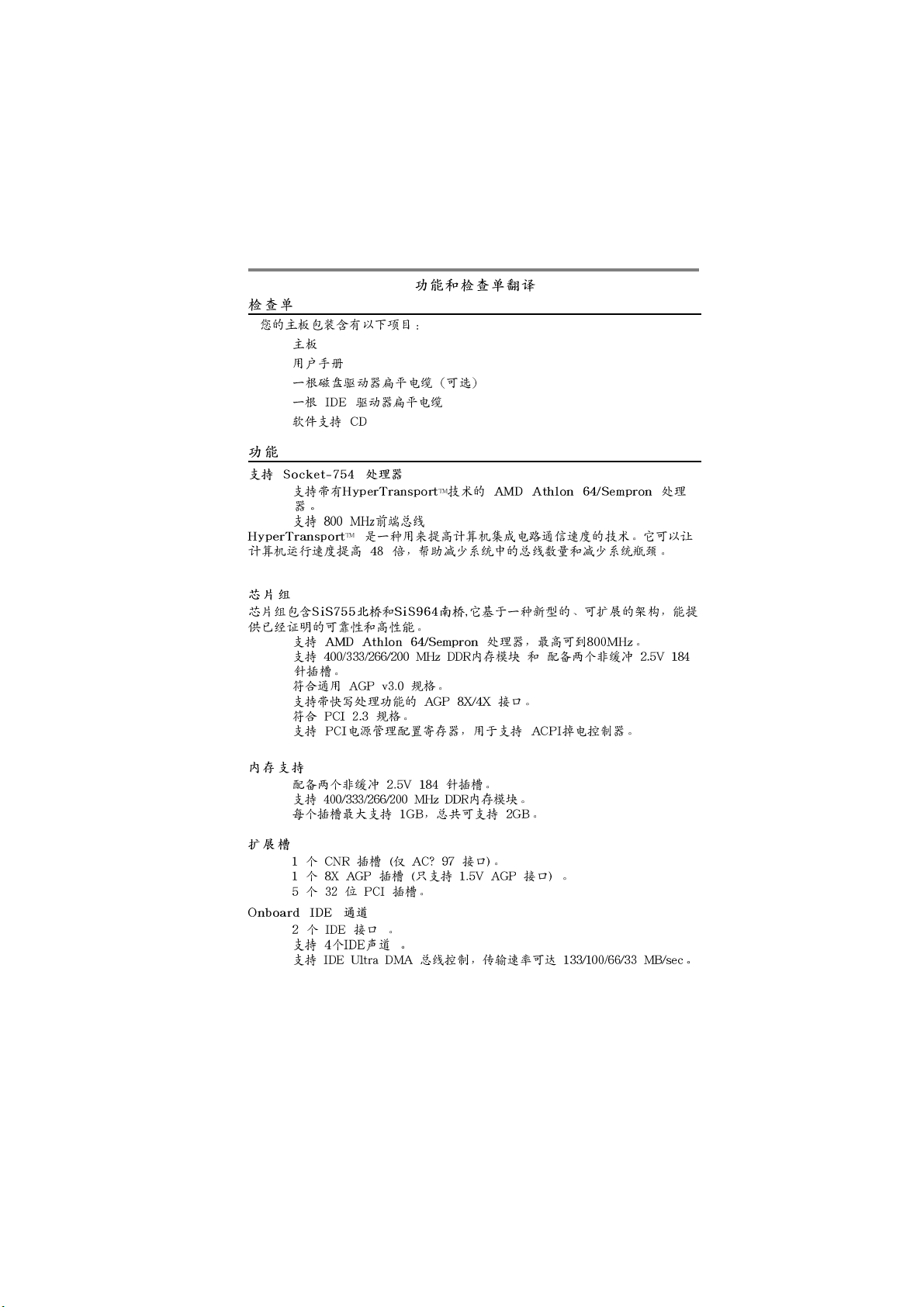

Motherboard User’s Guide

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

xx

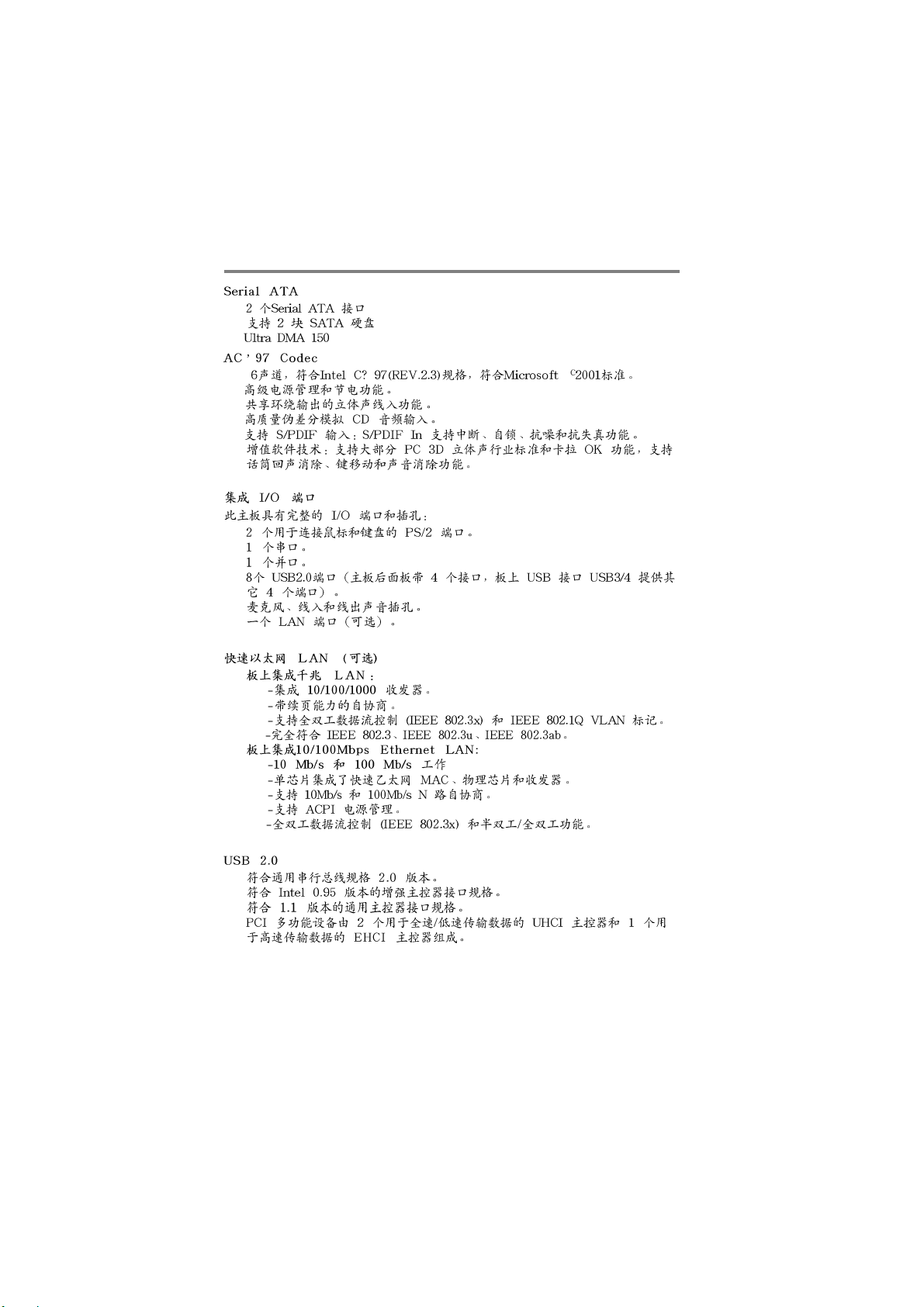

Motherboard User’s Guide

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

xxi

Motherboard User’s Guide

•

•

•

xxii

Motherboard User’s Guide

Chapter 1 Introduction

This motherboard has a Socket-754 processor socket for the
newest and advanced AMD Athlon 64/Sempron processors with
Front-Side Bus (FSB) speeds up to 800 MHz and system bus to
1600 MT/s.

Based on the ATX form facotr, the motherboard incorporates the
SiS755 Northbridge and SiS964 Southbridge chipsets. The SiS755
Northbridge features the HyperTransport
technology to support AMD Athlon 64/Sempron processors up to
1600MT/s data rate. It also supports external AGP slot with AGP
4X/8X capability and Fast Write T ransactions. The
“

HyperTransport

TM

” technology is designed to increase the

communication speed between integrated circuits in computers up
to 48 times faster, helps reduce the number of buses in a system
and reduce the system bottlenecks.

The SiS964 Southbridge integrated Serial AT A Host Controller
compliant with SA TA 1.0 specification which supports 1.5Gb/s
bandwidth for each serial port and support IDE channels support­ing PIO mode 0,1,2,3,4 and Ultra DMA 133/100/66/33.

TM

compliant bus driver

This high performance motherboard is intended to give customers
a high quality and rich multimedia solution. It provides a complete
set of I/O ports, such as dual SATA interfaces, a floppy controller,
a high-speed serial port, an EPP/ECP capable bi-directional
parallel port connector, eight USB headers (four back-panel ports,
onboard USB headers, USB2/3 providing four extra ports),
LAN(optional), a PS/2 keyboard and mouse connector, and audio

1

Motherboard User’s Guide

jacks for microphone, line-in, line-out. One AGP slot, five PCI
local bus slots and one CNR Communication and Networking
Riser slot providing expandability for add-on peripheral cards.

Key Features

The key features of this motherboard include:

Socket-754 Processor Support

• Supports AMD Athlon 64/Sempron processors

• Supports 800 MHz Front-Side Bus and 1600 MT/s data

rate

Chipset

There are SiS755 Northbridge and SiS964 Southbridge in the
chipsets in accordance with an innovative and scalable architec­ture with proven reliability and performance.

• Supports AMD Athlon 64/Sempron CPUs up to 800MHz

• Supports 400/333/266/200 MHz and accommodates two
unbuffered 2.5V 184-pin slots

• Compliance with universal AGP v3.0

• Supports AGP 8X/4X Interface with Fast Write Transaction

•

PCI 2.3 Specification Compliance

• Supports PCI power management configuration registers

for supporting ACPI power down controller

Memory Support

• Accommodates two unbuffered 2.5V 184-pin slots

• Supports DDR up to 400/333/266/200 MHz memory
module

• Each slot supports up to 1GB with a total maximum capac­ity of 2GB

2

Chapter 1: Introduction

Expansion Slots

• One CNR slot (AC’97 Interface only)

• One 8x AGP slot (supports 1.5V AGP Interface only)

• Five 32-bit PCI slots

Onboard IDE channels

• Two IDE connectors

• Supports four IDE channels

• Supports IDE Ultra DMA bus mastering with transfer rates

of 133/100/66/33 MB/sec

Serial A TA

• Two Serial ATA connectors

• Supports two SA TA hard drives

• Ultra DMA 150

AC’97 Codec

• 6-channel and compliant with Intel® AC’97 (REV . 2.3)

Spec, meeting with Microsoft® PC2001 requirements

• Advanced power management and power saving capabili-

ties.

• Stereo Line-in function shared with Surround out.

• High quality pseudo-differential analog CD Audio input.

• S/PDIF Input support: S/PDIF In is featured with interrupt,

auto-lock, anti-noise, and anti-distortion functionalities
support.

• V aluable add-on software technology: Support most industry

standards of PC 3D sound and unique karaoke function
support featured with microphone echo, key shifting, and
vocal cancellation.

Onboard I/O Ports

The motherboard has a full set of I/O ports and connectors:

• Two PS/2 ports for mouse and keyboard

• One serial port

3

Motherboard User’s Guide

• One parallel port

• Eight USB2.0 ports (four back-panel ports, onboard USB
headers USB3/4 providing four extra ports)

• Audio jacks for microphone, line-in and line-out

• One LAN port (optional)

Fast Ethernet LAN (optional)

• Onboard Gigabit LAN:

--Integrated 10/100/1000 transceiver

--Auto-Negotiation with Next page capability

--Supports Full Duplex flow control (IEEE 802.3x), and

IEEE 802.1Q VLAN tagging

--Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE

802.3ab

• Onboard 10/100Mbps Ethernet LAN:

--10 Mbps and 100 Mbps operation

--Integrated Fast Ethernet MAC, physical chip, and

transceiver onto a single chip

--Supports 10Mb/s and 100Mb/s N-way auto-negotiation

--Support ACPI power management

-- Full Duplex Flow Control (IEEE 802.3x) and Half/Full

duplex capability

USB 2.0

• Compliant with Universal Serial Bus Specification Revision

2.0

• Compliant with Intel’s Enhanced Host Controller Interface
Specification Revision 0.95

• Compliant with Universal Host Controller Interface Specifi­cation Revision 1.1

• PCI multi-function device consists of two UHCI Host

Controller cores for full-/low-speed signaling and one
EHCI Host Controller core for high-speed signaling

• Root hub consists 4 downstream facing ports with inte­grated physical layer transceivers shared by UHCI and
EHCI Host Controller

• Support PCI-Bus Power Management Interface Specifica-

4

Chapter 1: Introduction

tion release 1.1

• Legacy support for all downstream facing ports

BIOS Firmware

This motherboard uses AMI BIOS that enables users to configure
many system features including the following:

•

Power management

• Wake-up alarms

• CPU parameters and memory timing

• CPU and memory timing

The firmware can also be used to set parameters for different
processor clock speeds.

Bundled Software

• Adobe Acrobat Reader is the software to help users read

.PDF files.

• ShowShifter provides you with various options to create an

ultimate home media center for your PC that you can use it
to record and playback TV, enjoy your entertainment over a
network, look at digital photos as a slide show on your TV
or PC monitor, and so on

• WinDVD creator Plus is a storyboard interface making

the entire DVD-making process as easy as moving pictures
around on your screen.

• WinDVD provides the automatic WinDVD software

installation.

Dimensions

• A TX form factor of 305 x 220 mm

5

Motherboard User’s Guide

Note: Hardware specifications and software items are subject to

change without notification.

Package Contents

Y our motherboard package ships with the following items:

• The motherboard

• The User ’s manual

• One diskette drive ribbon cable (optional)

• One IDE drive ribbon cable

• The Software support CD

Optional Accessories

You can purchase the following optional accessories for this
motherboard.

• The Extended USB module

• The CNR v.90 56K Fax/Modem card

• The Serial ATA Cable

• The Serial ATA Power Cable

Note: You can purchase your own optional accessories from the
third party, but please contact your local vendor on any issues
of the specification and compatibility.

6

Chapter 2: Motherboard Installation

Chapter 2 Motherboard Installation

T o install this motherboard in a system, please follow these
instructions in this chapter:

• Identify the motherboard components

• Install a CPU

• Install one or more system memory modules

• Make sure all jumpers and switches are set correctly

• Install this motherboard in a system chassis (case)

• Connect any extension brackets or cables to connectors on

the motherboard

• Install peripheral devices and make the appropriate connec-

tions to connectors on the motherboard

Note:

1. Before installing this motherboard, make sure jumper

JP26 is under Normal setting. See this chapter for
information about locating JP26 and the setting options.

2. Never connect power to the system during installation;

otherwise, it may damage the motherboard.

7

Motherboard User’s Guide

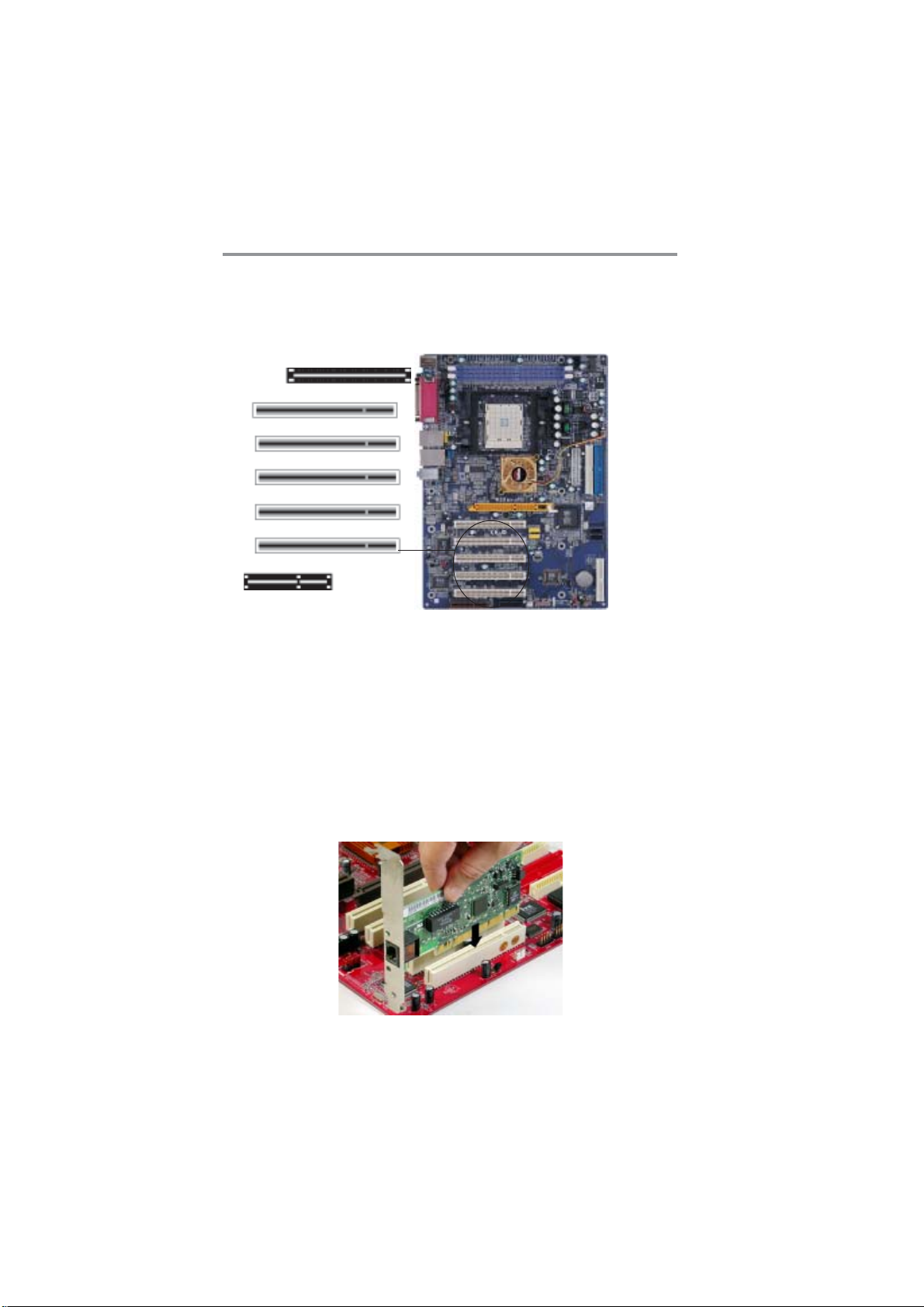

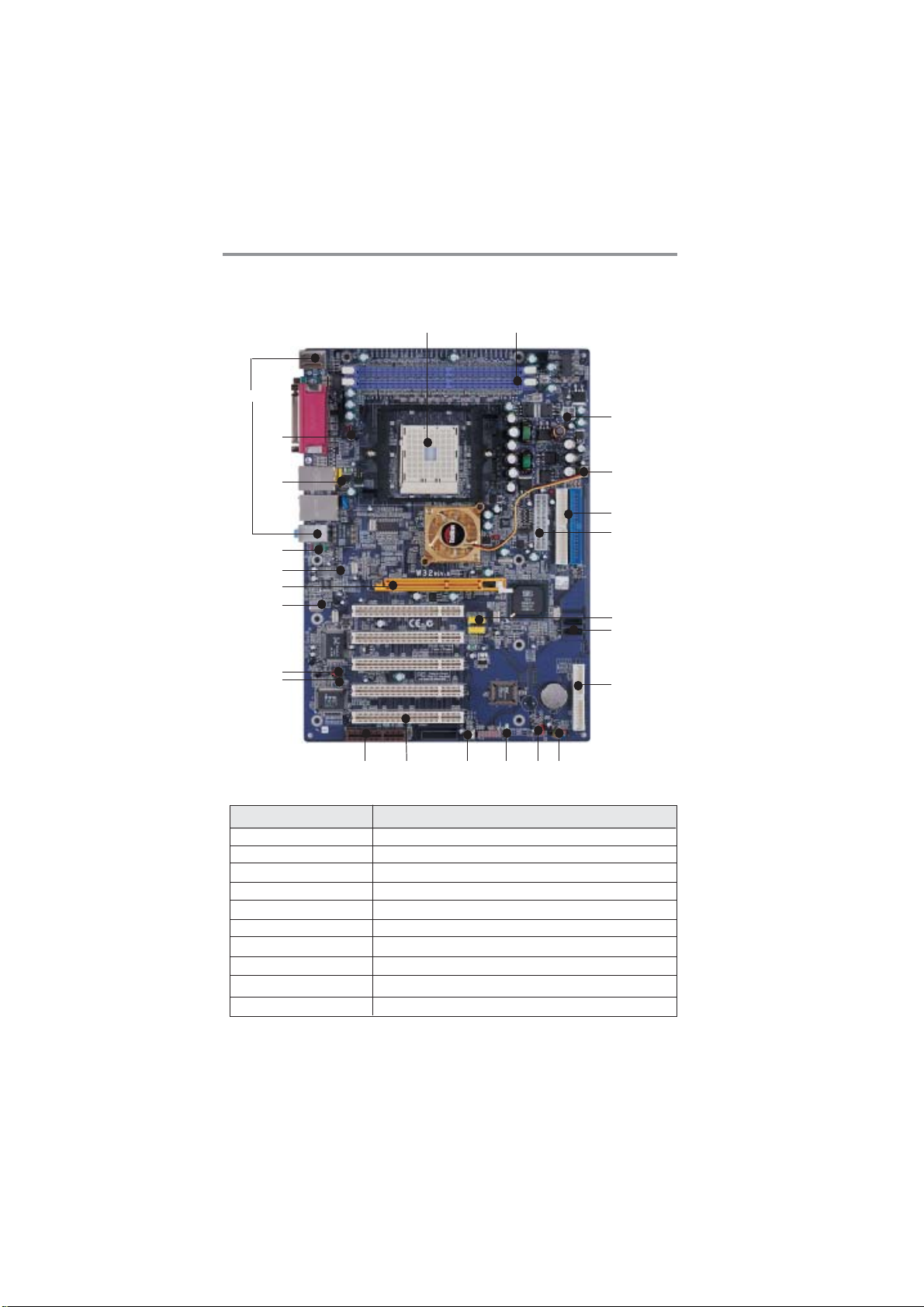

Motherboard Components

I/O PORTS

CPU
FAN

Card
Reader

AUDIO1

CD1

AGP1

SPDIFO1

LJP1
SIR1

CPU Socket

PCI 1-5 SYSTEM_FAN2

CNR1

DIMM2/1

SPK1 JP26

PWR1

SYSTEM_FAN

IDE1/2

PWR2

USB2/3

CON1/2

FDC1

PANEL1

LABELS COMPONENTS

Socket 754 for Athlon 64/Sempron ProcessorsCPU SOCKET

DIMM 2/1
PWR1

SYSTEM_FAN
IDE1/2

PWR2
USB2/3
CON1/2
FDC1
PANEL 1

Two 184-pin DDR SDRAM sockets
Standard 4-pin ATX power connector
NB Fan connector
Primary/Secondary IDE connectors
Standard 20-Pin ATX Power connector
Front Panel USB headers
Serial ATA connectors
Floppy Disk Drive connector
Front Panel Switch/LED header

8

Chapter 2: Motherboard Installation

SYSTEM_FAN2
JP26

SPK1
PCI 1-5
SIR1
LJP1
SPDIFO1
CD1
AUDIO1
Card_Reader
CPU_FAN
CNR1
AGP1

System Fan connector
Clear CMOS jumper
Speaker header
32-bit PCI slots
SIR header
Giga LAN Function jumper
SPDIF Out header
Analog Audio header
Front Panel Audio header
Card_Reader header
CPU Fan connector
Communication Networking Riser slot
One Accelerated Graphics Port slot

I/O Ports

The illustration below shows a side view of the built-in I/O ports
on the motherboard.

PS/2 Mouse

PS/2 Keyboard

PS/2 Mouse

PS/2 Keyboard

Parallel Port (PRN)

COM1

LAN Port (optional)

USB Ports

Audio Ports

Parallel Port (PRN)

Serial Port
COM1 USB

Use the upper PS/2 port to connect a PS/2
pointing device.

Use the lower PS/2 port to connect a PS/2
keyboard.
Use the Parallel port to connect printers or

other parallel communications devices.
Use the COM port to connect serial devices

such as mice or fax/modems. COM1 is
identified by the system as COM1.

Connect an RJ-45 jack to the LAN port to
connect your computer to the Network.

Use the USB ports to connect USB devices.
Use the three audio ports to connect audio

devices. The first jack is for stereo Line-In
signal. The second jack is for stereo Line-Out
signal. The third jack is for Microphone.

Ports

LAN
Port

USB
Ports

Line-In

Line-Out

Microphone

9

Motherboard User’s Guide

Installing the Processor

This motherboard has a Socket 754 processor socket. When
choosing a processor, consider the performance requirements of
the system. Performance is based on the processor design, the
clock speed and system bus frequency of the processor, and the
quantity of internal cache memory and external cache memory.

CPU Installation Procedure

Follow these instructions to install the CPU:

Socket-754

1

CPU_FAN

pin1

1 Unhook the locking lever of the

CPU socket. Pull the locking lever
away from the socket and raising
it to the upright position.

2 Match the pin1 corner marked as

the beveled edge on the CPU with
the pin1 corner on the socket.
Insert the CPU into the socket.
Do not use force.

10

Chapter 2: Motherboard Installation

3 Push the locking lever down and hook it under the latch

on the edge of socket.
4 Apply thermal grease to the top of the CPU.
5 Install the cooling fan/heatsink unit onto the CPU, and

secure them all onto the socket base.
6 Plug the CPU fan power cable into the CPU fan

connector (CPU_FAN) on the motherboard.

Installing Memor y Modules

This motherboard accommodates two 184-pin 2.5V unbuffered
Double Data Rate SDRAM (DDR SDRAM) Dual Inline Memory
Module (DIMM) sockets, and supports up to 2.0 GB of 400 MHz
DDR SDRAM.

DDR provides 2.1 GB/s, 2.7 GB/s or 3.2 GB/s data transfer rate
when the bus is 266 MHz , 333 MHz or 400 MHz, respectively .
DDR uses additional power and ground lines and requires 184-pin

2.5V unbuffered DIMM module.

DDR2
DDR1

11

Motherboard User’s Guide

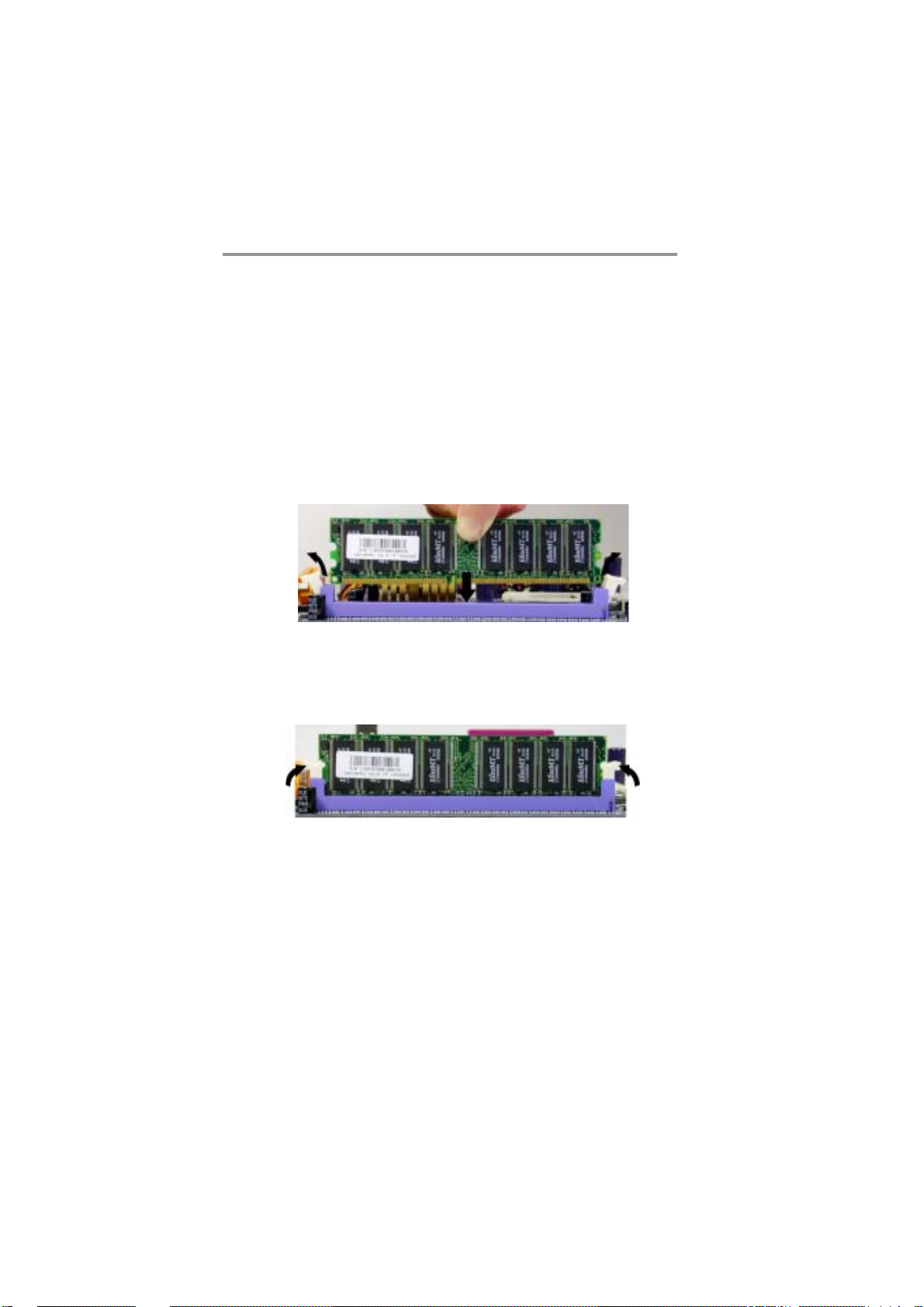

Memory Module Installation Procedure

These modules can be installed with up to 2 GB system memory .
Refer to the following to install the memory module.

1. Push down the latches on both sides of the DIMM
socket.

2. Align the memory module with the socket. There is a
notch on the DIMM socket that you can install the
DIMM module in the correct direction. Match the cutout
on the DIMM module with the notch on the DIMM
socket.

3. Install the DIMM module into the socket and press it
firmly down until it is seated correctly . The socket latches
are levered upwards and latch on to the edges of the
DIMM.

4. Install any remaining DIMM modules.

12

Chapter 2: Motherboard Installation

Table A: Unbuffered DIMM Support For 754-pin Lidded Micro PGA Package

Number

of

DIMMs

1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3

DIMM 2

empty
empty

empty
empty

empty
empty

empty
empty

2

4.1.5 2

DIMM 1 DIMM 3

5

single rank

empty

single rank

empty

double rank

empty

double rank

empty
single rank
single rank

single rank

double rank
single rank
single rank

double rank
double rank

single rank

double rank

double rank
double rank

empty
empty
empty

empty
single rank
single rank
single rank
single rank

double rank
double rank
double rank
double rank

single rank

single rank
double rank
double rank

single rank

single rank
double rank
double rank

single rank

single rank
double rank
double rank

empty
empty

single rank

empty
empty

double rank

empty
empty

single rank

double rank

empty
empty

single rank

double rank

single rank

double rank

single rank

double rank

single rank

double rank

single rank

double rank

single rank

double rank

single rank

double rank

Maximum DRAM Speed

1T

3

2T

DDR400 DDR400
DDR400 DDR400
DDR400 DDR400
DDR400 DDR400
DDR400 DDR400
DDR400 DDR400
DDR400 DDR400
DDR400 DDR400
DDR400 DDR400
DDR400 DDR400
DDR400 DDR400
DDR333 DDR333
DDR400 DDR400
DDR333 DDR333
DDR333 DDR400
DDR200 DDR400
DDR200 DDR400
DDR200 DDR333
DDR333 DDR400
DDR200 DDR333
DDR200 DDR333

DDR200 DDR333

4

DDR333 DDR333
DDR200 DDR333
DDR200 DDR333
DDR200 DDR333

4
4

4

1 DIMM 1 connects to commmand/address pins MEMADDA [13:0],

MEMBANKA[1:0], MEMRASA_L, MEMCASA_L, MEMWEA_L, MEMCKEA.
2 DIMM 2 and 3 connect to command/address pins MEMaDAB [13:0],
MEMBANKB [1:0], MEMRASB_L, MEMCASB_L,MEMWEB_L,MEMCKEB.
3 2T timing is supported in CG and later silicon revisions. Refer to the AMD

Athlon 64/Sempron Processors Power and Thermal Data Sheet, order #30430, for

silicon revision determination.
4 The maximum allowable DRAM speed under these high load conditions may be

reduced with certain DIMMs due to signal integrity degradation.
5 For systems using a 2 DIMM implementation, refer only to rows in this table

where the entry for the column titled DIMM 3 reads ‘empty’.

13

Motherboard User’s Guide

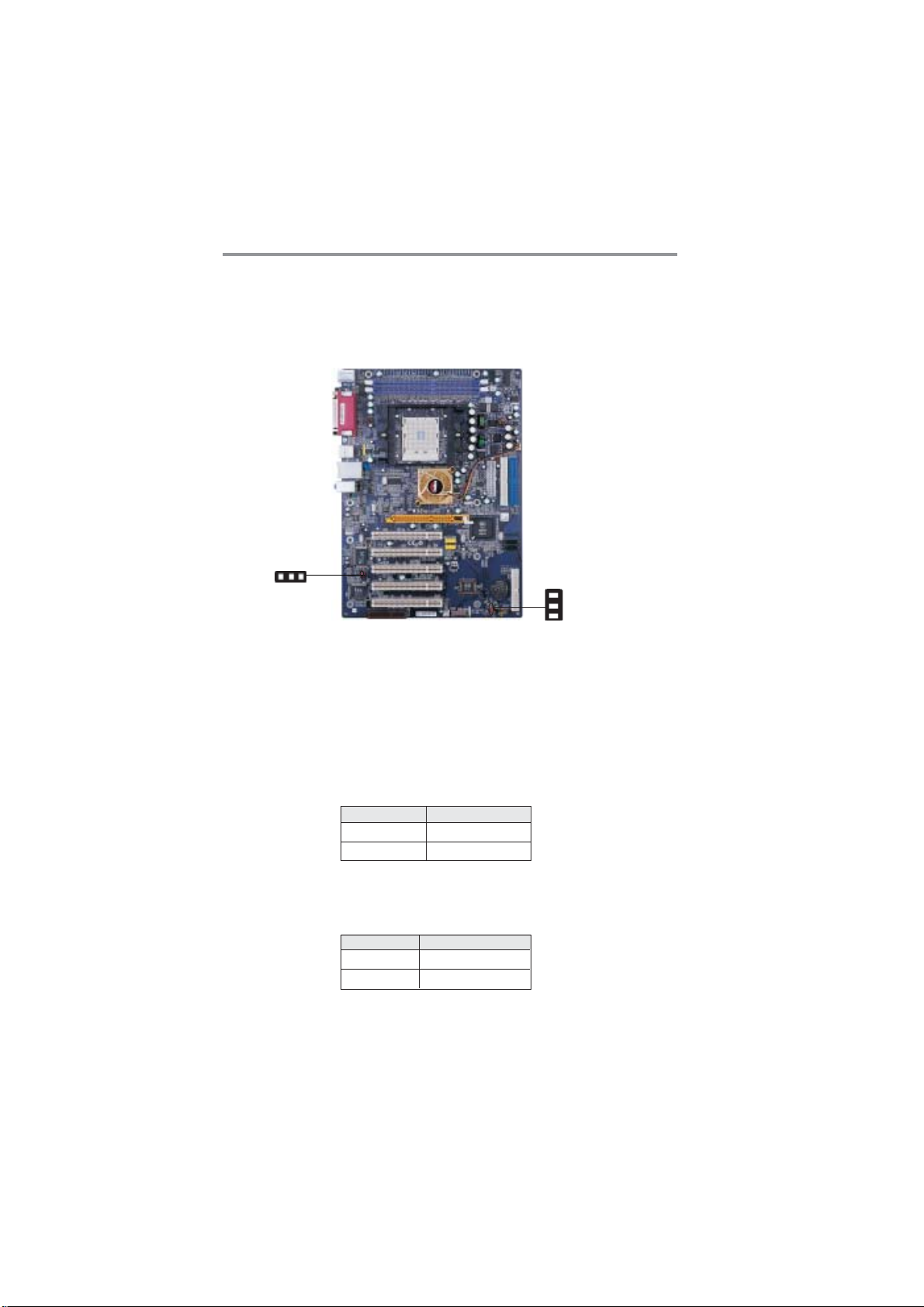

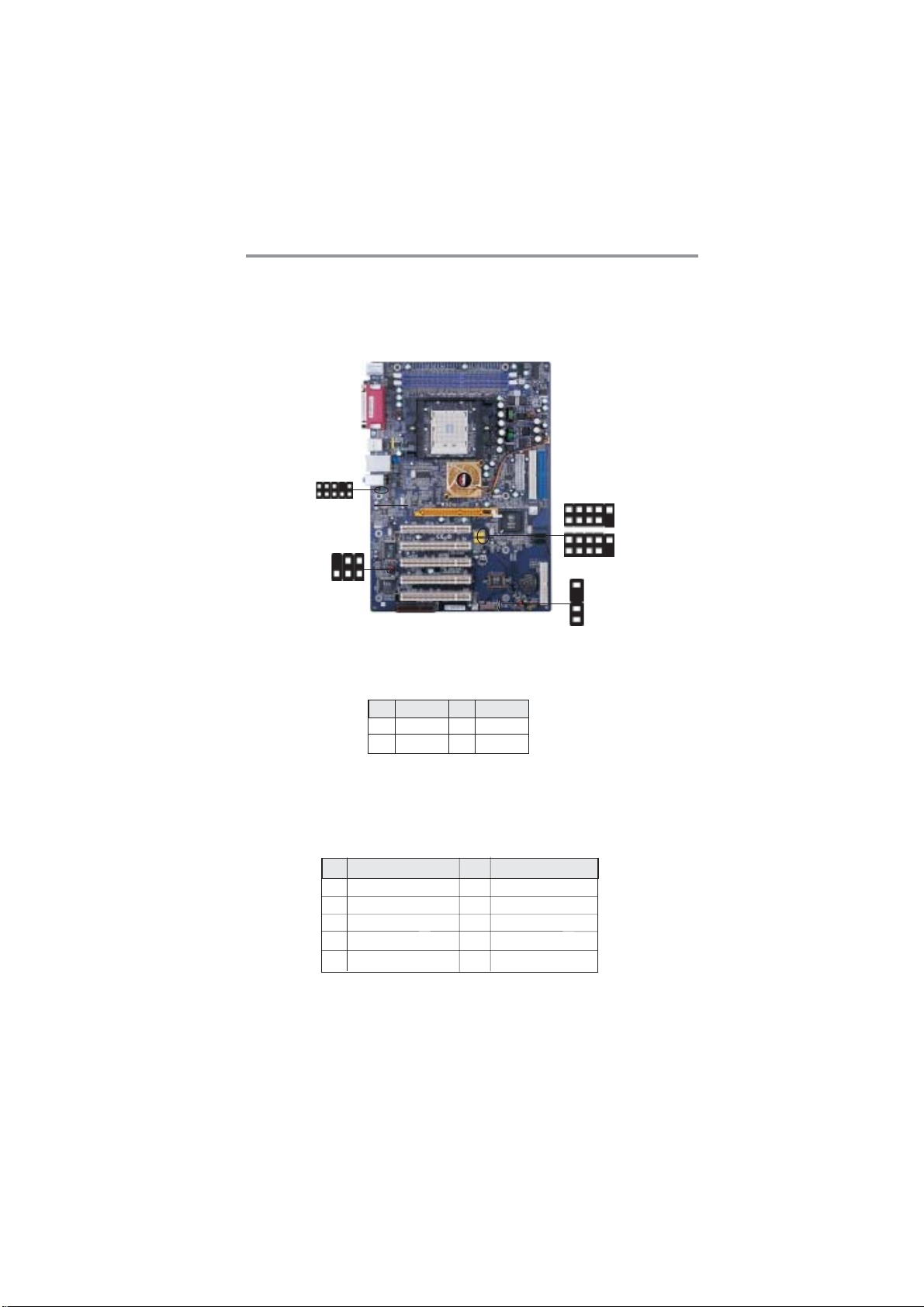

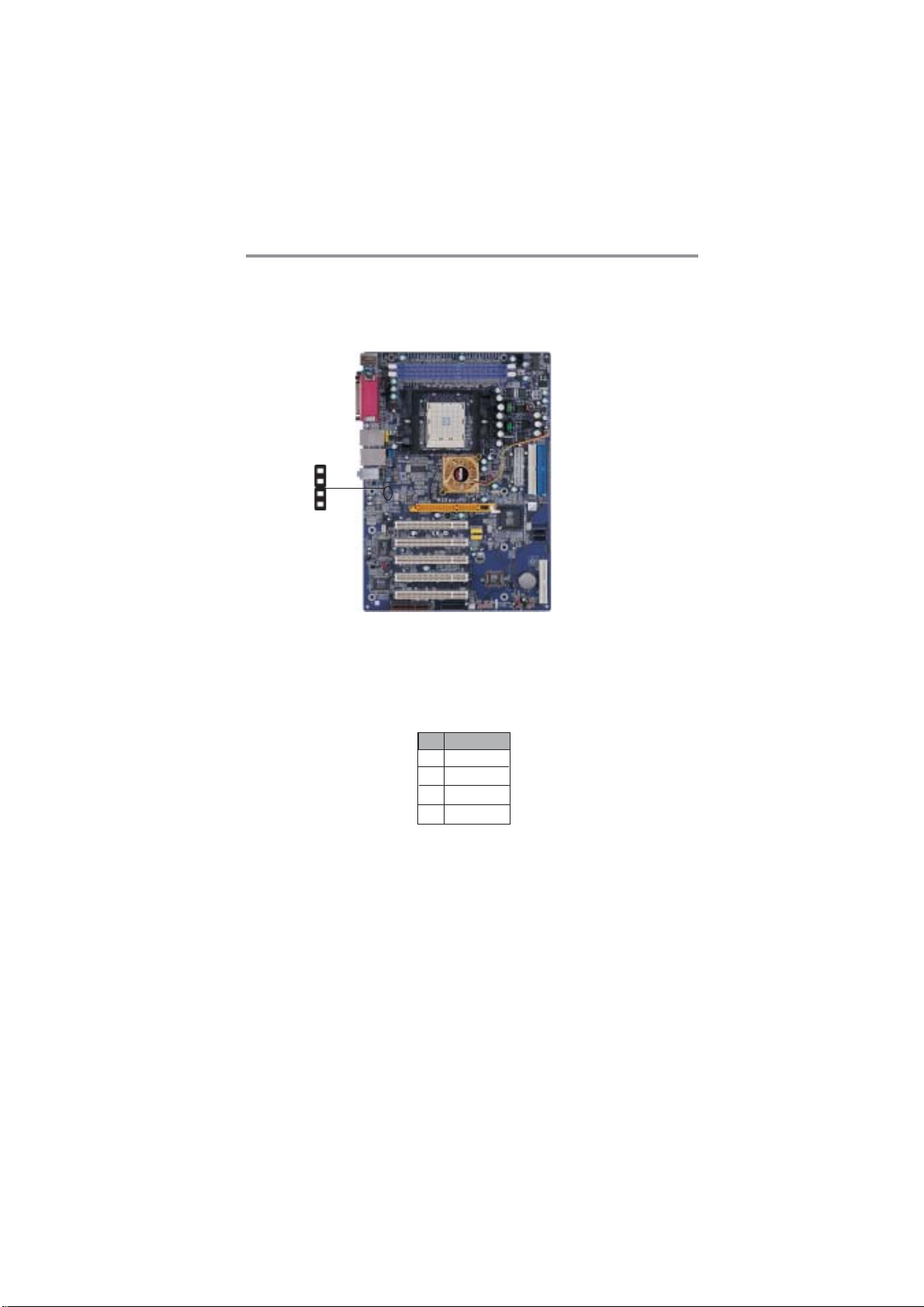

Jumper Settings

Connecting two pins with a jumper cap is SHORT; removing a
jumper cap from these pins, OPEN.

LJP1

JP26

JP26: Clear CMOS Jumper

Use this jumper to clear the contents of the CMOS memory. You
may need to clear the CMOS memory if the settings in the Setup
Utility are incorrect and prevent your mainboard from operating.
To clear the CMOS memory, disconnect all the power cables from
the motherboard and then move the jumper cap into the CLEAR
setting for a few seconds.

Function Jumper Setting

Clear CMOS Short Pins 1-2
Normal Short Pins 2-3

LJP1: GIGA LAN Function Jumper

Use this jumper to Enable/Disable Giga LAN function.

Function Jumper Setting

Disable Pins 1-2
Enable Pins 2-3

14

Chapter 2: Motherboard Installation

Install the Motherboard

Install the motherboard in a system chassis (case). The board is
an ATX size motherboard. You can install this motherboard in an
ATX case. Make sure your case has an I/O cover plate matching
the ports on this motherboard.

Install the motherboard in a case. Follow the case manufacturer’s
instructions to use the hardware and internal mounting points on
the chassis.

PWR1

PWR2

SYSTEM_FAN2

PANEL1

1

Connect the power connector from the power supply to the
PWR2 connector on the motherboard. PWR1 is standard 4-pin
ATX power connector.

If there is a cooling fan installed in the system chassis, connect the
cable from the cooling fan to the SYSTEM_FAN2 fan power
connector on the motherboard.

Connect the case switches and indicator LEDs to the PANEL1
header.

15

Motherboard User’s Guide

Here is a list of the PANEL 1 pin assignments.

Pin Signal Pin Signal

1 HD_LED_P(+)
3 HD_LED_N(-)
5 RESET_SW_N(-)
7 RESET_SW_P(+)
9 RSVD_DNU

2 FP PWR/SLP(+)
4 FP PWR/SLP(-)
6 POWER_SE_P(+)
8 PWER_SW_N(-)
10 KEY

16

Chapter 2: Motherboard Installation

Connecting Optional Devices

Refer to the following for information on connecting the
motherboard’s optional devices:

AUDIO1

1

1

1

1

SIR1

SPK1: Speaker Header

Connect the cable from the PC speaker to the SPK1 header on
the motherboard.

Pin Signal Pin Signal

1 SIGNAL 2 KEY
3 GND 4 VCC

USB2

USB3

1

SPK1

AUDIO1: Front Panel Audio Header

This header allows the user to install auxiliary front-oriented
microphone and line-out ports for easier access.

Pin Signal Pin Signal

1 AUD_MIC 2 AUD_GND
3 AUD_MIC_BIAS 4 AUD_VCC
5 AUD_FPOUT_R 6 AUD_RET_R
7 HP_ON 8 KEY
9 AUD_FPOUT_L 10 AUD_RET_L

17

Motherboard User’s Guide

USB2/USB3: Front panel USB Header

The motherboard has USB ports installed on the rear edge I/O
port array. Additionally, some computer cases have USB ports at
the front of the case. If you have this kind of case, use auxiliary
USB headers USB2/USB3 to connect the front-mounted ports to
the motherboard.

Pin Signal Pin Signal

1 VERG_FP_USBPWR0 2 VERG_FP_USBPWR0
3 USB_FP_P0(-) 4 USB_FP_P1(-)
5 USB_FP_P0(+) 6 USB_FP_P1(+)
7 GROUND 8 GROUND
9 KEY 10 USB _FP_OC0

1. Locate the USB2/3 header on the motherboard.

2. Plug the bracket cable onto the USB2/3 header.

3. Remove a slot cover from one of the expansion slots on
the system chassis. Install an extension bracket in the
opening. Secure the extension bracket to the chassis with
a screw.

SIR1: SIR Header

The infrared port allows the wireless exchange of information
between your computer and similarly equipped devices such as
printers, laptops, Personal Digital Assistants (PDAs), and other
computers.

Pin Signal Pin Signal

1 NC 2 KEY
3 +5V 4 GND
5 IRTX 6 IRRX

1. Locate the infrared port-SIR1 header on the
motherboard.

2. If you are adding an infrared port, connect the ribbon
cable from the port to the SIR1 header and then secure
the port to an appropriate place in your system chassis.

18

Chapter 2: Motherboard Installation

Install Other Devices

Install and connect any other devices in the system following the
steps below.

IDE2

IDE1

FDC

1

1

11

CON2

CON1

Floppy Disk Drive

The motherboard ships with a floppy disk drive cable that can
support one or two drives. Drives can be 3.5" or 5.25" wide, with
capacities of 360K, 720K, 1.2MB, 1.44MB, or 2.88MB.

Install your drives and connect power from the system power
supply . Use the cable provided to connect the drives to the floppy
disk drive connector FDC1.

IDE Devices

IDE devices include hard disk drives, high-density diskette drives,
and CD-ROM or DVD-ROM drives, among others.

The motherboard ships with an IDE cable that can support one or
two IDE devices. If you connect two devices to a single cable,
you must configure one of the drives as Master and one of the
drives as Slave. The documentation of the IDE device will tell you
how to configure the device as a Master or Slave device. The
Master device connects to the end of the cable.

19

Motherboard User’s Guide

Install the device(s) and connect power from the system power
supply. Use the cable provided to connect the device(s) to the
Primary IDE channel connector IDE1 on the motherboard.

If you want to install more IDE devices, you can purchase a
second IDE cable and connect one or two devices to the Second­ary IDE channel connector IDE2 on the motherboard. If you
have two devices on the cable, one must be Master and one must
be Slave.

Serial ATA Devices

The Serial ATA (Advanced Technology Attachment) is the
standard interface for the IDE hard drives, which is designed to
overcome the design limitations while enabling the storage inter­face to scale with the growing media rate demands of PC plat­forms. It provides you a faster transfer rate of 150 MB/s. If you
have installed a Serial ATA hard drive, you can connect the Serial
ATA cables to the Serial ATA hard drive or the connecter on the
motherboard.

On the motherboard, locate the Serial ATA connectors CON1/2,
which support new Serial ATA devices for the highest data
transfer rates, simpler disk drive cabling and easier PC assembly .

It eliminates limitations of the current Parallel AT A interface, but
maintains register compatibility and software compatibility with
Parallel ATA.

20

Chapter 2: Motherboard Installation

Internal Sound Connections

If you have installed a CD-ROM drive or DVD-ROM drive, you
can connect the drive audio cable to the onboard sound system.

1

CD 1

When you first start up your system, the BIOS should automati­cally detect your CD-ROM/DVD drive. If it doesn’t, enter the
Setup Utility and configure the CD-ROM/DVD drive that you
have installed. On the motherboard, locate the 4-pin header CD1.

Pin Signal

1 CD IN L
2 GND
3 GND
4 CD IN R

21

Motherboard User’s Guide

Expansion Slots

This motherboard has one AGP, one CNR and five 32-bit PCI
slots.

AGP 1

PCI 1

PCI 2

PCI 3

PCI 4
PCI 5

CNR1

Follow the steps below to install an AGP/CNR/PCI expansion
card.

1. Locate the AGP, CNR or PCI slots on the motherboard.

2. Remove the blanking plate of the slot from the system
chassis.

3. Install the edge connector of the expansion card into the
slot. Ensure the edge connector is correctly seated in the
slot.

22

Motherboard User’s Guide

Secure the metal bracket of the card to the system chassis with a
screw.

8x AGP Slot

You can install a graphics adapter that supports the 8x AGP
specification and has a 8x AGP edge connector in the AGP slot.

CNR Slot

You can install the CNR (Communications and Networking Riser)
cards in this slot, including LAN, Modem, and Audio functions.

PCI Slots

You can install the 32-bit PCI interface expansion cards in the
slots.

23

Motherboard User’s Guide

Chapter 3 BIOS Setup Utility

Introduction

The BIOS Setup Utility records settings and information of your
computer, such as date and time, the type of hardware installed,
and various configuration settings. Your computer applies the
information to initialize all the components when booting up and
basic functions of coordination between system components.

If the Setup Utility configuration is incorrect, it may cause the
system to malfunction. It can even stop your computer booting
properly. If it happens, you can use the clear CMOS jumper to
clear the CMOS memory which has stored the configuration
information; or you can hold down the Page Up key while
rebooting your computer. Holding down the Page Up key also
clears the setup information.

You can run the setup utility and manually change the configura­tion. You might need to do this to configure some hardware
installed in or connected to the motherboard, such as the CPU,
system memory, disk drives, etc.

24

Chapter 3: BIOS Setup Utility

Running the Setup Utility

Every time you start your computer, a message appears on the
screen before the operating system loading that prompts you to
“Hit <DEL>if you want to run SETUP”. Whenever you see
this message, press the Delete key, and the Main menu page of
the Setup Utility appears on your monitor.

CMOS SETUP UTILITY – Copyright (C) 1985-2003, American Megatrends, Inc

Standard CMOS Setup
Advanced Setup
Features Setup
Power Management Setup
PCI / Plug and Play Setup
BIOS Security Features

: Move Enter: Select +/-/: Value F10: Save Esc: Exit
F1: General Help F9: Optimized Defaults

Standards COMOS setup for changing time, date, hard disk type, etc.

V02.54 (C) 1985-2003, American Megatrends, Inc.

CPU PnP Setup
Hardware Monitor
Load Optimal Defaults
Save Changes and Exit
Discard Changes and Exit

You can use cursor arrow keys to highlight anyone of options on
the main menu page. Press Enter to select the highlighted option.
Press the Escape key to leave the setup utility. Press +/-/ to
modify the selected field’s values.

Some options on the main menu page lead to tables of items with
installed values that you can use cursor arrow keys to highlight
one item, and press PgUp and PgDn keys to cycle through
alternative values of that item. The other options on the main
menu page lead to dialog boxes requiring your answer Yes or No
by hitting the Y or N keys.

If you have already changed the setup utility, press F10 to save
those changes and exit the utility. Press F1 to display a screen
describing all key functions. Press F9 to install the setup utility
with a set of default values.

25

Motherboard User’s Guide

Standard CMOS Setup Page

This page displays a table of items defining basic information
about your system.

CMOS SETUP UTILITY – Copyright (C) 1985-2003, American Megatrends, Inc.

System Time 00:00:12
System Date Mon 04/05/2004

Primary IDE Master Not Detected
Primary IDE Slave Not Detected
Secondary IDE Master Not Detected
Secondary IDE Slave Not Detected

Floppy Drive A 1.44 MB 31/2”
Floppy Drive B Disabled

: Move Enter: Select +/-/: Value F10: Save Esc: Exit
F1: General Help F9: Optimized Defaults

Standard CMOS Setup

Help Item

Use [Enter], [TAB] or
[SHIFT-TAB] to select a
field.
Use [+] or [-] to configure
system Time.

Date & Time

These items set up system date and time.

IDE Pri Master/Pri Slave/Sec Master/Sec Slave

Use these items to configure devices connected to the Primary
and Secondary IDE channels. To configure an IDE hard disk
drive, choose Auto. If the Auto setting fails to find a hard disk
drive, set it to User, and then fill in the hard disk characteristics
(Size, Cyls, etc.) manually . If you have a CD-ROM drive,
select the setting CDROM. If you have an ATAPI device with
removable media (e.g. a ZIP drive or an LS-120), select
Floptical.

Floppy Drive A/B

These items set up size and capacity of the floppy diskette
drive(s) installed in the system.

26

Chapter 3: BIOS Setup Utility

Advanced Setup Page

This page sets up more advanced information about your system.
Handle this page with caution. Any changes can affect the
operation of your computer.

CMOS SETUP UTILITY – Copyright (C) 1985-2003, American Megatrends, Inc.

Quick Boot Enabled
1st Boot Device 1st FLOPPY DRIVE
2nd Boot Device Realtek Boot Agen
3rd Boot Device Network Card
Try Other Boot Device Yes
Bootup Num-Lock On
Boot To OS/2 > 64MB N o
DRAM CAS# Latency By SPD
Auto Detect DIMM/PCI C1K Enabled
Cool ‘N’ Quiet Enabled

: Move Enter: Select +/-/: Value F10: Save Esc: Exit
F1: General Help F9: Optimized Defaults

Share Memory Size

This item lets you allocate a portion of the main memory for
the onboard VGA display application with five options of

Advanced Setup

Help Item

Allows BIOS to skip certain
tests while booting. This
will decrease the time
needed to boot the system.

32/64/128 MB.

Quick Boot

If you enable this item, the system starts up more quickly be
elimination some of the power on test routines.

st

1

Boot Device/2nd Boot Device/3rd Boot Device

Use these items to determine the device order the computer
uses to look for an operating system to load at start-up time.

Try Other Boot Device

If you enable this item, the system will also search for other
boot devices if it fails to find an operating system from the first
two locations.

27

Motherboard User’s Guide

BootUp Num-Lock

This item determines if the Num Lock key is active or
inactive at system start-up time.

Boot to OS/2 > 64MB

Enable this item if you are booting the OS/2 operating system
and you have more than 64MB of system memory installed.

DRAM CAS# Latency

This item determines the operation of DRAM memory CAS
(column address strobe). It is recommended that you leave
this item at the default value. The 2T setting requires faster
memory that specifically supports this mode.

Auto detect DIMM/PCI Clock

When this item is enabled, BIOS will disable the clock signal
of free DIMM/PCI slots.

Cool ‘N’ Quiet

It supports fan control to reduce fan noise when the CPU is
running cool. This motherboard and BIOS requirements for a
PowerNow! are identical. The same BIOS data structures are
used.

28

Chapter 3: BIOS Setup Utility

Features Setup Page

This page sets up some parameters for peripheral devices
connected to the system.

CMOS SETUP UTILITY – Copyright (C) 1985-2003, American Megatrends, Inc.

OnBoard Floppy Controller Enabled
Serial Port1 Address 3F8/IRQ4
OnBoard IR Port Disabled
Parallel Port Address 378
Parrllel Port Mode ECP
ECP Mode DMA Chnnel DMA3
Parallel Port IRQ IRQ7
OnBoard PCI IDE Controller Both
OnBoard PCI SATA Controller Enabled
Audio Device Enabled
Modem Device Auto
Ethernet Device Enabled
OnBoard USB Function Enabled
USB Function for DOS Disabled

: Move Enter: Select +/-/: Value F10: Save Esc: Exit
F1: General Help F9: Optimized Defaults

Features Setup

Help Item

Allows BIOS to
Enable or Disable
Floppy Controller.

OnBoard Floppy Controller

Use this item to enable or disable the onboard floppy disk drive
interface.

Serial Port1 Address

Use this item to enable or disable the onboard COM1/2 serial
port, and to assign a port address.

OnBoard IR Port

Use this item to enable or disable the onboard infrared port,
and to assign a port address.

Parallel Port Address

Use this item to enable or disable the onboard Parallel port, and
to assign a port address.

29

Motherboard User’s Guide

Parallel Port Mode

Use this item to set the parallel port mode. You can select ECP
(Extended Capabilities Port).

ECP Mode DMA Channel

Use this item to assign a DMA channel to the parallel port.

Parallel Port IRQ

Use this item to assign IRQ to the parallel port.

OnBoard PCI IDE Controller

Use this item to enable or disable both of the onboard Primary and
Secondary IDE channels.

OnBoard PCI SATA Controller

Use this item to enable the onboard PCI SATA channel.

Audio Device

This item enables or disables the AC’97 audio chip.

Modem Device

This item enables or disables the onboard Modem.

Ethernet Device

This item enables or disables the onboard Ethernet LAN.

OnBoard USB Function

Enable this item if you plan to use the USB ports on this
motherboard.

USB Function For DOS

Enable this item if you plan to use the USB ports on this
motherboard in a DOS environment.

30

Motherboard User’s Guide

Power Management Setup Page

This page sets some parameters for system power management
operation.

CMOS SETUP UTILITY – Copyright (C) 1985-2003, American Megatrends, Inc.

ACPI Aware O/S Yes
Power Management Enabled
Suspend Mode S1
Suspend Time Out Disabled
Resume On RTC Alarm Disabled
Keyboard Power On Disabled
LAN/Ring Power On Disabled

: Move Enter: Select +/-/: Value F10: Save Esc: Exit
F1: General Help F9: Optimized Defaults

ACPI Aware O/S

This item supports ACPI (Advanced Configuration and Power
management Interface). Use this item to enable or disable the
ACPI feature.

Power Management Setup

Help Item

Enable / Disable
ACPI support for
Operating System.
Enable: If OS
supports ACPI.
Disable: If OS does
not support ACPI.

Power Management

Use this item to enable or disable a power management scheme.
If you enable power management, you can use the items below to
set the power management operation. Both APM and ACPI are
supported.

Suspend Mode

This item selects the status S1(Stop Clock) or S3(Suspend to
RAM) when the system enters the power-saving Suspend mode.

31

Motherboard User’s Guide

Suspend Time Out

This sets the timeout for Suspend mode in minutes. If the time
selected passes without any system activity, the computer will
enter power-saving Suspend mode.

Resume On RTC Alarm / Date / Hour / Minute / Second

The system can be turned off with a software command. If you
enable this item, the system can automatically resume at a fixed
time based on the system’s RTC (realtime clock). Use the items
below this one to set the date and time of the wake-up alarm. You
must use an ATX power supply in order to use this feature.

Keyboard Power On

If you enable this item, system can automatically resume by
pressing hot keys on the keyboard or typing in the password. You
must enable the Keyboard Power On jumper and use an ATX
power supply in order to use this feature.

LAN/Ring Power On

The system can be turned off with a software command. If you
enable this item, the system can automatically resume if there is
an incoming call on the Modem. You must use an ATX power
supply in order to use this feature.

32

Motherboard User’s Guide

PCI / Plug and Play Setup Page

This page sets up some parameters for devices installed on the
PCI bus and those utilizing the system plug and play capability.

CMOS SETUP UTILITY – Copyright (C) 1985-2003, American Megatrends, Inc.

Primary Graphics Adapter AGP
Allocate IRQ to PCI VGA Yes
PCI IDE BusMaster Disabled

: Move Enter: Select +/-/: Value F10: Save Esc: Exit
F1: General Help F9: Optimized Defaults

PCI / Plug and Play Setup

Help Item

Options
PCI
AGP

Primary Graphics Adapter

This item indicates if the primary graphics adapter uses the PCI or
the AGP bus. The default AGP setting still lets the onboard
display work and allows the use of a second display card installed
in an AGP slot.

Allocate IRQ to PCI VGA

If this item is enabled, an IRQ will be assigned to the PCI VGA
graphics system. You set this value to No to free up an IRQ.

PCI IDE BusMaster

This item enables or disables the DMA under DOS mode. We
recommend you to leave this item at the default value.

33

Motherboard User’s Guide

BIOS Security Features Setup Page

This page helps you install or change a password.

CMOS SETUP UTILITY – Copyright (C) 1985-2003, American Megatrends, Inc.

Security Settings

Supervisor Password : Not Installed

Change Supervisor Password Press Enter

: Move Enter: Select +/-/: Value F10: Save Esc: Exit
F1: General Help F9: Optimized Defaults

BIOS Security Features

Help Item

Install or Change
the password.

Supervisor Password

This item indicates whether a supervisor password has been set.
If the password has been installed, Installed displays. If not, Not
Installed displays.

Change Supervisor Password

You can select this option and press <Enter> to access the sub
menu. You can use the sub menu to change the supervisor pass­word.

34

Motherboard User’s Guide

CPU PnP Setup Page

This page helps you manually configure the motherboard for the
CPU. The system will automatically detect the type of installed
CPU and make the appropriate adjustments to the items on this
page.

CMOS SETUP UTILITY – Copyright (C) 1985-2003, American Megatrends, Inc.

Processor

Type : AMD Athlon (tm) 64 Processor 3200+

CPU Over-clocking Freq 200
DRAM Frequency : 200 MHz

: Move Enter: Select +/-/: Value F10: Save Esc: Exit
F1: General Help F9: Optimized Defaults

CPU PnP Setup

Help Item

CPU Freq Over Clock 200 to
230 MHz

Processor Type

This item shows the type of the CPU installed in your system.

CPU Frequency

This item shows the frequency of the CPU installed in your
system.

Model NB Function

W32 SiS755 CPU Frequency: 200/166/133/100

Auto Detect DRAM Clock/DRAM Frequency

When this item is enabled, it automatically detects and shows
clock and frequency of the DRAM memory installed in your
system; when disabled, it can adjust clock and frequency of the
DRAM memory.

35

Motherboard User’s Guide

Hardware Monitor Page

This page sets up some parameters for the hardware monitoring
function of this motherboard.

CMOS SETUP UTILITY – Copyright (C) 1985-2003, American Megatrends, Inc.

*** System Hardware Monitor***
Vcore :1.536V
Vdimm :2.512V
Vivdd :1.536V
Vcc5V :5.026V
SB3V :3.264V
CPU FAN Speed :0 RPM
SYSTEM FAN Speed :0 RPM
SYSTEM FAN2 Speed :0 RPM
CPU Temperature :50°C/122°F
SYSTEM Temperature :31°C/87°F
POWER Temperature :46°C/114°F

: Move Enter: Select +/-/: Value F10: Save Esc: Exit
F1: General Help F9: Optimized Defaults

CPU/System Temperature

These items display CPU and system temperature measure­ment.

Hardware Monitor

Help Item

FANs & Voltage Measurements

These items indicate cooling fan speeds in RPM and the various
system voltage measurements.

36

Chapter 3: BIOS Setup Utility

Load Optimal Defaults

This option opens a dialog box to ask if you are sure to install
optimized defaults or not. You press <Y>, and then <Enter>, the
Setup Utility loads all default values; or press <N>, and then <Enter>,
the Setup Utility does not load default values.

Note: It is highly recommend that users enter this option to load
optimal default values for accessing the best performance.

Save Changes and Exit

Highlight this item and press <Enter> to save the changes that you
have made in the Setup Utility configuration. When the Save
Changes and Exit dialog box appears, press Y to save and exit, or
press N to return to the main menu.

Discard Changes and Exit

Highlight this item and press <Enter> to discard any changes that
you have made in the Setup Utility and exit the Setup Utility .
When the Discard Changes and Exit dialog box appears, press
<Y> to discard changes and exit, or press <N> to return to the
main menu.

Note: If you have made settings that you do not want to save,
use the “Discard Changes and Exit” item and press <Y> to
discard any changes you have made.

37

Motherboard User’s Guide

Chapter 4 Software & Applications

Introduction

This chapter describes the contents of the support CD-ROM that
comes with the motherboard package.

The support CD-ROM contains all useful software, necessary
drivers and utility programs to properly run our products. More
program information is available in a README file, located in the
same directory as the software.

T o run the support CD, simply insert the CD into your CD-ROM
drive. An Auto Setup screen automatically pops out, and then you
can go on the auto-installing or manual installation depending on
your operating system.

If your operating system is Windows 2000/XP, it will automatically
install all the drivers and utilities for your motherboard; if Windows
NT or manual installation, please follow the instructions described
as the Installing under Windows NT or Manual Installation sec­tion.

38

Motherboard User’s Guide

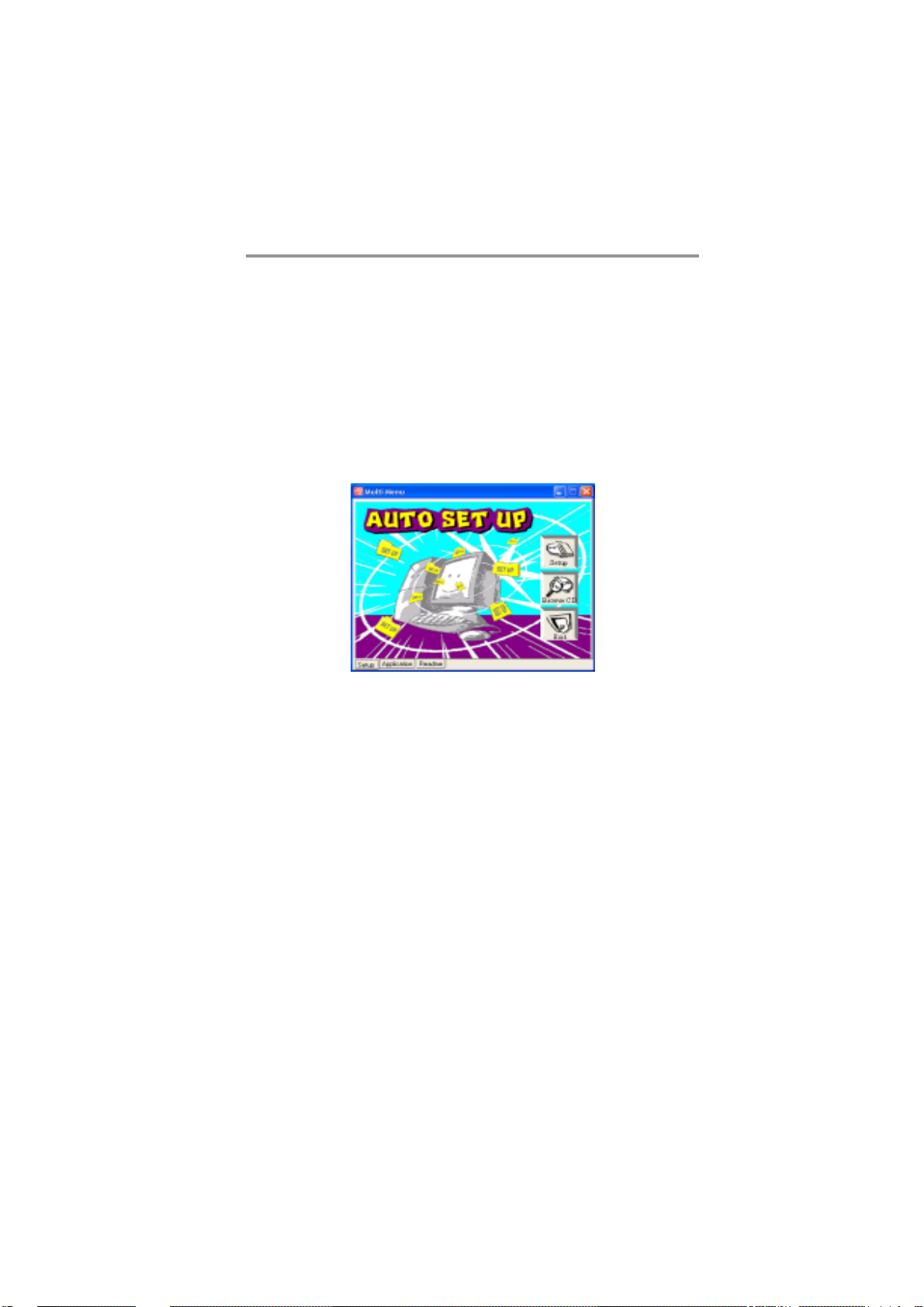

Installing Suppor t Software

1 Insert the support CD-ROM disc in the CD-ROM drive.
2 When you insert the CD-ROM disc in the system CD-

ROM drive, the CD automatically displays an Auto Setup
screen.

3 The screen displays three buttons of Setup, Browse CD

and Exit on the right side, and three others Setup,
Application and ReadMe at the bottom. Please see the
following illustration.

The Setup button runs the software auto-installing program as
explained in next section.

The Browse CD button is a standard Windows command that
you can check the contents of the disc with the Windows 98 file
browsing interface.

The Exit button closes the Auto Setup window. To run the
program again, reinsert the CD-ROM disc in the drive; or click
the CD-ROM driver from the W indows Explorer, and click the
Setup icon.

The Application button brings up a software menu. It shows the
bundled software that this motherboard supports.

The ReadMe brings you to the Install Path where you can find
out path names of software driver.

39

Motherboard User’s Guide

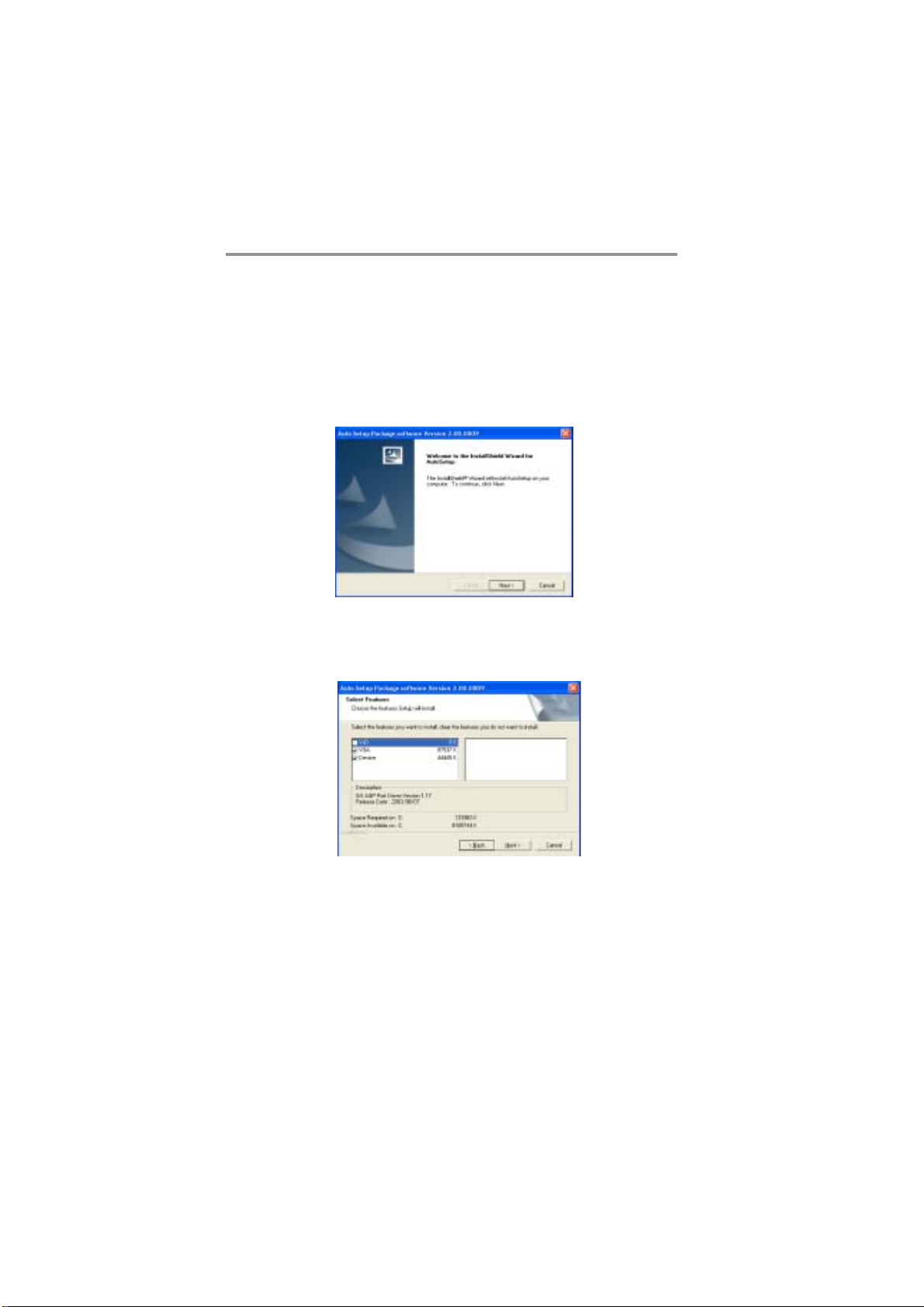

Auto-Installing under Windows 2000/XP

If you are under Windows 2000/XP, please click the Setup button
to run the software auto-installing program while the Auto Setup
screen pops out after inserting the support CD-ROM:

1 The installation program loads and displays the following

screen. Click the Next button.

2 Select the items that you want to setup by clicking on it

(the default options are recommended). Click the Next
button to proceed.

3 The support software will automatically install.

Once any of the installation procedures start, software is auto­matically installed in sequence. You need to follow the onscreen
instructions, confirm commands and allow the computer to restart
as few times as needed to complete installing whatever software
you selected. When the process is finished, all the support soft­ware will be installed and start working.

40

Chapter 4: Software & Applications

Installing under Windows NT or Manual Installation

If you are under Windows NT, the auto-installing program doesn’t
work out; or you have to do the manual installation, please follow
this procedure while the Auto Setup screen pops out after insert­ing the support CD-ROM:

1 Click the ReadMe to bring up a screen, and then click

the Install Path at the bottom of the screen.

2 Find out your motherboard model name and click on it to

obtain its correct driver directory .

3 Install each software in accordance with the

corresponding driver path.

Bundled Software Installation

All bundled software available on the CD-ROM is for users’
convenience. You can install bundled software as follows:

1 Click the Application button while the Auto Setup screen

pops out after inserting the support CD-ROM.

2 A software menu appears. Click the software you want

to install.

3 Follow onscreen instructions to install the software

program step by step until finished.

41
