Hsin Tech T16 User Manual [en, de, fr, es, pt +1]

Motherboard User’s Guide

This publication, including photographs, illustrations and software,
is under the protection of international copyright laws, with all
rights reserved. Neither this manual, nor any of the material
contained herein, may be reproduced without the express written
consent of the manufacturer.
The information in this document is subject to change without
notice. The manufacturer makes no representations or warranties
with respect to the contents hereof and specifically disclaims any
implied warranties of merchantability or fitness for any particular
purpose. Further, the manufacturer reserves the right to revise this
publication and to make changes from time to time in the content
hereof without obligation of the manufacturer to notify any person
of such revision or changes.

Trademarks

IBM, VGA, and PS/2 are registered trademarks of International
Business Machines.
Intel, Pentium/II/III, Pentium 4, Celeron and MMX are registered
trademarks of Intel Corporation.
Microsoft, MS-DOS and Windows 98/ME/NT/2000/XP are
registered trademarks of Microsoft Corporation.
AMI is a trademark of American Megatrends Inc.
It has been acknowledged that other brands or product names in
this manual are trademarks or the properties of their respective
owners.

Copyright © 2004

All Rights Reserved

T16 Series, V1.0C

I865PE/November 2004

i

Motherboard User’s Guide

Table of Contents

Trademark ................................................................................... i

Features and Checklist Translation........................................ v

Chapter 1: Introduction............................................................ 1

Key Features ........................................................................................ 2

Package Contents ................................................................................6

Chapter 2: Mainboard Installation .......................................... 7

Mainboard Components ...................................................................... 8

I/O Ports ...............................................................................................9

Installing the Processor .....................................................................10

Installing Memory Modules ............................................................... 11

Jumper Settings .................................................................................. 1 3

Install the Motherboard ..................................................................... 14

Connecting Optional Devices ............................................................ 1 5

Install Other Devices..........................................................................17

Expansion Slots ..................................................................................20

Chapter 3: BIOS Setup Utility ............................................... 2 2

Introduction ....................................................................................... 22

Running the Setup Utility ........................... …………………………...23

Standard CMOS Setup Page ............................................................. 2 4

Advanced Setup Page ........................................................................ 2 5

Features Setup Page ..........................................................................2 7

Power Management Setup Page........................................................2 9

PCI/Plug and Play Setup Page.......................................................... 3 1

BIOS Security Features Setup Page ..................................................32

CPU PnP Setup Page ......................................................................... 33

Hardware Monitor Page....................................................................3 4

Load Best Performance Settings ........................................................3 4

Load Optimal Defaults .......................................................................35

Save Changes and Exit ...................................................................... 3 5

Discard Changes and Exit .................................................................3 5

Chapter 4: Software & Applications ..................................... 3 6

Introduction ....................................................................................... 36

Installing Support Software ............................................................... 3 7

Bundled Software Installation ........................................................... 39

Hyper Threading CPU .......................................................................40

ii

Motherboard User’s Guide

Static Electricity Precautions

Static electricity could damage components on this motherboard.
T ake the following precautions while unpacking this motherboard
and installing it in a system.

1. Don’t take this mainboard and components out of their
original static-proof package until you are ready to install
them.

2. While installing, please wear a grounded wrist strap if
possible. If you don’t have a wrist strap, discharge static
electricity by touching the bare metal of the system chassis.

3. Carefully hold this motherboard by its edges. Do not touch
those components unless it is absolutely necessary. Put this
motherboard on the top of static-protection package with
component side facing up while installing.

Pre-Installation Inspection

1. Inspect this mainboard whether there are any damages to
components and connectors on the board.

2. If you suspect this mainboard has been damaged, do not
connect power to the system. Contact your motherboard
vendor about those damages.

iii

Motherboard User’s Guide

Notice:

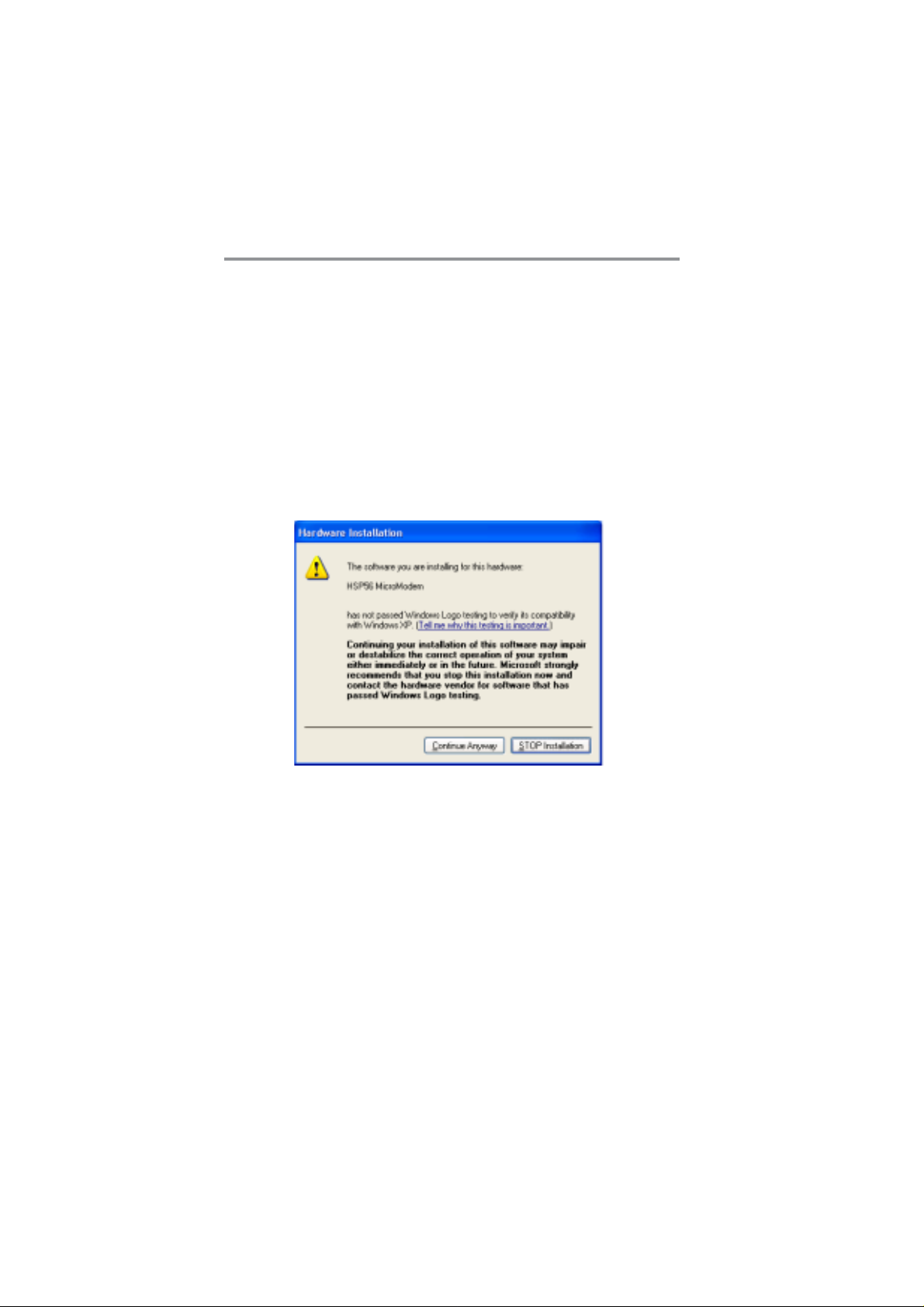

Owing to Microsoft’s certifying schedule is various to every
supplier, we might have some drivers not certified yet by
Microsoft. Therefore, it might happen under Windows XP that
a dialogue box (shown as below) pop out warning you this
software has not passed Windows Logo testing to verify its
compatibility with Windows XP. Please rest assured that our
RD department has already tested and verified these drivers.
Just click the “Continue Anyway” button and go ahead the
installation.

iv

Motherboard User’s Guide

Traduction des Caractéristiques & Liste de contrôle

Liste de contrôle

Le coffret de votre carte mère contient les éléments suivants:

• La carte mère

• Le Manuel utilisateur

• Un câble plat pour lecteur de disquette (optionnel)

• Une câble plat pour lecteur IDE

• CD de support de logiciels

Caractéristiques
Prise en charge du Processeur LGA Socket-775

• Supporte le Processeur Intel Pentium 4 series avec la Technologie Hyper

Threading

• Supporte un Bus Avant allant jusqu’à 800 MHz

La technologie “Hyper-Threading” permet au système d’exploitation de penser
qu’il est connecté à deux processeurs, permettant d’exécuter deux threads en
parallèle, à la fois sur des processeurs ‘logiques’ dans le même processeur
physique.

Chipset
Ce chipset comporte Intel 865PE Northbridge et Intel 82801EB I/O Controller

Hub (ICH5) conformément à une architecture novatrice et dimensionnable avec

une abilité et des performances prouvées.

• L’interface AGP supporte les transferts de données AGP 4X/8X et AGP Fast

Writes 4X/8X.

• Supporte 4 Go de mémoire système et a une bande passante maximum de

6.4 Go/s en utilisant la DDR400 en mode de canal double.

• Intègre un contrôleur Ultra ATA 100, deux contrôleurs d’hôte ATA Série, un

contrôleur d’hôte EHCI, et quatre contrôleurs d’hôte UHCI supportant huit
ports USB 2.0 externes.

• Interfact de Bus PCI supporte les Spécications PCI Révision 2.3

• Contrôleur LAN intégré: Conforme WfM 2.0 et IEEE802.3

• Contrôleur d’Hôte ATA Série intégré: Opération DMA indépendante et Vitesse

de Transfert allant jusqu’à 1.5 Gb/s (150 Mo/s).

Support de Mémoire

• Quatre logements DIMM 184 broches pour modules mémoire DDR SDRAM

• Supporte le bus mémoire DDR400

• La mémoire maximum installée est 4Go

Logements d’Extension

• Un logement CNR

• Un logement 8x/4xAGP

• Cinq logements PCI 32 bits pour interface de bus conforme PCI 2.3

Canaux IDE internes

• Deux Connecteurs IDE

• Prend en Charge les modes PIO (Entrée/Sortie Programmable) et DMA (Ac-

cès Direct à la Mémoire)

v

Motherboard User’s Guide

iii

Motherboard User’s Guide

• Supporte maîtrise de bus Ultra DMA IDE avec vitesse de transfert de 33/66/

100 Mo/sec

ATA Série

• Deux ATA Série connecteurs

• Vitesse de transfert supérieure au meilleur ATA (~150 Mo/s) avec extensibilité

aux vitesses supérieures

• Comptage de broche faible pour l’hôte et les périphériques

AC’97 Codec

• L’architecture matérielle 6-CH permet au southbridge multi-canal de lire l’audio

6CH

• Compatible Intel



AC’97 (REV. 2.3), conforme aux exigences de Microsoft

PC2001

• Tampon d’écouteur intégré et PLL interne, le dernier cristal supplémentaire

d’économie

• Lignes d’entrée/ sortie arrière partageant la même prise ; Centre/basse part-

ageant la prise MIC

• Support de SORTIE S/PDIF numérique



• CRL

3D: HRTF basé BS3D compatible moteur audio

Ports E/S Internes

La carte mère possède un jeu complet de ports d’E/S et de connecteurs:

• Deux ports PS/2 pour souris et clavier

• Un port série

• Un port parallèle

• Maximum huit ports USB 2.0 (quatre ports fond de panier, connecteurs USB

internes USB2/USB3 offrant quatre ports supplémentaires)

• Prises audio pour microphone, ligne d’entrée et ligne de sortie

LAN Ethernet intégré (optionnel)

• LAN Gigabit Interne:

− Emetteur-récepteur intégré 10/100/1000

− Auto Négotiation avec capacité de page Suivante

− Supporte le contrôle de ux en Full Duplex (IEEE 802.3x), et marquage

VLAN IEEE 802.1Q

− Entièrement conforme à IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

• Onboard 10/100Mbps Ethernet LAN:

Fonctionnement 10 Mb/s et 100 Mb/s

− Fast Ethernet MAC intégré, puce physique, et émetteur-récepteur sur
une seule puce

− Supporte l’auto-négociation N-way en 10Mb/s et 100Mb/s

− Supporte la gestion d’alimentation ACPI

− Contrôle de Flux en Full Duplex (IEEE 802.3x) et capacité Half/Full duplex

USB 2.0

• Conforme aux Spécications de Bus Série Universel Révision 2.0

• Conforme aux Spécications d’interface de Contrôleur d’Hôte Amélioré de
Intel Révision 1.0

vi

Motherboard User’s Guide

• Conforme aux Spécications d’Interface de Contrôleur d’Hôte Universel
Révision 1.1

• Le périphérique multifonction PCI consiste en deux noyaux de Contrôleur
d’Hôtes UHCI pour signalisation pleine/faible vitesse et un noyau de Con­trôleur d’Hôtes EHCI pour signalisation haute vitesse

• Le hub racine consiste en 4 ports de face en aval avec émetteurs-récepteurs
de couche physique intégrés partagés par le Contrôleur d’Hôte UHCI et EHCI

• Support des Spécications d’Interface de Gestion d’Alimentation de Bus PCI
version 1.1

• Support hérité pour tous les ports face à l’aval.

Remarque: Certaines spécications matérielles et éléments de
logiciels peuvent être modiés sans avertissement.

vii

Motherboard User’s Guide

Funktionen & Checkliste

Checkliste

Die Verpackung Ihres Motherboards enthält folgende Teile:

• Motherboard

• Handbuch

• Bandkabel für Floppylaufwerke (optional)

• Bandkabel für IDE-Laufwerke

• Software -CD

Ausstattung

Unterstütz LGA Socket-775-Prozessoren

• Unterstützung für Intel Pentium 4-Prozessor mit “Hyper-Threading”-Tech-

nologie

• Unterstützung von bis zu 800 MHz Front-Side Bus

“Hyper-Threading”-Technologie läßt das Betriebssystem glauben, es sei an zwei

Prozessoren angeschlossen, was zwei parallele Threads auf separaten ‘logischen’
Prozessoren im selben physischen Prozessor erlaubt.

Chipsatz
Dieser Chipsatz besteht aus einer Intel 865PE Northbridge und einer

Intel 82801EB I/O Controller Hub (ICH5). Die Chipsatzarchitektur ist in

einem innovativen und skalierbaren Design gehalten und verspricht sowohl
Zuverlässigkeit als auch Leistungsstärke.

• Die AGP-Schnittstelle unterstützt 4X/8X AGPDatenübertragungen and 4X/8X

AGP Schnellschreibungen.

• 4 GB Unterstützung des Systemspeichers und eine maximale Bandbreite von

6.4 GB/s bei Benutzung von DDR400 im Doppelt-Kanal-Modus.

• Ein Ultra ATA 100 Controller ist integriert, zwei Serien ATA Host Controller,

ein EHCI Host Controller, und vier UHCI Host Controller, welche acht externe
USB 2.0 Ports unterstützen.

• Die PCI Bus Schnittstelle unterstützt Spezikationen von PCI Revision 2.3

• Integrierter LAN Controller: gemäß WfM 2.0 und IEEE802.3

• Integrierter Serien ATA Host Controller: Unabhängige DMA Operation and

Datenübertragungsrate bis zu 1.5 Gb/s (150 MB/s)

Speicherunterstützung

• Vier 184-pin DIMM Steckplätze für DDR SDRAMSpeichermodule

• Unterstützung für DDR400 Speicherbus

• Maximal auf 4GB Speicher erweiterbar

Erweiterungssteckplätze

• Ein CNR-Steckplatz

• Ein 8x/4xAGP-Steckplatz

• Fünf 32-Bit PCI-Steckplätze für PCI 2.3-kompatibles Businterface

Onboard IDE-Kanäle

• Zwei IDE-Header

• Unterstützt die Modi PIO (Programmable Input/Output) und DMA (Direct

Memory Access)

viii

iii

Motherboard User’s Guide

• Unterstützung für IDE Ultra DMA-Busmastering mit Transferraten von 33/66/

Motherboard User’s Guide

100 MB/Sek

Serial ATA

• Zwei Serial ATA Headers

• Datentransferrate übertrifft beste ATA-Werte (~150 MB/Sek.); höhere Transfer-

raten möglich

• Low Pin Count (LPC) für Host und Geräte

AC’97 Codec

• 6-CH Hardware-Architektur erlaubt einen Multikanal south bridge für die 6CH

Tonwiedergabe

• Kompatibel mit Intel

• Eingebauter Kopfhörer-Puffer und interner PLL, letzterer spart das zusätzliche



AC’97 (REV. 2.3), gemäß Microsoft PC2001 Richtlinien

Kristall.

• Line-in/rear out (hinterer Ausgang) benutzen die gleiche Buchse; Zentrum/

Bass benutzen die gleiche MIC Buchse

• Digitale S/PDIF OUT Unterstützung



• CRL

3D: BS3D kompatibler Audio Motor, basierend auf HRTF

Onboard-I/O-Ports
Das Motherboard verfügt über einen kompletten Satz von I/O-Schnittstellen und
Anschlüssen:

• Zwei PS/2-Steckplätze für Maus und Tastatur

• Ein serieller Steckplatz

• Ein paralleler Steckplatz

• Maximal acht USB2.0-Ports (vier Ports auf der Rückseite; die Onboard-USB-

Header USB2/USB3 bieten vier zusätzliche USB-Ports).

• Audioanschlüsse für Mikrofon, line-in und line-out

IIntegriertes Ethernet LAN (optional)

• Onboard Gigabit LAN:

− Integrierter 10/100/1000 Transceiver

− Selbstverhandlung mit “Next page”- (nächste Seite) Kapazität

− Unterstützt eine Full Duplex Flußkontrolle (IEEE 802.3x), und IEEE

802.1Q

VLAN-Markierung

− In Übereinstimmung mit IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

• Onboard 10/100Mbps Ethernet LAN:

10 Mb/s und 100 Mb/s Betrieb

− Integrierter Fast Ethernet MAC, physikalischer Chip und Transceiver in
einem einzigen Chip

− Unterstützt 10Mb/s und 100Mb/s N-way Auto-Verhandlung

− Unterstüzt ACPI Versorgungs-Betriebssystem

− Fließende Full Duplex Kontrolle (IEEE 802.3x) und halbe/Full duplex

Kapazität

ix

Motherboard User’s Guide

USB2.0

• Entspricht Universal Serial Bus-Spezikation, Revision 2.0

• Entspricht Intels Enhanced Host Controller Interface-Spezikation, Revi­sion 0.95

• Entspricht Universal Host Controller Interface -Spezikation Revision 1.1

• PCI-Multifunktionsgerät besteht aus zwei UHCI Host
Controller-Kernen für Signalübertragung bei voller und niedriger Ge­schwindigkeit sowie einem EHCI Host Controller-Kern für Hochgeschwin­digkeits- Signalübertragung

• Root Hub besteht aus 4 Downstream-Ports mit integrierten Physical
Layer-Überträgern für gemeinsame Nutzung durch UHCI und EHCI Host
Controller

• Unterstützt PCI-Bus Power Management Interface , Spezikation Release

1.1

• Legacy-Unterstützung für alle Downstream-Ports

Hinweis:Bestimmte Hardwarespezikationen und Teile der
softwareausstattung können ohne weitere Ankündigung
abgeändert werden.

x

Motherboard User’s Guide

Traduzione Funzioni e Lista

Lista

L’imballo della scheda madre é composto da:

• La scheda madre

• Il manuale

• Una piattina per il collegamento dei drive (opzionale)

• Una piattina IDE

• Il CD con il Software di supporto

Caratteristiche

Dotata di LGA Socket 775 per Processori

• Supporta CPU Processori Intel Pentium serie 4 con tecnologia Hyper Thread-

ing

• Supporta no a 800 MHz Front Side Bus

La tecnologia Hyper-Threading permette al sistema operative di essere dotato di
due procressori. Permettendovi di effettuare due operazioni in parallelo, entrambe
su processori ‘logici’ separati all’interno dello stesso processore sico.

Chipset

In accordo ad una archittettura scabile e innovative sono presenti nel chipset il
Northbridge Intel 865PE e Intel 82801EB I/O Controller Hub (ICH5).

• L’interfaccia AGP supporta il bus dati AGP 4X/8X e AGP Fast Writes 4X/8X.

• Supporto massimo pari a 4 GB di memoria di sistema ed una velocità di

trasferimento dati massima pari a 6.4 GB/s utilizzando le DDR400 nella mo­dalità “dual-channel”.

• Nella scheda é integrato un controller Ultra ATA 100, due controller Host Serial

ATA, un controller host EHCI e quattro controller host UHCI per un supporto
massimo di otto USB 2.0.

• Interfaccia PCI integrata: supporto delle speciche PCI Rev. 2.3

• Interfaccia LAN integrata: supporto delle speciche WfM 2.0 e IEEE802.3

• Controller Host Serial ATA intergrata: Operazioni DMA indipendente e trasferi-

mento dati Massimo no a 1.5 Gb/s (150 MB/s)

Memoria Supporta

• Quattro slot DIMM a 184 pin per moduli di memoria DDR SDRAM

• Supporta bus di memoria DDR400 MHz

• Quantità massima di memoria installabile, 4GB

Slot di espansione

• Una slot CNR

• Una slot AGP 8x4x

• Cinque slot PCI a 32 bit per interfaccia bus PCI 2.3

Canali IDE Integrati

• Due connettori IDE

• Supporto della modalità PIO (Programmable Input/Output) e DMA (Direct

Memory Access)

• Supporto per le modalità Bus Mastering e Ultra DMA ATA 33/66100 MB/sec

xi

Motherboard User’s Guide

iii

Motherboard User’s Guide

ATA Seriale

• Due connettori Serial ATA

• Altissima velocità di trasferimento dati ATA (~150 MB/s) con la possibilità di

scalabilità della velocità stessa verso valori piú alti

• Pin Count ridotto sia per l’host sia per le periferich

AC’97 Codec

• Architettura hardware 6-CH che permette l’utilizzo del “multi-channel south

bridge” per la riproduzione 6CH

• Compatibilità con lo standard Intel



AC’97 (REV. 2.3) secondo i requisiti Mi-

crosoft PC2001

• Buffer cufe integrato e PLL interno, l’ultimo eliminando la necessità di cristalli

ulteriore

• MIC e Center/bass condividono lo stesso jack

• Supporto S/PDIF OUT Digitale



• CRL

3D: HRTF basata su un motore audio compatibile con lo standard BS3D

Onboard I/O Porte

La scheda madre è dotata da una serie completa di porte e connettori I/O:

• Due porte PS/2 per tastiera e mouse

• Una porta seriale

• Una porta parallela

• Quantità massima otto porte USB2.0 (Quattro presenti nella parte posteriore,

connettori USB integrati nella scheda madre per l’aggiunta di altre 4 porte
USB2/USB3)

• Jack audio per microfono, ingresso linea e uscita linea

Built-In Ethernet LAN (opzionale)

• LAN Gigabit integrata:

− Transceiver 10/100/1000 Integrato

− Negoziazione automatica con capacità Next page

− Controllo usso dati Full Duplex (IEEE 802.3x) e tagging VLAN IEEE

802.1Q

− Supporto degli standard IEEE 802.3, IEEE 802.3u e IEEE 802.3ab

• Onboard 10/100Mbps Ethernet LAN:
Operazioni 10 Mb/s a 100 Mb/s

− Fast Ethernet MAC integrata, chip sico e transceiver nello stesso chip

− Supporto della negoziazione automatica N-way a 10Mb/s e 100Mb/s

− Supporto di gestione del consumo energetico ACPI

− Controllo di usso Full Duplex (IEEE 802.3x) e Half/Full

USB 2.0

• Conforme alle speciche Universal Serial Bus 2.0

• Conforme alle speciche Intel Enhanced Host Controller revisione 1.0

• Conforme alle speciche Universal Host Controller Interface revisione 1.1

• Il dispositivo PCI multifunzione consiste di due schede di controllo UHCI per
lat rasmissione segnali pieno/basso e una scheda di controllo EHCI per la
trasmissione segnali ad alta velocità.

xii

Motherboard User’s Guide

• Il porto hub di base consiste di 4 porte downstream con ricetrasmittenti inte­grati nel layer sico condivisi dalla scheda di controllo interfaccia UHCI e EHCI

• Supporto per interfaccia risparmio energia bus PCI speciche release 1.1

• Supporto per tutte le porte downstream precedenti

Nota: Alcune speciche hardware ed elementi software sono soggetti
a variazioni senza preavviso.

xiii

Motherboard User’s Guide

Traducción de Características & Lista

LISTA DE VERIFICACIÓN

El paquete de su placa principal contiene los sigtes. ítems:

• La placa principal

• El Manual del Usuario

• Un cable cinta para el lector de disquete (optativo)

• Un cable cinta para el lector IDE

• CD de Software de soporte

Características
Soporte de Procesador LGA Socket-478

• Soporta Procesador de Intel Pentium 4 con la Tecnología Hyper Threading

• Soporta hasta Bus de Lado Frontal de 800 MHz

La tecnología “Hyper-Threading” habilita el sistema operativo en pensar que está
conectado a dos procesadores, que permite dos hilos a correr en paralelo, ambos
en procesadores ‘lógicos’ dentro del mismo procesador físico.

Chipset

Hay Intel 865PE Northbridge y Intel 82801EB I/O Controller Hub (ICH5) en
este chipset en confomidad con una arquitectura innovadora y escalable con
abilidad y rendimiento comprobados.

• La interfaz AGP soporta la transferencia de datos de AGP 4X/8X y 4X/8X AGP

Fast Writes.

• Soporta 4 GB de memoria de sistema y tiene una ancha de banda máxima de

6.4 GB/s con DDR400 en el modo de canal dual.

• Integra un controlador Ultra ATA 100, dos controladores antriones Serial ATA,

un controlador antrión EHCI, y cuatro controladores antriones UHCI que
soportan ocho puertos USB 2.0 externos.

• Interfaz de Bus PCI: soporta la especicación PCI Revisión 2.3

• Controlador LAN Integrado: Conformidad de WfM 2.0 y IEEE802.3

• Controlador Antrión Serial Integrado: Operación DMA independiente e Índice

de Transferencia de Datos hasta 1.5 Gb/s (150 MB/s)

Soporte de Memoria

• Cuatro ranuras 184-pin DIMM para módulos de memoria DDR SDRAM

• Soporta DDR400 MHz

• Memoria máxima instalada es 4GB

Ranuras de Expansión

• Una ranura CNR

• Una ranura 8x/4xAGP

• Cinco ranuras 32-bit PCI para la interfaz de bus conforme con PCI 2.3

Canales IDE abordo

• Dos conectores IDE

• Soporta modos PIO (Entrada/Salida Programable/Programmable Input/

Output) y modos DMA (Acceso de Memoria Directo/Direct Memory Access).

• Soporta mastering de bus IDE Ultra DMA con índices de transferencia de

33/66/100 MB/seg

xiv

iii

Motherboard User’s Guide

Motherboard User’s Guide

ATA Serial

• Dos conectores Serial ATA

• Índice de transferencia que excede el mejor ATA (~150 MB/s) con escalabili-

dad a índices superiores

• Cuenta de pin baja para ambos antrión y dispositivos

AC’97 Codec

• Arquitectura de hardware 6-CH permite south bridge de multicanal para repro-

ducir sonido 6CH

• Compatible con Intel



AC’97 (REV. 2.3), satisface los requisitos de Microsoft

PC2001

• Buffer de audífono incorporado y PLL interno, éste último ahorra el cristal

adicional

• Line-in/salida trasera comparten la misma clavija; Centro/bajo comparten la

clavija MIC

• Soporte S/PDIF OUT digital



• CRL

3D: HRTF basado del motor de sonido compatible con BS3D

Puertos I/O Abordos

La placa principal tiene un juego completo de puertos I/O y conectores:

• Dos puertos PS/2 para ratón y teclado

• Un puerto serial

• Un puerto paralelo

• Máxima ocho puertos USB2.0 (cuatro puertos de panel trasero, conectores

USB abordo USB2/USB3 que provee cuatro puertos extras

• Clavijas de sonido para micrófono, entrada y salida de línea

Ethernet LAN Incorporado (optativo)

• Gigabit LAN Abordo:

− Transreceptor 10/100/1000 integrado

− Auto-Negociación con capacidad Next page(Próxima página)

− Soporta control de ujo Full Duplex (IEEE 802.3x), y marcación IEEE

802.1Q VLAN

− Conformidad total con IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

• Onboard 10/100Mbps Ethernet LAN:

Operación 10 Mb/s y 100 Mb/s

− Fast Ethernet MAC integrado, chip fìsico, y transceptor en un solo
chip

− Soporta N-way auto-negociación 10Mb/s y 100Mb/s

− Soporta administración de suministro ACPI

− Control de Flujo Full Duplex (IEEE 802.3x) y capacidad Medio/Full

duplex

USB2.0

• Conforme con la Especicación de Bus Serial Universal Revisión 2.0

• Conforme con Controlador Antrión Reforzado de Intel
Interface Specication Revision 0.95

• Conforme con la Especicación de Interfaz de Controlador Antrión Universal
Revisión 1.1

xv

Motherboard User’s Guide

• Dispositivo PCI multi-función se consiste de dos centros de Controlador
Antrión UHCI para señalización de velocidad completa/baja y un centro
de Controlador Antrión EHCI para señalización de alta velocidaa

• Root hub consiste de 4 puertos que miran hacia abajo con transceptores
de capa física integrado compartido por Controlador Antrión UHCI y EHCI

• Soporta Especicación de Interfaz de Administración de Energía de BUS
PCI versión 1.1

• Soporte de legado para todos los puetos que miran hacia abajo

Nota: Algunas especicaciones de hardware e ítems de software
son sujetos a cambio sin aviso previo .

xvi

Motherboard User’s Guide

Tradução da Lista & Características

Lista de vericação

A embalagem da sua placa principal contém os seguintes itens:

• A placa principal

• O Manual do Utilizador

• Um cabo para a unidade de disquetes (opcional)

• Um cabo para a unidade IDE

• CD de suporte para o software

Características
Suporte do Processador LGA Socket-775

• Suporta Processador série Intel Pentium 4 com Tecnologia Hyper Threading

• Suporta até 800 MHz Front-Side Bus

Tecnologia Hyper-Threading que permite o sistema operador a pensar que ele
está conectado em dois processadores, fazendo com que duas tranças operem
em paralelo, ambas em dois processadores “lógicos”separdos dentro do mesmo
processador físico.

Chipset

Conta com Intel865PE Northbridge e Intel 82801EB I/O Controller Hub (ICH5)
neste chipset, de acordo com uma arquitectura inovadora e escalável com um
nível de conança e desempenho comprovado.

• O AGP interface suporta transferência de dados 4X/8X AGP e 4X/8X AGP

Fast Writes

• Suporta 4 GB de sistema de memória e possui um máximo de banda larga de

6.4 GB/s usando DDR400 no modo dual-channel.

• Integra um controlador Ultra ATA 100, dois controladores seriais host Serial

ATA, um controlador host EHCI, e quatro controladores host UHCI suportando
oito portes USB 2.0 externos.

• PCI Bus Interface: suporta Especicação PCI Revisão 2.3

• Controlador de LAN Intergrado: WfM 2.0 e IEEE802.3 Complacente

• Controlador de Host Serial ATA: Operação Independente DMA e Taxa de

Transferência de Dados até 1.5 Gb/s (150 MB/s)

Suporte de memória

• Quatro sockets DIMM com 184 pinos para módulos de memória DDR SDRAM

• Suporta bus de memória DDR400 MHz

• A memória máxima instalada é de 4GB

Slots de expansão

• Um slot CNR

• Um slot AGP 8x /4x

• Cinco slots PCI de 32 bit para interface bus compatível com PCI 2.3

Canais IDE na placa

• Dois conectores IDE

• Suporta modos PIO (Input/Output Programável) e DMA (Direct Memory Ac-

cess)

xvii

Motherboard User’s Guide

iii

Motherboard User’s Guide

• Suporta IDE Ultra DMA bus mastering com razão de transferência de 33/66/

100 MB/seg

Série ATA

• Dois conectores Série ATA

• Razão de transferência excedendo o melhor ATA (~150 MB/s) com escalabili-

dade para razões mais altas

• Contagem baixa de pin para ambos os dispositivos e host

AC’97 Codec

• Arquitetura 6-CH hardware permite que a ponte sul de canais múltiplos rea-

presente o áudio 6CH

®

• Intel

AC’97 (REV. 2.3) compatível, de acordo com os requerimentos do

Microsoft® PC2001

• Buffer de fone de ouvido embutido e PLL interno, o último podendo salvar

cristais adicionais

• Line-in/rear out usam a mesma tomada, Center/bass usam a mesma tomada

de MIC

• Suporte Digital S/PDIF OUT

®

• CRL

3D: HRTF baseado em engenho BS3D áudio compatível

Portas I/O na placa

A placa principal possui um conjunto completo de portas e conectores I/O:

• Duas portas PS/2 para o rato e teclado

• Uma porta série

• Uma porta paralela

• Máxima oito portes USB2.0 (quatro portes traseiros, conectores USB embuti-

dos USB2/USB3 fornecendo quatro portes extras

• Jacks audio para microfone, line-in e line-out

Ethernet LAN Integrada (opcional)

• LAN Onboard Gigabit:

− Transreceptor integrado 10/100/1000

− Auto-Negociação com capacidade Next page (Próxima página)

− Suporta controle de uxo Full Duplex (IEEE 802.3x), e alongamento IEEE

802.1Q VLAN

− Totalmente complacente com IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

• Onboard 10/100Mbps Ethernet LAN:

Operação 10 Mb/s e 100 Mb/s

− Fast Ethernet MAC integrado, chipe físico e transreceptor em um único
chipe

− Suporta auto-negociação N-way de 10Mb/s e 100Mb/s

− Suporta gerenciamento de força ACPI

− Controle de Fluxo Duplex Completo (IEEE 802.3x) e capacidade duplex

Half/Full (Parcial/Total)

xviii

Motherboard User’s Guide

USB 2.0

• Compatível com Universal Serial Bus Revisão 2.0 da especicação

• Compatível com controlador Enhanced Host da Intel Revisão 0.95 da
especicação da interface

• Compatível com controlador Universal Host Revisão 1.1 da especicação
da Interface

• O dispositivo PCI muli-funções consiste em dois núcleos de Controlador
UHCI Host Controller para sinalização de velocidade total/baixa em um
núcleo de Controlador EHCI Host para sinalização de alta velocidade

• O núcleo de raiz consiste em 4 portas de protecção a jusante com trans­receptores de camadas físicas integrados partilhados pelos controladores
Host UHCI e EHCI

• Suporte de gestão de energia PCI-Bus Revisão 1.1 da especicação da
interface

• Suporte para todas as portas de protecção a jusante

Nota: As especicações de alguns artigos de hardware e
software encontram-se sujeitos a alterações sem aviso
prévio.

xix

Motherboard User’s Guide

功能和检查单翻译

检查单

您的主板包装含有以下项目：

· 主板

· 用户手册

· 一根磁盘驱动器扁平电缆（可选）

· 一根 IDE 驱动器扁平电缆

· 软件支持 CD

功能

支持 LGA Socket-775 处理器

· 支持带有/多线程技术的 Intel Prescott/Pentium 4 系列处理器

· 支持 800 MHz前端总线

“多线程”技术可以让操作系统认为自己连接了两个处理器，允许两个线程并行运
行，每个线程位于同一处理器中的单独“逻辑”处理器中。

芯片组

芯片组包含Intel 865PE 北桥 和Intel 82801EB I/O Controller Hub (ICH5), 它基于

一种新型的、可扩展的架构，能提供已经证明的可靠性和高性能。

· AGP 接口支持 4X/8X AGP 数据传输和 4X/8X AGP 快写功能。

· 支持 4 GB 系统内存，使用双模式下的 DDR400 内存最大带宽可达 6.4 GB/s。

· 集成 Ultra ATA 100 控制器、2 个串行 ATA 主控器、1 个 EHCI 主控器和4

个支持 8 个外接 USB 2.0 端口的 UHCI 主控器。

· PCI 总线接口：支持 PCI Revision 2.3 规格。

· 集成 LAN 控制器：符合 WfM 2.0 和 IEEE802.3 标准。

· 集成 Serial ATA 主控器：独立 DMA 操作，数据传输速率可达 1.5 Gb/s (150

MB/s)。

内存支持

· 4个用于 DDR SDRAM 内存条的 184-pin DIMM 插槽

· 支持 DDR400 存储总线

· 内存最多可达 4GB

扩展槽

· 1 个 CNR 插槽

· 1 个 8x/4x AGP 插槽

· 5 个 32 位 PCI 插槽，用于 PCI 2.3 兼容总线接口

Onboard IDE 通道

· 2 个 IDE 接口

· 支持 PIO (程控输入/输出) 和 DMA (直接存储器存取) 模式

· 支持 IDE Ultra DMA 总线控制，传输速率可达 33/66/100 MB/sec

xx

i

Motherboard User’s Guide

Serial ATA

· 2 个Serial ATA 接口

· 传输速率超过 ATA (~150 MB/s)，可扩展到更高速率

· 主机和设备管脚数量少

AC’97 Codec

· 6-CH 硬件结构，允许多声道南桥播放 6CH 音频

· 符合 Intel AC’97 (REV. 2.3) 规格，满足 Microsoft PC2001 要求

· 内建耳机缓存和内部 PLL，后者可节省额外的晶体

· 线入/后部输出共享同一插孔，中置/低音共享 MIC 插孔

· 支持数字 S/PDIF OUT

· CRL 3D：与基于 HRTF 的 BS3D 兼容的音频引擎

集成 I/O 端口

此主板具有完整的 I/O 端口和插孔：

·2 个用于连接鼠标和键盘的 PS/2 端口

·1 个串口

·1 个并口

·最多8 个 USB2.0 端口（主板后面板带 4 个接口，板上 USB 接口 USB2/USB
3 提供其它 4 个端口）

·麦克风、线入和线出声音插孔

快速以太网 LAN (可选)

·板上集成千兆 LAN：

-集成 10/100/1000 收发器

-带续页能力的自协商

-支持全双工数据流控制 (IEEE 802.3x) 和 IEEE 802.1Q VLAN 标记

-完全符合 IEEE 802.3、IEEE 802.3u、IEEE 802.3ab

·板上集成10/100Mbps Ethernet LAN:

·10 Mb/s 和 100 Mb/s 工作

-单芯片集成了快速乙太网 MAC、物理芯片和收发器

-支持 10Mb/s 和 100Mb/s N 路自协商

-支持 ACPI 电源管理

-全双工数据流控制 (IEEE 802.3x) 和半双工/全双工功能

Motherboard User’s Guide

USB 2.0

·符合通用串行总线规格 2.0 版本

·符合 Intel 1.0 版本的增强主控器接口规格

·符合 1.1 版本的通用主控器接口规格

·PCI 多功能设备由 2 个用于全速/低速传输数据的 UHCI 主控器和 1 个用于高
速传输数据的 EHCI 主控器组成

xxi

Motherboard User’s Guide

· Root 集线器包括 4 个下行端口，带有与 UHCI 和 EHCI 主控制器共用的

集成物理层收发器。

· 支持 1.1 版本的 PCI 总线电源管理接口规格

· 支持所有传统下行端口

说明：某些硬件规格和软件项目若有更改恕不另行通知。

xxii

Chapter 1: Introduction

Chapter 1 Introduction

This motherboard has a LGA 775 Socket supporting Intel
Prescott/Pentium 4 with Hyper-Threading Technology

processors with Front-Side Bus (FSB) speeds up to 800 MHz.
Hyper-Threading Technology, designed to take advantage of the
multitasking features in Windows XP, gives you the power to do
more things at once.

This motherboard integrates the Intel 865PE Northbridge along
with Intel 82801EB I/O Controller Hub (ICH5) that support
the Serial ATA interface for high-performance and mainstream
desktop PCs; the built-in USB 2.0 providing higher bandwidth,
implementing Universal Serial Bus Specification Revision 2.0
and is compliant with UHCI 1.1 and EHCI 1.0.

It supports AC’97 Audio Codec and provides Ultra DMA 33/
66/100 function. It has one 8x/4x AGP and five 32-bit PCI slots.
There is a full set of I/O ports including two PS/2 ports for mouse
and keyboard, one serial port, one parallel port, one LAN port
(optional), three audio jacks for micropone, line-in and line-out,
four back-panel USB 2.0 ports and onboard USB headers USB2/
USB3 providing four extra ports by connecting the extended USB
module to the motherboard.

It features the Gigabit Ethernet interface that provides up to ten
times the throughput (10/100/1000 Mb/s operation) and faster
transfer rate (1 Gigabit/s) than conventional Ethernet connection.
It improves system availability, data security, user bandwidth and
network manageability.

It is an ATX motherboard and has power connectors for an ATX
power supply . It is also certified by WHQL (Windows Hardware
Quality Labs) that ensures you the hardware and drivers compat­ibility with Windows operating systems.

1

Motherboard User’s Guide

Note: You must initiate the HT CPU function through BIOS setup. It is
strongly recommended you refer to Page 40 for relative details.

Key Features

The key features of this motherboard include:

LGA 775 Socket Processor Support

• Supports Intel Prescott/Pentium 4 Series processors
with Hyper-Threading Technology

• Supports up to 800 MHz Front-Side Bus

Hyper-Threading technology enables the operating system
into thinking it’s hooked up to two processors, allowing two
threads to be run in parallel, both on separate ‘logical’
processors within the same physical processor.

Chipset

There are Intel 865PE Northbridge and Intel 82801EB I/O
Controller Hub (ICH5) in the chipsets in accordance with an

innovative and scalable architecture with proven reliability and
performance.

• The AGP interface supports 4X/8X AGP data transfers and

4X/8X AGP Fast Writes.

• Supports 4 GB of system memory and has a maximum

bandwidth of 6.4 GB/s using DDR400 in dual-channel
mode.

• Integrates an Ultra AT A 100 controller, two Serial ATA host

controllers, one EHCI host controller, and four UHCI host
controllers supporting eight external USB 2.0 ports.

• PCI Bus Interface: supports PCI Revision 2.3 Specification

• Integrated LAN Controller: WfM 2.0 and IEEE802.3

Compliant

• Integrated Serial AT A Host Controller: Independent DMA

operation and Data Transfer Rate up to 1.5Gb/s(150MB/s)

2

Chapter 1: Introduction

Memory Support

• Four 184-pin DIMM sockets for DDR SDRAM memory

modules

• Supports DDR400 memory bus

• Maximum installed memory is 4GB

Expansion Slots

• One CNR slot

• One 8x/4x AGP slot

• Five 32-bit PCI slots for PCI 2.3-compliant bus interface

Onboard IDE channels

• Two IDE Connectors

• Supports PIO (Programmable Input/Output) and DMA

(Direct Memory Access) modes

• Supports IDE Ultra DMA bus mastering with transfer rates

of 33/66/100 MB/sec

Serial A TA

• Two Serial ATA Connectors

• Transfer rate exceeding best ATA (~150 MB/s) with

scalability to higher rates

• Low pin count for both host and devices

AC’97 Codec

• 6-CH hardware architecture allows multi-channel south

bridge to playback 6CH audio

• Intel

®

AC’97 (REV. 2.3) compatible, meeting Microsoft

PC2001 requirements

• Built-in earphone buffer and internal PLL, the latter saving

additional crystal

• Line-in/rear out share the same jack; Center/bass share the

MIC jack

• Digital S/PDIF OUT Support

• CRL

®

3D: HR TF based BS3D compatible audio engine

3

®

Motherboard User’s Guide

Onboard I/O Ports

The motherboard has a full set of I/O ports and connectors:

• Two PS/2 ports for mouse and keyboard

• One serial port

• One parallel port

• One LAN port (optional)

• Four back-panel USB2.0 ports

• Audio jacks for microphone, line-in and line-out

Fast Ethernet LAN (optional)

• Onboard Gigabit LAN:

--Integrated 10/100/1000 transceiver

--Auto-Negotiation with Next page capability

--Supports Full Duplex flow control (IEEE 802.3x), and

IEEE 802.1Q VLAN tagging

--Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE

802.3ab

• Onboard 10/100Mbps Ethernet LAN:

--10 Mb/s and 100 Mb/s operation

--Integrated Fast Ethernet MAC, physical chip, and

transceiver onto a single chip

--Supports 10Mb/s and 100Mb/s N-way auto-negotiation

--Support ACPI power management

-- Full Duplex Flow Control (IEEE 802.3x) and Half/Full

duplex capability

USB 2.0

• Compliant with Universal Serial Bus Specification Revision

2.0

• Compliant with Intel’s Enhanced Host Controller Interface
Specification Revision 1.0

• Compliant with Universal Host Controller Interface Specifi­cation Revision 1.1

4

Chapter 1: Introduction

• PCI multi-function device consists of two UHCI Host

Controller cores for full-/low-speed signaling and one
EHCI Host Controller core for high-speed signaling

• Root hub consists 4 downstream facing ports with inte-

grated physical layer transceivers shared by UHCI and
EHCI Host Controller, up to eight functional ports

• Support PCI-Bus Power Management Interface Specifica-

tion release 1.1

• Legacy support for all downstream facing ports

BIOS Firmware

This motherboard uses AMI BIOS that enables users to configure
many system features including the following:

•

Power management

• Wake-up alarms

• CPU parameters and memory timing

• CPU and memory timing

The firmware can also be used to set parameters for different
processor clock speeds.

Bundled Software

• Adobe Acrobat Reader is the software to help users read

PDF files.

• ShowShifter provides you with various options to create an

ultimate home media center for your PC that you can use it
to record and playback TV, enjoy your entertainment over a
network, look at digital photos as a slide show on your TV
or PC monitor, and so on

• WinDVD creator Plus is a storyboard interface making

the entire DVD-making process as easy as moving pictures
around on your screen.

• WinDVD provides the automatic WinDVD software

installation.

5

Motherboard User’s Guide

Dimensions

• ATX form factor of 305 x 244 mm

Note: Hardware specifications and software items are
subject to change without notification.

Package Contents

Y our motherboard package ships with the following items:

• The motherboard

• The User ’s Guide

• One diskette drive ribbon cable (optional)

• One IDE drive ribbon cable

• The Software support CD

Optional Accessories

You can purchase the following optional accessories for this
motherboard.

• The Extended USB module

• The CNR v.90 56K Fax/Modem card

• The Serial ATA cable

Note: You can purchase your own optional accessories from the
third party, but please contact your local vendor on any issues
of the specification and compatibility.

6

Chapter 2: Motherboard Installation

Chapter 2 Motherboard Installation

T o install this motherboard in a system, please follow these
instructions in this chapter:

• Identify the motherboard components

• Install a CPU

• Install one or more system memory modules

• Make sure all jumpers and switches are set correctly

• Install this motherboard in a system chassis (case)

• Connect any extension brackets or cables to headers/

connectors on the motherboard

• Install peripheral devices and make the appropriate connec-

tions to headers/connectors on the motherboard

Note:

1. Before installing this motherboard, make sure jumper JP1

is under Normal setting. See this chapter for information
about locating JP1 and the setting options.

2. Never connect power to the system during installation;

otherwise, it may damage the motherboard.

7

Motherboard User’s Guide

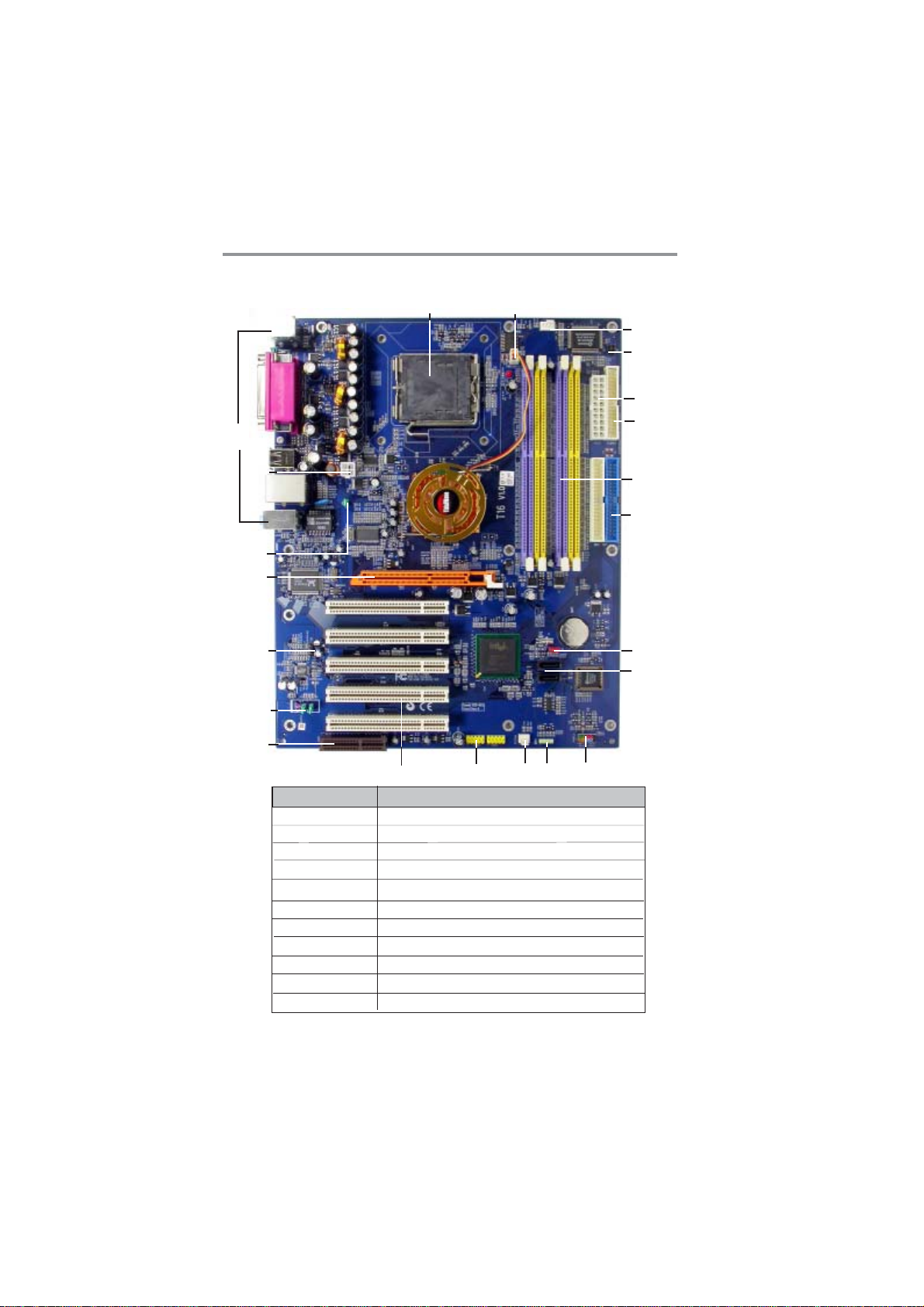

Motherboard Components

LGA 775 Socket

IO

PORTS

PWRFAN

CPU
FAN

IR1

ATX2

FLOPPY

ATX3

JPX

AGP1

CD1

AUDIO2

CNR1

USB2/3PCI PANEL1SPK1

SYSFAN

LABEL COMPONENTS

DIMM1--4 Four 184-pin DDR SDRAM sockets
IDE1/2 Primary/Secondary IDE connectors
ATX3 Standard 4-Pin ATX Power connector
ATX2 Standard 20-Pin ATX Power connector
USB2/3 Front Panel USB headers
FLOPPY Floppy Disk Drive connector
PANEL1 Front Panel Switch/LED header
SYSFAN System Fan connector
JP1 Clear CMOS jumper
JPX Performance Mode jumper
SPK1 Speaker header

DDR

IDE

JP1

SATA

8

Chapter 2: Motherboard Installation

LABEL COMPONENTS

IR 1 Infrared header
SATA1/2 Serial ATA connectors
PCI 1-5 32-bit PCI slots
CD 1 Analog Audio Input header
AUDIO2 Front Panel Audio header
CPUFAN CPU Fan connector
PWRFAN Power Fan connector
CNR1 Communications Networking Riser slot
AGP1 Accelerated Graphics Port slot

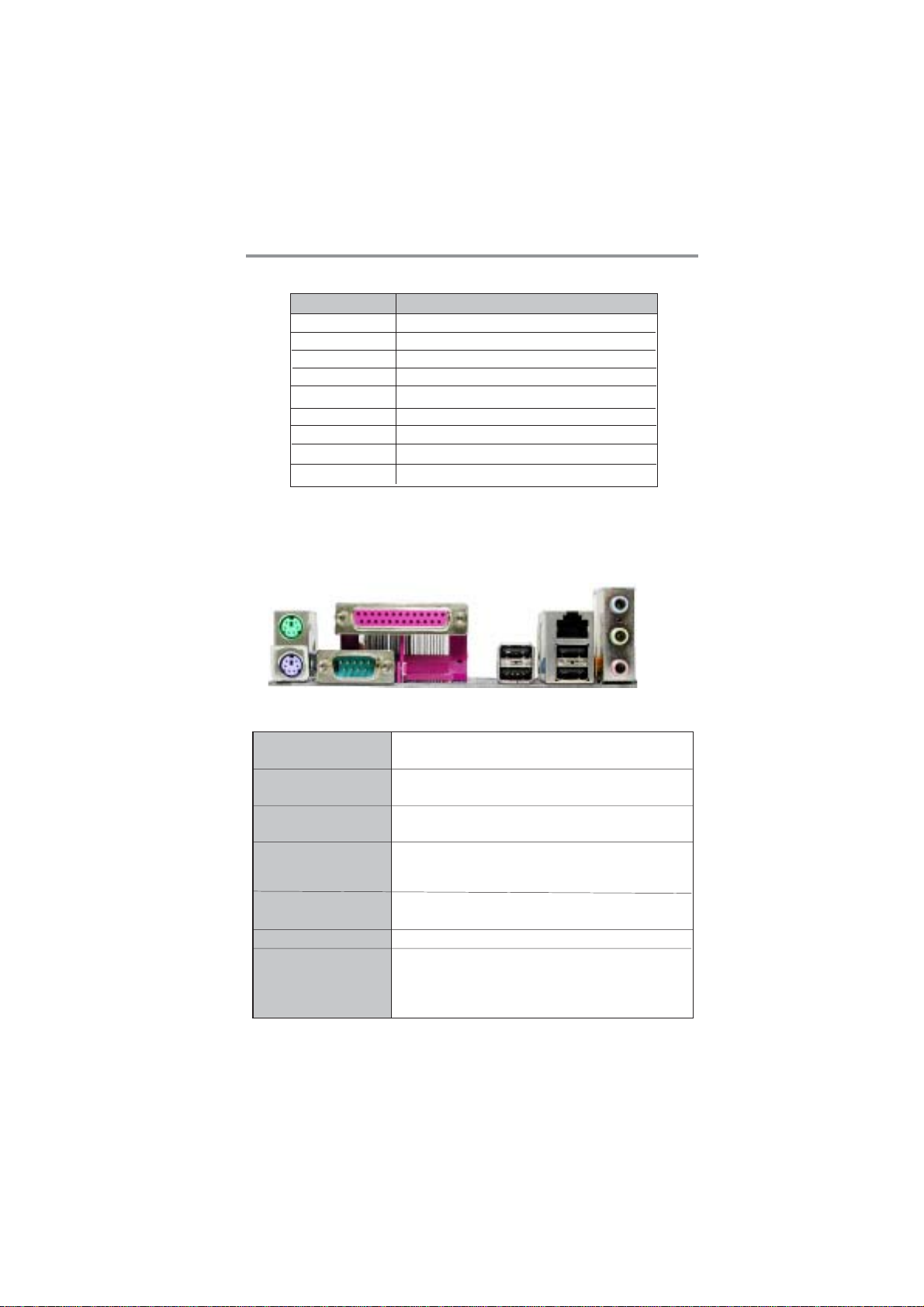

I/O Ports

The illustration below shows a side view of the built-in I/O ports
on the motherboard.

PS2 Mouse

PS2
Keyboard

Parallel Port (LPT1)

Serial Port
COM1

USB
ports

(Optional)
LAN port

USB
ports

Line-In

Line-Out

Microphone

PS/2 Mouse

PS/2 Keyboard

Parallel Port (LPT1)

Serial Port COM1

LAN Port (optional)

USB Ports
Audio Ports

Use the upper PS/2 port to connect a PS/2
pointing device.

Use the lower PS/2 port to connect a PS/2
keyboard.
Use the Parallel port to connect printers or

other parallel communications devices.
Use the COM port to connect serial devices

such as mice or fax/modems. COM1 is
identified by the system as COM1.

Connect an RJ-45 jack to the LAN port to
connect your computer to the Network.

Use the USB ports to connect USB devices.
Use the three audio ports to connect audio

devices. The first jack is for stereo Line-In
signal. The second jack is for stereo Line-Out
signal. The third jack is for Microphone.

9

Motherboard User’s Guide

Installing the Processor

This motherboard has a LGA 775 processor socket. When
choosing a processor, consider the performance requirements of
the system. Performance is based on the processor design, the
clock speed and system bus frequency of the processor, and the
quantity of internal cache memory and external cache memory.

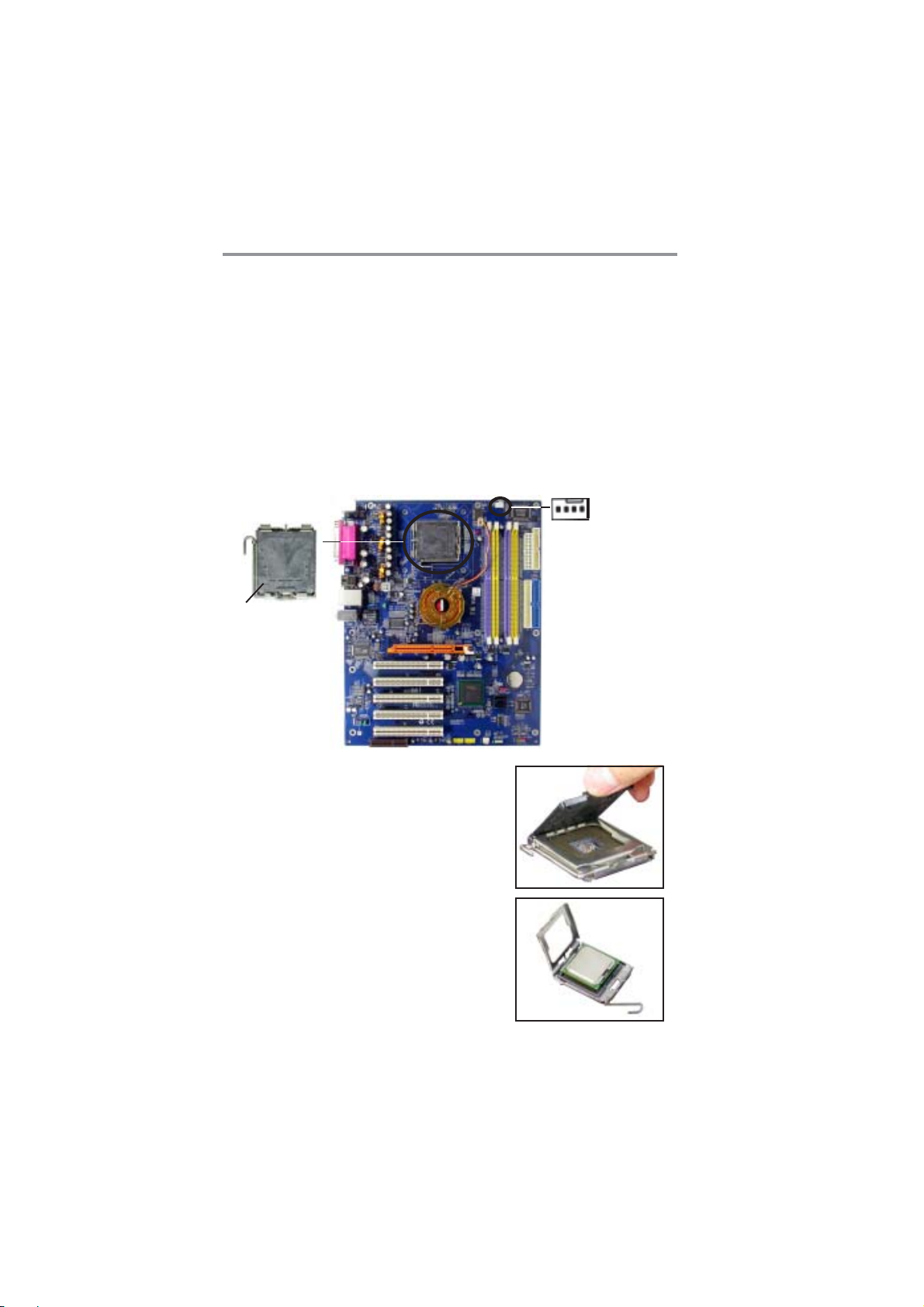

CPU Installation Procedure

Follow these instructions to install the CPU:

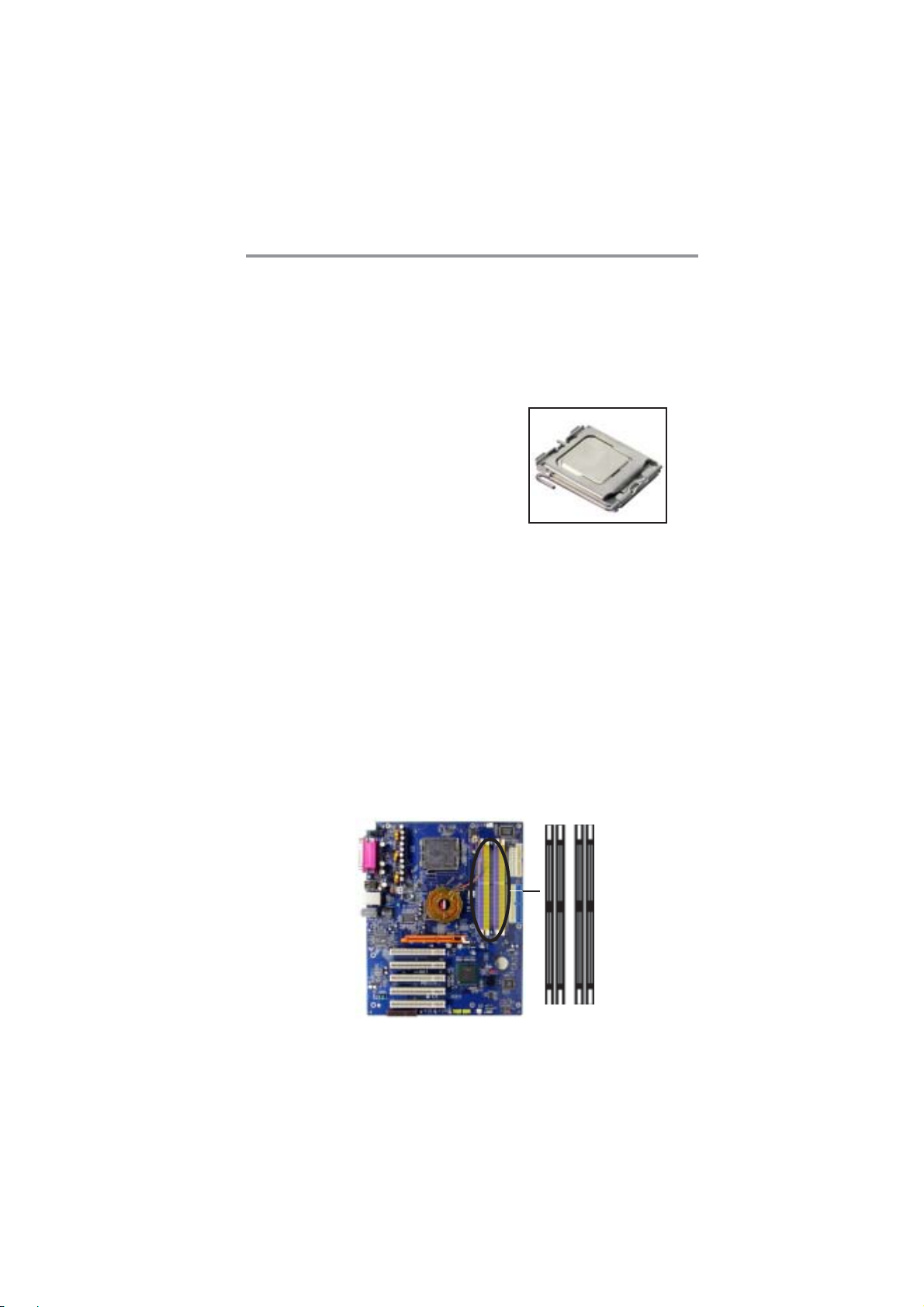

LGA 775 Socket

pin1

1

CPUFAN

A. Unload the cap

• Use thumb & forefinger to hold

the lifted tab of the cap.

• Lift the cap up and pick the cap

completely from the socket.

B. Open the load plate

• Use thumb & forefinger to hold

the hook of the lever and side
pull the lever to unlock it.

• Lift up the level.

10

Chapter 2: Motherboard Installation

• Use thumb to open the load plate. Be careful not to touch

the contacts.

C. Install the CPU on the socket

• Orientate CPU package to the socket. Make sure you

match triangle marker to pin 1 location.

D. Close the load plate

• Close the load plate, and slight

push down of the load plate on
the tongue side.

• CPU is locked completely .

Installing Memor y Modules

This motherboard accommodates four 184-pin 2.5V DIMM
sockets (Dual Inline Memory Module) for unbuffered DDR400
memory modules (Double Data Rate SDRAM), and maximum

4.0 GB installed memory. DDR SDRAM is a type of SDRAM

that supports data transfers on both edges of each clock cycle
(the rising and falling edges), effectively doubling the memory
chip’s data throughput. DDR DIMMs can synchronously work
with 266/333/400 MHz memory bus. DDR SDRAM provides 2.1
GB/s, 2.7 GB/s or 3.2 GB/s data transfer rate when the bus is 133
MHz, 166 MHz or 200 MHz, respectively . It supports Dual
Channel T echnology; when activating it, the bandwidth of memory
bus will be doubled to 6.4 GB/s and frequency 200 MHz.

11

DIMM1--4

Motherboard User’s Guide

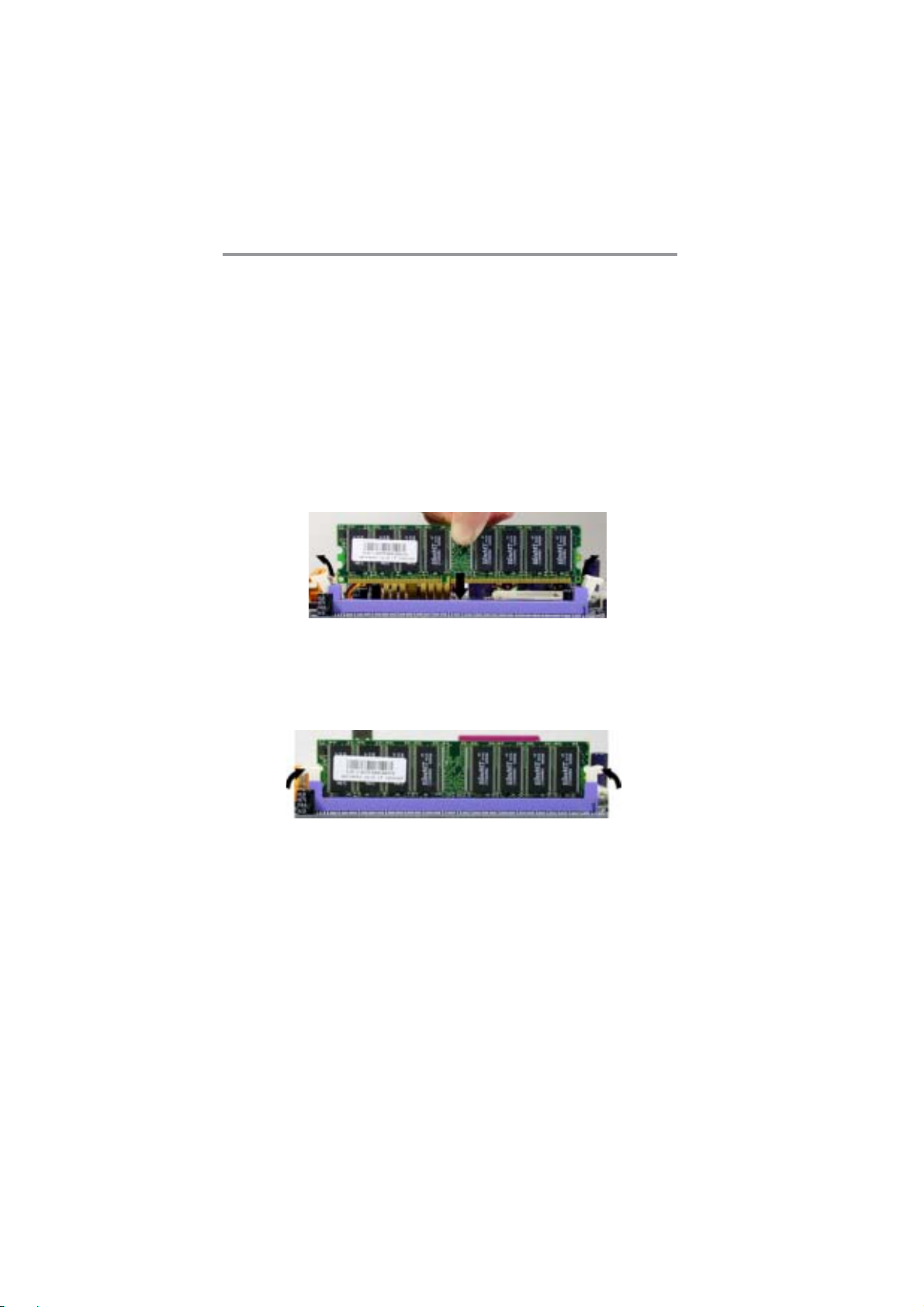

Memory Module Installation Procedure

These modules can be installed with up to 4 GB system memory .
Refer to the following to install the memory module.

1. Push down the latches on both sides of the DIMM
socket.

2. Align the memory module with the socket. There is a
notch on the DIMM socket that you can install the
DIMM module in the correct direction. Match the cutout
on the DIMM module with the notch on the DIMM
socket.

3. Install the DIMM module into the socket and press it
firmly down until it is seated correctly . The socket latches
are levered upwards and latch on to the edges of the
DIMM.

4. Install any remaining DIMM modules.

12

Chapter 2: Motherboard Installation

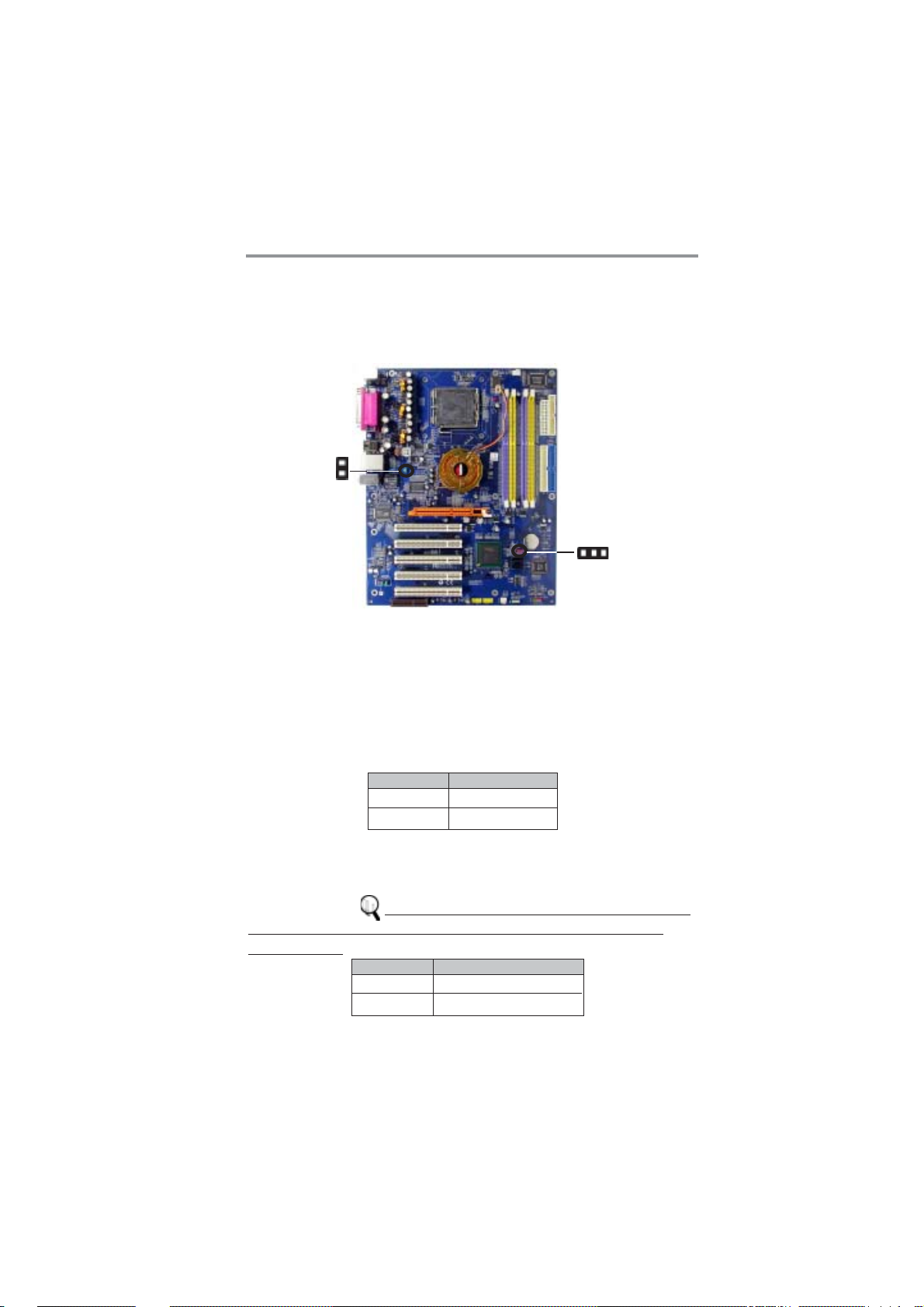

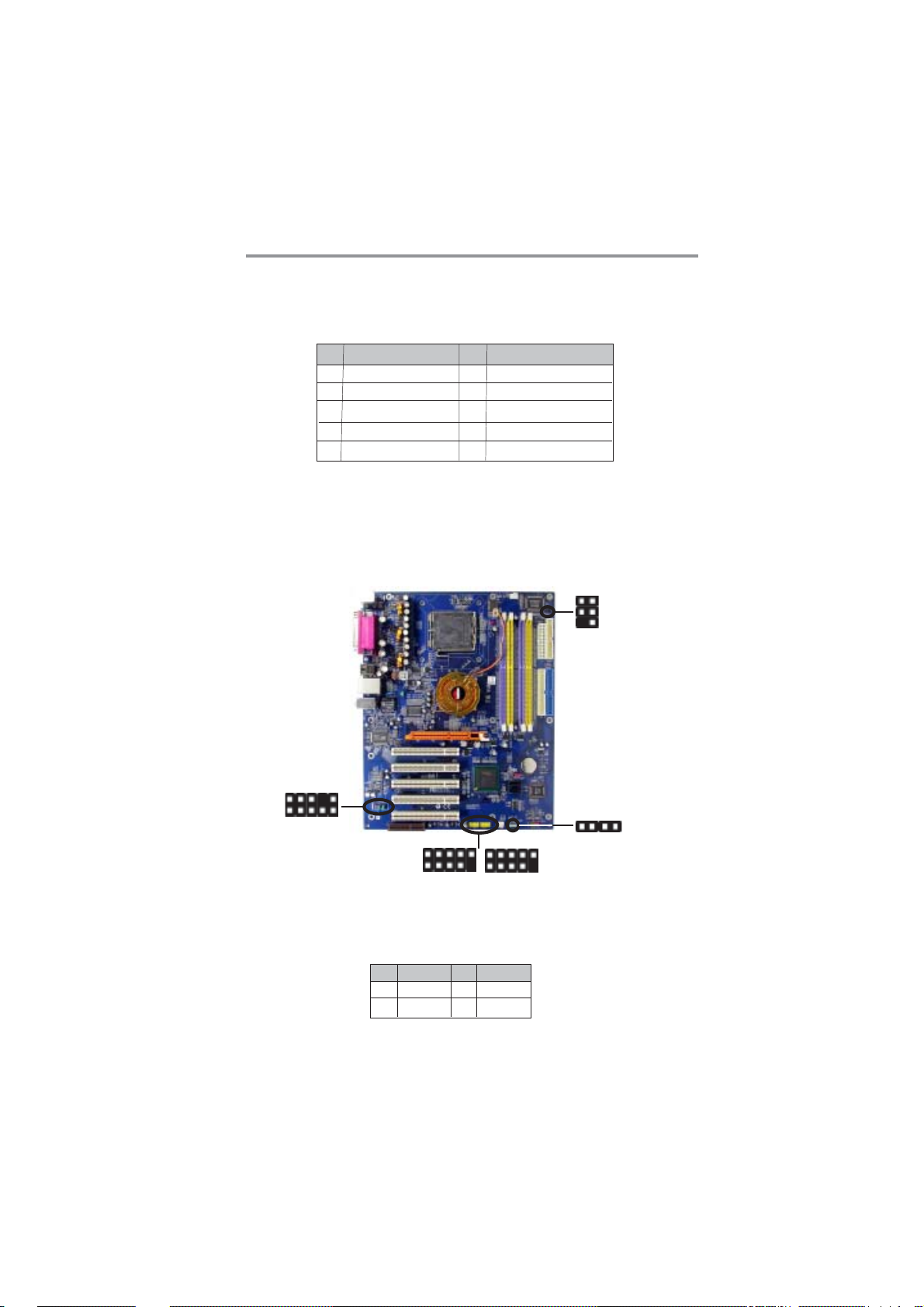

Jumper Settings

Connecting two pins with a jumper cap is SHORT; removing a
jumper cap from these pins, OPEN.

1

JPX

1

JP1

JP1: Clear CMOS Jumper

Use this jumper to clear the contents of the CMOS memory. You
may need to clear the CMOS memory if the settings in the Setup
Utility are incorrect and prevent your motherboard from operating.
To clear the CMOS memory, disconnect all the power cables from
the motherboard and then move the jumper cap into the CLEAR
setting for a few seconds.

Function Jumper Setting

Normal Short Pins 1-2
Clear CMOS Short Pins 2-3

JPX: Performance Mode Jumper

Use this jumper to enable the function of Performance Accelera­tion T echnology. Please be noted enabling this jumper (Open Pins

1-2) perhaps comes with some risks that we do not guarrantee the
system stability.

Function Jumper Setting

Disabled Short Pins 1-2
Enabled Open Pins 1-2 (Default)

13

Motherboard User’s Guide

Install the Motherboard

Install the motherboard in a system chassis (case). The board is
an ATX size motherboard. You can install this motherboard in an
ATX case. Make sure your case has an I/O cover plate matching
the ports on this motherboard.

Install the motherboard in a case. Follow the case manufacturer’s
instructions to use the hardware and internal mounting points on
the chassis.

PWRFAN

ATX3

1

ATX2

PANEL1

1

1

SYSFAN

Connect the power connector from the power supply to the ATX2
connector on the motherboard. The ATX3 is a +12V connector
for CPU Vcore power.

If there is a cooling fan installed in the system chassis, connect the
cable from the cooling fan to the SYSFAN fan power connector
on the motherboard.

Connect the auxiliary power supply cooling fan connector to
PWRFAN.

14

Chapter 2: Motherboard Installation

Connect the case switches and indicator LEDs to the PANEL1
header. Please refer to the following list of the PANEL1 pin
assignments.

Pin Signal Pin Signal

1 HD_LED_P(+) 2 FP PWR/SLP(+)
3 HD_LED_N(-) 4 FP PWR/SLP(-)
5 RESET_SW_N(-) 6 POWER_SW_P(+)
7 RESET_SW_P(+) 8 POWER_SW_N(-)
9 RSVD_DNU 10 KEY

Connecting Optional Devices

Refer to the following for information on connecting the
motherboard’s optional devices:

1

IR1

1

AUDIO2

11

USB3USB2

1

SPK1

SPK1: Speaker Header

Connect the cable from the PC speaker to the SPK1 header on
the motherboard.

Pin Signal Pin Signal

1 SPKR 2 NC
3 GND 4 +5V

15

Motherboard User’s Guide

AUDIO2: Front Panel Audio Header

This header allows the user to install auxiliary front-oriented
microphone and line-out ports for easier access.

Pin Signal Pin Signal

1 AUD_MIC 2 AUD_GND
3 AUD_MIC_BIAS 4 AUD_VCC
5 AUD_FPOUT_R 6 AUD_RET_R
7 HP_ON 8 KEY
9 AUD_FPOUT_L 10 AUD_RET_L

USB2/USB3: Front Panel USB Header

The motherboard has USB ports installed on the rear edge I/O
port array. Additionally, some computer cases have USB ports at
the front of the case. If you have this kind of case, use auxiliary
USB headers USB2/USB3 to connect the front-mounted ports to
the motherboard.

Pin Signal Pin Signal

1 VERG_FP_USBPWR0 2 VERG_FP_USBPWR0
3 USB_FP_P0(-) 4 USB_FP_P1(-)
5 USB_FP_P0(+) 6 USB_FP_P1(+)
7 GROUND 8 GROUND
9 KEY 10 USB_FP_OC0

1. Locate the USB2/USB3 header on the motherboard.

2. Plug the bracket cable onto the USB2/USB3 header.

3. Remove a slot cover from one of the expansion slots on
the system chassis. Install an extension bracket in the
opening. Secure the extension bracket to the chassis with
a screw.

16

Chapter 2: Motherboard Installation

IR1: Infrared Header

The infrared port allows the wireless exchange of information
between your computer and similarly equipped devices such as
printers, laptops, Personal Digital Assistants (PDAs), and other
computers.

Pin Signal Pin Signal

1 NC 2 KEY
3 +5V 4 GND
5 IRTX 6 IRRX

1. Locate the infrared port-IR1 header on the motherboard.

2. If you are adding an infrared port, connect the ribbon
cable from the port to the IR1 header and then secure the
port to an appropriate place in your system chassis.

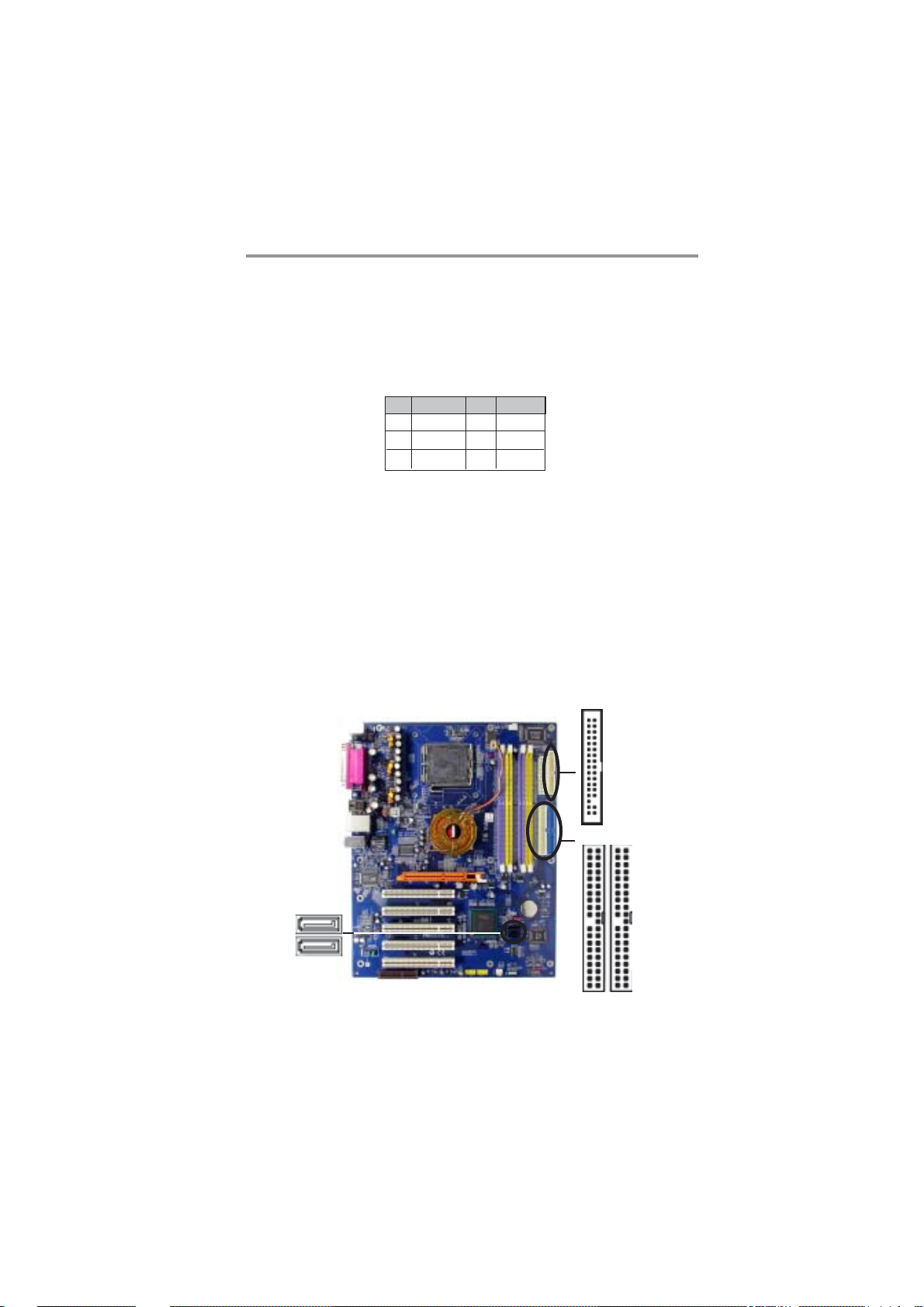

Install Other Devices

Install and connect any other devices in the system following the
steps below.

SATA2

SATA1

17

FLOPPY

1

IDE2

11

IDE1

Motherboard User’s Guide

Floppy Disk Drive

The motherboard ships with a floppy disk drive cable that can
support one or two drives. Drives can be 3.5" or 5.25" wide, with
capacities of 360K, 720K, 1.2MB, 1.44MB, or 2.88MB.

Install your drives and connect power from the system power
supply . Use the cable provided to connect the drives to the floppy
disk drive connector FLOPPY.

IDE Devices

IDE devices include hard disk drives, high-density diskette drives,
and CD-ROM or DVD-ROM drives, among others.

The motherboard ships with an IDE cable that can support one or
two IDE devices. If you connect two devices to a single cable,
you must configure one of the drives as Master and one of the
drives as Slave. The documentation of the IDE device will tell you
how to configure the device as a Master or Slave device. The
Master device connects to the end of the cable.

Install the device(s) and connect power from the system power
supply. Use the cable provided to connect the device(s) to the
Primary IDE channel connector IDE1 on the motherboard.

If you want to install more IDE devices, you can purchase a
second IDE cable and connect one or two devices to the Second­ary IDE channel connector IDE2 on the motherboard. If you
have two devices on the cable, one must be Master and one must
be Slave.

18

Chapter 2: Motherboard Installation

Serial ATA Devices

The Serial ATA (Advanced Technology Attachment) is the
standard interface for the IDE hard drives, which is designed to
overcome the design limitations while enabling the storage inter­face to scale with the growing media rate demands of PC plat­forms. It provides you a faster transfer rate of 150 MB/s. If you
have installed a Serial ATA hard drive, you can connect the Serial
ATA cables to the Serial ATA hard drive or the connecter on the
motherboard.

On the motherboard, locate the Serial ATA connectors SATA1/2,
which support new Serial ATA devices for the highest data
transfer rates, simpler disk drive cabling and easier PC assembly .

It eliminates limitations of the current Parallel AT A interface, but
maintains register compatibility and software compatibility with
Parallel ATA.

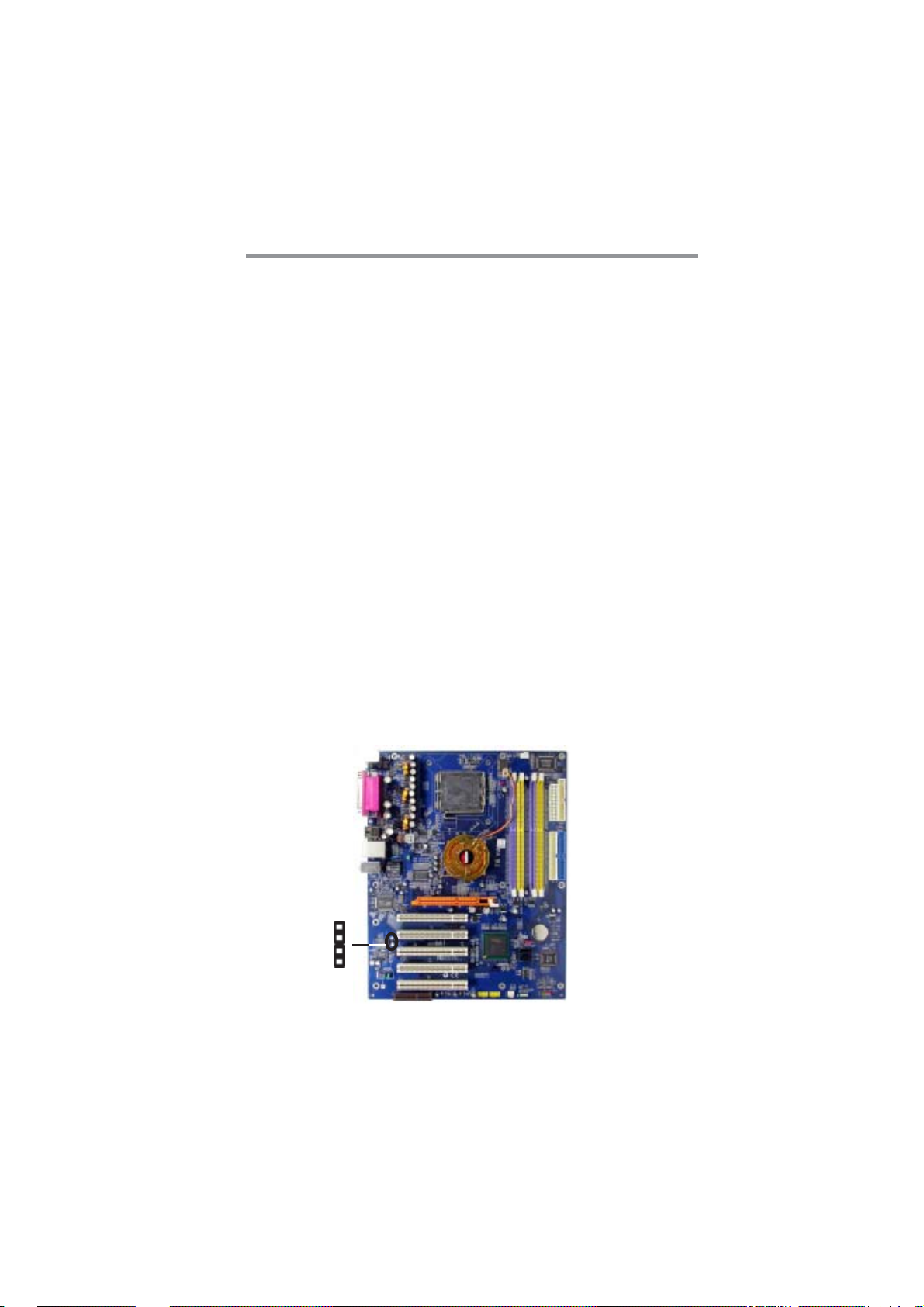

Analog Audio Input Header

If you have installed a CD-ROM drive or DVD-ROM drive, you
can connect the drive audio cable to the onboard sound system.

CD1

1

19

Motherboard User’s Guide

When you first start up your system, the BIOS should automati­cally detect your CD-ROM/DVD drive. If it doesn’t, enter the
Setup Utility and configure the CD-ROM/DVD drive that you
have installed. On the motherboard, locate the 4-pin header CD1.

Pin Signal

1 CD IN L
2 GND
3 GND
4 CD IN R

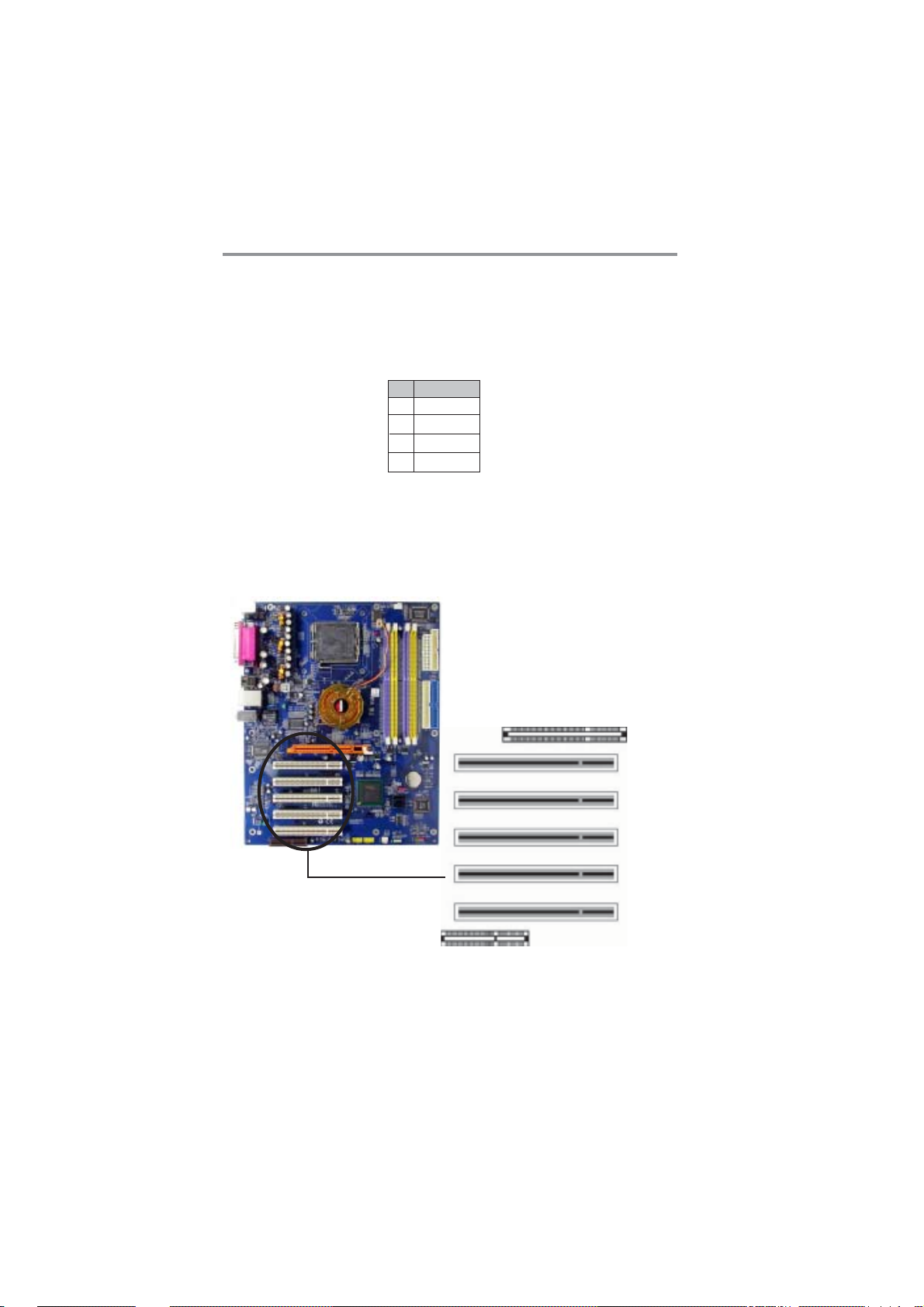

Expansion Slots

This motherboard has one AGP, one CNR and five 32-bit PCI
slots.

20

AGP1

PCI1

PCI2

PCI3

PCI4

PCI5

CNR1

Chapter 2: Motherboard Installation

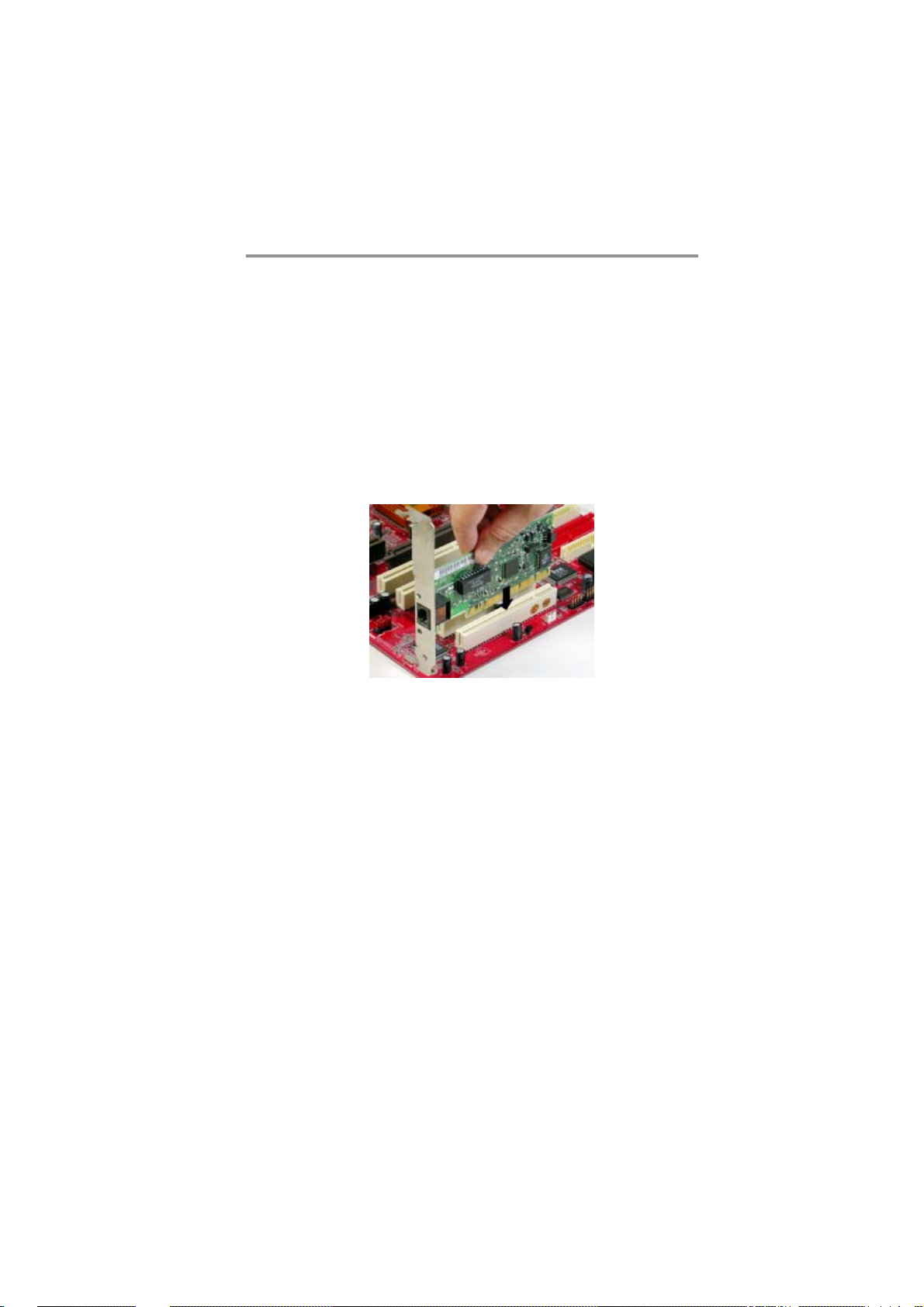

Follow the steps below to install an AGP/CNR/PCI expansion
card.

1. Locate the AGP, CNR or PCI slots on the motherboard.

2. Remove the blanking plate of the slot from the system
chassis.

3. Install the edge connector of the expansion card into the
slot. Ensure the edge connector is correctly seated in the
slot.

4. Secure the metal bracket of the card to the system
chassis with a screw.

8x/4x AGP Slot

You can install a graphics adapter that supports the 8x/4x AGP
specification and has a 8x AGP edge connector in the AGP slot.

CNR Slot

You can install the CNR (Communications and Networking Riser)
cards in this slot, including LAN, Modem, and Audio functions.

PCI Slots

You can install the 32-bit PCI interface expansion cards in the
slots.

21

Motherboard User’s Guide

Chapter 3 BIOS Setup Utility

Introduction

The BIOS Setup Utility records settings and information of your
computer, such as date and time, the type of hardware installed,
and various configuration settings. Your computer applies the
information to initialize all the components when booting up and
basic functions of coordination between system components.

If the Setup Utility configuration is incorrect, it may cause the
system to malfunction. It can even stop your computer booting
properly. If it happens, you can use the clear CMOS jumper to
clear the CMOS memory which has stored the configuration
information; or you can hold down the Page Up key while
rebooting your computer. Holding down the Page Up key also
clears the setup information.

You can run the setup utility and manually change the configura­tion. You might need to do this to configure some hardware
installed in or connected to the motherboard, such as the CPU,
system memory, disk drives, etc.

22

Chapter 3: BIOS Setup Utility

Running the Setup Utility

Every time you start your computer, a message appears on the
screen before the operating system loading that prompts you to
“Hit <DEL>if you want to run SETUP”. Whenever you see
this message, press the Delete key, and the Main menu page of
the Setup Utility appears on your monitor.

CMOS SETUP UTILITY – Copyright (C) 1985-2003, American Megatrends, Inc

Standard CMOS Setup
Advanced Setup
Features Setup
Power Management Setup
PCI / Plug and Play Setup
BIOS Security Features

: Move +/-/: Value Enter: Select F1: General Help Esc: Exit
F8: Best Performance Settings F9: Optimized Settings F10: Save

Standards COMOS setup for changing time, date, hard disk type, etc.

V02.54 (C) 1985-2003, American Megatrends, Inc.

CPU PnP Setup
Hardware Monitor
Load Best Performance Settings
Load Optimal Defaults
Save Changes and Exit
Discard Changes and Exit

You can use cursor arrow keys to highlight anyone of options on
the main menu page. Press Enter to select the highlighted option.
Press the Escape key to leave the setup utility. Press +/-/ to
modify the selected field’s values.

Some options on the main menu page lead to tables of items with
installed values that you can use cursor arrow keys to highlight
one item, and press PgUp and PgDn keys to cycle through
alternative values of that item. The other options on the main
menu page lead to dialog boxes requiring your answer Yes or No
by hitting the Y or N keys.

If you have already changed the setup utility, press F10 to save
those changes and exit the utility. Press F1 to display a screen
describing all key functions. Press F9 to install the setup utility
with a set of default values. Press F8 to install the setup utility
with a set of high-performance values.

23

Motherboard User’s Guide

Standard CMOS Setup Page

This page displays a table of items defining basic information
about your system.

CMOS SETUP UTILITY – Copyright (C) 1985-2003, American Megatrends, Inc.

System Time 00:01:25
System Date Thu 05/06/2004

Primary IDE Master Hard Disk
Primary IDE Slave Not Detected
Secondary IDE Master Not Detected
Secondary IDE Slave ATAPI CDROM
S-ATA0 Master Not Decteted
S-ATA1 Master Not Detected

Floppy A 1.44 MB 3 1/2”
Floppy B Disabled

: Move Enter: Select +/-/: Value F10: Save Esc: Exit
F1: General Help F9: Optimized Defaults

Standard CMOS Setup

Help Item

User [Enter], [TAB] or
[SHIFT-TAB] to select a
field.
Use [+] or [-] to configure
system time.

Date & Time

These items set up system date and time.

IDE Pri Master/Pri Slave/Sec Master/Sec Slave

Use these items to configure devices connected to the Primary
and Secondary IDE channels. To configure an IDE hard disk
drive, choose Auto. If the Auto setting fails to find a hard disk
drive, set it to User, and then fill in the hard disk characteristics
(Size, Cyls, etc.) manually . If you have a CD-ROM drive,
select the setting CDROM. If you have an ATAPI device with
removable media (e.g. a ZIP drive or an LS-120), select
Floptical.

S-ATA0/1 Master

These items configure devices connected to the Serial ATA
channels. To configure a S-ATA hard disk drive, choose Auto.

24

Chapter 3: BIOS Setup Utility

Floppy A/B

These items set up size and capacity of the floppy diskette
drive(s) installed in the system.

Advanced Setup Page

This page sets up more advanced information about your system.
Handle this page with caution. Any changes can affect the
operation of your computer.

CMOS SETUP UTILITY – Copyright (C) 1985-2003, American Megatrends, Inc.

Quick Boot Enabled
1st Boot Device PM-ST320410A
2nd Boot Device SS-CD-ROM 52X/AKH
3rd Boot Device 1st Floppy Drive
Try Other Boot Device Yes
Bootup Num-Lock On
Boot To OS/2 > 64MB N o
Graphic Win Size 64MB

Configure DRAM Timing by SPD Enabled

Hyper Threading Function Disabled
Auto Detect DIMM/PCI Clk Enabled
Spread Spectrum Disabled

Advanced Setup

Help Item

Allows BIOS to skip certain
tests while booting. This
will decrease the time
needed to boot the system.

: Move Enter: Select +/-/: Value F10: Save Esc: Exit
F1: General Help F9: Optimized Defaults

Quick Boot

If you enable this item, the system starts up more quickly be
elimination some of the power on test routines.

st

1

Boot Device/2nd Boot Device/3rd Boot Device

Use these items to determine the device order the computer
uses to look for an operating system to load at start-up time.

Try Other Boot Device

If you enable this item, the system will also search for other
boot devices if it fails to find an operating system from the first
two locations.

25

Motherboard User’s Guide

BootUp Num-Lock

This item determines if the Num Lock key is active or
inactive at system start-up time.

Boot to OS/2 > 64MB

Enable this item if you are booting the OS/2 operating system
and you have more than 64MB of system memory installed.

Graphic Win Size

This item defines the size of aperture if you use a graphic
adapter.

Configure DRAM Timing By SPD

This item allows you to enable or disable the DRAM timing
defined by the Serial Presence Detect electrical.

Hyper Threading Function

You can set “Disabled” or “Enabled” to control HT CPU
support in O.S. Set “Enabled” to test HT CPU function.

Auto detect DIMM/PCI Clock

When this item is enabled, BIOS will disable the clock signal
of free DIMM/PCI slots.

Spread Spectrum

If you enable spread spectrum, it can significantly reduce the
EMI (Electro-Magnetic Interference) generated by the
system.

26

Chapter 3: BIOS Setup Utility

Features Setup Page

This page sets up some parameters for peripheral devices
connected to the system.

CMOS SETUP UTILITY – Copyright (C) 1985-2003, American Megatrends, Inc.

OnBoard Floppy Controller Enabled
Serial Port1 Address 3F8/IRQ4
OnBoard IR Port Disabled
Parallel Port Address 378
Parallel Port Mode ECP
ECP Mode DMA Channel DMA 3
Parallel Port IRQ IRQ7
OnBoard PCI IDE Controller Both
Audio Device Enabled
Ethernet Device Enabled
MODEM Device Auto
OnBoard USB Function Enabled
USB Function for DOS Disabled
USB 2.0 Controller Enabled

*****On-Chip Serial ATA Setting*****
On-Chip Serial ATA Enhanced Mode
Seri al ATA Port0/1 Mode P0-3rd/P1-4th

: Move Enter: Select +/-/: Value F10: Save Esc: Exit
F1: General Help F9: Optimized Defaults

Features Setup

Help Item

Allows BIOS to
Enable or Disable
Floppy Controller.

OnBoard Floppy Controller

Use this item to enable or disable the onboard floppy disk drive
interface.

Serial Port1 Address

Use this item to enable or disable the onboard COM1/2 serial
port, and to assign a port address.

OnBoard IR Port

Use this item to enable or disable the onboard infrared port, and
to assign a port address.

Parallel Port Address

Use this item to enable or disable the onboard Parallel port, and
to assign a port address.

27

Motherboard User’s Guide

Parallel Port Mode

This item decides the parallel port mode. You can select Normal,
Bi-Directional, EPP (Enhanced Parallel Port), or ECP (Extended
Capabilities Port).

ECP Mode DMA Channel

This item assigns a DMA channel to the parallel port. The options
are DMA0, DMA1 and DMA3.

Parallel Port IRQ

This item assigns either IRQ 5 or 7 to the parallel port.

OnBoard PCI IDE Controller

Use this item to enable or disable either or both of the onboard
Primary and Secondary IDE channels. There are four options:
Disabled, Primary, Secondary and Both.

Audio Device

This item enables or disables the AC’97 audio chip.

Ethernet Device

This item enables or disables the onboard Ethernet LAN.

MODEM Device

This item enables or disables the onboard Modem.

OnBoard USB Function

Enable this item if you plan to use the USB ports on this
motherboard.

USB Function For DOS

Enable this item if you plan to use the USB ports on this
motherboard in a DOS environment.

On-Chip Serial ATA

Use this item to disable or enable the S-ATA and IDE devices:

28

Chapter 3: BIOS Setup Utility

Option Function

Disabled Disabled S-ATA Controller

Primary: 2 IDE Drives

Enhanced
Mode

Secondary: 2 IDE Drives
S-AT A: 2 S-A T A Drives

SA TA Only Only support SATA mode

Combine Mode

Primary: 2 IDE Drives
S-AT A: 2 S-A T A Drives

Serial ATA Port0/1 Mode

Use this item to decide the sequence of the Serial ATA devices.

Power Management Setup Page

This page sets some parameters for system power management
operation.

CMOS SETUP UTILITY – Copyright (C) 1985-2003, American Megatrends, Inc.

ACPI Aware O/S Yes
Power Management Enabled
Suspend Mode S1
Suspend Time Out Disabled
Resume On RTC Alarm Disabled
LAN/Ring Power On Disabled
Keyboard Power On Disabled

: Move Enter: Select +/-/: Value F10: Save Esc: Exit
F1: General Help F9: Optimized Defaults

Power Management Setup

Help Item

Yes / No
ACPI support for
Operating System.
Yes: If OS supports
ACPI.
No: If OS does not
support ACPI.

29

Motherboard User’s Guide

ACPI Aware O/S

This item supports ACPI (Advanced Configuration and Power
management Interface). Use this item to enable or disable the
ACPI feature.

Power Management

Use this item to enable or disable a power management
scheme. If you enable power management, you can use the
items below to set the power management operation. Both
APM and ACPI are supported.

Suspend Mode

This item selects the status S1(Stop Clock) or S3(Suspend to
RAM) when the system enters the power-saving Suspend
mode.

Suspend Time Out

This sets the timeout for Suspend mode in minutes. If the time
selected passes without any system activity, the computer will
enter power-saving Suspend mode.

Resume On RTC Alarm / Date / Hour / Minute / Second

The system can be turned off with a software command. If you
enable this item, the system can automatically resume at a fixed
time based on the system’s RTC (realtime clock). Use the items
below this one to set the date and time of the wake-up alarm. You
must use an ATX power supply in order to use this feature.

LAN/Ring Power On

The system can be turned off with a software command. If you
enable this item, the system can automatically resume if there is
an incoming call on the Modem/Ring, or traffic on the network
adapter. You must use an ATX power supply in order to use this
feature.

30

Chapter 3: BIOS Setup Utility

Keyboard Power On

If you enable this item, system can automatically resume by
pressing any keys, hot or power key on the keyboard or typing in
the password. You must use an ATX power supply in order to use
this feature.

PCI / Plug and Play Setup Page

This page sets up some parameters for devices installed on the
PCI bus and those utilizing the system plug and play capability .

CMOS SETUP UTILITY – Copyright (C) 1985-2003, American Megatrends, Inc.

Primary Graphics Adapter AGP
Allocate IRQ to PCI VGA Yes
PCI IDE BusMaster Disabled

: Move Enter: Select +/-/: Value F10: Save Esc: Exit
F1: General Help F9: Optimized Defaults

PCI / Plug and Play Setup

Help Item

Select which
graphics controller
to use as the
primary boot device.

Primary Graphics Adapter

This item indicates if the primary graphics adapter uses the PCI
or the AGP bus. The default AGP setting still lets the onboard
display work and allows the use of a second display card
installed in an PCI slot.

Allocate IRQ to PCI VGA

If this item is enabled, an IRQ will be assigned to the PCI VGA
graphics system. You set this value to No to free up an IRQ.

PCI IDE BusMaster

This item enables or disables the DMA under DOS mode. We
recommend you to leave this item at the default value.

31

Motherboard User’s Guide

BIOS Security Features Setup Page

This page helps you install or change a password.

CMOS SETUP UTILITY – Copyright (C) 1985-2003, American Megatrends, Inc.

Security Settings

Supervisor Password : Not Installed

Change Supervisor Password Press Enter

: Move Enter: Select +/-/: Value F10: Save Esc: Exit
F1: General Help F9: Optimized Defaults

BIOS Security Features Setup

Help Item

Install or Change
the password.

Supervisor Password

This item indicates whether a supervisor password has been set.
If the password has been installed, Installed displays. If not, Not
Installed displays.

Change Supervisor Password

You can select this option and press <Enter> to access the sub
menu. You can use the sub menu to change the supervisor pass­word.

32

Chapter 3: BIOS Setup Utility

CPU PnP Setup Page

This page helps you manually configure the mainboard for the
CPU. The system will automatically detect the type of installed
CPU and make the appropriate adjustments to the items on this
page.

CMOS SETUP UTILITY – Copyright (C) 1985-2003, American Megatrends, Inc.

Manufacturer Intel
Ratio Status Unlocked
Ratio Actual Value 17

Ration CMOS Setting 17
DRAM Frequency Auto

CPU Frequency 133 MHz

CPU Over-clocking Func. Disabled

: Move Enter: Select +/-/: Value F10: Save Esc: Exit
F1: General Help F9: Optimized Defaults

Manufacturer/Ratio Status/ Ratio Actual Value

These items show the brand, the Locked/ Unlocked ratio
status, and the actual ratio of the CPU installed in your system.

CPU PnP Setup

Help Item

Sets the ratio between CPU
Core Clock and the FSB
Frequency. Note: If an
invalid ratio is set in CMOS
then actual and setpoint
values may differ. Ratio of
Zero allows external ratio
control.

Ratio CMOS Setting

This item selects the ratio of the CPU installed in your system.

DRAM Frequency (optional)

This item shows the frequency of the DRAM in your system.

CPU Frequency

This item shows the frequency of the CPU installed in your
system.

CPU Over-clocking Func.

This item decides the CPU over-clocking function installed in your
system. If the over-clocking fails, please turn off the system
power. And then, hold the PageUp key (similar to the Clear
CMOS function) and turn on the power, the BIOS will recover the
safe default.

33

Motherboard User’s Guide

Hardware Monitor Page

This page sets up some parameters for the hardware monitoring
function of this motherboard.

CMOS SETUP UTILITY – Copyright (C) 1985-2003, American Megatrends, Inc.

*** System Hardware Monitor***
Vcore 1.467V
Vddq 1.580V
Vcc5V 5.012V
SB3V 3.225V
SYSTEM FAN Speed 0 RPM
CPU FAN Speed 3375 RPM
POWER FAN Speed 6026 RPM
SYSTEM Temperature 30°C/86°F
CPU Temperature 45°C/113°F

: Move Enter: Select +/-/: Value F10: Save Esc: Exit
F1: General Help F9: Optimized Defaults

Hardware Monitor Setup

Help Item

CPU / Power/System Temperature

These items display CPU, NB and system temperature mea­surement.

FANs & Voltage Measurements

These items indicate cooling fan speeds in RPM and the various
system voltage measurements.

Load Best Performance Settings

If you select this item and press Enter a dialog box appears. If
you press Y, and then Enter, the Setup Utility loads a set of best
performance default values. These default values are quite
demanding and your system might not function properly if you are
using slower memory chips or other low-performance compo­nents.

34

Chapter 3: BIOS Setup Utility

Load Optimal Defaults

If you select this item and press Enter a dialog box appears. If
you press Y, and then Enter, the Setup Utility loads a set of fail­safe default values. These default values are not very demanding
and they should allow your system to function with most kinds of
hardware and memory chips.

Note: It is highly recommend that users enter this option to load
optimal default values for accessing the best performance.

Save Changes and Exit

Highlight this item and press <Enter> to save the changes that you
have made in the Setup Utility configuration. When the Save
Changes and Exit dialog box appears, press Y to save and exit, or
press N to return to the main menu.

Discard Changes and Exit

Highlight this item and press <Enter> to discard any changes that
you have made in the Setup Utility and exit the Setup Utility .
When the Discard Changes and Exit dialog box appears, press
<Y> to discard changes and exit, or press <N> to return to the
main menu.

Note: If you have made settings that you do not want to save,
use the “Discard Changes and Exit” item and press <Y> to
discard any changes you have made.

35

Motherboard User’s Guide

Chapter 4 Software & Applications

Introduction

This chapter describes the contents of the support CD-ROM that
comes with the motherboard package.

The support CD-ROM contains all useful software, necessary
drivers and utility programs to properly run our products. More
program information is available in a README file, located in the
same directory as the software.

T o run the support CD, simply insert the CD into your CD-ROM
drive. An Auto Setup screen automatically pops out, and then you
can go on the auto-installing or manual installation depending on
your operating system.

If your operating system is Windows 2000/XP, it will automatically
install all the drivers and utilities for your motherboard; if Windows
NT or manual installation, please follow the instructions described
as the Installing under Windows NT or Manual Installation sec­tion.

36

Chapter 4: Software & Applications

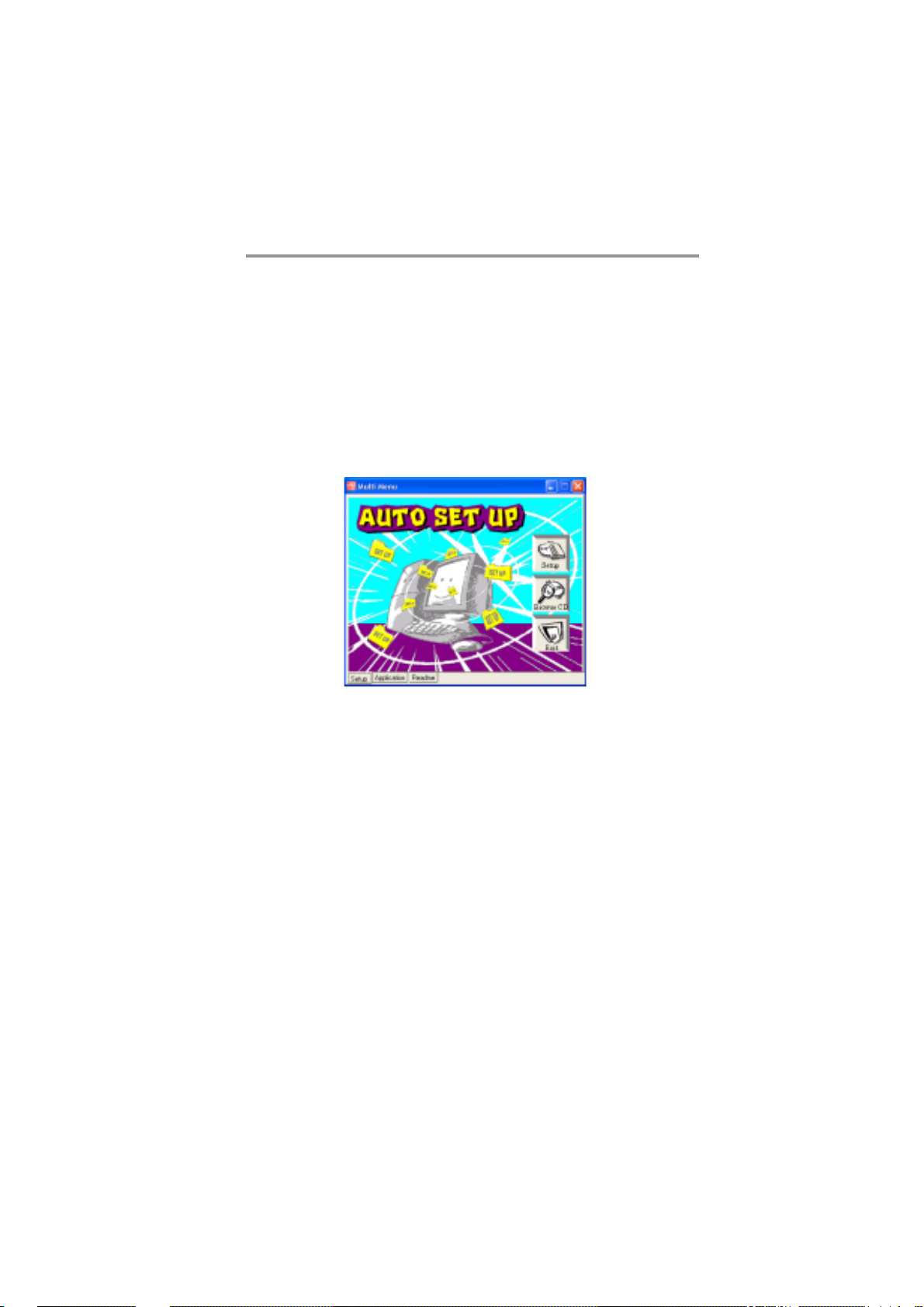

Installing Suppor t Software

1 Insert the support CD-ROM disc in the CD-ROM drive.
2 When you insert the CD-ROM disc in the system CD-

ROM drive, the CD automatically displays an Auto Setup
screen.

3 The screen displays three buttons of Setup, Browse CD

and Exit on the right side, and three others Setup,
Application and ReadMe at the bottom. Please see the
following illustration.

The Setup button runs the software auto-installing program as
explained in next section.

The Browse CD button is a standard Windows command that
you can check the contents of the disc with the Windows 98 file
browsing interface.

The Exit button closes the Auto Setup window. To run the
program again, reinsert the CD-ROM disc in the drive; or click
the CD-ROM driver from the W indows Explorer, and click the
Setup icon.

The Application button brings up a software menu. It shows the
bundled software that this mainboard supports.

The ReadMe brings you to the Install Path where you can find
out path names of software driver.

37

Motherboard User’s Guide

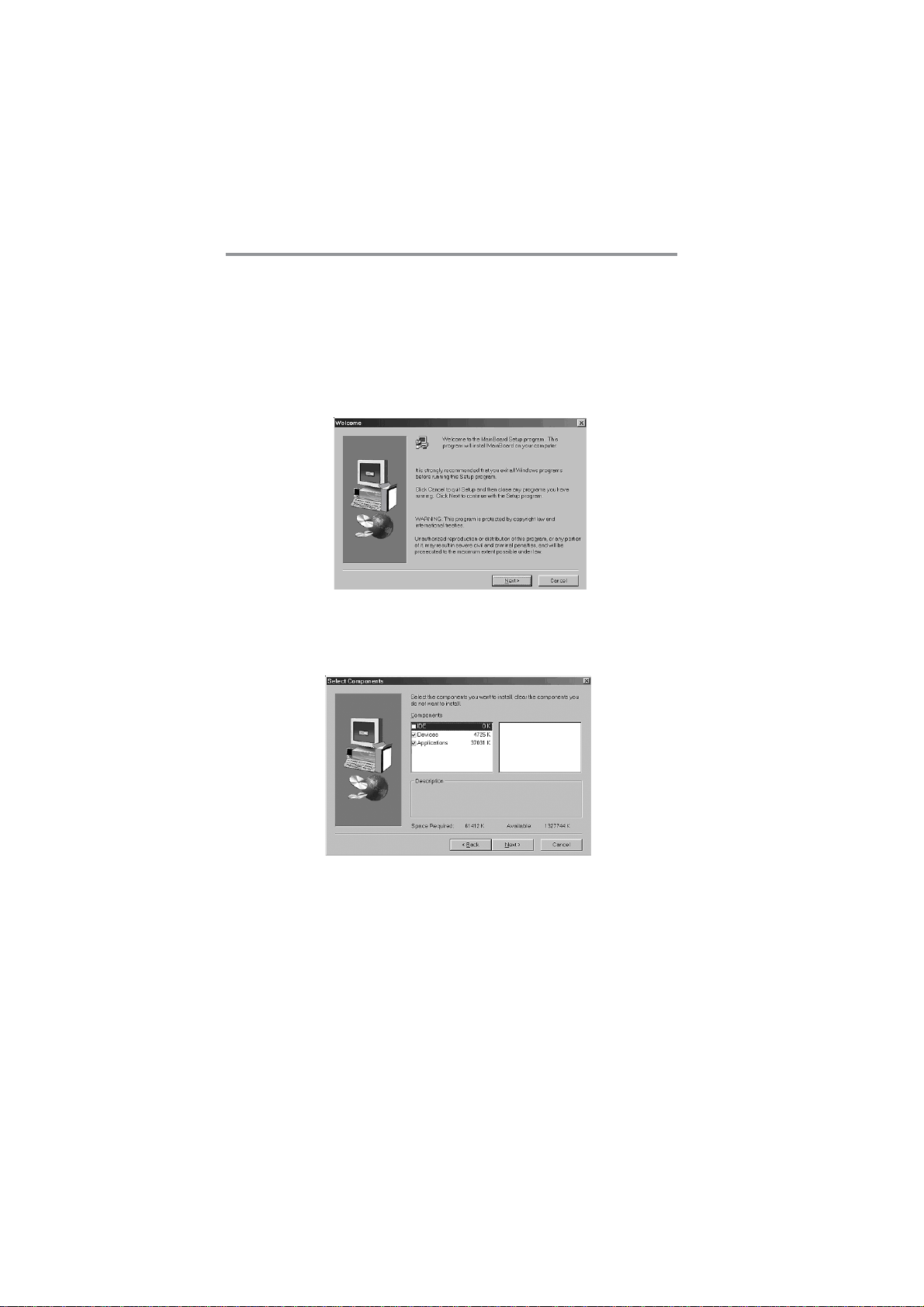

Auto-Installing under Windows 2000/XP

If you are under Windows 2000/XP, please click the Setup button
to run the software auto-installing program while the Auto Setup
screen pops out after inserting the support CD-ROM:

1 The installation program loads and displays the following

screen. Click the Next button.

2 Select the items that you want to setup by clicking on it

(the default options are recommended). Click the Next
button to proceed.

3 The support software will automatically install.

Once any of the installation procedures start, software is auto­matically installed in sequence. You need to follow the onscreen
instructions, confirm commands and allow the computer to restart
as few times as needed to complete installing whatever software
you selected. When the process is finished, all the support soft­ware will be installed and start working.

38

Chapter 4: Software & Applications

Installing under Windows NT or Manual Installation

If you are under Windows NT, the auto-installing program doesn’t
work out; or you have to do the manual installation, please follow
this procedure while the Auto Setup screen pops out after insert­ing the support CD-ROM:

1 Click the ReadMe to bring up a screen, and then click

the Install Path at the bottom of the screen.

2 Find out your mainboard model name and click on it to

obtain its correct driver directory .

3 Install each software in accordance with the

corresponding driver path.

Bundled Software Installation

All bundled software available on the CD-ROM is for users’
convenience. You can install bundled software as follows:

1 Click the Application button while the Auto Setup screen

pops out after inserting the support CD-ROM.

2 A software menu appears. Click the software you want

to install.

3 Follow onscreen instructions to install the software

program step by step until finished.

39

Motherboard User’s Guide

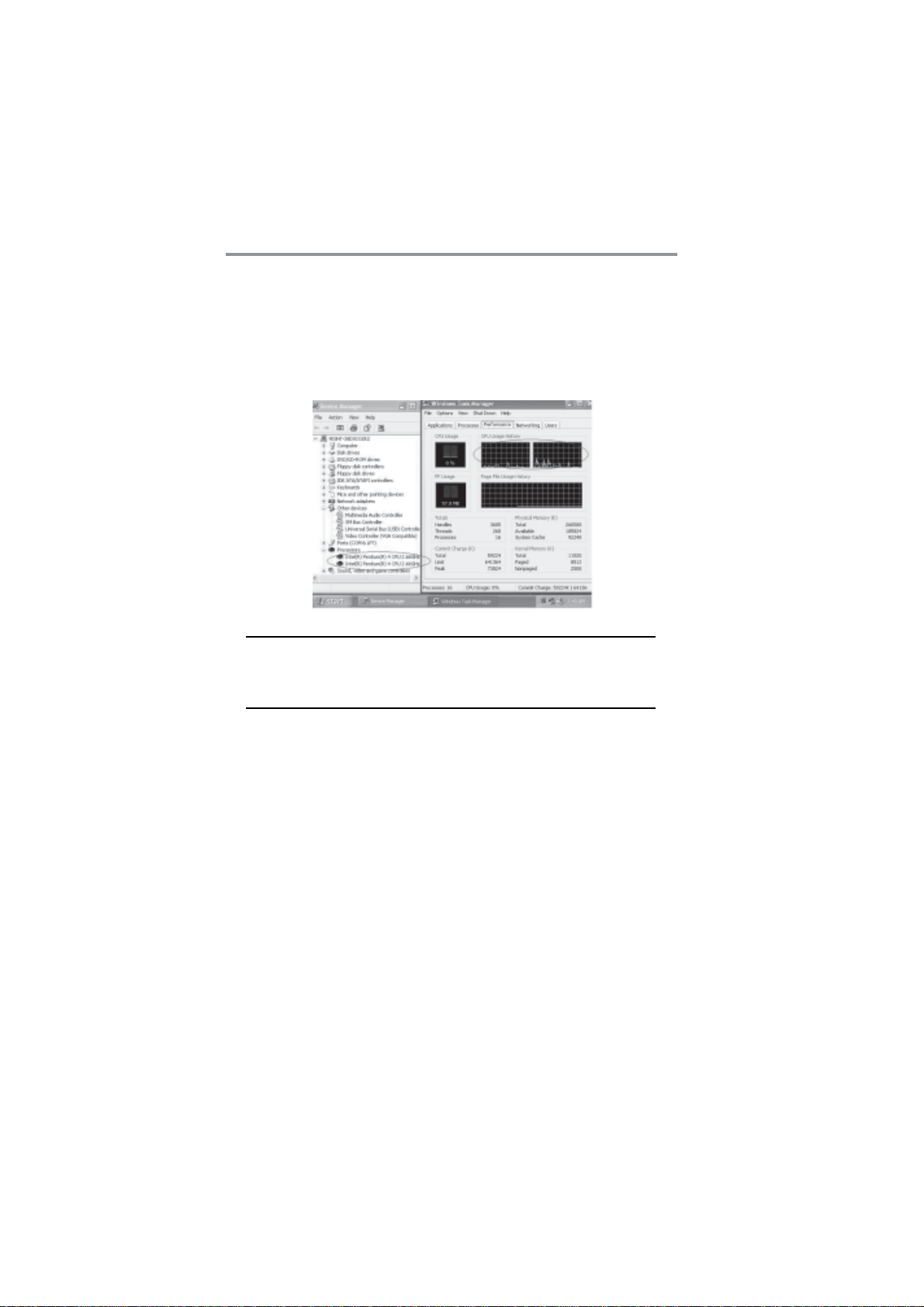

Hyper-Threading CPU

While you are in Windows Task Manager, please push down
ctrl+Alt Del keys. A dual CPU appears in the CPU Usage
History&Device Manager under WinXP.

Note: Hyper-Threading Function only works under WINXP
Operating System; therefore, disable it under other Operating
System.

40

Motherboard User’s Guide

Appendix

Intel USB 2.0 Driver Limitations & Manual
Installation

• USB2.0 Driver only supports the Operating System WinXP/

Win2K, and W inME & W in98SE driver only supports USB

1.1 function.

Note: If your Operating System Windows XP has the Service
Pack, you can directly access the driver regardless of the driver
limitation.

• Y ou must follow these steps to manually install the WinXP

driver; otherwise, you can’t succeed this driver’s installa­tion.

1.Simply install W indows XP with PS2 Keyboard/Mouse.

2.Install INF Update 4.00.1009 PV.

− Install IAA 2.1 PV (2124).

− Install GFX 11.0 PC 1.01 (3051).

− Install LAN 6.1 PV.

− Install AC97 Beta.

3.Install USB 2.0 for XP 3616.

4.Use Tools/Folder Options…/View. to change the items
below:

− Enable “Display the full path in the title bar”.

− Enable “Show Hidden files and folders”.

− Disable “Hide extensions of known files types”.

− Disable “Hide protected operating system files

(Recommended)”.

5.Check USB driver version from:

C:\Windows\System32\Drivers directory
USBEHCI.SYS – 3/20/2002.

USBPORT.SYS – 8/17/2001.
USBHUB.SYS – 8/17/2001.

41

6.Go on executing the manual installation as below:
6-1 Disable W indows File Protection (WFP)

−From Start button/run/Regedit.

Software\Microsoft\Windows NT\
CurrentVersion\Winlogon\SFCDisable = 1

6-2 Copy all USB files from CD to HDD.

−Copy all test drivers to %windir%\driver cache\i386

−Copy all test drivers to

You need to copy file to this directory first. Oterwise,
Windows XP will replace file from this directory to
system32\drivers.

−Copy all test drivers to

%windir%\system32\drivers.

6-3 Check USB driver version again.

USBEHCI.SYS – 3/20/2002.
USBPORT.SYS – 3/20/2001.
USBHUB.SYS – 3/20/2001.

6-4 Enable Windows File Protection (WFP)

− Start button/run/Regedit.

− Set HKEY_LOCAL_MACHINE\

Software\Microsoft\Windows NT\
CurrentV ersion\W inlogon\SFCDisable = 0

• While installing the USB2.0 driver under WinME operating

system, a green question mark pops out. Please rest
assured it is normal.

• Under the Window operating system, the BIOS Setup

Utility doesn’t support the “USB Function For Dos Enable”
feature.

• You can’t use the USB Keyboard Chicony KU-8933.

42
