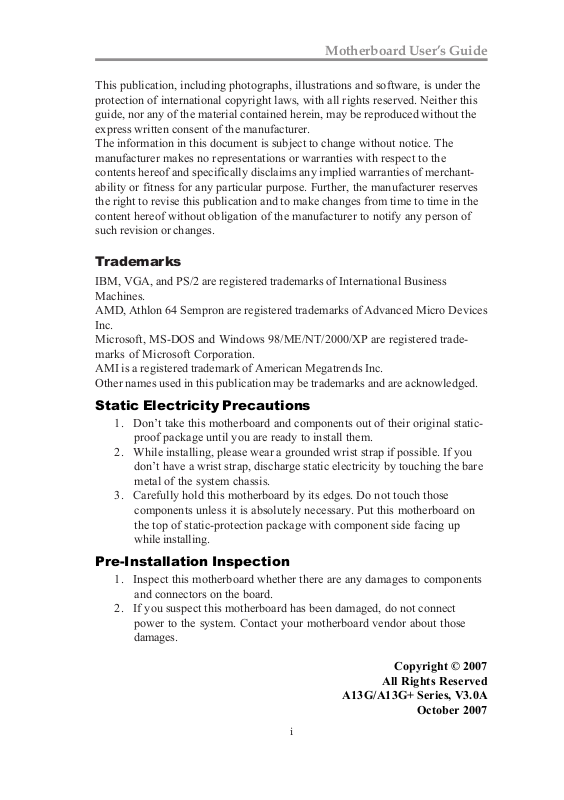

Page 1
Motherboard User’s Guide
This publication, including photographs, illustrations and software, is under the
protection of international copyright laws, with all rights reserved. Neither this
guide, nor any of the material contained herein, may be reproduced without the
express written consent of the manufacturer.
The information in this document is subject to change without notice. The
manufacturer makes no representations or warranties with respect to the
contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. Further, the manufacturer reserves
the right to revise this publication and to make changes from time to time in the
content hereof without obligation of the manufacturer to notify any person of
such revision or changes.
Trademarks
IBM, VGA, and PS/2 are registered trademarks of International Business
Machines.
AMD, Athlon 64 Sempron are registered trademarks of Advanced Micro Devices
Inc.
Microsoft, MS-DOS and Windows 98/ME/NT/2000/XP are registered trademarks of Microsoft Corporation.
AMI is a registered trademark of American Megatrends Inc.
Other names used in this publication may be trademarks and are acknowledged.
Static Electricity Precautions
1. Don’t take this motherboard and components out of their original staticproof package until you are ready to install them.
2. While installing, please wear a grounded wrist strap if possible. If you
don’t have a wrist strap, discharge static electricity by touching the bare
metal of the system chassis.
3. Carefully hold this motherboard by its edges. Do not touch those
components unless it is absolutely necessary. Put this motherboard on
the top of static-protection package with component side facing up
while installing.
Pre-Installation Inspection
1. Inspect this motherboard whether there are any damages to components
and connectors on the board.
2. If you suspect this motherboard has been damaged, do not connect
power to the system. Contact your motherboard vendor about those
damages.
Copyright © 2007
All Rights Reserved
A13G/A13G+ Series, V3.0A
October 2007
i
Page 2
Motherboard User’s Guide
Table of Contents
Trademark ............................................................................................................i
Chapter 1: Introduction ..................................................................................... 1
Key Features .................................................................................................................... 1
Package Contents ........................................................................................................... 4
Chapter 2: Motherboard Installation .............................................................. 5
Motherboard Components ............................................................................................ 6

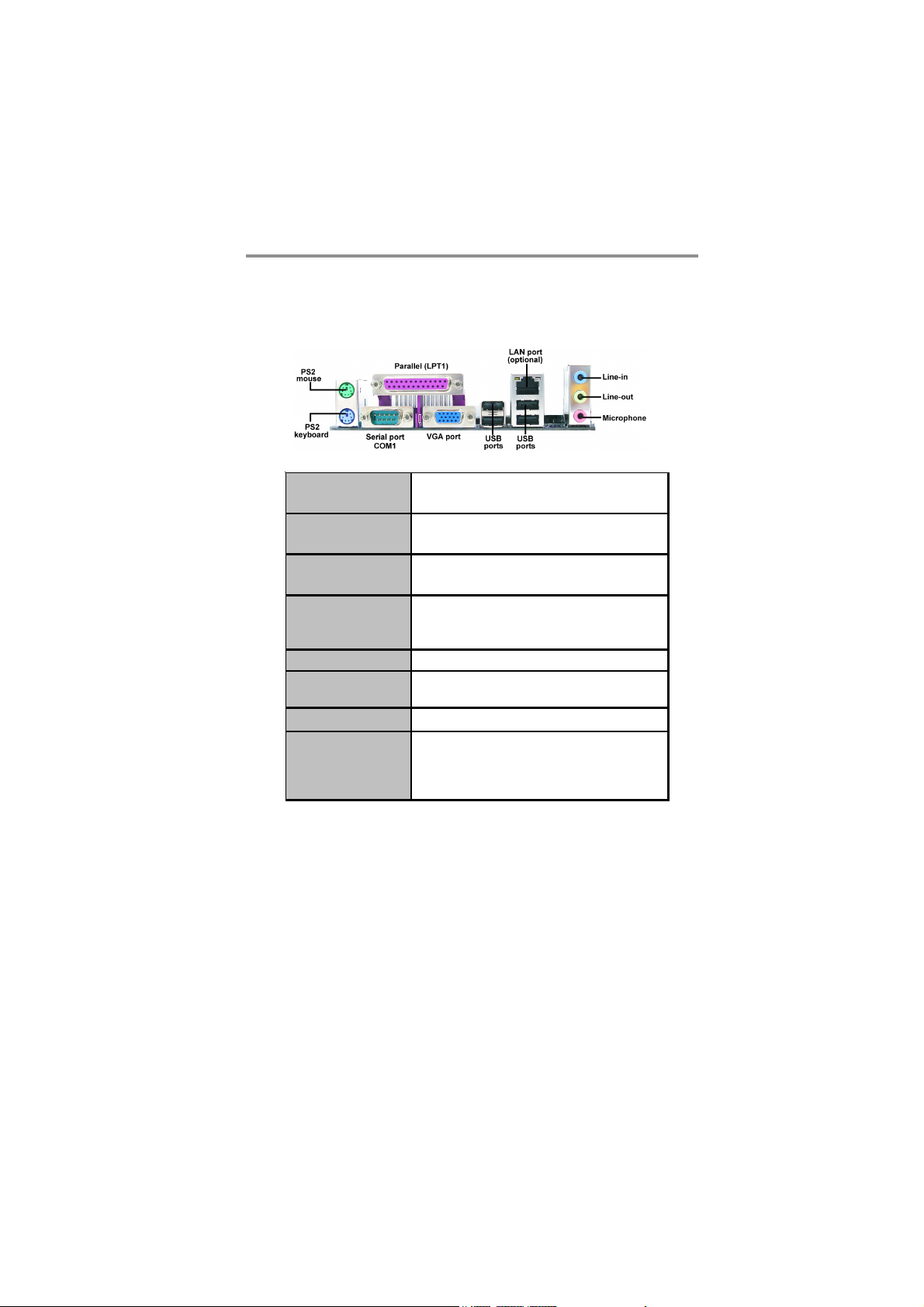

I/O Ports .......................................................................................................................... 7

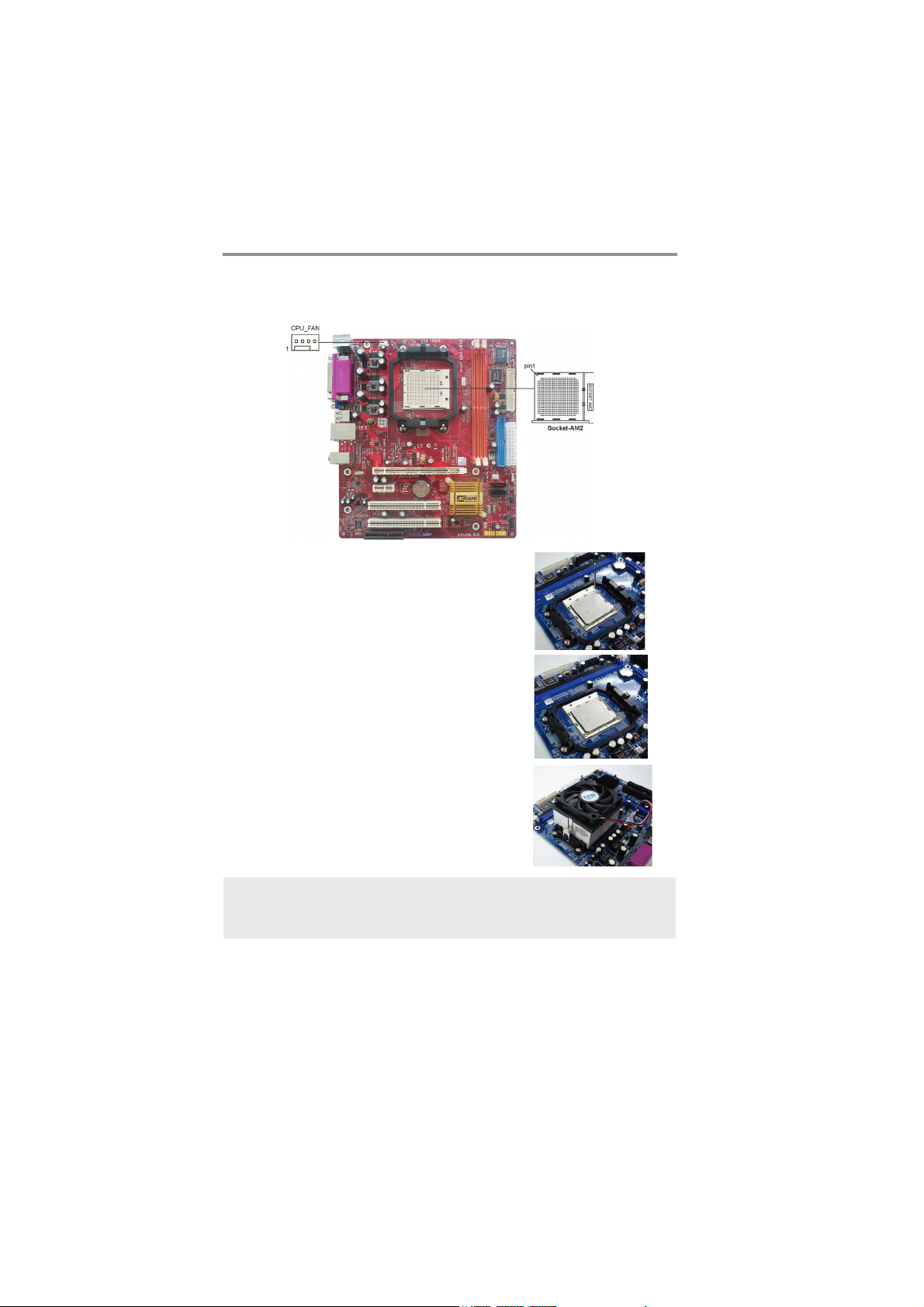

Installing the Processor ................................................................................................. 7

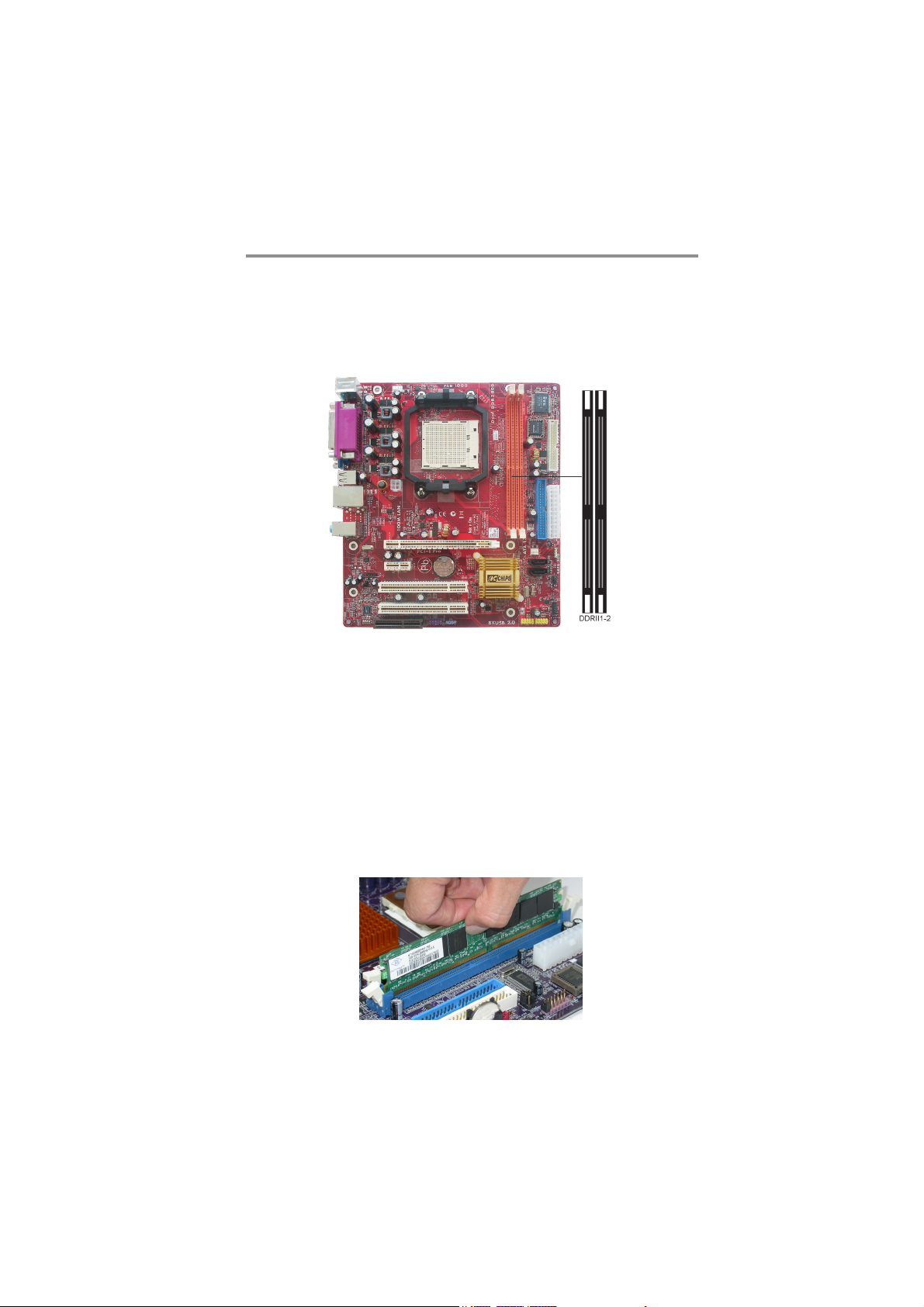

Installing Memory Modules .......................................................................................... 8
Jumper Settings ............................................................................................................ 1 0
Install the Motherboard ............................................................................................... 11

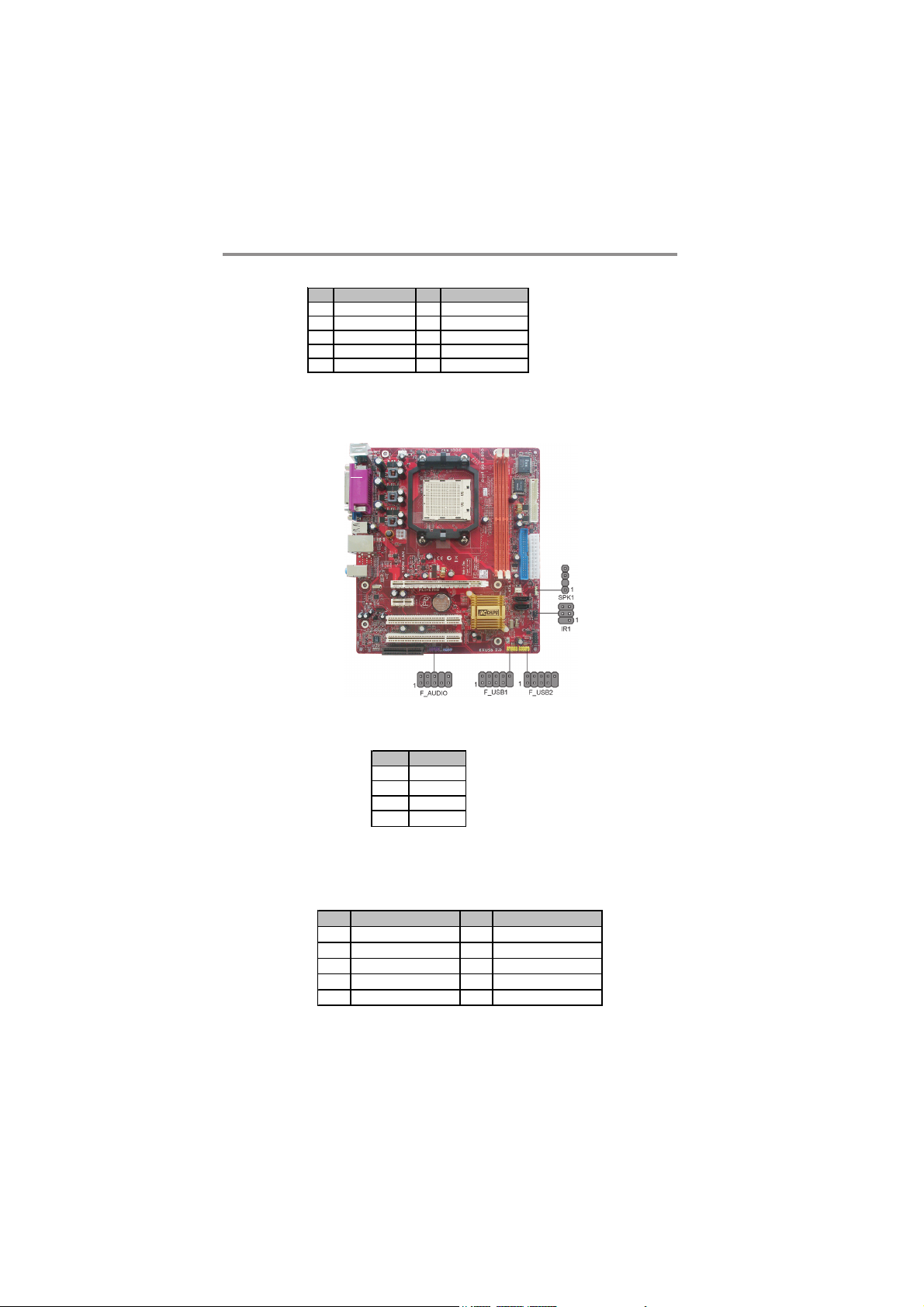

Connecting Optional Devices .....................................................................................1 2
Install Other Devices .................................................................................................... 14
Expansion Slots ............................................................................................................ 1 6
Chapter 3: BIOS Setup Utility ....................................................................... 20
Introduction .................................................................................................................. 2 0
Running the Setup Utility ................................................... …………………………...20
Standard CMOS Setup Page ....................................................................................... 2 1
Advanced BIOS Features Page .................................................................................. 22
Advanced Chipset Features Page ............................................................................... 27
Integrated Peripherals Page..............................................................................30
Power Management Setup Page ................................................................................3 4
PnP/PCI Configurations Page .................................................................................... 3 6
PC Health Status Page ................................................................................................3 7
Load Fail-Safe Defaults ..............................................................................................3 9
Load Optimized Defaults ............................................................................................. 3 9
Set Supervisor/User Password .....................................................................................3 9
Save & Exit setup .........................................................................................................4 0
Exit without saving ....................................................................................................... 40
Chapter 4: Software & Applications .............................................................. 41
Introduction .................................................................................................................. 4 1

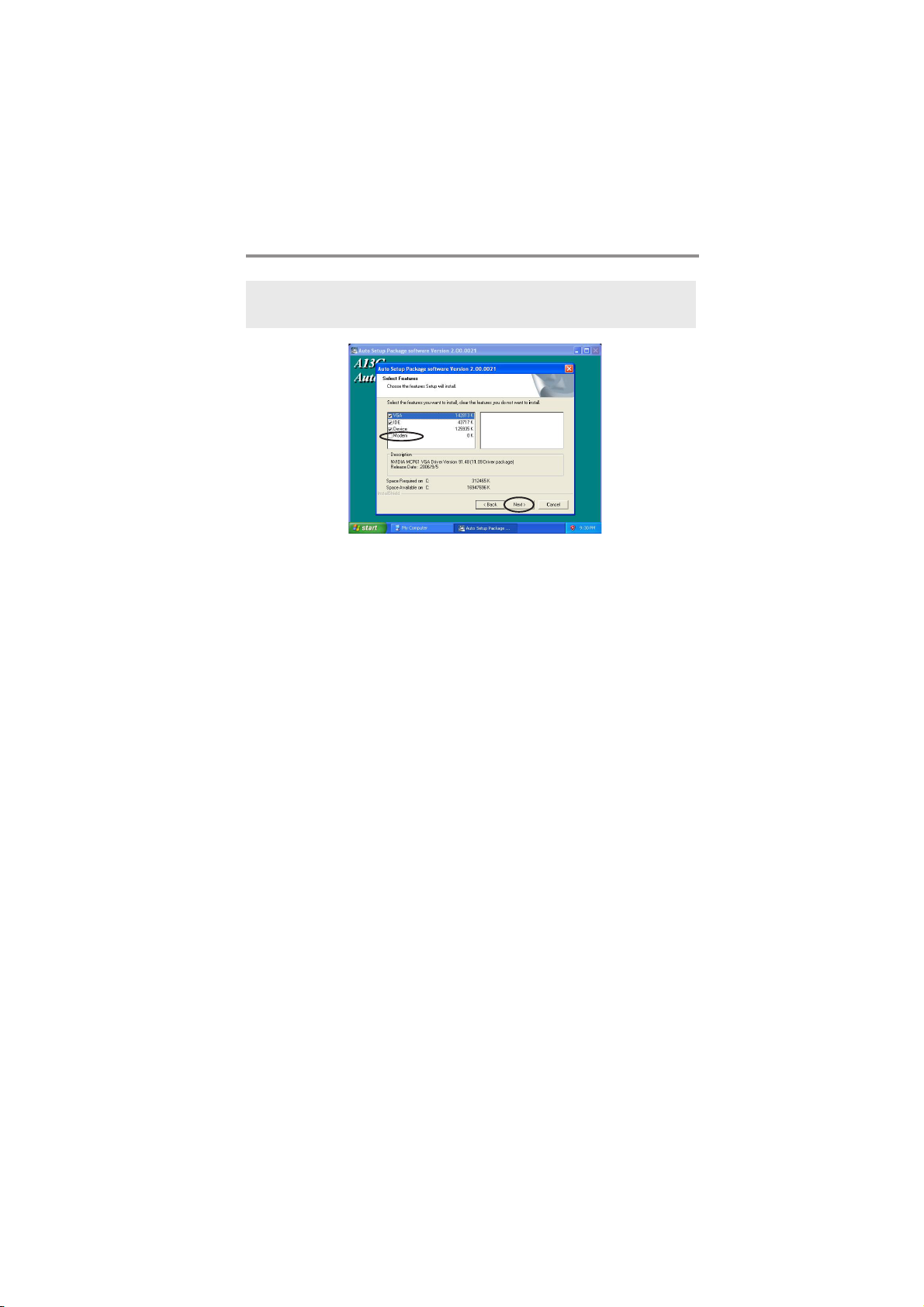

Installing Support Software ........................................................................................4 1

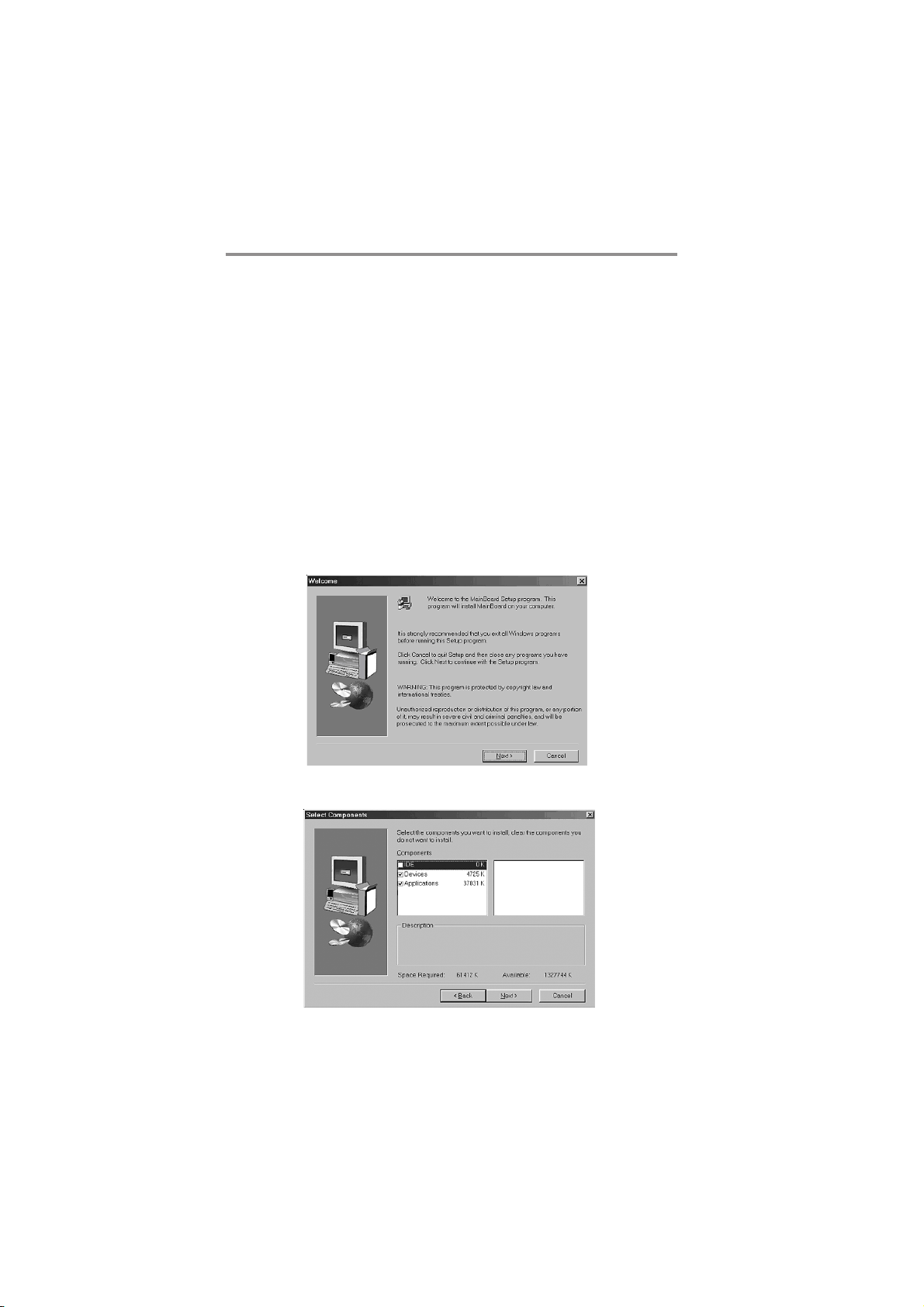

Bundled Software Installation ....................................................................................4 3
ii
Page 3
Motherboard User’s Guide
Notice:

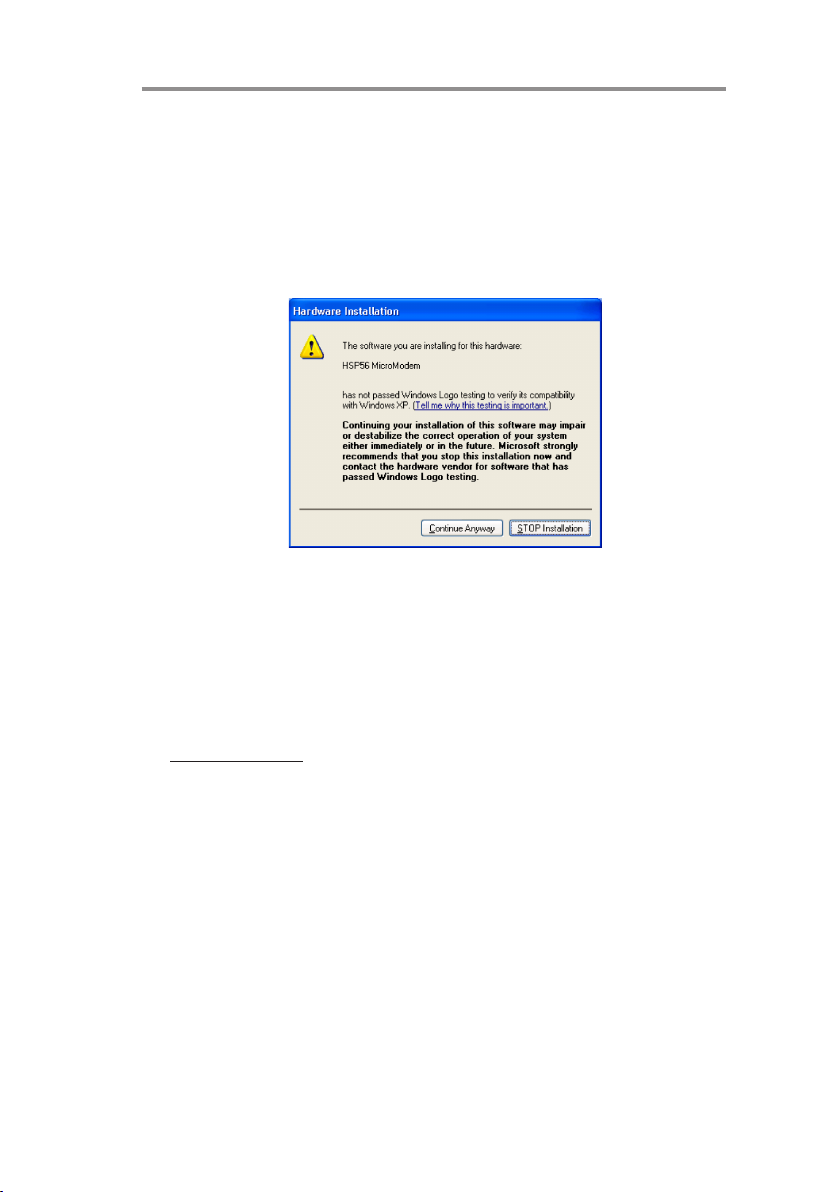

1. Owing to Microsoft’s certifying schedule is various to every supplier, we
might have some drivers not certified yet by Microsoft. Therefore, it
might happen under Windows XP that a dialogue box (shown as below)
pops out warning you this software has not passed Windows Logo
testing to verify its compatibility with Windows XP. Please rest assured
that our RD department has already tested and verified these drivers.
Just click the “Continue Anyway” button and go ahead the installation.
2. USB 2.0 Driver Limitations:
2-1. The USB 2.0 driver only supports Windows XP and Windows 2000.
2-2. If you connect a USB 2.0 hub to the root hub, plugging USB devices
into this hub, the system might not successfully execute certain USB
devices’ connection because it could not recognize these devices.
Currently, we are working on such limitations’ solution. As soon as the
olution is done, the updated USB drive will be released to our website:
www.pcchips.com for your downloading.
iii
Page 4
Motherboard User’s Guide
Chapter 1 Introduction
This motherboard has a Socket AM2 supporting the newest and advanced AM2
AMD Athlon 64 FX/Athlon 64 X2 Dual-Core/Athlon 64/Sempron CPUs with
HyperTransport Technology processors, Front-Side Bus (FSB) speeds up to
1000 MHz.
This motherboard is based on MCP61 Value/MCP61 Standard media and com-
munications processor that supports the Serial ATA interface for high-perfor-
mance and mainstream desktop PCs, and the built-in USB 2.0 providing higher
bandwidth. It implements Universal Serial Bus Specification Revision 2.0.
It supports 6-channel High Definition Audio Codec and provides one IDE Ultra
DMA 133/100/66/33 channel. It has two 32-bit PCI slots, one PCI Express Pro
slot and one PCI Express x1 slot, and supports the onboard
TX Network interface (optional). In addition, this motherboard has a full set of I/
O ports including two PS/2 ports for mouse and keyboard, one serial port, one
parallel port, one LAN port (optional), one VGA port, four back-panel USB2.0
ports, and three audio jacks for microphone, line-in and line-out. Onboard USB
header(s) can provide extra ports by connecting the Extended USB Module to the
motherboard.
This motherboard is a micro-ATX size motherboard and has power connectors for
an ATX power supply.
Key Features
The key features of this motherboard include:
10Base-T/100Base-
Socket-AM2 Processor Support
• Supports AM2 AMD Athlon 64 FX/Athlon 64 X2 Dual-Core/Athlon
64/Sempron processors
• Supports Front-Side Bus 1000 MHz
Note: HyperTransport Technology is a point-to-point link between two
devices, it enables integrated circuits to exchange information at much
higher speeds than currently available interconnect technologies.
Chipset
There is a single chip “NVIDIA nForce® MCP61 Value/MCP Standard media ”, in
this chipset in accordance with an innovative and scalable architecture with proven
reliability and performance.
• HyperTransport link up to 1.0 GHz to the CPU
• DirectX 9.0c Shader Model 3.0 graphics processing unit
• Two separate PCI Express controllers with 2 total lanes configured as
two x1 PCI Express lanes (MCP61 Value)/Three separate PCI Express
controllers with ten total lanes configured as one x8 and two x1 PCI
1
Page 5
Motherboard User’s Guide
Express lanes (MCP61 Standard)
• Support 2 SATA2 3.0 Gb/s devices
• IEEE 802.3 NVIDIA MAC for 100BASE-T/10BASE-T Fast Ethernet/
Ethernet
• USB 2.0 EHCI , supporting up to eight ports
• Fast ATA-133 IDE Controller
Memory Support
• Two 240-pin DIMM slots for DDR2 SDRAM memory modules
• Supports DDR2 800/667/533/400 memory bus
• Maximum installed memory is 16 GB

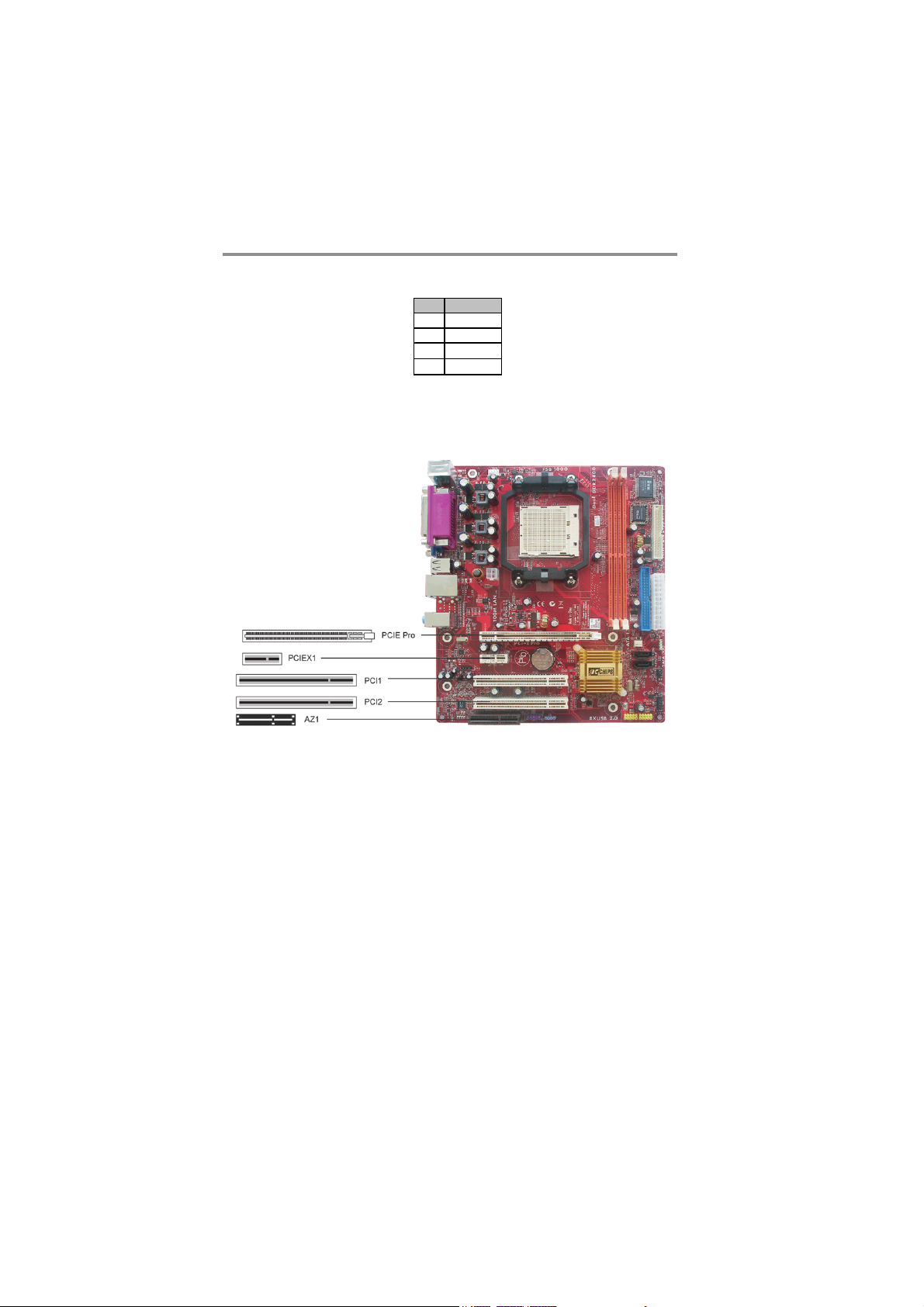

Expansion Slots
• One Azalia CNR slot
• One PCI Express Pro slot
• One PCI Express x1 slot
• Two 32-bit PCI slots
Onboard IDE channels
• One IDE Connector
• Supports PIO (Programmable Input/Output) and DMA (Direct Memory
Access) modes
• Supports IDE Ultra DMA bus mastering with transfer rates of 133/100/
66/33 MB/sec
Serial ATA
• Two Serial ATA Connectors
• Compliant with the SATA2 with 3 Gb/s per direction per channel
Audio Codec
• Three Stereo DACs support 16/20/24-bit PCM format for 5.1 channel
audio solution
• ADCs support 44.1k/48k/96k sample rate
• Meets Microsoft WHQL/WLP 3.0x audio requirements
• Direct Sound 3D
TM
compatible
Onboard I/O Ports
• Two PS/2 ports for mouse and keyboard
• One serial port
• One parallel port
• Four back-panel USB2.0 ports
• One VGA port
• One LAN port (optional)
• Audio jacks for microphone, line-in and line-out
2
Page 6
Chapter 1: Introduction
Fast Ethernet LAN (optional)
• Built-in 10Base-T/100Base-Tx IEEE 802.3u fast Ethernet transceiver
• Low-power mode
• MII and 7-wire serial interface
USB 2.0
• Compliant with Universal Serial Bus Specification Revision 2.0
• Compliant with Universal Host Controller Interface Specification
Revision 1.1
BIOS Firmware
This motherboard uses Award BIOS that enables users to configure many
system features including the following:
• Power management
• Wake-up alarms
• CPU parameters and memory timing
• CPU and memory timing
The firmware can also be used to set parameters for different processor clock
speeds.
Dimensions
• Micro-ATX form factor of 244 x 214 mm
Note: Hardware specifications and software items are subject to change
without notification.
3
Page 7
Motherboard User’s Guide
Package Contents
Your motherboard package ships with the following items:
The motherboard
The User’s Guide
One diskette drive ribbon cable (optional)
One IDE drive ribbon cable
The Software support CD
Optional Accessories
You can purchase the following optional accessories for this motherboard.
The Extended USB module
The Serial ATA cable
The Serial ATA power cable
Note: You can purchase your own optional accessories from the third party,
but please contact your local vendor on any issues of the specification
and compatibility.
4
Page 8
Chapter 2: Motherboard Installation
Chapter 2 Motherboard Installation
To install this motherboard in a system, please follow these instructions in this
chapter:
Identify the motherboard components
Install a CPU
Install one or more system memory modules
Make sure all jumpers and switches are set correctly
Install this motherboard in a system chassis (case)
Connect any extension brackets or cables to headers/connectors on the
motherboard
Install peripheral devices and make the appropriate connections to
headers/connectors on the motherboard
Note:
1 Before installing this motherboard, make sure jumper CLR_CMOS is
under Normal setting. See this chapter for information about locating
CLR_CMOS and the setting options.
2 Never connect power to the system during installation; otherwise, it
may damage the motherboard.
5
Page 9
Motherboard User’s Guide

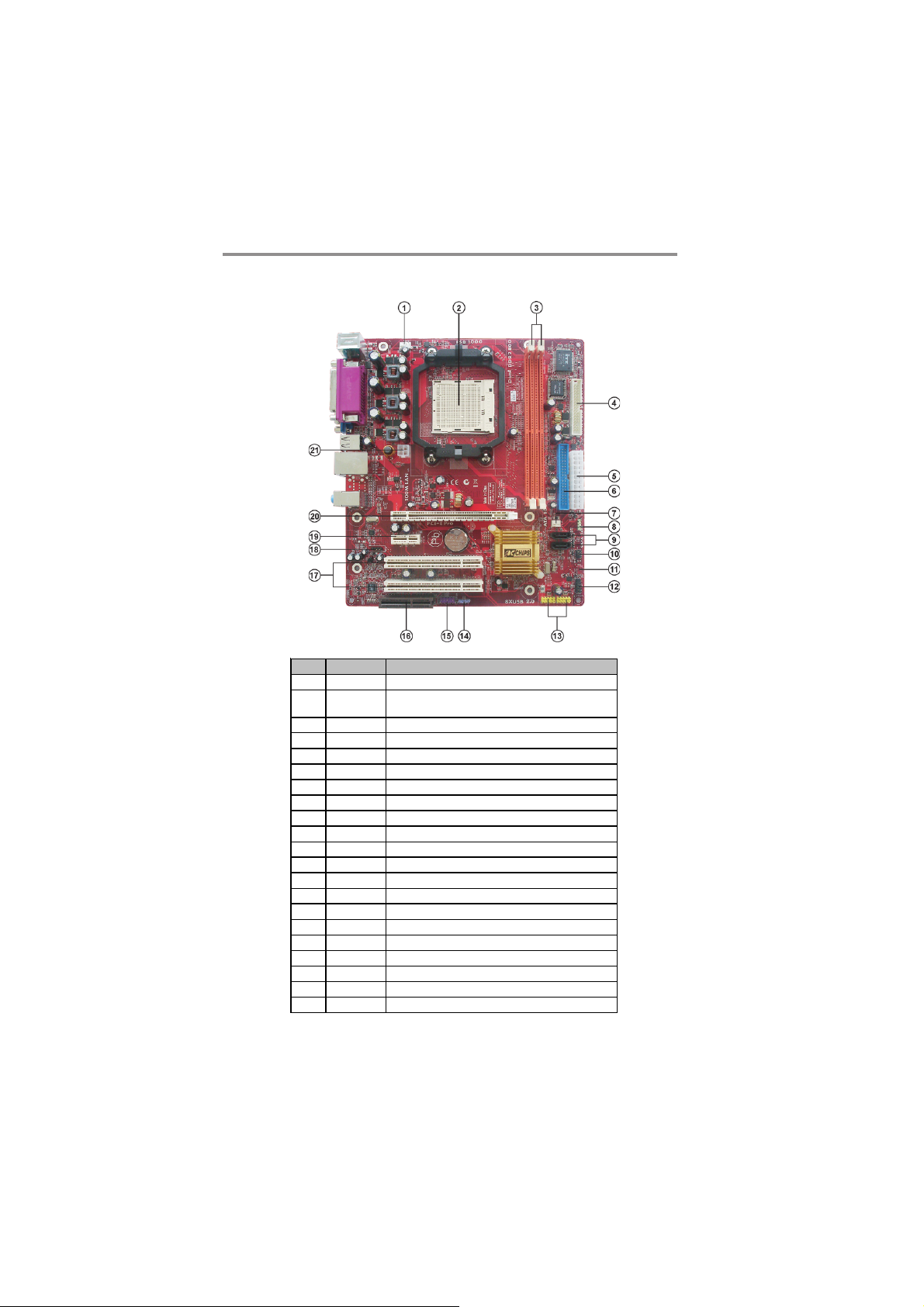

Motherboard Components
IT EM L ABEL CO M PONENT S
1 CPU_FAN CPU cooling fan connector
2 CPU Socket Socket AM2 for AMD At hlon 64 FX/At hlon 64 X2
3DDRΙΙ1~2 240-pin DDR2 SDRAM slots
4 FDD Flopp y Disk Drive con nect or

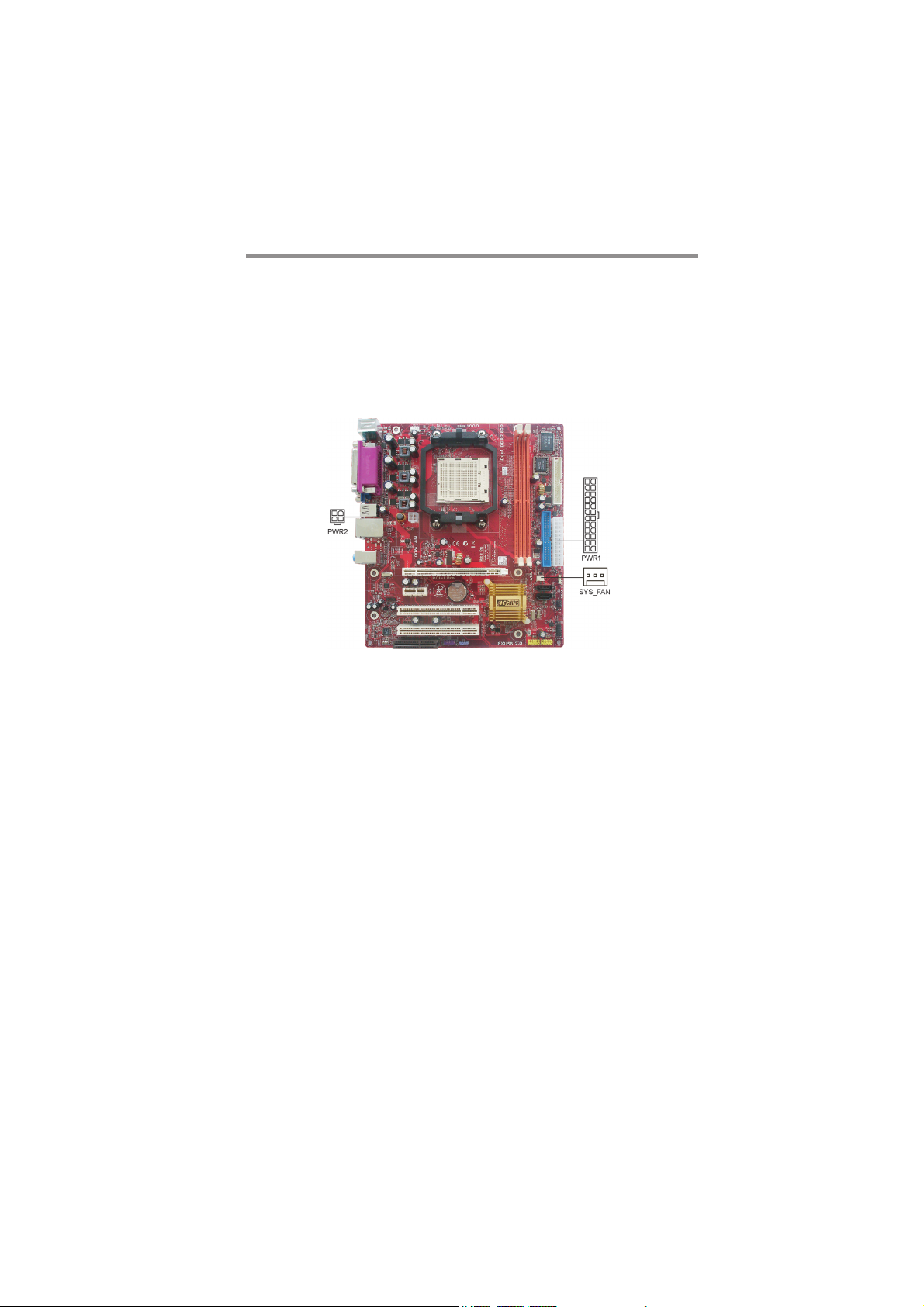

5 P WR1 Standard 24-P in ATX Power connector
6 IDE1 Primary IDE connecto r
7 SYS_FAN System cooling fan connector
8 SPK1 Speaker Header
9 SATA1~2 Serial ATA con necto rs
10 IR1 Infrared Header
11 CLR_CM OS Clea r CM OS jump er
12 PANEL1 Front Panel switch/LED header
13 F_USB1~2 Front Panel USB headers
14 SPDIFO1 SPDIF out header
15 F_AUDIO Front Panel Audio header
16 AZ1 Azalia CNR slot(optional)
17 PCI1~2 32-bit PCI slots
18 CD_IN Analog Audio Input header
19 PCIEX1 PCI Express x1 slot
20 PCIEX16 PCI Express Pro slot for graphics interface
21 PWR2 Standard 4-Pin ATX Power connector
Dual-Core/Athlon 64 /Sempron processor
6
Page 10
Chapter 2: Motherboard Installation
I/O Ports
The illustration below shows a side view of the built-in I/O ports on the
motherboard.
PS/2 M o use
PS/2 Ke yb oard
Paralle l Port (LPT1)
Se rial Por t (COM 1)
VGA Port
LAN Port (optional)
USB P o r ts
Audio Ports
Use the upper PS/2 port to c onnect a PS/2 pointing
device.
Use the low er PS/2 port to connec t a PS/2
keyboard.
Use the Parallel port to c onnect pr inters or other
parallel communications devices .
Use the COM port to c onnect s erial devices such
as mice or fax/modems. COM1 is identified by the
system as COM1.
Use the VGA port to c onnect the VGA devices.
Connect an RJ-45 jack to the LAN port to c onnect
your computer to the Netw ork.
Use the USB ports to connect USB devices.
Use these three audio jacks to c onnect audio
devices . The first jack is f or stereo Line-In signal,
the second jack for ster eo Line-Out signal, and the
third jack f or Microphone.
Installing the Processor
This motherboard has an AM2 processor socket. When choosing a processor,
consider the performance requirements of the system. Performance is based on
the processor design, the clock speed and system bus frequency of the processor, and the quantity of internal cache memory and external cache memory.
7
Page 11
Motherboard User’s Guide
CPU Installation Procedure
Follow these instructions to install the CPU:
1 Unhook the locking lever of the CPU
socket. Pull the locking lever away from the
socket and raising it to the upright position.
2 Match the pin1 corner marked as the
beveled edge on the CPU with the pin1
corner on the socket. Insert the CPU into
the socket. Do not use force.
3 Push the locking lever down and hook it
under the latch on the edge of socket.
4 Apply thermal grease to the top of the
CPU.
5 Install the cooling fan/heatsink unit onto the
CPU, and secure them all onto the socket
base.
6 Plug the CPU fan power cable into the CPU
fan connector (CPU_FAN) on the
motherboard.
Note: To achieve better airflow rates and heat dissipation, we suggest that you
use a high quality fan with 4800 rpm at least. CPU fan and heatsink
installation procedures may vary with the type of CPU fan/heatsink supplied.
The form and size of fan/heatsink may also vary.
Installing Memory Modules
This motherboard accommodates two 240-pin DIMM sockets (Dual Inline Memory
Module) for unbuffered DDR2 800/667/533/400 memory modules (Double Data
Rate SDRAM), and maximum 16 GB installed memory.
8
Page 12
Chapter 2: Motherboard Installation
Over its predecessor, DDR2-SDRAM offers greater bandwidth and density in a
smaller package along with a reduction in power consumption. In addition, DDR2SDRAM offers new features and functions that enable a higher clock rate and data
rate operations of 800/667/533/400 MHz. DDR2 transfers 64 bits of data twice
every clock cycle.
Memory Module Installation Procedure
These modules can be installed with up to 16 GB system memory. Refer to the
following to install the memory module.
1. Push down the latches on both sides of the DIMM socket.
2. Align the memory module with the socket. There is a notch on the
DIMM socket that you can install the DIMM module in the correct
direction. Match the cutout on the DIMM module with the notch on the
DIMM socket.
3. Install the DIMM module into the socket and press it firmly down until
it is seated correctly. The socket latches are levered upwards and latch
on to the edges of the DIMM.
4. Install any remaining DIMM modules.
9
Page 13
Motherboard User’s Guide
Note for dual-channel DDR:
1. You CAN NOT use only one DIMM2 for it might cause the system shutdown.
2. You need to use DIMM1 and DIMM2 with the same size of memory modules.
Jumper Settings
Connecting two pins with a jumper cap is SHORT; removing a jumper cap from
these pins, OPEN.
CLR_CMOS: Clear CMOS Jumper
Use this jumper to clear the contents of the CMOS memory. You may need to
clear the CMOS memory if the settings in the Setup Utility are incorrect and
prevent your motherboard from operating. To clear the CMOS memory,
disconnect all the power cables from the motherboard and then move the jumper
cap into the CLEAR setting for a few seconds.
Function Jumper
Normal Short Pins 1-2
Clear CMOS Short Pins 2-3
Note: To avoid the system unstability after clearing CMOS, we recommend
users to enter the main BIOS setting page to “Load Optimal De-faults”
and then “Save Changes and Exit”.
10
Page 14
Chapter 2: Motherboard Installation
Install The Motherboard
Install the motherboard in a system chassis (case). The board is an micro-ATX
size motherboard. You can install this motherboard in an ATX case. Make sure
your case has an I/O cover plate matching the ports on this motherboard.
Install the motherboard in a case. Follow the case manufacturer’s instructions to
use the hardware and internal mounting points on the chassis.
Connect the power connector from the power supply to the PWR1 connector on
the motherboard. PWR2 is a +12V connecotr for CPU Vcore power.
If there is a cooling fan installed in the system chassis, connect the system
cooling fan cable to the SYS_FAN fan power connector on the motherboard.
Connect the case switches and indicator LEDs to the PANEL1 header.
11
Page 15
Motherboard User’s Guide
Pin Signal Pin Signal
1 HD_L ED_P ( + ) 2 FP PWR/ S L P( + )
3 HD_LED_N(-) 4 FP PWR/SLP(-)
5 RESET _S W_ N( - ) 6 PO WER_ SW _P( +)
7 RESET _S W_ P( +) 8 POW ER_ SW_ N( - )
9 RSV D_DNU 10 KEY
Connecting Optional Devices
Refer to the following for information on connecting the motherboard’s optional
devices:
SPK1: Speaker Header
Connect the cable from the PC speaker to the SPK1 header on the motherboard.
Pin Sign al
1SPKR
2NC
3GND
4+5V
F_AUDIO: Front Panel Audio Header
This header allows the user to install auxiliary front-oriented microphone and
line-out ports for easier access.
Pin Signal Pin Signal
1PORT 1L 2GND
3PORT 1R 4PRESENCE#
5 PORT 2R 6 Sens e1_return
7 S ENCE_ SEND 8 K EY
9 PORT 2L 10 Sense2_return
12
Page 16
Chapter 2: Motherboard Installation
F_USB1/2: Front Panel USB Headers
The motherboard has USB ports installed on the rear edge I/O port array.
Additionally, some computer cases have USB ports at the front of the case. If
you have this kind of case, use auxiliary USB headers F_USB1/2 to connect the
front-mounted ports to the motherboard.
Here is a list of USB pin assignments.
Pin Signal Pin Signal
1 V ERG_FP_USBPWR0 2 V ERG_FP_USBPWR0
3 USB_FP_P0(-) 4 USB_FP_P1(-)
5 USB_FP_P0(+) 6 USB_FP_P1(+)
7 GROUND 8 GROUND
9 KEY 10 USB_FP_OC0
1. Locate the F_USB1/2 header on the motherboard.
2. Plug the bracket cable onto the F_USB1/2 header.
3. Remove a slot cover from one of the expansion slots on the system
chassis. Install an extension bracket in the opening. Secure the extension
bracket to the chassis with a screw.
IR1: Infrared Port Header
The infrared port allows the wireless exchange of information between your
computer and similarly equipped devices such as printers, laptops, Personal
Digital Assistants (PDAs), and other computers.
Pin Signal Pin Sign al
1NC2KEY
3+5V 4GND
5 IRTX 6 IRRX
1. Locate the infrared port-IR1 header on the motherboard.
2. If you are adding an infrared port, connect the ribbon cable from the port
to the SIR1 header and then secure the port to an appropriate place in
your system chassis.
13
Page 17
Motherboard User’s Guide
Install Other Devices
Install and connect any other devices in the system following the steps below.
Floppy Disk Drive
The motherboard ships with a floppy disk drive cable that can support one or
two drives. Drives can be 3.5" or 5.25" wide, with capacities of 360K, 720K,
1.2MB, 1.44MB, or 2.88MB.
Install your drives and connect power from the system power supply. Use the
cable provided to connect the drives to the floppy disk drive connector FDD.

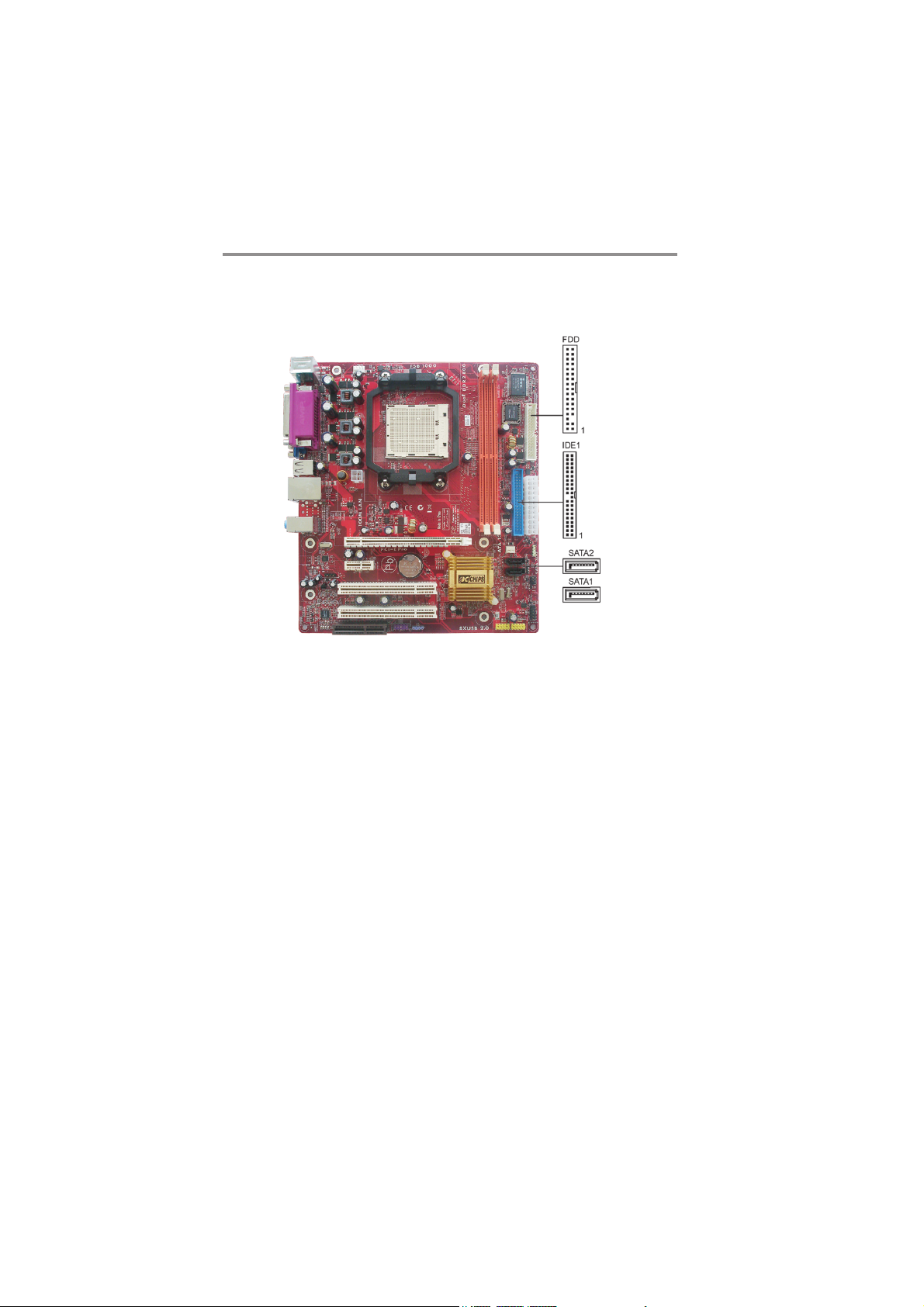

IDE Devices
IDE devices include hard disk drives, high-density diskette drives, and CD-ROM
or DVD-ROM drives, among others.
The mainboard ships with an IDE cable that can support one or two IDE
devices. If you connect two devices to a single cable, you must configure one of
the drives as Master and one of the drives as Slave. The documentation of the
IDE device will tell you how to configure the device as a Master or Slave device.
The Master device connects to the end of the cable.
Install the device(s) and connect power from the system power supply. Use the
cable provided to connect the device(s) to the Primary IDE channel connector
IDE1 on the motherboard.
14
Page 18
Chapter 2: Motherboard Installation
Serial ATA Devices
The Serial ATA (Advanced Technology Attachment) is the standard interface
for the IDE hard drives, which is designed to overcome the design limitations
while enabling the storage interface to scale with the growing media rate demands
of PC platforms. It provides you a faster transfer rate of 3.0 Gb/s. If you have
installed a Serial ATA hard drive, you can connect the Serial ATA cables to the
Serial ATA hard drive or the connector on the motherboard.
On the motherboard, locate the Serial ATA connectors SATA1-2, which support
new Serial ATA devices for the highest data transfer rates, simpler disk drive
cabling and easier PC assembly.
It eliminates limitations of the current Parallel ATA interface, but maintains
register compatibility and software compatibility with Parallel ATA.
Analog Audio Input Header
If you have installed a CD-ROM drive or DVD-ROM drive, you can connect
the drive audio cable to the onboard sound system.
When you first start up your system, the BIOS should automatically detect
your CD-ROM/DVD drive. If it doesn’t, enter the Setup Utility and configure

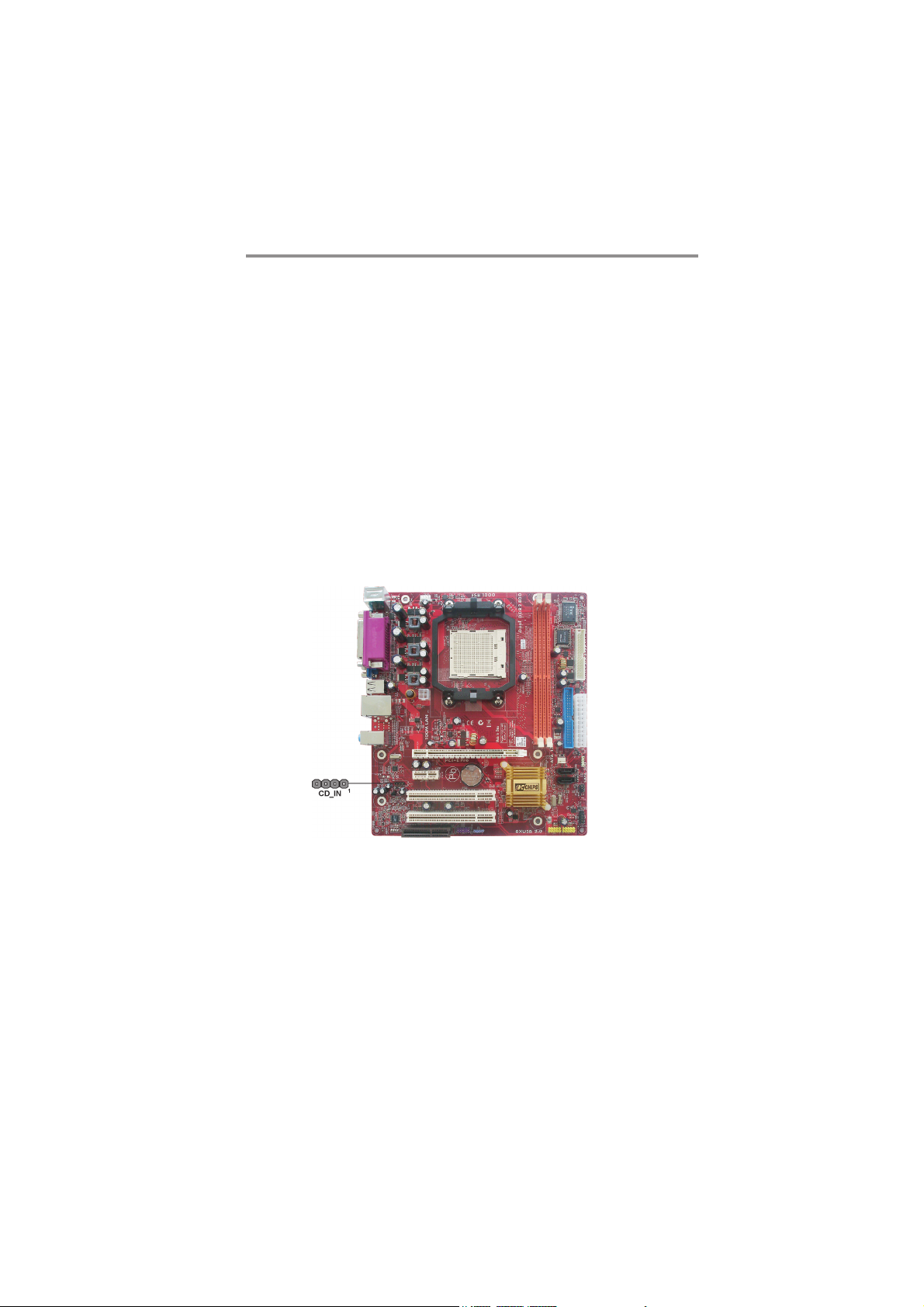

the CD-ROM/DVD drive that you have installed. On the motherboard, locate
the 4-pin header CD_IN.
15
Page 19
Motherboard User’s Guide
Here is a list of CD_IN pin assignments.
Pin Signal
1 CD IN L
2GND
3GND
4 CD IN R
Expansion Slots
This motherboard has one PCI Ex16, one PCI Ex1 slots, two 32-bit PCI slots
and one optional CNR slot.
16
Page 20
Chapter 2: Motherboard Installation
Follow the steps below to install an PCI Express Pro/ PCI Express x1/Azalia
CNR/PCI expansion card.
1. Locate the PCI Express Pro, PCI Express x1,Azalia CNR and PCI slots
on the mainboard.
2. Remove the blanking plate of the slot from the system chassis.
3. Install the edge connector of the expansion card into the slot. Ensure the
edge connector is correctly seated in the slot.
4. Secure the metal bracket of the card to the system chassis with a screw.
PCI Express Pro Slot(Support x1 VGA Interface)
The one PCI Express Pro slot is fully compliant to the PCI Express Base Specification
revision 1.0a as well.
PCI Express x1 Slot
The one PCI Express x1 slot is fully compliant to the PCI Express Base Specification
revision 1.0a as well.
Azalia CNR Slot (Optional)
You can install the CNR (Communications and Networking Riser) cards in this slot,
including Modem functions.
PCI Slots
You can install the 32-bit PCI interface expansion cards in the slots.
17
Page 21
Motherboard User’s Guide
Table A: Supported PCI-E 8X VGA Cards List
VGA Chip BUS
ATI 8X
Model Name
ASUS EAX300LE A334C/TD
ASUS EAX1600XT SILENT/TVD/256M/A
ASUS EAX1300PRO/TD/256M/A
ASUS EAX850XTP/2DHTV/256M/A
ASUS EAX1800XT2DHTV/512M/A
ATI RADEON X850 CrossFire Edition 256M
Colorful ATI X300/TV Out 128M
Colorful X800XL/CH 128MB DDR
Colorful X1300-GD3 /128M/128bit/DDR3
Colorful X1300-GD2 UP 256M/128bit/DDR2
Colorful X1600PRO-GD3/128M/128bit/DDR3
Colourful Radium WindX550-GD2 CT
DATALAND Radeon X300/128Bit/128M
DATALAND X700Pro/DVI/TV/128Bit/256M
ELSA FALCONX X70PRO 256B3
GIGABYTE GV-RX60XT 128V
GIGABYTE X700Pro/DVI+Tv Out 128M
Jetway 600XT 256M
MSI RX800XT-VDT256E
MSI RX1300 TD256E
MSI X800Pro TD256E
MAXSUM MS-X550-G2-128B-DT
MAXSUN X550 128Bit/256M
MAXSUN X1600XT 256M/ 128bit/DDR3
ONDA X550 256MB/128Bit
SAPPHIRE ATI Radeon X700 VPU 128MB
SAPPHIRE ATI Radeon X800 VPU 128MB
SAPPHIRE X1900XT 512M PCI-E
UNIKA FireWindPAC5528 TURBO
18
Page 22
nVidia 8X
Chapter 2: Motherboard Installation
Model NameVGA Chip BUS
ASL Power Stick 6600LE 256M 128Bit GD2
ASUS EN5750/A
ASUS EN7800GTX/2DHTV/OSP/A
ASUS EN5750/TD/P/128M
ASUS EN6600LE/SILENCER/TD/256M/A
ASUS EN6800XT/HTD/256M/V1.00
BD3466 V1.2 GeForce 6600/256M
BD3493 6200TC 128M
Colorful 6600GT/128M
Colorful 7800GT/CH 512MB DDRIII
ECS N6200LE-128TT DDR1 128M
ECS N6200LE-128TY/128M/64bit/DDR2
ECS N6600LE-128DV DDR1 128M
ECS N6600LE-256DY DDR2 256M
ECS N7300LE -256DZ DDR2 256M
ECS N7300LE-128TY DDR2 128M
ELSA PCX935
ELSA GLADIAC 760GT 256B3 2DT
FORSA 7900GT 256MB DDRIII Dual DVI/HDTV
GIGABYTE GV-NX531 28D
GIGABYET GV-NX621 28D
GIGABYTE GV-NX62TC 256 D
GIGABYTE GV-NX66T1 28D
Leadtek Nvidia Quadro FX1300 128MB
MAXSUN 7600GS 256MB/128Bit/DDRII
MSI NX7900GTX-T2D512E
PixelView PV-N72EM2
SPARK 7300LE 128MB DDRII
UNIKA PCX7618GS Pro/128MB/128Bit
UNIKA PCX7858 GTX 512MB/256Bit
UNIKA PCX7958GTX 512MB/256Bit
WINFAST PX6600TD/128MB
WINFAST PX6600TD/256MB
WINFAST PX6800GS
WINFAST PX6800Ultra
WINFAST PX350XT
XFX GF 5300/128M
XFX 6800LE GF 6800LE 128M DDR
YESTON G7 30 0GS 12 8MB/GD 2
ZENO GeForce 7600GS-128M DDR3
19
Page 23
Motherboard User’s Guide
Chapter 3 BIOS Setup Utility
Introduction
The BIOS Setup Utility records settings and information of your computer, such
as date and time, the type of hardware installed, and various configuration
settings. Your computer applies the information to initialize all the components
when booting up and basic functions of coordination between system components.
If the Setup Utility configuration is incorrect, it may cause the system to
malfunction. It can even stop your computer booting properly. If it happens,
you can use the clear CMOS jumper to clear the CMOS memory which has
stored the configuration information; or you can hold down the Page Up key
while rebooting your computer. Holding down the Page Up key also clears the
setup information.
You can run the setup utility and manually change the configuration. You might
need to do this to configure some hardware installed in or connected to the
motherboard, such as the CPU, system memory, disk drives, etc.
Running the Setup Utility
Every time you start your computer, a message appears on the screen before the
operating system loading that prompts you to “Hit <DEL>if you want to run
SETUP”. Whenever you see this message, press the Delete key, and the Main
menu page of the Setup Utility appears on your monitor.
Phonex-AwardBIOS CMOS Setup Utility
Standard CMOS Setup
Advanced BIOS Features
Advanced Chipset Features
Integrated Peripherals
Power Management Setup
PnP/PCI Configurations
PC Health Status
: Move Enter: Select +/-/: Value F10: Save Esc: Exit
F1: General Help F5: Previous Values F6: Fial-Safe Defaults F7: Optimized Defaults
Time, Date, Hard Disk Type...
Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Set User Password
Save & Exit Setup
Exit without Saving
You can use cursor arrow keys to highlight anyone of options on the main menu
page. Press Enter to select the highlighted option. Press the Escape key to leave
the setup utility. Press +/-/ to modify the selected field’s values.
20
Page 24
Chapter 3: BIOS Setup Utility
Some options on the main menu page lead to tables of items with installed values
that you can use cursor arrow keys to highlight one item, and press PgUp and
PgDn keys to cycle through alternative values of that item. The other options on
the main menu page lead to dialog boxes requiring your answer OK or Cancel by
selecting the [OK] or [Cancel] key.
If you have already changed the setup utility, press F10 to save those changes
and exit the utility. Press F1 to display a screen describing all key functions.
Press F9 to install the setup utility with a set of default values.
Standard CMOS Setup Page
This page displays a table of items defining basic information about your
system.
Phonex-AwardBIOS CMOS Setup Utility
Standard CMOS Setup
Date (mm:dd:yy) Wed, Jan. 1 2006
Time (hh:mm:ss) 0 : 15 : 47
IDE Channel 0 Master [PIONEER DVD-ROM DVD]
f
IDE Channel 0 Slave [None]
f
IDE Channel 2 Master [WDC WD1600JS-22MHB0]
f
IDE Channel 3 Master [None]
f
IDE Channel 4 Master [None]
f
IDE Channel 5 Master [None]
f
Drive A [1.44M, 3.5 in.]
Video [EGA/VGA]
Halt On Setting [All, But Keyboard]
Base Memory 640K
Extended memory 523264K
Total Memory 524288K
: Move Enter: Select +/-/: Value F10: Save Esc: Exit
F1: General Help F5: Previous Values F6: Fial-Safe Defaults F7: Optimized Defaults
Help Item
Menu Level
Change the day, month, year and century
f
System Date & System Time
These items set up system date and time.
IDE Channel 0/2/3/4/5 Master & IDE Channel 0 Salve
Use these items to configure devices connected to the Primary/Secondary IDE
channels. To configure an IDE hard disk drive, choose Auto. If the Auto setting
fails to find a hard disk drive, set it to User, and then fill in the hard disk
characteristics (Size, Cyls, etc.) manually. If you have a CD-ROM drive, select
the setting CDROM. If you have an ATAPI device with removable media (e.g. a
ZIP drive or an LS-120), select Floptical.
Drive A
This item define the characteristics of any diskette drive attached to the system.
You can connect one or two diskette drives.
21
Page 25
Motherboard User’s Guide
Video
This item defines the video mode of the system. The motherboard has a built-in
VGA graphics system; you must leave this item at the default value.
Halt On Setting
This item defines the operation of the system POST (Power On Self Test)
routine. You can use this item to select which types of errors in the POST are
sufficient to halt the system.
Base Memory, Extended Memory, and Total Memory
These items are automatically detected by the system at start up time. These
are display-only fields. You cannot make changes to these fields.
Advanced BIOS Features Page
This page sets up more advanced information about your system. Handle this
page with caution. Any changes can affect the operation of your computer.
Phonex-AwardBIOS CMOS Setup Utility
Advanced BIOS Features
f
CPU Feature [Press Enter]
Removable Device Priority [Press Enter]
f
Hard Disk Boot Priority [Press Enter]
f
CD-ROM Boot Priority [Press Enter]
f
Network Boot Priority [Press Enter]
f
CPU Internal Cache [Enabled]
External Cache [Enabled]
Quick Power On Self Test [Enabled]
First Boot Device [Floppy]
Second Boot Device [Hard Disk]
Third Boot Device [CDROM]
Boot Other Device [Enabled]
Boot Up Floppy Seek [Disabled]
Boot Up NumLock Status [On]
Gate A20 Option [Fast]
Typematic Rate Setting [Disabled]
Typematic Rate (Chars/Sec) 6
X
Typematic Delay (Msec) 250
X
Security Option [Setup]
: Move Enter: Select +/-/: Value F10: Save Esc: Exit
F1: General Help F5: Previous Values F6: Fial-Safe Defaults F7: Optimized Defaults
Help Item
Allows BIOS to skip certain
tests while booting. This will
decrease the time needed to
boot the system.
f
CPU Feature (Press Enter)
Scroll to this item and press <Enter> to view the following screen:
22
Page 26
Chapter 3: BIOS Setup Utility
Phonex-AwardBIOS CMOS Setup Utility
CPU Feature
NPT Fid Control [Auto]
NPT Vid Control [Auto]
: Move Enter: Select +/-/: Value F10: Save Esc: Exit
F1: General Help F5: Previous Values F6: Fial-Safe Defaults F7: Optimized Defaults
NPT Fid Control (Auto)
This item allows users to adjust the CPU frequency; the range will be varied
accoeding to the different CPUs. We stronly recommend you leave this item at its
default value.
NPT Vid Control (Auto)
This item allows users to adjust the CPU voltage.We stronly recommend you leave
this item at its default value.
Press <Esc> to return to Advanced BIOS Features page.
Removable Device Priority (Press Enter)
f
Scroll to this item and press <Enter> to view the following screen:
Help Item
Use < > or < > to select a device,
m
then press <+> to move it up, or <> to move it down the list. Press
to exit this menu.
n
Phonex-AwardBIOS CMOS Setup Utility
Removable Device Priority
1. Floppy Disks
: Move Enter: Select +/-/: Value F10: Save Esc: Exit
F1: General Help F5: Previous Values F6: Fial-Safe Defaults F7: Optimized Defaults
Press <Esc> to return to Advanced BIOS Features page.
23
Help Item
Use < > or < > to select a device,
m
n
then press <+> to move it up, or <> to move it down the list. Press
to exit this menu.
Page 27
Motherboard User’s Guide
f Hard Disk Boot Priority (Press Enter)
Scroll to this item and press <Enter> to view the following screen:
Phonex-AwardBIOS CMOS Setup Utility
Hard Disk Boot Priority
1. Ch2 M : WDCWD1600JS-22MHB0
2. Bootable Add-in Cards
: Move Enter: Select +/-/: Value F10: Save Esc: Exit
F1: General Help F5: Previous Values F6: Fial-Safe Defaults F7: Optimized Defaults
Press <Esc> to return to Advanced BIOS Features page.
f CD-ROM Boot Priority (Press Enter)
Scroll to this item and press <Enter> to view the following screen:
Phonex-AwardBIOS CMOS Setup Utility
CD-ROM Boot Priority
1. Ch0 M : PIONEER DVD-ROM DVD-126P
Help Item
Use < > or < > to select a device,
m
then press <+> to move it up, or <> to move it down the list. Press
to exit this menu.
Help Item
Use < > or < > to select a device,
m
n
then press <+> to move it up, or <> to move it down the list. Press
to exit this menu.
n
: Move Enter: Select +/-/: Value F10: Save Esc: Exit
F1: General Help F5: Previous Values F6: Fial-Safe Defaults F7: Optimized Defaults
Press <Esc> to return to Advanced BIOS Features page.
f CD-ROM Boot Priority (Press Enter)
Scroll to this item and press <Enter> to view the following screen:
Phonex-AwardBIOS CMOS Setup Utility
Network Boot Priority
1. Network 0: NVIDIA Boot Agent 227.0524
: Move Enter: Select +/-/: Value F10: Save Esc: Exit
F1: General Help F5: Previous Values F6: Fial-Safe Defaults F7: Optimized Defaults
Help Item
Use < > or < > to select a device,
m
n
then press <+> to move it up, or <> to move it down the list. Press
to exit this menu.
Press <Esc> to return to Advanced BIOS Features page.
24
Page 28
Chapter 3: BIOS Setup Utility
CPU Internal Cache (Enabled)
All processors that can be installed in this motherboard use internal level 1 (L1)
cache memory to improve performance. Leave this item at the default value for
better performance.
External Cache (Enabled)
Most processors that can be installed in this system use external level 2 (L2) cache
memory to improve performance. Leave this item at the default value for better
performance.
Quick Power On Self Test (Enabled)
Enable this item to shorten the power on testing (POST) and have your system
start up faster. You might like to enable this item after you are confident that
your system hardware is operating smoothly.
First/Second/Third Boot Device (Floppy/Hard Disk/CDROM)
Use these three items to select the priority and order of the devices that your
system searches for an operating system at start-up time.
Boot Other Device (Enabled)
When enabled, the system searches all other possible locations for an operating
system if it fails to find one in the devices specified under the First, Second, and
Third boot devices.
Boot Up Floppy Seek (Disabled)
If this item is enabled, it checks the size of the floppy disk drives at start-up time.
You don’t need to enable this item unless you have a legacy diskette drive with
360K capacity.
25
Page 29
Motherboard User’s Guide
Boot Up NumLock Status (On)
This item defines if the keyboard Num Lock key is active when your system is
started.
Gate A20 Option (Fast)
This item defines how the system handles legacy software that was written for an
earlier generation of processors. Leave this item at the default value.
Typematic Rate Setting (Disabled)
If this item is enabled, you can use the following two items to set the typematic rate
and the typematic delay settings for your keyboard.
• Typematic Rate (Chars/Sec): Use this item to define how many characters per second are generated by a held-down key.
• Typematic Delay (Msec): Use this item to define how many milliseconds must elapse before a held-down key begins generating repeat characters.
Security Option (Setup)
If you have installed password protection, this item defines if the password is
required at system start up, or if it is only required when a user tries to enter the
Setup Utility.
APIC Mode (Enabled)
This item allows you to enable or disable the APIC (Advanced Programmable
Interrupt Controller) mode. APIC provides symmetric multi-processing (SMP)
for systems, allowing support for up to 60 processors.
MPS Version Control For OS (1.4)
This item displays MPS version control for OS.
OS Select For DRAM > 64 MB (Non-OS2)
This item is only required if you have installed more than 64 MB of memory and
you are running the OS/2 operating system. Otherwise, leave this item at the
default.
Small Logo (EPA) Show (Disabled)
Enables or disables the display of the EPA logo during boot.
Summary Screen Show ( Enabled)
This item determines whether the summary system information will be showed
during boot-up.
ATA 66/100 IDE Cable Msg. (Enabled)
This item enables or disables the display of the ATA 66/100 Cable MSG.
BIOS Write Protect (Disabled)
This item enables or disables the BIOS write protect.
BIOS Bootblock Protect (Disabled)
This item enables or disables the BIOS bootblock protect.
26
Page 30
Chapter 3: BIOS Setup Utility
Advanced Chipset Features Page
These items define critical timing parameters of the motherboard. You should leave
the items on this page at their default values unless you are very familiar with the
technical specifications of your system hardware. If you change the values incorrectly,
you may introduce fatal errors or recurring instability into your system.
Phonex-AwardBIOS CMOS Setup Utility
Advanced Chipset Features
Onboard GPU [Enable If No Ext GPU]
Frame Buffer Size [64M]
GPU Bank Flip [Disabled]
PMU [Disabled]
CPU Frequency [200.0]
K8<->NB HT Speed [Auto]
K8<->NB HT Width [Auto]
DRAM Configuration [Press Enter]
f
PCIE Spread Spectrum [Disabled]
SATA Spread Spectrum [Disabled]
HT Spread Spectrum [Disabled]
PCIE Clock [100Mhz]
SSE/SSE2 Instructions [Enabled]
TPM Control [No Change]
System BIOS Cacheable [Disabled]
: Move Enter: Select +/-/: Value F10: Save Esc: Exit
F1: General Help F5: Previous Values F6: Fial-Safe Defaults F7: Optimized Defaults
Onboard GPU
This item enables the onboard GPU function. Disable this item if you are going to
install an external GPU.
Frame Buffer Size
This item enables users to specify the Onboard VGA share memory size.
GPU Bank Flip
This item enables or disables GPU Bank flip.
PMU (Disabled)
This item enables or disables ACPI power management unit function.
Help Item
Menu Level
f
lk
K8 NB HT Speed (Auto)
This item enables users to set the speed of HyperTransport between the CPU and
Northbridge.
K8 <-> NB HT Width (Auto )
This item enables users to set the HyperTransport width between CPU and the
Northbridge .
27
Page 31
Motherboard User’s Guide
Phonex-AwardBIOS CMOS Setup Utility
DRAM Configuration
Onboard GPU [Enable If No Ext GPU]
Frame Buffer Size [64M]
GPU Bank Flip [Disabled]
PMU [Disabled]
CPU Frequency [200.0]
K8<->NB HT Speed [Auto]
K8<->NB HT Width [Auto]
DRAM Configuration [Press Enter]
f
PCIE Spread Spectrum [Disabled]
SATA Spread Spectrum [Disabled]
HT Spread Spectrum [Disabled]
PCIE Clock [100Mhz]
SSE/SSE2 Instructions [Enabled]
TPM Control [No Change]
System BIOS Cacheable [Disabled]
: Move Enter: Select +/-/: Value F10: Save Esc: Exit
F1: General Help F5: Previous Values F6: Fial-Safe Defaults F7: Optimized Defaults
Timing Mode
This item allows you to set up the DRAM timing nanually or automatically.
Memory Clock value or Limi
When DDR2 Timing Setting by is set to Manual, use this item to set the DRAM
frequency.
DQS Training Control
DQS training is used to place the DQS strobe in the center of the data eye.
CKE base power down mode
When in power down mode, if all pages of the DRAMs associated with a CKE
pin are closed, then these parts are placed in power down mode. Only precharge power down mode is supported, not active power down mode.
CKE based powerdown
The DRAM channel is placed in power down when all chip selects associated
with the channel are idle.
Memclock tri-stating
This item enables or disables memclock tri-stating function.
Memory Hole Remapping
This item allows users to enable or disable memory hole remapping.
Auto Optimize Bottom IO
This item is used to set the Auto Optimized Bottom IO.
Bottom of [31:24] IO space
This item is used to select the memory that will be remapped higher than 00E0.
Bottom of UMA DRAM [31:24]
This item is used to set the bottom of UMA DRAM [31:24]. We strongly
recommend that you leave this item at its default setting.
28
Help Item
Menu Level
f
Page 32
Chapter 3: BIOS Setup Utility
PCIE Spread Spectrum
This item, when enabled, can significantly reduce the EMI (Electromagnetic Interference) generated by the PCIE.
SATA Spread Spectrum
This item, when enabled, can significantly reduce the EMI (Electromagnetic Interference) generated by the SATA.
HT Spread Spectrum
This item, when enabled, can significantly reduce the EMI (Electromagnetic Interference) generated by the HT.
PCIE Clock
This item is used to set the frequency of PCIE clock.
SSE/SSE2 Instructions
This item enables or disables SSE/SSE2 instructions.
TPM Control
This item is used to set TPM control. Leave this item at its default setting.
System BIOS Cacheable
This item enables users to enable or disable the system BIOS cache.
Press <Esc> to return to the main menu setting page.
29
Page 33
Motherboard User’s Guide
Integrated Peripherals Page
These options display items that define the operation of peripheral
components on the system’s input/output ports.
Phonex-AwardBIOS CMOS Setup Utility
Integrated Peripherals
IDE Function Setup [Press Enter]
f
RAID Config [Press Enter]
f
Onboard Device Setup [Press Enter]
f
Super IO Device [Press Enter]
f
: Move Enter: Select +/-/: Value F10: Save Esc: Exit
F1: General Help F5: Previous Values F6: Fial-Safe Defaults F7: Optimized Defaults
X
IDE Function Setup (Press Enter)
Help Item
Menu Level
f
Scroll to this item and press <Enter> to view the following screen:
Phonex-AwardBIOS CMOS Setup Utility
OnChip IDE Channel 0 [Enabled]
Primary Master PIO [Auto]
Primary Slave PIO [Auto]
Primary Maste UDMA [Auto]
Primary Slave UDMA [Auto]
Secondary Master UDMA [Auto]
Secondary Slave UDMA [Auto]
IDE DMA transfer access [Enabled]
Serial-ATA Controller [All Enabled]
IDE Prefetch Mode [Enabled]
IDE HDD Block Mode [Enabled]
: Move Enter: Select +/-/: Value F10: Save Esc: Exit
F1: General Help F5: Previous Values F6: Fial-Safe Defaults F7: Optimized Defaults
IDE Function Setup
Help Item
Menu Level
f
On-Chip IDE Channel 0
Use these items to enable or disable the PCI IDE channels that are integrated on the
motherboard.
Primary Master/Slave PIO
Each IDE channel supports a master device and a slave device. These four items let
you assign the kind of PIO (Programmed Input/Output) was used by the IDE
devices. Choose Auto to let the system auto detect which PIO mode is best, or
select a PIO mode from 0-4.
30
Page 34
Chapter 3: BIOS Setup Utility
Primary/Secondary Master/Slave UDMA
Each IDE channel supports a master device and a slave device. This motherboard
supports UltraDMA technology, which provides faster access to IDE devices.
If you install a device that supports UltraDMA, change the appropriate item on
this list to Auto. You may have to install the UltraDMA driver supplied with this
motherboard in order to use an UltraDMA device.
IDE DMA transfer access
This item allows you to enable the transfer access of the IDE DMA then burst onto
the PCI bus and nonburstable transactions do not.
Serial-ATA Controller
This item allows you to enable or disable the onboard SATA controller.
IDE Prefetch Mode
The onboard IDE drive interface supports IDE prefetching, for faster drive access.
If you install a primary and secondary add-in IDE interface, set this field to Disabled if the interface does not support prefetching.
IDE HDD Block Mode
Block mode is also called block transfer, multiple commands, or multiple sector
read/write. If your IDE hard drive supports block mode, select Enabled for automatic detection of the optimal number of block read/write per sector the drive can
support.
Press <Esc> to return to the Integrated Peripherals page.
X
RAID Configuration (Press Enter)
Scroll to this item and press <Enter> to view the following screen:
Phonex-AwardBIOS CMOS Setup Utility
RAID Configuration
RAID Enable [Disabled]
x
SATA 1 Primary RAID Disabled
x
SATA 1 Secondary RAID Disabled
x
SATA 2 Primary RAID Disabled
x
SATA 2 Secondary RAID Disabled
Help Item
Menu Level
ff
: Move Enter: Select +/-/: Value F10: Save Esc: Exit
F1: General Help F5: Previous Values F6: Fial-Safe Defaults F7: Optimized Defaults
RAID Enable
This item allows you to enable or disable the onboard RAID function of RAID
function of RAID supporting devices.
• SATA 1/2 Primary/Secondary RAID (Disabled): These four items
enable or disable the SATA 1/2 Primary/Secondary RAID.
Press <Esc> to return to the Integrated Peripherals page.
31
Page 35
Motherboard User’s Guide
X
Onboard Device Setup (Press Enter)
Scroll to this item and press <Enter> to view the following screen:
Phonex-AwardBIOS CMOS Setup Utility
Onboard Device Setup
Onchip USB [V1.1 + V2.0]
USB Memory Type [SHADOW]
USB Keyboard Support [Enabled]
USB Mouse Support [Enabled]
HD Audio [Auto]
Onboard Lan [Enabled]
Onboard Lan Boot ROM [Enabled]
MAC Media Interface [Pin Strap]
x
Machine MAC(NV) Adress [Press Enter]
: Move Enter: Select +/-/: Value F10: Save Esc: Exit
F1: General Help F5: Previous Values F6: Fial-Safe Defaults F7: Optimized Defaults
F5:Previous Values F6: Fail-Safe Defaults F7:Optimized Defaults
Onchip USB
This item enables users to enable or disable the onchip USB function, setting it to
be USB1.1 or USB2.0 compatible.
USB Memory Type
This item indicates the USB memory type.
USB Keyboard Support
Enable this item if you plan to use a keyboard connected through the USB port in
a legacy operating system (such as DOS) that does not support Plug and Play.
USB Mouse Support
Enable this item if you plan to use a mouse connected through the USB port in a
legacy operating system (such as DOS) that does not support Plug and Play.
HD Audio
Enables and disables the onboard audio chip. Disable this item if you are going to
install a PCI audio add-in card.
Onboard Lan
Enables or disables the Onboard Lan.
Onboard Lan Boot ROM
This item enables or disables LAN Boot ROM.
MAC Media Interface
This item is used to select MAC Media interface.
Machine MAC(NV) Adress
Enable this field to enter the MAC(NV) address in the field below.
Press <Esc> to return to the Integrated Peripherals page.
Help Item
Menu Level
f
f
32
Page 36
Chapter 3: BIOS Setup Utility
X
SuperIO Device (Press Enter)
Scroll to this item and press <Enter> to view the following screen:
Phonex-AwardBIOS CMOS Setup Utility
SuperIO Device
Onboard FDC Controller [Enabled]
Onboard Serial Port 1 [3F8/IRQ4]
Onboard Serial Port 2 [2F8/IRQ3]
UART Mode Select [Normal]
x
UR2 Duplex Mode Half
Onboard Parallel Port [378/IRQ7]
Parallel Port Mode [ECP+EPP]
x
ECP Mode Use DMA [3]
: Move Enter: Select +/-/: Value F10: Save Esc: Exit
F1: General Help F5: Previous Values F6: Fial-Safe Defaults F7: Optimized Defaults
Onboard FDC Controller
This option enables the onboard floppy disk drive controller.
Onboard Serial Port 1
This option is used to assign the I/O address and interrupt request (IRQ) for
onboard serial port 1/2.
UART Mode Select
This field is available if the Onboard Serial Port 2 field is set to any option but
Disabled. . UART Mode Select enables you to select the infrared communication
protocol-IrDA, ASKIR or SCR.
UR2 Duplex Mode
This field is available when UART Mode is set to either ASKIR or IrDA. This
item enables you to determine the infrared function of the onboard infrared chip.
The options are Full and Half (default). Full-duplex means that you can transmit
and send information simultaneously. Half-duplex is the transmission of data in
both directions, but only one direction at a time.
Onboard Parallel Port
This option is used to assign the I/O address and interrupt request (IRQ) for the
onboard parallel port.
Parallel Port Mode
Enables you to set the data transfer protocol for your parallel port. There are four
options: SPP (Standard Parallel Port), EPP (Enhanced Parallel Port), ECP (Extended Capabilities Port) and ECP+EPP.
SPP allows data output only. Extended Capabilities Port (ECP) and Enhanced
Parallel Port (EPP) are bi-directional modes, allowing both data input and output.
ECP and EPP modes are only supported with EPP- and ECP-aware peripherals.
ECP Mode Use DMA
When the onboard parallel port is set to ECP mode, the parallel port can use DMA
3 or DMA 1.
33
Help Item
Menu Level
f
Page 37
Motherboard User’s Guide
Power Management Setup PagePower Management Setup Page
Power Management Setup Page
Power Management Setup PagePower Management Setup Page
This option lets you control system power management. The system has various
power-saving modes including powering down the hard disk, turning off the
video, suspending to RAM, and software power down that allows the system to
be automatically resumed by certain events.
Phonex-AwardBIOS CMOS Setup Utility
Power Management Setup
ACPI Function [Enabled]
ACPI Suspend Type [S1&S3]
Power Management [User Define]
Video Off Method [DPMS Support]
HDD Power Down [Disabled]
Soft-Off by PBTN [Instant-Off]
HPET Support [Enabled]
Resume By PCI-E PME [Enabled]
Resume By PCI PME [Enabled]
Resume By WOM/RING [Disabled]
*Resume By USB (S3) [Disabled]
*Resume By PS2 MS(S3) [Disabled]
*Resume By PS2 KB(S3) [Disabled]
Power On By Button Enabled
X
Hot Key Power ON Ctrl-F1
X
Power-On by Alarm [Disabled]
X Day of Month Alarm 0
X
Time (hh:mm:ss) Alarm 0 : 0 : 0
Power on After Power Fial [Off]
: Move Enter: Select +/-/: Value F10: Save Esc: Exit
F1: General Help F5: Previous Values F6: Fial-Safe Defaults F7: Optimized Defaults
ACPI Function
Use this item to enable or disable ACPI function.
ACPI Suspend Type
Use this item to define how your system suspends. In the default, S3 (STR),
the suspend mode is a suspend to RAM, i.e., the system shuts down with the
exception of a refresh current to the system memory.
Power Management
This item is used to enable or disable users manually define power management.
Video Off Method
This item defines how the video is powered down to save power. This item is set
to DPMS (Display Power Management Software) by default.
HDD Power Down
The IDE hard drive will spin down if it is not accessed within a specified length
of time.
Soft-Off by PBTN
Under ACPI (Advanced Configuration and Power management Interface) you can
create a software power down. In a software power down, the system can be
resumed by Wake Up Alarms. This item lets you install a software power down
that is controlled by the power button on your system. If the item is set to InstantOff, then the power button causes a software power down. If the item is set to
Help Item
Menu Level
f
34
Page 38
Chapter 3: BIOS Setup Utility
Delay 4 Sec. then you have to hold the power button down for four seconds to
cause a software power down.
HPET Support
This item enables or disables HPET support.
Resume by PCI-E PME
This system can be turned off with a software command. If you enable this
item, the system can automatically resume if there is an incoming call on the
PCI Express card. You must use an ATX power supply inorder to use this
feature. Use this item to do wake-up action if inserting the PCI Express card.
Resume by PCI PME
This system can be turned off with a software command. If you enable this
item, the system can automatically resume if there is an incoming call on the
PCI Modem card or PCI LAN card. You must use an ATX power supply
inorder to use this feature. Use this item to do wake-up action if inserting the
PCI card.
Resume by WOM/Ring
An input signal on the serial Ring indicator (RI) line (in other words, and
incoming call on the modem)/LAN awakens the system from a soft off state.
*Resume By USB (S3) (optional)
This item allows users to enable or disable the USB device Walk-up from S3
mode.
*Resume By PS2 MS/KB (S3) (optional)
These items enable or disable you to allow mouse or keyboard activity to awaken
the system from power saving mode.
Power On By Button
This item enables or diables you to use only the power button to power on the
system.
Hot Key Power ON
Use this item to allocate the hot key to wake up the system.
Power-On by Alarm
This item allows users to enable or disable the alarm to wake up the system. If set
to Enabled, users can specify the specific day of month and the exact time to
power up the system.
Power On After Power Fail
This item enables your computer to automatically restart or return to its last
operating status.
Press <Esc> to return to the main menu setting page.
35
Page 39
Motherboard User’s Guide
PnP/PCI Configurations Page
These options configure how PnP (Plug and Play) and PCI expansion cards
operate in your system. Both the the ISA and PCI buses on the motherboard use
system IRQs (Interrup ReQuests) and DMAs (Direct Memory Access). You
must set up the IRQ and DMA assignments correctly through the PnP/PCI
Configurations Setup utility for the motherboard to work properly. Selecting
PnP/PCI Configurations on the main program screen displays this menu:
Phonex-AwardBIOS CMOS Setup Utility
PnP/PCI Configurations
Init Display First [PCI Slot]
PNP OS Installed No
IRQ Resources [Press Enter]
f
PCI/VGA Palette Snoop [Disabled]
Assign IRQ For VGA Enabled
Assign IRQ For USB [Enabled]
** PCI Express relative items**
Maximum Payload Size [4096]
: Move Enter: Select +/-/: Value F10: Save Esc: Exit
F1: General Help F5: Previous Values F6: Fial-Safe Defaults F7: Optimized Defaults
Init Display First
This item allows you to choose the primary display card.
IRQ Resources
In the IRQ Resources submenu, if you assign an IRQ to Legacy ISA, then that
Interrupt Request Line is reserved for a legacy ISA expansion card. Press <Esc>
to close the IRQ Resources submenu.
PCI/VGA Palette Snoop
This item is designed to overcome problems that can be caused by some nonstandard
VGA cards. This board includes a built-in VGA system that does not require
palette snooping so you must leave this item disabled.
Assign IRQ For VGA/USB
Names the interrupt request(IRQ) line assigned to the VGA/USB on your system.
Activity of the selected IRQ always awakens the system.
Maximum Payload Size
This item specifies the maximum payload size for the PCI Express function.
Help Item
Menu Level
Default is Disabled. Select Enabled to reset
Extended System Configuration Data ESCD)
when you exit Setup if you have installed a
new add-on and the system reconfiguration
has caused such a serious conflict that the
OS cannot boot
f
36
Page 40
Chapter 3: BIOS Setup Utility
PC Health Status Page
On motherboards that support hardware monitoring, this item lets you monitor the
parameters for critical voltages, temperatures and fan speeds.
Phonex-AwardBIOS CMOS Setup Utility
PC Health Status
Smart Fan Function [Press Enter]
Shutdown Temperature [Disabled]
Warning Temperature [Disabled]
CPU Tcontrol 24°C
System Temperature 29°C
CPU Fan Speed 2518 RPM
System Fan Speed 0 RPM
CPU Vcore 1.36V
VDIMM 1.79V
: Move Enter: Select +/-/: Value F10: Save Esc: Exit
F1: General Help F5: Previous Values F6: Fial-Safe Defaults F7: Optimized Defaults
f Smart Fan Function (Press Enter)
Scroll to this item and press <Enter> to view the following screen:
Phoenix-Award WorkstationBIOS CMOS Setup Utility
Smart Fan Function
Help Item
Menu Level
f
CPU Smart Fan Function [Disabled]
CPU FAN Low PWM 0
X
CPU FAN Temp of Low PWM 0
X
CPU FAN Slope(PWM/oC) 0
X
CPU SMART FAN Delta T 0
X
: Move Enter: Select +/-/PU/PD:Value F10:Save ESC:Exit F1: General Help
mnlk
F5:Previous Values F6: Fail-Safe Defaults F7:Optimized Defaults
Ite m Help
Menu Level
ff
CPU/SYS Smart Fan Function
These items enable you to define the CPU/System temperatur by smartly adjusting
the CPU/System fan. When it is set at certain temperature, the CPU/SYS Fan
PWM value will change accordingly.
Press <Esc> to return to the main menu setting page.
37
Page 41
Motherboard User’s Guide
Shutdown Temperature
Enables you to set the maximum temperature the system can reach before powering
down.
Warning Temperature
Enables you to set the warning temperature before powering down.
System Component Characteristics
These fields provide you with information about the systems current operating
status. You cannot make changes to these fields.
• CPU Tcontrol
• System Temperature
• System Fan Speed
• CPU Vcore
• Vdimm
38
Page 42
Chapter 3: BIOS Setup Utility
Load Fail-Safe Defaults
This option opens a dialog box that lets you install fail-safe defaults for all appropriate items in the Setup Utility:
Press <Y> and then <Enter> to install the defaults. Press <N> and then <Enter> to
not install the defaults. The fail-safe defaults place no great demands on the system
and are generally stable. If your system is not functioning correctly, try installing
the fail-safe defaults as a first step in getting your system working properly again.
If you only want to install fail-safe defaults for a specific option, select and display
that option, and then press <F6>.
Load Optimized Defaults
This option opens a dialog box that lets you install optimized defaults for all
appropriate items in the Setup Utility. Press <Y> and then <Enter> to install the
defaults. Press <N> and then <Enter> to not install the defaults. The optimized
defaults place demands on the system that may be greater than the performance
level of the components, such as the CPU and the memory. You can cause fatal
errors or instability if you install the optimized defaults when your hardware
does not support them. If you only want to install setup defaults for a specific
option, select and display that option, and then press <F7>.
Set Supervisor/User Password
When this function is selected, the following message appears at the center of the
screen to assist you in creating a password.
ENTER PASSWORD
Type the password, up to eight characters, and press <Enter>. The password
typed now will clear any previously entered password from CMOS memory.
You will be asked to confirm the password. Type the password again and press
<Enter>. You may also press <Esc> to abort the selection.
To disable password, just press <Enter> when you are prompted to enter password.
A message will confirm the password being disabled. Once the password is
disabled, the system will boot and you can enter BIOS Setup freely.
PASSWORD DISABLED
If you have selected “System” in “Security Option” of “BIOS Features Setup”
menu, you will be prompted for the password every time the system reboots or
any time you try to enter BIOS Setup.
If you have selected “Setup” at “Security Option” from “BIOS Features Setup”
menu, you will be prompted for the password only when you enter BIOS Setup.
Supervisor Password has higher priority than User Password. You can use
Supervisor Password when booting the system or entering BIOS Setup to modify all
settings. Also you can use User Password when booting the system or entering BIOS
Setup but can not modify any setting if Supervisor Password is enabled.
39
Page 43
Motherboard User’s Guide
Save & Exit Setup
Highlight this item and press <Enter> to save the changes that you have made in
the Setup Utility and exit the Setup Utility. When the Save and Exit dialog box
appears, press <Y> to save and exit, or press <N> to return to the main menu.
Exit Without Saving
Highlight this item and press <Enter> to discard any changes that you have made
in the Setup Utility and exit the Setup Utility. When the Exit Without Saving
dialog box appears, press <Y> to discard changes and exit, or press <N> to return
to the main menu.
Note: If you have made settings that you do not want to save, use the “Exit
Without Saving” item and press <Y> to discard any changes you have made.
This concludes Chapter 3. Refer to the next chapter for information on the software
supplied with the motherboard.
40
Page 44
Chapter 4: Software & Applications
Chapter 4 Software & Applications
Introduction
This chapter describes the contents of the support CD-ROM that comes with
the motherboard package.
The support CD-ROM contains all useful software, necessary drivers and
utility programs to properly run our products. More program information is
available in a README file, located in the same directory as the software.
To run the support CD, simply insert the CD into your CD-ROM drive. An
Auto Setup screen automatically pops out, and then you can go on the autoinstalling or manual installation depending on your operating system.
If your operating system is Windows 2000/XP, it will automatically install all
the drivers and utilities for your motherboard; if Windows NT or manual
installation, please follow the instructions described as the Installing under
Windows NT or Manual Installation section.
Installing Support Software
1 Insert the support CD-ROM disc in the CD-ROM drive.
2 When you insert the CD-ROM disc in the system CD-ROM drive,
the CD automatically displays an Auto Setup screen.
3 The screen displays three buttons of Setup, Browse CD and Exit on
the right side, and three others Setup, Application and ReadMe at
the bottom. Please see the following illustration.

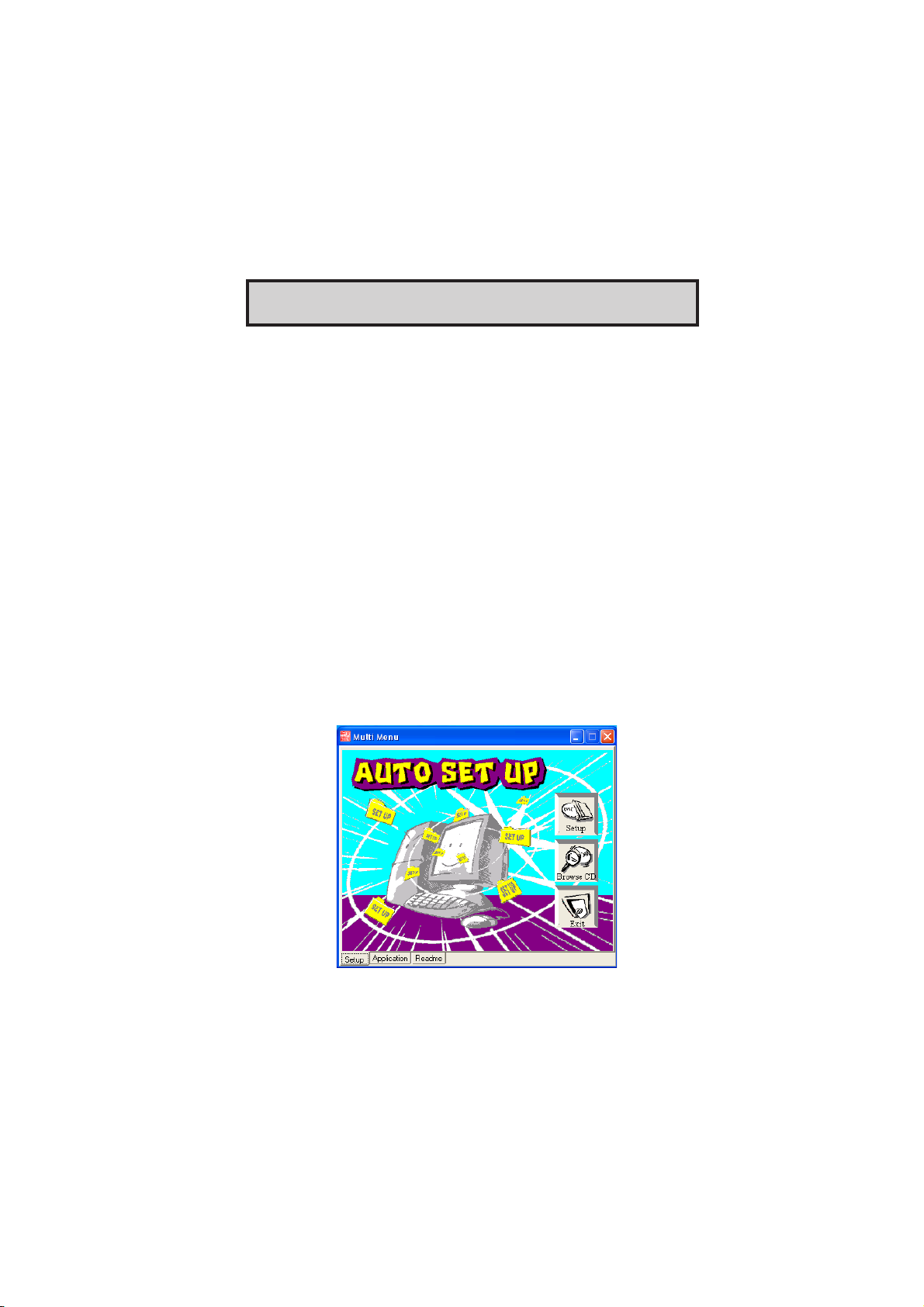

The Setup button runs the software auto-installing program as explained in next
section.
41
Page 45
Motherboard User’s Guide
The Browse CD button is a standard Windows command that you can check the
contents of the disc with the Windows 98 file browsing interface.
The Exit button closes the Auto Setup window. To run the program again,
reinsert the CD-ROM disc in the drive; or click the CD-ROM driver from the
Windows Explorer, and click the Setup icon.
The Application button brings up a software menu. It shows the bundled
software that this mainboard supports.
The ReadMe brings you to the Install Path where you can find out path names
of software driver.
Auto-Installing under Windows 2000/XP
If you are under Windows 2000/XP, please click the Setup button to run the
software auto-installing program while the Auto Setup screen pops out after
inserting the support CD-ROM:
1 The installation program loads and displays the following screen.
Click the Next button.
2 Select the items that you want to setup by clicking on it (the default
options are recommended). Click the Next button to proceed.
42
Page 46
Chapter 4: Software & Applications
Note: To install the CNR card driver, please select the “Modem” item manually
after the Auto Setup. Click on “Next >” and the CNR card driver will be
installed automatically.
3 The support software will automatically install.
Once any of the installation procedures start, software is automatically installed
in sequence. You need to follow the onscreen instructions, confirm commands
and allow the computer to restart as few times as needed to complete installing
whatever software you selected. When the process is finished, all the support
software will be installed and start working.
Installing under Windows NT or Manual Installation
If you are under Windows NT, the auto-installing program doesn’t work out; or
you have to do the manual installation, please follow this procedure while the
Auto Setup screen pops out after inserting the support CD-ROM:
1 Click the ReadMe to bring up a screen, and then click the Install Path
at the bottom of the screen.
2 Find out your mainboard model name and click on it to obtain its
correct driver directory.
3 Install each software in accordance with the corresponding driver
path.
Bundled Software Installation
All bundled software available on the CD-ROM is for users’ convenience. You
can install bundled software as follows:
1 Click the Application button while the Auto Setup screen pops out
after inserting the support CD-ROM.
2 A software menu appears. Click the software you want to install.
3 Follow onscreen instructions to install the software program step by
step until finished.
43
Page 47
Motherboard User’s Guide
44
Loading...
