H&S 3127, 3123 Operator's Manual

Heavy Duty

Spreader

3123/31273123/3127

3123/3127

3123/31273123/3127

MANURE SPREADERMANURE SPREADER

MANURE SPREADER

MANURE SPREADERMANURE SPREADER

OPERAOPERA

OPERA

OPERAOPERA

W ARNING

Revision #00
3123 Starting Serial #613604
3127 Starting Serial #614341

TT

OR’S MANUOR’S MANU

T

OR’S MANU

TT

OR’S MANUOR’S MANU

READ AND UNDERSTAND THIS MANUAL
BEFORE OPERATING THIS EQUIPMENT.
UNSAFE OPERATION OR MAINTENANCE OF
THIS EQUIPMENT CAN RESULT IN SERIOUS
INJURY OR DEATH.

HSMFG1215 Part #75897

ALAL

AL

ALAL

H&S MANUFACTURING CO.,INC.

P.O. BOX 768 [phone] FAX [phone]

Manufactured By

MARSHFIELD, WISCONSIN 54449

CONTENTS

Warranty & W arranty Registration Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2

Manufacturer’s Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Dealer Pre-Delivery Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4

Dealer Delivery Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6

Safety Information - Be Alert Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Safety Information - Explanation of Safety Signs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

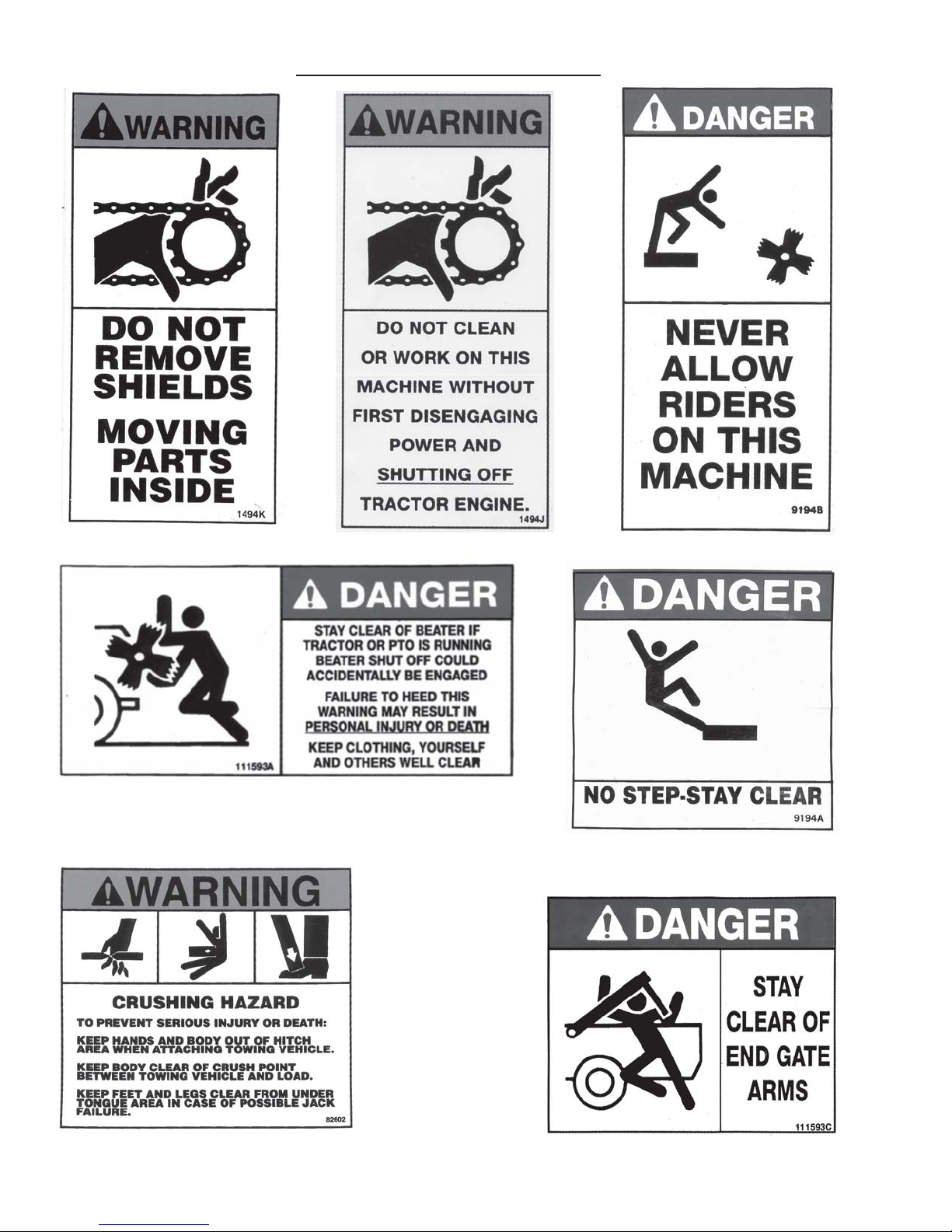

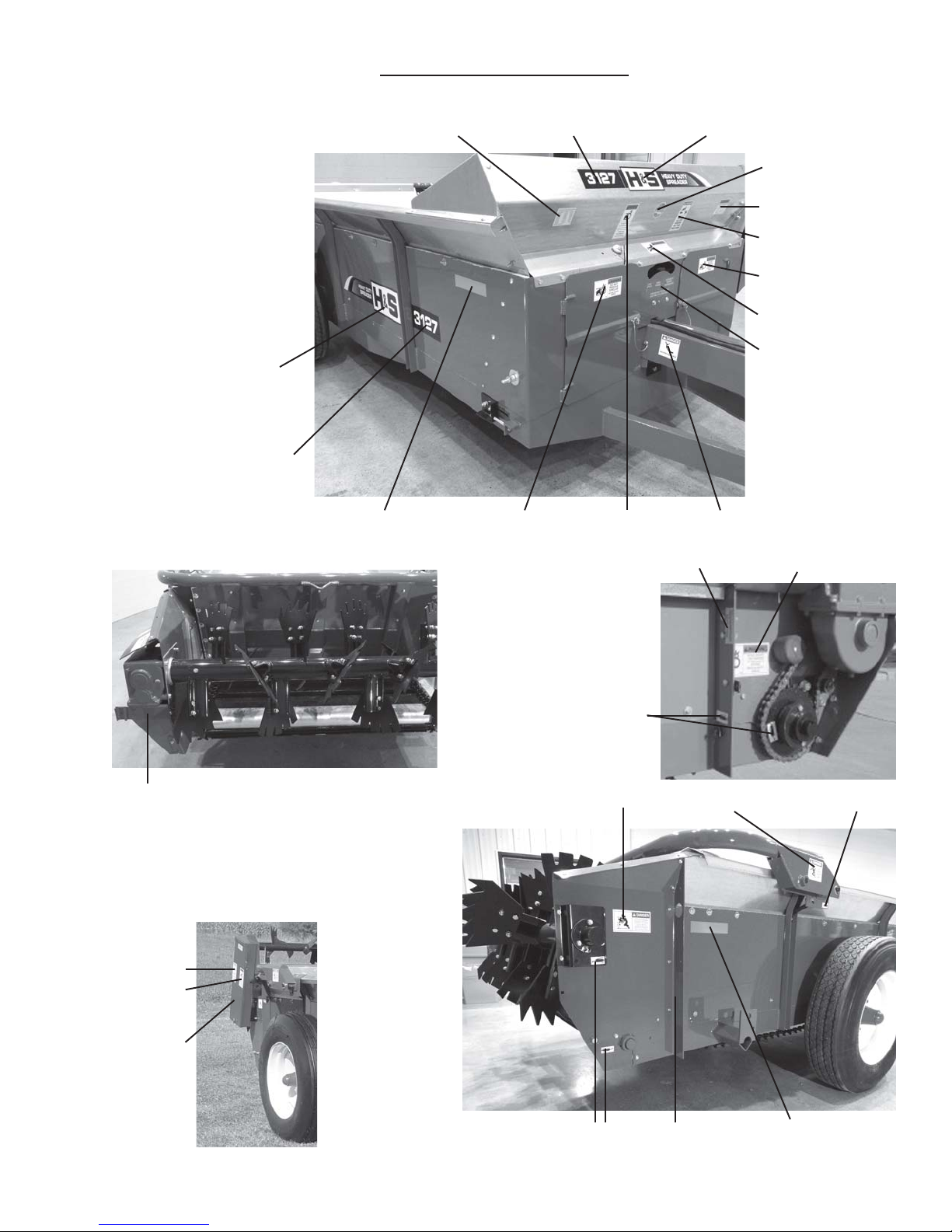

Safety Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-10

Safety Information - Warning - Owner Must Read and Understand . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 1

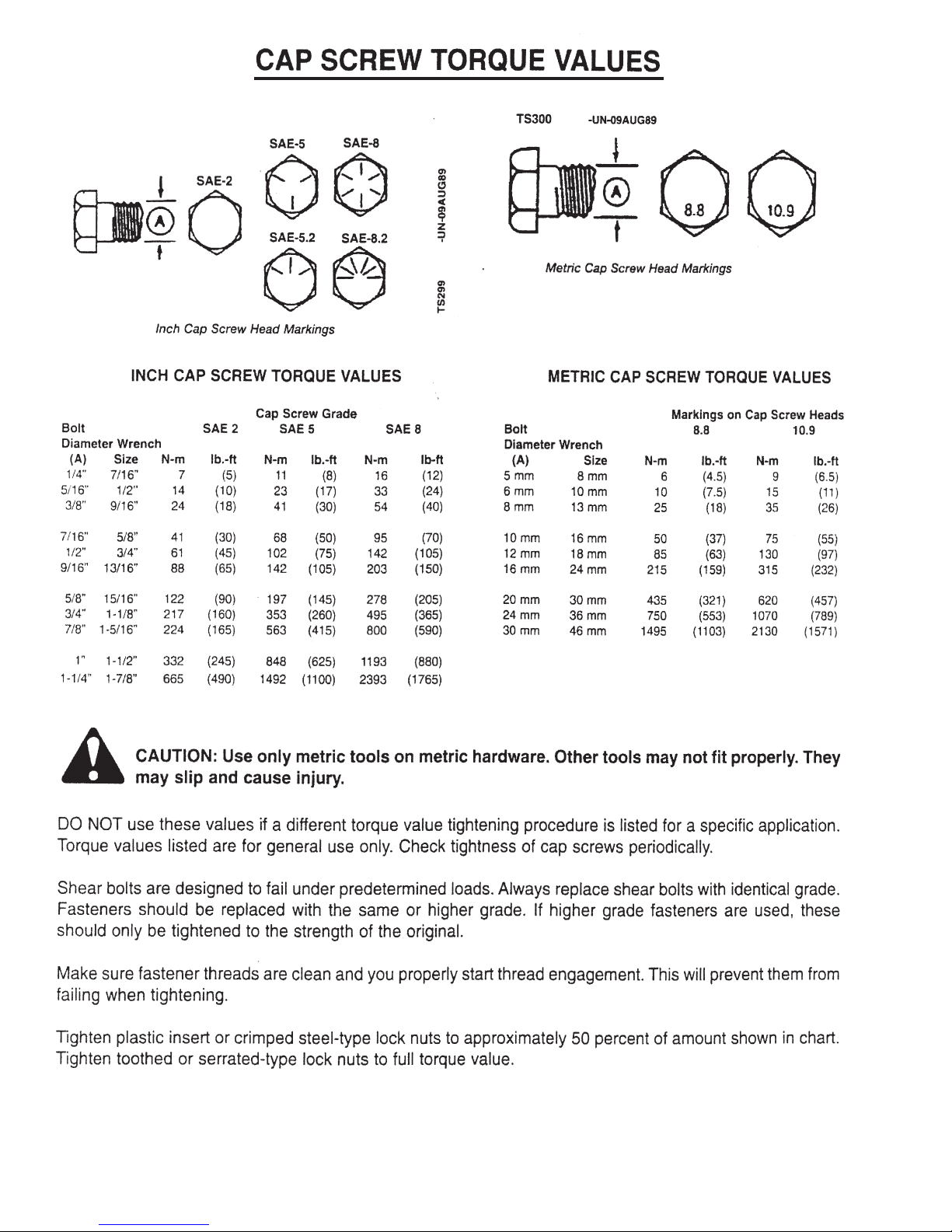

Cap Screw Torque Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Set - Up & Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Transporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Preparing for Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-17

Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-19

Optional Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Lubrication Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-22

Decal Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23-25

Trouble Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Service & Parts Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27-28

DEALER PRE-DELIVERY CHECK LIST

AFTER COMPLETION, DEALER SHOULD REMOVE AND RETAIN FOR RECORDS

After the Manure S preader has been completely set-up, check to be certain it is in correct operating order
before delivering to the customer . The following is a list of point s to inspect. Check off each item as you
have made the proper adjustments and found the item operating satisfactorily.

 Manure spreader was not damaged in shipment. Check for dents and loose or missing

parts. Report damage immediately to H&S Manufacturing Co., Inc.

 All bolts and fasteners are tight.
 Manure spreader has been correctly assembled according to instructions in this manual.
 All grease fittings have been lubricated. Gearbox is filled to proper level.
 Hoses and fittings are properly attached and there are no visible leaks.
 Guards and shields are secure.

 Wheels are properly mounted to torque specifications.
 Tires are inflated to correct pressure.

 Drive chain tension and alignment is correct.
 Decals are in place and legible.
 Main apron chains are adjusted properly .

Connect the manure spreader onto a proper horsepower tractor and attach the PTO and

(Remove Dealer File Copy At Perforation)

connect the lights. Connect the hydraulic hoses to the tractor remote outlets. Run the manure
spreader and make sure all components operate properly.

 PTO guard turns freely.
 Hydraulic end gate operates smoothly .
 Main apron operates smoothly .
 Hydraulic system does not leak under pressure.
 Lights and wiring functioning properly .
 Implement and all components are functioning properly .

Model Number

Serial #

Dealer’s Name

Inspection Date

Signature of Pre-Delivery Inspector

-3-

Intentionally Left Blank

-4-

DEALER DELIVERY CHECK LIST

AFTER COMPLETION, DEALER SHOULD REMOVE AND RET AIN FOR RECORDS

This check list that follows is an important reminder of valuable information that should be passed
on to the customer at the time this Manure Spreader is delivered.

Check off each item as you explain it to the customer.
This delivery check list, when properly filled out and signed assures the customer that the

Pre-delivery service was satisfactorily performed.

(Remove Dealer File Copy At Perforation)













Explain to the customer that the pre-delivery inspection was made.
Explain to the customer all the safety precautions they must exercise when operating

this unit.
Explain recommended loads for different types of materials.
Explain to customer that regular lubrication is required for proper operation and long life of

machine.
Show customer the lubrication section of Owner’s Manual.
Give the customer Owner’s Manual and make sure they read and understand all operating

and service instructions.

 Have the customer sign a completed “Warranty Registration”, and mail it.

Date Delivered

Dealer’s Name

By

Signature of Original Buyer

Note: Warranty is not valid until warranty card is completed and returned to H&S Mfg. Co., Inc.

-5-

Intentionally Left Blank

-6-

SAFETY INFORMA TION

BE

YOUR SAFETY

ALERT!

THIS SYMBOL IS USED THROUGHOUT THIS BOOK WHENEVER YOUR PERSONAL SAFETY IS
INVOLVED. TAKE TIME TO BE CAREFUL. REMEMBER: THE CAREFUL OPERATOR IS THE BEST
OPERATOR. MOST ACCIDENTS ARE CAUSED BY HUMAN ERROR. CERTAIN PRECAUTIONS
MUST BE OBSERVED TO PREVENT THE POSSIBILITY OF INJURY OR DAMAGE.

-7-

IS INVOL VED.

SAFETY INFORMA TION

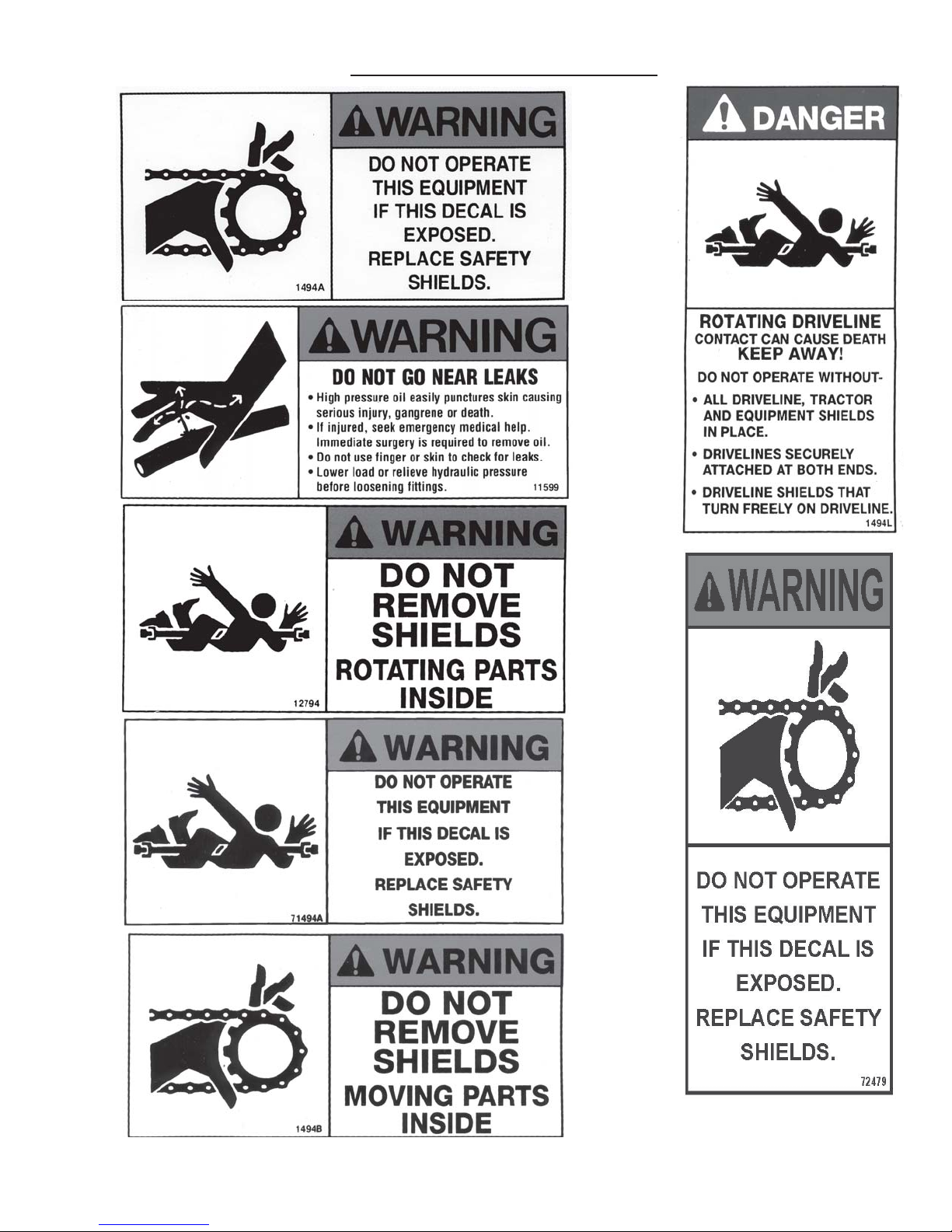

Keep signs in good condition. Immediately replace any missing or damaged signs.

RECOGNIZE SAFETY INFORMATION

This is the safety-alert symbol. When you see this symbol
on your machine or in this manual, be alert to the potential
for personal injury .

Follow recommended precautions and safe operating
practices.

UNDERSTAND SIGNAL WORDS

A single word; DANGER, W ARNING, or CAUTION - is used
with the safety-alert symbol. DANGER identifies the most
serious hazards.

Safety signs with signal word DANGER or WARNING are
typically near specific hazards.

General precautions are listed on CAUTION safety signs.

FOLLOW SAFETY INSTRUCTIONS

Carefully read all safety messages in this manual, and all safety signs on your machine. Follow all
recommended precautions and safe operating procedures.

OBSERVE MAXIMUM TRANSPORT SPEED

The maximum transport speed for this implement is 32 km/h (20 m.p.h.).

Some tractors are capable of operating at speeds that exceed the maximum
transport speed of this implement. Regardless of the maximum speed capability
of the tractor being used to tow this implement, do not exceed the implement’s
maximum transport speed.

Exceeding the implements maximum transport speed can result in:

* Loss of control of the tractor/implement combination
* Reduced or no ability to stop during braking
* Implement tire failure
* Damage to the implement structure or its components

Use additional caution and reduce speed when towing under adverse surface
conditions, when turning, and when on inclines.

Do not attempt transport if the fully loaded implement weighs more than 1.5 times
the weight of the tractor.

-8-

SAFETY INFORMATION

-9-

SAFETY INFORMA TION

-10-

SAFETY INFORMA TION

TRACTOR:

This operators manual uses the term “Tractor” when identifying the power or the towing source.

WARNING

TO PREVENT SERIOUS INJURY OR DEATH

BEFORE YOU ATTEMPT TO OPERATE THIS EQUIPMENT, READ AND STUDY THE FOLLOWING
INFORMATION. IN ADDITION, MAKE SURE THAT EVERY INDIVIDUAL WHO OPERATES OR WORKS
WITH THIS EQUIPMENT, WHETHER FAMILY MEMBER OR EMPLOYEE, IS FAMILIAR WITH THESE
SAFETY PRECAUTIONS.

KNOW HOW TO STOP UNLOADING MECHANISM BEFORE STARTING IT.
If the machine becomes clogged,

allow all mechanisms to stop before cleaning or working on the machine.

DO NOT get off the tractor while the spreader is in operation.
DO NOT attempt to perform maintenance or repair with tractor running and PTO or hydraulic lines

hooked up.

DO NOT step up on machine at any time. NEVER manually feed material into the beaters.
DO NOT allow minors to operate or be near the machine.
DO NOT ALLOW PERSONNEL OTHER THAN THE QUALIFIED OPERATOR NEAR THE MACHINE.

Before starting tractor, be sure PTO shields turn freely and PTO is securely locked to tractor.
DO NOT clean, adjust, or lubricate the machine when any part is in operation.
Keep hands, feet, and clothing away from beaters when they are revolving.
Loose or floppy clothing should not be worn by the operator.
Be sure the machine is clear of people, tools, and other objects before engaging PTO.

DO NOT step over power take off shaft. Stay clear of PTO at all times.
NEVER start manure spreader until all guards and safety shields are secured in place.

disengage the PTO. Stop the tractor engine, remove ignition key, and

STAY CLEAR of Hydraulic Lines. They may be under extreme pressure or heat.
H&S MFG. CO. INC. always takes the operator and his safety into consideration and guards expose

moving parts for his protection. However, some areas cannot be guarded or shielded in order to assure
proper operation. In addition, the operators manual and decals on the machine itself warn you of further
danger and should be read and observed closely .

Study The Above Safety Rules

A TTENTION - BE ALERT - YOUR SAFETY IS INVOLVED

-11-

-12-

SET -UP & ASSEMBLY

Note: Determine right and left side of spreader by viewing it from the rear . If instructions
or parts list s call for hardened bolts, refer to Cap Screw T orque Value page to identify.

PREPARING MANURE SPREADER

The Manure Spreader may be shipped without the wheels/tires installed.

1. Attach the wheels with tires, using the lug nuts furnished and torque the mounting hardware to
the appropriate torque. Wheel bolts should be tightened between 85-95 ft./lbs. of torque.

2. Check the tires and inflate to the recommended pressure (295/75R-22.5 tires to 75-80 psi.).

3. Check for proper assembly and adjustment and make sure that all bolts are tightened.

4. Securely retighten after a few hours of operation, as bolts can loosen up on new machinery.

5. Lubricate the machine completely , check the oil level of the gearbox, fill if necessary.

TRANSPORTING

REFLECTORS/SMV

Regularly clean the reflective tape at the rear of the
spreader. There is a holder provided for your SMV sign.

Unless otherwise prohibited, use a slow-moving vehicle
emblem.

SAFETY CHAIN (Optional)

Follow state and local regulations regarding use of a safety chain and transport lighting when towing
farm equipment on public highways. A proper safety chain should be used to retain the safety connection
between the towing and towed machines, in the event of separation of the primary attaching system.
Check with local law enforcement agencies for your own particular regulations. Never tow the manure
spreader on a public highway at a speed greater than 20 m.p.h. (32 kph).

1. Chain is sufficiently slack to allow turns and movements of either the tractor or the manure
spreader, without placing tension on the chain.

2. Chain is of sufficient strength to hold the decoupled implement (and its load) and tow it to the
shoulder .

-13-

PREPARING FOR OPERATION

TRACTOR CONNECTIONS

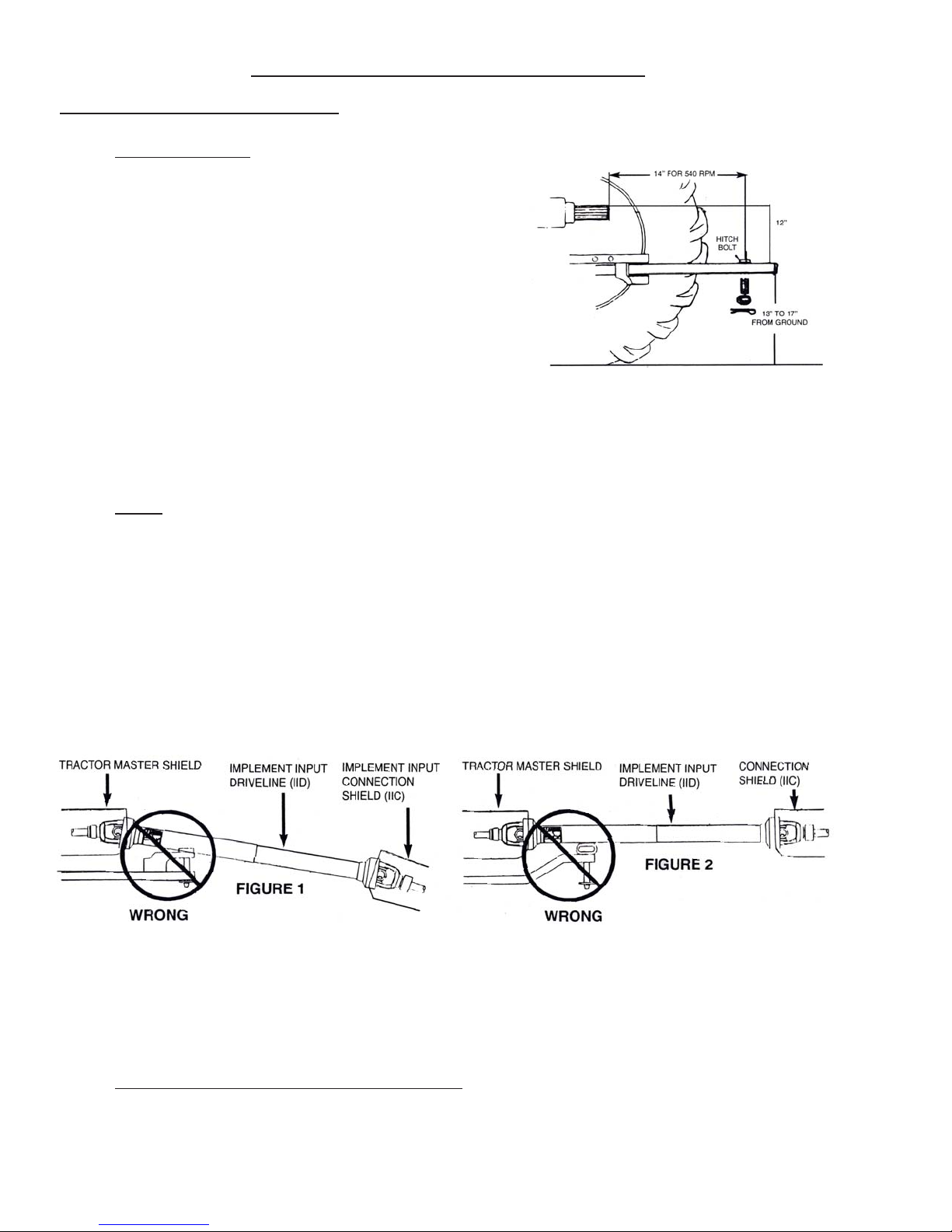

Tractor Hitch

Fasten the spreader hitch to the drawbar with a hitch pin with a
safety locking device. Remove the weight from the jack (jack is

not to be used when spreader is loaded). Remove jack from
pipe mount and place on convenient storage mount located on
top of left hitch channel. This allows protection of jack from
tractor tires during turns. The hitch of the spreader is designed
for a standardized tractor hitch. Adjust the drawbar so that it is 13
to 17 inches above the ground. Extend or shorten it so that the
horizontal distance from the end of the tractor power takeoff
shaft to the center of the hitch pin hole is 14 inches for 540 PTO
and 15-3/4” for 1000 PTO as shown in drawing. An improperly
located hitch point may cause damage to the universal joints of
the power takeoff. Secure the drawbar so that the hitch pin hole
is directly below the power drive line.

15-3/4” for 1000 RPM

PTO

Attach the PTO of the spreader to the tractor by sliding the spring loaded locking collar on PTO yoke
rearward, then sliding it onto the tractor PTO shaft. Release spring loaded collar. Be sure the pins fall
into the groove of the tractor PTO shaft and collar snaps forward into locking position.

CAUTION: Do not use a steel hammer to aid in joining PTO parts.

If this implement is attached to a tractor with a clevis
hitch (hammer-strap) style drawbar, the
hammer-strap must be removed to prevent
damage to the IID guarding and the IID telescoping
members. [See Figure 1]

If this implement is attached to a tractor with an
offset in the drawbar, be certain it is in the down
position to prevent damage to the IID guarding and
the IID telescoping members. [See Figure 2]

Manure Spreader Speed Control

Attach the manure spreader speed control/beaterengage/disengage rope to a convenient point on the
tractor.

-14-

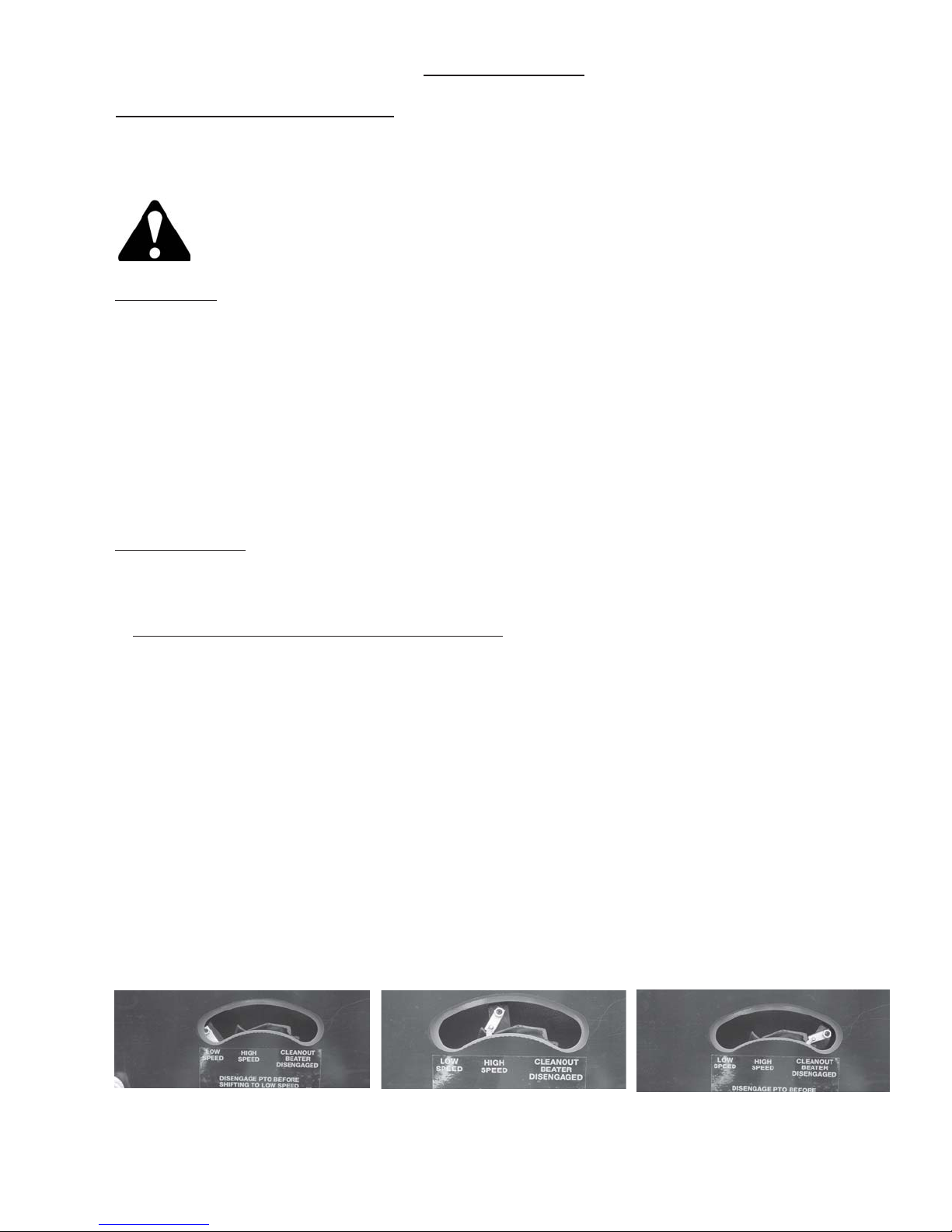

OPERATION

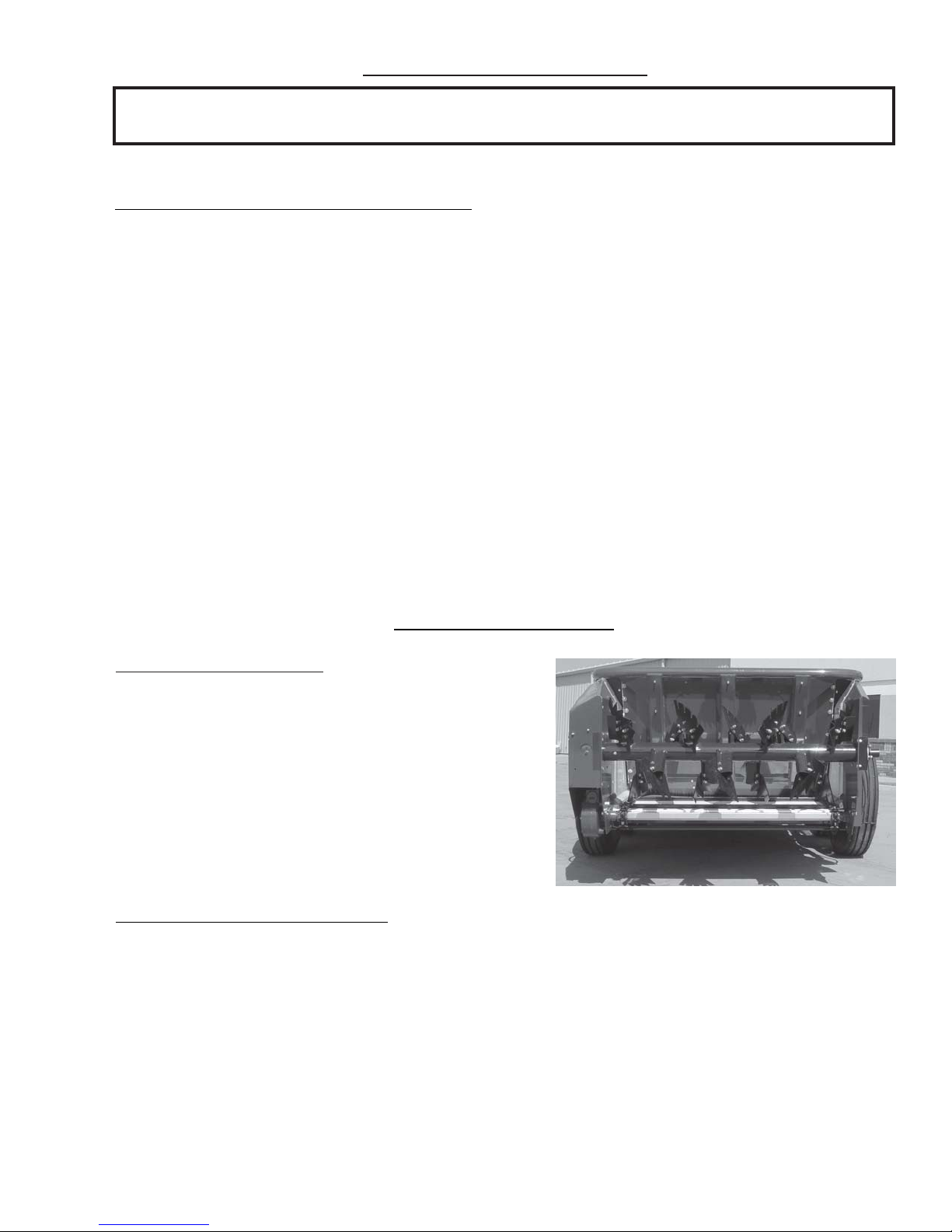

EMERGENCY SHUTDOWN

If a foreign object becomes lodged in the beater area and shears the shear bolt, disengage the PTO. Stop
the tractor engine, remove the ignition key , and allow all mechanisms to stop before cleaning or working
on the spreader.

WARNING: Some photographs used in the following pages show guards or shields
removed for clarification. NEVER operate machine until these guards or shields are in
proper operating position.

LOADING

In freezing weather, make certain that hydraulic tail gate is not frozen to the sides or on the floor of the
spreader. Make sure the apron chain is not frozen to the spreader floor or any lumps of manure are
frozen to the floor. Begin loading the spreader at the front end and work toward the rear until loading
is completed. Loading this way permits the material to be spread uniformly. Loading front to rear is
particularly important when the spreader is loaded by a mechanical loader because this type of load
requires more power to spread than other loads. When hauling extremely heavy materials with a large
portion of dirt, it may be necessary to reduce the load size to prevent excessive shear bolt breakage.
Never dump material onto the beater. Do not use extra sideboards. Do not overload spreader.
Overloading decreases spreading effectiveness. Do not load more than 15 inches above the beater.

SPREADING

NOTE: Two speed apron drive and beater engage/disengage mechanisms are contained in a single

gearbox at the rear of spreader. This gearbox is controlled by one rope leading to the tractor.

1.

Make sure that the gearbox is in the “low” position, with the shifter dog all the way to the “low” side of the

indicator slot.

2. Raise the hydraulic endgate.

3. Throttle tractor down, engage PTO, then increase the throttle to 540 RPM’s and begin moving.

4. The apron speed may be increased from 4-1/2 fpm to 8-1/2 fpm (at 540 RPM) by pulling once on the
control rope until the shifter stops and locks into the “high speed” position. The beater will continue to
operate in this position.

5. When the spreader is almost empty , the bed can be cleaned out by again, pulling once on the control
rope until the shifter dog locks into the “clean-out/beater disengaged” position. The beater will stop,
and the apron will continue to run in the “high” speed position, thus saving unloading time.

6. When spreader is empty, SHUT OFF PTO. With the PTO off, pull the control rope once again and
release it. The shifter will return to the “low” position, ready to begin unloading the next load.

DO NOT SHIFT FROM CLEAN OUT TO LOW POSITION WITH THE PTO RUNNING.

7. NEVER operate the spreader with a PTO speed greater than 540 RPM.

Low Speed

FAILURE TO FOLLOW THE RECOMMENDED ADJUSTMENTS WILL VOID WARRANTY

High Speed

-15-

Clean Out

ADJUSTMENTS

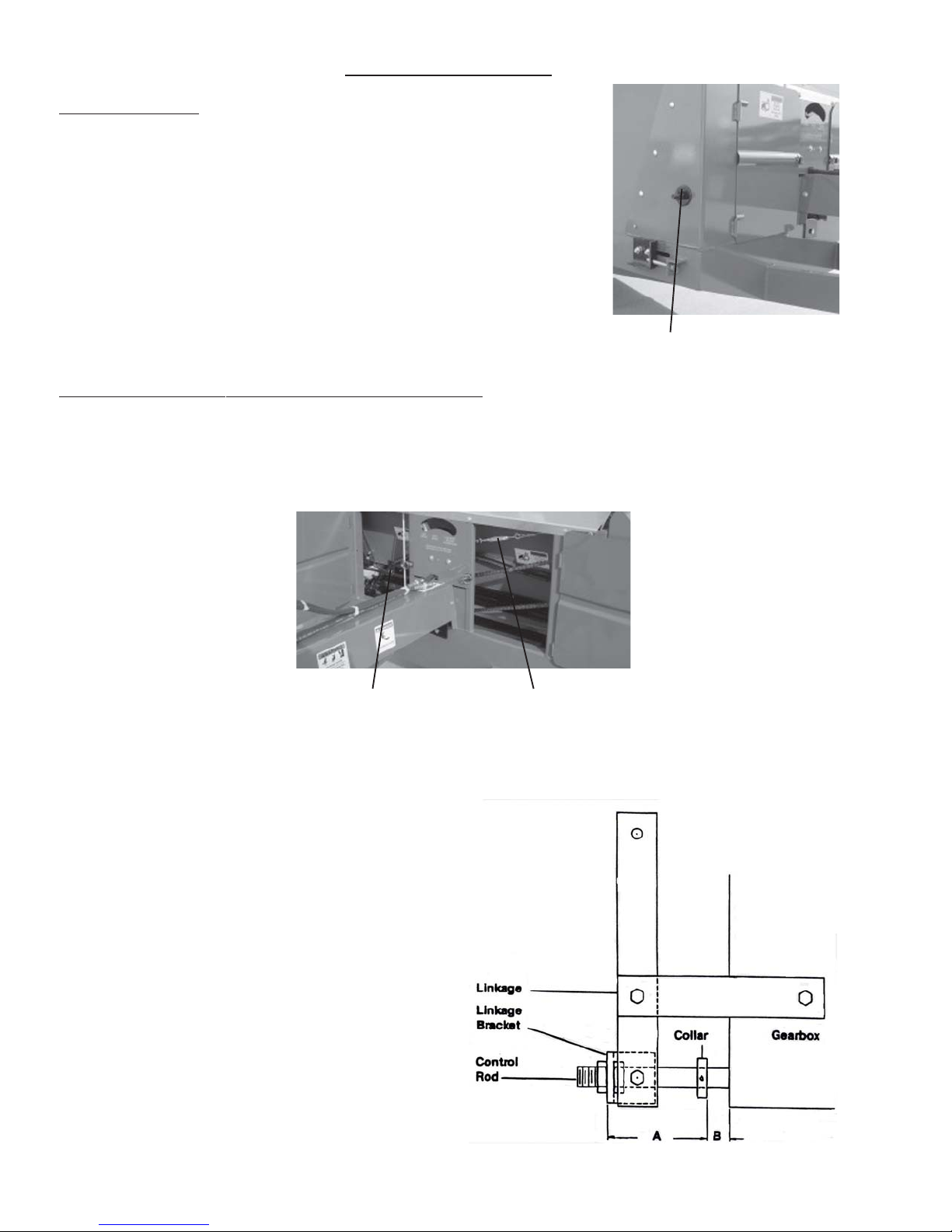

DRIVE CHAIN

T o adjust front drive chain, turn nut on adjustingrod (located at the
right hand front side of spreader) clodkwise. There should be 1/2”
deflection at the center of the drive chain. Over tightening or too
loose of a chain will result in excessive wear on the bearing, chain
and sprockets.

Tightner Bolt

APRON SPEED AND BEATER CONTROL

One cable controls the beater and apron drive two speed gearbox. T o compensate for wear or stretching
of this cable adjust turnbuckle behind shield at left hand front of spreader.

Spring Bracket Turnbuckle

Shields Removed for Clarity

Refer to drawing to properly adjust manure spreader.
Position speed control in HI Speed. Measurement
(A) is 2-1/2 inches.
This is factory set and should not be changed. Do
not move bracket or collar on control rod. The
distance between collar and face of gearbox should
be as follows for the different speeds: (distance B)
LO Speed: 0” (tight against gearbox)
HI Speed: 7/16 -1/2”
CLEAN OUT : 3/4-1 1/16”
If collar on control rod does not pull tight to gearbox
in LO Speed, after HI Speed has been properly
adjusted, apply more tension to return spring
behind shield at right hand front of spreader. To
adjust spring, loosen bolt holding spring bracket on
to adjustment rod. Slide spring bracket towards right
side of spreader. Retighten bolt.

-16-

ADJUSTMENTS

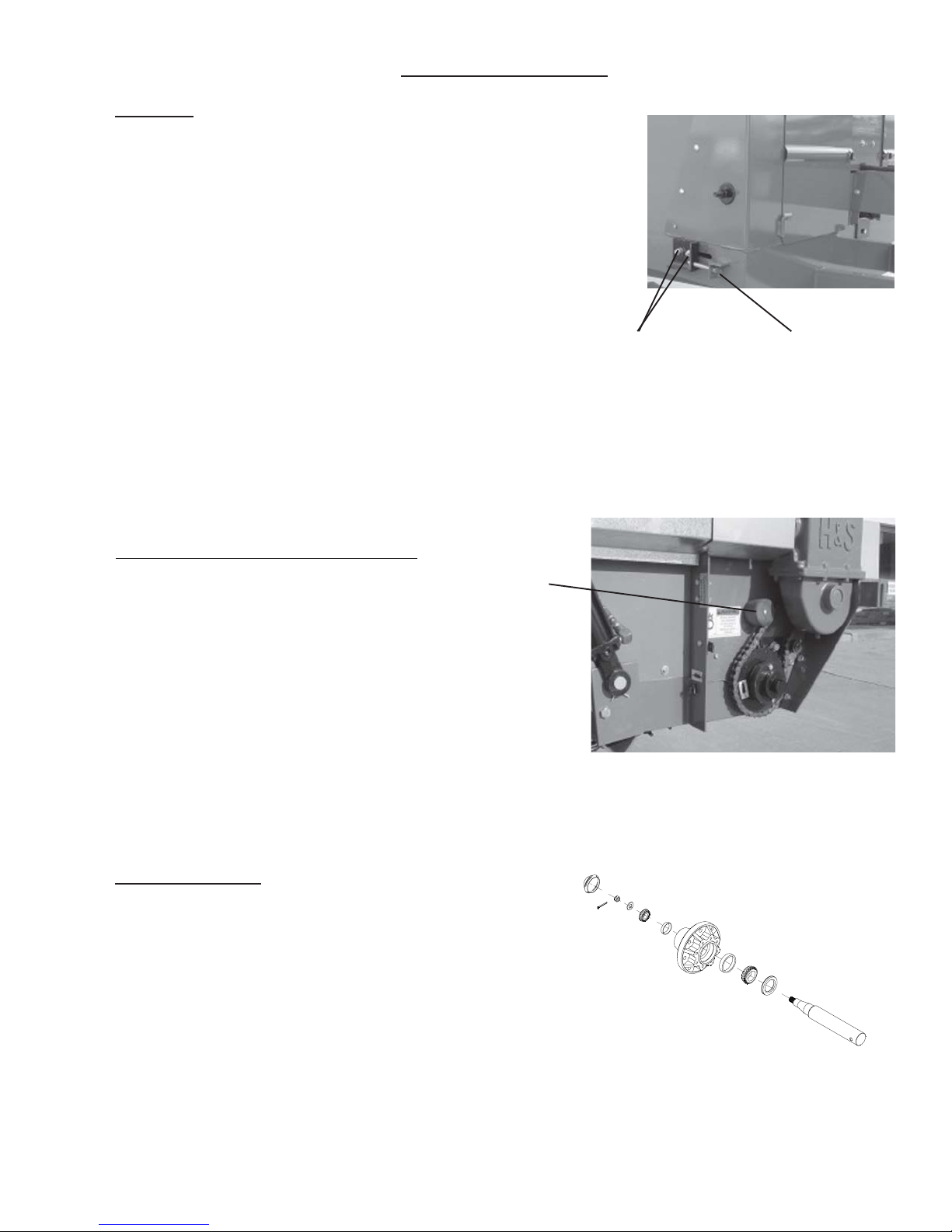

APRON

1. Adjust the apron by loosening the mounting bolts on

the chain slides on the outside of the frame. Mounting
bolts shown in the drawing.

2. Tighten the adjusting bolt s until the apron chain clears
the underside of the axle by 1 inch.

3. Retighten the mounting bolts.

Mounting Bolts Adjusting Bolt

NOTE: Tighten the adjusting bolts (on each front corner) equally on each side so that the apron slats run
parallel with the ends of the bed. The apron will be damaged if the machine is operated with one end of the
apron slats running ahead of the opposite end. Do not tighten the apron chains excessively.

APRON WORM DRIVE CHAIN

The main apron drive chain is kept tight with a nylon roller
type adjustable tightener. Periodically check tension on
chain. Chain is properly adjusted when there is 1/8”
deflection in center of chain. Also check tightener for wear
and replace when necessary.

WHEEL HUBS

T o adjust wheel hubs, tighten the castellated nut on
the spindle to the point where there is no end-play
and a slight drag on the bearings. Replace the
cotter key with a new one of the correct size.

-17-

SERVICE

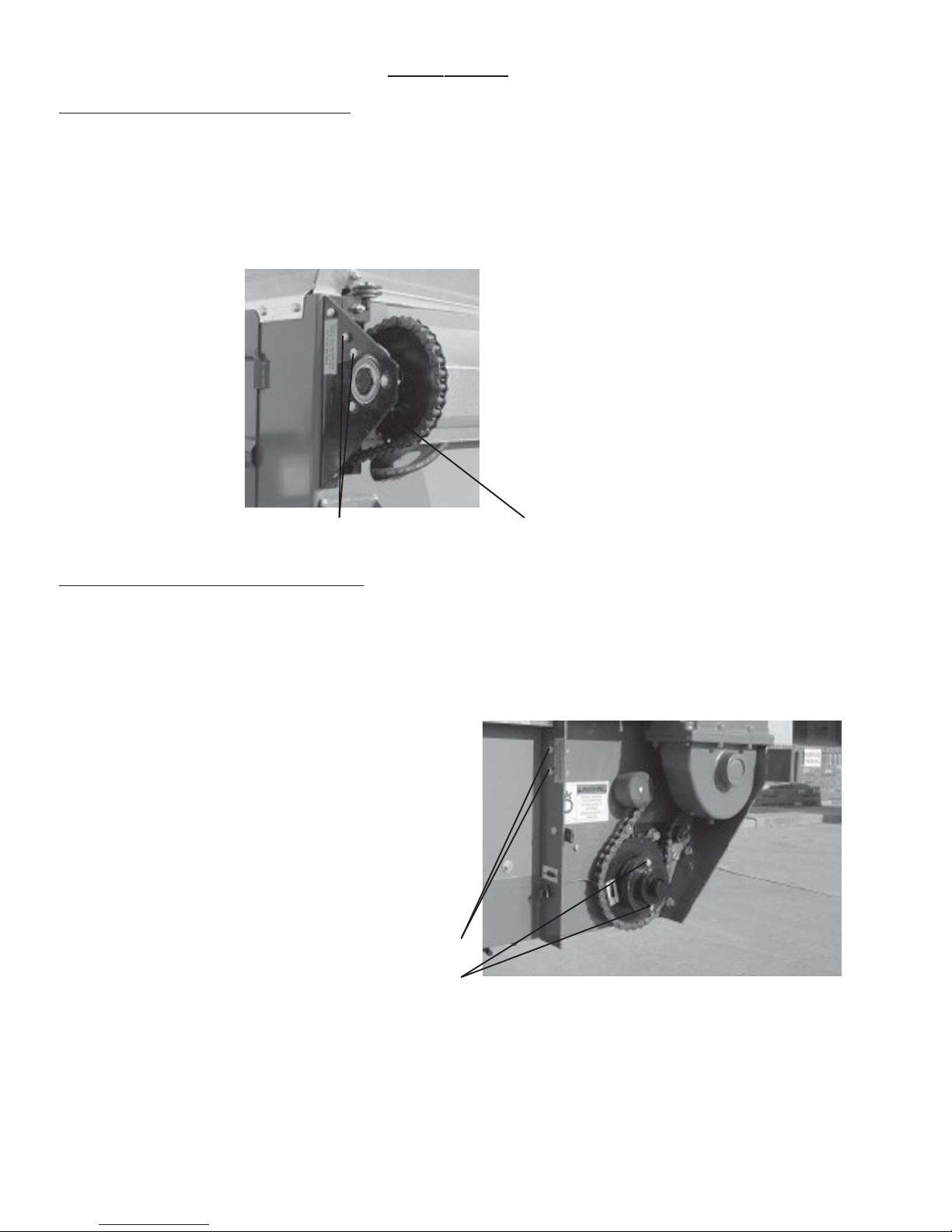

SHEAR BOLTS - Main Drive

The beater and the apron drive are protected by one shear bolt located on the front end of the side drive shaft
(left side of spreader). Two spare shear bolts are provided. Shearing of the bolts is normally due to
foreign objects in the manure or starting the spreader PTO too quickly with high tractor RPM’s.
Always use H&S shear bolts when replacing shear bolts.

Shields
Removed

for

Clarity

Spare Shear Bolts

Shear Bolt

SHEAR BOLTS - Apron Drive

The main apron is protected by two shear bolts located on the drive sprocket on the main conveyor drive
shaft at the rear of the spreader. Two spare shear bolts are provided. Shearing of the bolts is normally
due to the apron being frozen fast to the floor or the slats catching on manure that is frozen to the floor.
In some cases, the bolt will shear due to the spreader being overloaded. Always determine the cause of
the failure and eliminate the cause before installing new shear bolts. Always use H&S shear bolts when
replacing shear bolts.

Replacement Shear Bolts

Shear Bolt

Shields Removed for Clarity

-18-

SERVICE

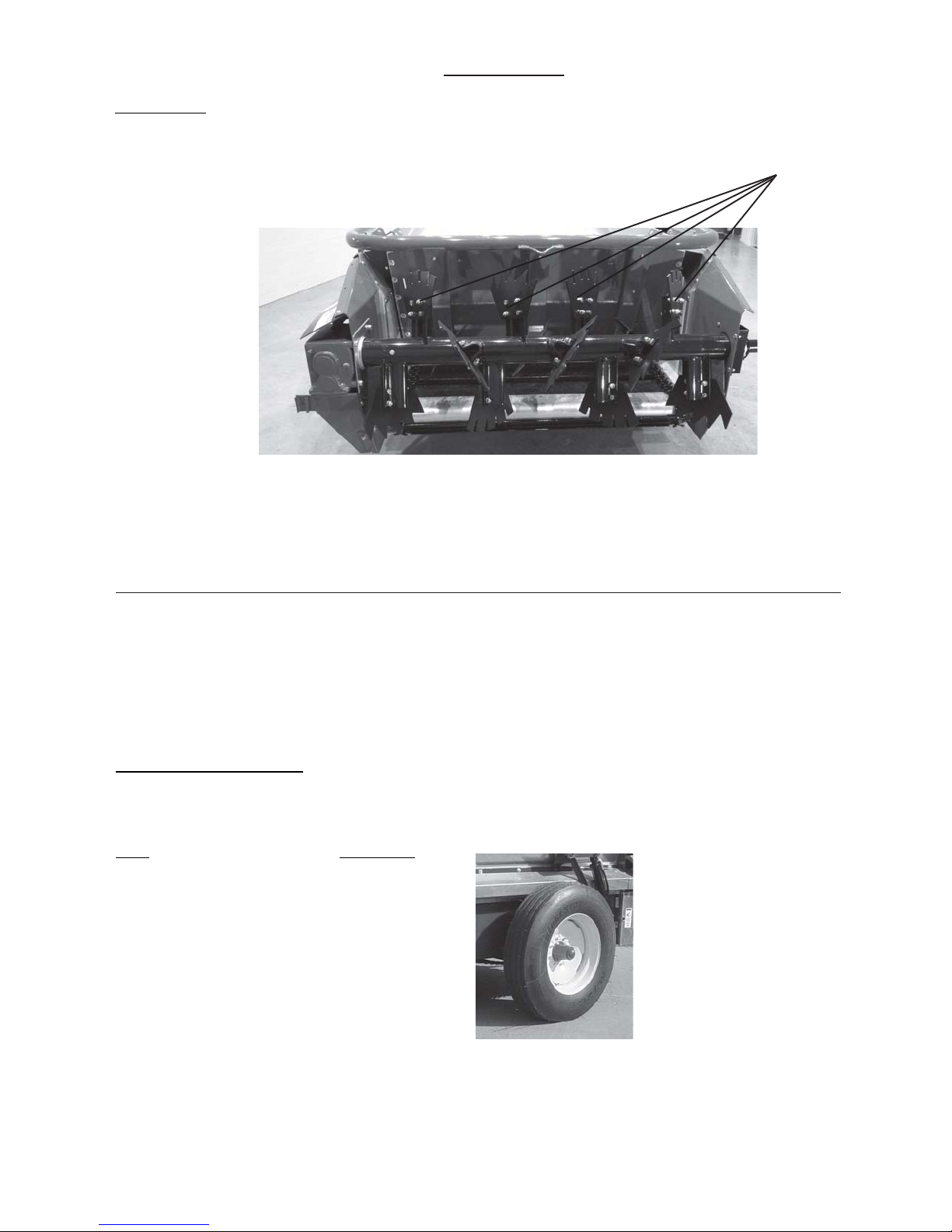

BEATER

Periodically inspect the beater for wear or damage. Replace damaged or worn beater blades. Always
use H&S special grade 5 bolts, washers, and nuts when replacing blades. Torque bolts to 60 ft. lbs.
Consult with your local H&S dealer for additional ordering information.

WHEEL BEARING LUBRICATION, CLEAN & RE-PACK INSTRUCTIONS

Wheel hubs are equippped with a grease zerk for regular maintenance. Annually disassemble and
clean parts in solvent. Reassemble bearings per instructions in the Service Chapter and tighten the
castellated nut on the spindle to the point where there is no end-play and a slight drag on the bearings.
Replace the cotter key with a new one of the correct size, bend cotter pin over and re-install cap.

TIRES & WHEELS

Check the tire pressure after every 50 hours of operation. T ires should be inflated to the appropriate
pressure listed in the table.

Tire Pressure
295/75R22.5 75-80 PSI

Wheel lug torque should be checked after every 50 hours of operation and tightened to the appropriate
torque.

Wheel bolts must be tightened between 85-95 ft./lbs. of torque.

-19-

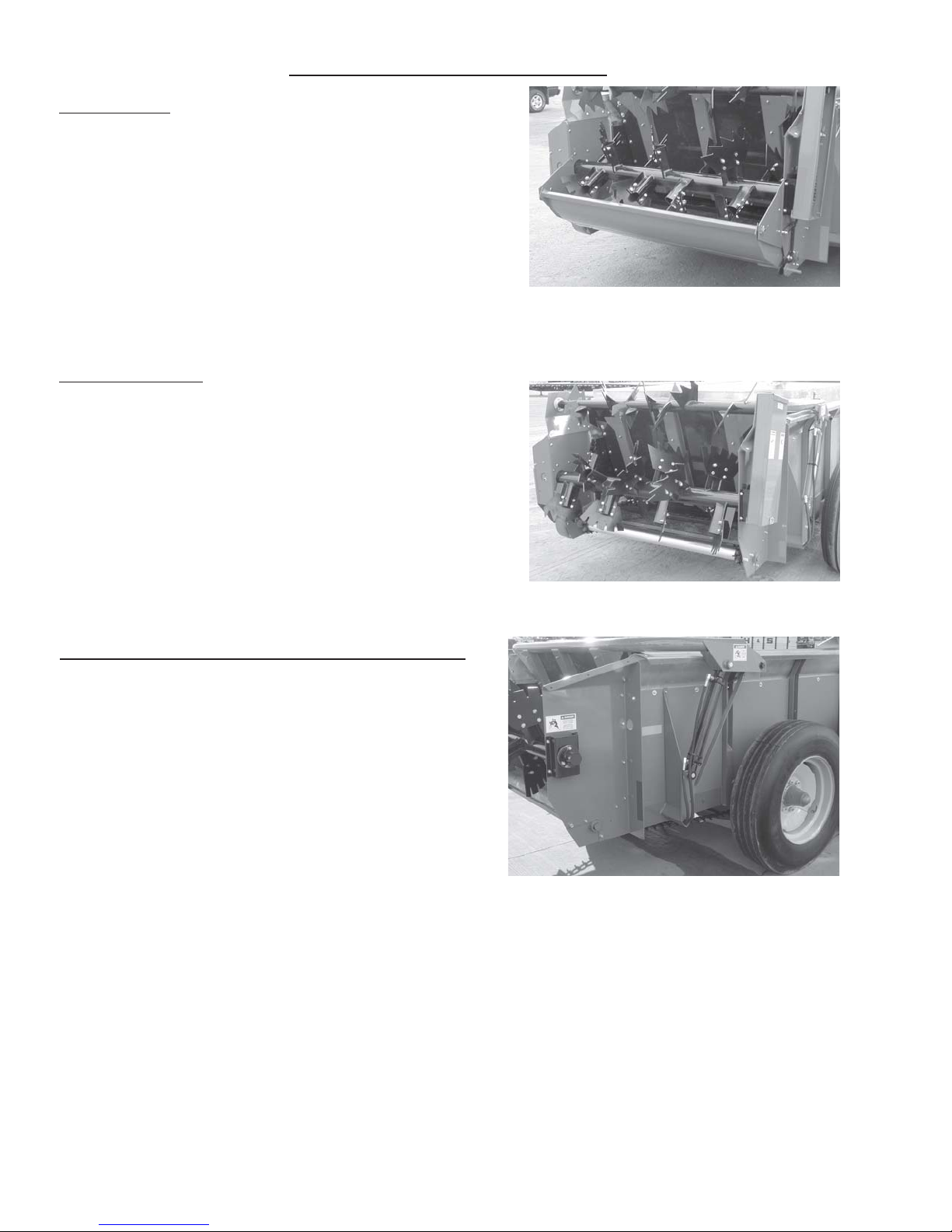

OPTIONAL EQUIPMENT

REAR PAN

The rear pan shown below is optional equipment.

TOP BEATER

The top beater shown below is optional equipment.

2nd HYDRAULIC ENDGATE CYLINDER

Your manure spreader is equipped with brackets to
accept an optional second cylinder to raise and lower
the hydraulic endgate. The optional cylinder is located
on right hand side of spreader. The kit includes a
cylinder, brace, hoses, and connectors to attach to
existing cylinder.

-20-

LUBRICATION

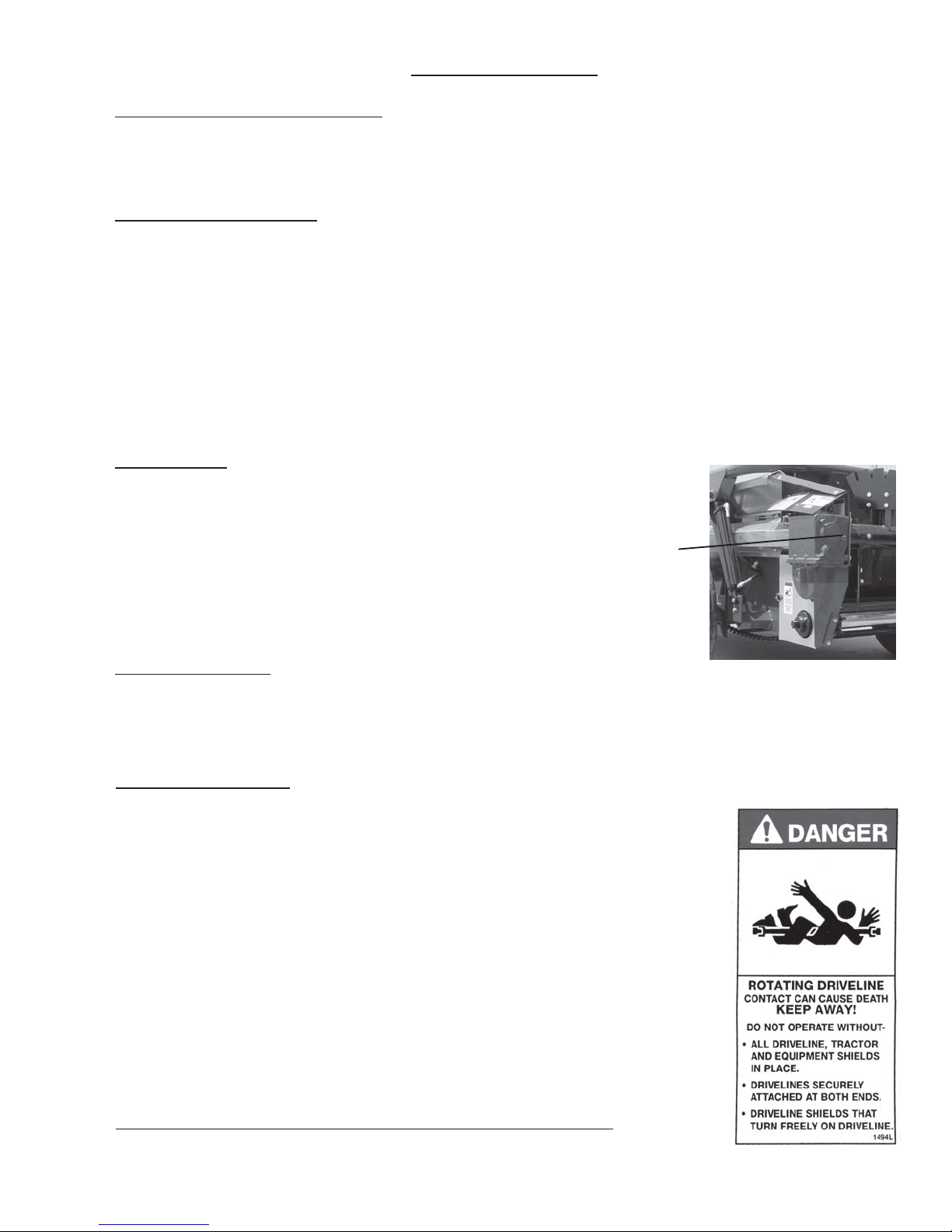

GENERAL INFORMATION

IMPORTANT: Catch and dispose of fluid per local waste disposal regulations whenever service is

performed on hydraulic components, valves, cylinders, hoses, etc.

GREASE FITTINGS

There are numerous grease fittings on your manure spreader. If these are lubricated properly and of ten
enough, it will prolong the life of the spreader. The operator should become familiar with all lubrication
points and establish a systematic routine to insure complete and quick lubrication of the machine.
(Grease every 10 hours, also before storage and after power washing.) Make certain that the
grease fittings are free of paint and dirt. Force a high-quality grease into them until the grease comes
out around the shaft on the sleeve-type bearings. On the sealed ball bearings, grease should be added
slowly until a slight bead forms at the seals indicating the correct amount of lubricant. Wipe off excess
grease to prevent the accumulation of chaff and grit around the bearings.

GEARBOX

Before using your new machine, check the oil in the main
apron drive and beater drive gearbox. Keep the gearbox
filled to the oil plug on the rear of the gearbox as shown
with Mobilube SHC 75W90 (or equivalent) gear lube.

Oil

Level

DRIVE CHAINS

Lubricate the drive chains with a light machine oil. Keep chains aligned with sprockets, this will lengthen
the life of the sprockets and chain. Lubricate chains often. Saturate foam oiler on rear driveshaft with light
oil.

PTO ASSEMBLY

Care must be taken to keep the male and female driving elements
well lubricated and free sliding. Failure to observe this precaution will
result in excessive pressure being required to collapse or extend the
assembly while subject to operating torque. This excessive force may
damage or displace the jackshaft bearings. DO NOT lubricate the
shield surfaces. The shield surfaces must be kept dry, as dirt
accumulation on them will quickly cause these units to bind and not
rotate. Care should also be taken to be certain that the rotating
integral shields are not dented or damaged, as this also will result in
excessive force being applied against the jackshaft. Damaged shields
also cause obvious difficulties when installing the assembly. If at
any time the shields do not turn freely, they should be checked to
determine the cause, and repaired or cleaned. To avoid damage to
the main drive bearings, avoid turning sharp corners while PTO is
running.

Start and Stop PTO slowly to avoid damage to the drive line.

-21-

LUBRICATION

GREASE ZERK LOCATION - Grease every 10 Hours

A. (3) PTO Shaft
B. (2) Front jack shaft bearings.

(2) Side shaft on S3123 (4) Side shaft on S3127

C.
D.

(2) Rear drive shaft (LH is a remote fitting)
E. (1) Rear drive shaft shear sprocket
F.

(1) Beater bearing (RH side)
G. (2) Hydraulic endgate arms
H. (2) Transport wheel hubs (1 Zerk on each hub)

NOTE: Shields removed in some pictures for clarity. DO NOT OPERATE WITH SHIELDS REMOVED

D

A

EG(Shields Removed for Clarity)

B

(Under Shield)

(Behind Shield)

D

C

F

H

-22-

DECAL LOCATION

Your H&S Manure Spreader was manufactured with operator safety in mind. Located on the Manure
Spreader are various decals to aid in operation, and warn of danger or caution areas. Pay close attention
to all decals on your Manure Spreader.

DO NOT REMOVE ANY OF THESE DECALS. IF DECALS ARE LOST,
DAMAGED, OR IF MANURE SPREADER IS REPAINTED, REPLACE DECALS.
REMEMBER: DECALS ARE FOR YOUR PROTECTION AND INFORMATION.

Listed below are the decals on your Manure Spreader . These decals may be ordered individually by part
number or by ordering a complete set.

PART# QTY DESCRIPTION

311 1 Patent Numbers
1494A 4 Warning - Do Not Operate ( 1 Under T op Beater Shield)
1494B 2 Warning - Do Not Remove Shields
1494H 1 Danger - Stay Clear (Used on optional Top Beater)
1494J 3 Warning - Do Not Clean or Work (1 Used on Top Beater)
1494K 3 Warning - Do Not Remove Shields
1494L 1 Danger - Rotating Driveline
72095 1 Heavy Duty Spreader Decal - S3123/S3127 Right Side
72098 2 Model Decal - S3123 Left and Right Side
72100 1 Front Model Decal -S3123
72101 1 Front Model Decal -S3127
72096 1 Heavy Duty Spreader Decal - S3123/S3127 Left Side
72097 1 Heavy Duty Spreader Decal S3123/S3127 Front
72099 2 Model Decal - S3127 Left and Right Side
9194A 2 Danger - No Step - S tay Clear
9194B 1 Danger - Never Allow Riders
11599 1 Warning - S t ay Clear of Leaks
12794 1/S3123 - S2/S3127 Warning - Do Not Remove Shields
32222 5 Clear Protector (1 on Top Beater)
54033 1 Made In USA 3”
66076 4 Located Behind Shield
71188B 1 Jack Storage Position
71494A 2/S3123 - 3/S3127 Warning - Do Not Operate
72203A 1 Warning - Help A void Injury
72479 1 Warning - Do Not Operate if Decal is Exposed
82602 1 Warning - Crushing Hazard
82793 1 Beater/Apron Control
093020 9/3123 - 1 1/3127 Grease Zerk
093466 1 540 RPM
111593A 2 Danger - Stay Clear of Beater
111593C 2 Danger - Stay Clear of Endgate Arms
11211 1 76 2 Shear Bolts
DCAMB 5 Amber Reflector
DCRED 2 Red Reflectors

-23-

DECAL LOCATION

1494J

1494B

82602

66076

093466

1494L

093020

311

72100 - S3123
72101 - S3127

72097

(S3123/S3127)

54033

9194B

72203A

DCAMB

1494B

1 1599

82793

1494K

66076

DCAMB

72098 - S3123
72099 - S3127

71494A

(under shield)

(S3123/S3127)

11211176

093020

12794

72096

71494A

093020

71494A

(under shield)

9194A

12794

71 188B

1494A

093020

66076

1494K 82793 1494A

111593C

DCAMB

1 11593A

72479

-24-

11211176

093020

1494K

66076

1494J

DECAL LOCATION

72095

(S3123/S3127)

72098 - S3123
72099 - S3127

DCAMB

311

72100 - S3123
72101 - S3127

1494B

1494J

72097

(S3123/S3127)

54033

72203A

9194B
1494B
1 1599

82793

9194A

DCRED

1494H

1494J

Optional Upper

BeaterShield

093020

1 1593A

11211176

111593C

1494A

093020

1494A
(UNDER
SHIELD)

-25-

093020 DCRED

DCAMB

TROUBLE SHOOTING

WARNING:
MAKE SURE THAT THE TRACTOR IS SHUT OFF AND THE SPREADER CAN NOT
MOVE BEFORE SERVICING THE MANURE SPREADER. MAINTENANCE AND
REPAIR SERVICE WORK TO BE PERFORMED BY A QUALIFIED SERVICE PERSON
ONLY.

TROUBLE... POSSIBLE CAUSE... POSSIBLE REMEDY ...

Beater Does Not Turn PTO Not Turning Engage Tractor PTO

Beater Not Engaged Engage Beater

Main Drive Shear Bolt Sheared Replace Main Drive Shear Bolt

Front Drive Chain Off, Replace or Repair Front Drive Chain
Broken, or Missing

Control Cable out of Adjustment Adjust Control Cable

Splined Beater Insert Worn or Replace Splined Beater Insert and
Splines Sheared Off Gearbox Output Shaft

Beater Will Not Disengage Control Cable Out of Adjustment Adjust Control Cable

Control Linkage Binding Check Control Linkage, Make Sure

It Is Free Moving

Apron Does Not Turn PTO Not Turning Engage Tractor PTO

Main Drive Shear Bolt Sheared Replace Main Drive Shear Bolt

Apron Drive Shear Bolts Sheared Replace Apron Drive Shear Bolts

Front Drive Chain Off, Broken, Replace or Repair Front Drive Chain
or Missing

Apron Driveshaft Roller Chain Off, Replace or Repair Apron Driveshaft
Broken, or Missing Roller Chain

-26-

SERVICE NOTES

-27-

SERVICE NOTES

-28-

H&S MFGH&S MFG

H&S MFG

H&S MFGH&S MFG

products approved

for the

FEMAFEMA

FEMA

FEMAFEMA

..

CO CO

.

CO

..

CO CO

..

.

..

SEAL OF QSEAL OF Q

SEAL OF Q

SEAL OF QSEAL OF Q

UU

ALITYALITY

U

ALITY

UU

ALITYALITY
