H&S 125 PTO Operator's Manual

125 PT125 PT

125 PT

125 PT125 PT

MANURE SPREADERMANURE SPREADER

MANURE SPREADER

MANURE SPREADERMANURE SPREADER

OO

O

OO

OPERAOPERA

OPERA

OPERAOPERA

W ARNING

Revision #01
St arting Serial #51 1550

TT

OR’S MANUOR’S MANU

T

OR’S MANU

TT

OR’S MANUOR’S MANU

READ AND UNDERSTAND THIS MANUAL
BEFORE OPERATING THIS EQUIPMENT.
UNSAFE OPERATION OR MAINTENANCE OF
THIS EQUIPMENT CAN RESULT IN SERIOUS
INJURY OR DEATH.

HSMFG1014 Part #64237

ALAL

AL

ALAL

Manufactured By

H&S MANUFACTURING CO.,INC.

P.O. BOX 768 [phone] FAX [phone]

MARSHFIELD, WISCONSIN 54449

CONTENTS

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Manufacturer’s Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Pre-Delivery Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Delivery Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6

Safety Information - Be Alert Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Safety Information - Explanation of Safety Signs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Safety Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-10

Safety Information - Warning - Owner Must Read and Understand . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 1

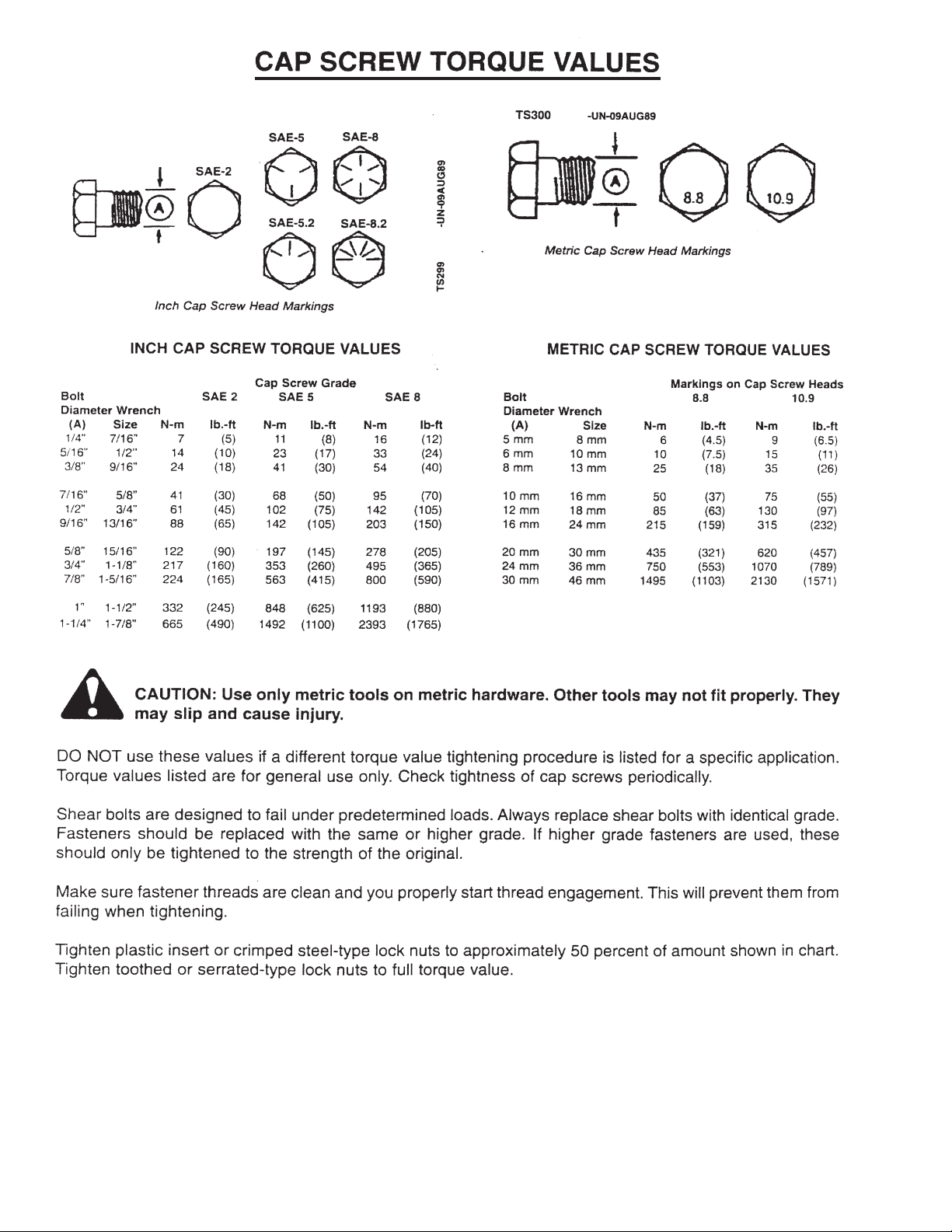

Cap Screw Torque Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Set - Up & Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Transporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Preparing for Opertation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-18

Optional Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Lubrication Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-21

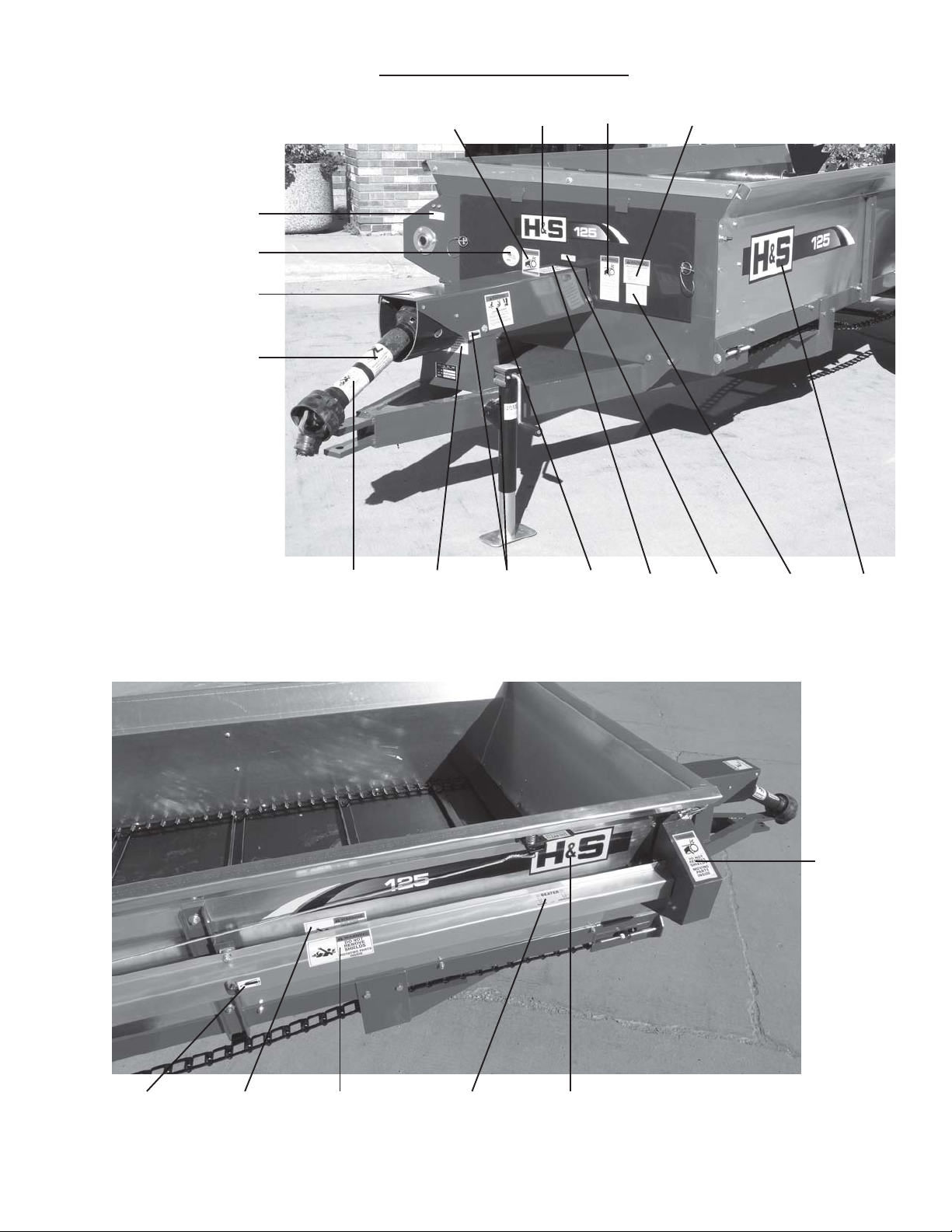

Decal Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22-24

Trouble Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Service Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Inside Back Cover

DEALER PRE-DELIVERY CHECK LIST

AFTER COMPLETION, DEALER SHOULD REMOVE AND RETAIN FOR RECORDS

After the Manure S preader has been completely set-up, check to be certain it is in correct operating
order before delivering to the customer. The following is a list of points to inspect. Check off each
item as you have made the proper adjustments and found the item operating satisfactorily.

 Manure spreader was not damaged in shipment. Check for dents and loose or missing

parts. Report damage immediately to H&S Manufacturing Co., Inc.

 All bolts and fasteners are tight.
 Manure spreader has been correctly assembled according to instructions in this manual.
 All grease fittings have been lubricated. Gearbox is filled to proper level.
 Guards and shields are secure.

 Wheels are properly mounted to torque specifications.
 Tires are inflated to correct pressure.

 Drive chain tension and alignment is correct.
 Decals are in place and legible.
 Main apron chains are adjusted properly .

Connect the manure spreader to a proper horsepower tractor and attach the PTO. Run the

(Remove Dealer File Copy At Perforation)

manure spreader and make sure all components operate properly.

 PTO guard turns freely.
 Main apron operates smoothly .
 Implement and all components are functioning properly .

Model Number

Dealer’s Name

Serial #

Inspection Date

Signature of Pre-Delivery Inspector

-3-

Intentionally Left Blank

-4-

DEALER DELIVERY CHECK LIST

AFTER COMPLETION, DEALER SHOULD REMOVE AND RETAIN FOR RECORDS

This check list that follows is an important reminder of valuable information that should be passed
on to the customer at the time this Manure Spreader is delivered.

Check off each item as you explain it to the customer.
This delivery check list, when properly filled out and signed assures the customer that the

Pre-delivery service was satisfactorily performed.

 Explain to the customer that the pre-delivery inspection was made.

 Explain to the customer all the safety precautions they must excercise when operating

this unit.

 Explain recommended loads for different types of materials.

 Explain to customer that regular lubrication is required for proper operation and long life of

machine.

(Remove Dealer File Copy At Perforation)

 Show customer the lubrication section of Owner’s Manual.

 Give the customer Owner’s Manual and make sure they read and understand all operating

and service instructions.

 Have the customer sign a completed “Warranty Registration”, and mail it.

Date Delivered

Dealer’s Name

By

Signature of Original Buyer

Note: Warranty is not valid until warranty card is completed and returned to H&S Mfg. Co., Inc.

-5-

Intentionally Left Blank

-6-

SAFETY INFORMATION

BE

YOUR SAFETY

IS INVOL VED.

ALERT!

THIS SYMBOL IS USED THROUGHOUT THIS BOOK WHENEVER YOUR PERSONAL SAFETY
IS INVOLVED. TAKE TIME TO BE CAREFUL. REMEMBER: THE CAREFUL OPERATOR IS THE
BEST OPERATOR. MOST ACCIDENTS ARE CAUSED BY HUMAN ERROR. CERTAIN
PRECAUTIONS MUST BE OBSERVED TO PREVENT THE POSSIBILITY OF INJURY OR
DAMAGE.

H&S MANUF ACTURING CO., INC.

-7-

SAFETY INFORMATION

Keep signs in good condition. Immediately replace any missing or damaged signs.

RECOGNIZE SAFETY INFORMATION

This is the safety-alert symbol. When you see this
symbol on your machine or in this manual, be alert to
the potential for personal injury .

Follow recommended precautions and safe operating
practices.

UNDERSTAND SIGNAL WORDS

A signal word; DANGER, W ARNING, or CAUTION - is
used with the safety-alert symbol. DANGER identifies the
most serious hazards.

Safety signs with signal word DANGER or WARNING are
typically near specific hazards.

General precautions are listed on CAUTION safety signs.

FOLLOW SAFETY INSTRUCTIONS

Carefully read all safety messages in this manual, and all safety signs on your machine. Follow all
recommended precautions and safe operating procedures.

OBSERVE MAXIMUM TRANSPORT SPEED

The maximum transport speed for this implement is 32 km/h (20 m.p.h.).

Some tractors are capable of operating at speeds that exceed the maximum
transport speed of this implement. Regardless of the maximum speed capability
of the tractor being used to tow this implement, do not exceed the implement’s
maximum transport speed.

Exceeding the implements maximum transport speed can result in:

* Loss of control of the tractor/implement combination
* Reduced or no ability to stop during braking
* Implement tire failure
* Damage to the implement structure or its components

Use additional caution and reduce speed when towing under adverse surface
conditions, when turning, and when on inclines.

Do not attempt transport if the fully loaded implement weighs more than 1.5 times
the weight of the tractor.

-8-

SAFETY INFORMATION

-9-

SAFETY INFORMATION

-10-

SAFETY INFORMATION

TRACTOR:

This operators manual uses the term “Tractor” when identifying the power or the towing
source.

WARNING

TO PREVENT SERIOUS INJURY OR DEATH

BEFORE YOU ATTEMPT TO OPERATE THIS EQUIPMENT, READ AND STUDY THE FOLLOWING
INFORMATION. IN ADDITION, MAKE SURE THAT EVERY INDIVIDUAL WHO OPERATES OR WORKS
WITH THIS EQUIPMENT, WHETHER FAMILY MEMBER OR EMPLOYEE, IS FAMILIAR WITH THESE
SAFETY PRECAUTIONS.

KNOW HOW TO STOP UNLOADING MECHANISM BEFORE STARTING IT.
If the machine becomes clogged,

allow all mechanisms to stop before cleaning or working on the machine.

DO NOT get off the tractor while the spreader is in operation.
DO NOT attempt to perform maintenance or repair with tractor running and PTO engaged.
DO NOT step up on machine at any time.
NEVER manually feed material into the beaters.
DO NOT allow minors to operate or be near the machine.
DO NOT ALLOW PERSONNEL OTHER THAN THE QUALIFIED OPERATOR NEAR THE MACHINE.

Before starting tractor, be sure PTO shields turn freely and PTO is securely locked to tractor.
DO NOT clean, adjust, or lubricate the machine when any part is in operation.
Keep hands, feet, and clothing away from beaters when they are revolving.
Loose or floppy clothing should not be worn by the operator.
Be sure the machine is clear of people, tools, and other objects before engaging PTO.

DO NOT step over power take off shaft. Stay clear of PTO at all times.
NEVER start manure spreader until all guards and safety shields are secured in place.

disengage the PTO. S top the tractor engine, remove ignition key, and

H&S always takes the operator and their safety into consideration and guards exposed moving parts
for their protection. However, some areas cannot be guarded or shielded in order to assure proper operation.
In addition, the operators manual and decals on the machine itself warn you of further danger and should
be read and observed closely .

Study The Above Safety Rules

ATTENTION - BE ALERT - YOUR SAFETY IS INVOLVED

-11-

-12-

SET -UP & ASSEMBLY

NOTE: Determine right or lef t side of the Manure Spreader by viewing it from the rear . If instructions or

parts lists call for hardened bolts, refer to the Cap Screw Torque Value Chart.

PREPARING MANURE SPREADER

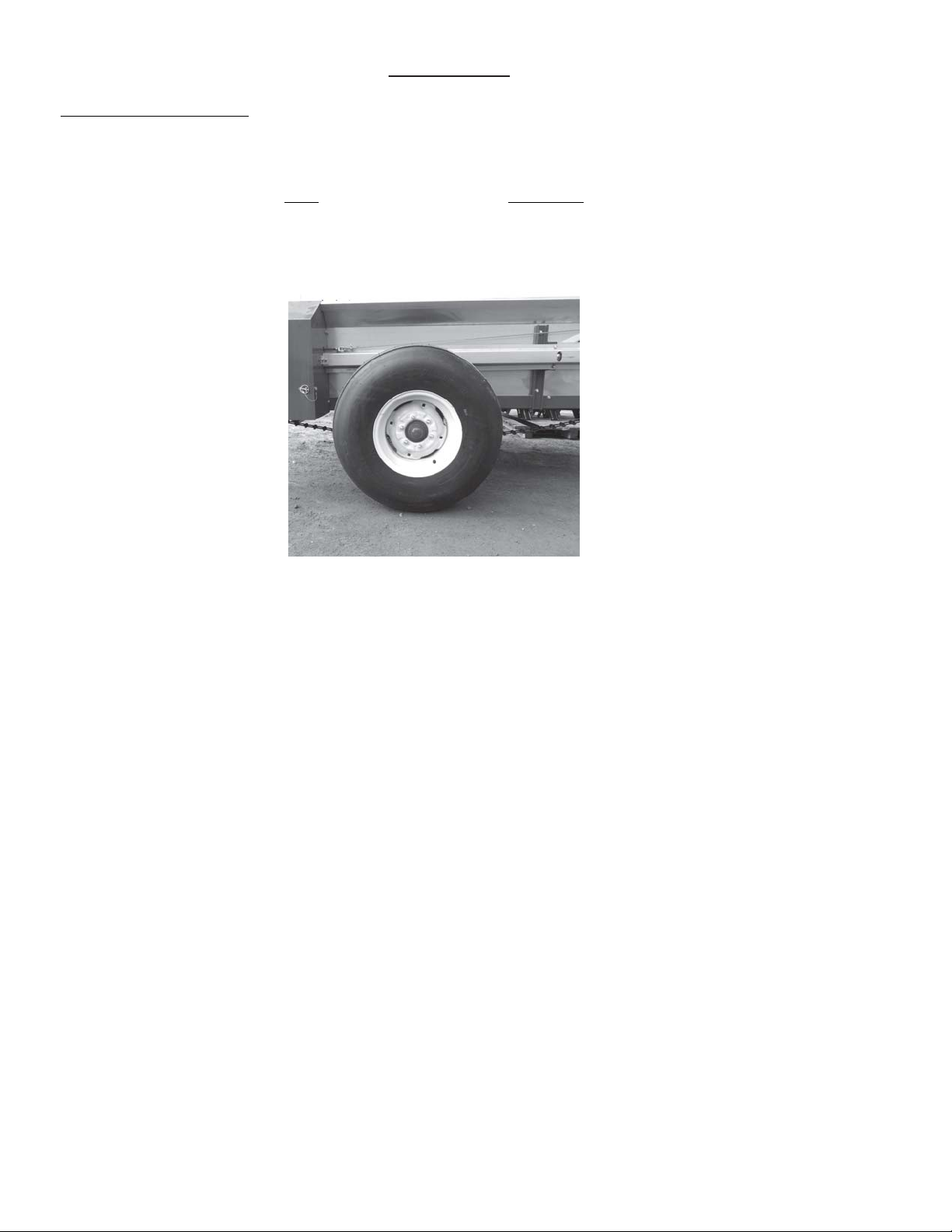

The Manure Spreader may be shipped without the wheels/tires inst alled.

1. Attach the wheels with tires, using the lug nuts furnished and torque the mounting hardware to

the appropriate torque. Wheel bolts should be tightened at 60-65 ft./lbs. of torque.

2. Check the tires and inflate to the recommended pressure. (10.00 - 15 tires to 40 Pounds).

3. Check for proper assembly and adjustment and make sure that all bolts are tightened.

4. Securely retighten after a few hours of operation, as bolts can loosen up on new machinery.

5. Lubricate the machine completely , check the oil level of the gearbox, fill if necessary.

TRANSPORTING

SAFETY

Follow state and local regulations when towing farm equipment on public highways. Check with local
law enforcement agencies for your own particular regulations. Unless otherwise prohibited, use a
slow-moving vehicle emblem. Never tow the manure spreader on a public highway at a speed greater
than 20 m.p.h. (32 kph).

-13-

PREPARING FOR OPERA TION

TRACTOR CONNECTIONS

Tractor Hitch

Fasten the spreader hitch to the drawbar with a hitch pin with a safety locking device. Remove the
weight from the jack (jack is not to be used when spreader is loaded). Remove jack from pipe mount
and place on convenient storage mount located on the left front of spreader. This allows protection of
jack from tractor tires during turns. The hitch of the spreader is designed for a standardized tractor hitch.

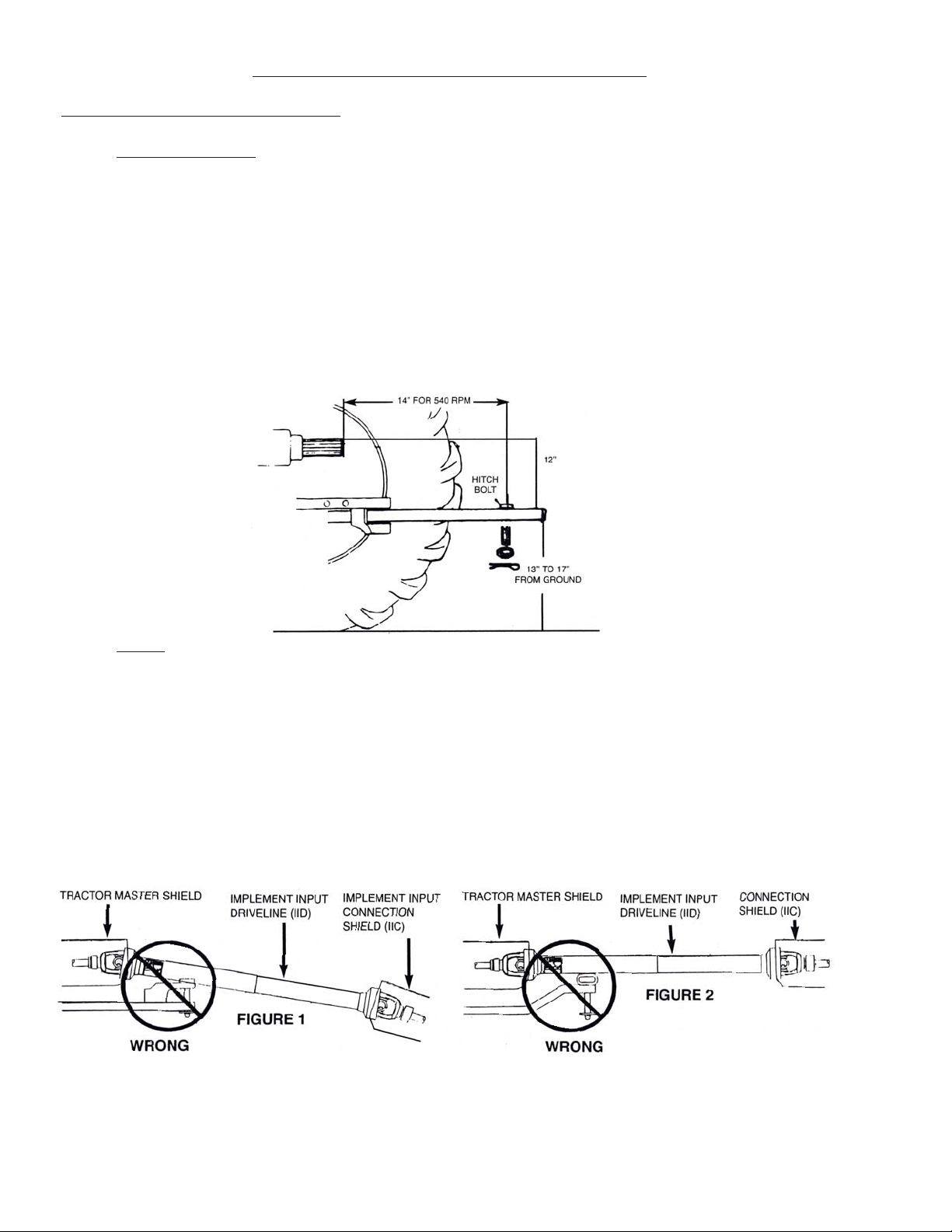

Adjust the drawbar so that it is 13 to 17 inches above the ground. Extend or shorten it so that the
horizontal distance from the end of the tractor power takeoff shaft to the center of the hitch pin hole is 14
inches for 540 PTO as shown in drawing. An improperly located hitch point may cause damage to the
universal joints of the power takeoff. Secure the drawbar so that the hitch pin hole is directly below the
power drive line.

PTO

Attach the PTO of the spreader to the tractor by sliding the spring loaded locking collar on PTO yoke
rearward, then sliding it onto the tractor PTO shaft. Release spring loaded collar. Be sure the pins fall
into the groove of the tractor PTO shaft and collar snaps forward into locking position.

CAUTION: Do not use a steel hammer to aid in joining PTO parts.

If this implement is attached to a tractor with a clevis
hitch (hammer-strap) style drawbar, the
hammer-strap must be removed to prevent
damage to the IID guarding and the IID telescoping
members. [See Figure1]

If this implement is attached to a tractor with an
offset in the drawbar, be certain it is in the down
position to prevent damage to the IID guarding and
the IID telescoping members. [See Figure 2]

-14-

OPERATION

LOADING

In freezing weather, make cert ain that the apron chain is not frozen to the spreader floor or any lumps of
manure are frozen to the floor. Begin loading the spreader at the front end and work toward the rear until
loading is completed. Loading this way permits the material to be spread uniformly . Loading front to rear
is particularly important when the spreader is loaded by a mechanical loader because this type of load
requires more power to spread than others loads. When hauling extremely heavy materials with a large
portion of dirt, it may be necessary to reduce the load size to prevent excessive shear bolt breakage.
Never dump material onto the beater. Do not use extra sideboards. Do not overload the manure spreader .
Overloading decreases spreading effectiveness. Do not load more than 15 inches above the beater .

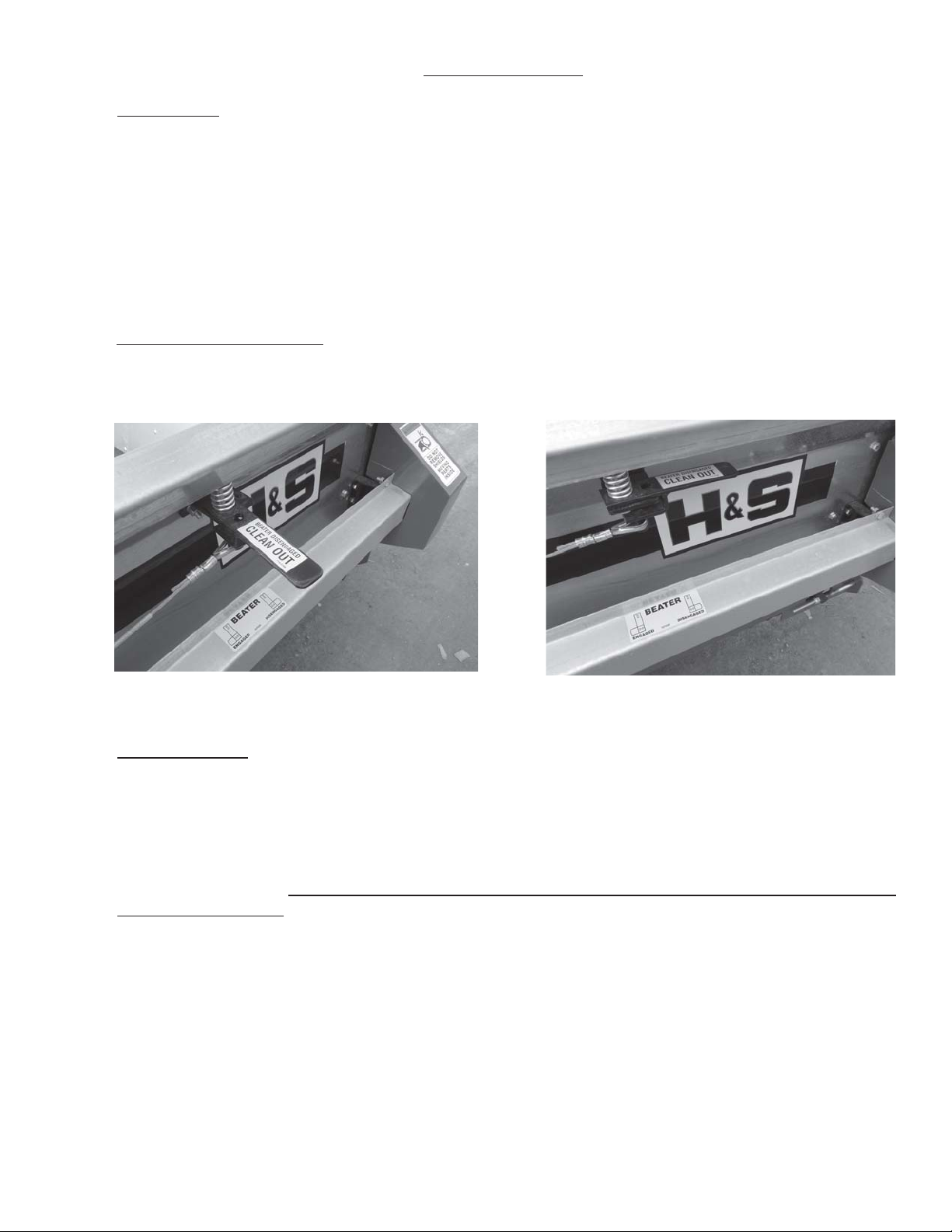

BEATER CONTROL

The beater engage/disengage handle is located at the front right hand side of the spreader. NEVER
engage or disengage the beater with the PTO engaged.

Beater Engaged Beater Disengaged

SPREADING

1. When you are ready to unload, make sure the beater is in the engaged position.

2. Throttle the tractor down, engage the tractor PTO slowly, then increase the throttle to 540 RPM’s and
begin moving. Failure to do so will cause damage to the gearbox and drive train.

3. When the spreader is almost empty , the bed can be cleaned by moving the beater control lever to the
disengaged position.
disengage the beater. With the lever in this position the beater will stop and the apron will continue to
operate when the PTO is re-engaged.

4. When spreader is empty, shut off the PTO. With the PTO off, return to the lever to the “engaged”
position for the next load.

DO NOT SHIFT FROM CLEAN OUT TO ENGAGEMENT POSITION WITH THE PTO RUNNING.

5. Do not operate the spreader with the PTO speed greater than 540 RPM’s.

FAILURE TO FOLLOW THE RECOMMENDED ADJUSTMENTS WILL VOID WARRANTY

Disengage the PTO and shut the tractor off before getting off the tractor to

-15-

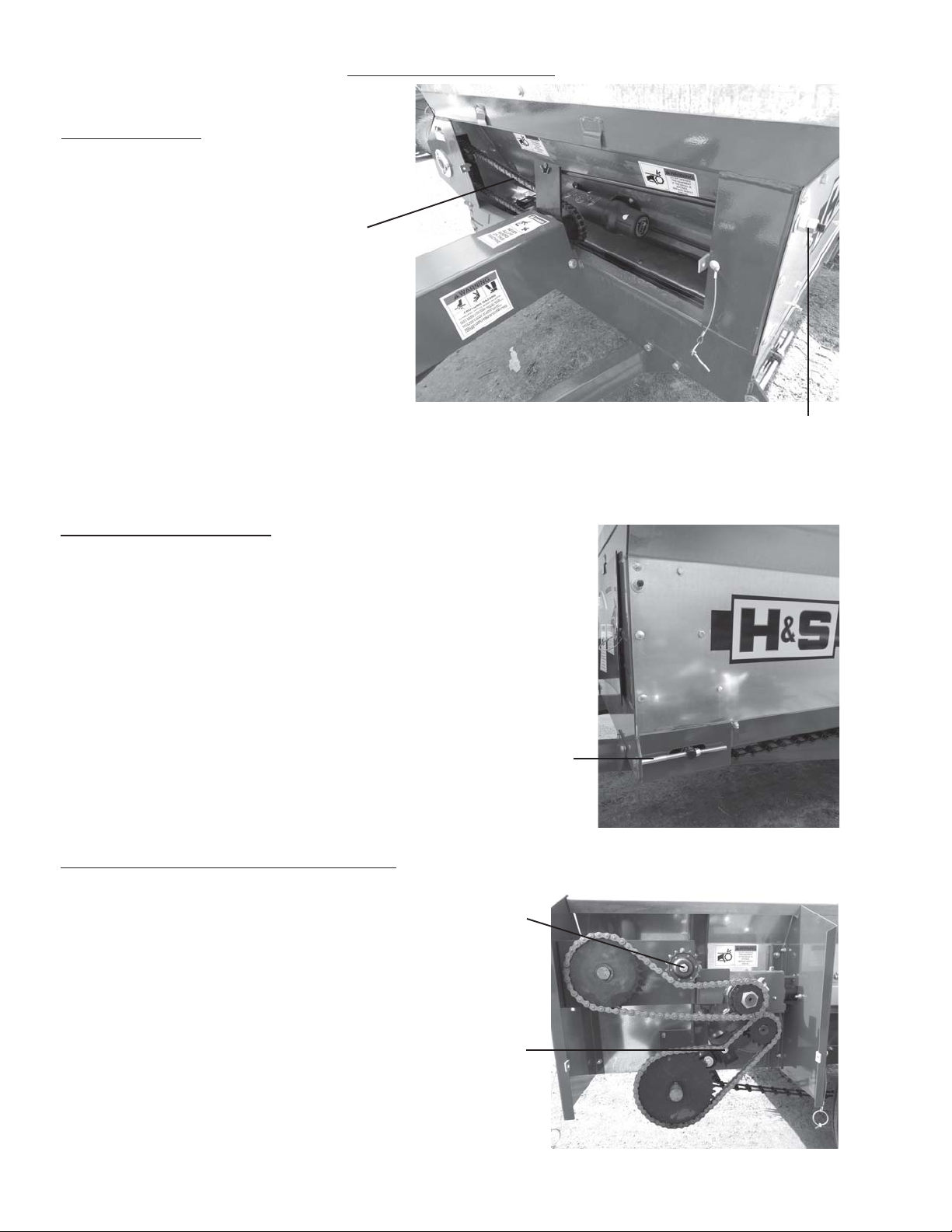

ADJUSTMENTS

DRIVE CHAIN

To adjust the main drive chain, turn the
nut on the adjusting rod (located at the
left hand front side of spreader) clockwise.
There should be 1/2 inch deflection
at the center of drive chain. Over
tightening or too loose of a chain, will
result in excessive wear on the bearing,
chain and sprockets.

Shield Removed

For Clarity

MAIN APRON CHAIN

Adjust the apron by tightening the adjusting bolts until the
apron chain clears the underside of the axle by 1 inch.

NOTE: Tighten the adjusting bolts on each front corner
equally on each side so that the apron slats run parallel with
the ends of the bed. The apron will be damaged if the
machine is operated with one end of the apron slats running
ahead of the opposite end. Do not tighten the apron chains
excessively.

Tightener Bolt

(Apron)

APRON/BEATER DRIVE CHAINS

Maintain proper tension on the apron & beater
drive chains. There should be 1/4“ deflection
at the side of the chain when properly adjusted.
T o adjust, loosen the bolt holding the tightener .
Slide the tightener against the drive chain and
retighten the bolt. Failure to maintain proper
tension will result in excessive wear to the
chain and sprockets.

Beater

Drive Chain

Tightener

Apron

Drive Chain

Tightener

Adjusting Rod Nut

(Drive Chain)

Shield Removed For Clarity

-16-

SERVICE

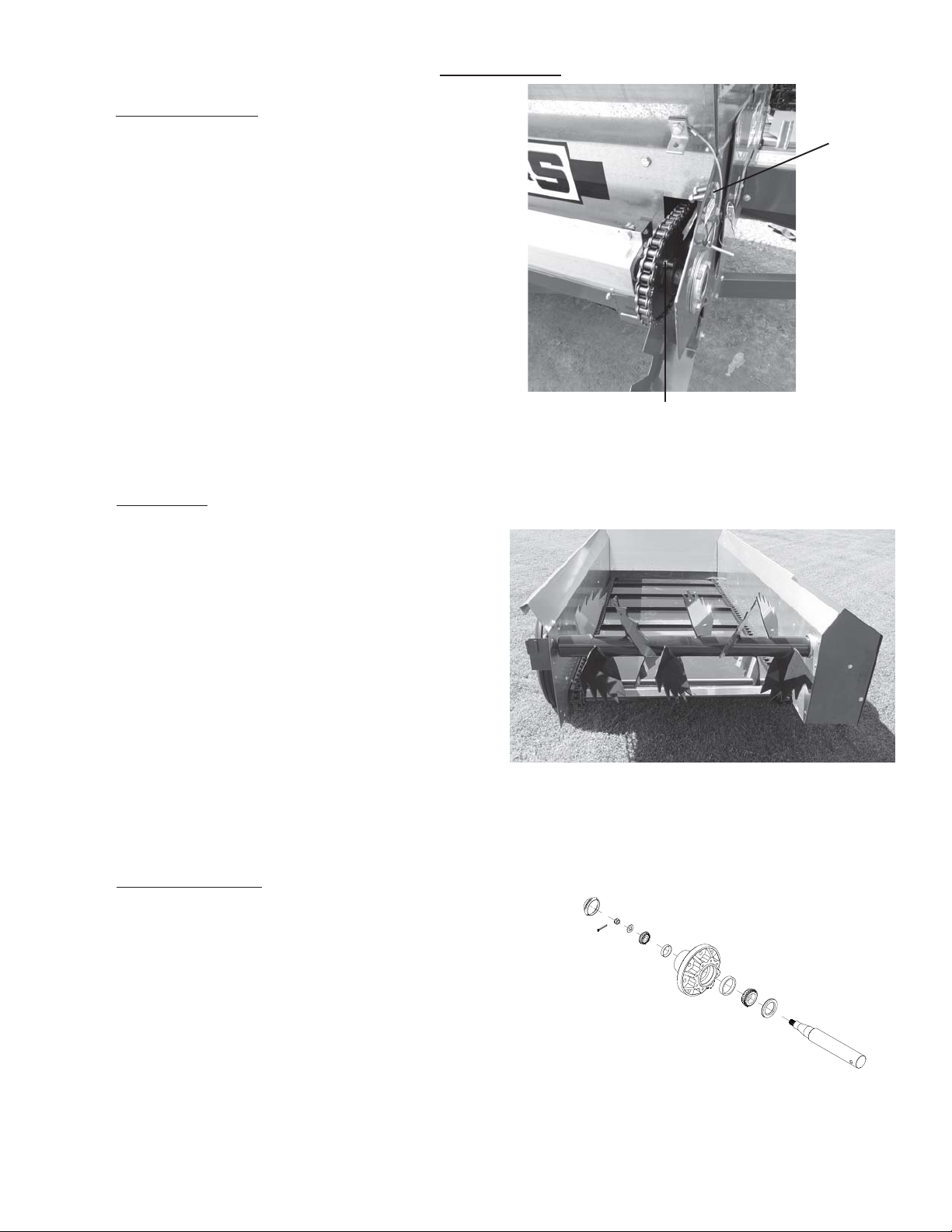

SHEAR BOLT

The beater and apron drive are protected
by one shear bolt. Shearing of the bolt is
normally due to foreign objects in the
manure, or starting the spreader PTO too
quickly with high tractor RPM’s. Always
use H&S shear bolts.

Shields

Removed

Clarity

BEATER

The beater paddles are welded to the beater
tube. Replacement of these paddles should be
performed by authorized service personnel who
are competent welders. When replacing paddles,
the sharp edge of the teeth must lead in the
direction of beater travel.

Sp are
Shear

Bolts

for

Shear Bolt

WHEEL HUBS

To service or adjust the wheel hubs, tighten the
castellated nut on the spindle to the point where
there is no end-play and a slight drag on the
bearings. Replace the cotter key with a new one of
the correct size.

-17-

SERVICE

TIRES & WHEELS

Check the tire pressure after every 50 hours of operation. Tires should be inflated to the appropriate
pressure listed in the table.

Tire Pressure

10.00x15 40 PSI

Wheel lug torque should be checked after every 50 hours of operation and tightened to the appropriate
torque.

Wheel bolts must be tightened between 60-65 ft./lbs. of torque.

-18-

OPTIONAL EQUIPMENT

REAR PAN

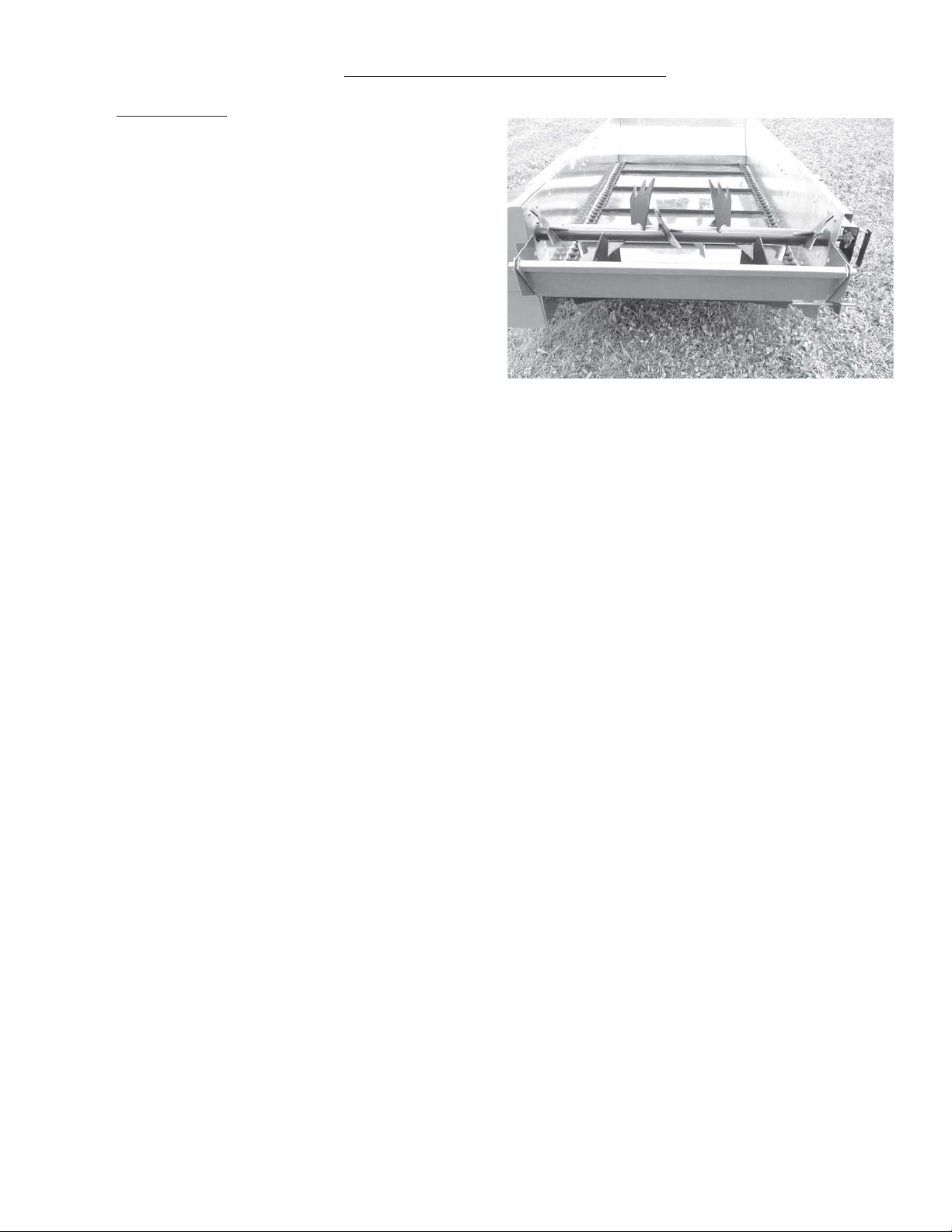

The rear pan shown is optional equipment.

-19-

LUBRICATION

The operator should become familiar with all lubrication points and establish a systematic routine to
insure complete and quick lubrication of the machine.

GENERAL INFORMATION

IMPORTANT: Catch and dispose of fluid per local waste disposal regulations whenever service is

performed on hydraulic components, valves, cylinders, hoses, etc.

GREASE FITTINGS

There are numerous grease fittings on the spreader, If these are lubricated properly and of ten enough, it
will prolong the life of the spreader. (Grease every 20 hours, also before storage and after power
washing.) Make certain that the grease fittings are free of paint and dirt. Force a high-quality grease into
them until the grease comes out around the shaft on the sleeve-type bearings. On the sealed ball
bearings, grease should be added slowly until a slight bead forms at the seals indicating the correct
amount of lubricant. Wipe off excess grease to prevent the accumulation of chaff and grit around the
bearings.

GEARBOX

Before using your new machine, check the oil level in the gearbox located at the left rear of the spreader .
Keep the bearbox filled to the center of the top shaft of the gearbox with #80 or #90 gear lube.

DRIVE CHAINS

Lubricate the drive chains with a light machine oil. Keep chains aligned with sprockets, this will lengthen
the life of the sprockets and chain. Lubricate chains often.

PTO ASSEMBLY

Care must be taken to keep the male and female driving elements well
lubricated and free sliding. Failure to observe this precaution will result in
excessive pressure being required to collapse or extend the assembly while
subject to operating torque. This excessive force may damage or displace the
jackshaft bearings. DO NOT lubricate the shield surfaces. The shield
surfaces must be kept dry, as dirt accumulation on them will quickly cause
these units to bind and not rotate. Care should also be taken to be certain that
the rotating integral shields are not dented or damaged, as this also will result
in excessive force being applied against the jackshaft. Damaged shields
also cause obvious difficulties when installing the assembly. If at any time the
shields do not turn freely , they should be checked to determine the cause, and
repaired or cleaned. To avoid damage to the main drive bearings, avoid
turning sharp corners while PTO is running.

Start and Stop the PTO slowly to avoid damage to the drive line.

-20-

LUBRICATION

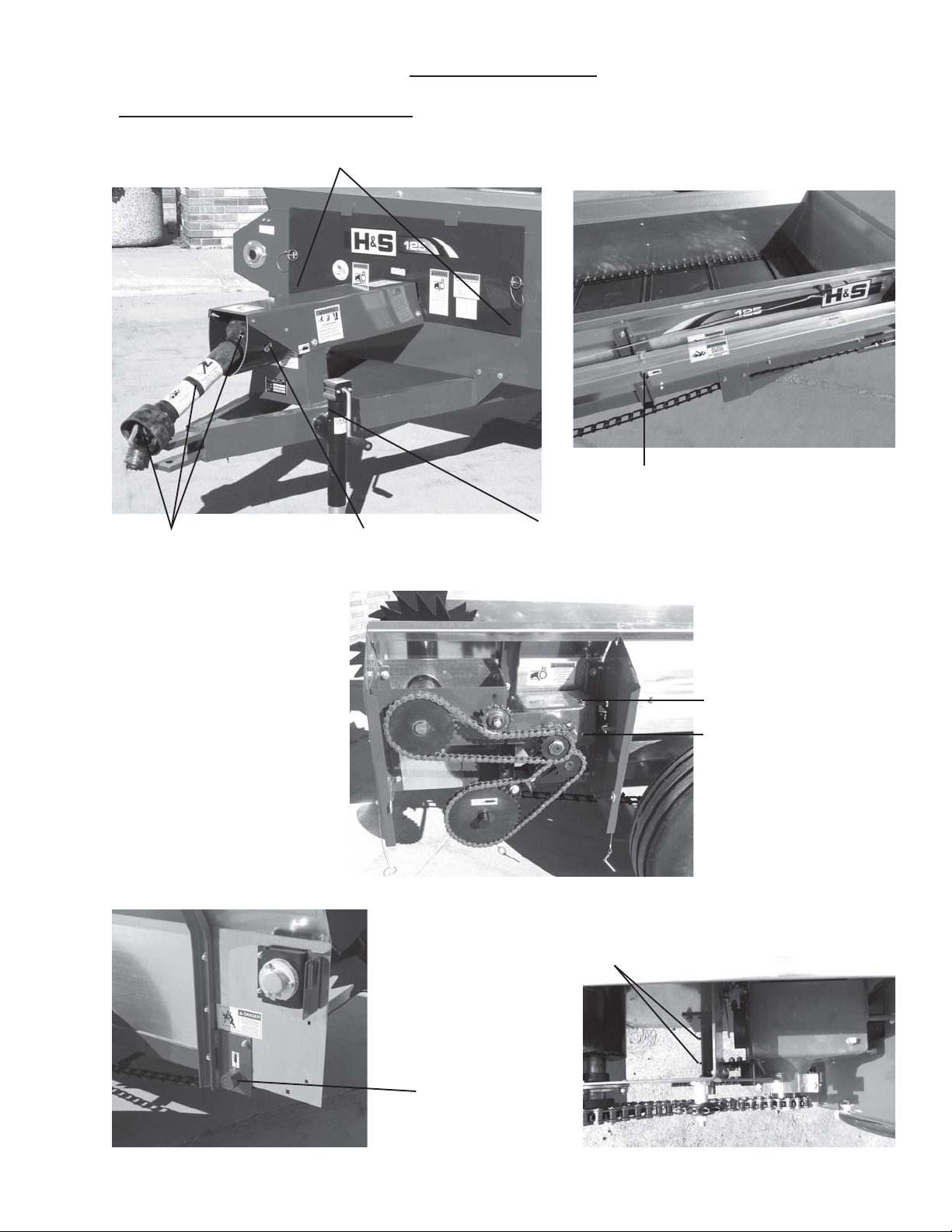

GREASE ZERK LOCATIONS

One on each front idler sprocket behind the shield

One on the side shaft

(3) - One at each end

of the PTO shaft &

one in the center

One on the front

of the jackshaft

One on the front

of the jack

Oil Fill Plug
Oil Fill Level

(2) - Drive Shaft/Right

(1)

Drive Shaft/Left

-21-

DECAL LOCATION

Your H&S Manure Spreader was manufactured with operator safety in mind. Located on the Manure
Spreader are various decals to aid in operation, and warn of danger or caution areas. Pay close attention
to all decals on your Manure Spreader.

DO NOT REMOVE ANY OF THESE DECALS. IF THE DECALS ARE LOST, DAMAGED,
OR IF THE MANURE SPREADER IS REPAINTED, REPLACE THE DECALS.
REMEMBER: DECALS ARE FOR YOUR PROTECTION AND INFORMATION.

Listed below are the decals on your Manure Spreader . These decals may be ordered individually by part
number or by ordering a complete set.

PART # QTY DESCRIPTION

31 1 1 Patent Numbers
1494A 3 Warning - Do Not Operate
1494J 2 Warning - Do Not Clean
1494K 3 Warning - Do Not Remove Shields
1494L 1 Danger - Rotating Driveline (On PTO Shaft)
8384 1 H&S Logo Decal (Left)
8385 1 H&S Logo Decal (Right)
8386 1 H&S Logo Decal (Front)
9194A 1 Danger - No Step
9194B 1 Danger - Never Allow Riders
12794 1 Warning - Do Not Remove Shields
52703D 1 Beater Engage/Disengaged
54033 1 Made in USA
72203A 1 Warning - Help Avoid Injury
71494A 2 Warning - Do Not Operate
081312 1 Zerk Located Behind Sprocket
82602 1 Warning - Crushing Hazard
093466 1 540 RPM Maximum Rotating Speed (On PTO Shaft)
093020 6 Grease Zerk
7143189 1 Beater Disengaged - Clean Out
112111 7 6 1 Shear Bolts
1 11593A 2 Danger - St ay Clear of Beater
DCRED 2 Red Reflector
66076 1 Zerk Located Behind Shield

-22-

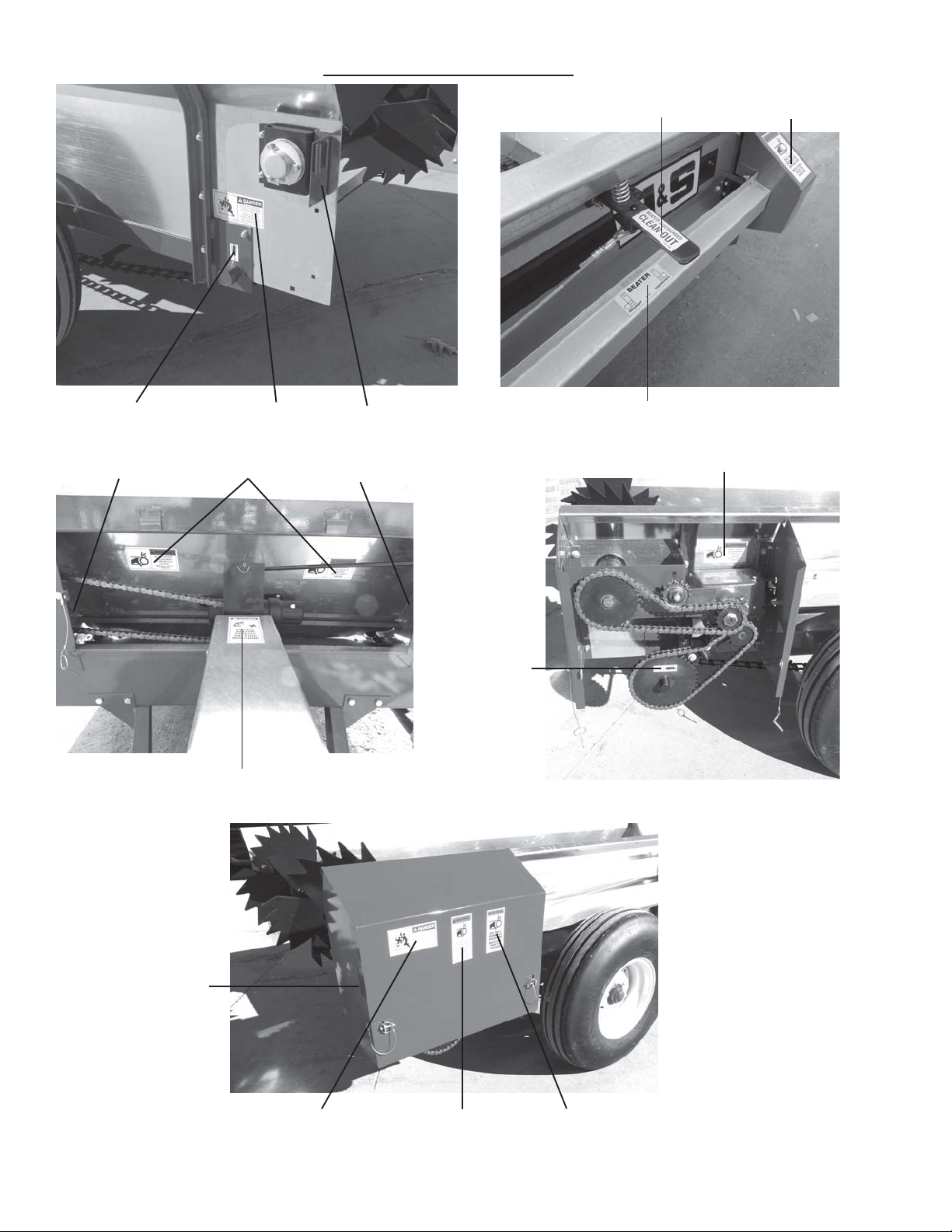

DECAL LOCATION

11211176

54033
9194A

093466

1494K

1494J8386

72203A

1494L

71494A

093020

82602

9194B

66076

311

8384

1494K

093020

71494A

BEHIND SHIELD

12794

52703D 8385

-23-

DECAL LOCATION

093020

093020

1 11593A

1494A

DCRED

093020

7143189

52703D

1494K

1494A

DCRED

081312

9194B

1 11593A 1494J

-24-

1494K

TROUBLESHOOTING

WARNING:
MAKE SURE THA T THE TRACTOR IS SHUT OFF AND SPREADER CAN NOT MOVE
BEFORE SERVICING THE MANURE SPREADER. MAINTENANCE AND REPAIR
SERVICE WORK TO BE PERFORMED BY A QUALIFIED SERVICE PERSON ONLY.

TROUBLE... POSSIBLE CAUSE... POSSIBLE REMEDY...

Beater Does Not Turn PTO Not Turning Engage Tractor PTO

Beater Not Engaged Engage Beater

Shear Bolt Sheared Replaced Shear Bolt

Front Drive Chain Off, Replace or Repair Front
Broken, or Missing Drive Chain

Beater to Gear Box Attaching Replace Sheared or Missing
Bolts Sheared or Missing Beater Bolts

Beater Drive Chain Missing Replace or Repair Beater
or Broken Drive Chain

Beater Drive Sprocket Key Replace Sheared or Missing
Sheared or Missing Key

Beater Will Not Disengage Beater Engage/Disengage Re-adjust or Replace Cable

Cable Stretched or Broken

Apron Does Not Turn PTO Not Turning Engage Tractor PTO

Shear Bolt Sheared Replace Shear Bolt

Front Drive Chain Off, Replace or Repair Front
Broken, or Missing Drive Chain

Main Apron Broken Replace or Repair Main Apron

Keys on Main Apron Shaf t Replace Sheared or Missing
Sheared or Missing Keys

-25-

SERVICE NOTES

-26-

SPECIFICATIONS

T op Flare Wid th . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54”

Inside Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48”

Inside Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10’6”

Inside Depth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22”

Overall Width w/10.00 - 15 T ires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80”

Overall Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15’-3”

Overall Heigth w/10.00 - 15 T ires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43-1/2”

Wheel Tread . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67-1/2”

Wheel Tread . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68”

Diameter of Beater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22”

Main Apron Chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67XH

Gearbox Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Single Speed

Weight w/10.00 - 15 T ires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1600 Lbs

PTO S peed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 540 RPM

Capacity - Cu. Ft. Struck Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Swing A way Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Standard

Rear Pan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Optional

SPECIFICA TIONS SUBJECT TO CHANGE WITHOUT NOTICE

H&S MFGH&S MFG

H&S MFG

H&S MFGH&S MFG

products approved

for the

FEMAFEMA

FEMA

FEMAFEMA

..

CO CO

.

CO

..

CO CO

..

.

..

SEAL OF QSEAL OF Q

SEAL OF Q

SEAL OF QSEAL OF Q

UU

ALITYALITY

U

ALITY

UU

ALITYALITY
