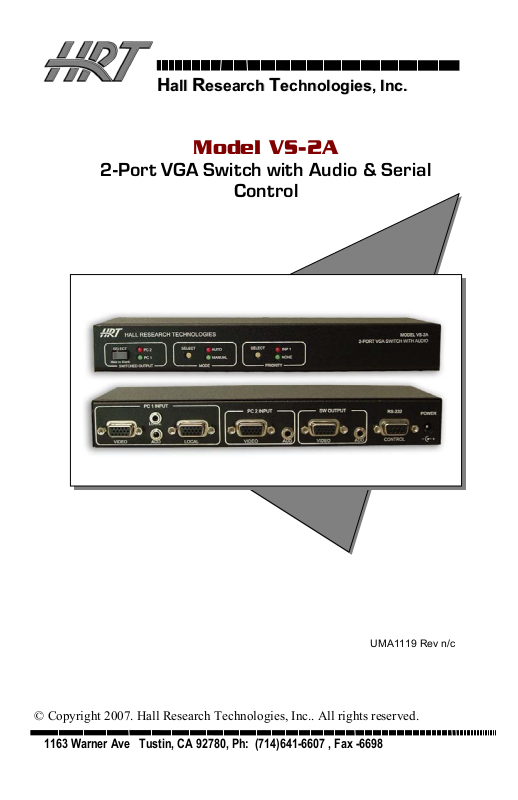

HRT VS-2A User Manual

pyrig
H
H
aallll
R
eesseeaarrcchh
R
T
eecchhnnoollooggiieess,, IInncc..
T
Model VS-2A
2-Port VGA Switch with Audio & Serial
Control
© Co
1163 Warner Ave Tustin, CA 92780, Ph: (714)641-6607 , Fax -6698
ht 2007. Hall Research Technologies, Inc.. All rights reserved.
UMA1119 Rev n/c
Model VS-2A
2
Table of Contents
2-Port VGA Switch with Audio & Serial Control
1.0 General .............................................................................................. 2
2.0 Features.............................................................................................. 2
3.0 Installation ......................................................................................... 3
. Required Cables................................................................................... 3
. Inputs & Outputs ................................................................................. 3
. Connecting the VS-2A......................................................................... 3
. Connection Diagram............................................................................ 4
4.0 Operation ........................................................................................... 4
. Switched Output .................................................................................. 4
. Modes of Operation ............................................................................. 5
. Priority Selection in Auto Mode.......................................................... 5
. RS-232 Control.................................................................................... 5
. To configure HyperTerminal............................................................... 6
Control Codes (1 byte commands from external control device).................... 6
5.0 Troubleshooting................................................................................. 9
6.0 Specifications................................................................................... 10
1
Model VS-2A
1.0 General
Thank you for purchasing Hall Research Technologies’ VS-2A 2-Port VGA Switch with Audio & Serial Control.
This unit provides a video along with audio output that can be switched between two video and audio sources. The unit also has a loop-out for input #1 for connection to a local LCD.
The VS-2A unit provides all the A/V and control connections on the rear panel; the front panel has a push-button switch with corresponding LED indicator for the selection of video source. The front panel also features mode selection buttons to allow the unit to operate automatically (based on video detection). This unit can be controlled either manually using the front panel switch, automatically based on video detection, or remotely through an RS232 serial port.
The unit can be configured to operate in two different modes, which are Auto and Manual modes. There is a priority selection that can be used to set for input #1. Switched output can be blanked and un-blanked either from the front panel button or from the PC command sending through the serial port.
The unit also has EEPROM (internal non-volatile flash memory) to store the last operating mode when power is off.
2.0 Features
Allows one video with stereo audio to be switched between two
video and audio sources
Loop-out for input #1 audio and video Can be manually controlled by push-button switch buttons or
remotely by RS232 communication port
Provides Auto mode to automatically select input source Auto Mode priority can be set for input #1 or no-priority Switched output can be blanked and un-blanked Stores the last selection and mode in EEPROM Compact, Rugged, Reliable, and Economical Made in USA
2
2-Port VGA Switch with Audio & Serial Control
3.0 Installation
. Required Cables
The video input cables are generally HD15 (VGA) male to male (customer furnished). The Audio inputs are 3.5 mm mini-stereo (also customer furnished). If you are going to connect the unit to a Serial port (such as PC’s COM) you would need a Male/Female DB9 Serial Cable.
. Inputs & Outputs
The VS-2A has 2 video and audio inputs: PC 1 Input and PC 2 Input. The unit has 1 video and audio output: SW Output. There is a local video and audio output, which is a loop-out for PC 1 Input: Local.
. Connecting the VS-2A
Connect your video and audio sources such as computer or notebook PC to PC 1 Input and PC 2 Input. If the loop-out for input #1 is desired, it can be connected to local video and audio.
Connect the display device such as a monitor (or a video projector) to the switched video and audio outputs (SW Output).
Connect the included power supply to the VS-2A.
Select the desired mode of operation including the priority for your video and audio output using the front panel switched buttons. If preferred, the selection can also be done through RS-232 serial commands by connecting a DB9 RS-232 Serial cable to your PC and the VS-2A.
3
Model VS-2A

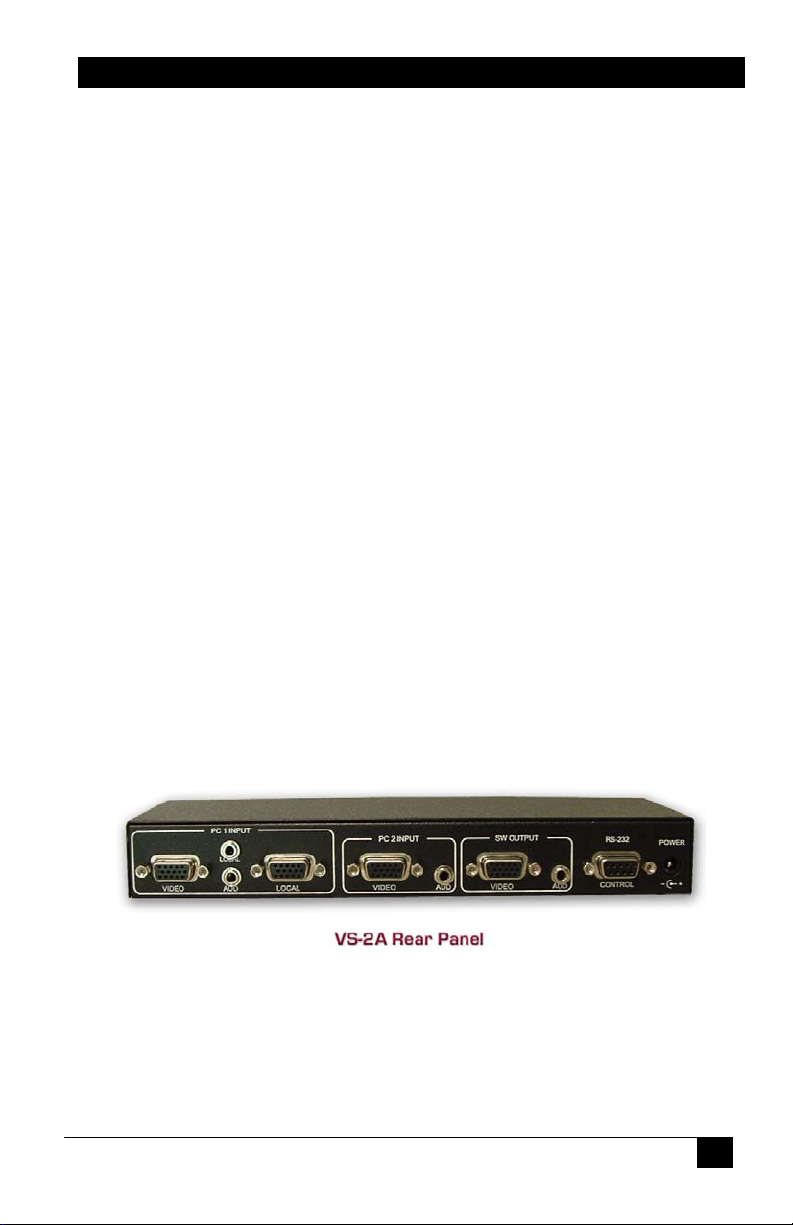

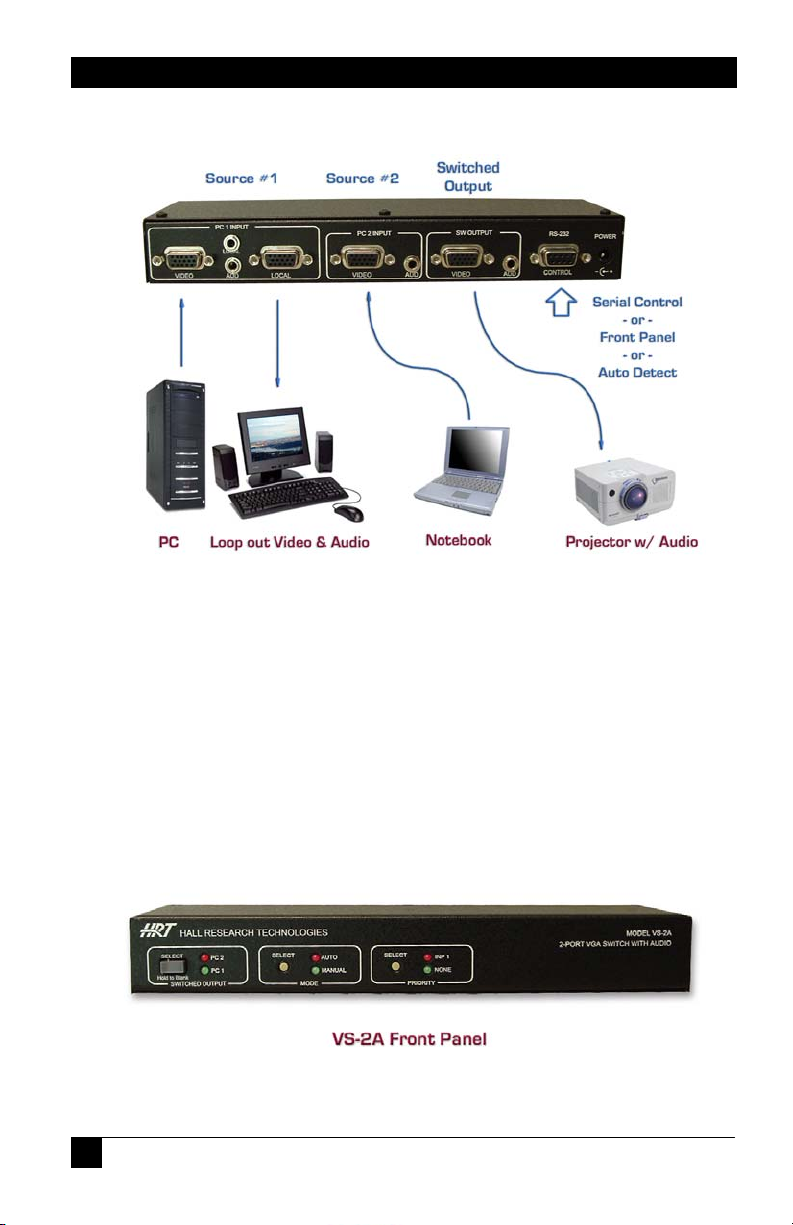

. Connection Diagram
4.0 Operation
. Switched Output
The switched output SELECT button is used to select between video & audio input sources of PC 1 and PC 2. A solid-on LED is used to indicate which input is selected.
Holding down the switched output SELECT button for 3 seconds will blank the current selected input source(and mute the audio output). The LED for the current selected input will start blinking to indicate the blanking mode. Pressing the SELECT button again will un-blank the output and un-mute the audio on the switched out.
4
2-Port VGA Switch with Audio & Serial Control
. Modes of Operation
The unit can operate in either Auto or Manual mode by pressing the mode button to select it.
In Auto mode, the VS-2A will automatically select the input with active video and audio. The presence of video is determined by examining the V. Sync signal of the input connectors. The front panel SELECT button cannot be used to switch between PC 1 and PC 2 input sources in this mode. However, it can be used to blank the output by holding it down for 3 seconds or to un-blank the output by pressing it once.
In Manual mode, the output of the VS-2A will depend on the selection of the switched output SELECT button.
. Priority Selection in Auto Mode
The priority button is used to select the priority as none or as input #1. This priority selection only applies to the Auto mode. If INP 1 priority is selected, the VS-2A will automatically select input #1 whenever it detects the presence of video at PC 1 input, regardless of what is happening at input #2. For example, if the output is playing the video & audio from PC 2 input and the video from PC 1 input is detected, the output of the VS­2A will select PC 1 (input #1) immediately. With priority set to none, the unit stays selected to the current input as long as it is detecting video there.
. RS-232 Control
The VS-2A can also be controlled via a serial device. The unit operates at a baud rate of 4800 bps. From the serial port, you have full control over the operation of the switched output, mode, and priority buttons.
Note on RS-232 port availability on your PC

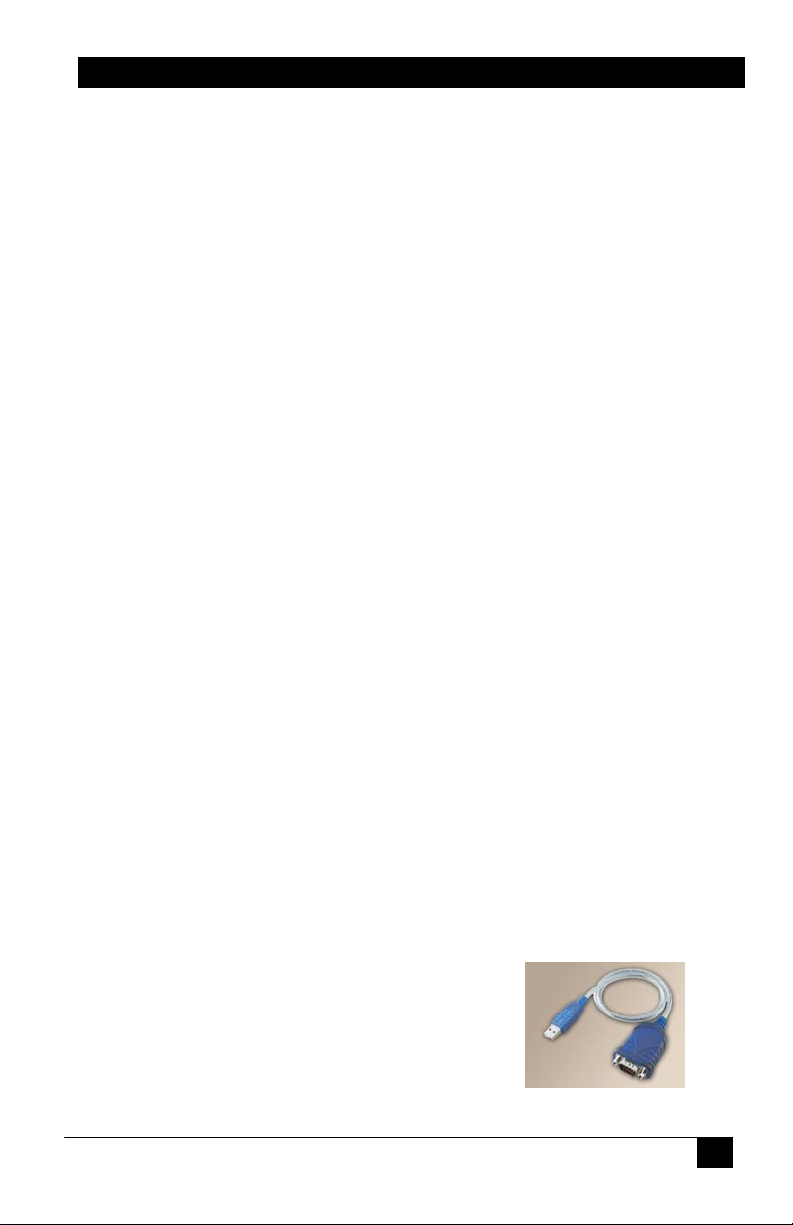

Most PCs and notebooks do not have a serial port. So to program the Switch you may need a USB to RS-232 Serial converter. These are available from Hall Research Technologies (Model USB­RS232-1).
5
Model VS-2A
A
M
N
The VS-2A will output a menu to a serial port on power-up. This menu will also be displayed when a proper command is sent to it via a serial port. To view the menu, An ASCII serial terminal or terminal emulator software is needed. An example is Microsoft Windows HyperTerminal (generally found in Accessories\Communication folder)
. To configure HyperTerminal
- Connect direct to COM1 or COM2
- 4800 Baud, 8 bits, No Parity, 1 Stop bit, No flow control After power-up the unit will output the following menu in ASCII through its serial port:
---------------------­ M E N U
---------------------­1 = PC 1 Input 2 = PC 2 Input
= Auto mode = Manual mode
P = PC 1 priority
= No priority B = Blank U = Un-blank S = Status report L = List menu
Control Codes (1 byte commands from external control device)
ASCII 1 (or Hex 31)
Selects input #1 (immediately and unconditionally). The device will respond with: PC 1 Input selected
ASCII 2 (or Hex 32)
Selects input #2 (immediately and unconditionally). The device will respond with: PC 2 Input selected
ASCII A (or Hex 41)
6
2-Port VGA Switch with Audio & Serial Control
Enters Auto mode. The device will respond with: Auto mode
In Auto mode, the device automatically switches to the video & audio input source that is active. “Active” means that video signal has sync signal, it does not mean there is a non-static screen!
ASCII M (or Hex 4D)
Enters Manual mode. The device will respond with:
Manual mode
In Manual mode, the device stays on the currently selected video & audio, regardless of the presence of video signal.
ASCII P (or Hex 50)
Selects input #1 priority. The device will respond with: PC 1 priority selected
If input #1 priority selected, the unit will select input #1 automatically whenever the presence of the video at PC 1 input is detected even if the PC 2 input is currently playing.
ASCII N (or Hex 4E)
Selects no priority. The device will respond with: No priority selected
ASCII B (or Hex 42)
Blanks the output. The device will respond with: Blanked When the output is blanked, only the color intensities of the output are reduced to zero, the unit still operates in normal fashion and sync signals are still routed to the output. Audio output is muted.
ASCII U (or Hex 55)
Un-blanks the output. The device will respond with: Un­blanked
7
Model VS-2A
A
M
N
ASCII S (or Hex 53)
Request the status report. The device will respond with:
This report displays the current selection of switched output, mode, and priority buttons.
ASCII L (or Hex 4C)
Displays the menu. The device will respond with:
Status Report
-------------------------------­Input = 1 (or 2) Mode = Auto (or Manual) Priority = 1 (or None) Blank = On (or Off)
---------------------­ M E N U
---------------------­1 = PC 1 Input 2 = PC 2 Input
= Auto mode = Manual mode
P = PC 1 priority
= No priority B = Blank U = Un-blank S = Status report L = List menu
This menu lists all the ASCII commands to control the VS-2A unit via a serial port.
8
2-Port VGA Switch with Audio & Serial Control
5.0 Troubleshooting
There are no field serviceable parts or circuits in the device. If you think that the device is malfunctioning, please first make sure that all your connections are solid, and check the state of the LED’s on the front of the unit to access the mode it is in.
If you still cannot overcome the problem, disconnect the video and audio input connections from the unit. Unplug the power from the unit and after a few seconds reconnect power. Connect your audio and video signals after the unit is powered up. Check performance.
Do not open or try to repair the unit yourself. There is no customer repairable item in the unit and you will void your warranty.
Contact HRT Support at 714-641-6607 or via email or web. If you need to ship your switch for repair, make sure to get a Return Material Authorization (RMA) number first.
9
Model VS-2A
6.0 Specifications
Video Inputs VGA, RGBHV,RGBS, RGsB, or Component Video
(YPbPr – would require HD15 to 3 RCA adapter)
Resolutions Supported PC from VGA to UXGA (640x480 to 1600x1200)
HD from 480p to 1080p
Audio Inputs PC or Consumer audio (standard line-level)
Video Level 0 to 0.7V p-p on RGB, 0 to 5 V for H and V Sync
Bandwidth 200 MHz
Temperature Operating: 32 to 122°F (0 to 50°C);
Storage: –40 to +185°F (–40 to +85°C)
Enclosure Steel
MTBF 90,000 hours (calculated estimate)
Power 6V center positive via supplied Universal power supply
(100~240VAC).
Size 1.3” (33mm) H x 9" (229mm) W x 2.6” (66mm) D
Weight 1.1 pounds (500 grams)
10
2-Port VGA Switch with Audio & Serial Control
11
Product Designed and Made in the USA
