HRS DF17 User Manual

A184

0.5mm Pitch Board to Board Connector

DF17 Series

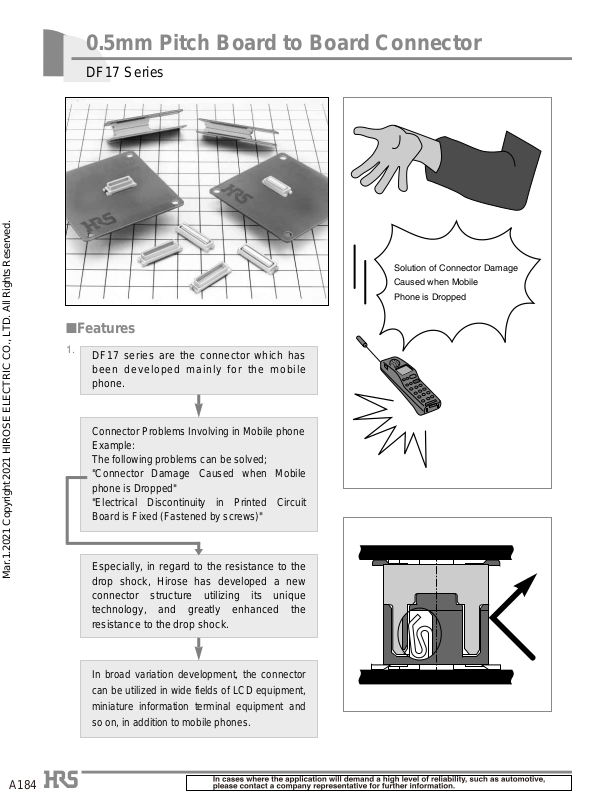

■Features

1.

Solution of Connector Damage
Caused when Mobile
Phone is Dropped

DF17 series are the connector which has
been developed mainly for the mobile
phone.

Connector Problems Involving in Mobile phone
Example:
The following problems can be solved;
"Connector Damage Caused when Mobile
phone is Dropped"
"Electrical Discontinuity in Printed Circuit
Board is Fixed (Fastened by screws)"

Especially, in regard to the resistance to the
drop shock, Hirose has developed a new
connector structure utilizing its unique
technology, and greatly enhanced the
resistance to the drop shock.

In broad variation development, the connector
can be utilized in wide fields of LCD equipment,
miniature information terminal equipment and
so on, in addition to mobile phones.

Mar.1.2021Copyright2021HIROSEELECTRICCO.,LTD.AllRightsReserved.

A185

DF17 Series●0.5mm Pitch Board to Board Connector

2. Performance Enhancement

The receptacle is designed in a BOX structure and has also
enhanced shock-proof, pinch-proof and scoop-proof performance.

In addition, the receptacle contact has employed the high scoop-proof
bellows type.

3. With Metal Fitting available

In order to grade up the strength against the mechanical stress,
the metal fitting specification is also available.

4. Broad Variations in Contact Number

The connectors are lined up per 10 contacts between 20 and 80
contacts to take countermeasures for multi-signalization.

5. Stacking Height 4 to 8mm

The stacking height can be selected (per milimeter) between 4mm and
8mm in combination of the receptacle with the header.

■ Applications

Mobile phones, LCD, miniature equipment and so on

Note : The stacking height doesn't

include the solder paste thickness.

20

8

7

6

6.5

5

5.5

4

26 30 40 50 60 70 80 100 120 (Contacts)

Stacking

(mm)

: Available
: Under plan

DF17#(M)-*DP-0.5V

2.0

2.5

4.0

3.0 4.0

5mm

5.5mm

7mm

6mm

6.5mm

8mm

DF17#(M)-*DS-0.5V

DF17(1.0H)-*DP-0.5V

Header

Receptacle

DF17(3.0H)-*DS-0.5V

4mm

Header

Receptacle

Mar.1.2021Copyright2021HIROSEELECTRICCO.,LTD.AllRightsReserved.

A186

DF17 Series●0.5mm Pitch Board to Board Connector

100V DC
150V AC/1 minute
100mA

Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%

(-55ç: 30 minutes 5 to 35ç: 10 minutes 85ç: 30 minutes 5 to 35ç: 10 minutes) 5 cycles
50 cycles

Reflow: At the recommended temperature profile
Manual soldering: 350ç for 3 seconds

500M ohms min.
No flashover or insulation breakdown.

60m ohms max.

No electrical discontinuity of 1μs or more

Contact resistance: 60m ohms max. Insulation resistance: 250M ohms min.
Contact resistance: 60m ohms max. Insulation resistance: 500M ohms min.
Contact resistance: 60m ohms

No deformation of components affecting performance.

1.

Insulation Resistance

2.

Withstanding voltage

3.

Contact Resistance

4.Vibration

5.

Humidity (Steady state)

6.

Temperature Cycle

7.

Durability (Mating/un-mating)

8. Resistance to
Soldering heat

Item Specification Condition

■Product Specifications

Rating

Current rating

Voltage rating

0.3A

50V AC

Operating Temperature Range

Operating Humidity Range

Storage Temperature Range

Storage Humidity Range

-10 to 60ç(Note 2)
40 to 70%

-35 to 85ç (Note 1)
40 to 80%

Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and

Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.

Note 3: Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and specifications for a

specific part number shown.

Note1: DF17(0.3)-*DS-0.5V : Contact area: gold plating/lead area: flash gold plated

DF17(4.0)-*DS-0.5V : Contact area: gold plating/lead area: tin plated
DF17(4.0)-*DP-0.5V : Contact area: gold plating/lead area: tin plated

Note2: The header gold plated product:Contact area: gold plating/lead area: tin plated

DF17(1.0H)-*DS-0.5V only: Contact area: gold plating/lead area: flash gold plated

■Material

Product Part

Receptacle

Header

Insulator

Contact

Metal Fitting

Insulator

Contact

Metal Fitting

Polyamide
Phosphor copper
Phosphor copper

Polyamide
Phosphor copper
Phosphor copper

White

Gold plated (Note 1)

Tin-lead plated

White

Gold plated (Note 2)

Tin-lead plated

UL94V-0

---------------

---------------

UL94V-0

---------------

---------------

Material Finish Remarks

BOrdering Information

DF17 #

(

**

)

- * DS - 0.5 V

(

**

)

1 2 3 4 5 6 87

●

Receptacle/Header

Product height
The stacking height can be determined by adding the

figures in parentheses to receptacle and header.

Number of Contacts
20,26,30,40,50,60,70,80 contacts

Connector Type
DS: Receptacle

DP: Header
Contact Pitch: 0.5mm

Contact Type
V: Straight SMT
Packaging Type (57):

Gold plated,embossed
tape packaging

3

4

5

6
7

8

2

1

DF17
DF17B

Fitting

K
K

Boss

K

∞

Series Name: DF17
Type

Mar.1.2021Copyright2021HIROSEELECTRICCO.,LTD.AllRightsReserved.

A187

DF17 Series●0.5mm Pitch Board to Board Connector

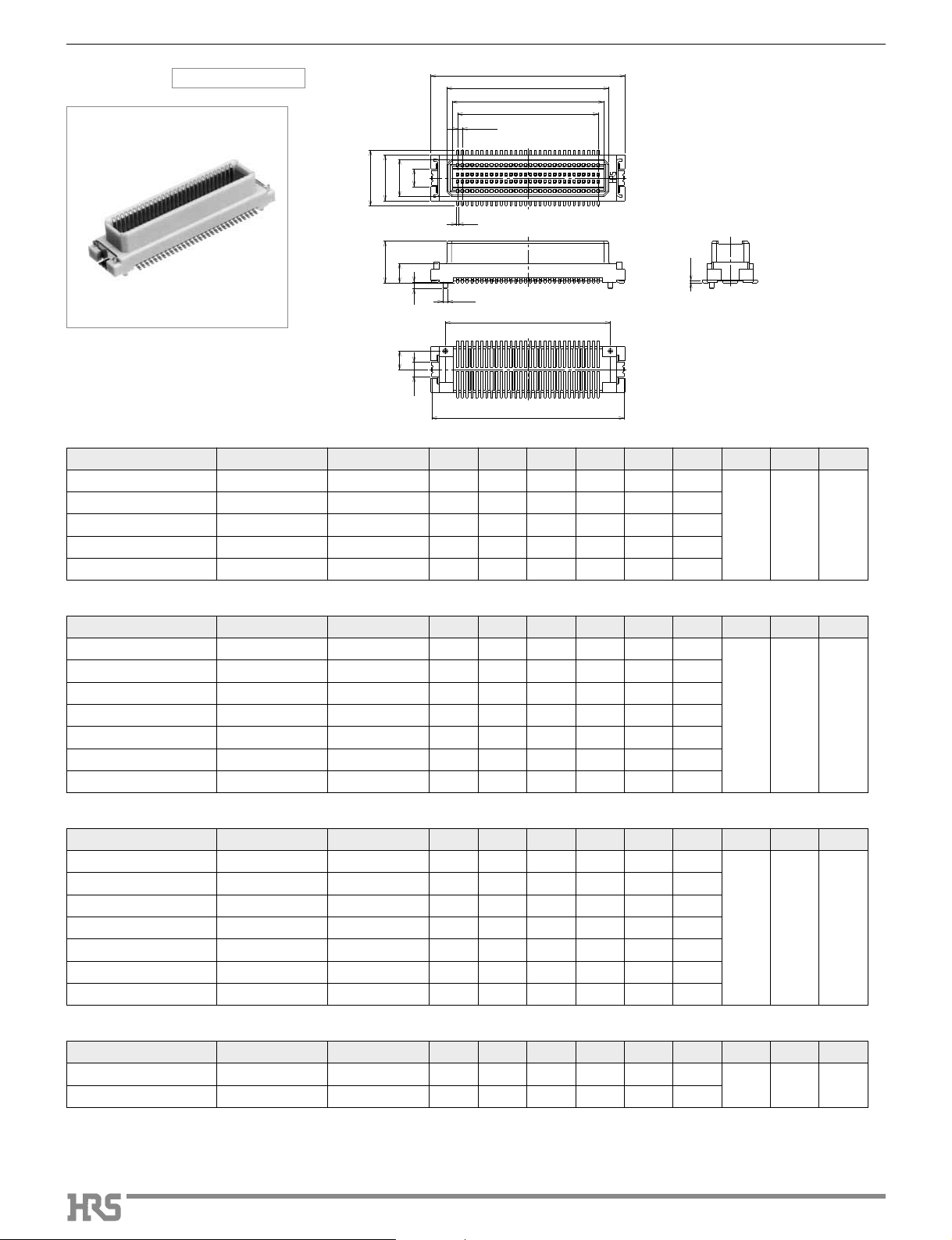

● Stacking Height: 4mm

■Receptacle

With metal fitting

020
026
030
040
050
060
070
080

10.0

11.5

12.5

15.0

17.5

20.0

22.5

25.0

06.8

08.3

09.3

11.8

14.3

16.8

19.3

21.8

05.5

07.0

08.0

10.5

13.0

15.5

18.0

20.5

04.5

06.0

07.0

09.5

12.0

14.5

17.0

19.5

07.0

08.5

09.5

12.0

14.5

17.0

19.5

22.0

09.8

11.3

12.3

14.8

17.3

19.8

22.3

24.8

3.5 3.0 YES

● Stacking Height: 5mm, 7mm

● Stacking Height: 6mm, 8mm

A B C D E F G H

RoHS

Number of Contacts

CL No.
683-0002-2-57
683-0241-3-57
683-0003-5-57
683-0004-8-57
683-0005-0-57
683-0006-3-57
683-0007-6-57
683-0008-9-57

Part Number
DF17(3.0)-020DS-0.5V(57)
DF17(3.0)-026DS-0.5V(57)
DF17(3.0)-030DS-0.5V(57)
DF17(3.0)-040DS-0.5V(57)
DF17(3.0)-050DS-0.5V(57)
DF17(3.0)-060DS-0.5V(57)
DF17(3.0)-070DS-0.5V(57)
DF17(3.0)-080DS-0.5V(57)

26
30
60
70
80

11.5

12.5

20.0

22.5

25.0

08.3

09.3

16.8

19.3

21.8

07.0

08.0

15.5

18.0

20.5

06.0

07.0

14.5

17.0

19.5

08.5

09.5

17.0

19.5

22.0

11.3

12.3

19.8

22.3

24.8

3.0 3.0 YES

A B C D E F G H RoHS

Number of Contacts

CL No.
683-0253-2-57
683-0268-0-57
683-0361-5-57
683-0393-1-57
683-0369-7-57

Part Number
DF17(3.0H)-26DS-0.5V(57)
DF17(3.0H)-30DS-0.5V(57)
DF17(3.0H)-60DS-0.5V(57)
DF17(3.0H)-70DS-0.5V(57)
DF17(3.0H)-80DS-0.5V(57)

20
30
40
50
60
70
80

10.0

12.5

15.0

17.5

20.0

22.5

25.0

06.8

09.3

11.8

14.3

16.8

19.3

21.8

05.5

08.0

10.5

13.0

15.5

18.0

20.5

04.5

07.0

09.5

12.0

14.5

17.0

19.5

07.0

09.5

12.0

14.5

17.0

19.5

22.0

09.8

12.3

14.8

17.3

19.8

22.3

24.8

4.5 4.0

YES

A B C D E F G H

RoHS

Number of Contacts

CL No.
683-0042-7-57
683-0043-0-57
683-0044-2-57
683-0045-5-57
683-0046-8-57
683-0047-0-57
683-0048-3-57

Part Number
DF17(4.0)-20DS-0.5V(57)
DF17(4.0)-30DS-0.5V(57)
DF17(4.0)-40DS-0.5V(57)
DF17(4.0)-50DS-0.5V(57)
DF17(4.0)-60DS-0.5V(57)
DF17(4.0)-70DS-0.5V(57)
DF17(4.0)-80DS-0.5V(57)

Note 1. In regard to this product, the embossed tape packaging is the standard packaging. (1000 pcs./ reel.)
Note 2. If the without boss specification is required, please contact HRS sales department.

1.9

0.2

1.8

C

Ø

0.5

4.7

P =

0.5

D

E

B

A

0.7

H

G

1.5

5.7

3.9

0.2

F

A

Mar.1.2021Copyright2021HIROSEELECTRICCO.,LTD.AllRightsReserved.

A188

DF17 Series●0.5mm Pitch Board to Board Connector

4.0 YES

H RoHS

■ Header

With metal fitting

● Stacking Height: 5mm, 6mm

● Stacking Height: 7mm, 8mm

Note 1. In regard to this product, the embossed tape packaging is the standard packaging. (1000 pcs./reel.)
Note 2. If the without boss specification is required, please contact HRS sales department.

020
030
040
050
060
070
080

10.0

12.5

15.0

17.5

20.0

22.5

25.0

06.7

09.2

11.7

14.2

16.7

19.2

21.7

05.6

08.1

10.6

13.1

15.6

18.1

20.6

04.5

07.0

09.5

12.0

14.5

17.0

19.5

07.0

09.5

12.0

14.5

17.0

19.5

22.0

09.8

12.3

14.8

17.3

19.8

22.3

24.8

4.3 2.0 YES

A B C D E F G H RoHS

Number of Contacts

CL No.

683-0082-1-57
683-0083-4-57
683-0084-7-57
683-0085-0-57
683-0086-2-57
683-0087-5-57
683-0088-8-57

Part Number
DF17(2.0)-020DP-0.5V(57)
DF17(2.0)-030DP-0.5V(57)
DF17(2.0)-040DP-0.5V(57)
DF17(2.0)-050DP-0.5V(57)
DF17(2.0)-060DP-0.5V(57)
DF17(2.0)-070DP-0.5V(57)
DF17(2.0)-080DP-0.5V(57)

20
30
40
50
60
70
80

10.0

12.5

15.0

17.5

20.0

22.5

25.0

06.7

09.2

11.7

14.2

16.7

19.2

21.7

05.6

08.1

10.6

13.1

15.6

18.1

20.6

04.5

07.0

09.5

12.0

14.5

17.0

19.5

07.0

09.5

12.0

14.5

17.0

19.5

22.0

09.8

12.3

14.8

17.3

19.8

22.3

24.8

6.3

A B C D E F G

Number of Contacts

CL No.

683-0122-4-57
683-0123-7-57
683-0124-0-57
683-0125-2-57
683-0126-5-57
683-0127-8-57
683-0128-0-57

Part Number

DF17(4.0)-20DP-0.5V(57)
DF17(4.0)-30DP-0.5V(57)
DF17(4.0)-40DP-0.5V(57)
DF17(4.0)-50DP-0.5V(57)
DF17(4.0)-60DP-0.5V(57)
DF17(4.0)-70DP-0.5V(57)
DF17(4.0)-80DP-0.5V(57)

B

E

P =

0.5

D

C

4.7

A

1.8

0.7

Ø 0.5

5.7

3.8

0.25

0.2

H

G

1.5

1.9

F

A

● Stacking Height: 4mm

● Stacking Height: 5.5mm,6.5mm

26
30
60
70
80

11.5

12.5

20.0

22.5

25.0

08.2

09.2

16.7

19.2

21.7

07.1

08.1

15.6

18.1

20.6

06.0

07.0

14.5

17.0

19.5

08.5

09.5

17.0

19.5

22.0

11.3

12.3

19.8

22.3

24.8

3.3 1.0 YES

A B C D E F G H RoHS

Number of Contacts

CL No.

683-0257-3-57
683-0272-7-57
683-0365-6-57
683-0397-2-57
683-0373-4-57

Part Number

DF17(1.0H)-26DP-0.5V(57)
DF17(1.0H)-30DP-0.5V(57)
DF17(1.0H)-60DP-0.5V(57)
DF17(1.0H)-70DP-0.5V(57)
DF17(1.0H)-80DP-0.5V(57)

26
80

11.5

25.0

08.2

21.7

07.1

20.6

06.0

19.5

08.5

22.0

11.3

24.8

4.8 2.5 YES

A B C D E F G H RoHS

Number of Contacts

CL No.
683-0245-4-57
683-0168-5-57

Part Number
DF17(2.5)-26DP-0.5V(57)
DF17(2.5)-80DP-0.5V(57)

Mar.1.2021Copyright2021HIROSEELECTRICCO.,LTD.AllRightsReserved.

A189

DF17 Series●0.5mm Pitch Board to Board Connector

S
Receptacle 4.3
Header 4.0

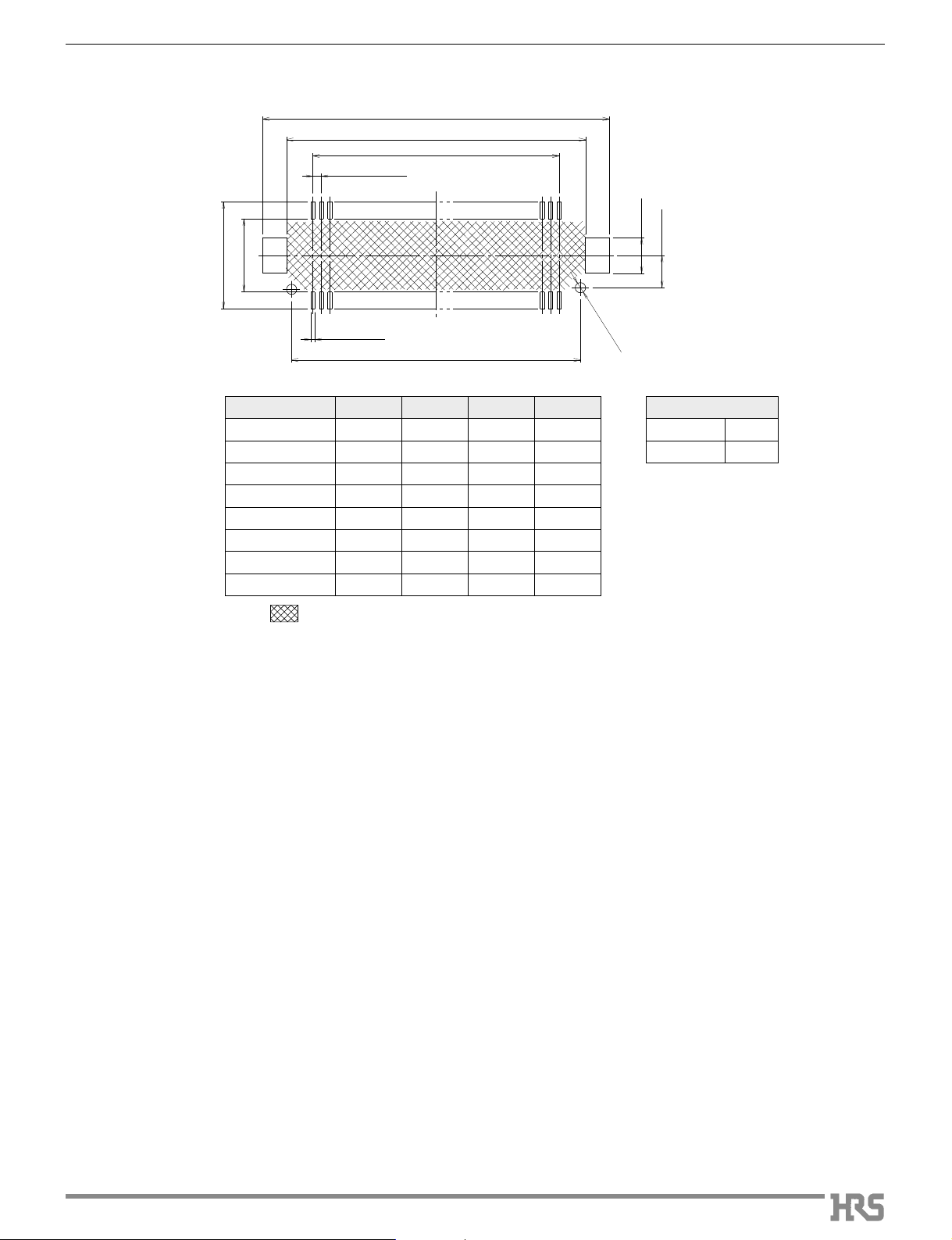

■ PCB mounting pattern

● Receptacle

● Header

Number of Contacts

DEJK

020 04.5 07.0 10.4 07.6
026 06.0 08.5 11.9 9.1
030 07.0 09.5 12.9 10.1
040 09.5 12.0 15.4 12.6
050 12.0 14.5 17.9 15.1
060 14.5 17.0 20.4 17.6
070 17.0 19.5 22.9 20.1
080 19.5 22.0 25.4 22.6

* The recommended solder paste

thickness is 150μm.

Note 1. If the pattern is included in the shaded area, and not treated

with resist, it could touch the connector contact.

Note 2. If the boss isn't included, the boss hole shown in the above figure

isn't required.

Ø 0.6

+0.05

0

S

0

_0.05

6.3

+0.1

0

1.9±0.02

P =

0.5±0.02

D ±0.03

E±0.03

K

0

_0.1

J

+0.1

0

0.25±0.02

2.1

+0.1

0

Mar.1.2021Copyright2021HIROSEELECTRICCO.,LTD.AllRightsReserved.

A190

DF17 Series●0.5mm Pitch Board to Board Connector

■ Packaging Specification

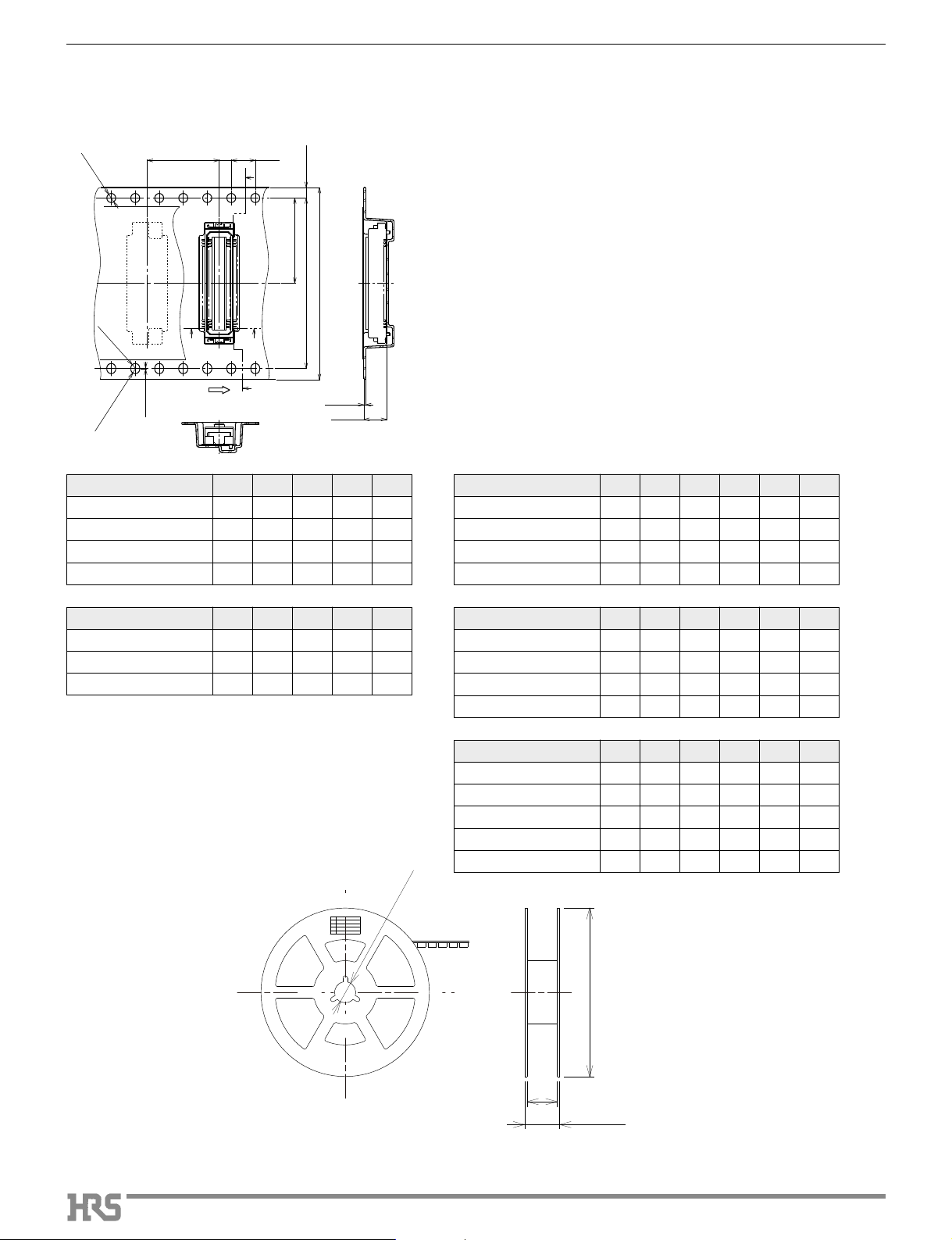

●Embossed Carrier Tape Dimensions

■Receptacle

Connector

LMPQR

DF17#(3.0)-20DS-0.5V 11.5 24 3.8

25.5

330

DF17#(3.0)-30DS-0.5V 11.5 24 3.8

25.5

330

DF17#(3.0)-40DS-0.5V 11.5 24 3.8

25.5

330

DF17#(3.0)-26DS-0.5V 11.5 24 3.8

25.5

330

Connector

LMNPQR
DF17#(3.0)-050DS-0.5V 14.2 28.4 32 3.8 33.5 330
DF17#(3.0)-060DS-0.5V 14.2 28.4 32 3.8 33.5 330
DF17#(3.0)-070DS-0.5V 20.2 40.4 44 3.8 45.5 330
DF17#(3.0)-080DS-0.5V 20.2 40.4 44 3.8 45.5 330

Connector

LNPQR

DF17#(4.0)-20DS-0.5V 11.5 24 4.8

25.5

330

DF17#(4.0)-30DS-0.5V 11.5 24 4.8

25.5

330

DF17#(4.0)-40DS-0.5V 11.5 24 4.8

25.5

330

Connector

LMNPQR

DF17#(4.0)-50DS-0.5V 14.2 28.4 32 4.8 33.5 330
DF17#(4.0)-60DS-0.5V 14.2 28.4 32 4.8 33.5 330
DF17#(4.0)-70DS-0.5V 20.2 40.4 44 4.8 45.5 330
DF17#(4.0)-80DS-0.5V 20.2 40.4 44 4.8 45.5 330

Connector

LMNPQR

DF17#(3.0)-26DS-0.5V 11.5 - 24 3.3 25.5 330
DF17#(3.0)-30DS-0.5V 11.5 - 24 3.3 25.5 330
DF17#(3.0)-60DS-0.5V 14.2 28.4 32 3.3 33.5 330
DF17#(3.0)-70DS-0.5V 20.2 40.4 44 3.3 45.5 330
DF17#(3.0)-80DS-0.5V 20.2 40.4 44 3.3 45.5 330

●Reel Dimensions

1.75±0.1

Ø1.5

+0.1

0

12±0.1

2±0.1

4±0.1

L±0.1

M±0.1

N±0.3

0.2±0.05

R0.75

+0.15

0

R0.75

+0.15

0

0.3±0.1

P±0.15

Unreeling direction

Y-Y

Y

X

Y

X-X

X

Ø1.5 Lead hole depth

Ø13±0.2

(Q+4)±1

Q±0.5

ØR±2

Mar.1.2021Copyright2021HIROSEELECTRICCO.,LTD.AllRightsReserved.

A191

DF17 Series●0.5mm Pitch Board to Board Connector

Connector

LMNPQR

DF17(1.0H)-26DP-0.5V 11.5 - 24 3.6 25.5 330
DF17(1.0H)-30DP-0.5V 11.5 - 24 3.6 25.5 330
DF17(1.0H)-60DP-0.5V 14.2 28.4 32 3.6 33.5 330
DF17(1.0H)-70DP-0.5V 20.2 40.4 44 3.6 45.5 330
DF17(1.0H)-80DP-0.5V 20.2 40.4 44 3.6 45.5 330

■Header

Connector

LNPQR
DF17#(2.0)-20DP-0.5V 11.5 24 4.6 25.5 330
DF17#(2.0)-30DP-0.5V 11.5 24 4.6 25.5 330
DF17#(2.0)-40DP-0.5V 11.5 24 4.6 25.5 330
DF17#(2.5)-26DP-0.5V 11.5 24 5.1 25.5 330
DF17#(2.5)-80DP-0.5V 20.2 44 5.1 45.5 330

Connector

LMNPQR
DF17#(2.0)-050DP-0.5V 14.2 28.4 32 4.6 33.5 330
DF17#(2.0)-060DP-0.5V 14.2 28.4 32 4.6 33.5 330
DF17#(2.0)-070DP-0.5V 20.2 40.4 44 4.6 45.5 330
DF17#(2.0)-080DP-0.5V 20.2 40.4 44 4.6 45.5 330

Connector

LNPQR
DF17#(4.0)-20DP-0.5V 11.5 24 6.6 25.5 380
DF17#(4.0)-30DP-0.5V 11.5 24 6.6 25.5 380
DF17#(4.0)-40DP-0.5V 11.5 24 6.6 25.5 380

Connector

LMNPQR
DF17#(4.0)-50DP-0.5V 14.2 28.4 32 6.6 33.5 380
DF17#(4.0)-60DP-0.5V 14.2 28.4 32 6.6 33.5 380
DF17#(4.0)-70DP-0.5V 20.2 40.4 44 6.6 45.5 380
DF17#(4.0)-80DP-0.5V 20.2 40.4 44 6.6 45.5 380

●

Reel Dimensions

1.75±0.1

Ø1.5

+0.1

0

12±0.1 2±0.1 4±0.1

L±0.1

M±0.1

N±0.3

0.2±0.05

R0.75

+0.15

0

R0.75

+0.15

0

0.3±0.1

P±0.15

Unreeling direction

Y

X

Y

X

Y-Y

X-X

Ø1.5 Lead hole depth

Ø13±0.2

(Q+4)±1

Q±0.5

ØR±2

Mar.1.2021Copyright2021HIROSEELECTRICCO.,LTD.AllRightsReserved.

A192

DF17 Series●0.5mm Pitch Board to Board Connector

■ Precautions

1.

Recommended
Temperature Profile
(SMT)

Note1: Up to 2 cycles of Reflow soldering are possible under the same conditions, provided that

there is a return to normal temperature between the first and second cycle.

Note2: The temperature profile indicates the board surface temperature at the point of contacts

with the connector terminals.

■ The header is designed in a structure where contacts are exposed. Touching it with bare
hands would cause contact failure or electrostatic element damage.

■

Where no board is mounted, the insertion or extraction will cause damage or contact deformation.

■

Avoid retaining the board with the connector only, and fix the board by any other means than the connector.

■ Excessive scoop insertion or extraction may result in damage.

■

In the manual soldering process, don't carry out the flux coating which will cause a flux blister on the connector.

■ The color phase of this product may be slightly different from that of the formed product
according to the manufacturing lot. However, the difference doesn't affect the performance.

Soldering iron temperature: 350±3çoldering time: Within 2 seconds

0.15mm

Max 0.02mm in the connector center area, based on the both connector edges

Refer to the "Nylon Connector Use Hand book".

6. Cautions

2.

Recommended Manual
Soldering Condition
(SMT)

3. Recommended
Screen Thickness
(SMT)

4. Board Warp(SMT)

5. Cleaning Condition

50

60sec max

Soldering

100

150

200

250

Time (sec.)

Temperature (ç)

0

100 150 200 25050

Room temperature

300

90~120sec

Preheating

180ç

250ç

220ç

150ç

Mar.1.2021Copyright2021HIROSEELECTRICCO.,LTD.AllRightsReserved.
