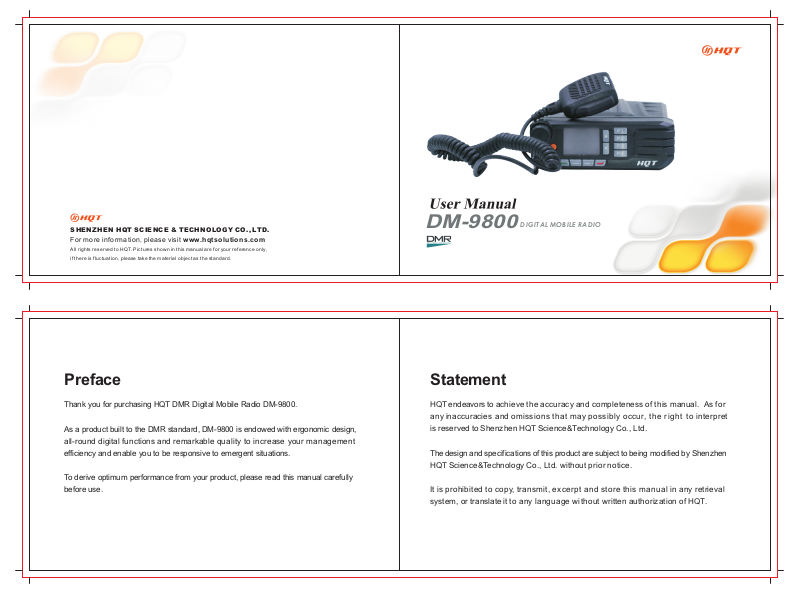

HQT Science and Technology DM 9800V User Manual

SH ENZ H EN HQT SC I ENC E & TEC HNOLOG Y CO LTD., .

For mo re in forma tio n, plea se vi sit www.hqt sol ution s.com

All rig ht s re ser ve d to H QT. Pic tu re s sho wn i n th is manu al a re f or your r ef er enc e on ly ,

if th ere is fluc tu at ion , pl ea se take t he m at eri al o bj ec t as th e st an dard.

DM-9800

DI GI T AL M OBI LE R A DI O

Preface

Thank you for purchasing HQT DMR Digital Mobile Radio DM-9800.

As a product built to the DMR standard, DM-9800 is endowed with ergonomic design,

all-round digital functions and remarkable quality to increase your management

efficiency and enable you to be responsive to emergent situations.

To derive optimum performance from your product, please read this manual carefully

before use.

Statement

HQT endeavors to achieve the accuracy and completeness of this manual. As for

any inaccuracies and omissions that may possibly occur, the r i g h t to interpret

is reserved to Shenzhen HQT Science&Technology Co., Ltd.

The design and specifications of this product are subject to being modified by Shenzhen

HQT Science&Technology Co., Ltd. without prior notice.

It is prohibited to copy, transmit, excerpt and store this manual in any retrieval

system, or translate it to any language without written authorization of HQT.

FCC Caution

Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

FCC Caution

interference received, including interference that may cause undesired operation. Your radio radiates measurable RF
energy only while it is transmitting(during talking), not when it is receiving(listening)or in standby mode.
Antenna gain must not exceed 3.5dBi.The antenna installation comply with the requirements of manufacturer
or supplier, and at least 0.74m from any body part of the user.

Shenzhen HQT Science & Technology CO.,LTD.

Your 2-way radio is designed and tested to comply with a number
of national and international standards and guidelines (listed below) for human exposure to radio frequency
electromagnetic. This radio complies with the IEEE and ICNIRP exposure limits for occupational/controlled RF
exposure environment at operating duty factors of up to 50% transmitting and is authorized by the FCC for occupational use
only. In terms of measurable RF energy only while it is transmitting (during talking), not when it is receiving (listening) or in
standby mode.
Note: The approved batteries supplied with this radio are rated for a 5-5-90 duty factor (5% talk -5% listen -90% standby)
even though this radio complies with the FCC occupational RF exposure limits and may operate at duty factors of
up to 50% talk.

Your Shenzhen HQT Science & Technology CO.,LTD. Two-way radio complies with the following RF energy exposure
standards and guidelines:United States Federal Communications Commission, Code of Federal Regulations; 47CFR

§§1.1.307,1.1310,

• 2.1091 and 2.1093
American National Standards Institute(ANSI)/ Institute of Electrical and Electronic Engineers (IEEE) C95.1-1992

•

Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition

•

Warning! : This radio generates RF electromagnetic energy during transmit mode. This radio is designed
for and classified as “Occupational Use Only,” meaning it must be used only during the course of
employment by individuals aware of the hazards and the ways to minimize such hazards. This radio is NOT
intended for use by the “General Population” in an uncontrolled environment.

RF Specification：
Frequency range：136-174MHz
RF output power： High power 50W / Low power 25W
Modulation Type：Analog ：FM / Digital： 4FSK
Channel Separation： 12.5kHz

FCC Caution

Contents

Product Inspection

Contents

Installation

Instructions

Installation Tools

Installation Steps

Radio Overview

Front Panel

Rear Panel

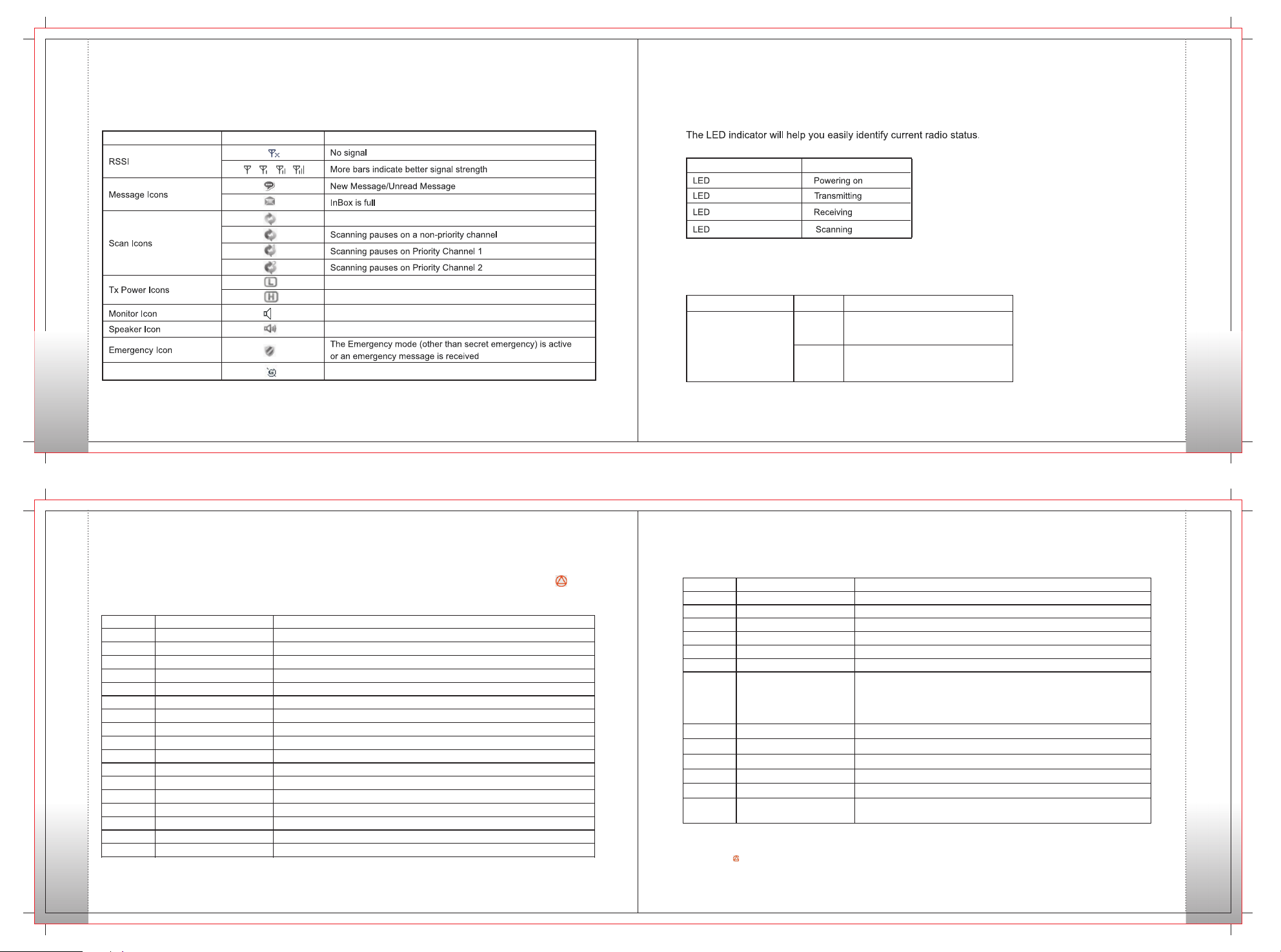

Status Indicators

LCD Icons

LED Indicator

03

04

04

04

04

06

06

06

07

07

08

Programmable Keys

Basic Operations

Turning the Radio On/Off

Adjusting the Volume

Selecting a Zone

Selecting a Channel

Analog/Digital Switch

Private Call

Group Call

All Call

Making a Call on Analog Channels

09

11

11

11

11

11

11

11

12

13

13

Menu Navigation

Contact

Message

Call Logs

Scan

Zone

Settings

Accessories

Functions and Operations

Home Screen

Talk Around

Monitor

13

13

14

15

15

16

16

18

19

19

19

19

Squelch Off

Digital Emergency

Busy Channel Lockout

Time-out Timer (TOT)

Invalid Channel Indication

Squelch

Optional Accessories

Troubleshooting

Care and Cleaning

Service and Support

19

20

20

20

21

21

21

22

23

24

01 02

Contents

Installation

Product Inspection

Please unpack carefully and check that all items listed below are received.
If any item is missing or damaged, please contact your dealer.

Product Inspection

Items

Radio DM-9800

Palm Microphone

Fuse Mounting Bracket Kit

Microphone Hanger
and Screws

User Manual

Power Cord

Before you install the radio in a vehicle, be sure to read
the following instructions carefully:

Instructions

• The radio operates with cathode-grounded power

supply of 13.6V ± 15% only. Please check polarity and
voltage of the power supply on the vehicle before you
install the radio.
Please check how long the screws will extend from

•

the bottom surface of the radio, before you install

the radio. Drill the mounting hole cautiously to avoid

damage to the vehicle wiring and other parts.
Please connect HQT supplied antenna and power

•

cord to the radio, before you install it in the bracket.

And make sure the antenna and power cord is
dedicated for HQT digital radios.
Install the radio with HQT supplied mounting bracket,

•

to avoid radio looseness in case of accidents. The
loose radio may cause bodily injury.

•

Install the radio in a location where it's easy to reach
the front panel controls.

•

Please make sure there's sufficient space at back
of the radio for wiring.

•

When the fuse for DC power cord needs replacement,
it must be replaced by a fuse with the same specification.

Installation Tools

•

Electric drill

•

Cross head screwdriver

•

Hex socket sleeve (used for 4.8*20mm self-tapping

screws)

Installation Steps

A. Install the bracket in a location where it's easy
to operate the radio.
B. C onn ect ac ce sso ries su ch as a ntenn a a nd
power cord to the radio.
C. Slide the radio into the mounting bra ck et and
secure it using the locking knobs.
D. Install the microphone hanger in a location where
it can be reached easily.
E. Plug the palm microphone into the microphone
jack on the front panel (but at first align the triangle
index on the palm microphone with the microphone
installation index), and place it on the hanger when
you do not use it.

03 04

Installation

No. Part Name

Mounting Bracket

1

Installation

4.8*20 mm Self-tapping Screws

2

3 Locking Knobs

Radio Unit

4

5

RF Antenna Connector

6 Power Inlet

7

GPS Antenna Connector

8

Black Power Cord

9

Red Power Cord

Fuse

10

11 Microphone Hanger

12 4*16 mm Self-tapping Screws

Palm Microphone

13

Radio Overview

Front Panel Rear Panel

No. Par t Name No. Par t Name

Volu me Cont rol/C hanne l

1

Selector/Power On-Off Knob

3 LCD D ispla y4

Eme rgenc y Key

5

Up/ Down Ke ys

7 8

Spe aker

9

11 Sel ect Key 12

2 LED I ndi ca tor

6

Pro gramm able Ke ys

Bac k Key

10

Pro gramm able Ke yPro gramm able Ke y

Pal m Micro phone J ack

No. Part Na me N o. Pa rt N ame

1 RF Ante nna Conn ector 2 Power I nl et

3 A cc essor y Ja ck 4 GPS Antenna Connect or

05 06

Radio Overview
