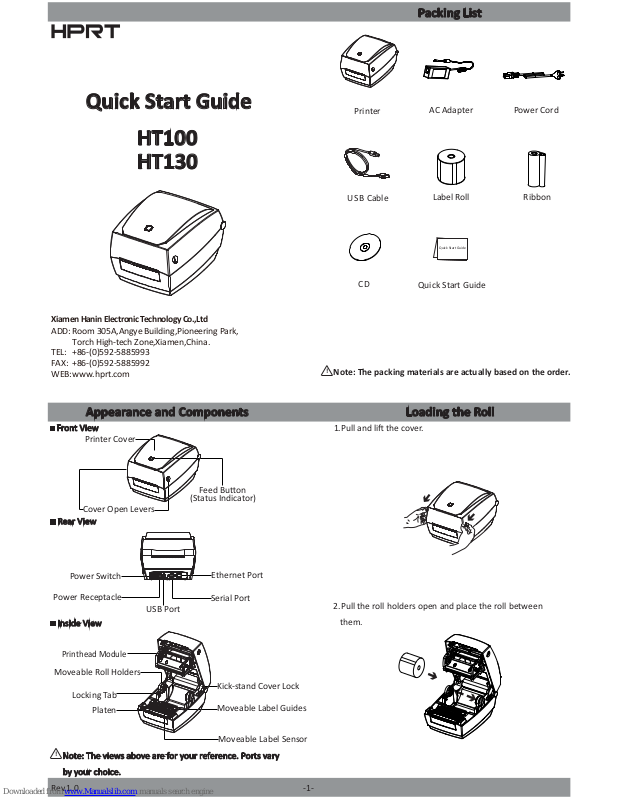

HPRT HT130, HT100 Quick Start Manual

Packing List

Quick Start Guide

Appearance and Components

Loading the Roll

HT100

Power Cord

Quick Start Guide

Printer

AC Adapter

CD

Quick Start Guide

Front View

Rear View

Inside View

Printer Cover

Feed Buon

Cover Open Levers

(Status Indicator)

Platen

Locking Tab

Moveable Label Guides

Kick-stand Cover Lock

Printhead Module

Moveable Roll Holders

Moveable Label Sensor

Power Switch

Power Receptacle

USB Port

Serial Port

Ethernet Port

HT130

USB Cable

Label Roll

Ribbon

Note: The views above are for your reference. Ports vary

by your choice.

Rev.1.0

-1-

1.Pull and li the cover.

2.Pull the roll holders open and place the roll between

them.

!

Note: The packing materials are actually based on the order.

Xiamen Hanin Electronic Technology Co.,Ltd

ADD:

TEL:
FAX:
WEB:

Room 305A,Angye Building,Pioneering Park,
Torch High-tech Zone,Xiamen,China.
[phone]
[phone]
www.hprt.com

!

Loading the Ribbon

Connecng the Power

3.Press down the locking tab. 4.Pass the labels through label guides and adjust label guides

to label’s width.

1.Aer pung rewind spindle through printhead module, insert the right side of supply spindle into the rear pin, and then insert the

le side into the rear wheel. Then do the same procedure for the ribbon rewind spindle.

Ribbon Supply Spindle

Ribbon Rewind Spindle

Rear Ribbon Pin

Front Ribbon Pin

2.Rotate the front ribbon wheel unl the ribbon is pulled ghtly. 3.Press the lock and close the cover slightly.

4.Press down the cover unl it snaps closed.

1.Make sure the printer’s power switch is in the off posion.

2.Connect the AC adapter to power receptacle.

3.Connect the power cord to AC adapter.

4.Connect the other end of power cord to the outlet.

Note: Please refer to windows driver installaon in
HT100+HT130 User Manual.

Rev.1.0

-2-

AC Adapter

Power Cord

OFF

ON

1

2

4

3

Varies by regions

Rear Ribbon Wheel

Front Ribbon Wheel

!
