HPRT HD2000 User Manual

Download

Page 1

Label Printer

User Manual

HD2000

Xiamen Hanin Electronic Technology Co.,Ltd

ADD:

Room 305A,Angye Building,Pioneering Park, Torch High-tech Zone,Xiamen,China.

Tel.:

+86-(0)592-5885993

Fax:

+86-(0)592-5885992

Web:

www.hprt.com

Page 2

HD2000 User Manual

Contents

MANUAL INFORMATION

..................................................................................................................

Important Safety Instructions

..........................................................................................................

CHAPTER 1 INTRODUCTION

..............................................................................................................

1.1 Packing List

.........................................................................................................................

1.2 Appearance and Components

............................................................................................

CHAPTER 2 SPECIFICATIONS

.............................................................................................................

Chapter 3 Installation & Usage

........................................................................................................

3.1 Media Loading

....................................................................................................................

3.2 Paper Jam

.........................................................................................................................

3.3 Power Connection

............................................................................................................

3.4 Interface Cable Connection

..............................................................................................

3.5 Control Panel

....................................................................................................................

3.6 Parameter Setting

............................................................................................................

3.7 Self-Test

............................................................................................................................

3.8 LED Display

.......................................................................................................................

3.9 Buzzer

...............................................................................................................................

3.10 Label Learning

................................................................................................................

CHAPTER 4 INTERFACE

...................................................................................................................

4.1 USB Interface

....................................................................................................................

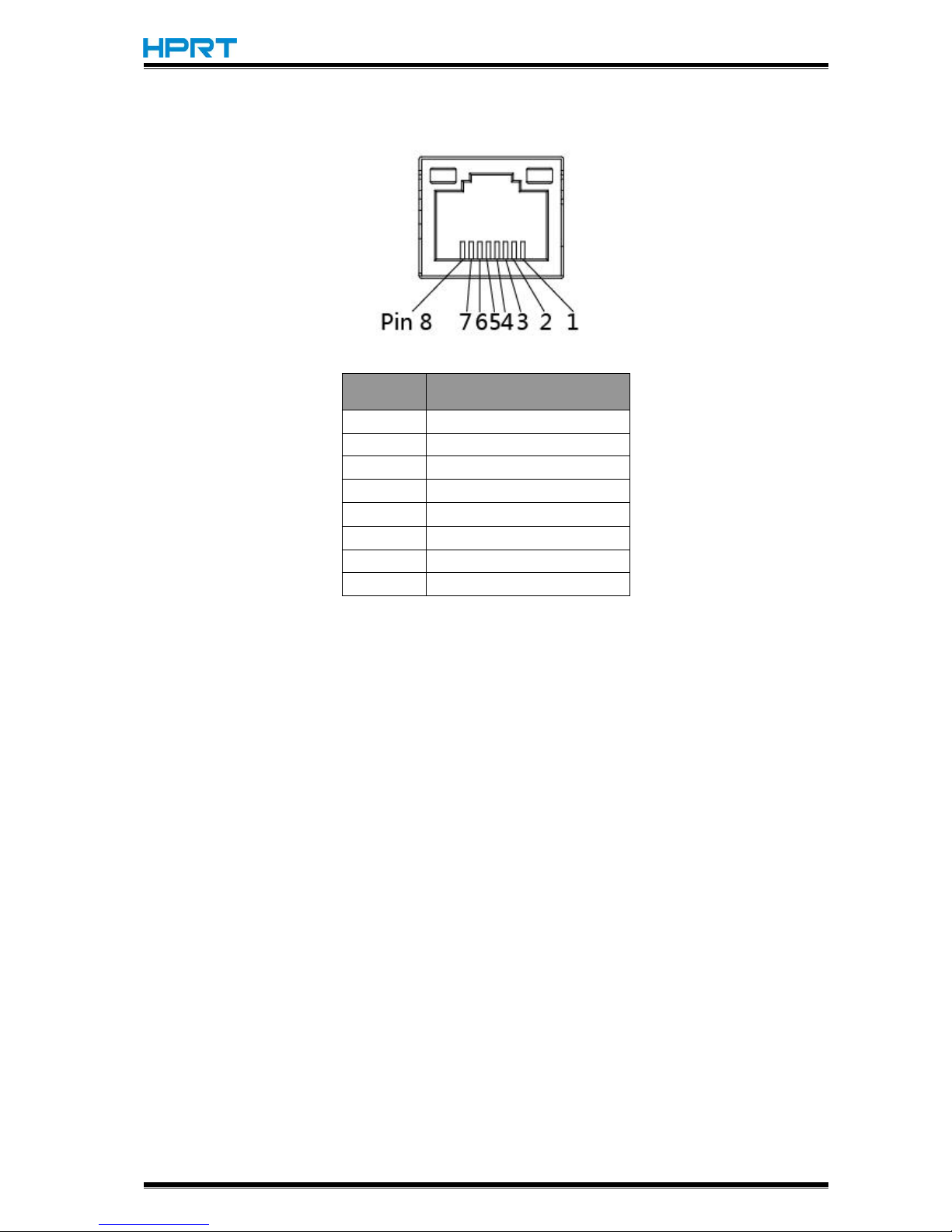

4.2 Other Optional Interfaces

................................................................................................

CHAPTER 5 PRINTER CLEANING

......................................................................................................

5.1 Cleaning Head

..................................................................................................................

5.2 Cleaning Sensors, Roller and/or Paper Path

....................................................................

CHAPTER 6 LABEL PRINTER UTILITY INSTRUCTIONS

.......................................................................

6.1 Installation Preparation

....................................................................................................

6.2 Usage

................................................................................................................................

Chapter 7 Seagull Windows Driver Instructions

............................................................................

7.1 Introduction

.....................................................................................................................

7.2 Installation Preparation

....................................................................................................

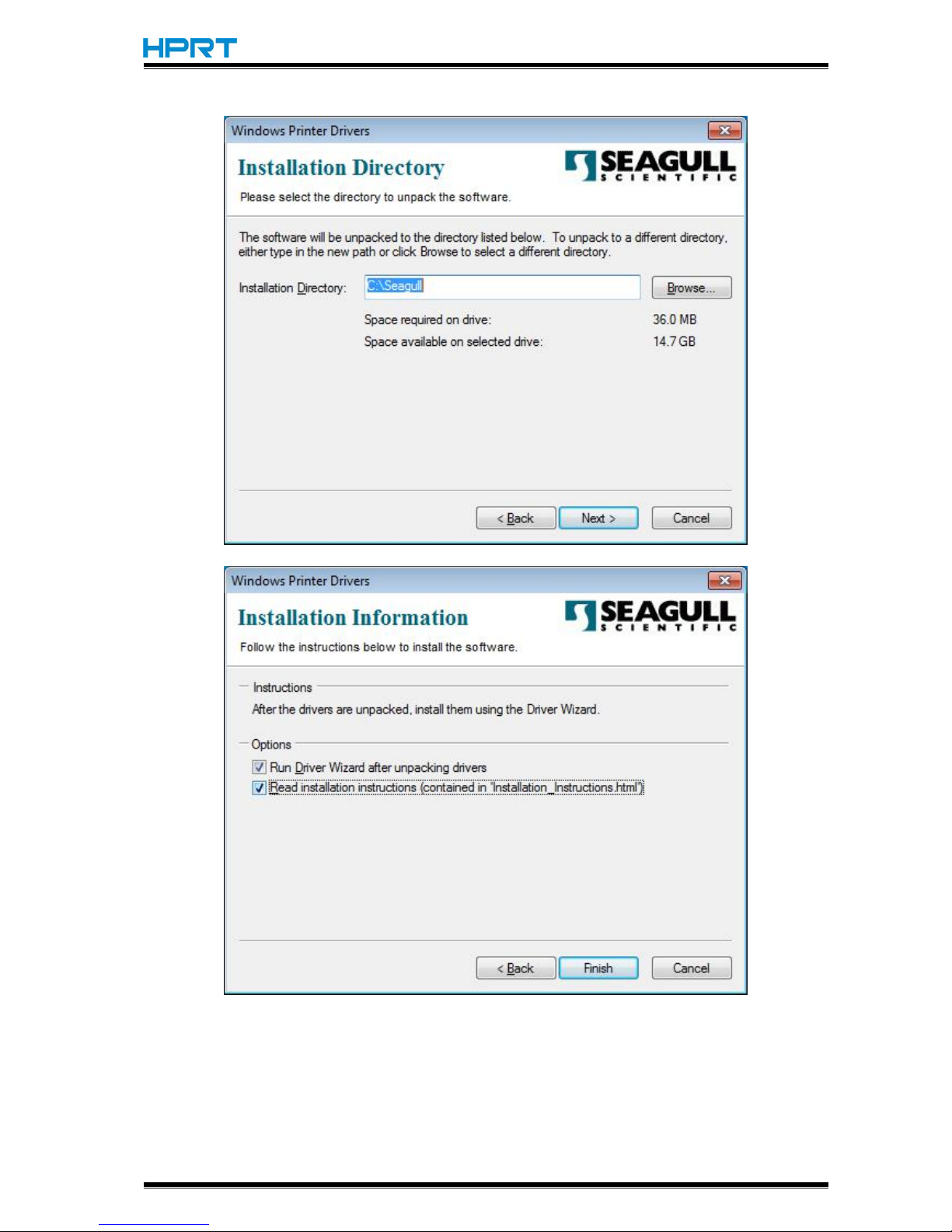

7.3 Installation

........................................................................................................................

7.4 Usage

................................................................................................................................

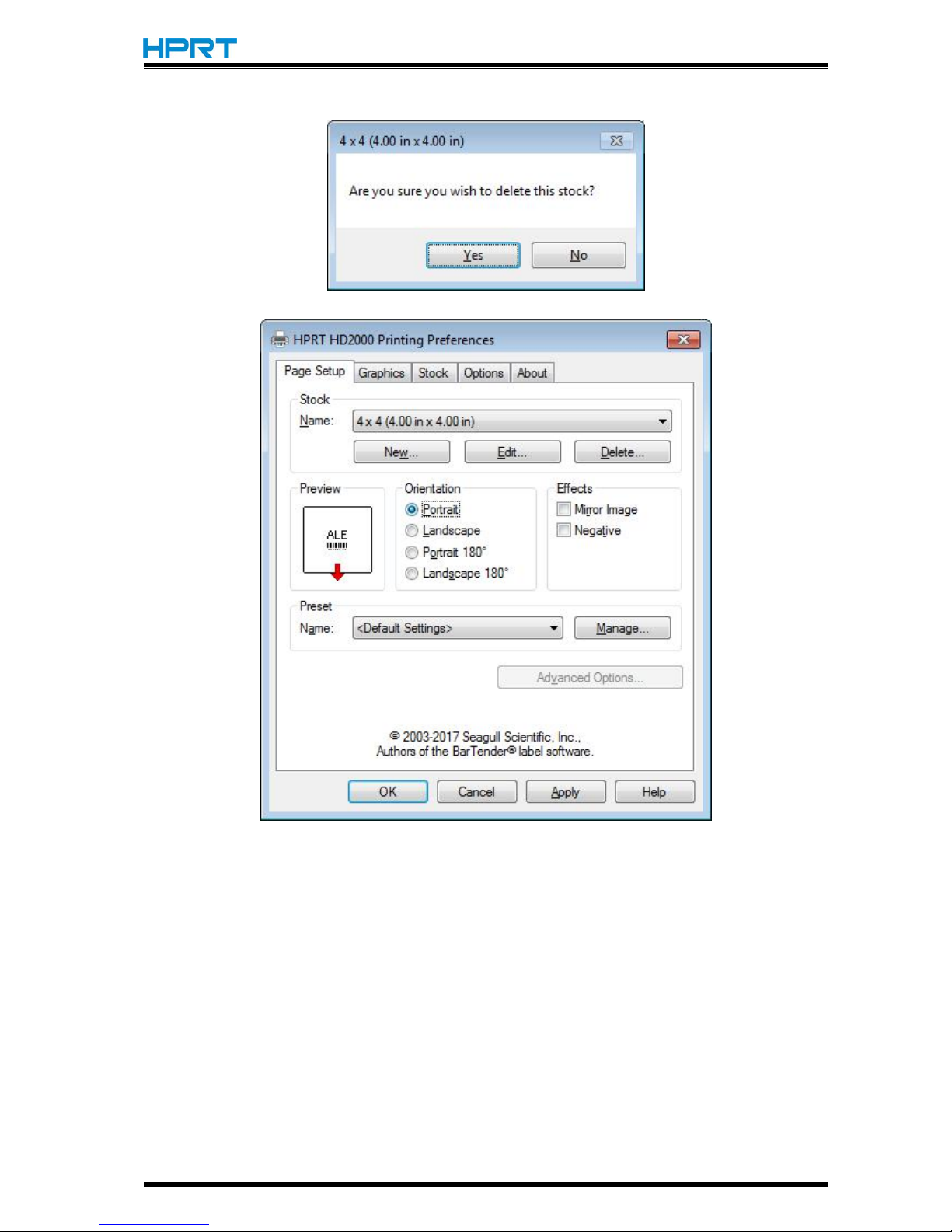

7.5 Label’s Width

....................................................................................................................

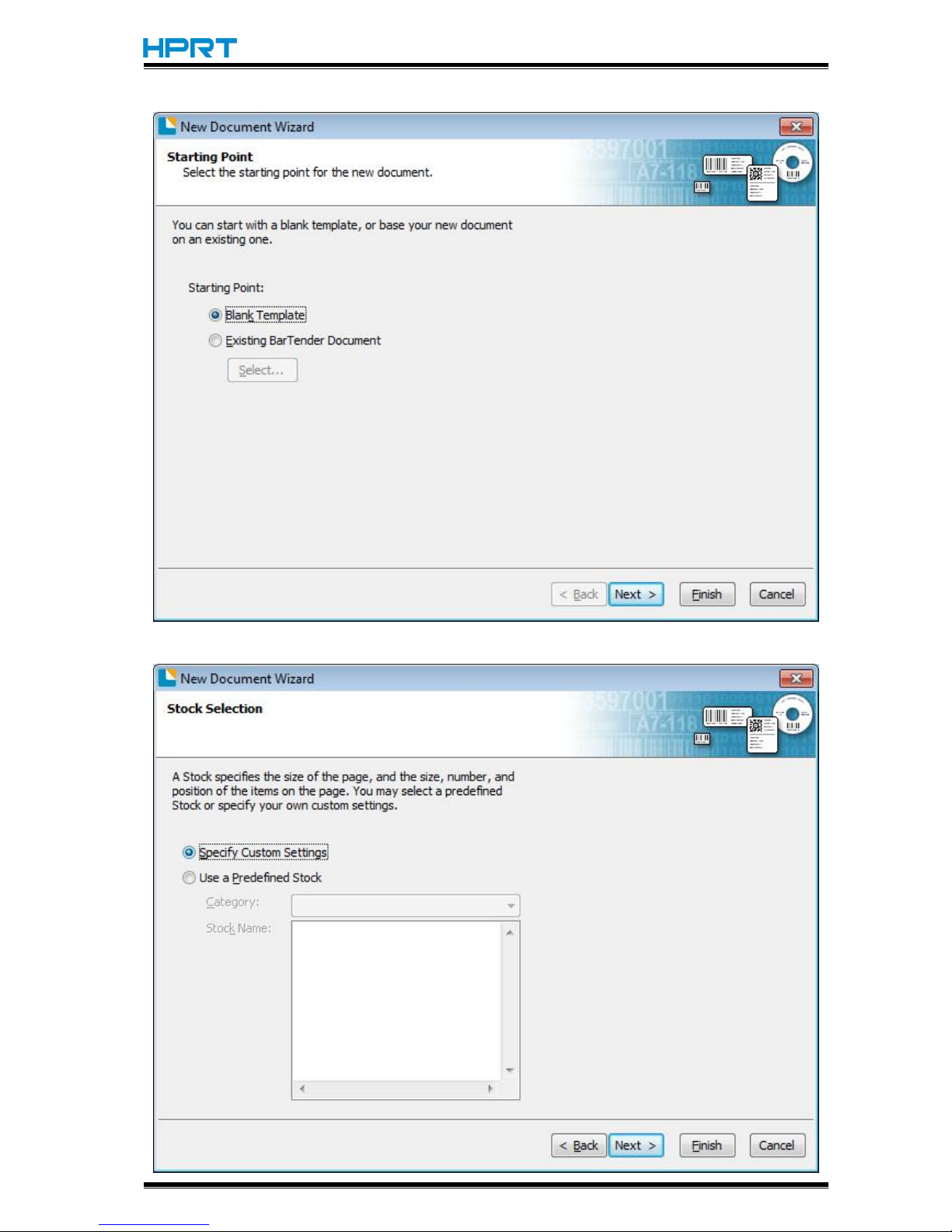

Chapter 8 BarTender Ultralite Instructions

....................................................................................

8.1 Introduction

.....................................................................................................................

8.2 Installation Preparation

....................................................................................................

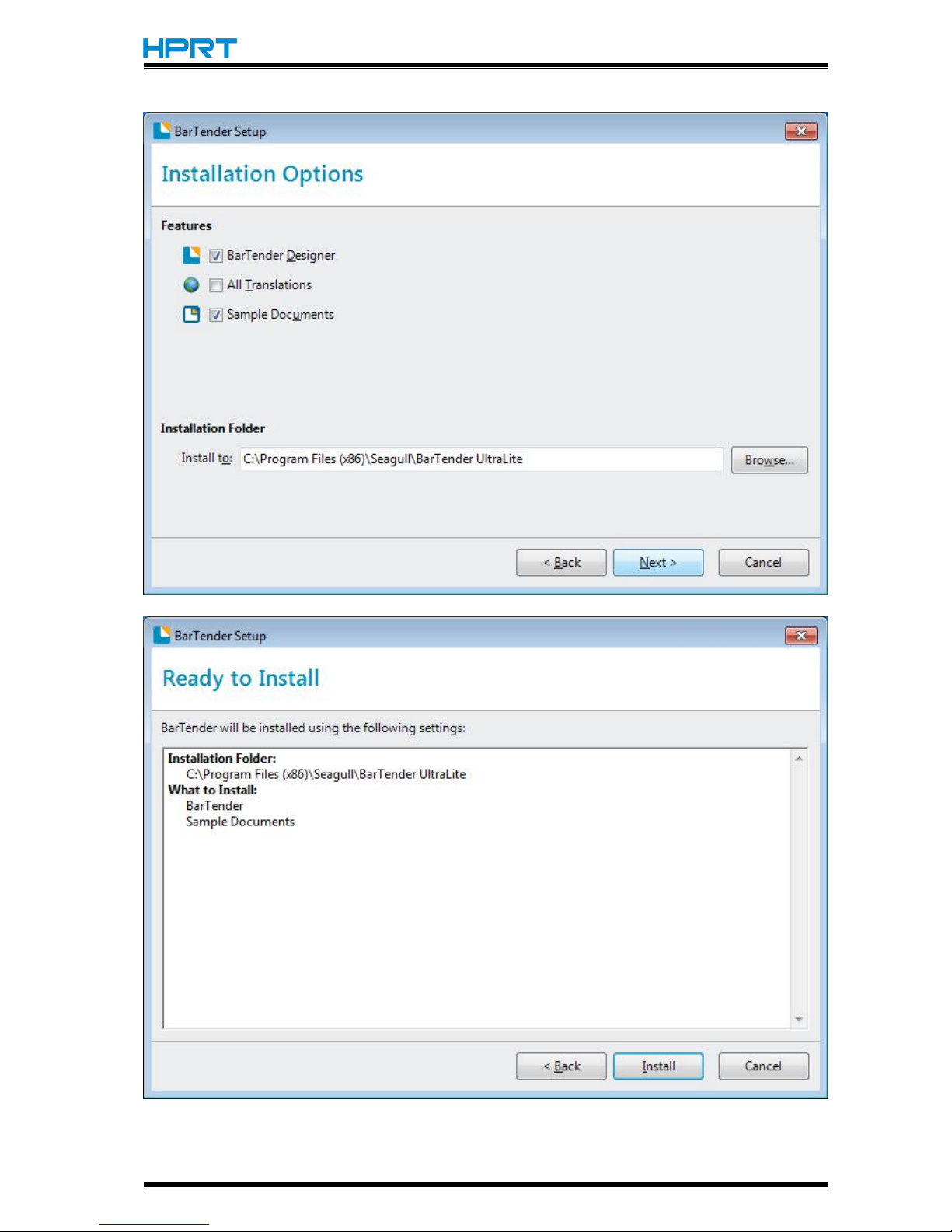

8.3 Installation

........................................................................................................................

8.4 Usage

................................................................................................................................

Page 3

HD2000 User Manual

Rev.1.0



Statement

This manual content may be altered without permission, and our company reserves the rights to make changes without notice in technology, spare parts, hardware and software of the products. If more information is needed about the products, please contact our company. Without any written permission from our company, any section of this manual is prohibited to be copied or transferred in any form.

 Copyright

This manual is printed in 2017, the copyright belongs to Xiamen Hanin Electronic Technology Co. Ltd. Printed in China

1.0 Version



Warnings

This must be complied with in order to avoid any damage to the human body and the

equipment.

This is showing the important information and tips for the printer operation.

Note: Due to continuous update of our product, the description of printer specification,

accessories, design in this manual may be slightly different. Please keep in kind prevail.

Page 4

HD2000 User Manual

Rev.1.0

MANUAL INFORMATION

This user manual contains basic information for product usage as well as for emergency measures that may be required.

The installation and usage of printer driver, utility tool and HPRT BarTender Ultralite are also included in the manual.

Page 5

HD2000 User Manual

Rev.1.0

Important Safety Instructions

Before using the appliance, please carefully read the following safety regulations in order to prevent any hazard or material damage.

1.Safety warning

Warnings: The print head will become very hot during printing; avoid contact with the

print head after printing has finished.

Warnings: Do not touch the printer head and connector in case static damage the printer

head.

2.Instructions

Warnings: Violating following instructions can cause serious injury or death.

1) Do not plug several products in one multiperture outlet.

• This can provoke over-heating and a fire.

• If the plug is wet or dirty, dry or wipe it before usage.

• If the plug does not fit perfectly with the outlet, do not plug in.

• Be sure to use only standardized multiperture outlet.

2) You must use the supplied adapter.

• It is dangerous to use other adapters.

3) Do not pull the cable to unplug.

• This can damage the cable, which is the origin of a fire or a breakdown of the printer.

4) Do not plug in or unplug with your wet hands .

• You can be electrocuted.

5) Do not bend the cable by force or leave it under any heavy object.

• A damaged cable can cause a fire.

5. WEEE (Waste Electrical and Electric Equipment)

This mark shown on the product or its literature indicates that the corresponding

item should not be discarded at the end of its working life with other household

waste. To prevent possible harm to the environment or human health from

uncontrolled waste disposal, please separate marked items from other types of

waste and recycle them responsibly to promote the sustained reuse of material

resources. Household users should contact either the retailer where they purchased this product, or their local government office for details of where and how they can conduct environmentally safe recycling of such items. Commercial users should contact their suppliers and check the terms and conditions of purchase contracts. This product should not be combined with other commercial waste for disposal.

Page 6

HD2000 User Manual

Rev.1.0

Note: Violating following instructions may cause slight damage of the appliance.

1) If you observe a strange smoke, odour or noise from the printer, unplug it before taking following measures.

• Switch off the printer and unplug the set from the mains.

• After the disappearance of the smoke, call your dealer to repair it.

2) Install the printer on the stable surface.

• If the printer falls down, it can be broken and you can hurt yourself.

3) Use the approved accessories only and do not try to disassemble, repair or remodel it by yourself.

• Call your dealer when you need these services.

• Do not touch the blade of auto cutter.

4) Do not let water or other foreign objects drop into the printer.

• If this happened, switch off and unplug the printer before calling your dealer.

5) Do not use the printer when it is out of order. This can cause a fire or an electrocution.

• Switch off and unplug the printer before calling your dealer.

6) Other considerations:

• Place the printer on a solid and even base so that it cannot fall.

• Leave enough space around printer for operation and maintenance.

• Keep all liquids away from the printer.

• Do not expose the printer to high temperatures, direct sunlight or dust.

• Ensure the printer is connected to a socket with the correct mains voltage.

• Switch off the printer POWER supply when it’s not in use for a long time.

• To ensure the printing quality and reliability, suggest use the same quality or recommend paper supplier.

• Pls. switch off the POWER supply when connect/disconnect all the ports or it will cause damage to the printer control circuit.

• Never carry out maintenance or repair work yourself. Always contact a qualified service Technician.

• Keep this User Manual in a place which is easily accessible at all times.

3.Other Precautions

The copyright for this user manual and various other manuals is property of our company. Any copying or conversion into electronic form and saving of this material without the express written permission is strictly prohibited. Use of the information contained in this manual is not subject to any patent liability. This manual has been prepared with utmost care and attention to detail but may contain certain errors and/or omissions. Our company is not legally liable for any damages resulting from the use of the information in this manual. Our company and its affiliates are not legally liable (United States excluded) for any damages, loss, costs, and/or expenses that result from the breakdown, malfunction, and/or misuse of the product due to violation or neglect of the operation and maintenance information and instructions provided by our company, as well as from the unauthorized alteration, repair, and/or modification of the product by the user and/or third party. We are not legally liable for any damages and/or issues resulting from the use of options and/or parts that are not authentic or authorized products.

Page 7

HD2000 User Manual

Rev.1.0

4.WEEE (Waste Electrical and Electric Equipment)

This mark shown on the product or its literature indicates that the corresponding

item should not be discarded at the end of its working life with other household

waste. To prevent possible harm to the environment or human health from

uncontrolled waste disposal, please separate marked items from other types of

waste and recycle them responsibly to promote the sustained reuse of material

Caution: This is a Class A product. In a domestic environment this product may cause

radio interference in which the user may be required to take adequate measures.

Page 8

HD2000 User Manual

Rev.1.0

CHAPTER 1 INTRODUCTION

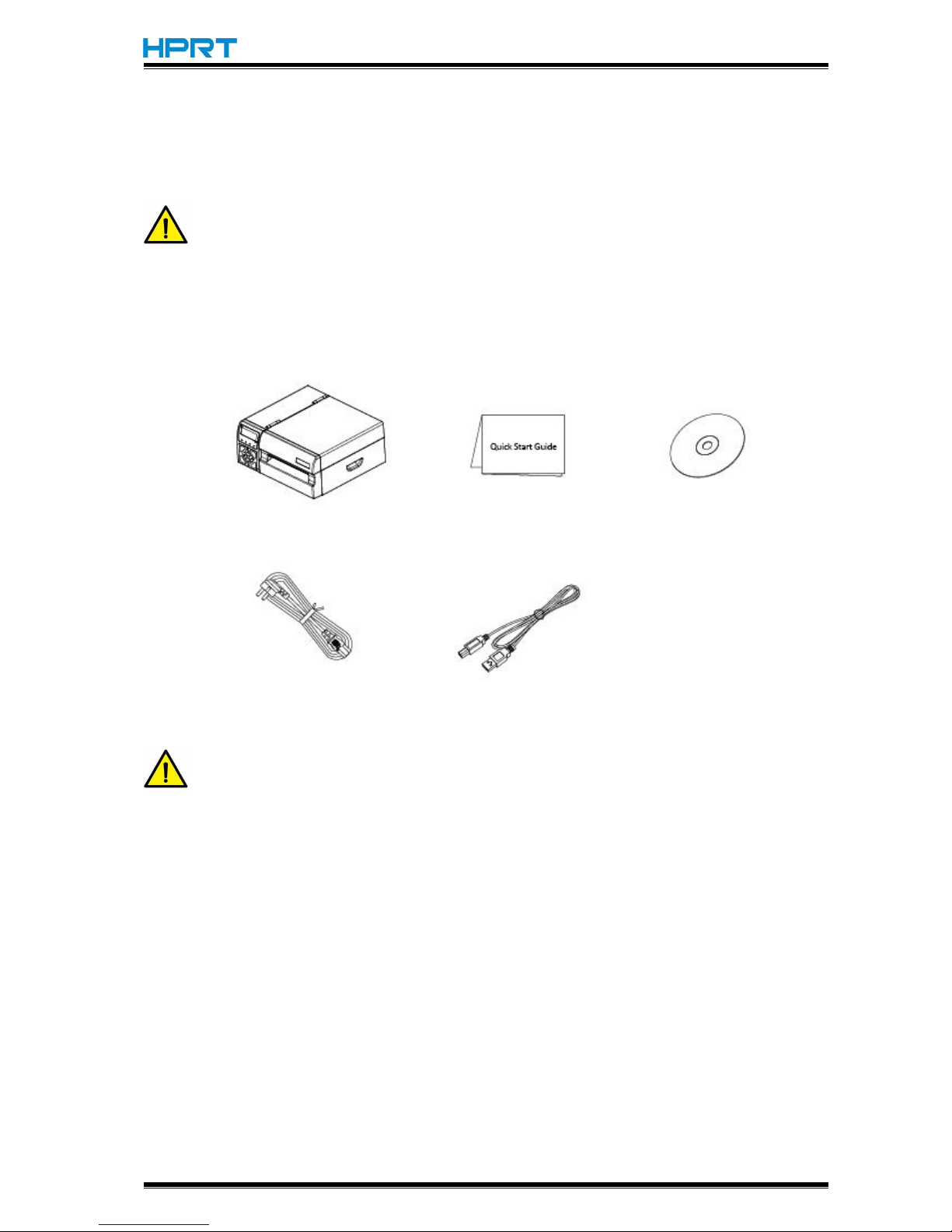

1.1 Packing List

Note:

1. Unpack the printer and keep the packing material in case you need to ship the printer in

the future.

2. Any damages exist, please contact the local dealer.

Printer Quick Start Guide CD

Power Cord USB Cable

(Varies by local or region)

Note：The packing materials are actually based on the order.

Page 9

HD2000 User Manual

Rev.1.0

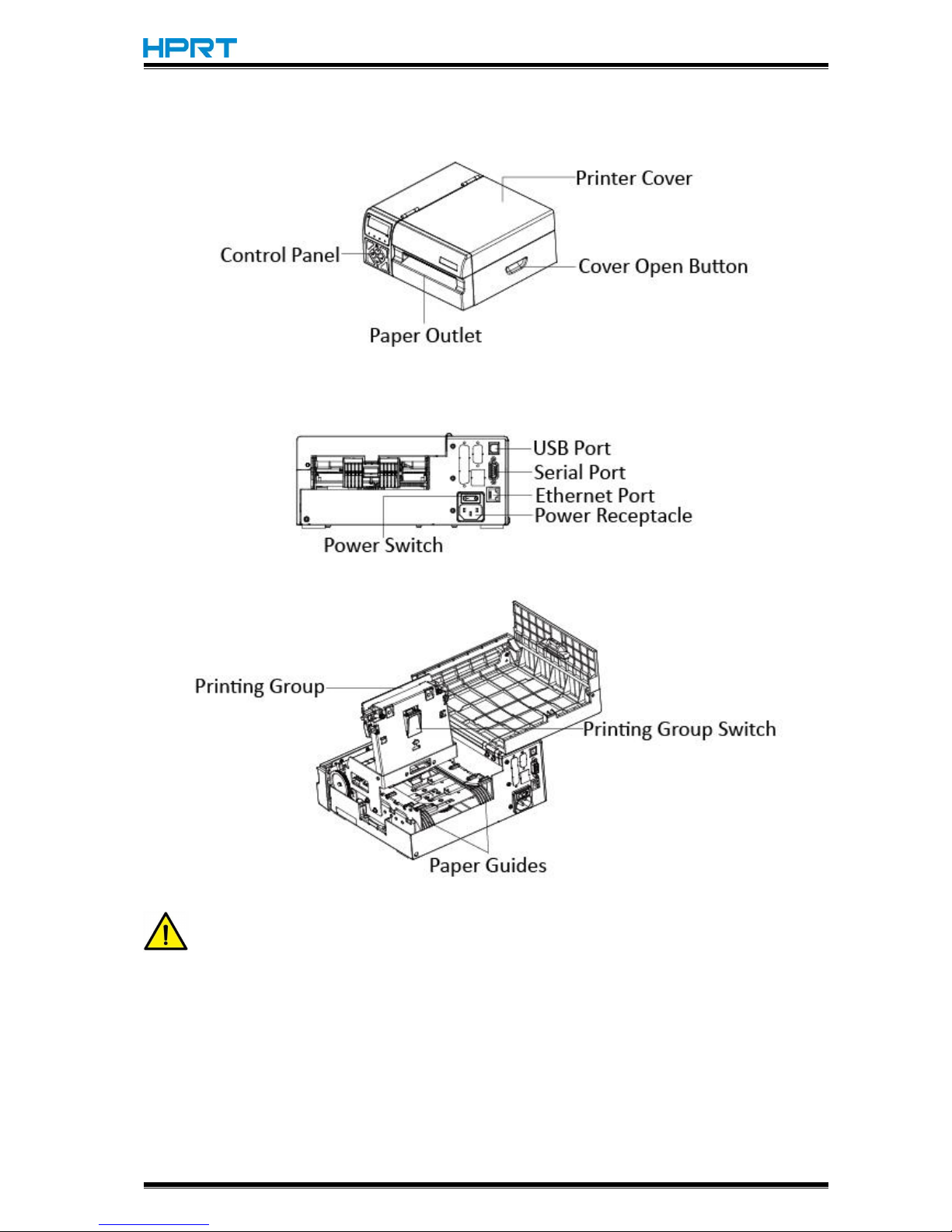

1.2 Appearance and Components

￭

Front View

￭

Rear View

￭ Inside View

Note：The views above are for your reference. Ports vary by your choice.

Page 10

HD2000 User Manual

Rev.1.0

CHAPTER 2 SPECIFICATIONS

(2/1)

Items

Parameter

Printing

Printing method

Direct Thermal printing

Resolution

203dpi(8dots/mm)

Printing speed

203mm/s Max.

Printing width

104mm Max.

Printing length

30 to 1200mm

Processor

32 bit RISC CPU

Memory RAM

32MB

Flash

16MB

Detection

Sensors

Out of paper detection, Gap detection, Notch detection,Black mark detection,TPH temperature detection

Media

Types

Fan-fed or Roll-fed,Die-cut or continuous label

Width

1.5’’(38mm) – 4.64’’(118mm)

Thickness

0.003’’(60um) – 0.01’’(250um)

External Label roll diameter

8’’(200mm) Max.

Core diameter

0.5’’(12.7mm) Min.

Programming Language

TSPL, ZPL

Software Label design

HPRT Bartender Ultralite

Driver

Windows 2000,XP,Vista,8,10

Resident Fonts

Bitmap fonts

6, 8, 12, 16, 32, OCR A & B. 90°, 180°, 270

rotatable and 10 times expandable in horizontal and vertical directions

Barcode 1D

Code 39, Code 93, EAN 8/13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, I 2 of 5 with human readable check digit, Standard 2 of 5, Industrial 2 of 5 , Logmars, Code 11, Code 49, Cadablock

PDF417, Data matrix code, Maxi Code, QR code, Micro PDF417, Micro QR code, Aztec code

Code Pages

DOS437,720,737,755,775,850,852,855,856,857,858, 860,862,863,864,865,866, Windows1250,1251,1252,1253,1254,1255,1256,125 7,1258 ISO8859-1,-2,-3,-4,-5,-6,-8,-9,-15 DBCS 932 (JIS), 936(GBK), 949 (Koran), 950(BIG5)

Interfaces

USB & RS232C

Control Panel

Display

OLED

Status LED

Standby,Paper-out,Error,Power

Button

Up,Down,Return,Enter,Menu,Pause,Feed and Backfeed

Power

Power input

AC 100-240V ,75W, 50/60Hz

Environment Operation

41℉- 104℉(5℃-40℃),30% - 85% no condensing

Storage

-4℉ - 122℉(-20℃-50℃),10% - 90% no condensing

Page 11

HD2000 User Manual

Rev.1.0

(2/2)

Items

Parameter

Physical Characteristics

Dimension(L*H*W)

227mm*211.6mm*99.7mm

Weight

3.54kg,exclude consumables

Options & Accessories

External label roll holder for 8’’ OD label rolls Cutter module Peeler module RFID tag encoder module

Agency Approvals

CCC,FCC,CE

Page 12

HD2000 User Manual

Rev.1.0

Chapter 3 Installation & Usage

3.1 Media Loading

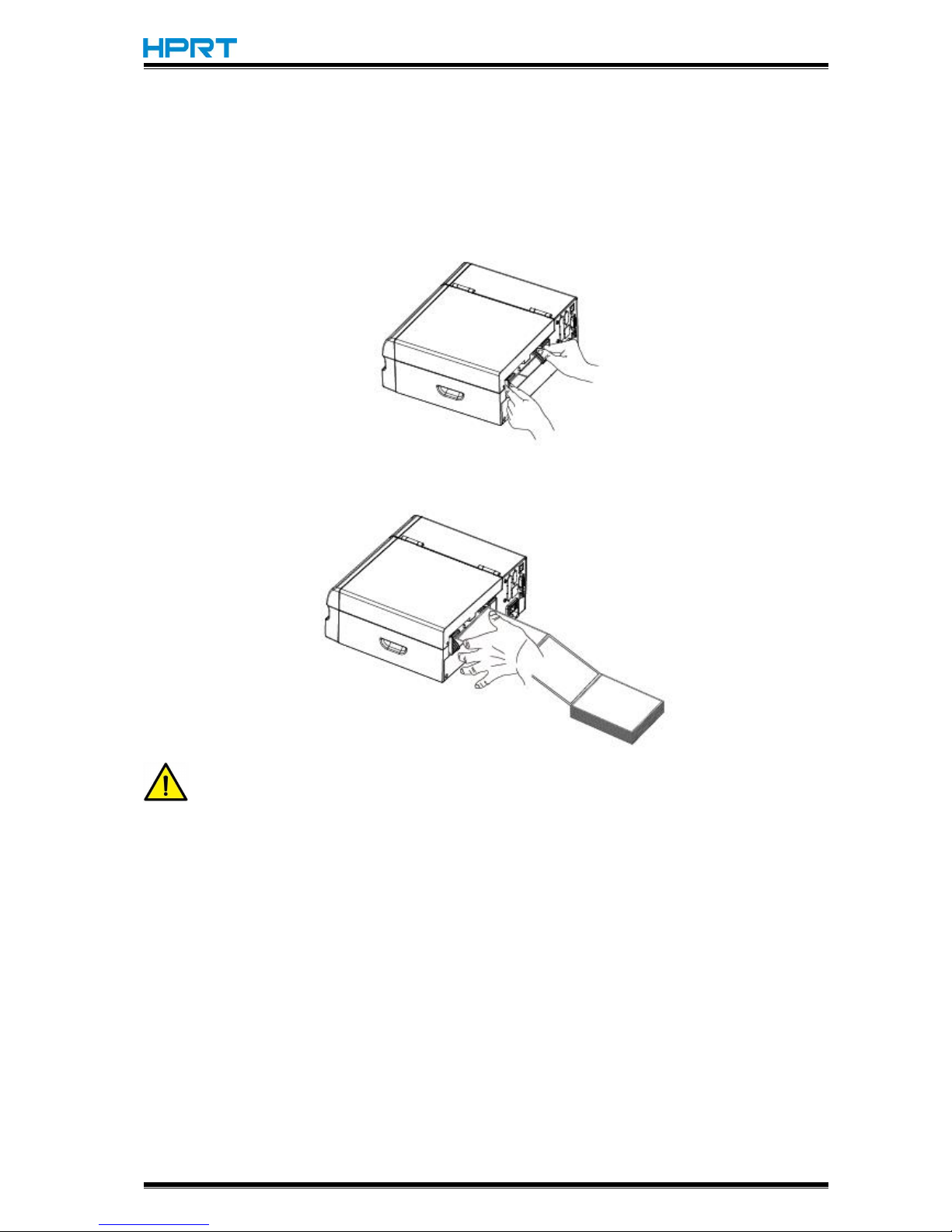

3.1.1 Fanfold Media

1.According to the width of paper, adjust the paper guides.

2.Insert the paper into the entry slot.

Note: The media should be put in position, so that printer could automatically feed the

paper.

Page 13

HD2000 User Manual

Rev.1.0

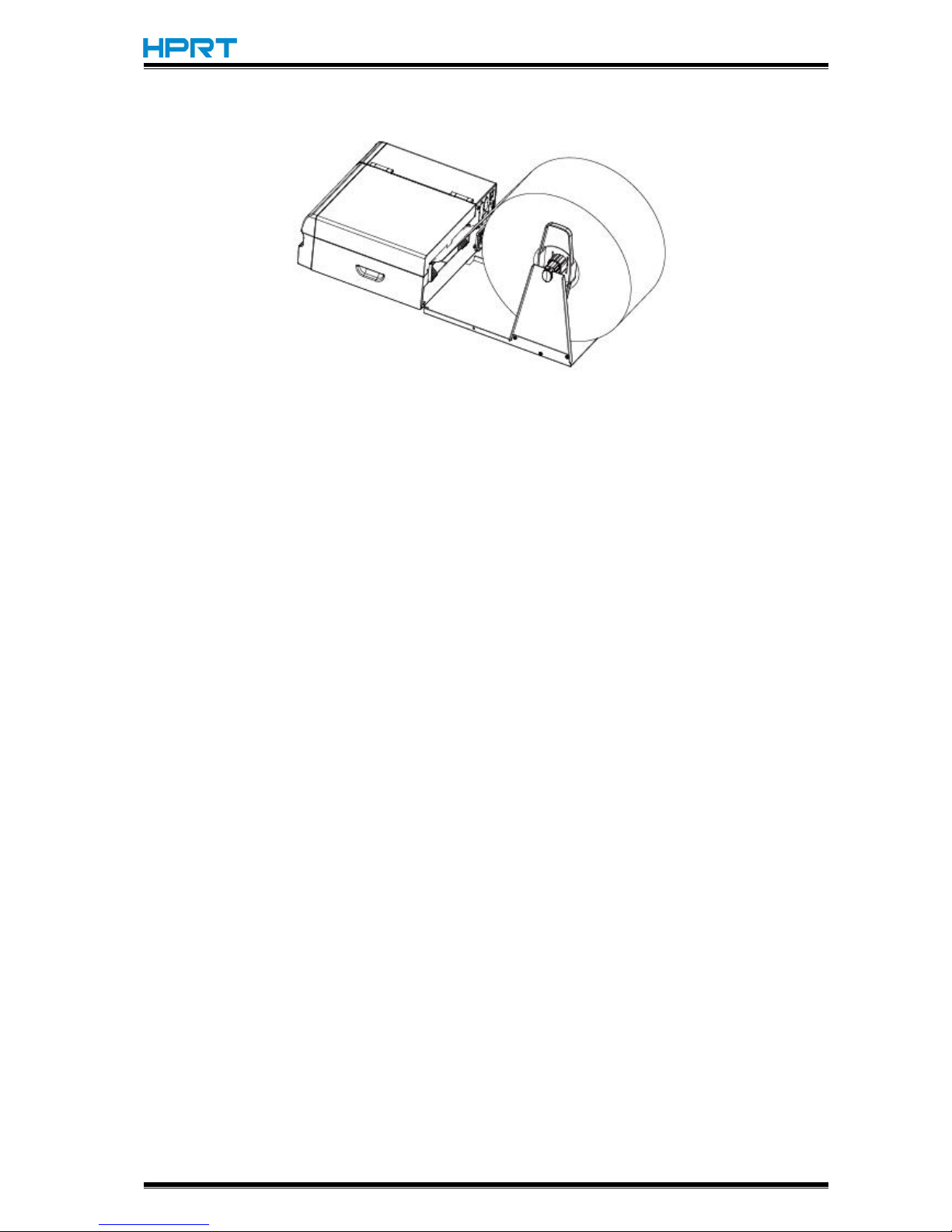

3.1.2 External Paper Roll

If the paper roll is extremely large, users can load the paper roll outside(See the graph at right). Pass the paper through the external feed slot and then through the paper guides. Adjust the paper guides according to the paper width.

Page 14

HD2000 User Manual

Rev.1.0

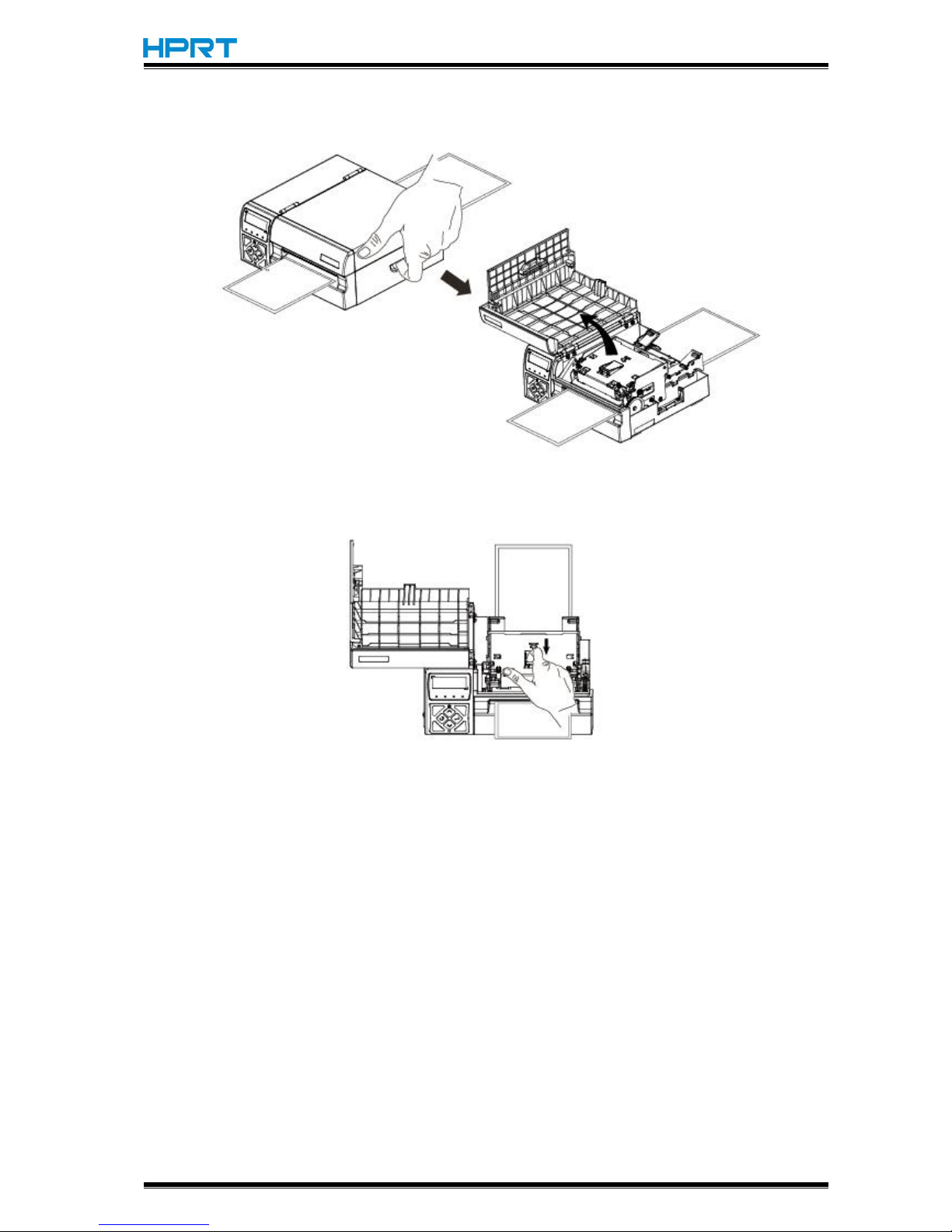

3.2 Paper Jam

1.Press the cover open button and hold upwards to open the printer cover.

2.Press the printing group switch .

Page 15

HD2000 User Manual

Rev.1.0

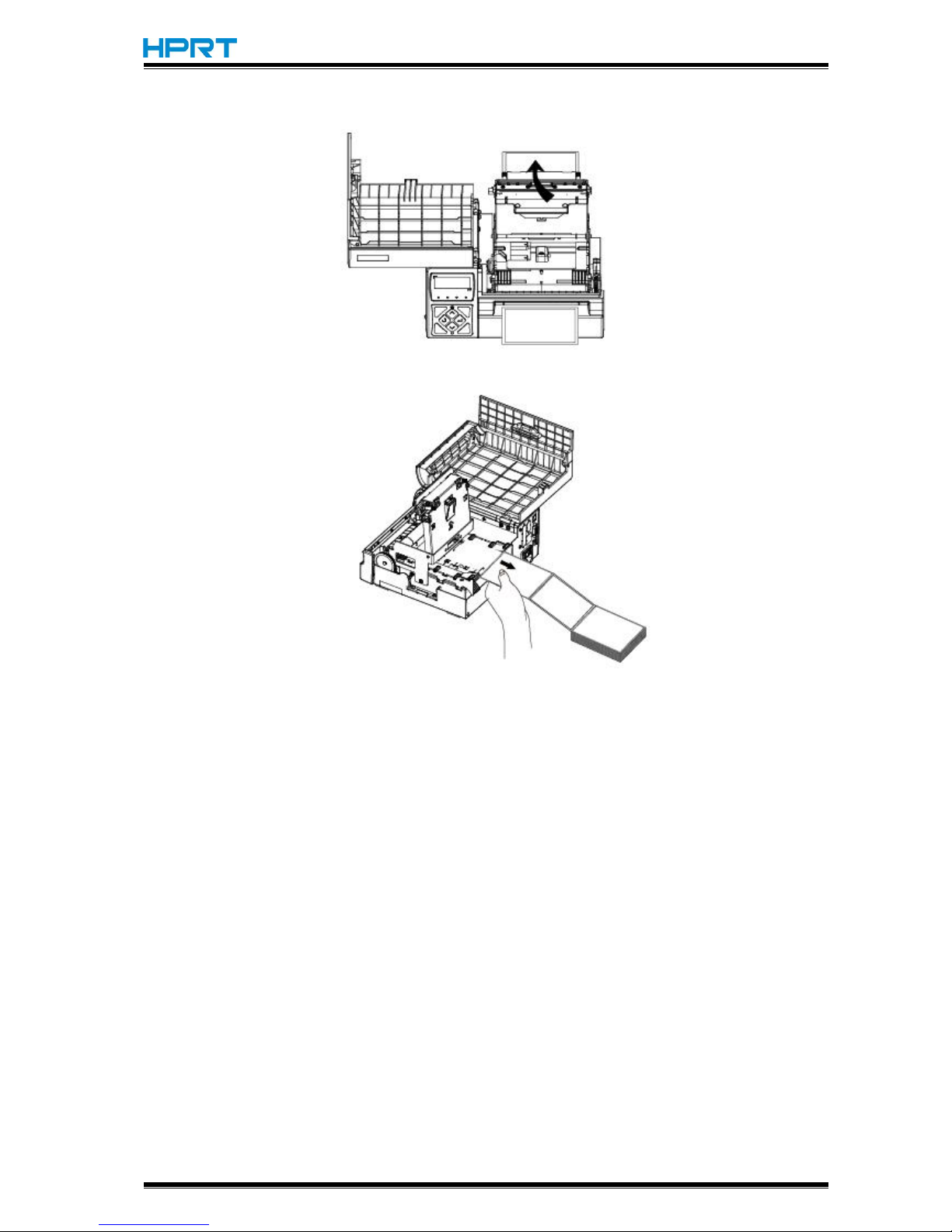

3.Hold the printing group upwards.

4.Take out the jammed paper.

5.After removing the jammed paper, restall the media.

Page 16

HD2000 User Manual

Rev.1.0

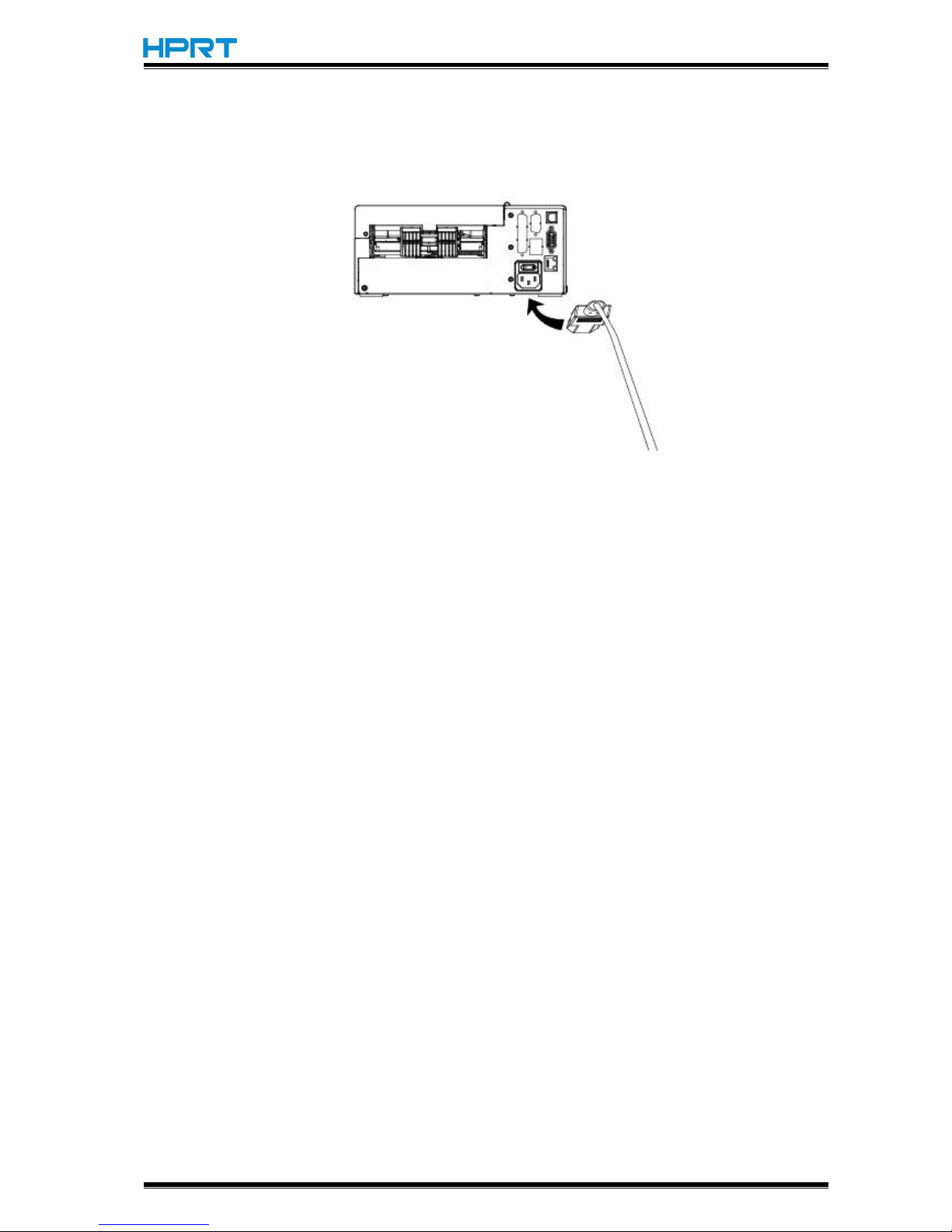

3.3 Power Connection

1.Make sure the printer’s power switch is in the off position.

2.Connect the power cord to power receptacle.

3.Connect the other end of power cord to the outlet.

3.4 Interface Cable Connection

The standard for the printer’s interface cable is below:

- USB B-Type cable

- RS-232C cable

- RJ45 cable

Please follow the instructions to connect the cable.

1. Make sure the printer is off.

2. Please plug in the cables

Insert the RS232 cable into serial port. Insert the USB B-Type cable into the USB port Insert the RJ45 cable into the ethernet port.

Page 17

HD2000 User Manual

Rev.1.0

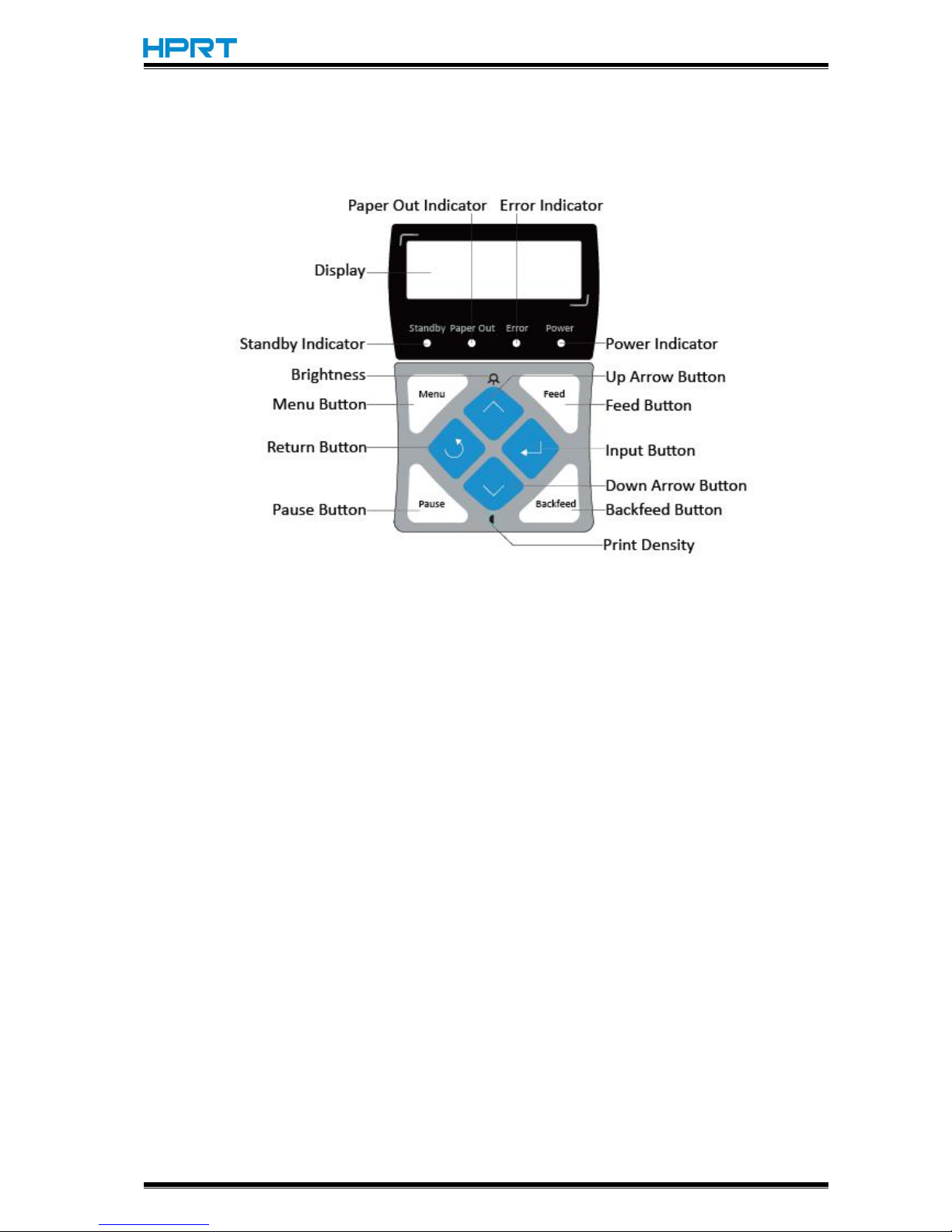

3.5 Control Panel

Page 18

HD2000 User Manual

Rev.1.0

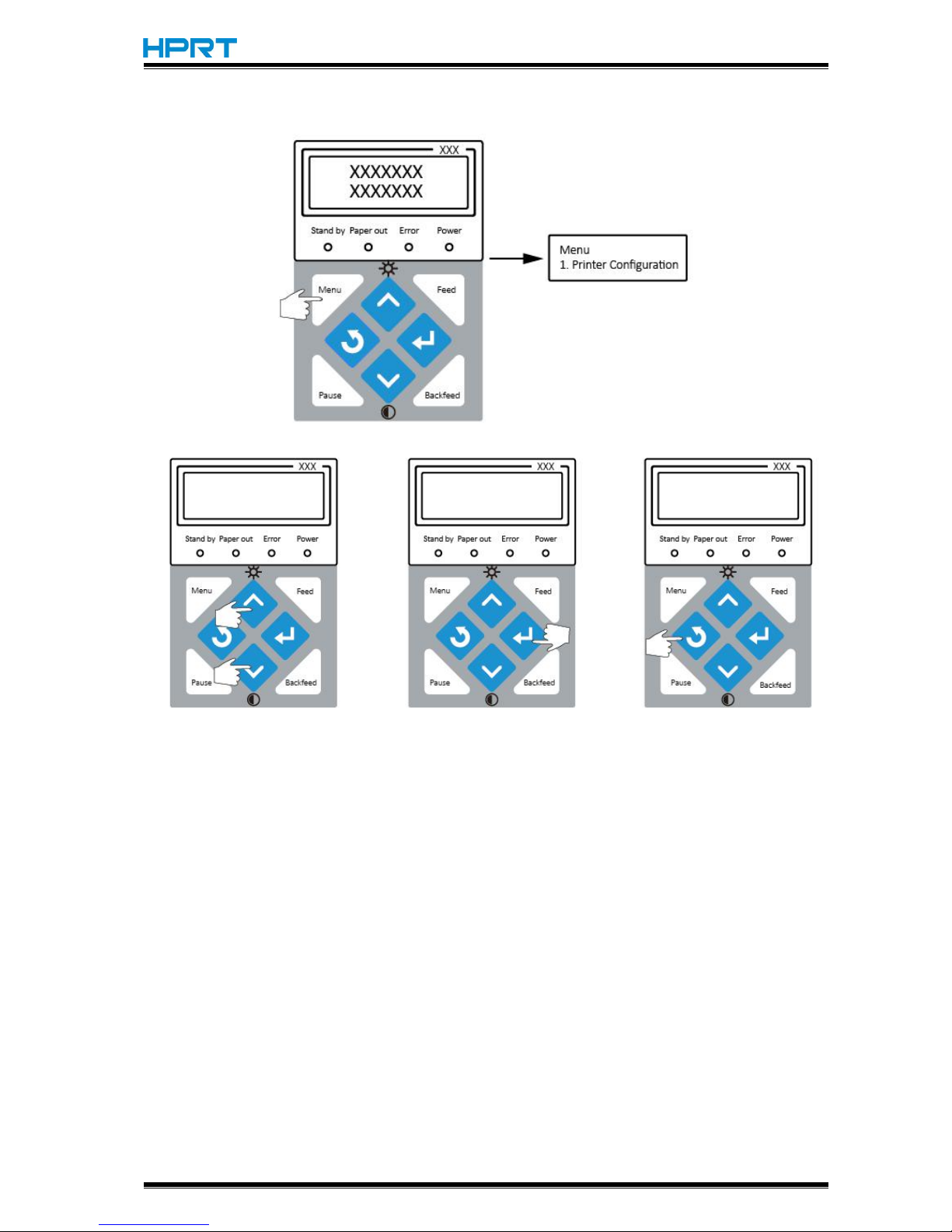

3.5.1 Button Function

Enter the menu when standing by.

Feed

① When use continuous label media, printer will automatically feed a standard distance; ③ Hold down Feed Button when power on, release the button after hearing the a buzzer sound, printer configuration is printed out

Pause

Press this button when printer is working, the printing job stops and stands by(flash); repeat this button, the printing continues.

Backfeed

Backfeed current label

Up Button

① Hold down this button when standing by to enter the Brightness Sub-menu, the screen brightness can be set up; ② Choosing items when in “Menu”. ③ Choosing items when in “Parameter Setting”.

Down Button

① Hold down this button when standing by to enter the Darkness Submenu,, the darkness can be set up;The print darkness turns down with pressing this button. When the density reaches the lowest you hear a long buzzer. ② Choosing items when in “Menu”. ③ Choosing items when in “Parameter Setting”.

Enter

①Confirm current setting/choice. ②Move the cursor under “Parameter Setting”

Return

Return to last menu.

Page 19

HD2000 User Manual

Rev.1.0

3.5.2 LED Indicators

LED

Status LED

Status

Standby

The printer stands by and ready to print

Out Of Paper

Flash

The printer is out of paper.

Error

Flash

An error occurs, the speed/times of flash indicates different error status.

Power ON

The power is normal

Flash/off

The power is abnormal or there is a problem of circuit

3.6 Parameter Setting

Users are able to set up parameters via two methods below ,such as baud rate, paper type, print density, print width etc.

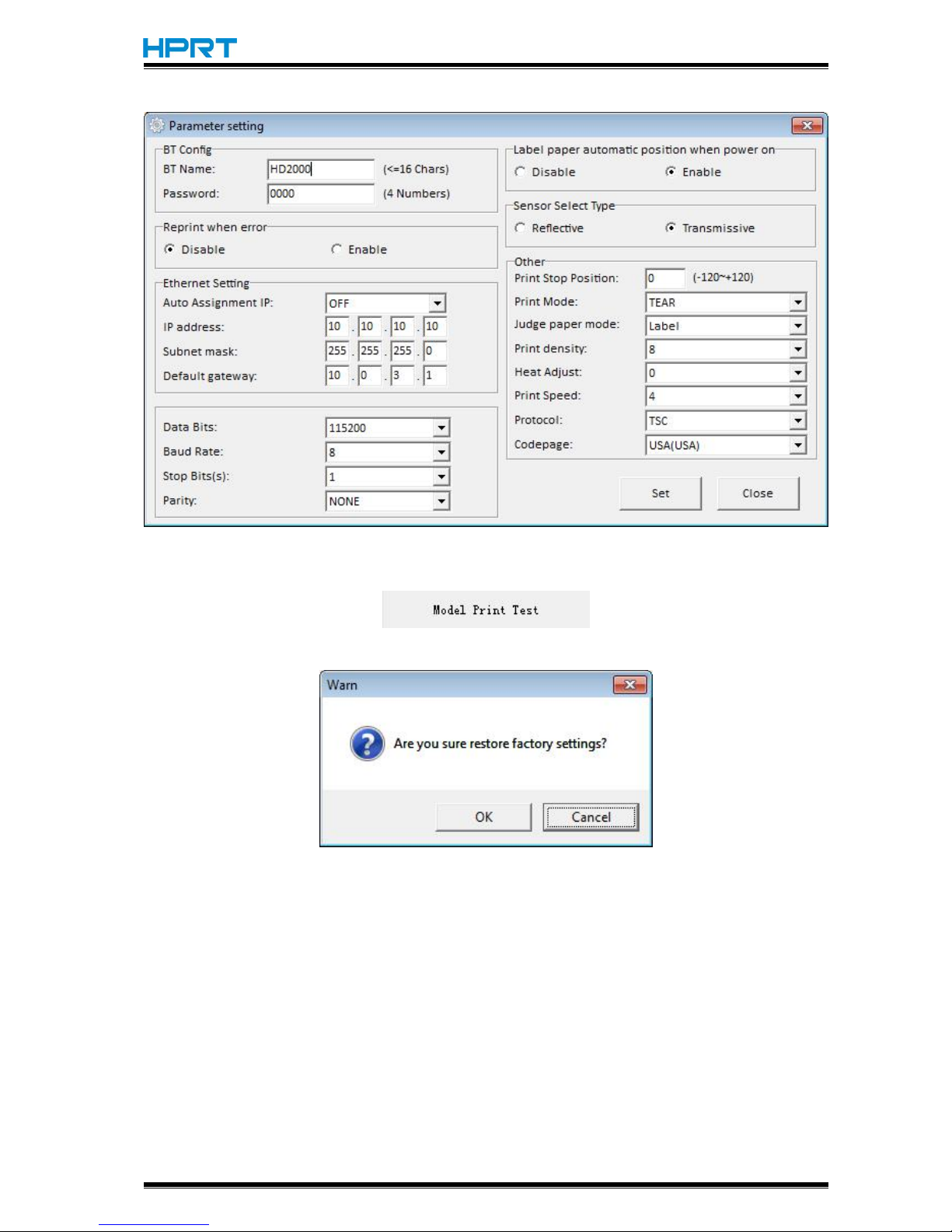

3.6.1 Utility Tool

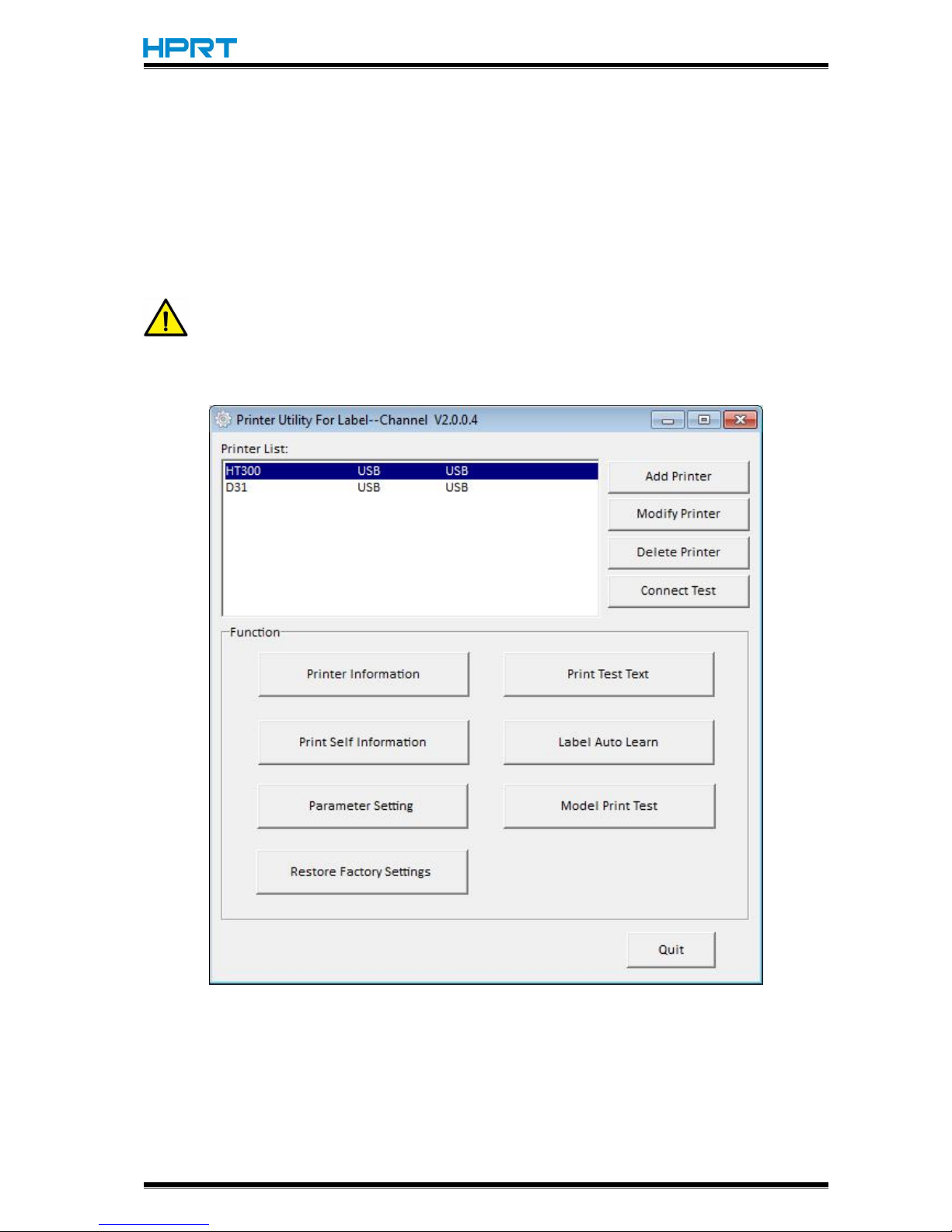

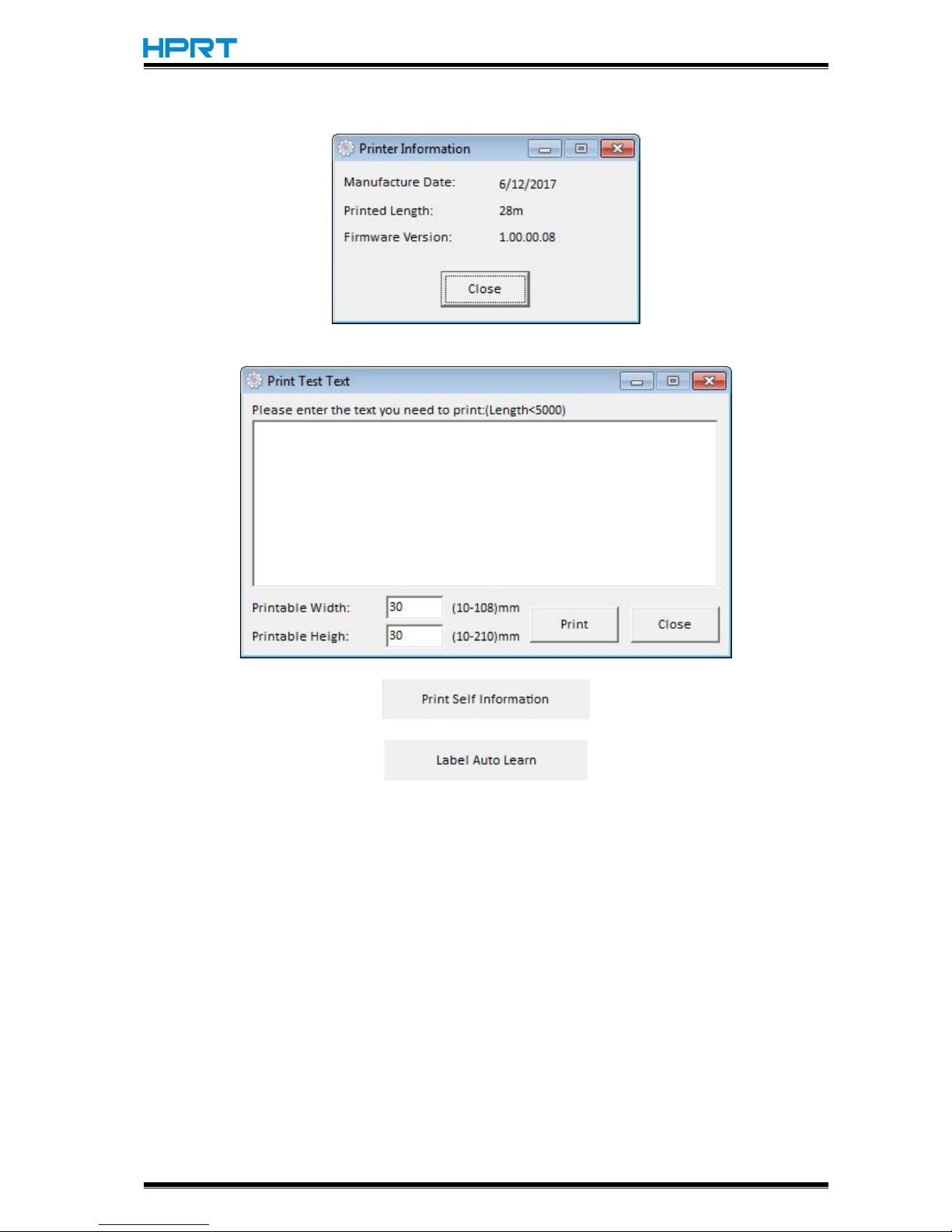

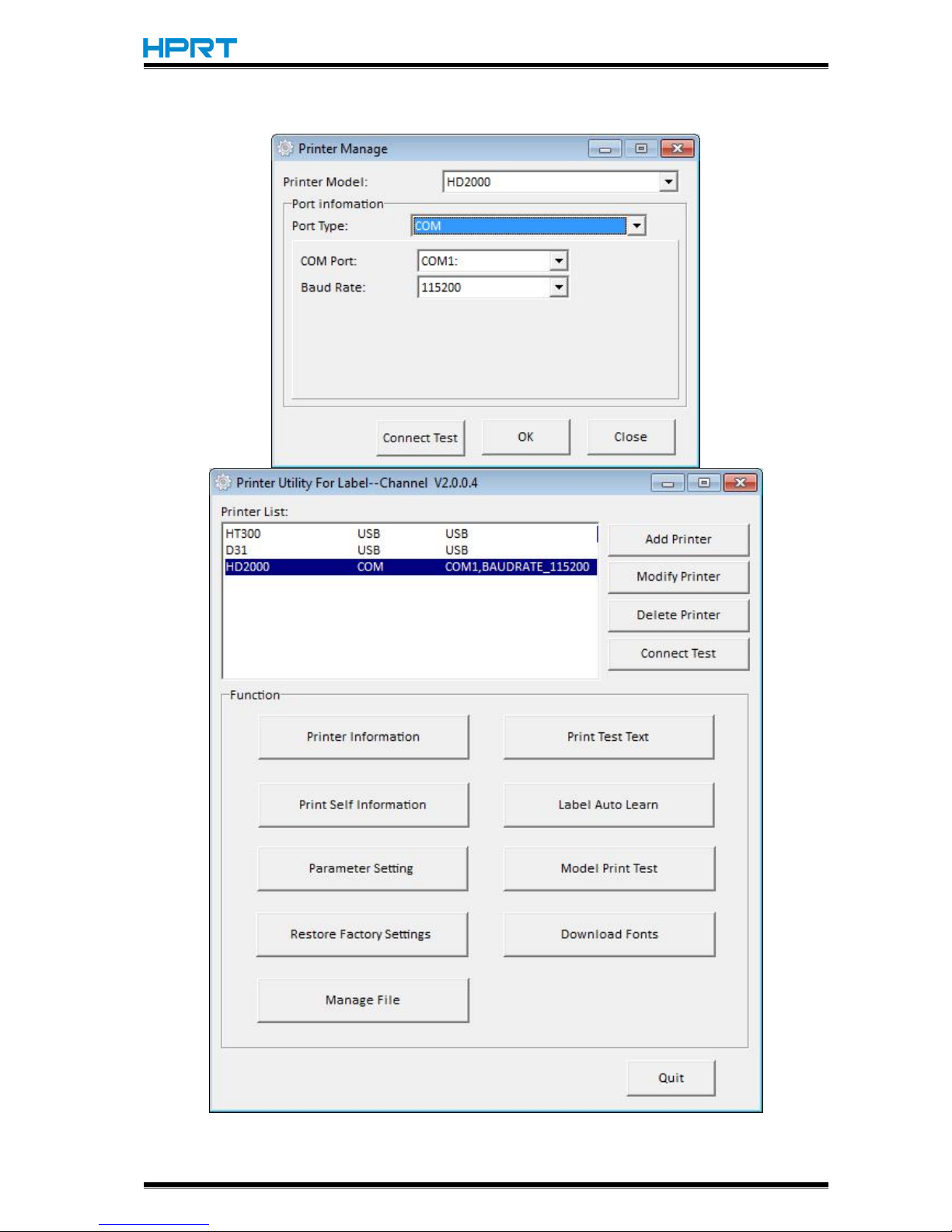

There is a utility tool software that allows users to set up basic parameters, such as codepage, self-test print, please refer to Utility Tool Manual.

3.6.2 Setting Manually

 Menu Structure

Main Menu

Sub-menu

Description

1. Print Parameter

1.1 Print Speed

Set up printing speed

1.2 Darkness

Set up printing density

1.3 Gap Sensor

Set up transmissive sensor’s location

1.4 Print X Offs

Adjust the start point horizontally

1.5 Print Y Offs

Adjust start point vertically

1.6 Back Y Offs

Locate regular tear and cut position

2.User Setup

2.1 Language

Change system language

2.2 Brightness

Change brightness of back-light

2.3 Buzzer

Change the tone of buzzer

2.4 Default

Recover to default factory setting

2.5 Password

Set the password of Menu Setting

2.6 Update Firmware

Upgrade the version of firmware

3.Calibration

3.1 Label Learning

Label learning

4.Test

4.1 Print configuration

Print the printer configuration

4.2 Print test

Print the self-test page

4.3 Debug Mode

Print the original font of printer in order to look into the error.

5.Interface

5.1 RS-232

Serial interface setting

6.Information

6.1 Serial NO.

Printer’s serial number

6.2 Model Name

The model name of printer

6.3 Firmware

The firmware version of printer

6.4 TPH Printed Length

The already printed length of printer

6.5 Date

The produce date of printer

Page 20

HD2000 User Manual

Rev.1.0

 Parameter Settings

1. Print Parameter

Parameter

Description

Default

1.1 Print Speed

Adjust the printing speed Options: (2-8)ips

5ips

1.2 Darkness

Adjust print density Change print quality through change of printer heat. Options:(1-7) level

1.3 Gap Sensor

Adjust the photo interupter’s location Options: Side Gap, Central Gap

None

1.4 Print X Offs

Adjust the start point horizontally Options: (+00~ +89) dots

1.5 Print Y Offs

Adjust the start point vertically Options: (+00~ +89) dots

1.6 Back Y Offs

Set stop position of label Options: -89~+89dots

2. User Setup

Parameter

Description

Default

2.1 Language

Change menu language (Language: English, Chinese Simplified)

English

2.2 Brightness

Adjust the brightness of back-light Options: 0~3(“0”means close)

2.3 Buzzer

Adjust the buzzer volume Value: 0~3

2.4 Default

Set the parameters to factory default

None

2.5 Password

Set the password to protect the parameters Password value range: 0000~9999

1001

2.6 Update Firmware

Upgrade the version of firmware

None

3. Calibration

Parameter

Description

3.1 Label learning

Label calibration

4. Test

Parameter

Description

4.1 Print configuration

Print the printer configuration

4.2 Print test

Print out the pre-download test page to check whether the printer can work normally.

4.3 Debug Mode

Print the original font of printer in order to look into the error.

Page 21

HD2000 User Manual

Rev.1.0

5. Interface

Parameter

Description

Default

5.1Serial Interface

Baud Rate Options: 9600~115200

9600

Parity Options: None, Odd, Even

None

Data bits Option: 8,9 bits

8 bits

Stop bits Options: 1,2

6. Information

Parameter

Description

6.1 Serial NO.

14 Serial number

6.2 Model Name

HD2000

6.3 Firmware

V1.0.8( Depends on the printer you buy)

6.4 TPH Printed Length

The printed length of printer

6.5 Date

The produce date

 Screen

There is a screen within the control panel, you can view the printer status or change its printing parameter. In follow, you will have a quick study of menu browsing and how to change the single parameter.

Page 22

HD2000 User Manual

Rev.1.0

Main Menu Printer handling and parameter setting

Enter the main menu when standing by

Press Up/Down button to Enter the sub-menu when Back to last menu with change selection press ‘Enter’ once; two times to back

standby display.

Page 23

HD2000 User Manual

Rev.1.0

3.7 Self-Test

3.7.1 Print Self-Test

The self-test checks the printer’s current settings, status and whether the printer has any problem.

1.Make sure the power is connecting and paper is loading properly.

2.Make sure the printer is off and top cover close properly. .

3.Pressing the paper feed button and power button simultaneously turns the printer on. The printer is ready to receive data as soon as it completes the self-test.

3.7.2 Printing Of Windows Driver Program

1. Install the Windows Driver program. (Please refer to the Windows Driver Manual)

2. Please set the “interface” as the type you use.

3. Use the Windows Driver Program to print out the “Self-test page”.

3.8 LED Display

Standby

Paper out

Error

Power

Description

On--OnThe printer is ready to print

Flash

-OnOut of paper

---OnPower is normal

--Flash

Print head opens

3.9 Buzzer

Buzzer

Status

Once

Print self-test page

Three times

Out of paper

Three times

Printer cover is close improperly

Three times

Gap sensor abnormal

3.10 Label Learning

Users must carry out the calibration under those conditions below:

 The first time to use the printer since installation;

 The first time to use the printer since sensor cleaning;

 Reuse the printer that has not been used for a long time;

 Change a new type of media;

 Printer cannot recognize the mark;

 Huge change of operating environment;

When printer is ready, hold down ‘Enter Button’ for about 2s and then release the button, printer starts to do the calibration and feeding 3 labels which means 2gaps; Users could also do the calibration via menu operation.

Note: After the calibration, users could open the printer cover to pull back the learned

paper in avoid of paper wasting.

Page 24

HD2000 User Manual

Rev.1.0

CHAPTER 4 INTERFACE

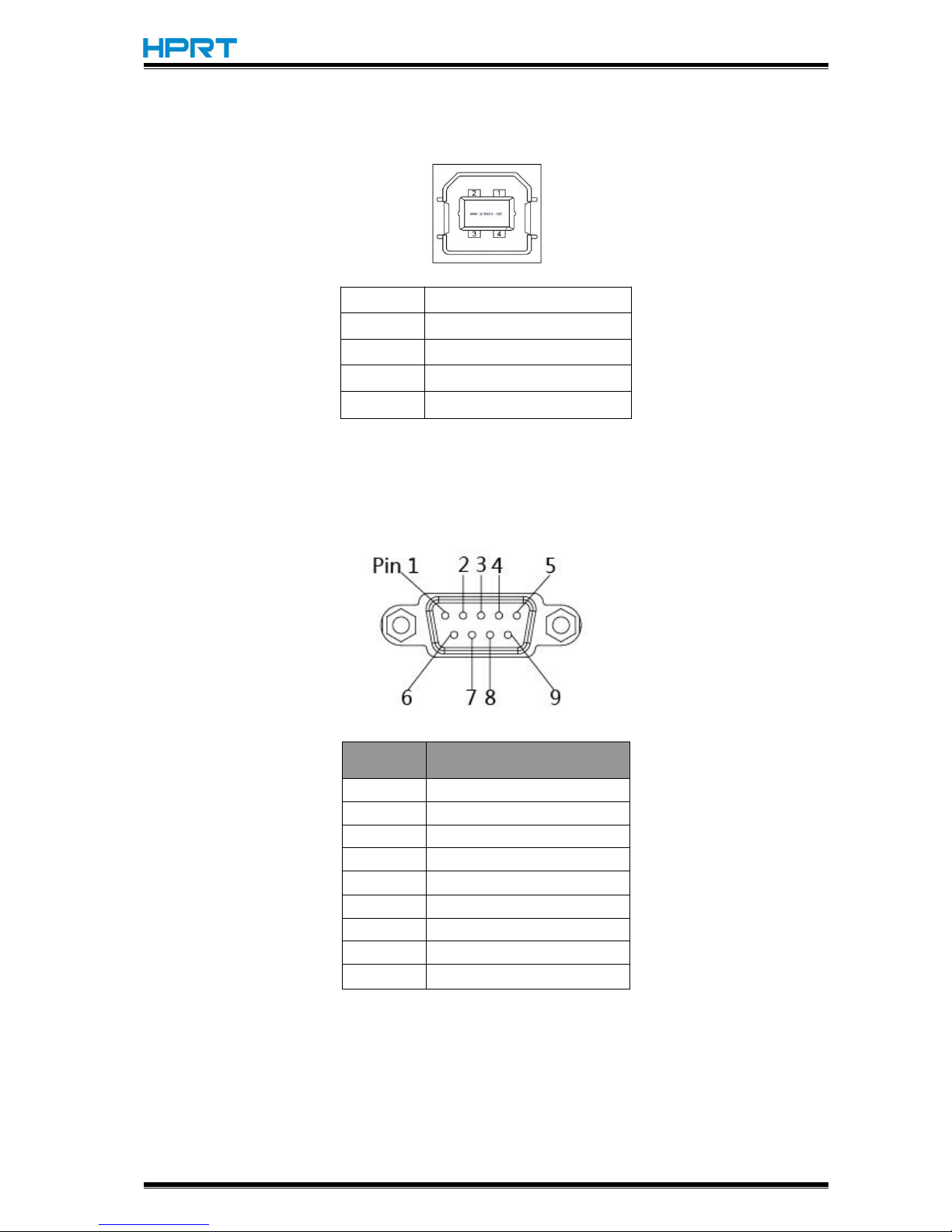

4.1 USB Interface

SIGNAL NAME

VBUS

D-

D+

GND

4.2 Other Optional Interfaces

 Serial Port

SIGNAL NAME

+5VDC

TXD

RXD

GND

RTS

CTS

RTS

Page 25

HD2000 User Manual

Rev.1.0

 Ethernet Port

SIGNAL NAME

TX+

TX-

RX+

RX-

Page 26

HD2000 User Manual

Rev.1.0

CHAPTER 5 PRINTER CLEANING

Print quality might be degraded by dust, foreign substance, adhesive substance, or other pollution materials stuck in the printer head or inside the printer.

When dirty, clean the print head as follows:

Note:

 Make sure to turn off the printer prior to cleaning.

 As the print head gets hot during printing, intending to clean the print head, turn the

printer off and wait approximately 2~3 minute before commencement.

 When cleaning the print head, take care not to touch the heated portion of the print head.

→ Print Head is susceptible to damage from static electricity, etc.

 Take care not to allow the print head become scratched and/or damaged in any way.

5.1 Cleaning Head

1) Open the Printer Cover and then use the cleaning pen to clean the head in the direction from

the center of the head to two sides.

2) After cleaning the head, do not use the printer until the alcohol used for cleaning evaporates

completely (1~2 min) and the printer has completely dried.

5.2 Cleaning Sensors, Roller and/or Paper Path

1) Open the printer cover and then remove the paper.

2) Remove any dust or foreign substance using dry cloth or cotton swab.

3) Soak the cloth or cotton swab in alcohol for medical use and use it to remove adhesive

foreign substances or other pollution materials.

4) After cleaning the parts, do not use the printer until the alcohol evaporates completely (1~2

min) and the printer has completely dried

※ Clean the parts whenever print quality or paper detection degraded.

Page 27

HD2000 User Manual

Rev.1.0

Chapter 6 Label Printer Utility Instructions

6.1 Installation Preparation

Download the application program in CD. eg: HPRTUtilityForLabel_Channel V2.0.0.4.

6.2 Usage

Note: The screen may vary slightly by different operating systems and models.

(1)Download “HPRTUtilityForLabel_Channel V2.0.0.4” in CD. Then open the “HPRTUtilityForLabel_Channel.exe”.

Page 28

HD2000 User Manual

Rev.1.0

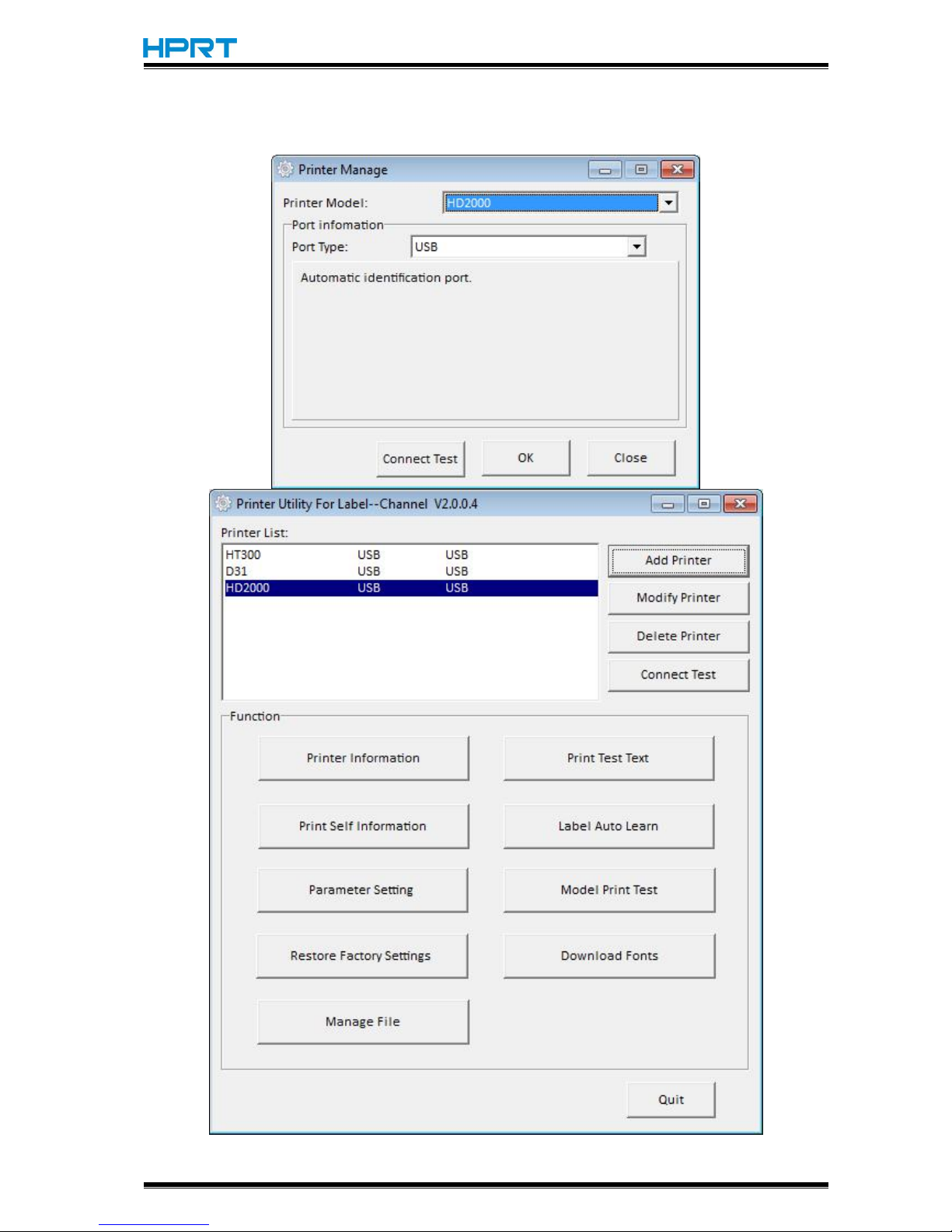

(2)Add/Modify/Delete Printer, Connect Test.

●Click “Add Printer”. Choose the printer and port(eg: USB), then click “OK”, showed in “Printer List”.

Page 29

HD2000 User Manual

Rev.1.0

●Click “Modify Printer”. Choose the printer and port(eg: COM1), then click “OK”, showed in “Printer List”.

Page 30

HD2000 User Manual

Rev.1.0

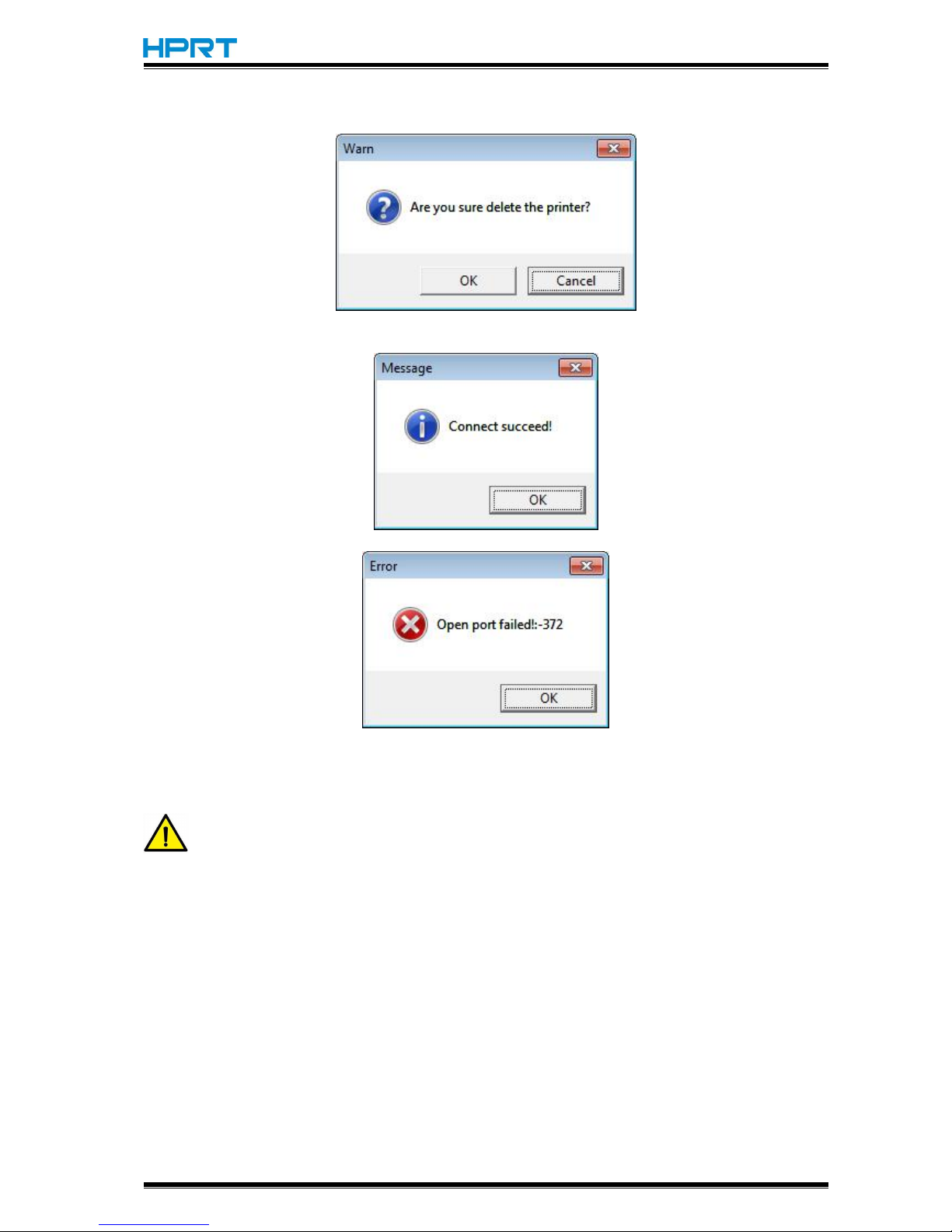

●Click “Delete Printer”. Click “OK” to delete the printer, and click “Cancel” to cancel the command.

●Click “Connect Test” to test whether the connection is successful or not. If connection succeeds, it shows as follows.

If connection fails, it shows as follows.

Note:

1.Connect printer to power first, then choose one port (depended on the printer you bought) to connect to the PC. Much more information of connecting method is contained in “3.3 Peripherals Connection”.

2.When connection fails, please check the connection and whether it matches or not.(When USB port is used, it is better to connect one printer only.)

Page 31

HD2000 User Manual

Rev.1.0

(3)Function.

●Click “Printer Information”, showing printer information.(varies by different printers)

●Click “Print Test Text”. Type the text and set up the printing range. Click “Print”, then printer starts to print the test text.

●Click “Print Self Information”, then printer starts to print self-test page.

●Click “Label Auto Learn”, then printer will carry out the calibration.

Page 32

HD2000 User Manual

Rev.1.0

●Click “Parameter Setting”. User can set up the BT config, print type, paper mode and so on.

Click “Set”, and back to the main menu.

●Click “Model Print Test”, then printer starts to print models.

●Click “Restore Factory Settings”. Click “OK” to restore factory settings, and click “Cancel” to cancel the command.

(4)Click “Quit”, and finish printer settings.

Page 33

HD2000 User Manual

Rev.1.0

Chapter 7 Seagull Windows Driver Instructions

7.1 Introduction

The following operating systems are supported:

Microsoft Windows 10 (32 bit/64 bit) Microsoft Windows 8 (32 bit/64 bit) Microsoft Windows 7 SPI (32 bit/64 bit) Microsoft Windows Vista SP2 (32 bit/64 bit) Microsoft Windows XP Professional SP3 (32 bit) Microsoft Windows Server 2012(64 bit) Microsoft Windows Server 2008 R2 Microsoft Windows Server 2008 SP2(32 bit/64 bit) Microsoft Windows Server 2003 R2 SP2(32 bit/64 bit)

7.2 Installation Preparation

Download Seagull Windows Driver application program in CD.

Page 34

HD2000 User Manual

Rev.1.0

7.3 Installation

Note:



Under different operating systems, the screen may be slightly different. Take Windows 7

as example.



To avoid the prevention, recommend to close the security software before installation.

1.Select one interface to connect your printer to computer.

2.Turn on the printer and check if it is connected to computer successfully.

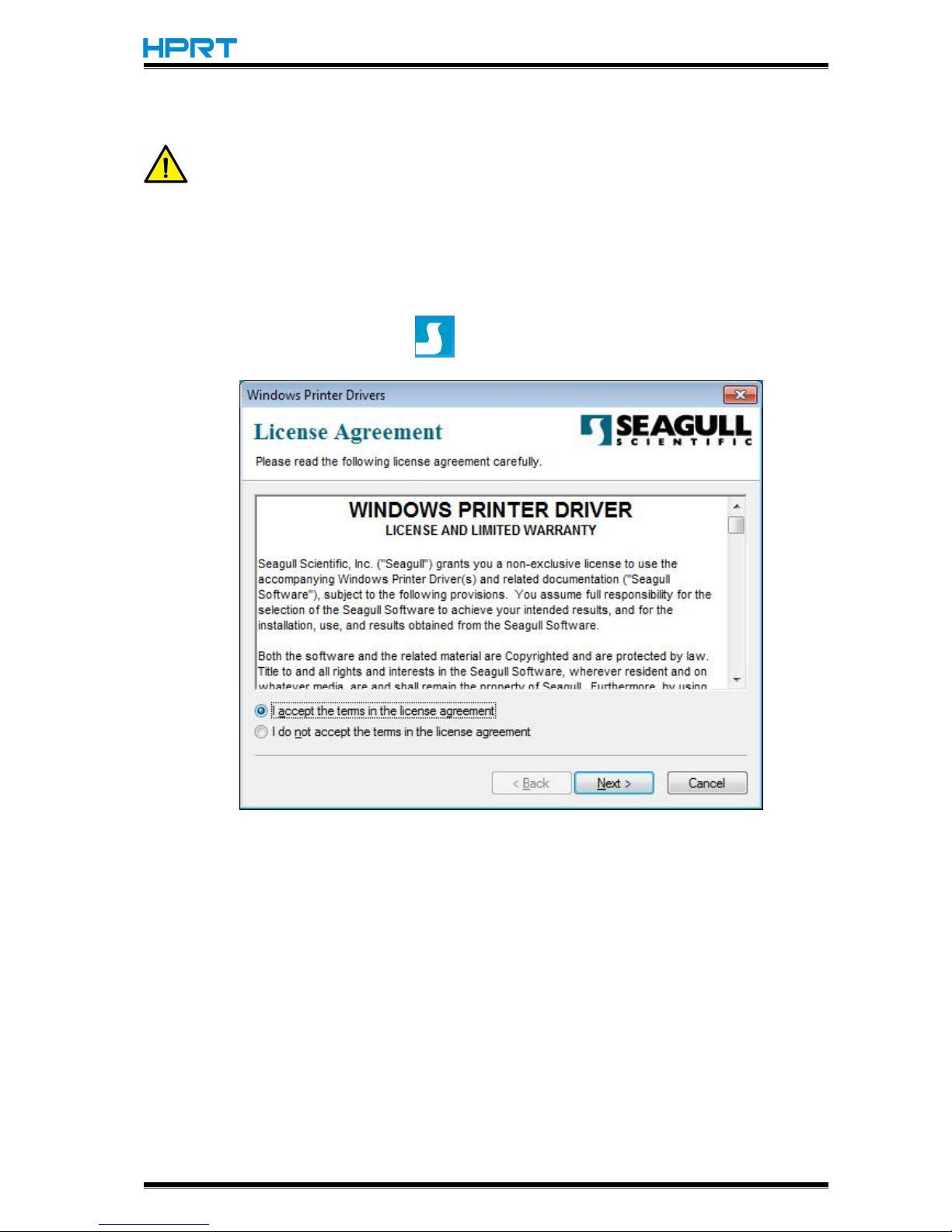

3.Double click Seagull Windows Driver .

4.Read and agree the license agreement. Then click “Next”.

Page 35

HD2000 User Manual

Rev.1.0

5.Choose the installation directory, then click “Next”.

6.Click"Finish".

Page 36

HD2000 User Manual

Rev.1.0

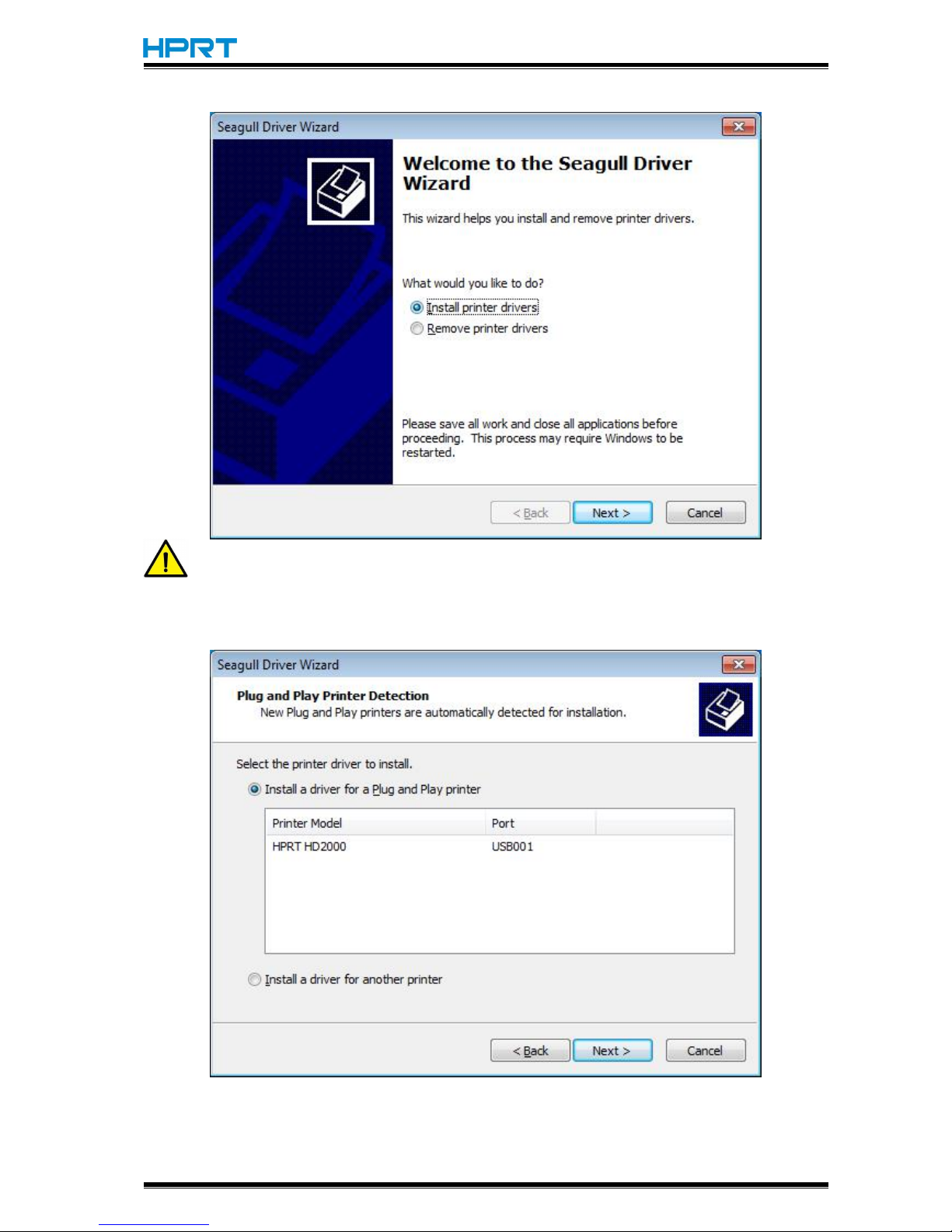

7.Select "Install printer drivers", then click "Next".

Note: If you have connected the printer to computer, it will detect and install the driver

automatically.(eg.: USB port)

8.Select "Install a driver for a Plug and Play printer”, then click "Next".

Page 37

HD2000 User Manual

Rev.1.0

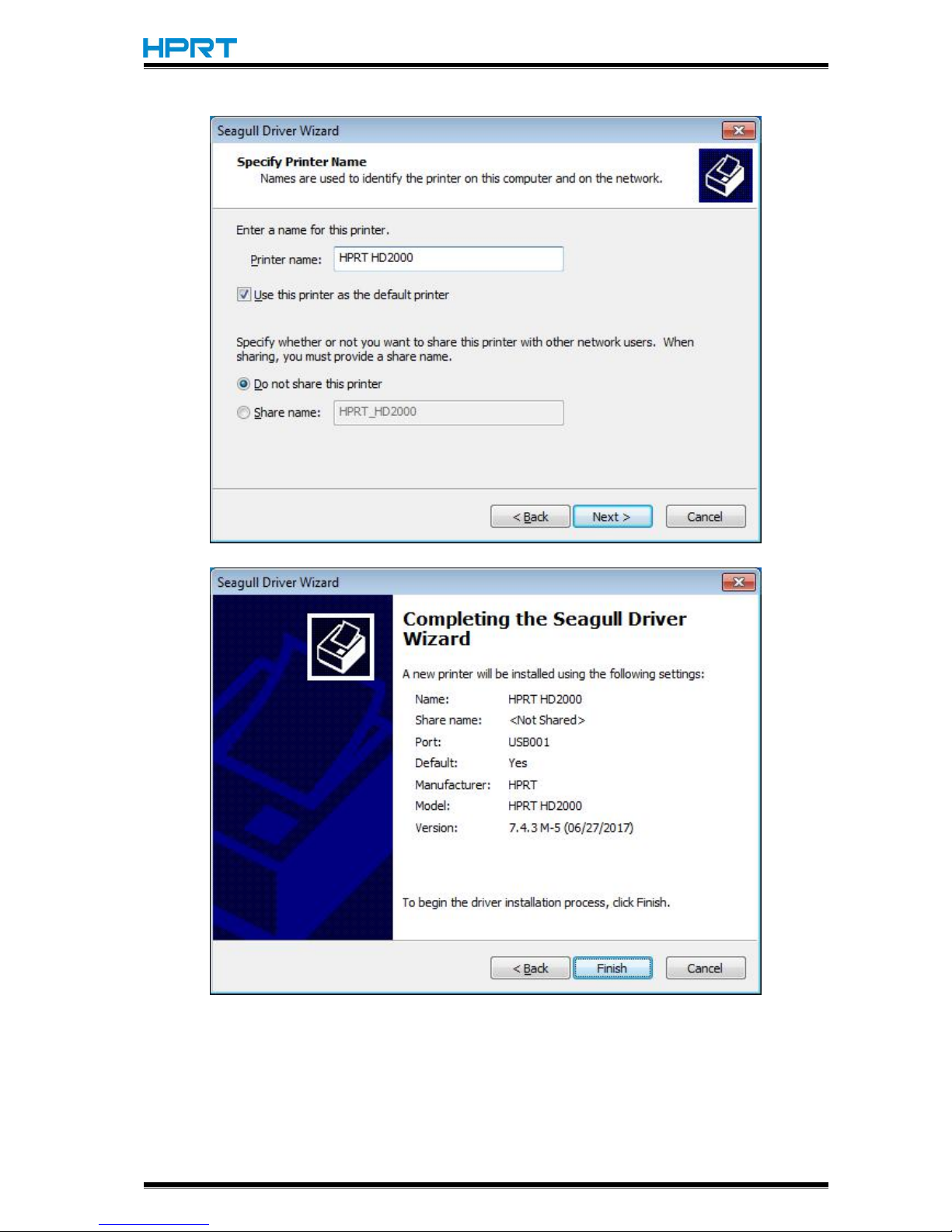

9.Enter a name for this printer, then click "Next".

10.Click"Finish".

Page 38

HD2000 User Manual

Rev.1.0

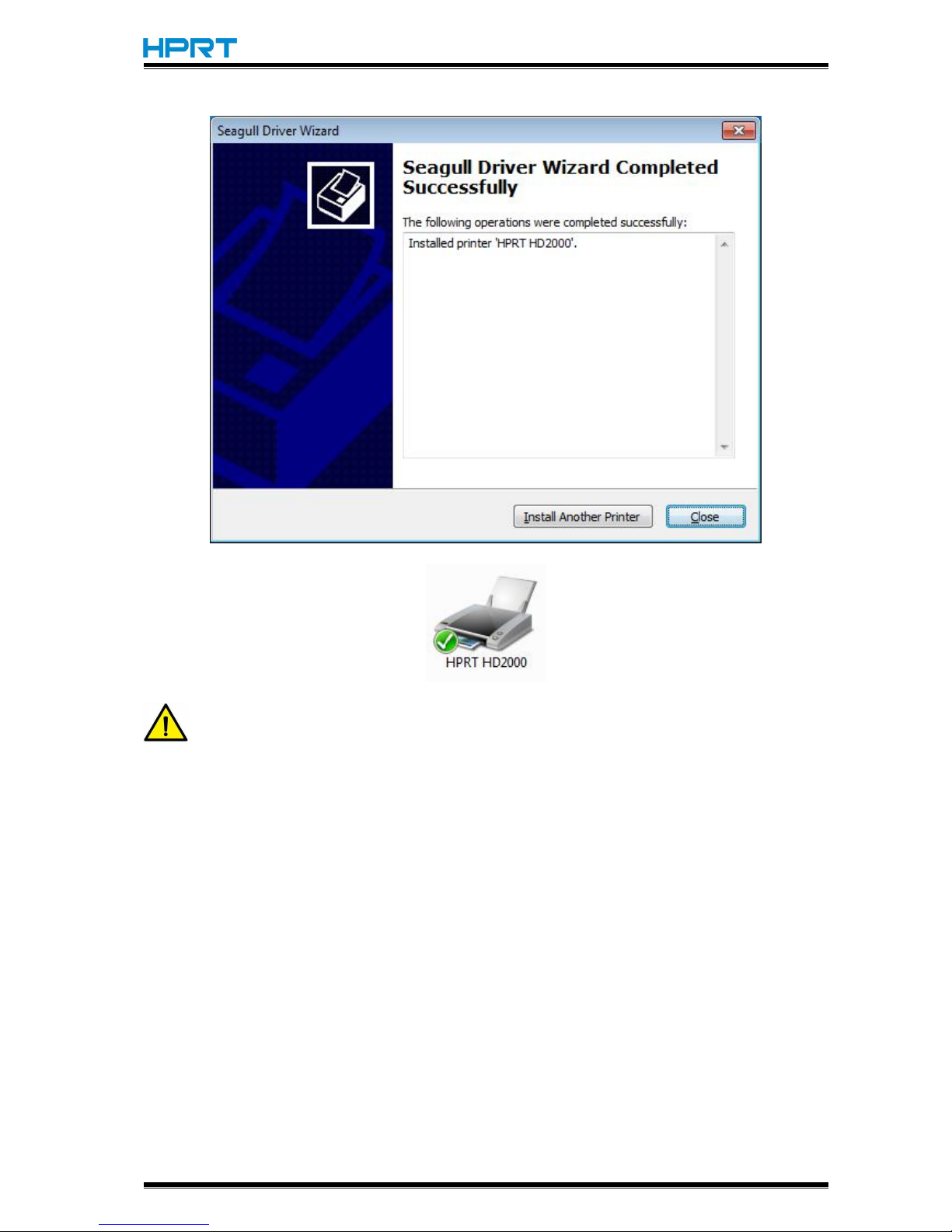

11.Click "Close", and the printer driver is installed successfully.

12.After installation, the icon will be found in ”Start”→“Devices and Printers”.

Note:

1.If you have already installed the driver (No matter what kind of ports), it will generate a USB port automatically when connecting the printer to computer.

2.Any problems exist, please use our utility tool in CD.

Page 39

HD2000 User Manual

Rev.1.0

7.4 Usage

7.4.1 Printing Preferences

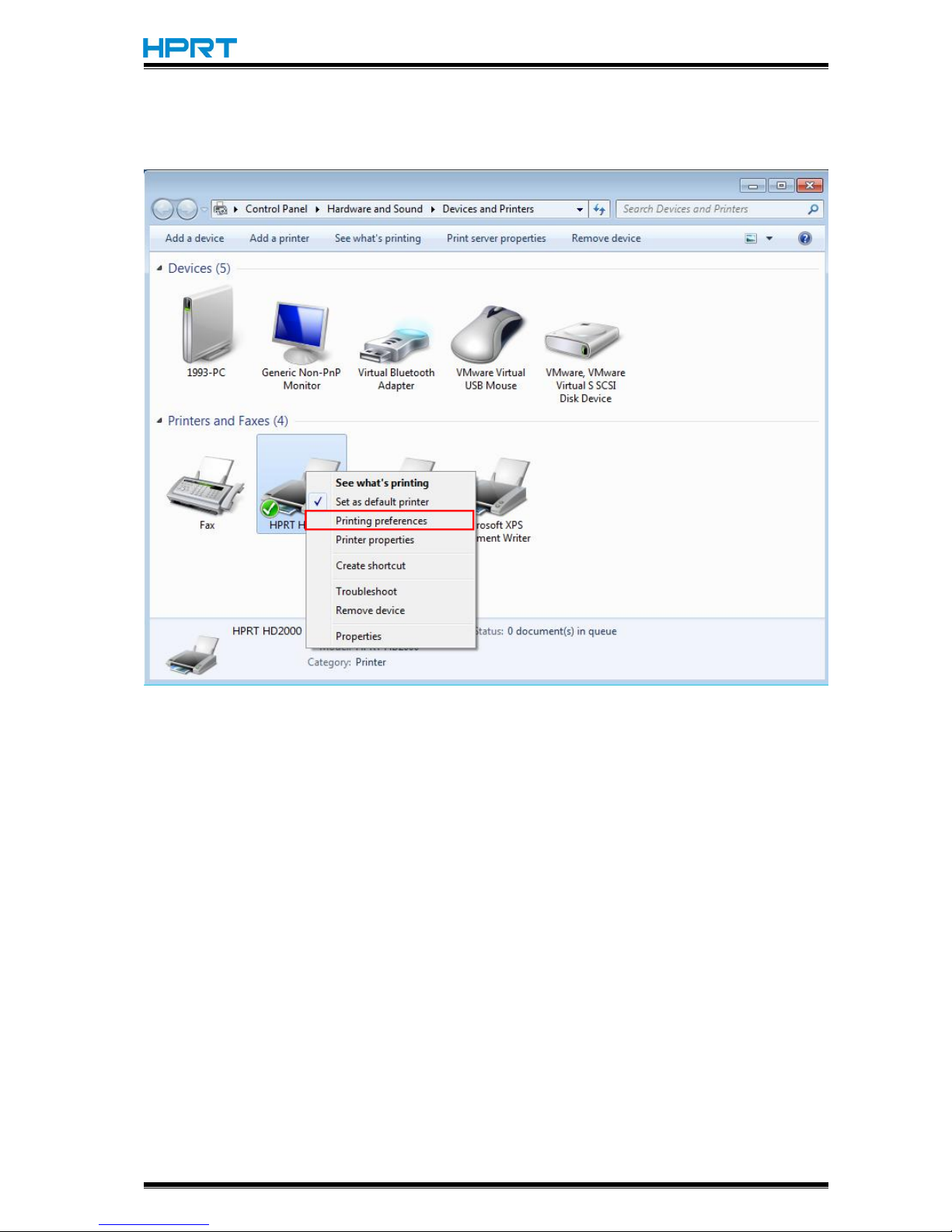

1.Click “Start”→“Devices and Printers”. Right click the icon and choose “Printing preferences”.

Page 40

HD2000 User Manual

Rev.1.0

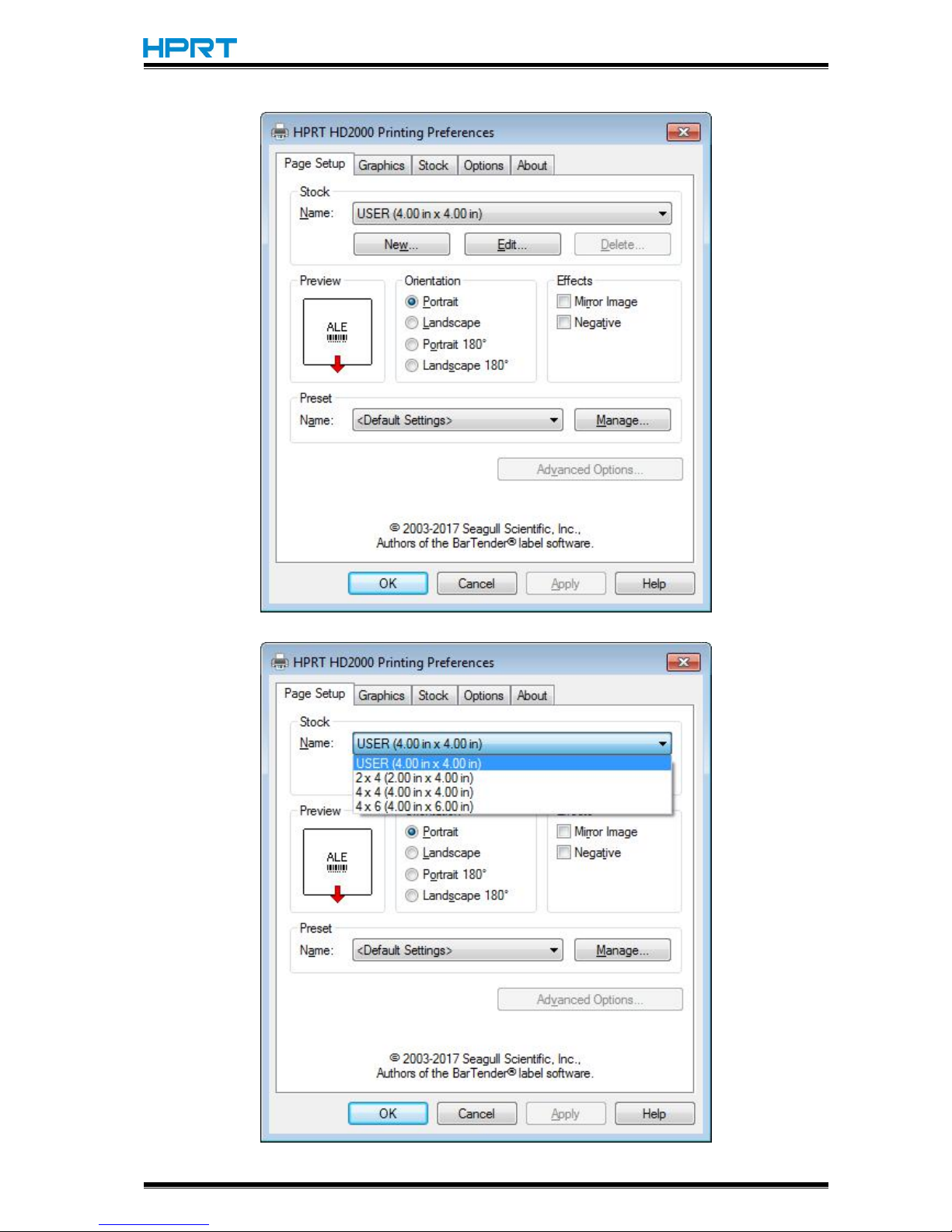

2.According to different needs, set up the page.

●Click “Stock”→”Name”, and choose the paper type.

Page 41

HD2000 User Manual

Rev.1.0

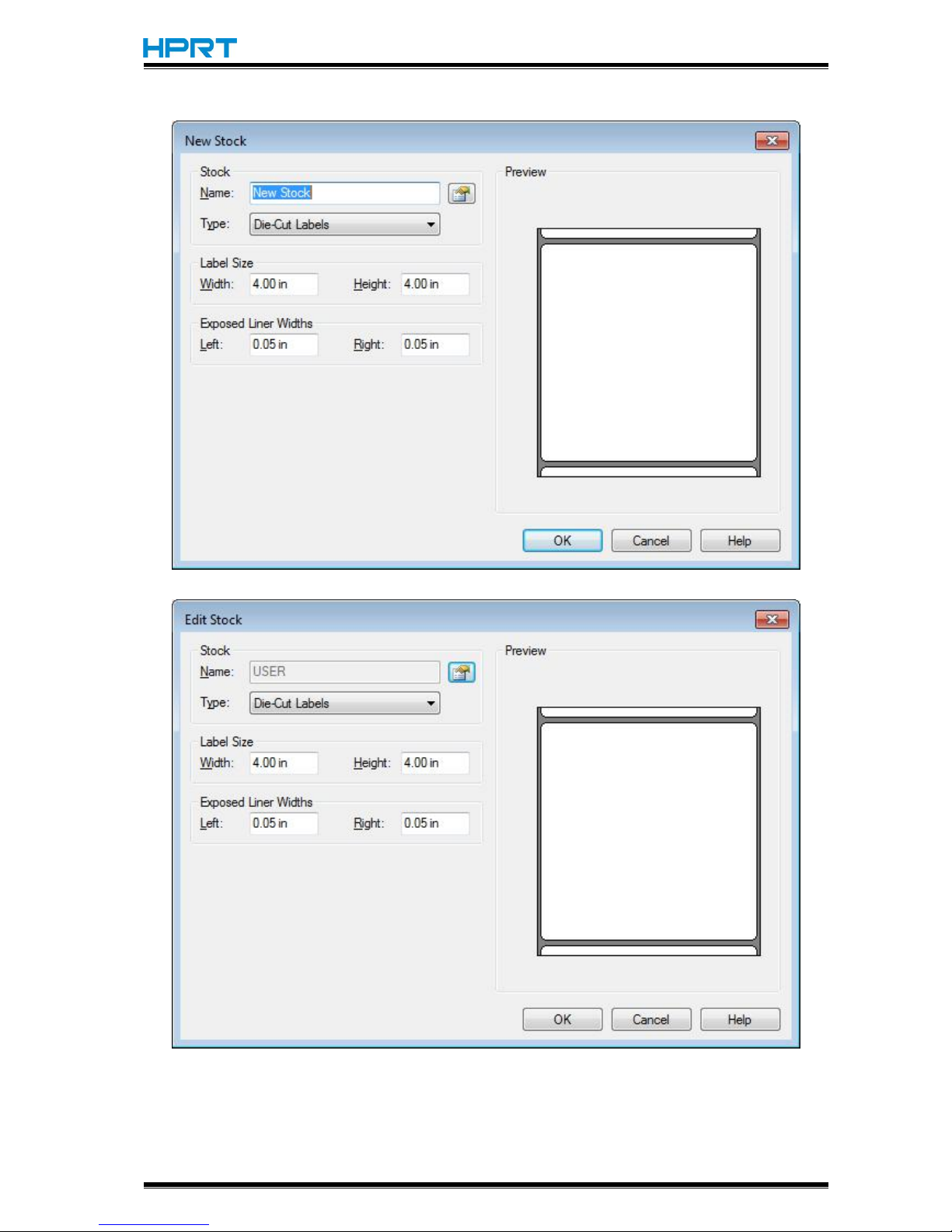

●Click “New Stock”, and set up a new stock.

●

Click “Edit Stock”, and edit the stock.

Page 42

HD2000 User Manual

Rev.1.0

●Click “Delete Stock”, and delete the stock.

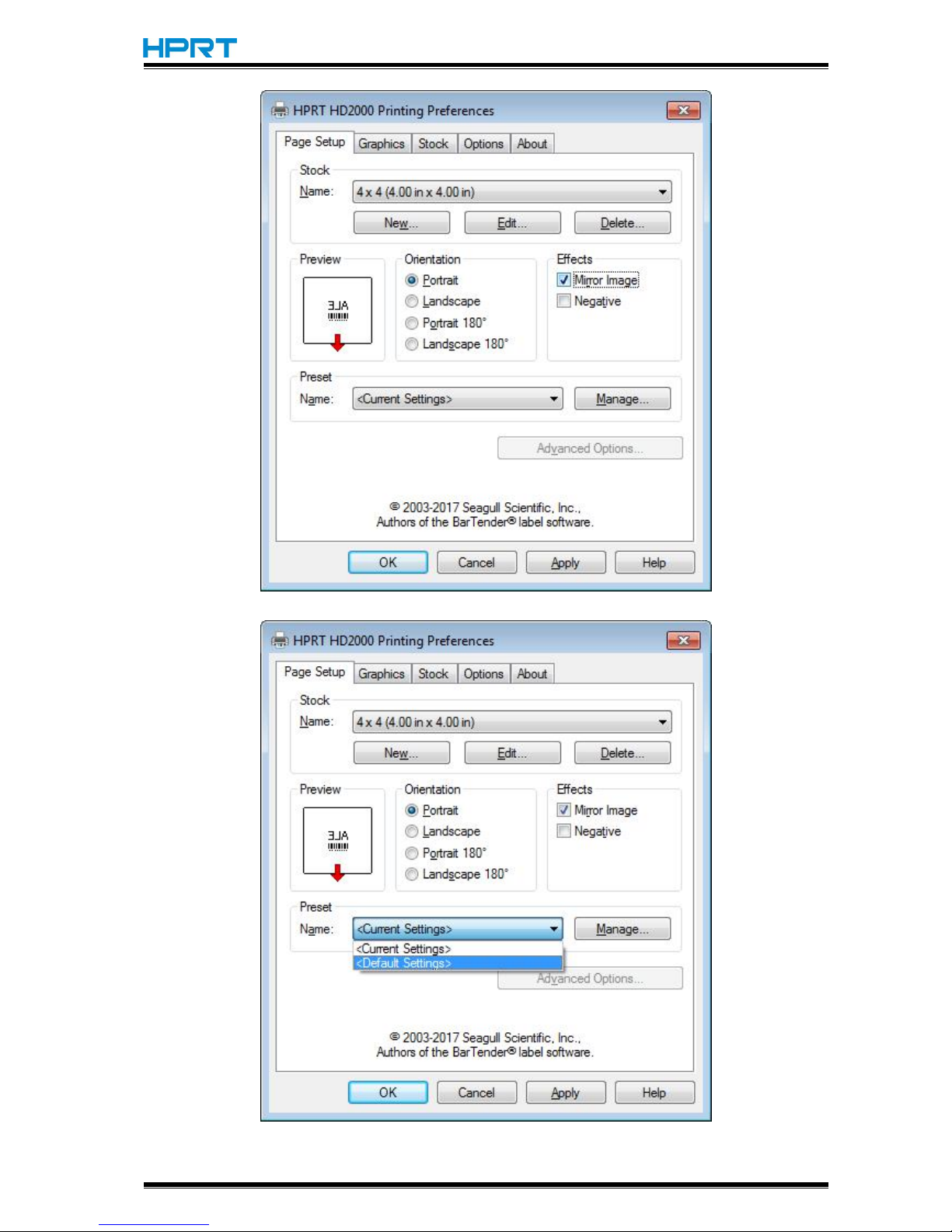

●Choose “Orientation” or “Effects”, showed in the “Preview”.

Page 43

HD2000 User Manual

Rev.1.0

●

Click “Preset”→“Name”, and back to the default settings.

Page 44

HD2000 User Manual

Rev.1.0

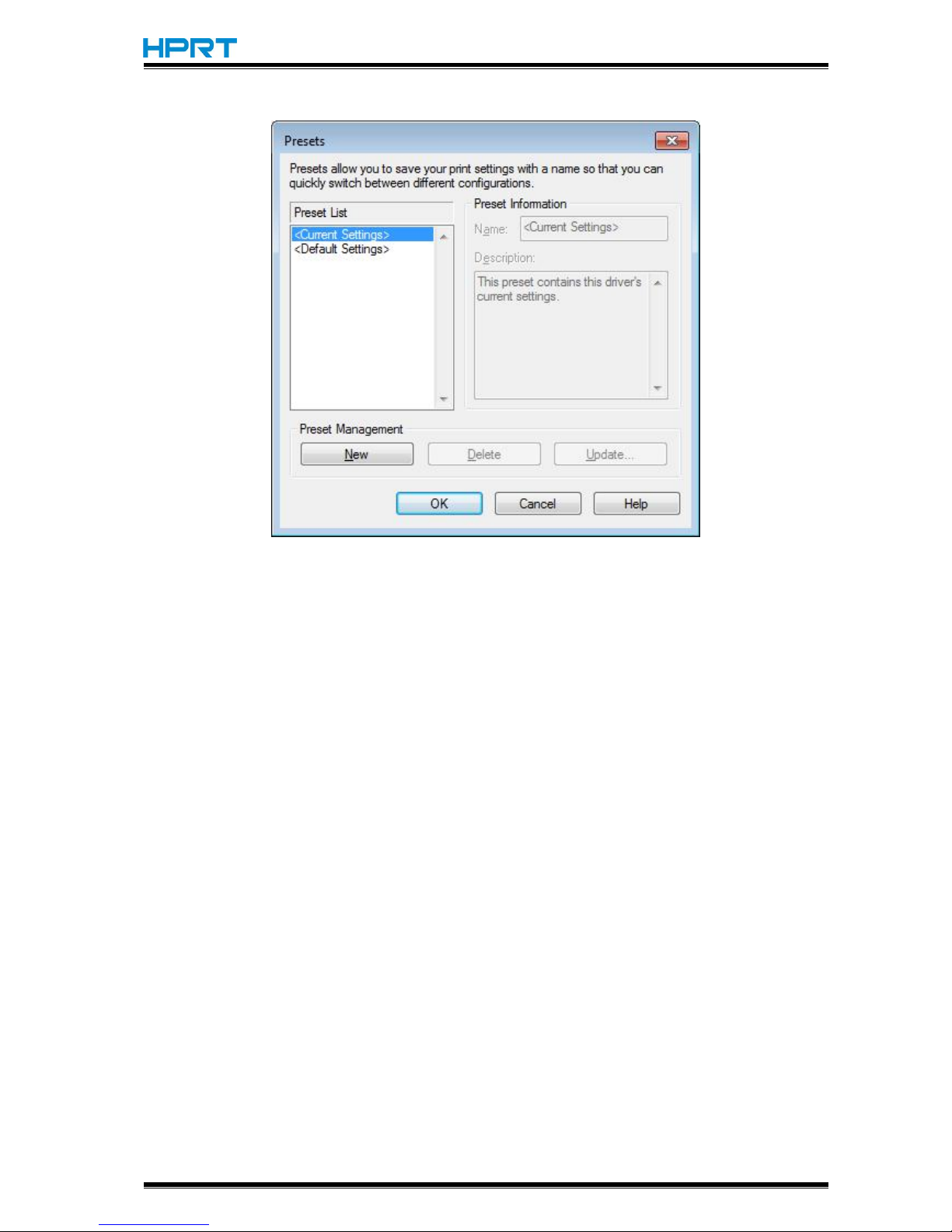

●Click “Manage”, and change the settings.

Page 45

HD2000 User Manual

Rev.1.0

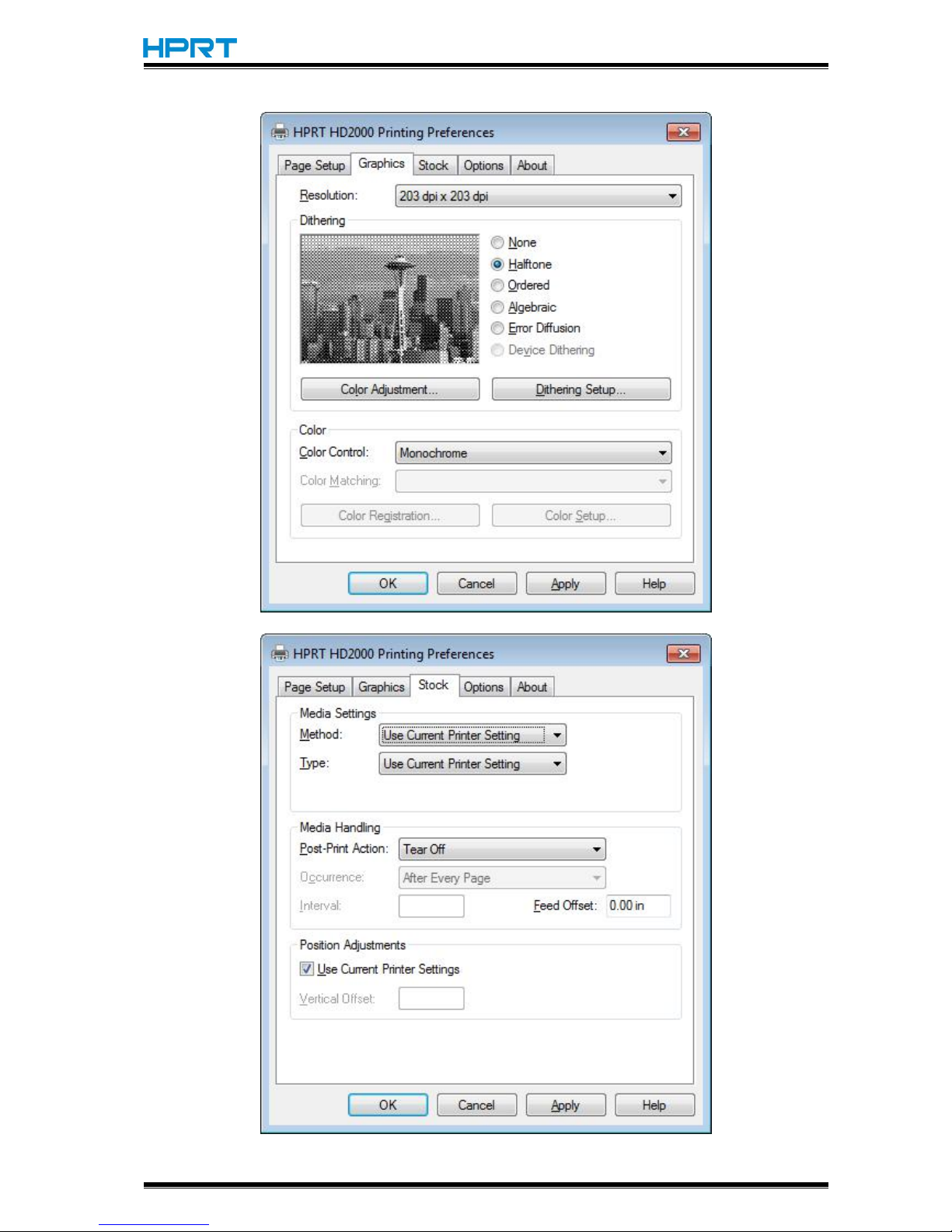

3.Click “Graphics”, and edit the pictures.

4.Click “Stock”.

Page 46

HD2000 User Manual

Rev.1.0

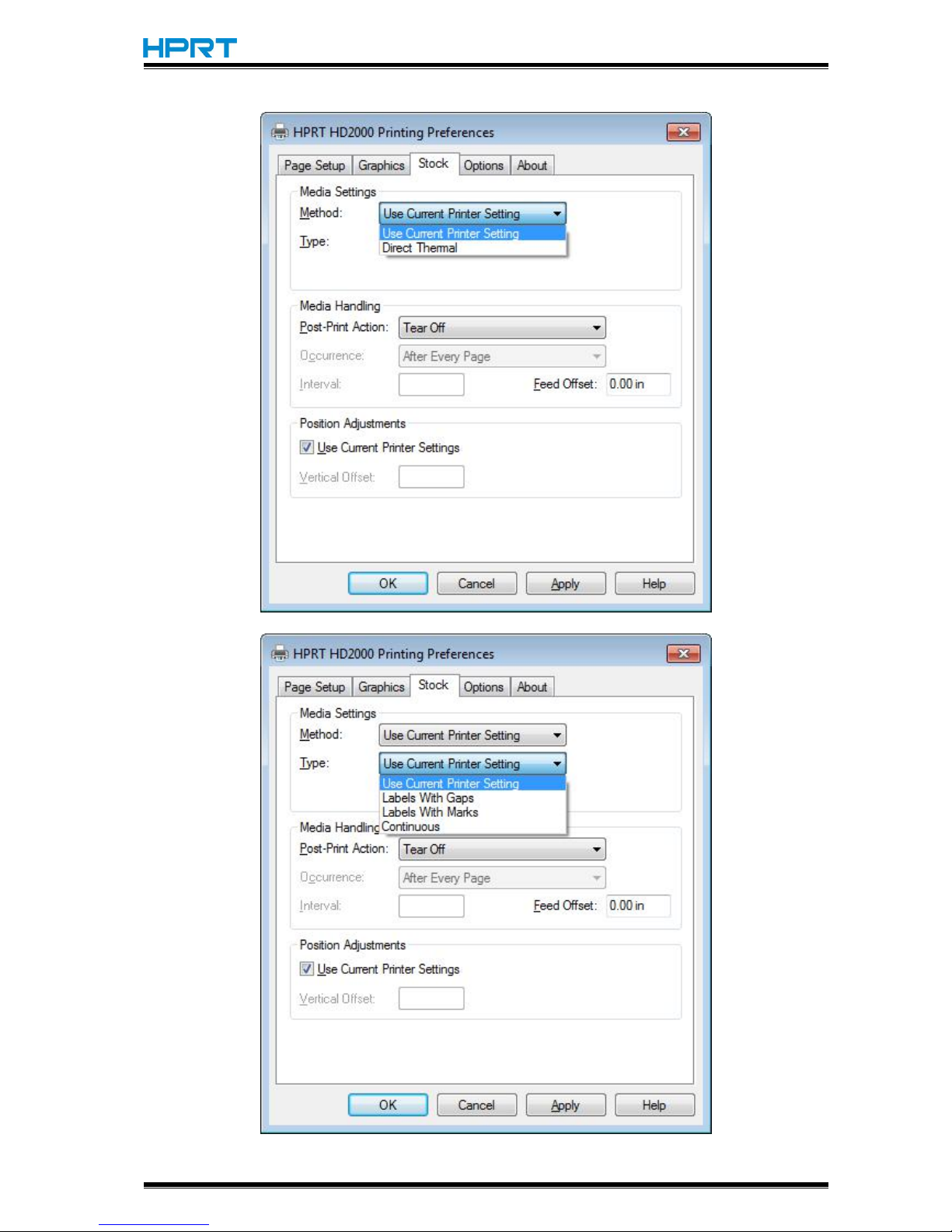

●Click “Method”, and choose the printing method.

●Click “Type”, and choose the printing type.

Page 47

HD2000 User Manual

Rev.1.0

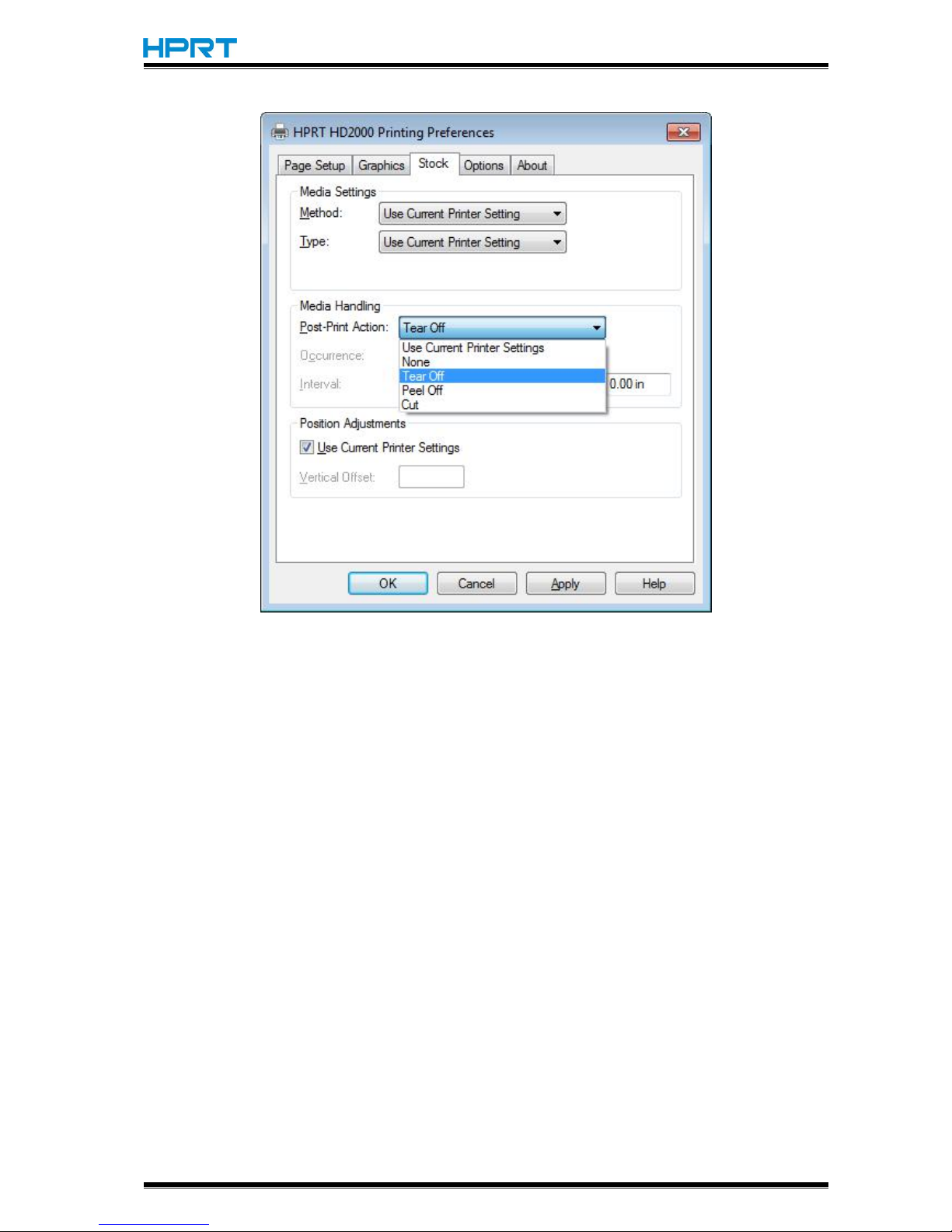

●Click “Post-Print Action”, and choose the method of media handling.

Page 48

HD2000 User Manual

Rev.1.0

7.4.2 Printer Properties

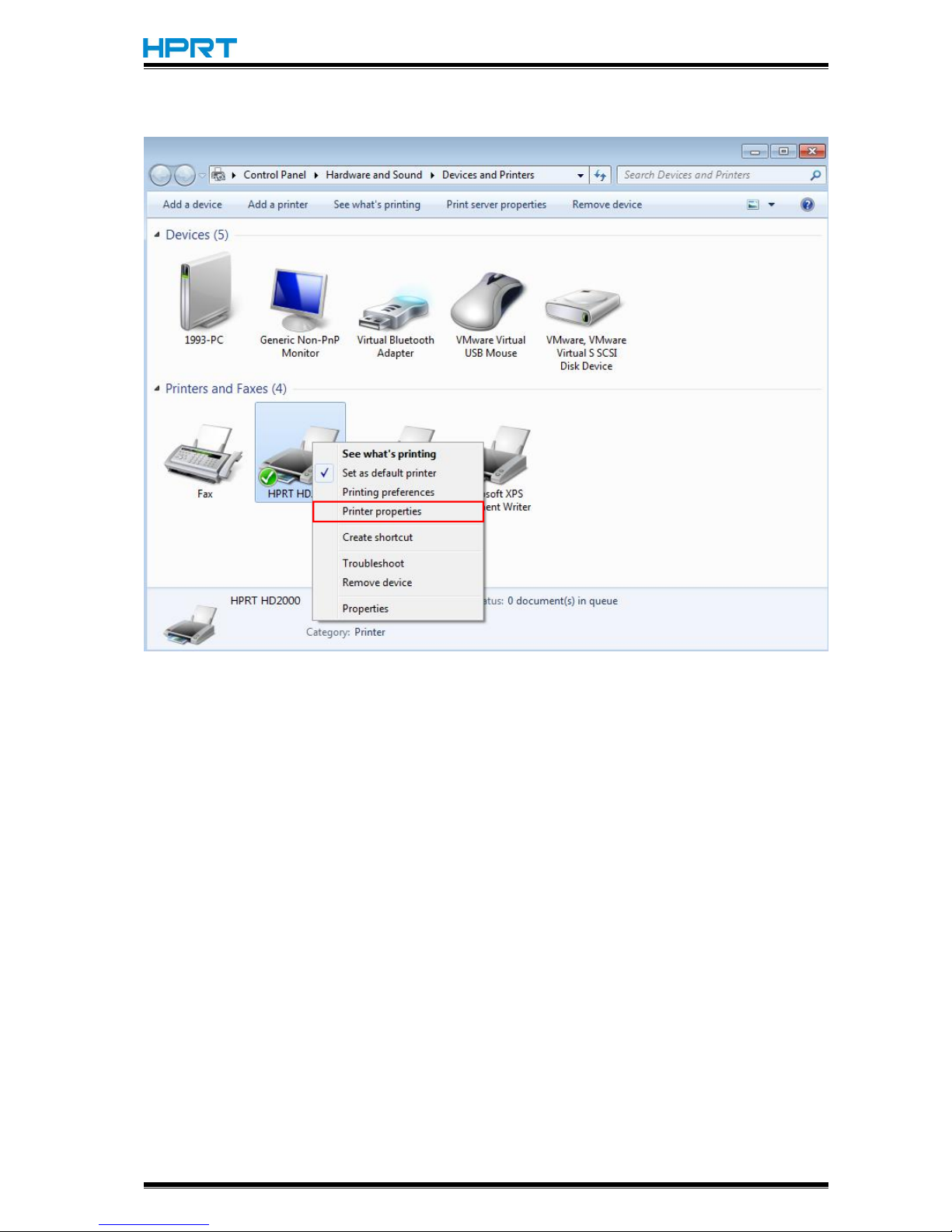

1.Click “Start”→“Devices and Printers”. Right click the icon and choose “Printer properties”.

Page 49

HD2000 User Manual

Rev.1.0

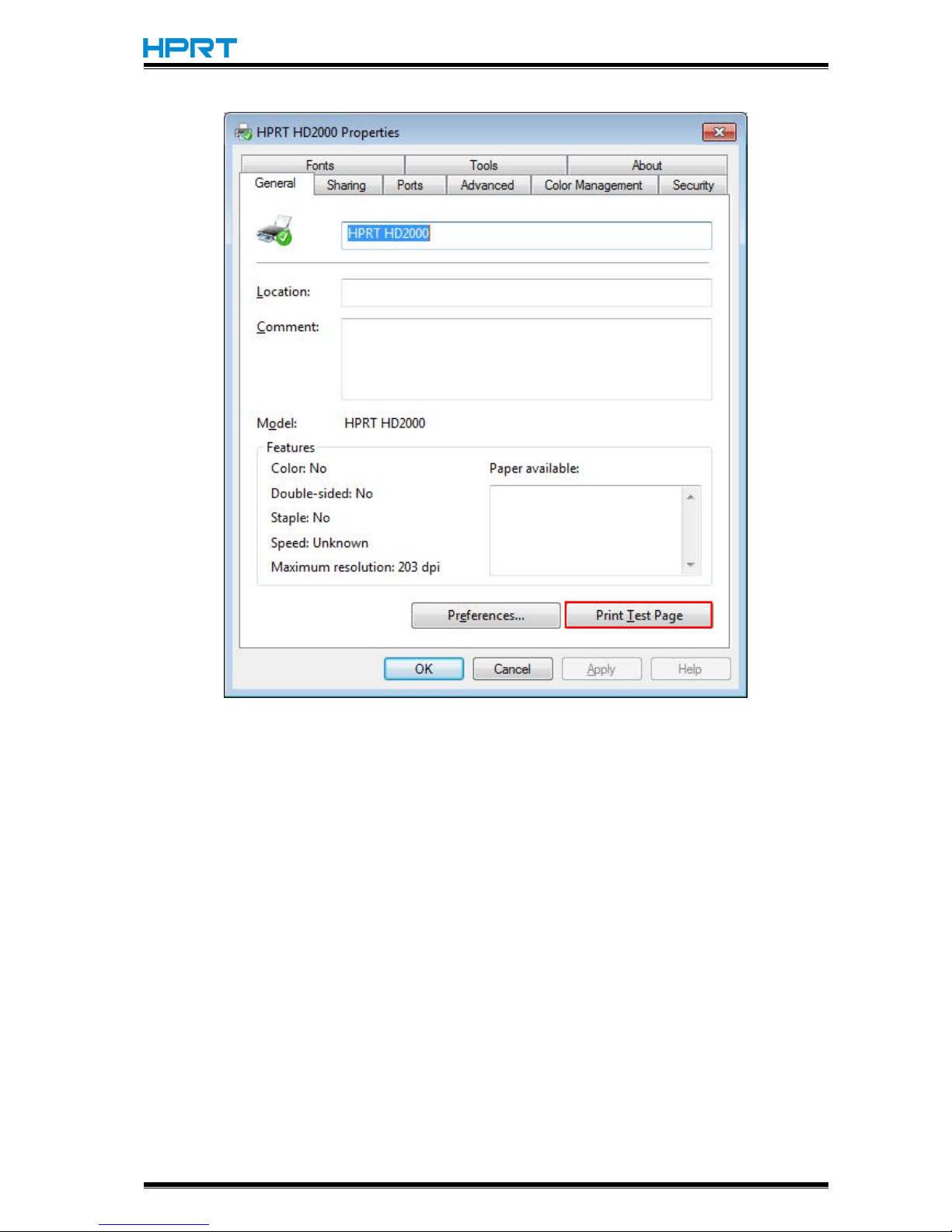

2.Click “General”→“Print Test Page”, and printer will print labels with current settings.

Page 50

HD2000 User Manual

Rev.1.0

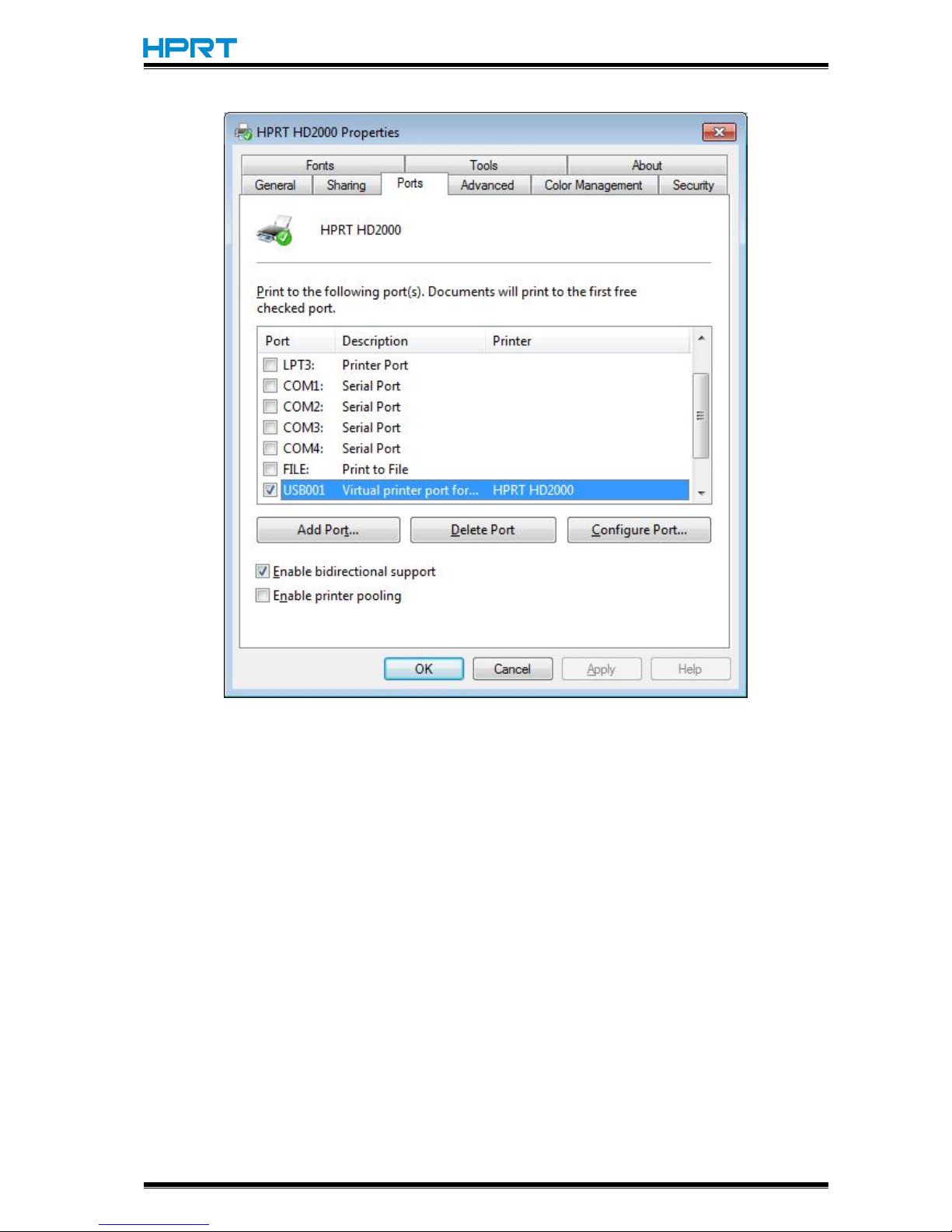

3.Click “Ports”, then choose the port needed.

Page 51

HD2000 User Manual

Rev.1.0

7.5 Label’s Width

USER(4.00 in×4.00 in) 2×4(2.00 in×4.00 in) 4×4(4.00 in×4.00 in) 4×6(4.00 in×6.00 in)

Page 52

HD2000 User Manual

Rev.1.0

Chapter 8 BarTender Ultralite Instructions

8.1 Introduction

This chapter provides instructions on BarTender Ultralite program according to PC operating systems(OS). The followings are supported.

8.2 Installation Preparation

Download BarTender Ultralite application program in CD.

Page 53

HD2000 User Manual

Rev.1.0

8.3 Installation

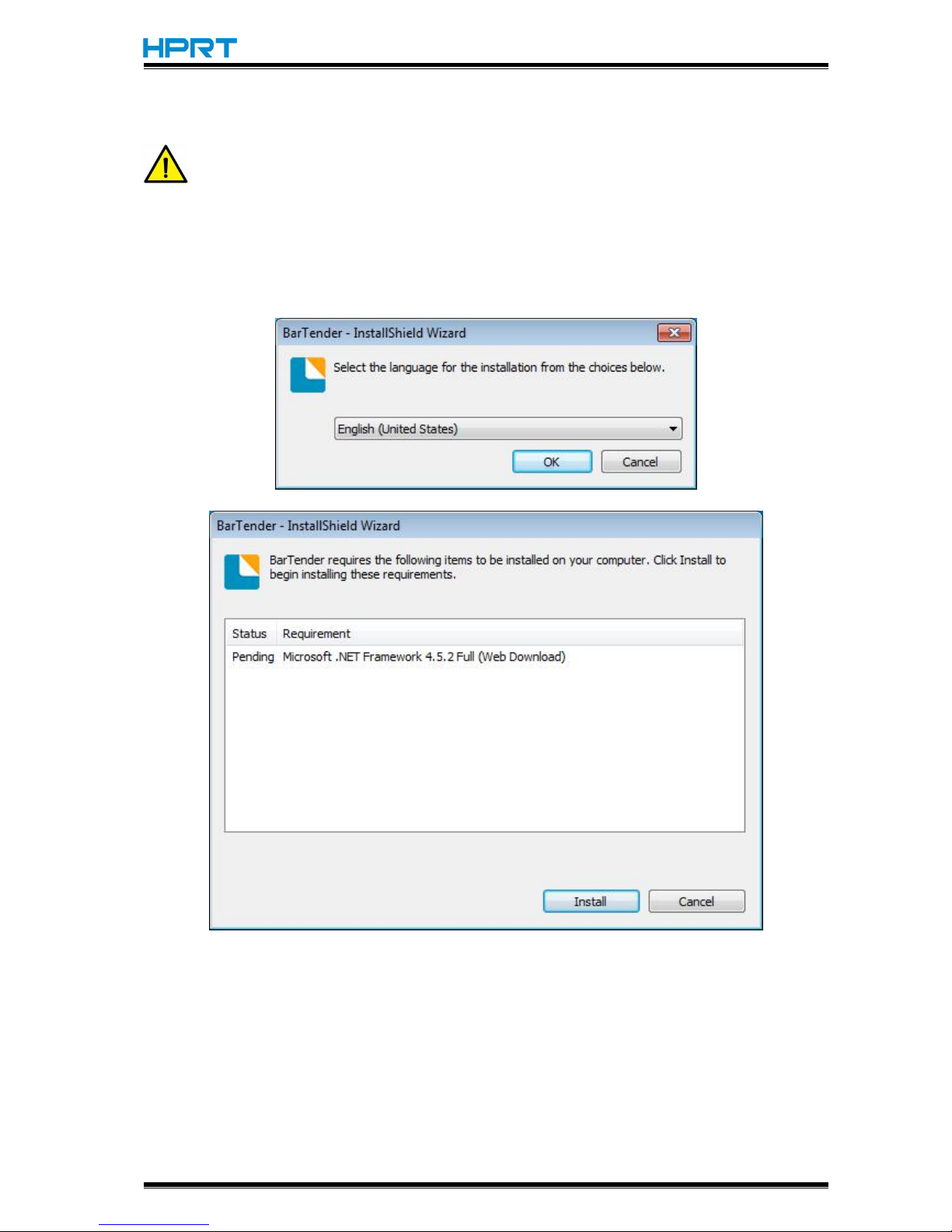

Note

：

 Under different operating systems, the screen may be slightly different. Take Windows 7

as example.



To avoid the prevention, recommend to close the security software before installation.

1.Double click application program.

2.Select language, then click "OK".

3.Click "Install".

Page 54

HD2000 User Manual

Rev.1.0

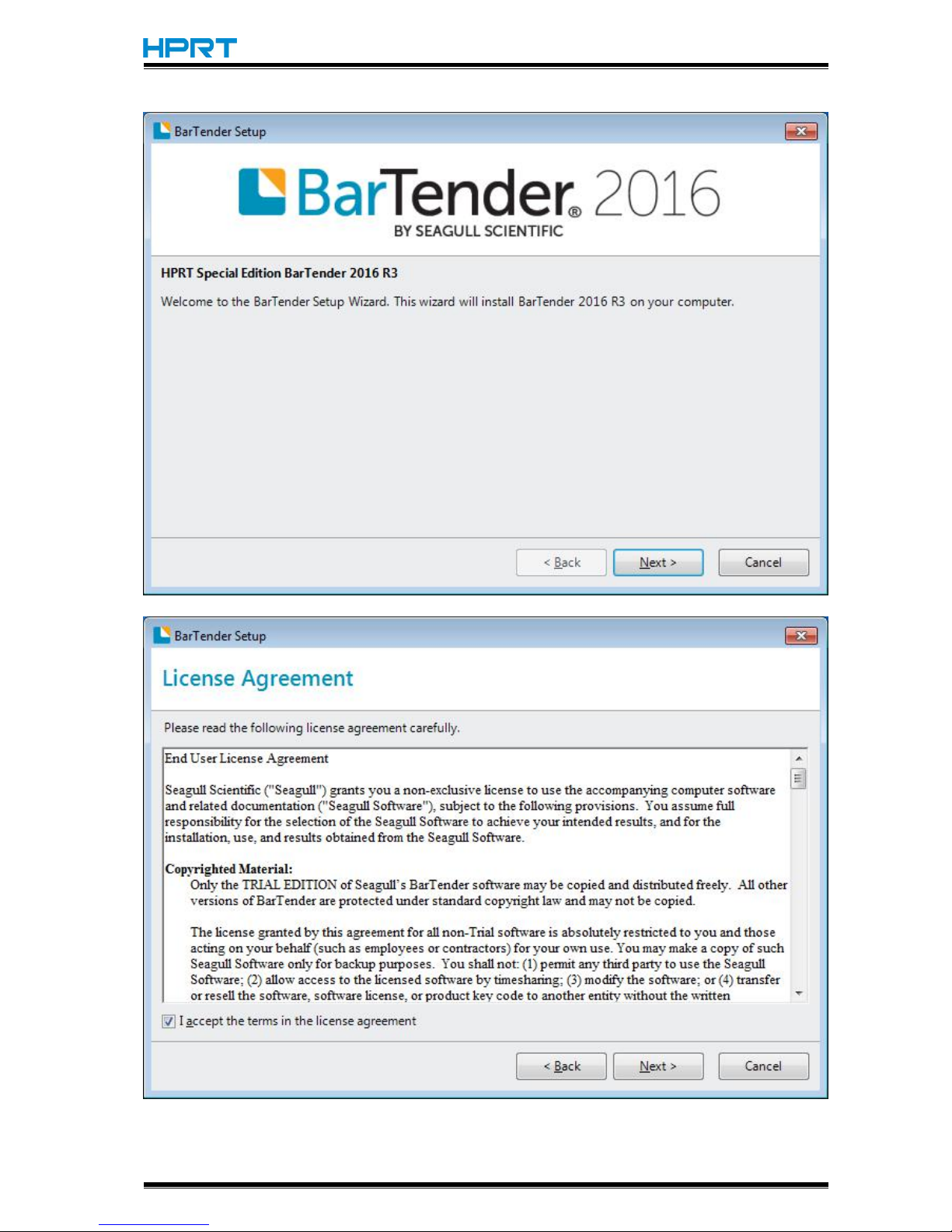

4.Click " Next".

5.Read and accept the license agreement, then click "Next".

Page 55

HD2000 User Manual

Rev.1.0

6.Select "Features" and Installation Location, then click "Next".

7.Click "Install".

Page 56

HD2000 User Manual

Rev.1.0

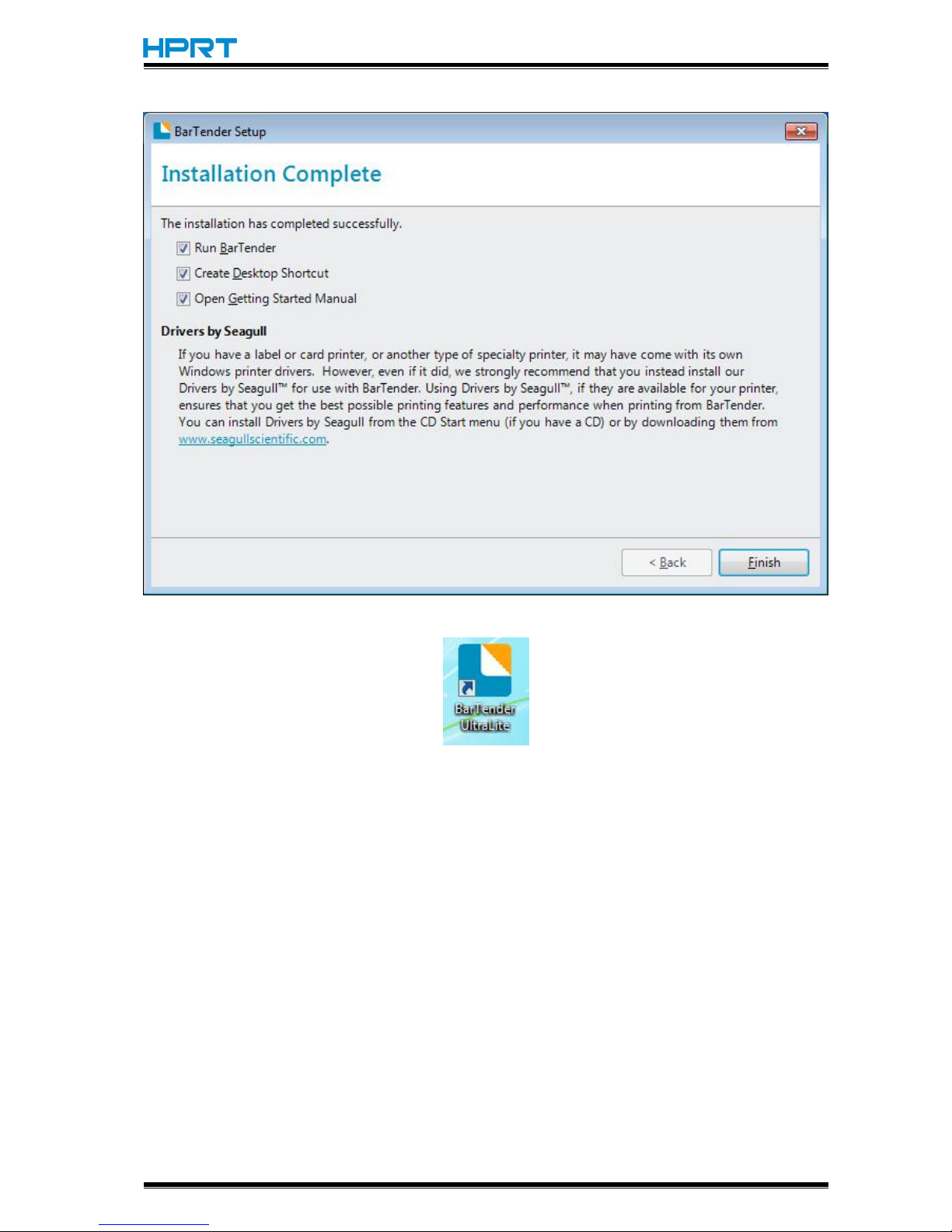

8.Click "Finish".

9.Back to desktop, and you will see the icon of BarTender Ultralite. Double click it and get down to use.

Page 57

HD2000 User Manual

Rev.1.0

8.4 Usage

8.4.1 Page Settings

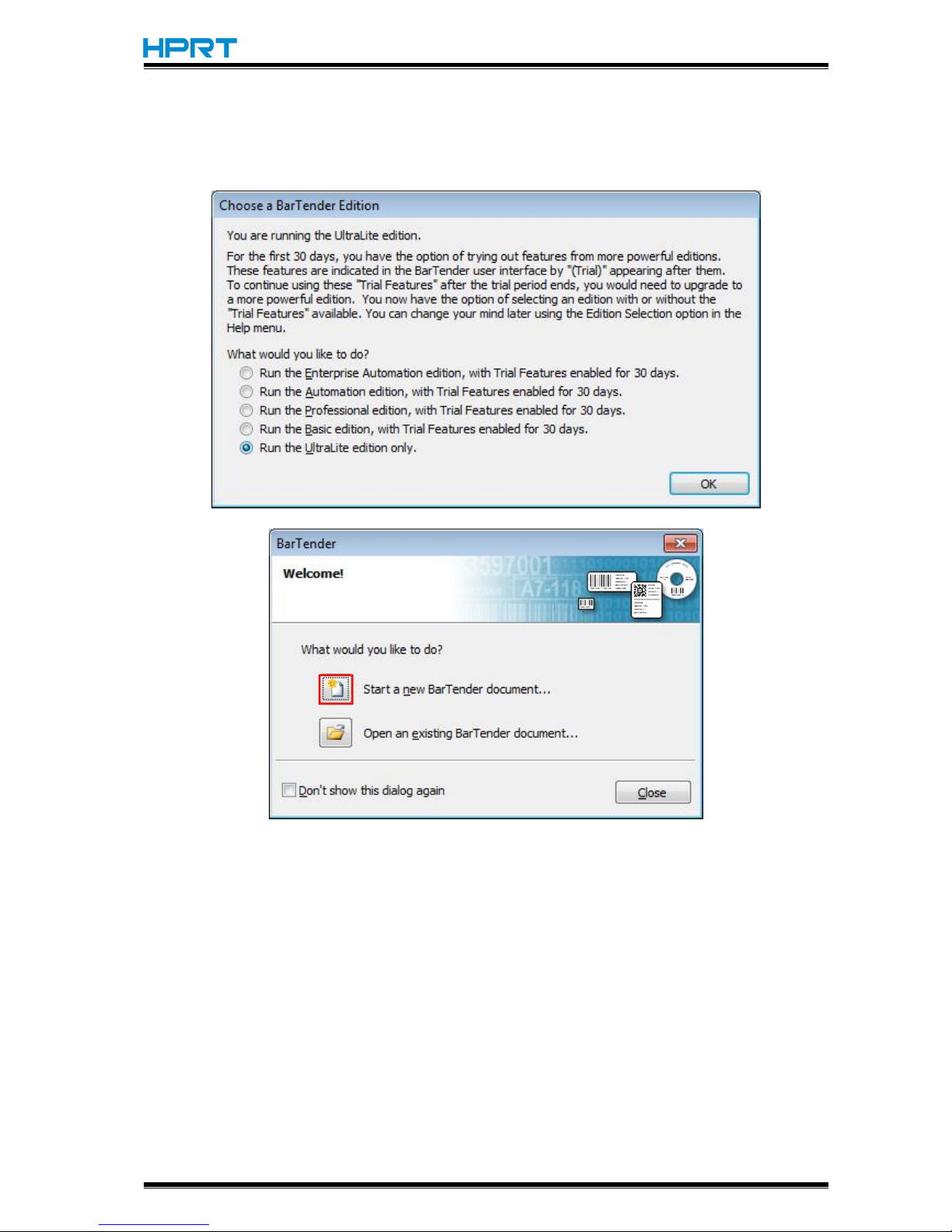

1.Double click the icon, then choose the edition. Click “OK”. (The edition may be changed according to different needs.)

2.Click “Start a new BarTender document”.

Page 58

HD2000 User Manual

Rev.1.0

3.Choose “Blank Template”, then click “Next”.

4.If the predefined stocks don’t meet your need, tick “Specify Custom Settings”. Then click”Next”.

Page 59

HD2000 User Manual

Rev.1.0

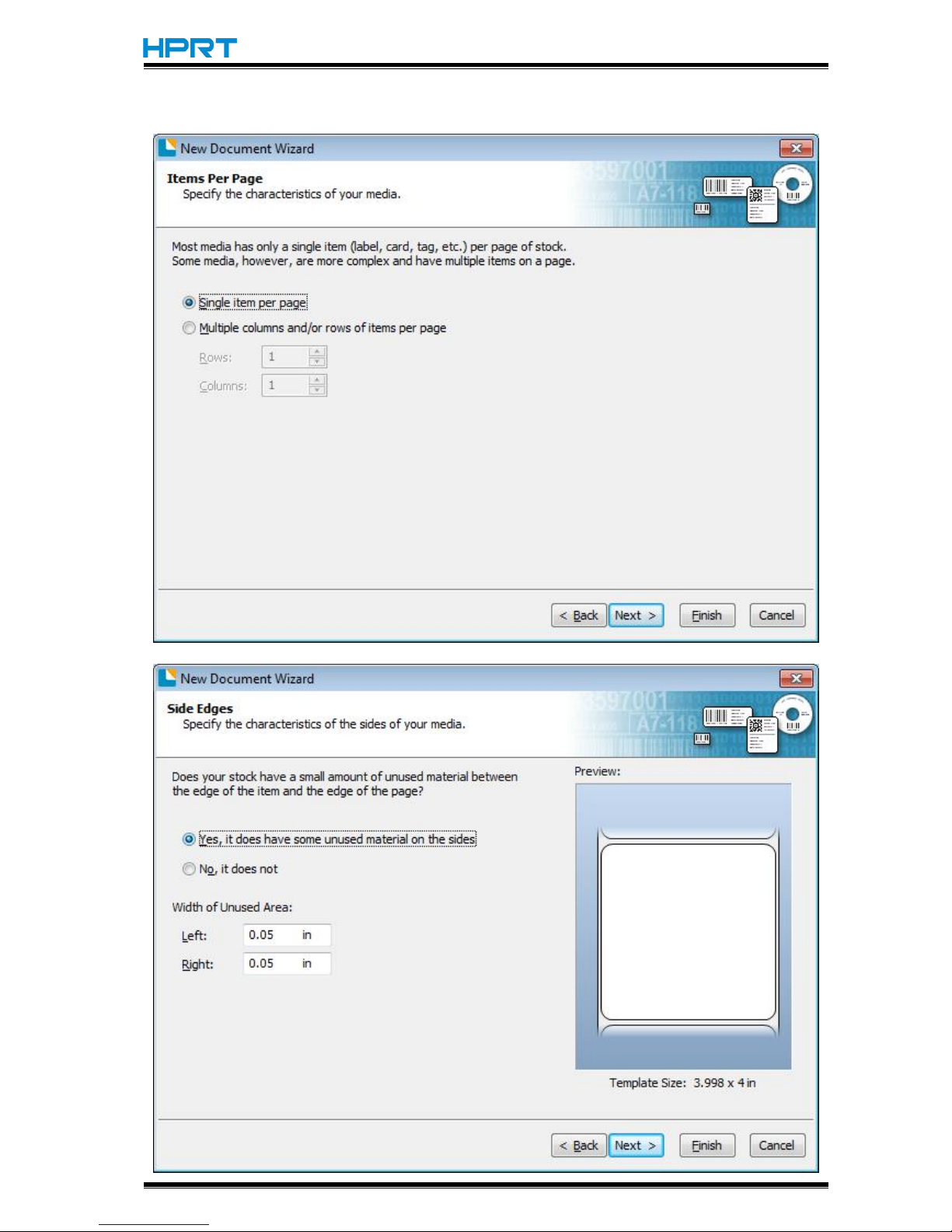

5.Tick “Single item per page”, then click “Next”. (If you print multiple labels, tick “Multiple columns and/or rows of items per page ”.)

6.Edit the side edges, then click “Next”.

Page 60

HD2000 User Manual

Rev.1.0

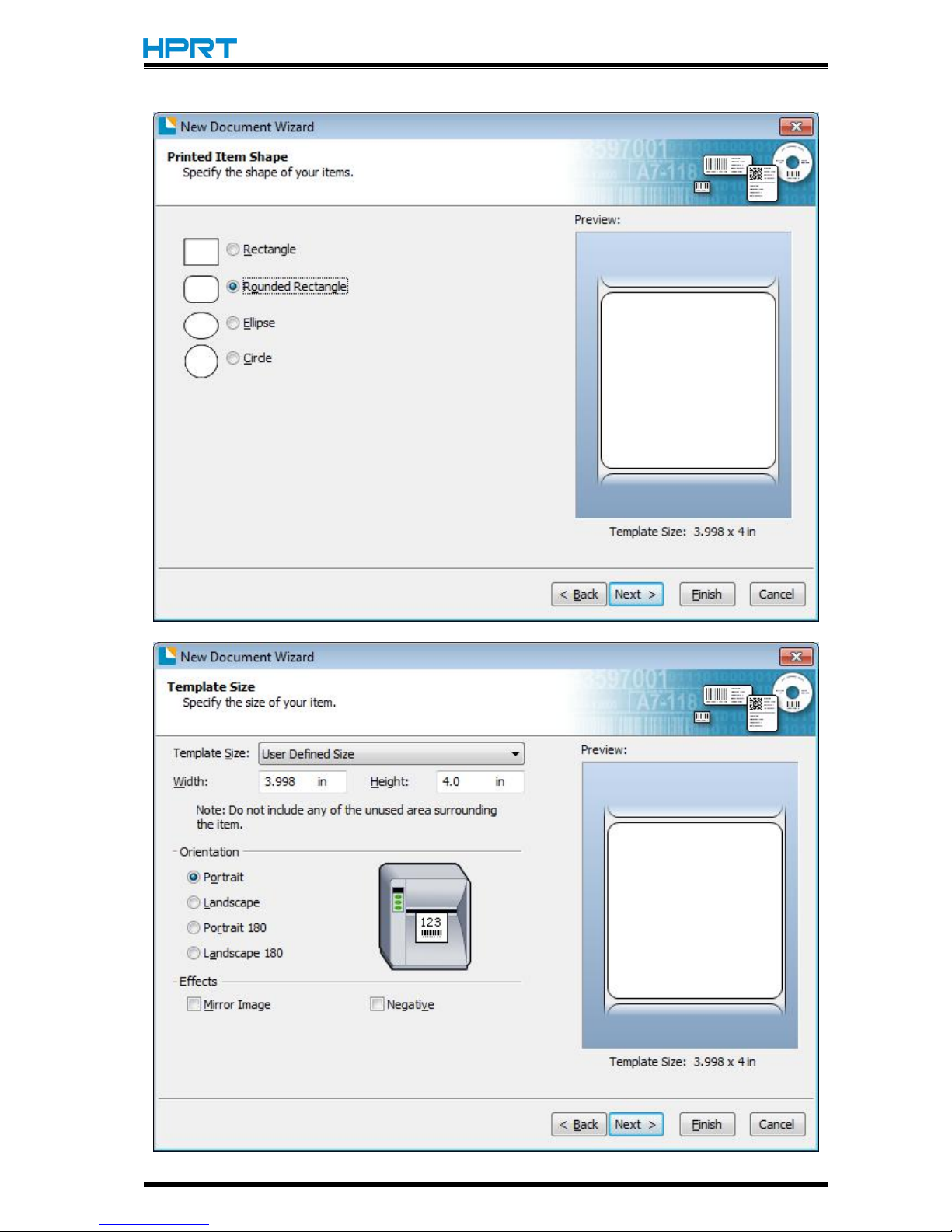

7.Choose the item shape, then click “Next”.

8.Edit the template size, then click “Next”.

Page 61

HD2000 User Manual

Rev.1.0

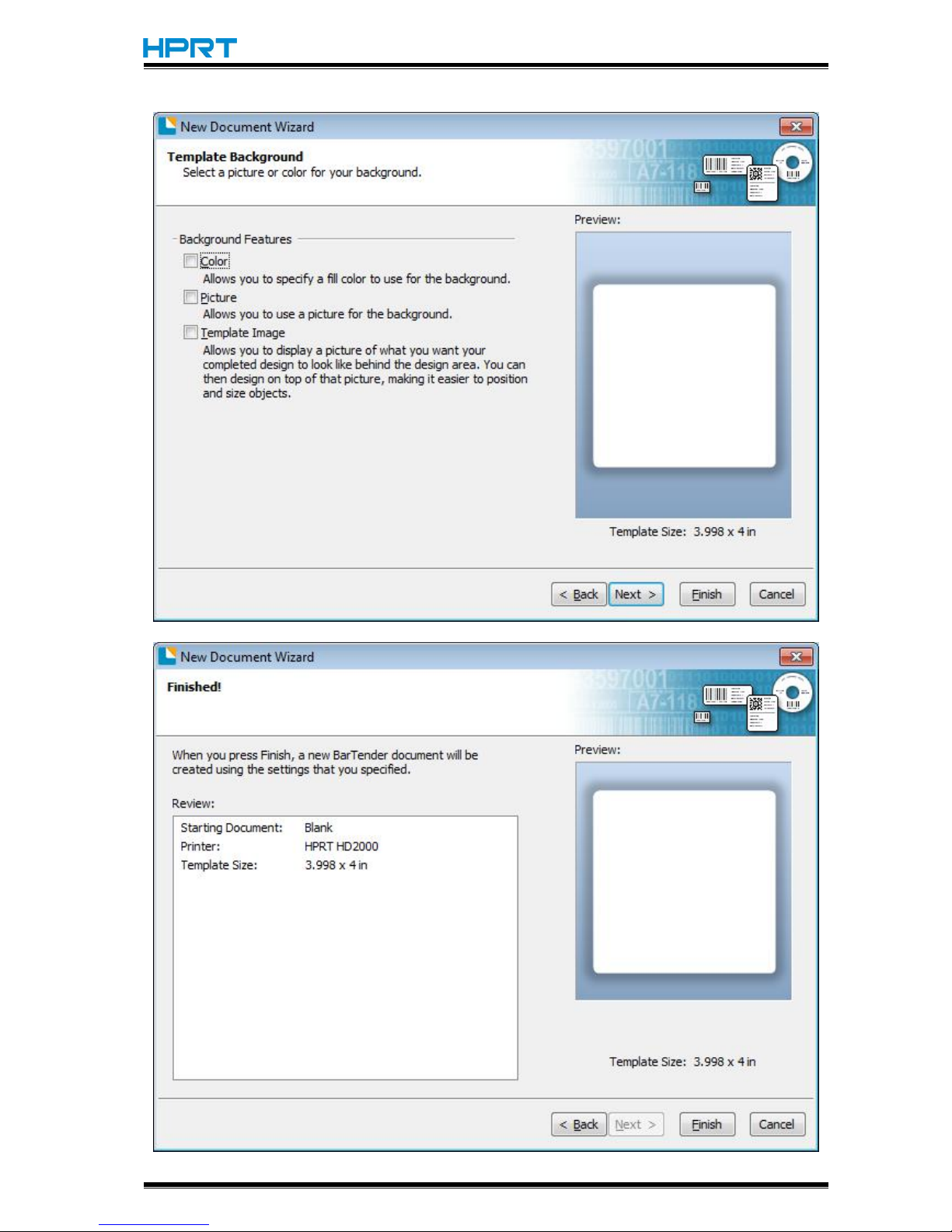

9.Based on your need, edit the template background. Then click ”Next”.

10.Finish the settings, showed in the “Review” and “Preview”. Then click “Finish”.

Page 62

HD2000 User Manual

Rev.1.0

8.4.2 label Edit

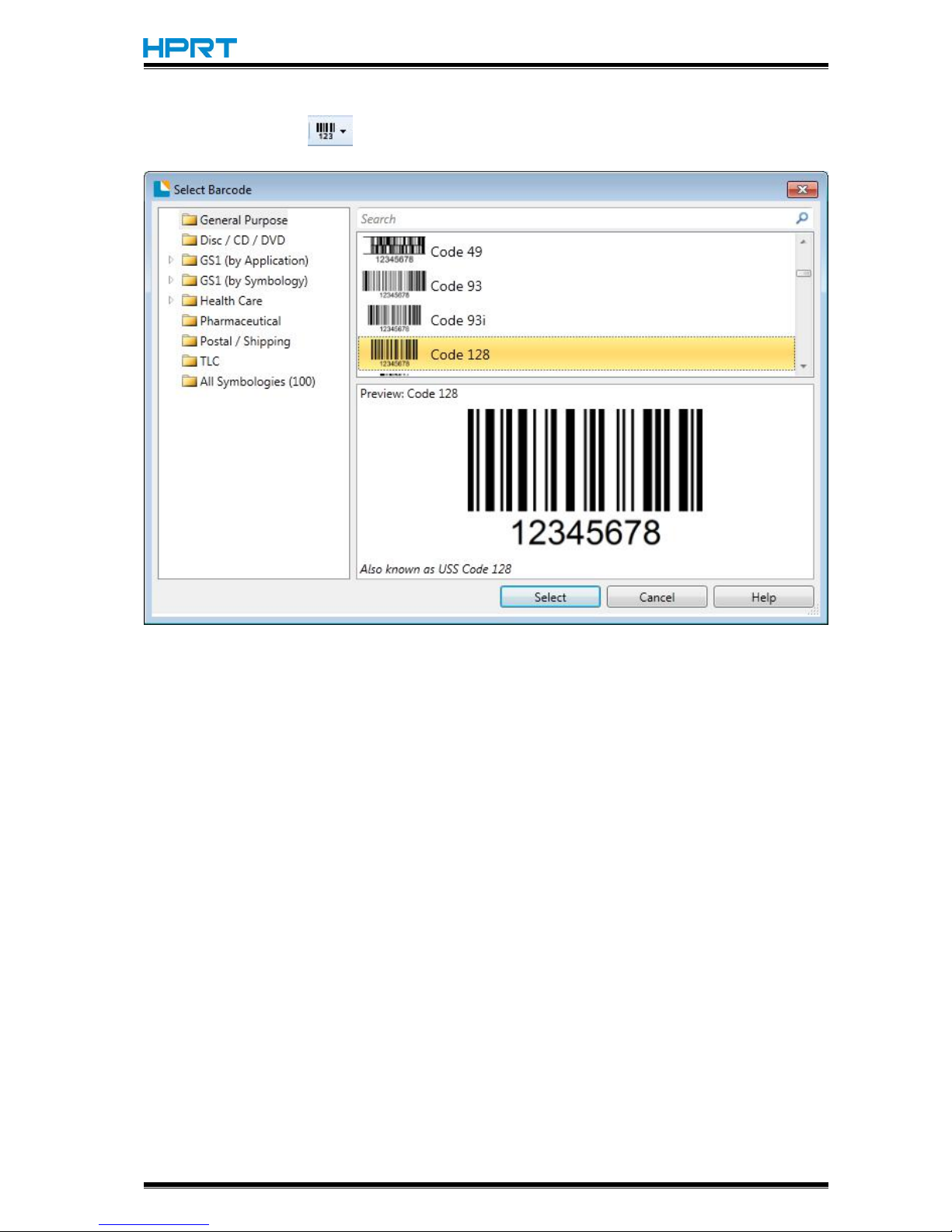

1.Click the icon of code .

2.Choose the code, then click “Select”.

Page 63

HD2000 User Manual

Rev.1.0

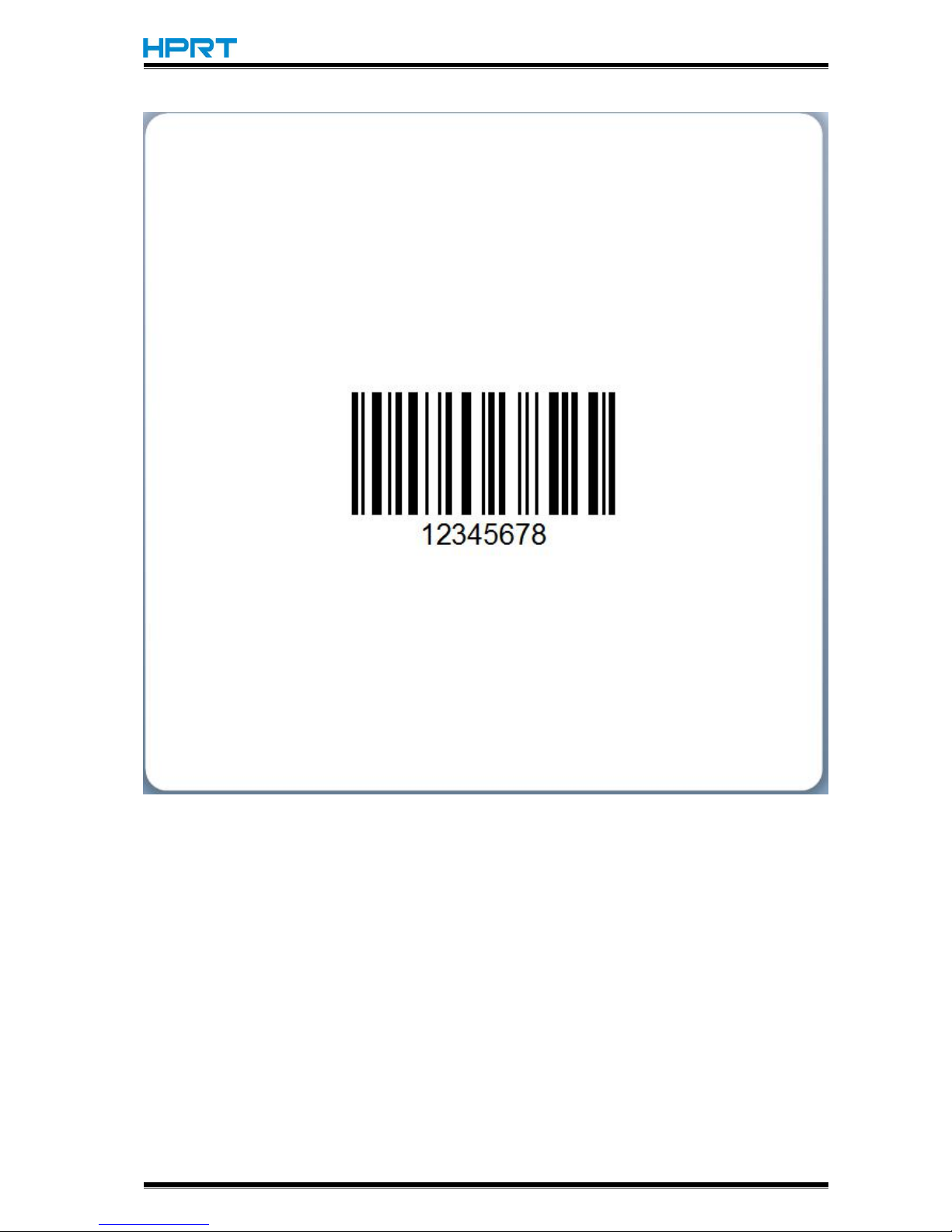

3.Click the blank, showing the code.

Page 64

HD2000 User Manual

Rev.1.0

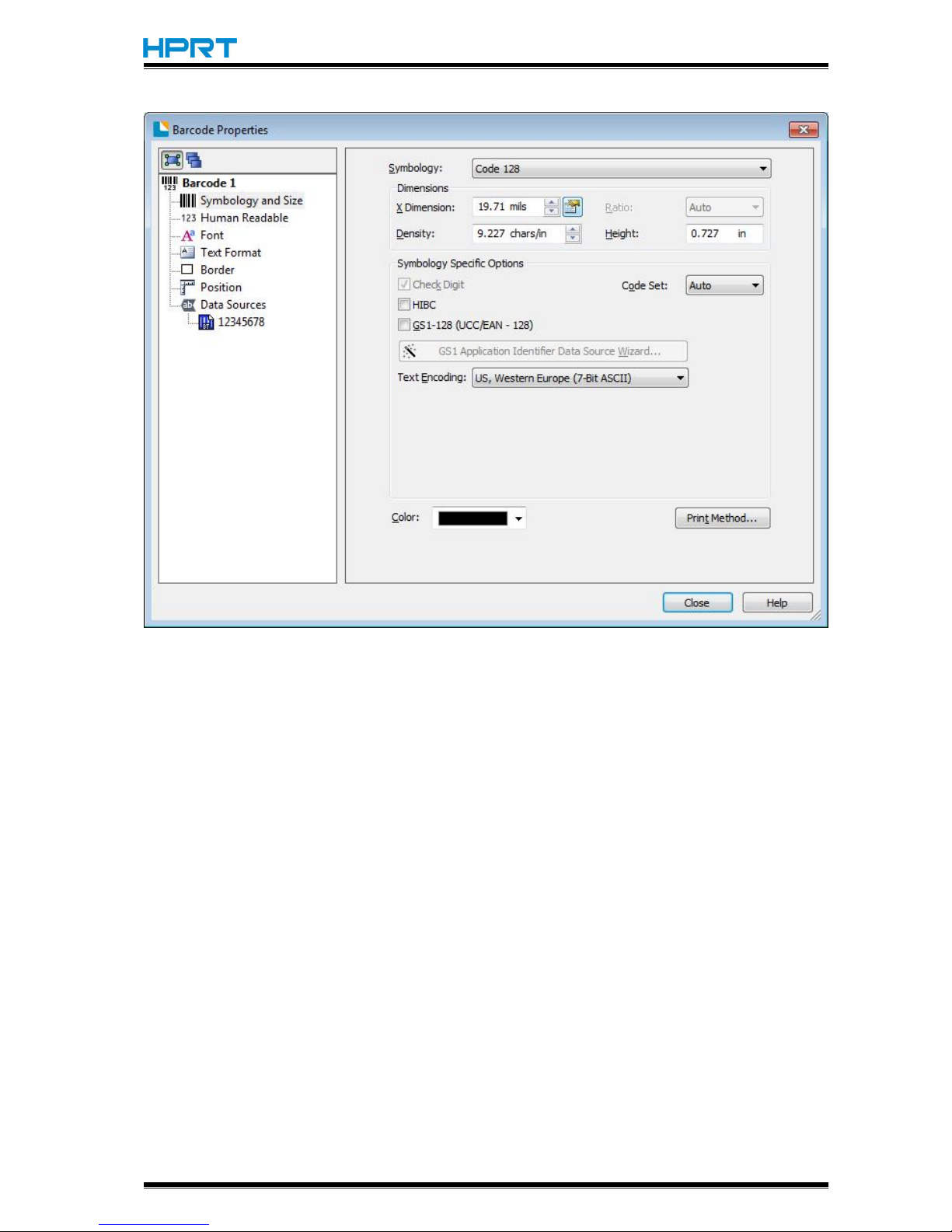

4.Double click the code and edit it. User can set up the size, font, border and so on.

Finishing the settings, click “Close”.

Page 65

HD2000 User Manual

Rev.1.0

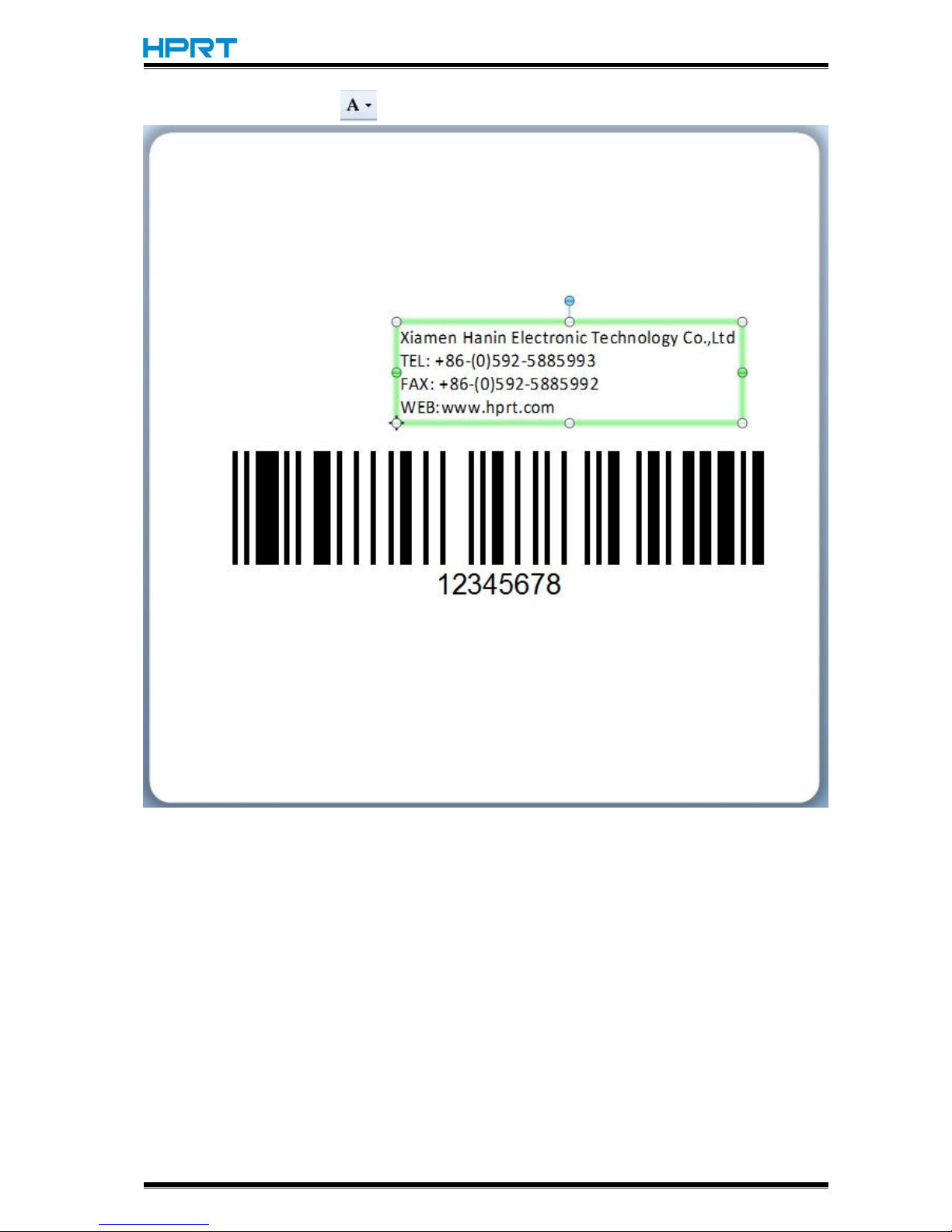

5.Click the icon of character , then enter the text.

Page 66

HD2000 User Manual

Rev.1.0

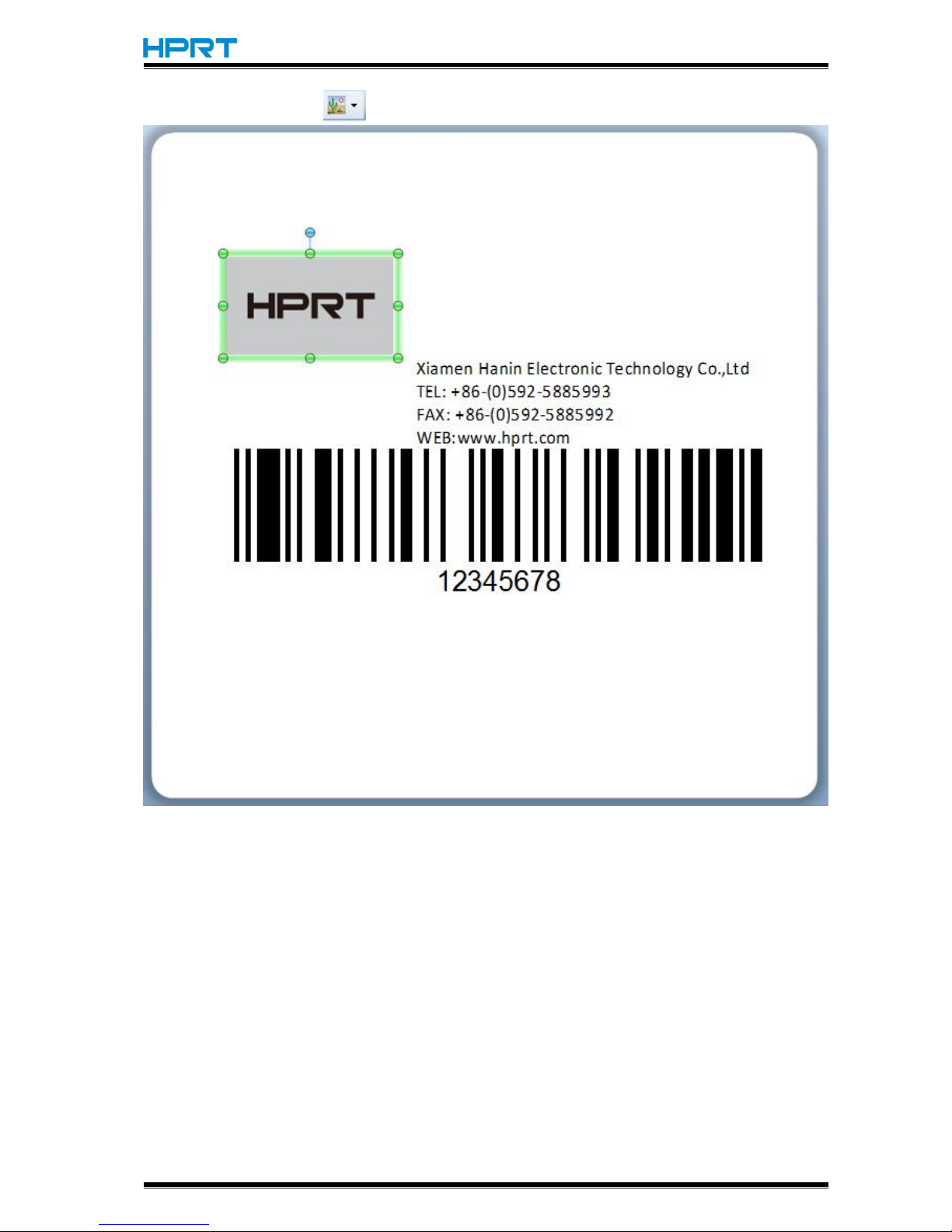

6.Click the icon of picture , then edit the pictures.

Page 67

HD2000 User Manual

Rev.1.0

7.Compose the text.

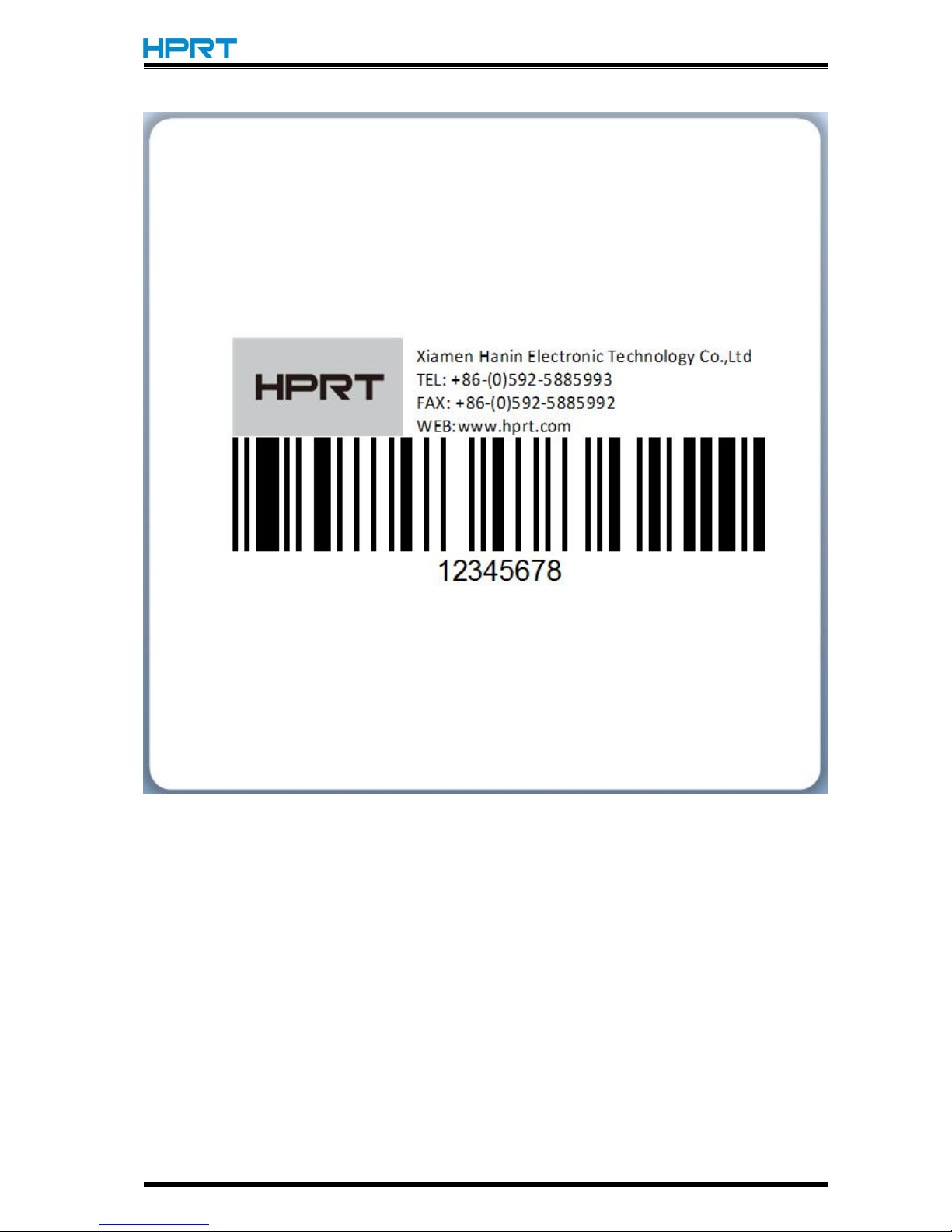

8.Finish all the settings. Click “Print” and a new label will be printed.
