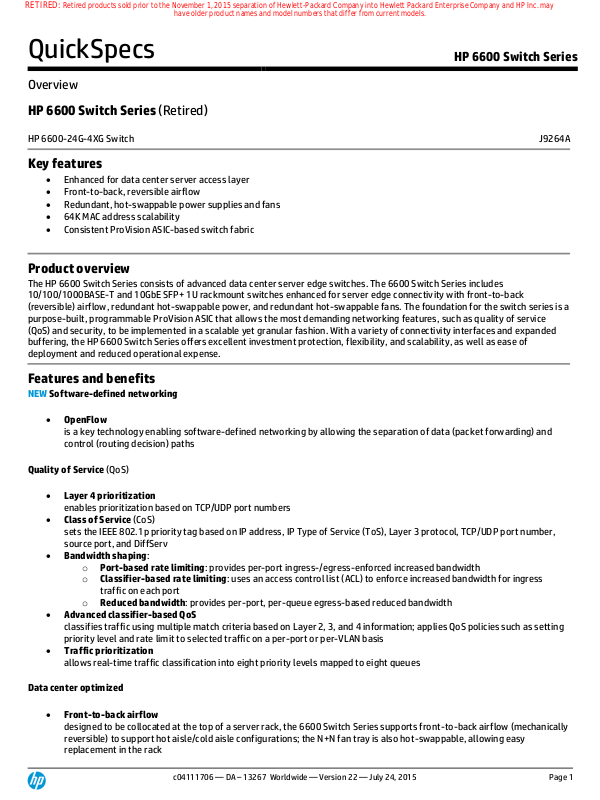

QuickSpecs

HP 6600 Switch Series

Overview

c04111706 — DA – 13267 Worldwide — Version 22 — July 24, 2015

Page 1

HP 6600 Switch Series (Retired)

HP 6600-24G-4XG Switch

J9264A

Key features

 Enhanced for data center server access layer
 Front-to-back, reversible airflow
 Redundant, hot-swappable power supplies and fans
 64K MAC address scalability
 Consistent ProVision ASIC-based switch fabric

Product overview

The HP 6600 Switch Series consists of advanced data center server edge switches. The 6600 Switch Series includes
10/100/1000BASE-T and 10GbE SFP+ 1U rackmount switches enhanced for server edge connectivity with front-to-back
(reversible) airflow, redundant hot-swappable power, and redundant hot-swappable fans. The foundation for the switch series is a
purpose-built, programmable ProVision ASIC that allows the most demanding networking features, such as quality of service
(QoS) and security, to be implemented in a scalable yet granular fashion. With a variety of connectivity interfaces and expanded
buffering, the HP 6600 Switch Series offers excellent investment protection, flexibility, and scalability, as well as ease of
deployment and reduced operational expense.

Features and benefits

NEW Software-defined networking

 OpenFlow

is a key technology enabling software-defined networking by allowing the separation of data (packet forwarding) and
control (routing decision) paths

Quality of Service (QoS)

 Layer 4 prioritization

enables prioritization based on TCP/UDP port numbers

 Class of Service (CoS)

sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number,
source port, and DiffServ

 Bandwidth shaping:

o Port-based rate limiting: provides per-port ingress-/egress-enforced increased bandwidth
o Classifier-based rate limiting: uses an access control list (ACL) to enforce increased bandwidth for ingress

traffic on each port

o Reduced bandwidth: provides per-port, per-queue egress-based reduced bandwidth

 Advanced classifier-based QoS

classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting
priority level and rate limit to selected traffic on a per-port or per-VLAN basis

 Traffic prioritization

allows real-time traffic classification into eight priority levels mapped to eight queues

Data center optimized

 Front-to-back airflow

designed to be collocated at the top of a server rack, the 6600 Switch Series supports front-to-back airflow (mechanically
reversible) to support hot aisle/cold aisle configurations; the N+N fan tray is also hot-swappable, allowing easy
replacement in the rack

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

QuickSpecs

HP 6600 Switch Series

Overview

c04111706 — DA – 13267 Worldwide — Version 22 — July 24, 2015

Page 2

 Modular internal power supplies

support redundant, hot-swappable power supply configurations (units ship with one supply); power load is shared across
dual supplies

 Server-to-switch distributed trunking

supports Layer 2 LACP groups from a single server across two different switches for active-active server NIC teaming
configurations

 Power down idle ports

save power by powering down blocks of idle Gigabit and 10GbE ports; idle ports can be reinitialized without rebooting;
available on 6600-24XG and 6600-48G-4XG models

 Out-of-band management

remotely monitors and manages switch via Ethernet out-of-band management port; eliminates the need for terminal
server network; available on 6600-24XG and 6600-48G-4XG models

 Deployment/Serviceability

data connectivity and management ports are all front-side accessible, and power supplies and fan trays are rear-side
accessible, allowing for easy maintenance and in-rack serviceability

Management

 Remote intelligent mirroring

mirrors selected ingress/egress traffic based on ACL, port, MAC address, or VLAN to a local or remote HP 8200 zl, 6600,
6200 yl, 5400 zl, or 3500 Switch located anywhere on the network

 RMON, XRMON, and sFlow v5

provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events

 Uni-Directional Link Detection (UDLD)

monitors a cable between two switches and shuts down the ports on both ends if the cable is broken, turning the
bidirectional link into a unidirectional one; this prevents network problems such as loops

 IEEE 802.1AB Link Layer Discovery Protocol (LLDP)

advertises and receives management information from adjacent devices on a network, facilitating easy mapping by
network management applications

 Management simplicity

provided by common networking features and CLI implementation (common across HP 8200 zl, 6600, 6200 yl, 5400 zl,
and 3500 Switches)

 Command authorization

leverages RADIUS to link a custom list of CLI commands to an individual network administrator's login; an audit trail
documents activity

 Friendly port names

allow assignment of descriptive names to ports

 Multiple configuration files

can be stored to the flash image

 Dual flash images

provide independent primary and secondary operating system files for backup while upgrading

 NEW Comware CLI

o Comware-compatible CLI

bridges the experience of HP Comware CLI users who are using the HP ProVision software CLI

o Display and fundamental Comware CLI commands

are embedded in the switch CLI as native commands; display output is formatted as on Comware-based
switches, and fundamental commands provide a Comware-familiar initial switch setup

o Configuration Comware CLI commands

when Comware commands are entered, CLI help is elicited to formulate the correct ProVision software CLI
command

Connectivity

 Auto-MDIX

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

QuickSpecs

HP 6600 Switch Series

Overview

c04111706 — DA – 13267 Worldwide — Version 22 — July 24, 2015

Page 3

automatically adjusts for straight-through or crossover cables on all 10/100 and 10/100/1000 ports

 Jumbo frames

on Gigabit Ethernet and 10-Gigabit Ethernet ports, jumbo frames allow high-performance remote backup and disaster­recovery services

 IPv6:

o IPv6 host: enables switches to be managed in an IPv6 network
o Dual stack (IPv4 and IPv6): transitions from IPv4 to IPv6, supporting connectivity for both protocols
o MLD snooping: forwards IPv6 multicast traffic to the appropriate interface
o IPv6 ACL/QoS: supports ACL and QoS for IPv6 network traffic
o IPv6 routing: supports static and OSPFv3 routing protocols
o 6in4 tunneling: supports encapsulation of IPv6 traffic in IPv4 packets

Performance

 High-speed, high-capacity architecture

based on the purpose-built ProVision ASICs to provide superior system performance and scalability

 Selectable queue configurations

allows for increased performance by selecting the number of queues and associated memory buffering that best meet
the requirements of the network applications

Resiliency and high availability

 IEEE 802.3ad Link Aggregation Control Protocol (LACP) and HP port trunking

support up to 60 trunks, each with up to eight links (ports) per trunk

 IEEE 802.1s Multiple Spanning Tree
 provides high link availability in multiple VLAN environments by allowing multiple spanning trees; provides legacy

support for IEEE 802.1d and IEEE 802.1w

 Virtual Router Redundancy Protocol (requires Premium License)

allows groups of two routers to dynamically back each other up to create highly available routed environments

 Spares simplicity

is made possible through the use of common power supplies, fan trays, and transceivers

 Distributed trunking

enables loop-free and redundant network topology without using Spanning Tree Protocol; allows a server or switch to
connect to two switches using one logical trunk for redundancy and load sharing

 Uplink Failure Detection

provides active-standby network path redundancy for servers that are configured for active-standby NIC teaming

Layer 2 switching

 HP switch meshing

dynamically load balances across multiple active redundant links to increase available aggregate bandwidth

 GARP VLAN Registration Protocol

allows automatic learning and dynamic assignment of VLANs

 IEEE 802.1ad Q-in-Q (requires Premium License)

increases the scalability of an Ethernet network by providing a hierarchical structure; connects multiple LANs on a high­speed campus or metro network

 IEEE 802.1v protocol VLANs

isolate select non-IPv4 protocols automatically into their own VLANs

 Rapid Per-VLAN Spanning Tree (RPVST+)

allows each VLAN to build a separate spanning tree to improve link bandwidth usage; is compatible with PVST+

Layer 3 services

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

QuickSpecs

HP 6600 Switch Series

Overview

c04111706 — DA – 13267 Worldwide — Version 22 — July 24, 2015

Page 4

 Loopback interface address

defines an address in Routing Information Protocol (RIP) and Open Standard Path First (OSPF), improving diagnostic
capability

 User Datagram Protocol (UDP) helper function

allows UDP broadcasts to be directed across router interfaces to specific IP unicast or subnet broadcast addresses and
prevents server spoofing for UDP services such as DHCP

 Route maps

provide more control during route redistribution; allow filtering and altering of route metrics

Layer 3 routing

 Static IP routing

provides manually configured routing for both IPv4 and IPv6 networks

 Routing Information Protocol (RIP)

provides RIPv1 and RIPv2 routing

 OSPF (requires Premium License)

provides OSPFv2 for IPv4 routing and OSPFv3 for IPv6 routing

 BGP (requires Premium License): provides IPv4 Border Gateway routing protocol that is scalable, robust, and flexible

Security

 Source-port filtering

allows only specified ports to communicate with each other

 RADIUS/TACACS+

eases switch management security administration by using a password authentication server

 Secure Shell

encrypts all transmitted data for secure remote CLI access over IP networks

 Port security: allows access only to specified MAC addresses, which can be learned or specified by the administrator
 MAC address lockout

prevents particular configured MAC addresses from connecting to the network

 Detection of malicious attacks

monitors 10 types of network traffic and sends a warning when an anomaly that potentially can be caused by malicious
attacks is detected

 Secure FTP

allows secure file transfer to and from the switch; protects against unwanted file downloads or unauthorized copying of a
switch configuration file

 Switch management logon security

can require either RADIUS or TACACS+ authentication for secure switch CLI logon

 Secure management access

securely encrypts all access methods (CLI, GUI, or MIB) through SSHv2, SSL, and/or SNMPv3

 ICMP throttling

defeats ICMP denial-of-service attacks by enabling any switch port to automatically throttle ICMP traffic

 Virus throttling

detects traffic patterns typical of worm-type viruses and either throttles or entirely prevents the virus from spreading
across the routed VLANs or bridged interfaces without requiring external appliances

 STP BPDU port protection

blocks Bridge Protocol Data Units (BPDUs) on ports that do not require BPDUs, preventing forged BPDU attacks

 Dynamic IP lockdown

works with DHCP protection to block traffic from unauthorized hosts, preventing IP source address spoofing

 DHCP protection

blocks DHCP packets from unauthorized DHCP servers, preventing denial-of-service attacks

 Dynamic ARP protection

blocks ARP broadcasts from unauthorized hosts, preventing eavesdropping or theft of network data

 USB Secure Autorun (requires HP PCM+)

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

QuickSpecs

HP 6600 Switch Series

Overview

c04111706 — DA – 13267 Worldwide — Version 22 — July 24, 2015

Page 5

deploys, diagnoses, and updates a switch using a USB flash drive; works with a secure credential to prevent tampering

 STP Root Guard

protects the root bridge from malicious attack or configuration mistakes

 Management Interface Wizard

helps secure management interfaces such as SNMP, telnet, SSH, SSL, Web, and USB at the desired level

 Access control lists (ACLs)

provide filtering based on the IP field, source/destination IP address/subnet, and source/destination TCP/UDP port
number on a per-VLAN or per-port basis

 Multiple user authentication methods:

o Multiple IEEE 802.1X users per port: authenticates multiple IEEE 802.1X users per port
o Web-based authentication: authenticates from Web browser for clients that do not support IEEE 802.1X

supplicant

o MAC-based authentication: client is authenticated with the RADIUS server based on client's MAC address
o Concurrent IEEE 802.1X, Web, and MAC authentication schemes per port: switch port accepts up to 32 sessions

of IEEE 802.1X, Web, and MAC authentications

 Switch CPU protection

provides automatic protection against malicious network traffic trying to shut down the switch

 Identity-driven ACL

enables implementation of a highly granular and flexible access security policy specific to each authenticated network
user

 Secure Sockets Layer (SSL)

encrypts all HTTP traffic, allowing secure access to the browser-based management GUI in the switch

 Security banner

displays a customized security policy when users log in to the switch

Multicast support

 IP multicast routing (requires Premium License)

includes PIM Sparse and Dense modes to route IP multicast traffic

 IP multicast snooping (data-driven IGMP)

automatically prevents flooding of IP multicast traffic

Convergence

 NEW Auto VLAN configuration for voice

o RADIUS VLAN

uses a standard RADIUS attribute and LLDP-MED to automatically configure a VLAN for IP phones

o CDPv2

uses CDPv2 to configure legacy IP phones

Warranty and support

 Lifetime warranty

for as long as you own the product with advance replacement and next-business-day delivery (available in most
countries)†

 Electronic and telephone support

limited electronic and telephone support is available from HP; to reach our support centers, refer to

http://www.hp.com/networking/contact-support; for details on the duration of support provided with your product

purchase, refer to

www.hp.com/networking/warrantysummary

 Software releases

to find software for your product, refer to http://www.hp.com/networking/support; for details on the software releases
available with your product purchase, refer to www.hp.com/networking/warrantysummary

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

QuickSpecs

HP 6600 Switch Series

Overview

c04111706 — DA – 13267 Worldwide — Version 22 — July 24, 2015

Page 6

†HP warranty includes repair or replacement of hardware for as long as you own the product, with next business day advance

replacement (available in most countries). The disk drive included with HP AllianceOne Advanced Services and Services zl Modules,
HP Threat Management Services zl Module, HP AllianceOne Extended zl Module with Riverbed Steelhead, HP MSM765zl Mobility
Controller and HP Survivable Branch Communication zl Module powered by Microsoft Lync has a five-year hardware warranty. For
details, refer to the Software license and hardware warranty statements at http://www.hp.com/networking/warranty.

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

QuickSpecs

HP 6600 Switch Series

Configuration

c04111706 — DA – 13267 Worldwide — Version 22 — July 24, 2015

Page 7

Build To Order:

BTO is a standalone unit with no integration. BTO products ship standalone are not part of a CTO or Rack-Shippable solution.

HP 6600-24G-4XG Switch

J9264A

 20 autosensing 10/100/1000 port
 4 open mini-GBIC slots
 4 open 10-GbE SFP+ transceiver slots
 min=0 \ max=4 SFP+ Transceivers
 1 - J9269A HP E6600 Switch Power Supply Included
 1U - Height

See Configuration

Note:1, 2, 3, 4

PDU Cable NA/MEX/TW/JP

J9264A#B2B

 C15 PDU Jumper Cord (NA/MEX/TW/JP)

PDU Cable ROW

J9264A#B2C

 C15 PDU Jumper Cord (ROW)

Configuration Rules:

Note 1

The following SFP+ Transceivers install into this switch:

HP X132 10G SFP+ LC ER Transceiver

J9153A

HP X132 10G SFP+ LC LR Transceiver

J9151A

HP X132 10G SFP+ LC LRM Transceiver

J9152A

HP X132 10G SFP+ LC SR Transceiver

J9150A

HP X242 10G SFP+ to SFP+ 1m Direct Attach Copper Cable

J9281B

HP X242 10G SFP+ to SFP+ 3m Direct Attach Copper Cable

J9283B

HP X242 10G SFP+ to SFP+ 7m Direct Attach Copper Cable

J9285B

HP X244 10G XFP to SFP+ 1m Direct Attach Copper Cable

J9300A

HP 10G X244 XFP to SFP+ 3m Direct Attach Copper Cable

J9301A

HP 10G X244 XFP to SFP+ 5m Direct Attach Copper Cable

J9302A

HP X242 10G SFP+ to SFP+ 10m Direct Attach Copper Cable

J9286B

HP X242 10G SFP+ to SFP+ 15m Direct Attach Copper Cable

J9287B

Note 2

The following Transceivers install into this switch:

HP X121 1G SFP LC SX Transceiver

J4858C

HP X121 1G SFP LC LX Transceiver

J4859C

HP X121 1G SFP LC LH Transceiver

J4860C

HP X121 1G SFP RJ45 T Transceiver

J8177C

HP X112 100M SFP LC BX-D Transceiver

J9099B

HP X112 100M SFP LC BX-U Transceiver

J9100B

HP X122 1G SFP LC BX-D Transceiver

J9142B

HP X122 1G SFP LC BX-U Transceiver

J9143B

HP X111 100M SFP LC FX Transceiver

J9054C

Note 3

Localization required. (See Localization Menu for list.)

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

QuickSpecs

HP 6600 Switch Series

Configuration

c04111706 — DA – 13267 Worldwide — Version 22 — July 24, 2015

Page 8

Note 4

Localization required on orders without #B2B or #B2C options.

Remarks:

Drop down under power supply should offer the following options and results:
Switch/Router/Power Supply to PDU Power Cord - #B2B in North America, Mexico, Taiwan, and Japan or #B2C
ROW. (Watson Default B2B or B2C for Rack Level CTO)
Switch/Router/Power Supply to Wall Power Cord - Localized Option (Watson Default for BTO and Box Level CTO)

Rack Level Integration CTO Models

HP 6600-24G-4XG Switch

J9264A

 20 autosensing 10/100/1000 port
 4 open mini-GBIC slots
 min=0 \ max=4 SFP Transceivers
 4 open 10-GbE SFP+ transceiver slots
 min=0 \ max=4 SFP+ Transceivers
 2 - Power Supply Slots
 1 - J9269A HP E6600 Switch Power Supply Included
 1U - Height

See Configuration

Note:1, 2, 3

HP 6600-24G-4XG Factory Integ Switch

J9264AZ

See Configuration

Note:1, 2, 3

PDU Cable NA/MEX/TW/JP

J9264AZ#B2B

 C15 PDU Jumper Cord (NA/MEX/TW/JP)

PDU Cable ROW

J9264AZ#B2C

 C15 PDU Jumper Cord (ROW)

HP 6600-24XG Switch

J9265A

 24 open 10-GbE SFP+ transceiver slots
 min=0 \ max=24 SFP+ Transceivers
 2 - Power Supply Slots
 1 - J9269A HP E6600 Switch Power Supply Included
 1U - Height

See Configuration

Note:1, 3

Configuration Rules:

Note 1

The following SFP+ Transceivers install into this switch:

HP X132 10G SFP+ LC ER Transceiver

J9153A

HP X132 10G SFP+ LC LR Transceiver

J9151A

HP X132 10G SFP+ LC LRM Transceiver

J9152A

HP X132 10G SFP+ LC SR Transceiver

J9150A

HP X242 10G SFP+ to SFP+ 1m Direct Attach Copper Cable

J9281B

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

QuickSpecs

HP 6600 Switch Series

Configuration

c04111706 — DA – 13267 Worldwide — Version 22 — July 24, 2015

Page 9

HP X242 10G SFP+ to SFP+ 3m Direct Attach Copper Cable

J9283B

HP X242 10G SFP+ to SFP+ 7m Direct Attach Copper Cable

J9285B

HP X244 10G XFP to SFP+ 1m Direct Attach Copper Cable

J9300A

HP 10G X244 XFP to SFP+ 3m Direct Attach Copper Cable

J9301A

HP 10G X244 XFP to SFP+ 5m Direct Attach Copper Cable

J9302A

HP X242 10G SFP+ to SFP+ 10m Direct Attach Copper Cable

J9286B

HP X242 10G SFP+ to SFP+ 15m Direct Attach Copper Cable

J9287B

Note 2

The following SFP Transceivers install into this switch:

HP X121 1G SFP LC SX Transceiver

J4858C

HP X121 1G SFP LC LX Transceiver

J4859C

HP X121 1G SFP LC LH Transceiver

J4860C

HP X112 100M SFP LC BX-D Transceiver

J9099B

HP X112 100M SFP LC BX-U Transceiver

J9100B

HP X122 1G SFP LC BX-D Transceiver

J9142B

HP X122 1G SFP LC BX-U Transceiver

J9143B

HP X111 100M SFP LC FX Transceiver

J9054C

Note 3

If switch is ordered #0D1 then 464794-B21#0D1 - 10K Rack Kit Assembly is required.

Remarks:

Drop down under power supply should offer the following options and results:
Switch/Router/Power Supply to PDU Power Cord - #B2B in North America, Mexico, Taiwan, and Japan or #B2C
ROW. (Watson Default B2B or B2C for Rack Level CTO)
Switch/Router/Power Supply to Wall Power Cord - Localized Option (Watson Default for BTO and Box Level CTO)

Enter the following menu selections as integrated to the CTO Model X server above if order is factory built.

Transceivers

SFP Transceivers

HP X111 100M SFP LC FX Transceiver

J9054C

HP X112 100M SFP LC BX-D Transceiver

J9099B

HP X112 100M SFP LC BX-U Transceiver

J9100B

HP X121 1G SFP LC LH Transceiver

J4860C

HP X121 1G SFP LC LX Transceiver

J4859C

HP X121 1G SFP LC SX Transceiver

J4858C

HP X122 1G SFP LC BX-D Transceiver

J9142B

HP X122 1G SFP LC BX-U Transceiver

J9143B

SFP+ Transceivers

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

QuickSpecs

HP 6600 Switch Series

Configuration

c04111706 — DA – 13267 Worldwide — Version 22 — July 24, 2015

Page 10

HP X132 10G SFP+ LC ER Transceiver

J9153A

HP X132 10G SFP+ LC LR Transceiver

J9151A

HP X132 10G SFP+ LC LRM Transceiver

J9152A

HP X132 10G SFP+ LC SR Transceiver

J9150A

HP X242 10G SFP+ SFP+ 1m DAC Cable

J9281B

HP X242 10G SFP+ SFP+ 3m DAC Cable

J9283B

HP X242 10G SFP+ SFP+ 7m DAC Cable

J9285B

HP X244 10G XFP SFP+ 1m DAC Cable

J9300A

HP X244 10G XFP SFP+ 3m DAC Cable

J9301A

HP X244 10G XFP SFP+ 5m DAC Cable

J9302A

HP X242 10G SFP+ 10m DAC Cable

J9286B

HP X242 10G SFP+ 15m DAC Cable

J9287B

Internal Power Supplies

See Models for number of slots and what's included with each base.

HP 6600 Switch Power Supply

J9269A

See Configuration

Note:1, 2, 3

HP 6600 Fact Integ Switch Power Supply

J9269AZ

See Configuration

Note:1

PDU Cable NA/MEX/TW/JP

J9269AZ#B2B

 C15 PDU Jumper Cord (NA/MEX/TW/JP)

PDU Cable ROW

J9269AZ#B2C

 C15 PDU Jumper Cord (ROW)

Configuration Rules:

Note 1

If 2 or more power supplies are selected they must be the same Sku number.

Note 2

Localization required. (See Localization Menu for list.)

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

QuickSpecs

HP 6600 Switch Series

Configuration

c04111706 — DA – 13267 Worldwide — Version 22 — July 24, 2015

Page 11

Note 3

Localization required on orders without #B2B or #B2C options.

Remarks:

Drop down under power supply should offer the following options and results:
Switch/Router/Power Supply to PDU Power Cord - #B2B in North America, Mexico, Taiwan, and Japan or #B2C
ROW. (Watson Default B2B or B2C for Rack Level CTO)
Switch/Router/Power Supply to Wall Power Cord - Localized Option (Watson Default for BTO and Box Level CTO)

Cables

Multi-Mode Cables

HP .5m Multi-mode OM3 LC/LC FC Cable

AJ833A

HP 1m Multi-mode OM3 LC/LC FC Cable

AJ834A

HP 2 m Multimode OM3 LC/LC FC Cable

AJ835A

HP 5 m Multimode OM3 LC/LC FC Cable

AJ836A

HP 15 m Multimode OM3 LC/LC FC Cable

AJ837A

HP 30 m Multimode OM3 LC/LC FC Cable

AJ838A

HP 50 m Multimode OM3 LC/LC FC Cable

AJ839A

HP Premier Flex LC/LC OM4 2f 1m Cbl

QK732A

HP Premier Flex LC/LC OM4 2f 2m Cbl

QK733A

HP Premier Flex LC/LC OM4 2f 5m Cbl

QK734A

HP Premier Flex LC/LC OM4 2f 15m Cbl

QK735A

HP Premier Flex LC/LC OM4 2f 30m Cbl

QK736A

HP Premier Flex LC/LC OM4 2f 50m Cbl

QK737A

Switch Enclosure Options

E6600 Fan Tray

HP 6600 Switch Fan Tray

J9271A

HP 6600 Factory Integ Switch Fan Tray

J9271AZ

License

HP 6600 Switch Premium License

J9305A

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

QuickSpecs

HP 6600 Switch Series

Configuration

c04111706 — DA – 13267 Worldwide — Version 22 — July 24, 2015

Page 12

Mounting Kit

HP 6600 Series Switch Rack Kit

J9469A

See Configuration

Note:1

Rack Mounting Kit

HP Factory Rack mount Shelf Kit

AB469A

See Configuration

Note:2

HP 2610 Rail Kit

464794-B21

See Configuration

Note:2

HP 6600-24XG/48G/48G-4XG Swch AirPlm Kit

J9480A

HP 6600-24XG/48G/48G-4XG Integ AirPlm Kt

J9480AZ

HP 6600-24G/24G-4XG Swch Air Plenum Kit

J9481A

HP 6600-24G/24G-4XG Swch Air Plenum Kit

J9481AZ

Cofiguration Rules:

Note 1

For field racking of the 6600 series switches the J9469A is required. (Not supported for Factory Racking).

Note 2

For factory racking of the 6600 series switches the AB469A and 464794-B21 are required. One shelf is required
for every 10 Switches. Exceptions may apply if switches are stacked on top of server or storage devices.

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

QuickSpecs

HP 6600 Switch Series

Technical Specifications

c04111706 — DA – 13267 Worldwide — Version 22 — July 24, 2015

Page 13

HP 6600-24G-4XG Switch
(J9264A)

Ports

20 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE

802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Media Type:
Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full
only

4 dual-personality ports
each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3
Type 10BASE-T; IEEE 802.3u Type 100BASE-TX; IEEE 802.3ab 1000BASE-T
Gigabit Ethernet) or an open mini-GBIC slot (for use with mini-GBIC
transceivers)

4 SFP+ 10-GbE ports; Duplex: full only

1 RS-232C DB-9 console port

Power supplies

2 power supply slots
includes: 1 x J9269A (HP 6600 Switch Power Supply)

Fan tray

includes: 1 x J9271A
1 fan tray slot
Fan tray supports N+N fans for added redundancy.

Physical characteristics
Dimensions

17.42(w) x 21.5(d) x 1.7(h) in (44.25 x 54.61 x

4.32 cm) (1U height)

Weight

17.2 lb (7.8 kg)

Memory and processor

Freescale PowerPC 8540 @ 666 MHz, 4 MB flash, 256 MB compact flash,
256 MB DDR SDRAM; packet buffer size: 36 MB QDR SDRAM total (18 MB for
1 GbE/10 GbE ports)

Mounting

Includes hardware for 2-post telco rack or equipment cabinet; horizontal
surface mounting only. The 6600 Series Rack Kit (J9469A) is required for
mounting in 4-post server/networking rack.

Performance

1000 Mb Latency

< 3.4 µs (FIFO 64-byte packets)

10 Gbps Latency

< 2.4 µs (FIFO 64-byte packets)

Throughput

up to 75.7 million pps (64-byte packets)

Routing/Switching
capacity

101.8 Gbps

Switch fabric speed

105.6 Gbps

Routing table size

10000 entries

MAC address table size

64000 entries

Environment

Operating temperature

41°F to 104°F (5°C to 40°C)

Operating relative
humidity

15% to 80% @ 104°F (40°C), noncondensing

Nonoperating/Storage
temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage
relative humidity

15% to 90% @ 149°F (65°C), noncondensing

Alitude

up to 10,000 ft (3 km)

Acoustic

Power: 68 dB, Pressure: 59.5 dB ISO 7779, ISO
9296

Electrical characteristics

Achieved Miercom Certified Green Award

* Products within this series have achieved sufficient scores in each of the
rated criteria to achieve the Miercom Certified Green distinction Award. See
the Specifications section of this series for more information.

Description

The switch automatically adjusts to any voltage

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

QuickSpecs

HP 6600 Switch Series

Technical Specifications

c04111706 — DA – 13267 Worldwide — Version 22 — July 24, 2015

Page 14

between 100-120 and 200-240 V with either 50
or 60 Hz.

Maximum heat
dissipation

697 BTU/hr (735.33 kJ/hr)

Voltage

100-120/200-240 VAC

Idle power

167.6 W

Maximum power rating

204.3 W

Frequency

50/60 Hz

Notes

Idle power is the actual power consumption of
the
device with no ports connected.
Maximum power rating and maximum heat
dissipation are the worst-case theoretical
maximum numbers provided for planning the
infrastructure with fully loaded PoE (if
equipped), 100% traffic, all ports plugged in,
and all modules populated.

Safety

CSA 22.2 No. 60950; EN 60950/IEC 60950; UL 60950

Emissions

FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A

Immunity

EN

EN 55024, CISPR 24

ESD

IEC 61000-4-2

Radiated

IEC 61000-4-3

EFT/Burst

IEC 61000-4-4

Surge

IEC 61000-4-5

Conducted

IEC 61000-4-6

Power frequency
magnetic field

IEC 61000-4-8

Voltage dips and
interruptions

IEC 61000-4-11

Harmonics

EN 61000-3-2, IEC 61000-3-2

Flicker

EN 61000-3-3, IEC 61000-3-3

Management

HP PCM+; HP PCM (included); command-line interface; Web browser;
configuration menu

Notes

Supported 1G SFP transceivers are revision "B" or later (product number
ends with the letter "B" or later, for example, J9142B, J8177C).

Services

3-year, 4-hour onsite, 13x5 coverage for hardware (U2855E)
3-year, 4-hour onsite, 24x7 coverage for hardware (U2856E)
3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 SW phone
support and SW updates (U6304E)
3-year, 24x7 SW phone support, software updates (UE262E)
1-year, post-warranty, 4-hour onsite, 13x5 coverage for hardware
(HR889E)
1-year, post-warranty, 4-hour onsite, 24x7 coverage for hardware
(HR890E)
1-year, post-warranty, 4-hour onsite, 24x7 coverage for hardware, 24x7
software phone support (HR891E)
Installation with minimum configuration, system-based pricing (U4826E)
Installation with HP-provided configuration, system-based pricing
(U4830E)
4-year, 4-hour onsite, 13x5 coverage for hardware (UR868E)

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

QuickSpecs

HP 6600 Switch Series

Technical Specifications

c04111706 — DA – 13267 Worldwide — Version 22 — July 24, 2015

Page 15

4-year, 4-hour onsite, 24x7 coverage for hardware (UR869E)
4-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone
(UR870E)
4-year, 24x7 SW phone support, software updates (UR871E)
5-year, 4-hour onsite, 13x5 coverage for hardware (UR872E)
5-year, 4-hour onsite, 24x7 coverage for hardware (UR873E)
5-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone
(UR874E)
5-year, 24x7 SW phone support, software updates (UR875E)
3 Yr 6 hr Call-to-Repair Onsite (UW356E)
4 Yr 6 hr Call-to-Repair Onsite (UW357E)
5 Yr 6 hr Call-to-Repair Onsite (UW358E)
1-year, 6 hour Call-To-Repair Onsite for hardware (HR893E)
1-year, 24x7 software phone support, software updates (HR892E)
1-year, 24x7 software phone support, software updates + Next Business
Day Hardware Exchange (HS610E)
1-year, 24x7 software phone support, software updates + 4 hour hardware
exchange (HS611E)
3-year, 24x7 software phone support, software updates + Next Business
Day Hardware Exchange (HS612E)
3-year, 24x7 software phone support, software updates + 4 hour Hardware
Exchange (HS613E)
4-year, 24x7 software phone support, software updates + Next Business
Day Hardware Exchange (HS614E)
4-year, 24x7 software phone support, software updates + 4 hour Hardware
Exchange (HS615E)
5-year, 24x7 software phone support, software updates + Next Business
Day Hardware Exchange (HS616E)
5-year, 24x7 software phone support, software updates + 4 hour Hardware
Exchange (HS617E)

Refer to the HP website at: www.hp.com/networking/services for details on
the service-level descriptions and product numbers. For details about
services and response times in your area, please contact your local HP
sales office.

Standards and protocols
(applies to all products in
series)

BGP
RFC 1997 BGP Communities Attribute
RFC 2918 Route Refresh Capability
RFC 4271 A Border Gateway Protocol 4 (BGP-4)
RFC 4456 BGP Route Reflection: An Alternative to
Full Mesh Internal BGP (IBGP)
RFC 5492 Capabilities Advertisement with BGP-4

Device management
RFC 1591 DNS (client)
HTML and telnet management

General protocols
IEEE 802.1ad Q-in-Q
IEEE 802.1AX-2008 Link Aggregation
IEEE 802.1D MAC Bridges
IEEE 802.1p Priority
IEEE 802.1Q VLANs
IEEE 802.1s Multiple Spanning Trees

RFC 4213 Basic Transition Mechanisms for IPv6
Hosts and Routers
RFC 4251 SSHv6 Architecture
RFC 4252 SSHv6 Authentication
RFC 4253 SSHv6 Transport Layer
RFC 4254 SSHv6 Connection
RFC 4291 IP Version 6 Addressing Architecture
RFC 4293 MIB for IP
RFC 4294 IPv6 Node Requirements
RFC 4419 Key Exchange for SSH
RFC 4443 ICMPv6
RFC 4541 IGMP & MLD Snooping Switch
RFC 4861 IPv6 Neighbor Discovery
RFC 4862 IPv6 Stateless Address Auto­configuration
RFC 5095 Deprecation of Type 0 Routing Headers
in IPv6
RFC 5340 OSPFv3 for IPv6
RFC 5453 Reserved IPv6 Interface Identifiers

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

QuickSpecs

HP 6600 Switch Series

Technical Specifications

c04111706 — DA – 13267 Worldwide — Version 22 — July 24, 2015

Page 16

IEEE 802.1v VLAN classification by Protocol and
Port
IEEE 802.1w Rapid Reconfiguration of Spanning
Tree
IEEE 802.3ad Link Aggregation Control Protocol
(LACP)
IEEE 802.3x Flow Control
RFC 768 UDP
RFC 783 TFTP Protocol (revision 2)
RFC 792 ICMP
RFC 793 TCP
RFC 826 ARP
RFC 854 TELNET
RFC 868 Time Protocol
RFC 951 BOOTP
RFC 1058 RIPv1
RFC 1350 TFTP Protocol (revision 2)
RFC 1519 CIDR
RFC 1542 BOOTP Extensions
RFC 2030 Simple Network Time Protocol (SNTP) v4
RFC 2131 DHCP
RFC 2453 RIPv2
RFC 2548 (MS-RAS-Vendor only)
RFC 3046 DHCP Relay Agent Information Option
RFC 3576 Ext to RADIUS (CoA only)
RFC 3768 VRRP
RFC 4675 RADIUS VLAN & Priority
UDLD (Uni-directional Link Detection)

IP multicast
RFC 3376 IGMPv3 (host joins only)
RFC 3973 PIM Dense Mode
RFC 4601 PIM Sparse Mode

IPv6
RFC 1981 IPv6 Path MTU Discovery
RFC 2375 IPv6 Multicast Address Assignments
RFC 2460 IPv6 Specification
RFC 2464 Transmission of IPv6 over Ethernet
Networks
RFC 2710 Multicast Listener Discovery (MLD) for
IPv6
RFC 2925 Definitions of Managed Objects for
Remote Ping, Traceroute, and Lookup Operations
(Ping only)
RFC 3019 MLDv1 MIB
RFC 3315 DHCPv6 (client and relay)
RFC 3484 Default Address Selection for IPv6
RFC 3587 IPv6 Global Unicast Address Format
RFC 3596 DNS Extension for IPv6
RFC 3810 MLDv2 for IPv6
RFC 4022 MIB for TCP
RFC 4087 IP Tunnel MIB
RFC 4113 MIB for UDP

RFC 5519 Multicast Group Membership Discovery
MIB (MLDv2 only)
RFC 5722 Handling of Overlapping IPv6 Fragments

MIBs
IEEE 802.1ap (MSTP and STP MIB's only)
RFC 1213 MIB II
RFC 1493 Bridge MIB
RFC 1724 RIPv2 MIB
RFC 1850 OSPFv2 MIB
RFC 2021 RMONv2 MIB
RFC 2096 IP Forwarding Table MIB
RFC 2613 SMON MIB
RFC 2618 RADIUS Client MIB
RFC 2620 RADIUS Accounting MIB
RFC 2665 Ethernet-Like-MIB
RFC 2668 802.3 MAU MIB
RFC 2674 802.1p and IEEE 802.1Q Bridge MIB
RFC 2737 Entity MIB (Version 2)
RFC 2787 VRRP MIB
RFC 2863 The Interfaces Group MIB
RFC 2925 Ping MIB
RFC 2933 IGMP MIB

Network management
IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
RFC 2819 Four groups of RMON: 1 (statistics), 2
(history), 3 (alarm) and 9 (events)
RFC 3176 sFlow
ANSI/TIA-1057 LLDP Media Endpoint Discovery
(LLDP-MED)
SNMPv1/v2c/v3
XRMON

OSPF
RFC 2328 OSPFv2
RFC 3101 OSPF NSSA
RFC 5340 OSPFv3 for IPv6

QoS/CoS
RFC 2474 DiffServ Precedence, including 8
queues/port
RFC 2597 DiffServ Assured Forwarding (AF)
RFC 2598 DiffServ Expedited Forwarding (EF)

Security
IEEE 802.1X Port Based Network Access Control
RFC 1492 TACACS+
RFC 2865 RADIUS (client only)
RFC 2866 RADIUS Accounting
RFC 3579 RADIUS Support For Extensible
Authentication Protocol (EAP)
Secure Sockets Layer (SSL)
SSHv2 Secure Shell

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

QuickSpecs

HP 6600 Switch Series

Accessories

c04111706 — DA – 13267 Worldwide — Version 22 — July 24, 2015

Page 17

HP 6600 Switch Series
accessories

Modules

HP 6600 Switch Fan Tray

J9271A

Transceivers

HP X111 100M SFP LC FX Transceiver

J9054C

HP X112 100M SFP LC BX-D Transceiver

J9099B

HP X112 100M SFP LC BX-U Transceiver

J9100B

HP X132 10G SFP+ LC SR Transceiver

J9150A

HP X132 10G SFP+ LC LR Transceiver

J9151A

HP X132 10G SFP+ LC LRM Transceiver

J9152A

HP X121 1G SFP LC LH Transceiver

J4860C

HP X121 1G SFP LC SX Transceiver

J4858C

HP X121 1G SFP LC LX Transceiver

J4859C

HP X122 1G SFP LC BX-D Transceiver

J9142B

HP X122 1G SFP LC BX-U Transceiver

J9143B

HP X132 10G SFP+ LC ER Transceiver

J9153A

Cables

HP X242 10G SFP+ to SFP+ 1m Direct Attach Copper Cable

J9281B

HP X242 10G SFP+ to SFP+ 3m Direct Attach Copper Cable

J9283B

HP X242 10G SFP+ to SFP+ 7m Direct Attach Copper Cable

J9285B

HP X244 10G XFP to SFP+ 1m Direct Attach Copper Cable

J9300A

HP 10G X244 XFP to SFP+ 3m Direct Attach Copper Cable

J9301A

HP 10G X244 XFP to SFP+ 5m Direct Attach Copper Cable

J9302A

HP LC to LC Multi-mode OM3 2-Fiber 0.5m 1-Pack Fiber Optic Cable

AJ833A

HP LC to LC Multi-mode OM3 2-Fiber 1.0m 1-Pack Fiber Optic Cable

AJ834A

HP LC to LC Multi-mode OM3 2-Fiber 2.0m 1-Pack Fiber Optic Cable

AJ835A

HP LC to LC Multi-mode OM3 2-Fiber 5.0m 1-Pack Fiber Optic Cable

AJ836A

HP LC to LC Multi-mode OM3 2-Fiber 15.0m 1-Pack Fiber Optic Cable

AJ837A

HP LC to LC Multi-mode OM3 2-Fiber 30.0m 1-Pack Fiber Optic Cable

AJ838A

HP LC to LC Multi-mode OM3 2-Fiber 50.0m 1-Pack Fiber Optic Cable

AJ839A

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 1m Cable

QK732A

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 2m Cable

QK733A

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 5m Cable

QK734A

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 15m Cable

QK735A

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 30m Cable

QK736A

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 50m Cable

QK737A

HP BladeSystem c-Class 10GbE SFP+ to SFP+ 0.5m Direct Attach Copper Cable

487649-B21

HP BladeSystem c-Class 10GbE SFP+ to SFP+ 1m Direct Attach Copper Cable

487652-B21

HP BladeSystem c-Class 10GbE SFP+ to SFP+ 3m Direct Attach Copper Cable

487655-B21

HP BladeSystem c-Class 10GbE SFP+ to SFP+ 5m Direct Attach Copper Cable

537963-B21

HP BladeSystem c-Class 10GbE SFP+ to SFP+ 7m Direct Attach Copper Cable

487658-B21

HP X242 10G SFP+ to SFP+ 10m Direct Attach Copper Cable

J9286B

HP X242 10G SFP+ to SFP+ 15m Direct Attach Copper Cable

J9287B

Power Supply

HP 6600 Switch Power Supply

J9269A

Mounting Kit

HP 6600 Series Switch Rack Kit

J9469A

HP 6600-24XG

J9480A

HP E6600-24G and 24G-4XG Air Plenum Kit

J9481A

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

QuickSpecs

HP 6600 Switch Series

Accessories

c04111706 — DA – 13267 Worldwide — Version 22 — July 24, 2015

Page 18

License

HP 6600 Switch Premium License

J9305A

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

QuickSpecs

HP 6600 Switch Series

Accessory Product Details

c04111706 — DA – 13267 Worldwide — Version 22 — July 24, 2015

Page 19

NOTE: Details are not available for all accessories. The following specifications were available at the time of publication.

HP 6600 Switch Fan Tray

(J9271A)

Physical characteristics

Dimensions

5(d) x 5(w) x 5(h) in. (12.7 x 12.7 x 12.7 cm)

Services

Refer to the HP website at http://www.hp.com/networking/services for
details on the service-level descriptions and product numbers. For details
about services and response times in your area, please contact your local
HP sales office.

HP X111 100M SFP LC FX
Transceiver (J9054C)

Ports

1 LC 100BASE-FX port (IEEE 802.3u Type 100BASE-FX); Duplex: half or full

Physical characteristics
Dimensions

2.7(d) x 0.54(w) x 0.48(h) in. (6.86 x 1.38 x 1.22
cm)

Weight

0.06 lb. (0.03 kg)

Environment

Operating temperature

32°F to 158°F (0°C to 70°C)

Operating relative
humidity

5% to 95%

Nonoperating/Storage
temperature

-40°F to 185°F (-40°C to 85°C)

Nonoperating/Storage
relative humidity

5% to 85%

Altitude

up to 10,000 ft. (3 km)

Cabling

Cable type:

62.5/125 ìm or 50/125 ìm (core/cladding) diameter, graded-index, low
metal content, multimode fiber optic, complying with ITU-T G.651 and
ISO/IEC 793-2 Type A1b or A1a, respectively;
Maximum distance:

• 2 km (full duplex) or 412 m (half duplex)

Notes

Transmitter wavelength: 1310nm
Power consumption is 1.1 watt maximum.
For supported platforms and minimum software requirements to support
this product, see the document titled "Support for the J9054C 100-FX SFP­LC Transceiver" on the "ProCurve Mini-GBICs and SFPs" Manuals Web page.

Services

Refer to the HP website at: www.hp.com/networking/services for details
on the service-level descriptions and product numbers. For details about
services and response times in your area, please contact your local HP
sales office.

HP X112 100M SFP LC BX­D Transceiver (J9099B)

A small form-factor
pluggable (SFP) 100­Megabit BX (bi­directional) "downstream"
transceiver that provides
100 Mbps full-duplex
connectivity up to 10 km
on one strand of
singlemode fiber. The
J9099B connects to the

Ports

1 LC 100BASE-BX10 port (IEEE 802.3ah Type 100BASE-BX10-D); Duplex:
full only

Physical characteristics
Dimensions

2.7(d) x 0.55(w) x 0.48(h) in. (6.86 x 1.39 x 1.22
cm)

Weight

0.04 lb. (0.03 kg)

Environment

Operating temperature

32ºF to 158ºF (0ºC to 70ºC)

Operating relative
humidity

0% to 95%, noncondensing

Nonoperating/Storage
temperature

-40ºF to 185ºF (-40ºC to 85ºC)

Cabling

Type:

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

QuickSpecs

HP 6600 Switch Series

Accessory Product Details

c04111706 — DA – 13267 Worldwide — Version 22 — July 24, 2015

Page 20

J9100B "upstream"
transceiver, or to any
IEEE-standard 100BASE­BX10-U ("upstream")
device.

Single-mode fiber optic, complying with ITU-T G.652;

Maximum distance:

 0.5-10,000 m (single-mode fiber)

Notes

Transmit wavelength: 1550 nm. Receive wavelength: 1310 nm.
Power consumption is 1.1 watt maximum.
For supported platforms and minimum software requirements to support
this product, see the document titled "Support for the HP BX Transceivers"
on the "HP Mini-GBICs and SFPs" Manuals Web page.
The J9099B connects to the J9100B "upstream" transceiver, or to any IEEE­standard 100BASE-BX10-U ("upstream") device. (A 100-BX-D transceiver
can only connect to a 100-BX-U product. You cannot connect two 100-BX-D
transceivers together.)

Services

Refer to the HP website at http://www.hp.com/networking/services for
details on the service-level descriptions and product numbers. For details
about services and response times in your area, please contact your local
HP sales office.

HP X112 100M SFP LC BX­U Transceiver (J9100B)

A small form-factor
pluggable (SFP) 100­Megabit BX (bi­directional) "upstream"
transceiver that provides
100 Mbps full-duplex
connectivity up to 10 km
on one strand of
singlemode fiber. The
J9100B connects to the
J9099B "downstream"
transceiver, or to any
IEEE-standard 100BASE­BX10-D ("downstream")
device.

Ports

1 LC 100BASE-BX10 port (IEEE 802.3ah Type 100BASE-BX10-U); Duplex:
full only

Physical characteristics
Dimensions

2.7(d) x 0.55(w) x 0.48(h) in. (6.86 x 1.39 x 1.22
cm)

Weight

0.07 lb. (.03 kg)

Environment

Operating temperature

32ºF to 158ºF (0ºC to 70ºC)

Operating relative
humidity

0% to 95%, noncondensing

Nonoperating/Storage
temperature

-40ºF to 185ºF (-40ºC to 85ºC)

Cabling

Type:

Single-mode fiber optic, complying with ITU-T G.652;

Maximum distance:

 0.5-10,000 m (single-mode fiber)

Notes

For supported platforms and minimum software requirements to support
this product, see the document titled "Support for the HP BX Transceivers"
on the "HP Mini-GBICs and SFPs" Manuals Web page.
The J9100B connects to the J9099B "downstream" transceiver, or to any
IEEE-standard 100BASE-BX10- D ("downstream") device. (A 100-BX-U
transceiver can only connect to a 100-BX-D product. You cannot connect
two 100-BX-U transceivers together.)
Transmit wavelength: 1310 nm. Receive wavelength: 1550 nm.
Power consumption is 1.1 watts maximum.

Services

Refer to the HP website at www.hp.com/networking/services for details on
the service-level descriptions and product numbers. For details about
services and response times in your area, please contact your local HP
sales office.

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

QuickSpecs

HP 6600 Switch Series

Accessory Product Details

c04111706 — DA – 13267 Worldwide — Version 22 — July 24, 2015

Page 21

HP X132 10G SFP+ LC SR
Transceiver (J9150A)

A 10-Gigabit transceiver in
SFP+ form-factor that
supports the 10-Gigabit
SR standard, providing
10-Gigabit connectivity up
to 300 m on multimode
fiber.

Ports

1 LC 10-GbE port (IEEE 802.3ae Type 10Gbase-SR); Duplex: full only

Connectivity
Connector type

LC

Wavelength

850 nm

Physical characteristics

Dimensions

2.19(d) x 0.54(w) x 0.47(h) in. (5.57 x 1.38 x

1.19 cm)

Weight

0.04 lb. (0.02 kg)

Transceiver form factor

SFP+

Environment

Operating temperature

32°F to 158°F (0°C to 70°C)

Operating relative
humidity

0% to 85%, noncondensing

Nonoperating/Storage
temperature

-40°F to 185°F (-40°C to 85°C)

Altitude

up to 10,000 ft. (3 km)

Electrical characteristics

Power consumption
typical

0.6 W

Power consumption
maximum

0.8 W

Cabling

Cable type:

62.5/125 µm or 50/125 µm (core/cladding) diameter, graded-index, low
metal content, multimode fiber optic, complying with ITU-T G.651 and
ISO/IEC 793-2
Type A1b or A1a, respectively;
Maximum distance:

 2-26m with 62.5 µm multimode cable @ 160 MHz*km
 2-33m with 62.5 µm multimode cable @ 200 MHz*km
 2-66m with 50 µm multimode cable @ 400 MHz*km
 2-82m with 50 µm multimode cable @ 500 MHz*km
 2-300m with 50 µm multimode cable @ 2000 MHz*km

Cable length

2-300m

Fiber type

Multi Mode

Notes

For fiber patch cords, use Ultra Physical Contact (UPC) surface
termination/polish. Angled Physical Contact (APC) is not recommended.

Services

Refer to the HP website at: http://www.hp.com/networking/services for
details on the service-level descriptions and product numbers. For details
about services and response times in your area, please contact your local
HP sales office.

HP X132 10G SFP+ LC LR
Transceiver (J9151A)

A 10-Gigabit transceiver in
SFP+ form-factor that
supports the 10-Gigabit
LR standard, providing
10-Gigabit connectivity up
to 10 km on single-mode
fiber.

Ports

1 LC 10-GbE port (IEEE 802.3ae Type 10Gbase-LR); Duplex: full only

Connectivity
Connector type

LC

Wavelength

1310 nm

Physical characteristics

Dimensions

2.19(d) x 0.54(w) x 0.47(h) in. (5.57 x 1.38 x

1.19 cm)

Weight

0.04 lb. (.02 kg)

Transceiver form factor

SFP+

Environment
Operating temperature

32°F to 158°F (0°C to 70°C)

Operating relative

0% to 85%, noncondensing

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

QuickSpecs

HP 6600 Switch Series

Accessory Product Details

c04111706 — DA – 13267 Worldwide — Version 22 — July 24, 2015

Page 22

humidity

Nonoperating/Storage
temperature

-40°F to 185°F (-40°C to 85°C)

Altitude

up to 10,000 ft. (3 km)

Electrical characteristics

Power consumption
typical

0.9 W

Power consumption
maximum

1 W

Cabling

Cable type:
Low metal content, single-mode fiber-optic, complying with ITU-T G.652
and ISO/IEC 793-2 Type B1;
Maximum distance:

 2m-10km with 9/125 µm single-mode cable

Cable length

2m to 10km

Fiber type

Single Mode

Notes

Conditioning patch cord cables are not supported.
For fiber patch cords, use Ultra Physical Contact (UPC) surface
termination/polish. Angled Physical Contact (APC) is not recommended.

Services

Refer to the HP website at: www.hp.com/networking/services for details on
the service-level descriptions and product numbers. For details about
services and response times in your area, please contact your local HP
sales office.

HP X132 10G SFP+ LC LRM
Transceiver (J9152A)

A 10-Gigabit transceiver in
SFP+ form-factor that
supports the 10-Gigabit
LRM standard, for 10­Gigabit connectivity up to
220 m on legacy
multimode fiber.

Ports

1 LC 10-GbE port (IEEE 802.3aq Type 10Gbase-LRM); Duplex: full only

Connectivity
Connector type

LC

Wavelength

1310 nm

Physical characteristics

Dimensions

2.19(d) x 0.54(w) x 0.47(h) in. (5.57 x 1.38 x

1.19 cm)

Weight

0.04 lb. (.02 kg)

Transceiver form factor

SFP+

Environment

Operating temperature

32°F to 158°F (0°C to 70°C)

Operating relative
humidity

0% to 85%, noncondensing

Nonoperating/Storage
temperature

-40°F to 185°F (-40°C to 85°C)

Altitude

up to 10,000 ft. (3 km)

Electrical characteristics

Power consumption
typical

0.7 W

Power consumption
maximum

1 W

Cabling

Cable type:

62.5/125 µm or 50/125 µm (core/cladding) diameter, graded-index, low
metal content, multimode fiber optic, complying with ITU-T G.651 and
ISO/IEC 793-2
Type A1b or A1a, respectively (a mode conditioning patch cord may be
needed in some multimode fiber installations);

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

QuickSpecs

HP 6600 Switch Series

Accessory Product Details

c04111706 — DA – 13267 Worldwide — Version 22 — July 24, 2015

Page 23

Maximum distance:

 0.5-220m with 62.5 µm multimode cable @ 160/500 MHz*km
 0.5-220m with 62.5 µm multimode cable @ 200/500 MHz*km
 0.5-100m with 50 µm multimode cable @ 400/400 MHz*km
 0.5-220m with 50 µm multimode cable @ 500/500 MHz*km
 0.5-220m with 50 µm multimode cable @ 1500/500 MHz*km

Cable length

0.5m to 220m

Fiber type

Multi Mode

Notes

For OM3 cable (50 µm multimode @ 1500/500 MHz*km), a mode­conditioning patch cord is not required. Other multimode cables may
require mode-conditioning patch cords to achieve the maximum distances
listed above.
For fiber patch cords, use Ultra Physical Contact (UPC) surface
termination/polish. Angled Physical Contact (APC) is not recommended.

Services

Refer to the HP website at: http://www.hp.com/networking/services for
details on the service-level descriptions and product numbers. For details
about services and response times in your area, please contact your local
HP sales office.

HP X121 1G SFP LC LH
Transceiver (J4860C)

A small form-factor
pluggable (SFP) Gigabit LH
transceiver that provides a
full-duplex Gigabit
solution up to 70 km on
single-mode fiber.

Ports

1 LC 1000BASE-LH port (no IEEE standard exists for 1550 nm optics);
Duplex: full only

Physical characteristics

Dimensions: 2.17(d) x 0.60(w) x 0.46(h) in. (5.5 x 1.53 x 1.18 cm)
Weight: 0.04 lb. (0.02 kg)

Environment

Operating temperature: -40°F to 185°F (-40°C to 85°C)

Operating relative humidity: 0% to 95% @ 77°F (25°C), noncondensing

Nonoperating/Storage temperature: -40°F to 185°F (-40°C to 85°C)

Altitude: up to 10,000 ft. (3 km)

Cabling

Cable type:

 Low metal content, single-mode fiber-optic, complying with ITU-T

G.652 and ISO/IEC 793-2 Type B1;

Maximum distance:

 10-70,000 m (single-mode fiber)

Notes

Power consumption is 0.8 watts typical with 1 watt maximum at 100%
utilization.
For distances less than 20 km, a 10 dB attenuator must be used.
For distances between 20 km and 40 km, a 5 dB attenuator must be used.
Attenuators can be purchased from most cable vendors.

Services

Refer to the HP website at www.hp.com/networking/services for details on
the service-level descriptions and product numbers. For details about
services and response times in your area, please contact your local HP sales
office.

HP X121 1G SFP LC SX
Transceiver (J4858C)

Ports

1 LC 1000BASE-SX port; Duplex: full only

Physical characteristics

Dimensions: 2.24(d) x 0.54(w) x 0.48(h) in. (5.69 x 1.37 x 1.22 cm)
Weight: 0.04 lb. (0.02 kg)
Transceiver form factor: SFP

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

QuickSpecs

HP 6600 Switch Series

Accessory Product Details

c04111706 — DA – 13267 Worldwide — Version 22 — July 24, 2015

Page 24

A small form-factor
pluggable (SFP) Gigabit SX
transceiver that provides a
full-duplex Gigabit
solution
up to 550 m on multimode
fiber.

Environment

Operating temperature: 32°F to 158°F (0°C to 70°C)

Operating relative humidity: 5% to 85%, noncondensing

Nonoperating/Storage temperature: -40°F to 203°F (-40°C to 85°C)

Altitude: up to 10,000 ft. (3 km)

Electrical characteristics
Power consumption typical: 0.4 W

Power consumption maximum: 0.7 W

Cabling

Type:

 62.5/125 µm or 50/125 µm (core/cladding) diameter, graded-

index, low metal content, multimode fiber optic, complying with
ITU-T G.651 and ISO/IEC 793-2 Type A1b or A1a, respectively;

Maximum distance:

 2-220 m (62.5 µm core diameter, 160 MHz*km bandwidth
 2-275 m (62.5 µm core diameter, 200 MHz*km bandwidth
 2-500 m (50 µm core diameter, 400 MHz*km bandwidth)
 2-550 m (50 µm core diameter, 500 MHz*km bandwidth)

Cable length: 2-550m

Fiber type: Multi Mode

Services

Refer to the HP website at http://www.hp.com/networking/services for
details on the service-level descriptions and product numbers. For details
about services and response times in your area, please contact your local
HP sales office.

HP X121 1G SFP LC LX
Transceiver (J4859C)

HP X121 1G SFP LC LX
Transceiver: An SFP
format
gigabit transceiver with LC
connectors using LX
technology.

Ports

1 LC 1000BASE-LX port (IEEE 802.3z Type 1000BASE-LX); Duplex: full only

Physical characteristics

Dimensions: 2.24(d) x 0.54(w) x 0.486(h) in. (5.69 x 1.37 x 1.23 cm)
Weight:0.04 lb. (0.02 kg)

Environment

Operating temperature: 32°F to 158°F (0°C to 70°C)

Operating relative humidity: 0% to 85%, noncondensing

Nonoperating/Storage temperature: -40°F to 212°F (-40°C to 100°C)

Altitude: up to 10,000 ft. (3 km)

Cabling

Type:

 Either single mode or multimode; 62.5/125 µm or 50/125 µm

(core/cladding) diameter, graded-index, low metal content,
multimode fiber optic, complying with ITU-T G.651 and ISO/IEC
793-2 Type A1b or A1a, respectively; Low metal content, single­mode fiber-optic, complying with ITU-T G.652 and ISO/IEC 793-2
Type B1;

Maximum distance:

 2-550 m (multimode 62.5 µm core diameter, 500 MHz*km

bandwidth)

 2-550 m (multimode 50 µm core diameter, 400 MHz*km

bandwidth)

 2-550 m (multimode 50 µm core diameter, 500 MHz*km

bandwidth)

 2-10,000 m (single-mode fiber)

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

QuickSpecs

HP 6600 Switch Series

Accessory Product Details

c04111706 — DA – 13267 Worldwide — Version 22 — July 24, 2015

Page 25

Notes

A mode conditioning patch cord may be needed in some multimode fiber
installations.
Wavelength: 1310nm
Power Consumption: < 500mW Typical

Services

Refer to the HP website at www.hp.com/networking/services for details on
the service-level descriptions and product numbers. For details about
services and response times in your area, please contact your local HP sales
office.

HP X122 1G SFP LC BX-D
Transceiver (J9142B)

A small form-factor
pluggable (SFP) Gigabit­BX (bi-directional)
"downstream" transceiver
that provides a full­duplex Gigabit solution up
to 10 km on one strand of
single-mode fiber. The
J9142B connects to the
J9143B "upstream"
transceiver, or to any
IEEE-standard 1000BASE­BX10-U ("upstream")
device.

Ports

1 LC 1000BASE-BX10 port (IEEE 802.3ah Type 1000BASE-BX10-D); Duplex:
full only

Physical characteristics
Dimensions

2.19(d) x 0.54(w) x 0.46(h) in. (5.57 x 1.37 x

1.18 cm)

Weight

0.04 lb. (0.02 kg)

Environment

Operating temperature

32ºF to 158ºF (0ºC to 70ºC)

Operating relative
humidity

0% to 95%, non-condensing

Non-operating/
Storage temperature

–40ºF to 185ºF –40ºC to 85ºC)

Cabling

Type:
Single-mode fiber optic, complying with ITU-T G.652;

Maximum distance:

 0.5-10,000 m (single-mode fiber)

Notes

Transmit wavelength: 1490 nm. Receive wavelength: 1310 nm.
Power consumption is 1 watt maximum.
For supported platforms and minimum software requirements to support
this product, see the document titled "Support for the HP BX Transceivers"
on the "HP Mini-GBICs and SFPs" Manuals Web page.
The J9142B connects to the J9143B "upstream" transceiver, or to any
IEEE-standard 1000BASE-BX10-U ("upstream") device. (A 1000-BX-D
transceiver can only connect to a 1000-BX-U product. You cannot connect
two 1000-BX-D transceivers together.)

Services

Refer to the HP website at: http://www.hp.com/networking/services for
details on the service-level descriptions and product numbers. For details
about services and response times in your area, please contact your local
HP sales office.

HP X122 1G SFP LC BX-U
Transceiver (J9143B)

A small form-factor
pluggable (SFP) Gigabit­BX (bi-directional)
"upstream" transceiver
that provides a full­duplex Gigabit solution up
to 10 km on one strand of
single-mode fiber. The
J9143B connects to the

Ports

1 LC 1000BASE-BX10 port (IEEE 802.3ah Type 1000BASE-BX10-U);
Duplex: full only

Physical characteristics
Dimensions

2.19(d) x 0.54(w) x 0.46(h) in. (5.57 x 1.37 x

1.18 cm)

Weight

0.04 lb. (0.02 kg)

Environment

Operating temperature

32ºF to 158ºF (0ºC to 70ºC)

Operating relative
humidity

0% to 95%, non-condensing

Non-operating/
Storage temperature

–40ºF to 185ºF –40ºC to 85ºC)

Cabling

Type:

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

QuickSpecs

HP 6600 Switch Series

Accessory Product Details

c04111706 — DA – 13267 Worldwide — Version 22 — July 24, 2015

Page 26

J9142B "downstream"
transceiver, or to any
IEEE-standard 1000BASE­BX10-D ("downstream")
device.

Single-mode fiber optic, complying with ITU-T G.652;

Maximum distance:

 0.5-10,000 m (single-mode fiber)

Notes

Transmit wavelength: 1310 nm. Receive wavelength: 1490 nm.
For supported platforms and minimum software requirements to support
this product, see the document titled "Support for the HP BX Transceivers"
on the "HP Mini-GBICs and SFPs" Manuals Web page.
The J9143B connects to the J9142B "downstream" transceiver, or to any
IEEE-standard 1000BASE-BX10-D ("downstream") device. (A 1000-BX-U
transceiver can only connect to a 1000-BX-D product. You cannot connect
two 1000-BX-U transceivers together.)
Power consumption is 1 watt maximum.

Services

Refer to the HP website at: www.hp.com/networking/services for details
on the service-level descriptions and product numbers. For details about
services and response times in your area, please contact your local HP
sales office.

HP X132 10G SFP+ LC ER
Transceiver (J9153A)

The SFP+ ER Transceiver
will transmit 10Gbps over
up to 40km using
standard OM3 fiber cable.
This product expands the
HP Networking
transceiver portfolio for
connections from 0m to
40km. Use only genuine
HP transceivers with your
HP Networking equipment
to ensure reliability and
support.

Ports

1 LC 10-GbE port (IEEE 802.3ae Type 10Gbase-ER); Duplex: full only

Connectivity
Connector type

LC

Wavelength

1550 nm

Physical characteristics

Dimensions

2.22(d) x 0.55(w) x 0.47(h) in. (5.65 x 1.39 x

1.19 cm)

Weight

.04 lb., Fully loaded

Transceiver form factor

SFP+

Environment

Operating temperature

32°F to 158°F (0°C to 70°C)

Operating relative
humidity

5% to 95%, noncondensing

Nonoperating/Storage
temperature

-40°F to 185°F (-40°C to 85°C)

Nonoperating/Storage
relative humidity

5% to 95%, noncondensing

Altitude

up to 10,000 ft. (3 km)

Electrical characteristics

Power consumption
typical

1.3 W

Power consumption
maximum

1.5 W

Cabling

Cable type:
Single-mode fiber optic, complying with ITU-T G.652;
Maximum distance:

 40km

Fiber type

Single Mode

Notes

Check switch release notes for minimum version of software required to
support this transceiver.
Some switches have limits as to how many of this particular transceiver can
be installed. See the release notes of the switch software/firmware being

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

QuickSpecs

HP 6600 Switch Series

Accessory Product Details

c04111706 — DA – 13267 Worldwide — Version 22 — July 24, 2015

Page 27

used for more details.

Services

Refer to the HP website at: http://www.hp.com/networking/services for
details on the service-level descriptions and product numbers. For details
about services and response times in your area, please contact your local
HP sales office.

HP X242 SFP+ SFP+ 1 m
Direct Attach Cable

(J9281B)

Connectivity

Length

3.28 ft. (1 m)

Physical characteristics

Weight

0.24 lb. (0.11 kg) the cable with an SFP+
transceiver at each end of the cable

Environment

Operating temperature

32ºF to 158ºF (0ºC to 70ºC)

Operating relative
humidity

5% to 95%, noncondensing

Nonoperating/Storage
temperature

14ºF to 185ºF (-10ºC to 85ºC)

Nonoperating/Storage
relative humidity

5% to 95%, noncondensing
Altitude

up to 10,000 ft. (3 km)

Electrical characteristics

Notes

0.04 watts maximum per transceiver end

Notes

Electrical Properties

• Cable Characteristic Impedance: 100 ohms

• Crosstalk between pairs: 2% max

• Time delay: 1.31 nsec/ft

Physical Properties

• Cable Diameter: 0.180"

• Minimum Cable Bend Radius: 1.0"

Services

Refer to the HP website at www.hp.com/networking/services for details on
the service-level descriptions and product numbers. For details about
services and response times in your area, please contact your local HP
sales office.

HP X242 SFP+ SFP+ 3 m
Direct Attach Cable

(J9283B)

Connectivity

Length

10 ft. (3 m)

Physical characteristics

Weight

.49 lb. (0.22 kg), Fully loaded the cable with an
SFP+ transceiver at each end of the cable

Environment

Operating temperature

32ºF to 158ºF (0ºC to 70ºC)

Operating relative
humidity

5% to 95%, noncondensing

Nonoperating/Storage
temperature

14ºF to 185ºF (-10ºC to 85ºC)

Nonoperating/Storage
relative humidity

5% to 95%, noncondensing
Altitude

up to 10,000 ft. (3 km)

Electrical characteristics

Notes

0.04 watts maximum per transceiver end

Notes

Electrical Properties

• Cable Characteristic Impedance: 100 ohms

• Crosstalk between pairs: 2% max

• Time delay: 1.31 nsec/ft

Physical Properties

• Cable Diameter: 0.180"

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

QuickSpecs

HP 6600 Switch Series

Accessory Product Details

c04111706 — DA – 13267 Worldwide — Version 22 — July 24, 2015

Page 28

• Minimum Cable Bend Radius: 1.0"

Services

Refer to the HP website at http://www.hp.com/networking/services for
details on the service-level descriptions and product numbers. For details
about services and response times in your area, please contact your local
HP sales office.

HP X242 SFP+ SFP+ 7 m
Direct Attach Cable

(J9285B)

Connectivity

Length

22.97 ft. (7 m)

Physical characteristics

Weight

1.02 lb., Fully loaded the cable with an SFP+
transceiver at each end of the cable

Environment

Operating temperature

32ºF to 158ºF (0ºC to 70ºC)

Operating relative
humidity

5% to 95%, noncondensing

Nonoperating/Storage
temperature

14ºF to 185ºF (-10ºC to 85ºC)

Nonoperating/Storage
relative humidity

5% to 95%, noncondensing
Altitude

up to 10,000 ft. (3 km)

Electrical characteristics

Notes

0.04 watts maximum per transceiver end

Notes

Electrical Properties

• Cable Characteristic Impedance: 100 ohms

• Crosstalk between pairs: 2% max

• Time delay: 1.31 nsec/ft

Physical Properties

• Cable Diameter: 0.180"

• Minimum Cable Bend Radius: 1.0"

Services

Refer to the HP website at www.hp.com/networking/services for details on
the service-level descriptions and product numbers. For details about
services and response times in your area, please contact your local HP
sales office.

HP X244 XFP SFP+ 1 m
Direct Attach Cable

(J9300A)

A 1m direct attach copper
cable with an XFP
connector attached on
one end and an SFP+
connector attached on the
other end. This cable
provides a low price
connectivity option
between
switches/servers/
storage to interconnect
XFP and SFP+ form
factors.

Connectivity

Length

3.28 ft. (1 m)

Physical characteristics

Weight

.27 lb. (0.12 kg), Fully loaded cable with XFP
transcevier on one end and SFP+ on the other
end

Environment

Operating temperature

32ºF to 158ºF (0ºC to 70ºC)

Operating relative
humidity

5% to 95%, noncondensing

Nonoperating/Storage
temperature

32ºF to 158ºF (0ºC to 70ºC)

Nonoperating/Storage
relative humidity

5% to 95%, noncondensing
Altitude

up to 10,000 ft. (3 km)

Notes

XFP end consumes 2 watts SFP+ end consumes 0.036 watts

Services

Refer to the HP website at http://www.hp.com/networking/services for
details on the service-level descriptions and product numbers. For details
about services and response times in your area, please contact your local
HP sales office.

HP X244 XFP SFP+ 3 m

Connectivity

Length

9.84 ft. (3 m)

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

QuickSpecs

HP 6600 Switch Series

Accessory Product Details

c04111706 — DA – 13267 Worldwide — Version 22 — July 24, 2015

Page 29

Direct Attach Cable
(J9301A)

A 3m direct attach copper
cable with an XFP
connector attached on
one end and an SFP+
connector attached on the
other end. This cable
provides a low price
connectivity option
between
switches/servers/
storage to interconnect
XFP and SFP+ form
factors.

Physical characteristics

Weight

.51 lb. (0.23 kg), Fully loaded cable with XFP
transcevier on one end and SFP+ on the other
end

Environment

Operating temperature

32ºF to 158ºF (0ºC to 70ºC)

Operating relative
humidity

5% to 95%, noncondensing

Nonoperating/Storage
temperature

32ºF to 158ºF (0ºC to 70ºC)

Nonoperating/Storage
relative humidity

5% to 95%, noncondensing
Altitude

up to 10,000 ft. (3 km)

Cabling

Maximum distance:

• 3m Direct Attach Cable

Notes

XFP end consumes 2 watts SFP+ end consumes 0.036 watts

Services

Refer to the HP website at www.hp.com/networking/services for details on
the service-level descriptions and product numbers. For details about
services and response times in your area, please contact your local HP
sales office.

HP X244 XFP SFP+ 5 m
Direct Attach Cable

(J9302A)

A 5m direct attach copper
cable with an XFP
connector attached on
one end and an SFP+
connector attached on the
other end. This cable
provides a low price
connectivity option
between
switches/servers/
storage to interconnect
XFP and SFP+ form
factors.

Connectivity

Length

16.4 ft. (5 m)

Physical characteristics

Weight

.74 lb. (0.34 kg), Fully loaded cable with XFP
transcevier on one end and SFP+ on the other
end

Environment

Operating temperature

32ºF to 158ºF (0ºC to 70ºC)

Operating relative
humidity

5% to 95%, noncondensing

Nonoperating/Storage
temperature

32ºF to 158ºF (0ºC to 70ºC)

Nonoperating/Storage
relative humidity

5% to 95%, noncondensing
Altitude

up to 10,000 ft. (3 km)

Notes

XFP end consumes 2 watts SFP+ end conumes 0.036 watts

Services

Refer to the HP website at http://www.hp.com/networking/services for
details on the service-level descriptions and product numbers. For details
about services and response times in your area, please contact your local
HP sales office.

HP 0.5 m Multimode OM3
LC/LC Optical Cable

(AJ833A)

Cabling

Cable type:

50/125 µm (core/cladding) diameter, mulitimode fiber optic, with effective
modal bandwidth of 2000 MHz/km as detailed in TIA-492AAAC for
distances of up to 300 m

Maximum distance:
10Gbps Transfer Rate (Ethernet): 300m

Notes

Cable Specs: Tight buffered duplex fiber optic multimode OM3 50/125 um
fiber optic cable and Ethernet assembly with LC duplex connectors on one
end and LC duplex connectors on other end.

 Dimensions: Core diameter: 50 ± 3.0um Cladding diameter: 125 ±

2.0um Coating diameter: 245 ± 10um

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

QuickSpecs

HP 6600 Switch Series

Accessory Product Details

c04111706 — DA – 13267 Worldwide — Version 22 — July 24, 2015

Page 30

 Optical glass: Bandwidth: For LED sources: 1500/500 MHz-km

@850/1300nm.

 Optical glass: Bandwidth: For Laser sources: 2000/500 MHz-km

@850/1300nm. VCSEL Laser sources: 600 / 600 meters
@850/1300nm for Gigabit Ethernet compliant links.

 CABLE: The cable is duplex zipcord graded index 50/125um

multimode optical fiber and designed to work in both the 850 and
1300 nm wavelength windows.

 BULK CABLE & CABLE ASSEMBLY CONFIGURATION:
 Jacket Material: Riser Grade - Low Smoke Zero Halogen

thermoplastic.

 Jacket Color: Aqua for OM3 multimode per TIA 598
 Boot Color: White
 Insertion Loss: less than 0.5 dB @ 850 with LED source, 0.003

dB/M added for lengths > 30 meters.

 Maximum Cable attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/Km @

1310 nm @ 23°C as tested in accordance with EIA 455-46.

 Weight: Air Packed Weight: 1 LB Net Weight: 0.454Kg

Services

Refer to the HP website at www.hp.com/networking/services for details on
the service-level descriptions and product numbers. For details about
services and response times in your area, please contact your local HP
sales office.

HP 1 m Multimode OM3
LC/LC Optical Cable

(AJ834A)

Cabling

Cable type:

50/125 µm (core/cladding) diameter, mulitimode fiber optic, with effective
modal bandwidth of 2000 MHz/km as detailed in TIA-492AAAC for
distances of up to 300 m

Maximum distance:
10Gbps Transfer Rate (Ethernet): 300m

Notes

Cable Specs: Tight buffered duplex fiber optic multimode OM3 50/125 um
fiber optic cable and Ethernet assembly with LC duplex connectors on one
end and LC duplex connectors on other end.

 Dimensions: Core diameter: 50 ± 3.0um Cladding diameter: 125 ±

2.0um Coating diameter: 245 ± 10um

 Optical Glass Bandwidth: For LED sources: 1500/500 MHz-km

@850/1300nm.

 Optical Glass: For Laser sources: 2000/500 MHz-km

@850/1300nm. VCSEL Laser sources: Shall achieve 600 / 600
meters @850/1300nm for Gigabit Ethernet compliant links.

 CABLE: The cable is duplex zipcord graded index 50/125um

multimode optical fiber. The cable is designed to work in both the
850 and 1300 nm wavelength windows.

 BULK CABLE & CABLE ASSEMBLY CONFIGURATION:
 Jacket Material: Riser Grade - Low Smoke Zero Halogen

thermoplastic.

 Jacket Color: Aqua for OM3 multimode per TIA 598
 Boot Color: White
 Insertion Loss: less than 0.5 dB @ 850 with LED source, 0.003

dB/M added for lengths > 30 meters.

 Maximum Cable attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/Km @

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

QuickSpecs

HP 6600 Switch Series

Accessory Product Details

c04111706 — DA – 13267 Worldwide — Version 22 — July 24, 2015

Page 31

1310 nm @ 23°C as tested in accordance with EIA 455-46.

 Weight: Air Packed Weight: 1 LB Net Weight: 0.454Kg

Services

Refer to the HP website at http://www.hp.com/networking/services for
details on the service-level descriptions and product numbers. For details
about services and response times in your area, please contact your local
HP sales office.

HP 2 m Multimode OM3
LC/LC Optical Cable

(AJ835A)

Cabling

Cable type:

50/125 µm (core/cladding) diameter, mulitimode fiber optic, with effective
modal bandwidth of 2000 MHz/km as detailed in TIA-492AAAC for
distances of up to 300 m;

Maximum distance:
10Gbps Transfer Rate (Ethernet): 300m

Notes

Cable Specs: Tight buffered duplex fiber optic multimode OM3 50/125 um
fiber optic cable and Ethernet assembly with LC duplex connectors on one
end and LC duplex connectors on other end.

 Dimensions: Core diameter: 50 ± 3.0um Cladding diameter: 125 ±

2.0um Coating diameter: 245 ± 10um

 Optical Glass Bandwidth: For LED sources: 1500/500 MHz-km

@850/1300nm.

 Optical Glass: For Laser sources: 2000/500 MHz-km

@850/1300nm. VCSEL Laser sources: Shall achieve 600 / 600
meters @850/1300nm for Gigabit Ethernet compliant links.

 CABLE: The cable is duplex zipcord graded index 50/125um

multimode optical fiber. The cable is designed to work in both the
850 and 1300 nm wavelength windows.

 BULK CABLE & CABLE ASSEMBLY CONFIGURATION:
 Jacket Material: Riser Grade - Low Smoke Zero Halogen

thermoplastic.

 Jacket Color: Aqua for OM3 multimode per TIA 598
 Boot Color: White
 Insertion Loss: less than 0.5 dB @ 850 with LED source, 0.003

dB/M added for lengths > 30 meters.

 Maximum Cable attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/Km @

1310 nm @ 23°C as tested in accordance with EIA 455-46.

 Weight: Air Packed Weight: 1 LB Net Weight: 0.454Kg

Services

Refer to the HP website at www.hp.com/networking/services for details on
the service-level descriptions and product numbers. For details about
services and response times in your area, please contact your local HP
sales office.

HP 5 m Multimode OM3
LC/LC Optical Cable

(AJ836A)

Cabling

Cable type:

50/125 µm core/cladding) diameter, mulitimode fiber optic, with effective
modal bandwidth of 2000 MHz/km as detailed in TIA-492AAAC for
distances of up to 300 m;

Maximum distance:
10Gbps Transfer Rate (Ethernet): 300m

Notes

Cable Specs: This specification defines the detail requirements for a tight

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

QuickSpecs

HP 6600 Switch Series

Accessory Product Details

c04111706 — DA – 13267 Worldwide — Version 22 — July 24, 2015

Page 32

buffered duplex fiber optic multimode OM3 50/125 um fiber optic cable
and Ethernet assembly with LC duplex connectors on one end and LC
duplex connectors on other end.

 Dimensions: Core diameter: 50 ± 3.0um Cladding diameter: 125 ±

2.0um Coating diameter: 245 ± 10um

 Optical Glass Bandwidth: For LED sources: 1500/500 MHz-km

@850/1300nm.

 Optical Glass: For Laser sources: 2000/500 MHz-km

@850/1300nm. VCSEL Laser sources: Shall achieve 600 / 600
meters @850/1300nm for Gigabit Ethernet compliant links.

 CABLE: The cable is duplex zipcord graded index 50/125um

multimode optical fiber. The cable is designed to work in both the
850 and 1300 nm wavelength windows.

 BULK CABLE & CABLE ASSEMBLY CONFIGURATION:
 Jacket Material: Riser Grade - Low Smoke Zero Halogen

thermoplastic.

 Jacket Color: Aqua for OM3 multimode per TIA 598
 Boot Color: White
 Insertion Loss: less than 0.5 dB @ 850 with LED source, 0.003

dB/M added for lengths > 30 meters.

 Maximum Cable attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/Km @

1310 nm @ 23°C as tested in accordance with EIA 455-46.

 Weight: Air Packed Weight: 1 LB Net Weight: 0.454Kg

Services

Refer to the HP website at http://www.hp.com/networking/services for
details on the service-level descriptions and product numbers. For details
about services and response times in your area, please contact your local
HP sales office.

HP 15 m Multimode OM3
LC/LC Optical Cable

(AJ837A)

Cabling

Cable type:

50/125 µm (core/cladding) diameter, mulitimode fiber optic, with effective
modal bandwidth of 2000 MHz/km as detailed in TIA-492AAAC for
distances of up to 300 m;

Maximum distance:
10Gbps Transfer Rate (Ethernet): 300m

Notes

Cable Specs: Tight buffered duplex fiber optic multimode OM3 50/125 um
fiber optic cable and Ethernet assembly with LC duplex connectors on one
end and LC duplex connectors on other end.

 Dimensions: Core diameter: 50 ± 3.0um Cladding diameter: 125 ±

2.0um Coating diameter: 245 ± 10um

 Optical Glass Bandwidth: For LED sources: 1500/500 MHz-km

@850/1300nm.

 Optical Glass: For Laser sources: 2000/500 MHz-km

@850/1300nm. VCSEL Laser sources: Shall achieve 600 / 600
meters @850/1300nm for Gigabit Ethernet compliant links.

 CABLE: The cable is duplex zipcord graded index 50/125um

multimode optical fiber. The cable is designed to work in both the
850 and 1300 nm wavelength windows.

 BULK CABLE & CABLE ASSEMBLY CONFIGURATION:
 Jacket Material: Riser Grade - Low Smoke Zero Halogen

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

QuickSpecs

HP 6600 Switch Series

Accessory Product Details

c04111706 — DA – 13267 Worldwide — Version 22 — July 24, 2015

Page 33

thermoplastic.

 Jacket Color: Aqua for OM3 multimode per TIA 598
 Boot Color: White
 Insertion Loss: less than 0.5 dB @ 850 with LED source, 0.003

dB/M added for lengths > 30 meters.

 Maximum Cable attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/Km @

1310 nm @ 23°C as tested in accordance with EIA 455-46.

 Weight: Air Packed Weight: 1 LB Net Weight: 0.454Kg

Services

Refer to the HP website at www.hp.com/networking/services for details on
the service-level descriptions and product numbers. For details about
services and response times in your area, please contact your local HP
sales office.

HP 30 m Multimode OM3
LC/LC Optical Cable

(AJ838A)

Cabling

Cable type:

50/125 µm (core/cladding) diameter, mulitimode fiber optic, with effective
modal bandwidth of 2000 MHz/km as detailed in TIA-492AAAC for
distances of up to 300 m;

Maximum distance:
10Gbps Transfer Rate (Ethernet): 300m

Notes

Cable Specs: Tight buffered duplex fiber optic multimode OM3 50/125 um
fiber optic cable and Ethernet assembly with LC duplex connectors on one
end and LC duplex connectors on other end.

 Dimensions: Core diameter: 50 ± 3.0um Cladding diameter: 125 ±

2.0um Coating diameter: 245 ± 10um

 Optical Glass Bandwidth: For LED sources: 1500/500 MHz-km

@850/1300nm.

 Optical Glass: For Laser sources: 2000/500 MHz-km

@850/1300nm. VCSEL Laser sources: Shall achieve 600 / 600
meters @850/1300nm for Gigabit Ethernet compliant links.

 CABLE: The cable is duplex zipcord graded index 50/125um

multimode optical fiber. The cable is designed to work in both the
850 and 1300 nm wavelength windows.

 BULK CABLE & CABLE ASSEMBLY CONFIGURATION:
 Jacket Material: Riser Grade - Low Smoke Zero Halogen

thermoplastic.

 Jacket Color: Aqua for OM3 multimode per TIA 598
 Boot Color: White
 Insertion Loss: less than 0.5 dB @ 850 with LED source, 0.003

dB/M added for lengths > 30 meters.

 Maximum Cable attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/Km @

1310 nm @ 23°C as tested in accordance with EIA 455-46.

 Weight: Air Packed Weight: 1 LB Net Weight: 0.454Kg

Services

Refer to the HP website at http://www.hp.com/networking/services for
details on the service-level descriptions and product numbers. For details
about services and response times in your area, please contact your local
HP sales office.

HP 50 m Multimode OM3
LC/LC Optical Cable

Cabling

Cable type:

50/125 µm (core/cladding) diameter, mulitimode fiber optic, with effective

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

QuickSpecs

HP 6600 Switch Series

Accessory Product Details

c04111706 — DA – 13267 Worldwide — Version 22 — July 24, 2015

Page 34

(AJ839A)

modal bandwidth of 2000 MHz/km as detailed in TIA-492AAAC for
distances of up to 300 m;

Maximum distance:
10Gbps Transfer Rate (Ethernet): 300m

Notes

Cable Specs: Tight buffered duplex fiber optic multimode OM3 50/125 um
fiber optic cable and Ethernet assembly with LC duplex connectors on one
end and LC duplex connectors on other end.

 Dimensions: Core diameter: 50 ± 3.0um Cladding diameter: 125 ±

2.0um Coating diameter: 245 ± 10um

 Optical Glass Bandwidth: For LED sources: 1500/500 MHz-km

@850/1300nm.

 Optical Glass: For Laser sources: 2000/500 MHz-km

@850/1300nm. VCSEL Laser sources: Shall achieve 600 / 600
meters @850/1300nm for Gigabit Ethernet compliant links.

 CABLE: The cable is duplex zipcord graded index 50/125um

multimode optical fiber. The cable is designed to work in both the
850 and 1300 nm wavelength windows.

 BULK CABLE & CABLE ASSEMBLY CONFIGURATION:
 Jacket Material: Riser Grade - Low Smoke Zero Halogen

thermoplastic.

 Jacket Color: Aqua for OM3 multimode per TIA 598
 Boot Color: White
 Insertion Loss: less than 0.5 dB @ 850 with LED source, 0.003

dB/M added for lengths > 30 meters.

 Maximum Cable attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/Km @

1310 nm @ 23°C as tested in accordance with EIA 455-46.

 Weight: Air Packed Weight: 1 LB Net Weight: 0.454Kg

Services

Refer to the HP website at www.hp.com/networking/services for details on
the service-level descriptions and product numbers. For details about
services and response times in your area, please contact your local HP
sales office.

HP Premier Flex LC/LC
Multi-mode OM4 2 fiber
1m Cable (QK732A)

Notes

Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+
50/125um duplex cable and Ethernet assembly with LC duplex connectors
on each end.

• Core Diameter: 50um ±3um, Cladding diameter: 125um ±2um; Coating

diameter: 245 ± 10um

• Bandwidth: 3000 MHz-km @ 850nm (Laser)

• Jacket Color: Blue

• Jacket Material: Riser Grade – Low Smoke Zero Halogen (LSZH)

thermoplastic

• Boot Color: White

• Outer Jacket Print: HP PremierFlex OM3+ Fiber Optic Cable, 50/125um,

Type OFNR (UL), LSZH, cUL, OFN FT4, ROHS. Cable also has a longitudinal
white stripe that runs the entire length of the cable.

• Insertion Loss: Less than 0.5dB @ 850nm with LED source, 0.003dB/m
added for lengths >30m

• Maximum Cable Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1310nm

@ 23°C as tested in accordance with EIA 455-45

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

QuickSpecs

HP 6600 Switch Series

Accessory Product Details

c04111706 — DA – 13267 Worldwide — Version 22 — July 24, 2015

Page 35

Services

Refer to the HP website at http://www.hp.com/networking/services for
details on the service-level descriptions and product numbers. For details
about services and response times in your area, please contact your local
HP sales office.

HP Premier Flex LC/LC
Multi-mode OM4 2 fiber
2m Cable (QK733A)

Notes

Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+
50/125um duplex cable and Ethernet assembly with LC duplex connectors
on each end.

• Core diameter: 50um ±3um, Cladding diameter: 125um ±2um; Coating

diameter: 245 ± 10um

• Bandwidth: 3000 MHz-km @ 850nm (Laser)

• Jacket Color: Blue

• Jacket Material: Riser Grade – Low Smoke Zero Halogen (LSZH)

thermoplastic

• Boot Color: White

• Outer Jacket Print: HP PremierFlex OM3+ Fiber Optic Cable, 50/125um,

Type OFNR (UL), LSZH, cUL, OFN FT4, ROHS. Cable also has a longitudinal
white stripe that runs the entire length of the cable.

• Insertion Loss: Less than 0.5dB @ 850nm with LED source, 0.003dB/m

added for lengths >30m

• Maximum Cable Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1310nm

@ 23°C as tested in accordance with EIA 455-45

Services

Refer to the HP website at www.hp.com/networking/services for details on
the service-level descriptions and product numbers. For details about
services and response times in your area, please contact your local HP
sales office.

HP Premier Flex LC/LC
Multi-mode OM4 2 fiber
5m Cable (QK734A)

Notes

Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+
50/125um duplex cable and Ethernet assembly with LC duplex connectors
on each end.

• Core diameter: 50um ±3um, Cladding diameter: 125um ±2um; Coating

diameter: 245 ± 10um

• Bandwidth: 3000 MHz-km @ 850nm (Laser)

• Jacket Color: Blue

• Jacket Material: Riser Grade – Low Smoke Zero Halogen (LSZH)

thermoplastic

• Boot Color: White

• Outer Jacket Print: HP PremierFlex OM3+ Fiber Optic Cable, 50/125um,

Type OFNR (UL), LSZH, cUL, OFN FT4, ROHS. Cable also has a longitudinal
white stripe that runs the entire length of the cable.

• Insertion Loss: Less than 0.5dB @ 850nm with LED source, 0.003dB/m
added for lengths >30m

• Maximum Cable Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1310nm

@ 23°C as tested in accordance with EIA 455-45

Services

Refer to the HP website at http://www.hp.com/networking/services for
details on the service-level descriptions and product numbers. For details
about services and response times in your area, please contact your local
HP sales office.

HP Premier Flex LC/LC
Multi-mode OM4 2 fiber

Notes

Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+
50/125um duplex cable and Ethernet assembly with LC duplex connectors

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

QuickSpecs

HP 6600 Switch Series

Accessory Product Details

c04111706 — DA – 13267 Worldwide — Version 22 — July 24, 2015

Page 36

15m Cable (QK735A)

on each end.

• Core diameter: 50um ±3um, Cladding diameter: 125um ±2um; Coating

diameter: 245 ± 10um

• Bandwidth: 3000 MHz-km @ 850nm (Laser)

• Jacket Color: Blue

• Jacket Material: Riser Grade – Low Smoke Zero Halogen (LSZH)

thermoplastic

• Boot Color: White

• Outer Jacket Print: HP PremierFlex OM3+ Fiber Optic Cable, 50/125um,

Type OFNR (UL), LSZH, cUL, OFN FT4, ROHS. Cable also has a longitudinal
white stripe that runs the entire length of the cable.

• Insertion Loss: Less than 0.5dB @ 850nm with LED source, 0.003dB/m

added for lengths >30m

• Maximum Cable Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1310nm
@ 23°C as tested in accordance with EIA 455-45

Services

Refer to the HP website at www.hp.com/networking/services for details on
the service-level descriptions and product numbers. For details about
services and response times in your area, please contact your local HP
sales office.

HP Premier Flex LC/LC
Multi-mode OM4 2 fiber
30m Cable (QK736A)

Notes

Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+
50/125um duplex cable and Ethernet assembly with LC duplex connectors
on each end.

• Core diameter: 50um ±3um, Cladding diameter: 125um ±2um; Coating

diameter: 245 ± 10um

• Bandwidth: 3000 MHz-km @ 850nm (Laser)

• Jacket Color: Blue

• Jacket Material: Riser Grade – Low Smoke Zero Halogen (LSZH)

thermoplastic

• Boot Color: White

• Outer Jacket Print: HP PremierFlex OM3+ Fiber Optic Cable, 50/125um,

Type OFNR (UL), LSZH, cUL, OFN FT4, ROHS. Cable also has a longitudinal
white stripe that runs the entire length of the cable.

• Insertion Loss: Less than 0.5dB @ 850nm with LED source, 0.003dB/m
added for lengths >30m

• Maximum Cable Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1310nm

@ 23°C as tested in accordance with EIA 455-45

Services

Refer to the HP website at http://www.hp.com/networking/services for
details on the service-level descriptions and product numbers. For details
about services and response times in your area, please contact your local
HP sales office.

HP Premier Flex LC/LC
Multi-mode OM4 2 fiber
50m Cable (QK737A)

Notes

Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+
50/125um duplex cable and Ethernet assembly with LC duplex connectors
on each end.

• Core diameter: 50um ±3um, Cladding diameter: 125um ±2um; Coating
diameter: 245 ± 10um

• Bandwidth: 3000 MHz-km @ 850nm (Laser)

• Jacket Color: Blue

• Jacket Material: Riser Grade – Low Smoke Zero Halogen (LSZH)

thermoplastic

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

QuickSpecs

HP 6600 Switch Series

Accessory Product Details

c04111706 — DA – 13267 Worldwide — Version 22 — July 24, 2015

Page 37

• Boot Color: White

• Outer Jacket Print: HP PremierFlex OM3+ Fiber Optic Cable, 50/125um,

Type OFNR (UL), LSZH, cUL, OFN FT4, ROHS. Cable also has a longitudinal
white stripe that runs the entire length of the cable.

• Insertion Loss: Less than 0.5dB @ 850nm with LED source, 0.003dB/m

added for lengths >30m

• Maximum Cable Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1310nm
@ 23°C as tested in accordance with EIA 455-45

Services

Refer to the HP website at www.hp.com/networking/services for details on
the service-level descriptions and product numbers. For details about
services and response times in your area, please contact your local HP
sales office.

HP BLc SFP+ 0.5m 10GbE
Copper Cable (487649-

B21)

Connectivity

Length

1.64 ft. (0.5 m)

Physical characteristics

Weight

.18 lb. (0.08 kg) the cable with an SFP+
transceiver at each end of the cable

Environment

Operating temperature

32°F to 158°F (0°C to 70°C)

Operating relative
humidity

5% to 95%, noncondensing

Nonoperating/Storage
temperature

14°F to 185°F (-10°C to 85°C)

Nonoperating/Storage
relative humidity

5% to 95%, noncondensing
Altitude

up to 10,000 ft. (3 km)

Electrical characteristics

Notes

0.04 watts maximum per transceiver end

Notes

Electrical Properties

• Cable Characteristic Impedance: 100 ohms

• Crosstalk between pairs: 2% max

• Time delay: 1.31 nsec/ft

Physical Properties

• Cable Diameter: 0.180"

• Minimum Cable Bend Radius: 1.0"

Services

Refer to the HP website at: http://www.hp.com/networking/services for
details on the service-level descriptions and product numbers. For details
about services and response times in your area, please contact your local
HP sales office.

HP BLc SFP+ 1m 10GbE
Copper Cable (487652-

B21)

Connectivity

Length

3.28 ft. (1 m)

Physical characteristics

Weight

.24 lb. (0.11 kg) the cable with an SFP+
transceiver at each end of the cable

Environment

Operating temperature

32°F to 158°F (0°C to 70°C)

Operating relative
humidity

5% to 95%, noncondensing

Nonoperating/Storage
temperature

14°F to 185°F (-10°C to 85°C)

Nonoperating/Storage
relative humidity

5% to 95%, noncondensing
Altitude

up to 10,000 ft. (3 km)

Electrical characteristics

Notes

0.04 watts maximum per transceiver end

Notes

Electrical Properties

• Cable Characteristic Impedance: 100 ohms

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

QuickSpecs

HP 6600 Switch Series

Accessory Product Details

c04111706 — DA – 13267 Worldwide — Version 22 — July 24, 2015

Page 38

• Crosstalk between pairs: 2% max

• Time delay: 1.31 nsec/ft

Physical Properties

• Cable Diameter: 0.180"

• Minimum Cable Bend Radius: 1.0"

Services

Refer to the HP website at: www.hp.com/networking/services for details on
the service-level descriptions and product numbers. For details about
services and response times in your area, please contact your local HP
sales office.

HP BLc SFP+ 3m 10GbE
Copper Cable (487655-

B21)

Connectivity

Length

9.84 ft. (3 m)

Physical characteristics

Weight

0.49 lb. (0.22 kg) the cable with an SFP+
transceiver at each end of the cable

Environment

Operating temperature

32°F to 158°F (0°C to 70°C)

Operating relative
humidity

5% to 95%, noncondensing

Nonoperating/Storage
temperature

14°F to 185°F (-10°C to 85°C)

Nonoperating/Storage
relative humidity

5% to 95%, noncondensing
Altitude

up to 10,000 ft. (3 km)

Electrical characteristics

Notes

0.04 watts maximum per transceiver end

Notes

Electrical Properties

• Cable Characteristic Impedance: 100 ohms

• Crosstalk between pairs: 2% max

• Time delay: 1.31 nsec/ft

Physical Properties

• Cable Diameter: 0.180"

• Minimum Cable Bend Radius: 1.0"

Services

Refer to the HP website at: http://www.hp.com/networking/services for
details on the service-level descriptions and product numbers. For details
about services and response times in your area, please contact your local
HP sales office.

HP BLc SFP+ 5m 10GbE
Copper Cable (537963-

B21)

Connectivity

Length

16.40 ft. (5 m)

Physical characteristics

Weight

0.75 lb. (0.34 kg) the cable with an SFP+
transceiver at each end of the cable

Environment

Operating temperature

32°F to 158°F (0°C to 70°C)

Operating relative
humidity

5% to 95%, noncondensing

Nonoperating/Storage
temperature

14°F to 185°F (-10°C to 85°C)

Nonoperating/Storage
relative humidity

5% to 95%, noncondensing
Altitude

up to 10,000 ft. (3 km)

Electrical characteristics

Notes

0.04 watts maximum per transceiver end

Notes

Electrical Properties

• Cable Characteristic Impedance: 100 ohms

• Crosstalk between pairs: 2% max

• Time delay: 1.31 nsec/ft

Physical Properties

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

QuickSpecs

HP 6600 Switch Series

Accessory Product Details

c04111706 — DA – 13267 Worldwide — Version 22 — July 24, 2015

Page 39

• Cable Diameter: 0.180"

• Minimum Cable Bend Radius: 1.0"

Services

Refer to the HP website at: www.hp.com/networking/services for details on
the service-level descriptions and product numbers. For details about
services and response times in your area, please contact your local HP
sales office.

HP BLc SFP+ 7m 10GbE
Copper Cable (487658-

B21)

Connectivity

Length

22.96 ft. (7 m)

Physical characteristics

Weight

1.01 lb. (0.46 kg) the cable with an SFP+
transceiver at each end of the cable

Environment

Operating temperature

32°F to 158°F (0°C to 70°C)

Operating relative
humidity

5% to 95%, noncondensing

Nonoperating/Storage
temperature

14°F to 185°F (-10°C to 85°C)

Nonoperating/Storage
relative humidity

5% to 95%, noncondensing
Altitude

up to 10,000 ft. (3 km)

Electrical characteristics

Notes

0.04 watts maximum per transceiver end

Notes

Electrical Properties

• Cable Characteristic Impedance: 100 ohms

• Crosstalk between pairs: 2% max

• Time delay: 1.31 nsec/ft

Physical Properties

• Cable Diameter: 0.180"

• Minimum Cable Bend Radius: 1.0"

Services

Refer to the HP website at: http://www.hp.com/networking/services for
details on the service-level descriptions and product numbers. For details
about services and response times in your area, please contact your local
HP sales office.

HP 6600 Switch Power
Supply (J9269A)

Physical characteristics
Dimensions

9.37(d) x 3.39(w) x 1.5(h) in. (23.8 x 8.6 x 3.8
cm)

Weight

2.45 lb. (1.11 kg)

Environment

Operating temperature

41ºF to 104ºF (5ºC to 40ºC)

Operating relative
humidity

15% to 80% @ 104ºF (40ºC), non-condensing

Non-operating/
Storage temperature

-40ºF to 158ºF (-40ºC to 70ºC)

Non-operating/
Storage relative
humidity

15% to 90% @ 104ºF (40ºC), non-condensing

Altitude

up to 10,000 ft. (3 km)

Electrical characteristics

Notes

Notes: Power draw and heat dissipation are
dependent on the number of power supplies
installed.

Services

Refer to the HP website at: www.hp.com/networking/services for details on
the service-level descriptions and product numbers. For details about
services and response times in your area, please contact your local HP
sales office.

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

QuickSpecs

HP 6600 Switch Series

Accessory Product Details

c04111706 — DA – 13267 Worldwide — Version 22 — July 24, 2015

Page 40

HP 6600 Series Rack Kit
(J9469A)

Notes

Rack kit can be used to mount any of the E6600 switches (J9263A, J9264A,
J9265A, J9451A, and J9452A) in HP 10K or other 3rd party 4-post racks.
Shipping weight: 5 lbs.

Services

Refer to the HP website at: http://www.hp.com/networking/services for
details on the service-level descriptions and product numbers. For details
about services and response times in your area, please contact your local
HP sales office.

HP 6600 Switch Premium
License (J9305A)

Services

3-Year, 9x5 SW phone support, software updates (UT479E)
3-year, 24x7 SW phone support, software updates (UT480E)
4-year, 24x7 SW phone support, software updates (UT456E)
5-year, 24x7 SW phone support, software updates (UT457E)
1-year, 24x7 software phone support, software updates (HS531E)

Refer to the HP website at: www.hp.com/networking/services for details
on the service-level descriptions and product numbers. For details about
services and response times in your area, please contact your local HP
sales office.

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

QuickSpecs

HP 6600 Switch Series

Summary of Changes

c04111706 — DA – 13267 Worldwide — Version 22 — July 24, 2015

Page 41

Date

Version History

Action

Description of Change:

24-Jul-2015

From Version 21 to
22

Changed

This QuickSpecs was retired; no further updates will be
made.

02-Dec-2014

From Version 20 to
21

Changed

SKU J9054B changes to J9054C

04-Feb-2014

From Version 19 to
20

Removed

Removed two EOL models.

22-Nov-2013

From Version 18 to
19

Changed

Notes were revised in Configuration.

12-Nov-2013

From Version 17 to
18

Changed

Build to Order, Rack Level Integration CTO Models,
Internal Power Supplies, and Cables were revised in
Configuration.

12-Jul-2013

From Version 16 to
17

Added

Configuration was added.

10-Jun-2013

From Version 15 to
16

Added

OM4 cables were added.

24-Sep-2012

From Version 14 to
15

Changed

Updated Features and Benefits, Introduction, the
specifications, and Accessories.

25-Jun-2012

From Version 13 to
14

Changed

Updated Features and Benefits, Introduction, the
specifications, and Accessories.

27-Mar-2012

From Version 12 to
13

Added

Added two new cables to the Accessories section.

26-Sep-2011

From Version 11 to
12

Changed

Accessories were revised and Accessory Product Details
was added.

05-Jul-2011

From Version 10 to
11

Removed

Removed two cables from the Accessories section.
20-Jun-2011

From Version 9 to 10

Changed

Accessories were revised.

25-Oct-2010

From Version 8 to 9

Changed

The QuickSpec was rewritten, including changing the title.

02-Jun-2010

From Version 7 to 8

Changed

Updated the Notes section of Technical Specifications.

Updated Standards and Protocols

Added new cables to the Accessories section.

10-Feb-2010

From Version 6 to 7

Changed

The document was completely revised.

23-Oct-2009

From Version 5 to 6

Changed

Updated the part numbers for the Direct Attach Cables.

20-Aug-2009

From Version 4 to 5

Changed

Updated the warranty note and reordered the Accessories
section.

13-Jul-2009

From Version 3 to 4

Changed

Standards and Protocols were updated in the
specifications for each model.

22-Jun-2009

From Version 2 to 3

Changed

In the Accessories, ProCurve Manager was updated to
version 3.0.

04-Jun-2009

From Version 1 to 2

Changed

The Introduction, Accessories, and the Management and
Notes sections of Technical Specifications were updated.

To learn more, visit: http://www.hp.com/networking

© Copyright 2015-2014 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

QuickSpecs

HP 6600 Switch Series

Summary of Changes

c04111706 — DA – 13267 Worldwide — Version 22 — July 24, 2015

Page 42

without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying
such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for
technical or editorial errors or omissions contained herein.
Microsoft is a U.S. registered trademark of Microsoft Corporation.

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.
