QuickSpecs
HP SN6000 Stackable Fibre Channel Switch
Overview
The HP SN6000 Stackable 8Gb Fibre Channel switch simplifies SAN deployment in SMB to Enterprise environments with an affordable
and easy to manage SAN solution, while delivering scaling efficiency that keeps up with fibre channel port growth as the network
expands. Built with low-cost, high-performance scalability in mind, each SN6000 features up to 20 FC device ports enabled supporting
8/4/2 Gbps speeds, plus 4 dedicated high-speed 10/20 Gbps stacking ports for linking/stacking SN6000 switches. Heterogeneous
fabric connection is simplified too with Transparent Router (TR) functionality, standard in H-series switches (SN6000 and 8/20q), by
providing seamless, non-disruptive interoperability and access to servers and storage on HP B-series and HP C-series SANs. The
economical H-series SAN solution includes SAN Connection Manager (SCM) software for complete end-to-end fabric management. With
SSCM software it's easy to provision storage as well as manage HBAs and switches from a single screen that offers a comprehensive
topology view of the SAN. SCM software simplicity does not end with H-series switches. The software integrates with HP Virtual
Connect Enterprise Manager (VCEM) environments by providing an end-to-end integrated solution to manage HP Bladesystem c-class
via, HP Virtual Connect Enterprise Manager (VCEM), and P2000 MSA storage array/EVA storage with SN6000 switches via one
management interface.
No other 8Gb FC switch, available in the industry, offers the scaling efficiencies as the SN6000 stackable fibre channel switch. IT
Storage growth is escalating, while demand for more SAN access is increasing. Adding more usable FC ports in the data center is full of
challenges, but with the SN6000 switch it's as simple as stacking SN6000 switches. Begin with 20 device ports for an affordable
solution and add new stacking switches and save more money for up to 120 usable device ports per stack (single manageable unit), or
>500 ports in multi-stack topologies. To achieve higher performance 10 Gbps stacking ports may be upgraded to 20 Gbps speed at any
time, non-disruptively, extending the solution lifespan while preserving current investments. Best of all no matter how large a stacking
SAN becomes; it's managed as one logical end-to-end fabric with plenty of availability features to prevent downtime.
HP SN6000 Stackable Fibre Channel Switch
Scaling efficiencies: SN6000 easily accommodates IT budgets with dual stacks,
multiple stacks or large enterprise multi-stack deployments
Dedicated 10 Gbps/20 Gbps stacking ports give IT managers all the headroom they need to deploy new applications and technologies
with confidence. Need more ports? Simply add another switch to the stack for easy non-disruptive expansion to 120 ports and up to
five 120 device port stacks supporting greater than 500 device ports. Need more bandwidth? Simply apply the 20 Gbps Stacking (ISL)
port upgrade for growth and performance.
DA - 13553 Worldwide — Version 14 — May 9, 2014
Page 1
QuickSpecs
HP SN6000 Stackable Fibre Channel Switch
Overview
New RoHS compliant HP Multifunction Router
NOTE:
Restriction of Hazardous Substances Directive or RoHS is a directive adopted by the European Union that restricts the use of
certain hazardous materials in the manufacture of various types of electronic and electrical equipment. The ROHS compliant products
with new part numbers listed in this document are functionally equivalent to the corresponding products with old part numbers and are
fully interchangeable.
Key Features and Benefits
Build a scalable SAN with less hardware and less complexity
The SN6000 single-power supply model can be ordered with 8 - 8 Gbps device ports enabled (BK780B) or 20 - 8 Gbps
device ports enabled (AW575B)
Enable additional ports, on the BK780B , in 4-port increments with a license, for a maximum of 20 FC device ports
per switch
The SN6000 dual-power supply model (AW576B) can be ordered with 20 - 8 Gbps device ports enabled
Four (4) 10 Gbps/20 Gbps Stacking (ISL)Ports
120 ports per stack, more in a multi-stack SAN configuration (>500 FC ports)
Hot-swappable dual power supply/FAN model, non-disruptive code load - high-availability stacking configurations
(AW576B)
Fewer cables and less switches to manage compared to non-stacking switches
Affordable High Performance
Industry leading ASIC technology: < 200ns latency
20 Gbps ISL stacking port upgrade option
Adaptive Trunking included with no added charges- Optimal and affordable ISL performance
544 Gbps aggregate bandwidth per switch
Low-cost HP standard SFP/SFP+ optics (4 Gbps/8 Gbps)
Gain operationally efficiencies with unique SAN management software
Integrated end-to-end fabric management-server to storage
Integration with HP Virtual Connect Enterprise Manager (VCEM) for end-to-end management of HP BladeSystem c-Class
to HP EVA or MSA arrays, switches and HBA in one easy to use interface.
Microsoft Exchange wizard eliminates user error
Drag-and-drop zoning
Adaptive Trunking
Includes IO StreamGuard
Enterprise Fabric Management Suite software (EFMS) for managing and monitoring larger SANs (optional)
Interoperability
Transparent Router functionality- Seamless operation: HP B and C-series SANs
SN6000 and 8/20q via device port -> ISL
What's new
New RoHS compliant HP SN6000 Stackable Fibre Channel Switch
NOTE:
Restriction of Hazardous Substances Directive or RoHS is a directive adopted by the European Union that restricts the use of
certain hazardous materials in the manufacture of various types of electronic and electrical equipment. The ROHS compliant products
with new part numbers listed in this document are functionally equivalent to the corresponding products with old part numbers and are
fully interchangeable.
DA - 13553 Worldwide — Version 14 — May 9, 2014
Page 2
QuickSpecs
Models
HP SN6000 Stackable Fibre Channel Switch
HP SN6000 Fibre Channel
Switch
HP SN6000 Stackable 8Gb 24-port Single Power Fibre Channel Switch
HP SN6000 Stackable 8 Gb 24-port Dual Power Fibre Channel Switch
HP SN6000 Stackable 8 Gb 12-port Single Power Fibre Channel Switch
*#0D1 may appear after this part number on your sales order when factory integration
is indicated.
1
The AW575B and BK780B single power supply model is not field upgradeable to a dual
power supply model.
1
1
AW575B
AW576B
BK780B
*
*
*
DA - 13553 Worldwide — Version 14 — May 9, 2014
Page 3
QuickSpecs
Product Highlights
HP SN6000 Stackable Fibre Channel Switch
Configuration and
interoperability support
High-availability features
Security features
The HP SN6000 Fibre Channel Switch will interoperate with other H-series switches, HP SN6000 and HP
8/20q Fibre Channel Switches, running the firmware version defined in the SAN Design Guide:
http://www.hp.com/go/sandesignguide
The HP SN6000 Fibre Channel Switch will also interoperate with HP B-series and C-series fabrics using
Transparent Router (TR) technology. For details and supported firmware versions, refer to the SAN Design
Guide:
http://www.hp.com/go/sandesignguide
Hot-swappable power supply and fan module (Dual power supply model)
Hot-swappable 8 Gbps SFP+ and 4 Gbps SFP optical transceivers
Non-Disruptive Code Load and Activation (NDCLA)
Non-Disruptive 20 Gbps ISL Upgrade License Activation
I/O StreamGuard
Configure switches in redundant stacking configurations
User Security
User Accounts
RADIUS Authentication
Connection security
SSH (CLI)
SSL (EFS and SMI-S)
Device security
FC-SP DH-CHAP
FC-GS-6 CT Authentication
Easy manageability
SAN Connection Manager (SCM)
Enterprise Fabric Management Suite (Optional)
QuickTools with stack management enabled
Command Line Interface
SMI-S v1.1 provider
GS-4 Management Server (including FDMI)
SNMP
FTP
TFTP
RADIUS
DA - 13553 Worldwide — Version 14 — May 9, 2014
Page 4
QuickSpecs
Product Highlights
HP SN6000 Stackable Fibre Channel Switch
H-series solutions
Scaling efficiency
The following HP products combine with HP H-series switches to provide unique, and comprehensive endto-end solutions that are powerfully simple to manage.
HP BladeSystem c-Class chassis
HP Virtual Connect Fibre Channel module for the HP BladeSystem c-Class enclosure
HP Virtual Connect Enterprise Manager (VCEM)
HP SAN Connection Manager (SCM)
HP Enterprise Virtual Array (P6000/EVA), or Modular Storage Array (P2000/MSA)
HP Command View EVA Software & HP P6000 Command View Software
HP Continuous Access EVA Software
HP P6000 Continuous Access Software
HP FC HBAs for the HP BladeSystem c-Class Enclosure
HP H-series Fibre Channel switches (SN6000 and 8/20q)
HP MPX200 Multifunction Router (H-series switches and FCIP gateway for remote replication)
All topologies supported: cascade, ring, and mesh
Available models
8 device ports enabled + 4 stacking (ISL) ports (single-power supply model - BK780A)
Expand BK780B model to 20 ports in 4 port increments with a license
20 device ports enabled + 4 stacking (ISL) ports: single-power supply model (AW575B) and
dual-power supply model (AW576B)

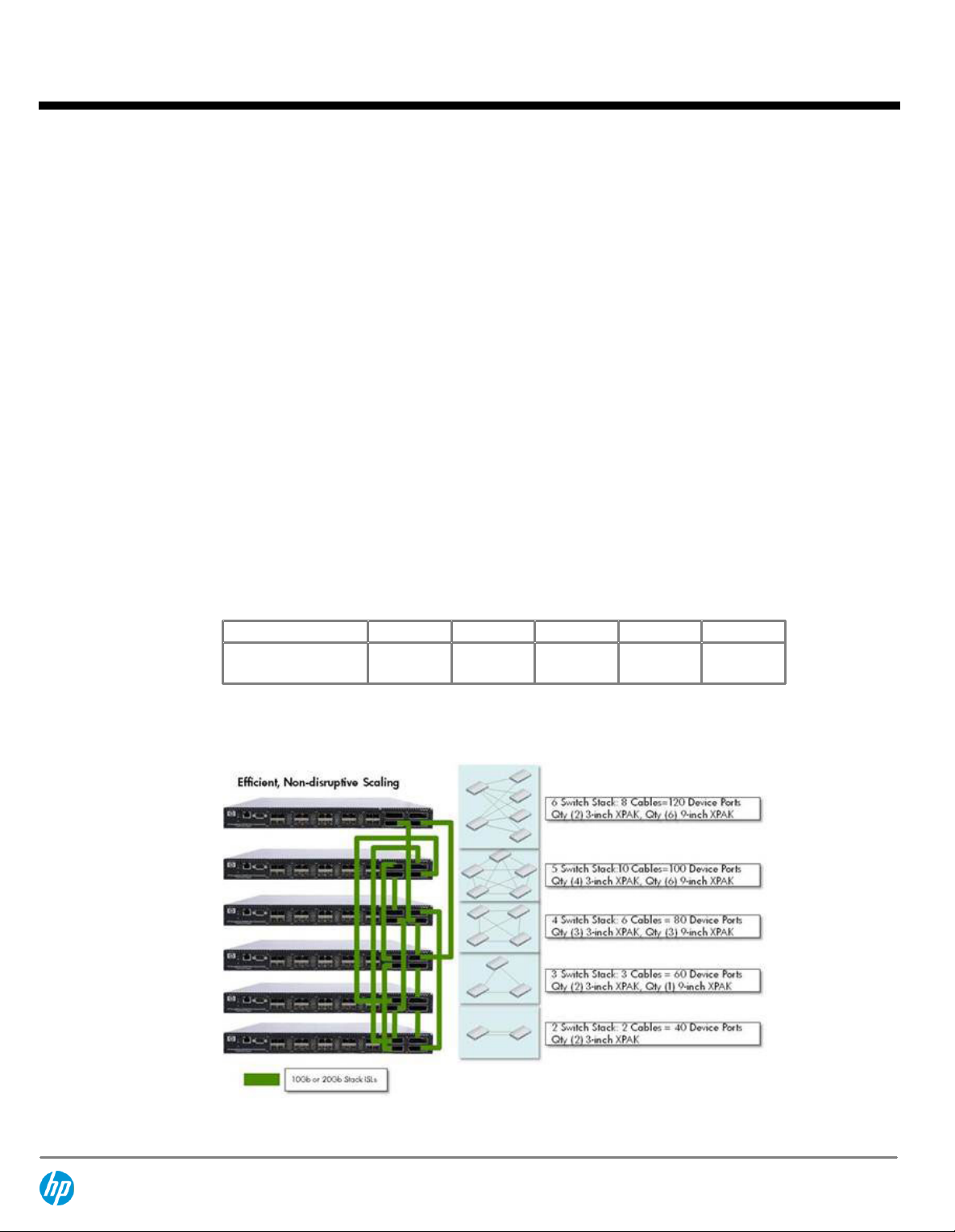

Supports stacks of two to six switches linked via 10 Gbps or 20 Gbps high-speed stacking ports
Supports up to a 30 switch fabric and over 500 device ports
7 Hops
Adaptive Trunking, intelligent ISL path selection
The HP SN6000 Fibre Channel Switch scales to the maximum limits defined in the SAN Design Guide:
http://www.hp.com/go/sandesignguide
Cabinet Support
Disk Array Support
**
22U, 36U, and 42U; 5000, 9000, 10,000 series Cabinets and the Intelligent Series racks.
HP P2000 G3 MSA
HP MSA2000fc and MSA2000fc G2
HP MSA1000 and MSA1500 (active/active failover only)
HP StoreVirtual 4000 Series with Fibre Channel connectivityHP P6000/EVA (P6300, P6500; EVA4400,
EVA6400, EVA8400; EVA4100, EVA6100, EVA8100; EVA4000, EVA6000, EVA8000)
HP P9500, XP10000, XP20000, XP12000, XP24000
HP 3PAR 7000 Series,10000 Series, F-Class, T-Class
SAN Connection Manager software only supports configuration, management and/or provisioning of
P6000/EVA and P2000/MSA.
DA - 13553 Worldwide — Version 14 — May 9, 2014
Page 5
QuickSpecs
Product Highlights
HP SN6000 Stackable Fibre Channel Switch
Operating System Support
For specific support details, see the SAN Design Guide:
Enterprise Backup
Support
(EBS)
Software Components
HP SAN Connection
Manager
(included with H-series)
Powerful and comprehensive end-to-end SAN infrastructure lifecycle management software that includes
configuration, management, and maintenance for HP BladeSystem c-Class enclosure, HP switches, HBAs,
and HP P2000/MSA/P6000/EVA storage in a single management interface.
Microsoft Windows Server 2012 x64
Microsoft Windows Server 2012 x64 Hyper-V
Microsoft Windows Server 2008
Microsoft Windows Server 2003
Microsoft Windows Storage Server 2003
VMware
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
HP-UX
Citrix Xen Enterprise
Integrated Citrix XenServer HP Enterprise
Apple OS
http://www.hp.com/go/sandesignguide
MSL6000 with LTO4 drives
MSL2024, MSL4048, and MSL8096 with LTO4 drives
EML-e Series with LTO4 drives
HP 6000 Virtual Library System
HP 9000 Virtual Library System
HP 12000 Virtual Library System EVA Gateway
Features include:
Integration with HP Virtual Connect Enterprise Manager (VCEM)/HP BladeSystem c-Class
Topology views (sever, switch, HBA and storage)
P6000/EVA and P2000/MSA storage configuration and provisioning
Drill-down device management
Switch configuration
HBA and storage zoning administration
Application-based MSA/EVA setup and provisioning wizard for Microsoft Exchange deployments and
template for custom applications
Microsoft volume management
Automatic switch/HBA software/firmware update notifications and downloads for convenient
upgrades
Automatic P6000/EVA/P2000/MSA firmware notifications
HBA failover configuration
Event logs for switch & HBAs
Change tracking
Easy to follow software documentation
SAN Connection Manager is supported on a management station running Microsoft Windows Server 2008
SP2, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2003 R2 SP2 or Microsoft Windows
Storage Server 2003 R2 SP2.
DA - 13553 Worldwide — Version 14 — May 9, 2014
Page 6
QuickSpecs
Product Highlights
System requirements:
HP SN6000 Stackable Fibre Channel Switch
2 GB memory
200 MB disk space
2.0 GHz processor
CD ROM drive, Ethernet port
JAVA Runtime Environment (JRE)
Internet browser: Microsoft Internet Explorer, Netscape Navigator, or Mozilla Firefox
QuickTools
(included)
Optional Software
HP Enterprise Fabric
Management Suite
(EFMS)
SCM software upgrades are available at URL:
On-board graphical user interface allows administrators to access advanced switch management
functionality using the switch's IP address.
HP Enterprise Fabric Management Suite (EFMS) software is a set of simple, affordable and powerful fabric
management tools for HP H-series fabrics. A management interface provides performance and fabric
monitoring as well as configuration tools for H-series fabrics. Users are licensed, per site, geographic
location, or campus, to manage an unlimited number of switches and fabrics from a single, fully integrated
application.
Enterprise Fabric Management Suite also provides maintenance, isolation and troubleshooting capabilities
for SAN administrators who require advanced tools. Included with EFMS is a comprehensive set of realtime diagnostic tools for monitoring and troubleshooting Fibre Channel Fabrics. Determine if a device is
responding, trace the path in the fabric, as well as monitor the health of SFP and XPAK transceivers.
Reference URL:
EFMS features include:
Performance Monitoring
performance of your Fibre Channel SAN. Troubleshoot fabric problems and indentify performance
bottlenecks before they become an issue. Historical performance data can be exported to
spreadsheets or databases for analysis.
Extended Credit Wizard
to quickly configure ports to support situations when long distance communication is required.
Fabric Tracker
Periodically take a snap-shot of the fabric configuration to see what has changed from yesterday, a
week ago, a month ago, or from the day of installation.
Fabric Monitoring
operations when unexpected error rates, traffic levels, or anomalies occur in the fabric. Enterprise
Fabric Management Suite can be configured to send alerts, through SNMP for full integration into
existing enterprise monitoring applications.
Auto Filtering
operation, and environmental statistics are a mouse click away. Filter switch data using buttons that
group data into logical sets. Quickly find critical switch information such as power, cooling, health
and the associated IP network status.
Fabric Zoning
www.hp.com/go/EFMS
provides easy-to-configure/easy-to-use graphs for monitoring the
steps the user through a simple and easy to use interface, allowing the user
allows the user to view two saved configurations and compare the differences.
enables the user to configure thresholds and alarms per switch port to alert
takes the time and labor out of finding useful switch and port statistics- health,
provides simple drag and drop zoning with fast and easy activation. Unmatched
http://www11.itrc.hp.com/service/sum/home.do
DA - 13553 Worldwide — Version 14 — May 9, 2014
Page 7
QuickSpecs
Product Highlights
HP SN6000 Stackable Fibre Channel Switch
flexibility with support of multiple zoning types: Port WWN Zoning, Node WWN Zoning, FCID Zoning,
Hard Zoning, Soft Zoning.
Device Management
properties, upgrade firmware, view and modify switch properties easily. Setup and configuration of
devices in the fabric is made simple and fast.
Configuration and Zoning Wizards
easier. Prompts guide the user through screens to quickly configure and zone a switch.
Switch and Fabric Event Monitoring along with Alerting
events and alerts that can also be configured and sent to management applications through SNMP.
mPort Technology
(SN6000 or 8/20q with less than 20 enabled device ports) . De-activate one to four of the high-speed
stacking ports of the SN6000 and enable the equivalent number of device ports. The administrator
decides which ports are enabled based on their fabric needs.
Robust On-Line Help
function.
Fibre Channel Fabric Ping
that a functional path exists between two ports and provides round trip information. Administrators
can determine which ports and devices are responding - allowing the administrator to quickly
identify issues.
Fibre Channel Trace Route
congestion. FC Trace Route traces the route through the Fibre Channel network and displays path
information between a source and destination device in order to determine the path of
communication between the two devices. Knowing this aids the administrator in making decisions
about fabric performance and problem resolution. FC Ping used in conjunction with FC Trace Route
gives the administrator a powerful tool to pinpoint fabric connectivity problems and diagnose
performance issues.
Digital Diagnostics Monitoring
administrators depend on. Increase uptime of the SAN by proactively monitoring the vitals of
transceivers. Set policies and trigger alarms based on power, temperature, voltage and current of
the transceiver. Predict potential failures or isolate existing problems in the fabric with this simple,
yet powerful, tool.
is a mouse click away through the topology view. Configure IP network
makes a switch that is already easy to configure and zone even
provide the user with views of monitored
provides users with the flexibility to decide which licensed ports are enabled
features provide step by step instructions through an embedded Help
is an essential tool for troubleshooting fabric problems. FC Ping verifies
provides insight about the fabric and assists with troubleshooting
provides SFP and XPAK transceiver data and health status that SAN
DA - 13553 Worldwide — Version 14 — May 9, 2014
Page 8
QuickSpecs
HP SN6000 Stackable Fibre Channel Switch
Service and Support, HP Care Pack, and Warranty Information
Warranty
HP Care Pack Services
(1-1-1) Hardware Warranty - One-year on-site warranty, normal business hours, next business day
response, installation not included.
Software Warranty - HP warrants only that the software media will be free of physical defects for a period
of ninety (90) days from delivery.
NOTE:
During the warranty period HP will provide standard business hours, standard business days
telephone support for firmware and embedded non-saleable software.
For increased uptime, productivity and ROI -HP Care Pack packaged services for Storage
These days, you need to get the most out of your storage investment-you can't afford not to. When you
buy HP storage products and solutions, it's also a good time to think about what levels of service and
support you may need. To help take the worry out of deploying, designing, maintaining, and managing
your environment, we've designed a portfolio of service options that are as: flexible, reliable and scalable
as your storage. Unlike storage-only vendors, we take a holistic approach to your entire environment,
bridging storage, servers, blades, software and network infrastructures with our HP Care Pack packaged
services for Storage.
Protect your business beyond the warranty
When it comes to robustness and reliability, standard warranties on today's computing equipment have
matured just as the technologies have matured. Good news on some fronts-but also a source of potential
problems and subsequent consequences that come from depending on standard warranties alone.
Standard warranty protects against product defects and some causes of downtime- but not the business.
By using a standard approach to warranty uplifts, such as HP Care Pack Services, you can reduce downtime
risks and be more certain of operational consistency for both mission-critical and standard business
computing. Simply put, HP Care Pack Services normalize the warranty of combined products - helping you
proactively guard against unplanned downtime.
Extending warranties with HP Care Pack Services
For cost-effective upgrading or extending your standard warranty, HP Care Pack Services offer a suite of
standard reactive hardware and software support services that are sold separately, or combined as with
our Support Plus and Support Plus 24 services. The portfolio also provides a combination of proactive and
reactive services, such as Proactive 24 Service and Critical Service. In addition, with HP Proactive Select we
offer an innovative approach to service delivery that gives you the flexibility to acquire the specific
proactive services you need today, then add services as your needs evolve. HP Proactive Select offers a
broad set of technical or per-event type service options - including server, storage, and network, SAN
device, and software, environment, installation and education services. Services that you can mix and
match depending on your specific requirements, from preliminary planning and equipment delivery to
installation, configuration, integration, and testing, through every level of ongoing support. Our HP Care
Pack packaged services for Storage assures help when you need it most. And for many products, postwarranty HP Care Pack Services are available when your original warranty has expired.
HP Storage Services: Offering reliability, flexibility and value-just like your storage
HP Storage Services offers a full spectrum of customer care, from technology support to complex
migrations to complete completely managed services. HP Factory Express provides customization,
integration and deployment services for turnkey solutions. HP Education offers flexible, comprehensive
training on storage networking, disk storage systems, and storage software to help your IT staff get the
most out of your investments. And HP Financial solutions extend innovative financing and asset
management programs to cost-effective buy, manage and eventually retire your older equipment.
DA - 13553 Worldwide — Version 14 — May 9, 2014
Page 9
QuickSpecs
HP SN6000 Stackable Fibre Channel Switch
Service and Support, HP Care Pack, and Warranty Information
HP Storage Services, the trusted business technology experts who manage your technology in action,
because when technology works, business works.
NOTE:
Care Pack Services availability may vary by product and country.
HP Care Pack Services are sold by HP and HP Authorized Service Partners:
Services for customers purchasing from HP or an enterprise reseller are quoted using HP order
configuration tools.
Customers purchasing from a commercial reseller can find HP Care Pack Services at
http://www.hp.com/go/lookuptool
http://www.hp.com/services/storage
Recommended Support
Recommended
Deployment
HP Care Pack Services recommended for optimal satisfaction of all deployments of your product.
HP Foundation Care 24x7
Service
HP Enhanced
Implementation Service
for SANs
HP Foundation Care 24x7 connects you to HP 24 hours a day, seven days a
week for assistance on resolving issues - hardware onsite response within four
hours and software call back within two hours after opening your case. Three
years' coverage recommended with HP Care Pack Service.
For customers who are building a new SAN or expanding their existing one, we
offer the HP Enhanced Implementation Service for SANs. This provides
complete design and implementation services for Fibre Channel, FCOE, FCIP,
SAS and iSCSI SAN connectivity components. Covering all major SAN
connectivity technologies including virtual as well as physical hosts, no
competitor offers a more complete end to end SAN design and implementation
service, ensuring comprehensive optimal SAN connectivity tailored to your
specific environment.
Ensures optimal SAN connectivity tailored to your specific environment.
Allows your IT resources to stay focused on their core tasks and
priorities
Reduces implementation time, impact and risk to your storage
environment
Helps ensure a successful implementation for complex deployments by
providing HP project management
http://h20195.www2.hp.com/v2/GetPDF.aspx/5981-8527EN.pdf
Related Services
Services that will enhance the user experience in many product deployments.
3-Year HP Proactive 24
As an alternative to our
recommended support
level, for customers who
want improved SAN
availability and access to a
wide range of proactive and
reactive services:
DA - 13553 Worldwide — Version 14 — May 9, 2014
HP Proactive 24 Service for SANs is an integrated hardware and software
support service that combines proactive problem prevention with responsive
24x7 assistance for rapid problem resolution.
A collaborative relationship with HP Services strengthens your IT team and
gives you direct access to our technical expertise as issues arise.
Improve IT staff skills, increase SAN productivity.
Proactive 24 Service for SANs can help you:
Enhance the skills and efficiency of your IT staff through knowledge
Page 10
QuickSpecs
HP SN6000 Stackable Fibre Channel Switch
Service and Support, HP Care Pack, and Warranty Information
transfer, shared best practices in storage management, and hands-on
assistance
Improve SAN availability through access to a wide range of proactive
and reactive services
Boost productivity through effective change management,
configuration assistance, and performance optimization
Increase the return on your SAN investment
Enhance your overall operational effectiveness
Expert single-point-of-contact assistance 24x7
An assigned HP Services account manager is your primary contact for proactive
services and access to HP's diverse technical resources. Your account manager
works closely with your IT staff to understand your goals, document the
components of your infrastructure, recommend changes to improve
performance and stability, and monitor ongoing operations through HP's
industry-leading remote monitoring and support tools.
http://h20219.www2.hp.com/services/cache/11157-0-0-225-121.html
HP Assessment Service for
SANs
For customers interested in
improving availability of
their SAN and decreasing
potential for unplanned
downtime:
The HP Assessment Service for SANs offers customized technical and
operational guidance to customers employing HP storage subsystems and the
interconnecting storage area network (SAN) infrastructure. In a typical
engagement, HP or one of our authorized business partners will perform a
detailed discovery using HP's proprietary toolset to gain an understanding of
the configuration of your storage devices and SAN topology.
The findings from this process will be compared to HP best practices and
industry standards as defined by IT Service Management (ITSM) disciplines.
The results of the evaluation will be quickly and efficiently processed into
information you can leverage. This information, in the form of a
comprehensive HP SAN Assessment report, will be summarized by HP or one
of our authorized business partners with recommendations that are intended
to improve availability levels and ongoing management of your storage and
SAN environment.
HP Proactive Select
Service
For customers who need to
improve IT performance
and manageability through
the use of cost effective
flexible proactive services:
DA - 13553 Worldwide — Version 14 — May 9, 2014
http://h20195.www2.hp.com/v2/GetPDF.aspx/5981-9510EN.pdf
Proactive Select - increased flexibility, minimal complexity -- Select what
works for you - your package
Delivery planning + Proactive Service Credits
Credits are used to redeem proactive services
Three 'predefined' service credit levels - 30, 60,180 credits
Additional credits available
Available in 1,3, 4 & 5 year packages
Reactive
Utilize existing reactive services products - ranging from Next Day,
through 24x7, to 6 Hour Call to Repair
http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA2-3842ENN.pdf
Page 11
QuickSpecs
HP SN6000 Stackable Fibre Channel Switch
Service and Support, HP Care Pack, and Warranty Information
eSupport
Customer Technical
Training
HP eSupport is a portfolio of technology-based services that assist you with managing your business
environment - from the desktop to the data center.
Support Portal
The HP support portal provides one-stop access to the information, tools and services you need to manage
the daily operations of your IT environment.
Features include:
Access to self-solve tools (including search technical knowledge base)
Efficient logging and tracking of support cases
Collaboration with other business and IT professionals
Download of patches and drivers
Access to diagnostic tools
Proactive notification of relevant information
Access to certain features of the support portal requires an HP service agreement.
To access the support portal, visit:
Consider education as an integral part of your strategy to get the best return on investment for your HP
storage solution. HP offers a variety of training courses on storage software, networking, archiving and
disk storage systems. Our classes are available in many delivery modalities from traditional instructor-led
courses at one of our 80 training centers worldwide to on-site training customized to your needs or online.
www.hp.com/learn/storage
http://www.hp.com/support
HP Services Awards
Additional Services
Information
HP Services continues to be recognized for service and support excellence by customers, partners, industry
organizations and publications around the world. Recent honors and award reflect our services team's
dedications, technical expertise, professionalism and uncompromising commitment to customer
satisfaction. For a list of all our awards, please visit:
http://h20219.www2.hp.com/services/cache/433028-0-0-225-121.htm
For more information about HP Care Pack Services for Storage, please visit:
http://www.hp.com/services/storage
If you have specific questions, contact your local HP representative. Contact information for a
representative in your area can be found at "Contact HP"
http://www.hp.com
DA - 13553 Worldwide — Version 14 — May 9, 2014
Page 12
QuickSpecs
H-series Family Information
HP SN6000 Stackable Fibre Channel Switch
HP H-series 8Gb
Fibre Channel
Switches
Targeted
Environment
Physical FC Ports per
switch
Fibre Channel
Stacking switch
Fibre Channel Port
Bandwidth
Hot plug, redundant
power supplies/
FANs
Ethernet
Aggregate
bandwidth
OS Support
Storage system
support
Dedicated
InterSwitch Link
(ISL) ports for
stacking
Adaptive
Trunking
I/O StreamGuard
Drag-and-drop
zoning
8/20q 8 port
active Fibre
Channel Switch
AQ233B
Workgroups,
Departments
8 device ports
enabled
20 device ports
Max
No No No
8Gbit/sec 8Gbit/sec 8Gbit/sec 8Gbit/sec 8Gbit/sec 8Gbit/sec
No, single
power/Fan
N/A N/A N/A N/A N/A N/A
340 Gbps Max. 340 Gbps Max. 340 Gbps Max. 544 Gbps Max. 544 Gbps Max. 544 Gbps Max.
HP P2000 G3 MSA; HP MSA2000fc and MSA2000fc G2; HP MSA1000 and MSA1500 (active/active failover only);
HP P6000/EVA (P6300, P6500; EVA4400, EVA6400, EVA8400; EVA4100, EVA6100, EVA8100; EVA4000,
EVA6000, EVA8000); HP P9500, XP10000, XP20000, XP12000, XP24000; HP 3PAR F-Class, T-Class.
N/A N/A N/A
Included Included Included Included Included Included
Included Included Included Included Included Included
Included with
SCM
8/20q 16 port
active Fibre
Channel Switch
AK242B
Workgroups,
Departments
16 device ports
enabled
20 device ports
Max
No, single
power/Fan
http://www.hp.com/go/sandesign
Included with
SCM
8Gb SAN
Connection Kit
AK241B
Workgroups,
Departments
8 device ports
enabled
20 device ports
Max
No, single
power/Fan
NOTE:
Included with
SCM
SN6000
Stackable 8Gb
12-port Fibre
Channel Switch
BK780B
Workgroups,
Departments
8 device ports
plus 4 ISL
stacking ports
enabled,
maximum of
20 device ports
Yes, 120 FC
device ports
enabled per
stack, up to a 30
switch fabric,
500+ device ports
in multi-stack
configs.
No, single
power/Fan
Please Refer to SAN Design Guide
or
http://www.hp.com/go/sandesignguide
4 ISL 10Gbs
standard
upgradable to
20Gbs
Included with
SCM
SN6000
Stackable 8Gb
24-port Single
Power Fibre
Channel Switch
AW575B
Workgroups,
Departments
Data Centers
20 device ports
plus 4 ISL
stacking ports
enabled,
maximum of
20 device ports
Yes, 120 FC
device ports
enabled per
stack, up to a 30
switch fabric,
500+ device ports
in multi-stack
configs.
No, single
power/Fan
4 ISL 10Gbs
standard
upgradable to
20Gbs
Included with
SCM
SN6000
Stackable 8Gb
24-port Dual
Power Fibre
Channel Switch
AW576B
Workgroups,
Departments,
Data Centers
20 device ports
plus 4 ISL
stacking ports
enabled,
maximum of
20 device ports
Yes, 120 FC
device ports
enabled per
stack, up to a 30
switch fabric,
500+ device ports
in multi-stack
configs.
Yes, dual
power/Fan
4 ISL 10Gbs
standard
upgradable to
20Gbs
Included with
SCM
DA - 13553 Worldwide — Version 14 — May 9, 2014
Page 13
QuickSpecs
H-series Family Information
HP SN6000 Stackable Fibre Channel Switch
Transparent Router
(TR)
SAN Connection
Manager Enterprise
Software
Enterprise Fabric
Mgmt. Suite
Software
Form factor
Included Included Included Included Included Included
Included Included Included Included Included Included
Optional Optional Optional Optional Optional Optional
1U 1U 1U 1U 1U 1U
DA - 13553 Worldwide — Version 14 — May 9, 2014
Page 14
QuickSpecs
HP SN6000 Stackable Fibre Channel Switch
Configuration Information
Step 1 - Base Configuration
Select one:
Model Name
HP SN6000 Stackable 8Gb
24-port Single Power Fibre
Channel Switch
HP SN6000 Stackable 8Gb
24-port Dual Power Fibre
Channel Switch
HP SN6000 Stackable 8Gb
12-port Single Power Fibre
Channel Switch
Model Description
24 ports, single power supply Fibre Channel Switch with 20 - 8Gbps FC device ports
enabled and 4-10 Gbps stacking (ISL) ports enabled, SAN Connection Manager software,
country-specific power cord, serial cable, licenses, rack mount kit, and docs.
NOTE:
Requires optical transceivers listed below.
24 ports, dual hot-swappable power supply Fibre Channel Switch with 20 -8Gbps FC
device ports enabled and 4-10 Gbps stacking (ISL) ports enabled SAN Connection
Manager software, country-specific power cord, serial cable, licenses, rack mount kit,
and docs.
NOTE:
Requires optical transceivers listed below.
24 ports, single power supply Fibre Channel Switch with 8 - 8Gbps FC device ports
enabled, upgradeable to 20 device ports enabled, and 4-10 Gbps stacking (ISL) ports
enabled, SAN Connection Manager software, country-specific power cord, serial cable,
licenses, rack mount kit, and docs.
NOTE:
Requires optical transceivers listed below.
Part Number
AW575B
AW576B
BK780B
Step 2 - Additional Options
Stacking (ISL) Upgrades
Device Port Upgrades
Online monitoring and
diagnosis of optical links
8 Gbps Optical
Transceivers (SFP+)
Optical cables
HP SN6000 Stackable 20Gb ISL Upgrade LTU (paper)
HP SN6000 Stackable 20Gb ISL Upgrade E-LTU (electronic)
HP SN6000 Stackable 8Gb 4-port FC Switch Upgrade LTU (paper)
HP SN6000 Stackable 8Gb 4-port FC Switch Upgrade E-LTU (electronic)
HP Intelligent Infrastructure Analyzer Software LTU
HP Intelligent Infrastructure Analyzer Software E-LTU
HP 8 Gbps Short Wave FC SFP+
HP 8 Gbps LW 10km FC SFP+ 1 Pk Transceiver
HP PremierFlex OM4 Fibre Optic cables
1m PremierFlex OM4 LC/LC Multi-Mode Optical Cable
2m PremierFlex OM4 LC/LC Multi-Mode Optical Cable
5m PremierFlex OM4 LC/LC Multi-Mode Optical Cable
15m PremierFlex OM4 LC/LC Multi-Mode Optical Cable
30m PremierFlex OM4 LC/LC Multi-Mode Optical Cable
50m PremierFlex OM4 LC/LC Multi-Mode Optical Cable
10m PremierFlex OM4 MPO/MPO 8 fiber Multi-Mode Optical Cable
50m PremierFlex OM4 MPO/MPO 8 fiber Multi-Mode Optical Cable
HP PremierFlex OM3 cables
.5 m LC-LC Multi-Mode OM3 Fibre Channel Cable
TA822A
TA822AAE
TA821A
TA821AAE
TC400A
TC400AAE
AJ718A
AW584A
QK732A
QK733A
QK734A
QK735A
QK736A
QK737A
QK729A
QK731A
AJ833A
DA - 13553 Worldwide — Version 14 — May 9, 2014
Page 15
QuickSpecs
Configuration Information
HP SN6000 Stackable Fibre Channel Switch
Stacking Cables
1 m LC-LC Multi-Mode OM3 Fibre Channel Cable
2 m LC-LC Multi-Mode OM3 Fibre Channel Cable
5 m LC-LC Multi-Mode OM3 Fibre Channel Cable
15 m LC-LC Multi-Mode OM3 Fibre Channel Cable
30 m LC-LC Multi-Mode OM3 Fibre Channel Cable
50 m LC-LC Multi-Mode OM3 Fibre Channel Cable
XPAK Cables
HP 3in 10/20 Gbps XPAK Copper Cable
HP 9in 10/20 Gbps XPAK Copper Cable
HP 2m 10/20 Gbps XPAK Copper Cable
XPAK Optics
HP 10 Gbps SW FC optical XPAK 1 Pack Transceiver
These optics are used for stacking ports when distances greater than 2m are required.
OM4 or OM3 Fibre Channel cables are used with these optics.
* XPAK copper cables used with the factory shipped transceiver/connectors are required
to interconnect SN6000 switches through the 10 Gbps/20 Gbps Stacking Ports (ISLs).
These are available in 3 in, 9 in, or 2m (78 in) lengths.
Minimum # of cables and recommended lengths:
*
AJ834A
AJ835A
AJ836A
AJ837A
AJ838A
AJ839A
AW581A
AW582A
AW583A
AW573A
Qty SN6000
Qty(s) - Cable Length
Customers requiring longer distances to connect SN6000s through the Stacking Ports
need to order XPAK optical transceivers and standard OM4 or OM3 FC cables.
2 3 4 5 6
2 - 3"
2 - 3",
1 - 9"
3 - 3",
3 - 9"
4 - 3",
6 - 9"
2 - 3",
6 - 9"
Example of a high availability cable configuration in a single logic FC SAN supporting up
DA - 13553 Worldwide — Version 14 — May 9, 2014
Page 16
QuickSpecs
Configuration Information
to 120 FC device ports
Optional Software
HP H-series Enterprise Fabric Management (EFMS) Suite LTU paper
H-series Enterprise Fabric Management Suite (EMFS) E-LTU electronic
HP SN6000 Stackable Fibre Channel Switch
TC321A
TC321AAE
DA - 13553 Worldwide — Version 14 — May 9, 2014
Page 17
QuickSpecs
Technical Specifications
HP SN6000 Stackable Fibre Channel Switch
Fibre Channel Standards
And Revisions
Fibre Channel ports
Scalability
Certified maximum
Interoperability
Performance
Switch core
Form Factor
Fabric latency
Maximum frame size
Classes of service
Port types
Data traffic types
Media types
Laser
Physical Interface (FC-PI-3, FC-PI-4, FC-PH-2, FC-PH-3)
Line Services (FC-LS)
Framing & Signaling (FC-FS-3)
Generic Services (FC-GS-6)
Switch Fabric (FC-SW-5), except for enhanced zoning
Arbitrated Loop-2 Rev. 7.0 (FC-AL-2)
Fibre Channel Device Attach (FC-DA)
Fibre Channel Methodologies for Interconnects (FC-MI-2)
Tape Technical Report (FC-Tape)
Virtual Interface Architecture Mapping (FC-VI)
Fabric Element MIB Specification (RFC 2837)
Fibre Alliance MIB Specification (Version 4.0)
Security Protocols (FC-SP)
Up to 20 universal FC device ports enabled
4 stacking (ISL) ports enabled (10 Gbps Fibre Channel, upgradeable to 20 Gbps)
Full fabric architecture:
http://www.hp.com/go/SANDesignGuide
Refer to SAN Design Guide:
http://www.hp.com/go/SANDesignGuide
H-series fabric
HP 8/20q Fibre Channel Switch
HP SN6000 Stackable 8Gb Fibre Channel Switch
HP B-series fabric1 using Transparent Router feature
HP C-series fabric
1
Refer to the SPOCK data base for supported B-series and C-series switches:
http://www.hp.com/storage/spock
8 Gbps line speed, full duplex
10 Gbps and 20 Gbps stacking (ISL) port line speed, full duplex
Non-blocking
1U
<0.2µ sec., cut-through routing
2148 bytes (2112 byte payload)
Class 2, Class 3, Class F (inter-switch frames) connectionless Fibre Channel protocol support
8 Gbps: FL_Port, F_Port, and E_Port; G_Port, GL_port (auto-configuring), Transparent Router (TR)
10/20 Gbps: E_Port and F_Port; G_Port (auto-configuring)
Fabric switches support unicast and broadcast
8 Gbps Small Form-Factor Pluggable Plus (SFP+) optical transceivers
Distance using short-wave 8 Gbps optical transceivers at 2 Gbps, 4 Gbps, and 8 Gbps connection speed:
8 Gbps:
4 Gbps:
1
using Transparent Router feature
OM4 fiber: 190m
OM3 fiber: 150 m
OM2 fiber: 50 m
OM4 fiber: 400m
OM3 fiber: 270 m
OM2 fiber: 150 m
DA - 13553 Worldwide — Version 14 — May 9, 2014
Page 18
QuickSpecs
Technical Specifications
HP SN6000 Stackable Fibre Channel Switch
Fabric services
Options
Supported software
Management access
Diagnostics
Front-to-back airflow
Dimensions
Environment
Power consumption
Emissions
2 Gbps:
Distance using short-wave 4 Gbps optical transceivers at 2 Gbps and 4 Gbps connection speed:
4 Gbps:
2 Gbps:
Simple name server
Hardware based zoning
Registered State Change Notification (RSCN)
I/O StreamGuard™
Multi-chassis in-order delivery
Automatic path selection
FDMI support
8 Gbps SFP+ and 4 Gbps SFP optical transceivers, 20 Gbps ISL upgrade license, device port upgrade license
(4-port increments), Enterprise Fabric Management Suite software
SAN Connection Manager, QuickTools, Enterprise Fabric Management Suite software (optional)
10/100 Ethernet Base T (RJ-45), serial port (RS-232 with DB9), in-band (Fibre Channel)
Power-on self test POST
RoHS compliant
Width
Height
Depth
Weight
Temperature
Humidity
Altitude
Shock
Vibration
Supported power range
Frequency
Heat output
FCC subpart B section 15 - Class A (United States)
ICES-003, Issue 4:2004 - Class A (Canada)
AS/NZS CISPR22 - Class A (Australia/New Zealand)
OM3 fiber: 500 m
OM2 fiber: 300 m
OM3 fiber: 270 m
OM2 fiber: 150 m
OM3 fiber: 500 m
OM2 fiber: 300 m
17 in (43.2 cm)
1.7 in (4.32 cm)
18.75 in (47.6 cm)
Dual Power Supply: 18 lb (8.16 kg)
Single Power Supply: 15 lb (6.8 kg)
Operating
Non-operating
Operating
Non-operating
Operating
Non-Operating
Operating
Non-Operating
Operating
Non-operating
Operational
50 to 60 Hz
Dual Power: 80 watts nominal; 90 watts typical maximum
Single Power: 73 watts nominal; 83 watts typical maximum
41° to 104° F (5° to 40° C)
4° to 158° F (20° to 70° C)
10% to 90% non-condensing
10% to 95% , non condensing
0 to 10,000 ft.
0 to 50,000 ft.
4 G, 11 ms, 20 repetitions
30 G, 13 ms, trapezoidal
5-500 Hz, random, 0.2 G
2-200 Hz, random, 0.5 G
100 to 240 VAC
DA - 13553 Worldwide — Version 14 — May 9, 2014
Page 19
QuickSpecs
Technical Specifications
VCCI V-3/2006.04 - Class A (Japan)
CISPR/EN 55022:1998 + A1:2000 and A2:2003 - Class A (EU)
EN 61000-3-2: 2000 + A2: 2005
EN 61000-3-3: 1995 + A1: 2001
KN22 with RRL notice No. 2005-85 - Class A (Korea)
Safety
US: UL Listed, UL 60950-1
CANADA, CSA C22.2 No. 60950-1 - cUL Listed
Europe: EN60950-1
CB Scheme-IEC 60950-1
European Union CE
German GS Mark through UL/DEMKO
DEMKO
VCCI-A
Russia: GOST R
HP SN6000 Stackable Fibre Channel Switch
Additional information:
© Copyright 2014 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
http://www.hp.com/go/sn6000
DA - 13553 Worldwide — Version 14 — May 9, 2014
Page 20
Loading...
