HPE 877623-421, PERFML350-004 Getting Started Guide

QuickSpecs

HPE ProLiant ML350 Gen10 Server

Overview

Page 1

HPE ProLiant ML350 Gen10 Server

Driving a wide range of workloads with a flexible, shorter and rackable chassis design that can fit in different physical environments, the secure 2P HPE ProLiant ML350 Gen10 Server delivers the ideal set of performance and expandability for changing busin needs making it the choice for that grows with you in the digital economy.

Front View – SFF chassis with optional Gen10 8SFF HDD Cage Kits shown (Rack mode)

Front button/LED (top-to-down in Rack mode shown): Power On/Stand LED, NIC Status LED, UID Button/LED

USB 3.0 port x 2

iLO Service Port

Box1: optional HDD Drive Cage Bay for additional 8 SFF drives support, or upgradeable to 2 HH media devices + 1 slim-line DVD.

Serial number/iLO information pull tab

Box2: optional HDD Drive Cage Bay for additional 8 SFF drives support, or upgradeable to 8 Bay 7.

Box3: default with one 8 SFF HDD Drive Cage

NOTE: Image shown without the security front bezel which is standard in every ML350 Gen10 unit.

ess

growing SMBs, remote/branch offices of large enterprises and data centers. Choose this 2P tower

-by button and System Power LED, System Health

SFF NVMe Express

QuickSpecs

HPE ProLiant ML350 Gen10 Server

Overview

Page 2

Front View – LFF chassis with optional Gen10 4LFF HDD Cage Kits shown (Tower mode)

Front button/LED (right-to-left in Tower mode shown): Power On/Stand LED, NIC Status LED, UID Button/LED

USB 3.0 port x 2

iLO Service Port

Box1: optional HDD Drive Cage Bay for additional 4 LFF driv 1 slim-line DVD

Serial number/iLO information pull tab

Box2: optional HDD Drive Cage Bay for additional 4 LFF drives support

Box3: default with one 4LFF HDD Drive Cage

Tower feet (foldable at servicing)

NOTE: For NHP LFF chassis, please find detail in the ML350 Gen10 User Guide

NOTE:

standard in every ML350 Gen10 unit.

-by button and System Power LED, System Health

es support, or upgradeable to 2 HH media devices +

Image shown without the security front bezel which is

QuickSpecs

HPE ProLiant ML350 Gen10 Server

Overview

Page 3

Internal View – with optional 2nd CPU, Smart Array Modular Controller and Redundant Fan Kit shown

CPU Socket 1 with one processor and heatsink, and 12 DDR4 DIMM slots for RDIMM or LRDIMM

PCIe Slots (Slot 1-4, coming from CPU1): Slot 1 and 3 can support Optional GPU

CPU Socket 2 with the 2nd processor and heatsink, (depending on server model, the DDR4 DIMM slots for RDIMM or LRDIMM

PCIe Slots (Slot 5-8, coming from CPU2) (requires Optional Optional GPU

System fans: (2) fans along with the air baffle (not shown) are standard for basic cooling

Optional (4) system fans are shown, supporting 2P and/or advanced cooling requirements.

Optional HPE Smart Array Modular controller (AROC)

Optional HPE Smart Storage Battery

MicroSD Slot x1

10.

Internal USB port x2 (USB3.0 x1 and USB2.0 x1)

TPM Connector

2nd processor can be Optional) and 12

2nd processor): Slot 5 and 7 can support

QuickSpecs

HPE ProLiant ML350 Gen10 Server

Overview

Page 4

Rear View – With HPE Flex Slot RPS shown.

HPE Flexible Slot 1 Power Supply

Power supply handle (with red touch-point)

Power supply Power LED

Power supply Power connection

HPE Flexible Slot 2 (Optional – empty with power supply blank shown)

Or, support for HPE 500W Standard Non-HotPlug/non SKU

PCI Slots (Slots 5-8) (requires Optional second processor) – Slot 5 and 7 can support Optional GPU

Display Port

Serial Port

10.

VGA Port

11.

Dedicated iLO Management Port (RJ45)

12.

Embedded 4 x 1GbE Network ports

13.

USB 3.0 port x 2

14.

Unit ID LED

15.

PCI Slots (Slots 1-4) – Slot 1 and 3 can support Optional GPU

16.

Tower feet (foldable at servicing)

17.

Kensington security slot

18.

Padlock eye

-RPS Power Supply, depending on model

QuickSpecs

HPE ProLiant ML350 Gen10 Server

Overview

Page 5

What’s New:

HPE NVidia Quadro P2000 GPU option support added

•

• New SFF SATA SSD models added

• New 100Gb adapter model added

QuickSpecs

HPE ProLiant ML350 Gen10 Server

Overview

Page 6

Platform Information

Form Factor

4U tower with rack conversion capability

NOTE: When deployed as a Rack model, this system will take up 5U-height space in a standard data center rack facility.

Chassis Types

8 SFF chassis with optional SFF HDD cage kit (s), NVMe Express Bay, half-height (5.25”) media bay up to

and 3 fully loaded) will require redundant fan kit (874572-B21).

System Fans

Standard – fan types included

special configuration scenarios where this kit is required but does

not provide redundancy feature.

2, and 1 slim-line DVD bay kit options 4 LFF chassis with optional LFF HDD cage kit (s), half-height (5.25”) media bay up to 2, and 1 slim-line DVD bay kit options 4 LFF NHP chassis with optional LFF NHP HDD cage kit (s), half-height (5.25”) media bay up to 2, and slim-line DVD bay kit options

NOTE: The 8 SFF chassis can be upgraded with SFF HDD cage kit (s) to 16 or 24 SFF. Note a field upgrade to 24 SFF will require redundant fan kit (874572-B21). NOTE: The 8 SFF NVMe Express Bay option (874569-B21) can only be leveraged in the SFF chassis and installed in Box 2. Maximum of 8 SFF NVMe PCIe drives are supported when two ML350 Gen10 NVMe Riser boards (shipped in 874569-B21) are populated. When only one Riser board is populated, then 4 NVMe drives are supported. Note a field upgrade to NVMe Express Bay will require redundant fan kit (874572-B21). NOTE: The 4 LFF HP or NHP chassis can be upgraded with LFF HDD cage kit (s) or LFF NHP HDD cage kit (s) to 8 or 12 LFF. Note a field upgrade to 12 LFF either in LFF hot-plug or LFF non-hot-plug chassis will require redundant fan kit (874572-B21). NOTE: The 8 SFF or 4 LFF or 4 LFF NHP chassis can be upgraded to add half-height media bay up to 2, and/or 1 slim-line DVD in Box1. Note a field upgrade to fully populate front storage bays (Box1, 2

NOTE: 1P models typically ship with 2 standard fans located at system rear. These two fans are default inside every ML350 Gen10 unit and do NOT support hot-plug operations. NOTE: 2P models typically ship with 6 standard fans which provides N+1 redundant fan feature in most of the situations. For support detail or restriction, refer to ML350 Gen10 User Guide. NOTE: Optional redundant fan kit (874572-B21) provides advanced cooling and redundancy functionality in heavier configurations. Configurations that require this kit are provided in later sections. Refer to the User Guide for

QuickSpecs

HPE ProLiant ML350 Gen10 Server

Standard Features

Page 7

Standard Features

Processors – Up to 2 of the following depending on model.

Memory

socket

Platinum Processors

Platinum 8180 Processor

2.5 GHz

38.50 MB

205W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Platinum 8176M Processor

2.1 GHz

38.50 MB

165W

3 @ 10.4 GT/s

2666 MT/s

1.5 TB

Platinum 8176 Processor

2.1 GHz

38.50 MB

165W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Platinum 8170M Processor

2.1 GHz

35.75 MB

165W

3 @ 10.4 GT/s

2666 MT/s

1.5 TB

Platinum 8170 Processor

2.1 GHz

35.75 MB

165W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Platinum 8168 Processor

2.7 GHz

33.00 MB

205W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Platinum 8164 Processor

2.0 GHz

35.75 MB

150W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Platinum 8160M Processor

2.1 GHz

33.00 MB

150W

3 @ 10.4 GT/s

2666 MT/s

1.5 TB

Platinum 8160 Processor

2.1 GHz

33.00 MB

150W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Platinum 8158 Processor

3.0 GHz

24.75 MB

150W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Platinum 8156 Processor

3.6 GHz

16.50 MB

105W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Platinum 8153 Processor

2.0 GHz

22.00 MB

125W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold Processors

Gold 6154 Processor

3.0 GHz

24.75 MB

200W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6152 Processor

2.1 GHz

30.25 MB

140W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6150 Processor

2.7 GHz

24.75 MB

165W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6148 Processor

2.4 GHz

27.50 MB

150W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6146 Processor

3.2 GHz

24.75 MB

165W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6142M Processor

2.6 GHz

22.00 MB

150W

3 @ 10.4 GT/s

2666 MT/s

1.5 TB

Gold 6142 Processor

2.6 GHz

22.00 MB

150W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6140M Processor

2.3 GHz

24.75 MB

140W

3 @ 10.4 GT/s

2666 MT/s

1.5 TB

Gold 6140 Processor

2.3 GHz

24.75 MB

140W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6138 Processor

2.0 GHz

27.50 MB

125W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6136 Processor

3.0 GHz

24.75 MB

150W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6134M Processor

3.2 GHz

24.75 MB

130W

3 @ 10.4 GT/s

2666 MT/s

1.5 TB

Gold 6134 Processor

3.2 GHz

24.75 MB

130W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6132 Processor

2.6 GHz

19.25 MB

140W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6130 Processor

2.1 GHz

22.00 MB

125W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6126 Processor

2.6 GHz

19.25 MB

125W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 5122 Processor

3.6 GHz

16.50 MB

105W

2 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 5120 Processor

2.2 GHz

19.25 MB

105W

2 @ 10.4 GT/s

2400 MT/s

768 GB

Gold 5118 Processor

2.3 GHz

16.50 MB

105W

2 @ 10.4 GT/s

2400 MT/s

768 GB

Gold 5115 Processor

2.4 GHz

13.75 MB

85W

2 @ 10.4 GT/s

2400 MT/s

768 GB

NOTE: For more information regarding Intel Xeon processors, please see the following http://www.intel.com/xeon.

Intel Xeon Models

CPU

Frequency

Cores L3 Cache Power UPI DDR4

per

Platinum 8180M Processor 2.5 GHz 28 38.50 MB 205W 3 @ 10.4 GT/s 2666 MT/s 1.5 TB

Gold 6144 Processor 3.5 GHz 8 24.75 MB 150W 3 @ 10.4 GT/s 2666 MT/s 768 GB

Gold 6128 Processor 3.4 GHz 6 19.25 MB 115W 3 @ 10.4 GT/s 2666 MT/s 768 GB

QuickSpecs

HPE ProLiant ML350 Gen10 Server

Standard Features

Page 8

Silver Processors

Silver 4116 Processor

2.1 GHz

16.50 MB

85W

2 @ 9.6 GT/s

2400 MT/s

768 GB

Silver 4114 Processor

2.2 GHz

13.75 MB

85W

2 @ 9.6 GT/s

2400 MT/s

768 GB

Silver 4112 Processor

2.6 GHz

8.25 MB

85W

2 @ 9.6 GT/s

2400 MT/s

768 GB

Silver 4110 Processor

2.1 GHz

11.00 MB

85W

2 @ 9.6 GT/s

2400 MT/s

768 GB

Bronze Processors

Bronze 3106 Processor

1.7 GHz

11.00 MB

85W

2 @ 9.6 GT/s

2133 MT/s

768 GB

Bronze 3104 Processor

1.7 GHz

11.00 MB

85W

2 @ 9.6 GT/s

2133 MT/s

768 GB

NOTE: Platinum – 8100 Series –2 Socket supports 2UPI, supports 6-Channel DDR4 @ 2666 MT/s providing up to 768 GB

768GB memory capacity. Intel AVX-512(1x 512-bit FMA), 48 lanes PCIe 3.0, standard RAS supported.

Chipset

Intel C622 Chipset

NOTE: For more information regarding Intel® chipsets, please see the following URL: http://www.intel.com/products/server/chipsets/

On System Management Chipset

HPE iLO 5 ASIC

NOTE: Read and learn more in the iLO QuickSpecs.

Memory

One of the following depending on model

Type:

HPE DDR4 SmartMemory, Registered (RDIMM), Load Reduced (LRDIMM)

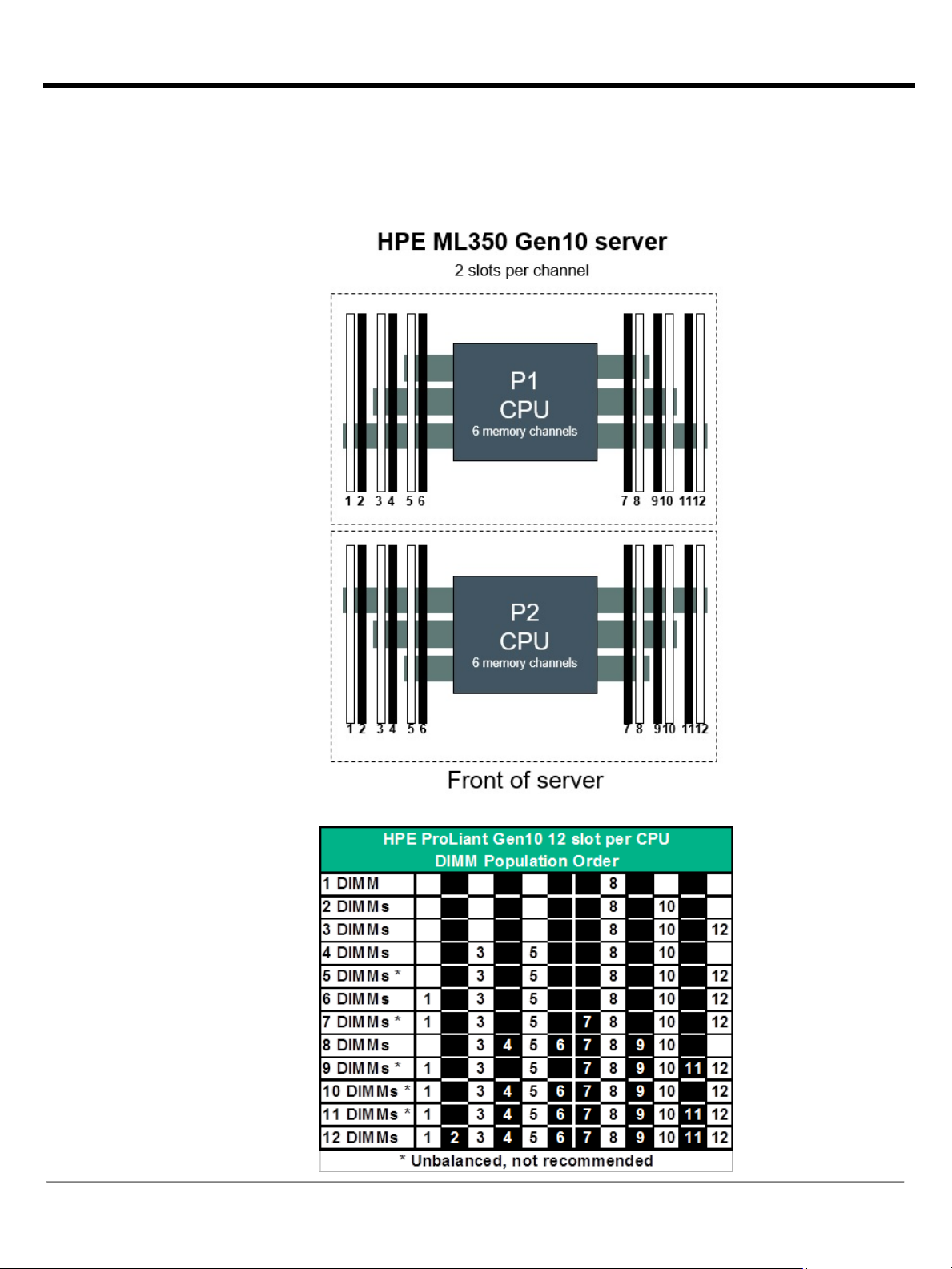

DIMM Slots Available

12 DIMM slots per processor, 6 channels per processor, 2 DIMMs per channel

Maximum capacity (LRDIMM)

3 TB

24 x 128 GB LRDIMM @ 2600 MT/s

Maximum capacity (RDIMM)

768 GB

24 x 32 GB RDIMM @ 2600 MT/s

NOTE: The maximum memory by socket is limited by the processor selection. NOTE: Mixing of RDIMM and LRDIMM memory is not supported.

Memory Protection

Silver 4108 Processor 1.8 GHz 8 11.00 MB 85W 2 @ 9.6 GT/s 2400 MT/s 768 GB

memory capacity (1.5 TB on select processor skus). Intel Turbo Boost Technology, Intel Hyper-Threading Technology supported. Intel AVX-512 (2x 512-bit FMA), 48 lanes PCIe 3.0, advanced RAS. NOTE: Gold – 5100, 6100 Series - 2 Socket supports 2UPI, supports 6-Channel DDR4 @ 2400 MHz (SKU 5122=supports

2666) providing up to 768GB memory capacity (1.5 TB on select skus). Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512(1x 512-bit FMA) (SKU 5122 supports 2x 512 bit FMA), 48 lanes PCIe 3.0, advanced RAS supported. NOTE: Silver – 4100 Series - 2 Socket supports 2UPI @ 9.6 GT/s, 6-Channel DDR4 @ 2400 MHz providing up to 768 GB memory capacity. Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512(1x 512-bit FMA), 48 lanes PCIe 3.0, standard RAS supported. NOTE: Bronze – 3100 Series - 2 Socket supports 2UPI @ 9.6 GT/s, supports 6-Channel DDR4 @ 2133 MHz providing up to

For details on the HPE Server Memory Options RAS feature, visit: http://www.hpe.com/docs/memory-ras-feature

QuickSpecs

HPE ProLiant ML350 Gen10 Server

Standard Features

Page 9

Expansion Slots

Slots #

Technology

Bus

Width

Connector

Width

Slot Form Factor

Notes

PCIe 3.0

X16

X16 Full-height,

full-length slot

Proc 1 2

PCIe 3.0

X8 Full-height,

full-length slot

Proc 1

PCIe 3.0

X16

X16 Full-height,

full-length slot

Proc 1

PCIe 3.0

X8 Full-height,

full-length slot

Proc 1

NOTE: Bus Width Indicates the number of physical electrical lanes running to the connector. NOTE:

Slots #

Technology

Bus

Width

Connector

Width

Slot Form Factor

Notes

PCIe 3.0

X16

X16 Full-height,

full-length slot

Proc 2

PCIe 3.0

X8 Full-height,

full-length slot

Proc 2

PCIe 3.0

X16

X16 Full-height,

full-length slot

Proc 2

PCIe 3.0

X8 Full-height,

full-length slot

Proc 2

NOTE: Bus Width Indicates the number of physical electrical lanes running to the connector. NOTE: Max. 8 PCIe slots are available on the ML350 Gen10.

Storage Controllers

The Gen10 controller naming framework has been updated to simplify identification as depicted below. For a more detailed breakout of the available Gen10 Smart Array controllers visit the HPE Smart Array Gen10 Controllers Data Sheet.

One of the following depending on model

Software RAID

HPE Smart Array S100i SR Gen10 SW RAID

NOTE: HPE Smart Array S100i SR Gen10 SW RAID will operate in UEFI mode only. For legacy support an additional

source software to

https://downloads.linux.hpe.com/SDR/project/lsrrb/

Essential RAID Controller

HPE Smart Array E208i-a SR Gen10 Controller

HPE Smart Array E208i-p SR Gen10 Controller

HPE Smart Array E208e-p SR Gen10 Controller

Performance RAID

HPE Smart Array P408i-a SR Gen10 Controller

HPE Smart Array P408i-p SR Gen10 Controller

HPE Smart Array P408e-p SR Gen10 Controller

HPE Smart Array P816i-a SR Gen10 Controller

HPE Smart Array P824i-p MR Gen10 Controller

NOTE: Performance RAID Controllers require the HPE Smart Storage Battery (P01367-B21) which is sold separately.

Slot 4 is routed from the PCH.

controller will be needed, and for CTO orders please also select the Legacy mode settings part, 758959-B22.

NOTE: HPE Smart Array S100i SR Gen10 SW RAID is off by default and must be enabled. NOTE: The S100i uses 14 embedded SATA ports. NOTE: The S100i only supports Windows. For Linux users, HPE offers a solution that uses in-distro open-

create a two-disk RAID 1 boot volume. For more information visit:

Controller

QuickSpecs

HPE ProLiant ML350 Gen10 Server

Standard Features

Page 10

NOTE: Separate cable kit will be required depending on configuration requirement. Refer to the later section for more information.

Internal Storage Devices

One of the following depending on model

Optical Drive

Optional slim-line DVD-ROM/DVD-RW up to 1

Optional half-height (5.25”) RDX or tape/LTO devices up to 2

Hard Drives

None ship standard

Maximum Internal Storage

CAPACITY

CONFIGURATION

Hot Plug SFF SAS

48.0 TB

24 x 2 TB

Hot Plug SFF SATA

48.0 TB

24 x 2 TB

Hot Plug LFF SAS

144.0 TB

12 x 12 TB

Hot Plug LFF SATA

144.0 TB

12 x 12 TB

Hot Plug SFF SAS SSD

184.32 TB

24 x 7.68 TB

Hot Plug SFF SATA SSD

92.16 TB

24 x 3.84 TB

Hot Plug LFF SAS SSD

46.08 TB

12 x 3.84 TB

Hot Plug LFF SATA SSD

46.08 TB

12 x 3.84 TB

Non Hot Plug LFF SATA

48.0 TB

12 x 4 TB

Hot Plug SFF NVMe PCIe SSD

32 TB NVMe

8 x 4 TB NVMe

NOTE: NHP LFF SKU supports SATA hard disk drives only.

Power Supply

HPE 500W Standard Non-Hot-Plug Power Supply Kit

NOTE: Non Redunant Power Supply

enablement kit (874571-B21).

HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

NOTE: Available in 94% efficiency.

HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

NOTE: Available in 94% and 96% efficiency. NOTE: Also available in -48VDC and 227VAC/380VDC power inputs.

HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

NOTE: Available in 94% efficiency.

HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less

For information on power specifications and technical content visit HPE Server power supplies.

NOTE: Available in 92% efficiency and supported in pre-configured models only. This power supply is available in a few pre- built system SKUs. Customers can still choose to upgrade to HPE Flex Slot RPS later by installing the ML350 Gen10 RPS

installation into HPE ProLiant Gen10 Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple output power options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.

All pre-configured servers ship with a country-specific AC power cord in Tower models; while in the Rack model, a standard 6foot IEC C-13/C-14 jumper cord (416151-B21) is included. If a different power cord is required, please check the ProLiant Power Cables web page.

To review the power requirements for your selected system, please use the HPE Power Advisor Tool.

QuickSpecs

HPE ProLiant ML350 Gen10 Server

Standard Features

Page 11

Interfaces

Serial

1 standard (at system rear)

VGA Port

1 standard (at system rear)

Display Port

1 standard (at system rear)

Embedded Network Ports

4 x 1 Gb ports shipping standard, with optional stand up card

HPE iLO Remote Management Network Port

1 Gb Dedicated Front iLO Service Port

1 standard

Micro SD Slot

1 Micro SD (internal)

NOTE: The Micro SD slot is not a hot-pluggable device. Customers should not attempt to plug an SD card into the SD slot

while the server is powered.

USB 3.0/2.0

6 total, standard: 2 front (USB 3.0), 2 rear (USB 3.0), 2 internal (1 x USB 3.0 & 1 x USB 2.0)

Operating Systems and Virtualization Software Support for ProLiant Servers

Windows Server 2012 R2 (Most Recent Version)

Windows Server 2016 (Most Recent Version)

VMware ESXi 6.0 U3

VMware ESXi 6.5 and U1 upon release

Red Hat Enterprise Linux (RHEL) 6.9 and 7.3

SUSE Linux Enterprise Server (SLES) 11 SP4 and 12 SP2

ClearOS

HPE and ClearCenter will help you lower the cost of building on-premise solutions without sacrificing security and ease of use.

and growing. Whether you’re starting out or scaling, you decide what applications you need and pay as you grow.

NOTE: ClearOS allows you to build a fully functional server that is just right for you at no upfront cost. For more information on ClearOS, please visit http://www.hpe.com/servers/clearos.

CentOS

NOTE: CentOS is not directly supported / Community Supported (Based on RHEL so RHEL testing and enablement

http://www.hpe.com/info/ossupport

Industry Standard Compliance

ACPI 6.1 Compliant

PCIe 3.0 Compliant

WOL Support

Microsoft® Logo certifications

PXE Support

VGA Display Port

USB 3.0 Compliant

USB 2.0 Compliant

Energy Star

SMBIOS 3.1

UEFI 2.6

Redfish API

HPE ProLiant servers with ClearOS give you a simple, secure, and affordable operating system with an intuitive web based graphical user interface that provides a cloud-like experience on- premise, and an Application Marketplace with over 100 apps

applicable to CentOS) CentOS 6.9 / CentOS 7.3. NOTE: For more information on Hewlett Packard Enterprise Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server.

QuickSpecs

HPE ProLiant ML350 Gen10 Server

Standard Features

Page 12

IPMI 2.0

Secure Digital 2.0

Advanced Encryption Standard (AES)

Triple Data Encrytion Standard (3DES)

SNMP v3

TLS 1.2

DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)

Active Directory v1.0

ASHRAE A3/A4

NOTE: For additional technical thermal details regarding ambient temperatures, humidity and features support please

UEFI (Unified Extensible Firmware Interface Forum)

NOTE: UEFI is the default setting for the ML350 Gen10. Legacy mode can be selected in the field or as a CTO option

(758959-B22).

Graphics

Integrated Video Standard

• Video modes up to 1920 x 1200@60Hz (32 bpp)

• 16MB Video Memory

HPE iLO 5 on system management memory

• 32 MB Flash

• 4 Gbit DDR 3 with ECC protection

HPE Server UEFI/Legacy ROM

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured

visit: http://www.hpe.com/servers/ashrae.

configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen10 servers have a UEFI Class 2 implementation and support both UEFI Mode (default) and Legacy BIOS Mode.

NOTE: The UEFI System Utilities tool is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit http://www.hpe.com/servers/uefi.

UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

• Secure Boot and Secure Start enable for enhanced security

• Operating system specific functionality

• Support for > 2.2 TB (using GPT) boot drives

• USB 3.0 Stack

• Embedded UEFI Shell

• Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant

• PXE boot support for IPv6 networks

• Workload Profiles for simple performance optimization

UEFI Boot Mode only:

• TPM 2.0 Support

• NVMe Boot Support

• Platform Trust Technology (PTT) can be enabled.

• iSCSI Software Initiator Support.

• HTTP/HTTPs Boot support as a PXE alternative.

• Boot support for option cards that only support a UEFI option ROM

NOTE: For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.

QuickSpecs

HPE ProLiant ML350 Gen10 Server

Standard Features

Page 13

NOTE: UEFI FIO Setting (758959-B22) can be selected to configure the system in Legacy mode in the factory for your HPE ProLiant Gen10 Server.

Embedded Management

HPE Integrated Lights-

(HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting and remote

UEFI

Configure and boot your servers securely with industry standard Unified Extensible Firmware

http://www.hpe.com/servers/uefi

Intelligent Provisioning

Hassle free server and OS provisioning for 1 or more servers with Intelligent Provisioning. Learn more at http://www.hpe.com/servers/intelligentprovisioning.

iLO RESTful API

iLO RESTful API is Redfish API conformance and offers simplified server management

http://www.hpe.com/info/restfulapi

Server Utilities

Active Health System

The HPE Active Health System (AHS) is an essential component of the iLO management

at http://www.hpe.com/servers/ahs.

Active Health System

Use the Active Health System Viewer, a web-based portal, to easily read AHS logs and speed

visit: http://www.hpe.com/servers/ahsv.

Smart Update

Keep your servers up to date with the HPE Smart Update solution by using Smart Update

http://www.hpe.com/info/smartupdate.

iLO Amplifier Pack

Designed for large enterprise and service provider environments with hundreds of HPE

http://www.hpe.com/servers/iLOamplifierpack

HPE iLO Mobile

Enables the ability to access, deploy, and manage your server anytime from anywhere from

http://www.hpe.com/info/ilo/mobileapp

RESTful Interface Tool

RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API

http://www.hpe.com/info/resttool

Scripting Tools

Provision one to many servers using your own scripts to discover and deploy with Scripting

http://www.hpe.com/servers/stk

http://www.hpe.com/servers/powershell

Out

Viewer

management with HPE iLO. Learn more at http://www.hpe.com/info/ilo.

Interface (UEFI). Learn more at

automation such as configuration and maintenance tasks based on modern industry standards. Learn more at

portfolio that provides continuous, proactive health monitoring of HPE servers. Learn more

problem resolution with HPE self-repair recommendations, to learn more

Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP). Learn more at

servers, the iLO Amplifier Pack is a free, downloadable open virtual application (OVA) that delivers the power to discover, inventory and update Gen8, Gen9 and Gen10 HPE servers at unmatched speed and scale. Use with an iLO Advanced License to unlock full capabilities. Learn more at

Application

select smartphones and mobile devices. For additional information please visit:

to discover and deploy servers at scale. Learn more at

Tool (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. Learn more at

QuickSpecs

HPE ProLiant ML350 Gen10 Server

Standard Features

Page 14

HPE OneView Standard

HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting

http://www.hpe.com/info/oneview

HPE Systems Insight

Ideal for environments already using HPE SIM, it allows you to monitor the health of your HPE

http://www.hpe.com/info/hpesim

Security

UEFI Secure Boot and Secure Start support

Immutable Silicon Root of Trust

FIPS 140-2 validation (iLO 5 certification in progress)

Common Criteria certification (iLO 5 certification in progress)

Configurable for PCI DSS compliance

Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser

Support for Commercial National Security Algorithms (CNSA)

Tamper-free updates – components digitally signed and verified

Secure Recovery – recover critical firmware to known good state on detection of compromised firmware

Ability to rollback firmware

Secure erase of NAND/User data

TPM (Trusted Platform Module) 1.2 option

TPM (Trusted Platform Module) 2.0 option

Front bezel key-lock feature – standard, available in both Tower and Rack models

Kensington Lock slot, standard

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of HPE

limited warranty and technical support is available at: http://h17007.www1.hpe.com/us/en/enterprise/servers/warranty/.

without additional fees. It can monitor multiple HPE server generations. The user interface is similar to the HPE OneView Advanced version, but the software-defined functionality is not available. Learn more at

Manager (HPE SIM)

Padlock slot, standard

ProLiant Servers and HPE Integrity Servers. Also provides you with basic support for non-HPE servers. HPE SIM also integrates with Smart Update Manager to provide quick and seamless firmware updates. Learn more at

Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

NOTE: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response.

Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. 3) Non CSR parts must be serviced by a trained authorized service engineer. Additional information regarding worldwide

QuickSpecs

HPE ProLiant ML350 Gen10 Server

Optional Features

Page 15

Server Management

HPE iLO Advanced

HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE

ipted virtual media and virtual folders. You can also activate the enhanced security and

http://www.hpe.com/servers/iloadvanced.

HPE iLO Advanced

HPE iLO Advanced Premium Security Edition for iLO 5 includes iLO Advanced License plus

http://www.hpe.com/servers/ilopremium

HPE OneView Advanced

HPE OneView brings a new level of automation to infrastructure management by taking a

visit http://www.hpe.com/info/oneview.

HPE Insight Cluster

HPE Insight Cluster Management Utility is a HyperScale management framework that

infrastructure. Learn more at http://www.hpe.com/info/cmu.

Accelerator and GPGPU Information

Hewlett Packard Enterprise supports various accelerators on select HPE Proliant servers to support different workloads. The

as HPE Insight Cluster Management Utility.

Rack and Power Infrastructure

The story may end with servers, but it starts with the foundation that makes compute go – and business grow. We’ve reinvented

HPE Rack and Power Infrastructure.

ProLiant servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scr power management functionality. Learn more about HPE iLO Advanced at

Premium Security Edition

high-end security modes, unique security capabilities, like Automatic FW recovery; Runtime FW verification, and Secure erase. Learn more about HPE iLO Advanced Premium Security Edition at:

template driven approach to provisioning, updating, and integrating compute, storage, and networking infrastructure. It provides full-featured licenses which can be purchased for managing Gen8, Gen9 and Gen10 servers. To learn more

Management Utility (CMU)

includes software for the centralized provisioning, management and monitoring of nodes and

accelerators enable seamless integration of GPU computing with HPE ProLiant servers for high-performance computing, large data center graphics, deep learning and virtual desktop deployments. These accelerators deliver all of the standard benefits of GPU computing while enabling maximum reliability and tight integration with system monitoring and management tools such

our entire portfolio of rack and power products to make IT infrastructure more secure, more practical, and more efficient. In other words, we’ve created a stronger, smarter, and simpler infrastructure to help you get the most out of your IT equipment. As an industry leader, Hewlett Packard Enterprise is uniquely positioned to address the key concerns of power, cooling, cable management and system access.

HPE G2 Advanced and Enterprise Racks are perfect for the server room or today’s modern data center with enhanced airflow and thermal management, flexible cable management, and a 10 year Warranty to support higher density computing.

HPE G2 PDUs offer reliable power in flexible form factors that operate at temperatures up to 60°, include color-coded outlets and load segments and a low-profile design for optimal access to the rack and support for dense rack environments.

HPE Uninterruptible Power Systems are cost-effective power protection for any type workload. Some UPSs include options for remote management and extended runtime modules so you’re critical dense data center is covered in power outages.

HPE KVM Solutions include a console and switches designed to work with your server and IT equipment reliably. We’ve got a cost-effective KVM switch for your first rack and multiple connection IP switches with remote management and security capabilities to keep your data center rack up and running.

Learn more about HPE Racks, KVM, PDUs and UPSs at

QuickSpecs

HPE ProLiant ML350 Gen10 Server

Optional Features

Page 16

One Config Simple (SCE)

SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5

https://h22174.www2.hpe.com/SimplifiedConfig/Welcome#

minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance.

QuickSpecs

HPE ProLiant ML350 Gen10 Server

Service and Support

Page 17

HPE Pointnext - Service and Support

Protect your business beyond warranty with HPE Pointnext Operational Service

HPE Pointnext provides a comprehensive portfolio including Advisory and Transformational, Professional, and Operational

complex simple.

Connect your devices:

Unlock all of the benefits of your technology investment by connecting your products to Hewlett Packard Enterprise. Achieve up

Learn more about getting connected at http://www.hpe.com/services/getconnected.

Recommended Services

HPE Proactive Care* with 6 hour call-to-repair commitment, three year Support Service

HPE Proactive Care gives customers an enhanced call experience. When your products are connected to HPE, Proactive Care

https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA3-8855ENW.pdf

HPE Proactive Care* with 24x7 coverage, three year Support Service

HPE Proactive Care gives customers an enhanced call experience. When your products are connected to HPE, Proactive Care

https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA3-8855ENW.pdf

HPE Proactive Care* - Next Business Day service, three year Support Service

HPE Proactive Care gives customers an enhanced call experience. When your products are connected to HPE, Proactive Care

VMWare, Microsoft, etc.) running on your HPE servers.

Services to help accelerate your digital transformation. From the onset of your transformation journey, Advisory and Transformational Services focus on designing the transformation and creating a solution roadmap. Professional Services specializes in creative configurations with flawless and on-time implementation, and on-budget execution. Finally, operational services provides innovative new approaches like Flexible Capacity and Datacenter Care, to keep your business at peak performance. HPE is ready to bring together all the pieces of the puzzle for you, with an eye on the future, and make the

to 77%1 reduction in down time, near 100%2 diagnostic accuracy and a single consolidated view of your environment. By connecting, you will receive 24x7monitoring, pre-failure alerts, automatic call logging, and automatic parts dispatch. HPE Proactive Care Service and HPE Datacenter Care Service customers will also benefit from proactive activities to help prevent issues and increase optimization. All of these benefits are already available to you with your server storage and networking products, securely connected to HPE support.

1- IDC 2 – HP CSC reports 2014 – 2015

helps prevent problems and maintains IT stability by utilizing personalized proactive reports with recommendations and advice. This Service combines three years’ proactive reporting and advice with our highest level of hardware support - HPE’s 24x7, six hour hardware call-to-repair. HPE is the only leading manufacturer who makes this level of coverage available as a standard service offering for your most valuable servers. This service also includes collaborative software support for Independent Software Vendors (ISVs), (Red Hat, VMWare, Microsoft, etc.) running on your HPE servers.

helps prevent problems and maintains IT stability by utilizing personalized proactive reports with recommendations and advice This Service combines three years proactive reporting and advice with our 24x7 coverage, four hour hardware response time when there is a problem. This service also includes collaborative software support for Independent Software Vendors (ISVs), (Red Hat, VMWare, Microsoft, etc.) running on your HPE servers.

helps prevent problems and maintains IT stability by utilizing personalized proactive reports with recommendations and advice. This service combines three years of Hardware Support where an HPE authorized representative will arrive at the Customer's site during the onsite coverage window to begin hardware maintenance service the next coverage day after the service request has been logged. This service also includes collaborative software support for Independent Software Vendors (ISVs), (Red Hat,

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Service and Support

Page 18

https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA3-8855ENW.pdf

*HPE Proactive Care and HPE Proactive Care Advanced require that the customer connect their devices to make the most of

these services and receive all the deliverables.

Parts and Materials

HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in

malfunction.

Other related Services

HPE Server Hardware Installation

Provides for the basic hardware installation of HPE branded servers, storage devices and networking options to assist you in

https://www.hpe.com/h20195/V2/GetPDF.aspx/5981-9356EN.pdf

HPE Installation and Startup Service

Provides for the installation of your HPE hardware according to product specifications including options. The HPE service

type (Windows® or Linux).

HPE Datacenter Care service

HPE Datacenter Care helps improve IT stability and security, increase the value of IT, and enable agility and innovation. It is a

http://www.hpe.com/services/datacentercare

HPE GreenLake Flex Capacity

With HPE GreenLake Flex Capacity, you get the speed, scalability, and economics of the public cloud in the privacy of your data

compliance, and manage the cost of IT. And, you have the option to use the public cloud when needed.

DC for Hyperscale

Datacenter Care for Hyperscale is available for Service Providers and HPC customers who use a scale out approach to

support tailored to their operating model.

HPE Factory Express for Servers and storage

HPE Factory Express offers configuration, customization, integration and deployment services for HPE servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to

bringing your new hardware into operation in a timely and professional manner.

delivery technician will connect the product to a LAN as appropriate and enable remote support to allow for automatic case creation for hardware failures. Installation and start up services also includes the installation of one supported operating system

structured framework of repeatable, tested, and globally available services “building blocks.” You can deploy, operate, and evolve your datacenter wherever you are on your IT journey. With HPE Datacenter Care, you benefit from a personalized relationship with HPE via a single point of accountability for HPE and others’ products. For more information, visit

center. Gain the advantages of the public cloud—consumption-based payment, rapid scalability without worrying about capacity constraints. Reduce the “heavy lifting” needed to operate a data center. And retain the advantages that IT provides the business (i.e., control, security). Deliver the right user experience, choose the right technology for the business, manage privacy and

computing with a high volume homogenous infrastructure and resilient architecture can take advantage of this environment

+ 40 hidden pages
