HPE ProLiant ML350 Gen10 Server User Guide
Abstract
This document is for the person who installs, administers, and troubleshoots servers and
storage systems. Hewlett Packard Enterprise assumes you are qualified in the servicing of
computer equipment and trained in recognizing hazards in products with hazardous energy
levels.
Part Number: 870691-002
Published: June 2018
Edition: 2
©
Copyright 2017–2018 Hewlett Packard Enterprise Development LP
Notices
The information contained herein is subject to change without notice. The only warranties for Hewlett
Packard Enterprise products and services are set forth in the express warranty statements accompanying
such products and services. Nothing herein should be construed as constituting an additional warranty.
Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained
herein.
Confidential computer software. Valid license from Hewlett Packard Enterprise required for possession,
use, or copying. Consistent with FAR 12.211 and 12.212, Commercial Computer Software, Computer
Software Documentation, and Technical Data for Commercial Items are licensed to the U.S. Government
under vendor's standard commercial license.
Links to third-party websites take you outside the Hewlett Packard Enterprise website. Hewlett Packard
Enterprise has no control over and is not responsible for information outside the Hewlett Packard
Enterprise website.
Acknowledgments
microSD is a trademark or a registered trademark of SD-3D in the United States, other countries of both.
Microsoft®, Windows®, and Windows Server® are either registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries.
Linux® is the registered trademark of Linus Torvalds in the U.S. and other countries.
Red Hat® Enterprise Linux is a registered trademark of Red Hat, Inc. in the United States and other
countries.
VMware® ESXi™ and VMware vSphere® are registered trademarks or trademarks of VMware, Inc. in the
United States and/or other jurisdictions.
Contents
Component identification.......................................................................8
Front panel components............................................................................................................... 8
Serial number/iLO information pull tab...............................................................................9
Front panel LEDs and buttons...................................................................................................... 9
Server UID LED................................................................................................................11
UID button functionality.................................................................................................... 11
Front panel LED power fault codes.................................................................................. 11
Rear panel components..............................................................................................................12
Rear panel LEDs.........................................................................................................................14
System board components......................................................................................................... 15
System maintenance switch descriptions........................................................................ 17
DIMM label identification.................................................................................................. 18
PCIe slot description........................................................................................................ 19
Processor, heatsink, and socket components..................................................................20
Drive LEDs and buttons.............................................................................................................. 21
Low profile LFF drive LED definitions.............................................................................. 21
Hot-plug drive LED definitions..........................................................................................22
NVMe SSD LED definitions..............................................................................................24
NVMe SSD button actions............................................................................................... 25
Drive bay numbering...................................................................................................................25
SFF drive bay numbering: Smart Array controller............................................................26
SFF drive bay numbering: SAS expander .......................................................................27
NVMe drive bay numbering..............................................................................................28
LFF drive bay numbering: Smart Array controller............................................................ 29
Fan bay numbering..................................................................................................................... 29
Media device screws...................................................................................................................30
Expansion board screws.............................................................................................................30
Setup...................................................................................................... 32
Optional service.......................................................................................................................... 32
Setup overview........................................................................................................................... 32
Operational requirements........................................................................................................... 34
Space and airflow requirements.......................................................................................34
Temperature requirements...............................................................................................35
Power requirements......................................................................................................... 35
Electrical grounding requirements....................................................................................36
Server warnings and cautions.....................................................................................................36
Rack warnings and cautions....................................................................................................... 37
Electrostatic discharge................................................................................................................38
Setting up the server in tower mode........................................................................................... 38
Removing the shipping brackets.................................................................................................39
Configuring the server.................................................................................................................40
OS deployment options...............................................................................................................40
Deploying an OS from Intelligent Provisioning.................................................................41
Deploying an OS from installation media......................................................................... 41
Operations............................................................................................. 42
Power up the server ...................................................................................................................42
Contents 3
Power down the server............................................................................................................... 42
Unlock the front bezel................................................................................................................. 42
Open the front bezel................................................................................................................... 43
Remove the front bezel...............................................................................................................43
Install the front bezel...................................................................................................................44
Store the front bezel keys........................................................................................................... 44
Position the tower server for hardware configuration..................................................................45
Position the tower server for operation....................................................................................... 46
Extend the server from the rack..................................................................................................47
Remove the server from the rack................................................................................................49
Slide the server into the rack...................................................................................................... 51
Remove the access panel...........................................................................................................52
Install the access panel...............................................................................................................53
Remove the air baffle..................................................................................................................54
Install the air baffle......................................................................................................................55
Remove a fan..............................................................................................................................56
Install the blank in fan bay 1....................................................................................................... 57
Remove the fan cage..................................................................................................................58
Install the fan cage......................................................................................................................59
Remove the half-height media bay blank....................................................................................60
Remove the PCI blank retainer...................................................................................................61
Remove the PCI slot blank......................................................................................................... 61
Remove a PCI board screw........................................................................................................ 62
Install the PCI blank retainer.......................................................................................................63
Open the CMA cable clamps ..................................................................................................... 64
Install the shipping hardware...................................................................................................... 64
Hardware options installation..............................................................68
Introduction................................................................................................................................. 68
Drive options............................................................................................................................... 68
Drive guidelines................................................................................................................68
Drive support information................................................................................................. 68
Installing an LFF non-hot-plug drive.................................................................................69
Installing an LFF hot-plug drive........................................................................................71
Installing an SFF hot-plug drive....................................................................................... 72
Installing an NVMe SSD...................................................................................................73
Power supply options..................................................................................................................75
Hot-plug power supply calculations..................................................................................75
Power supply warnings and cautions...............................................................................75
Install an AC power supply...............................................................................................76
Install a DC power supply................................................................................................ 77
Tower-to-rack conversion kit....................................................................................................... 83
Installing the tower-to-rack conversion kit ....................................................................... 84
Prepare the server for rack installation............................................................................ 84
Install the rack rails and server tray................................................................................. 85
Install the server on the tray.............................................................................................88
Install the cable management arm................................................................................... 90
Drive cage options...................................................................................................................... 93
4 LFF non-hot-plug drive cage option.............................................................................. 93
4 LFF hot-plug drive cage option..................................................................................... 96
8 SFF hot-plug drive cage option................................................................................... 100
8 NVMe SSD Express Bay enablement option.............................................................. 103
Media device options................................................................................................................ 106
Installing a SAS LTO tape drive..................................................................................... 106
Installing a USB RDX drive............................................................................................ 109
4 Contents
Optical drive cage option................................................................................................112
Fan cage option.........................................................................................................................115
Fan cage implementation............................................................................................... 115
Fan population and hot-plug support..............................................................................116
Fan mode behavior.........................................................................................................116
Fan speed.......................................................................................................................117
Installing the fan cage.....................................................................................................117
Memory options.........................................................................................................................120
DIMM population information......................................................................................... 120
HPE SmartMemory speed information...........................................................................120
Installing a DIMM............................................................................................................120
Processor heatsink assembly option........................................................................................ 122
Installing the processor heatsink assembly....................................................................122
Processor cautions.........................................................................................................122
Install the processor heatsink assembly........................................................................ 122
Storage controller options......................................................................................................... 125
Smart Array standup controller option............................................................................125
Smart Array modular controller option (AROC)..............................................................128
Configuring an HPE Smart Array Gen10 controller........................................................131
Smart Storage Battery option....................................................................................................132
Installing the Smart Storage Battery.............................................................................. 132
Expansion board options.......................................................................................................... 134
Expansion board thermal requirement........................................................................... 135
GPU installation requirements....................................................................................... 135
Installing an expansion board........................................................................................ 135
HPE 12G SAS expander card option........................................................................................138
SAS expander card port numbering...............................................................................139
Installing the SAS expander card...................................................................................139
M.2 SSD enablement option..................................................................................................... 142
Installing an M.2 SATA SSD...........................................................................................142
Redundant power supply enablement option............................................................................145
Installing the redundant power supply enablement option............................................. 145
Internal USB device options......................................................................................................150
Installing an internal USB device................................................................................... 151
HPE Trusted Platform Module 2.0 Gen10 option......................................................................152
Overview........................................................................................................................ 152
HPE Trusted Platform Module 2.0 Guidelines................................................................152
Installing and enabling the HPE TPM 2.0 Gen10 Kit..................................................... 153
Cabling................................................................................................. 158
Cabling guidelines.....................................................................................................................158
Internal cabling management....................................................................................................159
Storage cabling......................................................................................................................... 160
Storage controller cables............................................................................................... 160
LFF non-hot-plug drive embedded controller cabling (SATA only).................................162
LFF hot-plug drive controller cabling..............................................................................162
SFF hot-plug drive controller cabling............................................................................. 165
NVMe SSD data cabling................................................................................................ 169
Drive power cabling........................................................................................................169
Smart Storage Battery cabling.................................................................................................. 170
Storage controller backup power cabling..................................................................................170
Media device cabling................................................................................................................ 171
SAS LTO tape drive cabling........................................................................................... 171
USB RDX drive cabling.................................................................................................. 173
SATA optical drive cabling..............................................................................................173
Contents 5
M.2 SATA SSD cabling............................................................................................................. 174
GPU auxiliary power cabling.....................................................................................................174
Standard power supply cabling (non-hot-plug)......................................................................... 175
Front I/O module cabling...........................................................................................................175
Software and configuration utilities.................................................. 176
Server mode..............................................................................................................................176
Product QuickSpecs................................................................................................................. 176
Active Health System Viewer....................................................................................................176
Active Health System..................................................................................................... 177
HPE iLO 5................................................................................................................................. 177
iLO Federation............................................................................................................... 178
iLO Service Port............................................................................................................. 178
iLO RESTful API.............................................................................................................179
RESTful Interface Tool................................................................................................... 179
iLO Amplifier Pack..........................................................................................................179
Intelligent Provisioning.............................................................................................................. 179
Intelligent Provisioning operation................................................................................... 180
Management Security............................................................................................................... 181
Scripting Toolkit for Windows and Linux................................................................................... 181
UEFI System Utilities................................................................................................................ 181
Selecting the boot mode ............................................................................................... 182
Secure Boot................................................................................................................... 182
Launching the Embedded UEFI Shell ........................................................................... 183
HPE Smart Storage Administrator............................................................................................ 183
HPE MR Storage Administrator................................................................................................ 184
StorCLI......................................................................................................................................185
USB support..............................................................................................................................185
External USB functionality..............................................................................................185
Redundant ROM support.......................................................................................................... 185
Safety and security benefits........................................................................................... 185
Keeping the system current...................................................................................................... 185
Updating firmware or system ROM................................................................................ 185
Drivers............................................................................................................................188
Software and firmware................................................................................................... 188
Operating system version support................................................................................. 189
HPE Pointnext Portfolio..................................................................................................189
Proactive notifications.................................................................................................... 189
6 Contents
Troubleshooting.................................................................................. 190
NMI functionality........................................................................................................................190
Troubleshooting resources........................................................................................................190
Specifications......................................................................................191
Environmental specifications.................................................................................................... 191
Mechanical specifications......................................................................................................... 191
Power supply specifications......................................................................................................192
HPE 500W Low Halogen Non-hot-plug Power Supply.................................................. 192
HPE 500W Flex Slot Platinum Hot-plug Low Halogen Power Supply............................193
HPE 800W Flex Slot Platinum Hot-plug Low Halogen Power Supply............................194
HPE 800W Flex Slot Titanium Hot-plug Low Halogen Power Supply............................195
HPE 800W Flex Slot Universal Hot-plug Low Halogen Power Supply...........................195
HPE 800W Flex Slot -48VDC Hot-plug Low Halogen Power Supply.............................196
HPE 1600W Flex Slot Platinum Hot-plug Low Halogen Power Supply..........................197
Safety, warranty, and regulatory information................................... 199
Safety and regulatory compliance.............................................................................................199
Warranty information.................................................................................................................199
Belarus Kazakhstan Russia marking........................................................................................ 199
Turkey RoHS material content declaration............................................................................... 200
Ukraine RoHS material content declaration..............................................................................200
Websites.............................................................................................. 201
Support and other resources.............................................................202
Accessing Hewlett Packard Enterprise Support....................................................................... 202
ClearCARE technical support................................................................................................... 202
Accessing updates....................................................................................................................202
Customer self repair..................................................................................................................203
Remote support........................................................................................................................ 203
Documentation feedback.......................................................................................................... 204
Acronyms and abbreviations.............................................................205
Contents 7
Component identification
This chapter describes the external and internal server features and components.
Front panel components
Item Description
1 iLO Service Port
2 USB 3.0 ports (2)
3 Box 1
4 Half-height media bay 1 (for SAS LTO tape drive option or USB RDX drive option)
5 Half-height media bay 2 (for USB RDX drive option)
6 Optical drive bay (for slim-type SATA optical drive option)
7 Serial number/iLO information pull tab
8 Box 21,
8 Component identification
1
2
2
2
3
Table Continued
Item Description
9 Box 3
1
10 Front bezel lock
1
All three boxes support LFF and SFF drive cage options. Mixing LFF and SFF drives in the same server is not
supported.
2
The media drive options are only supported in box 1.
3
In SFF models, box 2 supports the 8 NVMe SSD Express Bay enablement option.
Serial number/iLO information pull tab
The serial number/iLO information pull tab is double-sided. One side shows the server serial number and
the customer asset tag label. The other side shows the default iLO account information and QR code
label.
Use a mobile device to scan the QR code label to display the server mobile product page (http://
www.hpe.com/qref/ml350gen10). This page contains links to server setup information, spare part
numbers, QuickSpecs, troubleshooting resources, and other useful product links.
Front panel LEDs and buttons
Serial number/iLO information pull tab 9
Item Description Status Definition
1 UID button/LED
1
Solid blue Activated
Flashing blue
• 1 flash per sec = Remote management or
firmware upgrade in progress
• 4 flashes per sec = iLO manual reboot
sequence initiated
• 8 flashes per sec = iLO manual reboot
sequence in progress
Off Deactivated
2
NIC status LED1Solid green Linked to network
Flashing green (1 flash
Network active
per sec)
Off No network activity
3
Health LED
1
Solid green
Flashing green (1 flash
Normal
iLO is rebooting
per sec)
Flashing amber System degraded
2
Flashing red (1 flash
System critical
2
per sec)
4
Power On/
Solid green Normal
Standby button
and system
power LED
1
Flashing green (1 flash
Performing power-on sequence
per sec)
Solid amber System in standby
Off No power present
1
When all four LEDs described in this table flash simultaneously, a power fault has occurred. For more information,
see Front panel LED power fault codes on page 11.
2
If the health LED indicates a degraded or critical state, review the system IML or use iLO to review the system health
status.
3
Facility power is not present, power cord is not attached, no power supplies are installed, power supply failure has
occurred, or the front I/O cable is disconnected.
3
10 Component identification
Server UID LED
The UID LED is used to locate a particular server when it is deployed in a dense rack with other
equipment. Activating the UID LED helps an onsite technician to quickly identify a server for maintenance
tasks.
Toggling the UID LED on and off locally
Procedure
1. Remove the front bezel on page 43.
2. Do one of the following:
• To turn on the UID LED, press the UID button.
This action illuminates both the front and rear UID LEDs blue.
• To turn off the UID LED, press the UID button again.
The procedure is complete.
Toggling the UID LED on and off remotely
Procedure
1. Log in to the iLO web interface.
2. Do one of the following:
• To turn on the UID LED, click the UID icon
This action illuminates both the front and rear UID LEDs blue.
• To turn off the UID LED, click the UID icon again.
The iLO control icons are available from any iLO page. For more information, see the iLO user guide
on the Hewlett Packard Enterprise website (http://www.hpe.com/support/ilo-docs).
The procedure is complete.
UID button functionality
The UID button can be used to display the Server Health Summary when the server will not power on.
For more information, see the iLO user guide on the Hewlett Packard Enterprise website (
www.hpe.com/support/ilo-docs).
.
http://
Front panel LED power fault codes
The following table provides a list of power fault codes, and the subsystems that are affected. Not all
power faults are used by all servers.
Server UID LED 11
Subsystem LED behavior
System board 1 flash
Processor 2 flashes
Memory 3 flashes
Riser board PCIe slots 4 flashes
FlexibleLOM 5 flashes
Removable HPE Smart Array SR Gen10 controller 6 flashes
System board PCIe slots 7 flashes
Power backplane or storage backplane 8 flashes
Power supply 9 flashes
Rear panel components
12 Rear panel components
Item Description
1 Standard power supply (non-hot-plug)
2 Flexible Slot power supply 2 (hot-plug)
3 Flexible Slot power supply 1 (hot-plug)
4 PCIe slots 5-8 (bottom to top)
5 Display port
6 VGA port
7 Serial port
8 iLO Management Port
9 NIC port 2 (1Gb)
10 NIC port 1 (1Gb)
11 NIC port 4 (1Gb)
12 NIC port 3 (1Gb)
2
2
2
2
1
13 USB 3.0 ports (2)
14 PCIe slots 1-4 (bottom to top)
15 Padlock eye
16 Kensington security slot
1
The non-hot-plug power supply is only supported in LFF non-hot-plug drive configurations.
2
These NIC ports do not support the 100 Mb/s and 10 Mb/s speeds.
Component identification 13
Rear panel LEDs
Item LED Status Definition
1
2
3
4
Power supply Solid green Normal
Off System is off or power supply has
failed.
iLO status Solid green Linked to network
Flashing green Network active
Off No network activity
iLO link Solid green Network link
Off No network link
NIC status Solid green Linked to network
Flashing green Network active
Table Continued
14 Rear panel LEDs
Item LED Status Definition
5
6
NIC link Solid green Network link
UID Solid blue Activated
Off No network activity
Off No network link
Flashing blue System is being managed remotely.
Off Deactivated
System board components
Item Description
1 Smart Array modular controller connector (AROC)
2 Standard power supply connector
3 Power distribution board connector
4 Smart Storage Battery connector
5 microSD card slot
6 System battery
7 Storage controller backup power connectors (2)
Table Continued
System board components 15
Item Description
8 Slot 8 PCIe3 x8 (8, 4, 1)
9 Slot 7 PCIe3 x16 (16, 8, 4, 1)
10 Slot 6 PCIe3 x8 (8, 4, 1)
11 Slot 5 PCIe3 x16 (16, 8, 4, 1)
1
1
1
1
12 Fan connector 5
13 Fan connector 6
14 Slot 4 PCIe3 x8 (4, 1)
15 Slot 3 PCIe3 x16 (16, 8, 4, 1)
2
2
16 NVMe riser sideband connector for PCIe slot 3
17 Slot 2 PCIe3 x8 (4, 1)
2
18 NVMe riser sideband connector for PCIe slot 1
19 Slot 1 PCIe3 x16 (16, 8, 4, 1)
2
20 TPM connector
21 Storage controller backup power connectors (2)
22 System maintenance switch
23 Power and x1 SATA port 5
24 x1 SATA port 4
25 Front USB cable connector
26 Front I/O cable connector
27 Internal USB 2.0 port
28 Internal USB 3.0 port
29 x4 SATA port 2
30 x4 SATA port 1
31 x4 SATA port 3
32 Fan connector 4
16 Component identification
Table Continued
Item Description
33 Box 3 drive power connector
34 Box 2 drive power connector
35 Box 1 drive power connector
36 Fan connector 3
37 Fan connector 2
38 Fan connector 1
1
The PCIe3 expansion slots 5–8 are associated with processor 2.
2
The PCIe3 expansion slots 1–4 are associated with processor 1.
System maintenance switch descriptions
Position Default Function
1
S1
Off
Off = iLO 5 security is enabled.
On = iLO 5 security is disabled.
S2 Off
Off = System configuration can be changed.
On = System configuration is locked.
S3 Off Reserved
S4 Off Reserved
1
S5
Off
Off = Power-on password is enabled.
On = Power-on password is disabled.
S61, 2,
3
Off
Off = No function
On = Restore default manufacturing settings
S7 Off Reserved
S8 — Reserved
S9 — Reserved
S10 — Reserved
S11 — Reserved
S12 — Reserved
1
To access the redundant ROM, set S1, S5, and S6 to On.
2
When the system maintenance switch position 6 is set to the On position, the system is prepared to restore all
configuration settings to their manufacturing defaults.
3
When the system maintenance switch position 6 is set to the On position and Secure Boot is enabled, some
configurations cannot be restored. For more information, see Secure Boot on page 182.
System maintenance switch descriptions 17
DIMM label identification
To determine DIMM characteristics, see the label attached to the DIMM. The information in this section
helps you to use the label to locate specific information about the DIMM.
Item Description Example
1 Capacity
2 Rank
3 Data width on DRAM
4 Memory generation
5 Maximum memory speed
8 GB
16 GB
32 GB
64 GB
128 GB
1R = Single rank
2R = Dual rank
4R = Quad rank
8R = Octal rank
x4 = 4-bit
x8 = 8-bit
x16 = 16-bit
PC4 = DDR4
2133 MT/s
2400 MT/s
18 DIMM label identification
2666 MT/s
Table Continued
Item Description Example
6 CAS latency
7 DIMM type
For more information about product features, specifications, options, configurations, and compatibility, see
the product QuickSpecs on the Hewlett Packard Enterprise website (http://www.hpe.com/info/qs).
PCIe slot description
P = CAS 15-15-15
T = CAS 17-17-17
U = CAS 20-18-18
V = CAS 19-19-19 (for RDIMM, LRDIMM)
V = CAS 22-19-19 (for 3DS TSV LRDIMM)
R = RDIMM (registered)
L = LRDIMM (load reduced)
E = Unbuffered ECC (UDIMM)
PCIe slot description 19
Item Description Definition
1 PCI Express version
2 Physical connector link width PCIe devices communicate through a logical
Each PCIe version corresponds to a specific data
transfer rate between the processor and peripheral
devices. Generally, a version update corresponds to
an increase in transfer rate.
• PCIe 1.x
• PCIe 2.x
• PCIe 3.x
The PCIe technology is under constant development.
For the latest information, see the PCI-SIG website.
connection called an interconnect or link. At the
physical level, a link is composed of one or more
lanes. The number of lanes is written with an "×" prefix
with ×16 being the largest size in common use.
• ×1
• ×2
• ×4
• ×8
• ×16
3 Negotiable link width These numbers correspond to the maximum link
bandwidth supported by the slot.
Processor, heatsink, and socket components
20 Processor, heatsink, and socket components
Item Description
1 Heatsink nuts
2 Processor carrier
3 Pin 1 indicator
4 Heatsink latch
5 Alignment post
1
Symbol also on the processor and frame.
1
Drive LEDs and buttons
Low profile LFF drive LED definitions
Item LED Status Definition
1 Fault
\Locate
2 Online
\Activity
Solid amber The drive has failed.
Solid blue The drive is operating normally and being identified by a
management application.
Flashing amber/blue
(1 flash per second)
Flashing amber
(1 flash per second)
Solid green The drive is online and has no activity.
Flashing green
(4 flashes per second)
The drive has failed, or a predictive failure alert has been
received for this drive; it also has been identified by a
management application.
A predictive failure alert has been received for this drive.
Replace the drive as soon as possible.
The drive is operating normally and has activity.
Table Continued
Drive LEDs and buttons 21
Item LED Status Definition
Flashing green
(1 flash per second)
Off The drive is not configured by a RAID controller or a spare
Hot-plug drive LED definitions
The drive is doing one of the following:
• Rebuilding
• Performing a RAID migration
• Performing a strip size migration
• Performing a capacity expansion
• Performing a logical drive extension
• Erasing
• Spare part activation
drive.
Item LED Status Definition
1 Locate Solid blue The drive is being identified by a host application.
Flashing blue The drive carrier firmware is being updated or requires an update.
2 Activity
ring
Off No drive activity
3 Do not
remove
Off Removing the drive does not cause a logical drive to fail.
4 Drive
status
Rotating green Drive activity
Solid white Do not remove the drive. Removing the drive causes one or more of
the logical drives to fail.
Solid green The drive is a member of one or more logical drives.
Table Continued
22 Hot-plug drive LED definitions
Item LED Status Definition
Flashing green The drive is doing one of the following:
• Rebuilding
• Performing a RAID migration
• Performing a strip size migration
• Performing a capacity expansion
• Performing a logical drive extension
• Erasing
• Spare part activation
Flashing amber/
green
Flashing amber The drive is not configured and predicts the drive will fail.
Solid amber The drive has failed.
Off The drive is not configured by a RAID controller or a spare drive.
The drive is a member of one or more logical drives and predicts the
drive will fail.
Enabling embedded chipset SATA controller support
Use the Embedded SATA Configuration option to enable embedded chipset SATA (Serial Advanced
Technology Attachment) controller support. You can select AHCI or HPE Smart Array S100i SR Gen10
SW RAID support. Make sure that you are using the correct operating system drivers for your selected
option.
CAUTION: Dynamic Smart Array is not supported when the boot mode is configured to Legacy
BIOS Mode. Enabling Dynamic Smart Array RAID results in data loss or data corruption on existing
SATA drives. Back up all drives before enabling this option. See your operating system
documentation before enabling SATA AHCI support to ensure your base media drivers support this
feature.
Prerequisites
• The correct operating system drivers for your selected option.
• Boot Mode is set to UEFI Mode.
Procedure
1. From the System Utilities screen, select System Configuration > BIOS/Platform Configuration
(RBSU) > Storage Options > SATA Controller Options > Embedded SATA Configuration.
2. Ensure that you are using the correct ACHI or RAID system drivers for your SATA option.
3. Select a setting.
Enabling embedded chipset SATA controller support 23
• SATA AHCI Support—Enables the embedded chipset SATA controller for AHCI.
• Smart Array SW RAID Support—Enables the embedded chipset SATA controller for Dynamic
Smart Array RAID.
4. Save your setting.
NVMe SSD LED definitions
The NVMe SSD is a PCIe bus device. A device attached to a PCIe bus cannot be removed without
allowing the device and bus to complete and cease the signal/traffic flow.
CAUTION: Do not remove an NVMe SSD from the drive bay while the Do not remove LED is
flashing. The Do not remove LED flashes to indicate that the device is still in use. Removing the
NVMe SSD before the device has completed and ceased signal/traffic flow can cause loss of data.
Item LED Status Definition
1 Locate Solid blue The drive is being identified by a host application.
Flashing blue The drive carrier firmware is being updated or requires an update.
2 Activity
ring
Off No drive activity
3 Drive
status
Flashing green The drive is doing one of the following:
Rotating green Drive activity
Solid green The drive is a member of one or more logical drives.
• Rebuilding
• Performing a RAID migration
• Performing a stripe size migration
• Performing a capacity expansion
• Performing a logical drive extension
• Erasing
Flashing amber/
green
24 NVMe SSD LED definitions
The drive is a member of one or more logical drives and predicts the
drive will fail.
Table Continued
Item LED Status Definition
Flashing amber The drive is not configured and predicts the drive will fail.
Solid amber The drive has failed.
Off The drive is not configured by a RAID controller.
4 Do not
remove
Flashing white The drive ejection request is pending.
5 Power Solid green Do not remove the drive. The drive must be ejected from the PCIe bus
Solid white Do not remove the drive. The drive must be ejected from the PCIe bus
Off The drive has been ejected.
Flashing green The drive ejection request is pending.
Off The drive has been ejected.
NVMe SSD button actions
prior to removal.
prior to removal.
Item Button Action
1 Do Not Remove
2 Power
Drive bay numbering
Drive bay numbering depends on how the drive backplane is connected. In this server, the backplane can
be connected to the:
• Embedded Smart Array controller through the onboard SATA ports
• Smart Array type-a modular (AROC) and type-p standup plug-in storage controllers
• SAS expander card
Press to open the release lever.
Press to request PCIe ejection. Removal request can be denied
by the:
• RAID controller (one or more of the logical drives could fail)
• Operating system
NVMe SSD button actions 25
When the backplane is connected to a storage controller, the drive bay numbering for each drive box
starts at 1.
When the backplane is connected to a SAS expander, all drive boxes are treated as a single box 1. This
means the drive bay numbering is continuous.
SFF drive bay numbering: Smart Array controller
Tower orientation
Rack orientation
26 SFF drive bay numbering: Smart Array controller
SFF drive bay numbering: SAS expander
Tower orientation
Rack orientation
SFF drive bay numbering: SAS expander 27
NVMe drive bay numbering
Tower orientation
Rack orientation
28 NVMe drive bay numbering
LFF drive bay numbering: Smart Array controller
Tower orientation
Rack orientation
Fan bay numbering
Fans 5 and 6 are preinstalled in the chassis while fans 1–4 are preinstalled in the fan cage option.
LFF drive bay numbering: Smart Array controller 29
Media device screws
There are 16 T-15 Torx screws located on the server chassis. These screws are provided as spare
screws for installing media devices.
Expansion board screws
There are T-15 Torx screws located on the underside of the PCI blank retainer. These are screws for
installing PCIe standup plug-in expansion board options.
30 Media device screws
Component identification 31
Setup
Optional service
Delivered by experienced, certified engineers, Hewlett Packard Enterprise support services help you keep
your servers up and running with support packages tailored specifically for HPE ProLiant systems.
Hewlett Packard Enterprise support services let you integrate both hardware and software support into a
single package. A number of service level options are available to meet your business and IT needs.
Hewlett Packard Enterprise support services offer upgraded service levels to expand the standard
product warranty with easy-to-buy, easy-to-use support packages that will help you make the most of your
server investments. Some of the Hewlett Packard Enterprise support services for hardware, software or
both are:
• Foundation Care – Keep systems running.
◦ 6-Hour Call-to-Repair
◦ 4-Hour 24x7
◦ Next Business Day
• Proactive Care – Help prevent service incidents and get you to technical experts when there is one.
◦ 6-Hour Call-to-Repair
◦ 4-Hour 24x7
◦ Next Business Day
• Deployment service for both hardware and software
• Hewlett Packard Enterprise Education Services – Help train your IT staff.
1
The time commitment for this repair service might vary depending on the site's geographical region. For
more service information available in your site, contact your local
center.
For more information on Hewlett Packard Enterprise support services, see the Hewlett Packard
Enterprise website.
1
1
Hewlett Packard Enterprise support
Setup overview
Prerequisites
Before setting up the server, be sure to read the following:
• Operational requirements on page 34
• Safety and compliance information on the HPE website:
http://www.hpe.com/support/safety-compliance-enterpriseproducts
• If the tower-to-rack conversion kit is used, observe the Rack warnings and cautions on page 37.
32 Setup
Procedure
1. Unbox the server and verify the contents:
• Server
• Chassis feet (4)
• Power cord
• Rack-mounting hardware (optional)
• Documentation
2. (Optional) Install hardware options. For installation instructions, see Hardware options installation
on page 68.
3. Select the server orientation:
• Tower orientation
• Rack orientation
◦ If the server was shipped with the tower-to-rack conversion kit, install this hardware option.
◦ If the server was shipped in a rack, remove the shipping brackets.
4. Decide how to manage the server:
• To manage the server locally, use a KVM switch or a mouse, keyboard, and monitor.
• To manage the server remotely, use a remote browser to connect to the iLO web interface:
a. Verify that a network cable is connected to the iLO Management Port.
b. Locate the iLO hostname or IP address:
◦ If a DHCP server assigns the IP address:
Locate the hostname on the serial number/iLO information pull tab.
Locate the iLO IP address displayed on the boot screen. You can also try pinging the
hostname from a remote workstation.
◦ If a static IP address is assigned, use that IP address to connect to the server iLO.
c. Using the iLO hostname or IP address, connect to the iLO web interface, and then log in to the
iLO web interface.
https://<iLO hostname or IP address>
The default credentials are on the serial number/iLO information pull tab.
d. In the side navigation, click Remote Console & Media, and then launch a remote console.
Remote management is started.
5. Press the Power On/Standby button.
Setup 33
The iLO virtual power button can also power up the server through the iLO web interface or remote
console.
6. (Optional) Create logical drives or set up RAID.
• If a Smart Array controller is installed, press F10 at the boot screen to launch Intelligent
Provisioning, and then access HPE Smart Storage Administrator.
• If there is no controller installed, enable the embedded Smart Array controller in the UEFI
System Utilities, and then use HPE Smart Storage Administrator.
If you experience any issues, try updating the firmware.
7. Deploy an OS or virtualization software.
If an OS or virtualization software is already installed, Hewlett Packard Enterprise recommends
updating the drivers.
To deploy an OS to a single server:
a. Verify that the OS is supported:
http://www.hpe.com/info/ossupport
b. Insert the installation media.
On remote deployments, use the iLO remote console to mount the image to a virtual drive. From
the iLO Integrated Remote Console window, click Virtual Drives, and then select how to mount the
media.
c. Deploy the OS.
• To use Intelligent Provisioning to perform an automated OS installation, press F10 at the boot
screen to launch Intelligent Provisioning.
• To boot the server from the installation media, press F11 at the boot screen, and then select the
boot device.
d. After the OS is installed, update the drivers.
For advanced deployment options, see OS deployment options on page 40.
8. Register the server (https://myenterpriselicense.hpe.com).
Operational requirements
Space and airflow requirements
To allow for servicing and adequate airflow, observe the following space and airflow requirements when
deciding where to install a rack:
• Leave a minimum clearance of 63.5 cm (25 in) in front of the rack.
• Leave a minimum clearance of 76.2 cm (30 in) behind the rack.
• Leave a minimum clearance of 121.9 cm (48 in) from the back of the rack to the back of another rack
or row of racks.
34 Operational requirements
Hewlett Packard Enterprise servers draw in cool air through the front door and expel warm air through the
rear door. Therefore, the front and rear rack doors must be adequately ventilated to allow ambient room
air to enter the cabinet, and the rear door must be adequately ventilated to allow the warm air to escape
from the cabinet.
CAUTION: To prevent improper cooling and damage to the equipment, do not block the ventilation
openings.
When vertical space in the rack is not filled by a server or rack component, the gaps between the
components cause changes in airflow through the rack and across the servers. Cover all gaps with
blanking panels to maintain proper airflow.
CAUTION: Always use blanking panels to fill empty vertical spaces in the rack. This arrangement
ensures proper airflow. Using a rack without blanking panels results in improper cooling that can
lead to thermal damage.
The 9000 and 10000 Series Racks provide proper server cooling from flow-through perforations in the
front and rear doors that provide 64 percent open area for ventilation.
CAUTION: When using a Compaq branded 7000 series rack, install the high airflow rack door insert
(PN 327281-B21 for 42U rack, PN 157847-B21 for 22U rack) to provide proper front-to-back airflow
and cooling.
CAUTION: If a third-party rack is used, observe the following additional requirements to ensure
adequate airflow and to prevent damage to the equipment:
• Front and rear doors—If the 42U rack includes closing front and rear doors, you must allow
5,350 sq cm (830 sq in) of holes evenly distributed from top to bottom to permit adequate airflow
(equivalent to the required 64 percent open area for ventilation).
• Side—The clearance between the installed rack component and the side panels of the rack must
be a minimum of 7 cm (2.75 in).
Temperature requirements
To ensure continued safe and reliable equipment operation, install or position the system in a wellventilated, climate-controlled environment.
The maximum recommended ambient operating temperature (TMRA) for most server products is 35°C
(95°F). The temperature in the room where the rack is located must not exceed 35°C (95°F).
CAUTION: To reduce the risk of damage to the equipment when installing third-party options:
• Do not permit optional equipment to impede airflow around the server or to increase the internal
rack temperature beyond the maximum allowable limits.
• Do not exceed the manufacturer’s TMRA.
Power requirements
Installation of this equipment must comply with local and regional electrical regulations governing the
installation of information technology equipment by licensed electricians. This equipment is designed to
operate in installations covered by NFPA 70, 1999 Edition (National Electric Code) and NFPA-75, 1992
(code for Protection of Electronic Computer/Data Processing Equipment). For electrical power ratings on
options, refer to the product rating label or the user documentation supplied with that option.
Temperature requirements 35
WARNING: To reduce the risk of personal injury, fire, or damage to the equipment, do not overload
the AC supply branch circuit that provides power to the rack. Consult the electrical authority having
jurisdiction over wiring and installation requirements of your facility.
CAUTION: Protect the server from power fluctuations and temporary interruptions with a regulating
uninterruptible power supply. This device protects the hardware from damage caused by power
surges and voltage spikes and keeps the system in operation during a power failure.
Electrical grounding requirements
The server must be grounded properly for proper operation and safety. In the United States, you must
install the equipment in accordance with NFPA 70, 1999 Edition (National Electric Code), Article 250, as
well as any local and regional building codes. In Canada, you must install the equipment in accordance
with Canadian Standards Association, CSA C22.1, Canadian Electrical Code. In all other countries, you
must install the equipment in accordance with any regional or national electrical wiring codes, such as the
International Electrotechnical Commission (IEC) Code 364, parts 1 through 7. Furthermore, you must be
sure that all power distribution devices used in the installation, such as branch wiring and receptacles, are
listed or certified grounding-type devices.
Because of the high ground-leakage currents associated with multiple servers connected to the same
power source, Hewlett Packard Enterprise recommends the use of a PDU that is either permanently wired
to the building’s branch circuit or includes a nondetachable cord that is wired to an industrial-style plug.
NEMA locking-style plugs or those complying with IEC 60309 are considered suitable for this purpose.
Using common power outlet strips for the server is not recommended.
Server warnings and cautions
WARNING: To reduce the risk of personal injury, electric shock, or damage to the equipment,
disconnect the power cord to remove power from the server. Pressing the Power On/Standby button
does not shut off system power completely. Portions of the power supply and some internal circuitry
remain active until AC power is removed.
WARNING: To reduce the risk of personal injury from hot surfaces, allow the drives and the internal
system components to cool before touching them.
CAUTION: Protect the server from power fluctuations and temporary interruptions with a regulating
UPS. This device protects the hardware from damage caused by power surges and voltage spikes
and keeps the server in operation during a power failure.
CAUTION: To prevent damage to electrical components, properly ground the server before
beginning any installation procedure. Improper grounding can cause electrostatic discharge.
CAUTION: To avoid data loss, Hewlett Packard Enterprise recommends that you back up all server
data before installing or removing a hardware option, or performing a server maintenance or
troubleshooting procedure.
CAUTION: Do not operate the server for long periods with the access panel open or removed.
Operating the server in this manner results in improper airflow and improper cooling that can lead to
thermal damage.
36 Electrical grounding requirements
Rack warnings and cautions
WARNING: When all components are removed, the server weighs 21 kg (46.30 lb). When all
components are installed, the server can weigh up to 41 kg (90.39 lb).
Before configuring your rack solution, be sure to check the rack manufacturer weight limits and
specifications. Failure to do so can result in physical injury or damage to the equipment and the
facility.
WARNING: The server is heavy. To reduce the risk of personal injury or damage to the equipment,
do the following:
• Observe local occupational health and safety requirements and guidelines for manual material
handling.
• Get help to lift and stabilize the product during installation or removal, especially when the
product is not fastened to the rails. The server weighs more than 21 kg (46.30 lb), so at least two
people must lift the server into the rack together. An additional person may be required to help
align the server if the server is installed higher than chest level.
• Use caution when installing the server in or removing the server from the rack.
• Adequately stabilized the rack before extending a component outside the rack. Extend only one
component at a time. A rack may become unstable if more than one component is extended.
• Do not stack anything on top of rail-mounted component or use it as a work surface when
extended from the rack.
WARNING: To reduce the risk of personal injury or damage to the equipment, observe the following
precautions:
• The leveling jacks are extended to the floor.
• The full weight of the rack rests on the leveling jacks.
• The stabilizing feet are attached to the rack if it is a single-rack installation.
• The racks are coupled together in multiple-rack installations.
WARNING: To reduce the risk of personal injury or equipment damage when unloading a rack:
• At least two people are needed to safely unload the rack from the pallet. An empty 42U rack can
weigh as much as 115 kg (253 lb), can stand more than 2.1 m (7 ft) tall, and might become
unstable when being moved on its casters.
• Never stand in front of the rack when it is rolling down the ramp from the pallet. Always handle
the rack from both sides.
CAUTION: Always plan the rack installation so that the heaviest item is on the bottom of the rack.
Install the heaviest item first, and continue to populate the rack from the bottom to the top.
Rack warnings and cautions 37
CAUTION: Before installing the server in a rack, be sure to properly scope the limitations of the
rack. Before proceeding with the installation, consider the following:
• You must fully understand the static and dynamic load carrying capacity of the rack and be sure
that it can accommodate the weight of the server.
• Be sure sufficient clearance exists for cabling, installation and removal of the server, and
movement of the rack doors.
IMPORTANT: The HPE ProLiant ML350 Gen10 Server cable management arm is not supported on
Compaq-branded 7000 series racks.
Electrostatic discharge
Be aware of the precautions you must follow when setting up the system or handling components. A
discharge of static electricity from a finger or other conductor may damage system boards or other staticsensitive devices. This type of damage may reduce the life expectancy of the system or component.
To prevent electrostatic damage:
• Avoid hand contact by transporting and storing products in static-safe containers.
• Keep electrostatic-sensitive parts in their containers until they arrive at static-free workstations.
• Place parts on a grounded surface before removing them from their containers.
• Avoid touching pins, leads, or circuitry.
• Always be properly grounded when touching a static-sensitive component or assembly. Use one or
more of the following methods when handling or installing electrostatic-sensitive parts:
◦ Use a wrist strap connected by a ground cord to a grounded workstation or computer chassis. Wrist
straps are flexible straps with a minimum of 1 megohm ±10 percent resistance in the ground cords.
To provide proper ground, wear the strap snug against the skin.
◦ Use heel straps, toe straps, or boot straps at standing workstations. Wear the straps on both feet
when standing on conductive floors or dissipating floor mats.
◦ Use conductive field service tools.
◦ Use a portable field service kit with a folding static-dissipating work mat.
If you do not have any of the suggested equipment for proper grounding, have an authorized reseller
install the part.
For more information on static electricity or assistance with product installation, contact an authorized
reseller.
Setting up the server in tower mode
Procedure
1. Rotate the chassis feet outward to stabilize the server.
38 Electrostatic discharge
WARNING: To reduce the risk of electric shock, fire, or damage to the equipment, do not plug
telephone or telecommunications connectors into RJ-45 connectors.
2. Connect peripheral devices to the server.
WARNING: To reduce the risk of electric shock or damage to the equipment:
• Do not disable the power cord grounding plug. The grounding plug is an important safety
feature.
• Plug the power cord into a grounded (earthed) electrical outlet that is easily accessible at all
times.
• Unplug the power cord from the power supply to disconnect power to the equipment.
• Do not route the power cord where it can be walked on or pinched by items placed against it.
Pay particular attention to the plug, electrical outlet, and the point where the cord extends
from the server.
3. Connect each power cord to the server.
4. Connect each power cord to the power source.
Removing the shipping brackets
A server shipped in a rack is secured by shipping brackets. To allow the server tray to be extended out of
the rack during normal server operation, remove these shipping brackets.
Prerequisites
Before you perform this procedure, make sure that you have a T-25 Torx screwdriver available.
Procedure
1. Remove the screws securing the shipping bracket.
2. Remove the shipping bracket from the front rack column.
Removing the shipping brackets 39
3. Repeat steps 1–2 to remove the bracket from the other opposite rack column.
Retain the shipping brackets and screws in case there is a need to ship or transport the rack-installed
server at a later date.
Configuring the server
When the server is powered on, the POST screen is displayed. Use the following options to configure the
server:
• System utilities (F9)
Use this option to configure UEFI, RBSU, or other boot settings.
• Intelligent Provisioning (F10)
Use this option to configure drives, access Smart Storage Administrator, or begin installing or
deploying an operating system.
• Boot order (F11)
Use this option to select a boot device.
• Network boot (F12)
Use this option to PXE boot the server from the network.
OS deployment options
For a single server
You can use:
• Intelligent Provisioning
• Installation media (USB or DVD)
40 Configuring the server
For multiple servers
You can use:
• Scripting Toolkit (STK)
• iLO RESTful Interface Tool
Deploying an OS from Intelligent Provisioning
Procedure
See the latest Intelligent Provisioning user guide on the HPE website.
Deploying an OS from installation media
Prerequisites
Local deployment
For local deployments, be sure to have:
• Installation media (USB or DVD)
• The latest SPP
Remote deployment
For remote deployments, be sure to have:
• Server iLO IP address or domain name
• Access to the iLO web interface
• Virtual installation media mounted in the iLO Integrated Remote Console
• The latest SPP
Procedure
1. Verify that the OS is supported:
http://www.hpe.com/info/ossupport
2. Insert the installation media.
On remote deployments, use the iLO remote console to mount the image to a virtual drive. From the
iLO Integrated Remote Console window, click Virtual Drives and then select how to mount the media.
3. Power up the server.
The iLO virtual power button can also power up the server through the iLO web interface or remote
console.
4. Deploy the OS.
To boot the server from the installation media, press F11 at the boot screen, and then select the boot
device.
5. After the OS is installed, update the drivers.
Deploying an OS from Intelligent Provisioning 41
Operations
This chapter describes the hardware operations carried out prior to and after installing or removing a
hardware option, or performing a server maintenance or troubleshooting procedure.
Before performing these hardware operations, review and observe the server warnings and cautions.
Power up the server
To power up the server, press the Power On/Standby button.
Power down the server
Before powering down the server for any upgrade or maintenance procedures, perform a backup of
critical server data and programs.
IMPORTANT: When the server is in standby mode, auxiliary power is still being provided to the
system.
To power down the server, use one of the following methods:
• Press and release the Power On/Standby button.
This method initiates a controlled shutdown of applications and the OS before the server enters
standby mode.
• Press and hold the Power On/Standby button for more than 4 seconds to force the server to enter
standby mode.
This method forces the server to enter standby mode without properly exiting applications and the OS.
If an application stops responding, you can use this method to force a shutdown.
• Use a virtual power button selection through iLO 5.
This method initiates a controlled remote shutdown of applications and the OS before the server
enters standby mode.
Before proceeding, verify that the server is in standby mode by observing that the system power LED is
amber.
Unlock the front bezel
While pressing the key against the lock, rotate the key to the unlock position.
42 Operations
Open the front bezel
Procedure
1. Unlock the front bezel on page 42.
2. Open the front bezel.
Remove the front bezel
Procedure
1. Unlock the front bezel on page 42.
2. Open the front bezel on page 43.
3. Release the bezel hinges from the chassis.
Open the front bezel 43
Install the front bezel
Procedure
1. Attach the front bezel hinges to the chassis.
2. Close the front bezel.
3. While pressing the key against the lock, rotate the key to the lock position.
Store the front bezel keys
Two front bezel keys shipped with the server. You can keep these keys in either of these locations:
44 Install the front bezel
Procedure
• Store it inside the front bezel.
• Hang it from the padlock eye on the rear panel.
Position the tower server for hardware configuration
Procedure
1. Rotate the chassis feet inward.
Position the tower server for hardware configuration 45
2. Place the server on a flat, level surface with the access panel facing up.
Position the tower server for operation
Procedure
1. Return the server to an upright position.
2. Rotate the chassis feet outward to stabilize the server.
46 Position the tower server for operation
Extend the server from the rack
Procedure
1. If the rear panel cables are not secured by a cable management arm, do the following:
a. Open the front bezel on page 43.
b. Power down the server on page 42
c. Disconnect all peripheral cables from the server.
d. Disconnect each power cord from the server.
e. If front panel access is no longer needed, close the bezel.
WARNING: To reduce the risk of personal injury or equipment damage, be sure that the rack is
adequately stabilized before extending a component from the rack.
2. Slide the server tray out of the rack:
a. Loosen the server tray thumbscrews.
b. Grasp the tray notch to slide the server out of the rack.
Extend the server from the rack 47
WARNING: To reduce the risk of personal injury, be careful when pressing the server rail-release
latches and sliding the server into the rack. The sliding rails could pinch your fingers.
3. After performing the installation or maintenance procedure, slide the server tray into the rack:
a. Press and hold the blue release latches on both rails, and then slide the server tray back into the
rack.
b. Tighten the server tray thumbscrews.
48 Operations
4. If the rear panel cables were disconnected because a cable management arm is not in use, do the
following:
a. Connect each power cord to the server.
b. Connect all peripheral cables to the server.
c. Power up the server on page 42.
Remove the server from the rack
WARNING: This server is heavy. To reduce the risk of personal injury or damage to the equipment:
• Observe local occupational health and safety requirements and guidelines for manual material
handling.
• Get help to lift and stabilize the product during installation or removal, especially when the
product is not fastened to the rails. Hewlett Packard Enterprise recommends that a minimum of
two people are required for all rack server installations. A third person may be required to help
align the server if the server is installed higher than chest level.
• Use caution when installing the server in or removing the server from the rack; it is unstable
when not fastened to the rails.
Prerequisites
Before you perform this procedure, make sure that you have a T-15 Torx screwdriver available.
Procedure
1. Power down the server on page 42.
2. Remove all power:
Remove the server from the rack 49
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Disconnect all peripherals cables from the server.
4. Slide the server tray out of the rack:
a. Loosen the server tray thumbscrews.
b. Grasp the tray notch to slide the server out of the rack.
5. Remove the chassis rear bracket screws.
6. Remove the server from the tray.
50 Operations
7. Place the server on a flat, level surface with access panel facing up.
Slide the server into the rack
Procedure
1. Press and hold the blue release latches on both rails, and then slide the server tray back into the rack.
2. Tighten the server tray thumbscrews.
Slide the server into the rack 51
Remove the access panel
WARNING: To reduce the risk of personal injury from hot surfaces, allow the drives and the internal
system components to cool before touching them.
CAUTION: To prevent damage to electrical components, take the appropriate anti-static precautions
before beginning any installation, removal, or replacement procedure. Improper grounding can
cause electrostatic discharge.
CAUTION: Do not operate the server for long periods with the access panel open or removed.
Operating the server in this manner results in improper airflow and improper cooling that can lead to
thermal damage.
Prerequisites
Before you perform this procedure, make sure that you have a T-15 Torx screwdriver available.
Procedure
1. Remove the front bezel on page 43.
2. Power down the server on page 42.
3. If you are removing the access panel as part of a non-hot-plug installation or maintenance procedure,
remove all power from the server:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
c. Disconnect all peripheral cables from the server.
4. If installed, unlock and remove the security padlock and/or the Kensington security lock.
For more information, see the lock documentation.
52 Remove the access panel
5. If the front bezel key is hanging from the padlock eye, remove the key.
6. Do one of the following:
• Server in tower mode: Position the tower server for hardware configuration on page 45.
• Server in rack mode: Extend the server from the rack on page 47.
7. Remove the access panel:
a. If necessary, unlock the access panel latch.
b. Press the release button and pull up the latch to disengage the access panel from the chassis.
c. Lift up the rear side of the access panel to remove the panel from the chassis.
Install the access panel
Prerequisites
Before you perform this procedure, make sure that you have a T-15 Torx screwdriver available.
Procedure
1. Place the access panel on top of the server with the latch open.
2. Insert the guide pin on the chassis through the hole on the access panel latch.
3. Close the access panel latch.
The access panel slides to a closed position.
4. Lock the access panel latch.
Install the access panel 53
5. Perform the post-installation or maintenance steps required by the procedure that required the
removal of the access panel.
Remove the air baffle
CAUTION: For proper cooling, do not operate the server without the access panel, baffles,
expansion slot covers, or blanks installed. If the server supports hot-plug components, minimize the
amount of time the access panel is open.
Procedure
1. Remove the front bezel on page 43.
2. Power down the server on page 42.
3. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
4. Disconnect all peripherals cables from the server.
5. Do one of the following:
• Server in tower mode: Position the tower server for hardware configuration on page 45.
• Server in rack mode: Extend the server from the rack on page 47.
6. Remove the access panel on page 52.
7. While pressing the blue air baffle latches, lift up the baffle from the chassis.
54 Remove the air baffle
Install the air baffle
CAUTION: For proper cooling, do not operate the server without the access panel, baffles,
expansion slot covers, or blanks installed. If the server supports hot-plug components, minimize the
amount of time the access panel is open.
Procedure
1. Observe the alignment dash lines shown in the following image to install the air baffle on the chassis.
2. Press down the air baffle and make sure that the tabs on the blue latches are engaged in their chassis
slots.
Install the air baffle 55
3. Install the access panel on page 53.
4. Perform the post-installation/maintenance steps required by the procedure that required the removal of
the air baffle.
Remove a fan
CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless all
bays are populated with either a component or a blank.
56 Remove a fan
Procedure
While pressing the fan release latch, pull up the fan out of the bay.
Install the blank in fan bay 1
If the LTO tape drive or RDX drive options are installed, install the blank in fan bay 1. Make sure that the
blank is firmly seated in the bay.
Install the blank in fan bay 1 57
Remove the fan cage
Procedure
1. Remove the front bezel on page 43.
2. Power down the server on page 42.
3. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
4. Disconnect all peripherals cables from the server.
5. Do one of the following:
• Server in tower mode: Position the tower server for hardware configuration on page 45.
• Server in rack mode: Extend the server from the rack on page 47.
6. Remove the access panel on page 52.
7. Remove the fan cage:
a. Open the blue latches to a 90° angle.
b. Use the latches to pull up the fan cage out of the chassis.
58 Remove the fan cage
Install the fan cage
Procedure
1. Observe the guidelines for managing cables.
2. Make sure that all the system cables that are routed through the front cable channel are properly
secured in the metal cable tabs. This is done to prevent system damage due to cables being
inadvertently caught under the fan cage.

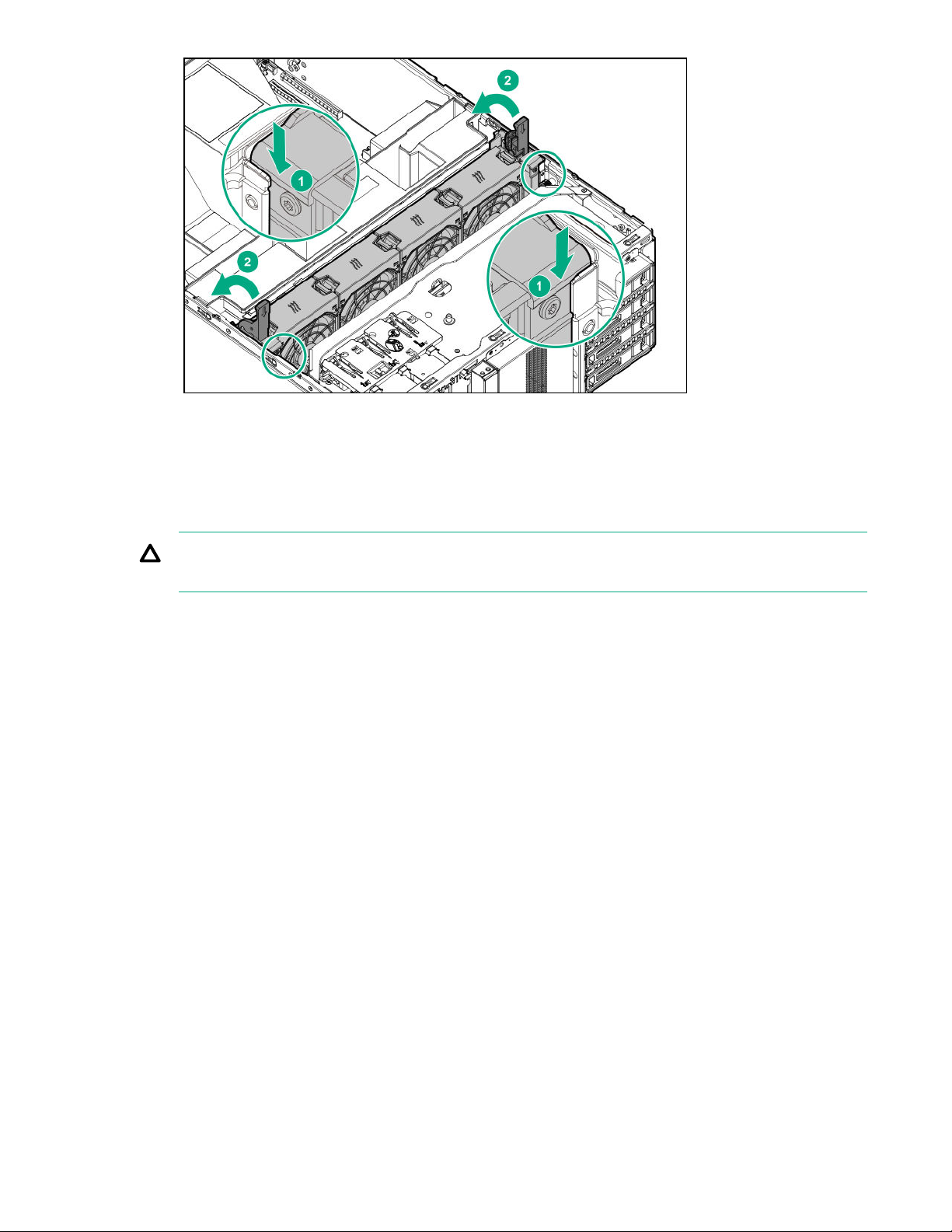

3. Install the fan cage:
a. Align the fan cage with its chassis brackets.
b. Close the latches until they click into place.
Install the fan cage 59
4. Perform the post-installation/maintenance steps required by the procedure that required the removal of
the fan cage.
Remove the half-height media bay blank
CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless all
bays are populated with either a component or a blank.
Procedure
While pressing the latch on the media bay blank, pull out the blank from the bay.
Retain the blank for future use.
60 Remove the half-height media bay blank
Remove the PCI blank retainer
Procedure
1. Perform the pre-installation steps required by the standup plug-in board installation.
2. Remove the PCI blank retainer:
a. Loosen the retainer thumbscrew.
b. Slide the retainer up, then remove it from the chassis.
Remove the PCI slot blank
CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless all
PCI slots have either an expansion slot cover or an expansion board installed.
Remove the PCI blank retainer 61
Procedure
1. Remove the PCI blank retainer on page 61.
2. Identify the expansion slot compatible with the option.
3. Pull up the blank opposite the selected expansion slot.
Remove a PCI board screw
Prerequisites
Before you perform this procedure, make sure that you have a T-15 Torx screwdriver available.
Procedure
If the standup plug-in board option kit does not include a screw for installation, remove one of the
preinstalled T-15 Torx screws underneath the PCI blank retainer deck.
62 Remove a PCI board screw
Install the PCI blank retainer
Procedure
1. Install the PCI blank retainer:
a. Insert the tabs on the top edge of the retainer into the corresponding slots on the chassis.
b. Slide down the retainer until the horizontal part is flushed against the top side of the slot blanks.
2. Tighten the retainer thumbscrew.
Install the PCI blank retainer 63
3. Perform the post-installation steps required by the standup plug-in board installation/removal.
Open the CMA cable clamps
Procedure
To secure or release the rear panel cables from the CMA, open the cable clamps.
Install the shipping hardware
If you intend to transport or ship a rack-installed server to a new location, make sure that the shipping
hardware is installed. The shipping hardware protects the server from vibration damage that might occur
during server shipment.
Prerequisites
Before you perform this procedure, make sure that you have the following items available:
64 Open the CMA cable clamps
• Shipping hardware from the tower-to-rack conversion kit:
◦ Shipping brackets (2)
◦ Shipping bracket screws (4)
◦ M5 square-hole cage nuts (4)
◦ Rear shipping screws (2)
• Cage nut insertion tool
• T-25 Torx screwdriver
• Phillips No. 2 screwdriver
Procedure
1. Open the front bezel on page 43.
2. Power down the server on page 42.
3. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
4. Disconnect all peripheral cables from the server.
5. Close the front bezel.
6. With the server installed in the rack, hold the shipping bracket against the rack column and note the
correct mounting locations for both the brackets and the cage nuts as shown in the following image.
7. Slide the server tray out of the rack:
a. Loosen the server tray thumbscrews.
b. Grasp the tray notch to slide the server out of the rack.
Operations 65
8. If you are installing the server in a square-hole rack, install the cage nuts. When installed, the flanges
on the cage nut should face the outside of the rack:
a. Hook the bottom flange of the cage nut in the rack hole.
b. Insert the tip of the insertion tool through the hole and hook the top flange of the cage nut.
c. Use the insertion tool to pull the cage nut through the hole until the top flange snaps into position.
9. Secure the front end of rack rails to the rack columns with the shipping brackets.
66 Operations
10. Secure the rear end of rack rails to the rack columns with the rear shipping screws.
Operations 67
Hardware options installation
This chapter provides detailed instructions on how to install hardware options.
For more information on supported options, see the product QuickSpecs on the HPE ProLiant ML350
Gen10 Server website at:
http://www.hpe.com/servers/ml350-gen10
To view the warranty for your server and supported options, see Warranty information on page 199.
Introduction
If more than one option is being installed, read the installation instructions for all the hardware options
and identify similar steps to streamline the installation process.
WARNING: To reduce the risk of personal injury from hot surfaces, allow the drives and the internal
system components to cool before touching them.
CAUTION: To prevent damage to electrical components, properly ground the server before
beginning any installation procedure. Improper grounding can cause electrostatic discharge.
Drive options
Drive guidelines
Depending on the configuration, the server supports SAS, SATA, and NVMe drives.
Observe the following general guidelines:
• The system automatically sets all drive numbers.
• If only one drive is used, install it in the bay with the lowest drive number.
For drive numbering, see Drive bay numbering on page 25.
• The NVMe SSD is a PCIe bus device. Devices attached to a PCIe bus cannot be removed without
allowing the device and bus to complete and cease the signal/traffic flow.
Do not remove an NVMe SSD from the drive bay while the Do not remove LED is flashing. The Do not
remove LED flashes to indicate that the device is still in use. Removal of the NVMe SSD before the
device has completed and ceased signal/traffic flow can cause loss of data.
• Drives with the same capacity provide the greatest storage space efficiency when grouped into the
same drive array.
Drive support information
Depending on the drive cage option installed, the server supports the following drive types:
• Non-hot-plug LFF SATA drives
• Hot-plug LFF SATA or SAS drives
68 Hardware options installation
• Hot-plug SFF SATA or SAS drives (using the Smart Carrier)
• Hot-plug NVMe SSDs (using the Smart Carrier NVMe)
The embedded HPE Smart Array S100i SR Gen10 Controller supports SATA drive installation. For SAS
support, connect the drive to a Smart Array Gen10 type-a or type-p controller option.
Installing an LFF non-hot-plug drive
Prerequisites
Before you perform this procedure:
• Make sure that the LFF non-hot-plug drive cage is available.
• Make sure that you have the following items available:
◦ LFF non-hot-plug drive option
◦ T-15 Torx screwdriver
Procedure
1. Remove the front bezel on page 43.
2. Power down the server on page 42.
3. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
4. Disconnect all peripheral cables from the server.
5. Do one of the following:
• Server in tower mode: Position the tower server for hardware configuration on page 45.
• Server in rack mode: Extend the server from the rack on page 47.
6. Remove the access panel on page 52.
7. Remove the air baffle on page 54.
8. If installed, remove the fan cage.
9. If the LFF non-hot-plug drive cage is already installed, do the following:
a. If there are drives already installed in the cage, disconnect the SATA-power split cable from the
drives.
b. Remove the drive cage.
Installing an LFF non-hot-plug drive 69
10. Remove the spare screws from the drive cage.
11. Install the drive.
12. Install the drive cage.
13. Observe the guidelines for managing cables.
14. Connect the drive SATA-power split cable to the drives and system board.
15. If the fan cage was removed, do the following:
a. Make sure that all the system cables that are routed through the front cable channel are properly
secured in the metal cable tabs. This is done to prevent system damage due to cables being
inadvertently caught under the fan cage.
b. Install the fan cage on page 59
16. Install the air baffle on page 55.
17. Install the access panel on page 53.
18. Do one of the following:
70 Hardware options installation
• Server in tower mode: Position the tower server for operation on page 46.
• Server in rack mode: Slide the server into the rack on page 51.
19. Connect all peripheral cables to the server.
20. Connect each power cord to the server.
21. Connect each power cord to the power source.
22. Power up the server on page 42.
23. Install the front bezel on page 44.
The installation is complete.
To configure arrays, see the HPE Smart Array SR Gen10 Configuration Guide at the Hewlett Packard
Enterprise website.
Installing an LFF hot-plug drive
CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless all
bays are populated with either a component or a blank.
Prerequisites
Before you perform this procedure:
• Make sure that the LFF hot-plug drive cage is installed.
• Make sure that the LFF hot-plug drive option is available.
Procedure
1. Open the front bezel on page 43.
2. Remove the drive blank.
3. Prepare the drive.
Installing an LFF hot-plug drive 71
4. Install the drive.
5. Determine the status of the drive from the drive LED definitions.
6. Close the front bezel.
The installation is complete.
To configure arrays, see the HPE Smart Array SR Gen10 Configuration Guide at the Hewlett Packard
Enterprise website.
Installing an SFF hot-plug drive
CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless all
bays are populated with either a component or a blank.
Prerequisites
Before you perform this procedure:
• Make sure that the SFF hot-plug drive cage is installed.
• Make sure that the SFF hot-plug drive option is available.
• If you are installing SFF SAS drives with 10K or 15K rpm rate, make sure that the fan cage is
installed.
Procedure
1. Open the front bezel on page 43.
2. Remove the drive blank.
72 Installing an SFF hot-plug drive
3. Prepare the drive.
4. Install the SFF drive.
5. Determine the status of the drive from the drive LED definitions.
6. Close the front bezel.
The installation is complete.
To configure arrays, see the HPE Smart Array SR Gen10 Configuration Guide at the Hewlett Packard
Enterprise website.
Installing an NVMe SSD
CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless all
bays are populated with either a component or a blank.
IMPORTANT: During high performance workloads, NVMe SSDs can cause the fans to operate at
high speeds to maintain optimum system cooling. This high-speed fan operation leads to a sound
pressure level of between 50 dB(A) to 55 dB(A). Hewlett Packard Enterprise recommends taking
this possible acoustic condition into consideration when selecting a site for a server that has NVMe
SSDs installed.
Installing an NVMe SSD 73
Prerequisites
Before you perform this procedure:
• Make sure that the fan cage is installed.
• Make sure that the NVMe SSD Express Bay cage is installed.
• Make sure that the NVMe SSD option is available.
Procedure
1. Open the front bezel on page 43.
2. If installing drives in bay 2-8, remove the drive blank.
3. Prepare the drive.
4. Install the drive.
5. Determine the status of the drive from the drive LED definitions.
6. Close the front bezel.
The installation is complete.
Most current operating systems provide an NVMe SSD driver natively. Use this native (inbox) driver to
configure and deploy NVMe SSDs.
74 Hardware options installation
The SmartSSD Wear Gauge reports in the HPE Smart Storage Administrator contain information about
the current usage level and remaining expected lifetime of SSDs attached to the system. For more
information, see the HPE Smart Array SR Gen10 Configuration Guide at the Hewlett Packard
Enterprise website.
Power supply options
Depending on the installed options and the regional location where the server was purchased, the server
can be configured with one of the following power supplies.
Hot-plug power supply calculations
For more information on the hot-plug power supply and calculators to determine server power
consumption in various system configurations, see the Hewlett Packard Enterprise Power Advisor website
(http://www.hpe.com/info/poweradvisor/online).
Power supply warnings and cautions
WARNING: To reduce the risk of electric shock or damage to the equipment:
• Do not disable the power cord grounding plug. The grounding plug is an important safety feature.
• Plug the power cord into a grounded (earthed) electrical outlet that is easily accessible at all
times.
• Unplug the power cord from the power supply to disconnect power to the equipment.
• Do not route the power cord where it can be walked on or pinched by items placed against it.
Pay particular attention to the plug, electrical outlet, and the point where the cord extends from
the server.
WARNING: To reduce the risk of injury from electric shock hazards, do not open power supplies.
Refer all maintenance, upgrades, and servicing to qualified personnel
WARNING: To reduce the risk of personal injury from hot surfaces, allow the drives and the internal
system components to cool before touching them.
CAUTION: To prevent damage to electrical components, properly ground the server before
beginning any installation procedure. Improper grounding can cause electrostatic discharge.
CAUTION: Mixing different types of power supplies in the same server might:
• Limit or disable some power supply features including support for power redundancy.
• Cause the system to become unstable and might shut down.
To ensure access to all available features, all power supplies in the same server should have the
same output and efficiency ratings. Verify that all power supplies have the same part number and
label color.
Power supply options 75
Install an AC power supply
WARNING: To reduce the risk of personal injury from hot surfaces, allow the power supply or power
supply blank to cool before touching it.
CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless all
bays are populated with either a component or a blank.
Procedure
1. If you are installing a power supply in the power supply bay 2, remove the power supply blank.
2. Slide the power supply into the bay until it clicks into place.
3. Connect the power cord to the power supply.
4. Secure the power cord in the strain relief strap attached to the power supply handle:
a. Unwrap the strain relief strap from the power supply handle.
76 Install an AC power supply
CAUTION: Avoid tight bend radii to prevent damaging the internal wires of a power cord or a
server cable. Never bend power cords and server cables tight enough to cause a crease in
the sheathing.
b. Secure the power cord with the strain relief strap. Roll the extra length of the strap around the
power supply handle.
5. Connect the power cord to the power source.
6. Make sure that the power supply LED is green.
Install a DC power supply
The following input power cord option might be purchased from an authorized Hewlett Packard Enterprise
reseller:
J6X43A—HPE 12 AWG 48 V DC 3.0 m Power Cord
If you are not using an input power cord option, the power supply cabling should be made in consultation
with a licensed electrician and be compliant with local code.
If you are replacing the factory installed ground lug, use the KST RNB5-5 crimp terminal ring or
equivalent. Use an M5-0.80 x 8 screw to attach the ground lug to the power input module.
WARNING: To reduce the risk of electric shock or energy hazards:
• This equipment must be installed by trained service personnel.
• Connect the equipment to a reliably grounded secondary circuit source. A secondary circuit has
no direct connection to a primary circuit and derives its power from a transformer, converter, or
equivalent isolation device.
• The branch circuit overcurrent protection must be rated 27 A.
WARNING: To reduce the risk of personal injury from hot surfaces, allow the power supply or power
supply blank to cool before touching it.
Install a DC power supply 77
CAUTION: This equipment is designed to permit the connection of the earthed conductor of the DC
supply circuit to the earthing conductor at the equipment.
If this connection is made, all of the following must be met:
• This equipment must be connected directly to the DC supply system earthing electrode
conductor or to a bonding jumper from an earthing terminal bar or bus to which the DC supply
system earthing electrode conductor is connected.
• This equipment must be located in the same immediate area (such as adjacent cabinets) as any
other equipment that has a connection between the earthed conductor of the same DC supply
circuit and the earthing conductor, and also the point of earthing of the DC system. The DC
system must be earthed elsewhere.
• The DC supply source is to be located within the same premises as the equipment.
• Switching or disconnecting devices must not be in the earthed circuit conductor between the DC
source and the point of connection of the earthing electrode conductor.
CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless all
bays are populated with either a component or a blank.
Procedure
1. If you are installing a power supply in the power supply bay 2, remove the power supply blank.
2. Remove the ring tongue.
78 Hardware options installation
3. Crimp the ring tongue to the ground cable from the -48 V DC power source.
4. Remove the terminal block connector.
Hardware options installation 79
5. Loosen the screws on the terminal block connector.
6. Attach the ground (earthed) wire to the ground screw and washer and tighten to 1.47 N m (13 lb-in)
of torque. The ground wire must be connected before the -48 V wire and the return wire.
The ground wire must be connected before the -48 V wire and the return wire.
80 Hardware options installation
7. Insert the -48 V wire into the left side of the terminal block connector, and then tighten the screw to
1.3 N m (10 lb-in) of torque.
8. Insert the return wire into the right side of the connector, and then tighten the screw to 1.3 N m (10
lb-in) of torque.
Hardware options installation 81
9. Install the terminal block connector in the power supply.
10. Secure the power cord, wires, and cables in the strain relief strap attached to the power supply
handle:
a. Unwrap the strain relief strap from the power supply handle.
CAUTION: Avoid tight bend radii to prevent damaging the internal wires of a power cord or
a server cable. Never bend power cords and server cables tight enough to cause a crease
in the sheathing.
b. Secure the power cord, wires, and cables with the strain relief strap. Roll the extra length of the
strap around the power supply handle.
82 Hardware options installation
11. Slide the power supply into the bay until it clicks into place.
12. Make sure the -48 V DC power source is off or the PDU breaker is in the off position, and then
connect the power cord to the -48 V DC power source or PDU.
13. Turn on the -48 V power source or switch the PDU breaker to the on position to supply -48 V to the
power supply.
14. Make sure that the power supply LED is green.
Tower-to-rack conversion kit
Use the tower-to-rack conversion kit to switch the tower server to rack mode operation. After the kit is
installed, complete in-rack serviceability for all server components is supported.
Kit contents
• Left and right rack rail assemblies
• Server tray
• Cable management arm
Tower-to-rack conversion kit 83
• Chassis rear bracket screws (3)
• Shipping hardware – Install these hardware only if you intend to transport or ship a rack-installed
server to a new location.
◦ Shipping brackets (2)
◦ Shipping bracket screws (4)
◦ M5 square-hole cage nuts (4)
◦ Rear shipping screws (2)
Installing the tower-to-rack conversion kit
In this procedure, left and right terminology is from the perspective of a user facing the front of the rack.
Procedure
1. Review the rack warnings and cautions.
2. If the server is currently used in tower mode, prepare the server for rack installation.
3. Install the rack rails and server tray on page 85.
4. Install the server on the tray on page 88.
5. Install the cable management arm on page 90.
Prepare the server for rack installation
Prerequisites
Before you perform this procedure:
• Make sure that the fan cage option is installed.
• Make sure that you have a T-15 Torx screwdriver available.
Procedure
1. Open the front bezel on page 43.
2. Power down the server on page 42.
3. Close the front bezel.
4. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
5. Disconnect all peripherals cables from the server.
6. If installed, unlock and remove the security padlock and/or the Kensington security lock.
For more information, see the lock documentation.
84 Installing the tower-to-rack conversion kit
7. Position the tower server for hardware configuration on page 45.
8. Remove the chassis feet.
a. Loosen the screws on the chassis.
b. Detach the chassis feet.
Install the rack rails and server tray
These rack rails can be installed in both round- or square-hole racks.
Prerequisites
Before you perform this procedure, make sure that you have the following items available:
• Left and right rack rail assemblies – These rails occupy 1U position on the rack.
• Server tray
• T-15 Torx screwdriver
Procedure
1. Disassemble the rail assemblies:
a. Pull out the inner rail until it is fully extended .
b. Slide and hold the white release tab in the direction shown, and then remove the inner sliding rail
from the outer mounting rail.
Install the rack rails and server tray 85
c. Repeat steps a–b on the other rail assembly.
2. Install the sliding rails on the server tray:
a. Align the notches on the rail with the pins on the side.
b. Slide the rail towards the rear of the tray to lock it into place.
c. Repeat steps a–b on the other inner rail.
3. Locate the orientation markers on the mounting rails:
• The front end of the rails is marked FRONT.
• The rear end of the rails is marked with L for left and R for right.
86 Hardware options installation
4. Fasten the mounting rails to the rack columns:
a. Retract and hold the rear retention bracket.
b. Insert the pegs on the mounting flange into the rack holes.
c. Release the rear retention bracket.
d. Retract and hold the front retention bracket.
e. Insert the pegs on the mounting flange into the rack holes.
f. Release the front retention bracket.
Hardware options installation 87
g. Repeat steps a-f to fasten the other mounting rail.
h. Make sure that both rails are mounted at the same vertical position on both sides of the rack.
5. Slide the server tray into the rack.
The rails will click and lock into place when the tray is properly engaged.
Install the server on the tray
Prerequisites
Before you perform this procedure, make sure that you have a T-15 Torx screwdriver available.
Procedure
1. Grasp the tray notch to slide the tray out of the rack.
88 Install the server on the tray
2. Place the server on the tray.
The rear panel of the server should be flushed against the rear bracket on the tray
3. Install the chassis rear bracket screws.
Hardware options installation 89
4. Press and hold the blue rail-release tabs, and then slide the tray back into the rack.
Install the cable management arm
The cable management arm allows the server to be fully extended from the rack without the need to
power off the system or disconnect any rear panel cables. This CMA is designed for ambidextrous
implementation.
CAUTION: Support the CMA during the installation. Do not allow the CMA to hang by its own weight
until it is secured from all three connection points.
Procedure
1. Connect all peripheral cables and power cords to the rear panel.
2. Install the CMA:
90 Install the cable management arm
a. Fasten the inner retention connector to left sliding rail hook.
b. Fasten the outer retention connector to left mounting rail hook.
c. Fasten the hinged connector to right mounting rail hook.
3. Open the cable clamps.
4. Route the rear panel cables and power cords though the CMA, and then close the cable clamps.
Employ industry best practices in routing and managing these rear panel cables and power cords.
Hardware options installation 91
5. Verify the operation of the rack rails and the CMA:
Two people might be needed for this procedure: one to slide the server tray in and out of the rack,
and the other to observe the cables and CMA.
a. Fully extend the server tray out of the rack.
b. Check that there is enough slack in the cables and cords to allow for full extension of the CMA
without any cable binding or crimping.
c. Slide the server tray in and out of the rack to make sure that the cables and the CMA are working
properly.
6. Press and hold the blue rail-release tabs, and then slide the tray back into the rack.
7. Tighten the server tray thumbscrews.
92 Hardware options installation
8. Do one of the following:
• If the purpose of the conversion kit installation is to switch the server to rack mode operation,
power up the server.
• If the purpose of the conversion kit installation is to ship a rack-installed server, install the
shipping hardware
9. Connect each power cord to the power source.
10. Power up the server on page 42.
The installation is complete.
Drive cage options
The server supports several drive cage options. If the maximum number of drives are installed in all three
drive boxes, the fan cage option is required.
4 LFF non-hot-plug drive cage option
The server supports the 4 LFF non-hot-plug drive cage option. This option:
• Can be installed in boxes 1–3
• Cannot be installed together with the 4 LFF and 8 SFF hot-plug drive cage options
• Supports SATA drives only
Kit contents
• 4 LFF non-hot-plug drive cage
• SATA-power split cable
• T-15 screws (20) – There are four loose screws in the kit, plus 16 screws preinstalled on top of the
drive cage.
Drive cage options 93
Installing the 4 LFF non-hot-plug drive cage
Prerequisites
Before you perform this procedure, make sure that you have the following items available:
• Drive cage option kit
• LFF non-hot-plug drive option
• T-15 Torx screwdriver
Procedure
1. Remove the front bezel on page 43.
2. Power down the server on page 42.
3. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
4. Disconnect all peripheral cables from the server.
5. Do one of the following:
• Server in tower mode: Position the tower server for hardware configuration on page 45.
• Server in rack mode: Extend the server from the rack on page 47.
6. Remove the access panel on page 52.
7. Remove the air baffle on page 54.
8. If installed, remove the fan cage.
9. Do one of the following:
If the drive cage is to be installed in box 1, remove the media bay blanks.
94 Installing the 4 LFF non-hot-plug drive cage
Retain the blanks for future use.
If the drive cage is to be installed in box 2 or 3, remove the drive cage blank.
Retain the blank for future use.
10. Install the LFF non-hot-plug drives.
11. Install the drive cage.
Hardware options installation 95
12. Observe the guidelines for managing cables.
13. Connect the drive SATA-power split cable to the drives and system board.
14. If the fan cage was removed, do the following:
a. Make sure that all the system cables that are routed through the front cable channel are properly
secured in the metal cable tabs. This is done to prevent system damage due to cables being
inadvertently caught under the fan cage.
b. Install the fan cage on page 59
15. Install the air baffle on page 55.
16. Install the access panel on page 53.
17. Do one of the following:
• Server in tower mode: Position the tower server for operation on page 46.
• Server in rack mode: Slide the server into the rack on page 51.
18. Connect all peripheral cables to the server.
19. Connect each power cord to the server.
20. Connect each power cord to the power source.
21. Power up the server on page 42.
22. Install the front bezel on page 44.
The installation is complete.
4 LFF hot-plug drive cage option
The server supports the 4 LFF drive cage option. This option:
96 4 LFF hot-plug drive cage option
• Can be installed in boxes 1–3
• Cannot be installed together with the 8 SFF hot-plug drive cage option
• Supports SATA or SAS drives depending on the storage controller used
Kit contents
• 4 LFF hot-plug drive cage
• LFF drive blanks (4, preinstalled in the drive cage)
• Drive power cable
• T-15 Torx screws (4)
Installing the 4 LFF hot-plug drive cage
Prerequisites
Before you perform this procedure, make sure that you have the following items available:
• Drive cage option kit
• Storage controller cable option
• LFF hot-plug drive option
• T-15 Torx screwdriver
Procedure
1. Remove the front bezel on page 43.
2. Power down the server on page 42.
3. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
4. Disconnect all peripheral cables from the server.
5. Do one of the following:
• Server in tower mode: Position the tower server for hardware configuration on page 45.
• Server in rack mode: Extend the server from the rack on page 47.
6. Remove the access panel on page 52.
7. Remove the air baffle on page 54.
8. If installed, remove the fan cage.
Installing the 4 LFF hot-plug drive cage 97
9. Do one of the following:
If the drive cage is to be installed in box 1, remove the media bay blanks.
Retain the blanks for future use.
If the drive cage is to be installed in box 2 or 3, remove the drive cage blank.
Retain the blank for future use.
10. Install the drive cage.
98 Hardware options installation
11. Observe the guidelines for managing cables.
12. Connect the drive cables:
• Storage controller cable
• Drive power cable
13. If the fan cage was removed, do the following:
a. Make sure that all the system cables that are routed through the front cable channel are properly
secured in the metal cable tabs. This is done to prevent system damage due to cables being
inadvertently caught under the fan cage.
b. Install the fan cage on page 59
14. Install the air baffle on page 55.
15. Install the access panel on page 53.
16. Do one of the following:
• Server in tower mode: Position the tower server for operation on page 46.
• Server in rack mode: Slide the server into the rack on page 51.
17. Connect all peripheral cables to the server.
18. Connect each power cord to the server.
19. Connect each power cord to the power source.
20. Power up the server on page 42.
21. Install the LFF hot-plug drives.
22. Install the front bezel on page 44.
The installation is complete.
Hardware options installation 99
8 SFF hot-plug drive cage option
The server supports the 8 SFF hot-plug drive cage option. This option:
• Can be installed in boxes 1–3
• Cannot be installed together with the 4 LFF non-hot-plug or hot-plug drive cage options
• Supports SATA or SAS drives depending on the storage controller used
Kit contents
• 8 SFF hot-plug drive cage
• SFF drive blanks (8, preinstalled in the drive cage)
• Drive power cable
• T-15 Torx screws (4)
Installing the 8 SFF hot-plug drive cage
Prerequisites
Before you perform this procedure, make sure that you have the following items available:
• Drive cage option kit
• Storage controller cable option
• SFF hot-plug drive option
• T-15 Torx screwdriver
Procedure
1. Remove the front bezel on page 43.
2. Power down the server on page 42.
3. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
4. Disconnect all peripheral cables from the server.
5. Do one of the following:
• Server in tower mode: Position the tower server for hardware configuration on page 45.
• Server in rack mode: Extend the server from the rack on page 47.
6. Remove the access panel on page 52.
7. Remove the air baffle on page 54.
8. If installed, remove the fan cage.
100 8 SFF hot-plug drive cage option
